IW-RJ448-05
High Density 4U JBOD

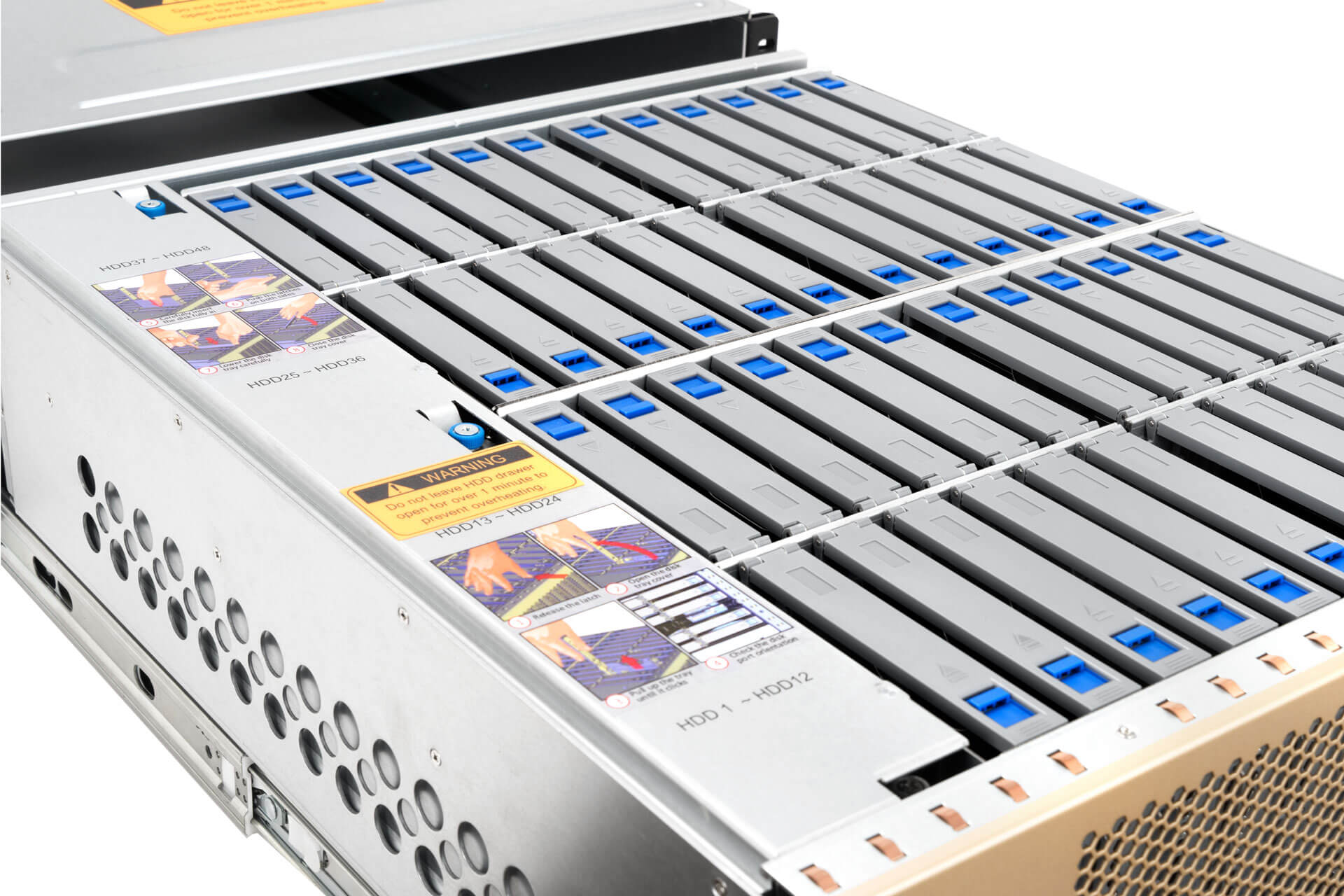

．Top-load design supports 48x hot-swap 3.5" LFF dual-port SAS bays in a 4U JBOD enclosure
．Tool-less HDD captive tray slots for quick maintenance
．UI for remote system management (via GbE port)

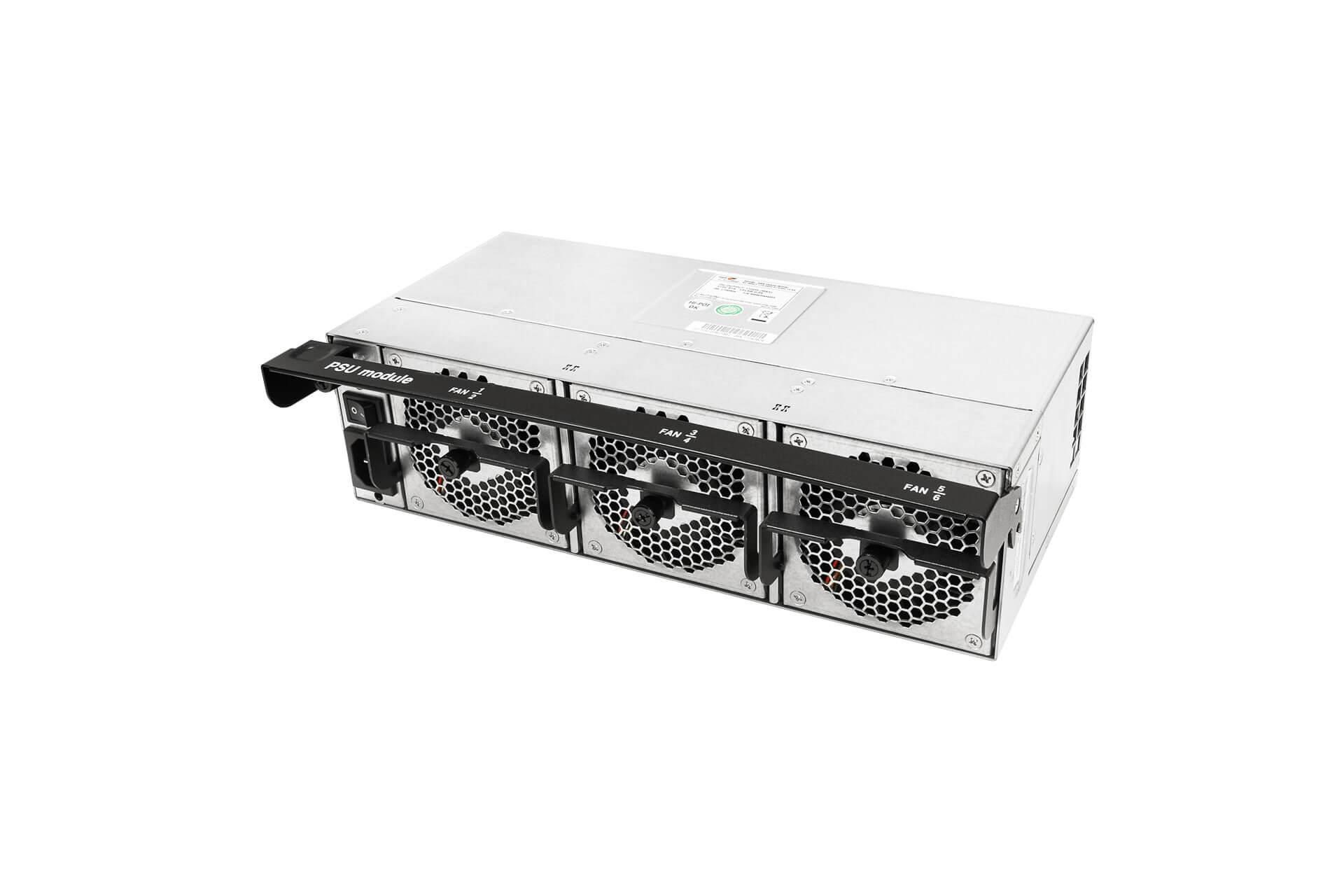

．1100W PSU + FAN modules with individual hot-swappable fan modules
．Opposite-facing HDD bays to offset torques and minimizes rotation vibration aggregation
．Hot-swappable, exhaust cooling modules for optimal airflow and cooling-efficiency
．Compatible with 900mm deep cabinets

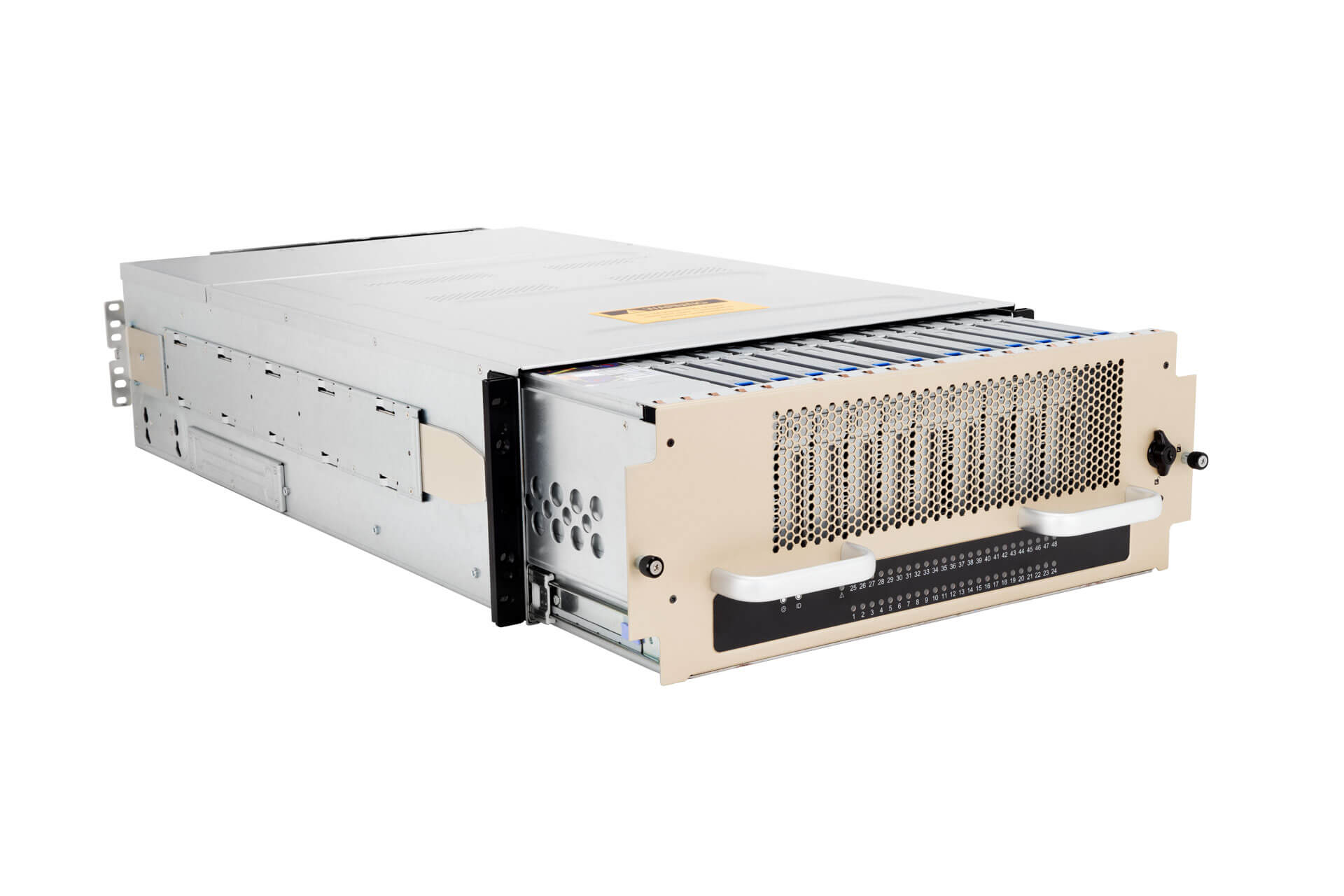

．Lockable security HDD drawer
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| Storage | External hot-swap 3.5" x 48 (SAS 12Gbps) |
| Power Supply | PSU & fan modules, supports: • Form Factor: high-efficiency redundant PSU • Watt: 1100W |

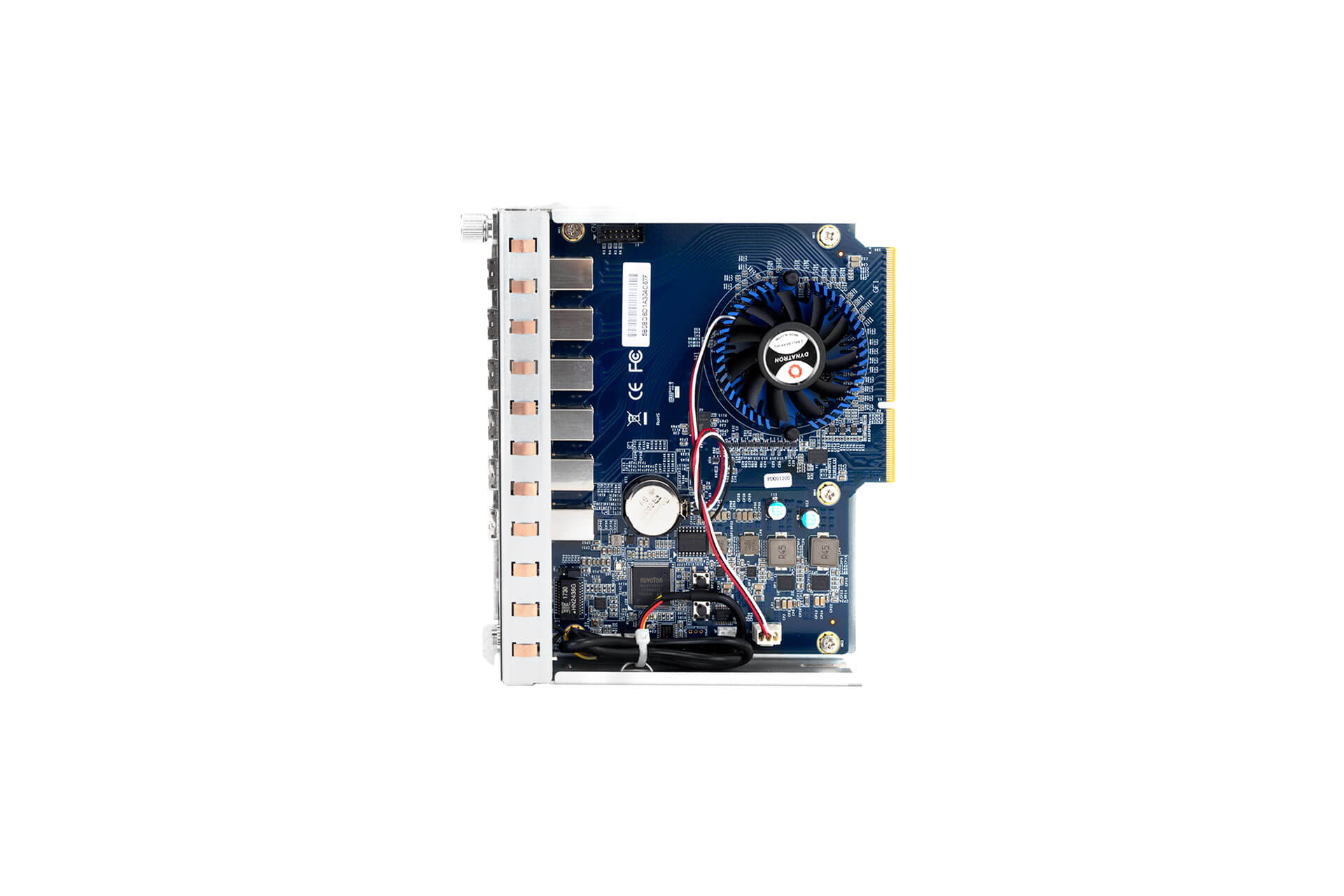

| 12G Expander Module | 1 or 2 |
| Cooling Fans | PSU & fan modules, 80 x 38mm PWM x 6 |

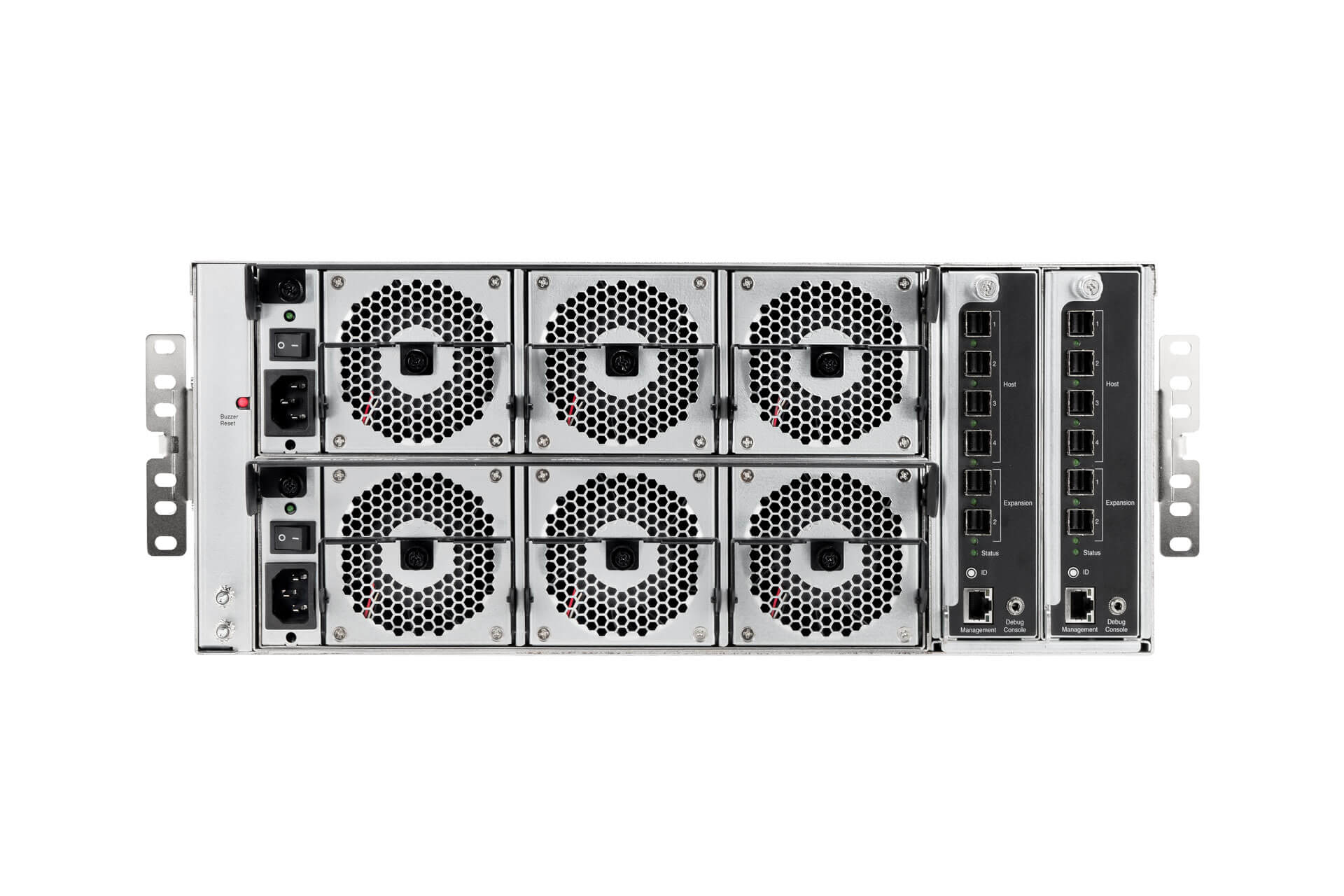

| Host/Expansion Port | 6 x Mini SAS HD (SFF-8644) for each 12G expander module |
| Management | Smart fan, thermal monitor, HDD monitor, voltage monitor, alarm warning |
| SES | Supports SES-2 (SCSI enclosure service) |
| Maintenance | Supports management by ethernet (optional) and RS-232 |
| HDD Power Management | HDD sequential power on |
| Temperature | 0ºC to 35ºC |
| Material | • Material: SGCC • Thickness: 1.6mm |
| Rail Kit | Fixed rail blade |
| Product Dimensions (DxWxH; Chassis Only) | 736.6 x 482.6 x 176mm (29" x 19" x 7") |
| Package Dimensions (DxWxH) | 1180 x 670 x 457mm |
| Weight | • Net weight:50.33kg • Gross weight: 59.71kg |
| Cubic Feet | 12.76 |
| Container Information | Single packing with pallets: • 20': 24pcs • 40': 60pcs |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
