server system assembly
IW-RJ460-05

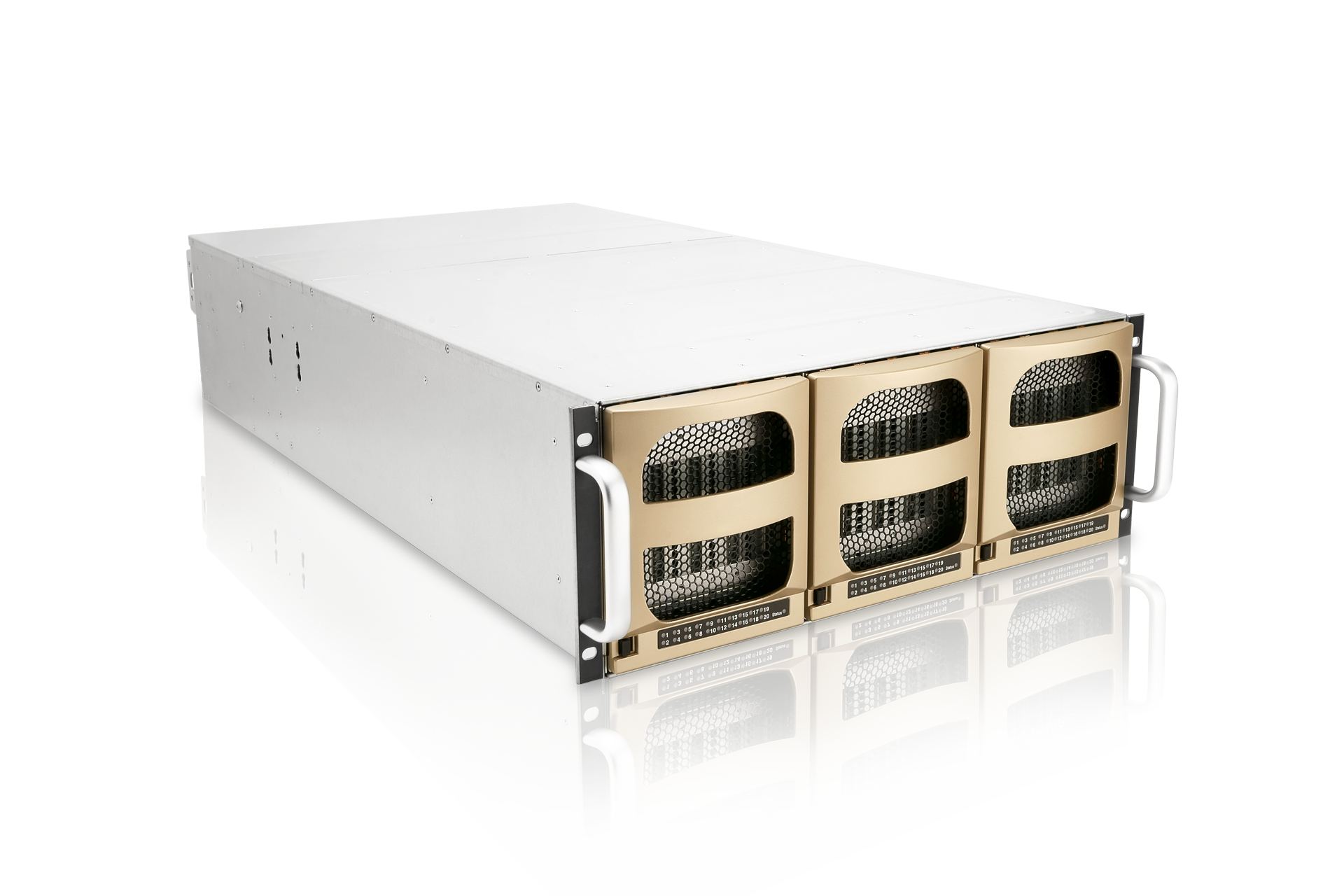

High Density 4U JBOD

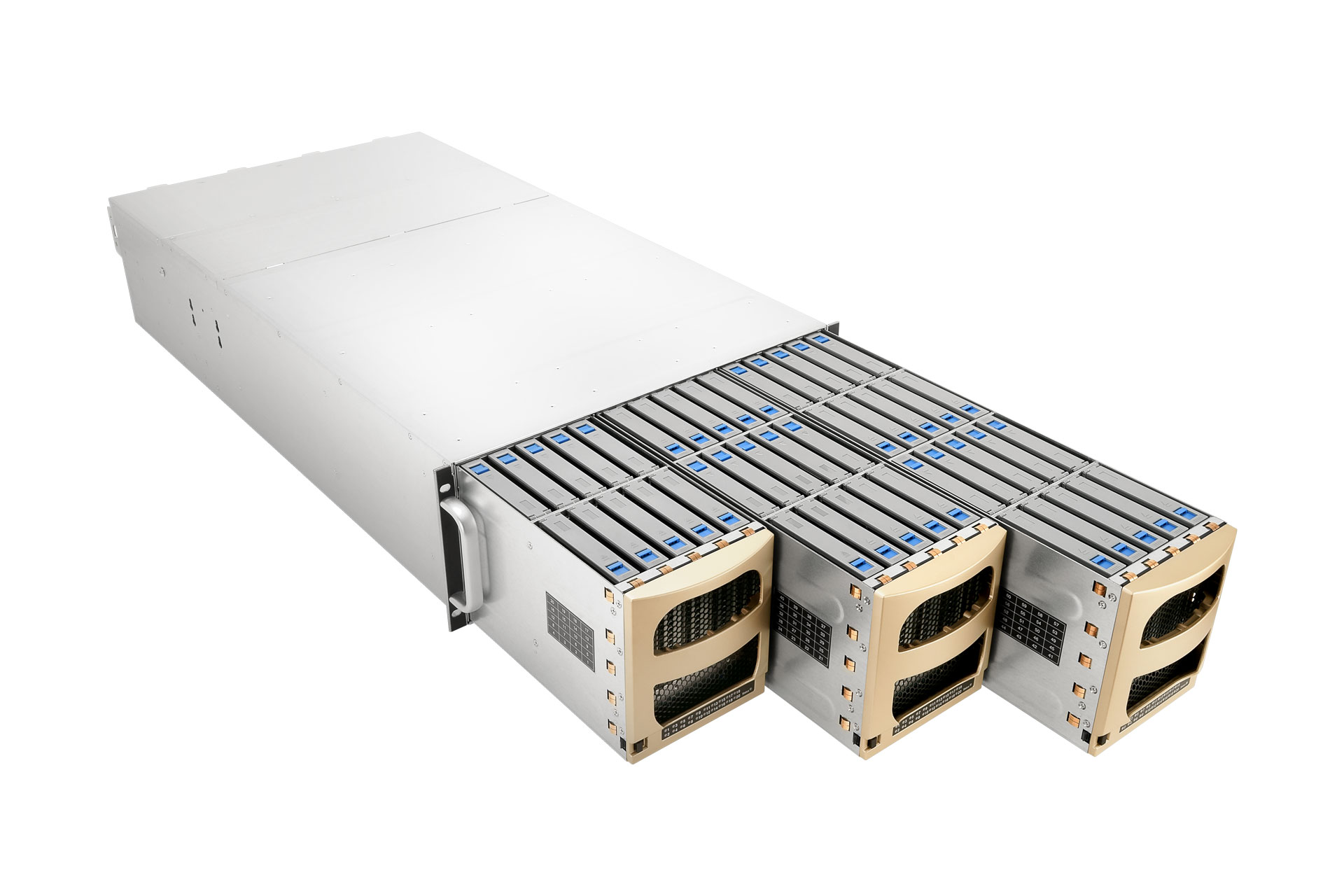

．Top-load design supports 60x hot-swap 3.5" SAS hard drive bays in 3 drawer cages

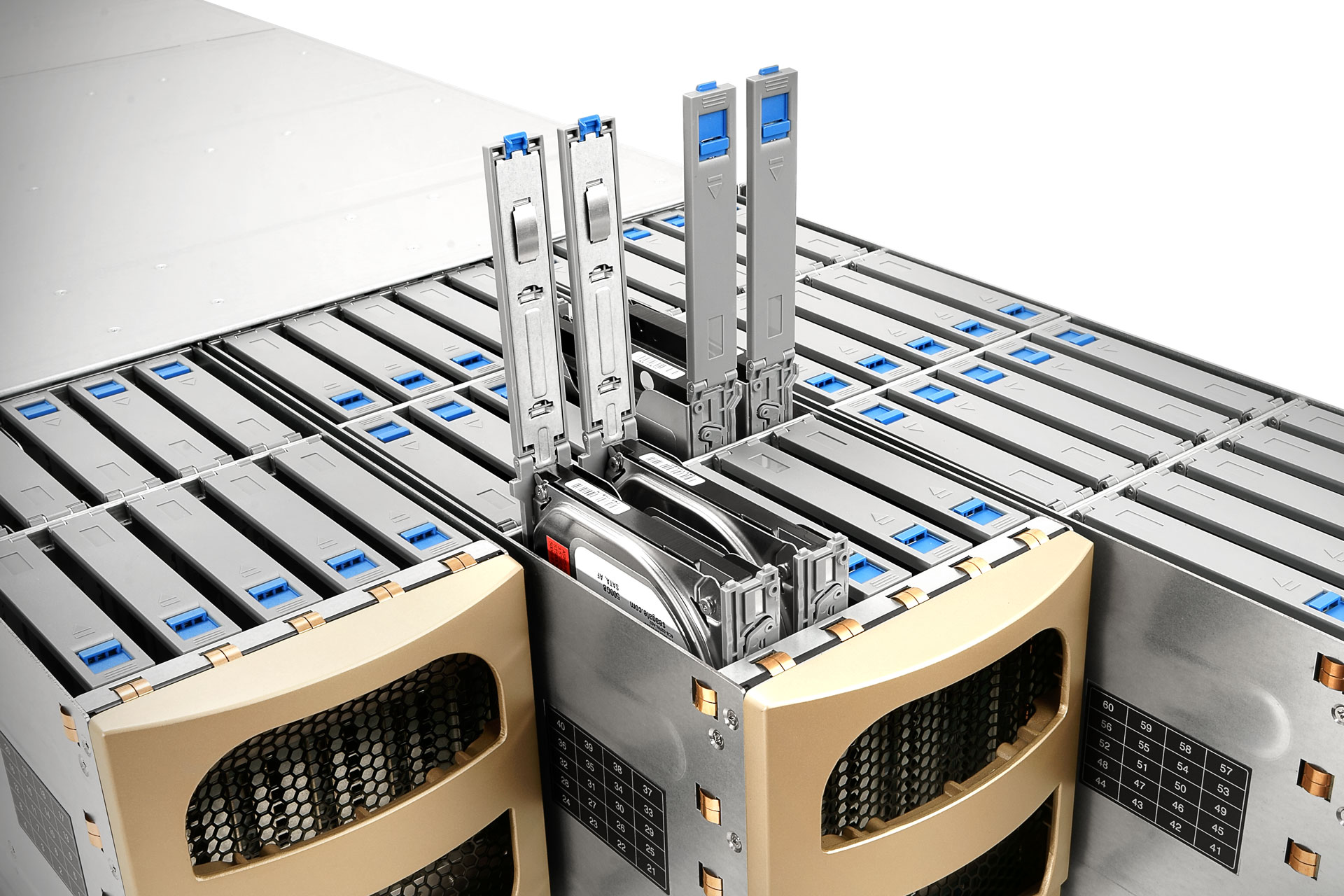

．Tool-less HDD tray with captive slots and individually extracted drawers for quick maintenance
．Features internal cable management arm behind each HDD drawer for easy access to entire storage bay
．UI for remote system management (via GbE port)

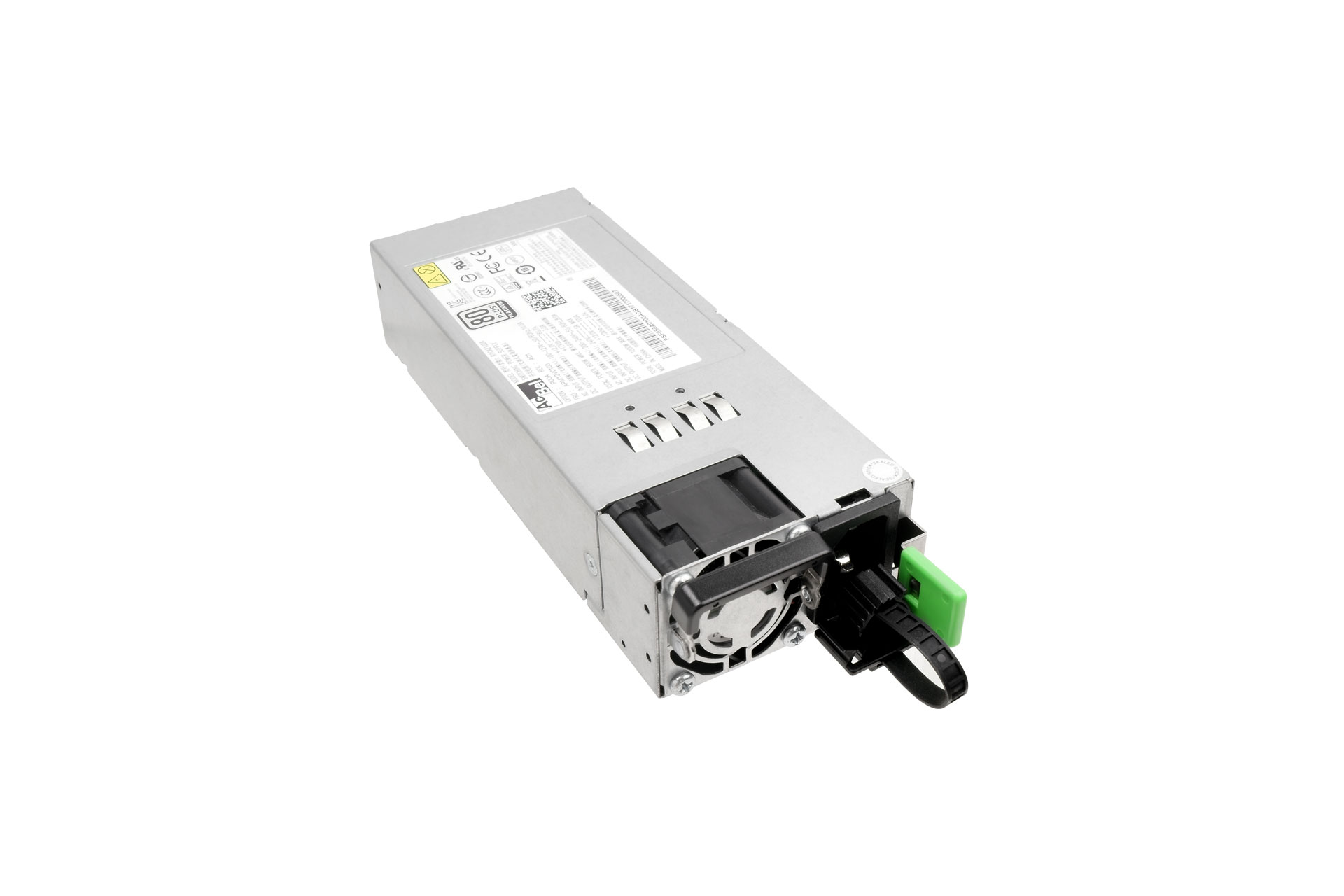

．Dual 1200W platinum-level CRPS power supply modules for 1+1 redundancy
．Opposite-facing HDD bays to offset torques and minimizes rotation vibration aggregation

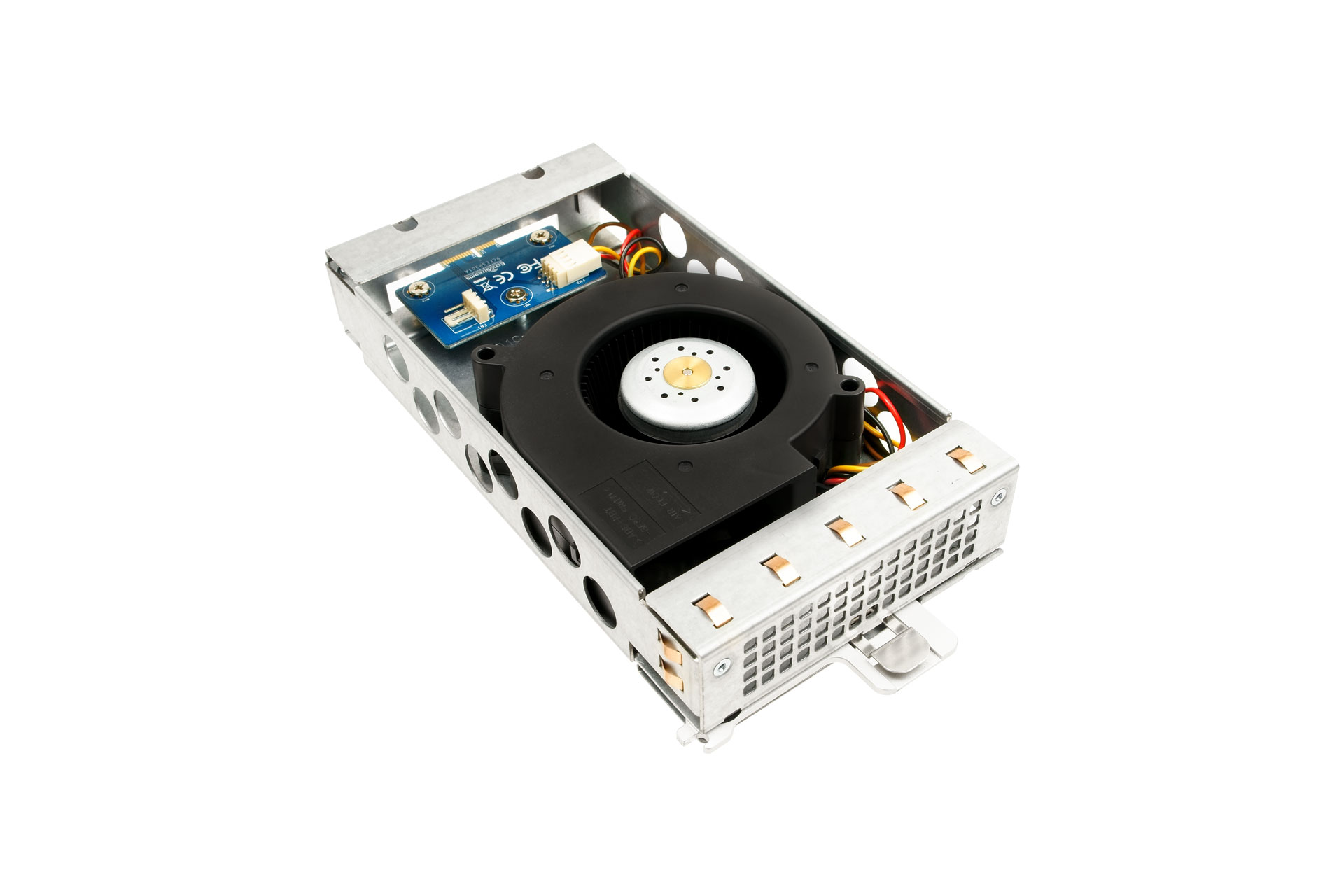

．Ultra-high static pressure, hot-swappable, exhaust blower modules for optimal airflow and cooling-effiency
．Compatible with 900mm deep cabinets
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| Storage | External hot-swap 3.5" x 60 (SAS 12Gbps, 20 bays in per-drawer) |
| Power Supply | Supports: • Form factor: 80 Plus Platinum CRPS redundant with PDB cable management • Watt: 1200W |

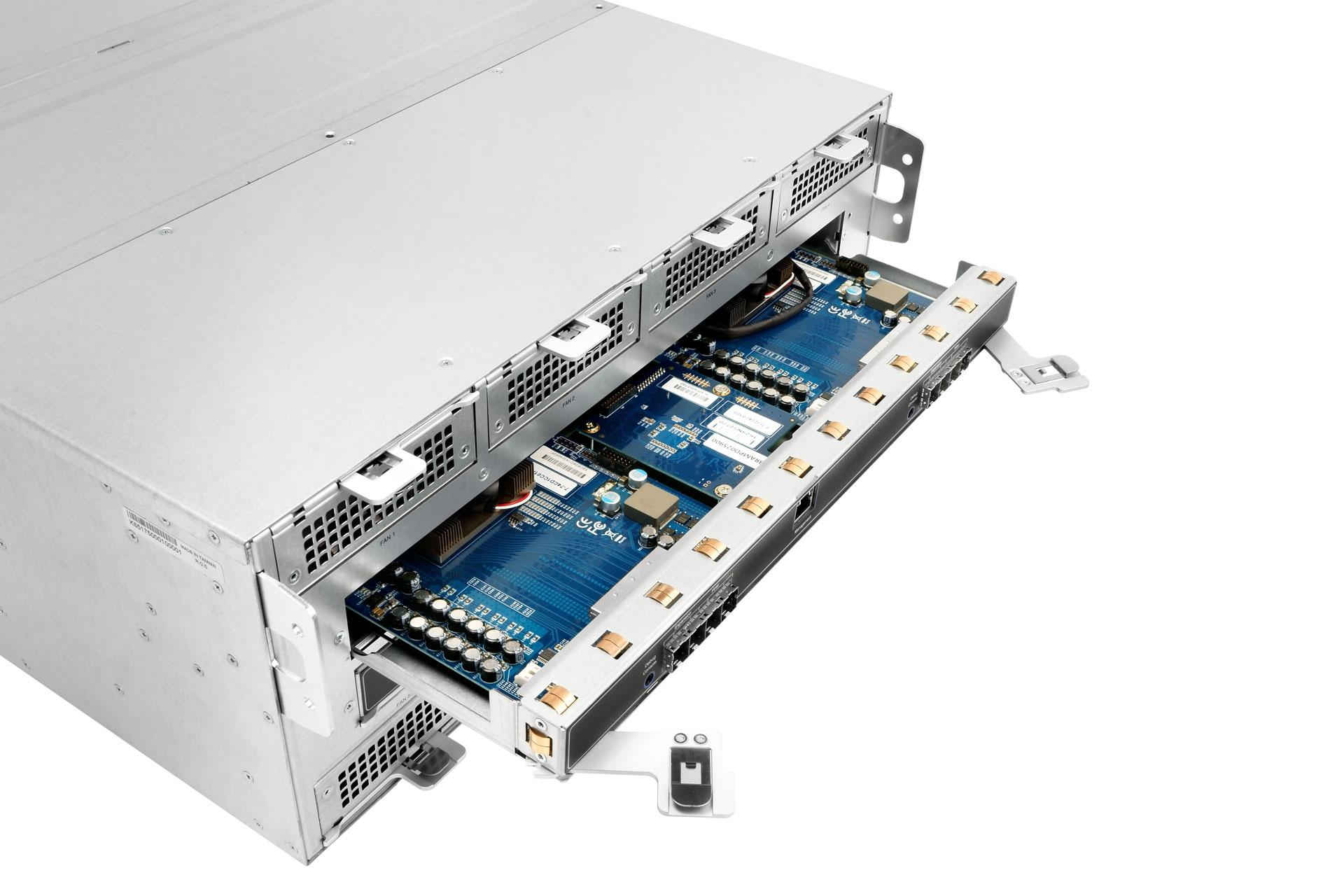

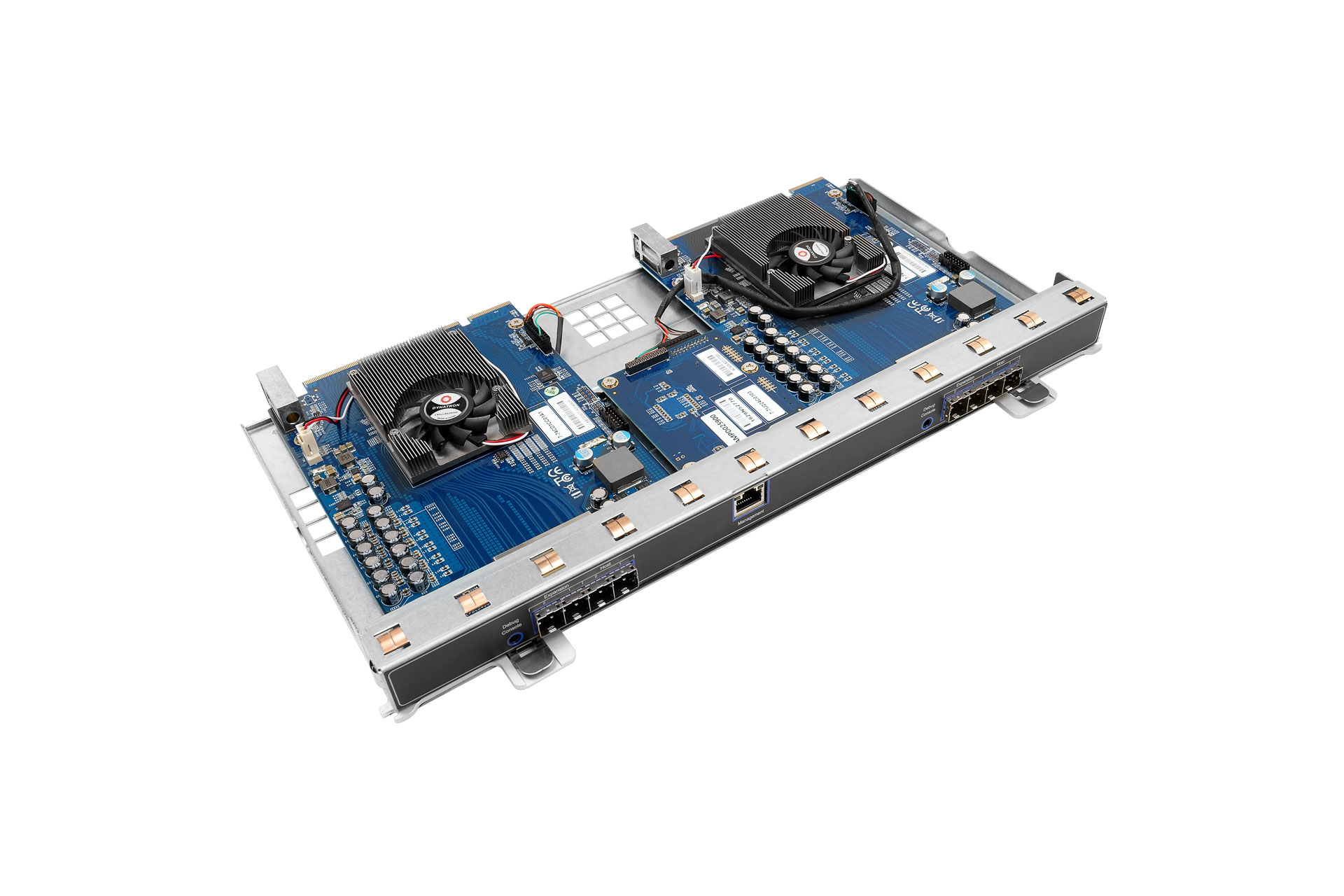

| 12G Expander Module | 1 or 2 |
| Cooling Fans | 97 x 33mm blower x 6 |
| Host/Expansion Port | 8 x Mini SAS HD (SFF-8644) for each 12G expander module |
| Management | Smart fan, thermal monitor, HDD monitor, voltage monitor, alarm warning |
| SES | Supports SES-2 (SCSI enclosure service) |
| Maintenance | Supports management by ethernet (optional) and RS-232 |
| HDD Power Management | HDD sequential power on |
| Temperature | 0ºC to 35ºC |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Fixed rail blade |
| Product Dimensions (DxWxH; Chassis Only) | 812.8 x 482.6 x 176mm (32" x 19" x 7") |
| Package Dimensions (DxWxH) | 1230 x 630 x 450mm |
| Weight | • Net weight:68.03kg • Gross weight: 77.32kg |
| Cubic Feet | 12.31 |
| Container Information | Single packing with pallets: • 20': 26pcs • 40': 54pcs |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.
