IW-RJ460-08
High Density 4U JBOD
．Top-load 2.5"/3.5" hot-swap HDD trays x 60 support SAS/SATA transfer speed.
．Cross-position trays to limit vibrations caused by HDDs.
．Dual-path storage for high-availability systems.
．Modular design, lower complexity, fast and easy maintenance.
．Generating intensive airflow by using four 80 x 38mm PMW hot-swap fans.
．Web-based GUI provides the easiest way to manage JBOD system.
．CRPS 1200W 80 Plus® Platinum certified.
．Compatible with 900mm deep cabinets.

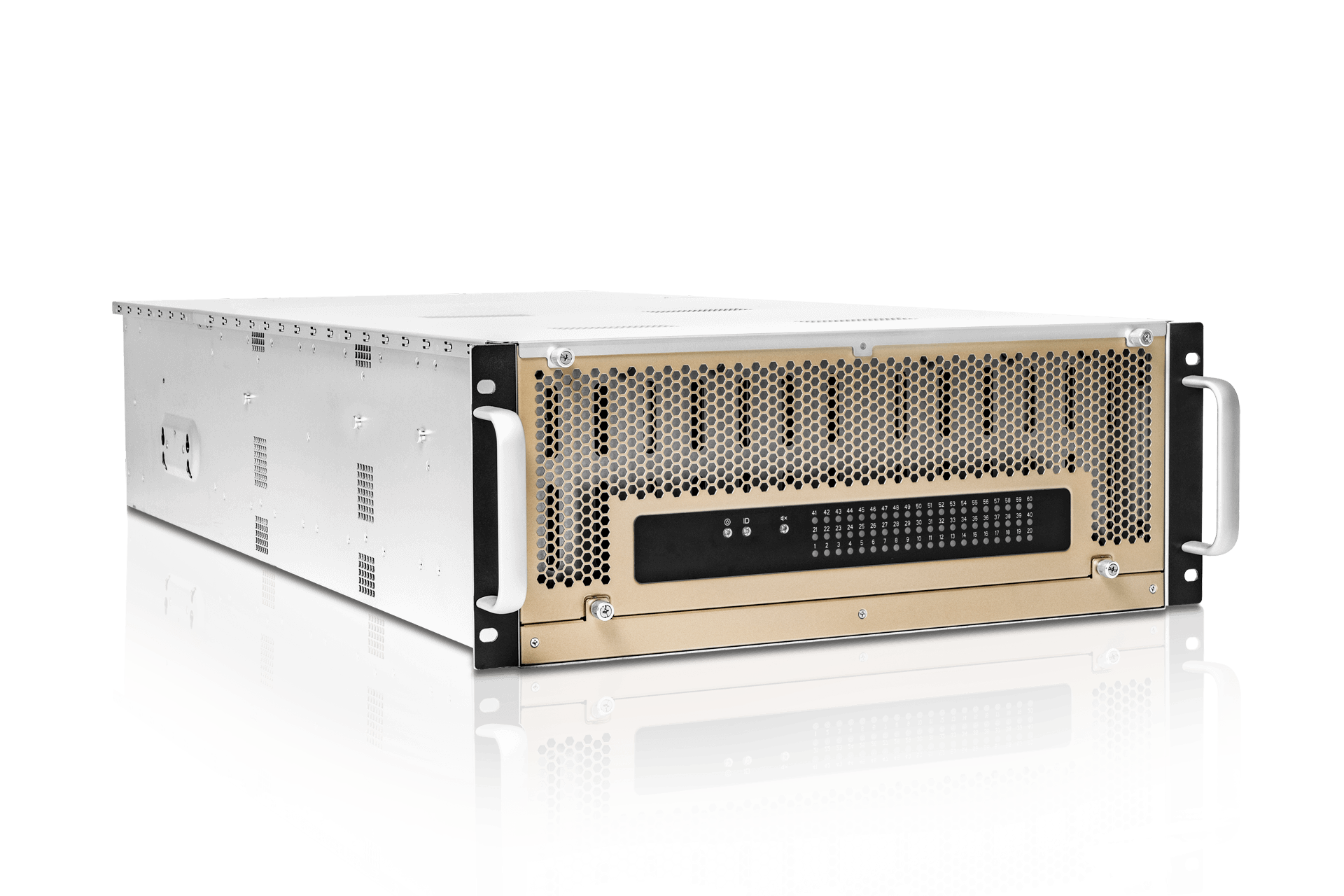

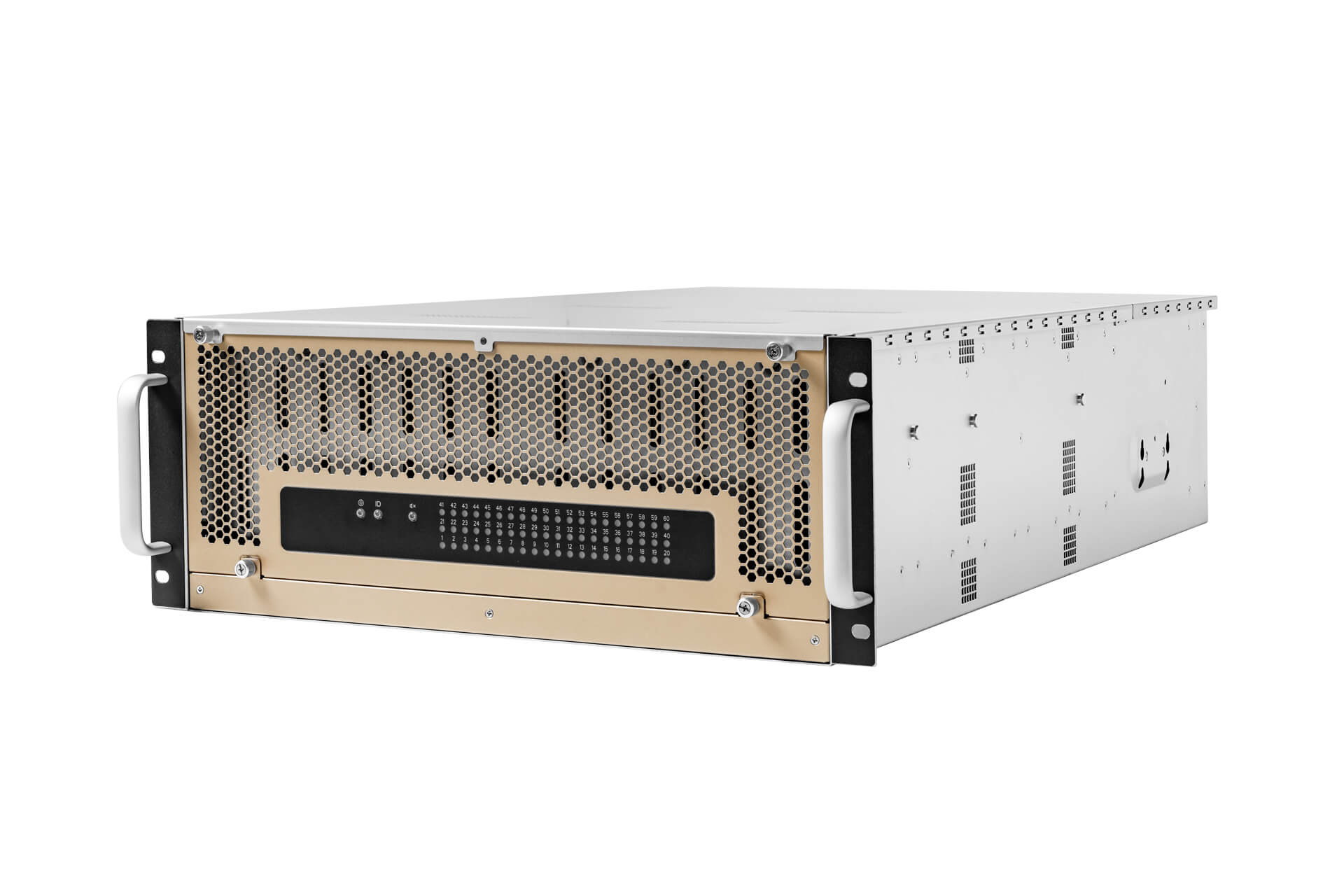

4U High Density JBOD Enclosure
Securely containing, stabilizing, and stacking data
The IW-RJ460-08 facilitates modular arrangement with its high-density trays. The exclusively designed backplane is available in two options: SAS4 (24 Gb/s) or SAS3 (12 Gb/s), supporting a storage capacity of up to 60 bays. It’s capable of processing a large amount of data in sequence and place it quickly and properly for storage.
CRPS
80 x 38 mm fans x4
Bulk Mass Capacity Design

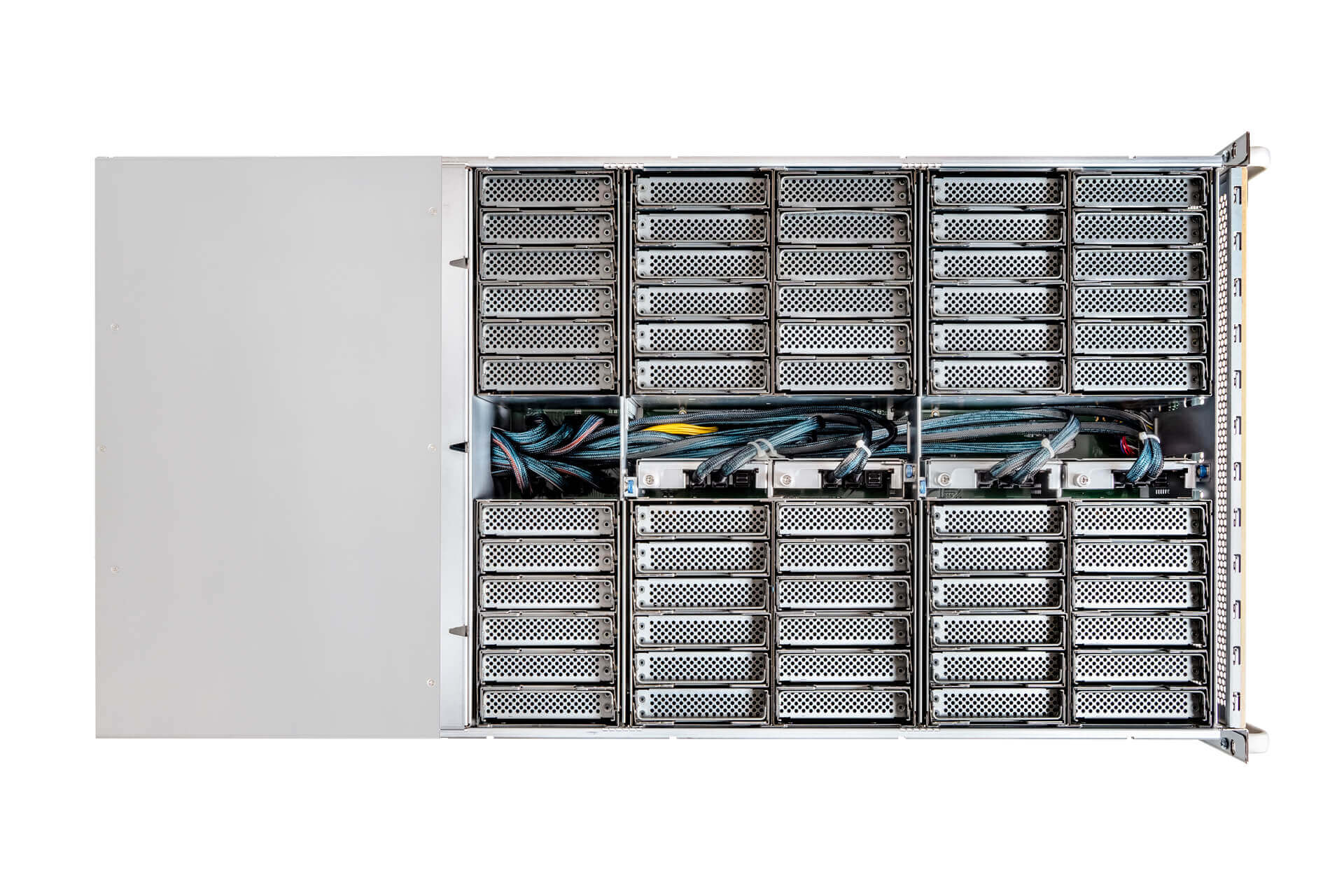

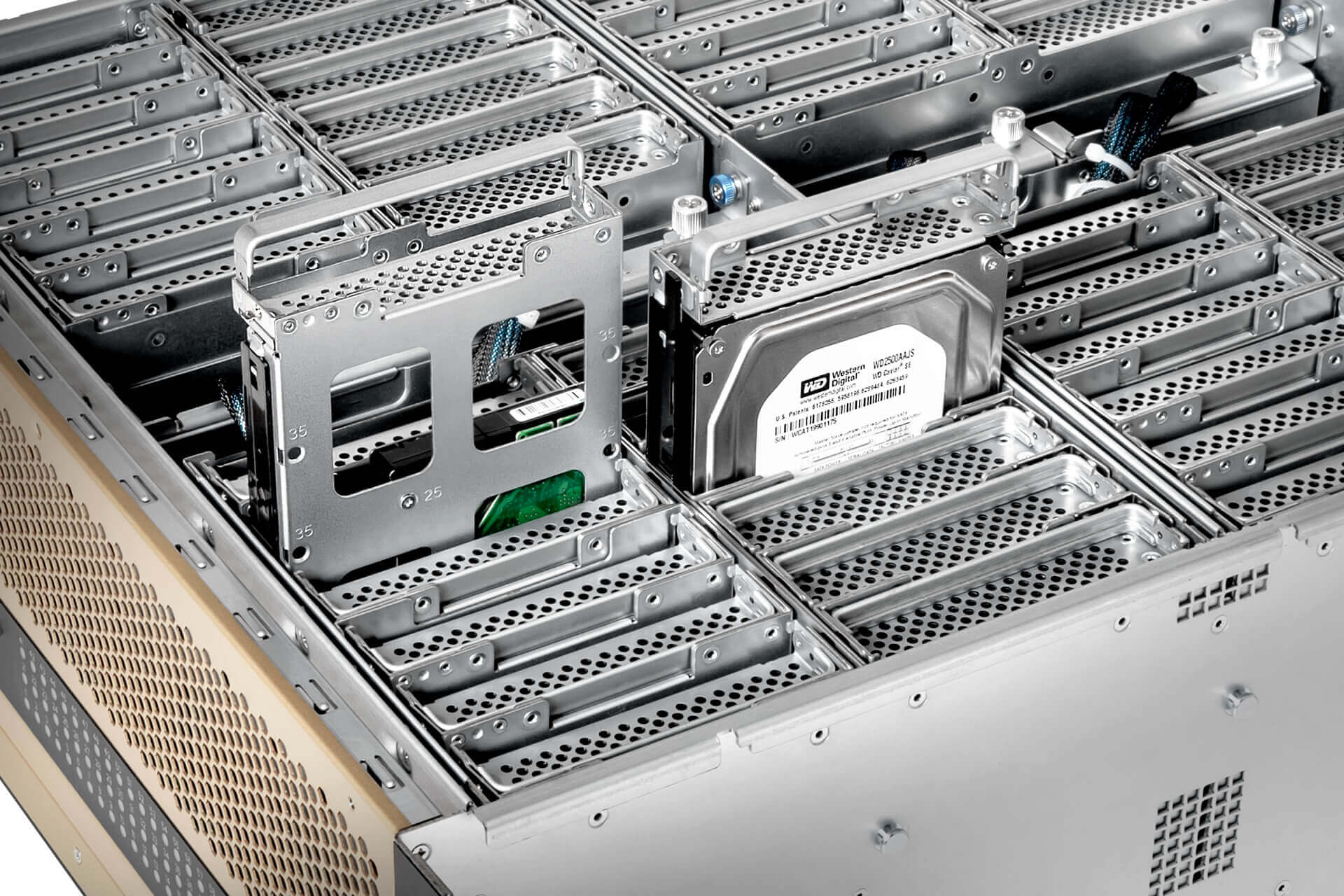

Top-loading, quick fold, 90° holder that enables simple install 2.5"/3.5" HDDs. With contracted, high-density design, the IW-RJ460-08 can provide more efficient space management and allow maximum capacity up to 60 bays.
To minimize vibrations generated by the HDDs, the drives and trays are strategically arranged by cross-position.

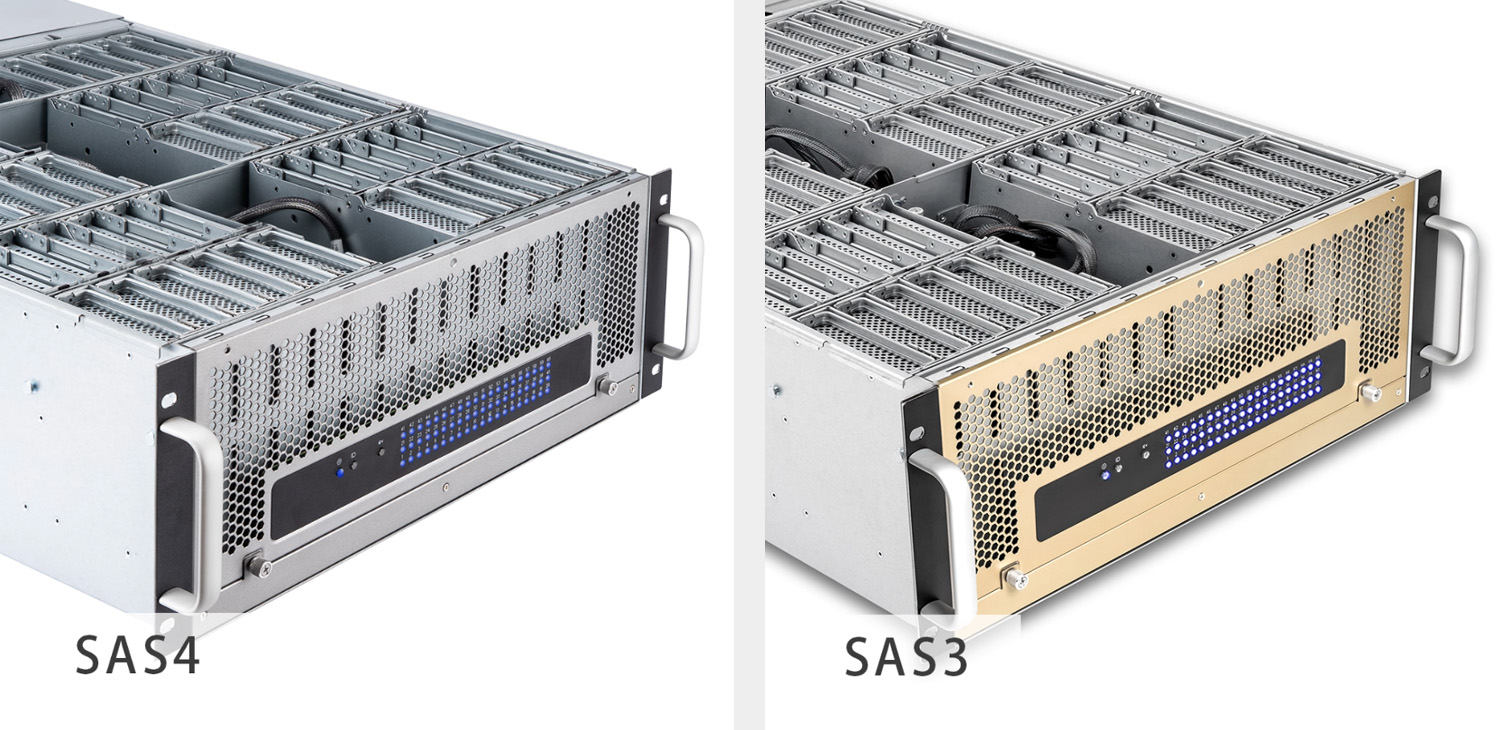

HDD faulty detection panel. Each individual LED attentively designed to indicate the status of its corresponding drive, allowing users to identify and correct errors.
Fast, Stable, and Reliability

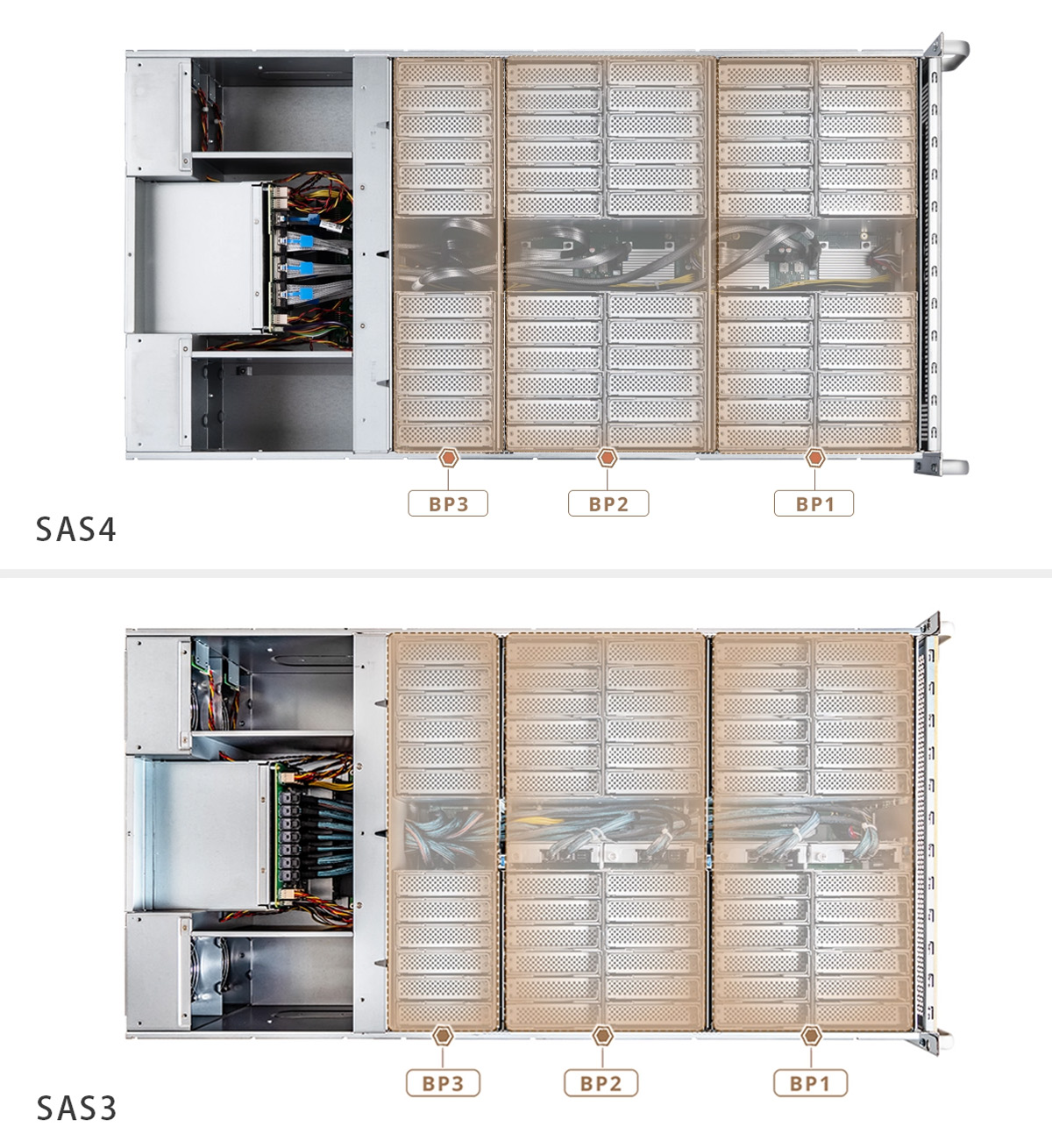

Bridge and edge expanders create path-redundant topologies through multi-ported devices, making them ideal for high-availability systems that handle massive data while delivering superior performance. The IW-RJ460-08’s exclusive backplane design ensures exceptional stability in data transmission and provides ample space for efficient cable management.
SAS4 : Supports SAS4 (24 Gb/s) connectivity via MCIO 8i & 4i connectors, ensuring a reliable, high-performance data rate.
SAS3 : Supports SAS3 (12 Gb/s) connectivity, delivering a reliable, high-performance data rate.
SAS3 : Supports SAS3 (12 Gb/s) connectivity, delivering a reliable, high-performance data rate.

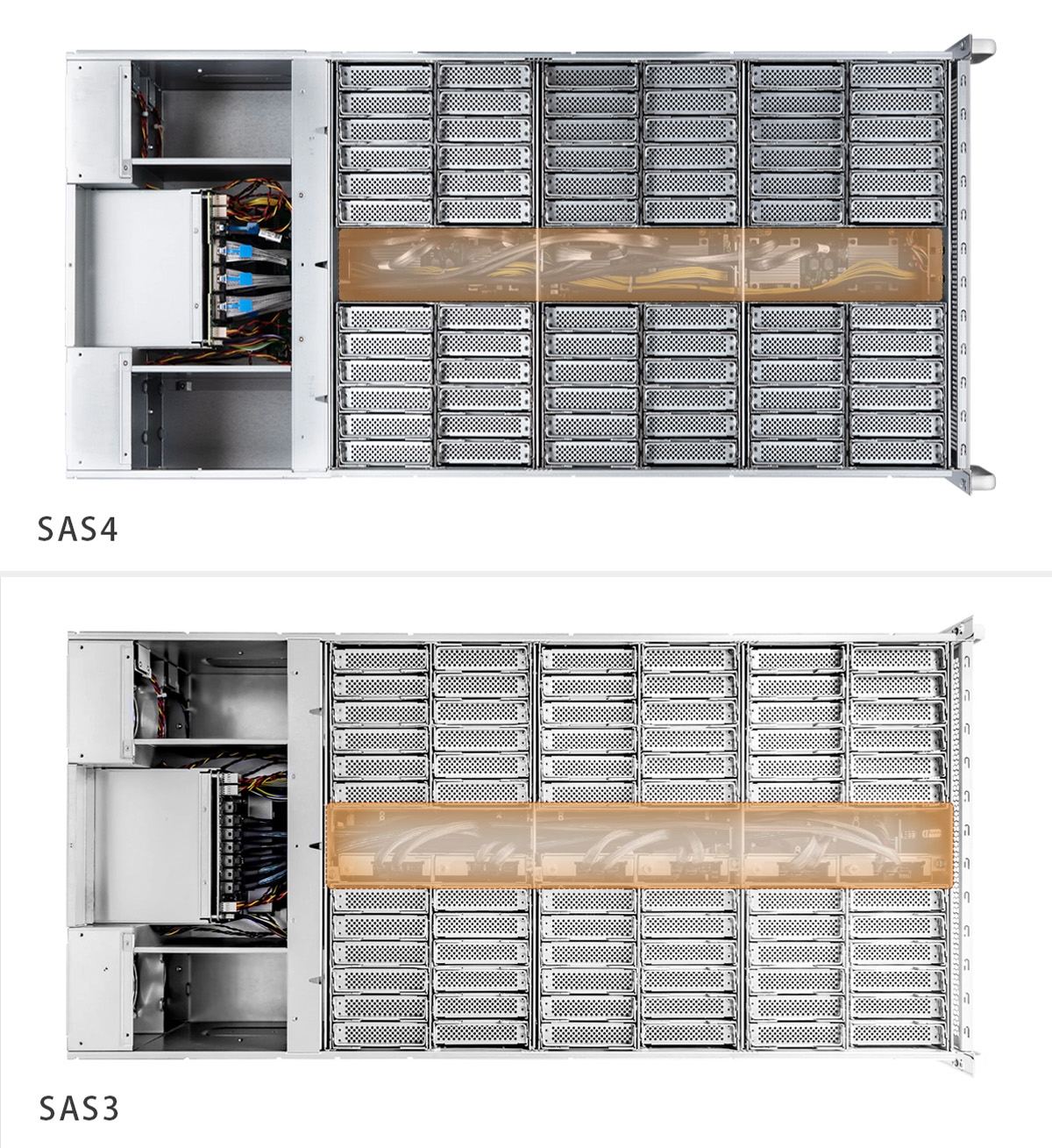

Suitable for high-availability systems, the expander is equipped with dual-domain edge modules to support data redundancy. Should one path fail, traffic will fail over to an alternate path.
Fewer cables and optimized spacing provide more room for cable management and improved airflow.

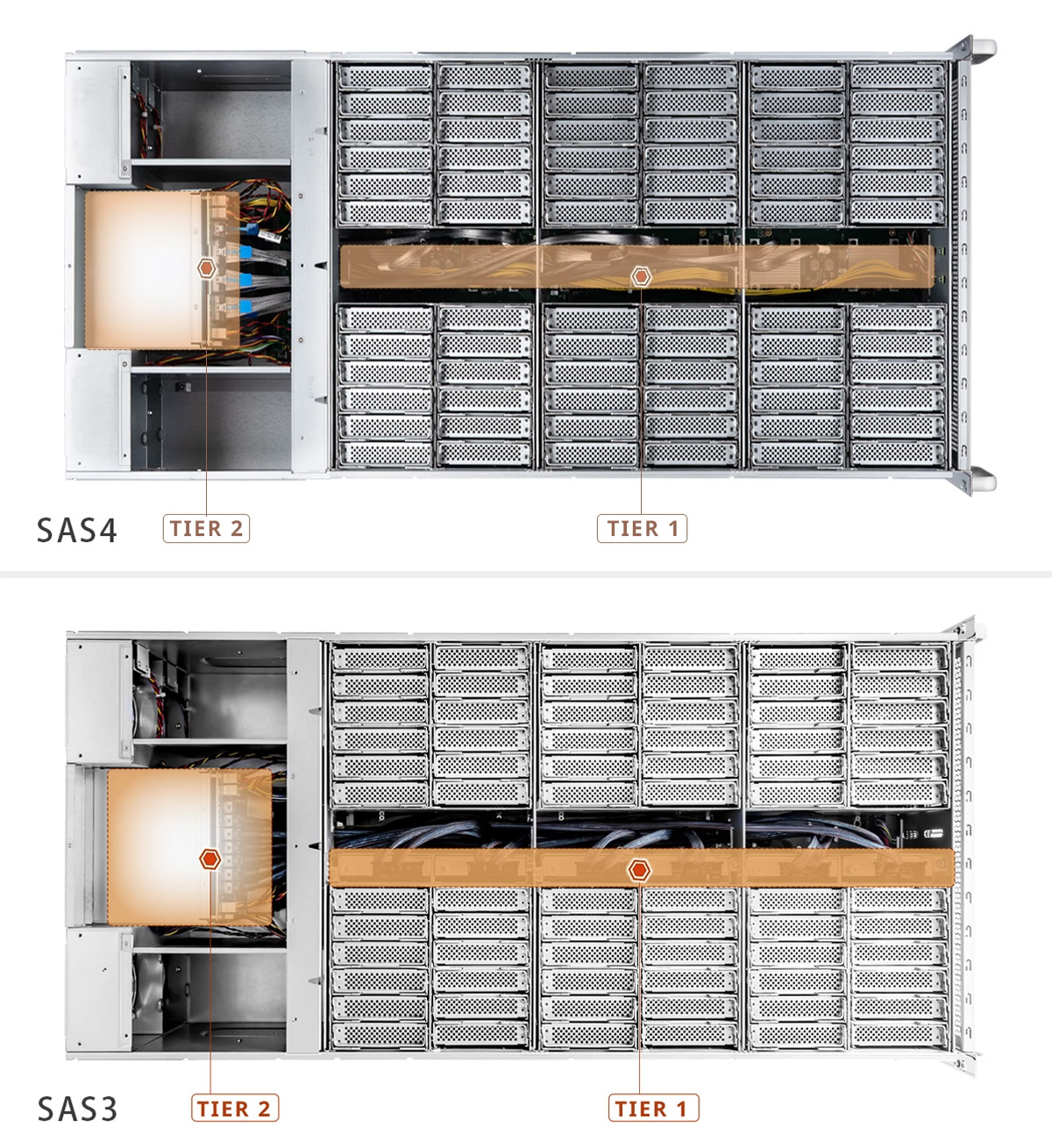

1. Primary
Easily uplinks to servers or downlinks to another cascading JBOD via SAS4 or SAS3 dual expander controller modules.
2. Secondary

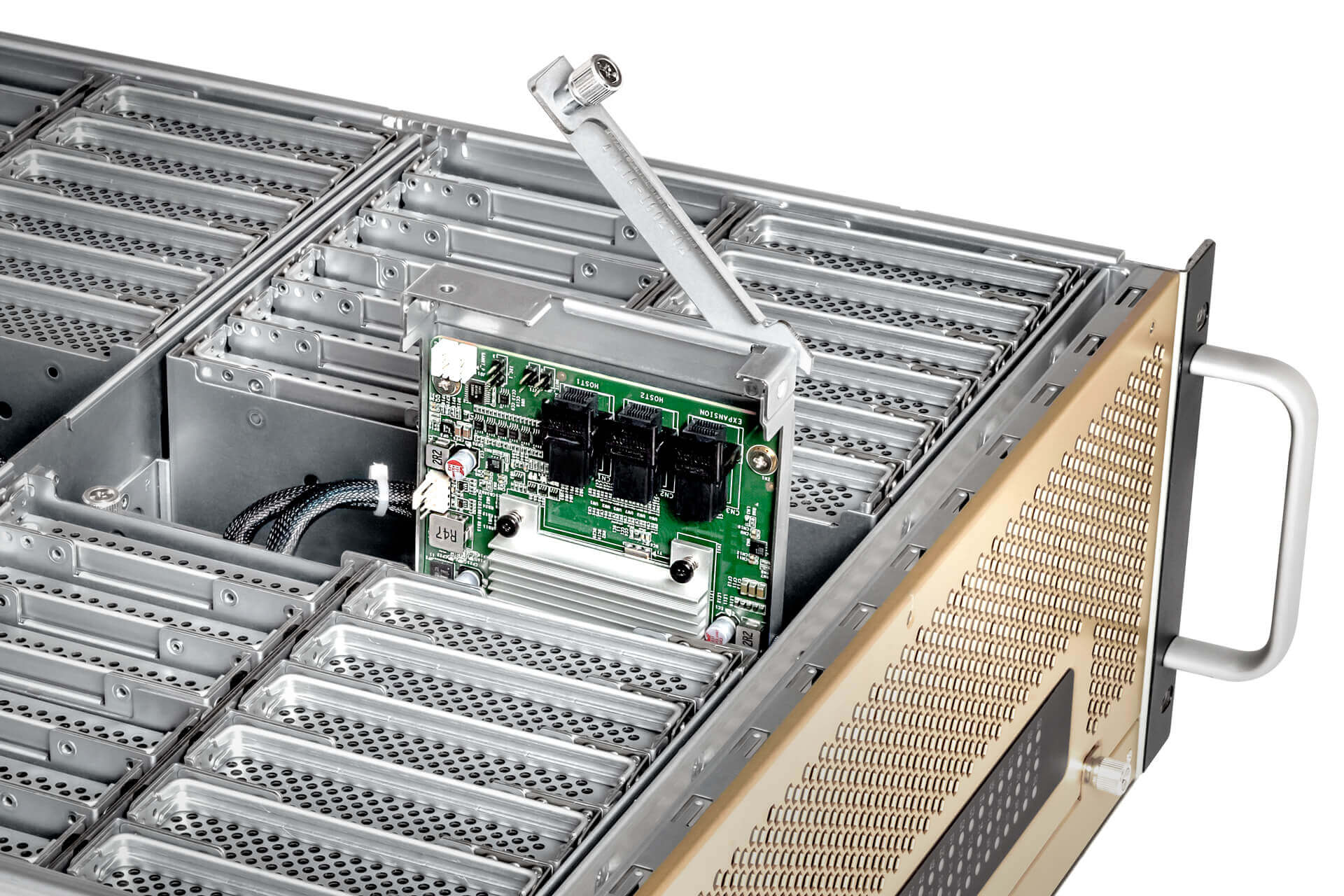

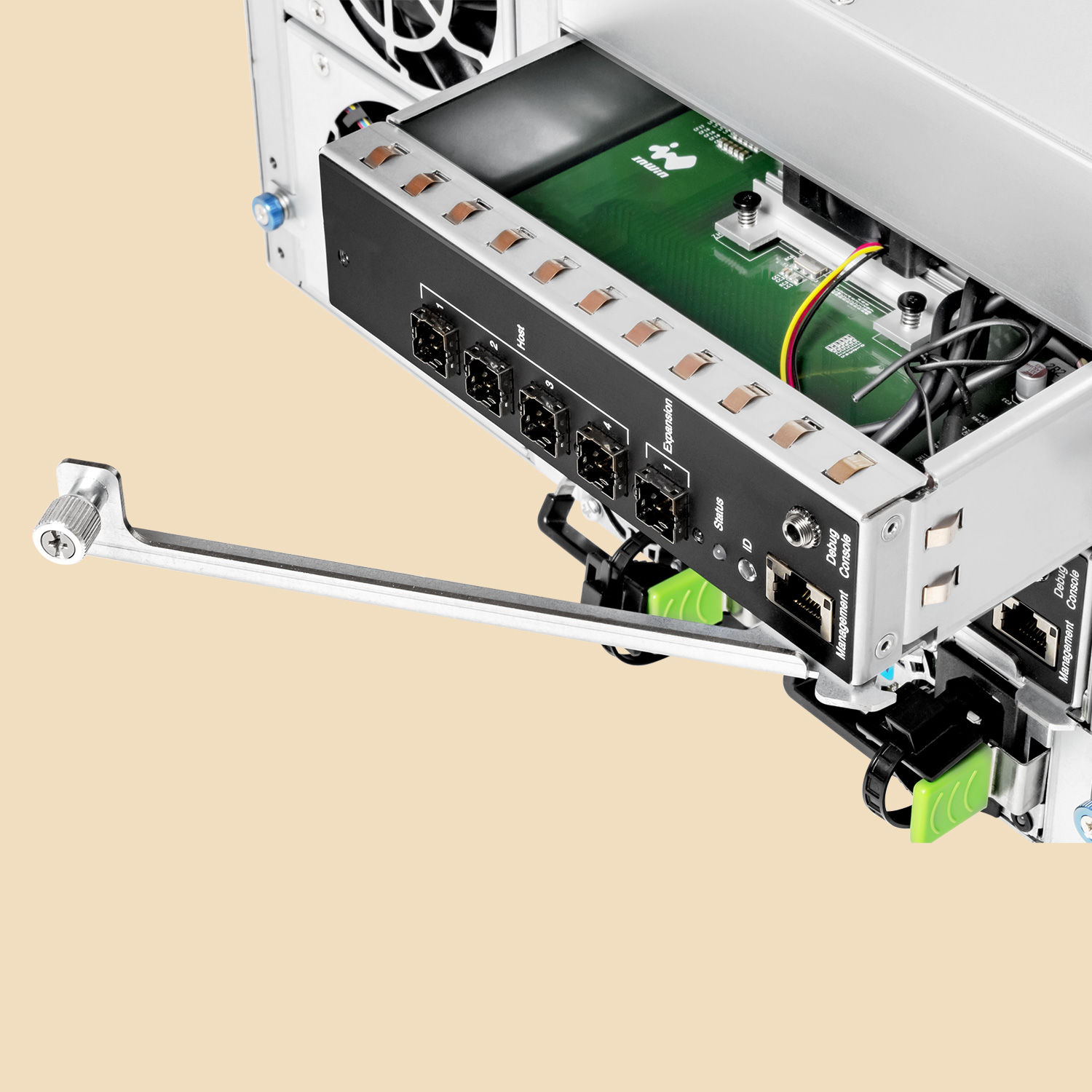

The Bridge expander serves as the main control component. With dual modules, both can connect to the same server, providing full data redundancy.
Modularization
Most parts of the IW-RJ460-08 are fully modular and designated as CRUs (Customer Replaceable Units). Following the KISS (Keep It Simple, Straightforward) principle, the IW-RJ460-08 enables non-technical personnel to perform quick maintenance and easily replace components.

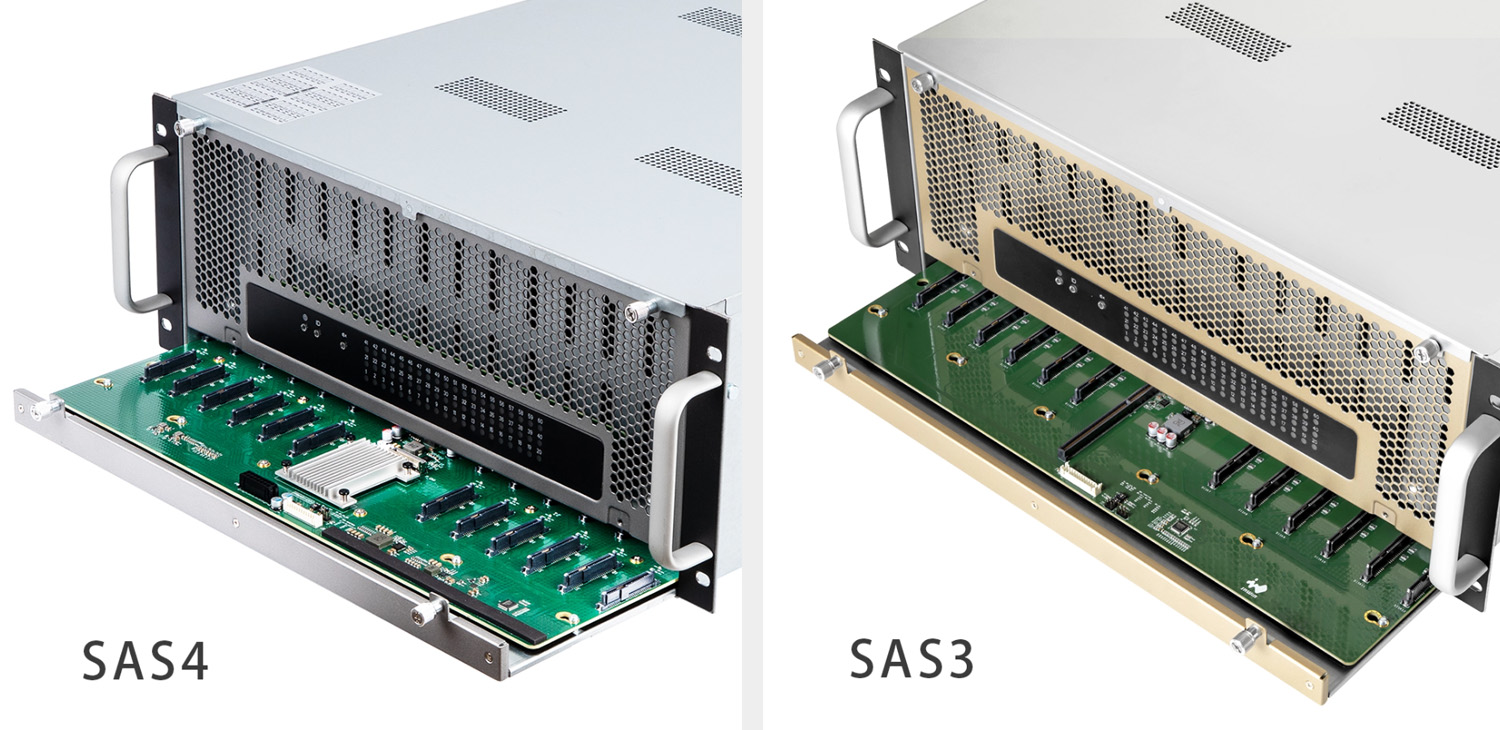

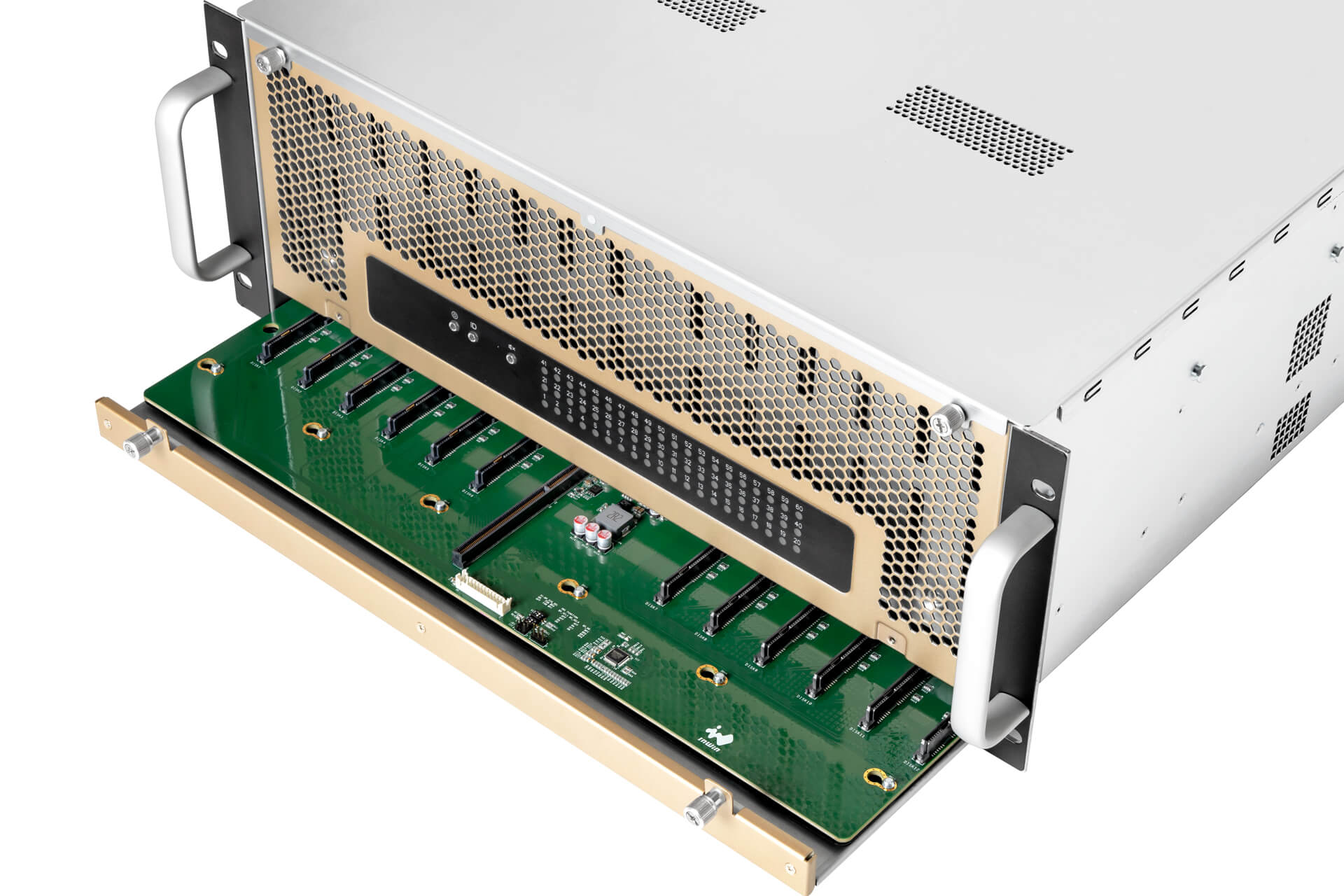

The IW-RJ460-08’s tool-free trays, edge modules and backplanes are easy to setup.

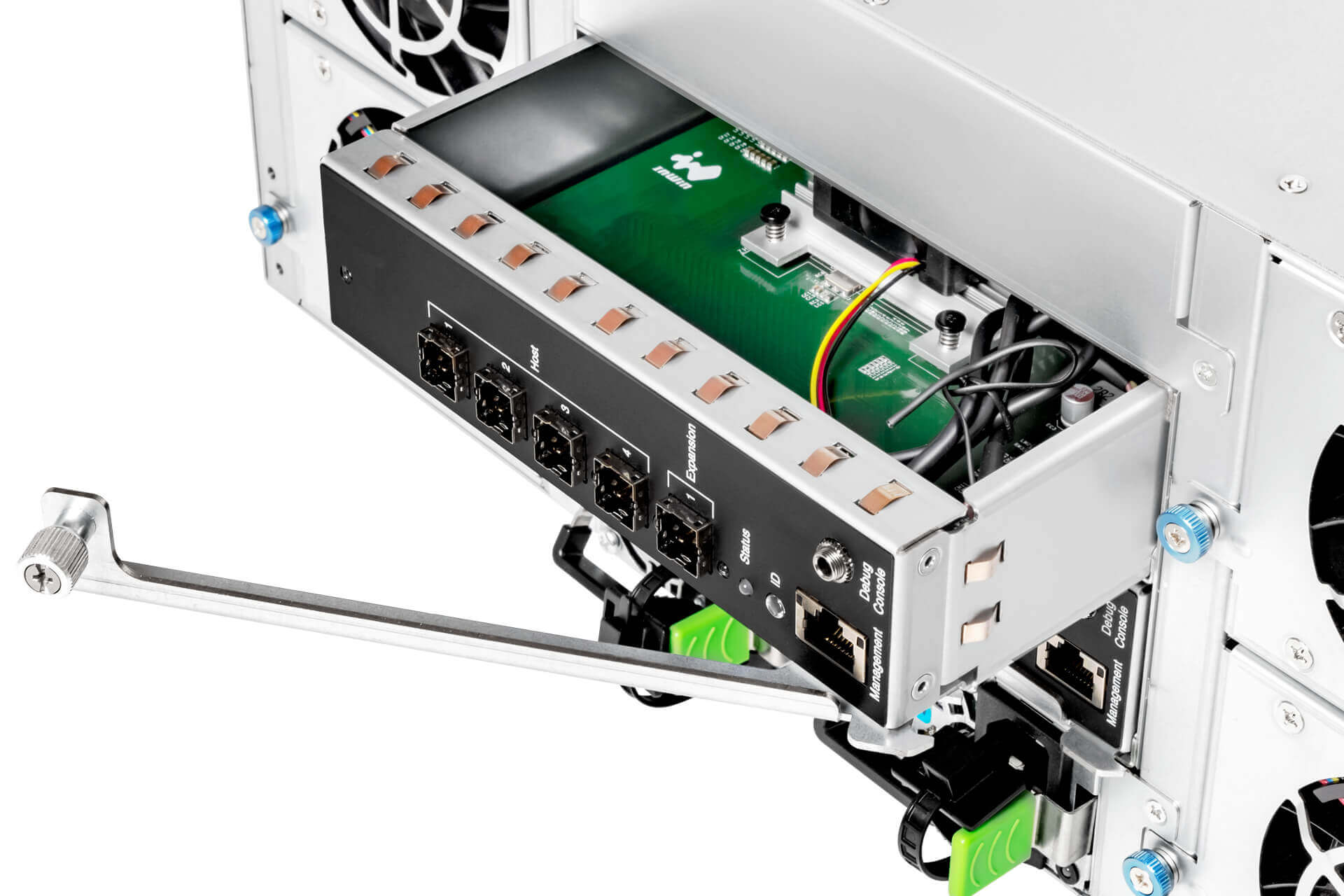

The PSUs, fans, and expanders are all hot-swappable, ensuring continuous operation during module replacement.

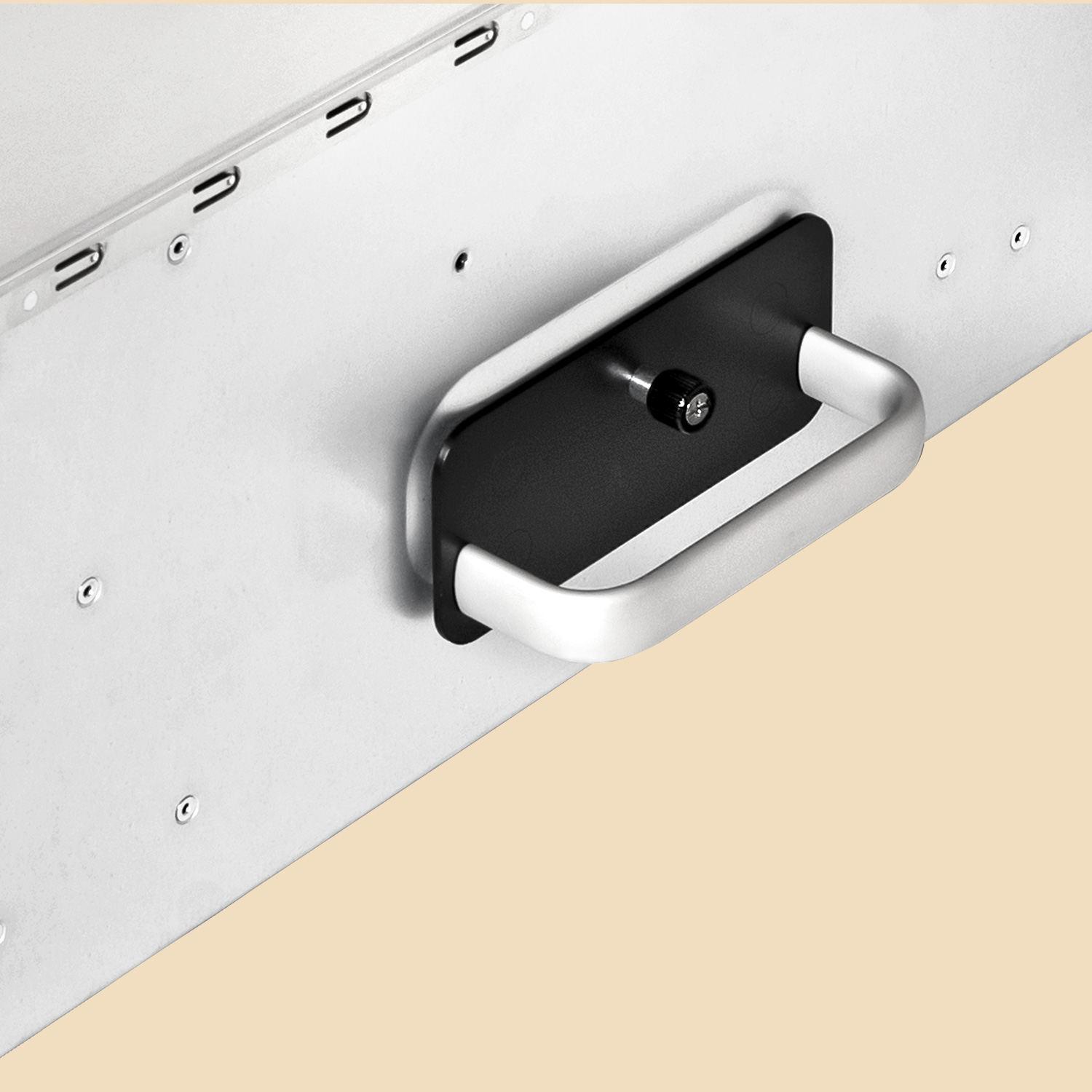

Tool-less support handles allow personnel to safely and easily transport the unit.
Tool-less support handles allow personnel to safely and easily transport the unit.
Heat Dissipation

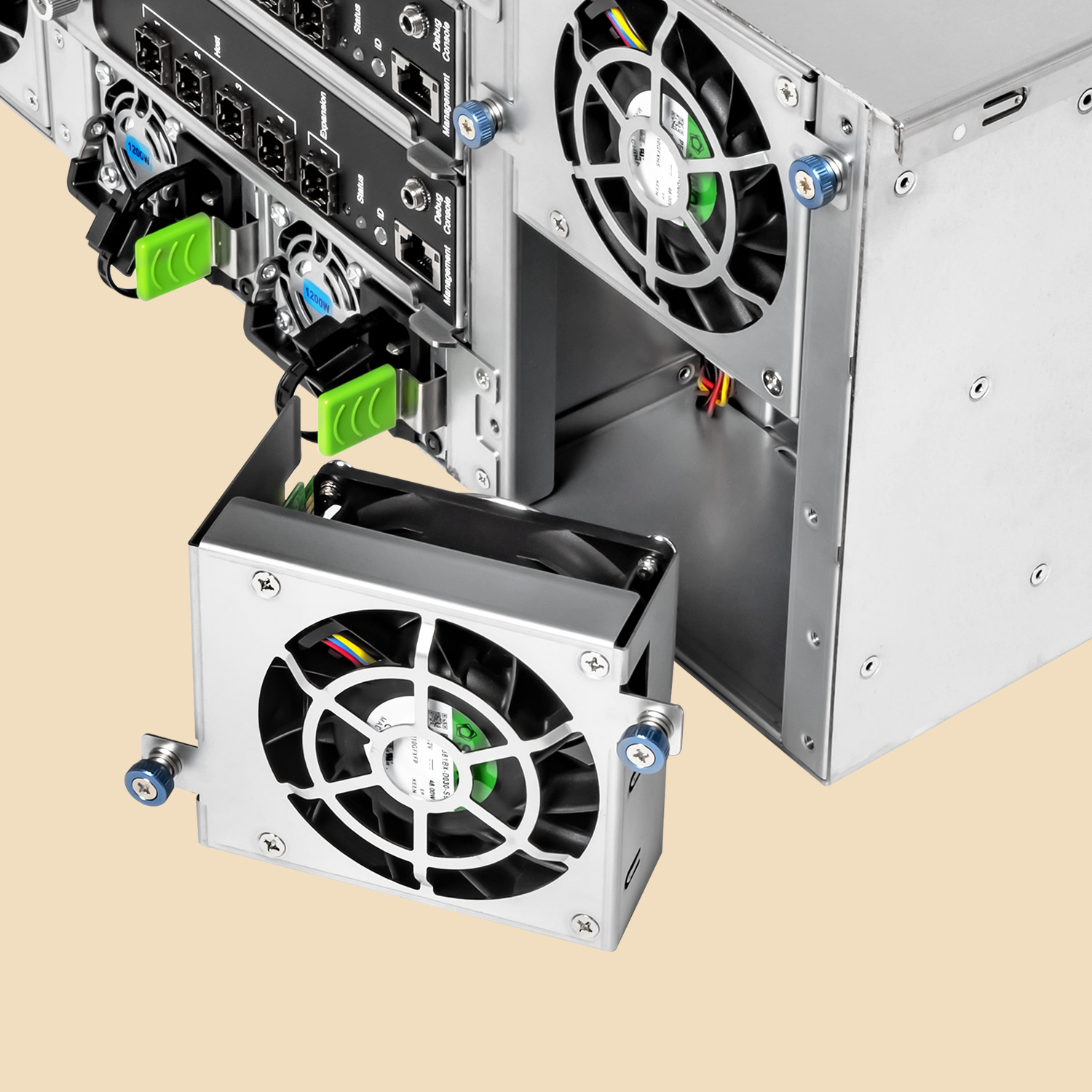

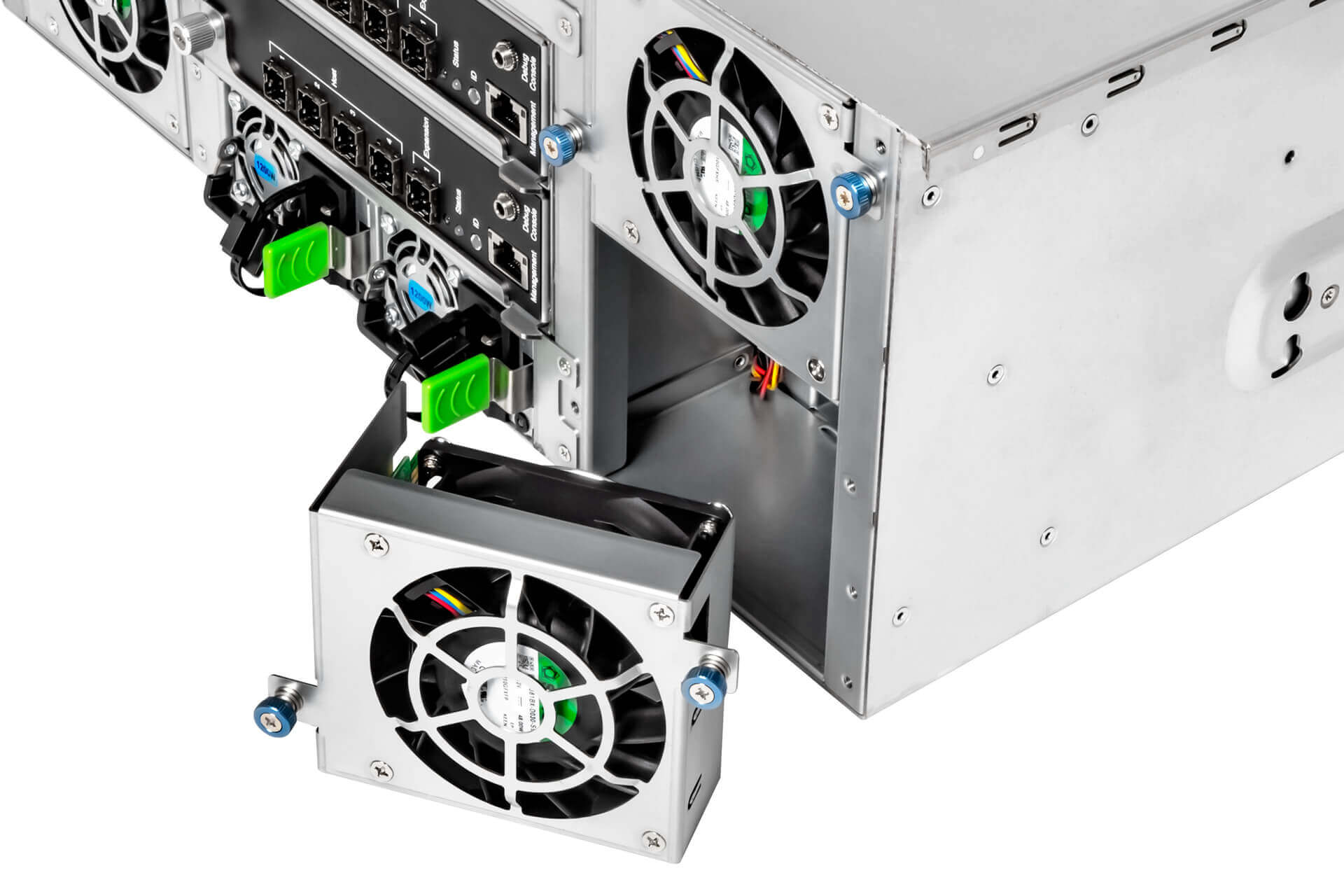

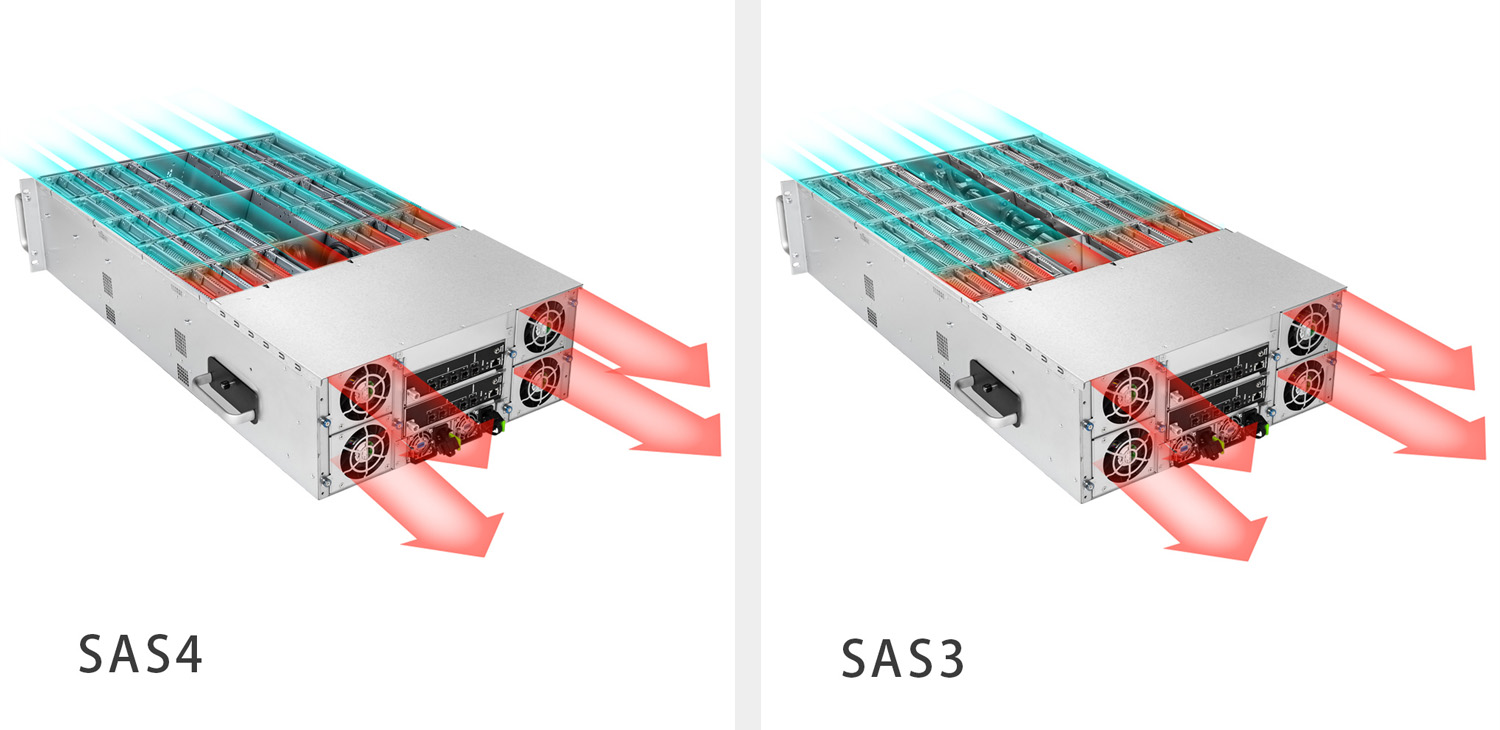

The IW-RJ460-08 generates intensive airflow by using four 80 x 38mm PWM hot-swap fans. The air tunnel, room for the cable management, and effective airflow contributes to the successful heat dissipation of the enclosure.
Optimal Integration, Standard Compatibility
Web-based GUI: The in-house interface provides intuitive monitoring of drives, system, and network, with customization options.
Compatible with 900mm Deep Cabinets, ensuring quick, efficient installation. (Cabinet not included)
Compatible with 900mm Deep Cabinets, ensuring quick, efficient installation. (Cabinet not included)
Web-based GUI
Designed for 900mm Deep Cabinet
Power Stabilization

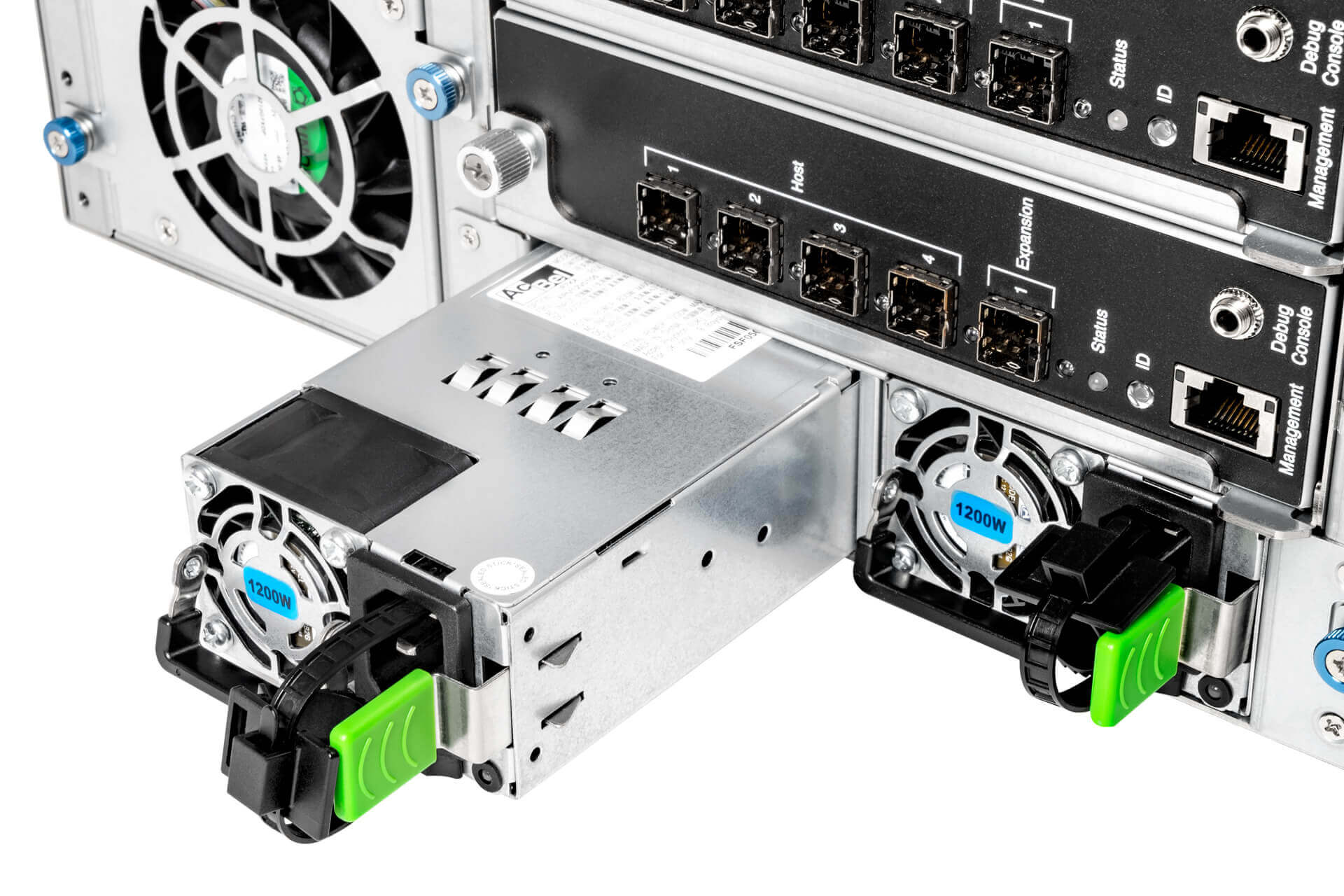

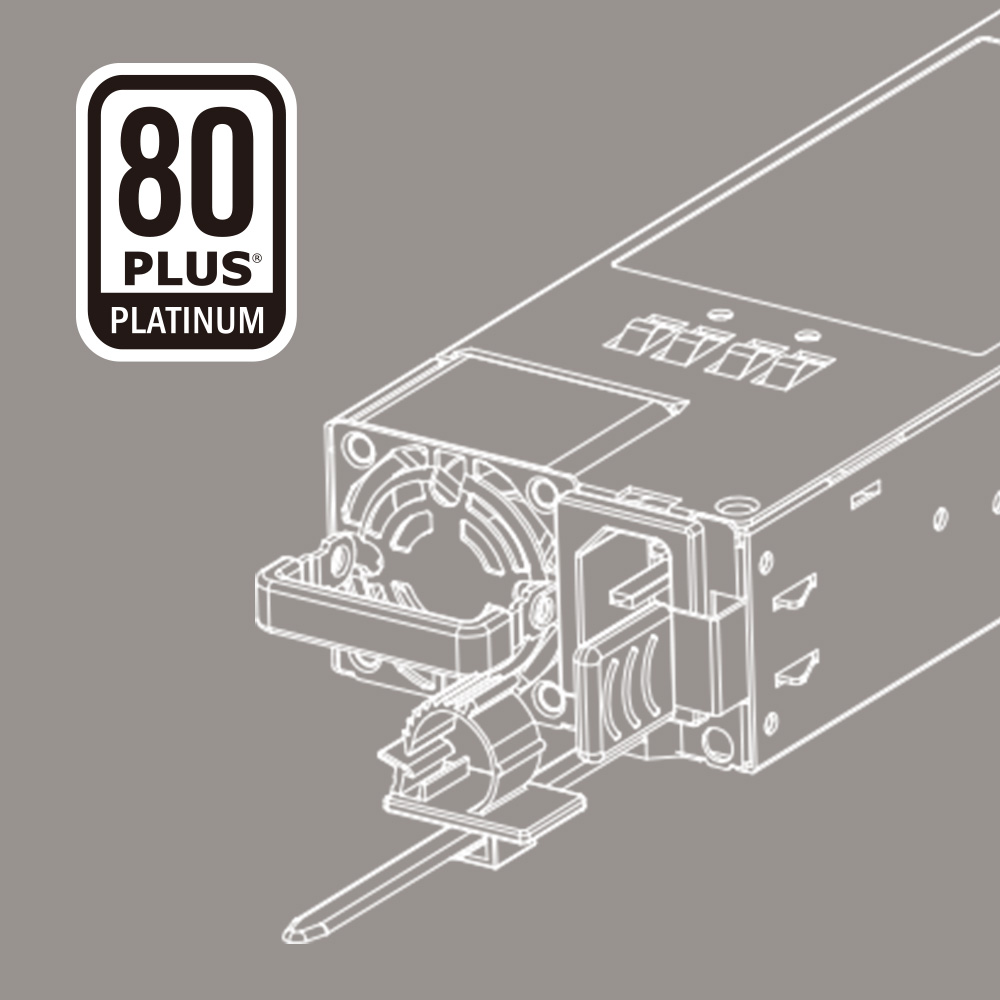

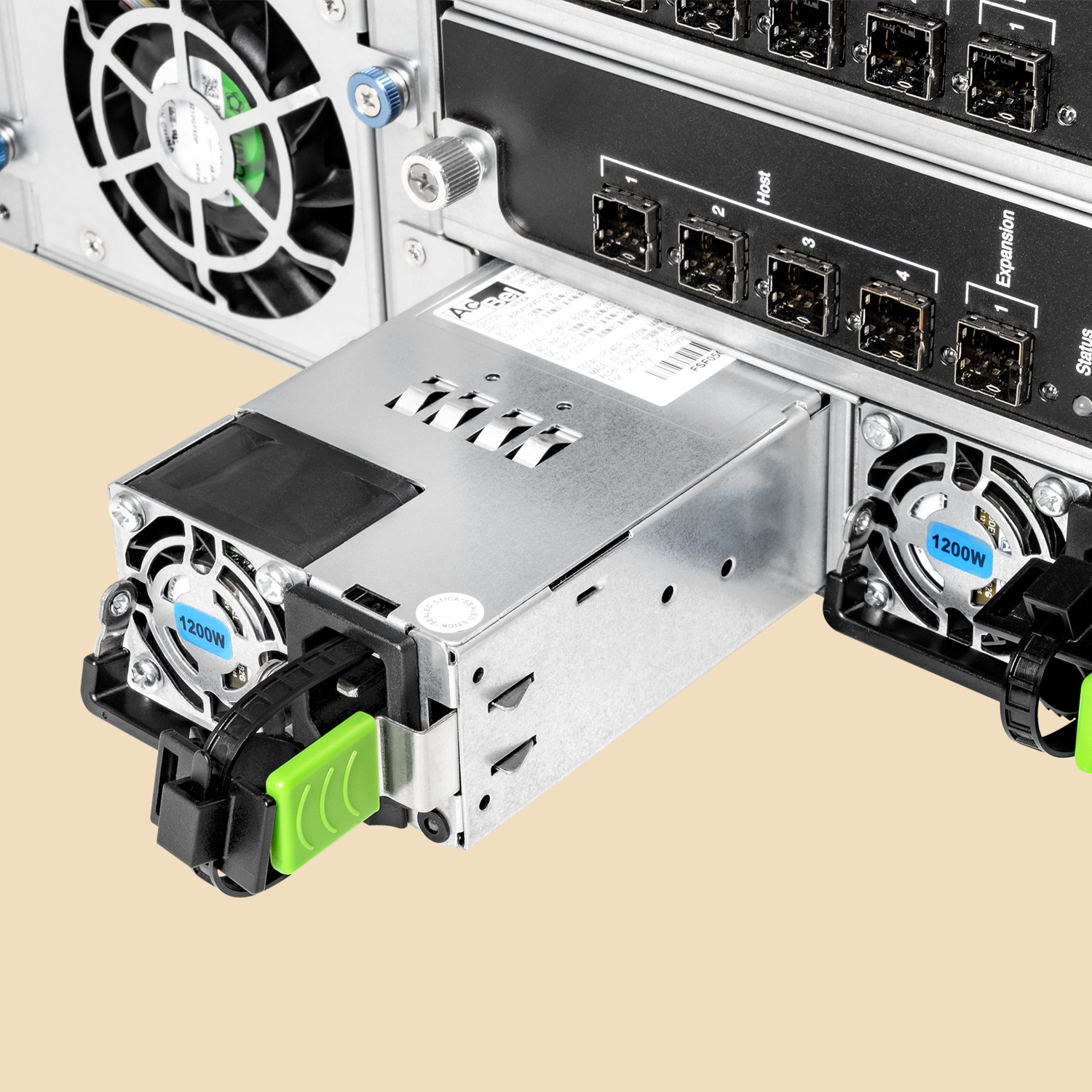

Hot-swappable, high-wattage 1200 W/1600 W/2000 W redundant power supplies provide stable and uninterrupted power output.
SAS4 Models: Supports 1200 W/1600 W/2000 W.
SAS3 Models: Supports 1200 W/1600 W.
*Preinstalled 1200W power.
SAS4 Models: Supports 1200 W/1600 W/2000 W.
SAS3 Models: Supports 1200 W/1600 W.
*Preinstalled 1200W power.
| Specification | |
|---|---|
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| Drive Bay | Internal 2.5"/3.5" hot-swap trays x 60 (SAS4 24 Gb/s, SAS3 12 Gb/s, SATA 6Gbp Gb/s supported) |
| Power Supply | Supports: Form factor 80 Plus Platinum CRPS • SAS4 Watt: 1200W/1600W/2000W • SAS3 Watt: 1200W/1600W |
| Indicators | Status LED, drive status LEDs for bay 1-60 |
| Front Control Panel | Front Panel: Power on/off, chassis ID button Panel color: Silver (SAS4) / Gold (SAS3) |
| Cooling Fans | 80 x 38mm PWM hot-swap fans x 4, 12000 RPM |
| SAS4 Backplane | Backplane type-1&2: • Host: each backplane equipped with 2 edge chipsets, MCIO 8i × 2 per edge • HDD: SAS/SATA × 24 each Backplane type-3: • Host: MCIO 8i x 2, MCIO 4i x 2 • HDD: SAS/SATA x 12 Middle Plane: MCIO 8i x 6, MCIO 4i x 2 Bridge expanders x 2, Mini-SAS HD (SFF-8674) × 5 each |
| SAS3 Backplane | Backplanes x 3: • Host: Each backplane equipped with 2 edge expanders, Mini-SAS HD (SFF-8643) × 3 per expander • HDD: SAS/SATA × 24 each Middle plane: Mini-SAS HD x 14 Bridge expanders x 2, Mini-SAS HD (SFF-8644) × 5 each |
| Management | Smart fan, thermal monitor, HDD monitor, voltage monitor, alarm warming |
| SES | Supports SES-2 (SCSI enclosure service) |
| Maintenance | Supports management by Ethernet and RS-232 |
| HDD Power Management | HDD sequential power on |
| Temperature | 0ºC to 35ºC |
| Material | • Material: SGCC • Thickness: 1.2mm |
| Rail Kit | 28" tool-less & ball-bearing slide rail included |
| Product Dimensions (DxWxH) | 882 x 447.5 x 177.1mm (34.72" x 17.62" x 6.98") |
| Package Dimensions (DxWxH) | 1160 x 645 x 660mm |
| Weight | Package1 (SAS4): • Net weight: 44.87 kg • Gross weight: 58.03 kg Package2 (SAS3): • Net weight: 46kg • Gross weight: 57.98kg |
| Cubic Feet | 17.43 |
| Container Information | Single packing with pallets: 20': 24pcs 40': 54pcs |
SAS4 Backplane Specifications
| HDD Interface | SAS/SATA x 24 |
| Backplane | SAS4 backplanes x 2 |
| Data Transfer Rate | 24Gb/s |
| Dimension (W x H) | 425mm x 220.94mm |
| Host Interface | Each backplane equipped with 2 edge chipsets MCIO 8i × 1 per edge |
| Backplane Type-3 | SAS4 backplane x 1 |
| Data Transfer Rate | 24Gb/s |
| Dimensions (W x H) | 425mm x 111.94mm |
| Host Interface | MCIO 8i x 2, MCIO 4i x 2 |
| HDD Interface | SAS/SATA x 12 |
| Middle Plane | MCIO 8i x 6, MCIO 4i x 2 |
| Bridge Expander | Bridge expanders x 2 |
| External Link | Uplink port: Mini-SAS HD (SFF-8674) × 4 each Downlink cascade port: Mini-SAS HD (SFF-8674) × 1 each |
SAS3 Backplane Specifications
| Backplane Type-1&2 | SAS3 backplanes x 2 |
| Data Transfer Rate | 12Gb/s |
| Dimension (W x H) | 425mm x 220.94mm |
| Host Interface | Each backplane equipped with 2 edge expanders Mini-SAS HD (SFF-8643) × 3 per expander |
| HDD Interface | SAS/SATA x 24 each |
| HDD Interface | SAS/SATA x 12 |
| Backplane Type-3 | SAS3 backplane x 1 |
| Data Transfer Rate | 12Gb/s |
| Dimension (W x H) | 425mm x 111.94mm |
| Host Interface | Mini-SAS HD x 6 |
| Middle Plane | Mini-SAS HD x 14 |
| Bridge Expander | Bridge expanders x 2 |
| External Link | Uplink port: Mini-SAS HD (SFF-8644) × 4 each Downlink cascade port: Mini-SAS HD (SFF-8644) × 1 each |
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
