IW-RJ472-05

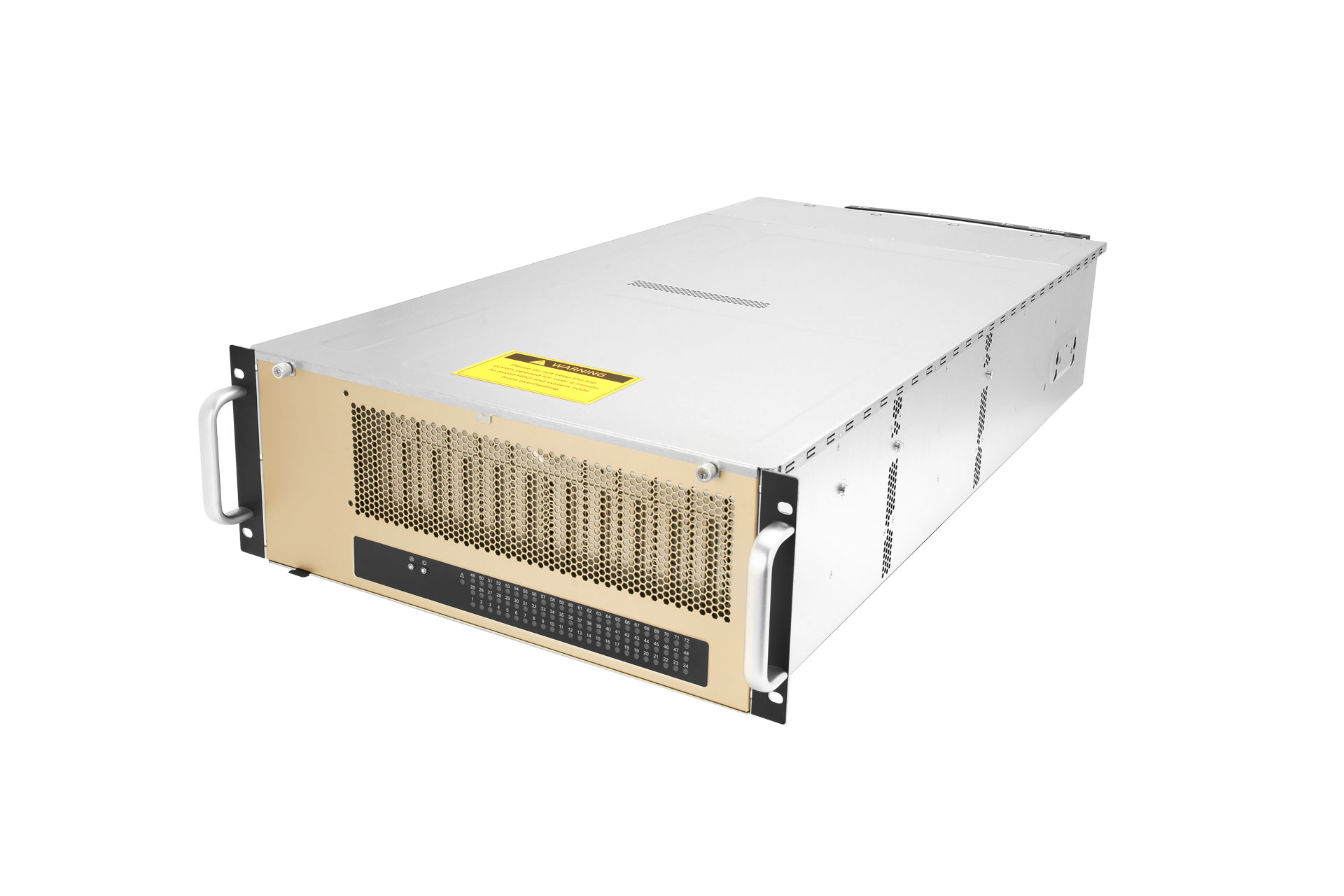

High Density 4U JBOD

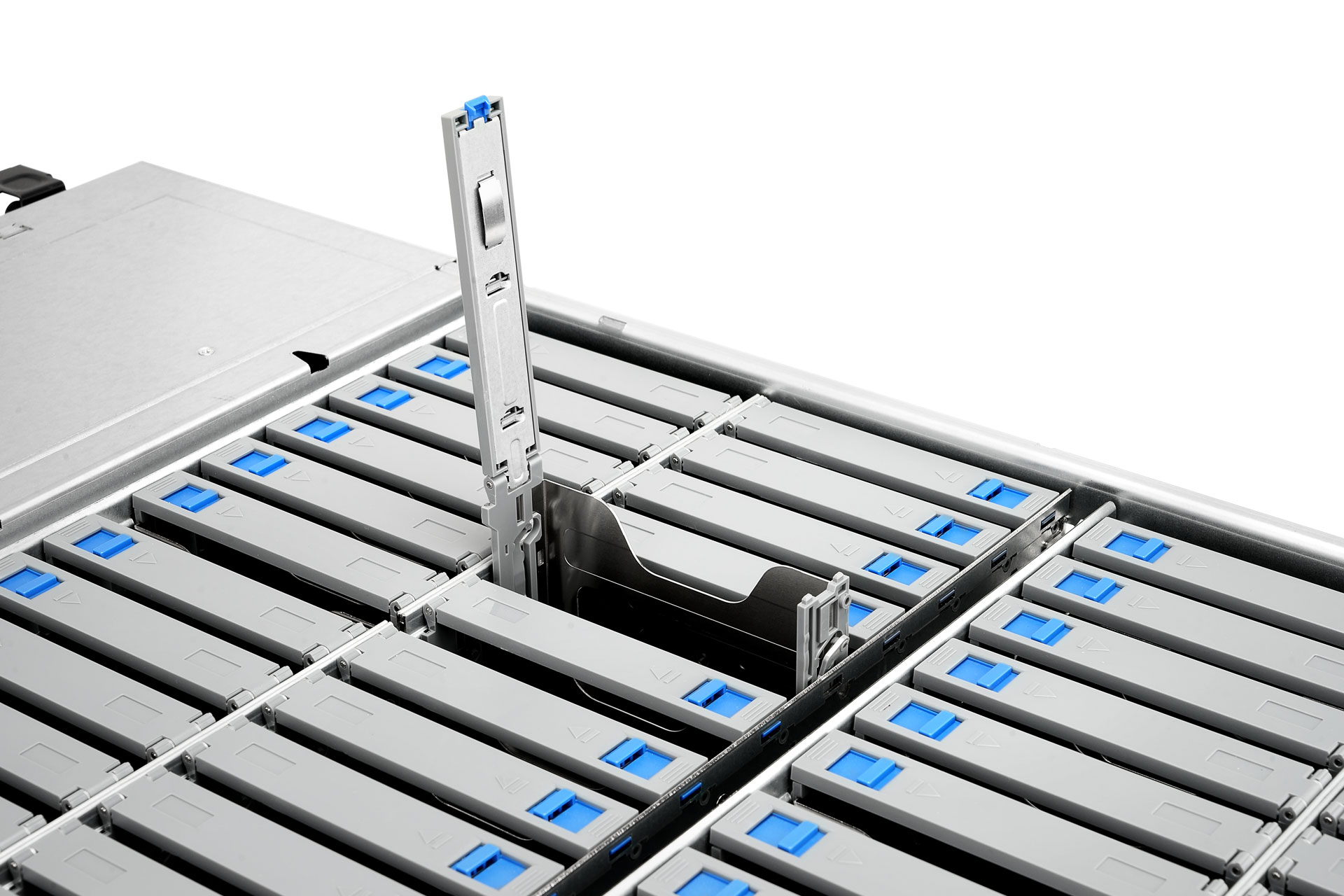

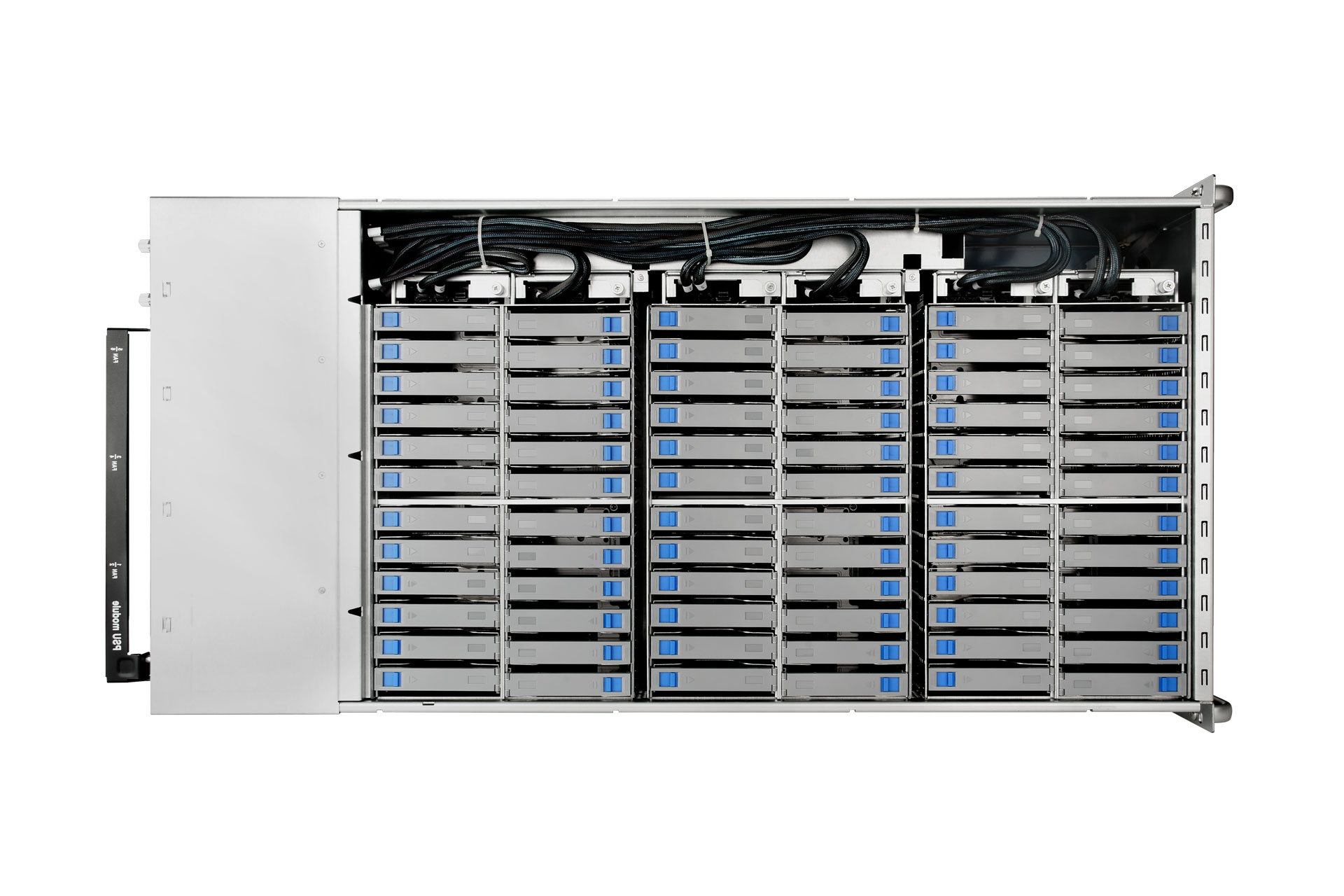

．Top-load design supports 72x hot-swap 3.5" LFF dual-port SAS bays in JBOD enclosure
．Tool-less HDD captive tray slots for quick maintenance
．Features external cable management for easy access to the entire storage system
．UI for remote system management (via GbE port)

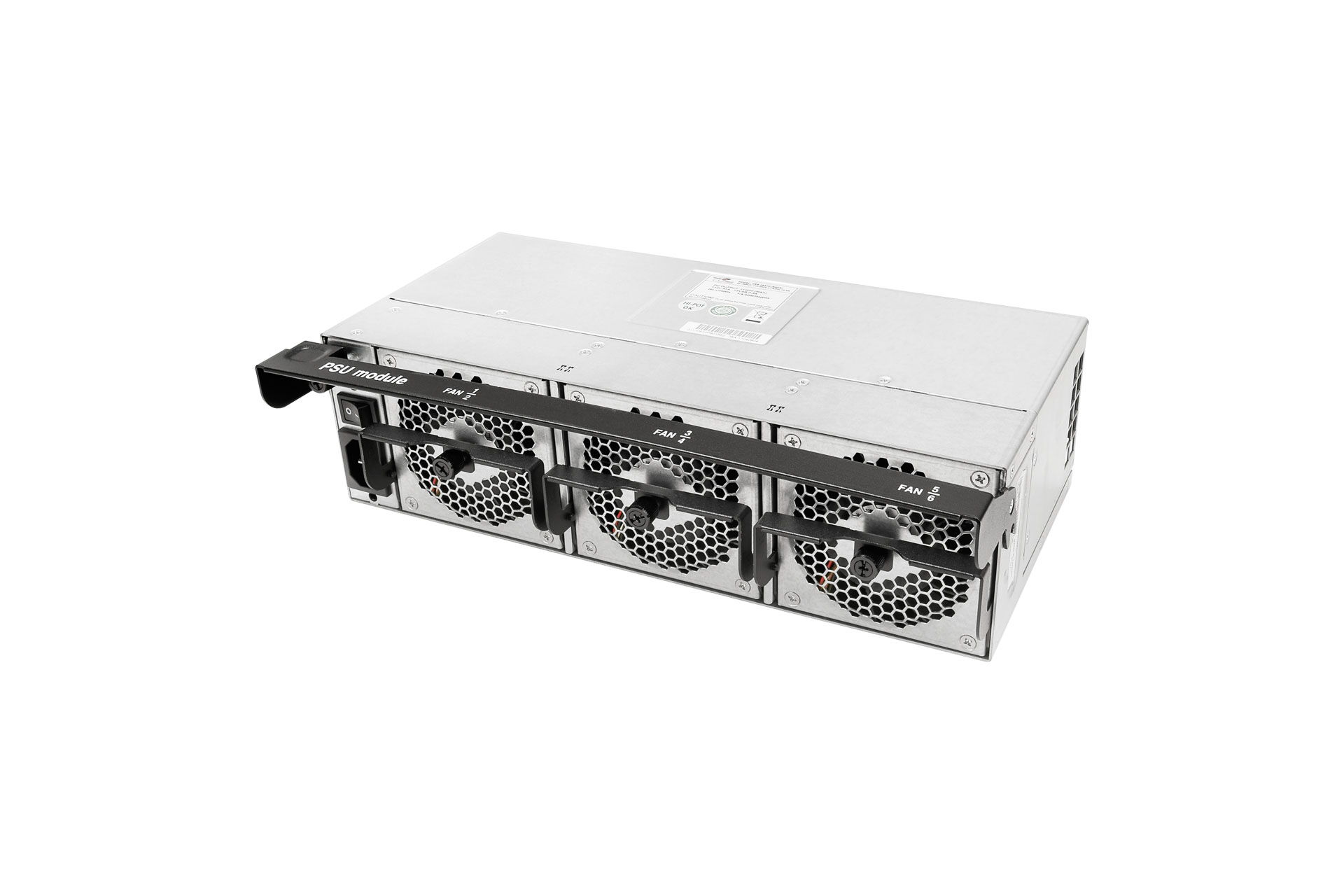

．1100W PSU + fan modules with individual hot-swappable fan modules
．Opposite-facing HDD bays to offset torques and minimizes rotation vibration aggregation

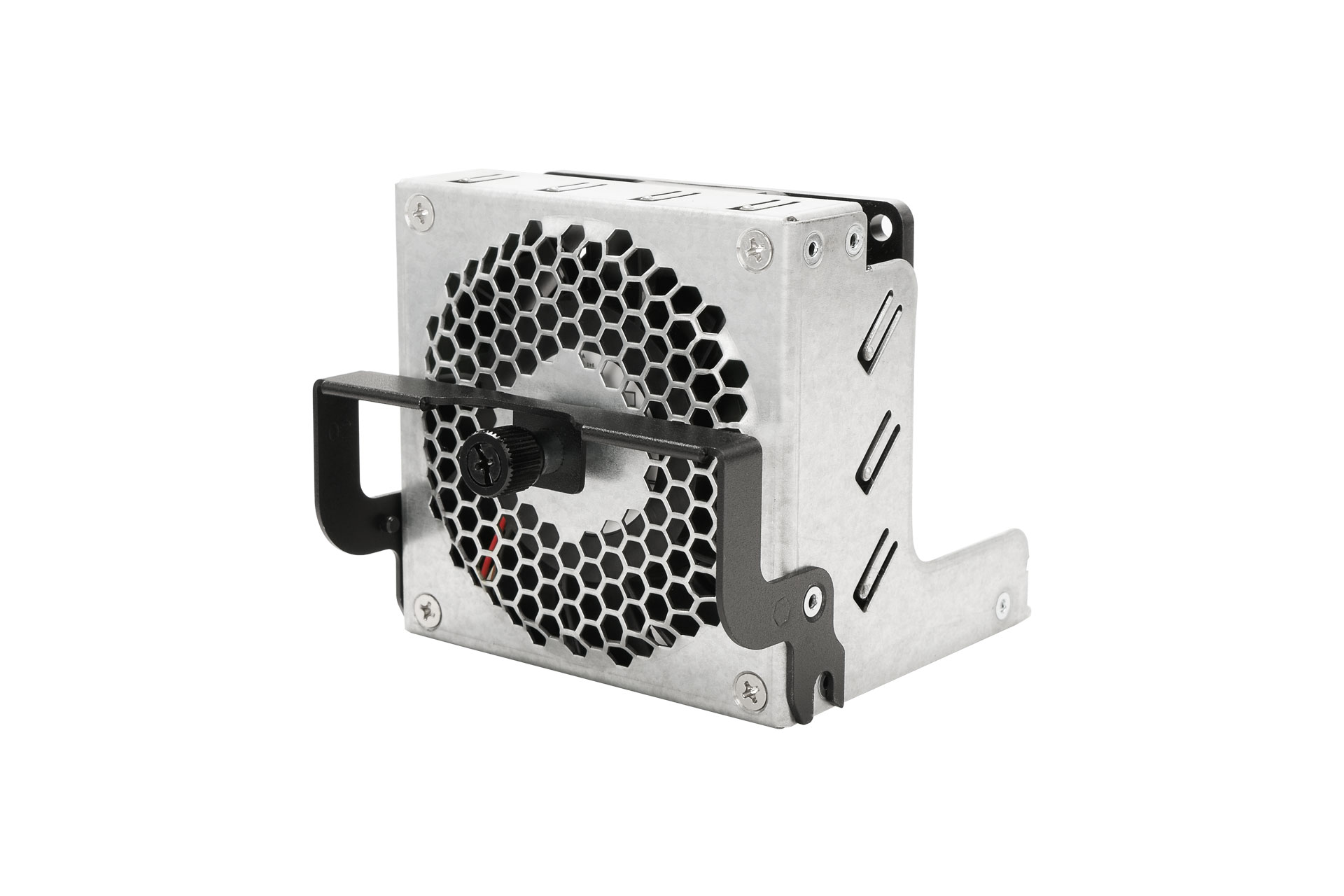

．Hot-swappable, exhaust cooling modules for optimal airflow and cooling efficiency
．Compatible with 1100mm deep cabinets
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| Storage | External hot-swap 3.5" x 72 (SAS 12Gb/s) |
| Power Supply | Supports: • Form factor: high-efficiency redundant PSU • Watt: 1100W |

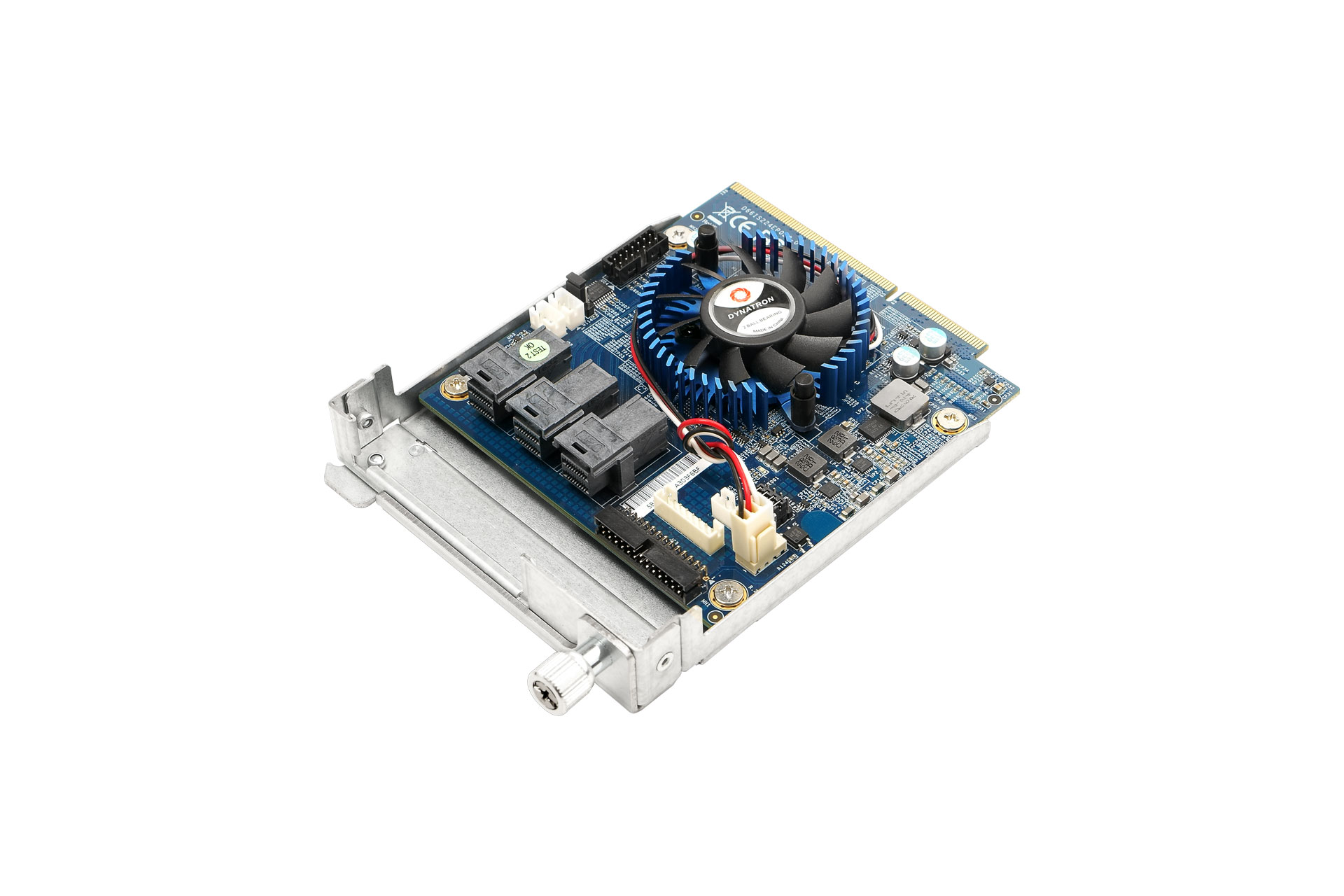

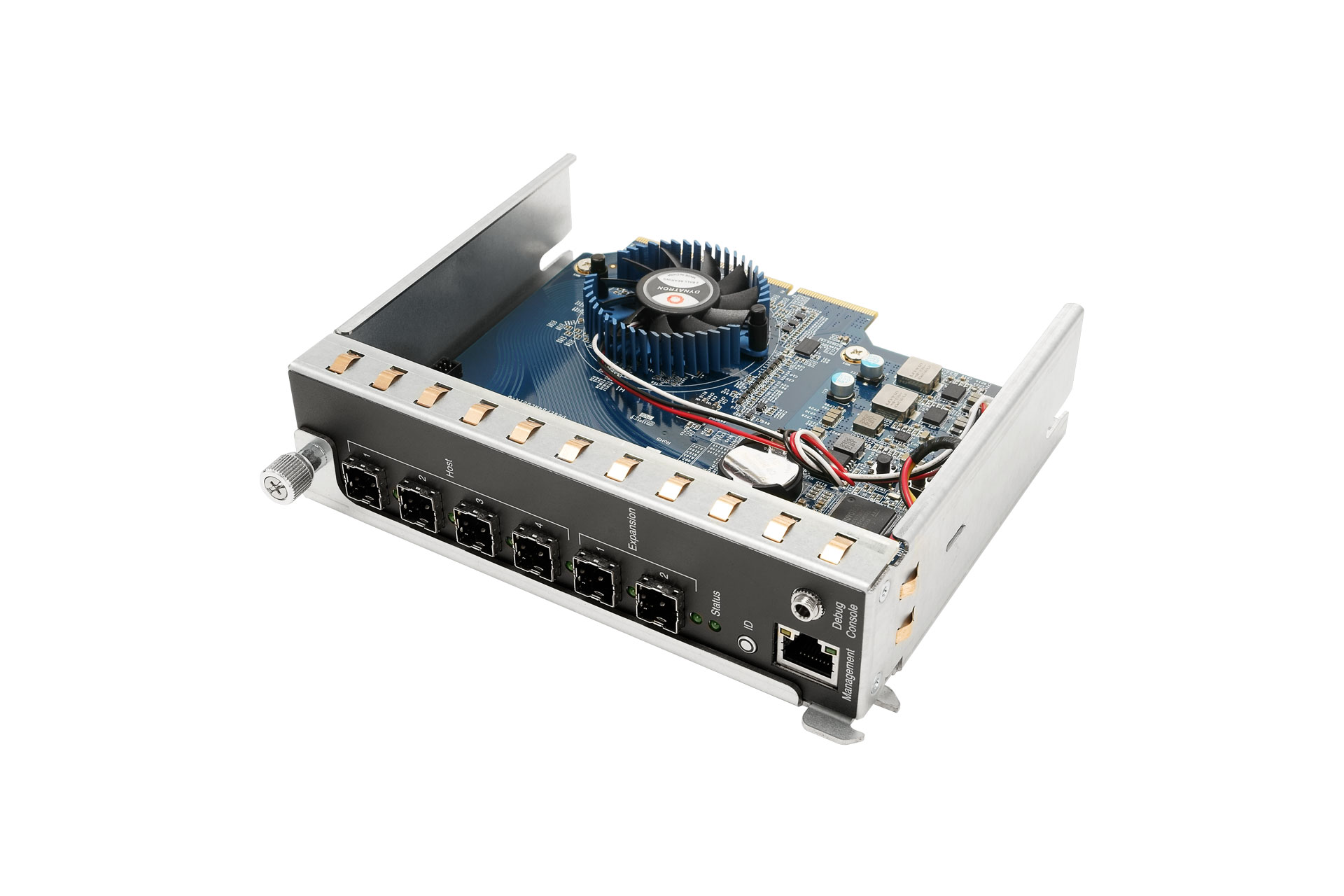

| 12G Expander Module | 1 or 2 |
| Cooling Fans | 80 x 38mm x 6 |

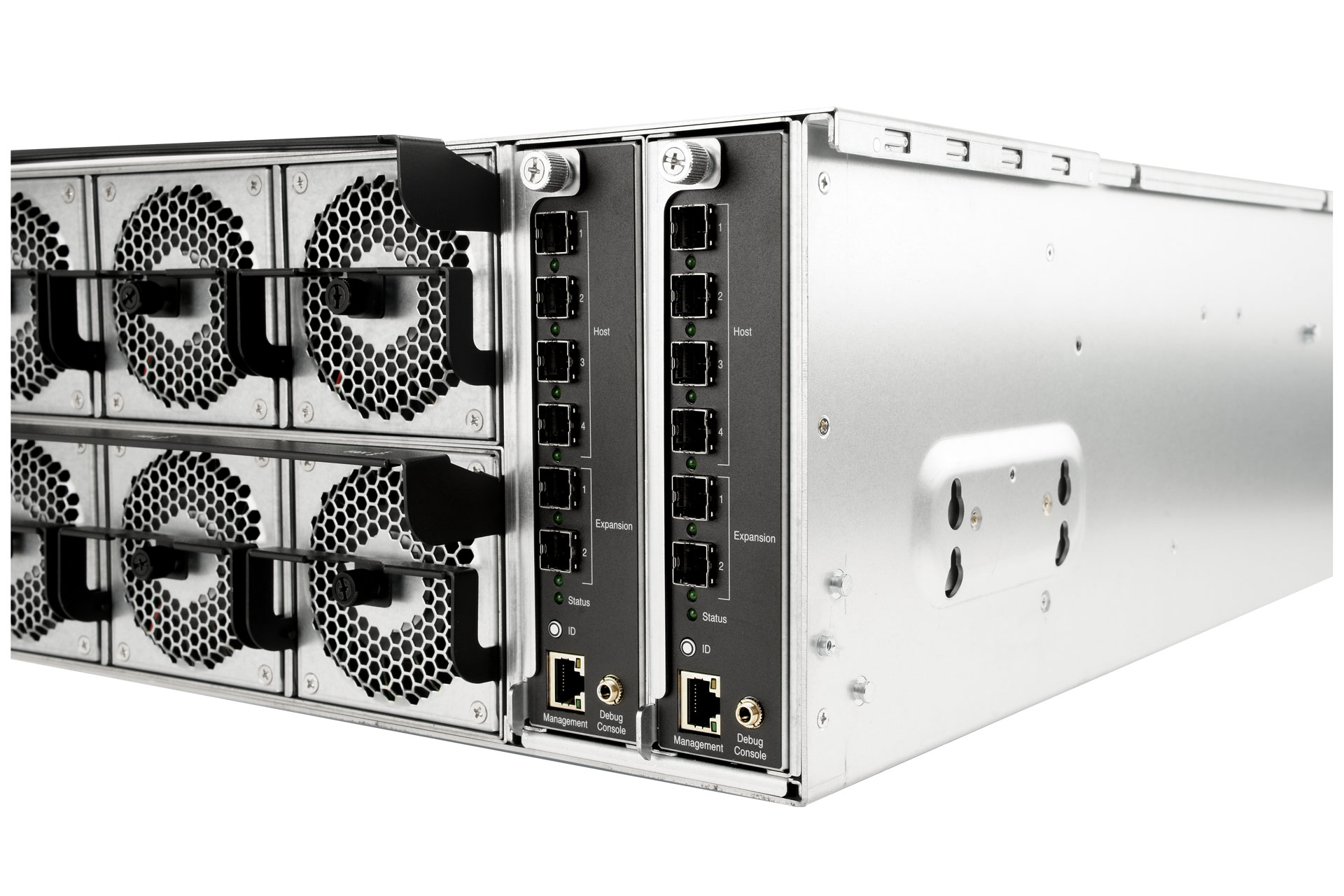

| Host/Expansion Port | 6 x Mini SAS HD (SFF-8644) for each 12G expander module |
| Management | Smart fan, thermal monitor, HDD monitor, voltage monitor, alarm warning |
| SES | Supports SES-2 (SCSI enclosure service) |
| Maintenance | Supports management by ethernet (optional) and RS-232 |
| HDD Power Management | HDD sequential power on |
| Temperature | 0ºC to 35ºC |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rail |
| Product Dimensions (DxWxH; Chassis Only) | 914.4 x 482.6 x 176mm (36" x 19" x 7") |
| Package Dimensions (DxWxH) | 1180 x 666 x 687mm |
| Weight | • Net weight: 56.49kg • Gross weight: 70.89kg |
| Cubic Feet | 19.07 |
| Container Information | Single packing with pallets: • 20': 26pcs • 40': 54pcs |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.
