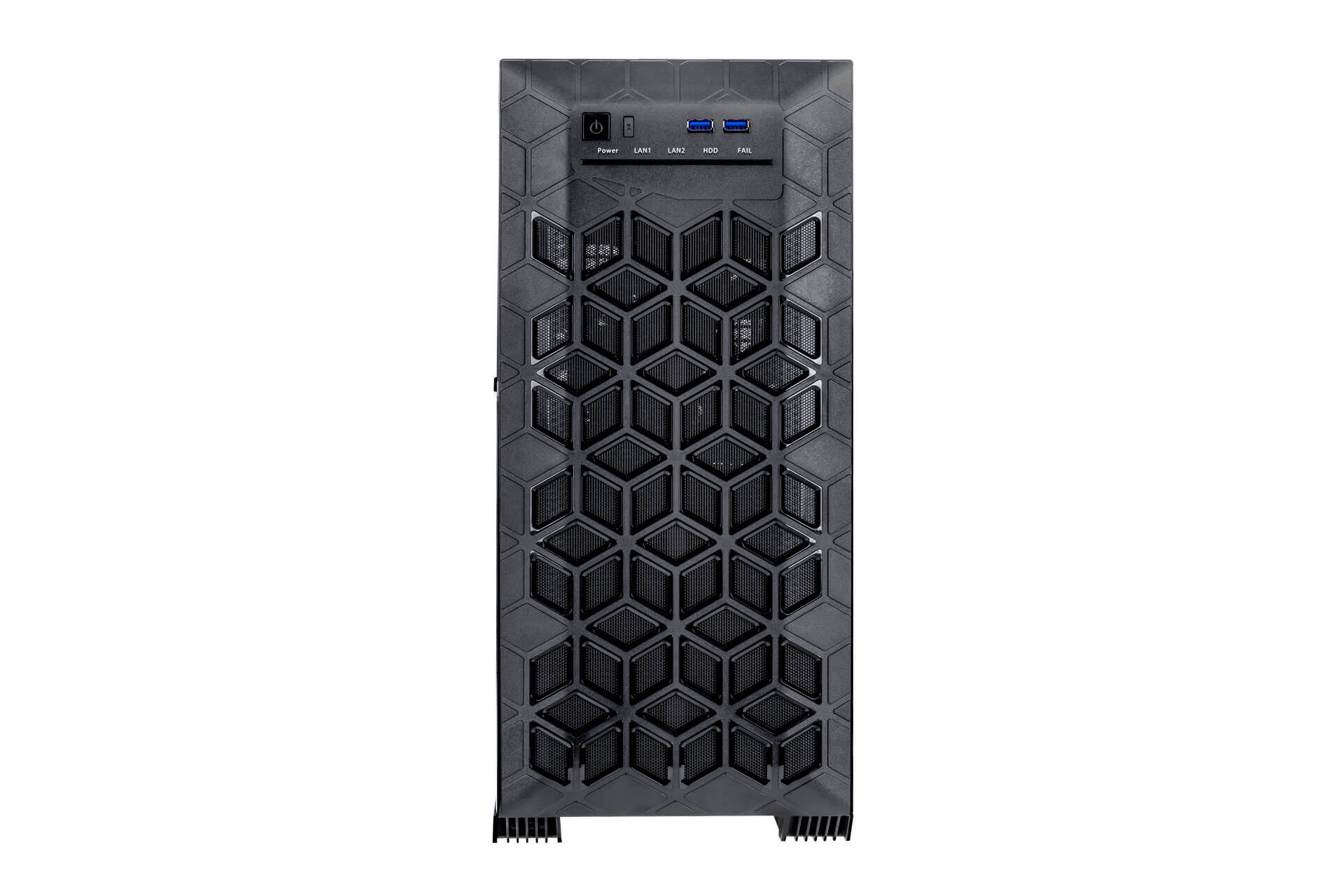

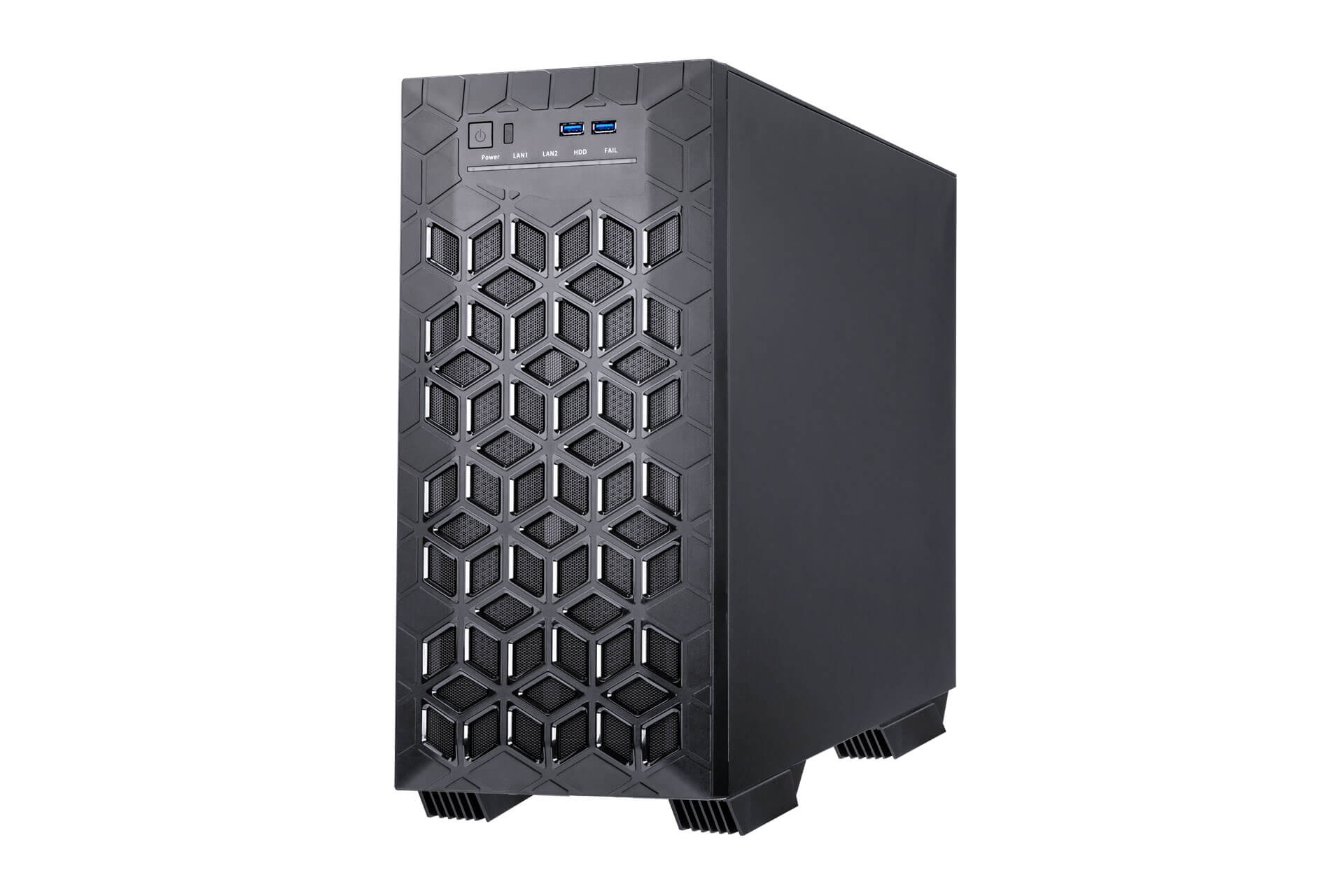

server system assembly
IW-PL070

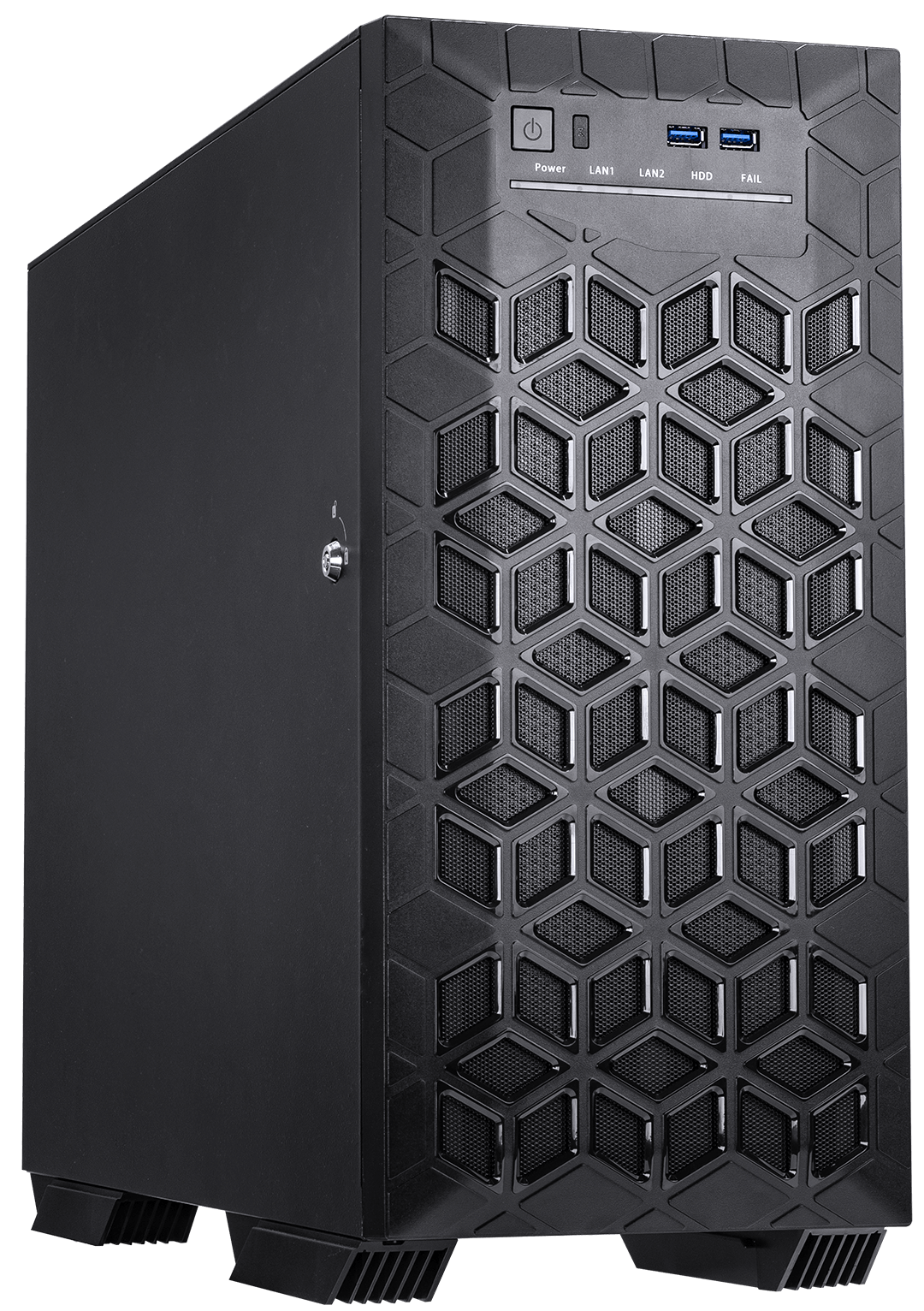

Air/Liquid Cooling GPU Workstation
- Supports up to five 120mm fans to create excellent thermal performance
- AIO options are available with an Intel® LGA4710 bracket, or with LGA1851 and AMD AM5 mounting package
- Contains 7 PCIe slots to accommodate high-end GPUs
- Screwless adjustable card holder for full-length GPUs
- Nine storage drive bays, comprising 2.5"/3.5" trays x 5 and the option for 2.5" drives x 4
- Capable of installing standard ATX PSU or high-efficiency 80 PLUS Platinum CRPS
COOL IT!!!
With Air or Liquid

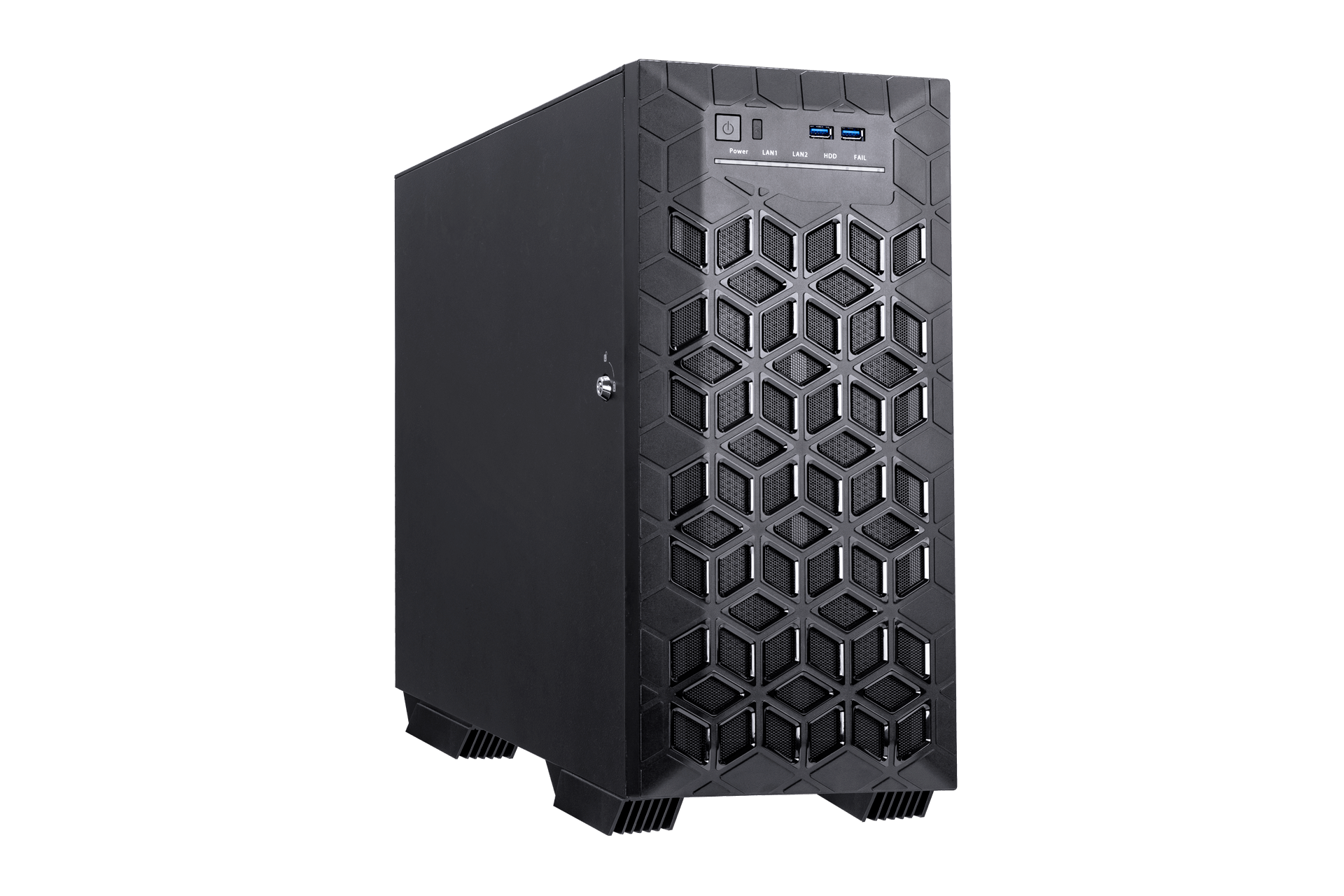

Air/Liquid Cooling Pedestal Server Chassis
The IW-PL070 offers air or liquid cooling options for your home/office server. Arrange your preferred cooling layout to effectively match GPU/CPU requirements. The IW-PL070’s thermal solutions tactically covers the generous storage area to support up to nine total drives.
Optimized Cooling Solution
The IW-PL070 provides optimized air cooling solutions, and supports liquid cooling. Users have more options to arrange their cooling system according to system requirements.

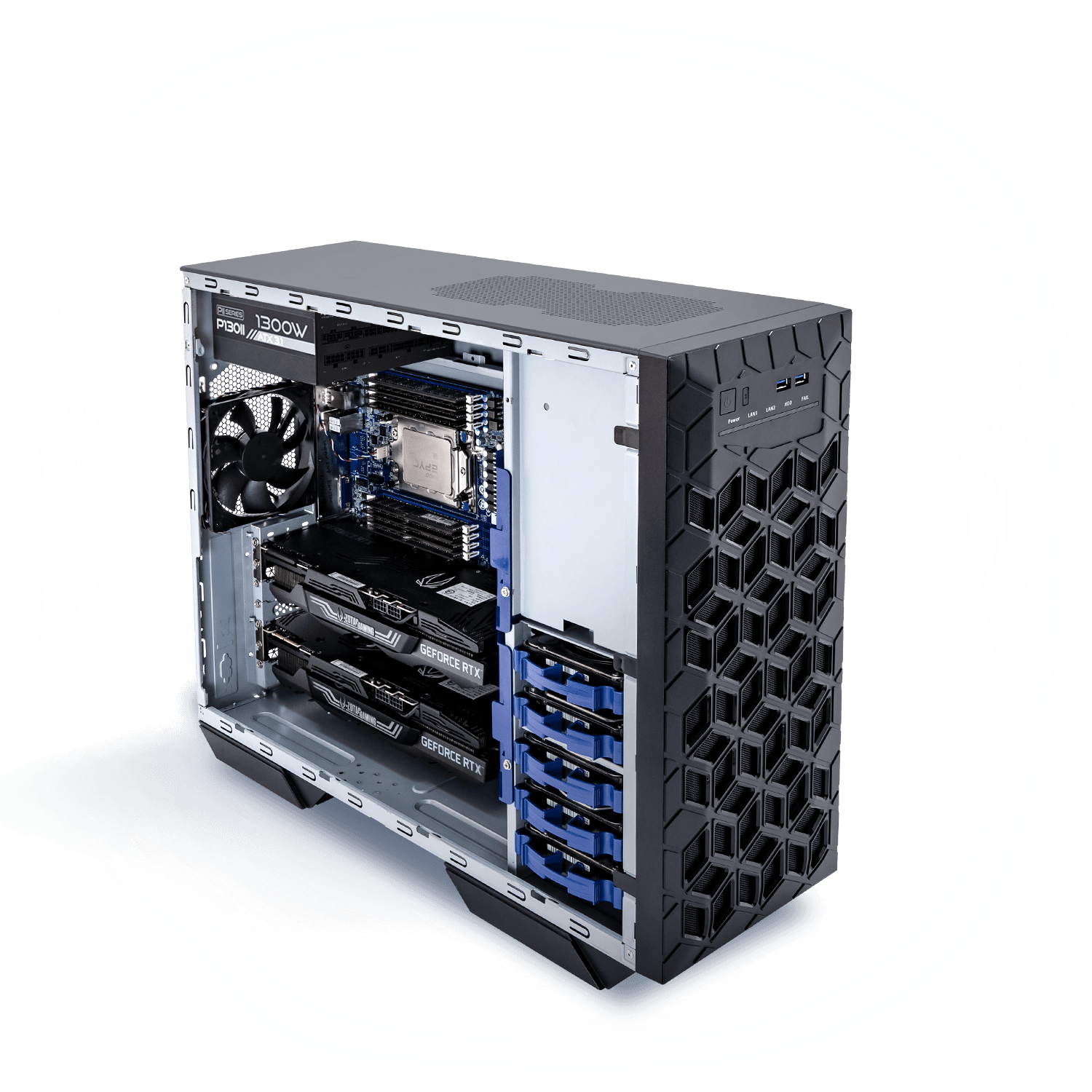

Air Cooling Ready

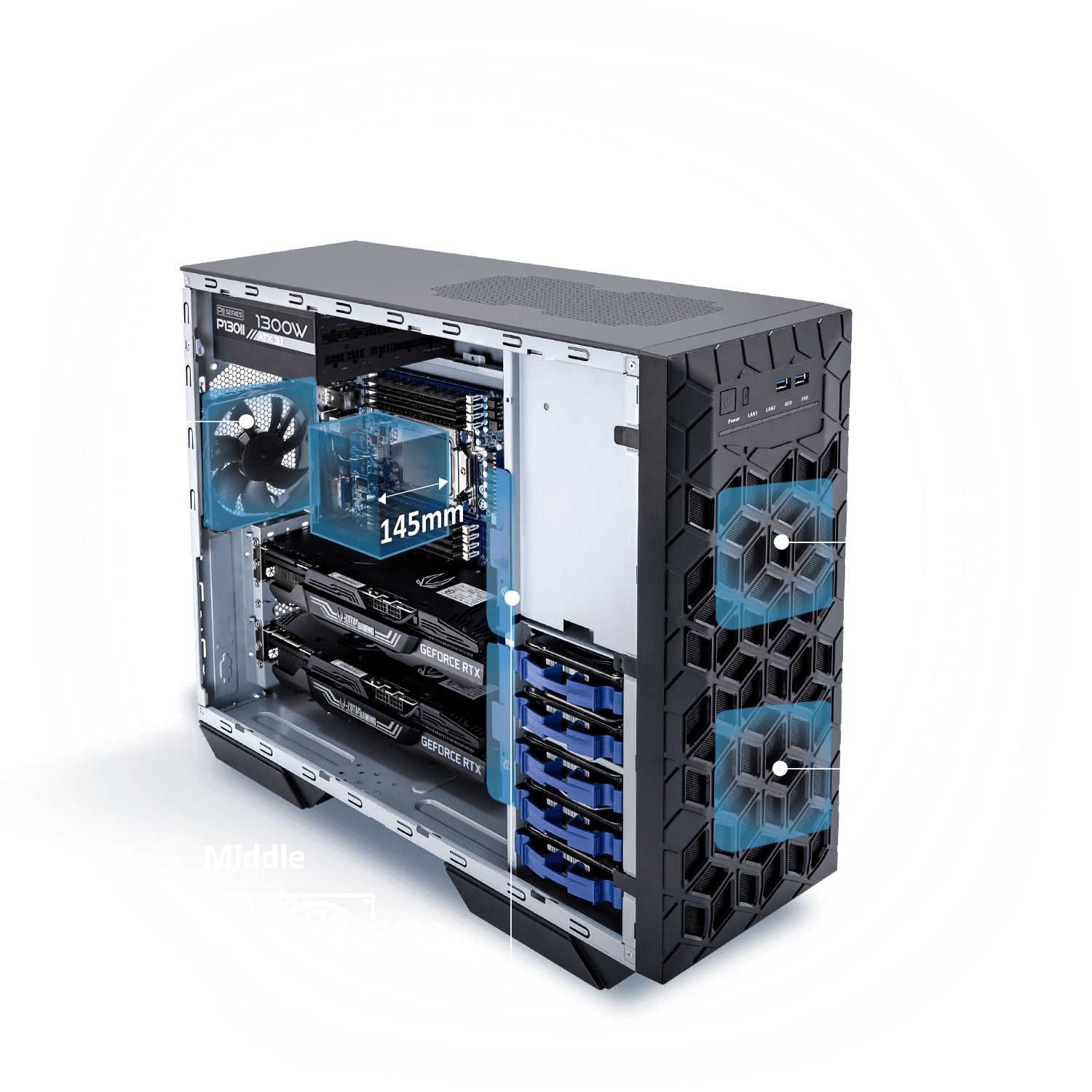

For users that prefer air cooling, the IW-PL070 supports:
Front 120mm fan x 2 (One pre-installed) ,
Middle 120mm fan x 2 (One pre-installed),
Rear 120mm fan (One pre-installed), or 80mm fan x 2
Max. up to 5 or 6 fans which is great for heat dispassion.
Front 120mm fan x 2 (One pre-installed) ,
Middle 120mm fan x 2 (One pre-installed),
Rear 120mm fan (One pre-installed), or 80mm fan x 2
Max. up to 5 or 6 fans which is great for heat dispassion.
Enhanced Thermal Solutions
Max.up to 5 or 6 fans

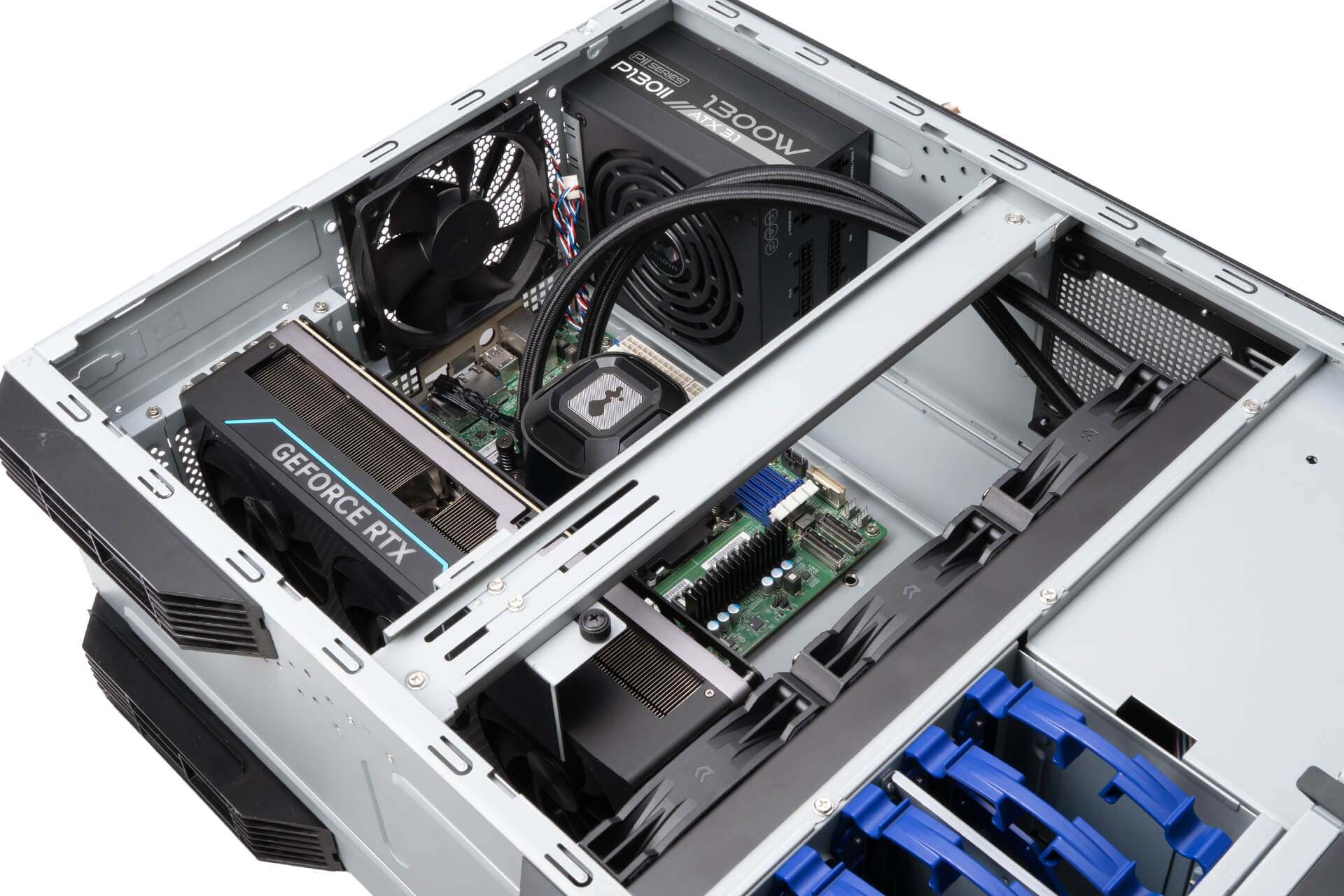

Liquid Cooling Ready

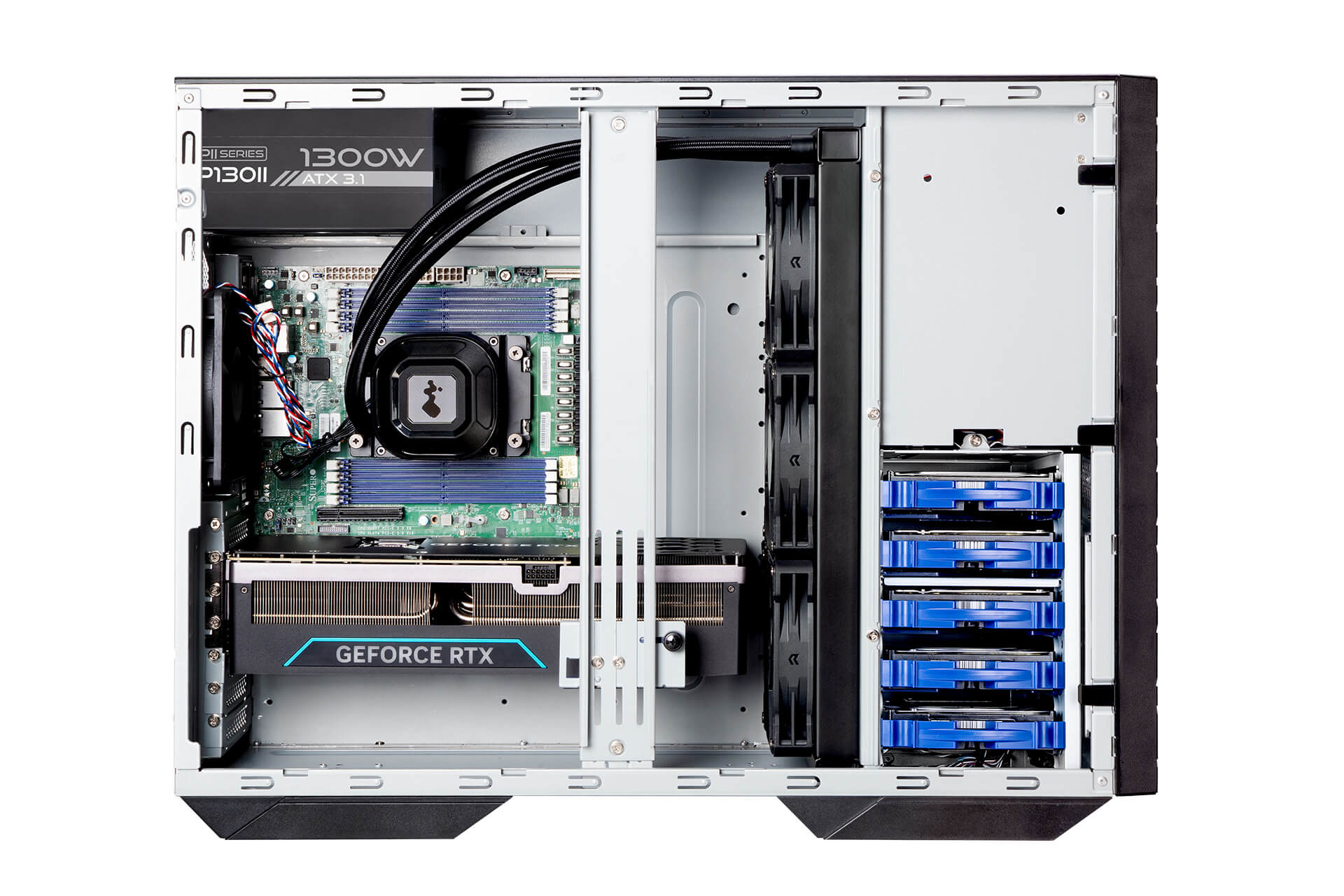

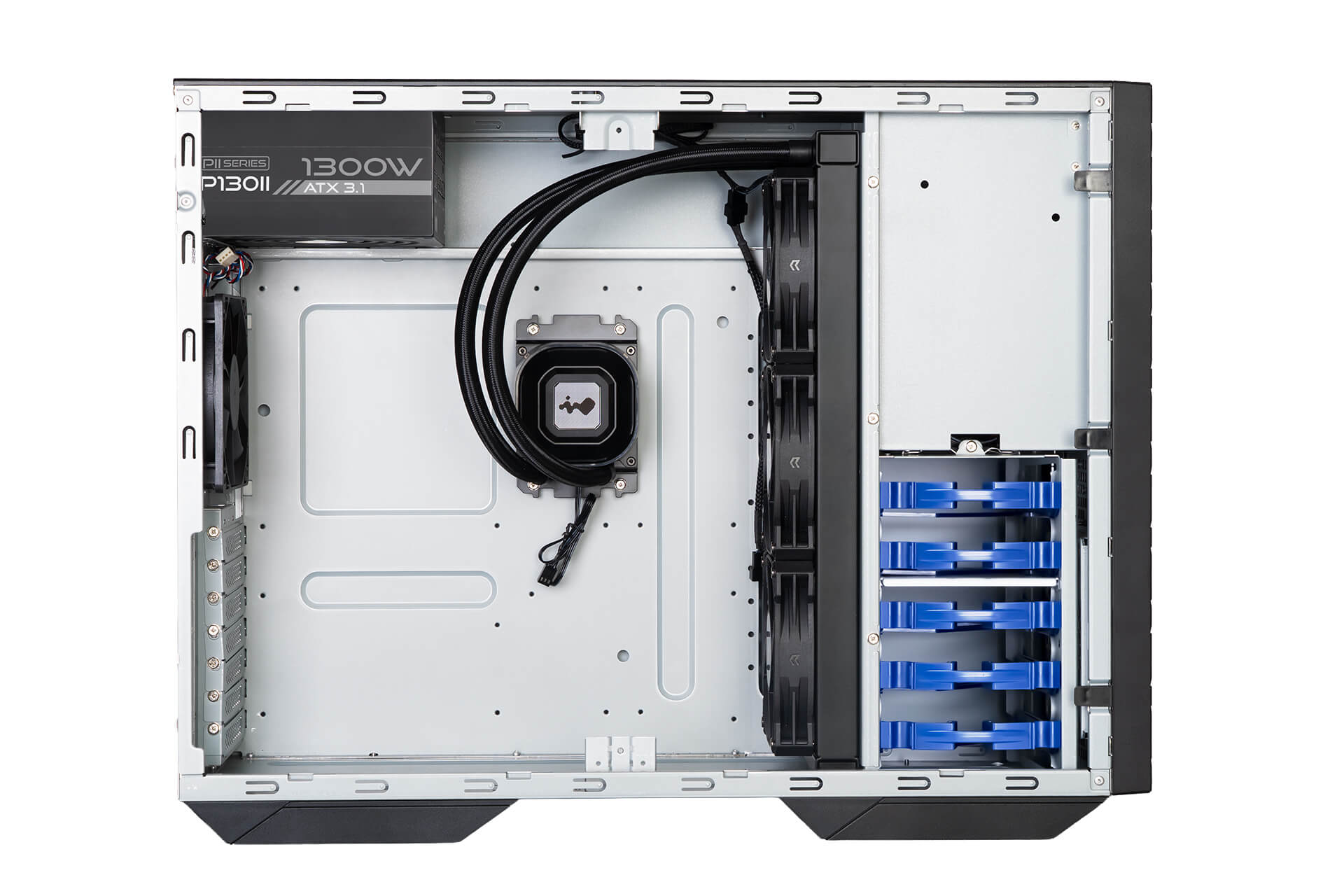

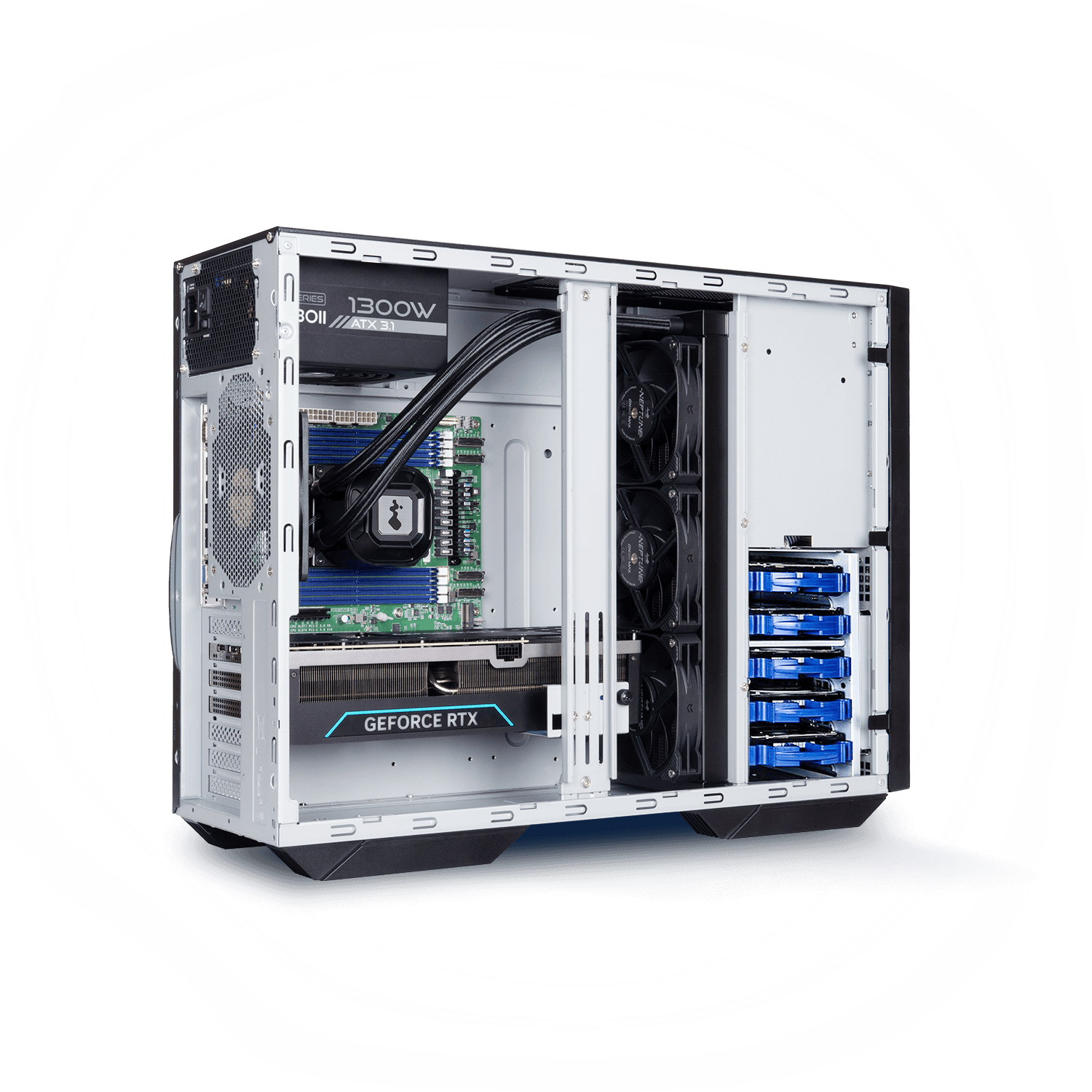

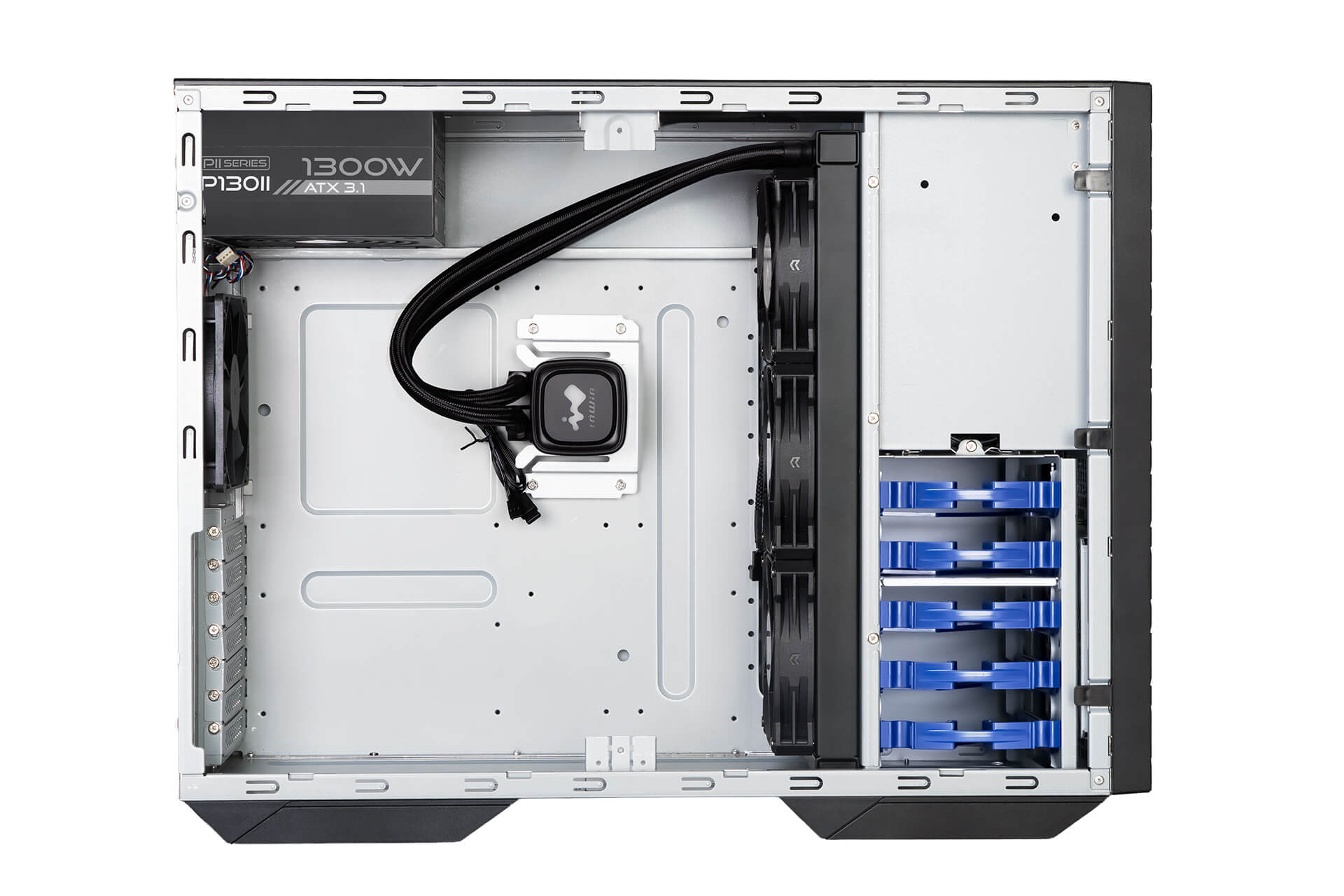

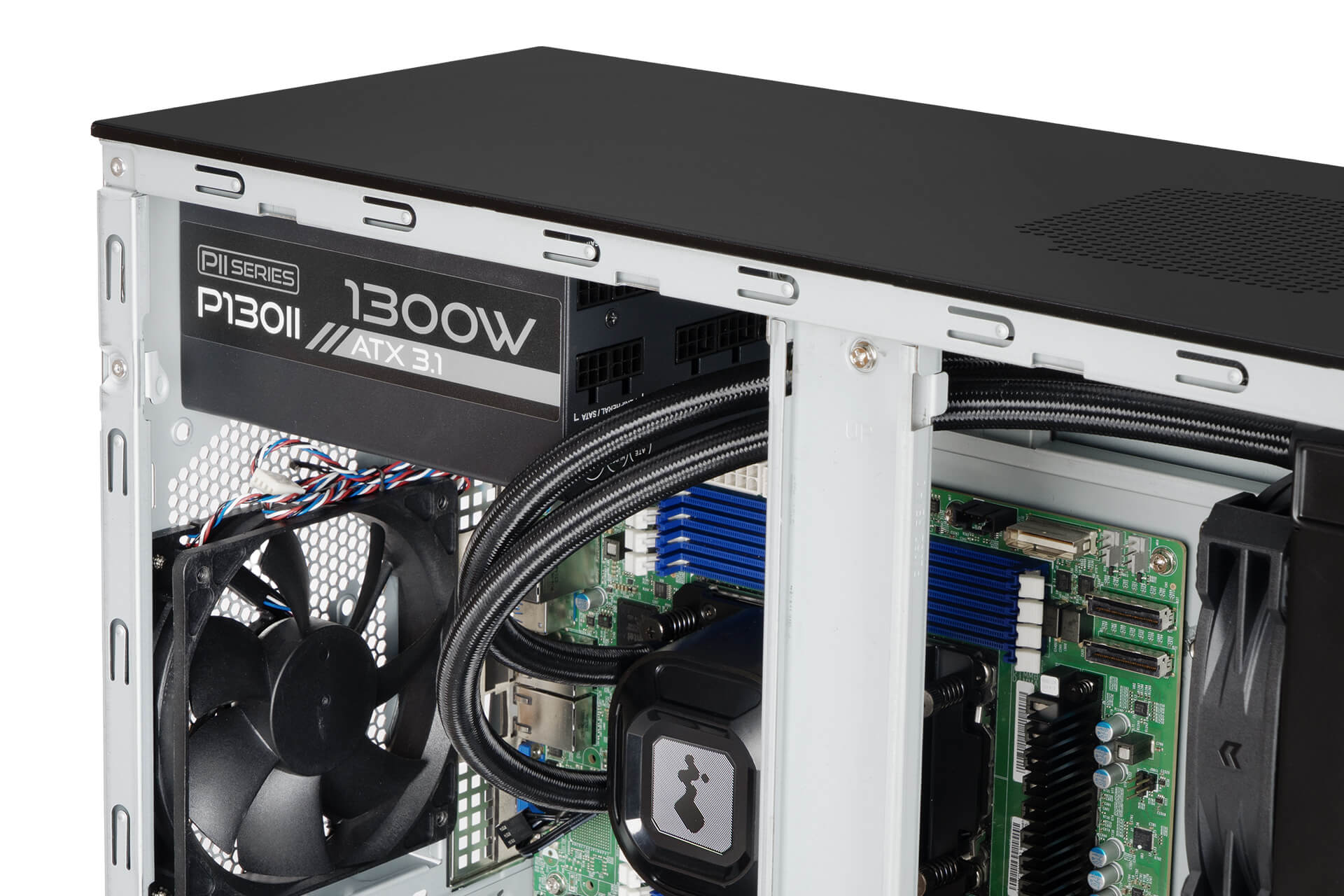

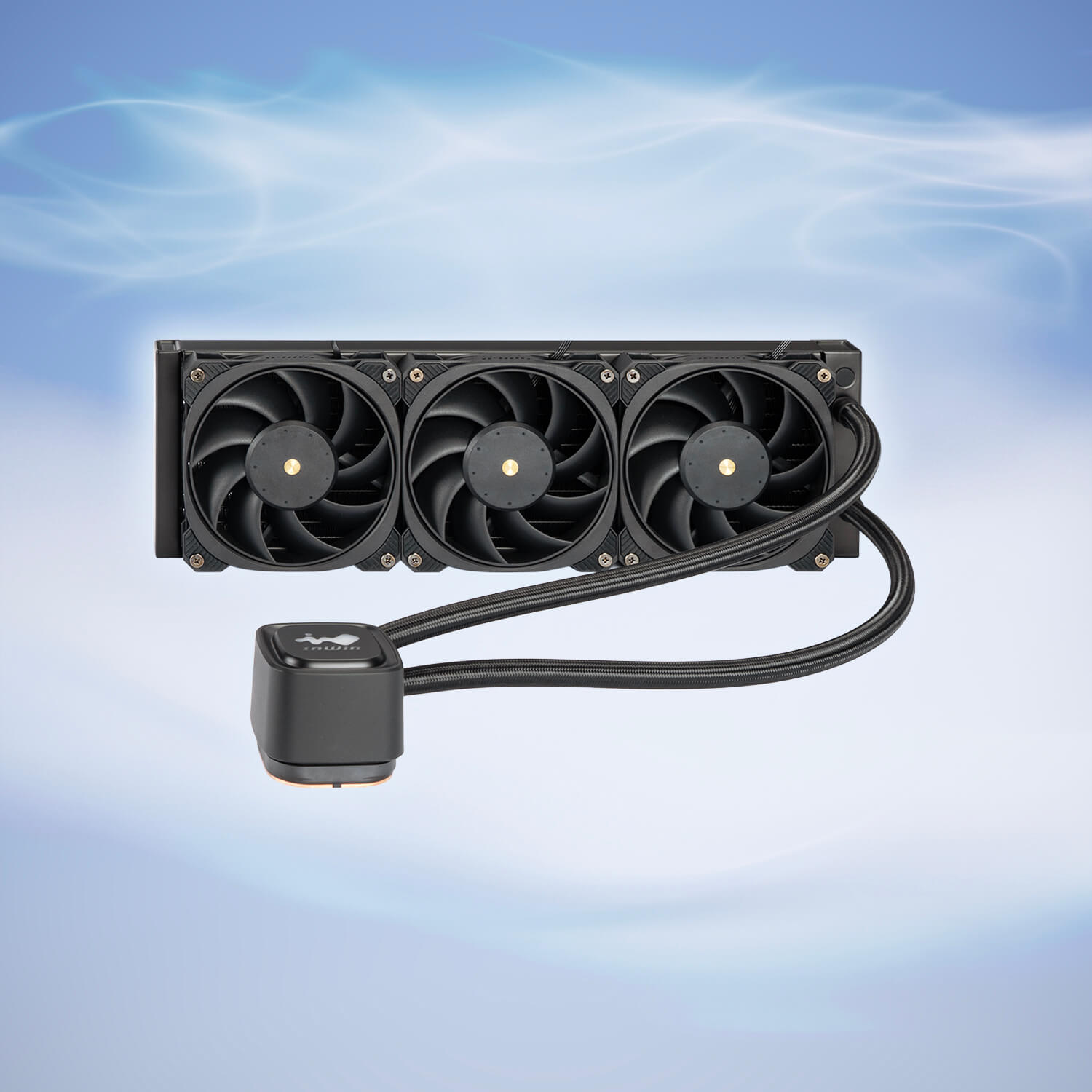

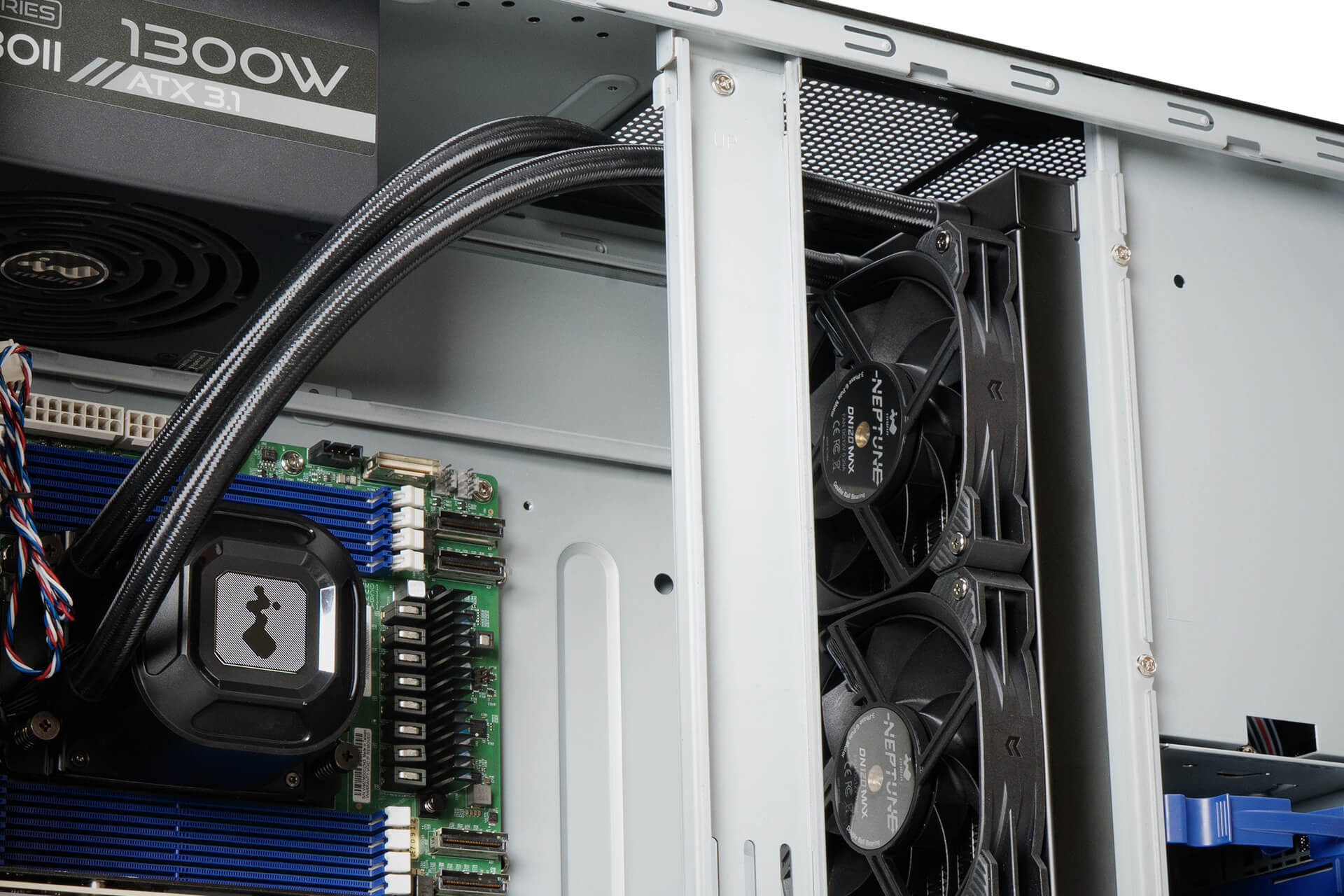

For users that prefer liquid cooling, the IW-PL070 support industrial-grade 360 mm AIO liquid cooler, engineered to support Intel® LGA4710/1851 and AMD AM5 sockets and meet the demands of enterprise cooling. Accelerated cooling to the CPU or GPU, and users can experience a more silent setup.
| CPU Socket Support | Intel® LGA 4710/ 4677 |
|---|---|
| CPU TDP | 350W |
| Radiator Dimensions (L x W x H) |
396 x 120 x 27 mm |
| Tube Length | 450 mm |
| Pump Speed | 4500 RPM +/- 10% |
| Pump Power | 21.6W (24W MAX) |
| Fans | 120 x 25 mm fans x 3pcs, 2700 RPM, 4-Pin 12V connectors |
| Fan Airflow | 93.99 CFM |
| Fan Air Pressure | 6.32 mm / H2O |
| CPU Socket Support | Intel® LGA 1851/ 1700/ 1200/ 20xx/ 1151/ 115x AMD AM5/ AM4/ AMx/ FMx |
|---|---|
| Radiator Dimensions (L x W x H) |
397 x 120 x 27 mm 15.6 x 4.7 x 1.06" |
| Tube Length | 450 mm |
| Pump Speed | 3100 RPM +/- 10% |
| Pump Power | 3.0W (3.3W MAX) |
| Fans | 120 x 25 mm fans x 3pcs, 2700 RPM, 4-Pin 12V connectors |
| Fan Airflow | 93.99 CFM |
| Fan Air Pressure | 6.32 mm / H2O |
Extensive Hardware Support

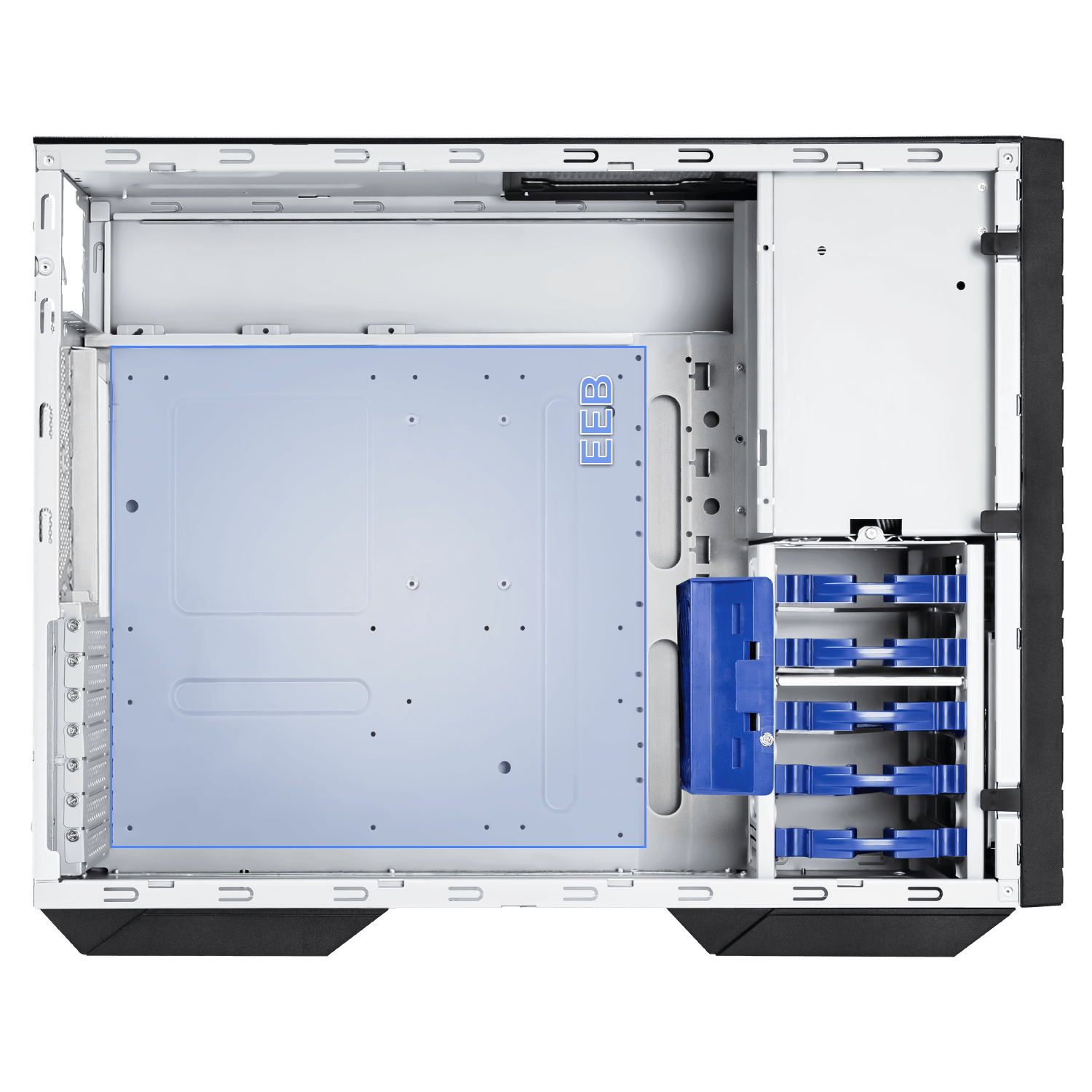

The IW-PL070 supports up to an EEB motherboard,
and most high-end GPUs. The screwless adjustable holder safely secures the GPU.
and most high-end GPUs. The screwless adjustable holder safely secures the GPU.
Note:
Only GPUs with a maximum length of 340mm can be installed when placing a radiator in the middle mounting area. GPUs up to 355mm can be installed when using up to two 120mm case fans.
Only GPUs with a maximum length of 340mm can be installed when placing a radiator in the middle mounting area. GPUs up to 355mm can be installed when using up to two 120mm case fans.
Compartmentalized
Drive Areas

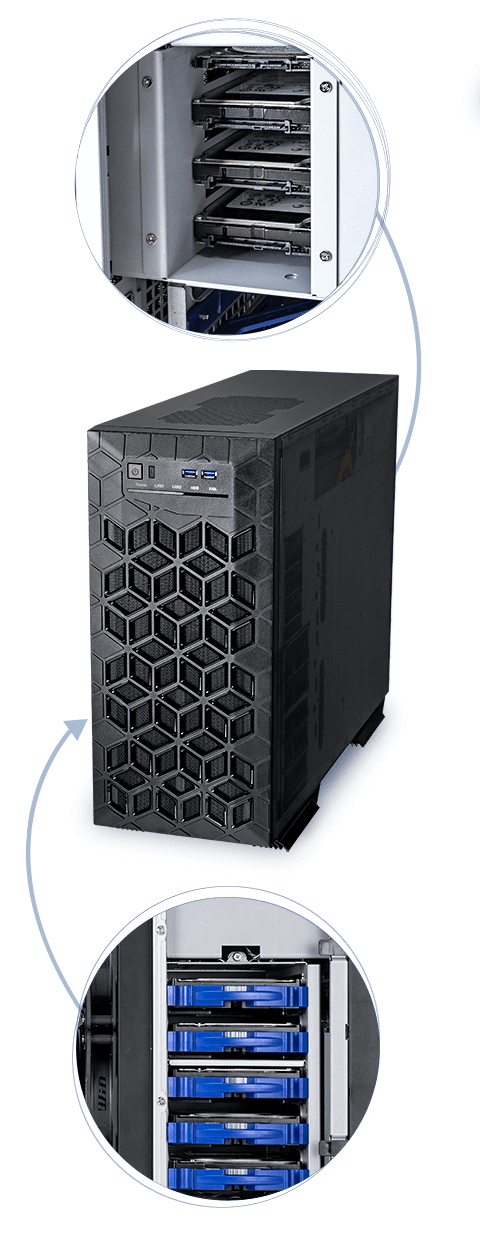

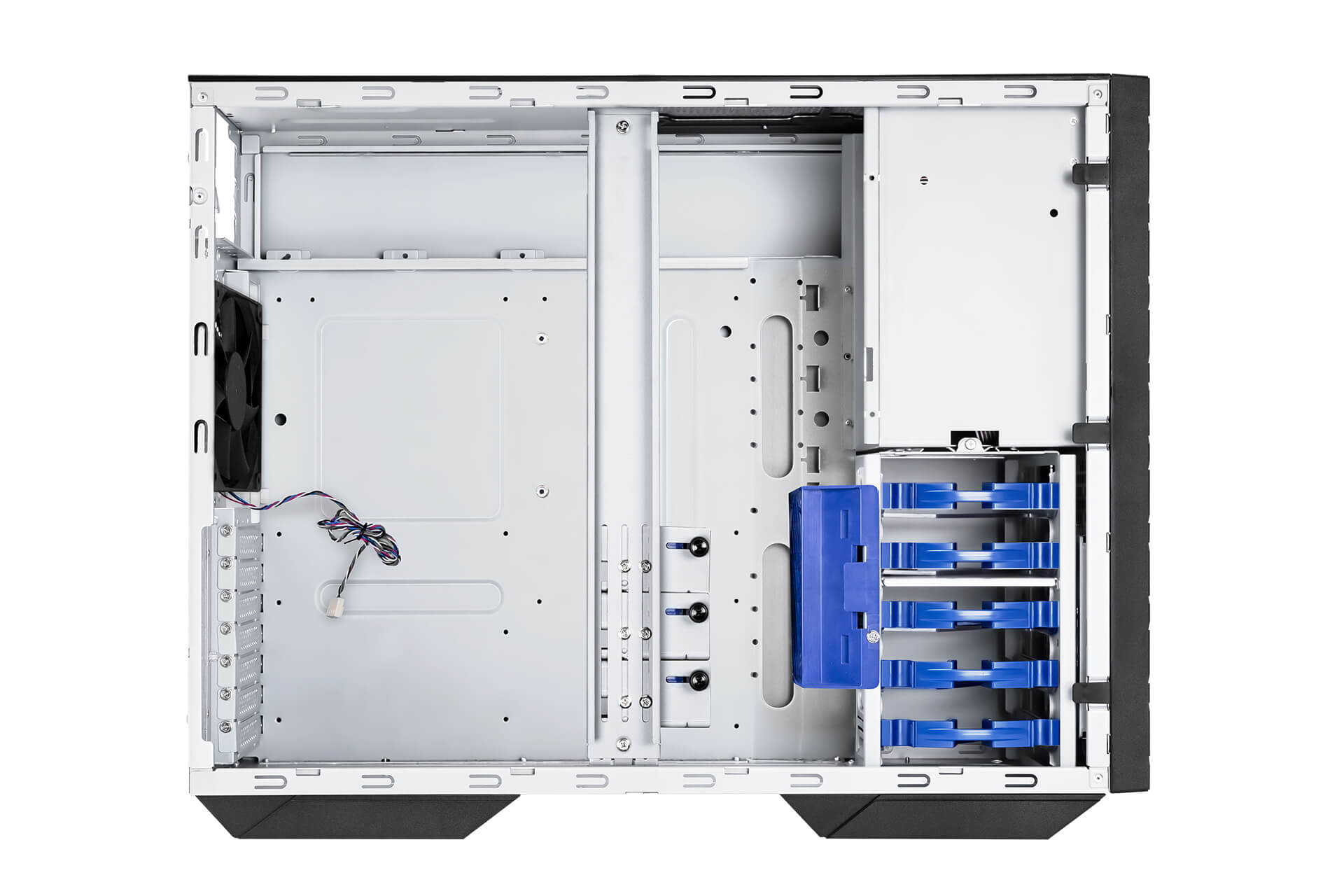

A maximum of 9 drives can be hosted with the IW-PL070.
The two-sectioned storage areas adheres to organizational orientation to easily identify the intended drive function.
The two-sectioned storage areas adheres to organizational orientation to easily identify the intended drive function.

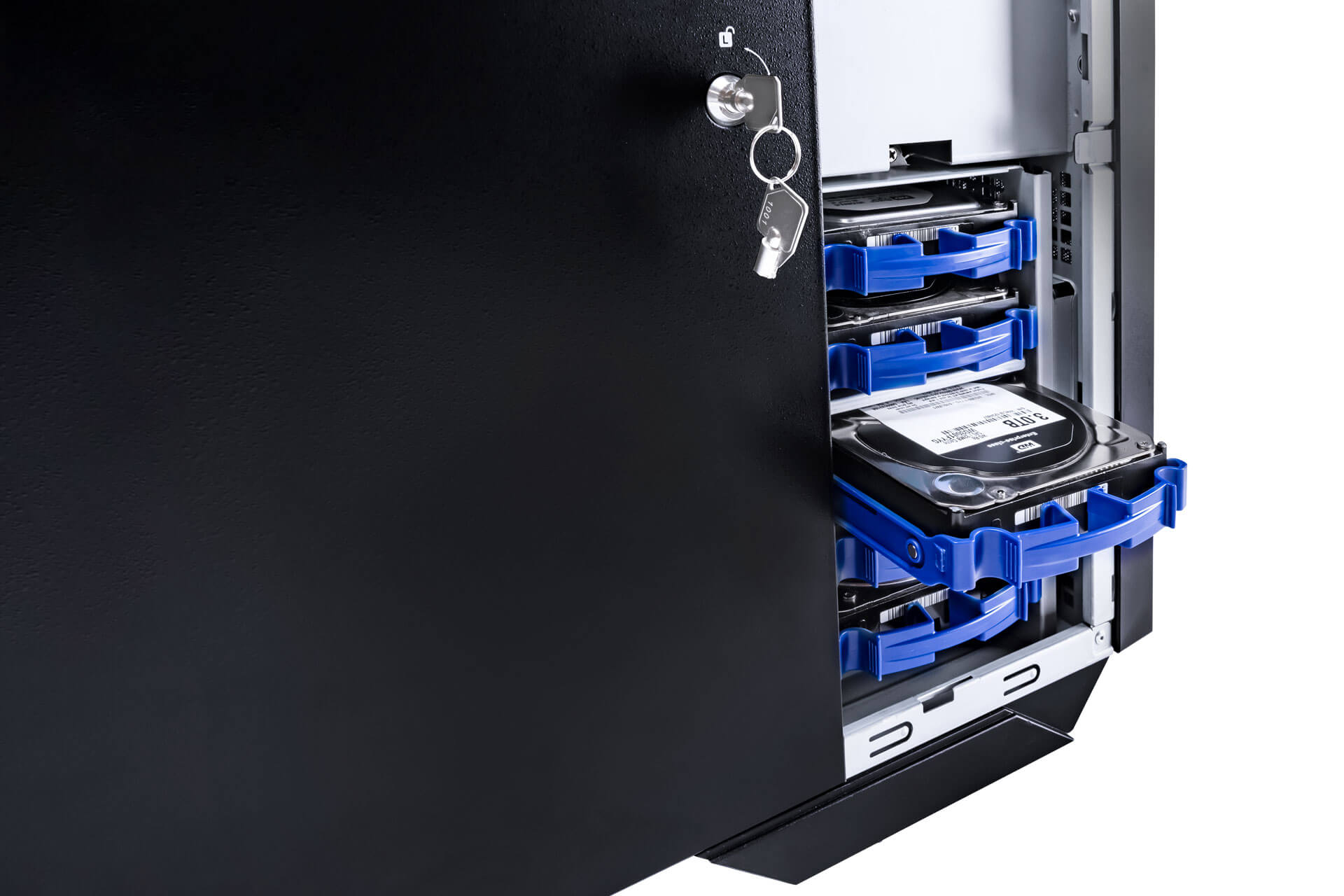

Top section can accommodate up to four 2.5" drives intended for operational/software programming.
Bottom section can hold up to five 2.5"/3.5" drives aimed for data/storage purposes.
Choose
Your Power!

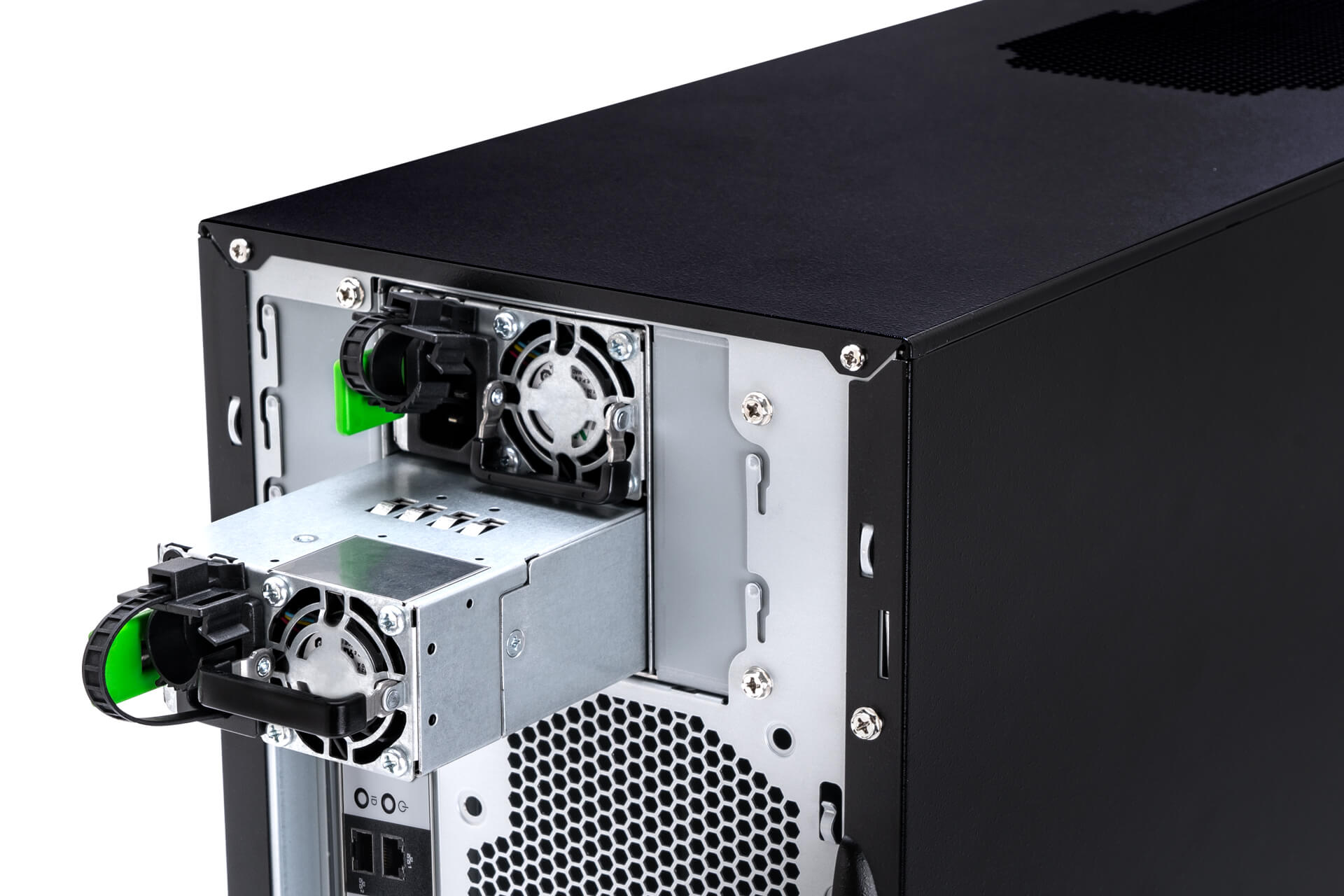

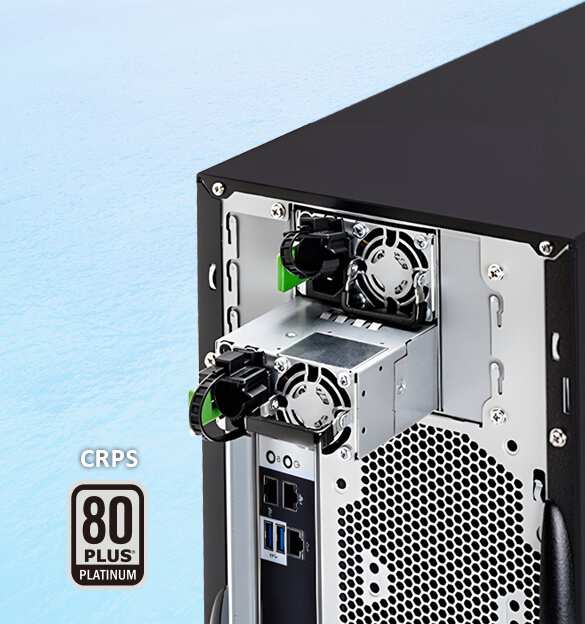

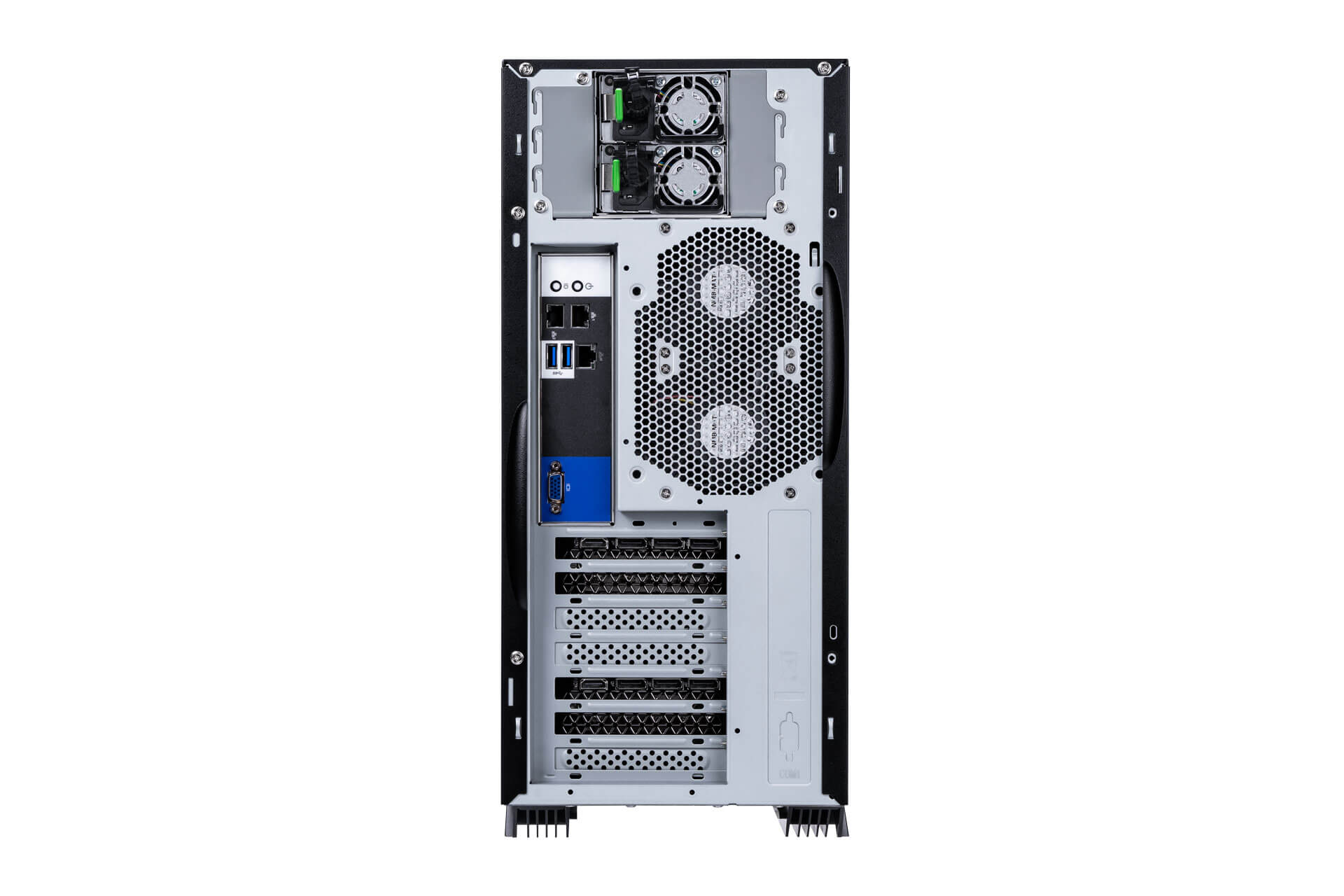

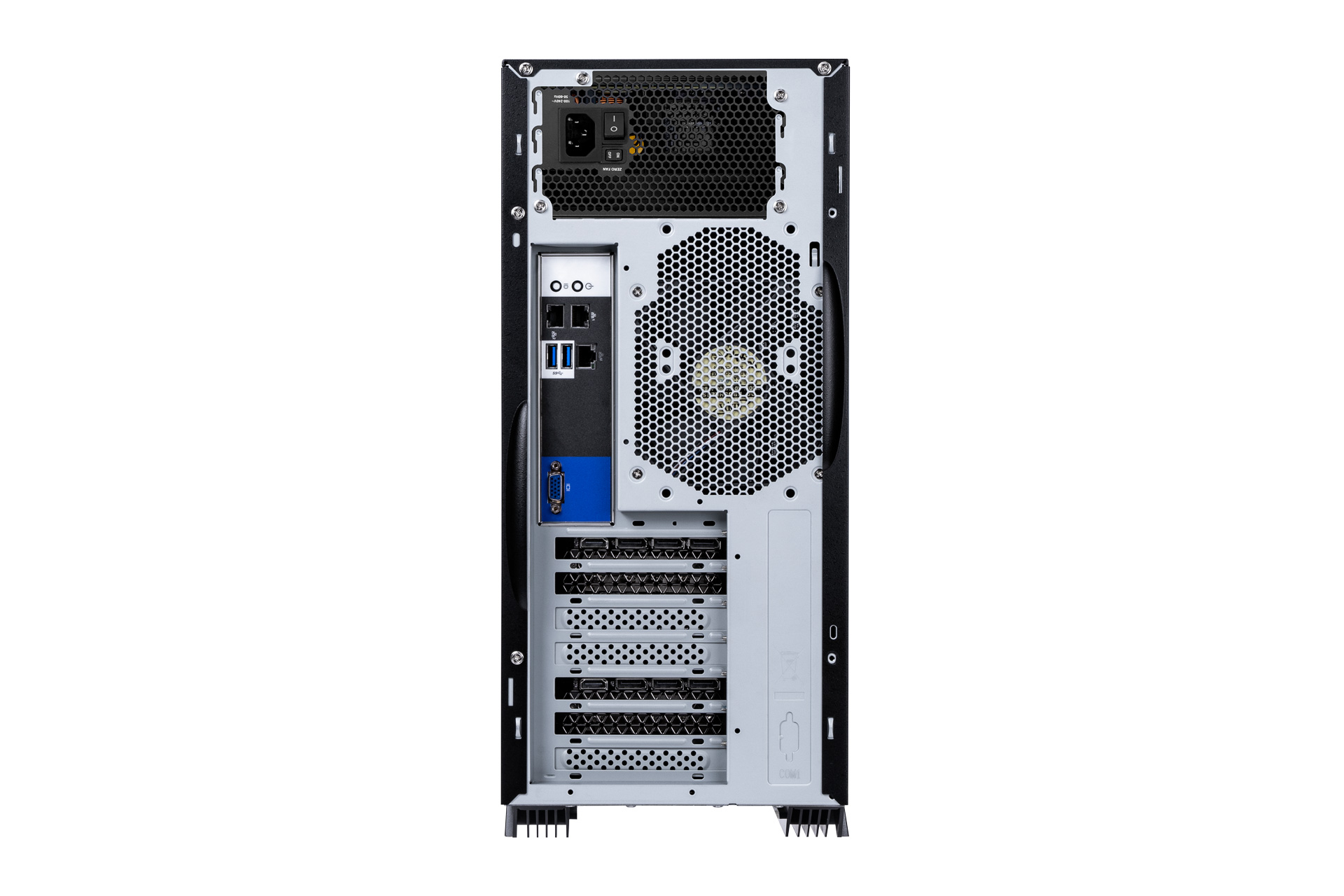

The IW-PL070 can house either standard ATX or CRPS PSUs.
Power up your server to better suit your preferred system.
Power up your server to better suit your preferred system.

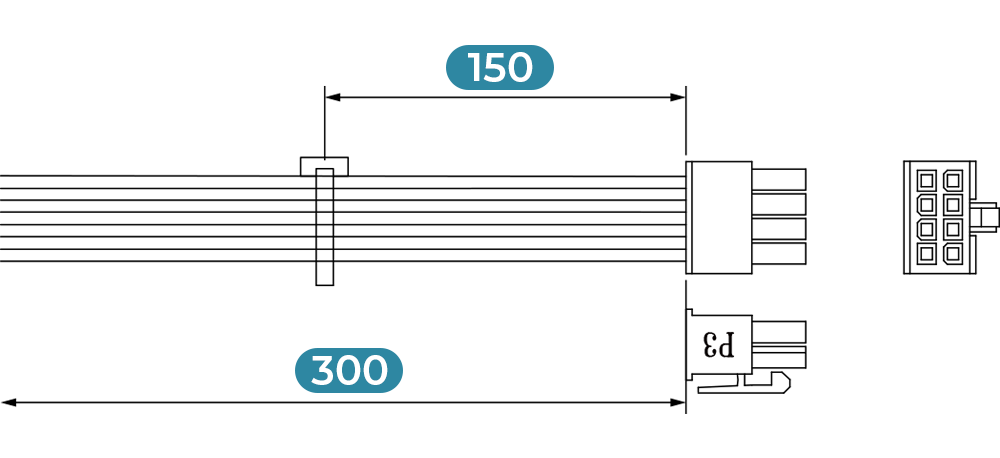

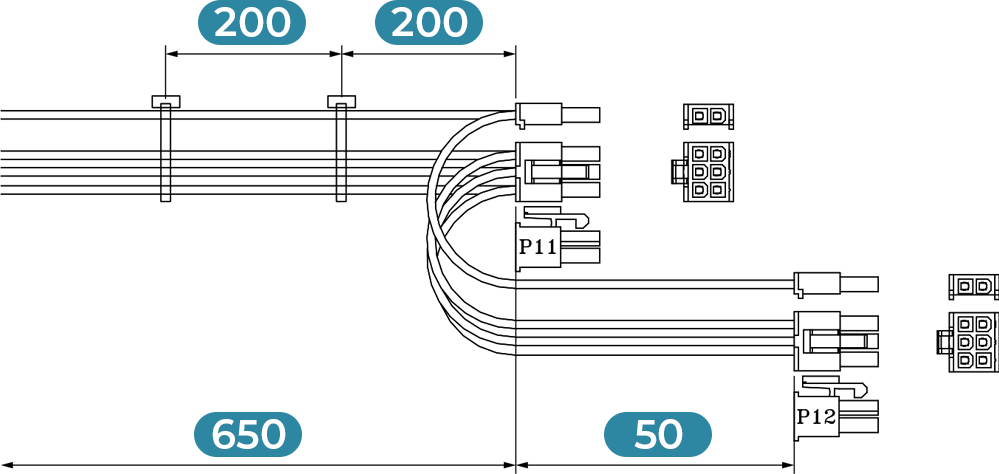

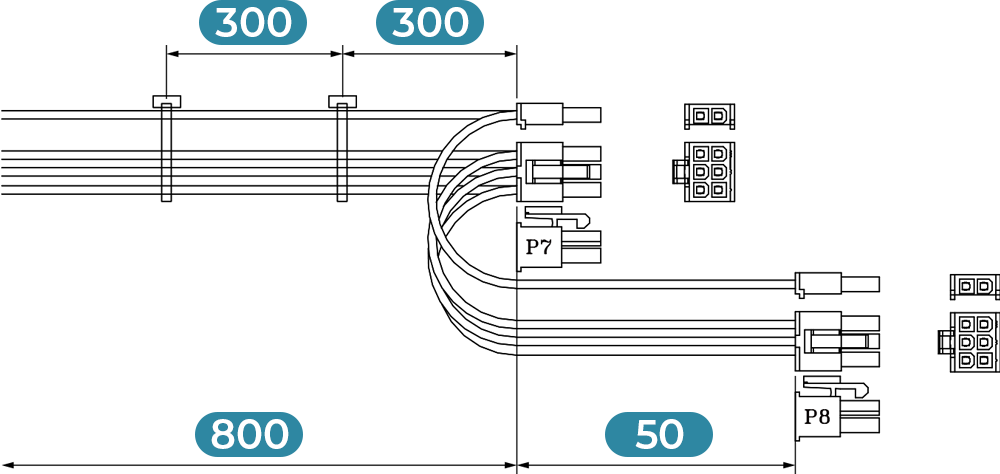

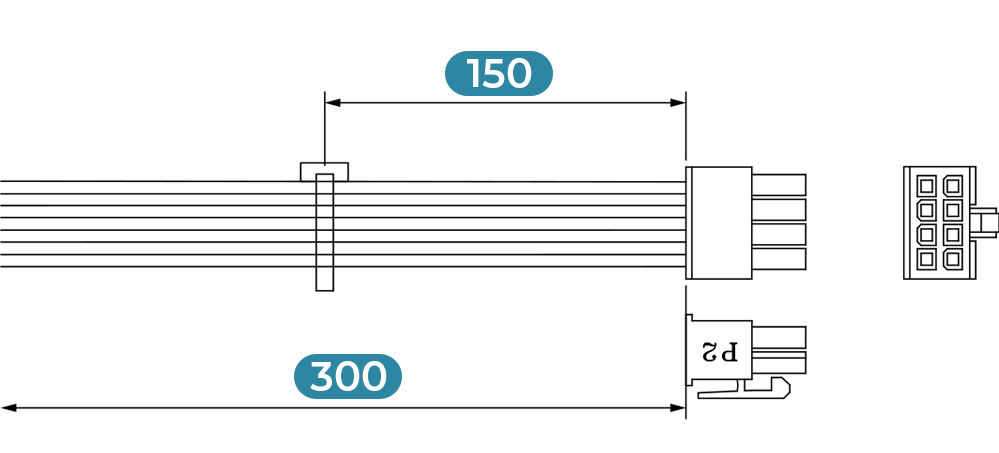

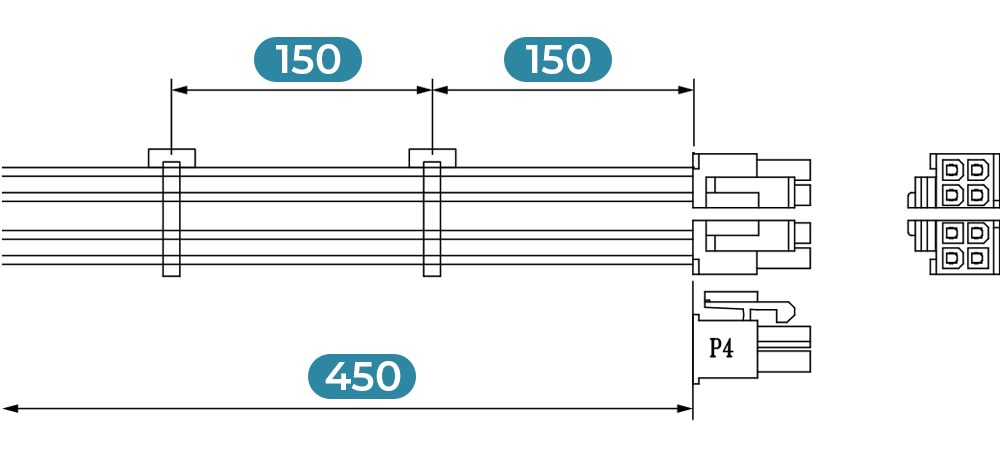

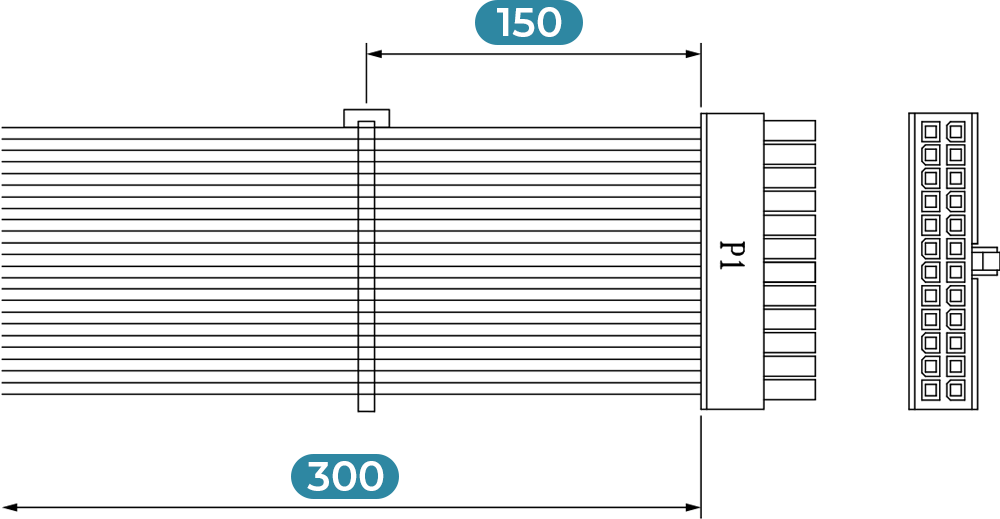

Power Cable Information
Unit of Length: mm
1300W ATX High-Wattage Power Supply
24-Pin (20+4) Main Power
8-Pin (4+4) CPU x 2
6+2-Pin PCIe x 3
12V-2x6 PCIe x 2
SATA (90-degree) x 3
1. 4-Pin Peripheral
2. Floppy
2. Floppy

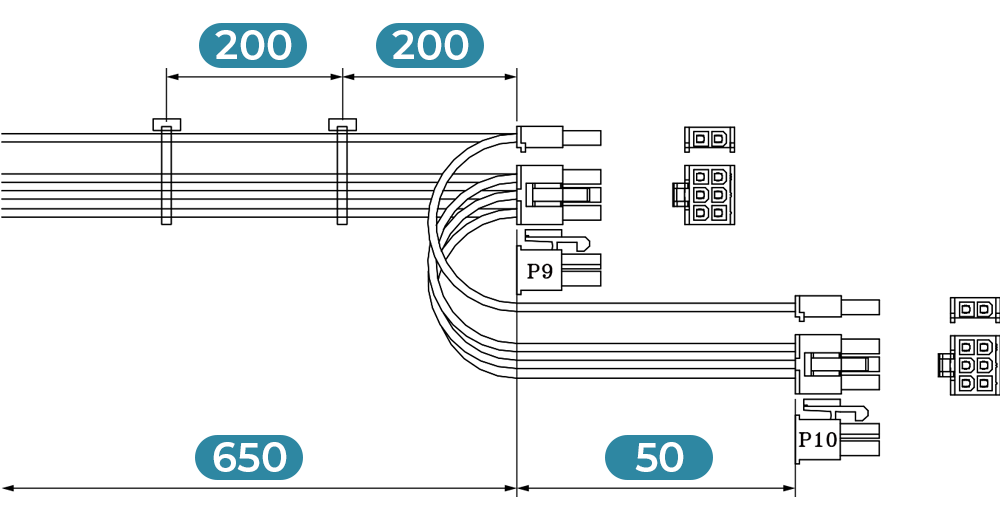

1600W CRPS Redundant Power Supply
24-Pin Main motherboard
PCIe 6+2 pin x 2 GPU
8-Pin CPU
PCIe 6+2 pin x 2 GPU
8-Pin CPU

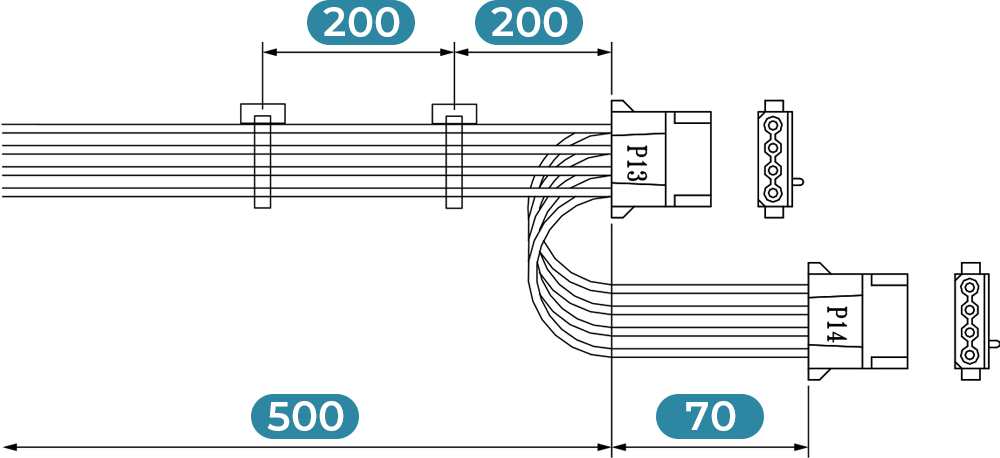

molex 4pin x 2 expansion
4+4-Pin CPU
molex 4pin x 2 expansion
PCIe 6+2 pin x 2 GPU
SATA 15pin x 3 internal HDD
PCIe 6+2 pin x 2 GPU
PMBus

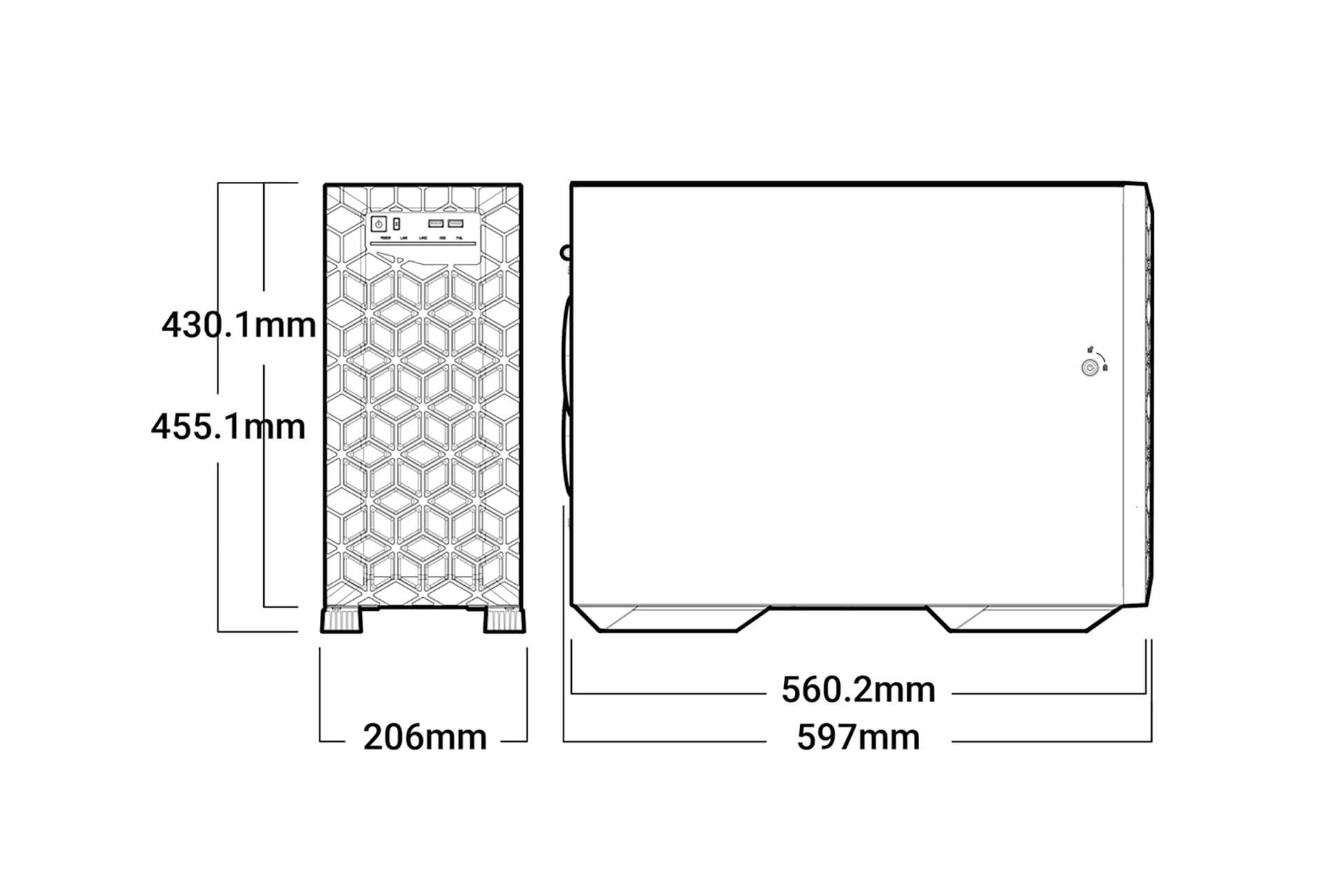

Dimensions
Let’s Get to Work!
The IW-PL070 is a sensible workstation that can offer a range of tasks and applications to suit your needs. The cooling options, drive configuration and expandability makes for a great home/office server.
Suitable for architects to operate CAD and BIM software.
Applicable to media and entertainment editing projects.
Features for entry level AI learning/e-learning.
| Specification | |
|---|---|
| M/B Form Factor | ATX(12" x 9.6"), CEB(12" x 10.5"), EEB(12" x 13") |
| Drive Bay | Internal: • 2.5"/3.5" trays x 5 • optional 2.5" drives x 4 (1 x 9mm, 3 x 15mm) |

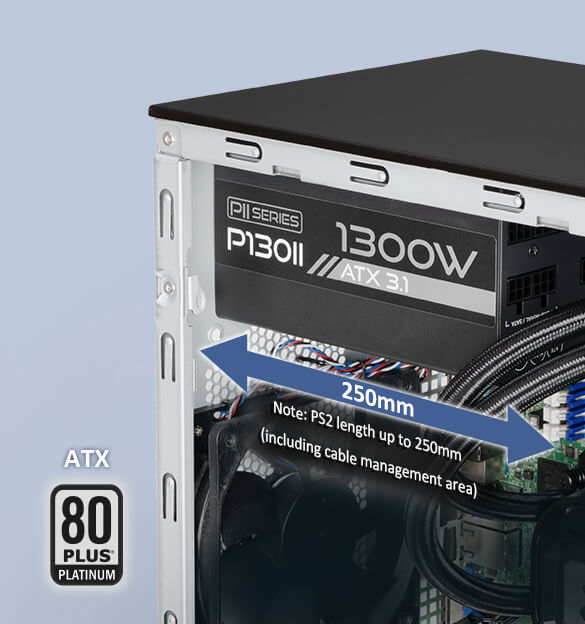

| Power Supply | Supports: • 1300W ATX single PSU, 80 PLUS Platinum, length up to 250mm (including cable management area) • 1600W 2U 1+1 CRPS, 80 PLUS Platinum |
| Indicators | Power status, HDD, LANs, system fail activity LEDs |
| Front Control Panel | Power switch, system reset, USB 3.0 x 2 |
| Chassis Security | Supports: • Padlock loop and Kensington lock slot • Intrusion switch (optional) |
| Cooling Fans | • Front: 120 x 25mm PWM fan x 2 (one pre-installed) • Middle: 120 x 25mm PWM fan x 2 (one pre-installed) • Rear: 120 x 25mm PWM fan x 1 (pre-installed) or 80 x 38mm PWM fan x 2 (optional) |
| Water Cooling Kit | AIO liquid coolers support: • 360mm radiator x 1 |
| Expansion Slot | Full-height PCIe slots x 7 |
| Material | • Material: SECC • Thickness: 0.8~1.0mm |
| Maximum Capacity | • GPU length: Middle radiator installed: 340mm Middle fans installed: 355mm • CPU heatsink height: 145mm • PS2 power length: 250mm (including cable management area) |
| Rail Kit | Supports 23" ball-bearing slide rail |
| Product Dimensions (DxWxH; Chassis Only) | 560.2 x 200 x 430.1mm (22.1" x 7.9" x 16.9") |

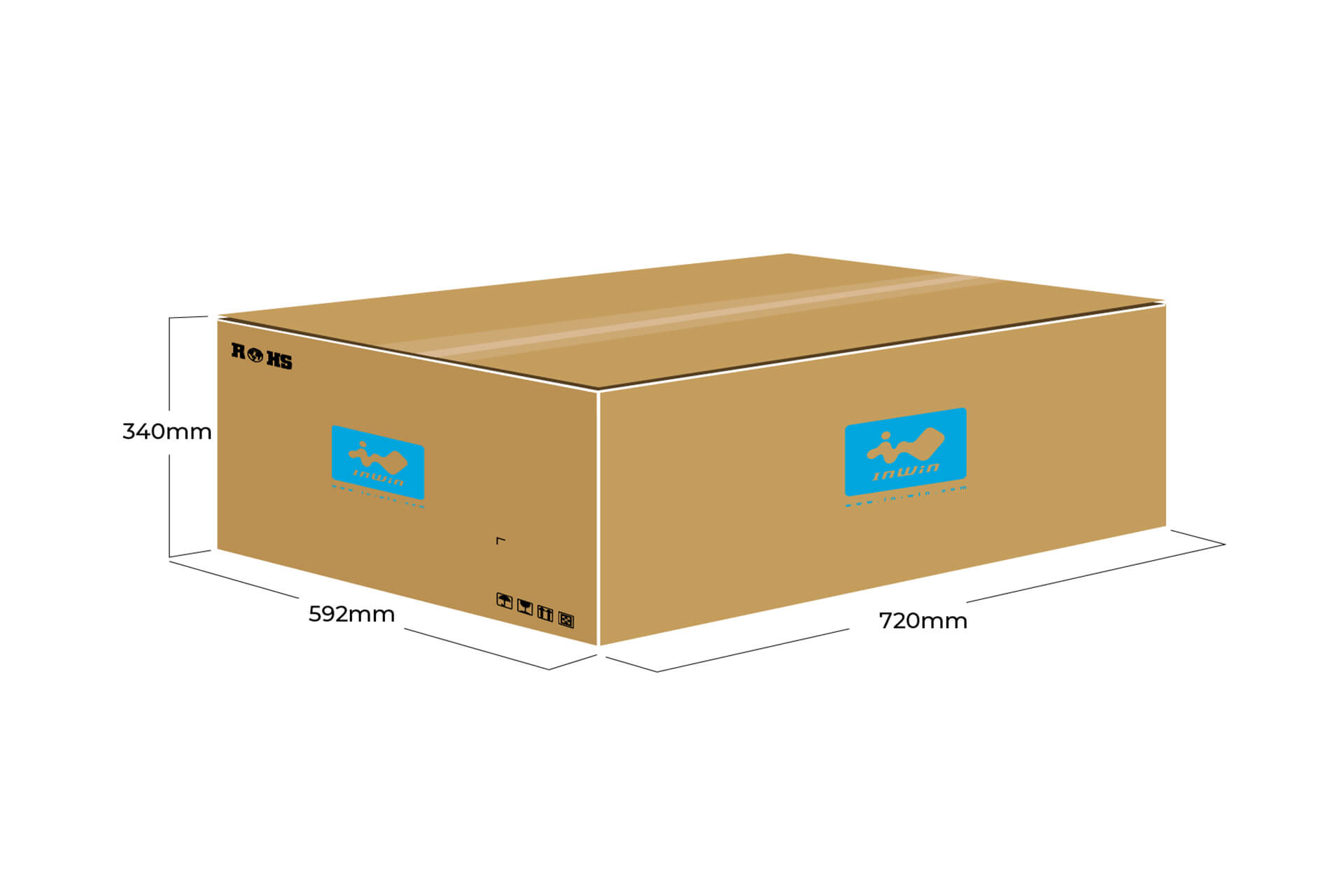

| Package Dimensions (DxWxH) | 720 x 592 x 340mm |
| Weight | • Net weight: 10.67kg • Gross weight: 14.21kg |
| Cubic Feet | 5.12 |
| Container Information | Single Packing with Pallets: • 20': 110pcs • 40': 240pcs • 40' HQ: 288pcs |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Power Supply | 3RAMAP046201 | 80 PLUS Platinum 1300W ATX power supply (IW-P130II) | 1 | |
| Power Supply | 3RAMAP044300 | 80 PLUS Platinum 1600W CRPS (AC Input 100-127V: 1000W, 200-240V: 1600W Max.) | Max. 2 | |
| Power Supply | 2RALXX612200/ 3RAMAP045400 | CRPS PDB cage kit | 1 set | |
| Cable | 3RAMW7105400 | Molex 4 pin to SATA x2 | Max.3 | |
| Others | 2RAKIS013601 | Single easy-swap SATA port module for 2.5"/3.5" HDDs | 5 | |
| Others | 2RAKIS004400 | Dual easy-swap SATA port module for 2.5"/3.5" HDDs | 2 | |
| Others | 3RAMRW020400 | Intrusion switch (length: 700mm) | 1 | |
| Fan | 2RATPH001701 | 120mm fan holder | 2 | |
| Fan | 3RAMFC001301 | 120 x 25mm PWM fan, 2500RPM | 5 | |
| Fan | 3RAMFB007400 | 80 x 38mm PWM fan, 5500RPM | 2 | |
| Water Cooling Radiator | 2RAKBA007600 / 3RAMFS025600 | IW-LSA36, 360mm AIO liquid cooler (Intel® LGA 4710/4677), IW-DN Max, 120 x 25 mm PWM fan | 1 | |
| Water Cooling Radiator | 2RAKBA010500 / 3RAMFS025600 | IW-LSC36, 360mm AIO liquid cooler (Intel® LGA 1851/ 1700/ 1200/ 20xx/ 1151/ 115x; AMD AM5/ AM4/ AMx/ FMx), IW-DN Max, 120 x 25mm PWM fan | 1 | |
| HDDs Cage | 2RALXX607001 | 2.5" HDDs cage kit (top: 9mm x 1, remaining: 15 mm x 3) | 1 |
