server system assembly
IW-PE689

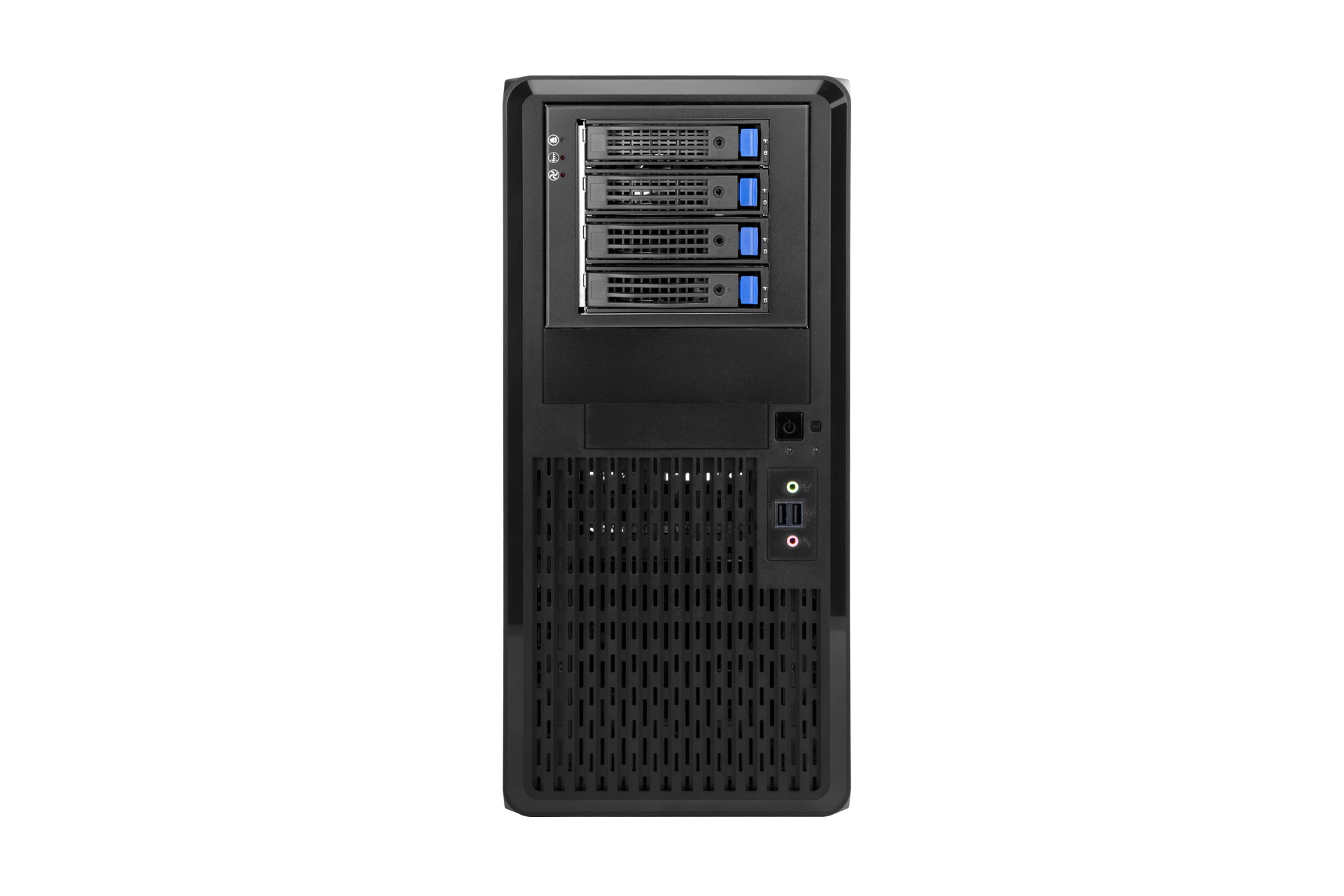

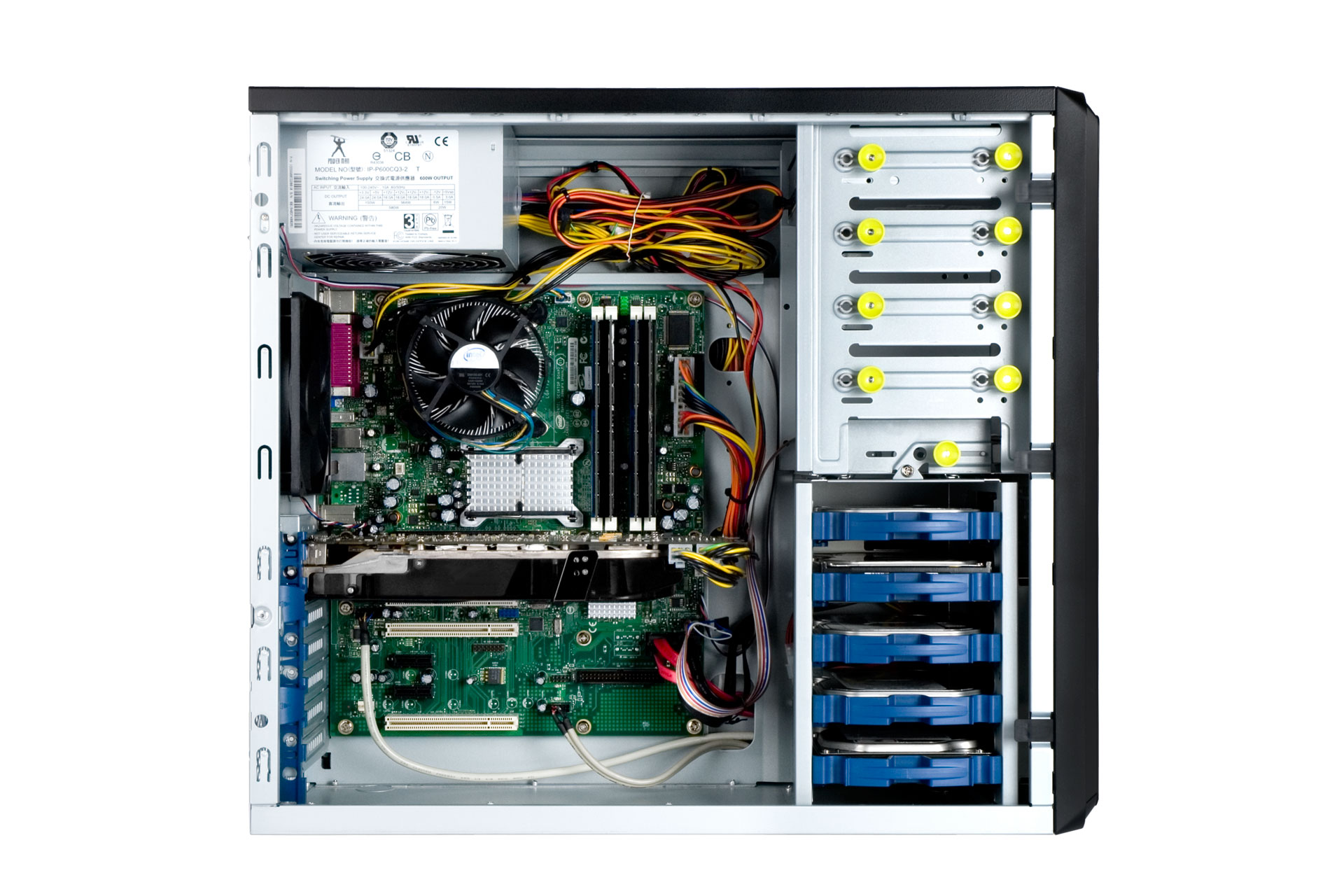

Pedestal Entry Server Chassis
．Compliant for Intel® Xeon Scalable family

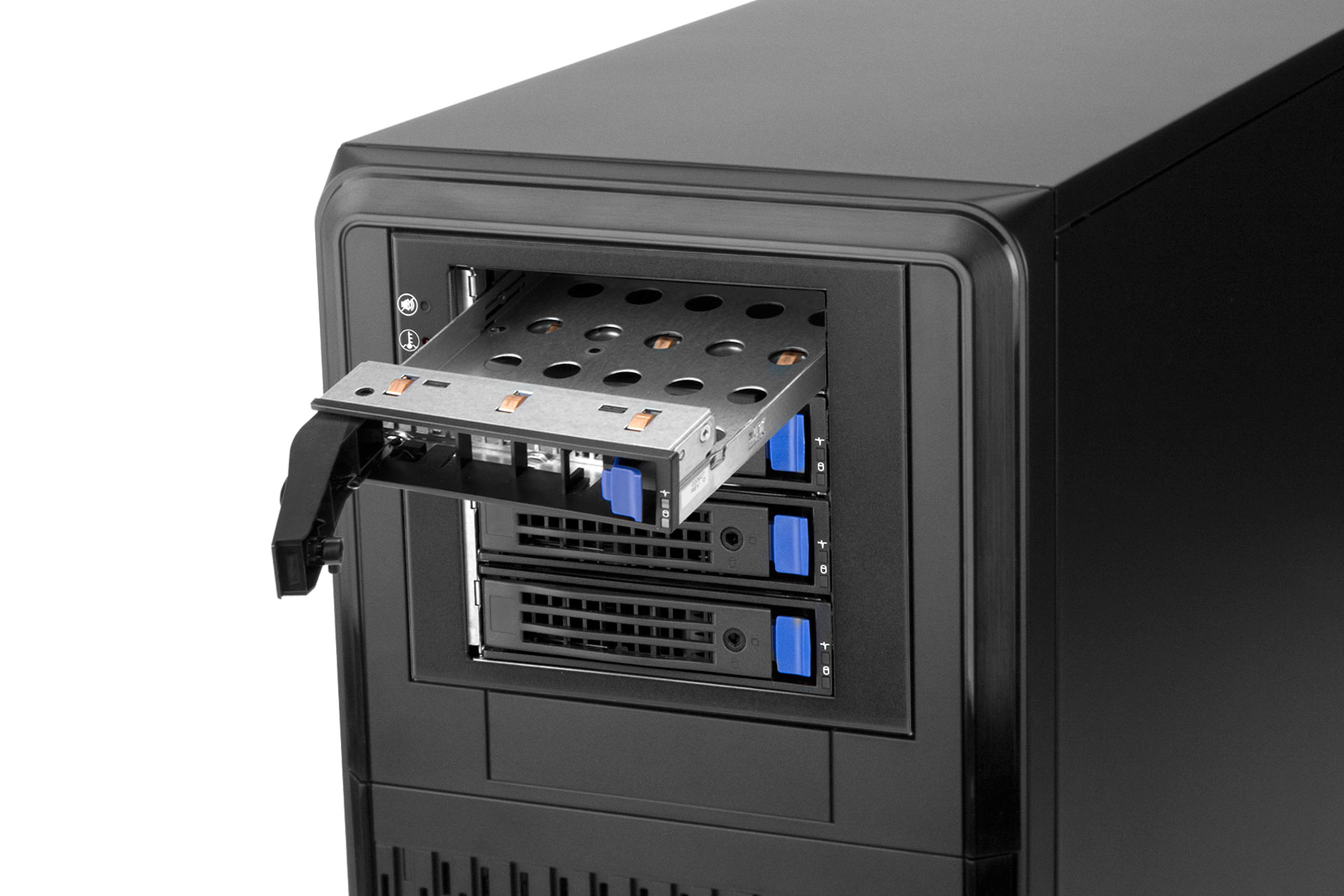

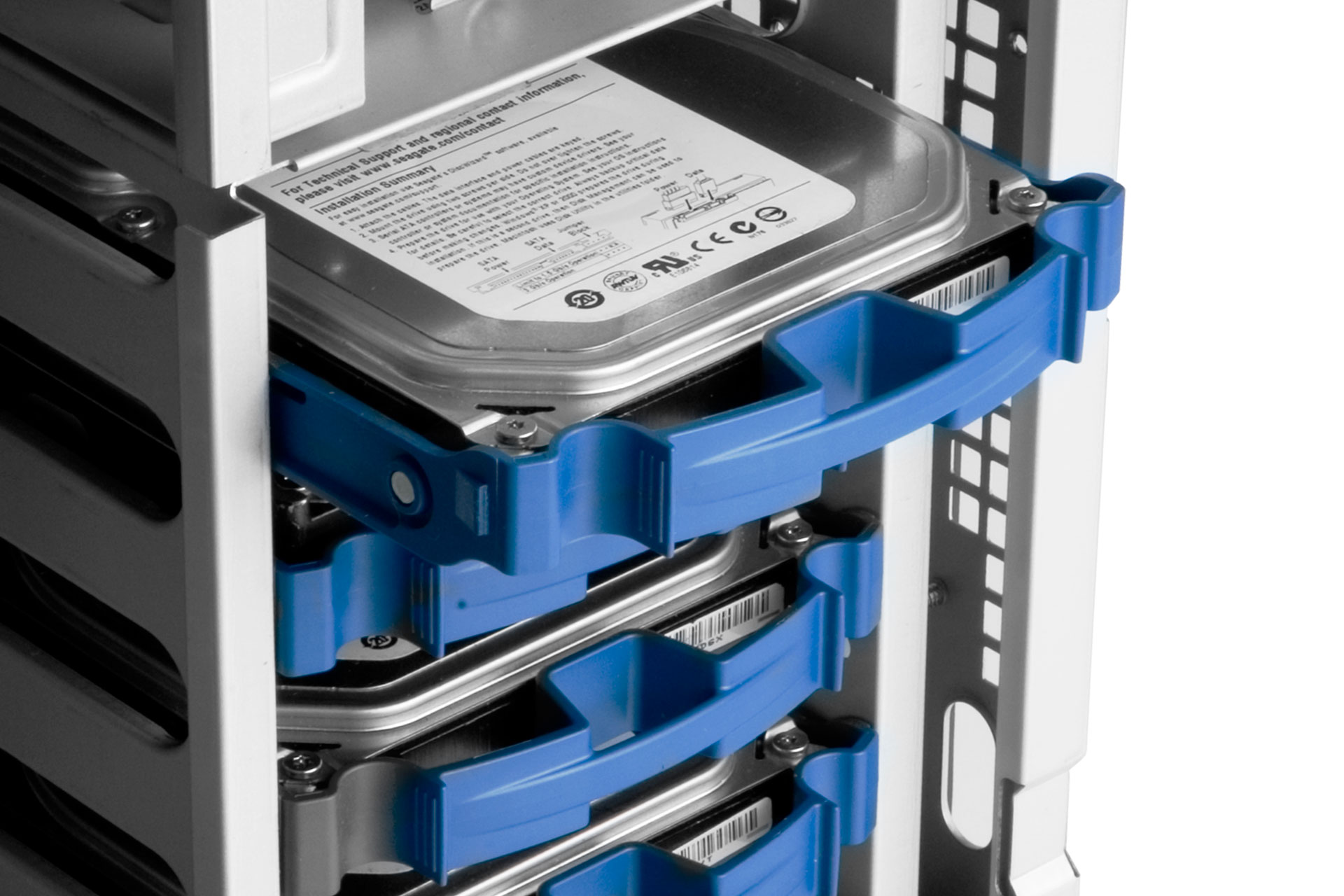

．High density storage with 2.5"/3.5" hot-swap drive bays x 11
．Flexible storage configurations for 5.25" ODD cage (optional 2-in-3 or 3-in-4 storage kits)

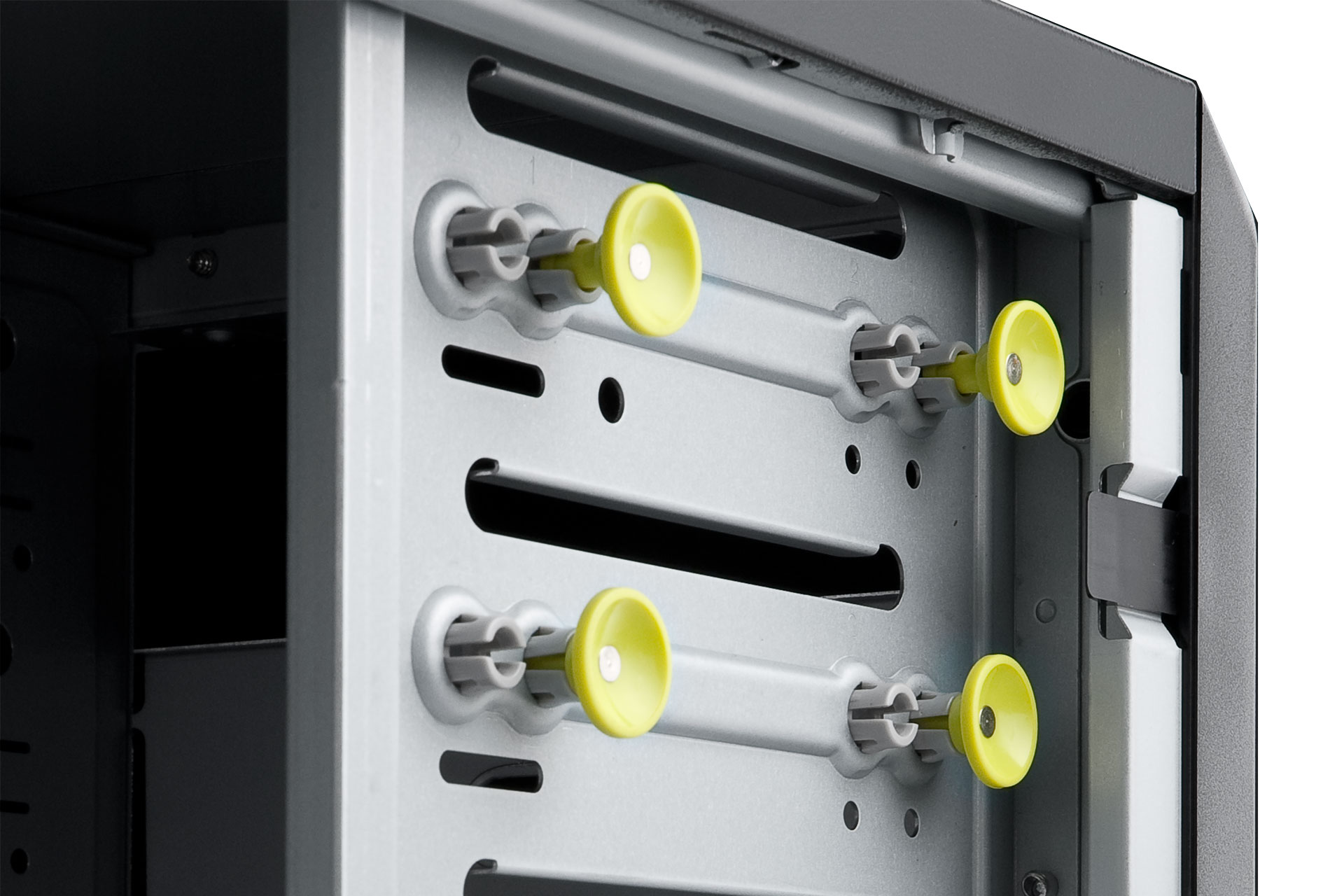

．Tool-free front panel/side cover/ODD/HDD/rear I/O slots design for easy installation
．Compatible with standard PS2
．Supports anti-vibration HDD holder
．Supports 120 x 25mm front fan x 1 (optional)
．Ideal for office workstation
| Specification | |
|---|---|
| M/B Form Factor | ATX(12" x 9.6"), CEB(12" x 10.5") |
| Drive Bay | • External: 5.25" drive bays x 4 + 3.5" HDD bay x 1 • Internal: 2.5"/3.5" HDD bays x 5 |
| Power Supply | Supports PS2 ATX12V 600W, EPS12V |
| Indicators | Power status, HDD |
| Front Control Panel | Power switch, System reset, Audio, USB 2.0 x 2 |
| Chassis Security | • Intrusion switch (optional) • Supports padlock loop or Kensington lock |
| Cooling Fans | Supports: • Front: optional 120 x 25mm PWM (2850RPM) x 1 or 92 x 25mm PWM x 1 • Rear: 120 x 25mm PWM x 1 |

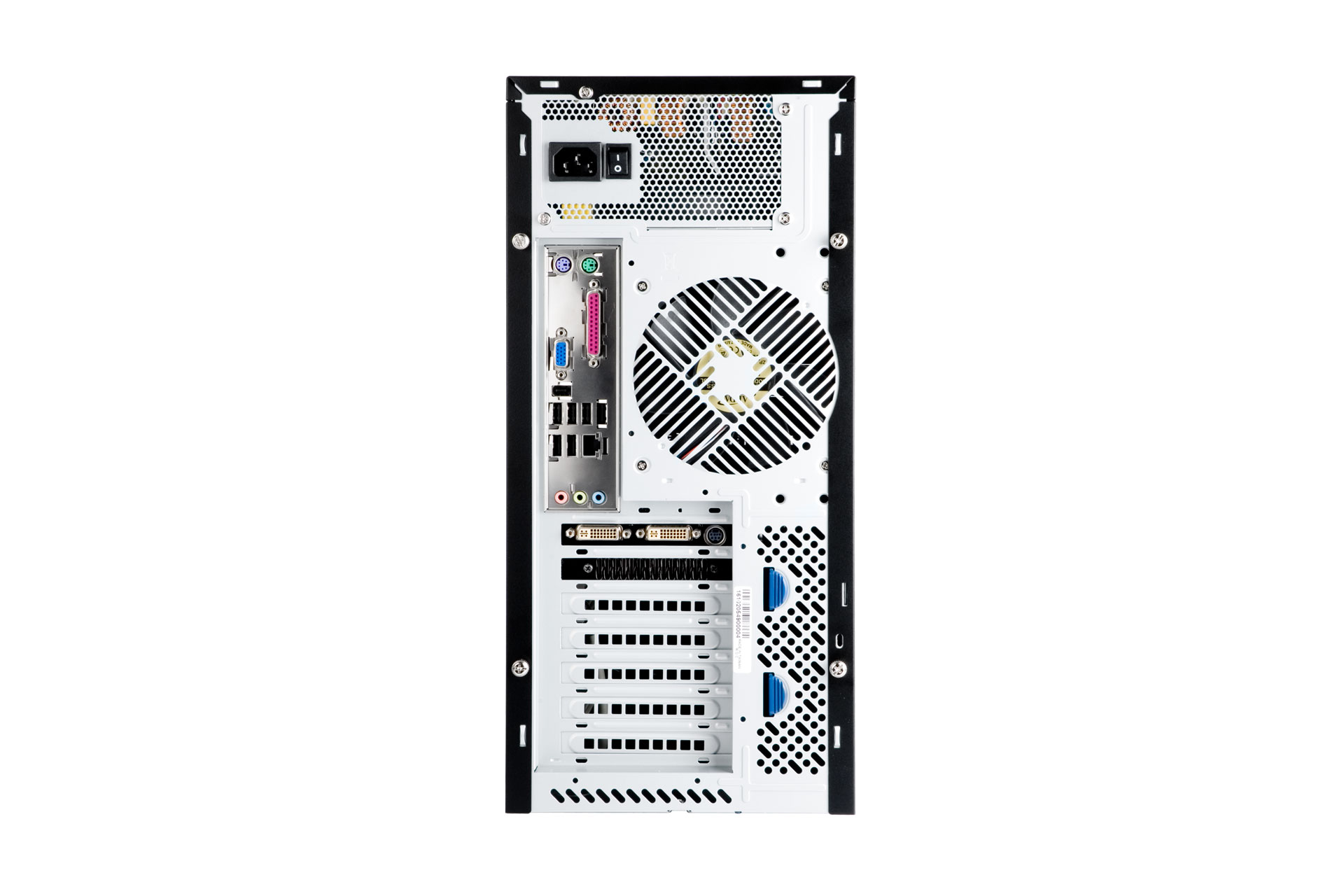

| Expansion Slot | Full-height PCIe slots x 7 |
| Material | • Material: SECC • Thickness: 1.0mm |

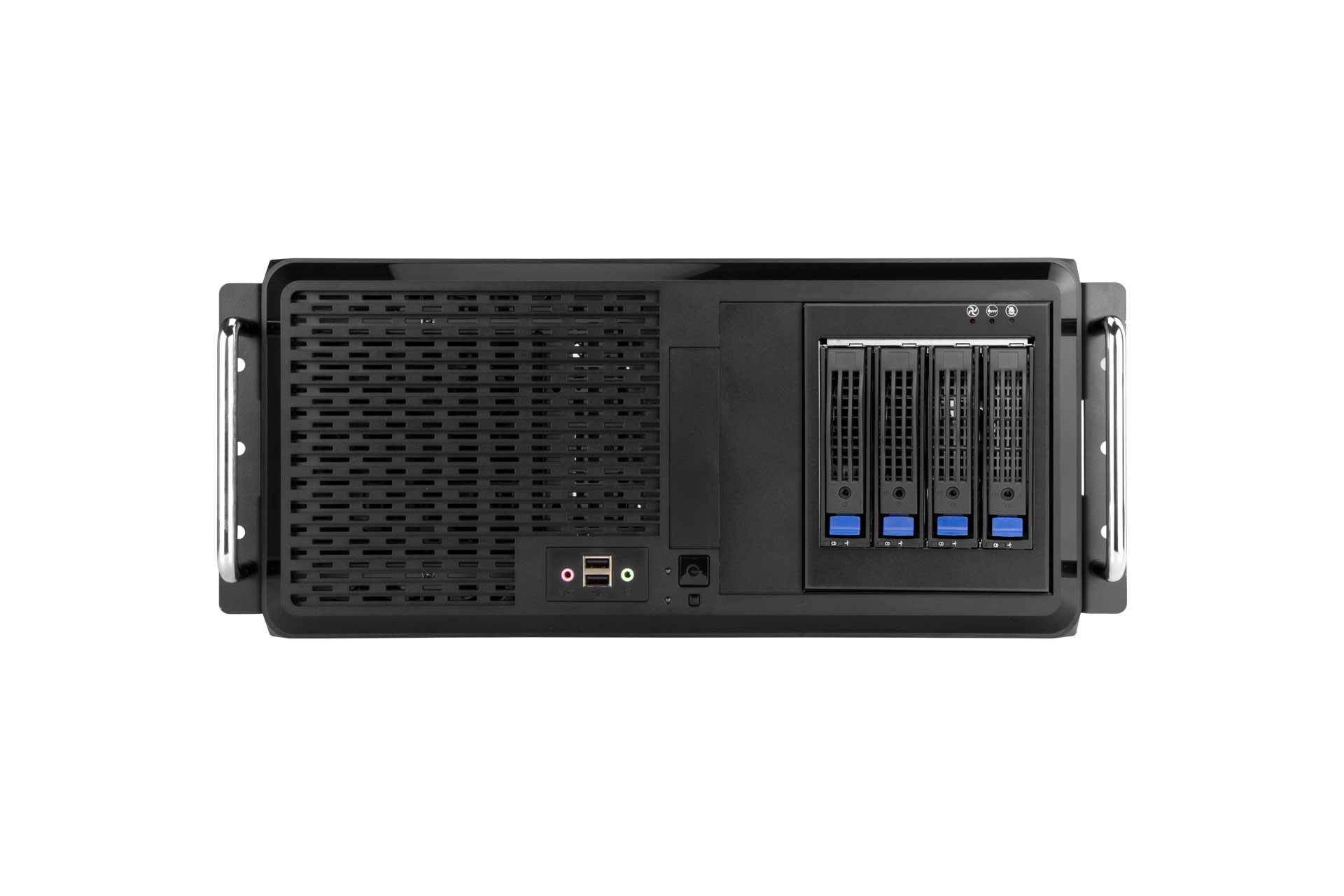

| Rail Kit | 20" friction slide rail |
| Product Dimensions (DxWxH; Chassis Only) | 460 x 200 x 430mm (18.1" x 7.9" x 16.9") |
| Package Dimensions (DxWxH) | 493 x 262 x 558mm |
| Weight | • Net weight: 7.97kg • Gross weight: 9.08kg |
| Cubic Feet | 2.54 |
| Container Information | Single packing with pallets: • 20': 270pcs • 40': 594pcs • 40' HQ: 704pcs |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|

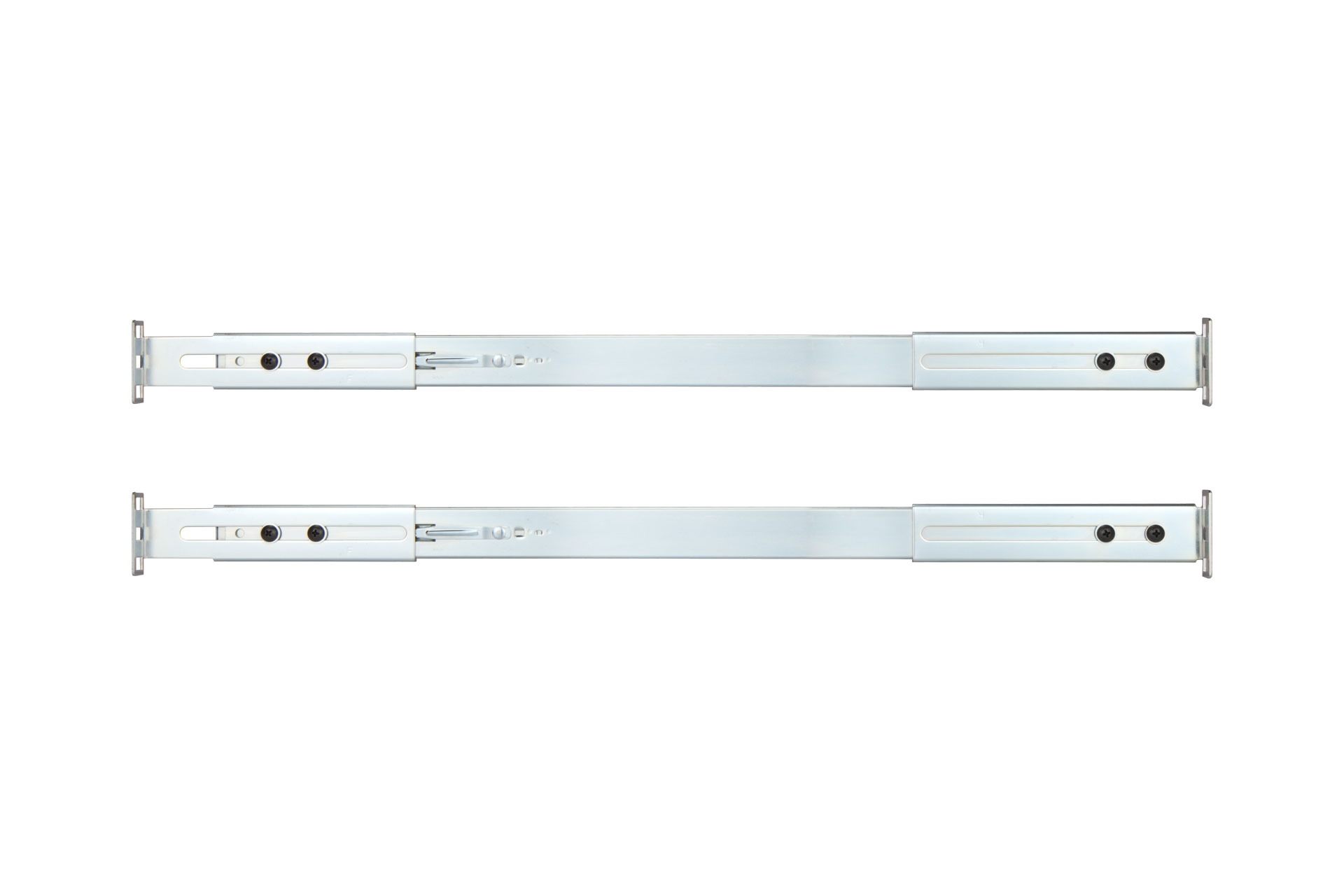

| Slide Rail | 3RAMIS032202 | 20" friction slide rail for PE689R rackmount | 1 |
|

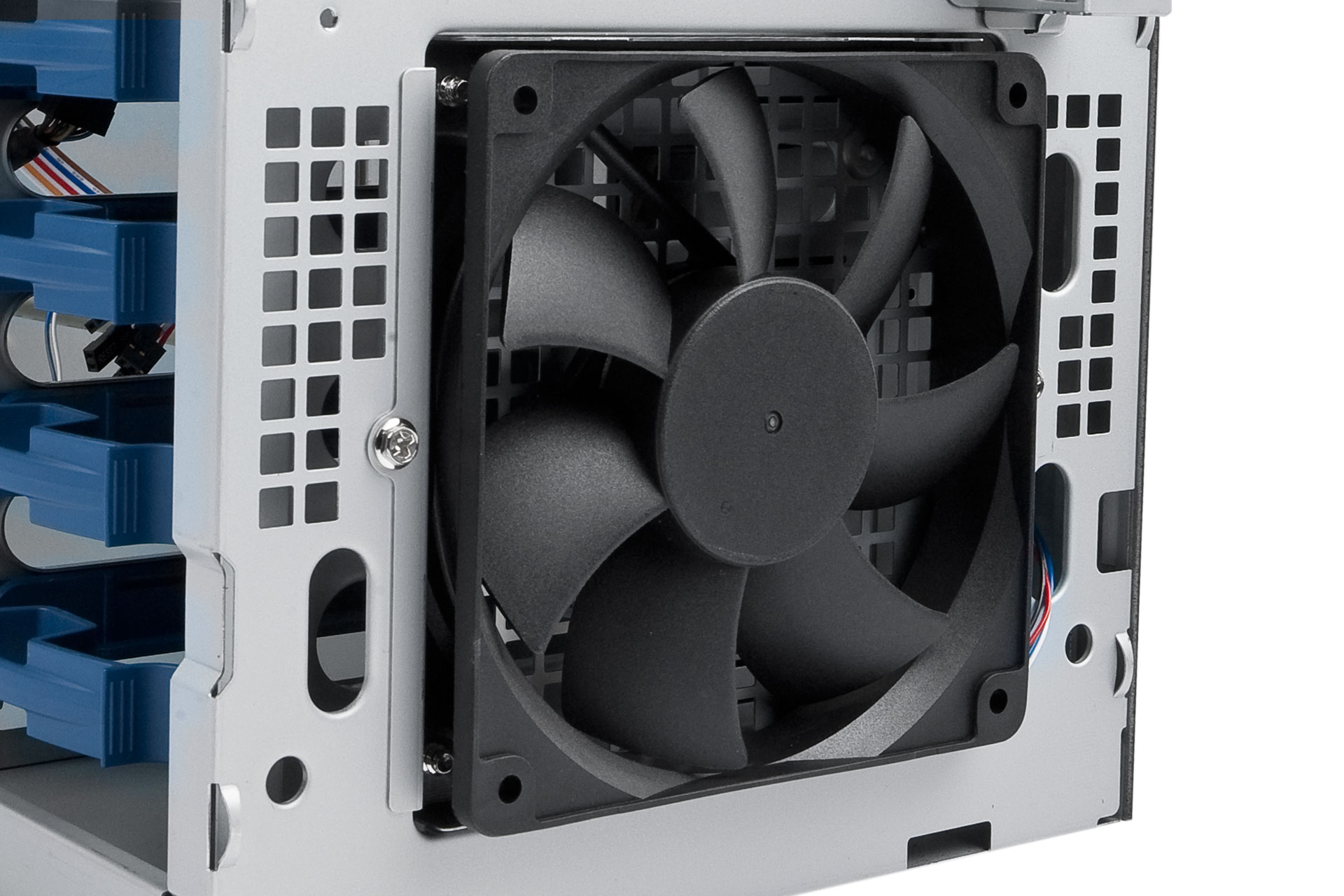

| Fan | 3RAMFB002101 | 120 x 25mm, PWM, 2850RPM | 1 |
|

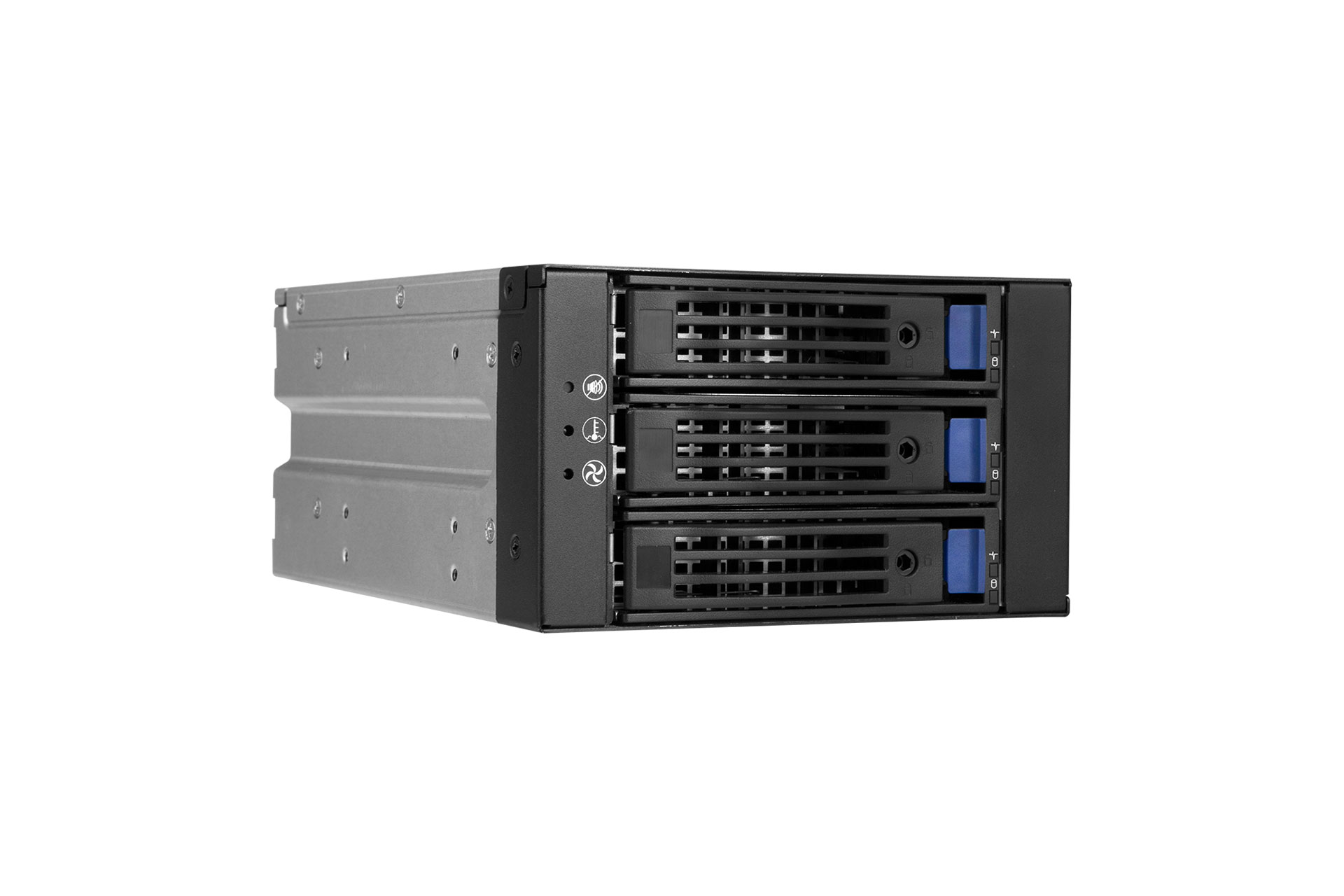

| Storage Kit | 2RAKID028200 | IW-SK23-02, 3.5" hot-swap HDDs x 3, SATA III/SAS 6Gb | 1 |
|

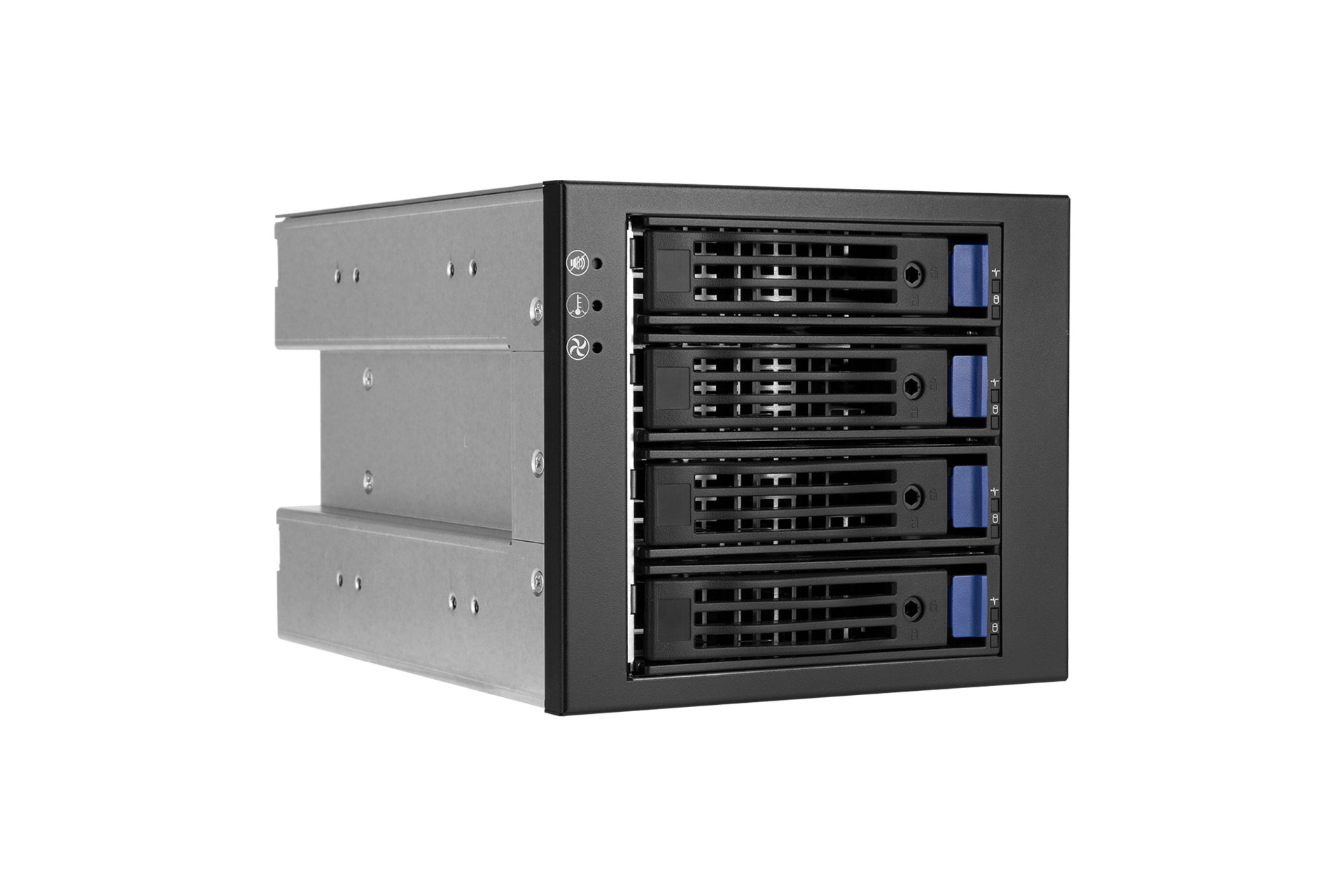

| Storage Kit | 2RAKID032700 | IW-SK34-02, 3.5" hot-swap HDDs x 4, SATA III/SAS 6Gb | 1 |
|

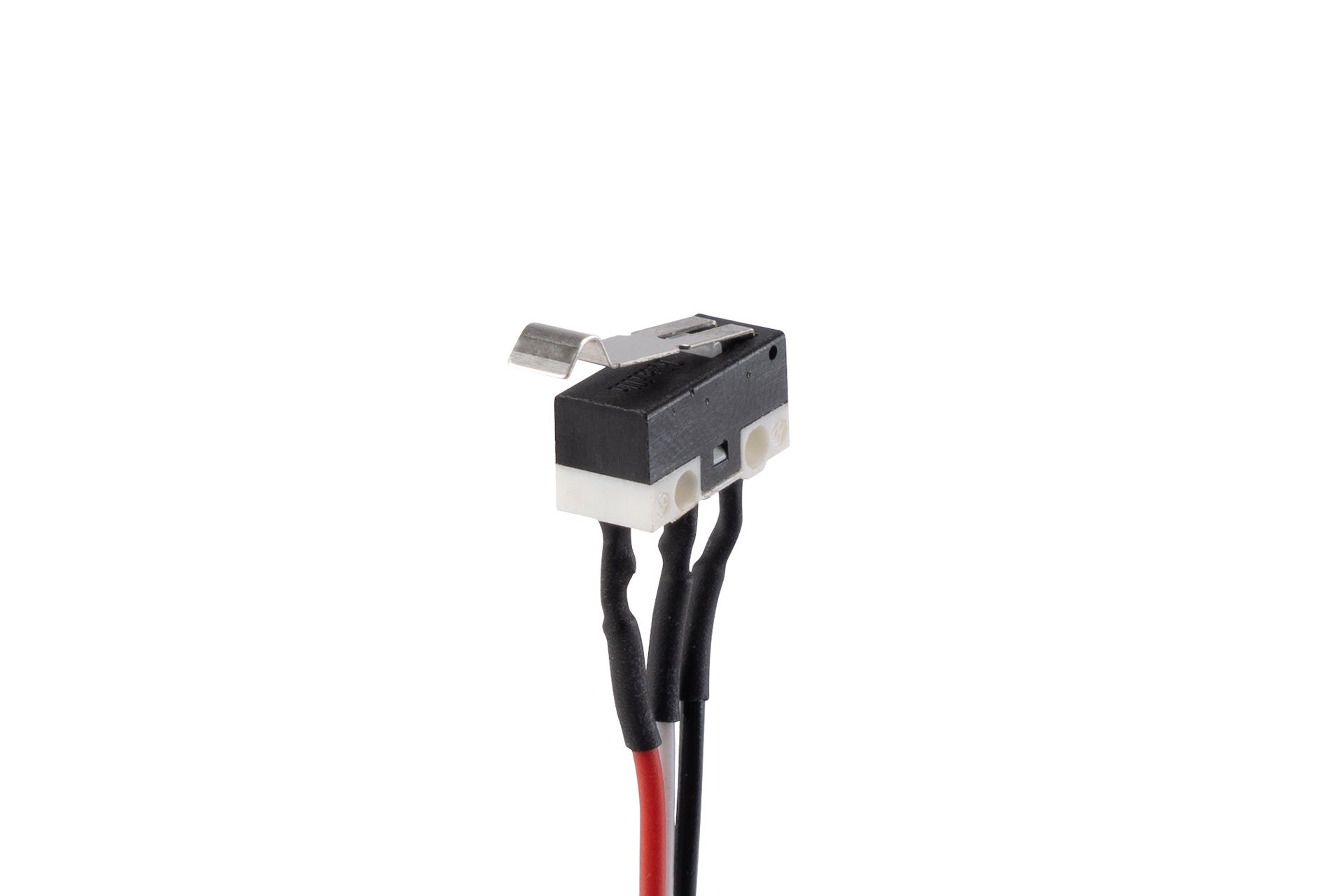

| Others | 3RAMRW005300 | Intrusion Switch/700mm | 1 |
|

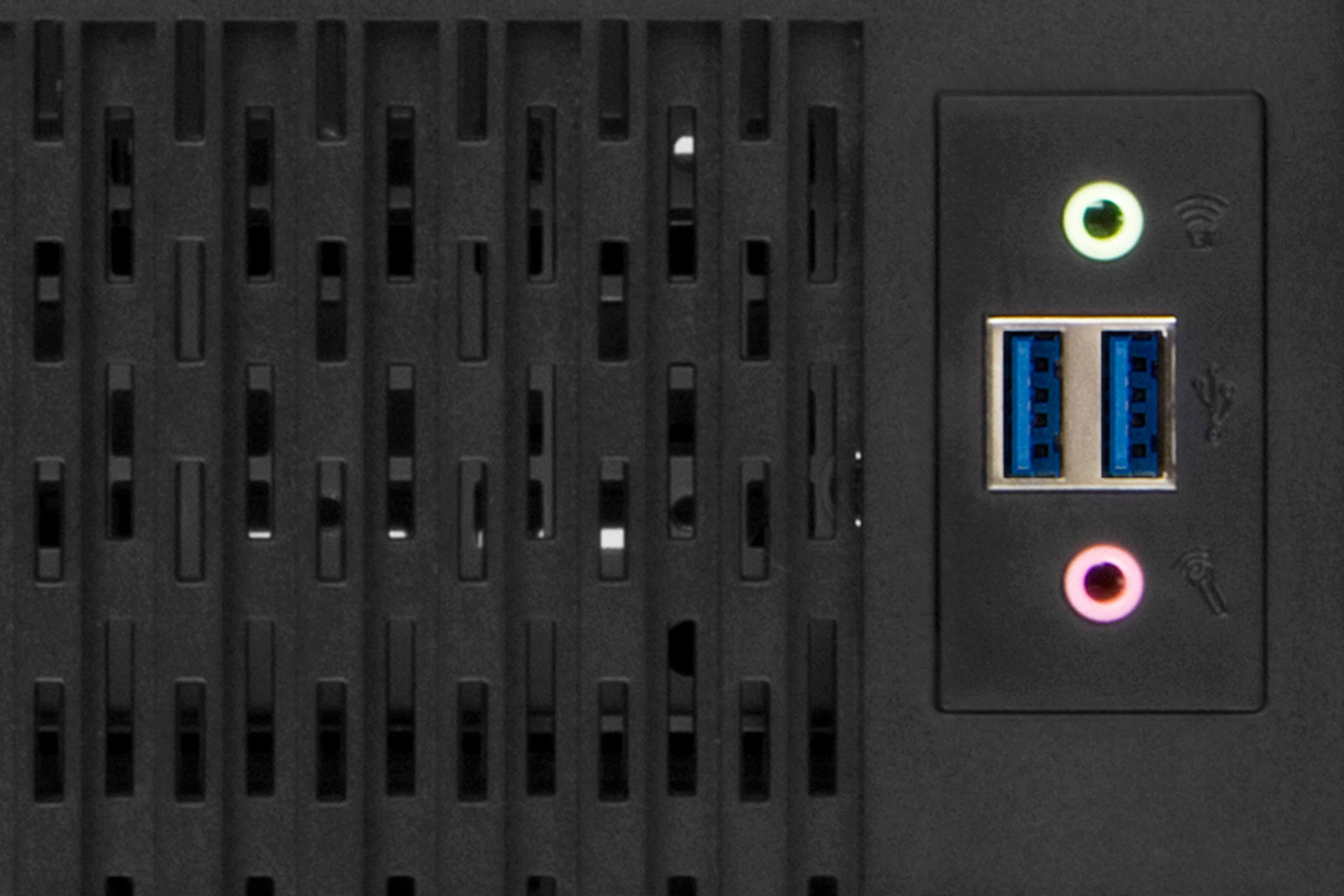

| Others | 2RAGPD028701 | Front I/O USB 3.0 x 2 + Audio | 1 |
.jpg?v=1577934787 "Others - server system assembly")
|

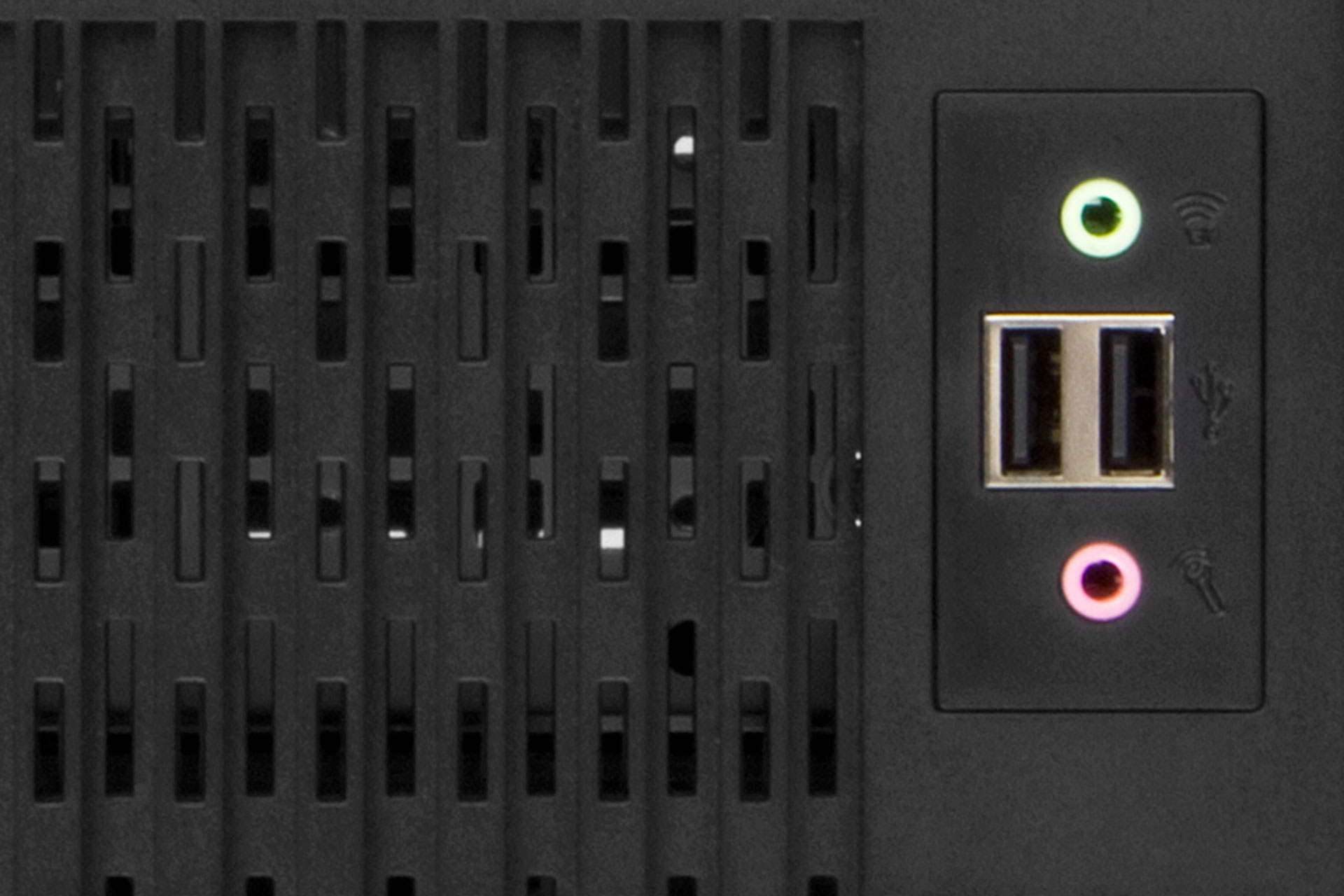

| Others | 2RAKPD059700 | Front I/O USB 2.0 x 2 + Audio | 1 |
.jpg?v=1577934787 "Others - server system assembly")
|

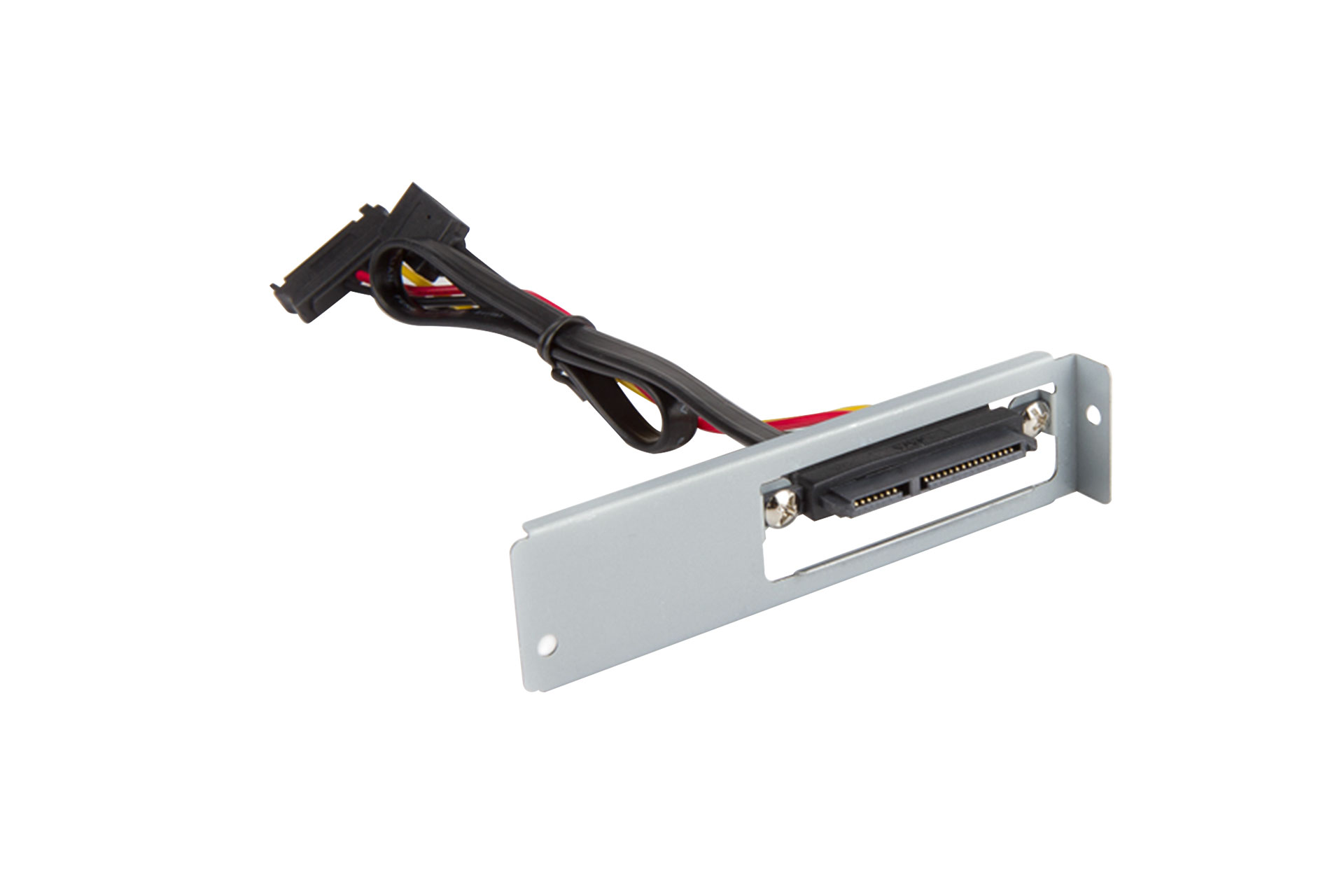

| Others | 2RAKIS013601 | Single easy-swap SATA port module for 2.5"/3.5" HDD | 1 |
|

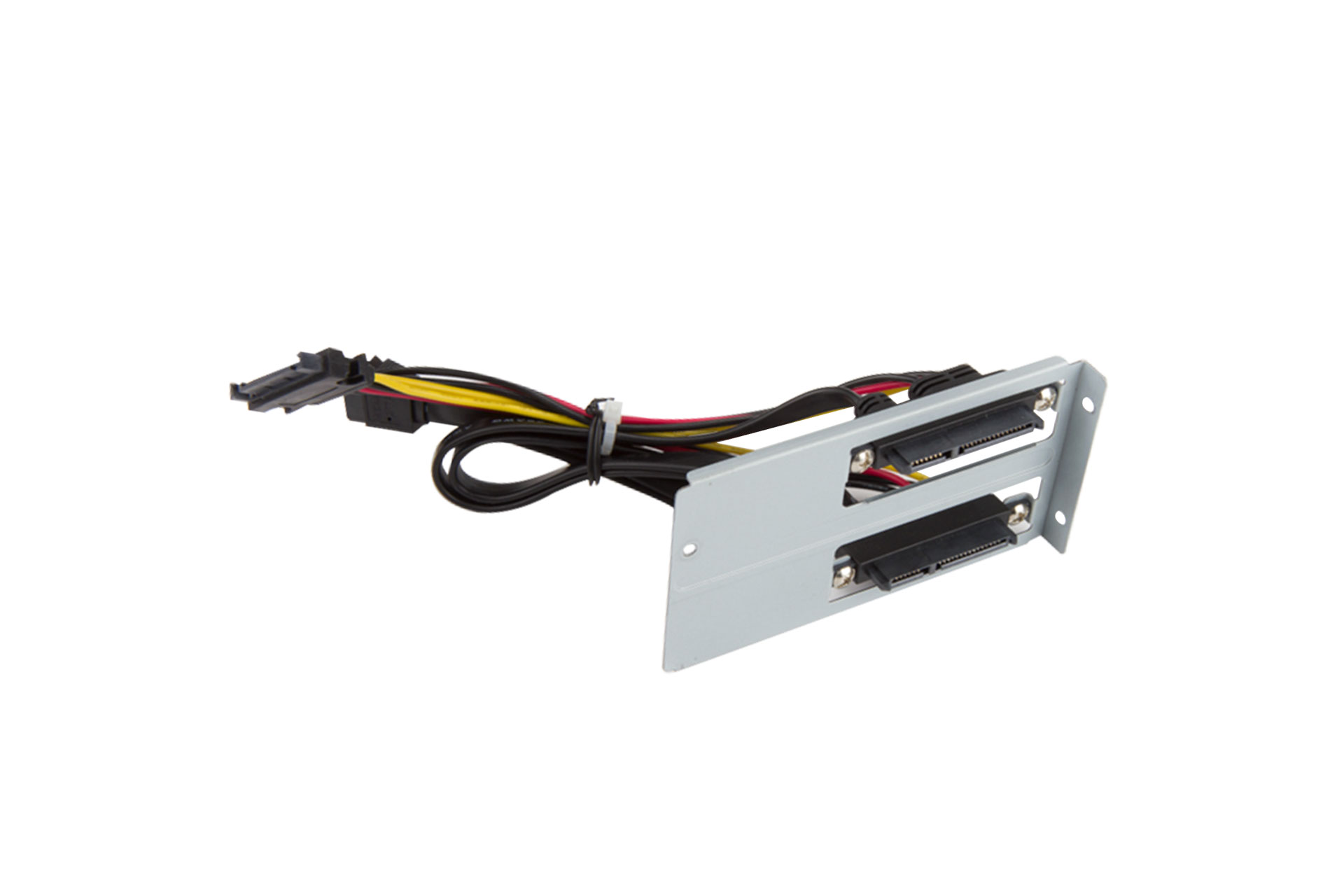

| Others | 2RAKIS004400 | Dual easy-swap SATA port module for 2.5"/3.5" HDD | 1 |
|

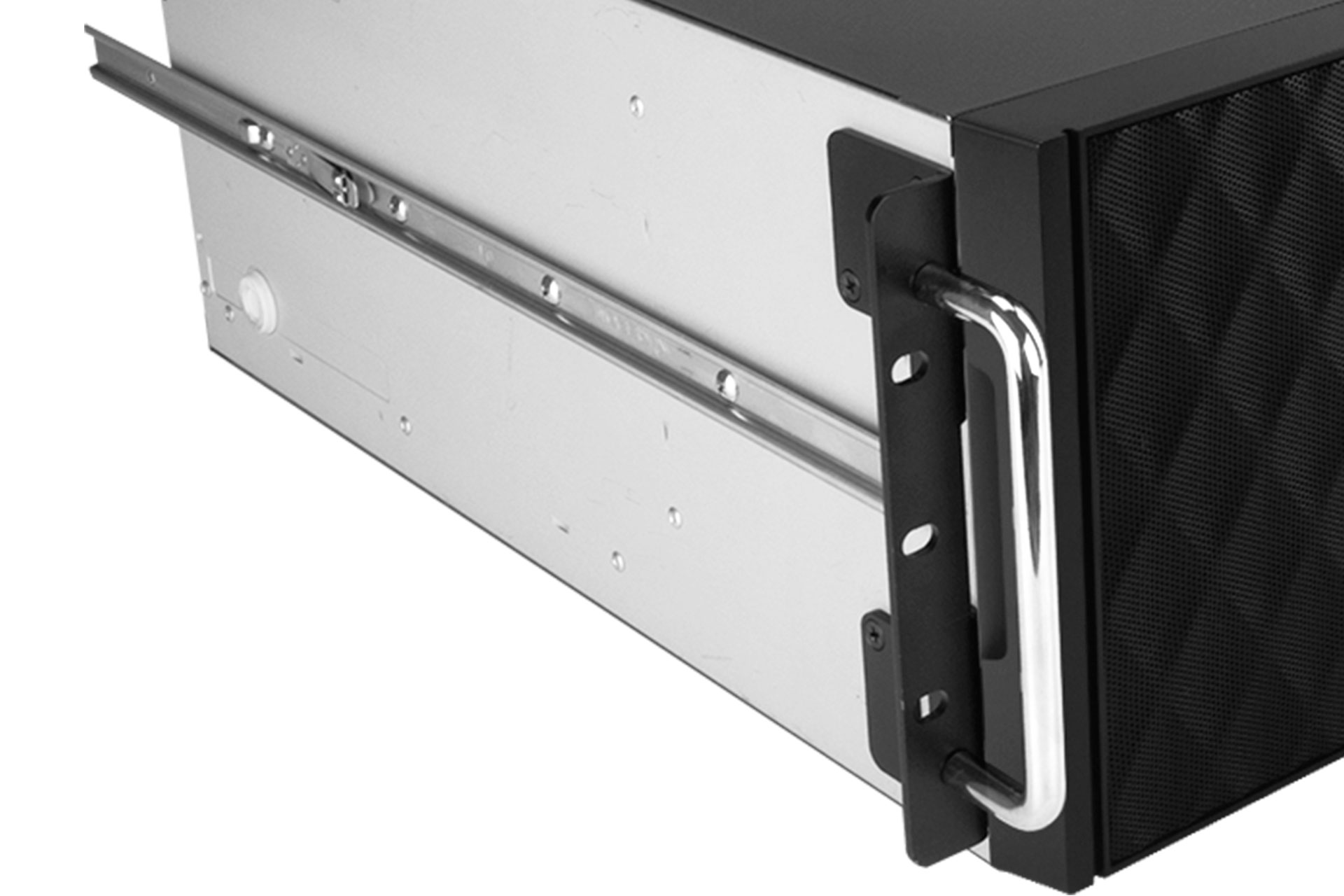

| Others | 2RAKIS040800 | Ear bracket (L) | 1 |
|
| Others | 2RAKIS040900 | Ear bracket (R) | 1 |
|
