IW-PL689

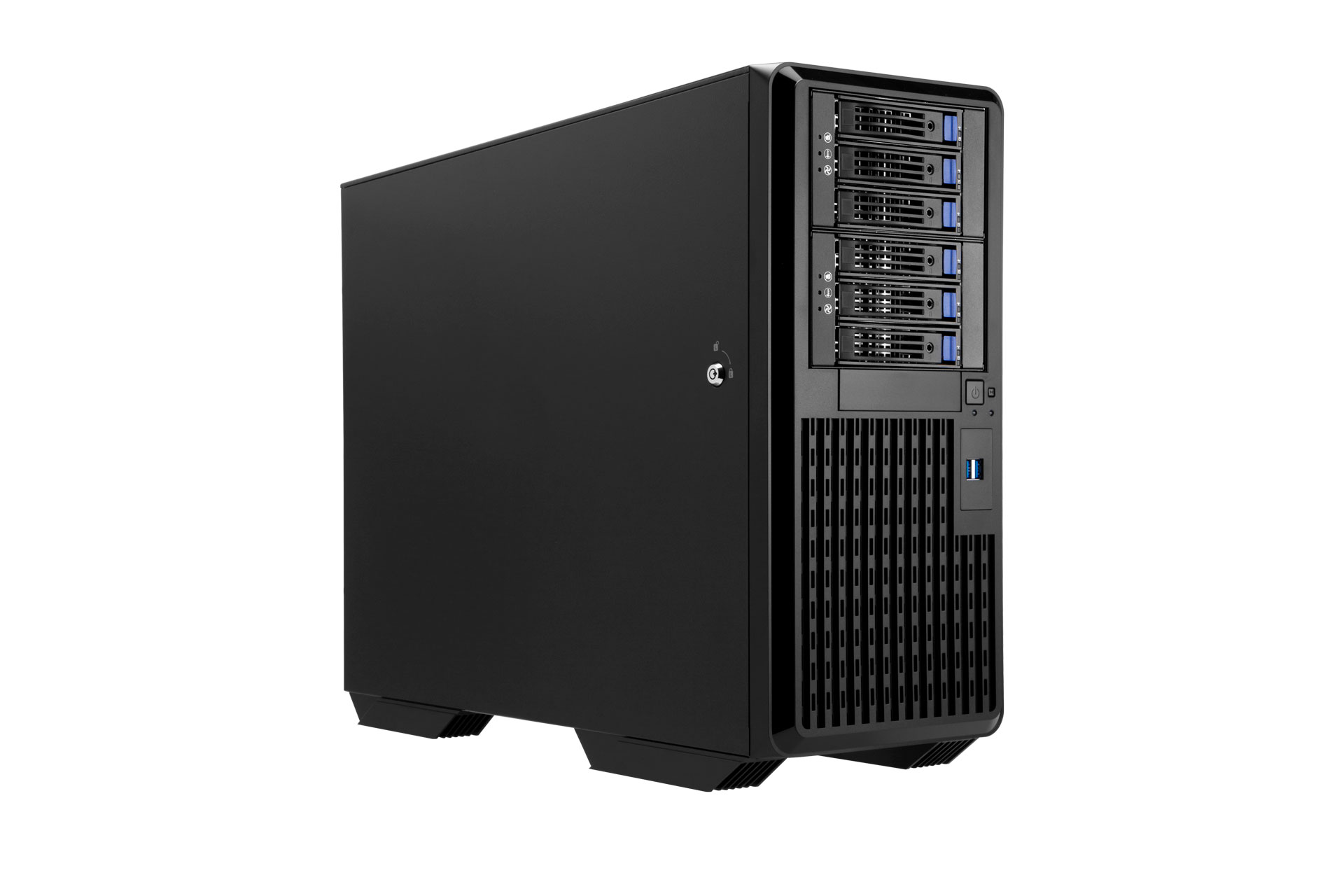

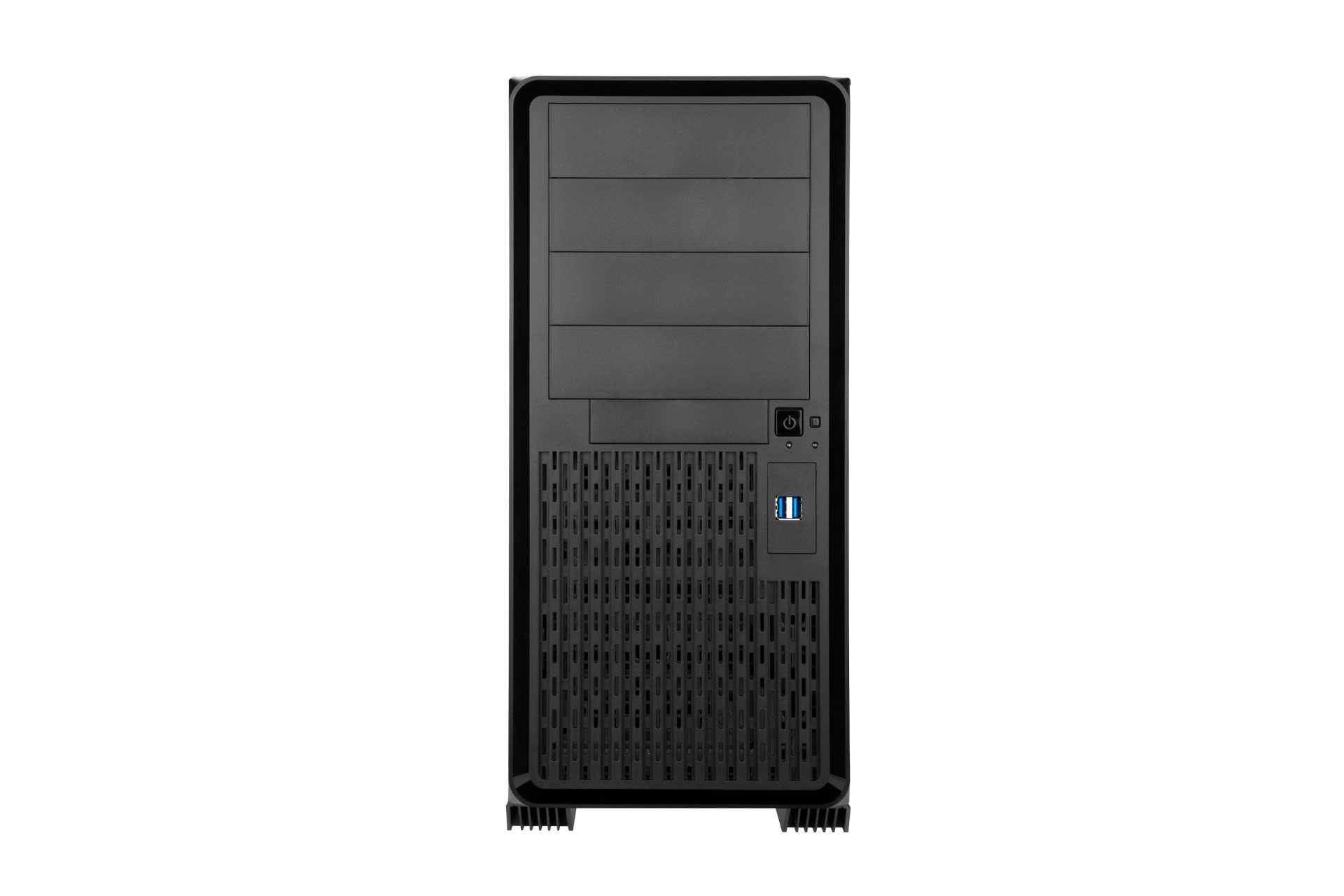

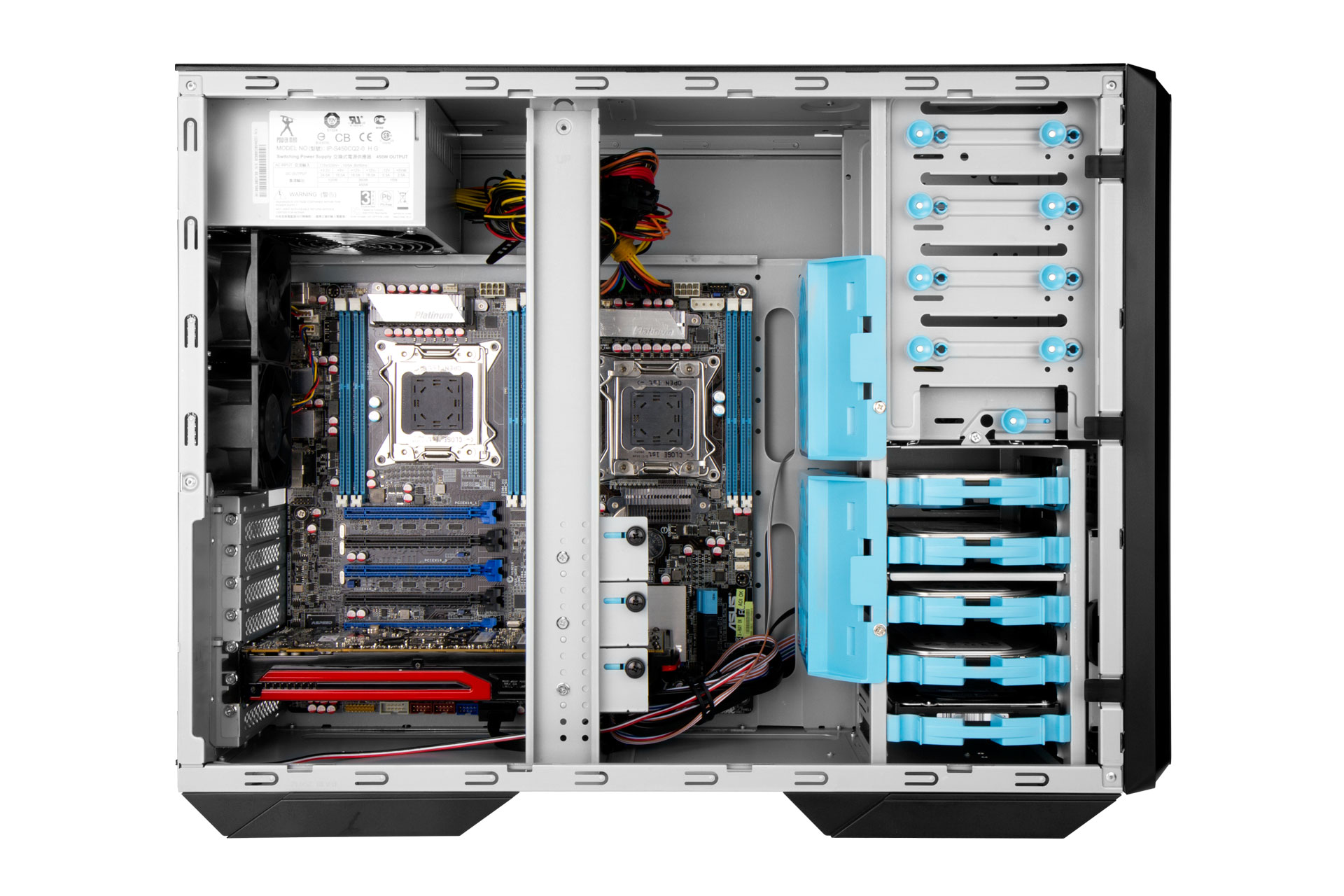

Pedestal Long Version Server Chassis
．Flexible storage configurations for 5.25" ODD cage (optional 2-in-3 or 3-in-4 storage kits)
．High density storage with 2.5"/3.5" hot-swap drive bays x 11
．High-efficiency 80 Plus Platinum CRPS

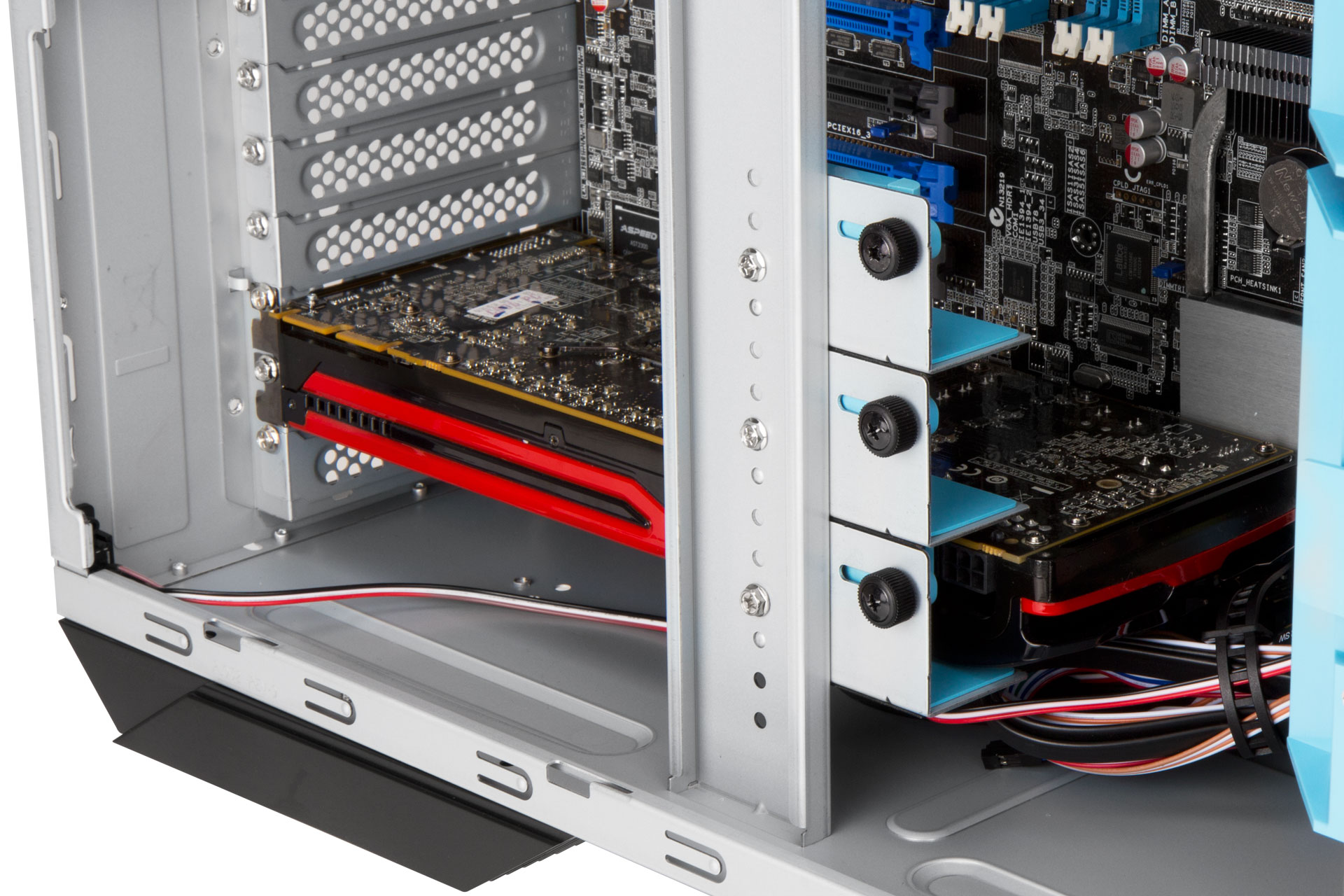

．Supports 3pcs 350mm dual-slot PCIe cards with GPU holder
．Supports expansion card retainer (optional)
．Supports 3.5" SATA HDD fixing plates x 5 (optional)
．Supports maximum 4 x 120mm fans for excellent thermal performance
．General-purpose storage server
| Specification | |
|---|---|
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB(12" x 13") |
| Drive Bay | Supports: • External: 5.25" drive bays x 4 + 3.5" HDD bay x 1 • Internal: 2.5"/3.5" HDD bays x 5 |

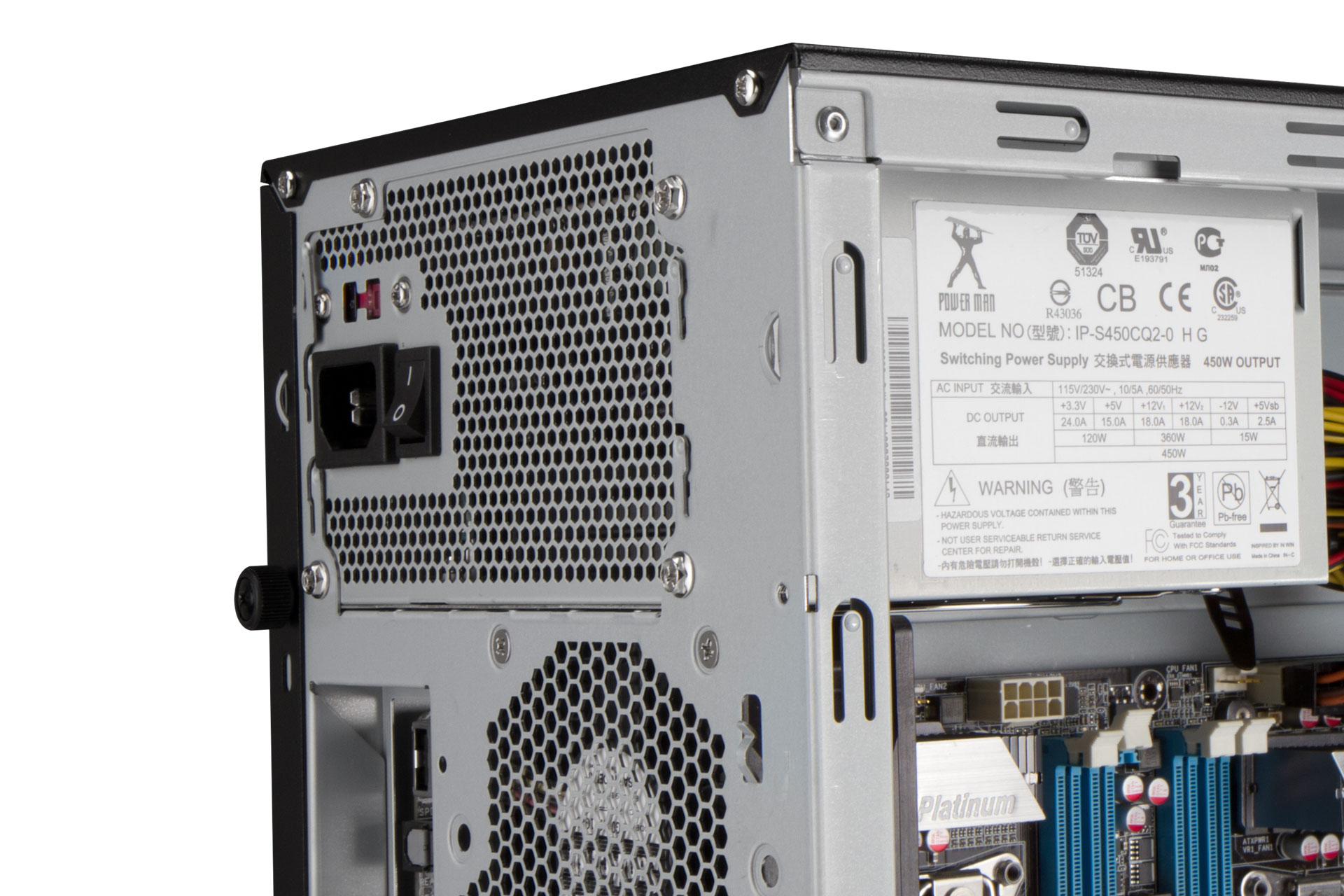

| Power Supply | Supports PS2 600W or 2U 1 + 1 x 80 Plus Platinum 1200W CRPS |
| Indicators | Power status, HDD |
| Front Control Panel | Power switch, system reset, USB 3.0 x 2 |
| Chassis Security | • Intrusion switch (optional) • Supports padlock loop or kensington lock |

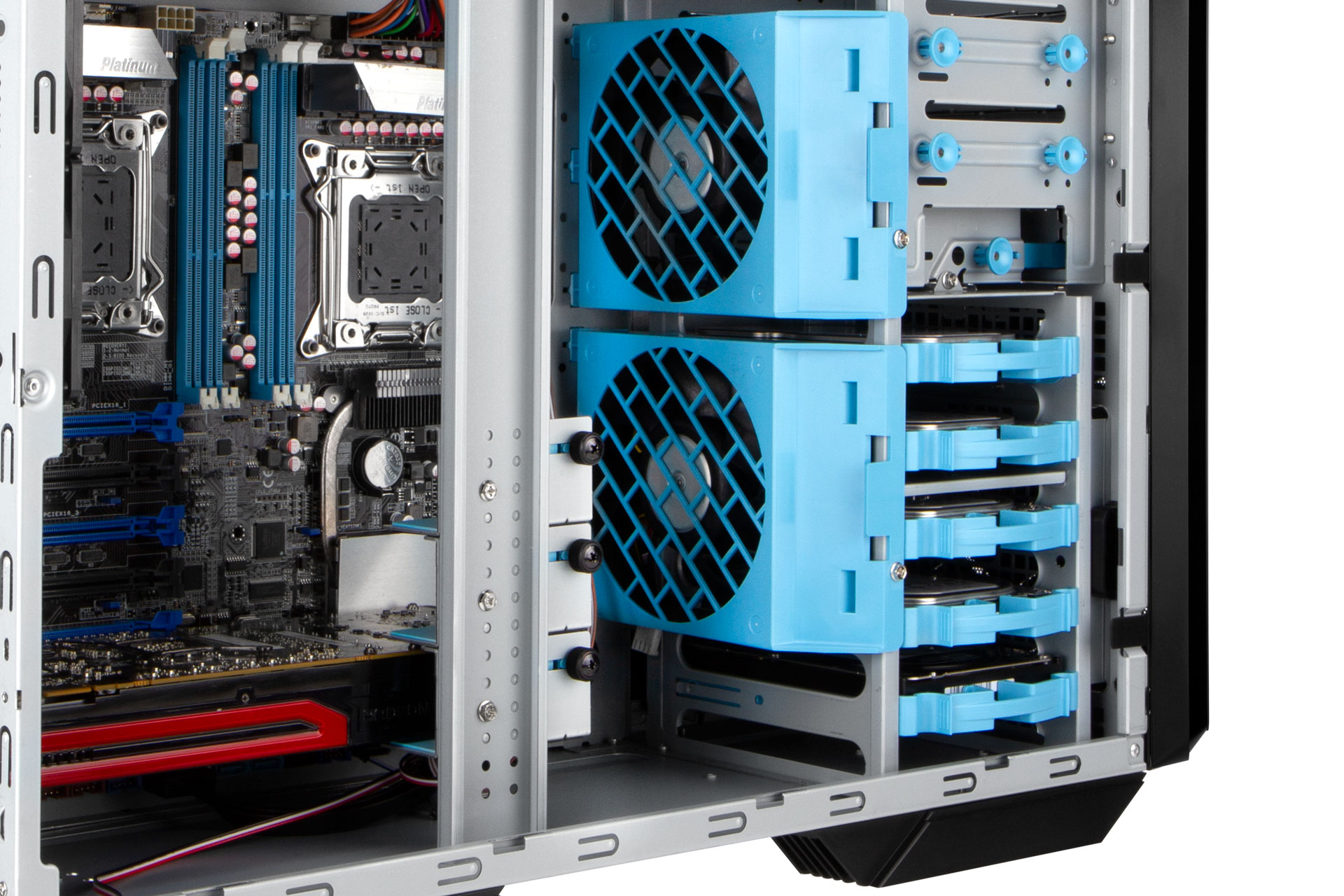

| Cooling Fans | Supports: • Front: 120 x 25mm PWM fan x 1 (optional) • Middle: 120 x 25mm PWM fans x 2 (optinal) • Rear: 120 x 25mm PWM fan x 1 (pre-installed) or optional 80 x 38mm PWM fans x 2 |

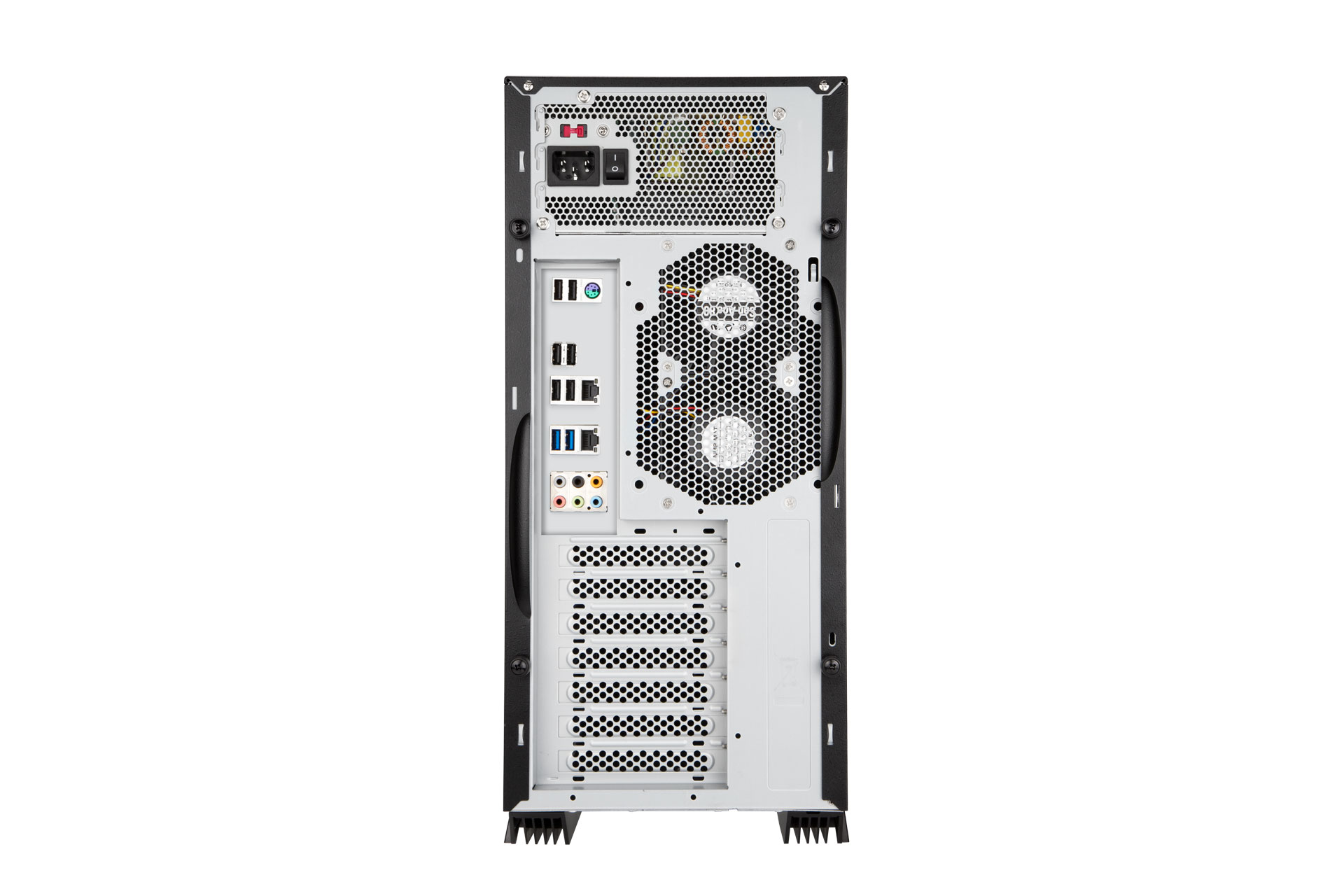

| Expansion Slot | Full-height PCIe slots x 7 |
| Material | • Material: SECC • Thickness: 1.0mm |
| Rail Kit | Supports 23" ball-bearing slide rail |
| Product Dimensions (DxWxH; Chassis Only) | 560.2 x 200 x 430.1mm (22.1" x 7.9" x 16.9") |
| Package Dimensions (DxWxH) | 720 x 592 x 340mm |
| Weight | • Net weight: 10.67kg • Gross weight: 14.12kg |
| Cubic Feet | 5.12 |
| Container Information | Single packing with pallets: • 20': 110pcs • 40': 240pcs • 40'HQ: 288pcs |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS144400 | 23" ball-bearing slide rail | 1 |
|

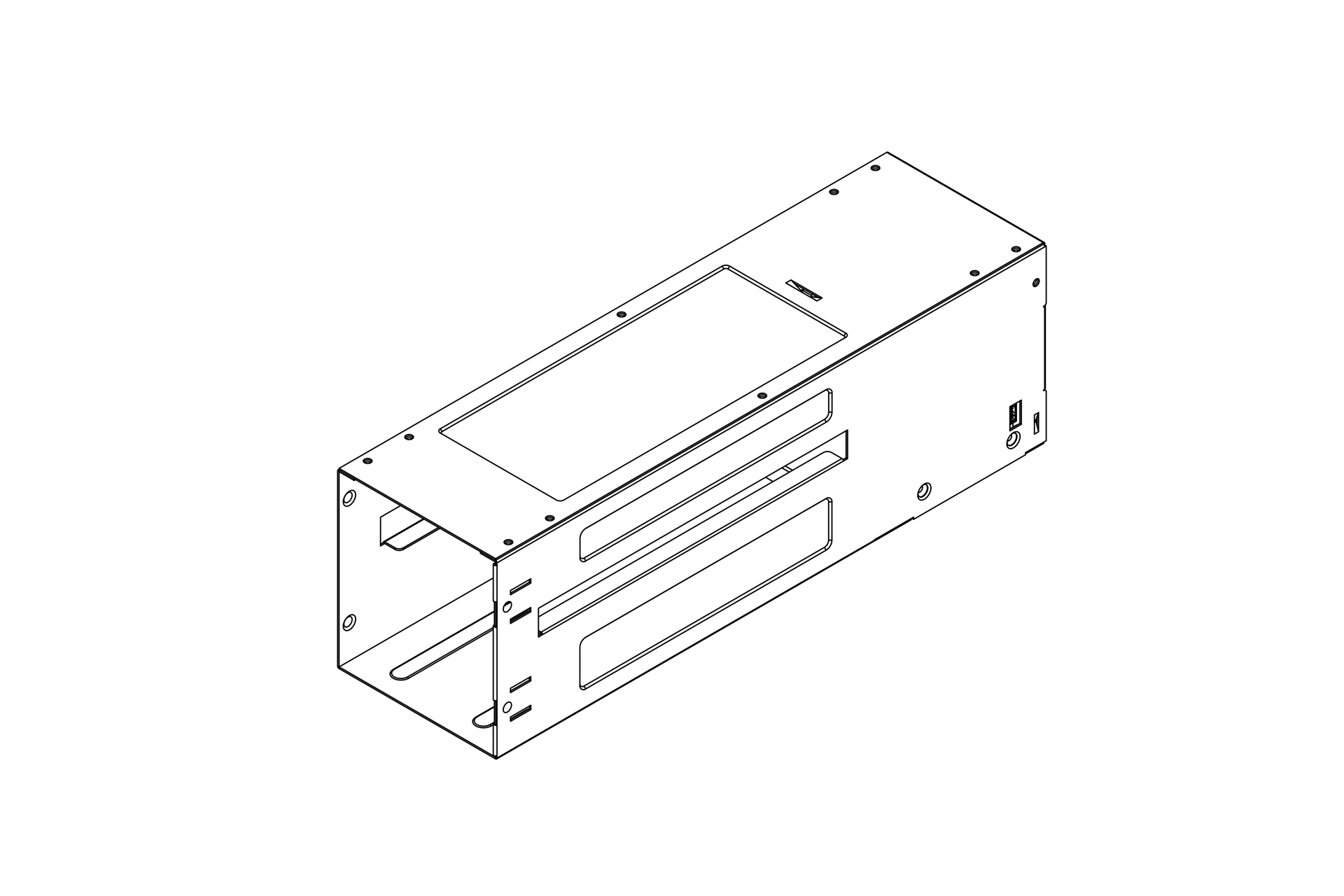

| Power Supply | 3RAMAP030500 | PDB power cage for CRPS | 1 |
|

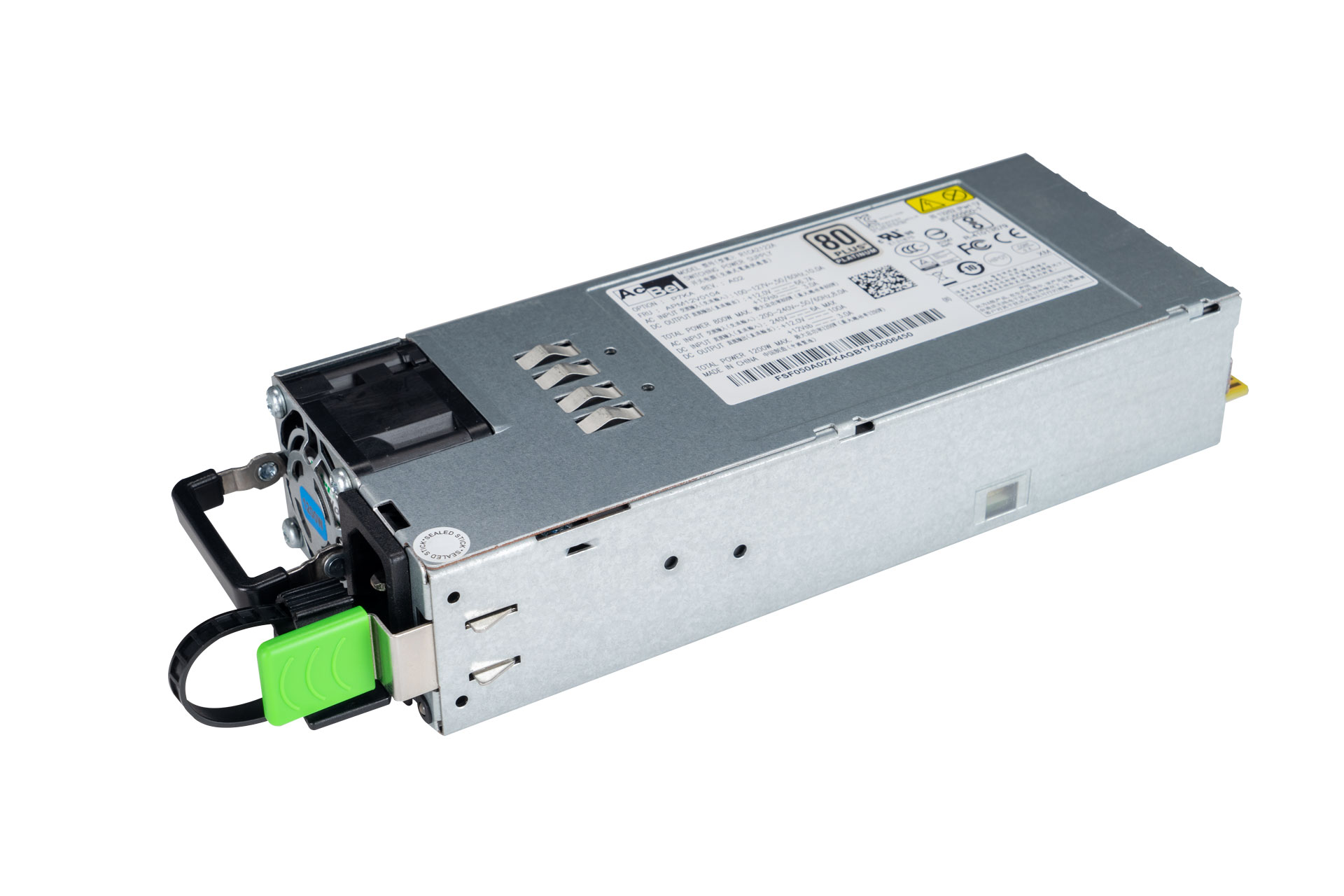

| Power Supply | 3RAMAP026501 | 80 Plus Platinum 1200W CRPS | 1 |
|

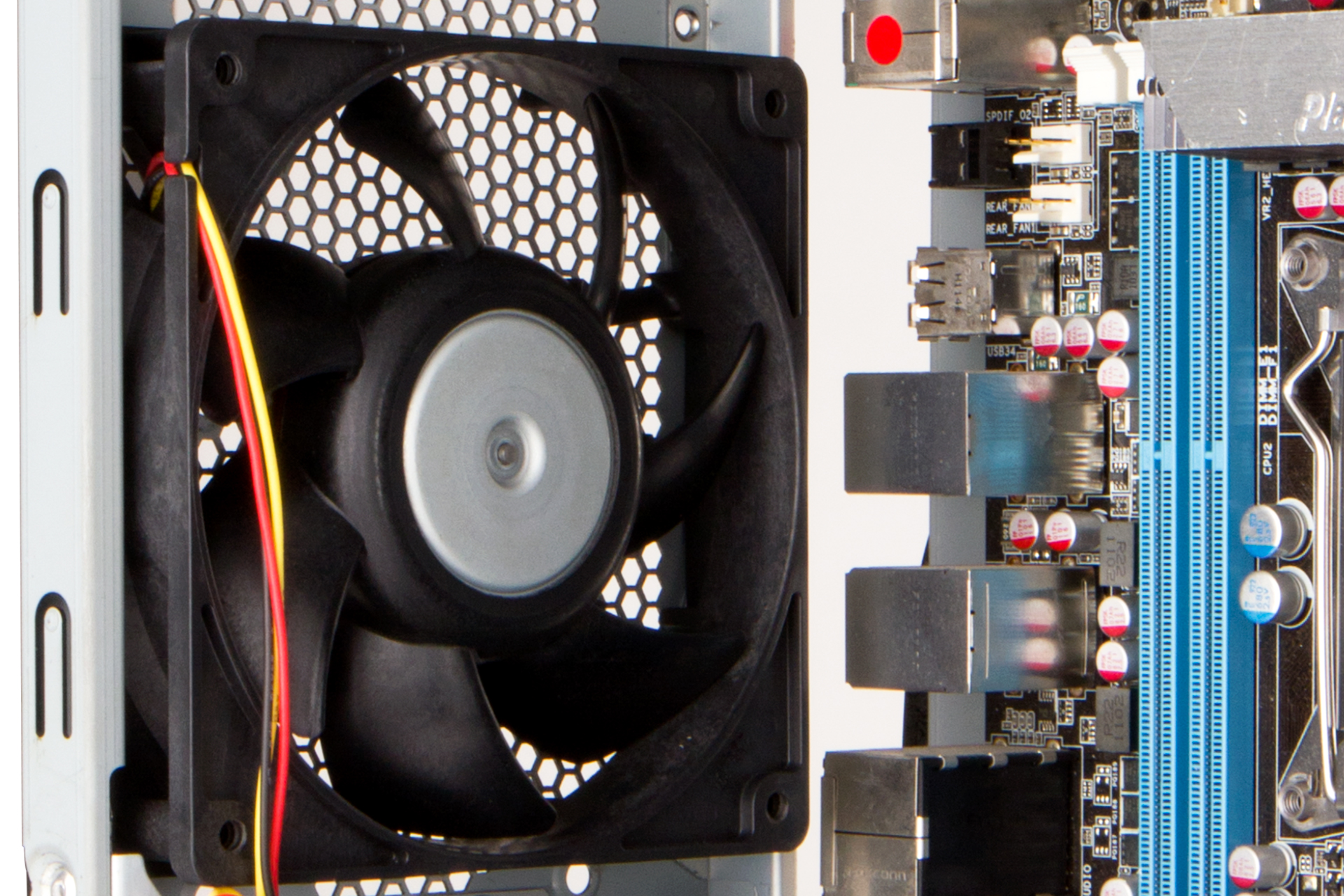

| Fan | 3RAMFC001300 | 120 x 25mm front or rear fan, PWM, 2500RPM | Max. 2 |
|

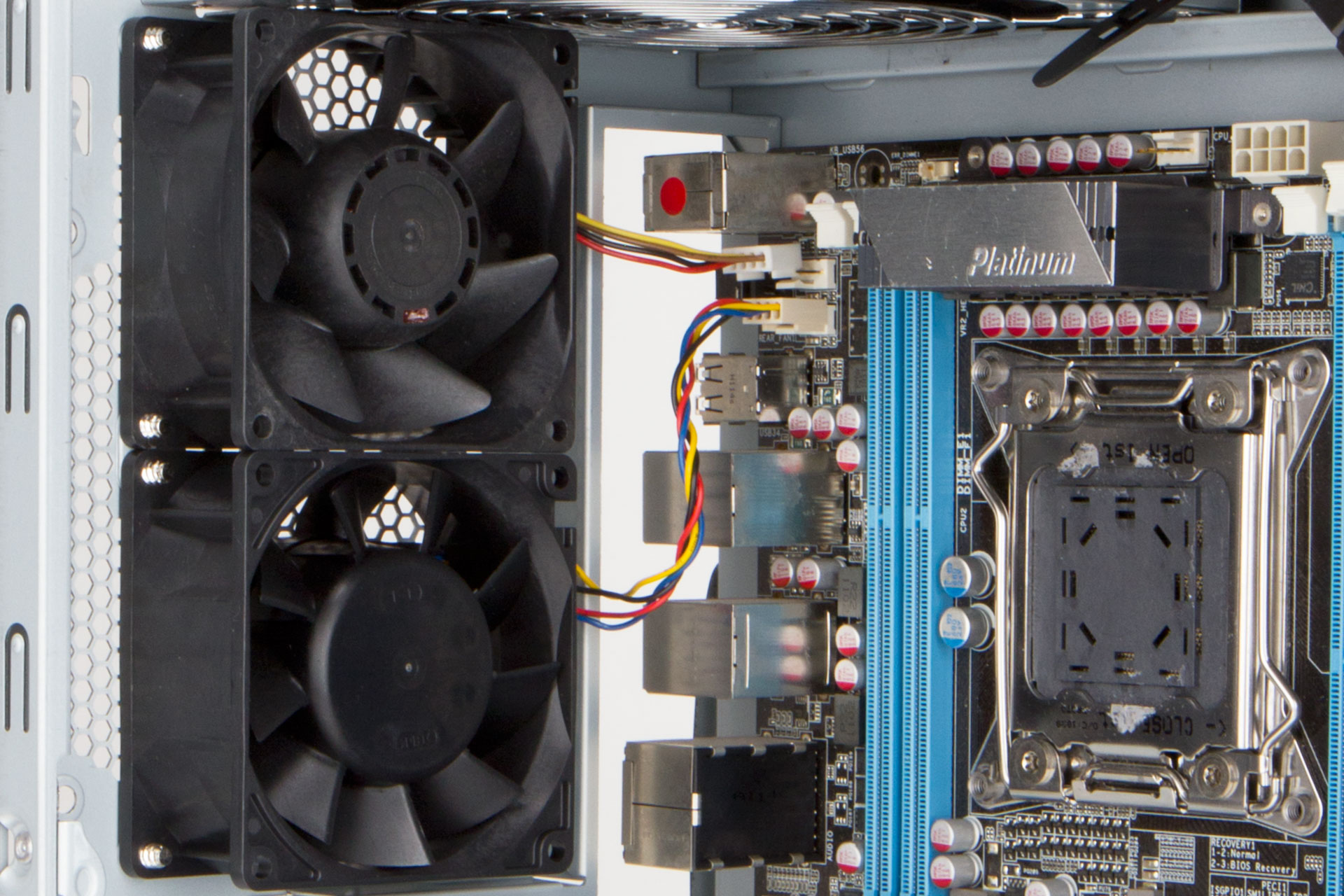

| Fan | 3RAMFB007400 | 80 x 38mm rear fan, PWM, 5500RPM | Max. 2 |
|

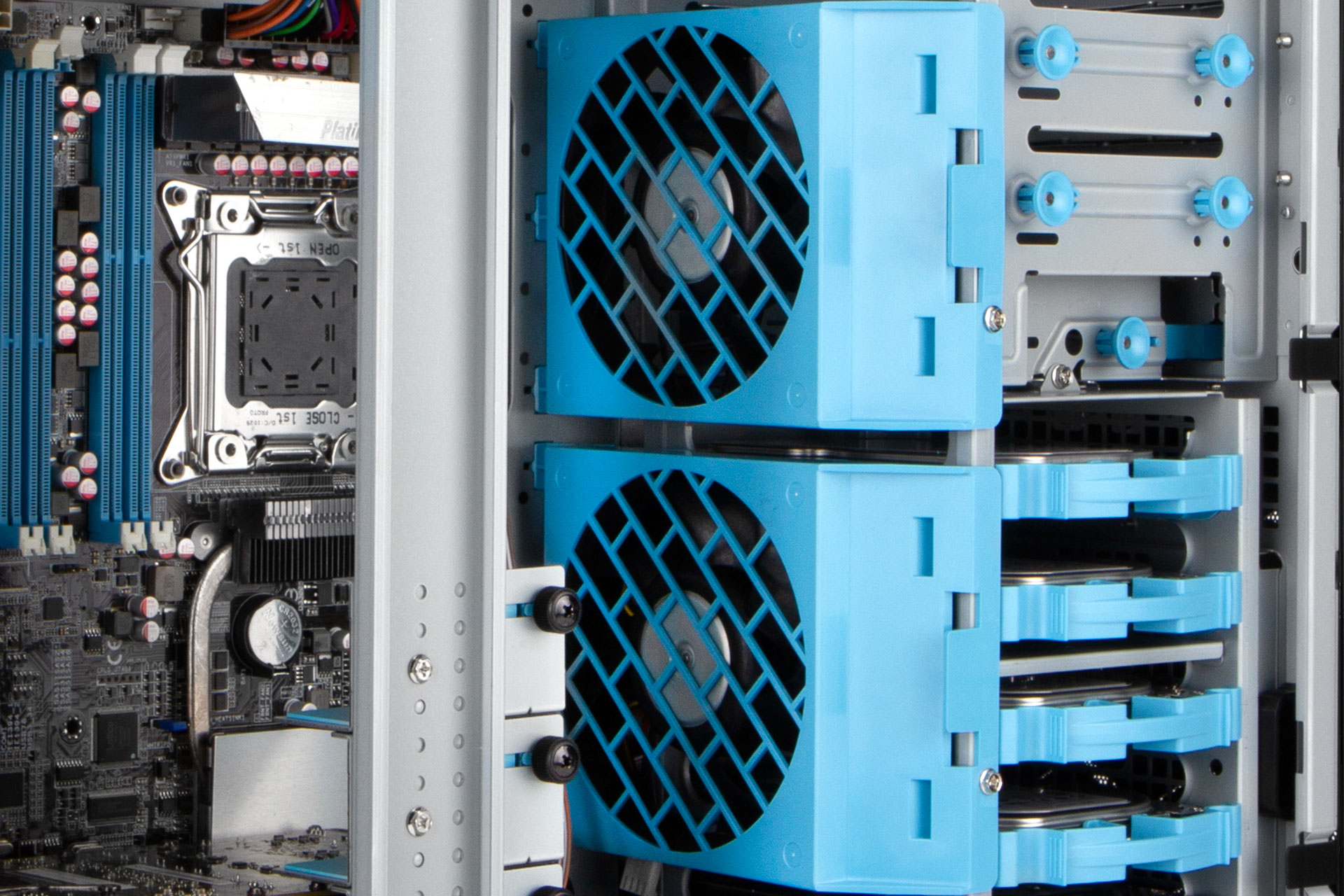

| Fan | 3RAMFB002101 | 120 x 25mm middle fan, PWM, 2850RPM | Max. 2 |
|
| Fan | 2RATPH063900 | Plastic holder for 120mm fan (in the middle system of the chassis) | 2 |
|

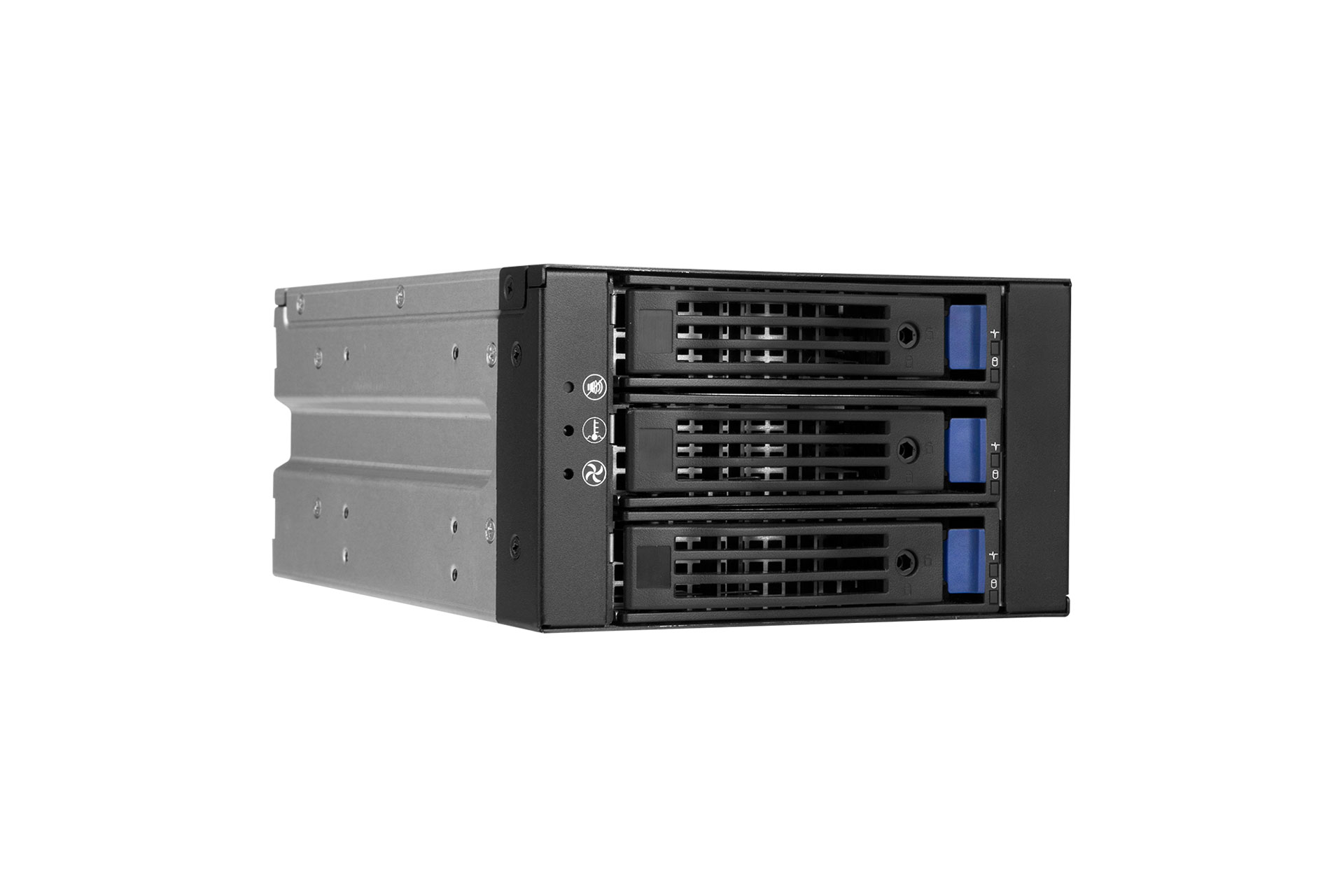

| Storage Kit | 2RAKID028200 | IW-SK23-02, 3.5" hot-swap HDDs x 3, SATA III/SAS 6Gb | 1 |
|
| Storage Kit | 2RAKID032700 | IW-SK34-02, 3.5" hot-swap HDDs x 4, SATA III/SAS 6Gb | 1 |
|
| Others | 3RAMRW020400 | Intrusion switch/700mm | 1 |
|

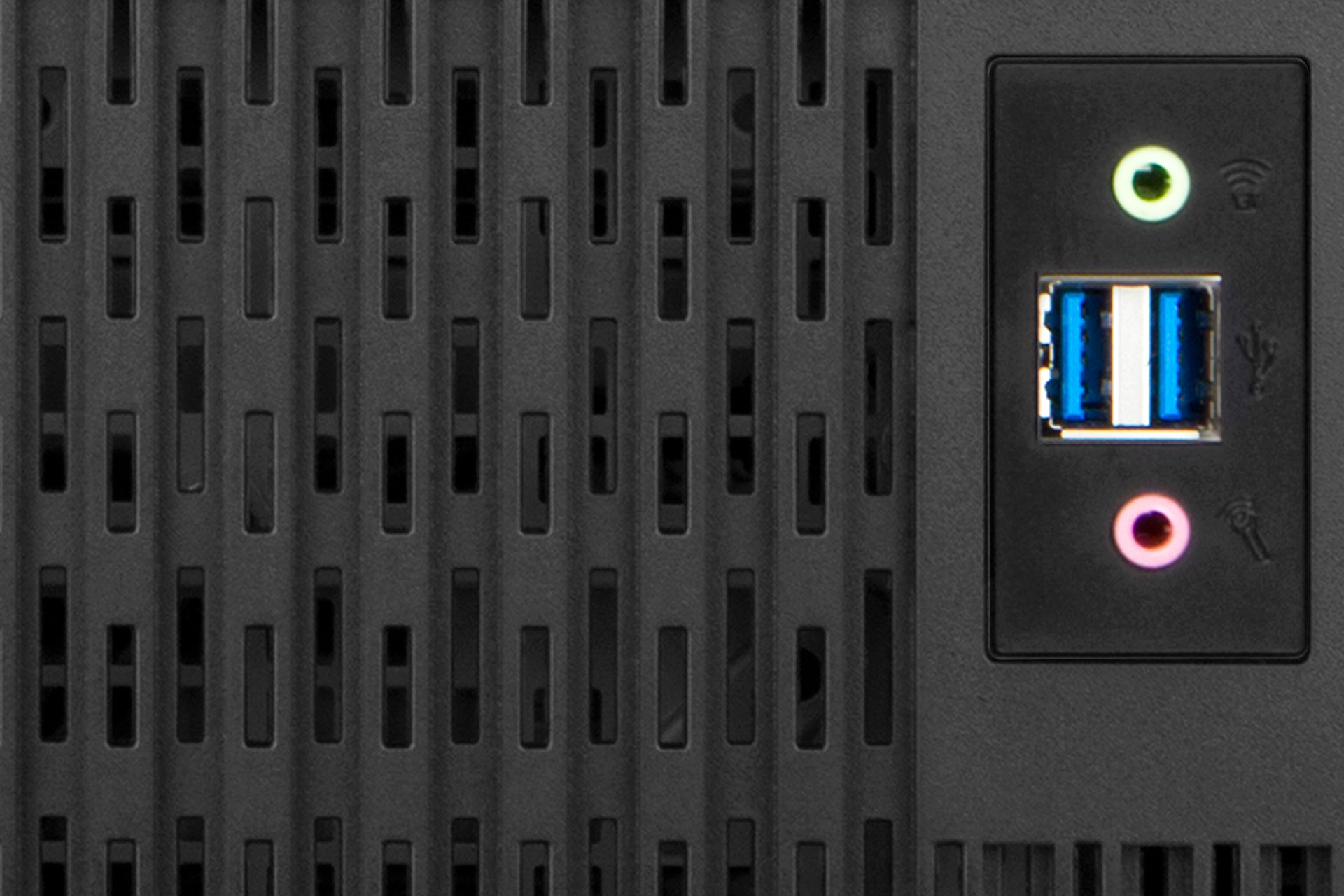

| Others | 2RAGPD028701 | Front I/O USB 3.0 x 2 + Audio | 1 |
|

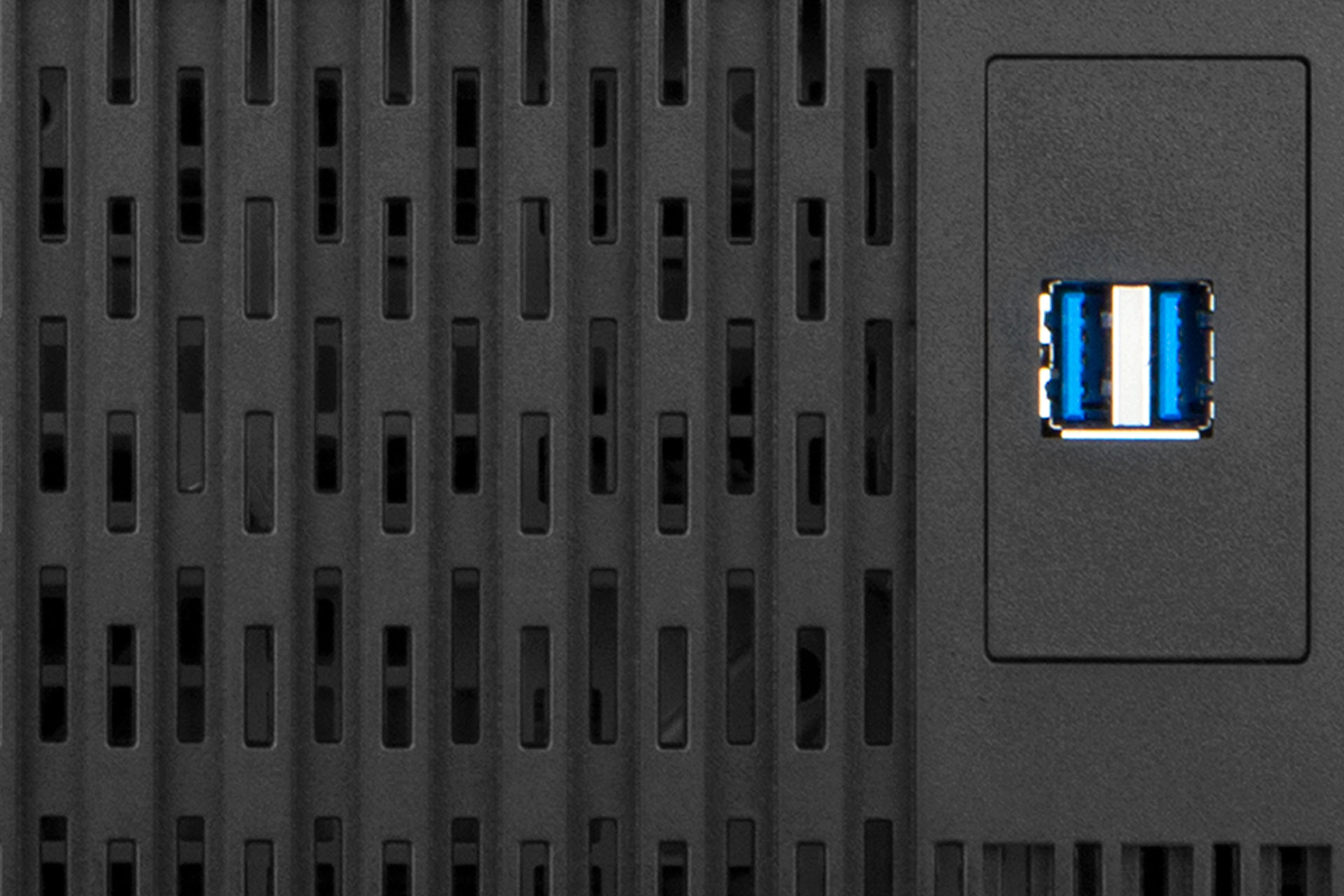

| Others | 2RAGPD036101 | Front I/O USB 3.0 x 2 | 1 |
|
| Others | 2RAKIS013601 | Single easy-swap SATA port module for 2.5"/3.5" HDD | 5 |
|
| Others | 2RAKIS004400 | Dual easy-swap SATA port module for 2.5"/3.5" HDD | 2 |
|

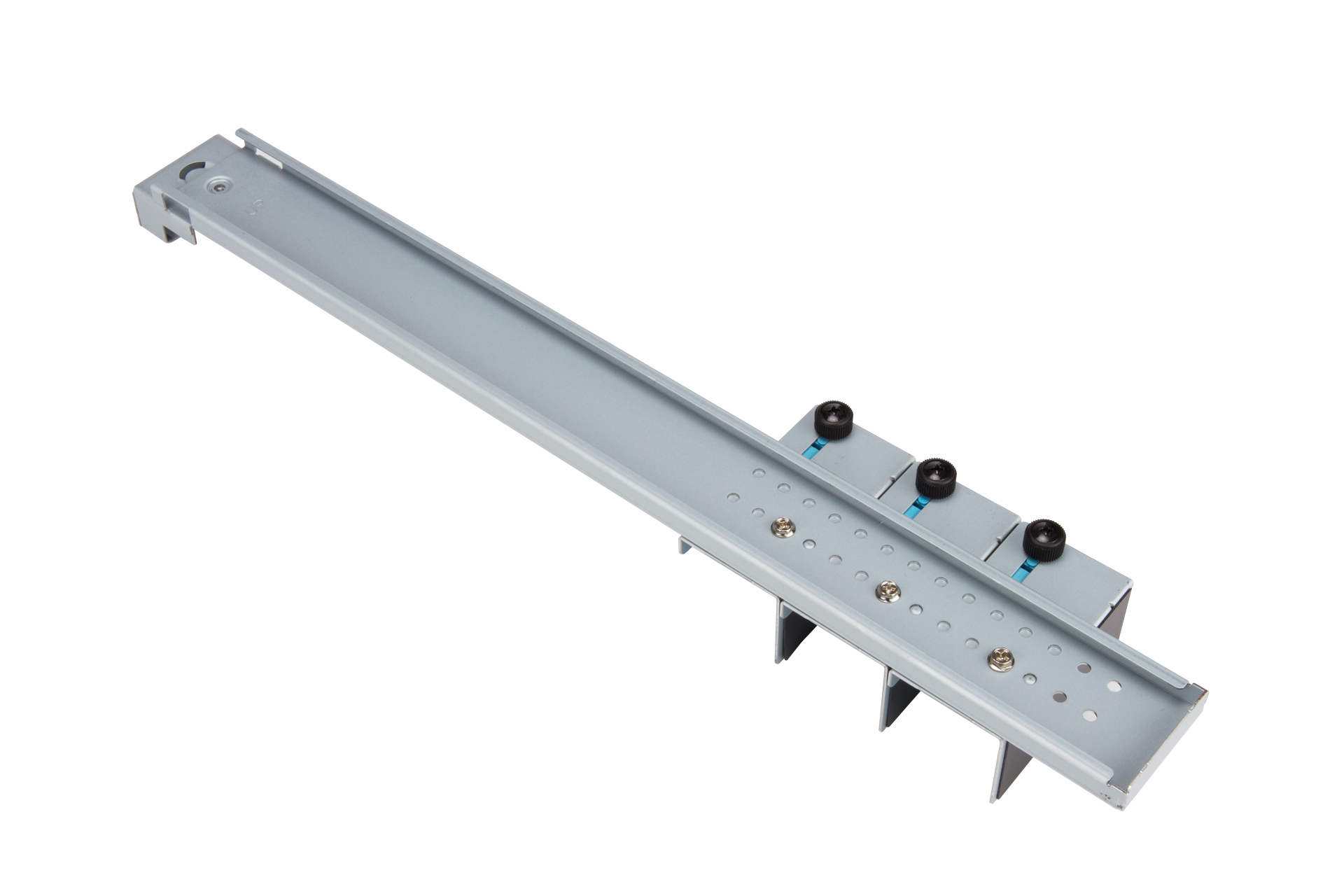

| Others | 2RAKIS041202 | Add-on card holder | 1 |
|

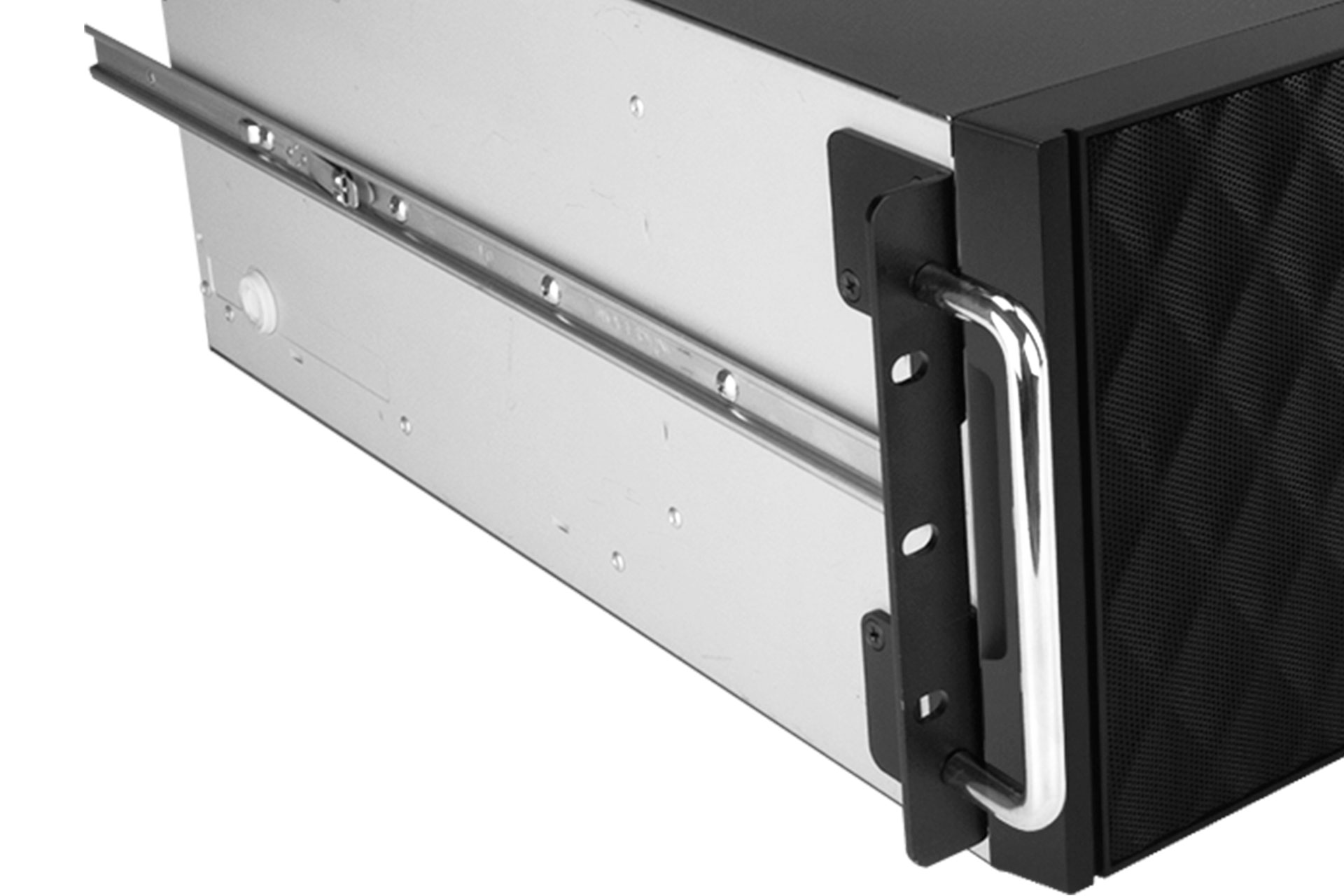

| Others | 2RAKIS040800 | Ear bracket (L) | 1 |
|
| Others | 2RAKIS040900 | Ear bracket (R) | 1 |
|
