IW-SK35-07
3-in-5 SAS/SATA III Storage Kit
．2.5"/3.5" Hot-Swap HDD x 5 Convert to 5.25" Drive Bay x 3
．Hardware Monitoring
．Support SAS / SATA III HDD
．Designed as Standard Mounting Hole for Converting 5.25" Drive Bay

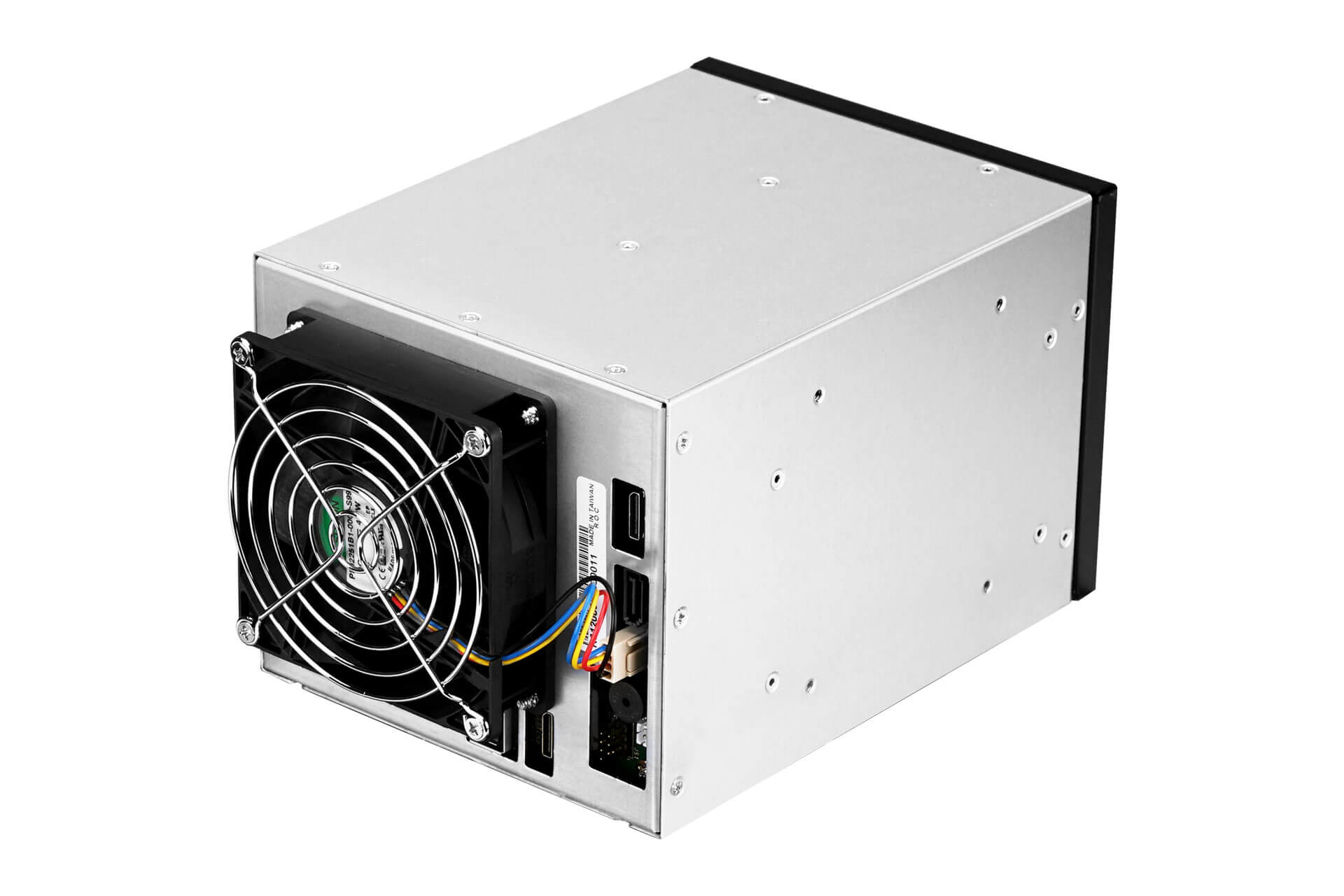

．Detachable 90mm PWM Rear Cooling Fan
| Specification | |
|---|---|
| Indicators | Fan Failure, Temperature Failure |
| Front Control Panel | Alarm Mute |
| Backplane | Input:SATA III / SAS HDD , Output:SATA port x 5 ,SGPIO port |
| Data Transfer Rate | 6Gb/s |
| Cooling Fans | 90mm PWM Rear Fan x 1 |
| Temperature | 0°C (32°F) ~ 50°C (122°F) |
| Humidity | 5% ~ 95% non-condensing |
| Product Dimensions (DxWxH; Chassis Only) | 203 x 146 x 127.8mm (8" x 5.7" x 5")" |
| Package Dimensions (DxWxH) | 226 x 316 x 201mm |
| Weight | • Net Weight: 2.31kg • Gross Weight: 2.79kg |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.

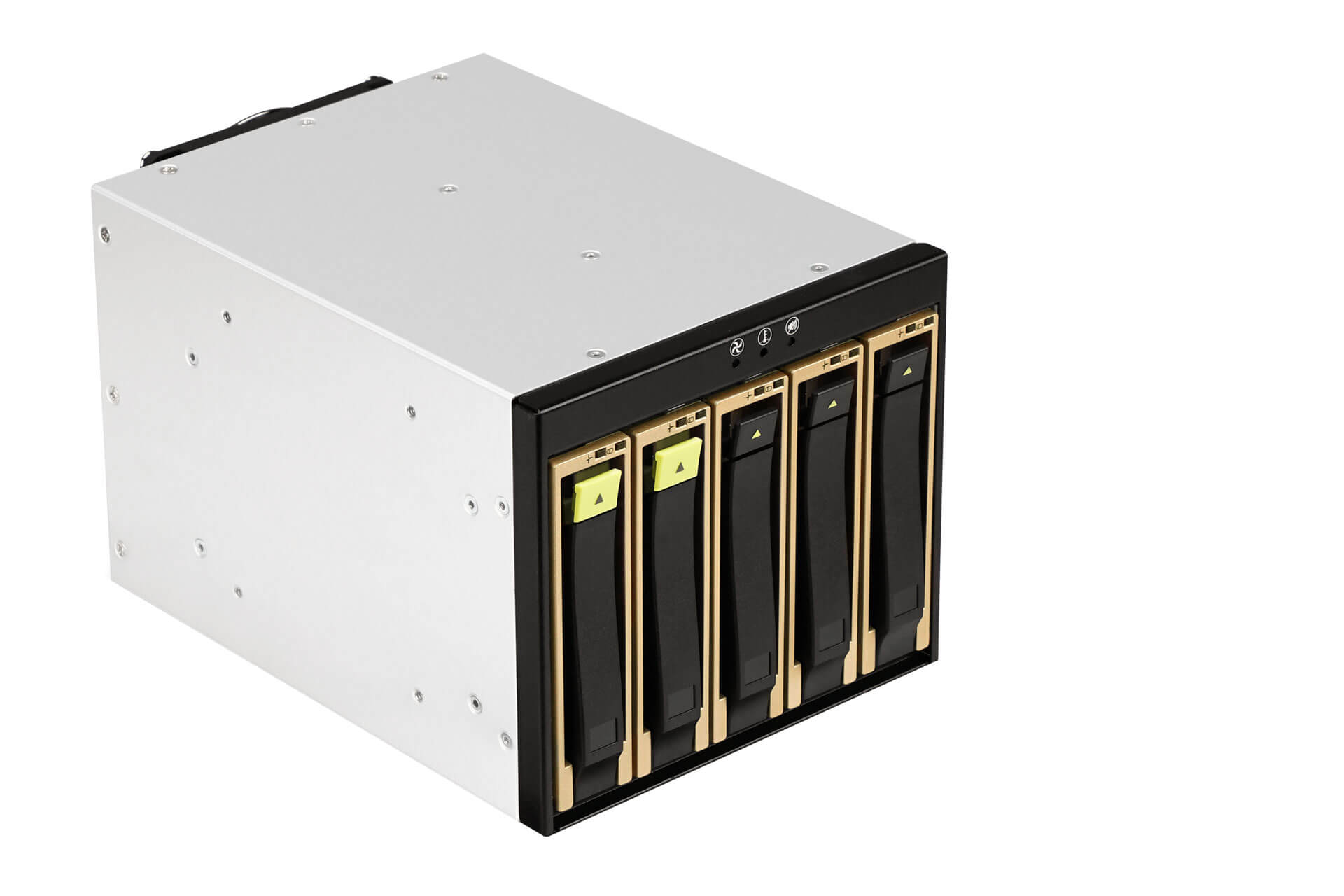

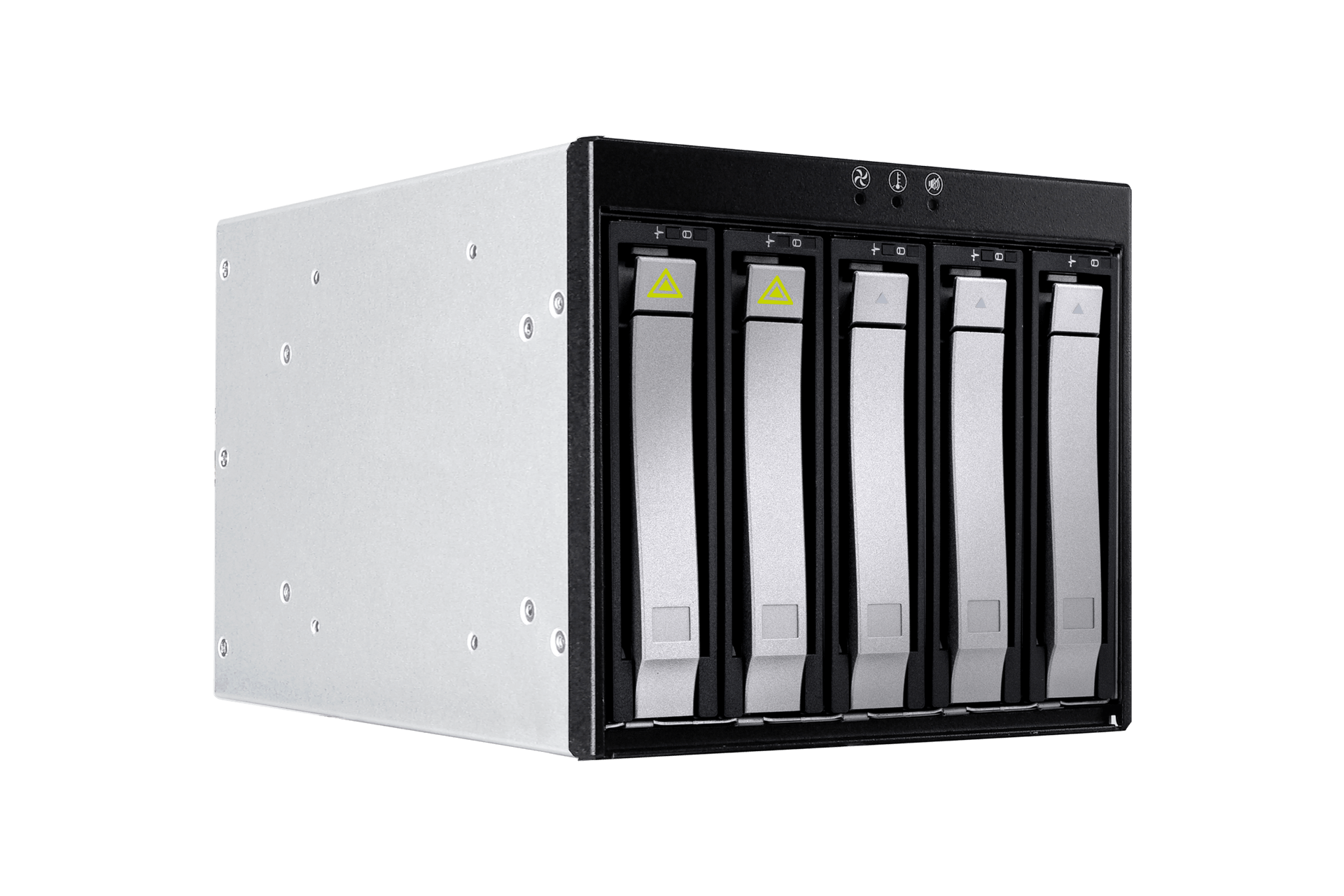

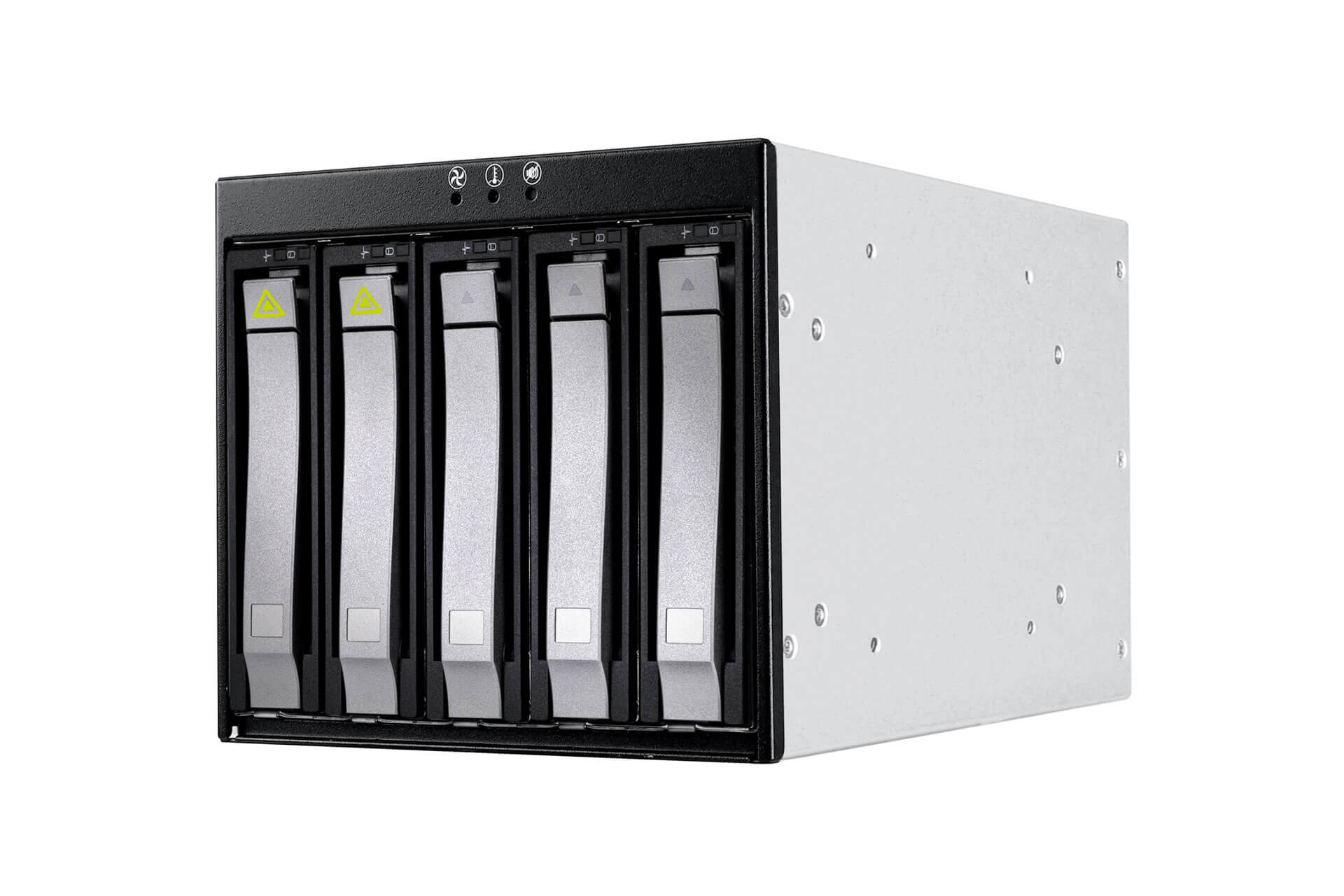

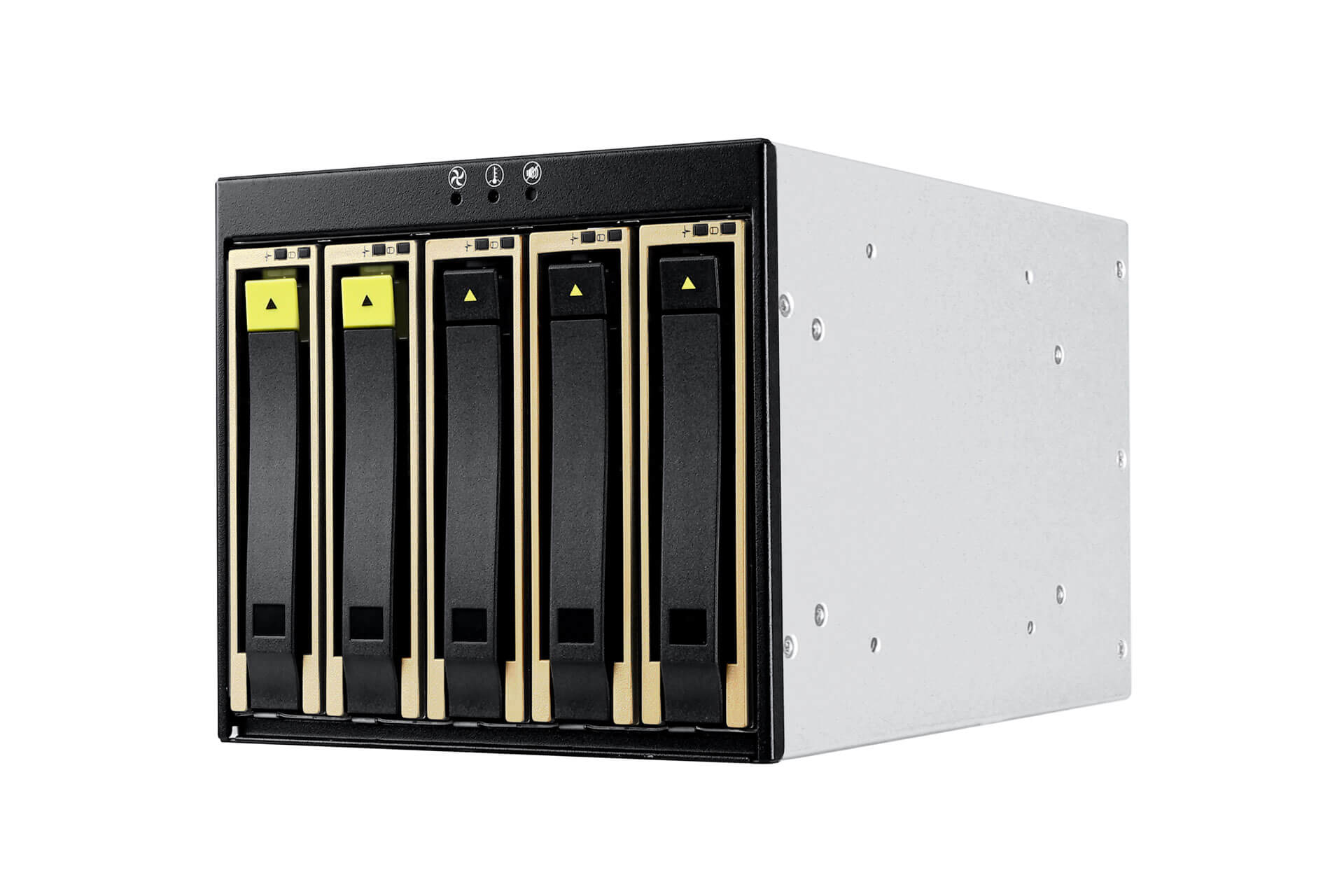

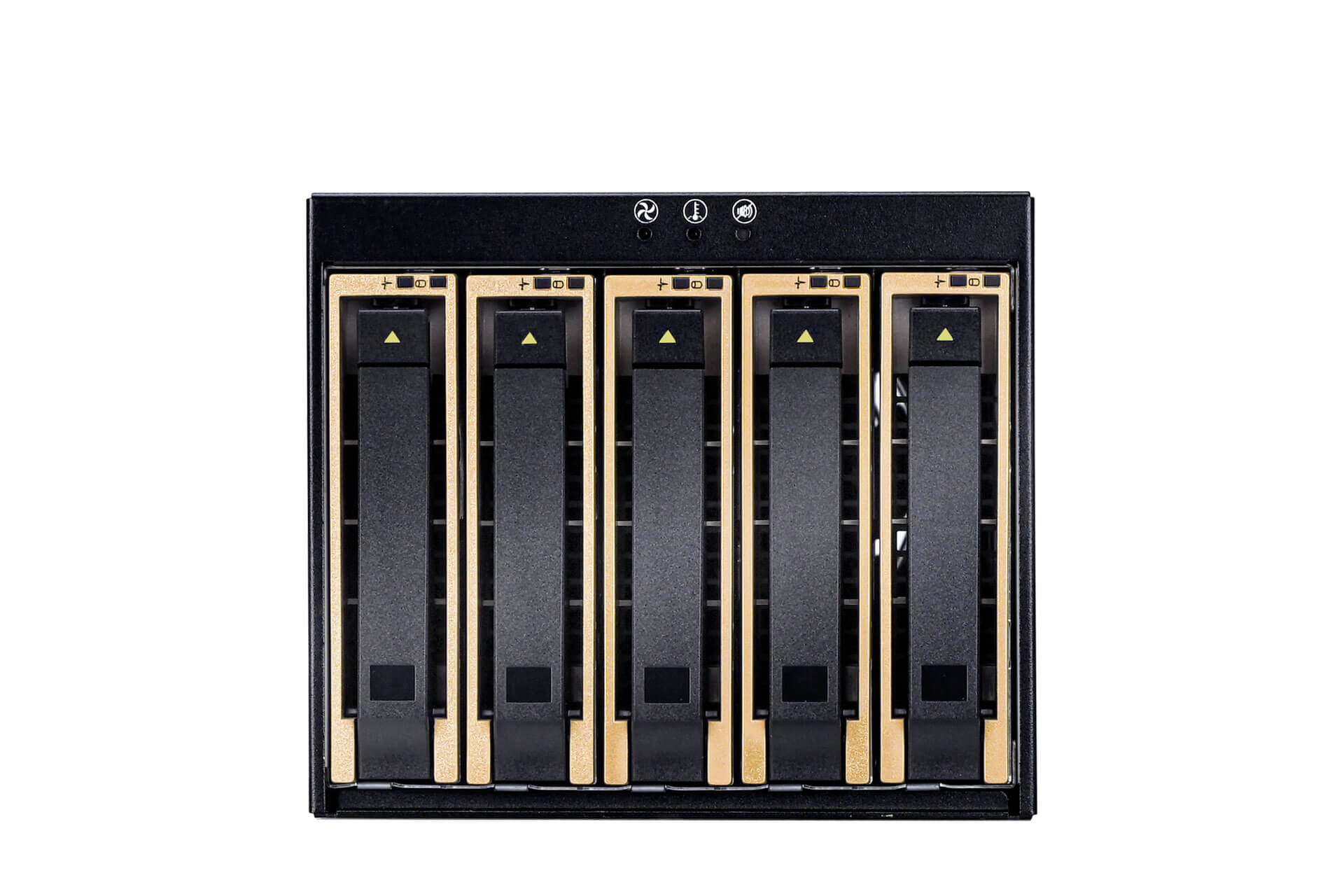

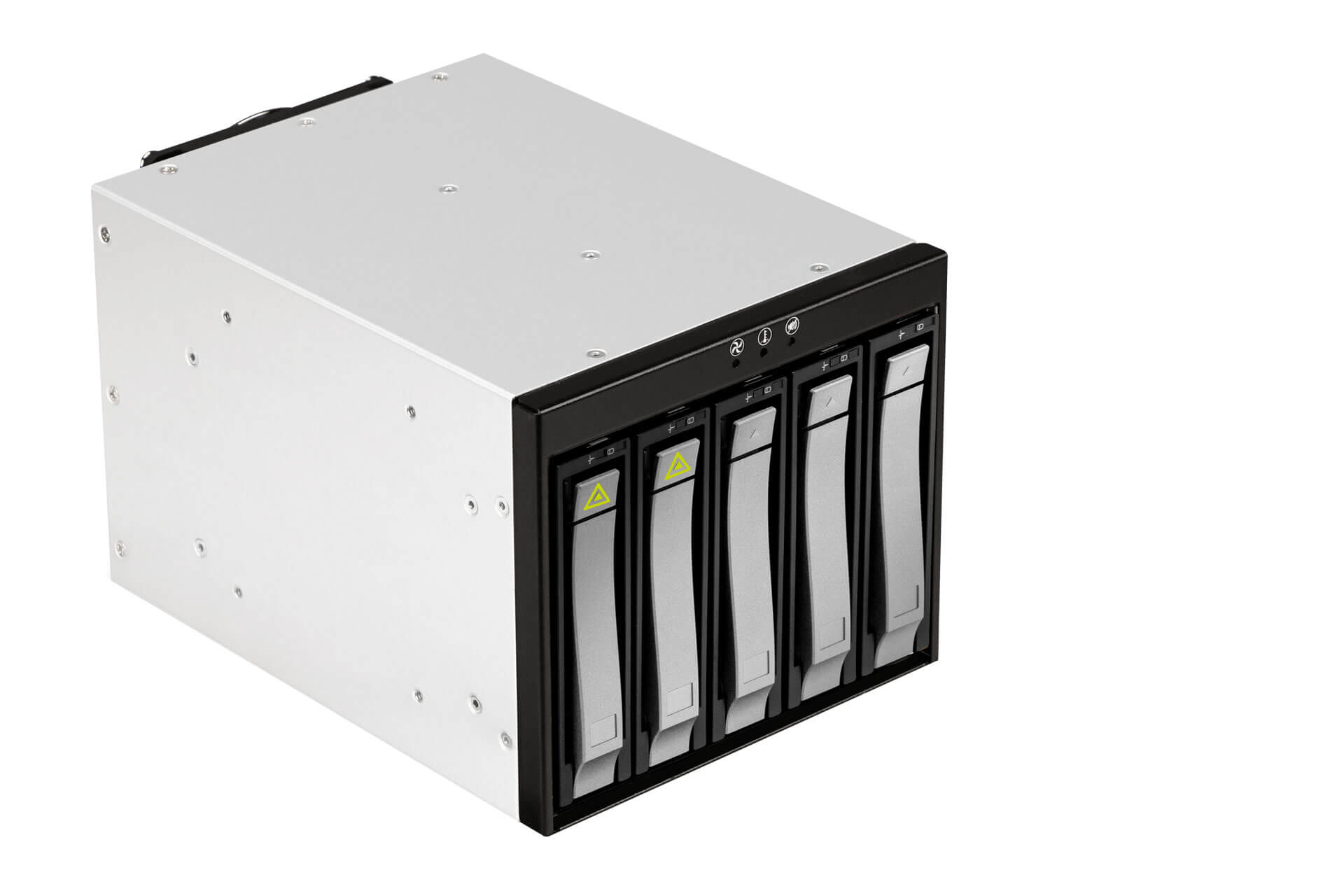

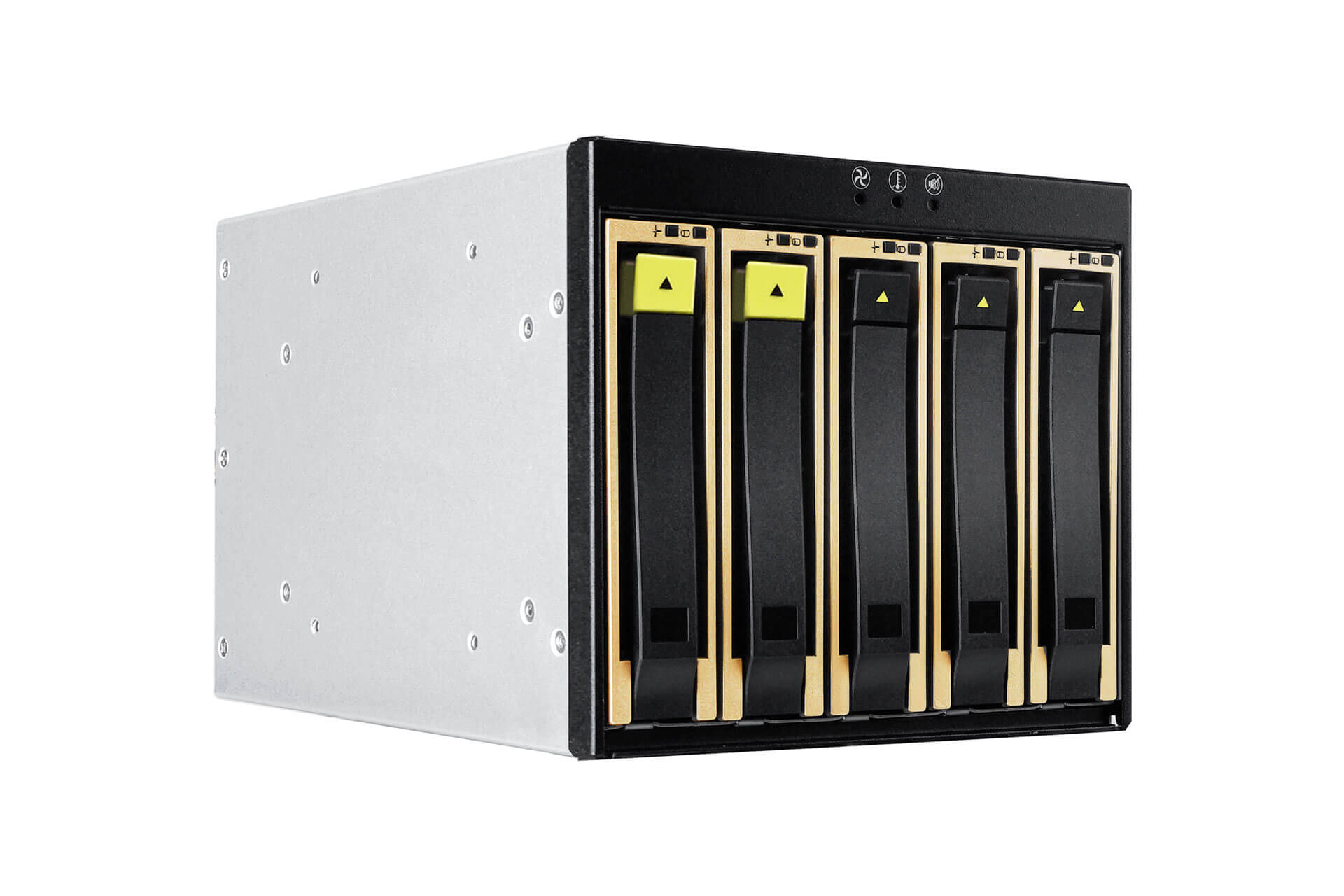

* The above image is for reference only. All hardware components and optional parts are not included.
