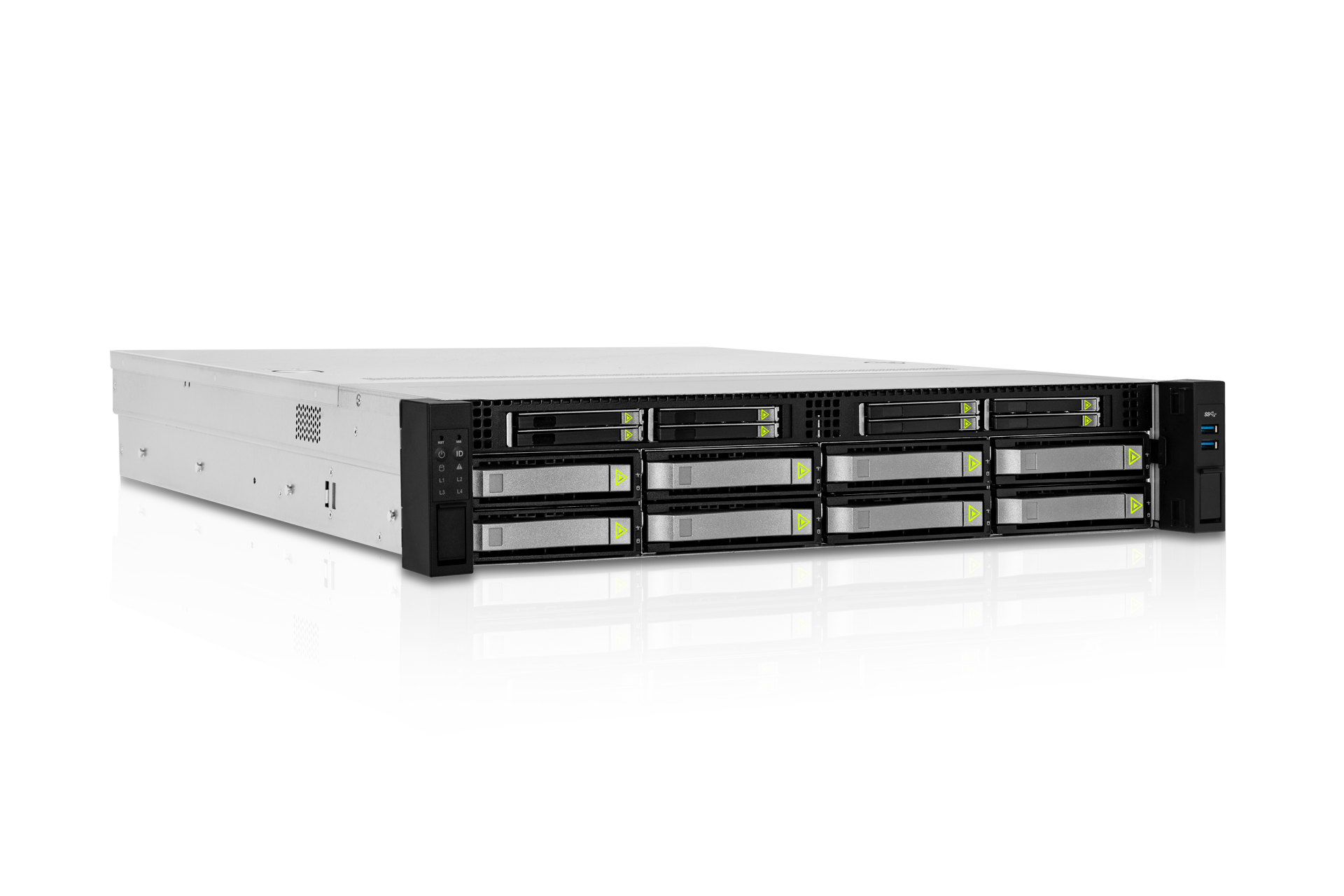

IW-RS216-07

2U NVMe Hybrid Storage Server

2U Hybrid Storage Server
The Most Comprehensive SAS/SATA/NVMe Storage Solution

The IW-RS216-07 supports three types of drive bays: 3.5"/2.5" (15mm) HDDs, 2.5"(15mm) SSDs and 2.5" (7mm) SSDs, bringing a wide range of storage combinations. More options to meet your storage preferences and increase/maintain efficiency.

Compliant

x 16 bays

x 18 bays

2.5" 15mm HDD

2.5" 7mm HDD

System disks

CRPS

PCle slot x 7

80 x 38mm fans x 4

Multiple Storage Options

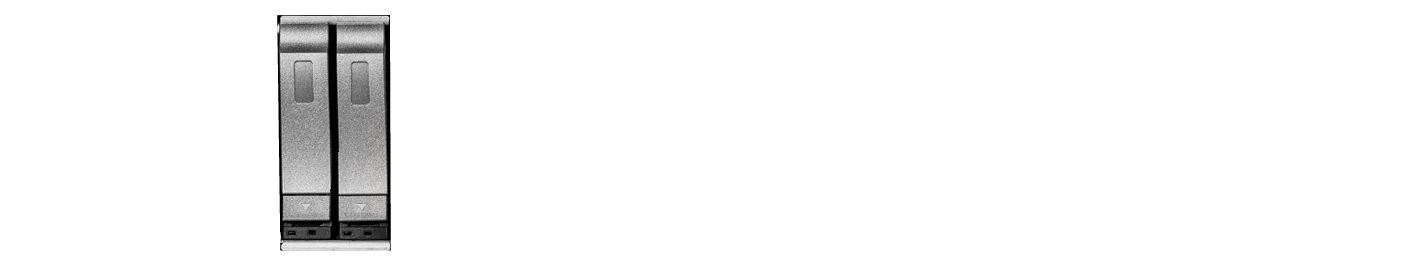

Flexible storage combinations of 2.5"(15mm) and 2.5"(7mm) drive bays and pairing 3.5"/2.5"(15mm) drive bays supports up to 16 x U.2 NVMe SSDs. For providing more drive spaces, the IW-RS216-07 has 2 x 2.5"(15mm) SAS/SATA SSDs for system disks at the rear of the chassis. All drive bays feature hot-swap and tool-free designs. Two optional colors, standard black and light gray, are available.

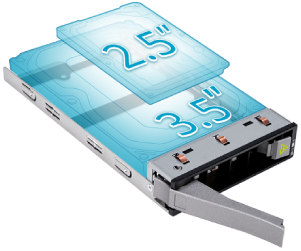

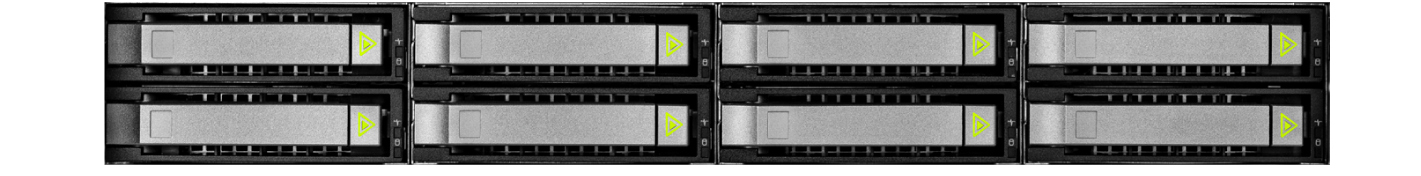

3.5"/2.5" (15mm) SSDs

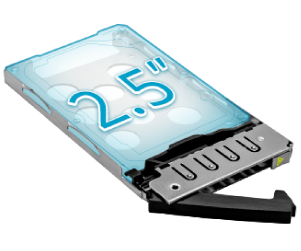

2.5" (7mm) SSDs

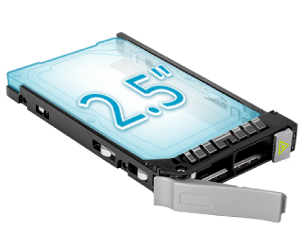

2.5" (15mm) SSDs

All bays support NVMe/SAS/SATA

Supports SAS/SATA

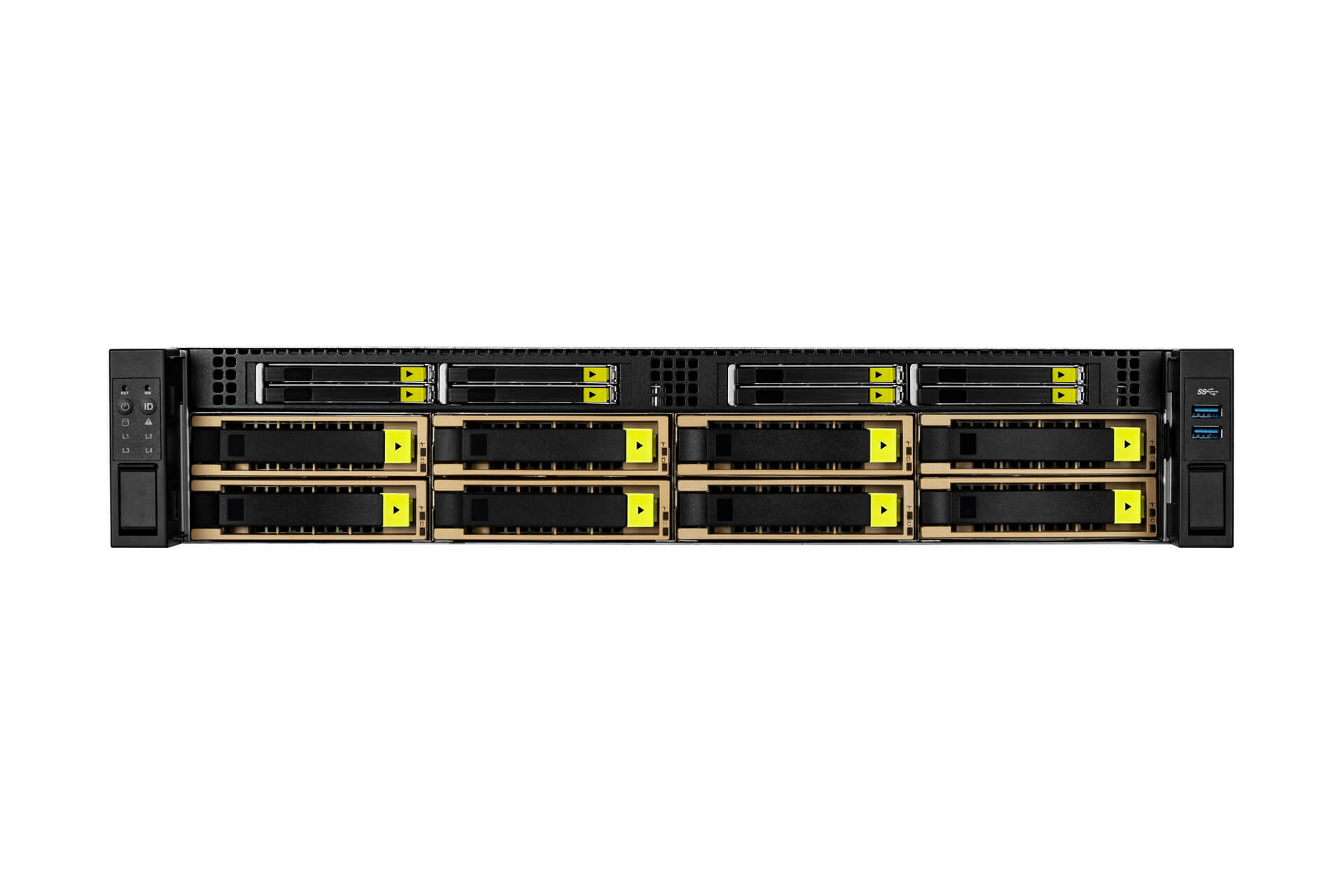

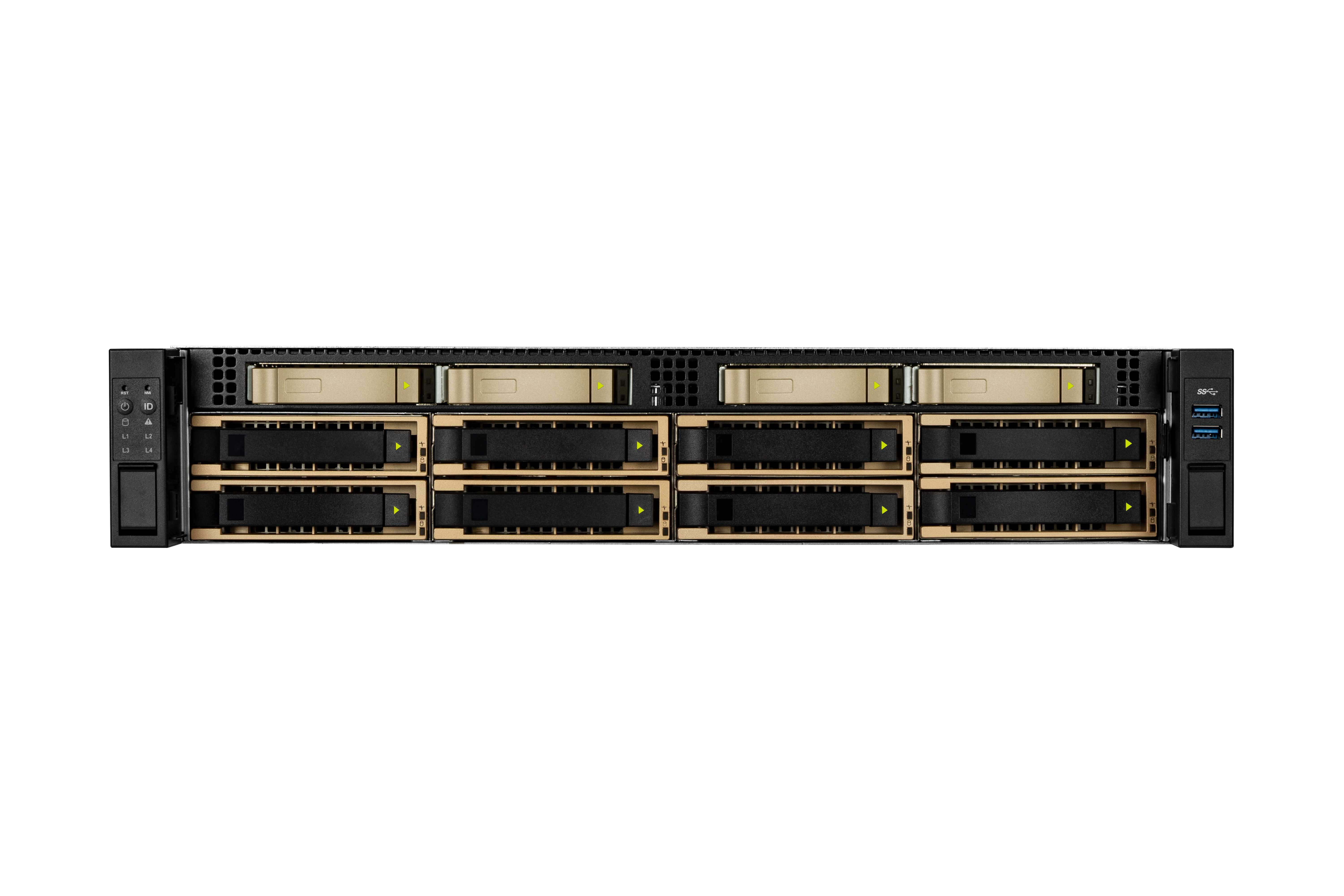

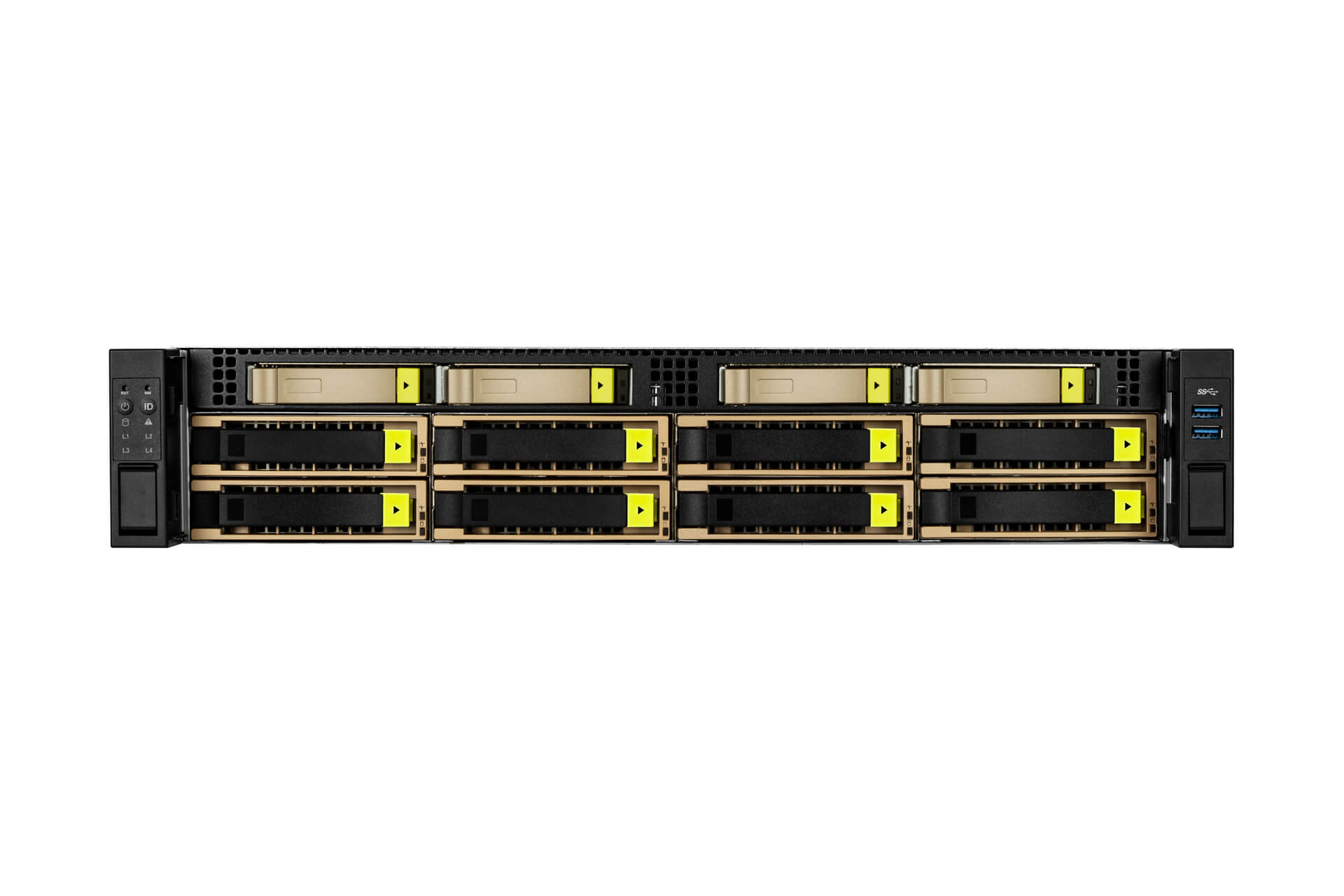

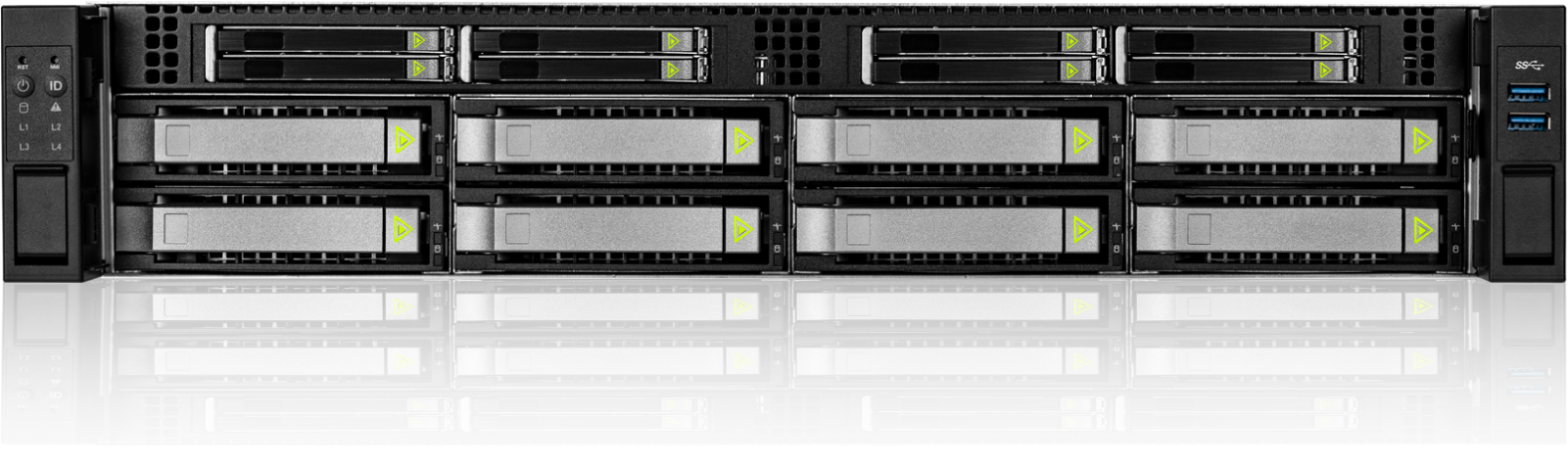

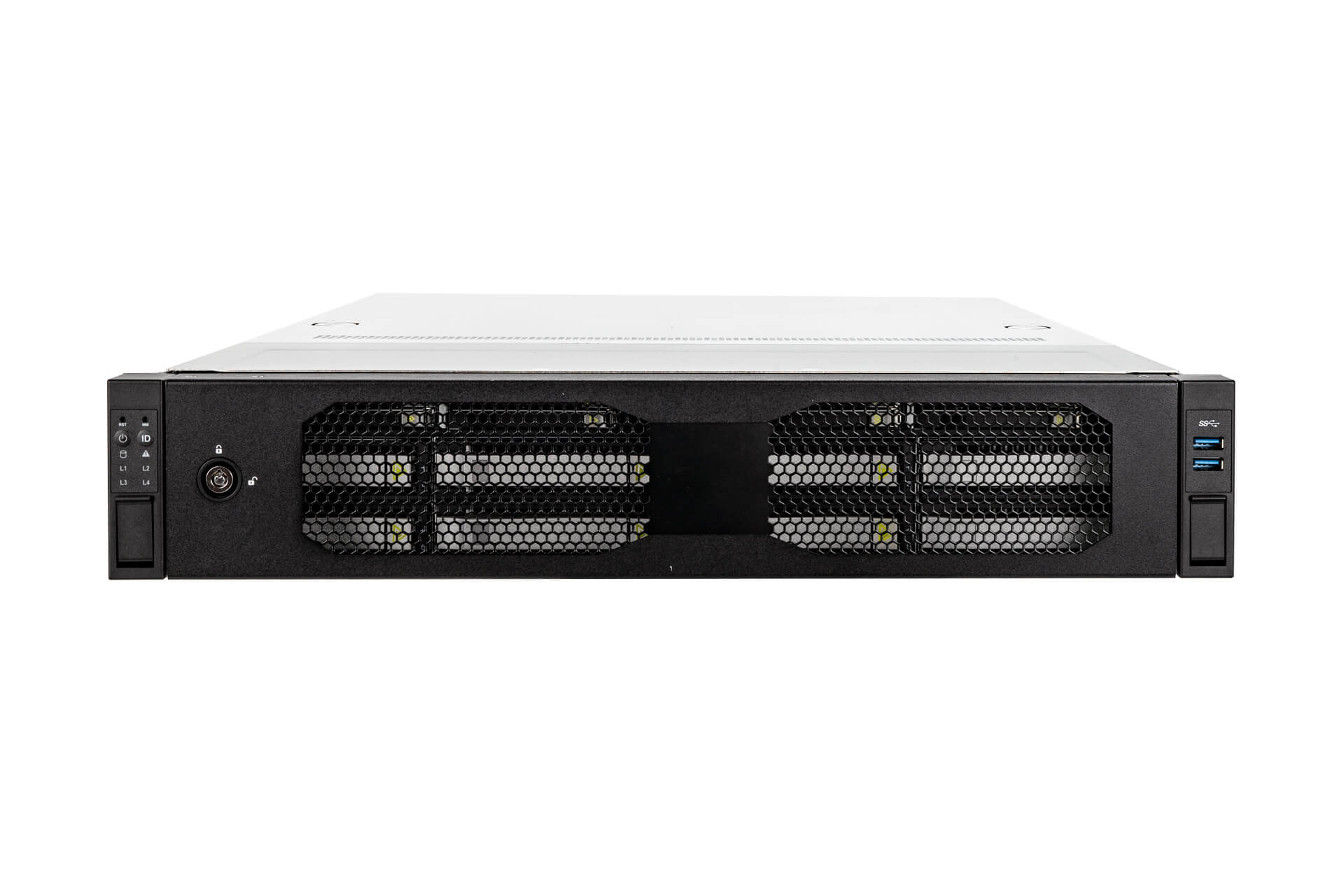

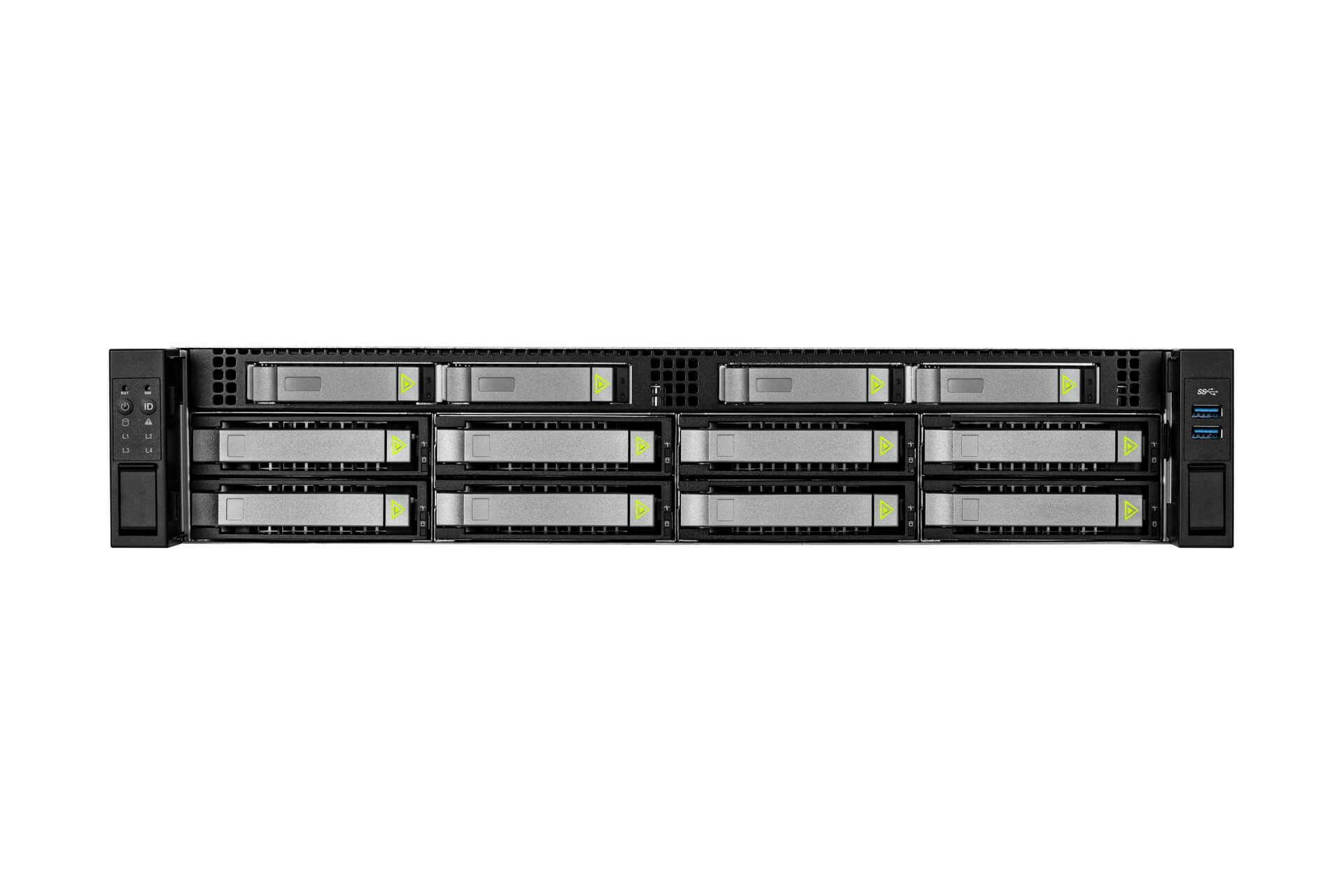

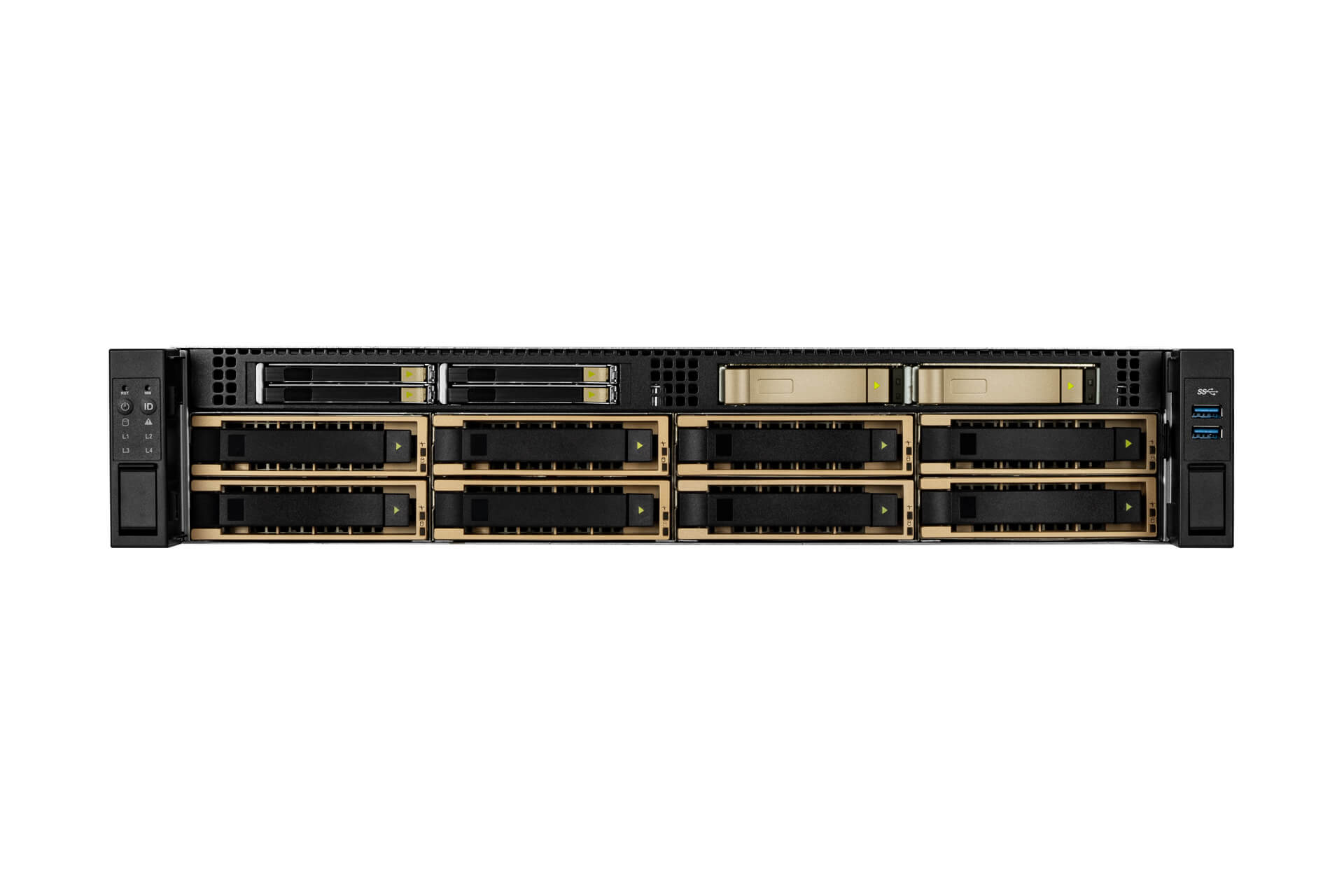

Front View

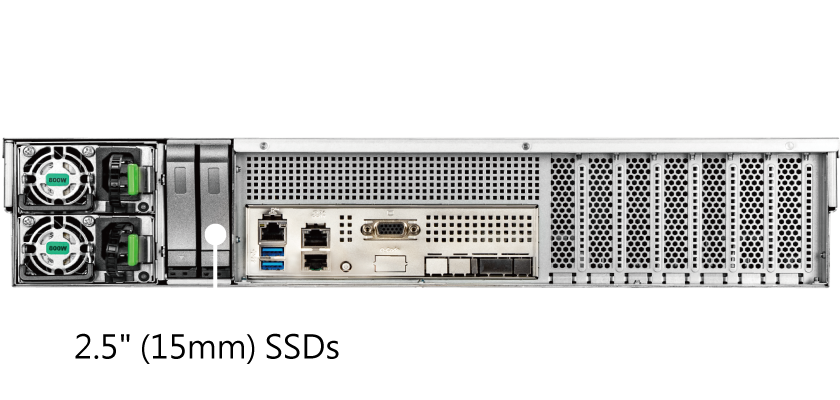

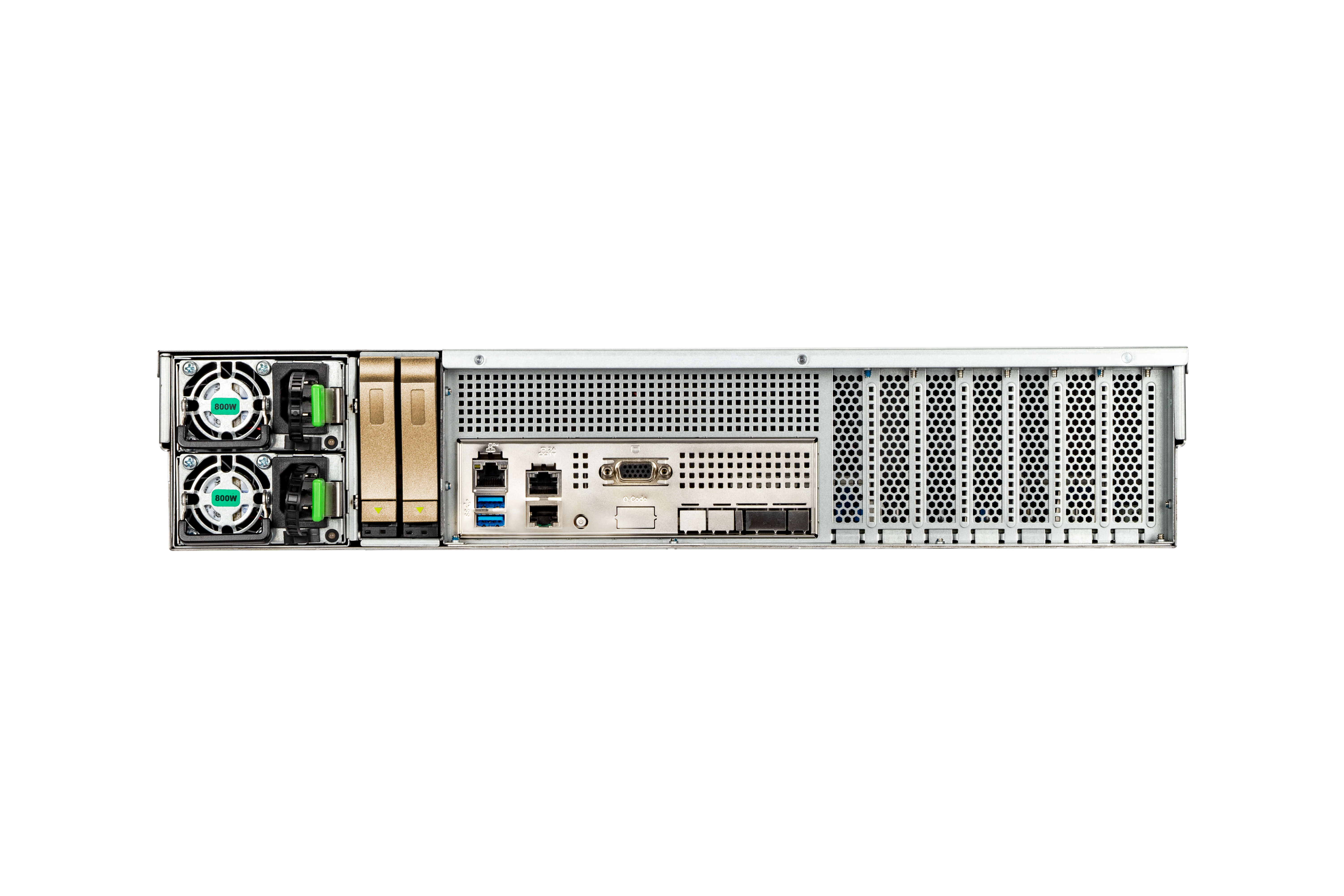

Rear View

The Perfect Fit

Choose from an assortment of storage options with a variety of transfer rates and several drive bays. Make the IW-RS216-07 the perfect fit your storage needs.

Transfer Rates

SAS/SATA

NVMe

Hybird

SSD Trays

7mm

15mm

Mix

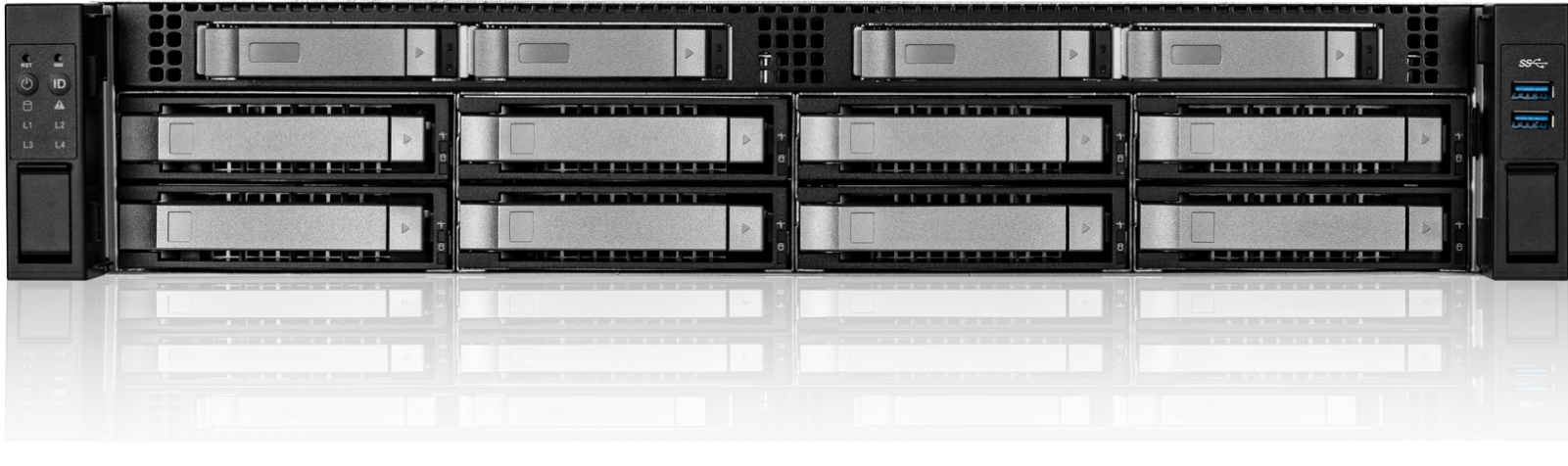

Up to 16 trays with SAS/SATA data transfer rates

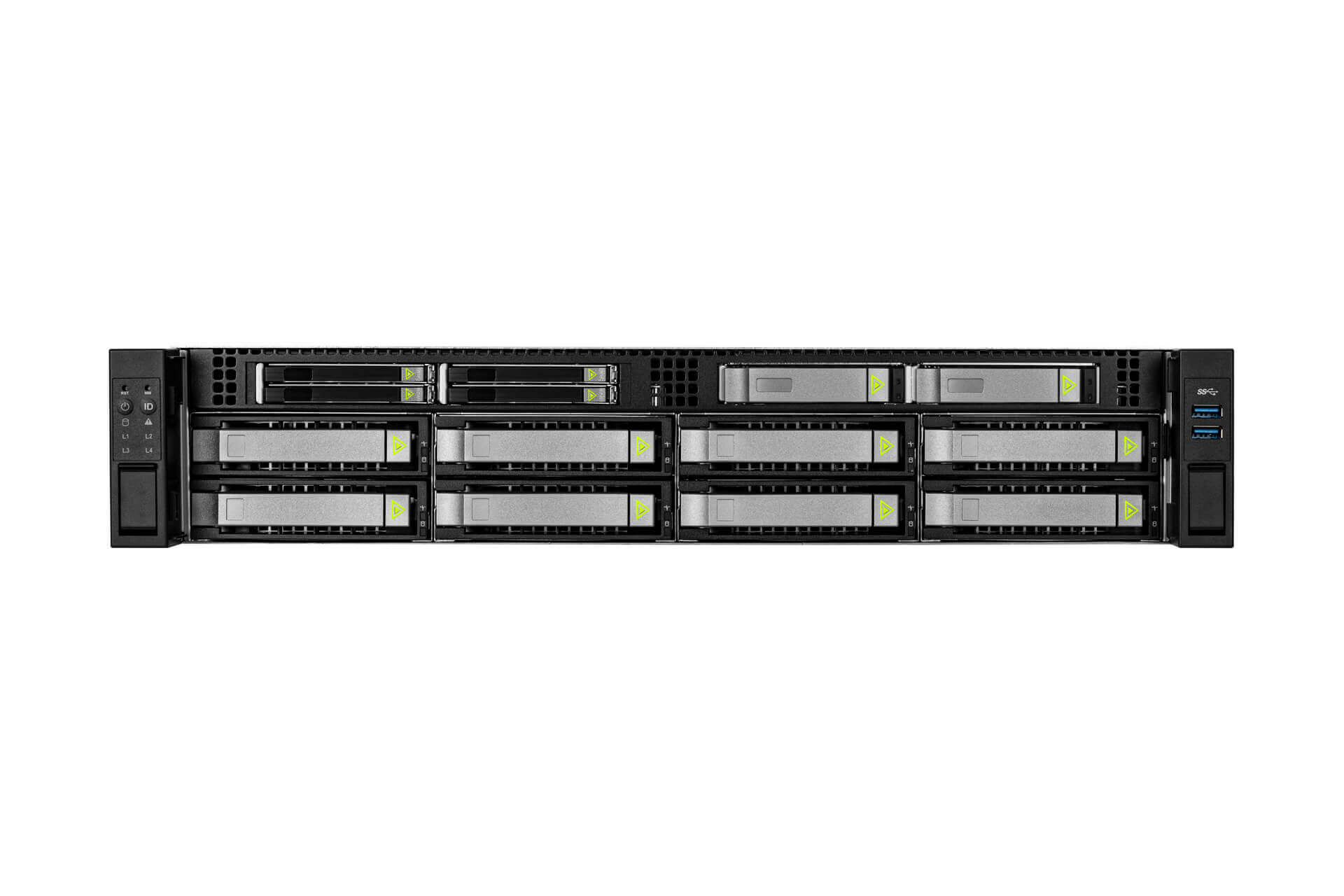

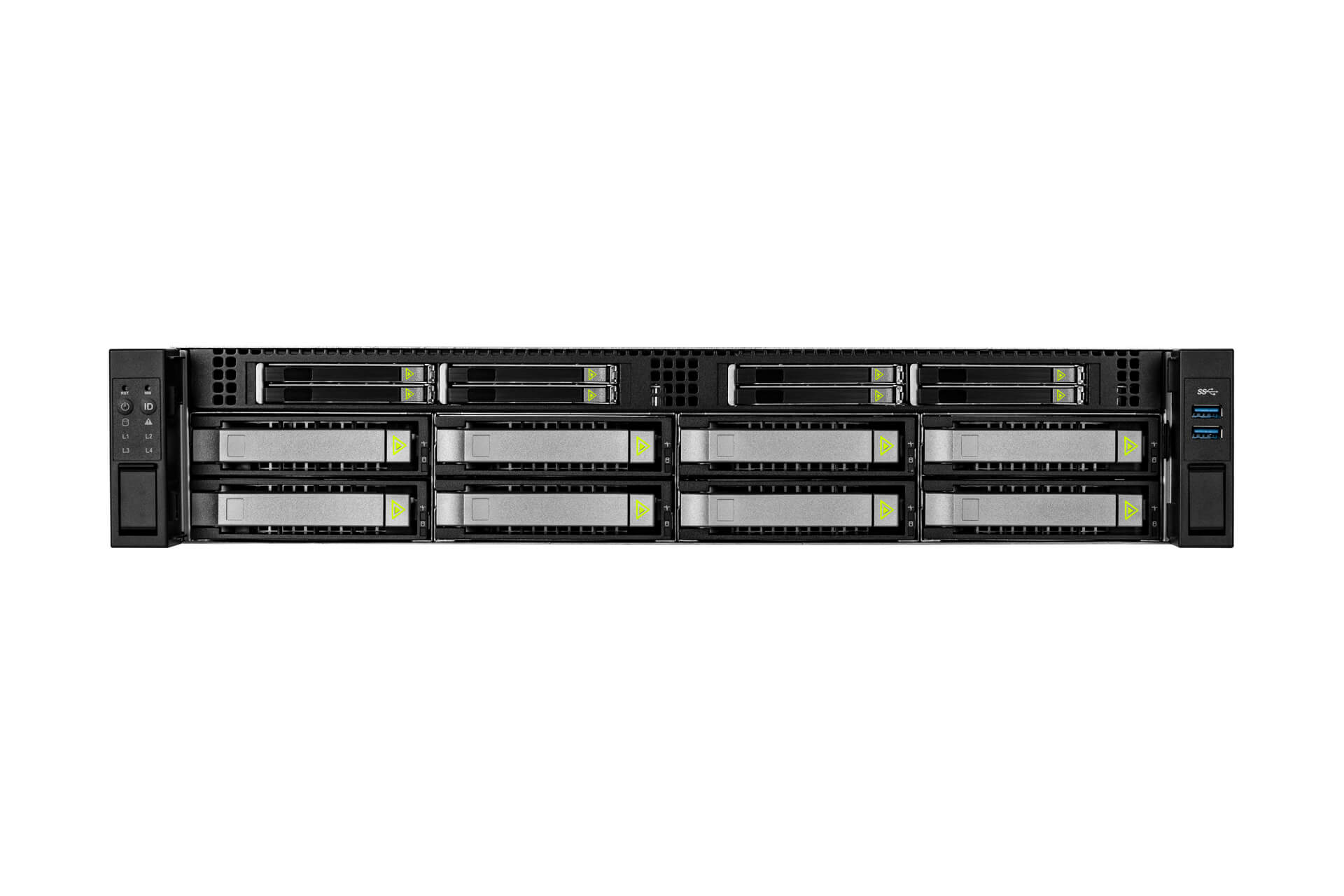

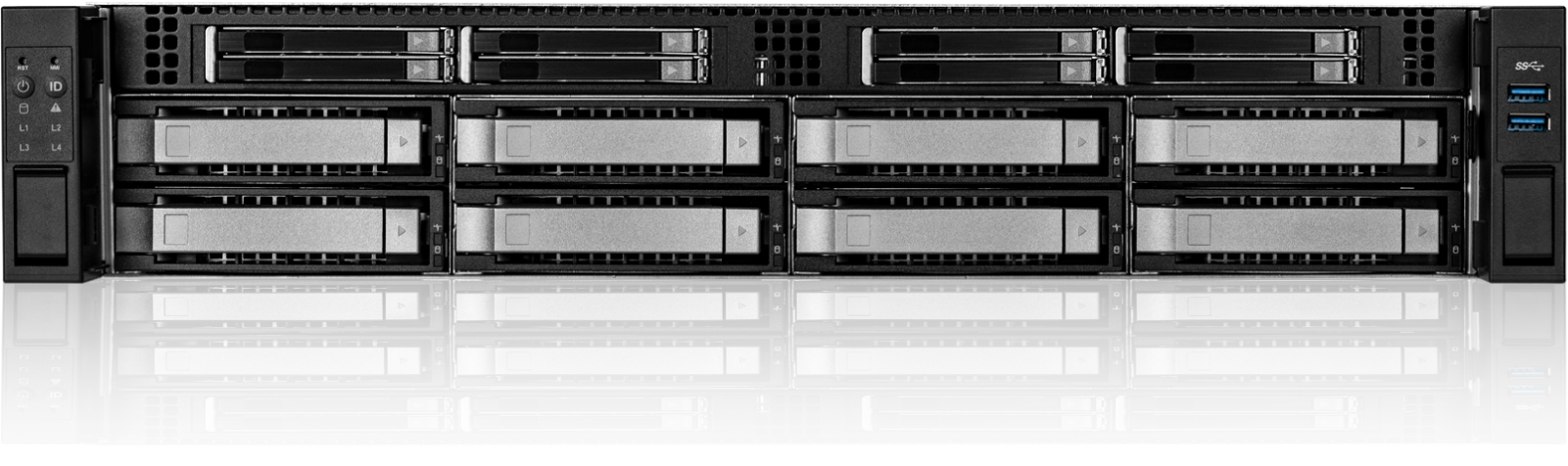

3.5"/2.5" (15mm) x 8 and 2.5" (7mm) x 8

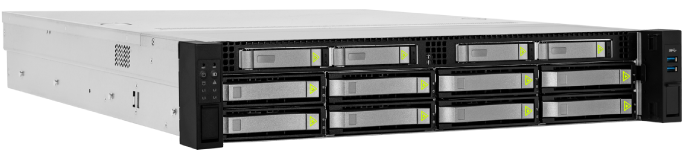

12 total trays with SAS/SATA data transfer rates
3.5"/2.5" (15mm) x 8 and 2.5" (15mm) x 4

14 total trays with SAS/SATA data transfer rates

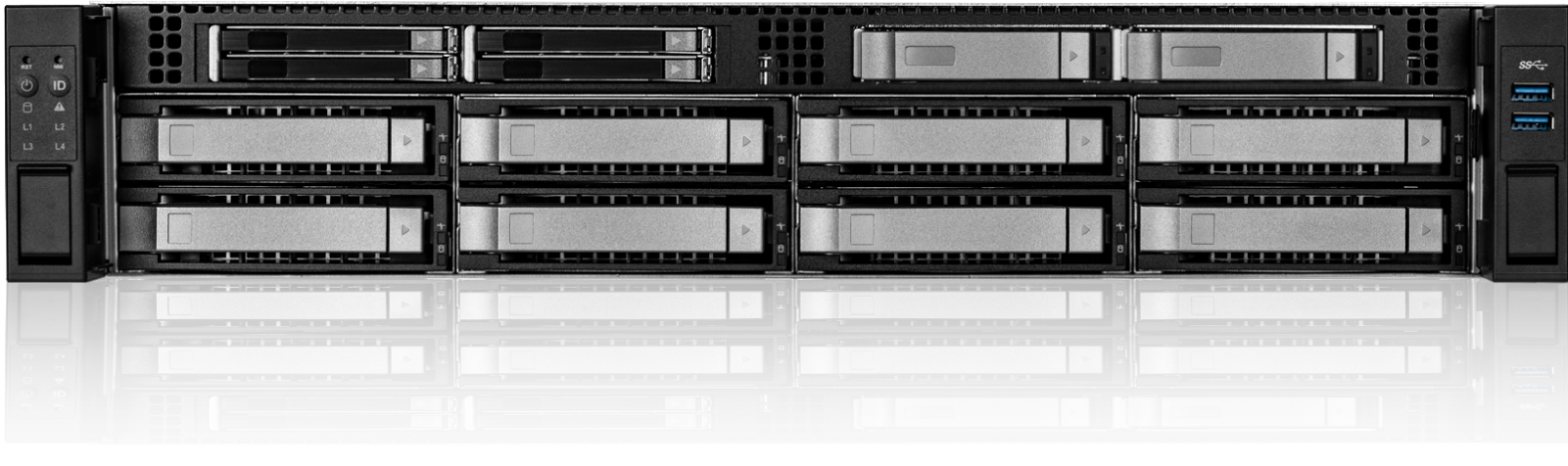

3.5"/2.5" (15mm) x 8, 2.5" (15mm) x 2 and 2.5" (7mm) x 4

Up to 16 trays with 100% NVMe accelerated storage
3.5"/2.5" (15mm) x 8 and 2.5" (7mm) x 8

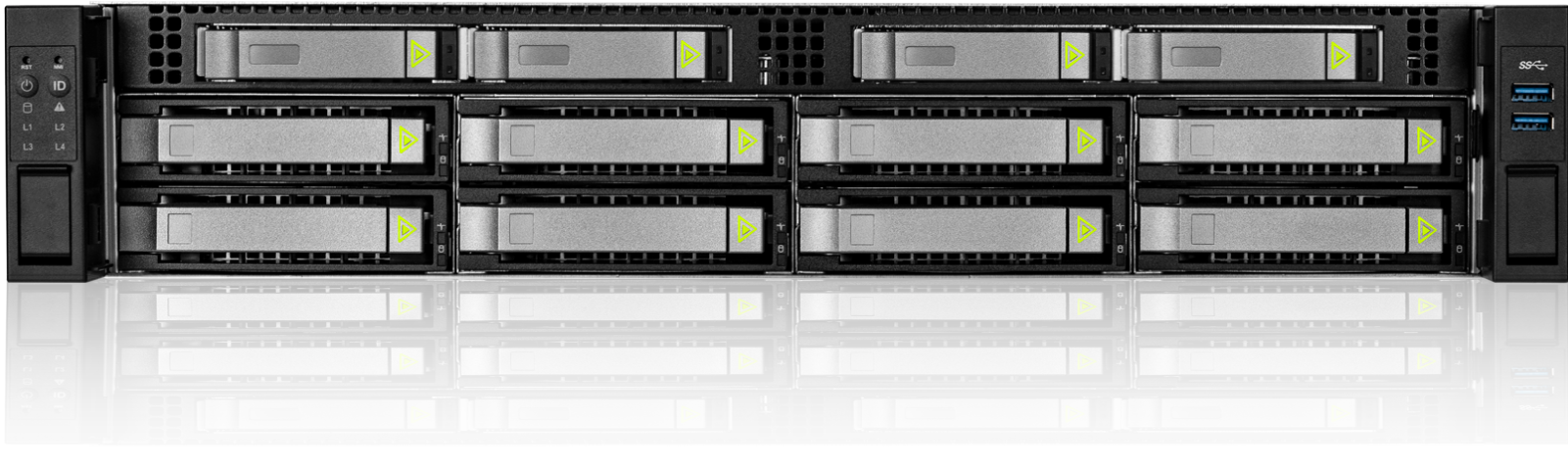

12 total trays with 100% NVMe accelerated storage
3.5"/2.5" (15mm) x 8 and 2.5" (15mm) x 4

14 total trays with 100% NVMe accelerated storage
3.5"/2.5" (15mm) x 8, 2.5" (15mm) x 2 and 2.5" (7mm) x 4

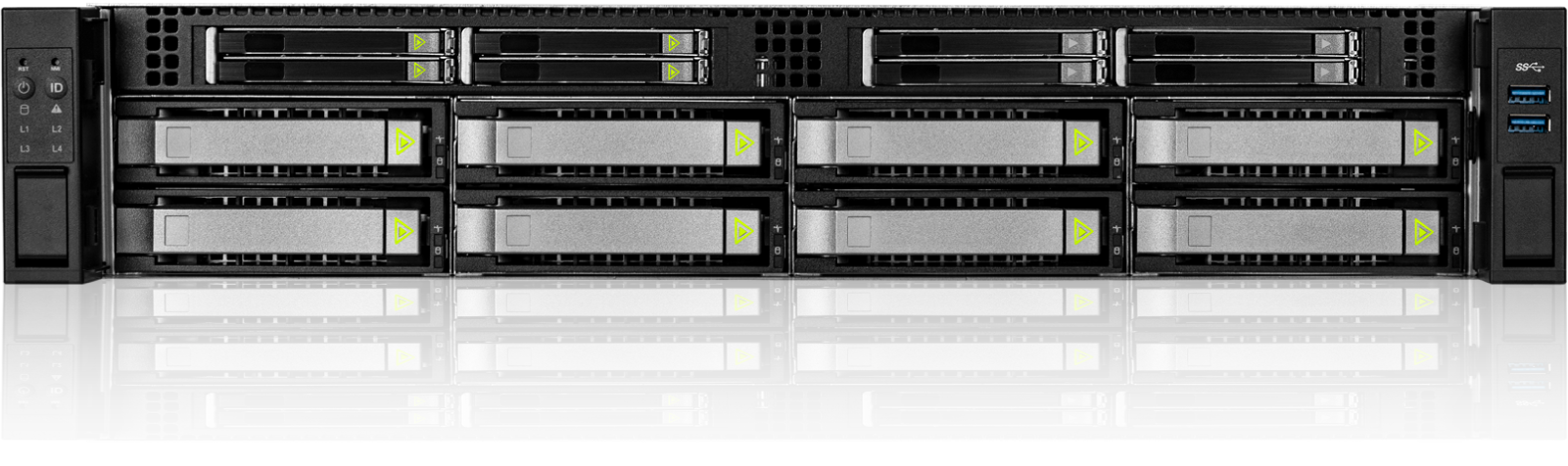

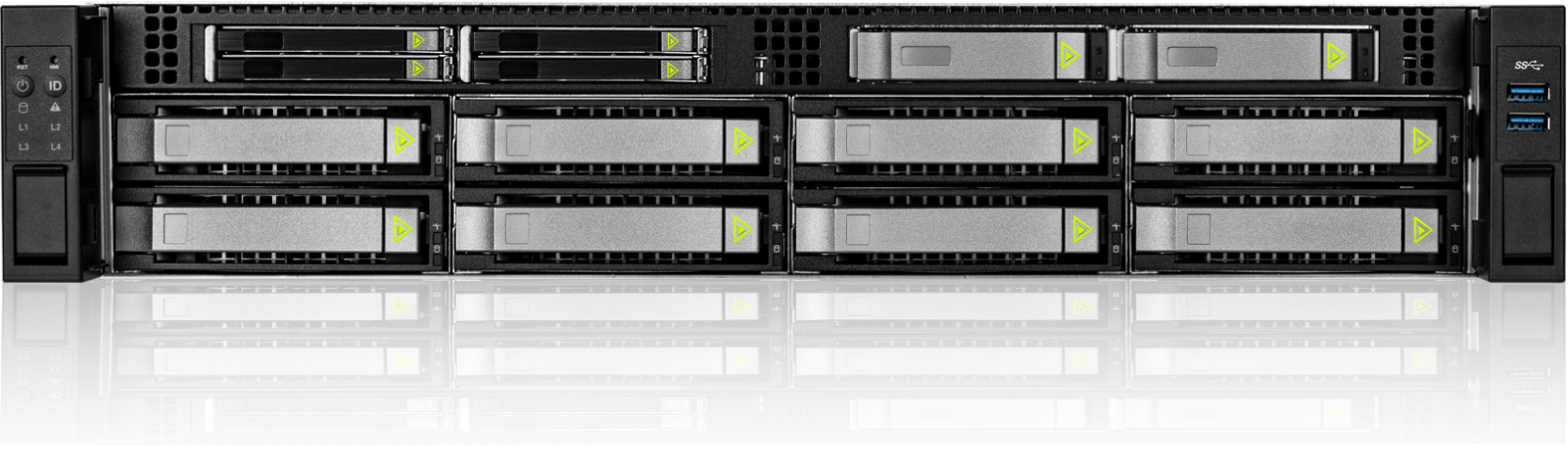

Up to 16 trays with optional hybrid NVMe/SAS/SATA SSDs
3.5"/2.5" (15mm) x 8 and 2.5" (7mm) x 8

12 total trays with optional hybrid NVMe/SAS/SATA SSDs
3.5"/2.5" (15mm) x 8 and 2.5" (15mm) x 4

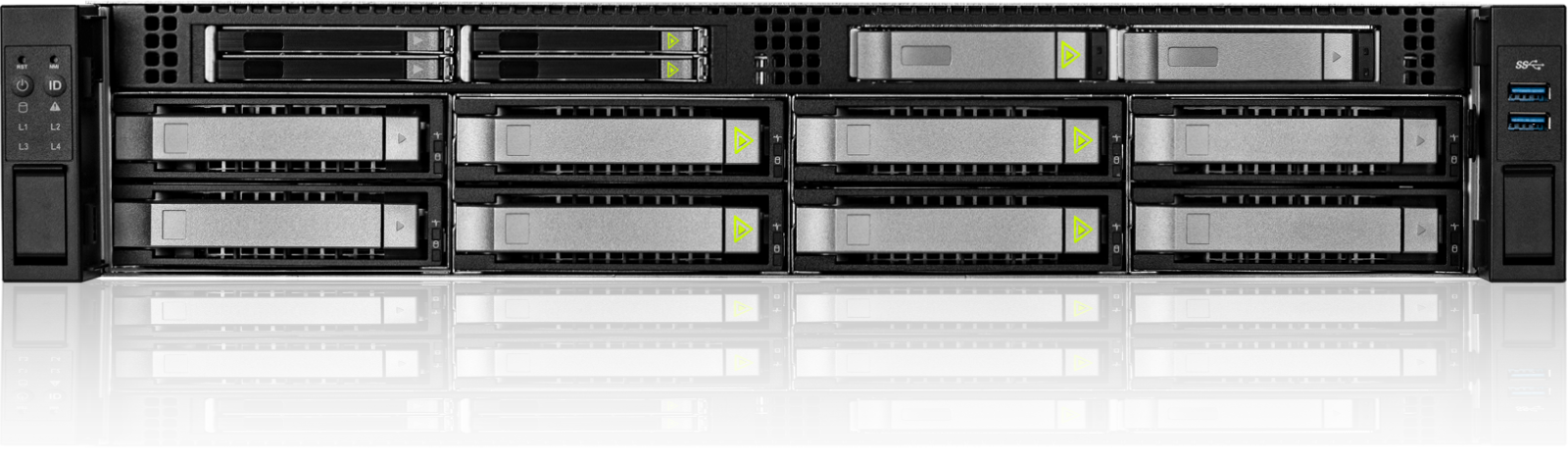

14 total trays with optional hybrid NVMe/SAS/SATA SSDs
3.5"/2.5" (15mm) x 8, 2.5" (15mm) x 2 and 2.5" (7mm) x 4

*Rear bay supports 2 x 3.5"/2.5"(15mm) HDDs with SAS/SATA data transfer rates.

Interconnect System

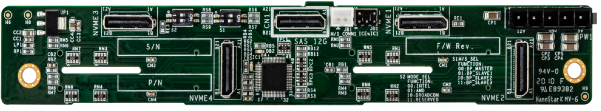

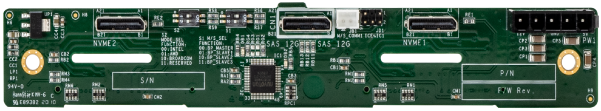

Mini-SAS HD & OCuLink Backplane

Featuring high-speed and exclusive connectivity, InWin’s backplanes are designed to support SAS/SATA and NVMe for OCuLink host interface.

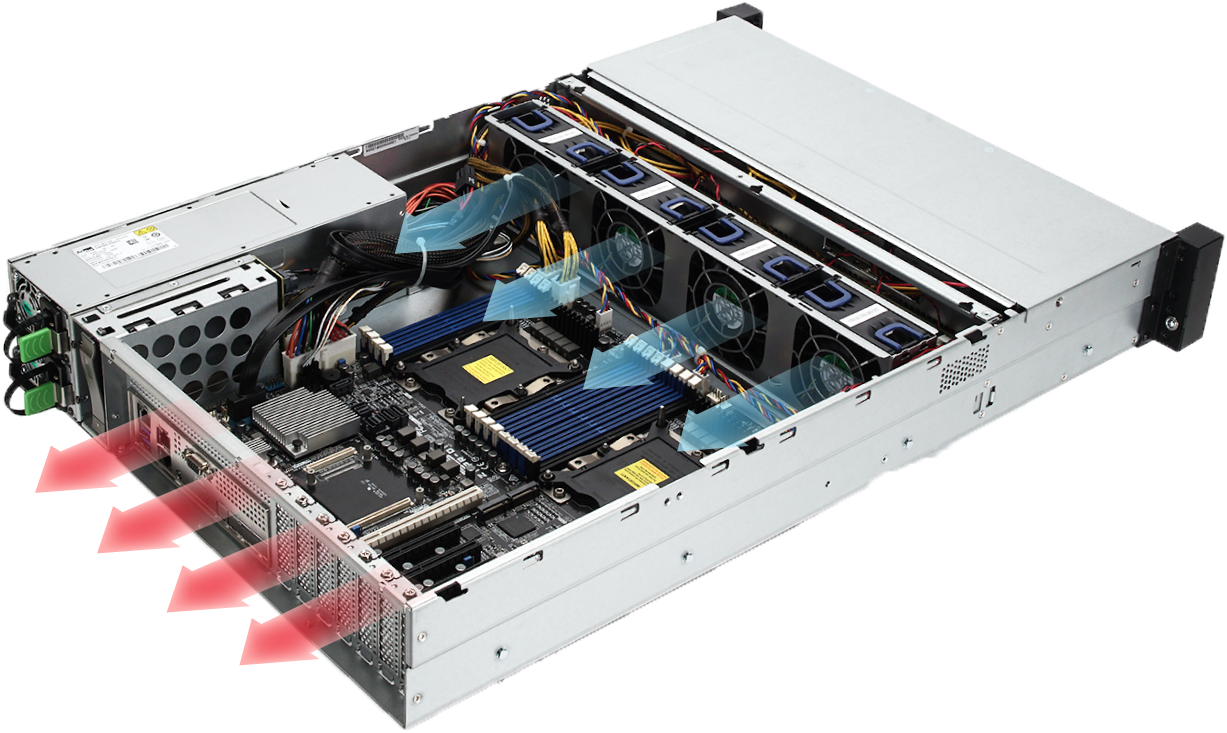

Thermal Design

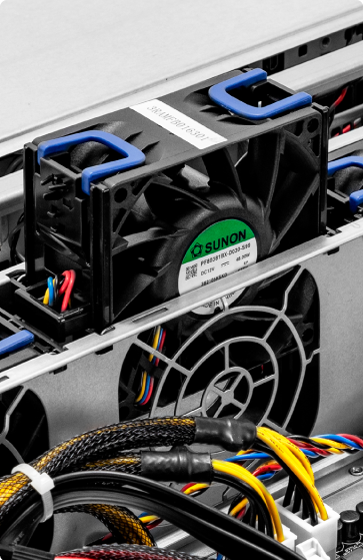

The IW-RS216-07 performs exceptionally well on eliminating heat by utilizing four of InWin's 80 x 38mm PWM hot-swap fans, featuring anti-vibration and low noise. It certainly meets thermal environment requirements from Intel® Xeon Scalable processors & AMD EPYC family.

Excellent heat dissipation

Low noise

Anti-vibration

Meets thermal environments requirements

Power Stabilization

Common Redundant Power Supply
80 PLUS^® Platinum Certified
Optional 550W/800W/1200W/1600W

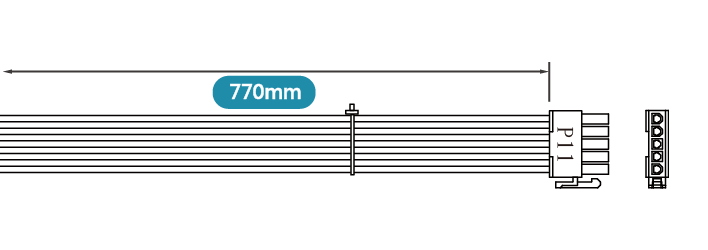

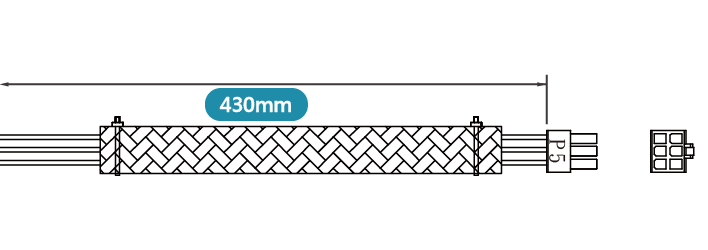

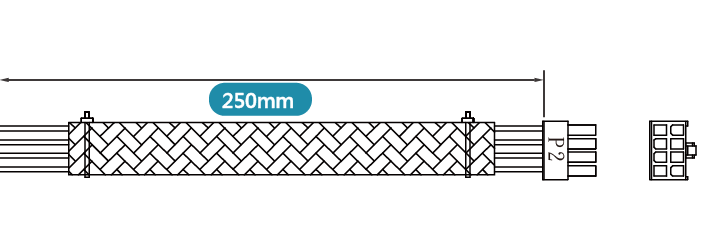

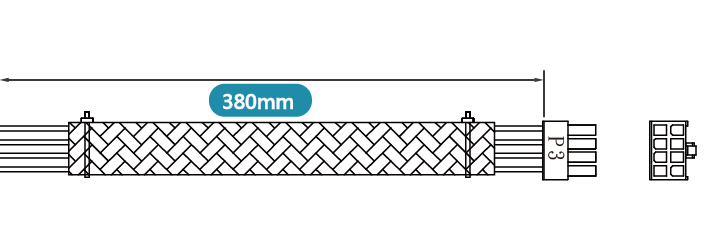

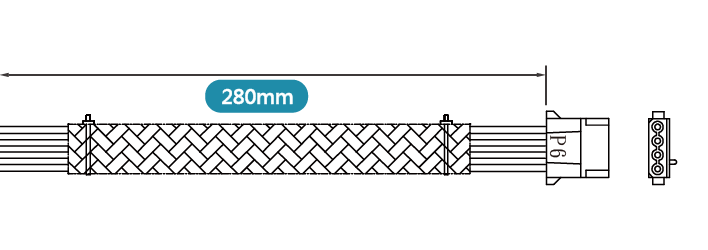

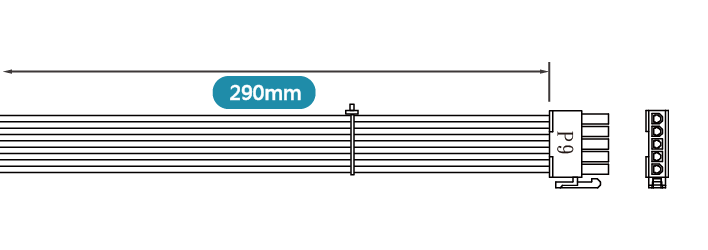

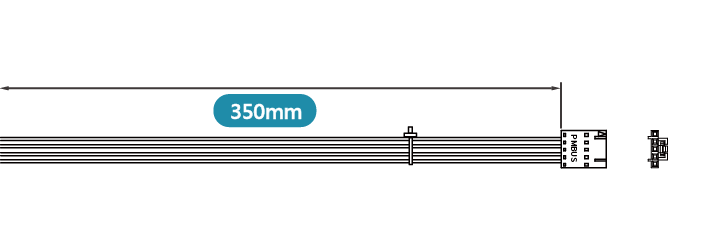

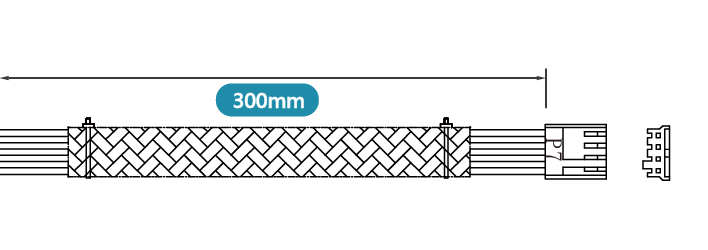

CRPS Cable Information

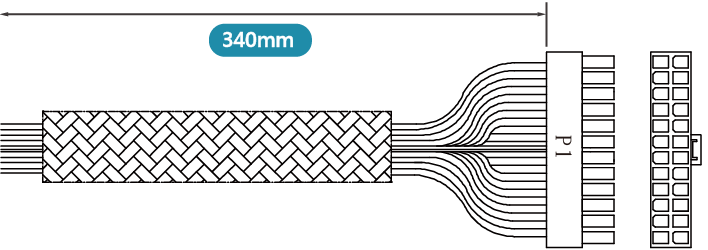

24 Pin Main Motherboard

8 Pin CPU

8 Pin BP

6 Pin BP

4 Pin 2.5" 15mm HDD BP

4 Pin Rear
2.5" HDD BP

5 Pin 3.5" BP

5 Pin 2.5"
7mm HDD BP

PMBus

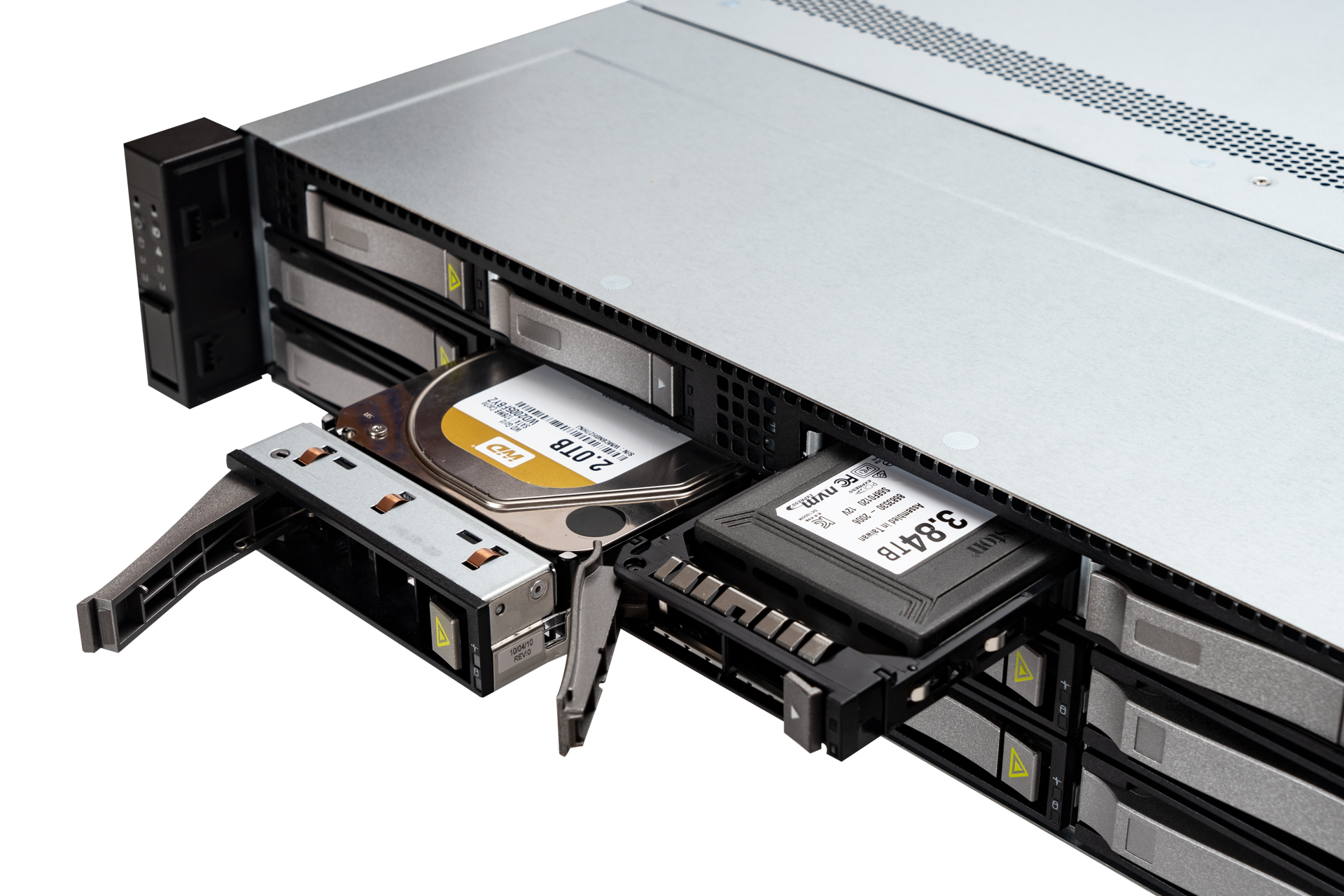

Easy Maintenance

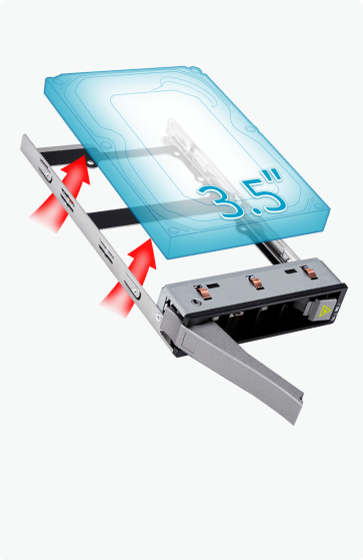

The tool-less and modularized designs are intended to help customers maintain the server more easily and efficiently. The latest gray tray color variant features an all-new mounting mechanism for the HDDs to quickly mounted and removed drives.
