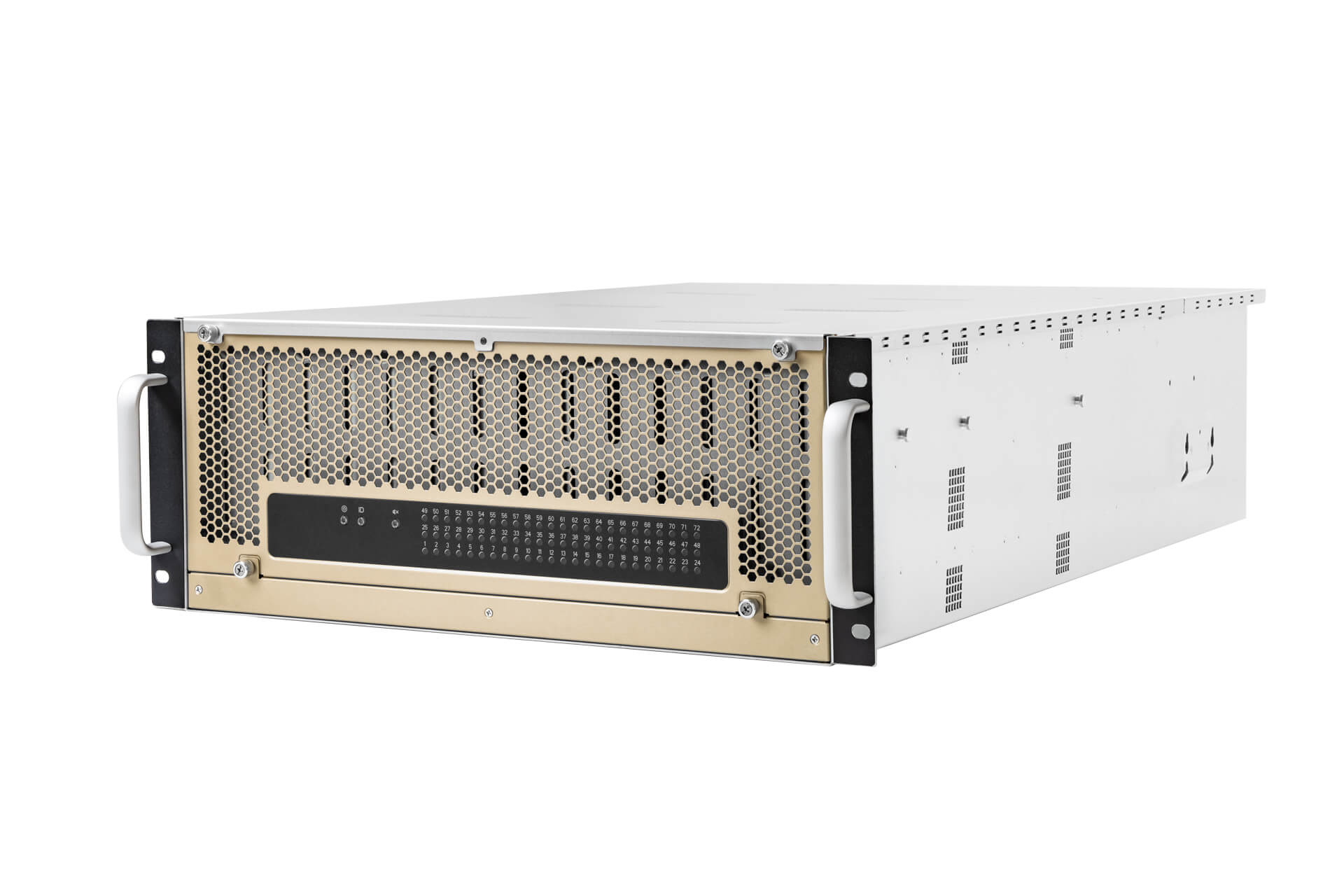

Ultra Density 4U 72-Bay JBOD Enclosure

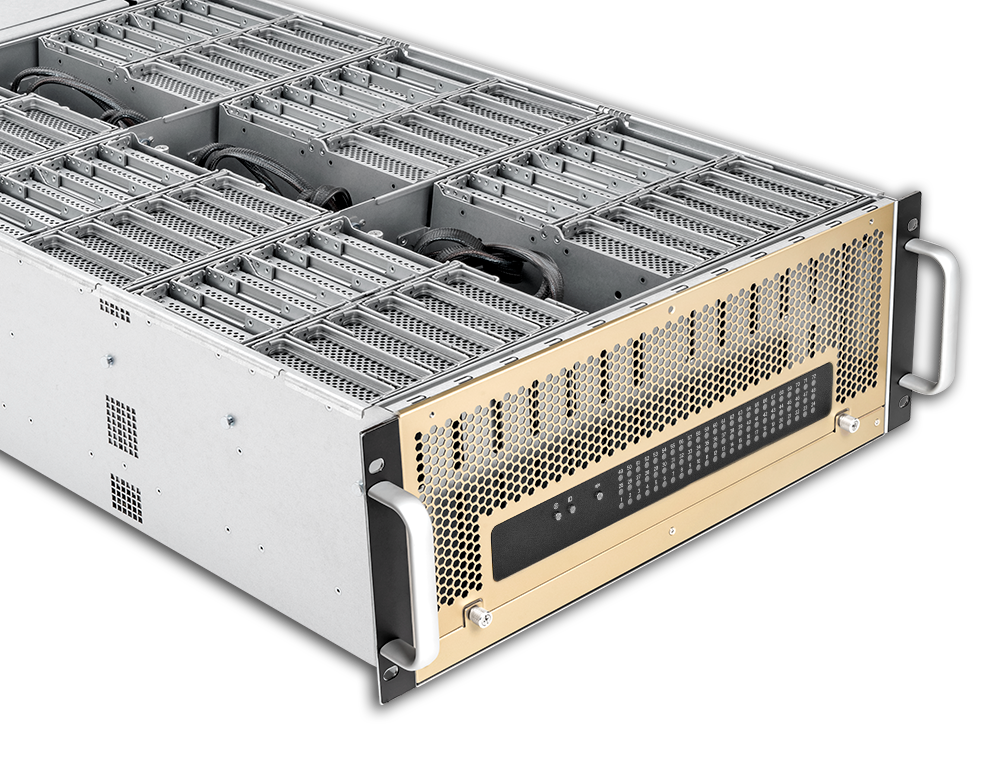

．Top-load 2.5"/3.5" hot-swap HDD trays x 72 support SAS/SATA transfer speed.
．Cross-position trays to limit vibrations caused by HDDs.
．Dual-path storage for high-availability systems.
．Modular design, lower complexity, fast and easy maintenance.
．Generating intensive airflow by using four 80 x 38mm PMW hot-swap fans.
．Web-based GUI provides the easiest way to manage JBOD system.
．CRPS 1200W 80 Plus® Platinum certified.
．Compatible with 1200mm deep cabinets.

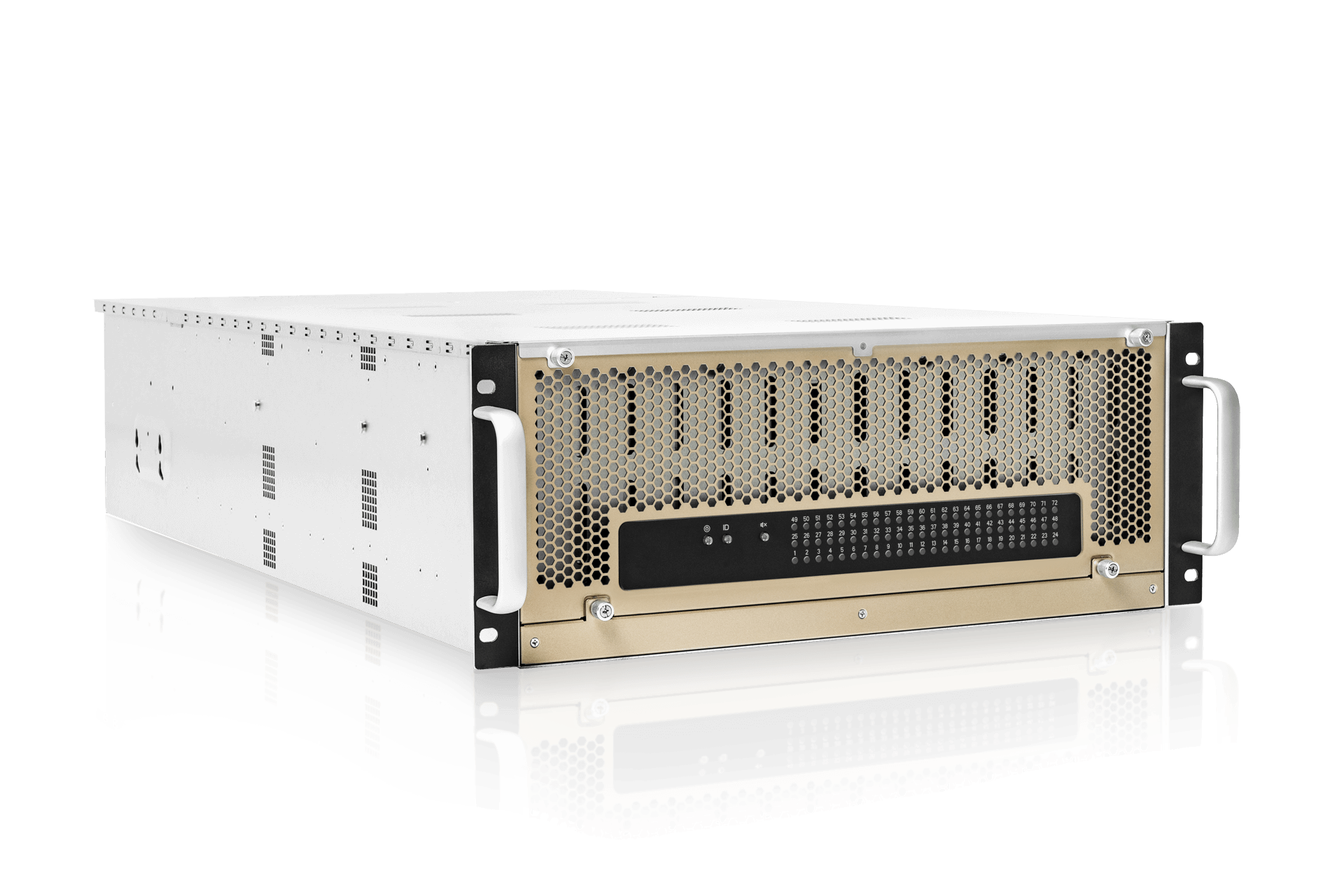

4U Ultra Density JBOB Enclosure
Feel Free To Save Your Data
Beyond our IW-RJ460-08, the IW-RJ472-08 facilitates hyper density trays with 72 bays. Keeping all the benefits of IW-RJ460-08: The exclusive designed backplane possesses SAS 12Gbps dual-channels with modular arrangement. The IW-RJ472-08 can fully meet user’s ultra storage demands.
Supports multiple hard drives-2.5"/3.5" HDDs Maximum capacity of 72 hot-swap bays
Expander Path Redundancy
Dual path storage for high-availability systems
Dual path storage for high-availability systems
Modular Design
Lower complexity; fast and easy to maintain
Lower complexity; fast and easy to maintain
Heat Dissipation
Rear cooling fans offer an energy efficient cooling solution
Rear cooling fans offer an energy efficient cooling solution
CRPS 1200W, 80 PLUS®
Platinum certified
Platinum certified
Web-based graphical user interface (GUI), easiest way to manage JBOD system
Designed for 1200mm
deep cabinet
deep cabinet
Bulk
Mass Capacity
Design

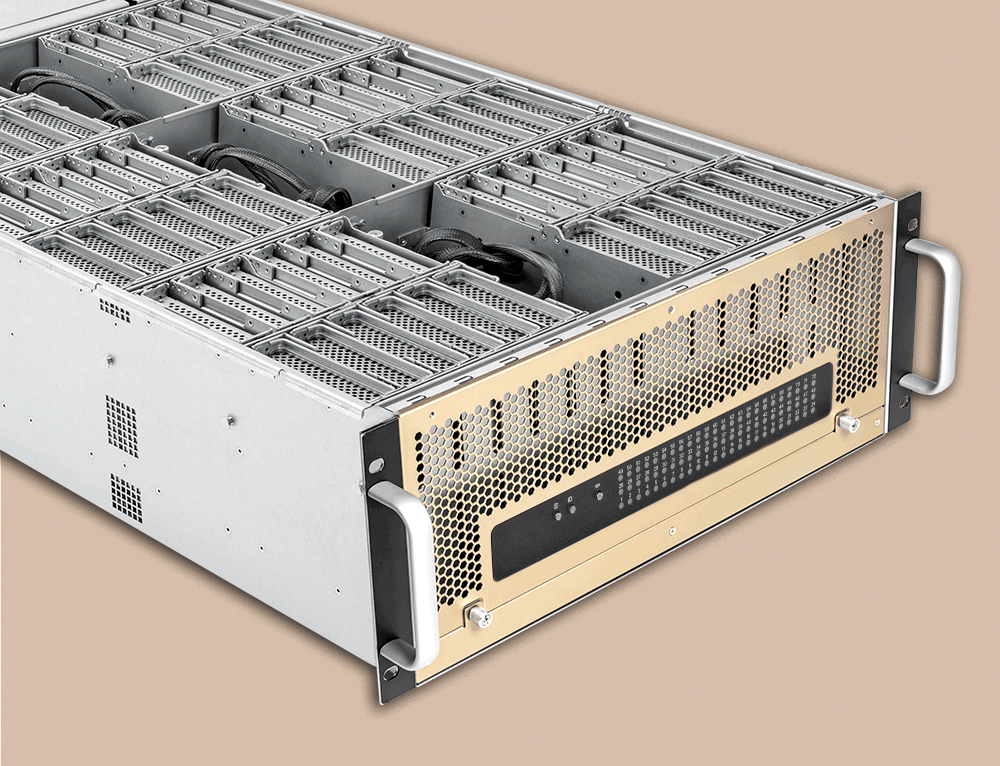

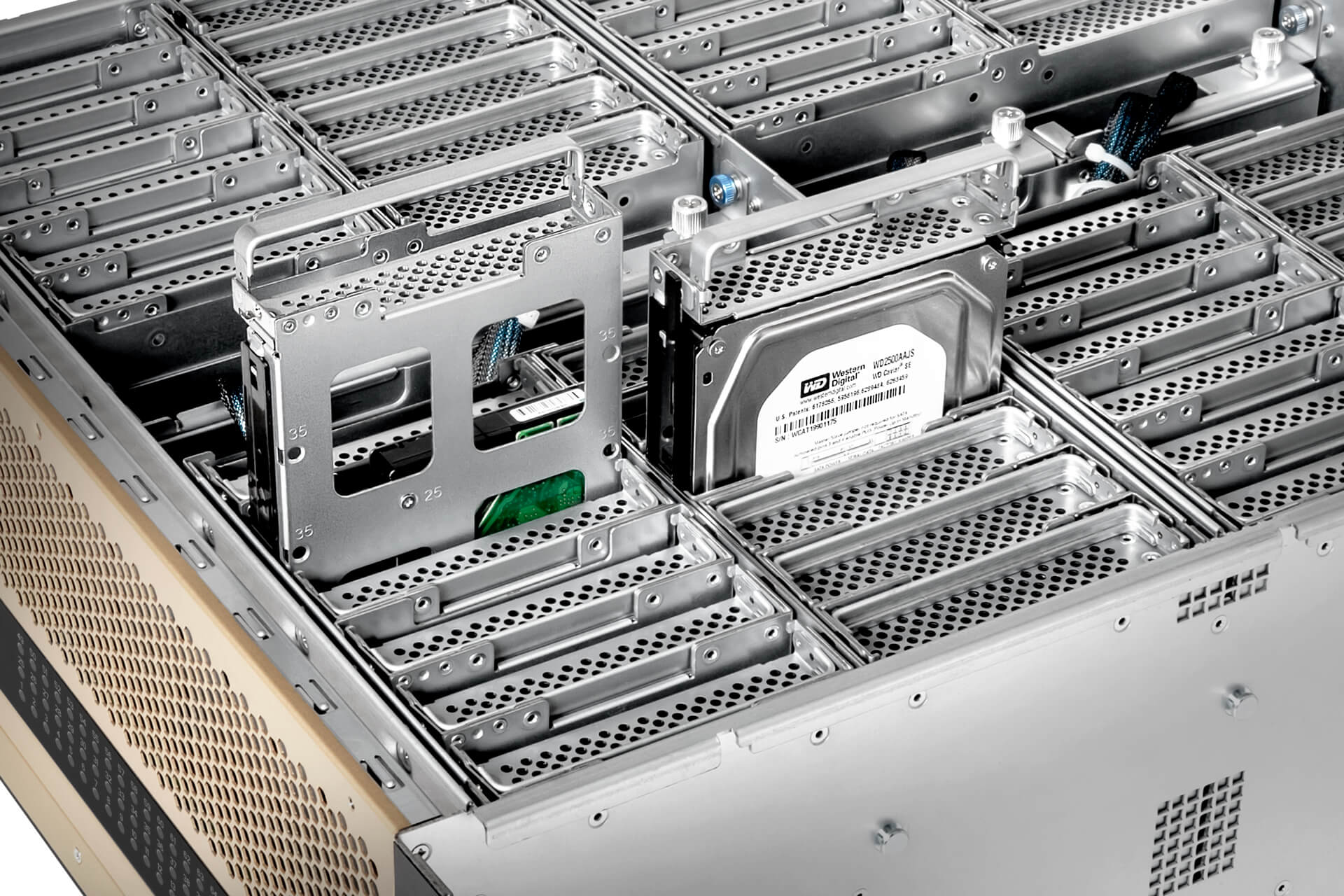

InWin’s all-new 08 serial tray design: Top-load, quick fold, 90° holder that’s flat and simple install 2.5"/3.5" HDDs.

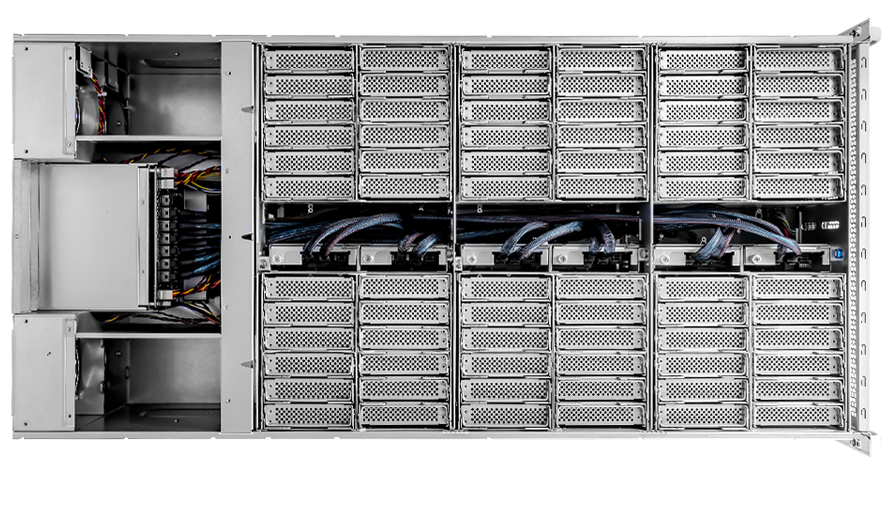

With contracted, high density design, the IW-RJ472-08 can provide more efficient space management and allow maximum capacity up to 72 bays.
With contracted, high density design, the IW-RJ472-08 can provide more efficient space management and allow maximum capacity up to 72 bays.

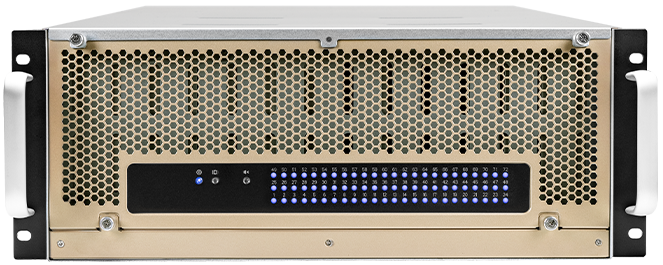

HDD faulty detection panel
Attentively designed with each individual LED representing a hard disk’s status report allowing users to identify and correct errors.
Attentively designed with each individual LED representing a hard disk’s status report allowing users to identify and correct errors.
To limit vibrations caused by the HDDs, the drives and trays are strategically arranged by cross-position.
Fast, Stable, and Reliability
Bridge & Edge expanders create path-redundant topologies by using multi-ported devices, which is perfect for high-availability systems that mainly process massive data and also bring out superior performance. Extreme stability for data transmission by the IW-RJ472-08’s exclusive backplanes and is supported with ample room for cable management.
Backplane
Expander
Cable Management
Integrated dual channel SAS and two-tier SAS/SATA expander topology, shortening the latency.
Suitable for high-availability systems. Should one path fail, another can fall over to a different path.

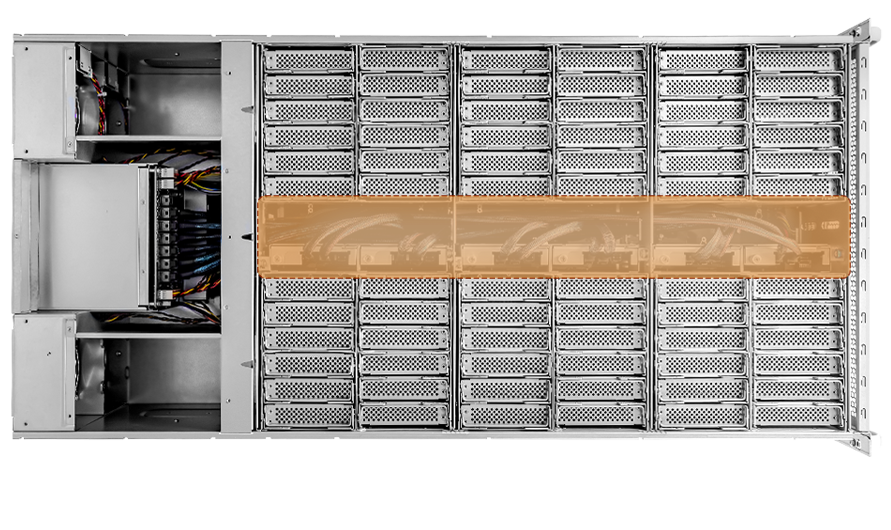

Applying two-tiered SAS/SATA expanders decreases the number of cables and provides more space for cable management.

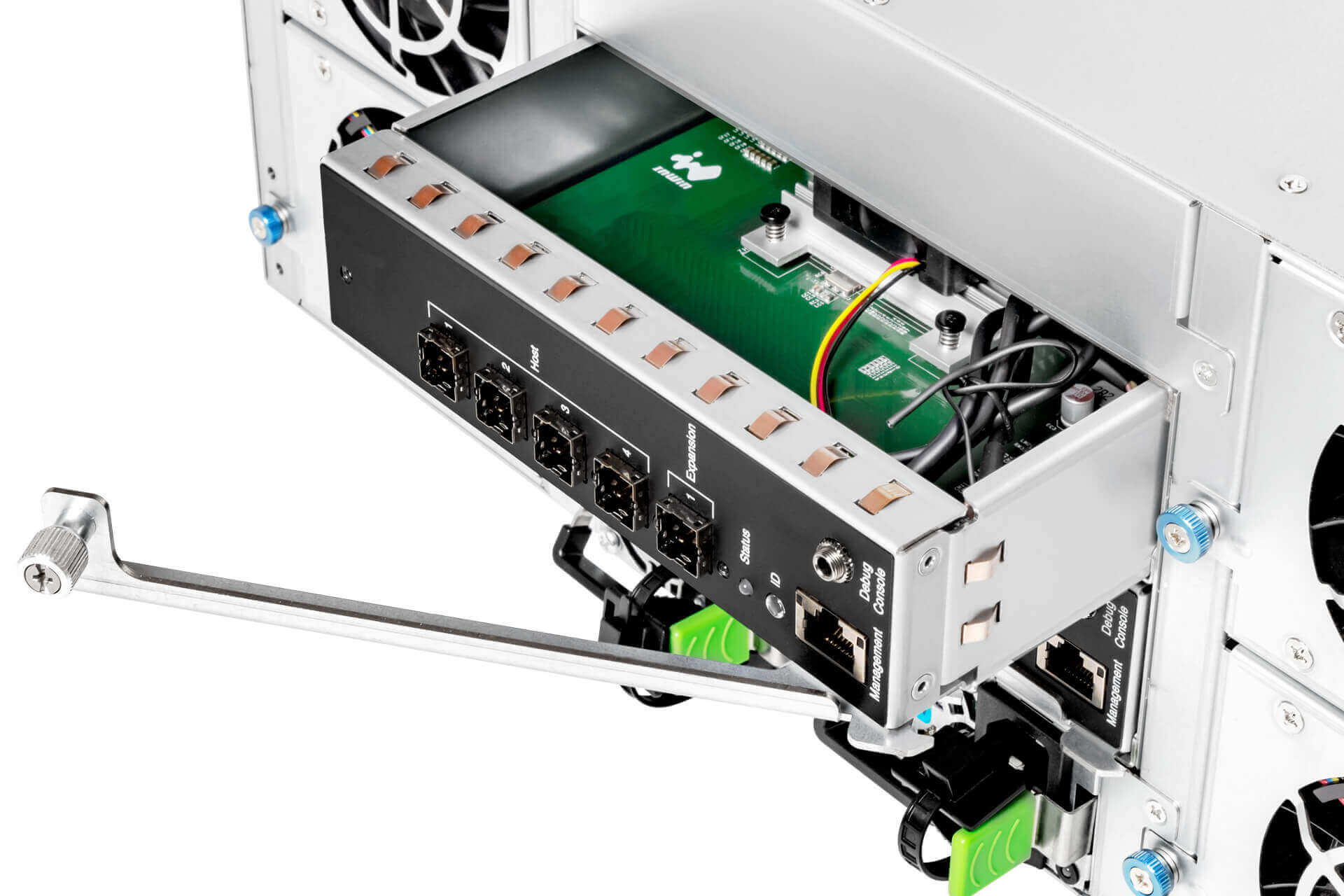

Easily uplink to the servers or downlink to another JBOD through SAS 12Gbps, SATA 6Gbps dual expander controller modules.
1. Primary
2. Secondary
The Bridge expander controls and manages as the main component for IW-RJ472-08 JBOD. By adopting dual modules, both can be connected to the same sever, offering data redundancy capability.
Modularization
Much of the IW-RJ472-08’s parts are fully modular as CRU(Customer Replaceable Unit). Follow the kiss (Keep it simple, straight) principle, the IW-RJ472-08 allows non-tech personnel to do the quick maintenance and conduct replacements easily.

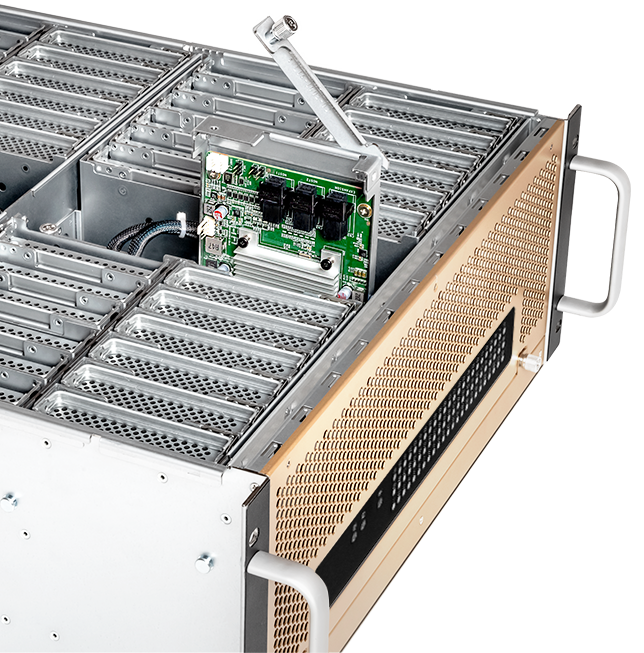

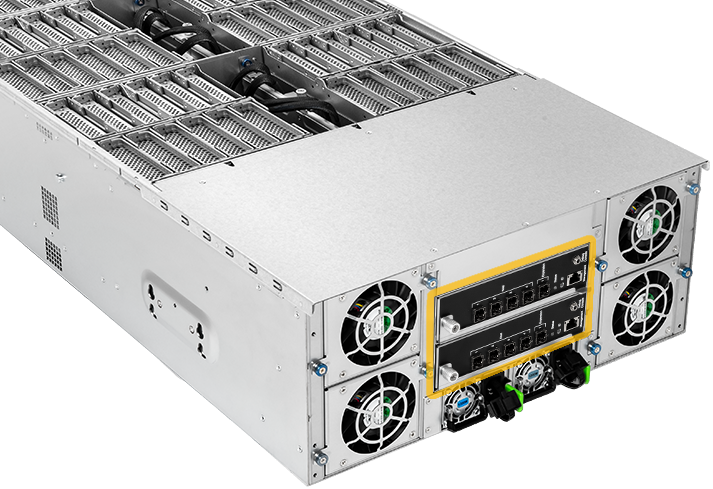

The IW-RJ472-08’s tool-free trays, edge expanders and backplanes are easy to setup.
The IW-RJ472-08’s tool-free trays, edge expanders and backplanes are easy to setup.

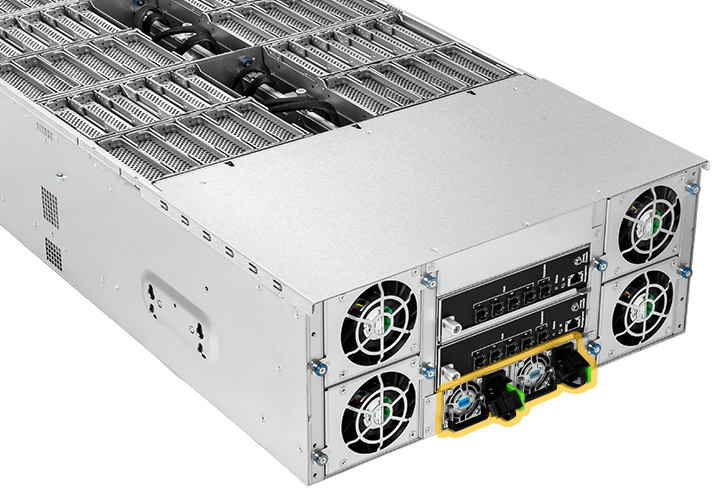

The PSUs, fans, and expanders are all hot-swappable, so the system can keep operating when modules need to be replaced.

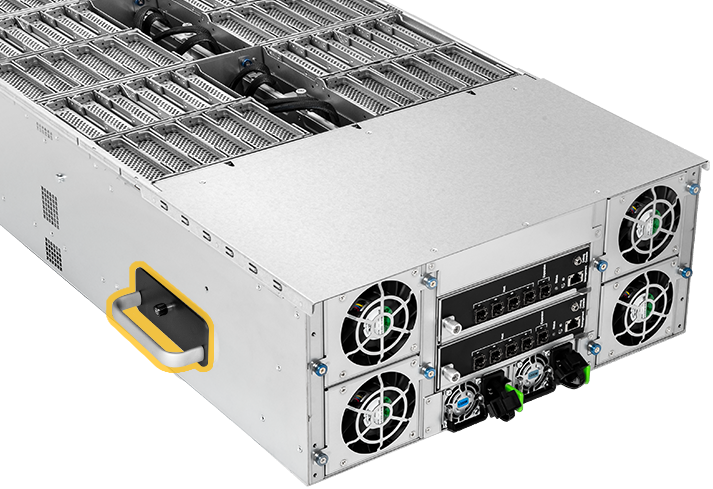

Tool-less support handles allow personnel to transport smoothly.
Heat Dissipation
The IW-RJ472-08 generates intensive airflow by using four 80 x 38mm PWM hot-swap fans. The air tunnel, room for the cable management, and effective airflow contributes to the successful heat dissipation of the enclosure.
Power Stabilization
Hot swappable, high wattage 1200W redundant PSUs provide stable power output.
Intuitiveness
InWin utilizes an in-house developed GUI management board. A simplified display allows personnel to monitor the system, hard disk drives, and network. InWin also provides a customized GUI to users who need to customize their interface, which is an optional feature.
Dimensions
Note: The product not include the cabinet.
Gen5
1
12
SAS4 資料內容
1
2
3
4
5
6
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| Drive Bay | Internal 2.5"/3.5" hot-swap trays x 72 (SAS 12Gbps, SATA 6Gbps) |
| Power Supply | Supports: •Form Factor: 80 PLUS Platinum CRPS •Watt: 1200W |
| Indicators | Status LED, drive status LEDs for bay 1-60 |
| Front Control Panel | Power on/off, chassis ID |
| Cooling Fans | 80 x 38mm PWM hot-swap fans x 4, 12000 RPM |
| SAS 12G Expander | Edge: 3 x LSI 35x36R expander support Bridge:2 x LSI 35x48 expander support |
| Management | Smart Fan, thermal monitor, HDD monitor, voltage monitor, alarm warming |
| Host/Expansion Port | 5 x Mini-SAS HD (SFF-8644) for each 12Gbps expander module |
| Maintenance | Supports management by Ethernet and RS-232 |
| HDD Power Management | HDD sequential power on |
| Temperature | 0ºC to 35ºC |
| Material | • Material: SGCC • Thickness: 1.2mm |
| Rail Kit | 28" tool-less & ball-bearing slide rail included |
| Product Dimensions (DxWxH; Chassis Only) | 985.75 x 447.5 x 177.1mm (38.81" x 17.62" x 6.97") |

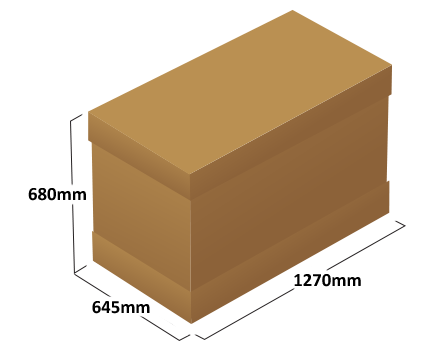

| Package Dimensions (DxWxH) | 1270 x 645 x 680mm |
| Weight (Chassis Only) | • Net weight: kg • Gross weight: kg |
| Cubic Feet | 19.67 |
| Container Information | Single packing with pallets: • 20': 24pcs • 40': 52pcs |
| Item | Part Number | Description | Support | Picture |
|---|
