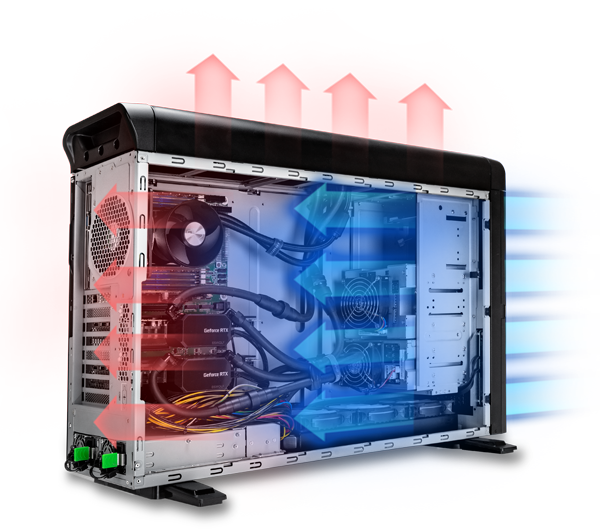

Heat Dissipation
Enhanced cooling compatibility enables users to effortlessly install a substantial amount of radiators, significantly augmenting heat dissipation compared to traditional air cooling methods.
server system assembly

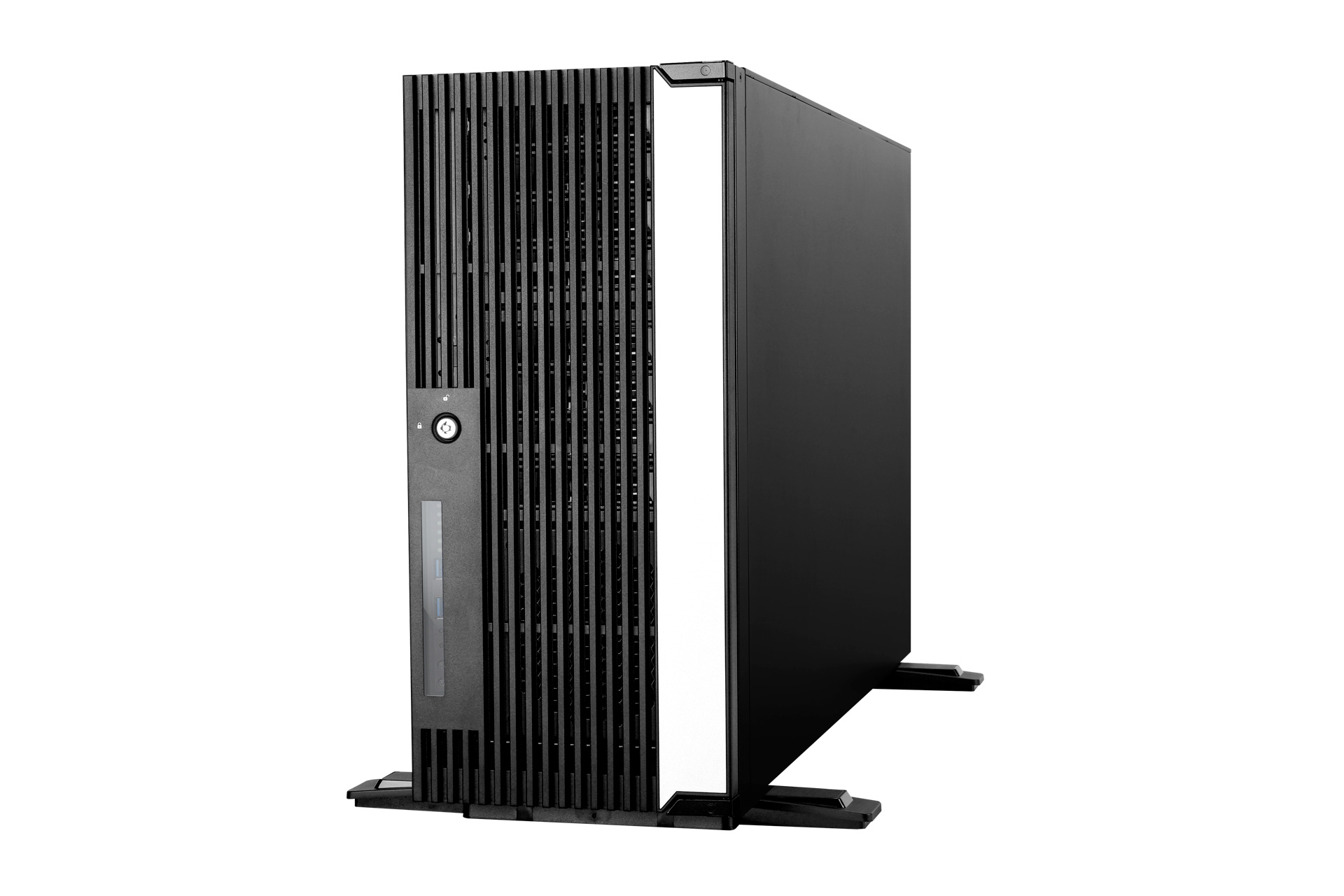

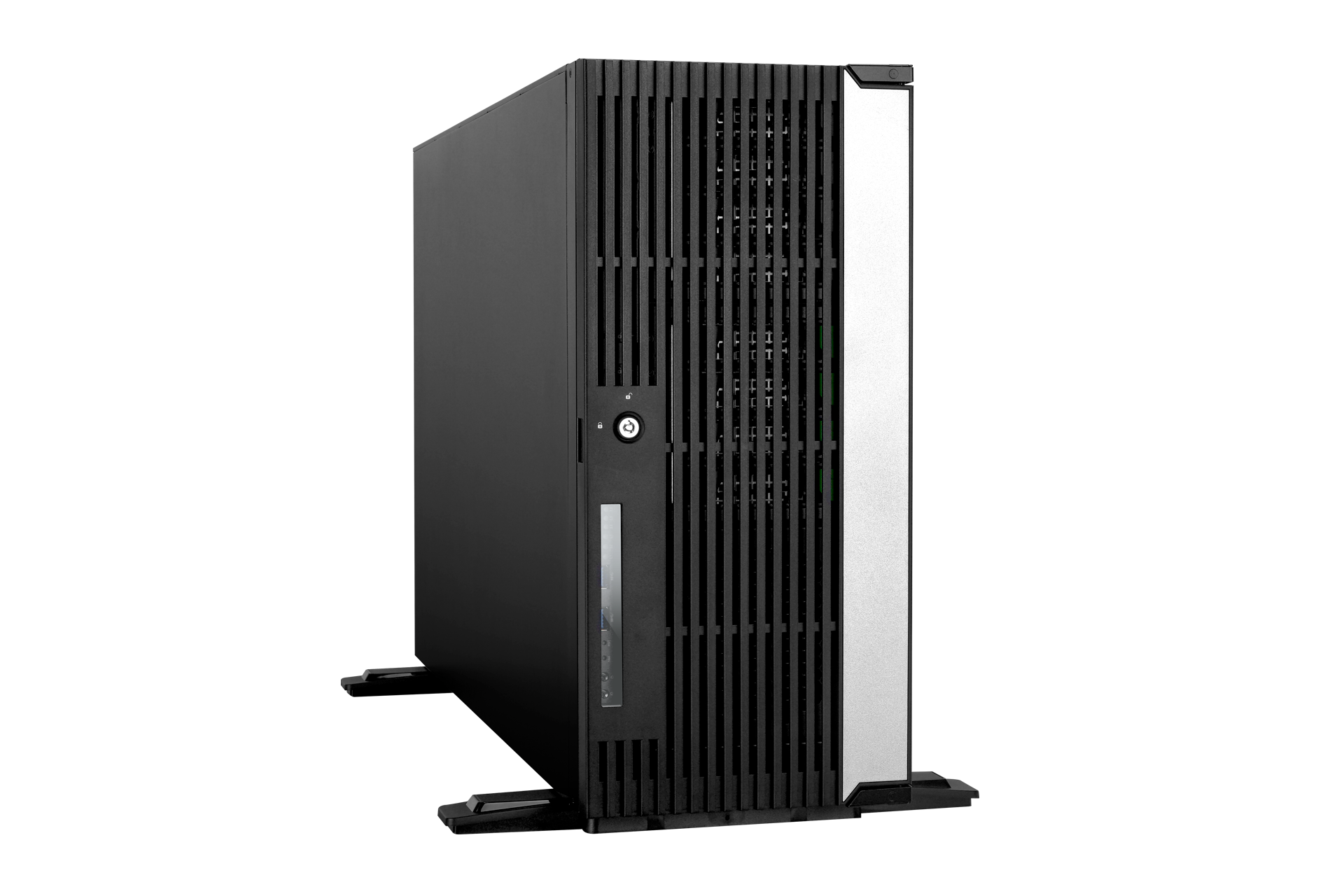

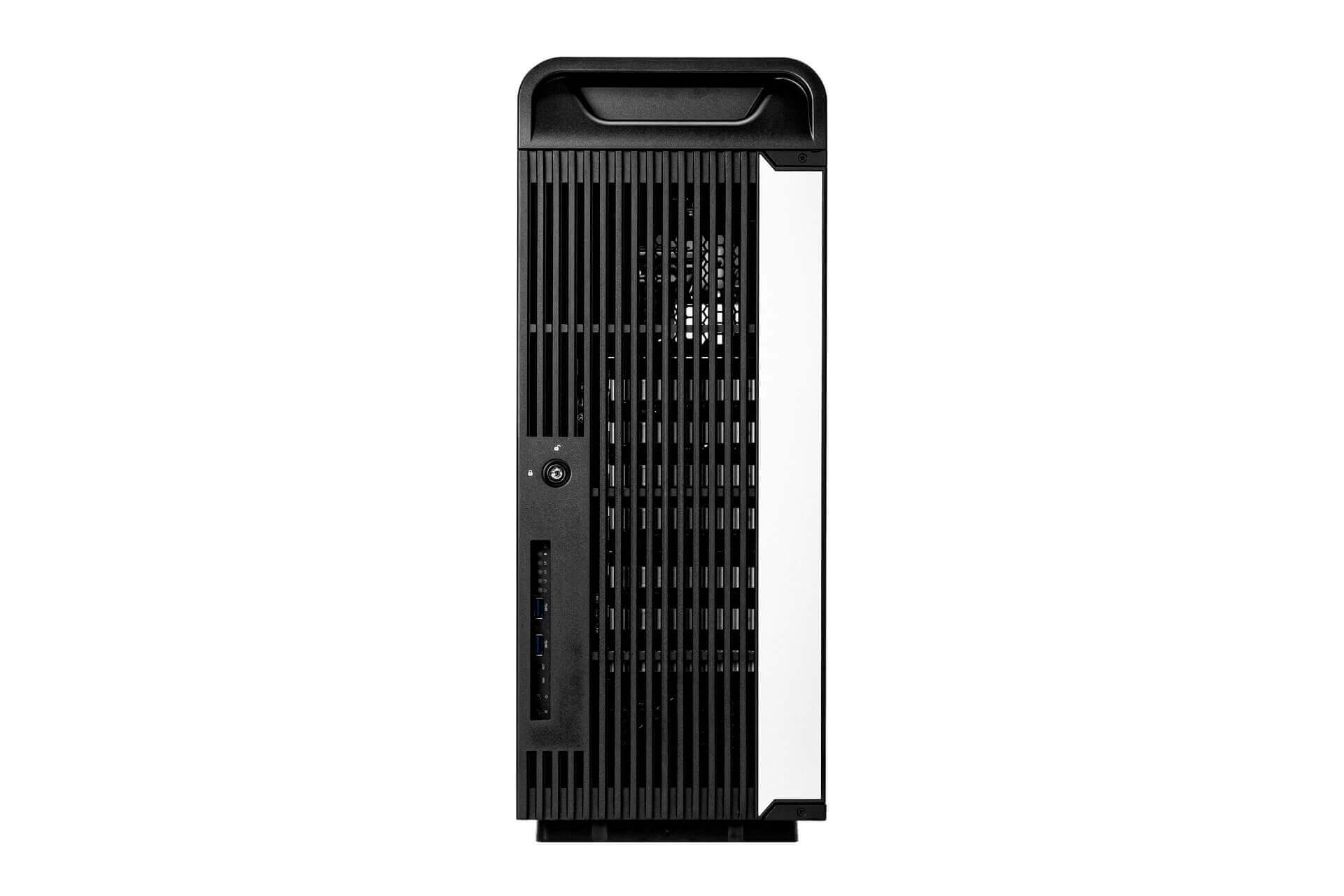

IW-PLM (old)

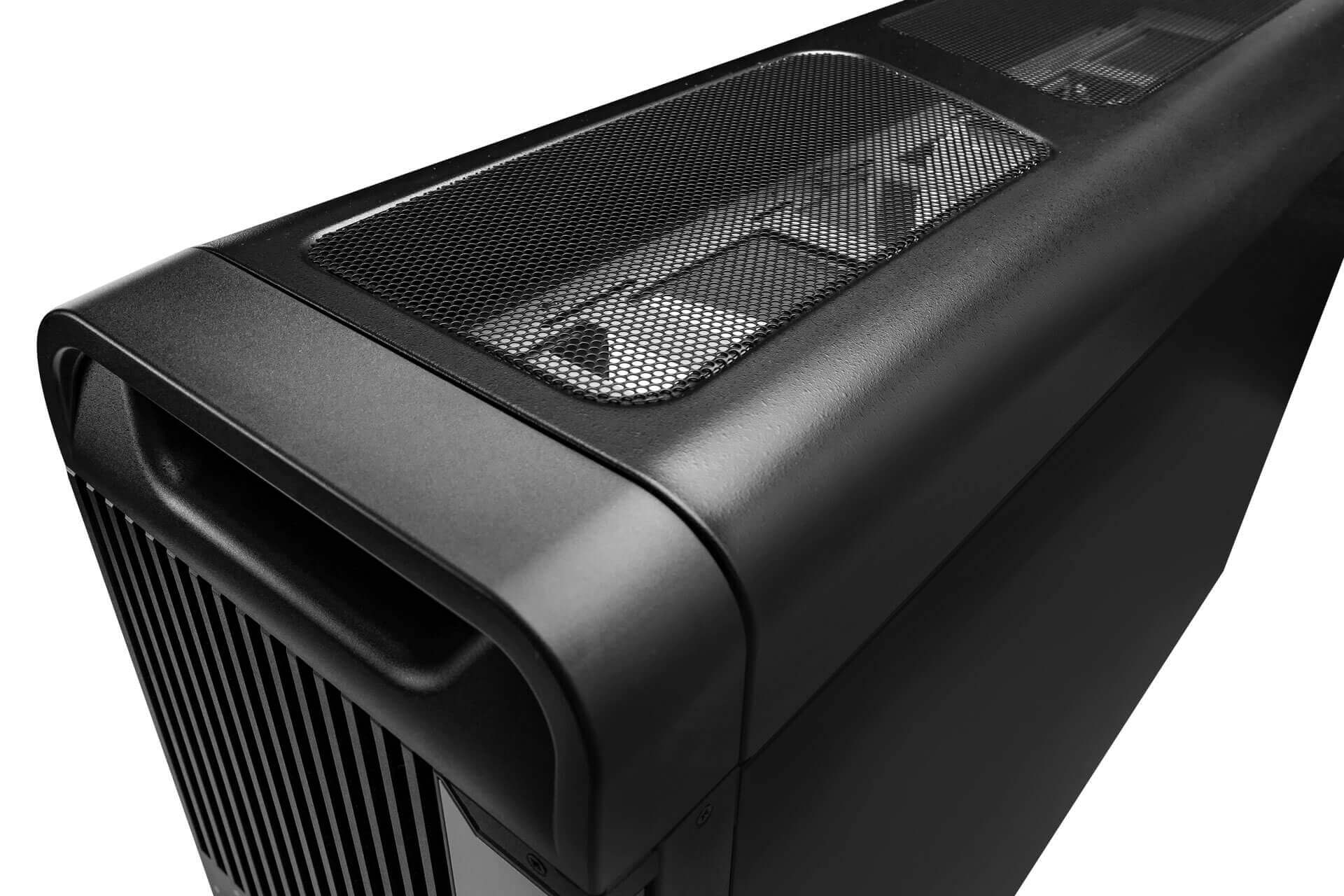

Air/Liquid Cooling Pedestal Server Chassis
．Supports max. 5 x 120mm fans create excellent thermal performance
．Compatible with 240mm (max. 2 sets) or 360mm radiator liquid cooler
．Contains 7 slots fit up to 2 sets of RTX 3000/4000 series GPU cards
．Screw less adjustable card holder for full-length/half-length GPU cards
．Supports max. 9 easy-swap 2.5"/3.5"HDDs
．Lockable side panel and internal drive bays design
．Optional dual power modes 80 Plus Platinum CRPS or 80 Plus Gold PS2

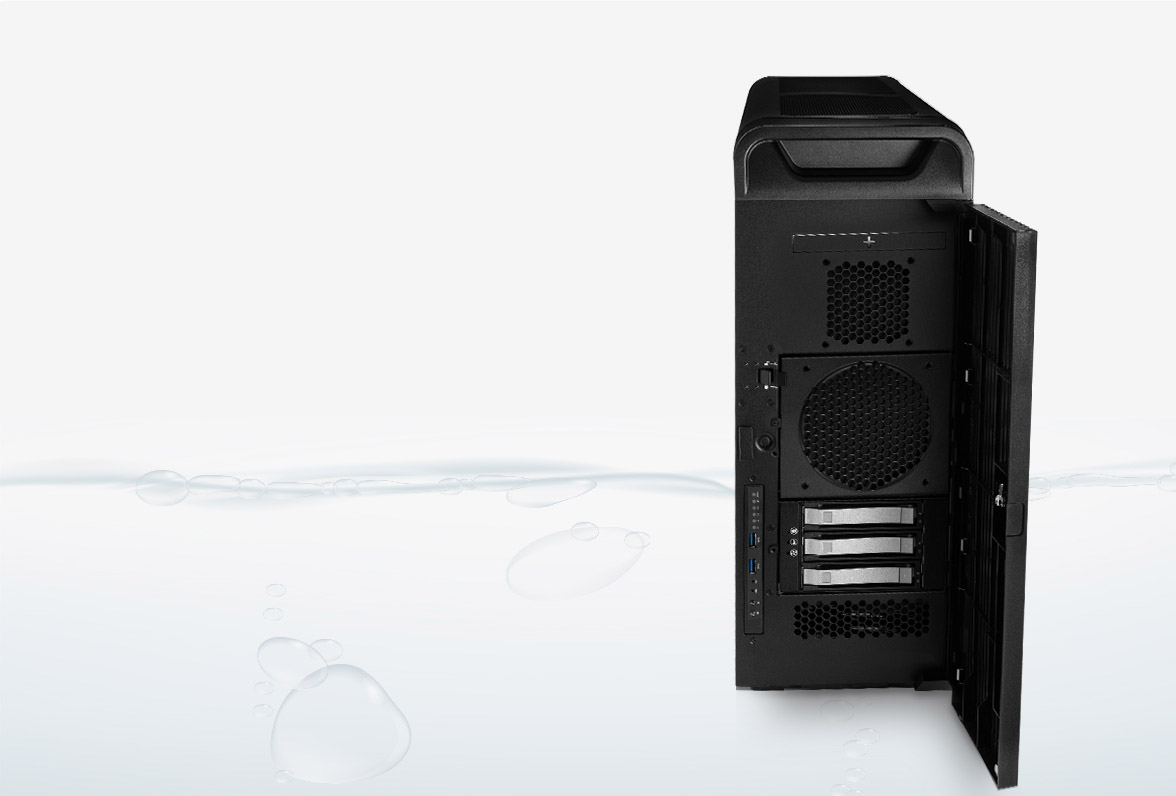

Beat the Heat with Liquid

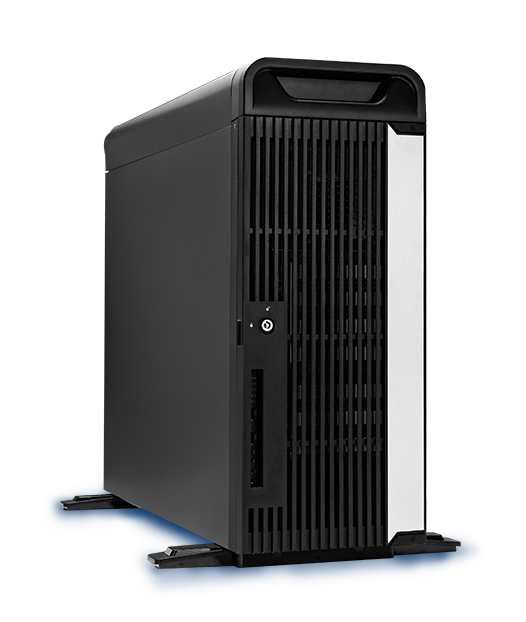

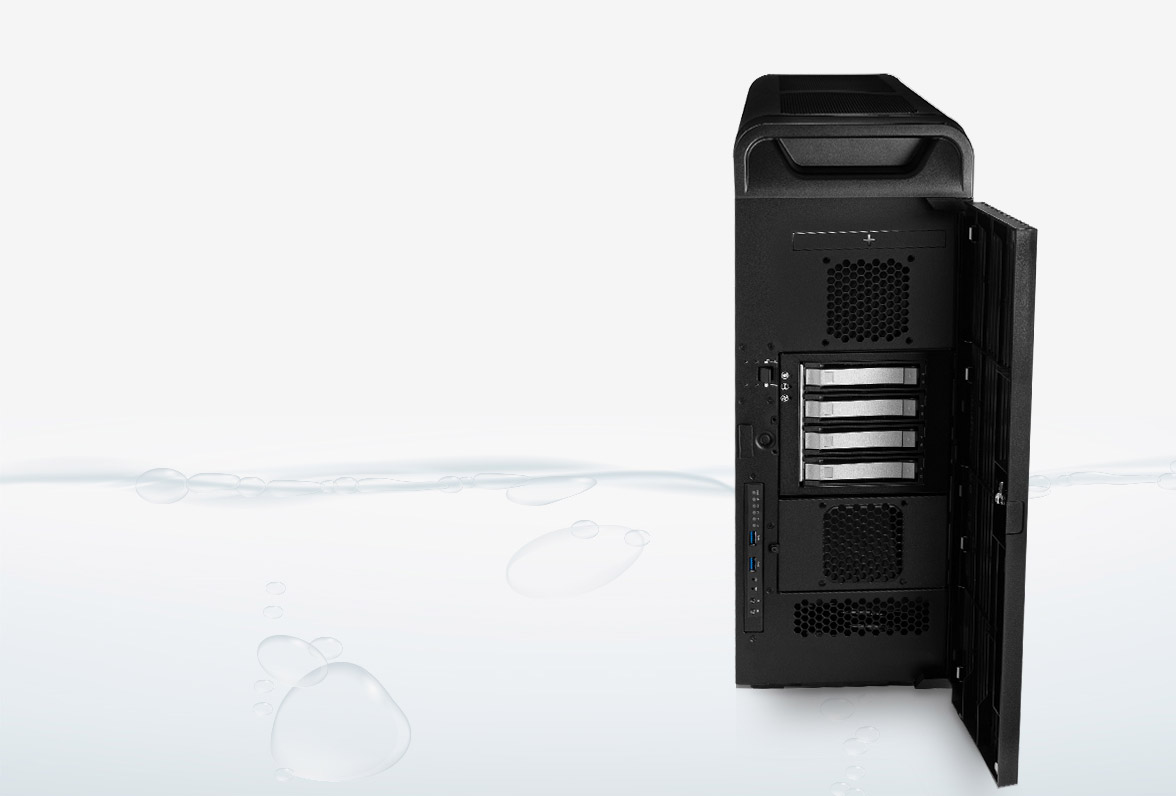

Liquid Cooling Pedestal Server Chassis
The IW-PLM is a professional liquid cooling workstation that supports the latest GPUs, including the 40-series graphics cards. It supports up to 3 radiators, including 240mm or 360mm options, to ensure optimal cooling for both the GPU and CPU, resulting in smooth system performance. With multiple features, you can build a powerful system capable deep learning, AI research, and data science.

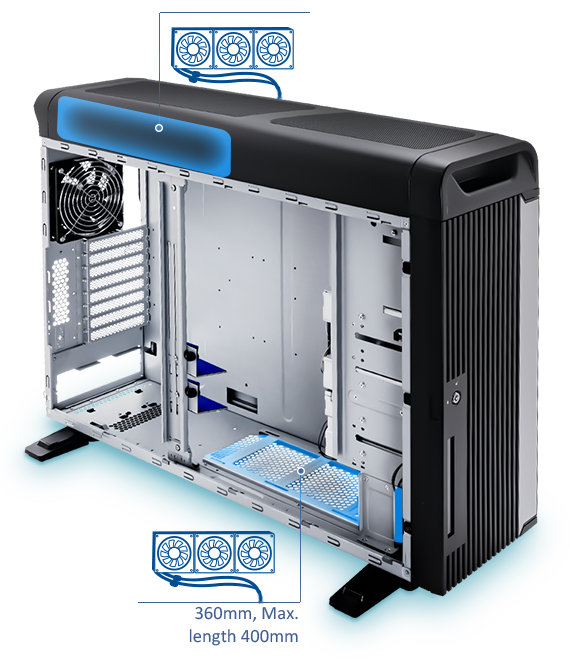

Cool Solutions
The IW-PLM supports a variety of combinations of liquid cooling. GPU or CPU AIOs are compatible with 240mm or 360mm variants. The IW-PLM can be equipped with a maximum of 3 radiators, which can bring less noise and assist in extending the system’s lifespan.

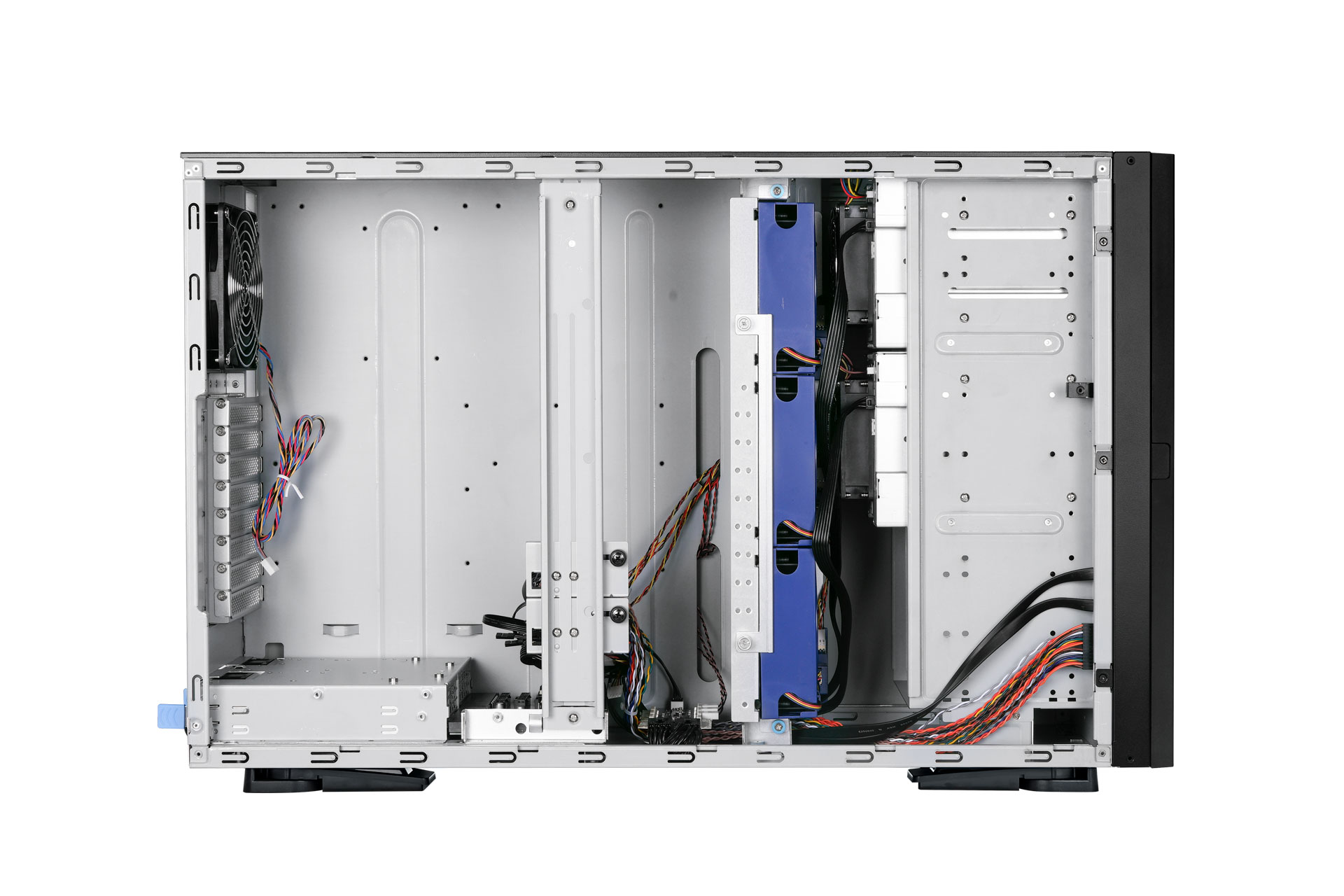

Reliable Compatibility

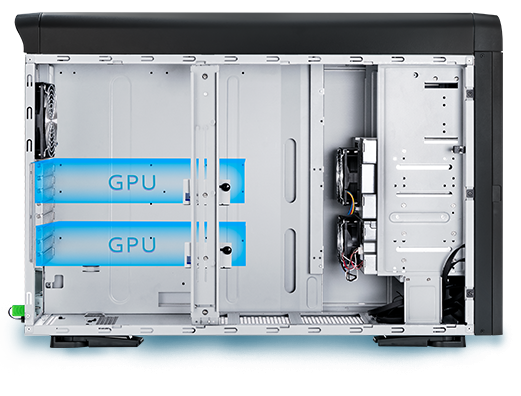

The IW-PLM supports up to an EEB motherboard and most high-end GPUs.

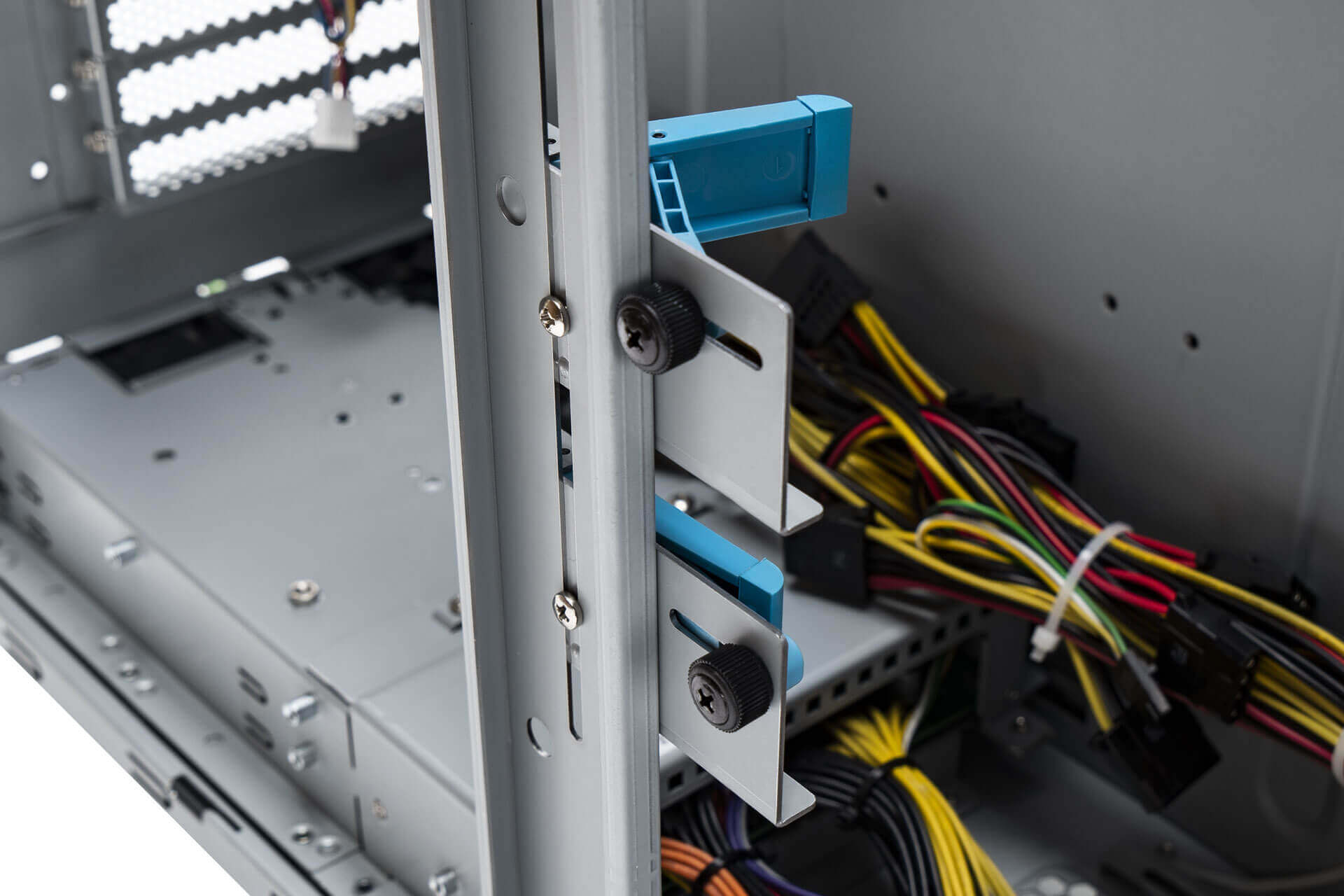

The screwless adjustable holder safely secures the GPU.
The screwless adjustable holder safely secures the GPU.

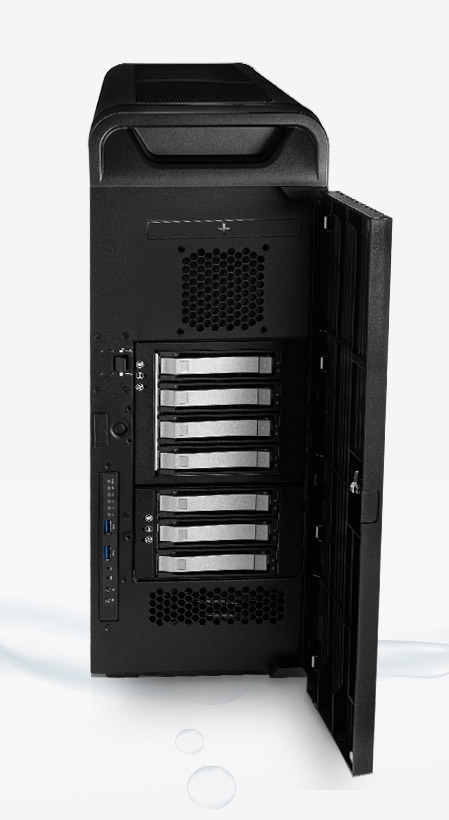

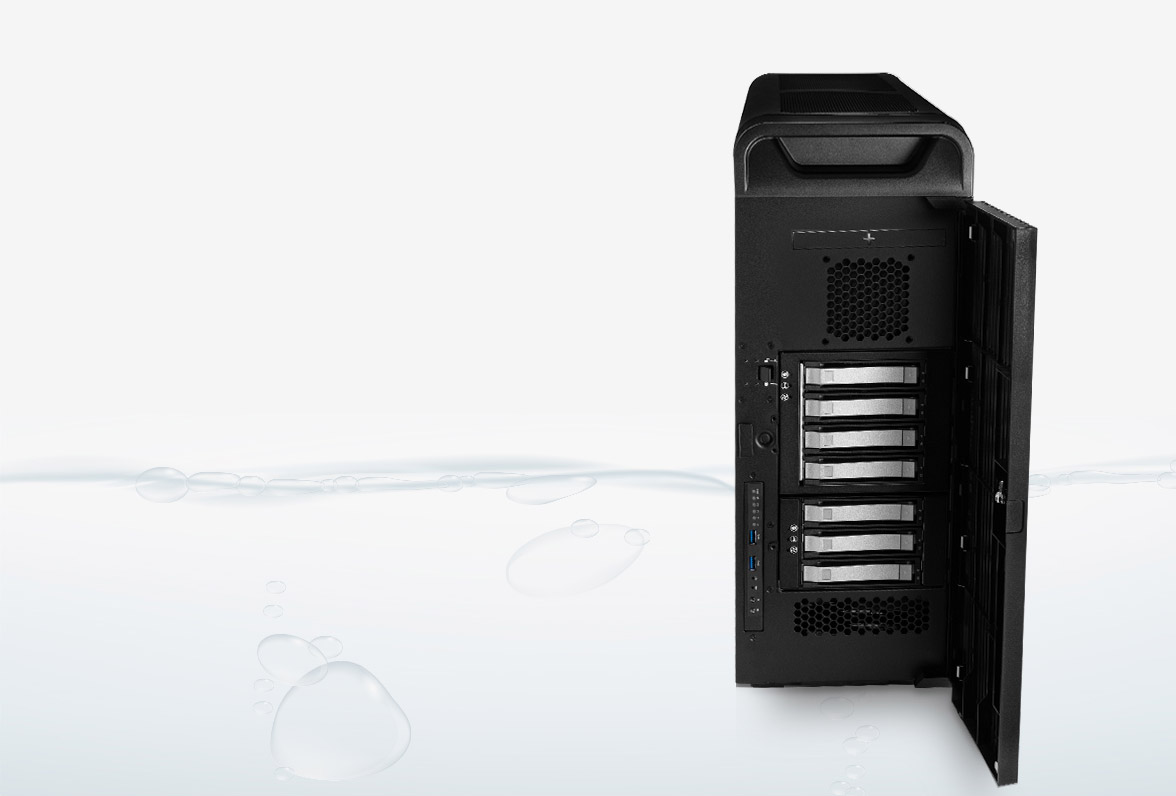

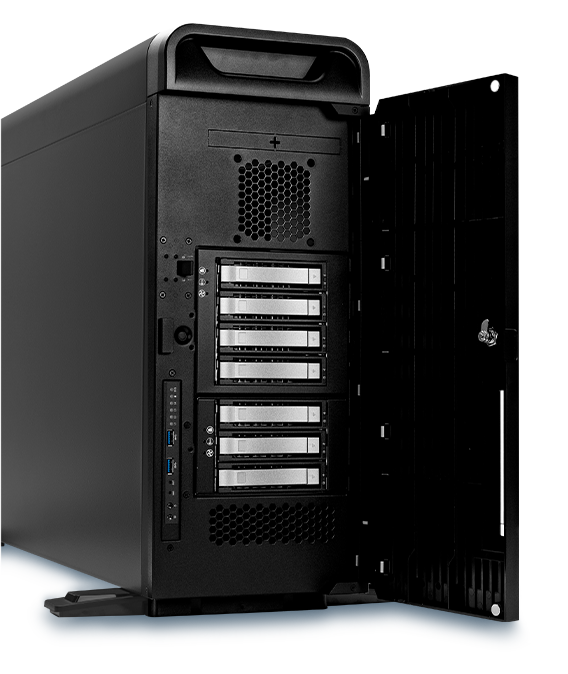

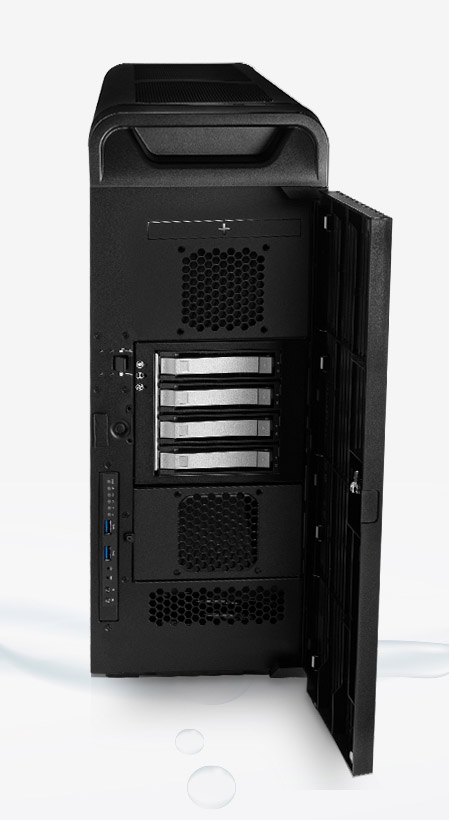

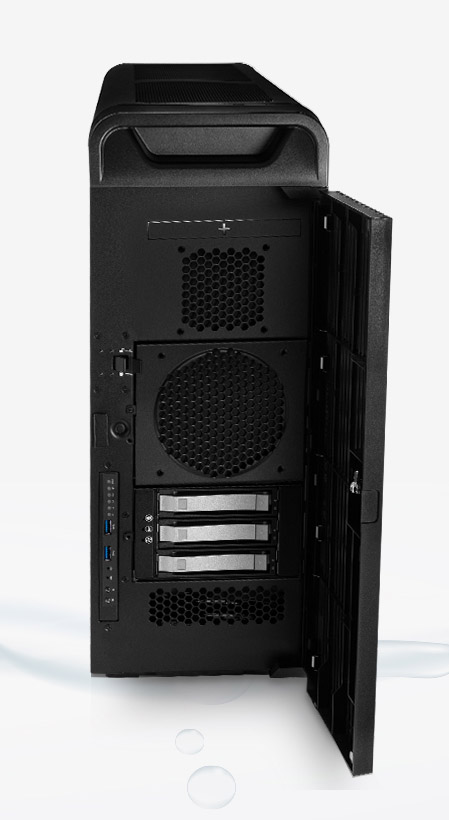

Multiverse Storage

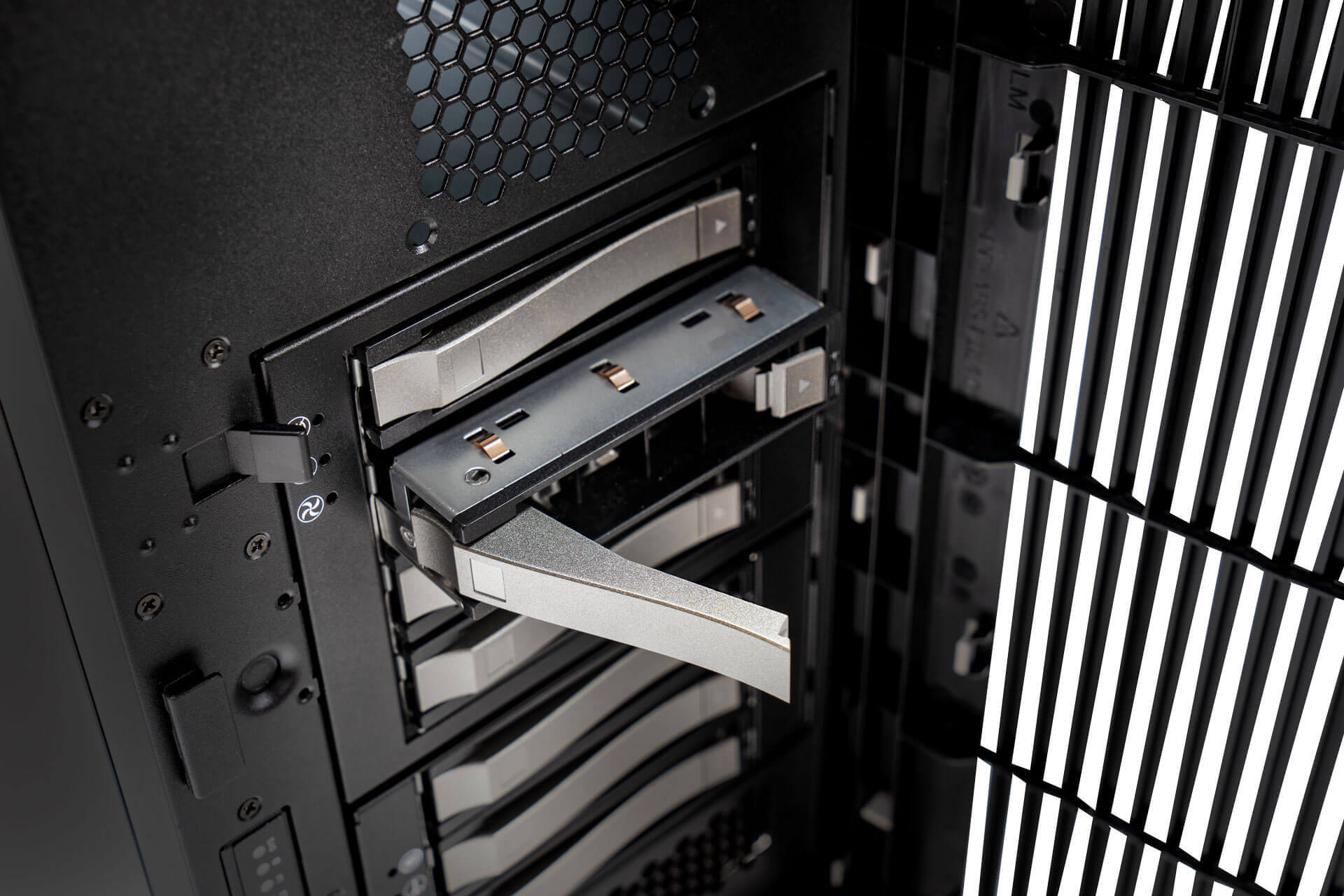

With the IW-SK32-07 and IW-SK34-07 storage kits, the IW-PLM boasts a maximum capacity of 7 trays, meeting most users' diverse storage needs. Users have the flexibility to choose between HDDs, SSDs, or NVMe drives according to their specific requirements. The IW-PLM seamlessly supports all these storage types.

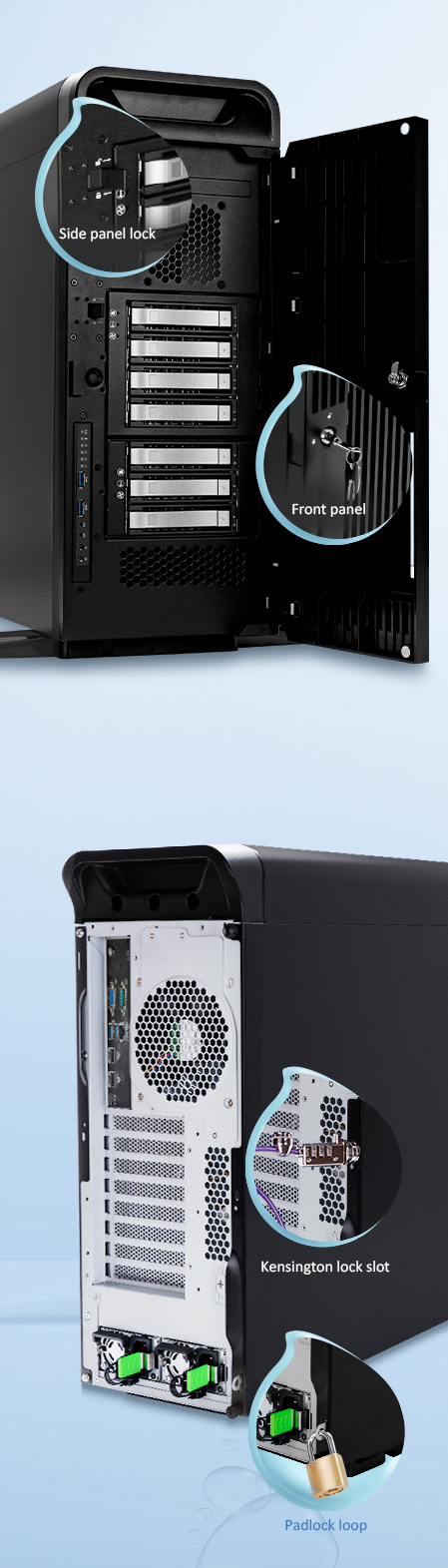

Safety Security Maintenance
The IW-PLM possesses an exclusive safety security design in three locations: The side panel lock, the front lock, and the rear position, while also supporting the padlock loop and Kensington lock slot. Users could also add an intrusion switch to enhance the security of the chassis.

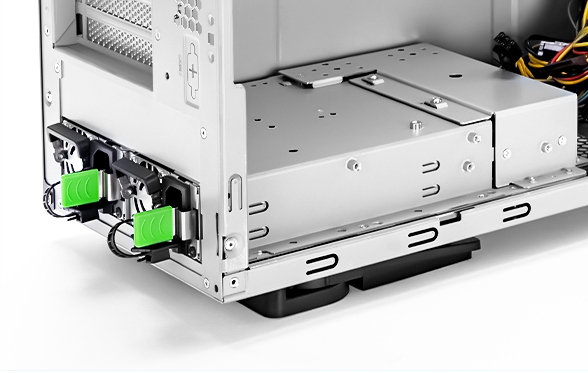

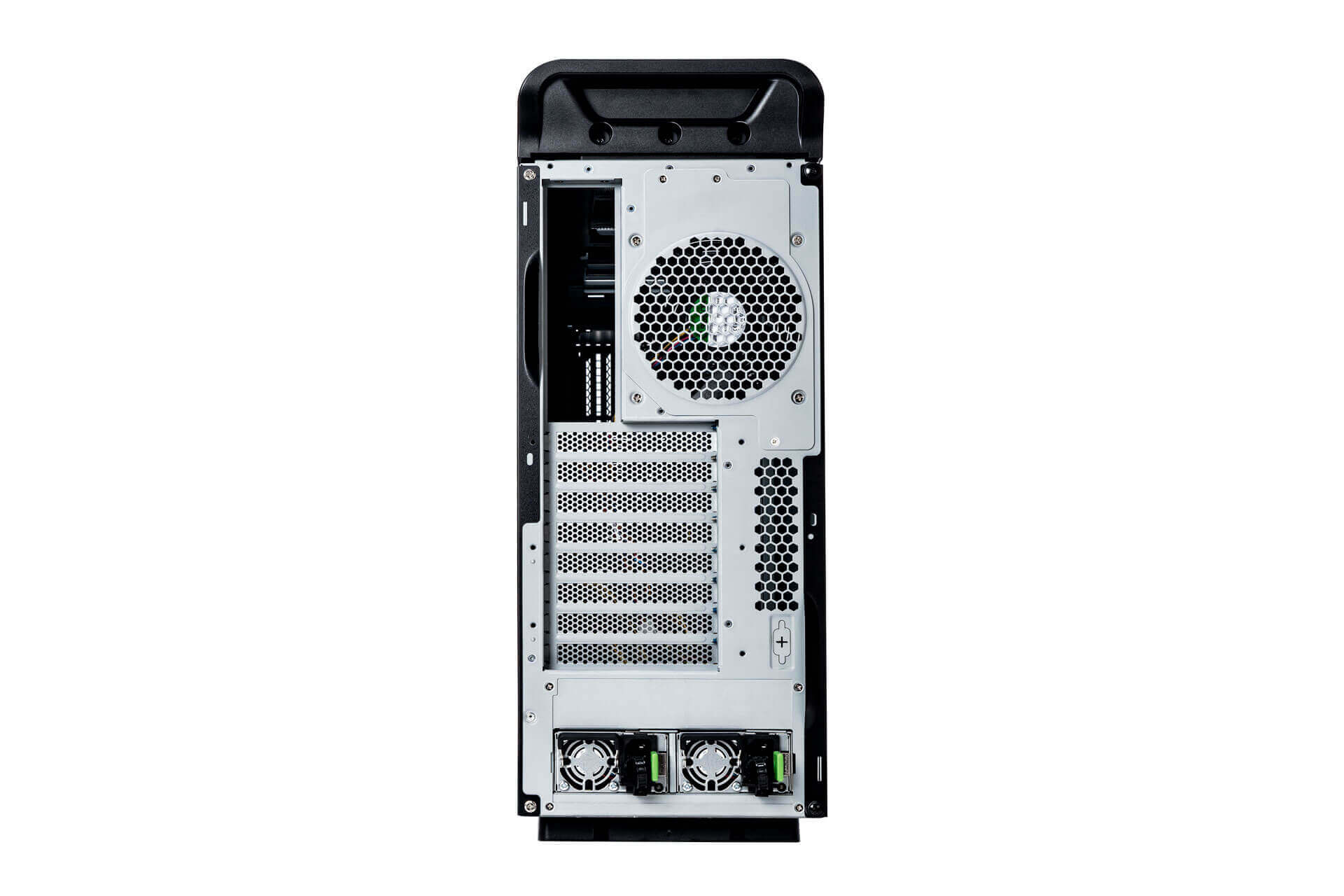

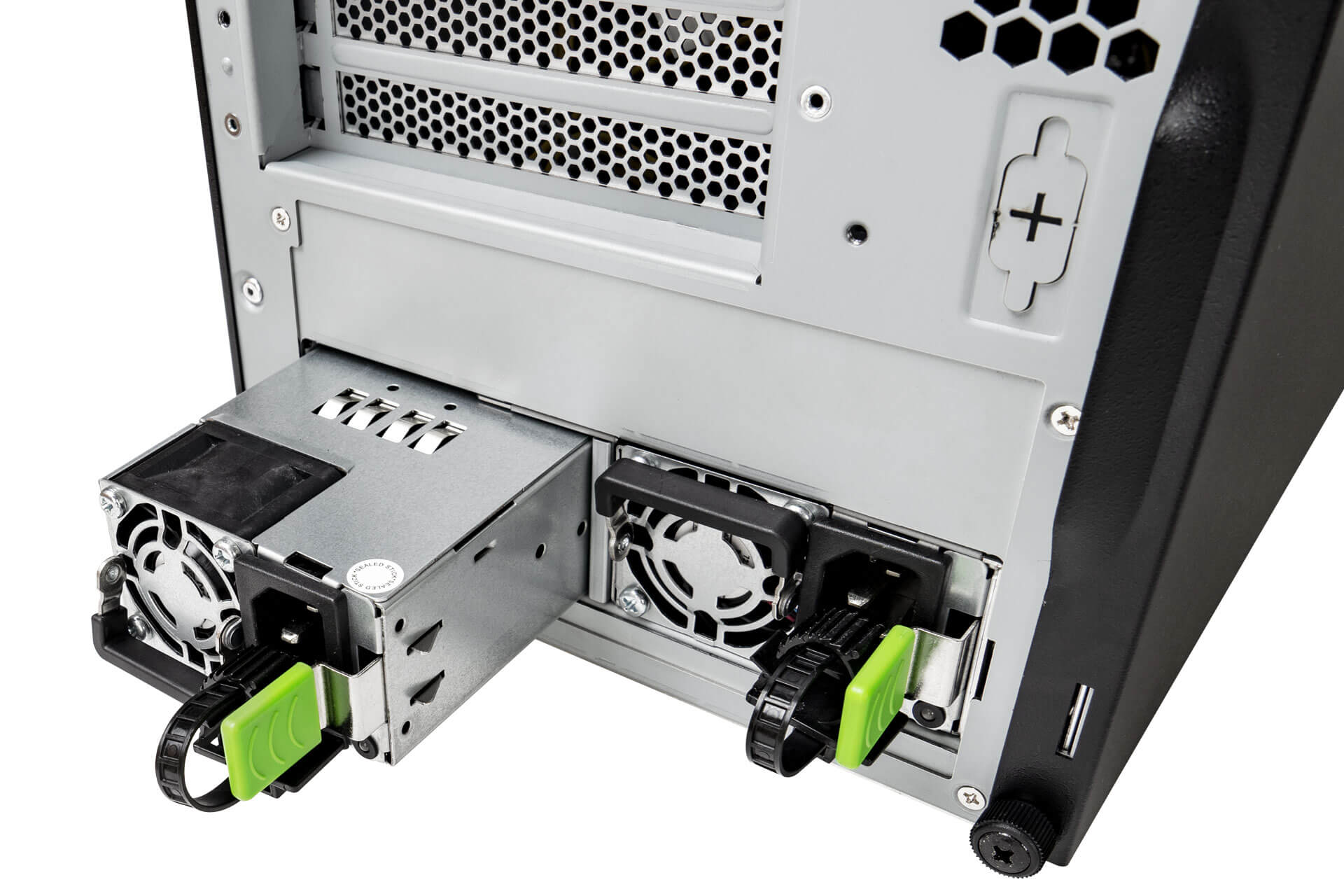

Flexible Power Option
Dual power supply unit options are available for the IW-PLM, including CRPS or PS2 . Users can choose between 1200 to 2000 wattage options, offering flexible power options to cover users’ needs.
Power Cable Information
Single PSU Cable Information
20+4 Pin Motherboard x1
8(4+4) Pin CPU x2

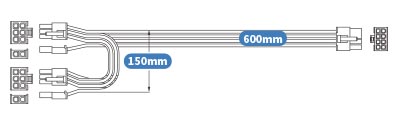

8(6+2) Pin PCI-E x3
PCI-E 5.0 12VHPWR x2
SATA (90 Degree) x3
4 Pin Peripheral & Floppy x1

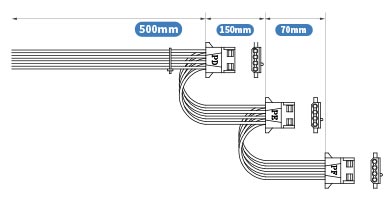

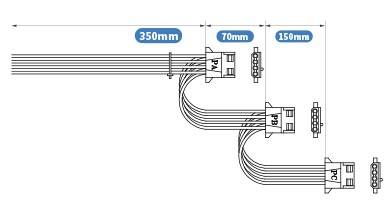

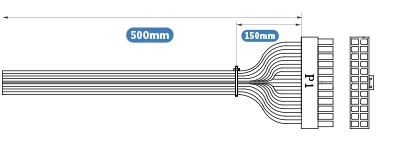

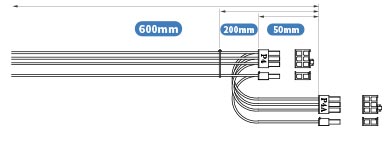

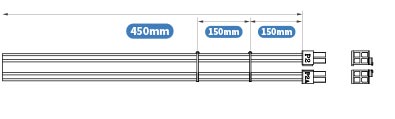

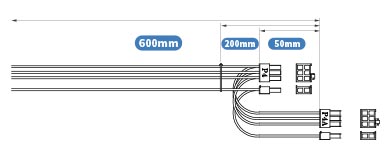

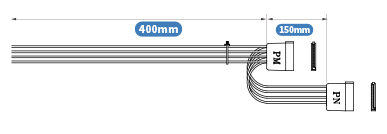

CRPS PSU Cable Information
24-Pin Main Motherboard
8-Pin for CPU
4+4-Pin for CPU
6+2/6+2-Pin for GPU
6+2/6+2-Pin for GPU
PMBus
6+2/6+2-Pin
6+2/6+2-Pin
4-pin for HD
4-Pin for HD
SATA HDD

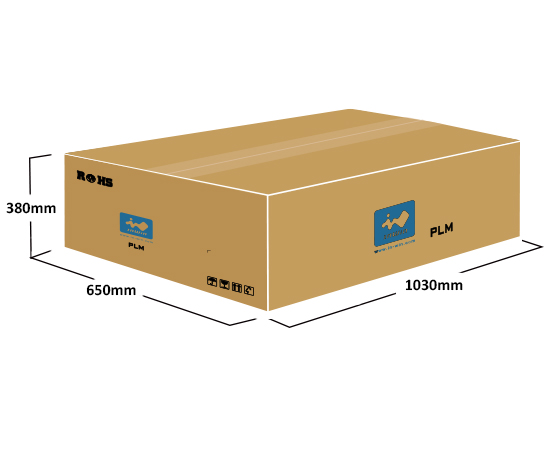

Dimensions
| Specification | |
|---|---|
| M/B Form Factor | ATX(12" x 9.6"), CEB(12" x 10.5"), EEB(12" x 13") |
| Drive Bay | Internal: •2.5"/3.5" trays x 5, •optional: 2.5" drives x 4 (1 x 9mm, 3 x 15mm) |
| Power Supply | Supports PS2 600W or 2U 1 + 1 x 80 Plus Platinum 1200W CRPS |
| Indicators | Power status, HDD, LANs, system fail activity LEDs, ID |
| Front Control Panel | Power switch, system reset, USB 3.0 x 2 |
| Chassis Security | Supports padlock loop or Kensington lock & intrusion switch |
| Cooling Fans | •Front: 120 x 25mm PWM fan x 2 (pre-installed x 1) •Middle: 120 x 25mm PWM fan x 2 (pre-installed x 1) •Rear: 120 x 25mm PWM fan x 1 (pre-installed x 1) or 80 x 38mm PWM fan x 2 (optional) |
| Expansion Slot | Full-height PCIe slots x 7 |
| Material | • Material: SECC • Thickness: 0.8~1.0mm |
| Rail Kit | Supports 23" ball-bearing slide rail |
| Product Dimensions (DxWxH; Chassis Only) | 560.2 x 200 x 430.1mm (22.1" x 7.9" x 16.9") |
| Package Dimensions (DxWxH) | 720 x 592 x 340mm |
| Weight | • Net weight: 10.67kg • Gross weight: 14.21kg |
| Cubic Feet | 5.12 |
| Container Information | Single Packing with Pallets: • 20': 110pcs • 40': 240pcs • 40' HQ: 288pcs |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
12Gb/s Backplane Specifications
| Backplane Type-1 | IW-SK23-07 SATA & OCuLink Backplane |
| Item | Download | Preview |
|---|
