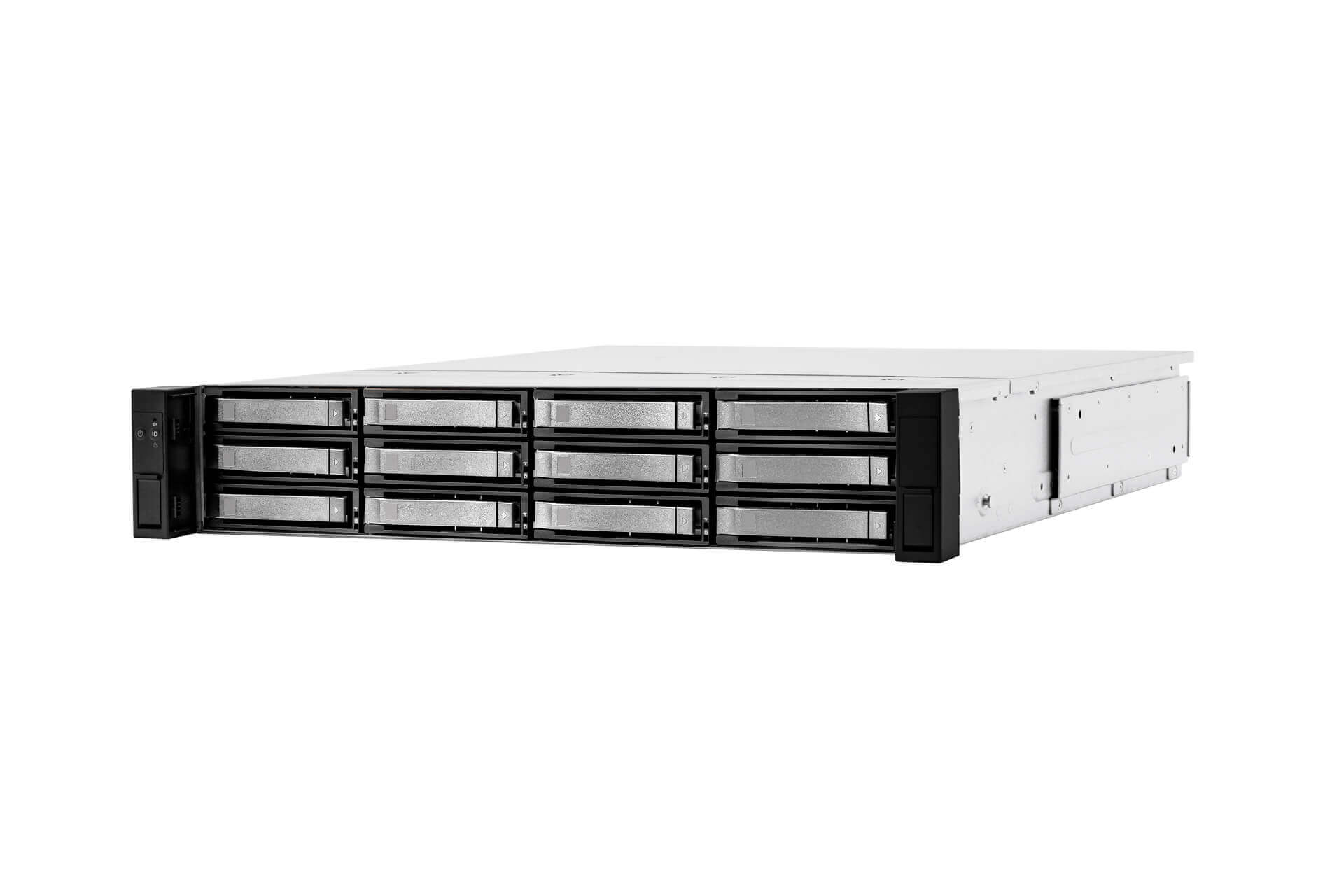

IW-RJ212-07

2U JBOD

．Supports SAS 12G / SATA 6G via dual / single expander
．GUI supports via ethernet board
．Tool-less Design for 3.5-inch HDD Carrier
．Designed for High Scalability and Availability in Storage Applications
．Supports SES-2 (SCSI Enclosure Service)
．Low Maintenance and Serviceable with FRU Designed for Expander / Fan / Power Supplies
．Fixed Rail Included (Optional Tool-less Sliding Rail)
．Supports High Efficiency CRPS Power Supplies

IW-RJ212-07

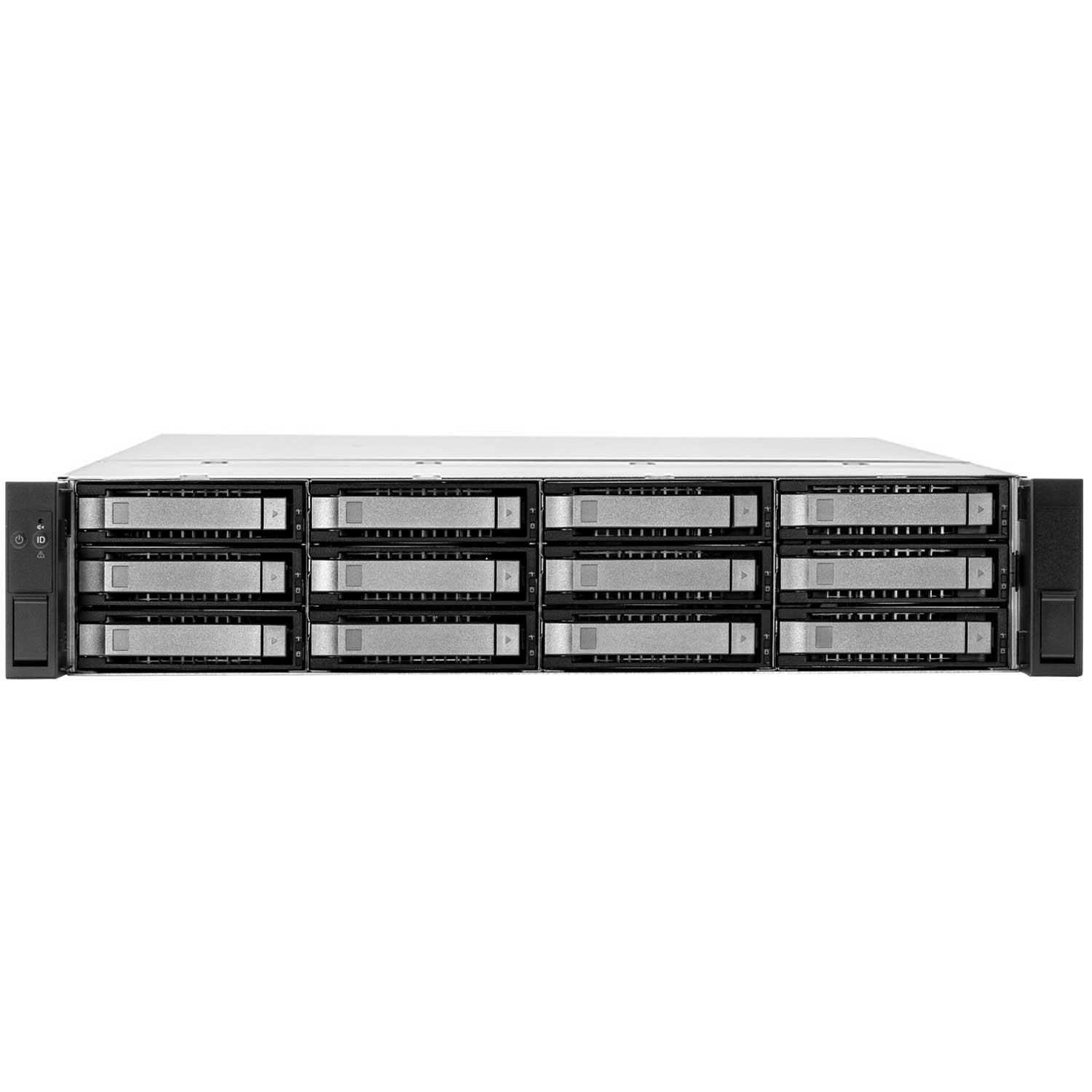

The InWin RJ-07 Series JBOD encompasses a range of 2U to 4U solutions designed to meet diverse storage needs. Our line of products supports 2.5" or 3.5" SAS/SATA HDDs, ensuring compatibility with various storage configurations. With a focus on modularity, our solutions offer flexibility and scalability, allowing users to customize their storage setups according to their specific requirements. This modular approach enables easy maintenance, ensuring seamless integration with existing infrastructure.

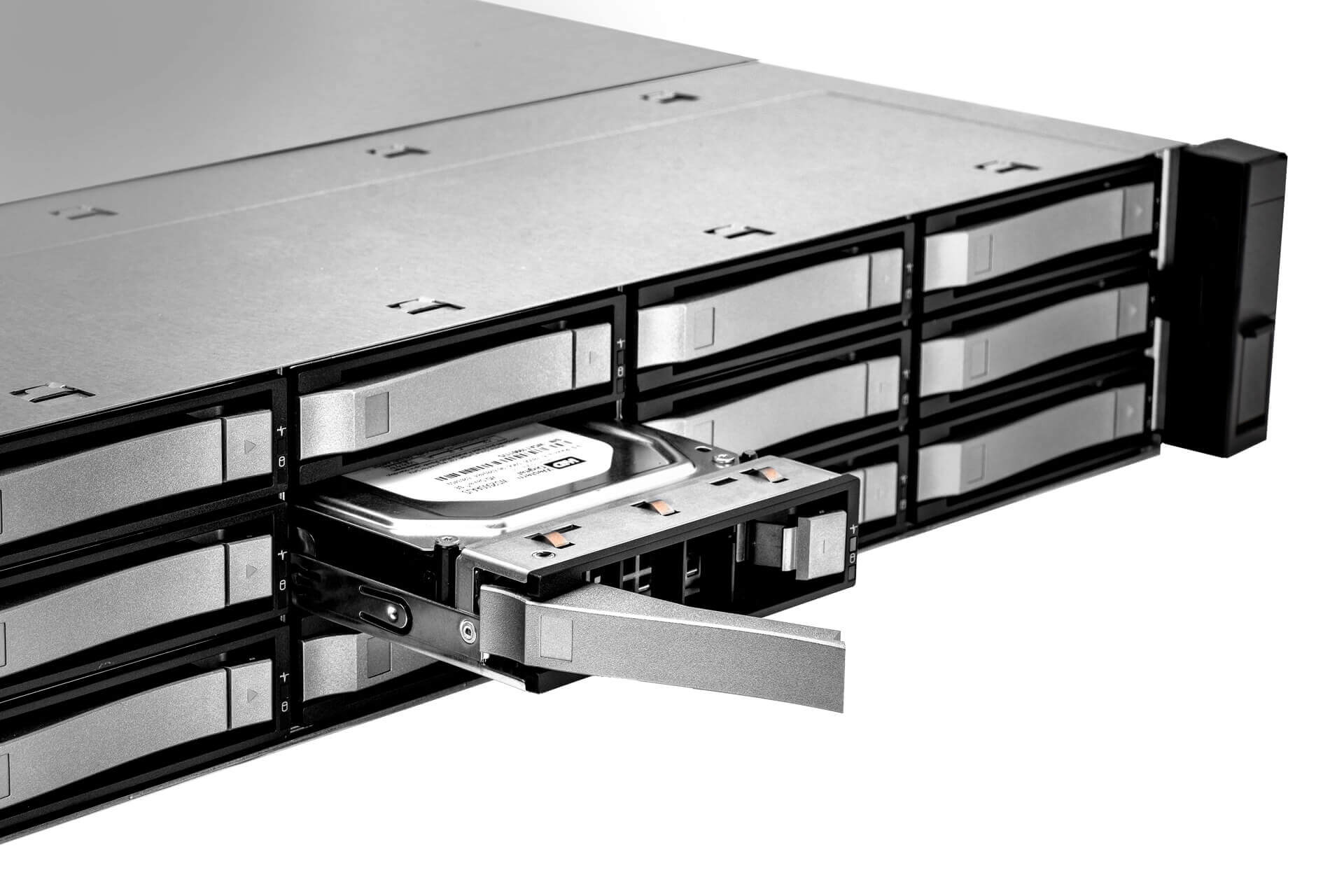

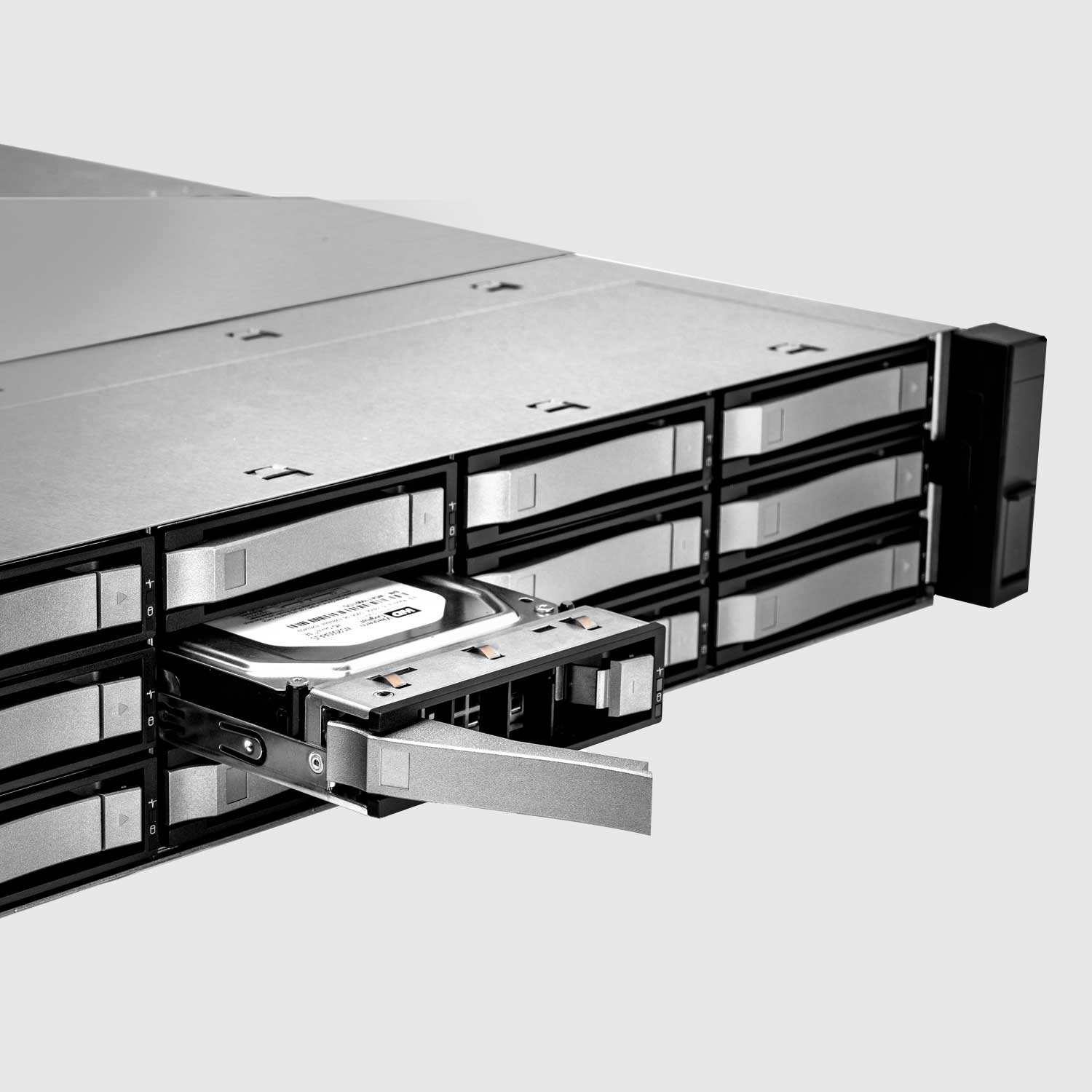

Adaptable Storage Choices

Tool-free design allows users to mount/remove 3.5" HDDs without screws. 2.5" drives can be installed too with screws.

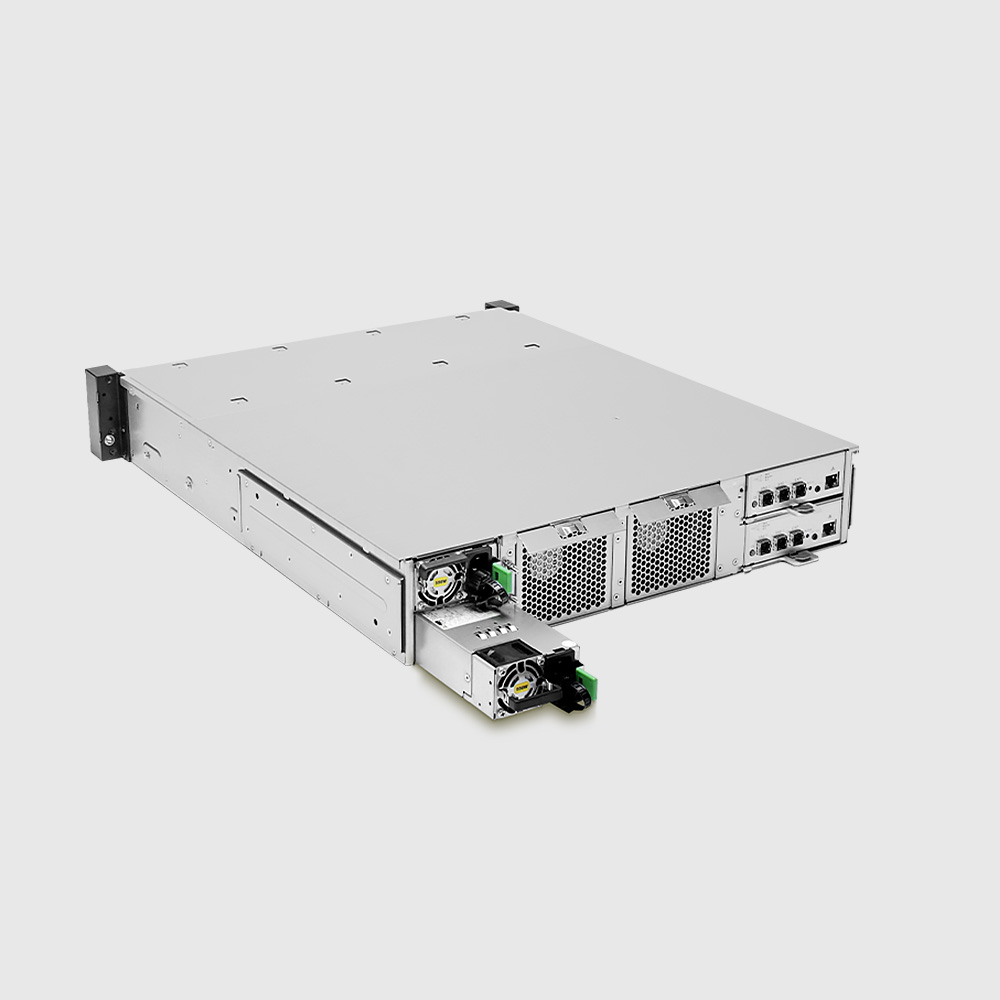

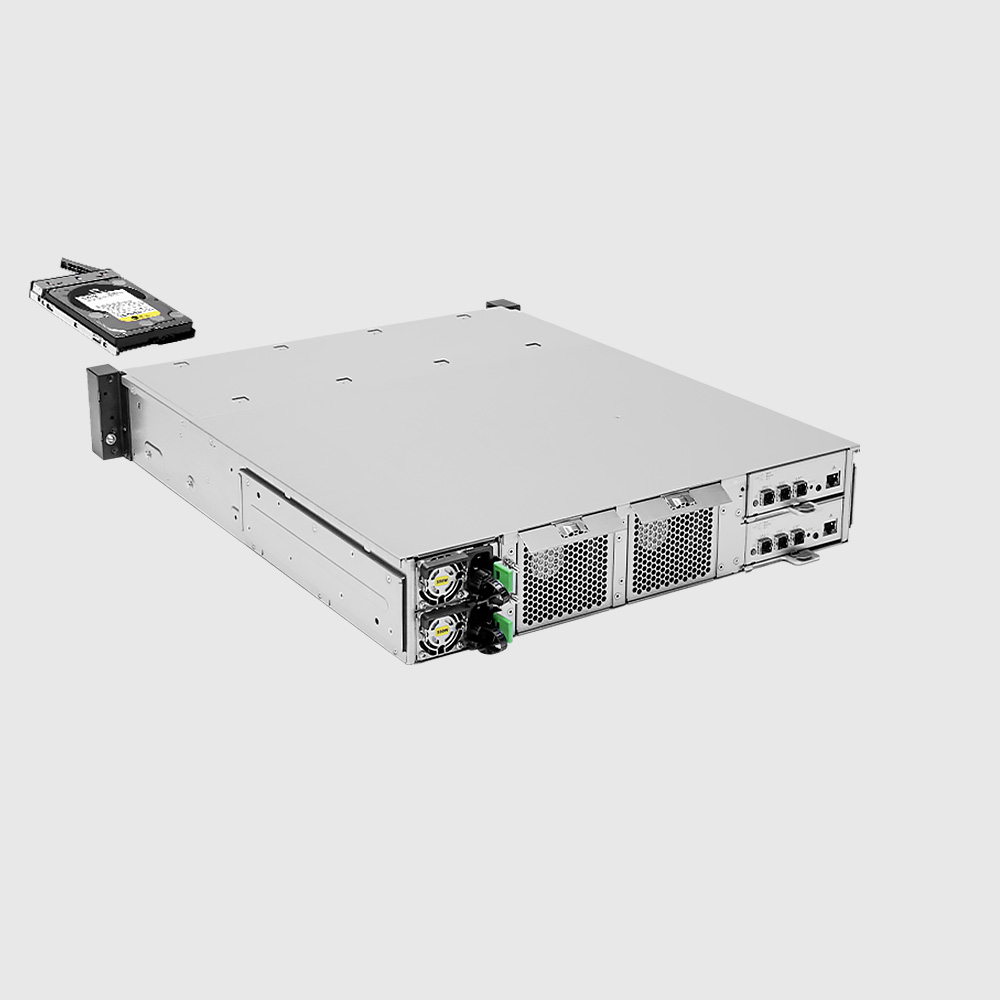

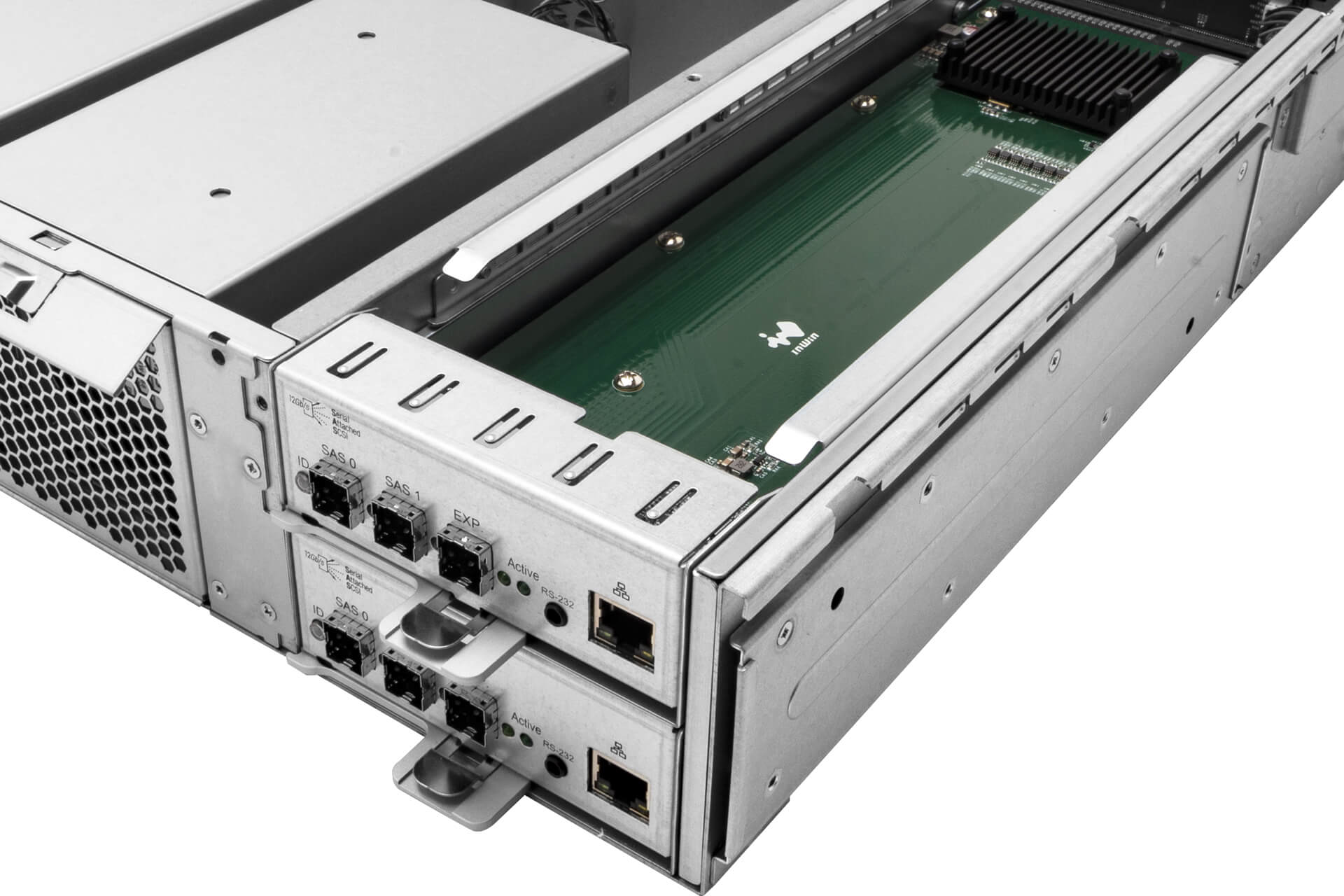

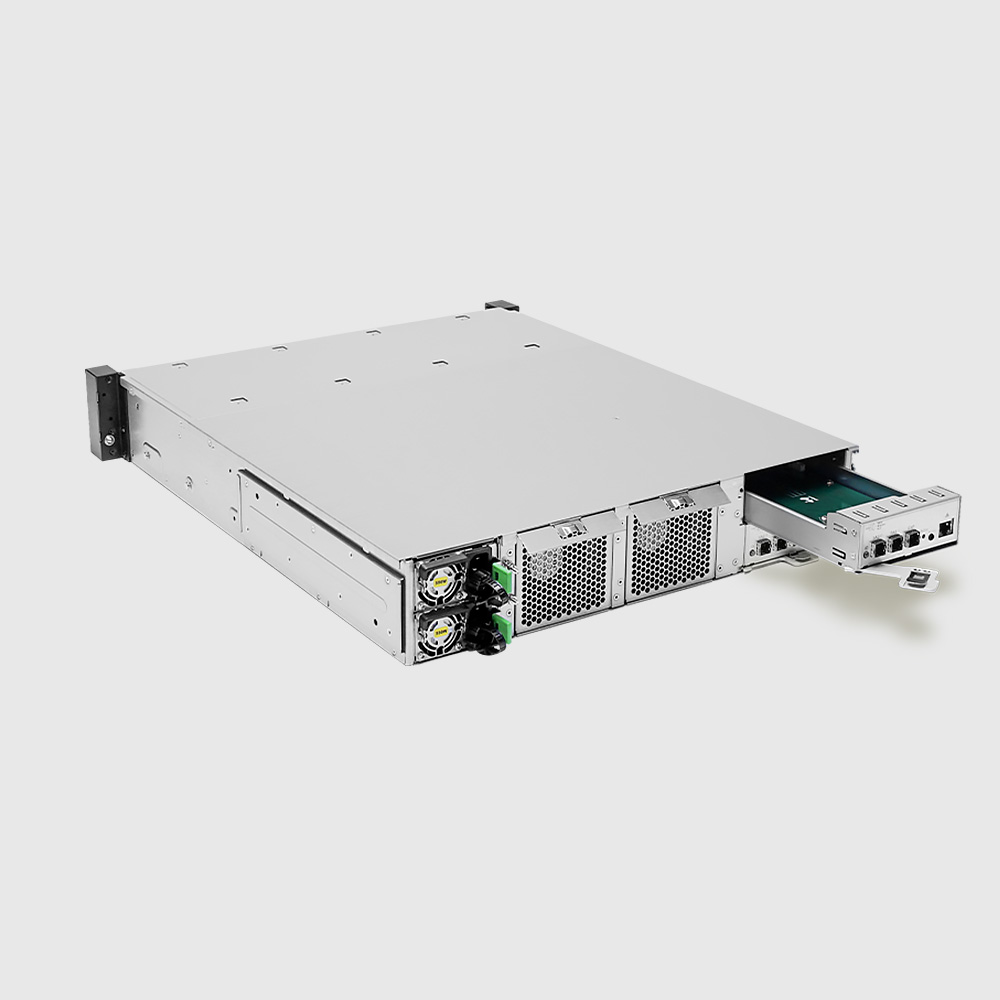

Fully FRU Solution

The RJ-07 Series utilizes advanced FRU (Field Replaceable Unit), allowing users to conveniently repair and maintain their server parts.

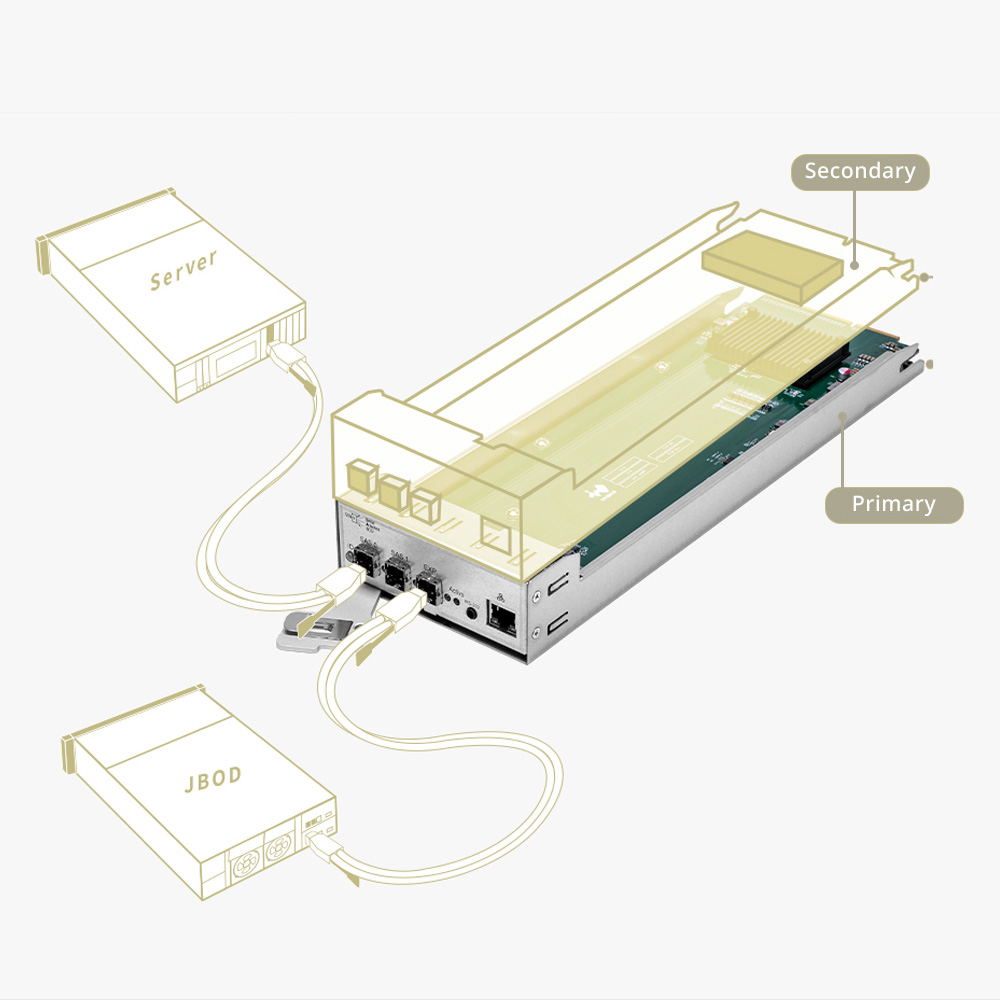

Flexing Redundancy

Main parts of the RJ-07 Series reap the benefits of redundancy. The PSUs, fans, and expanders are designed with redundancy to keep the data running without any downtime. Not to mention that InWin designs expanders in-house so we can customize the firmware to meet users’ demands.

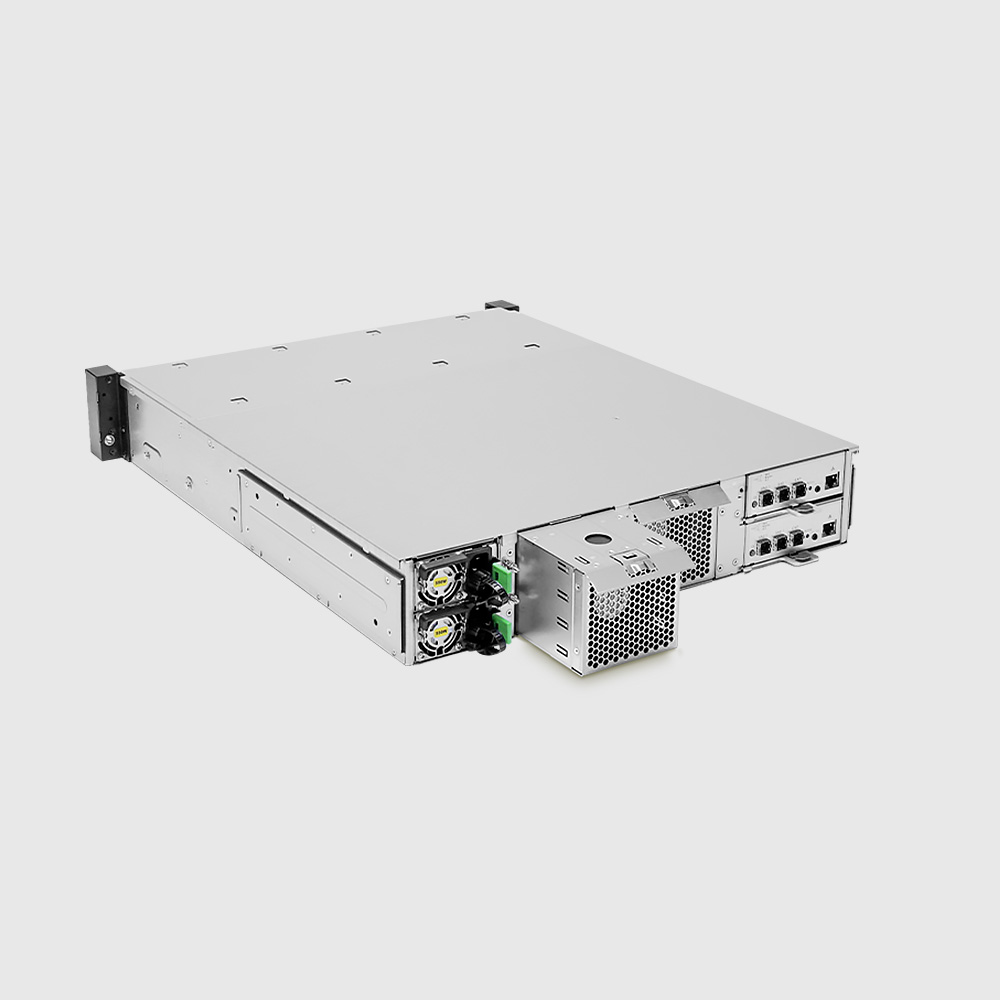

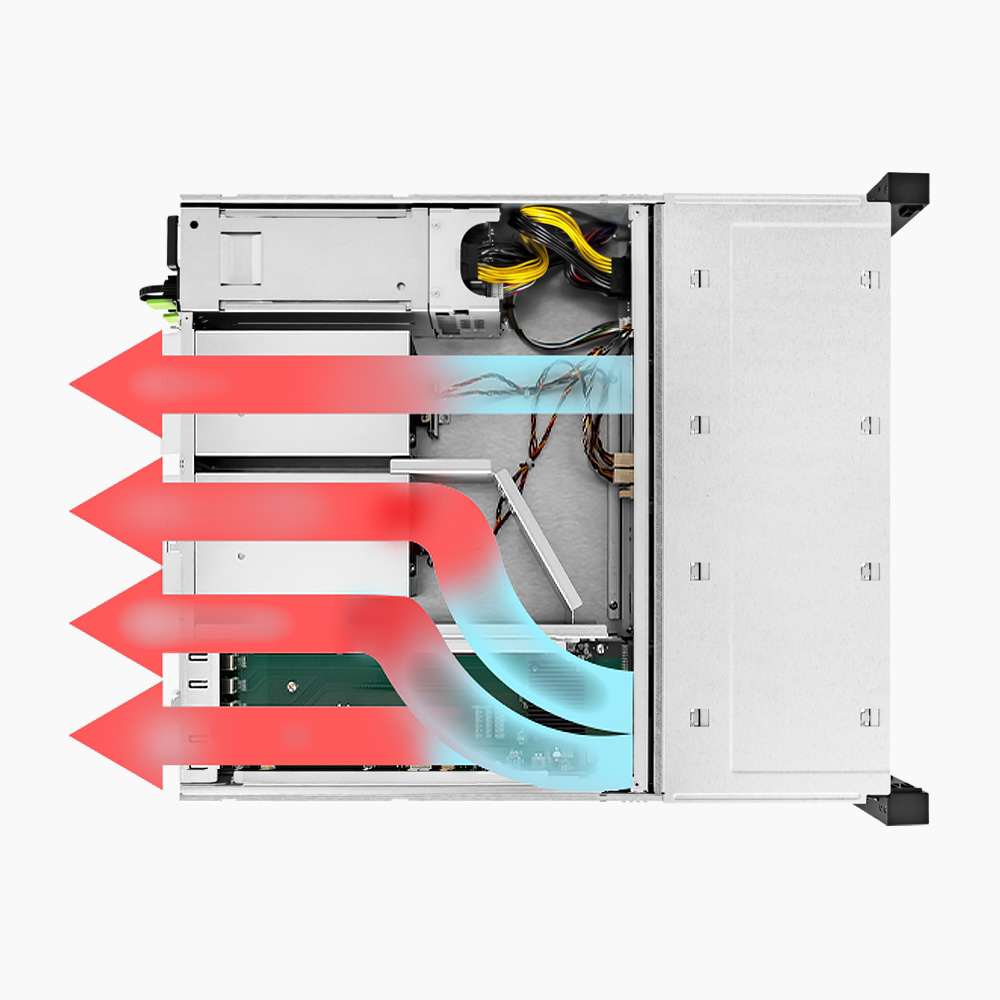

Optimally Designed Ventilation System

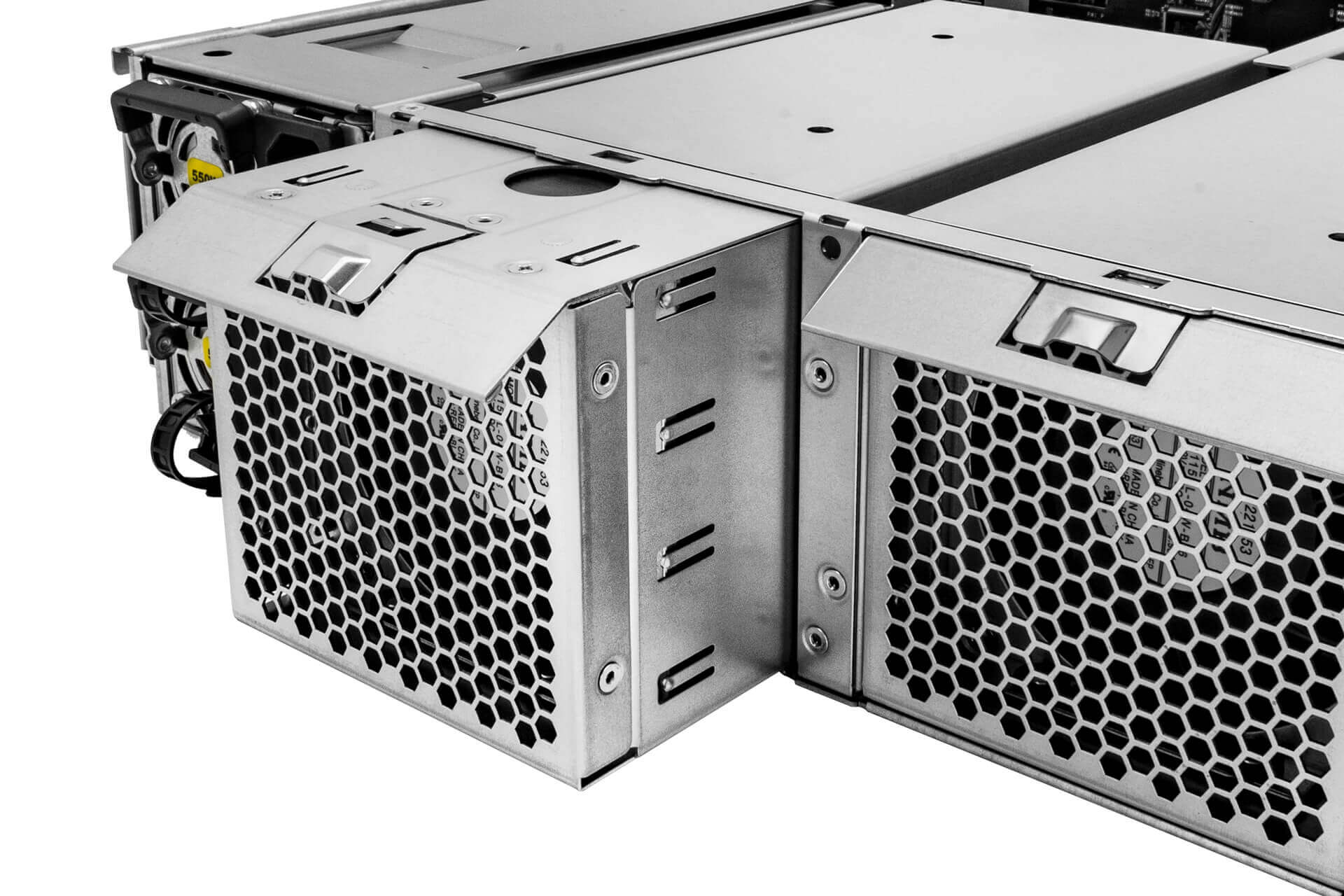

All RJ-07 Series chassis are equipped with 80 x 38 mm PWM hot-swap fans x 4 (5500 RPM), which offers an improved solution for thermal cooling.

Dual Monitor Interface

Control mode of the GUI and RS232 dual system interface enables technical and non-technical personnel to operate according to their individual requirements. Besides the in-house firmware modding option, InWin can provide a customized GUI interface for users.

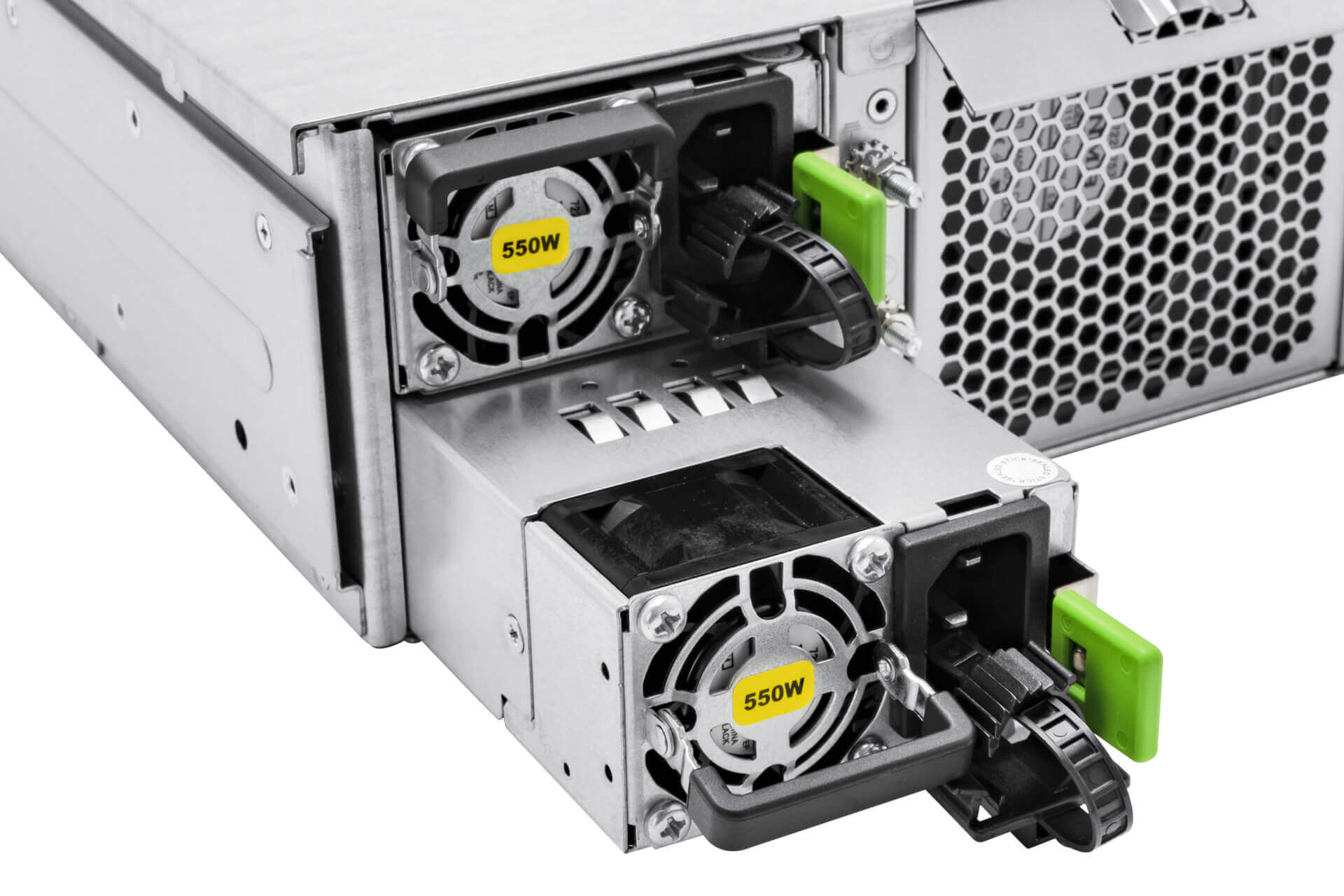

Reliable Power

Delivers up to 92% efficiency with 550W/800W 80 Plus® Platinum Certified CRPS.

Specification
No information.
