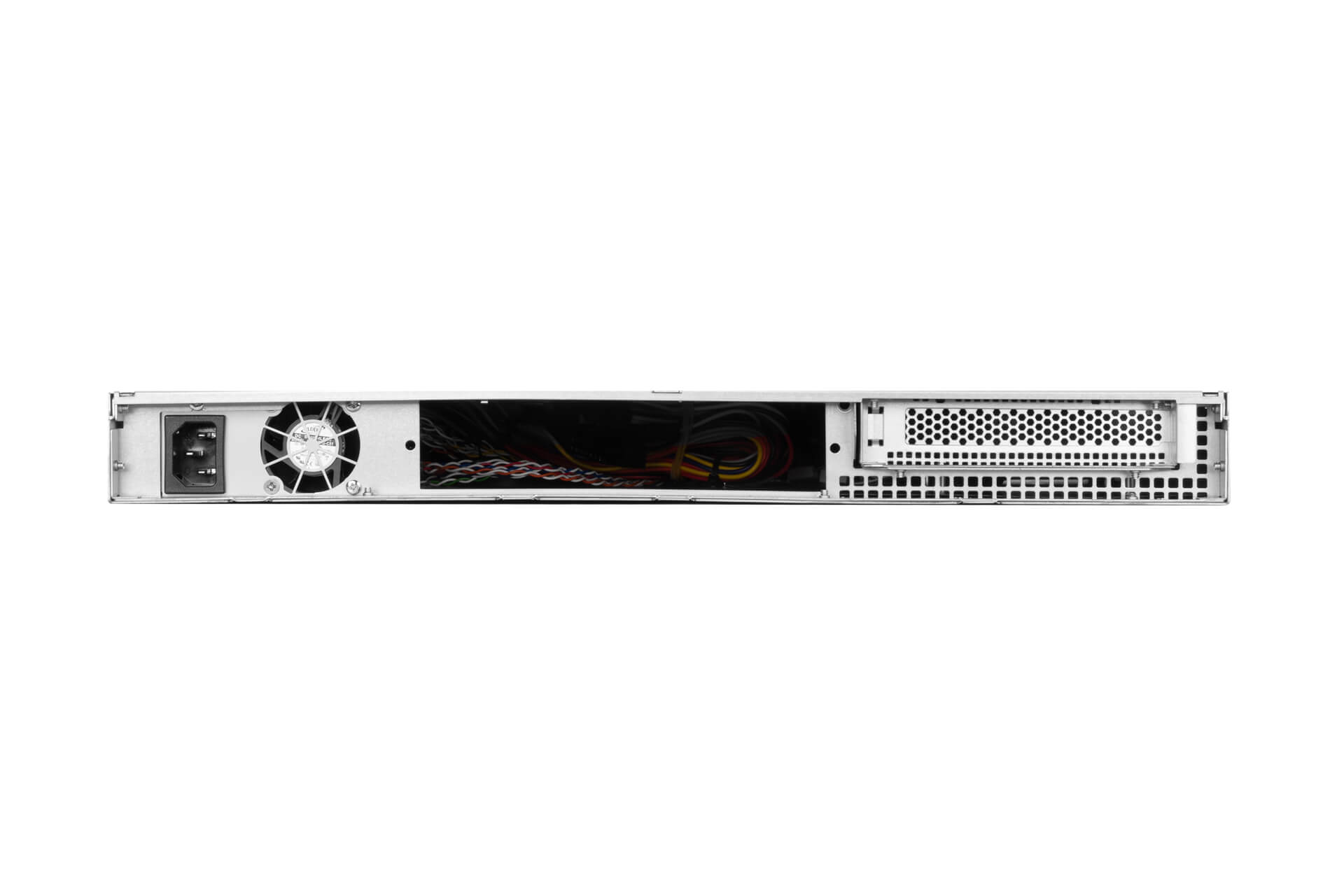

IW-RL100
1U Rackmount Liquid cooling Series
- Liquid cooled 1U rackmount chassis designed for Edge server application
- Pre-installed 120mm 1U height AIO with three 14500RPM fans mounted
- Optional two 40 x 28mm from fans to enhance thermal dissipation
- Supports 1U Flex form factor PSU (up to 450W)
- Optional PCI-E riser card and riser card bracket

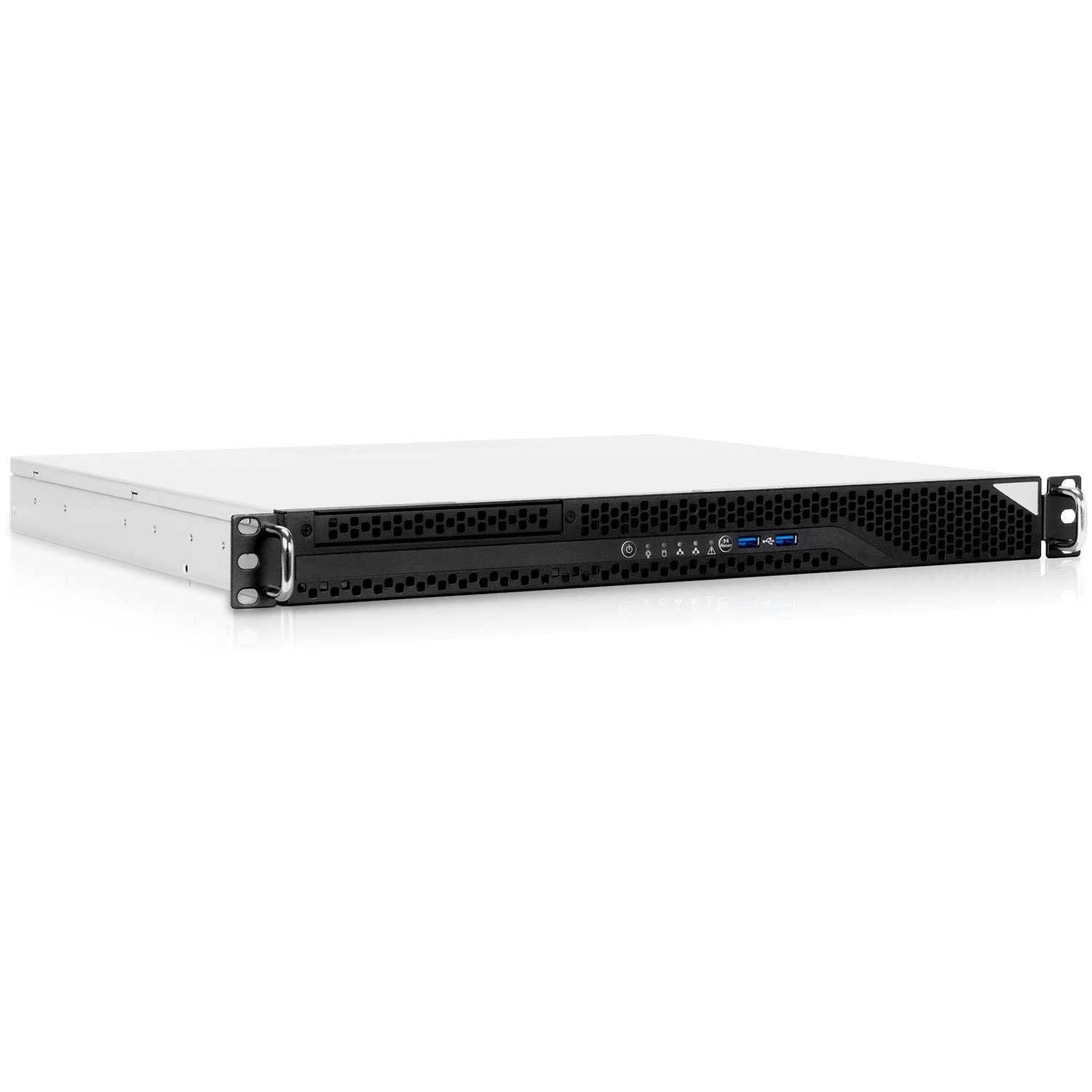

1U Rackmount Server
IW-RL100 with Pre-installed AIO Liquid Cooling
The InWin IW-RL100 is a 1U rackmount server chassis featuring a 1U-height AIO liquid cooling system that provides highly efficient heat dissipation in compact environments. This advanced cooling solution ensures stable and reliable performance, making it ideal for edge computing applications, or industrial automation. It supports up to 450W Flex PSUs and PCIe expansion, delivering versatility for demanding tasks.
Edge computing
AIO liquid cooler (1U-height)
40 x 28 mm PWM fan x 2
Single Flex PSU
Single Flex PSU
FHFL PCIe slots support
Compliant
16" deep chassis
20" slide rails

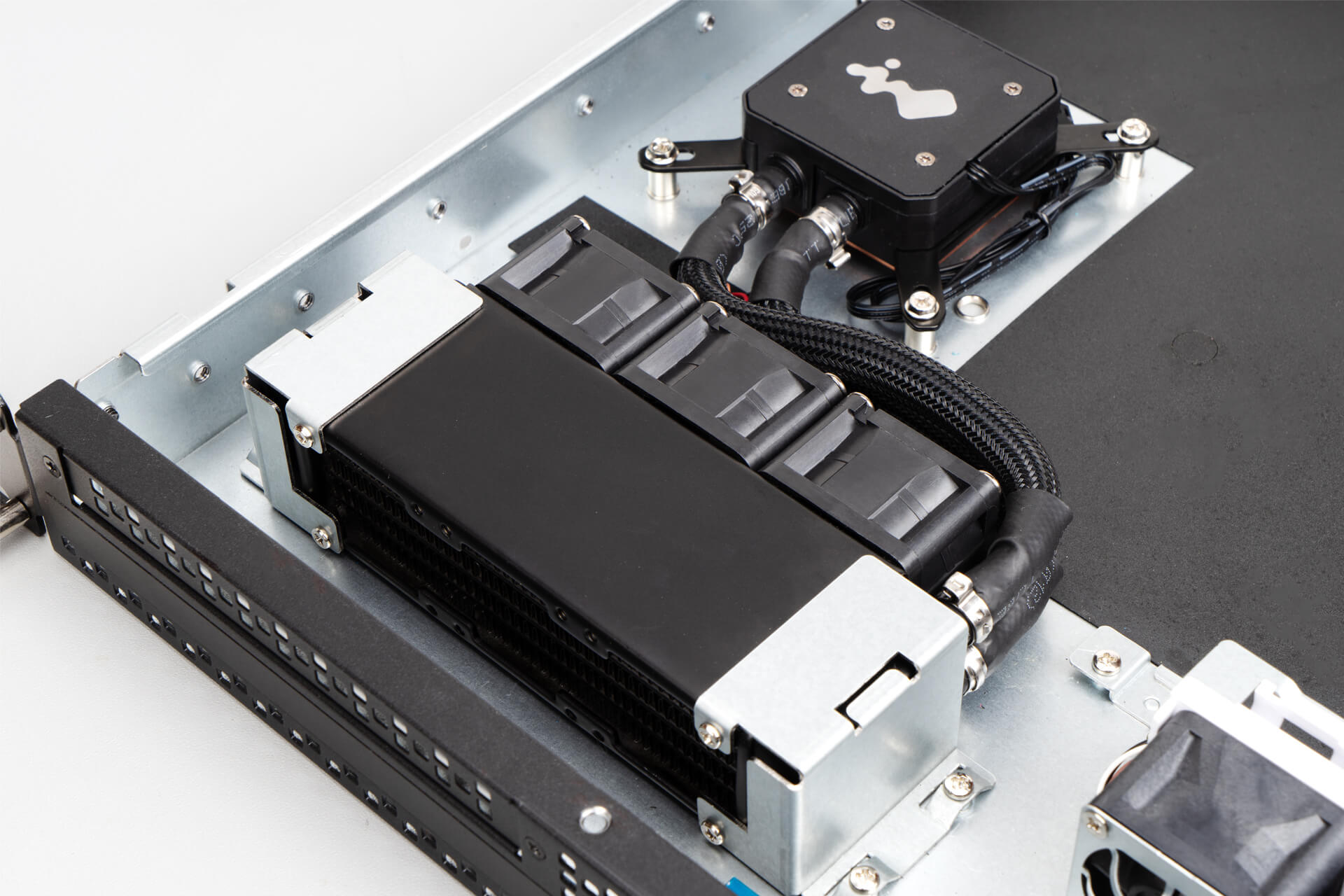

Advanced Thermal Management
The IW-RL100 features a 120 mm AIO liquid CPU cooler designed for optimal thermal management in compact spaces. It is coupled with three high-performance 40 x 28 mm PWM fans and supports up to LGA 1851 and AM5 sockets, which are compatible with ATX motherboards. The IW-RL100 ensures effective heat dissipation, providing reliable server performance in edge computing applications.
Enterprise Solutions
Edge computing thermal demands are critical! The IW-RL100 is designed to be compatible with LGA 1851 and AM5 sockets. It covers ATX motherboards optimally and cooled with precision. The IW-RL100 delivers enhanced operational stability and performance for your computing systems.
| CPU Socket Support |
|
|---|---|
| Radiator Dimensions (L x W x H) |
151 x 40 x 51 mm |
| Tube Length | 170/195 mm |
| Pump Speed | 4200 RPM +/- 10% |
| Pump Power | 3.9W (4.6W MAX) |
| Fans | 40 x 28 mm fans x 3pcs, 14500RPM, 4-Pin 12V connectors |
| Fan Airflow | 26.1 CFM |
| Fan Air Pressure | 1.32 mm / H2O |
Water Cooling is a Key
As new AI generation servers provide powerful processing capabilities, CPU configurations face thermal dissipation challenges. InWin’s RL series liquid-cooled servers significantly reduce energy consumption, ensuring lower CPU chip temperatures.
The IW-RL100 water cooling kit meets the thermal needs of Intel® or AMD processors, enhancing system stability and enabling the handling of the most demanding workloads in edge computing.
The IW-RL100 water cooling kit meets the thermal needs of Intel® or AMD processors, enhancing system stability and enabling the handling of the most demanding workloads in edge computing.
Breathe Easy

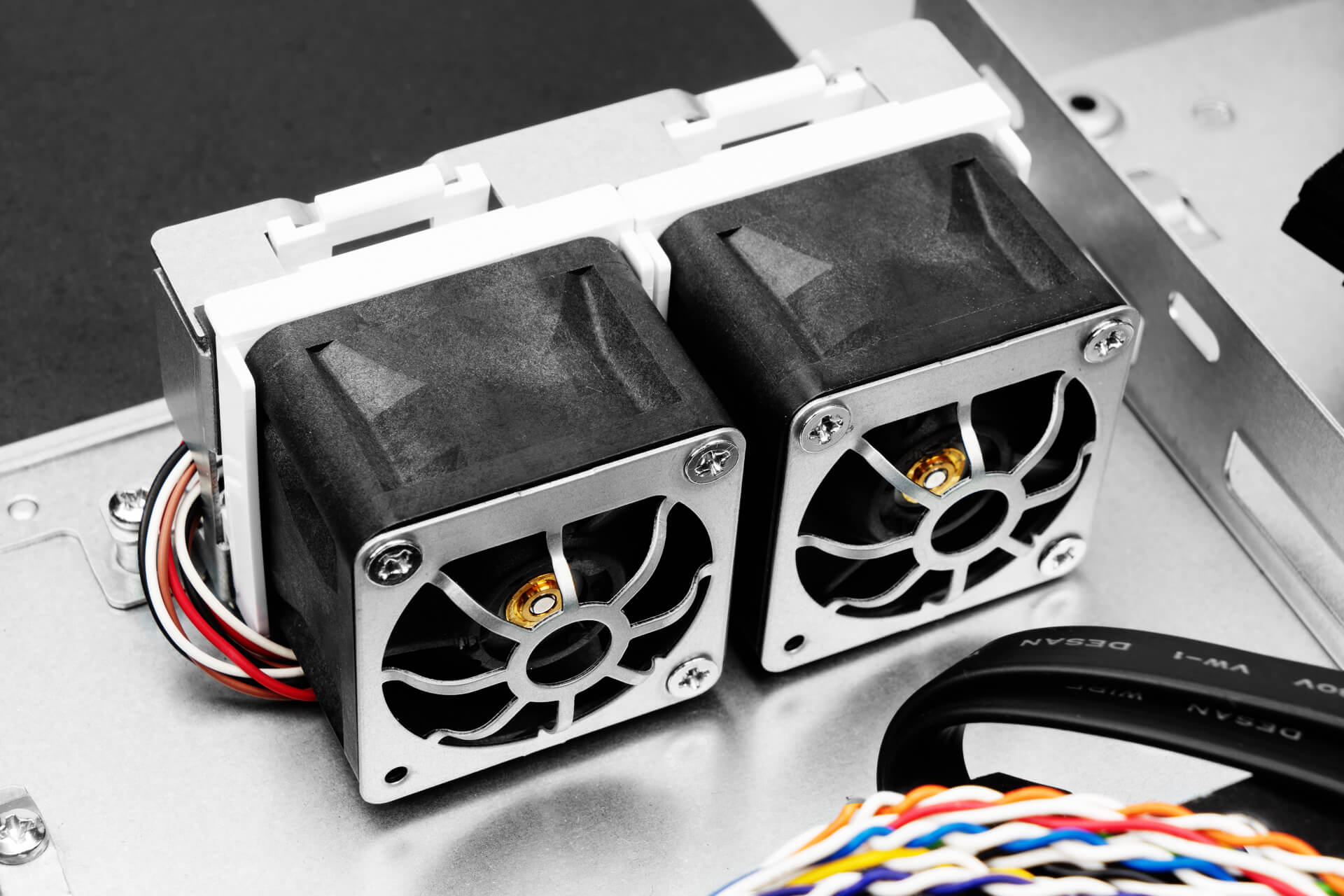

The IW-RL100 supports option for two additional 40 x 28 mm fans, optimizing airflow for superior thermal performance. With a speed of 14,500 RPM, it ensures efficient cooling, maintaining ideal temperatures for edge computing servers in demanding environments.
Compact with Compatibility

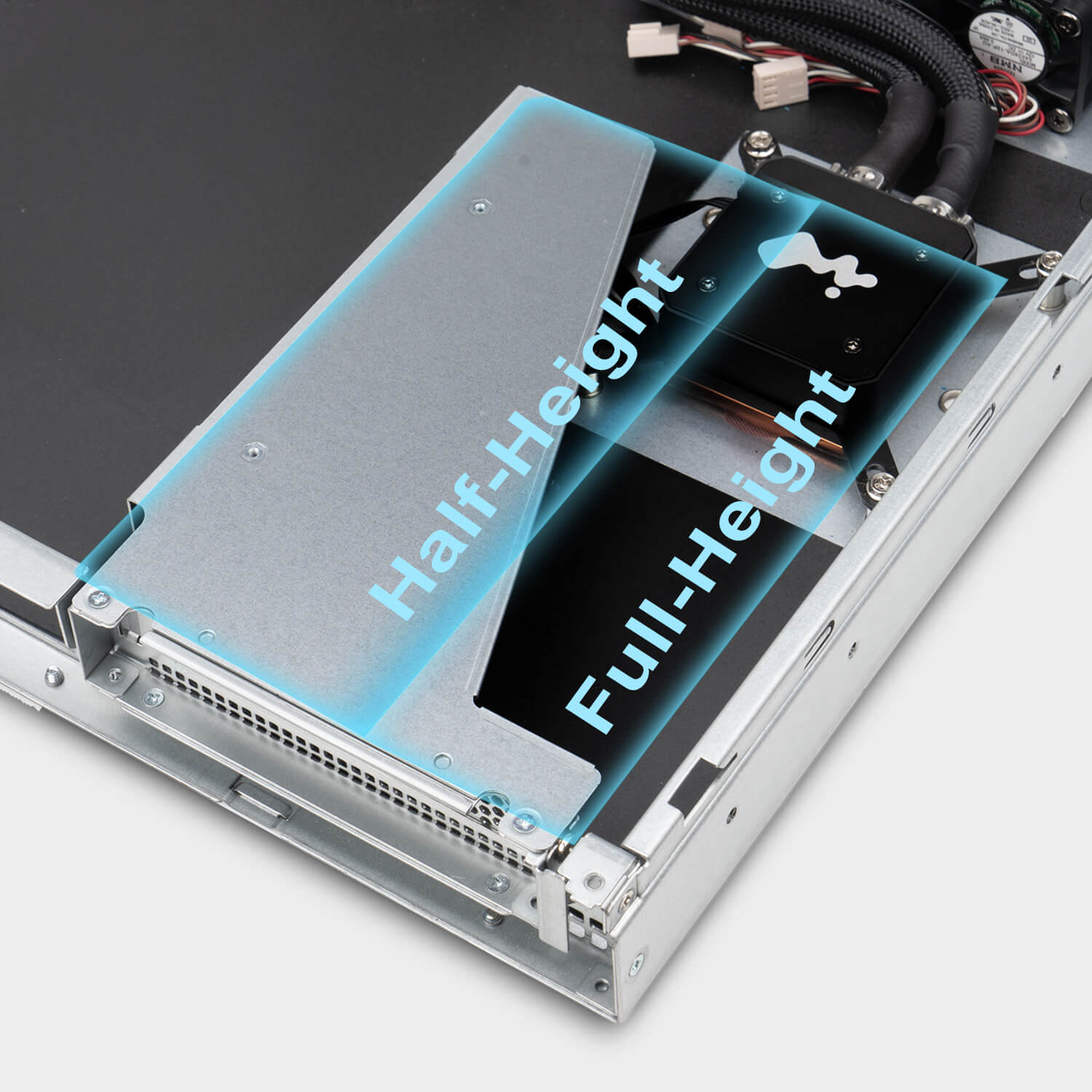

The IW-RL100 offers full compatibility by supporting a full-height PCIe slot, with the option to add a PCIe riser card kit. Customers can choose InWin's PCIe riser card for horizontal installation at the rear of the chassis.

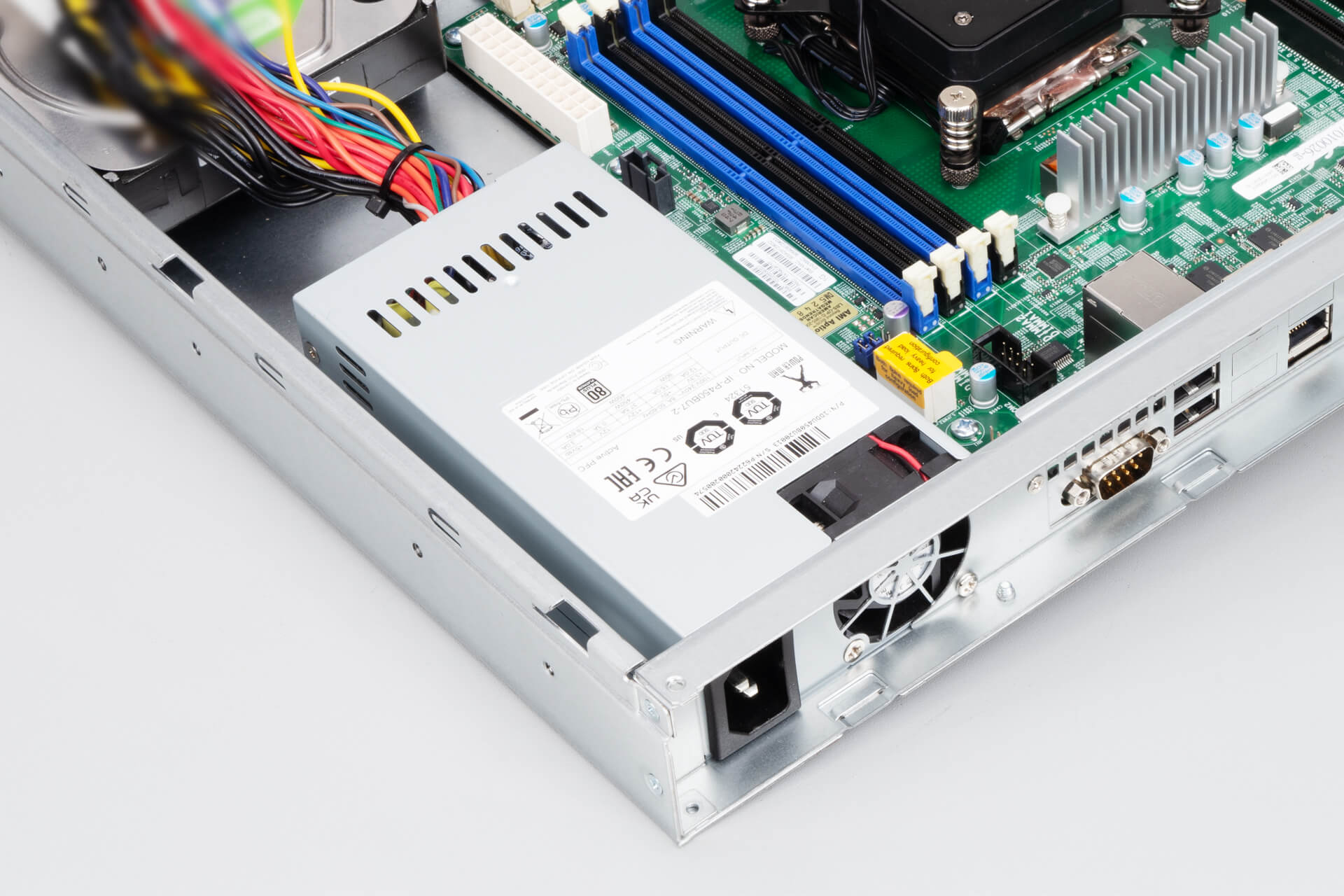

Reliable and Powerful
The IW-RL100 provides options of Flex PSU at 450W 80 Plus® Platinum or 315W Plus® Gold, delivering high efficiency for reduced energy waste and reliable performance. Its compact form factor maximizes internal space, making it ideal for space-constrained setups.

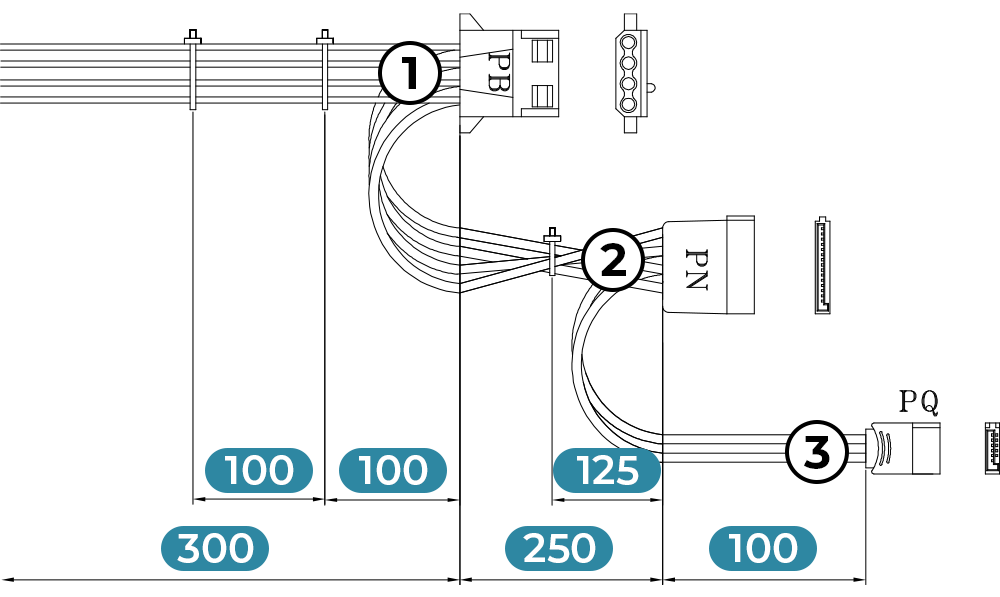

Power Cable Information
Unit of Length: mm

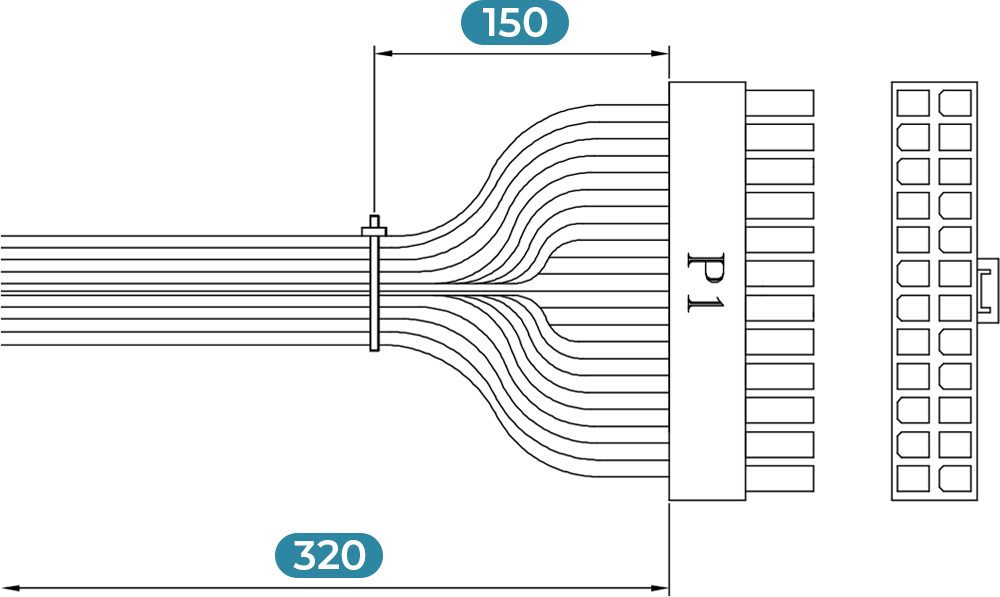

- 24-Pin Main Power Connector

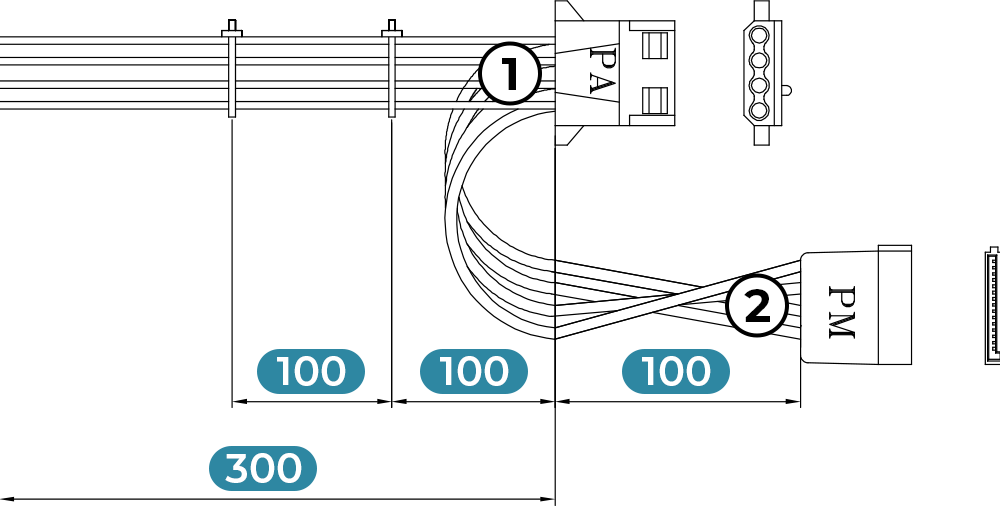

- 1.Peripheral Power Connector
- 2.SATA Power Connector
- 3.Slim SATA Power Connector
- 1.Peripheral Power Connector
- 2.SATA Power Connector
- SATA Power Connector
- 4+4 Pin CPU Power Connector
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX (12" x 9.6") |
| Drive Bay | Internal •3.5" x 1 |
| Power Supply | Supports: • Form factor: Flex • Watt: up to 450W |
| Indicators | Power LED, LAN1/LAN2 LED, system LED, HDD LED |

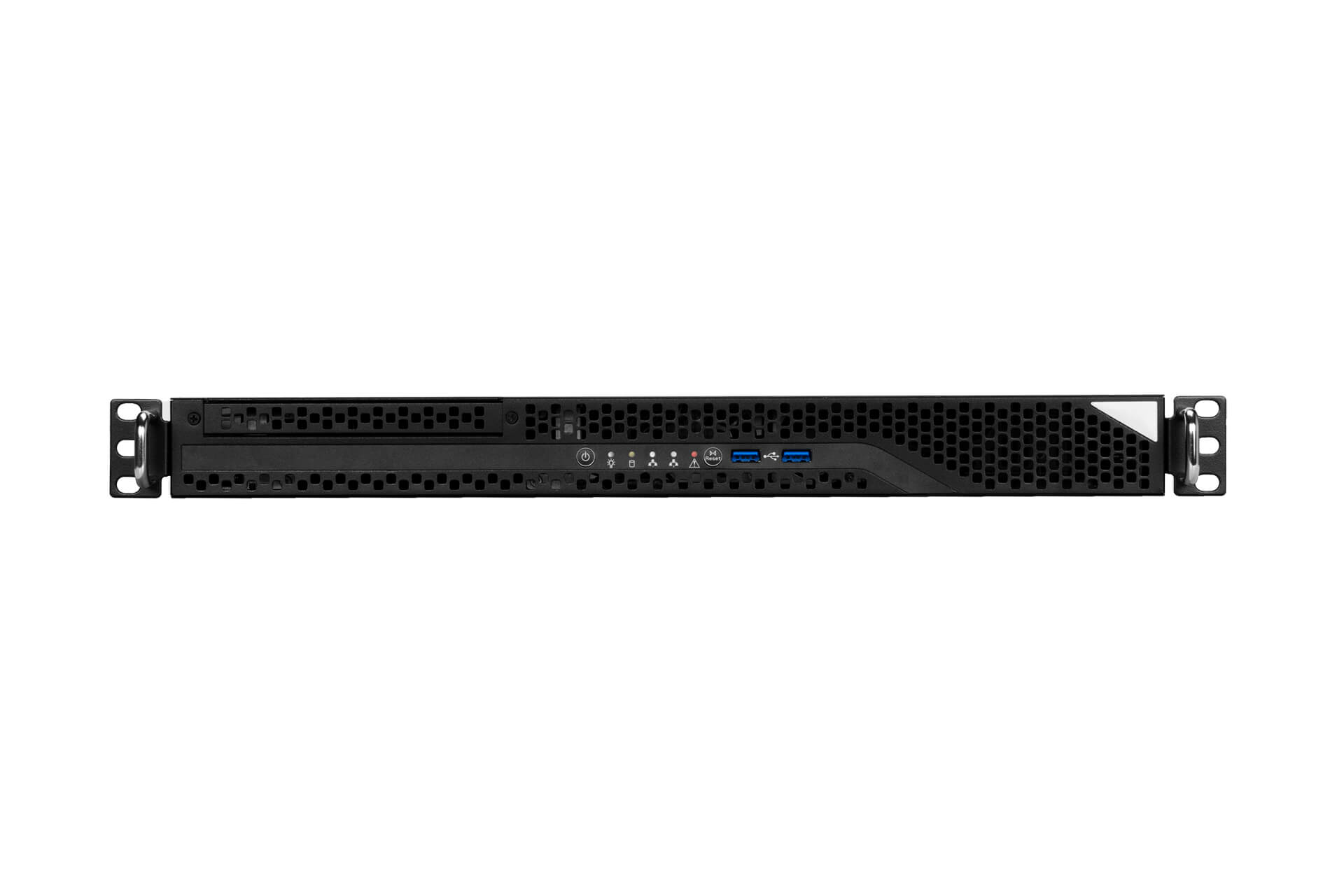

| Front Control Panel | Power switch, system reset, USB 3.0 x 2 |
| Cooling Fans | Supports: • 40 x 28 mm PWM front fans x 2 (optional), 14500RPM |
| Water Cooling Kit | AIO liquid cooler support: • 120 mm radiator x 1 (IU Height) • Pre-installed 40 x 28 mm PWM fan x 3, 14500RPM |
| Expansion Slot | • Full Height PCI Slot x 1 (via optional riser card and bracket) |
| Material | • Material: SGCC • Thickness: 1.0 |
| Rail Kit | Supports 20" friction slide rail |

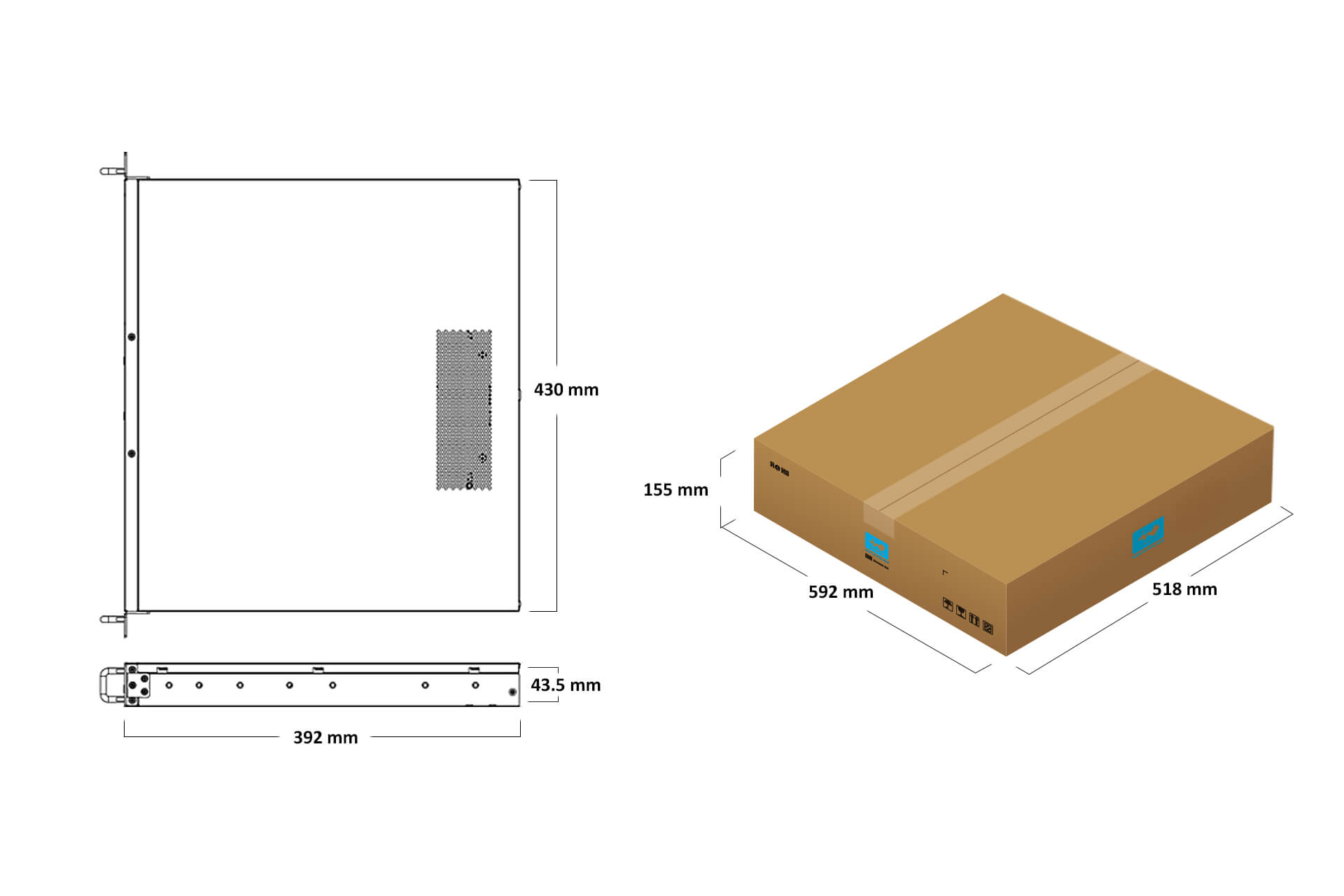

| Product Dimensions (DxWxH; Chassis Only) | 393.2 x 430 x 43.5 mm (15.48" x 16.93" x 1.71") |
| Package Dimensions (DxWxH) | 592 x 518 x 155mm (23.3"x20.4"x6.1") |
| Weight (Chassis Only) | • Net weight: 3.88 kg • Gross weight: 4.92 kg TBC |
| Cubic Feet | 1.68 |
| Container Information | Single packing with pallets: • 20': 440 pcs • 40': 968 pcs • 40'HQ: 1056 pcs |
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS032202 | 20" friction slide rails | 1 |
|

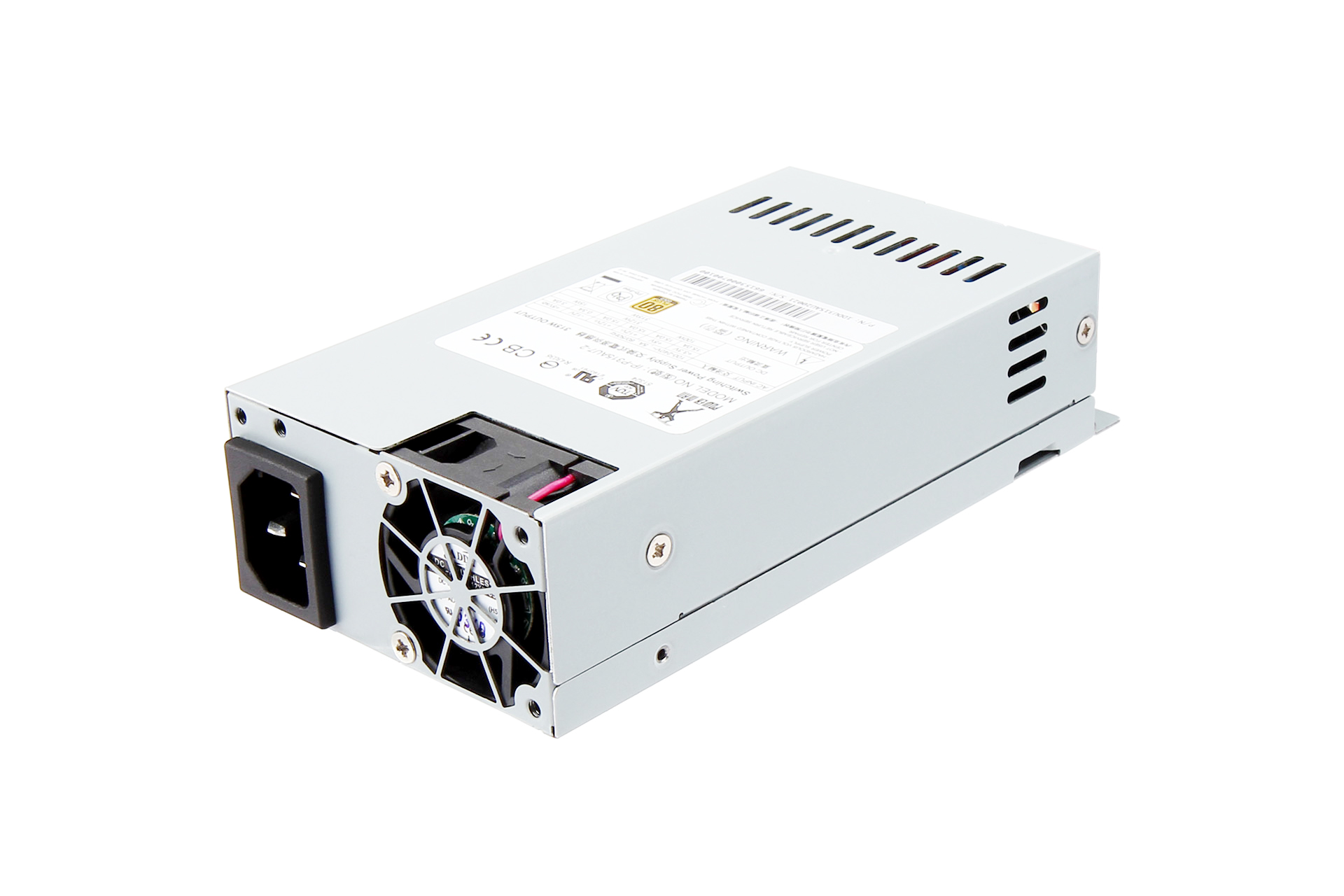

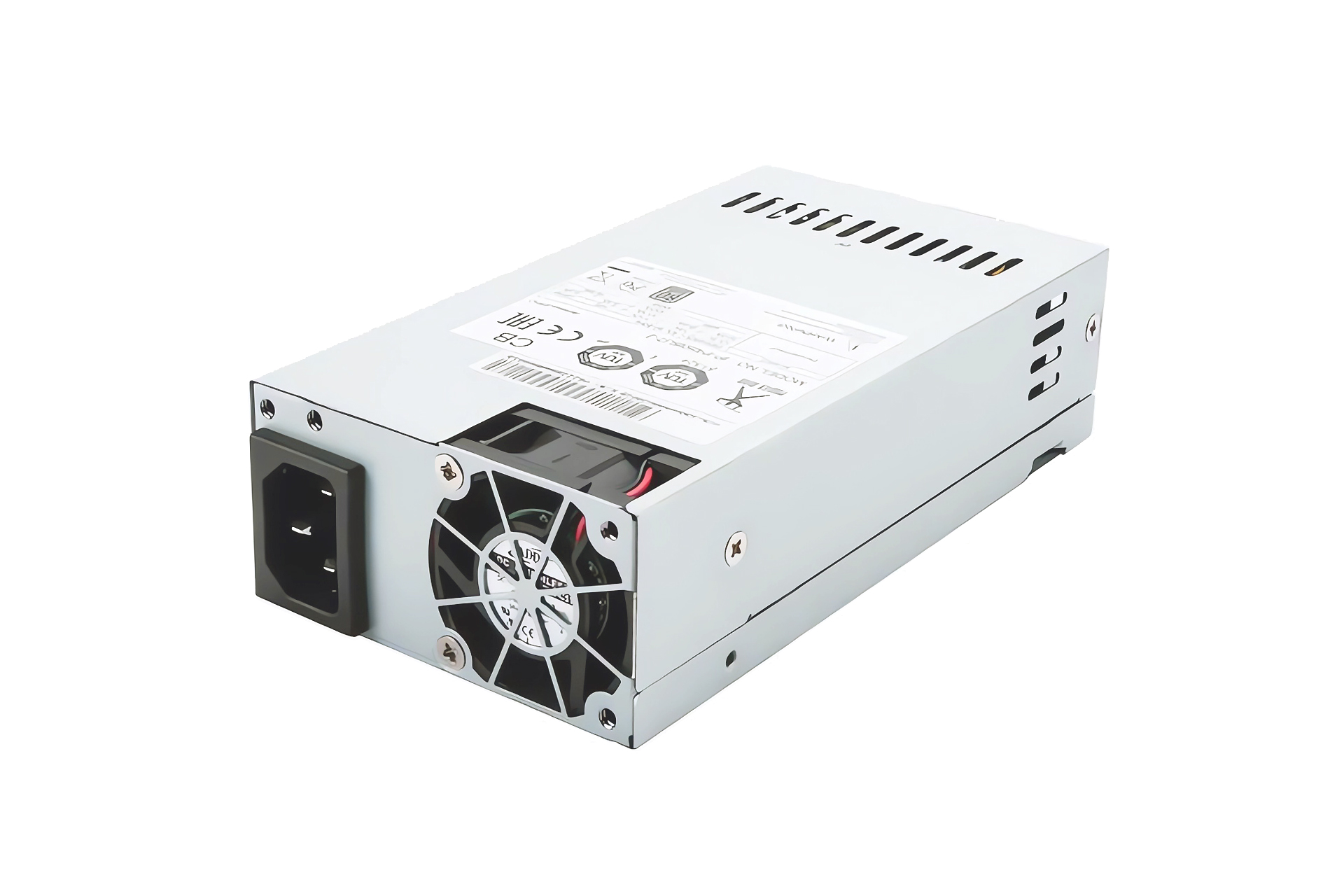

| Power Supply | 1DDU450BU20013 | 1U Flex 450W, 80 Plus® Platinum | 1 |
|
| Power Supply | 1DDU315AU20221 | IP-P315AU7-2, 1U Flex 315W, 80 Plus® Gold | 1 |
|
| Fan | 3RAMFB010801 | 40 x 28mm PWM fan,14500RPM, 4pin | Max. 2 | |
| Fan Kit | 2RAVIS597800/2RAVIS708900 | Fan bracket | 1 | |
| Water Cooling Radiator | 2RAKBA007800 | 120 mm 1U Height AIO liquid cooler | 1 | |
| Riser Card | 2RAKPD049200 | 1U PCIe x16 riser kit | 1 | |
| Riser Card | 2RARIC026400 | Riser card bracket | 1 |
