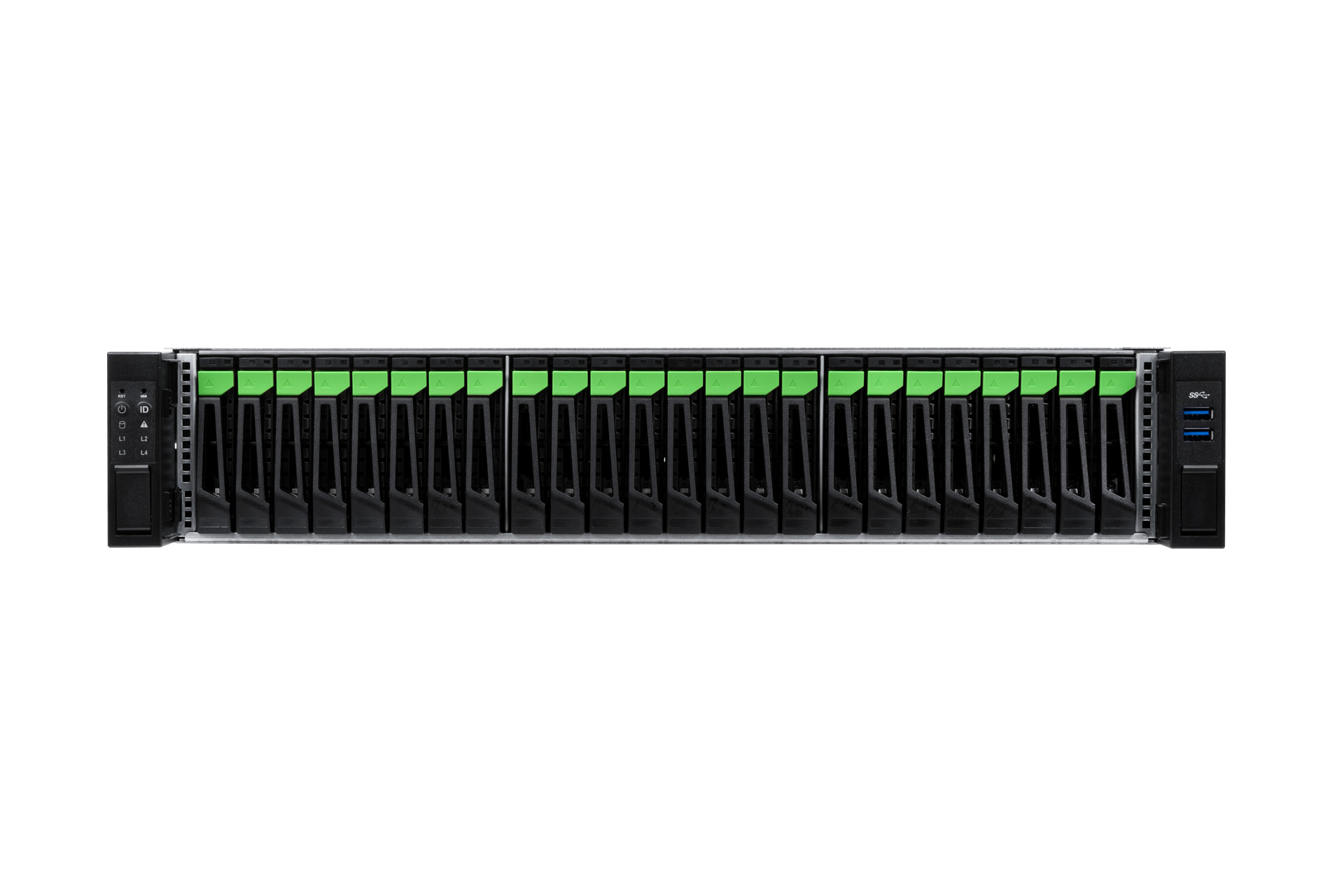

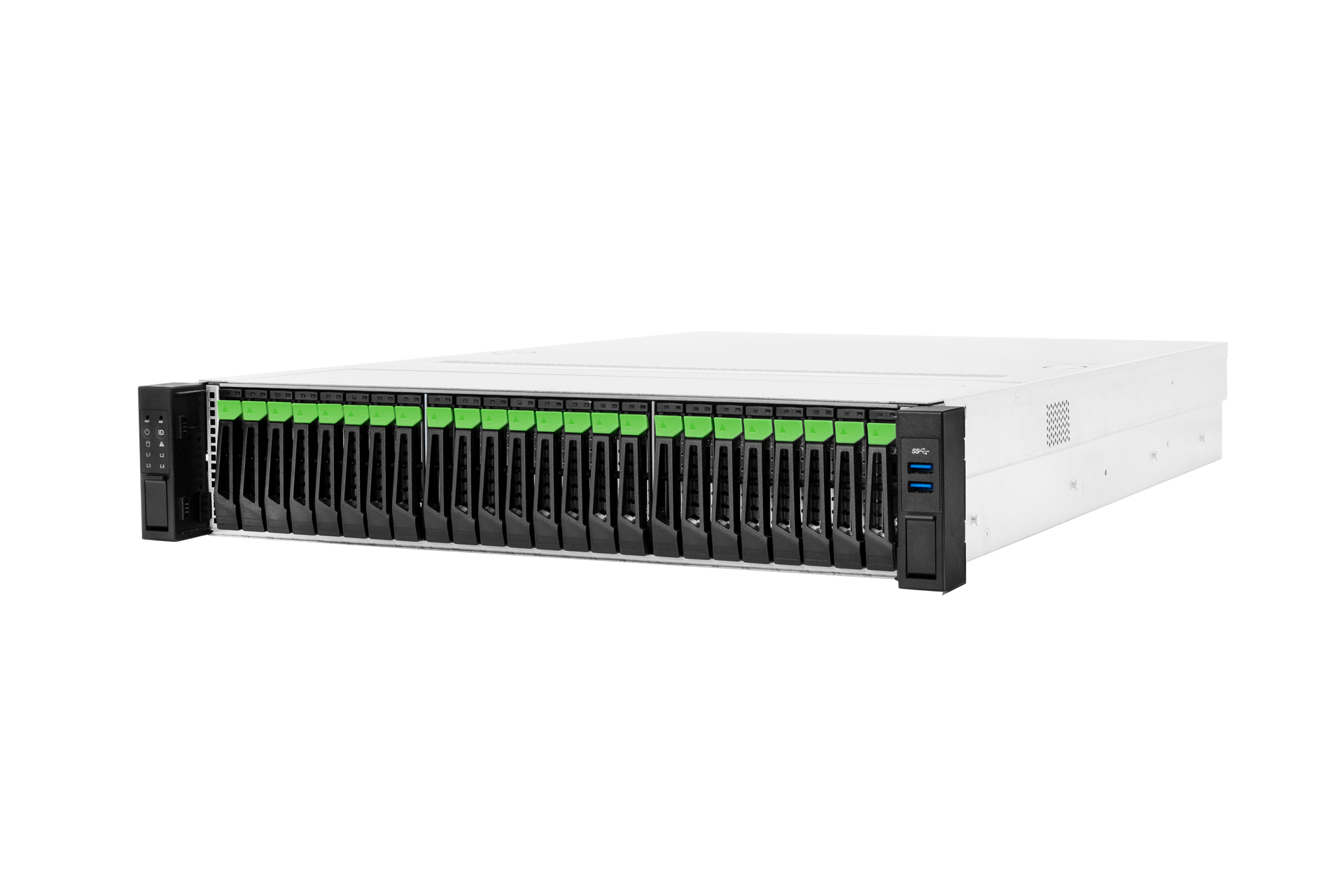

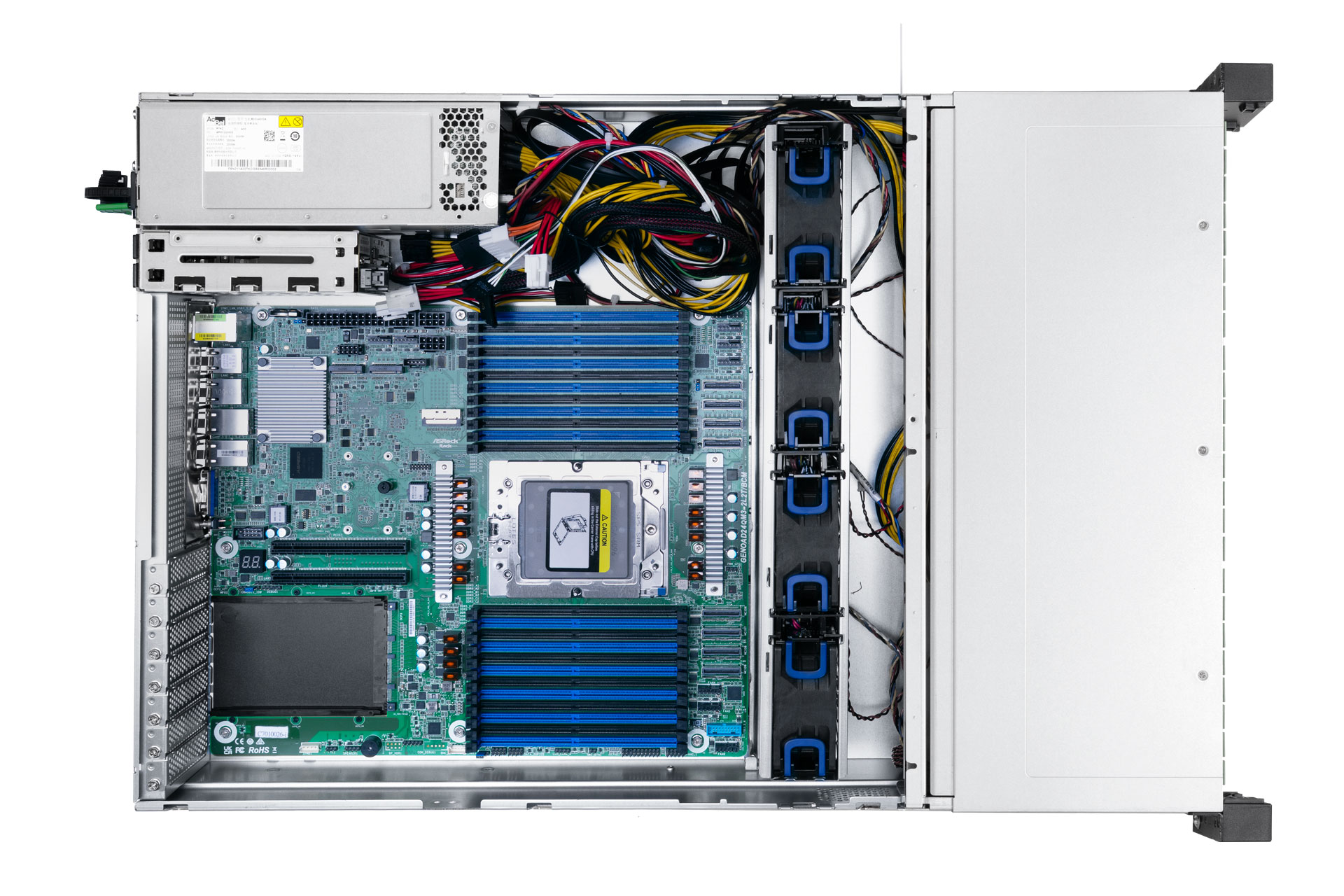

IW-RS224-09

Intel® Xeon Scalable / AMD EPYC Family 2U Storage Server

．Compliance for Intel® Xeon Scalable & AMD EPYC family
．2.5" hot-swap SSD trays x 24 (optional NVMe trays x 8, supports U.2 NVMe SSD)
．End-to-end 12G SAS host, expander and disk support
．2 x 2.5" SAS/SATA SSD on rear for system disks

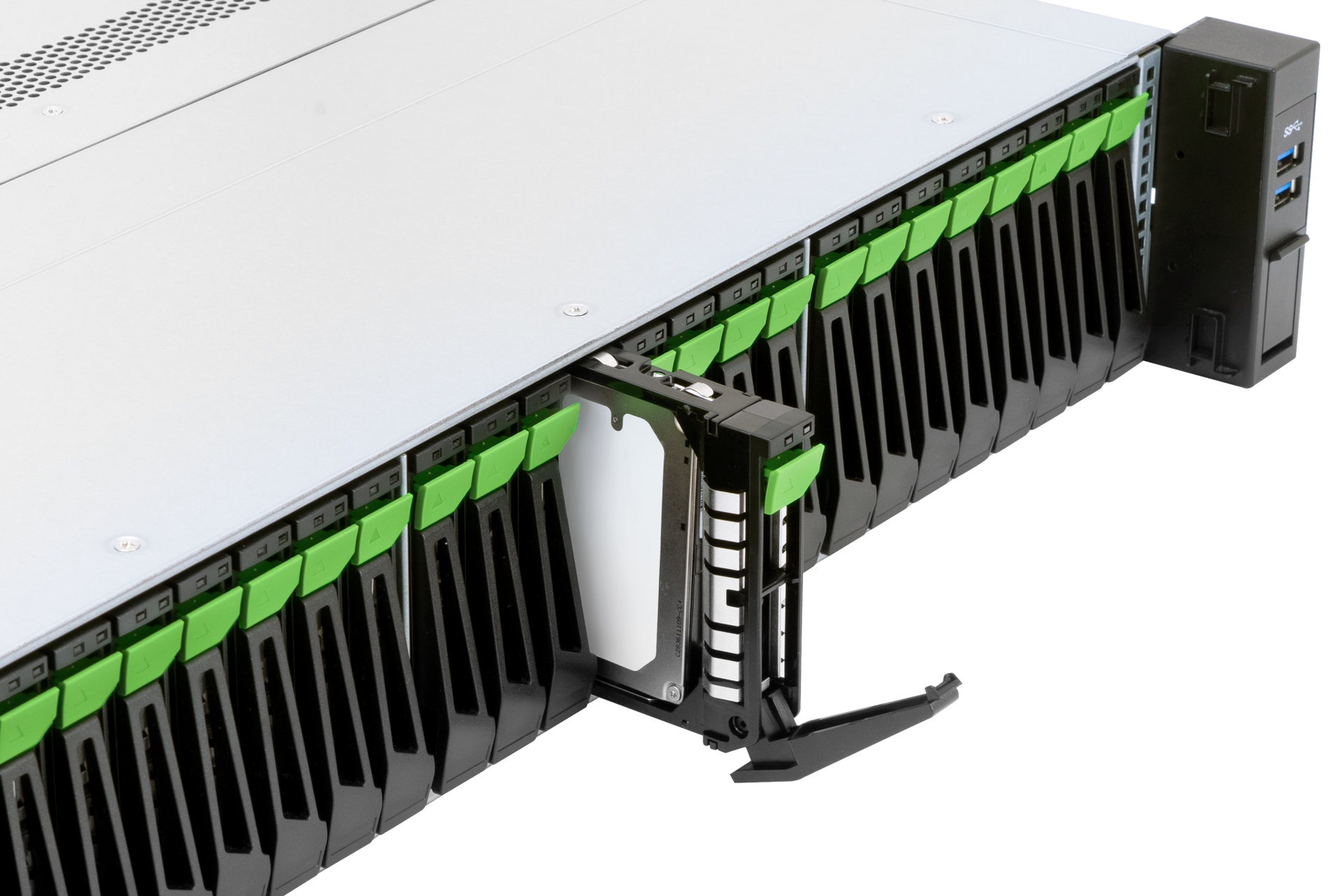

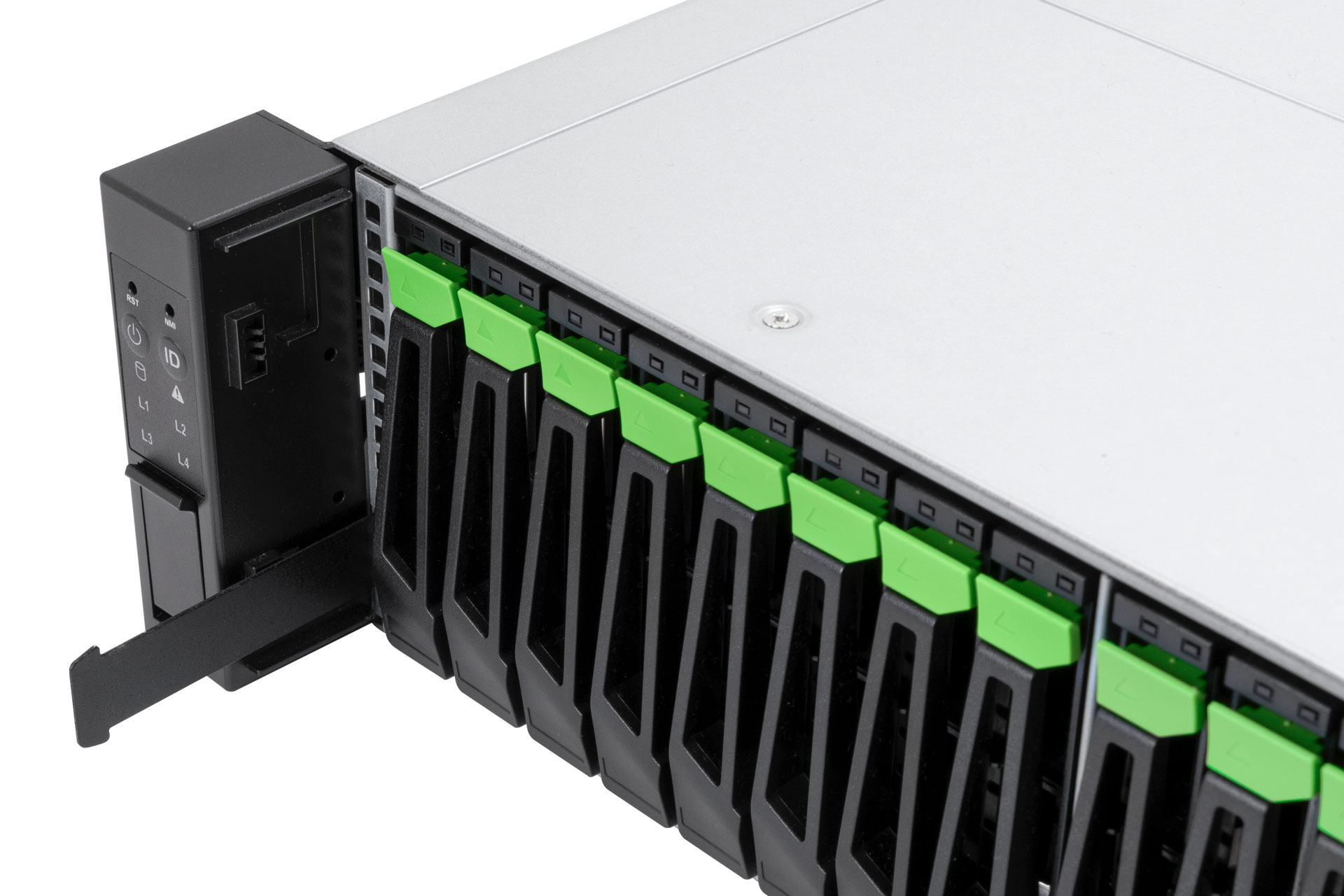

．Tool-less design for 2.5" SSD carrier
．High efficiency 1200W 80 Plus Platinum CRPS (optional)
．High-speed cooling fans for excellent thermal performance
．Supports tool-less ball-bearing slide rails

2U Rackmount Server

PCIe Gen5 and SAS4 Storage Server Solutions for Enterprise Architectures

The IW-RS224-09 is a high-performance NVMe hybrid storage server that delivers exceptional speed and reliability. With support for PCIe Gen5 and SAS4 data transfer speeds, it ensures rapid data throughput for even the most demanding business environments. Ideal for businesses requiring robust and fast storage solutions.

2.5" SSD

System disks

CRPS

80 x 38mm fans x 4

28" slide rails

Multiple Storage Options Available

Select from a range of storage options with various transfer rates. The IW-RS224-09 can support 24 x U.2 NVMe, 24 x SAS/SATA, or a combination of 12 x SAS/SATA and 12 x U.2 NVMe hot-swap drives.

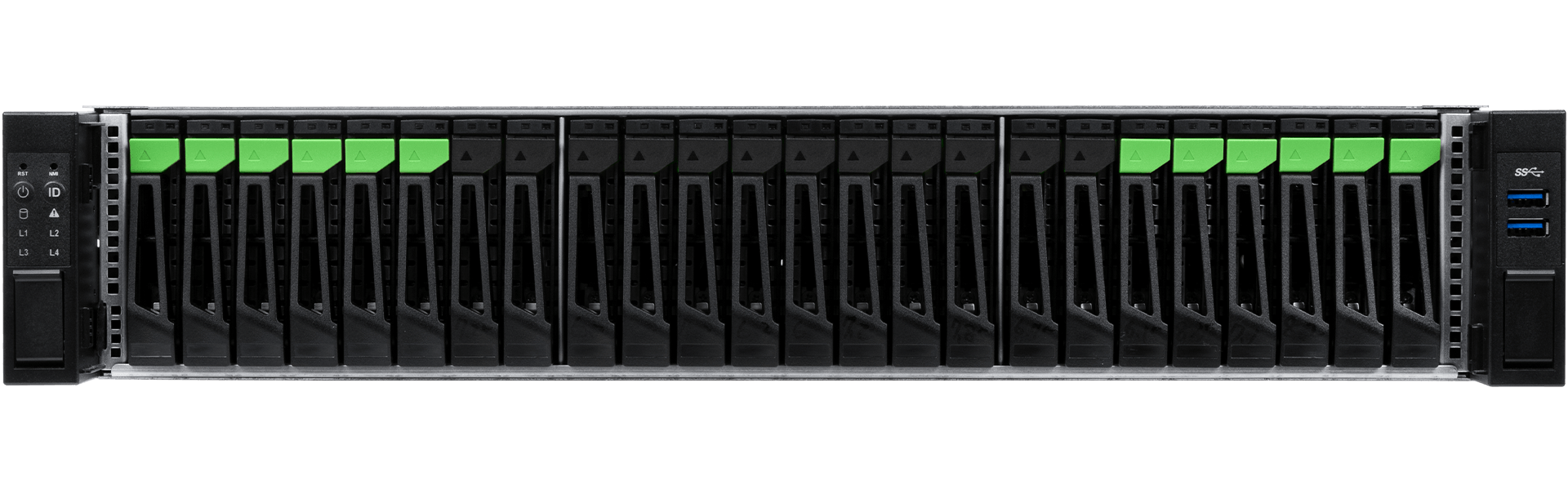

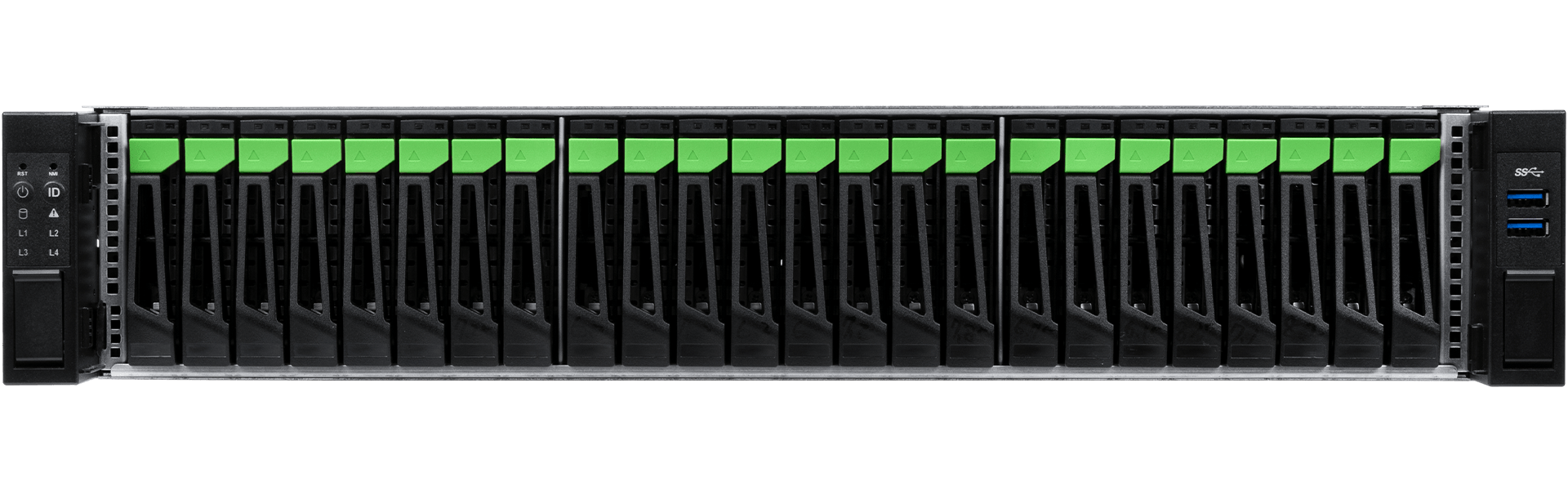

Distinguish PCIe Gen5 U.2 NVMe SSDs

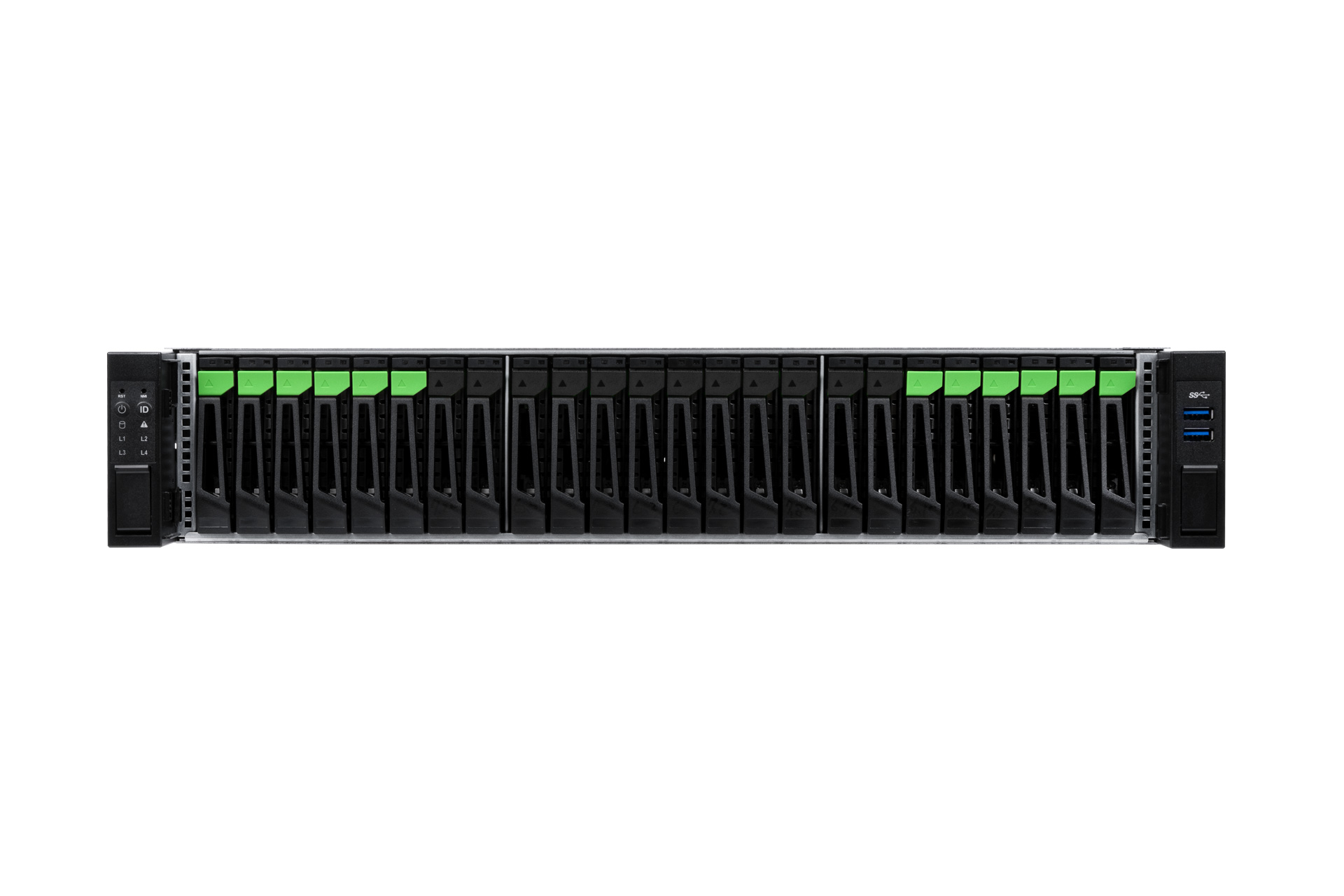

Distinguish between PCIe Gen5 NVMe and SAS4 SAS/SATA SSDs

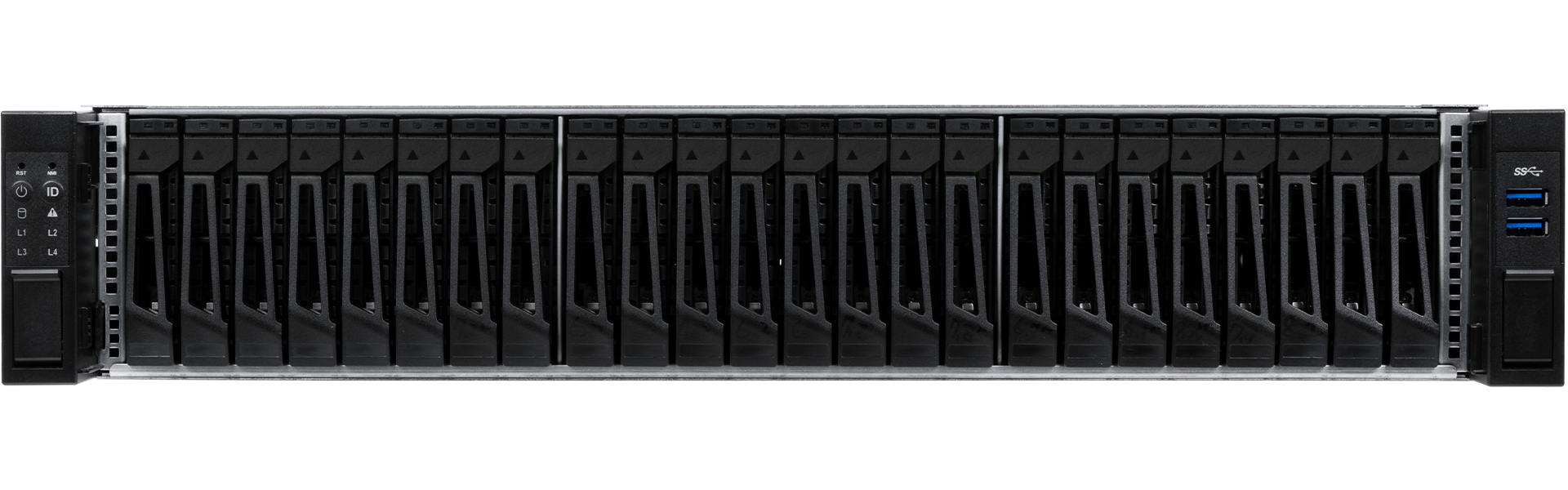

Distinguish SAS4 SAS/SATA SSDs

Boost Your Speed

The flexible, modular design of the SAS4 and PCIe Gen5 backplane conveniently supports different data transfer rates.

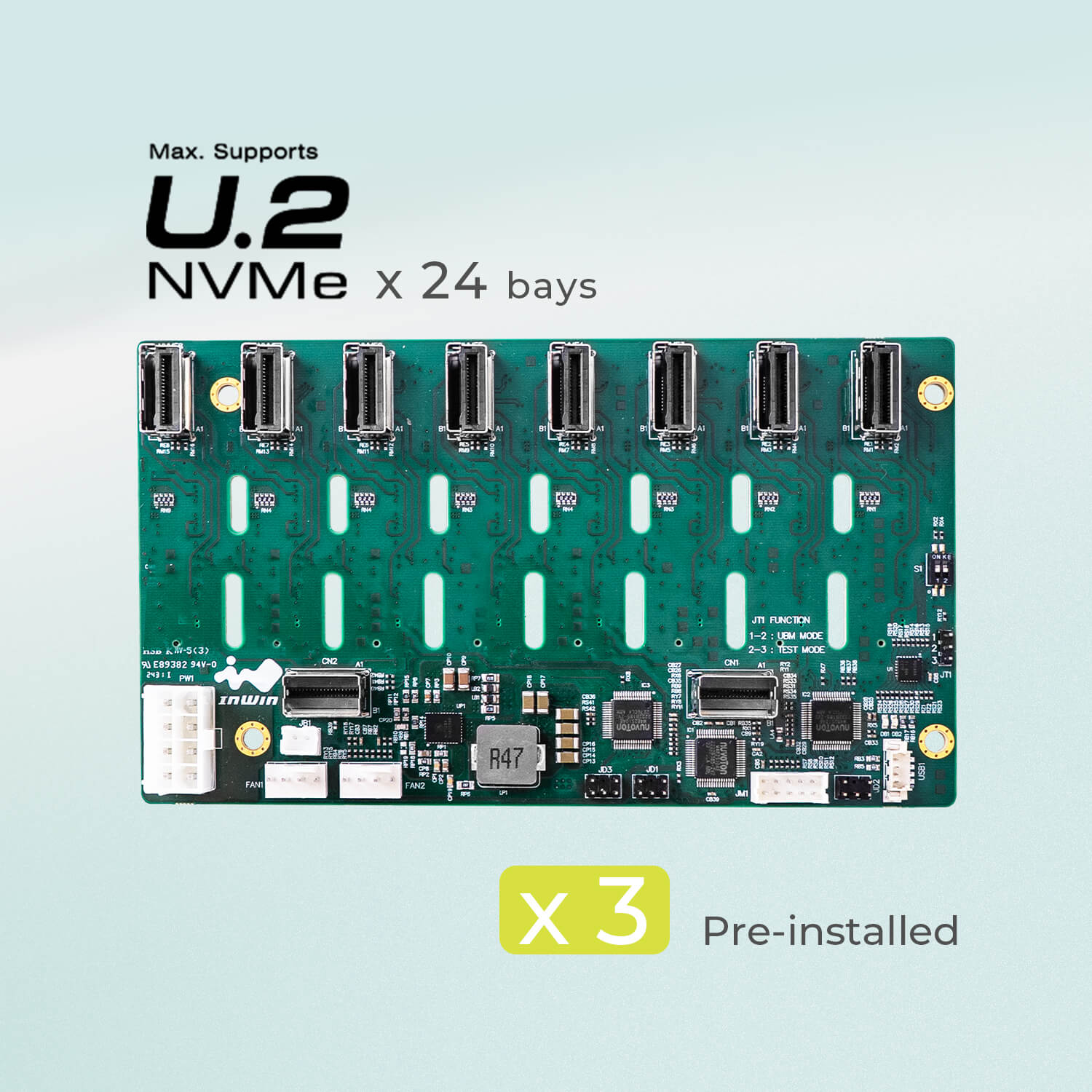

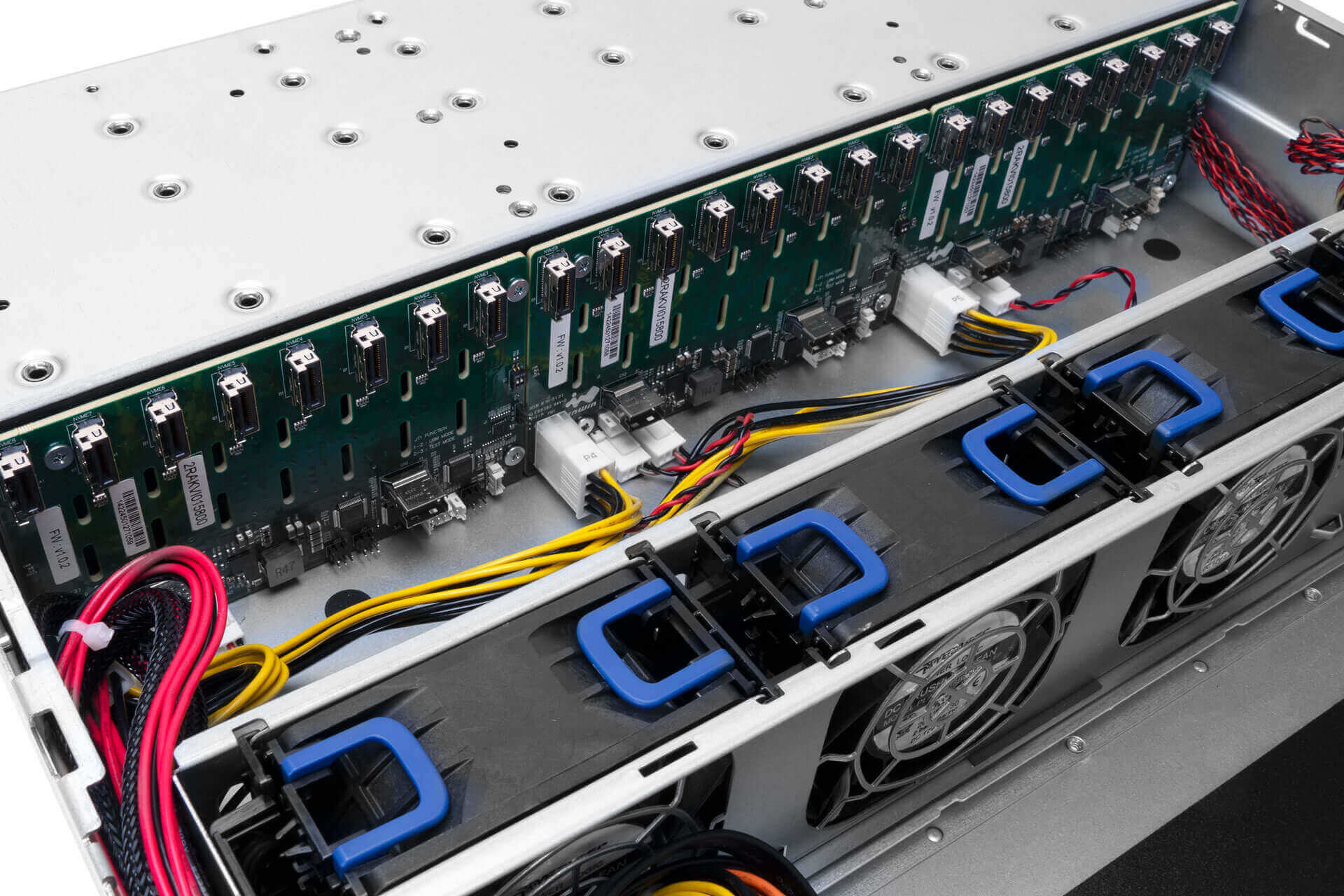

2U Boasts Three 8-bays Hybrid Backplanes

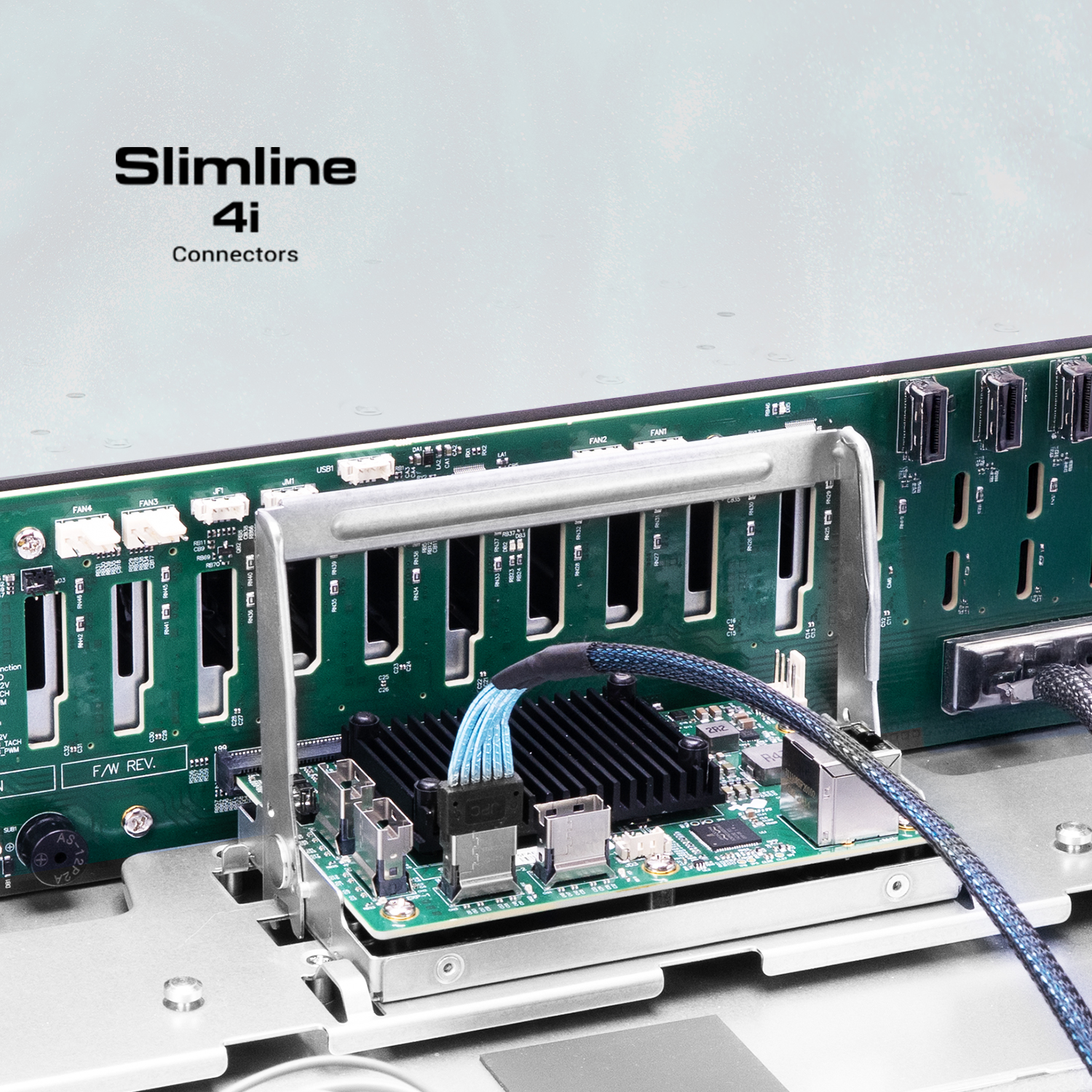

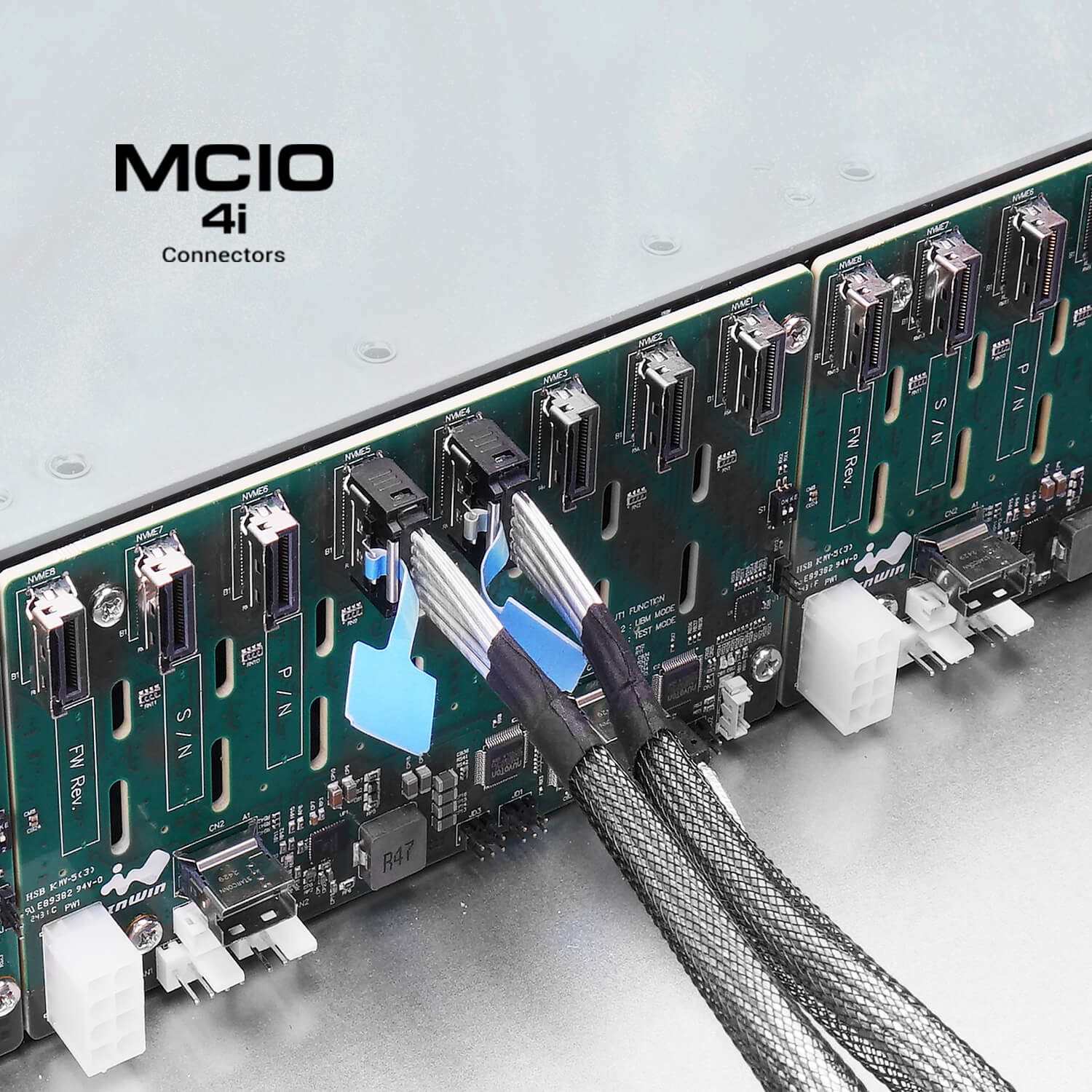

Supports 24 x U.2 NVMe, features 8 x MCIO (4i) connectors, 2 x Slimline (SFF-8654) connectors for SAS/SATA transfer rates, and comes pre-installed with three 8-drive capacity modules specific to this model.

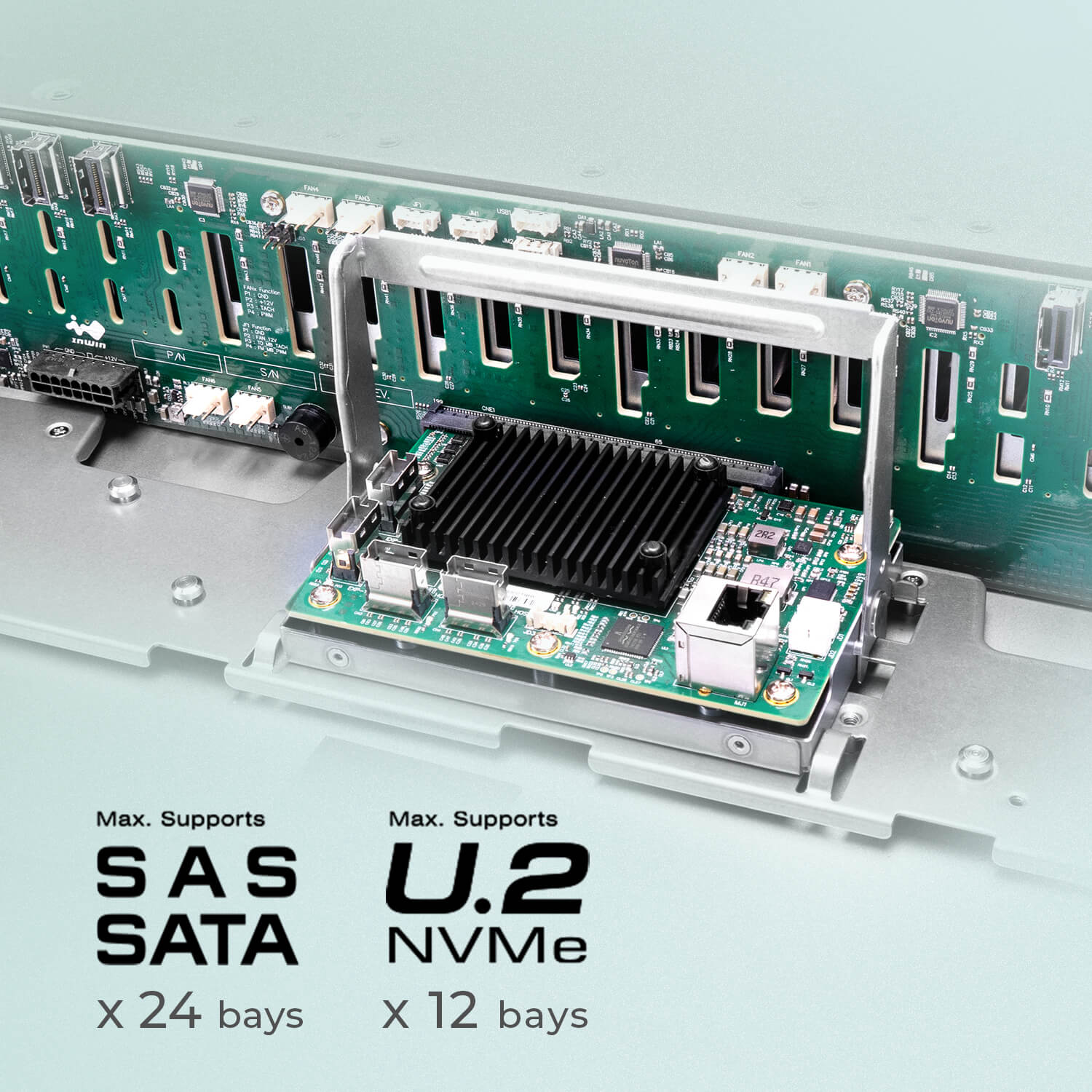

Hybrid Backplane & Expander

Supports 24 x SAS/SATA, or 12 x SAS/SATA and 12 x U.2 NVMe, features 12 x MCIO (4i) connectors, 4 x Slimline (SFF-8654) connectors for SAS/SATA transfer rate.

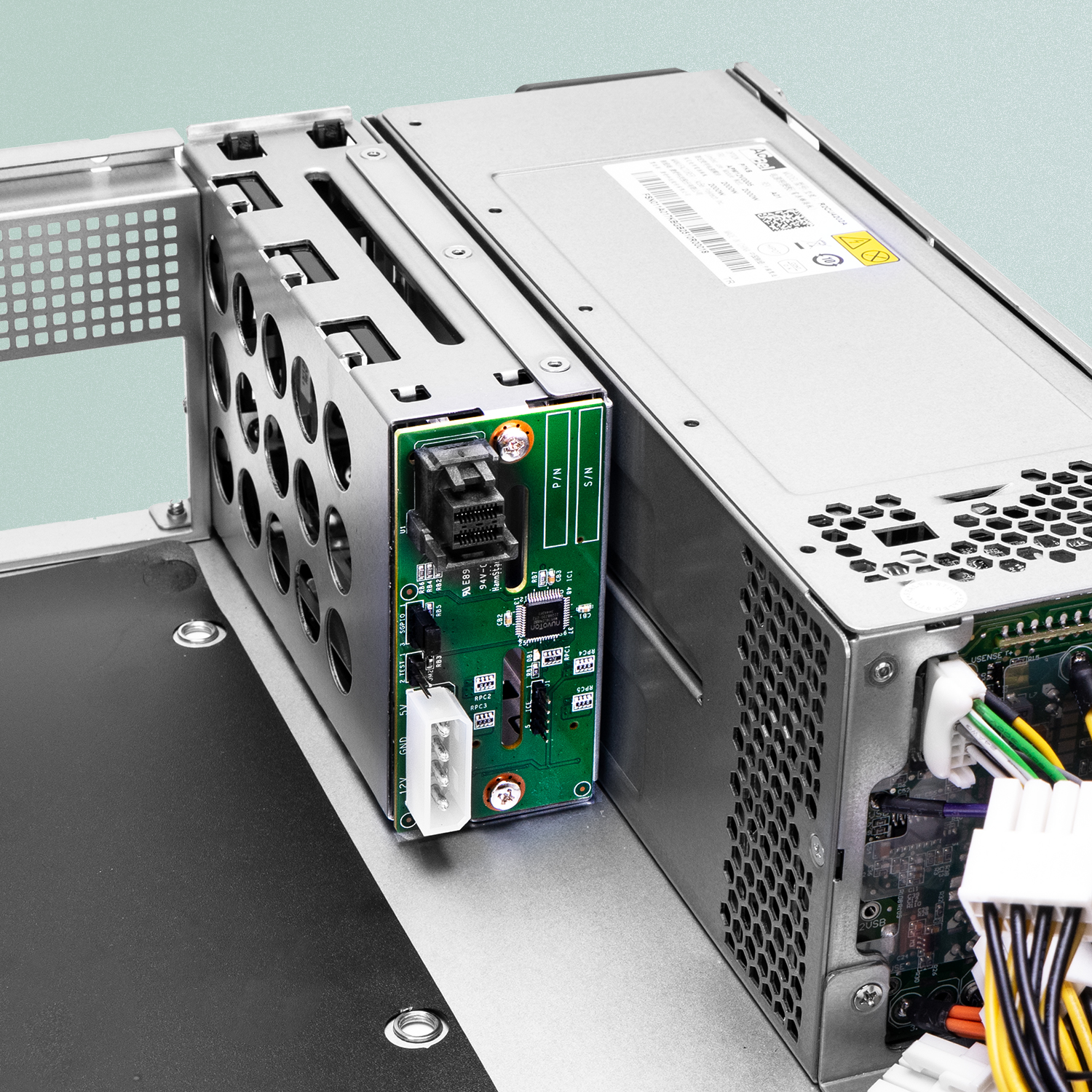

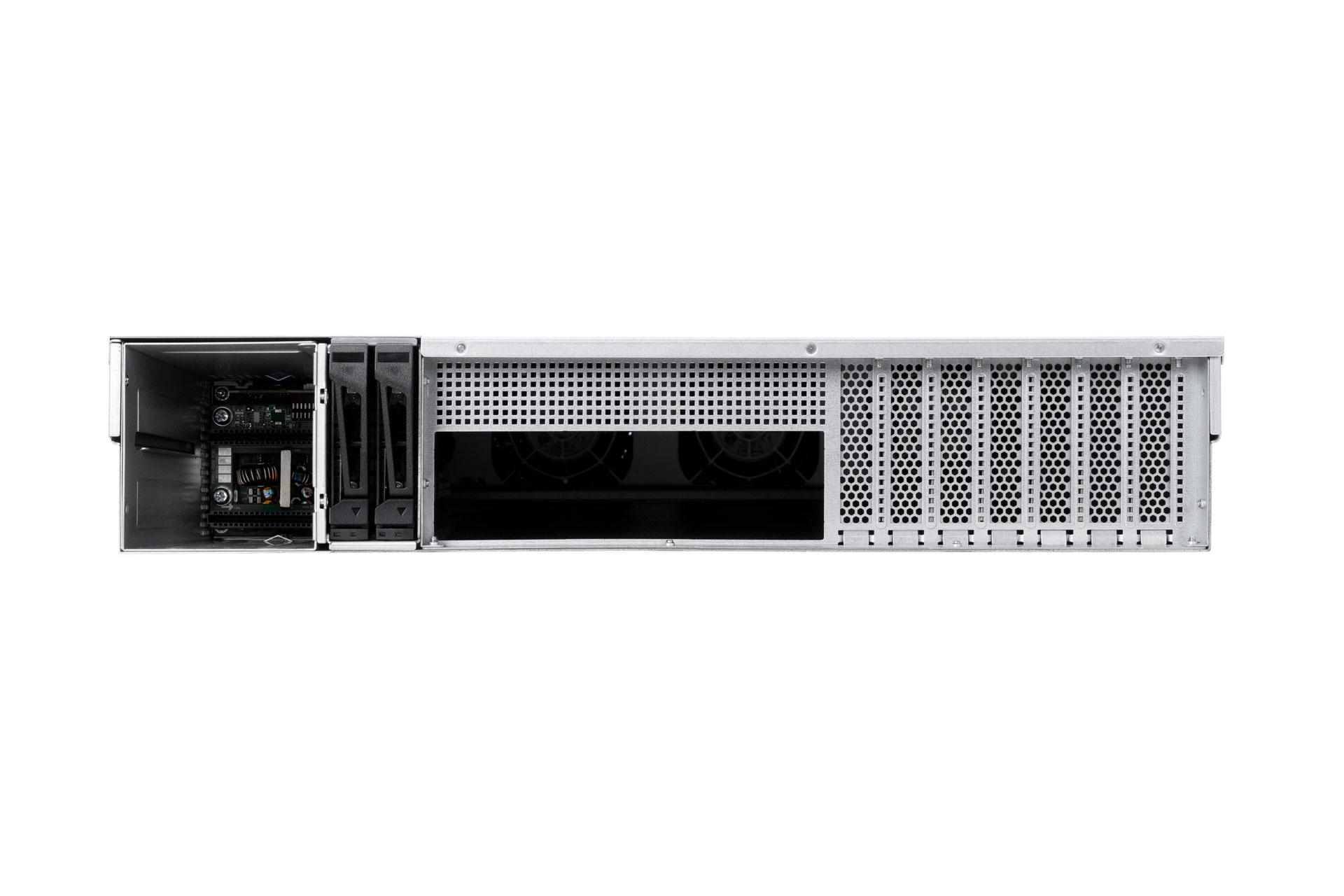

Rear Disk Backplane

The IW-RS224-09 supports 2 x 2.5" SAS3/SATA SSD drive bays at the rear of the server to accommodate system disk requirements.

Customizable Cables

InWin offers two standard options for MCIO cables, 500mm and 600mm, with additional MCIO and Slimline customization available to meet customers' specific motherboard requirements.

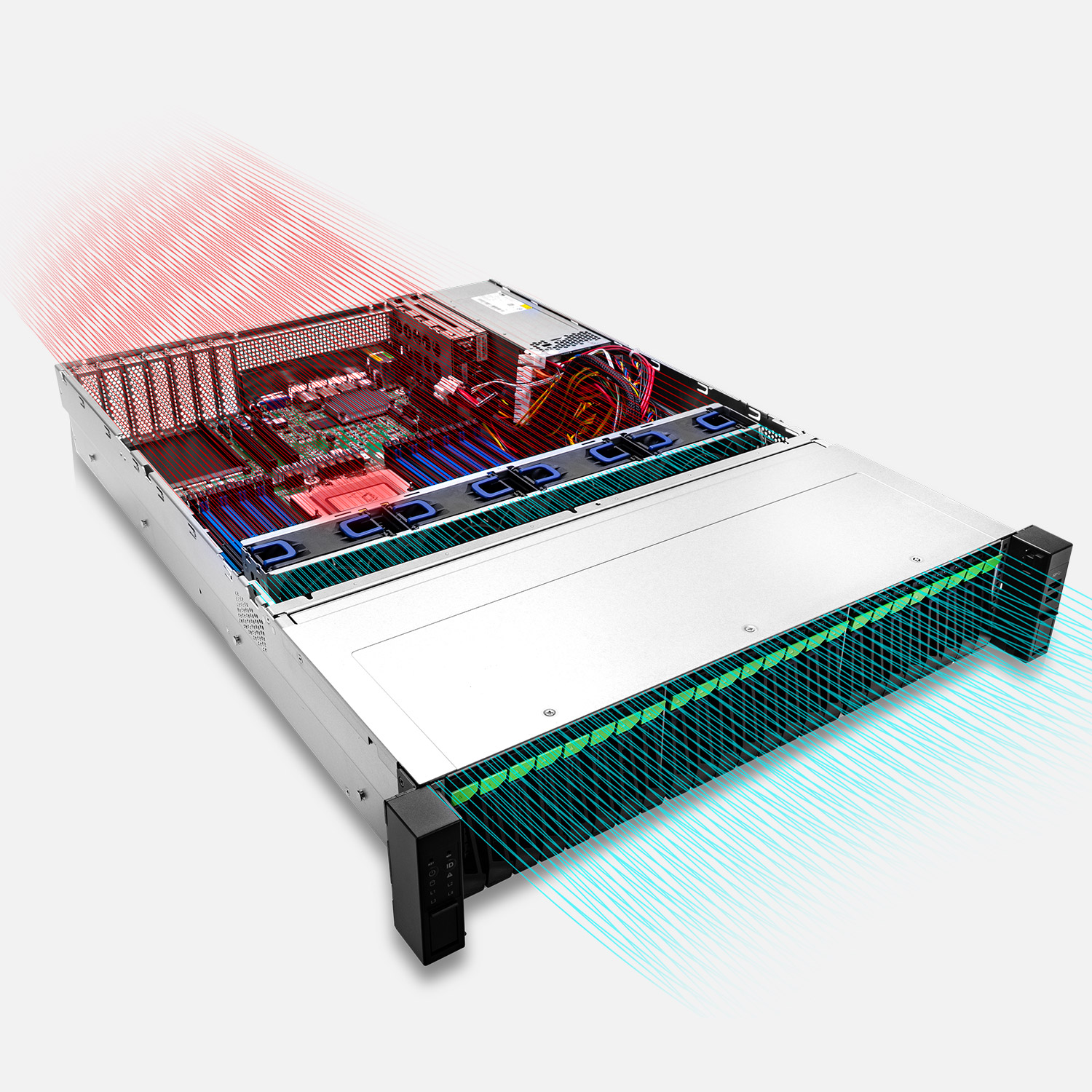

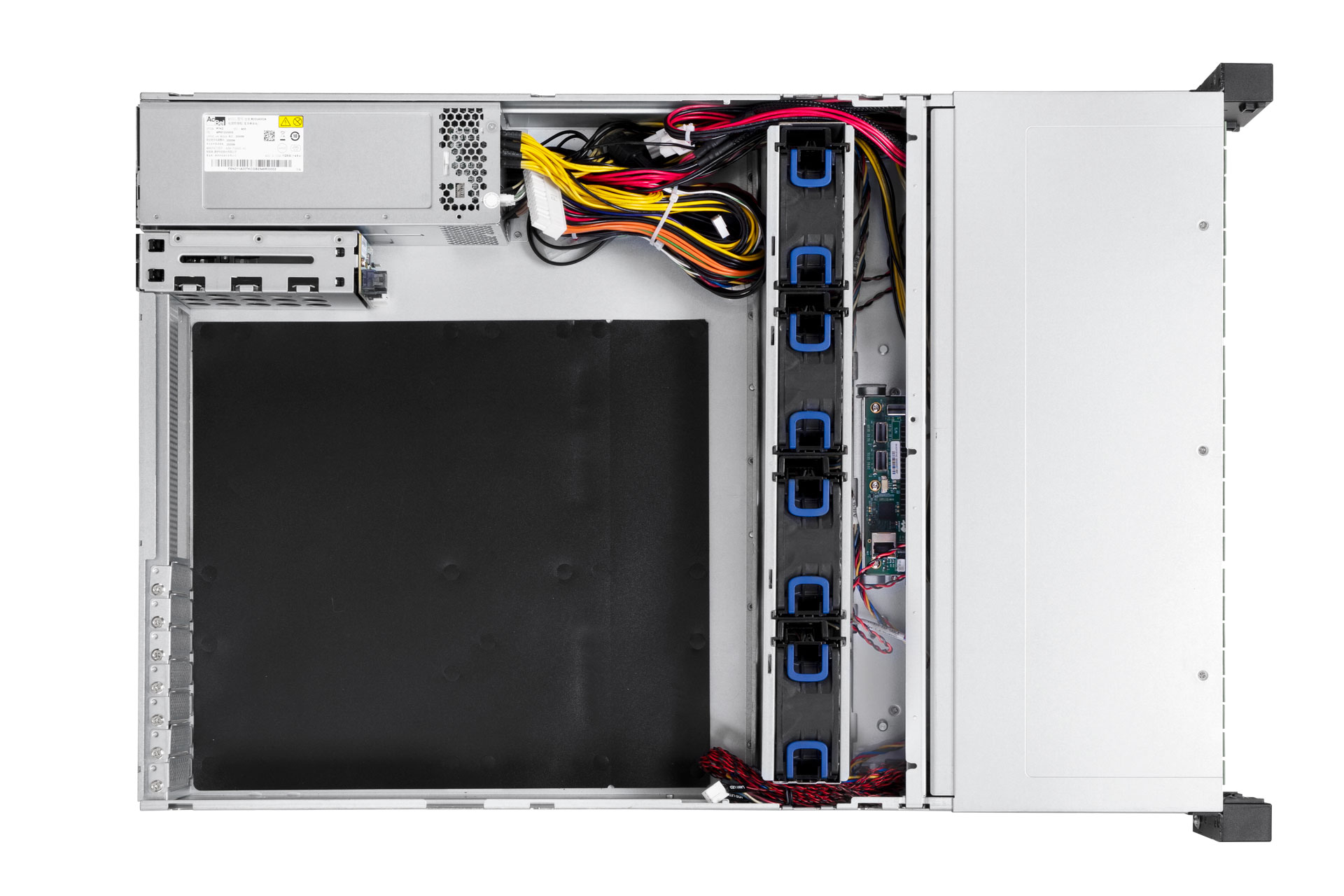

Efficient Cooling

for Next-Gen Performance

The ventilated front trays enhance airflow, while four hot-swappable modular fans running at 17,000 RPM ensure optimal heat dissipation and meet the cooling needs of PCIe Gen5 and SAS4, providing efficient thermal management.

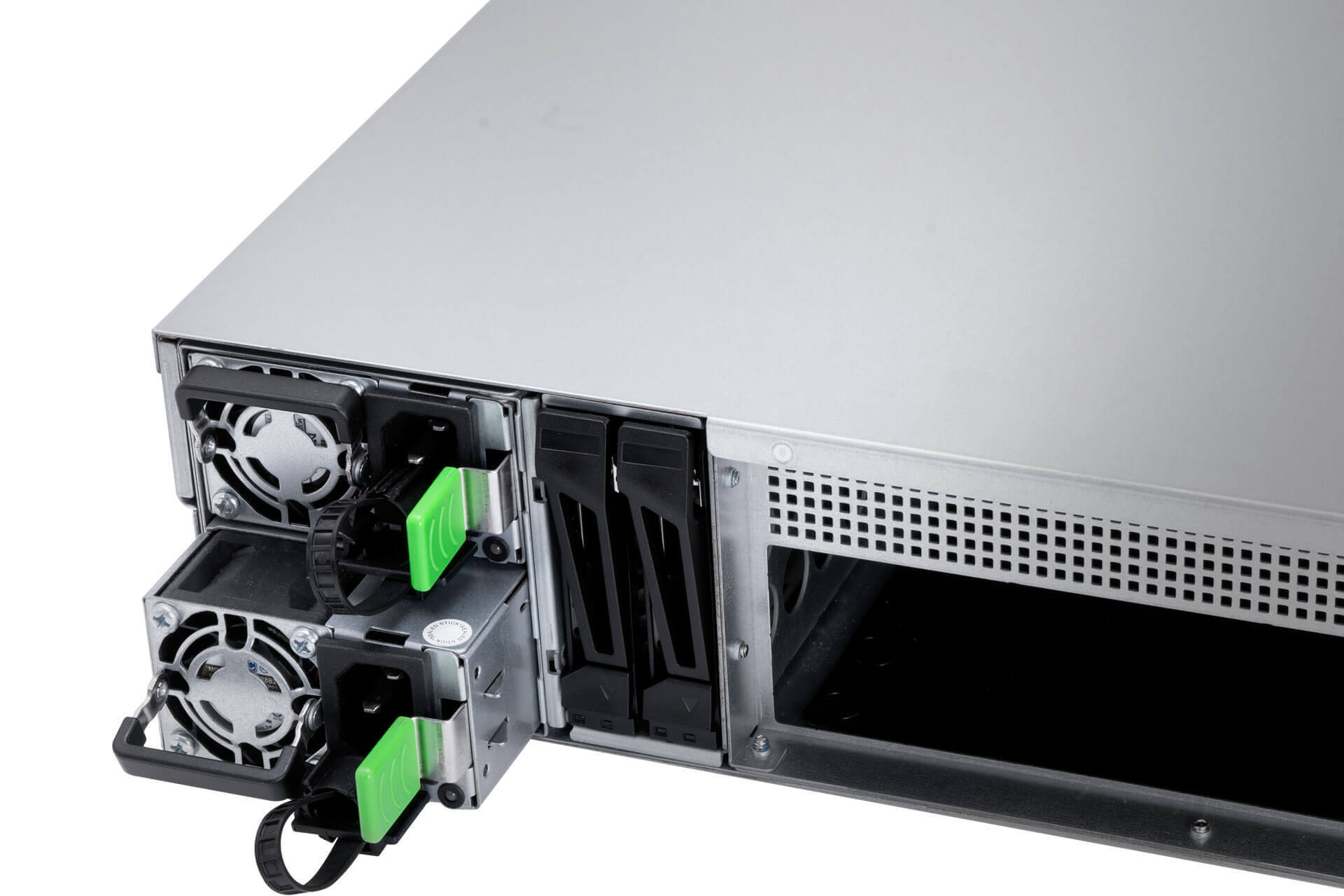

Common Redundant Power Supplies

The IW-RS224-09 supports up to 2000 watts CRPS with 80 Plus® Platinum performance, stabilizing system operation and significantly enhancing overall performance.

Power Cable Information

Unit of Length: mm

24-Pin Main Motherboard

4+4-Pin CPU

8-Pin Backplane or CPU x 4pcs

1. 4-Pin Rear SSD Backplane
2. SATA

8-Pin Backplane or CPU x 2pcs

PMBus

8-Pin Backplane

Specification
Industry Standard	EIA-RS310D
M/B Form Factor	ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13")
Drive Bay	• External 2.5" screwless hot-swap SSD trays x 24 (Optional: NVMe trays x 8, supports U.2 NVMe SSD) • Rear 2.5" screwless hot-swap SSD trays x 2 (Supports SAS 12G)
Power Supply	Supports: • Form factor: 80 Plus Platinum CRPS • Watt: 550W/800W/1200W
Indicators	Power LED, LAN1/LAN2/LAN3/LAN4 LED, System LED, ID LED, HDD LED
Front Control Panel	Power on/off, Reset, NMI, ID SW, USB 3.0 x 2
Backplane-1	Mini-SAS HD (SFF-8643), 12Gb/s with expander plus Slimline x 8
Backplane-2	Mini-SAS HD (SFF-8643), 12Gb/s with expander plus Oculink x 8
SAS 12G Expander	Supports Broadcom SAS 35 x 36R expander
Cooling Fans	80 x 38mm PWM hot-swap fans x 4, 12000RPM
Expansion Slot	Low-profile PCIe slots x 7
Material	• Material: SGCC • Thickness: 1.0mm
Rail Kit	Optional: supports 28" tool-less & ball-bearing slide rails
Product Dimensions (DxWxH; Chassis Only)	660 x 448 x 87.5mm (26" x 17.6" x 3.4")
Package Dimensions (DxWxH)	845 x 595 x 223mm
Weight (Chassis Only)	• Net weight: 13.45kg • Gross weight: 16.76kg
Cubic Feet	3.96
Container Information	Single packing with pallets: • 20': 160pcs • 40': 368pcs • 40' HQ: 414pcs
