IW-RG658 停止開發
6.5U GPU Server
- GPU server tailored for AI, deep learning, and LLM HPC workloads

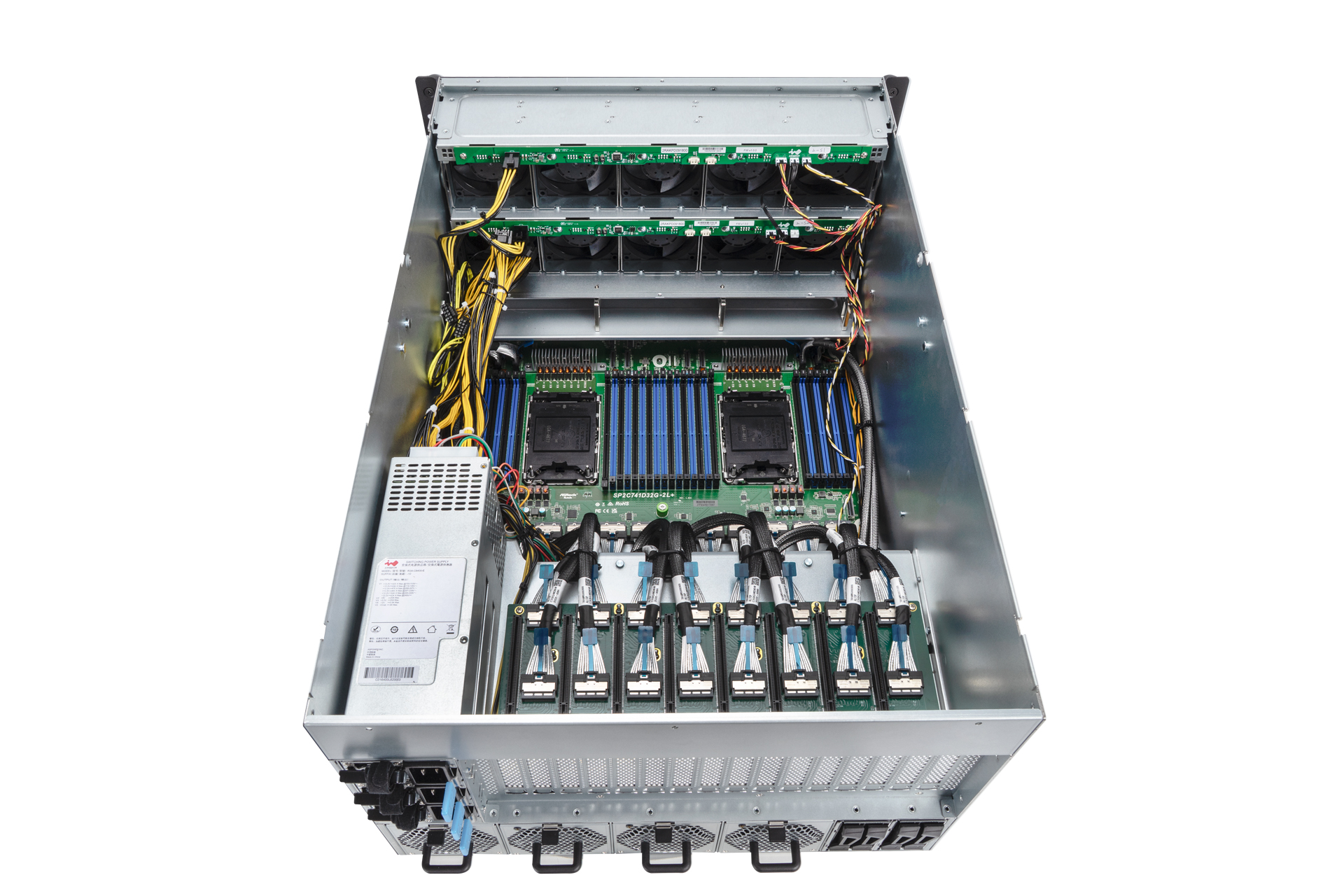

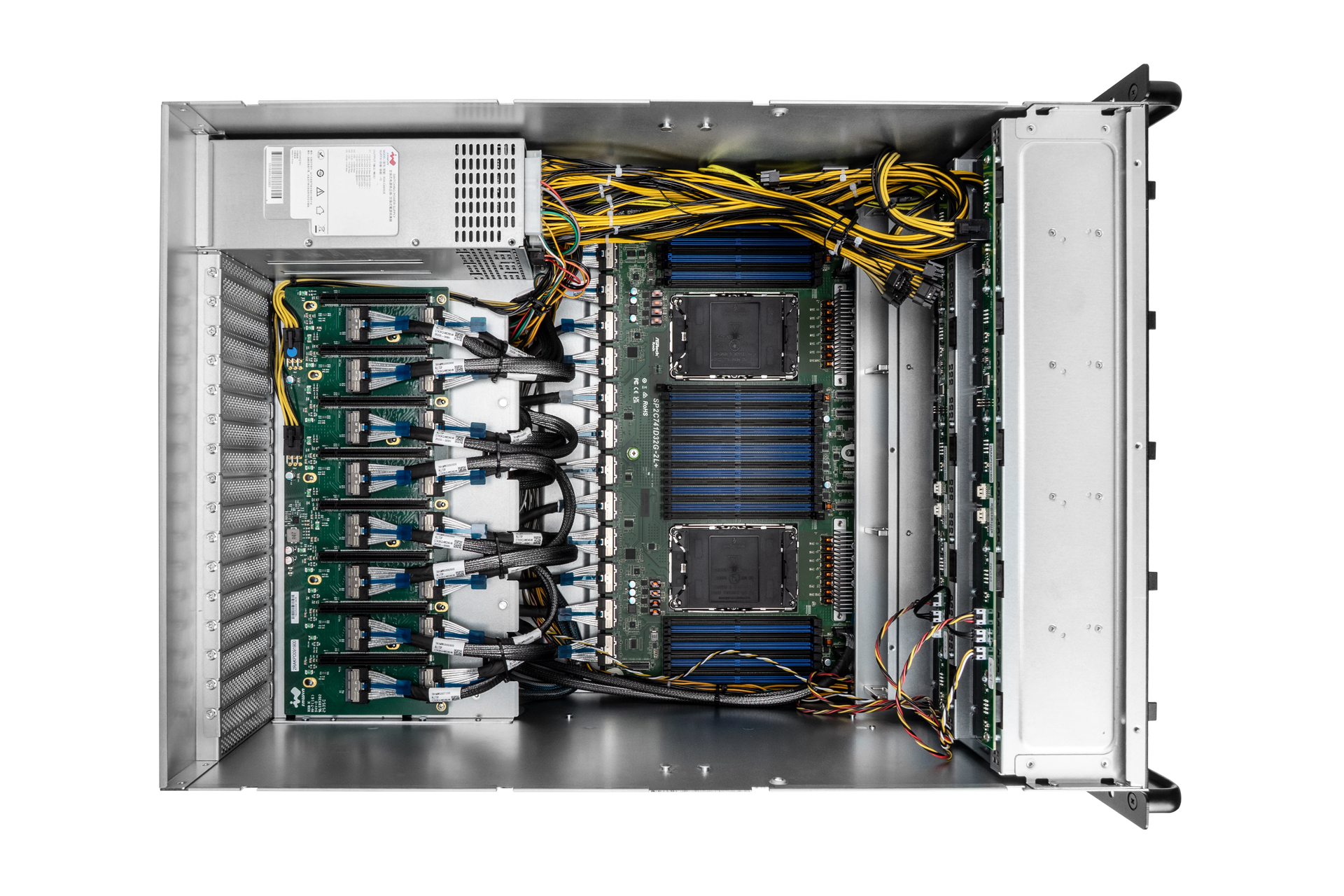

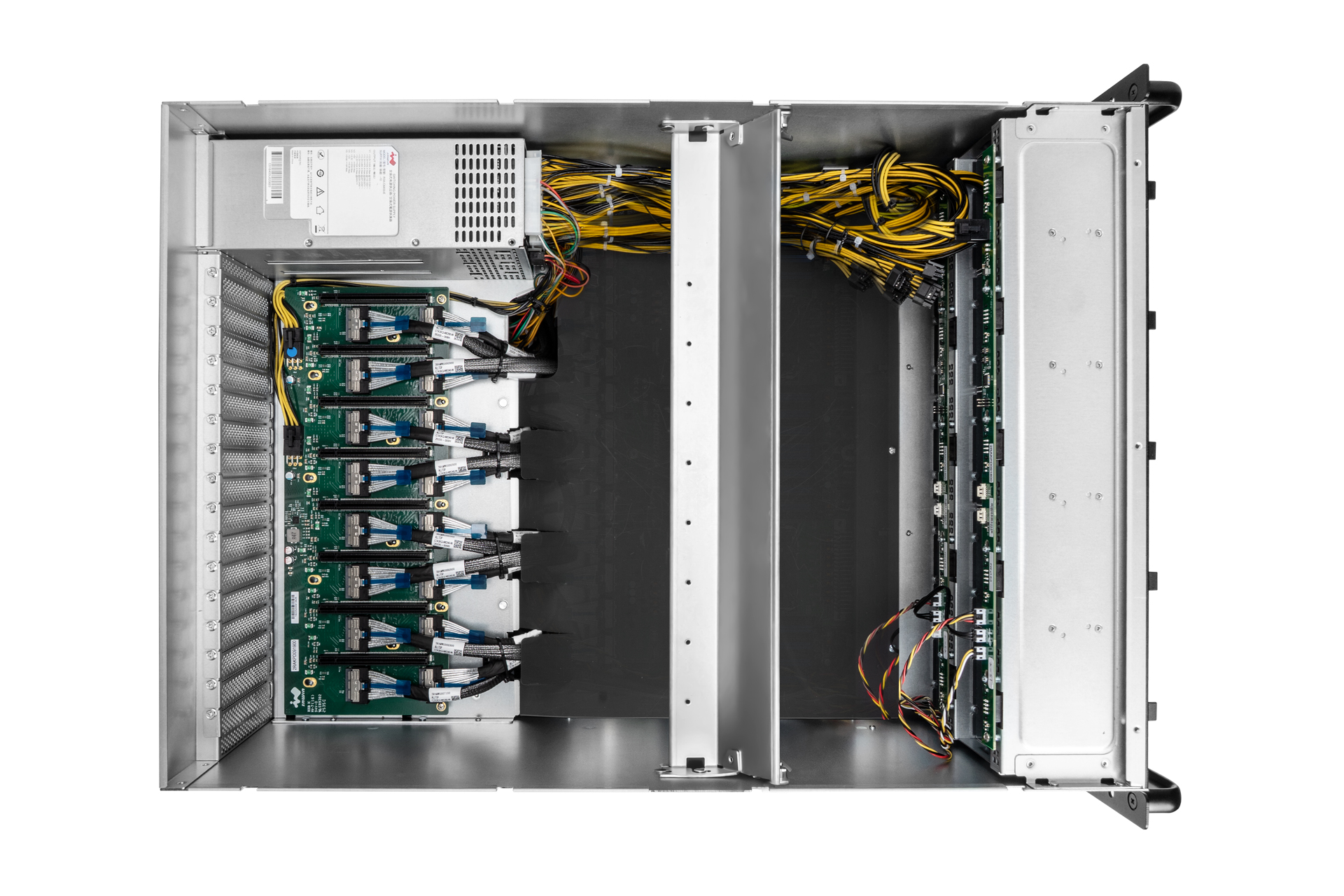

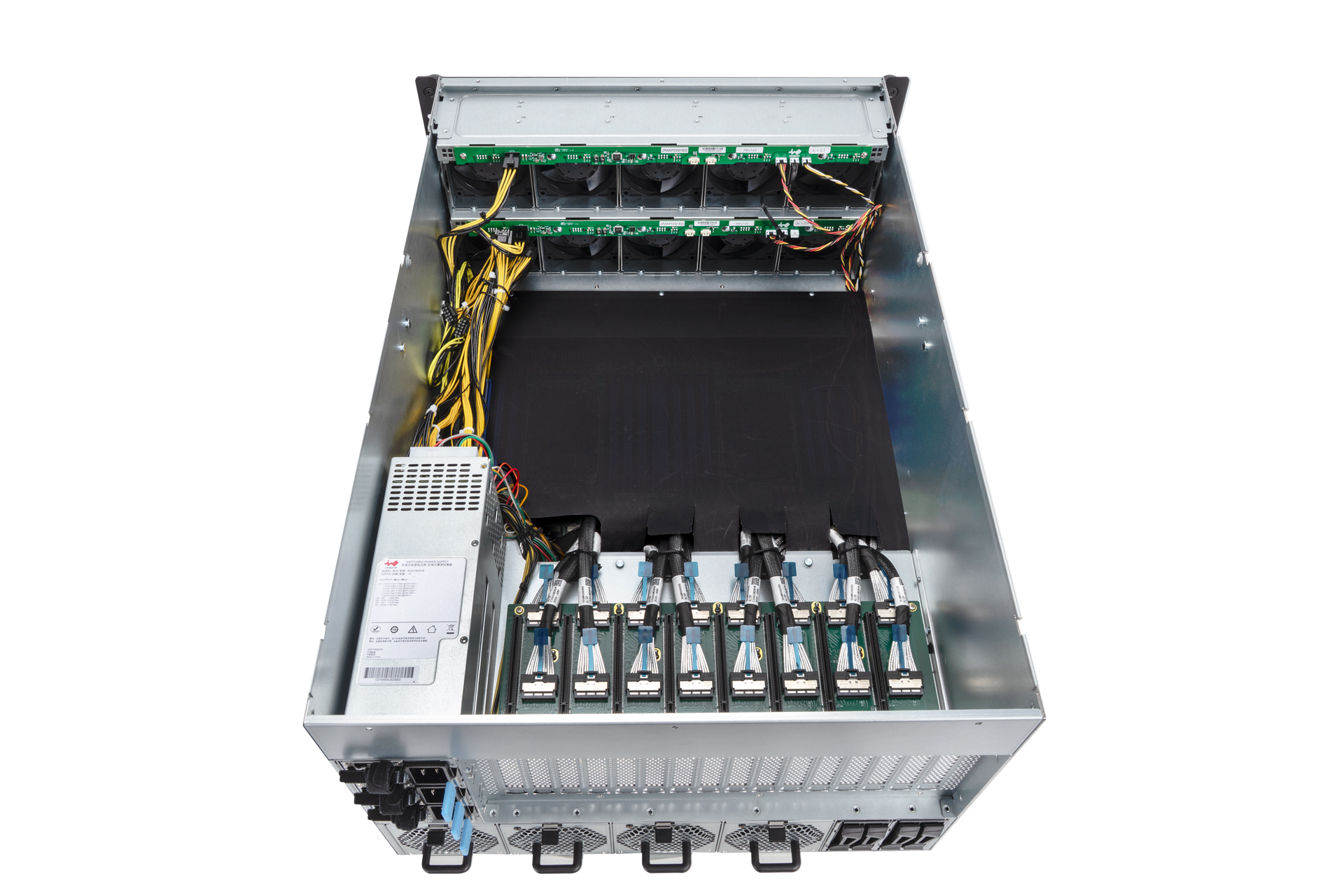

- 6.5U dual-chamber design: 4.5U for GPUs and 2U for system components
- Supports 8 x NVIDIA RTX™ A6000 GPUs with convert board supporting 16 FHFL PCIe Slots

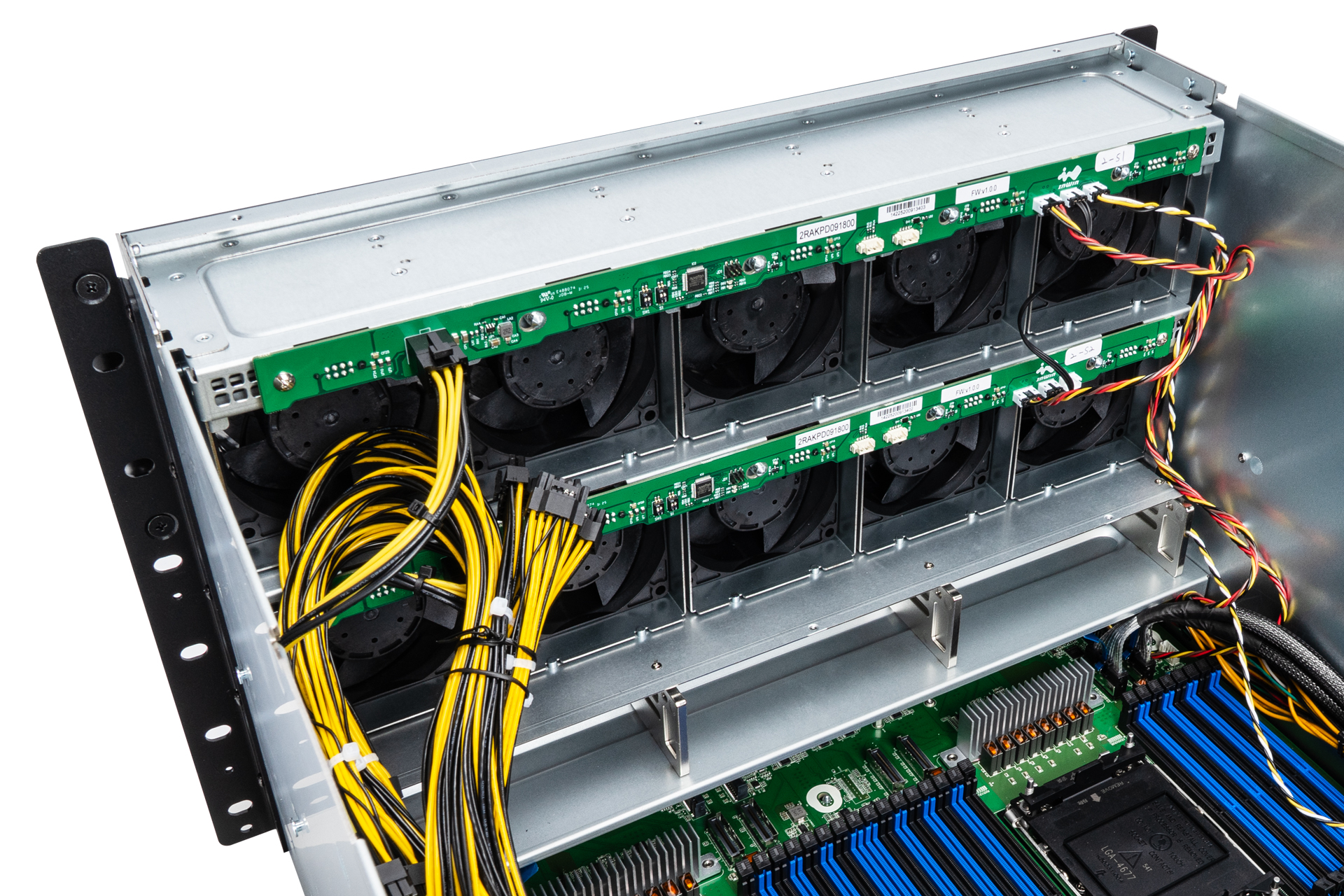

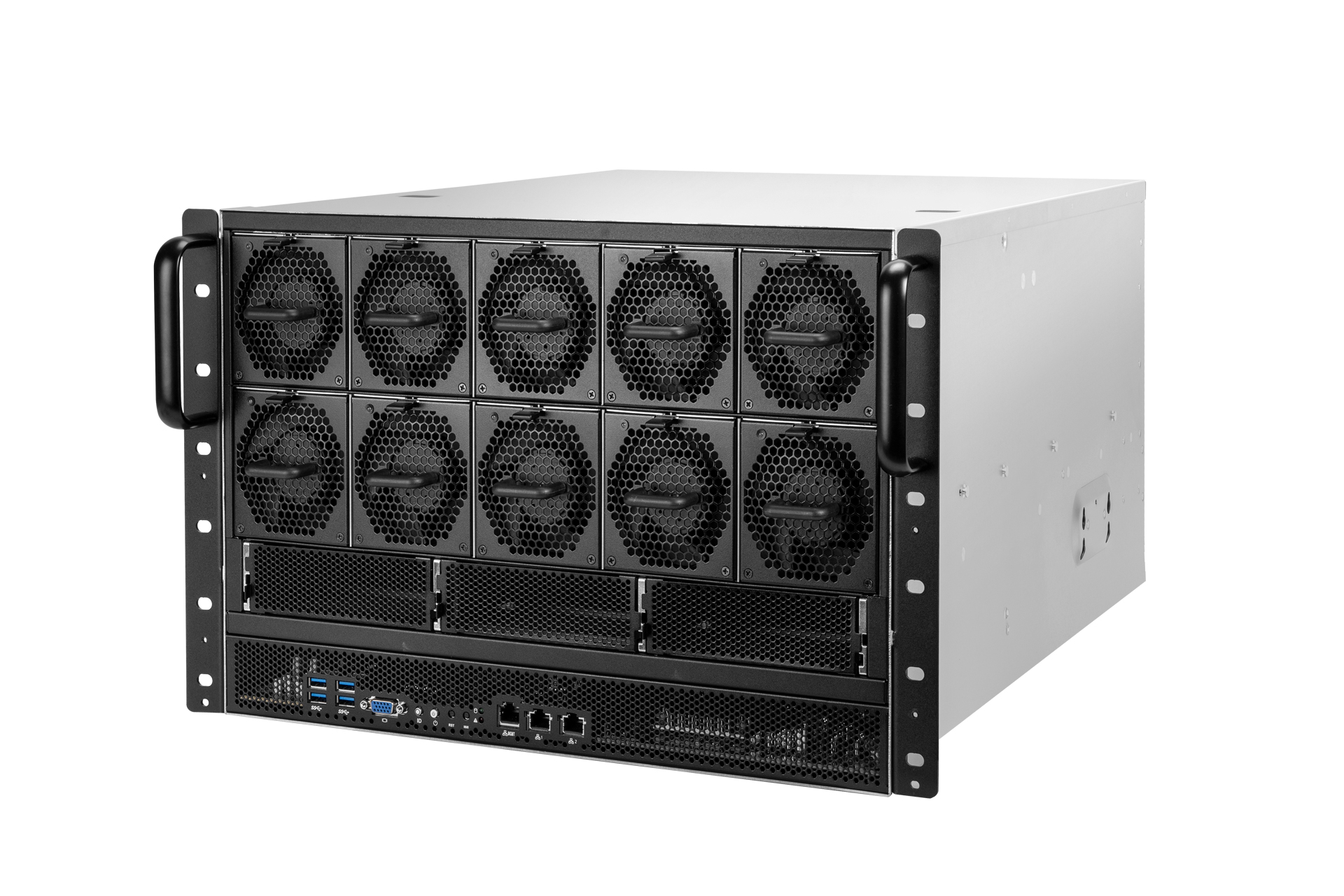

- Advanced thermal architecture with 14 hot-swappable 80×56 mm PWM fans for GPU and system cooling
- Front access 8 x E1.S NVMe bays with MCIO 8i connectors for Gen5 ultra-fast data throughput

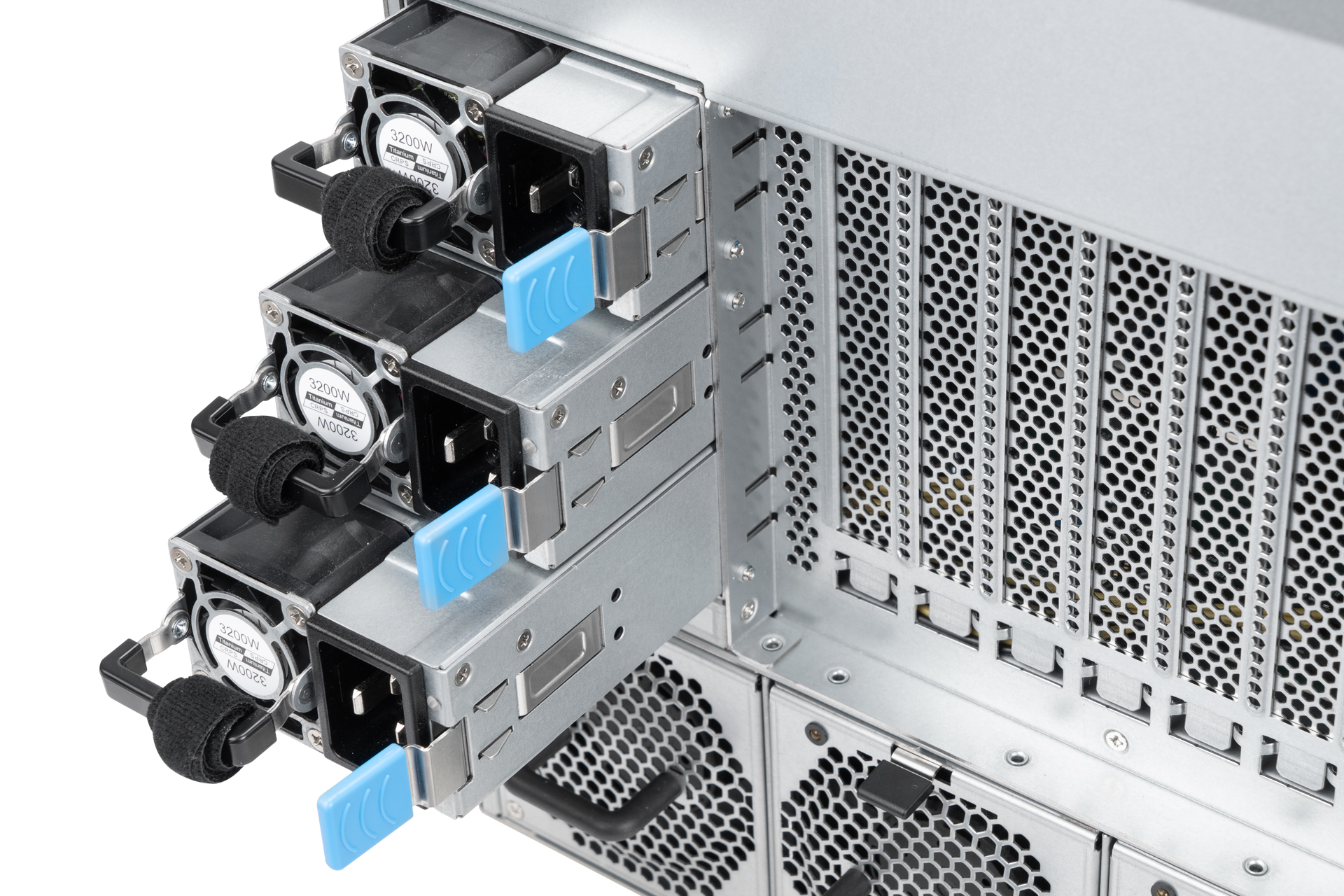

- Dual 80 PLUS® Titanium CRPS with total 6.4 kW output ensure reliable high-density GPU power delivery
| Specification | |
|---|---|
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| M/B Form Factor | Proprietary Motherboard (16.93" x 13.79") |

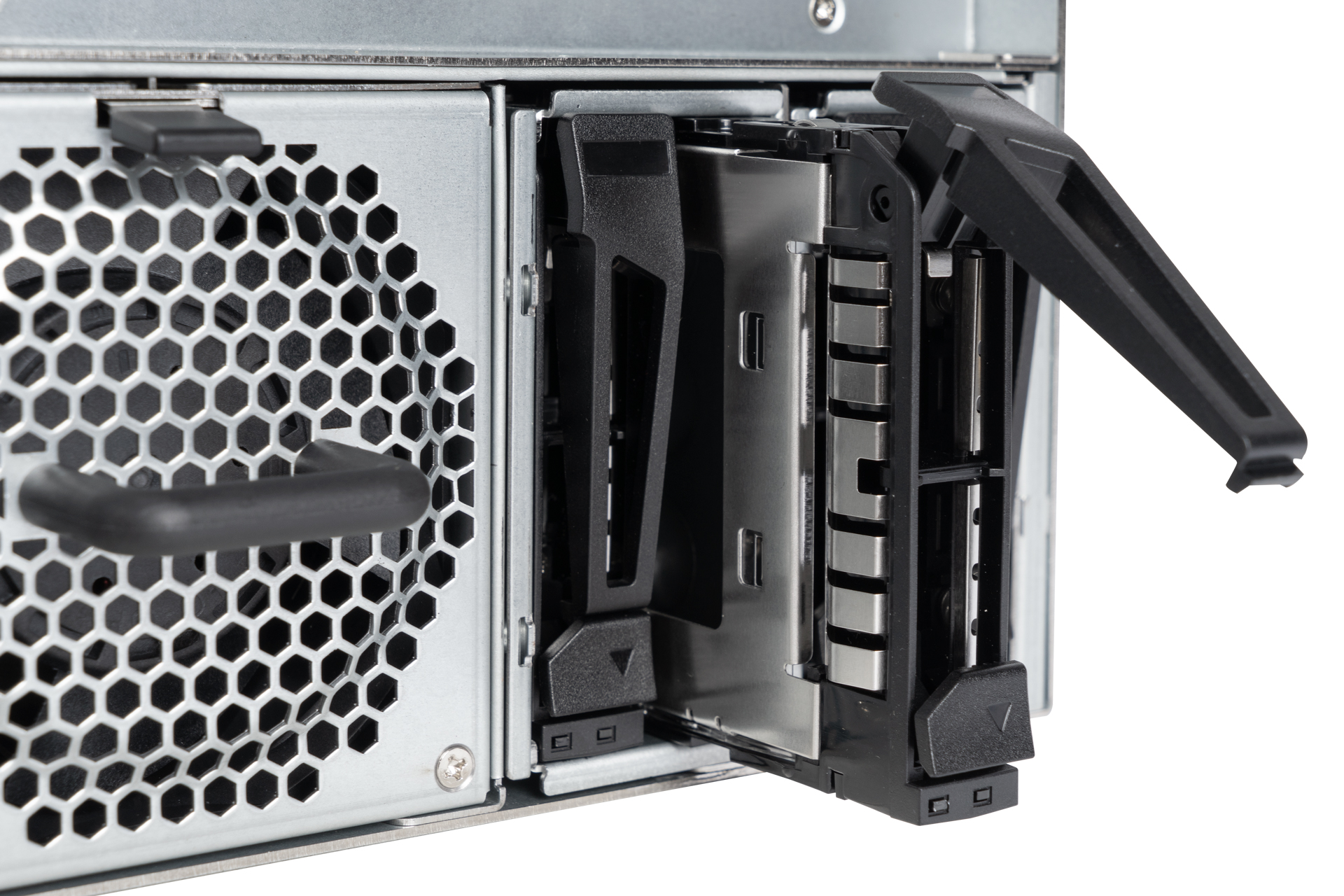

| Drive Bay | • External NVMe E1.S 15mm hot-swap trays x 8 (Optional) • External Rear 2.5" Hot-Swap HDD tray x 4 |
| Power Supply | Pre-installed: • Form factor: 2+1 80 PLUS Titanium CRPS • Total power: 6400W |
| Indicators | Power LED, LAN 1/LAN 2, system LED, HDD LED |
| Front Control Panel | Power on/off, system reset, USB 3.0 x 2 |
| Cooling Fans | Pre-installed • Front: 80 x 56 mm PWM fans x 10, 17000 RPM (Optimized for GPU) • Rear: 80 x 56 mm PWM fans x 4, 17000 RPM (Optimized for M/B & CPU) |
| Expansion Slot | Full-height PCIe slots x 16 |
| Material | • Material: SGCC • Thickness: 1.2mm |
| Rail Kit | 28" tool-less & ball-bearing slide rails included |
| Product Dimensions (DxWxH; Chassis Only) | 650 x 440.4 x 288.9mm (25.59" x 17.24" x 11.37") |
| Weight (Chassis Only) | TBC |
| Package Dimensions (DxWxH) | TBC |
| Cubic Feet | TBC |
| Container Information | TBC |
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications

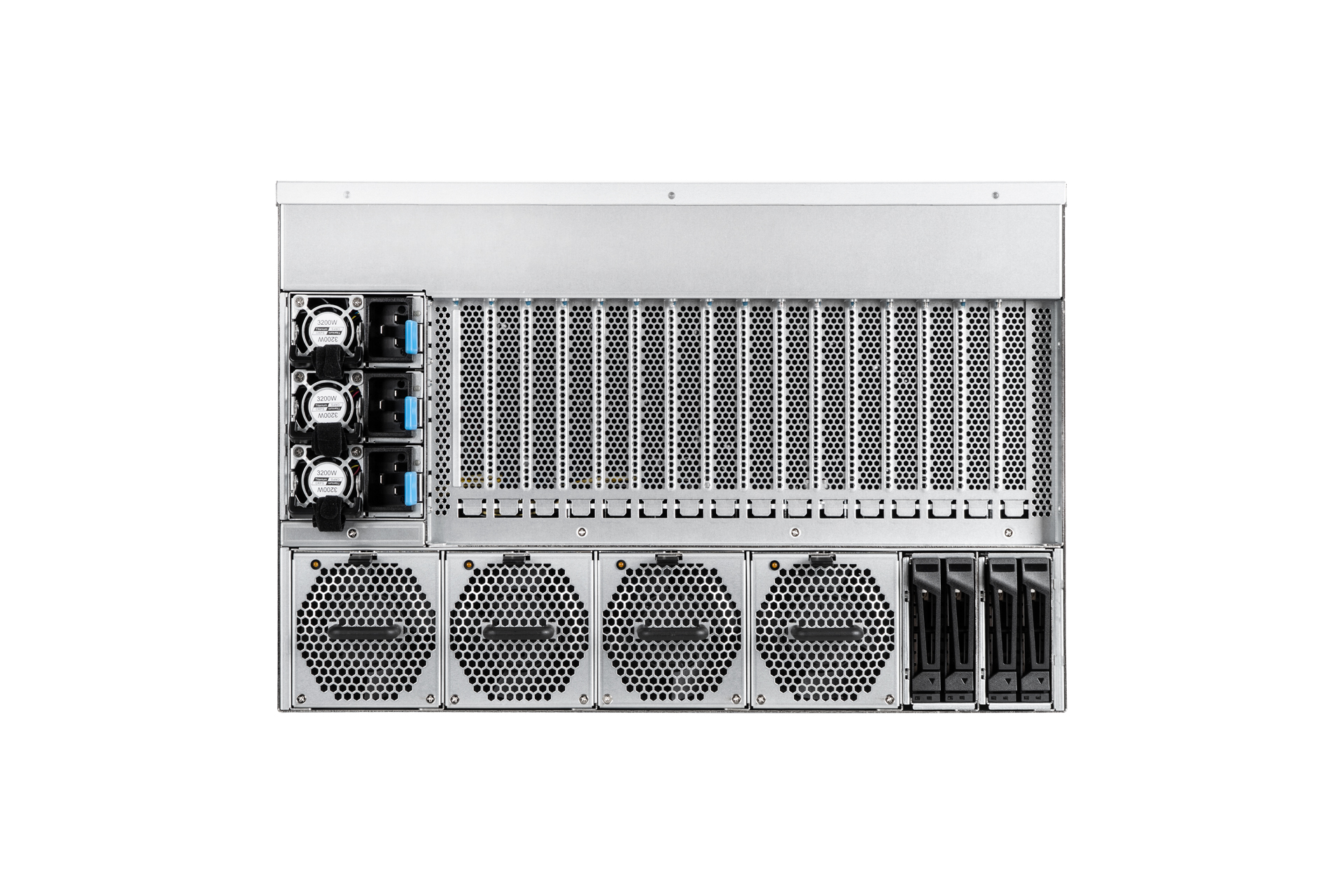

* The adjacent image is for reference only. All hardware components and optional parts are not included.
