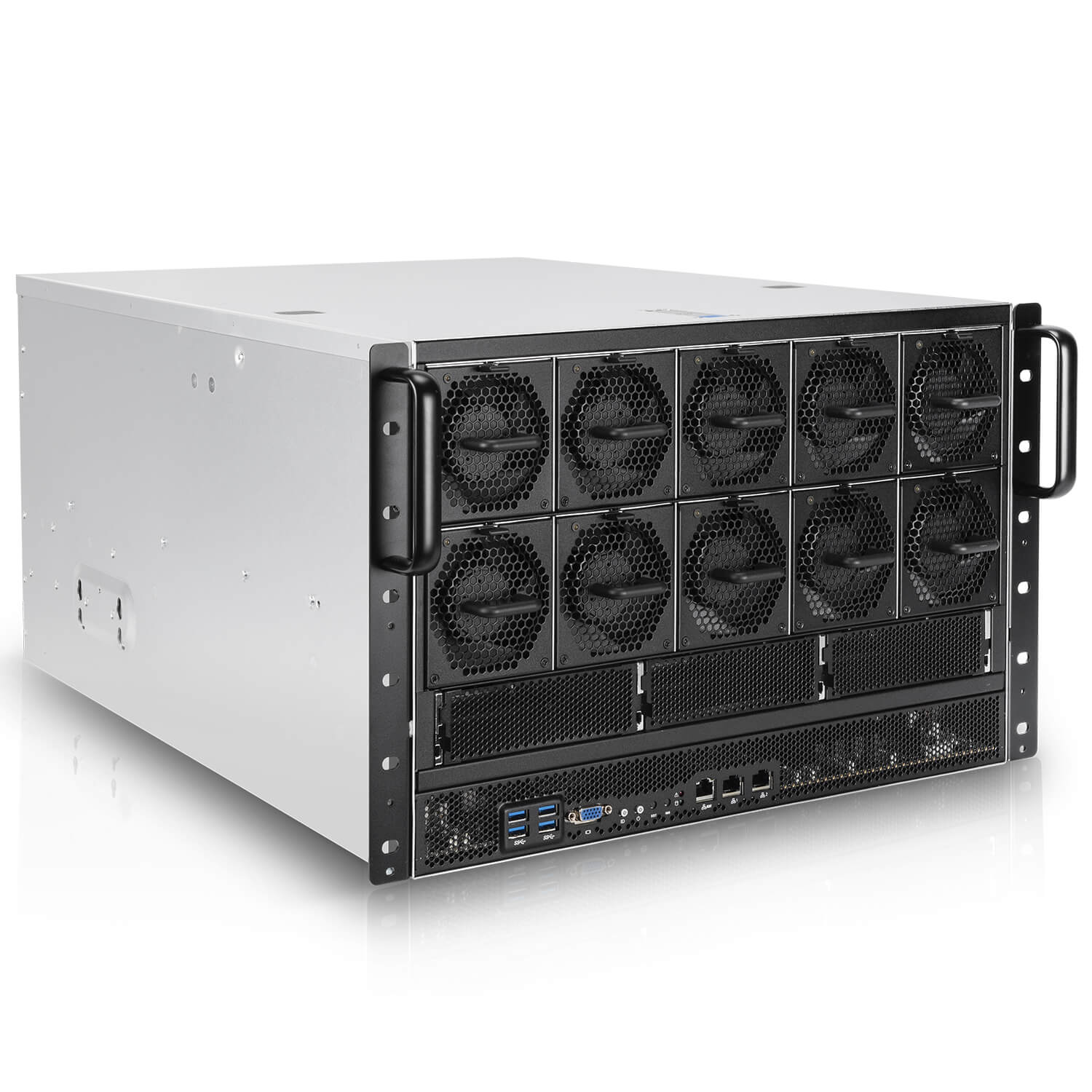

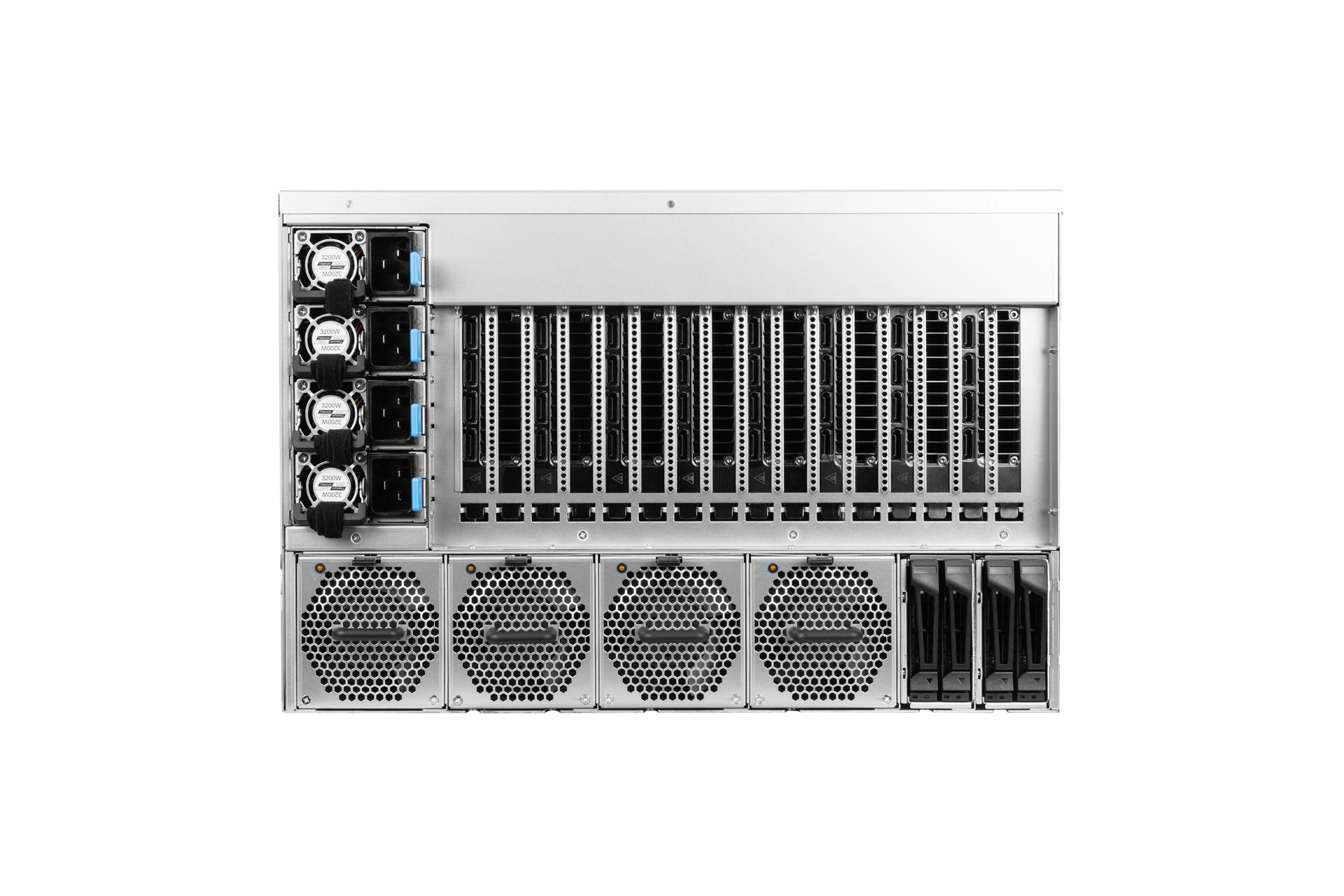

IW-RG658 PRO
6.5U GPU Rackmount Chassis
- GPU-optimized server, engineered for AI, deep learning, LLM, and HPC workloads
- Compatible with dual 5th Gen Intel® Xeon® Scalable processors, supporting up to 32 DDR5 DIMM slots
- Supports up to 8 x NVIDIA RTX™ 6000 Pro GPUs via pre-installed PCIe converter board
- Advanced thermal architecture with 14 × 80×56 mm PWM fans at 17,000 RPM for full-load GPU cooling
- Redundant 3+1 80 PLUS® Titanium CRPS power supplies delivering up to 9.6 kW of efficient, stable power
- Flexible storage configuration supporting up to 8 hot-swappable E1.S NVMe trays
Flagship Multi-GPU AI / HPC Server Platform
16-Slot Architecture for 8-GPU AI Systems with up to 9.6kW Power Capacity
AI / HPC applications
FHFL PCIe slots x 16
Supports up to 8 GPUs
Connectors
80×56 mm fans x 10 for GPU cooling
80×56 mm fans x 4 for system cooling
3+1 3200W CRPS
30” slide rails
Dual Xeon Platform
Powered by dual 5th Gen Intel® Xeon® Scalable processors, the IW-RG658 PRO supports up to 32 DDR5 ECC DIMM slots, providing a maximum of 8TB system memory, enabling large-scale AI models and data-intensive applications. PCIe Gen5 connectivity ensures high-bandwidth communication between CPUs and GPUs.
High Density GPU Architecture

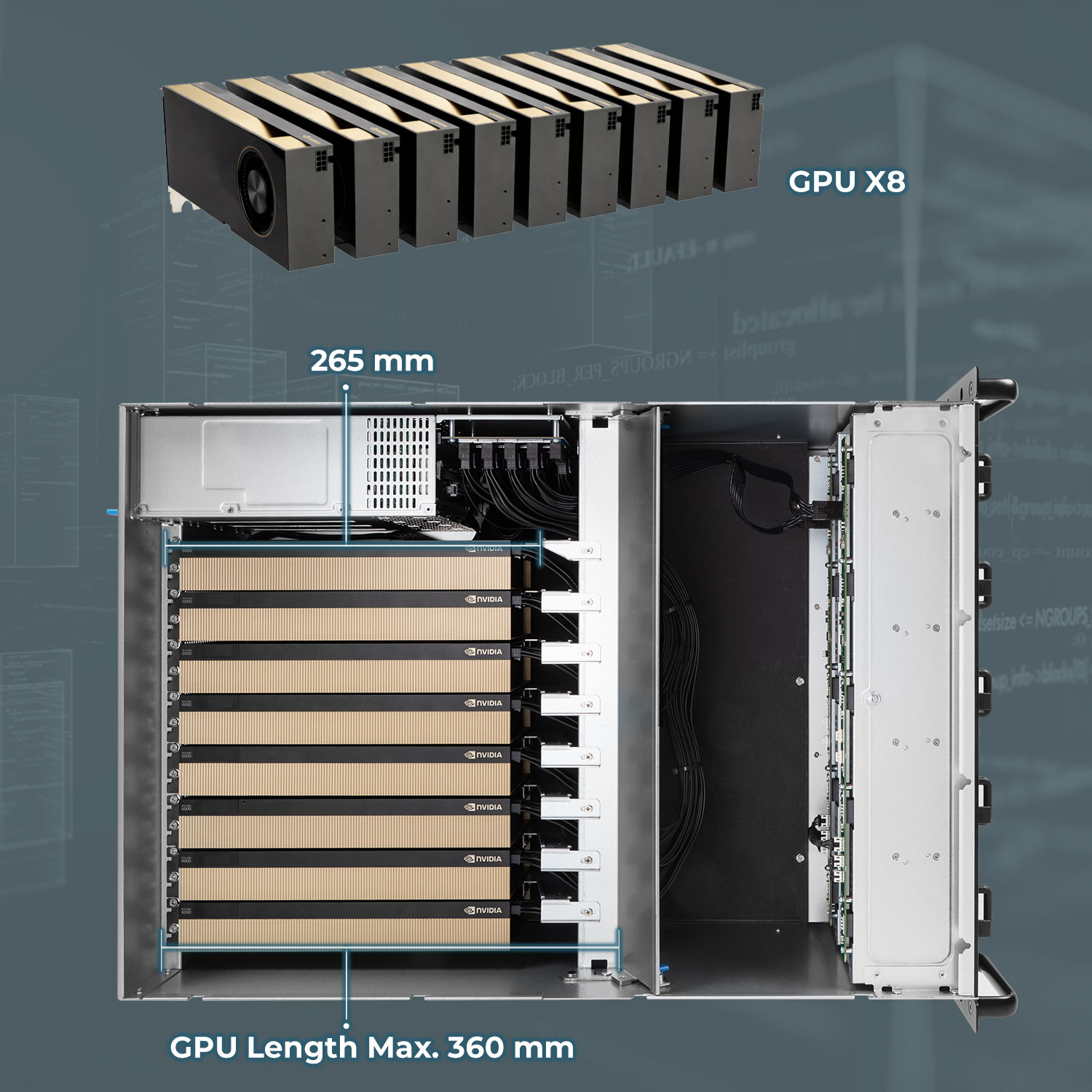

The IW-RG658 PRO features 16 FHFL PCIe slots supporting up to 8 dual-slot GPUs. Optimized internal spacing and reinforced GPU brackets ensure structural stability for large-scale multi-GPU deployments. Designed for AI clusters, deep learning, and GPU-accelerated computing.
PCIe Gen5 Connectivity

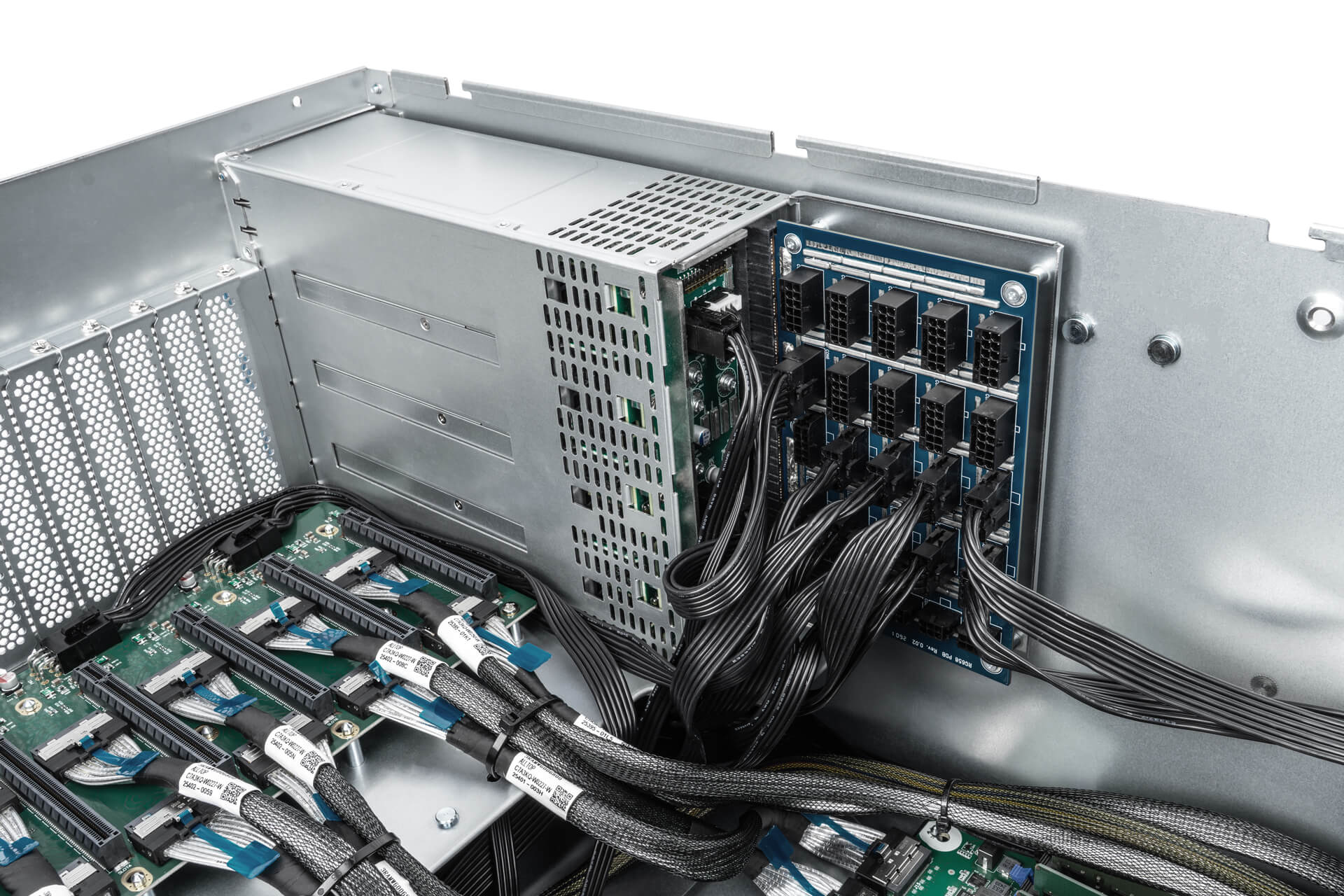

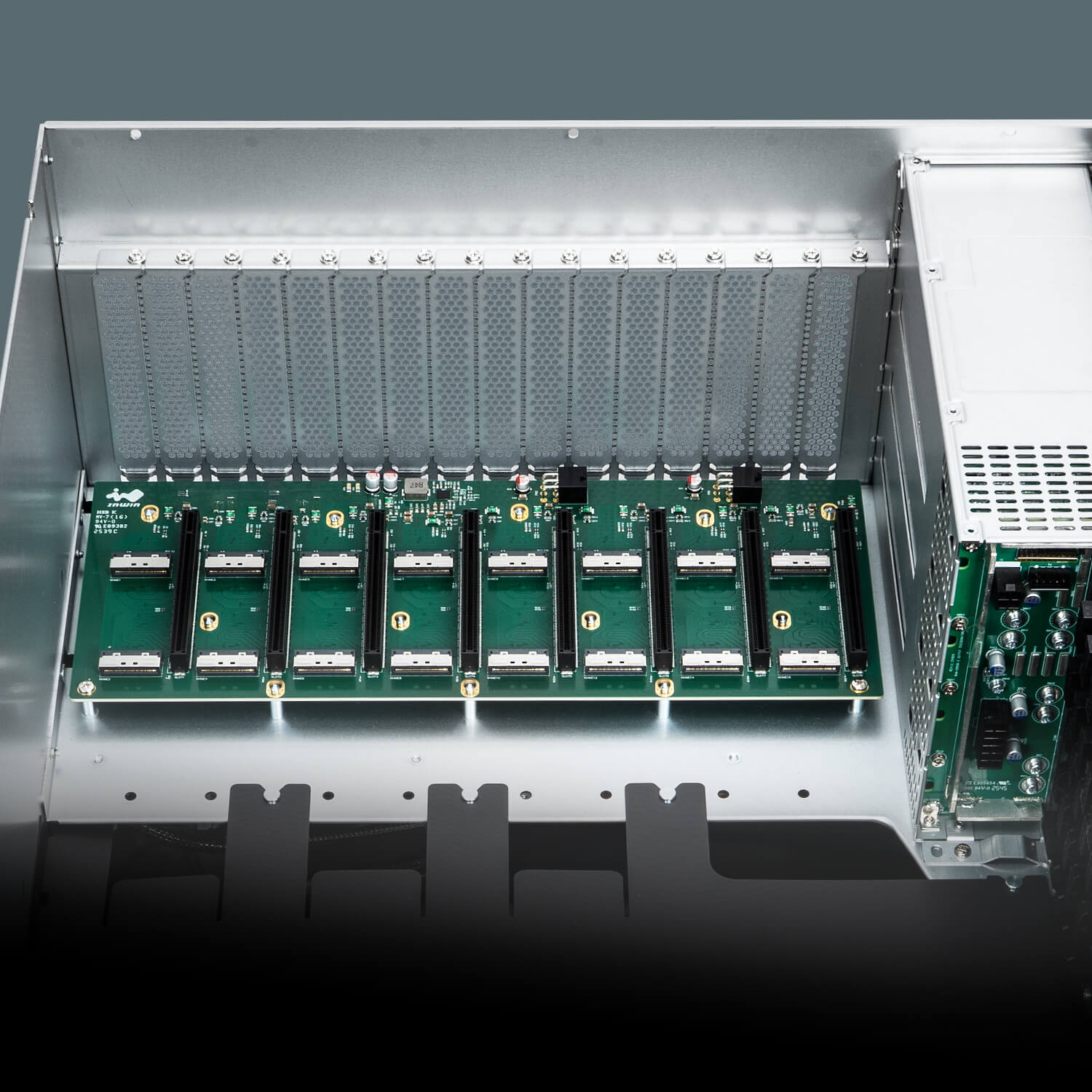

A dedicated PCIe Gen5 convert board provides high-bandwidth connectivity between GPUs and the motherboard. The MCIO (8i) architecture ensures stable signal transmission while simplifying system integration with pre-routed connections. This design enables scalable GPU expansion while maintaining the bandwidth required for modern AI accelerators.
Dual-Chamber Thermal Design

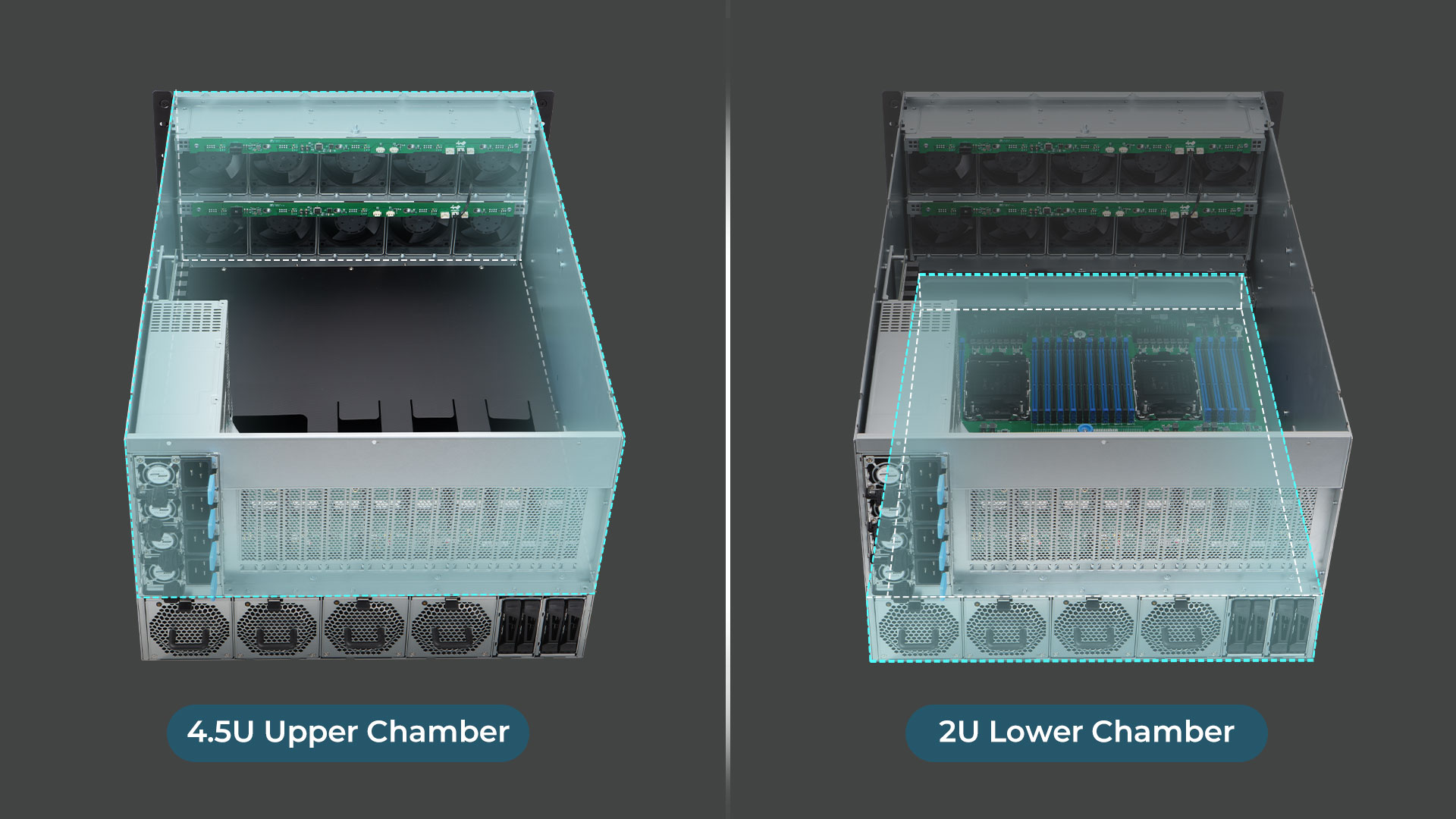

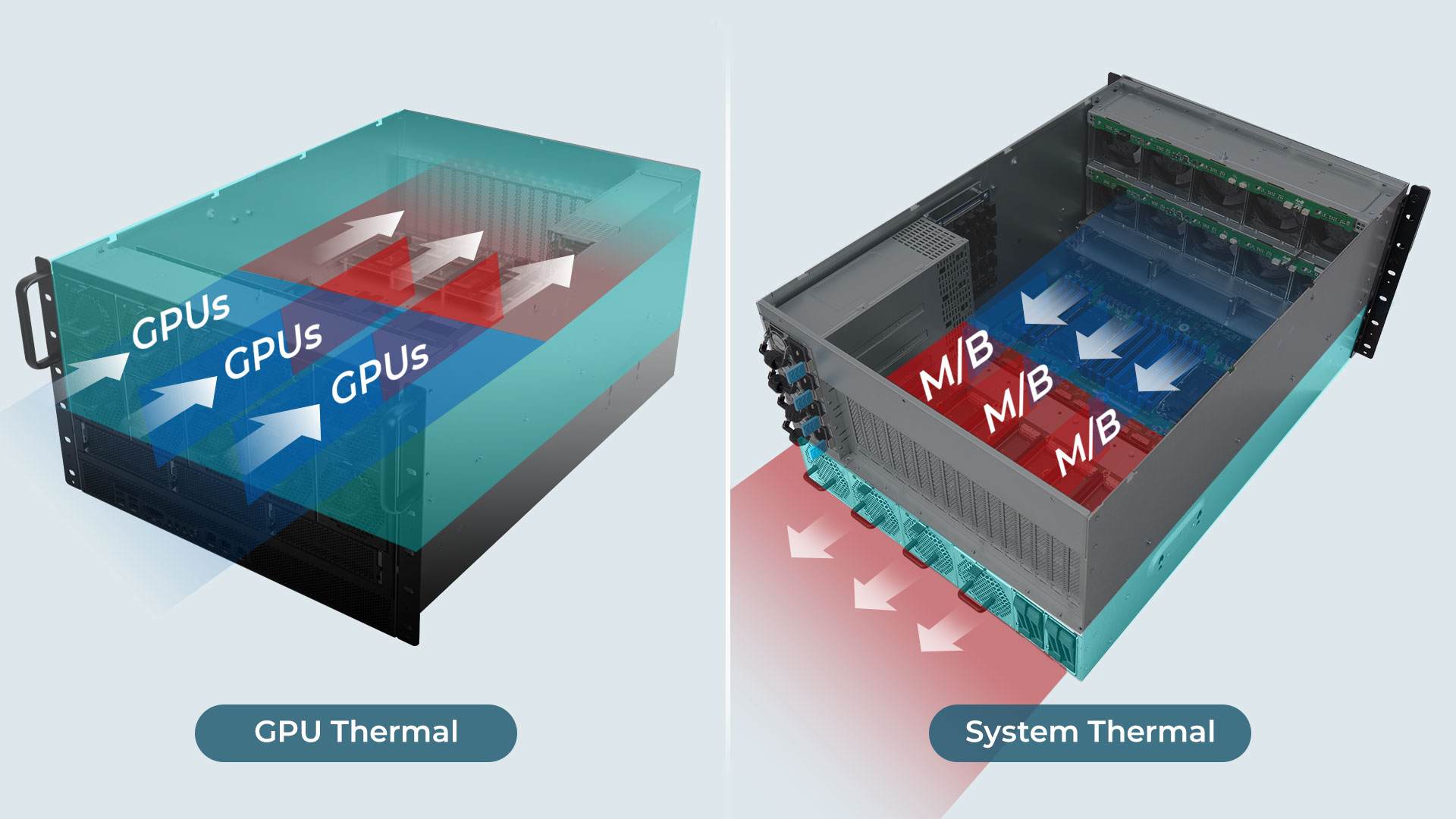

The IW-RG658 PRO adopts a dual-layer airflow architecture that separates GPU cooling from system cooling. The upper chamber focuses on GPU airflow, while the lower chamber maintains stable cooling for CPU, memory, and system components. A dedicated airflow duct between the two layers improves thermal efficiency and reduces heat interference between system zones.
Advanced Cooling System
To support dense GPU deployments, the chassis integrates a powerful airflow system.
• 10 front PWM fans dedicated to GPU cooling
• 4 rear fans for CPU and system airflow
With fan speeds up to 17,000 RPM, the system maintains stable operation under heavy AI and HPC workloads.
• 10 front PWM fans dedicated to GPU cooling
• 4 rear fans for CPU and system airflow
With fan speeds up to 17,000 RPM, the system maintains stable operation under heavy AI and HPC workloads.
Smart Fan Control

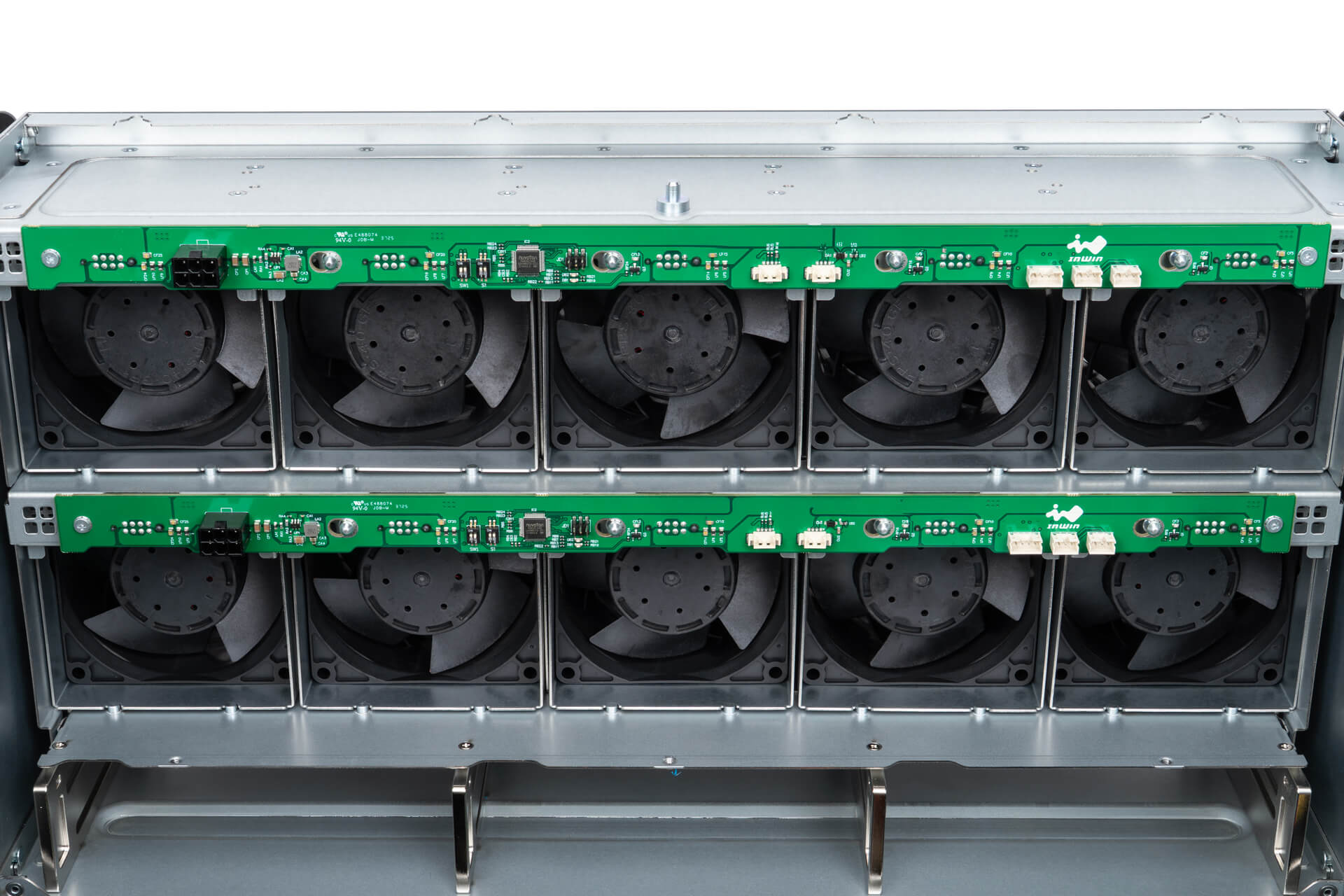

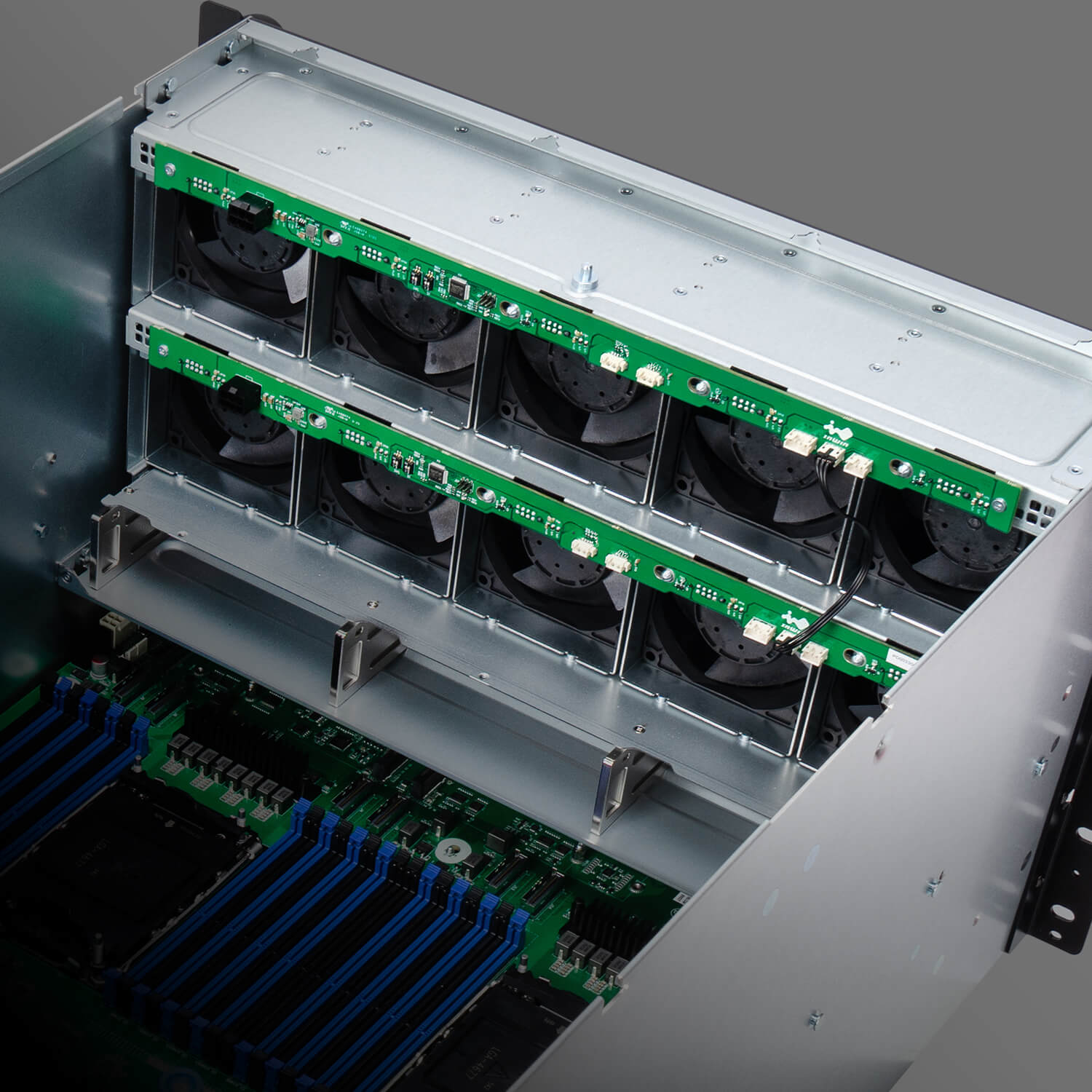

The IW-RG658 PRO features dedicated fan boards to manage both GPU and system cooling modules. Two front fan boards control the 10 GPU cooling fans, while a rear fan board manages the 4 system fans for the lower chamber. Integrated thermal sensors automatically adjust fan speeds to optimize cooling performance under varying workloads.

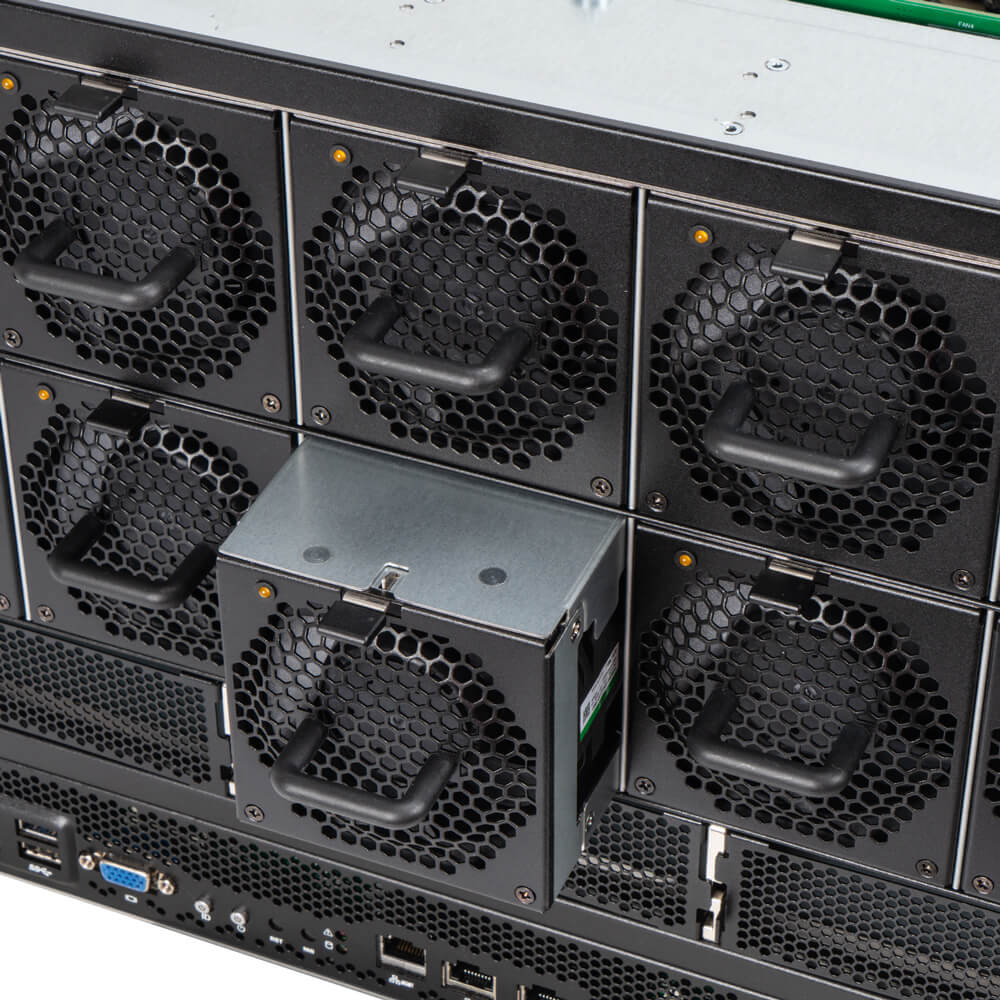

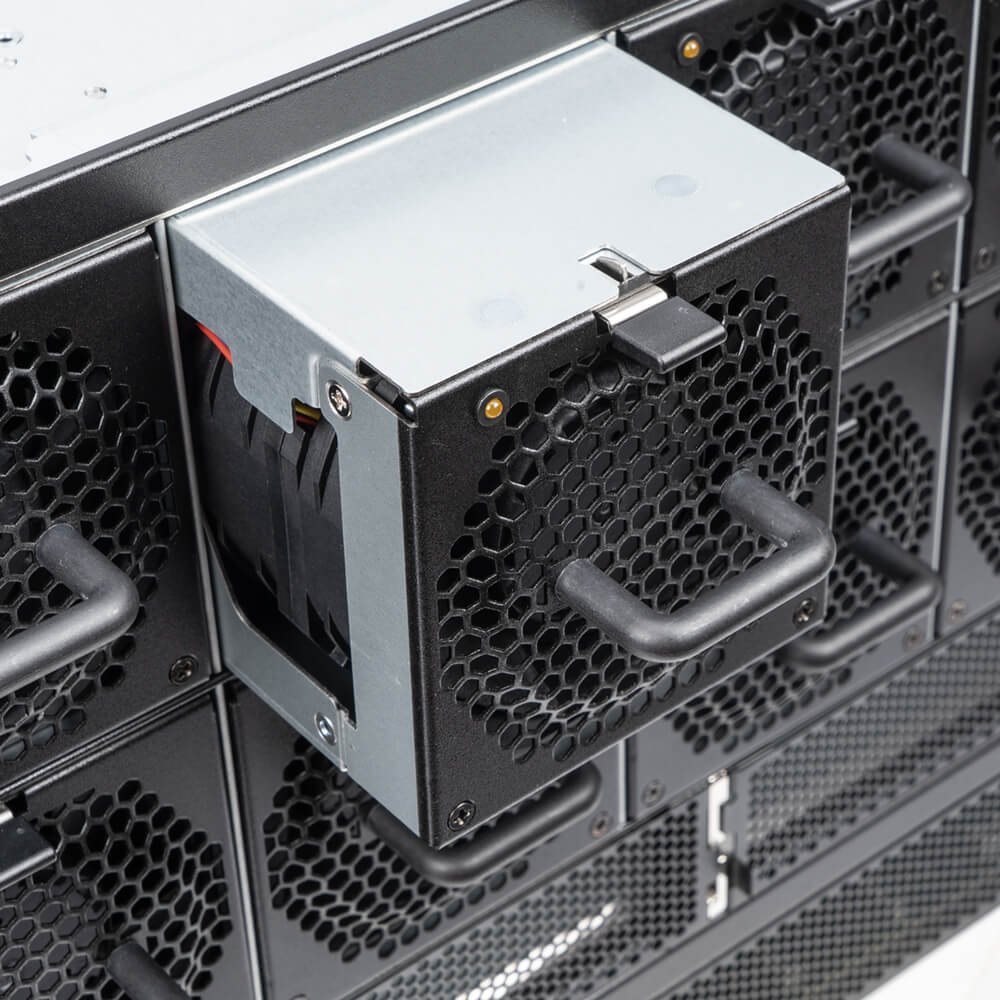

Front hot-swap fans

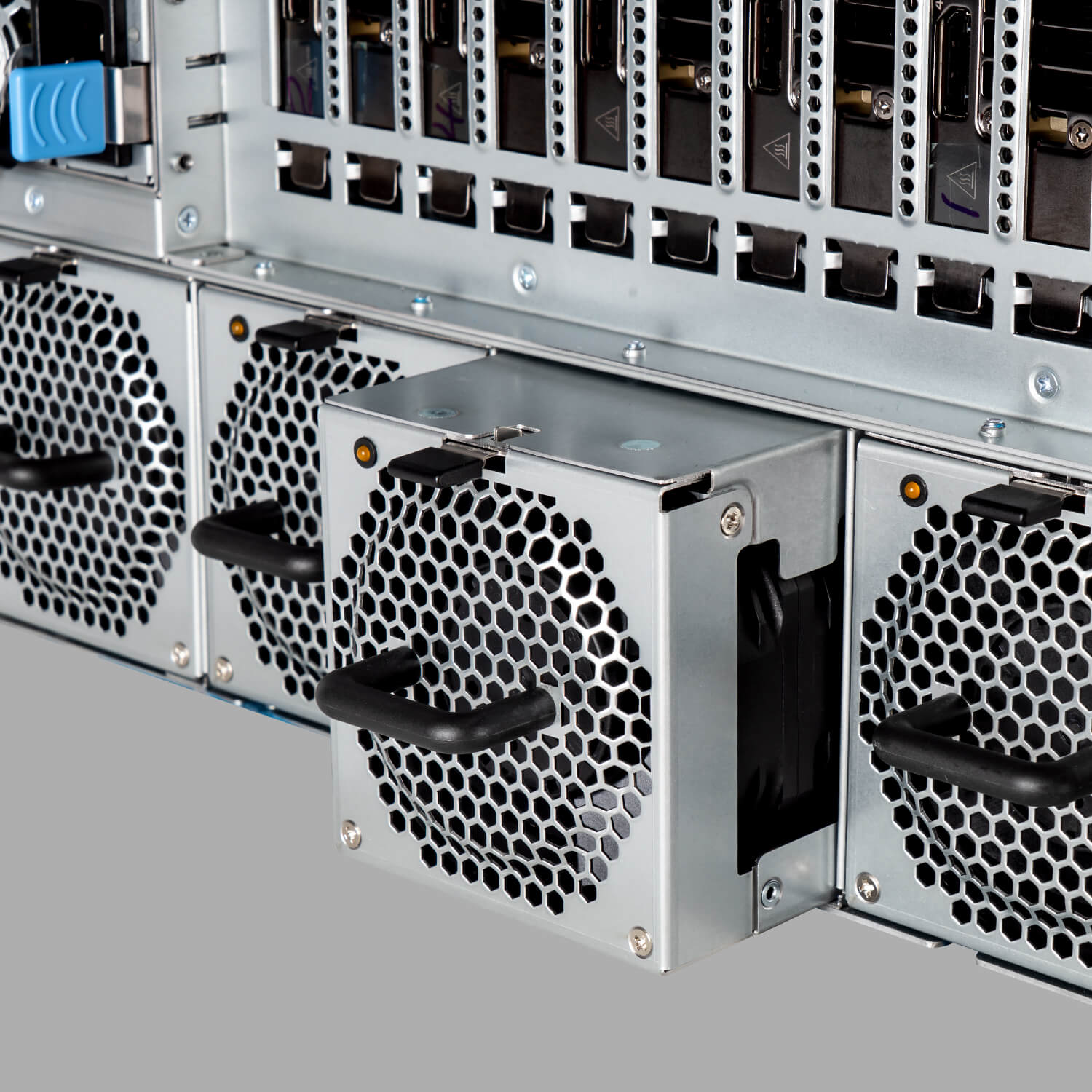

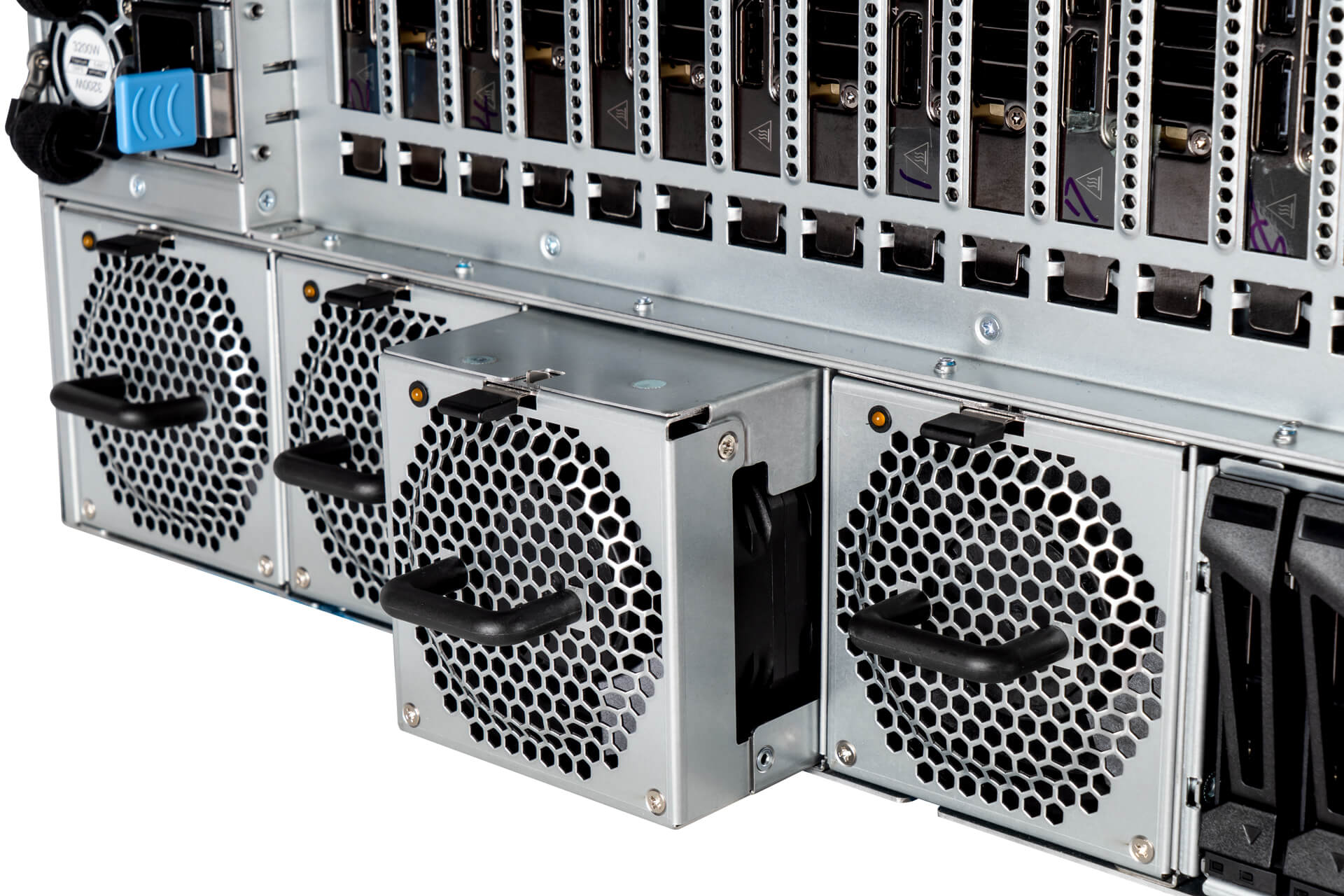

Rear hot-swap fans
Titanium Power System

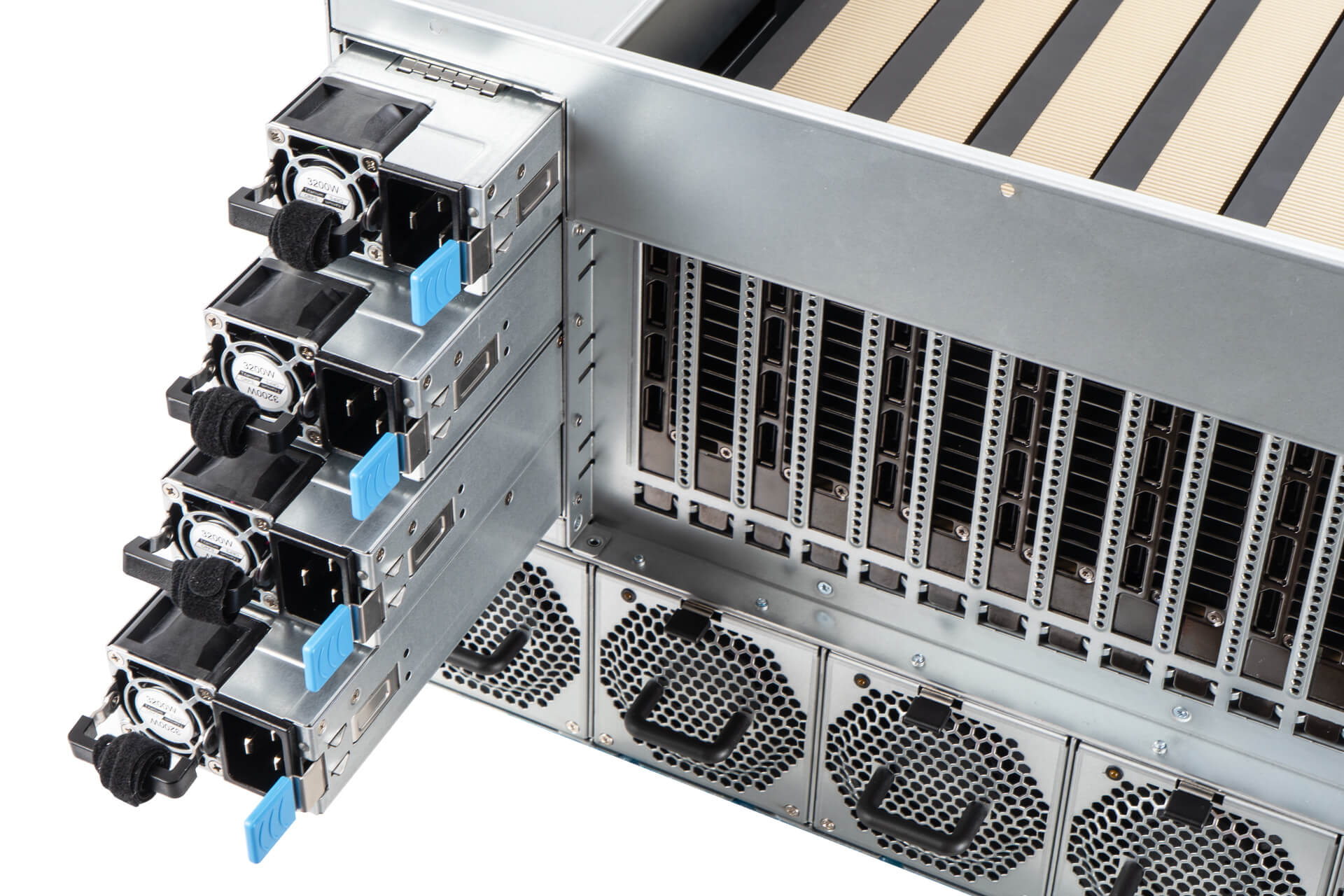

The IW-RG658 PRO features a 3+1 3200W CRPS configuration, delivering up to 9.6kW total power capacity. 80 PLUS® Titanium-certified power supplies ensure efficient and stable power delivery for GPU-intensive AI and HPC environments.
Flexible Storage Expansion

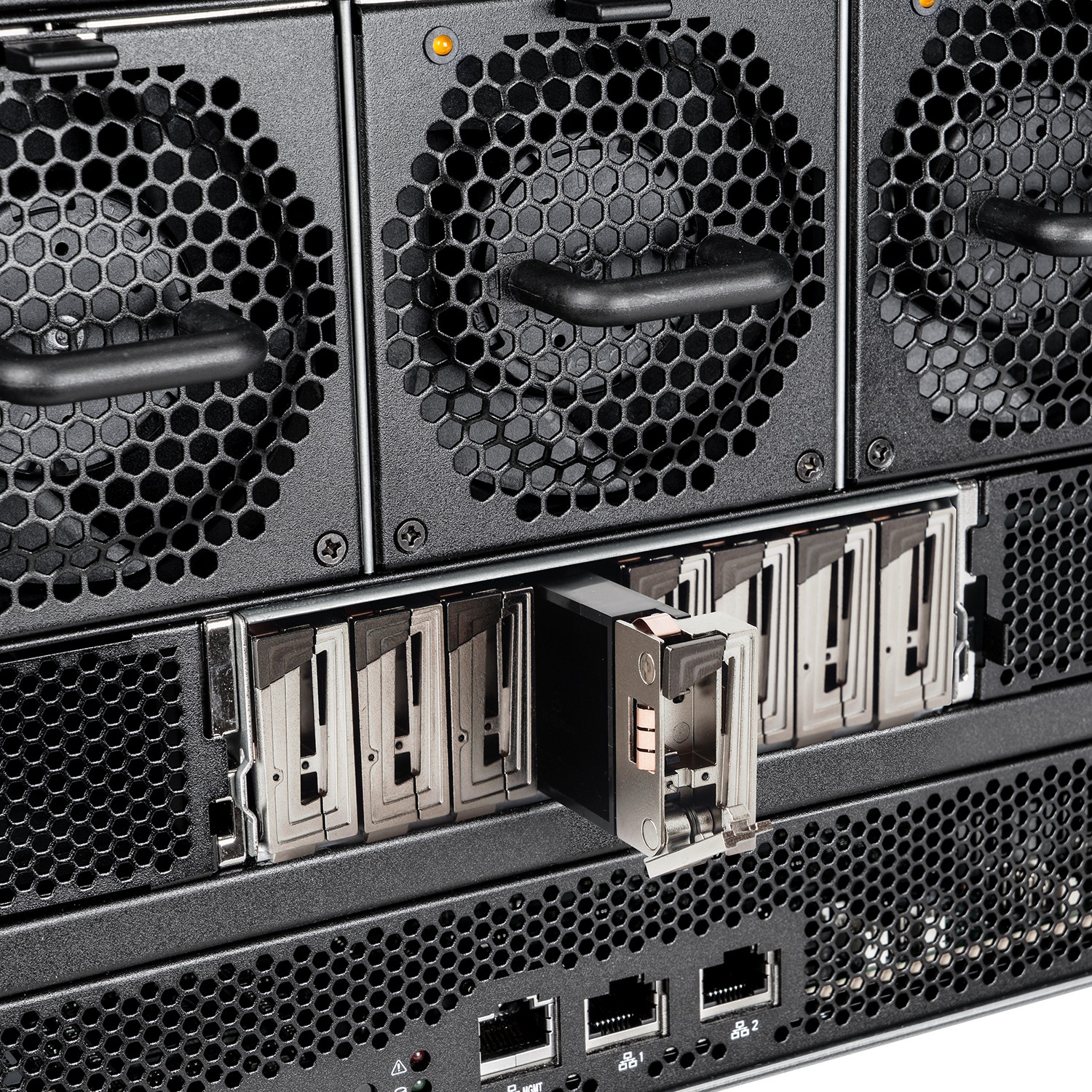

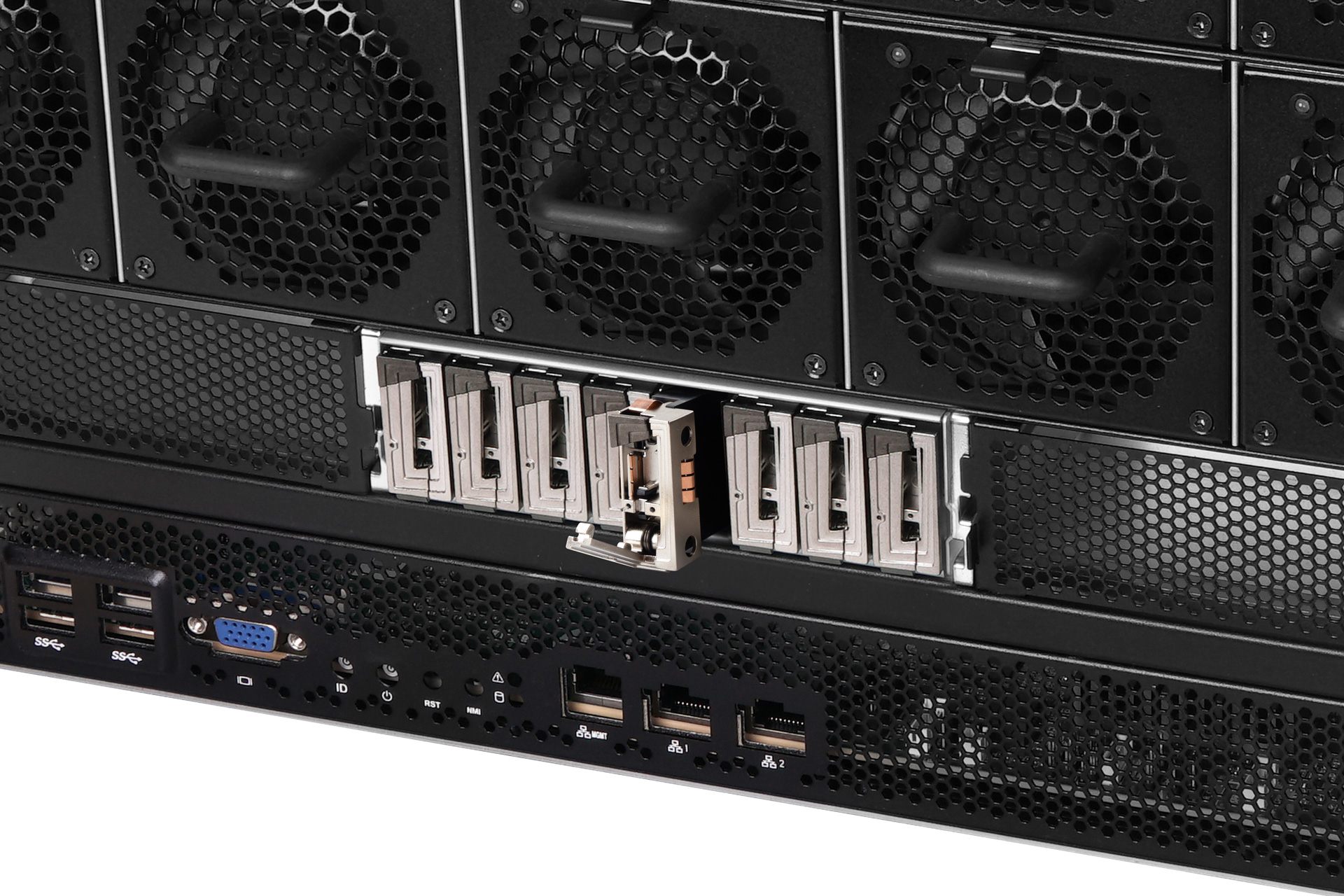

The IW-RG658 PRO provides flexible storage architecture for data-intensive workloads. Optional front E1.S PCIe Gen5 NVMe trays deliver ultra-fast storage performance, while pre-installed rear 2.5" hot-swap bays support system and OS drives.
NVMe E1.S 15mm hot-swap trays x 8 (Optional)

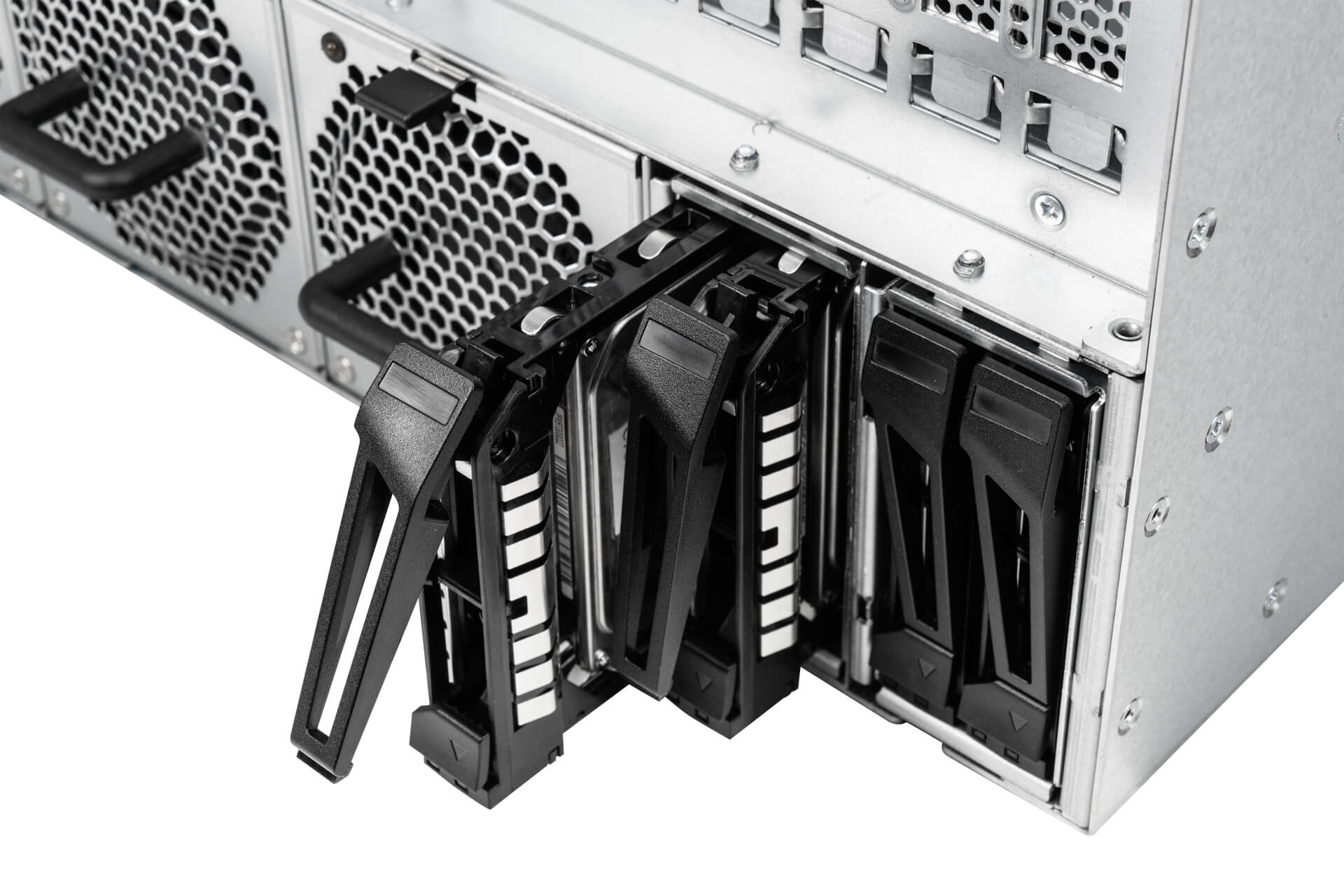

2.5" Hot-swap trays x 4
Modular Design
The chassis is designed for efficient deployment and maintenance in data center environments. Hot-swappable fan cages and storage trays simplify servicing, while tool-less components accelerate system upgrades and maintenance.

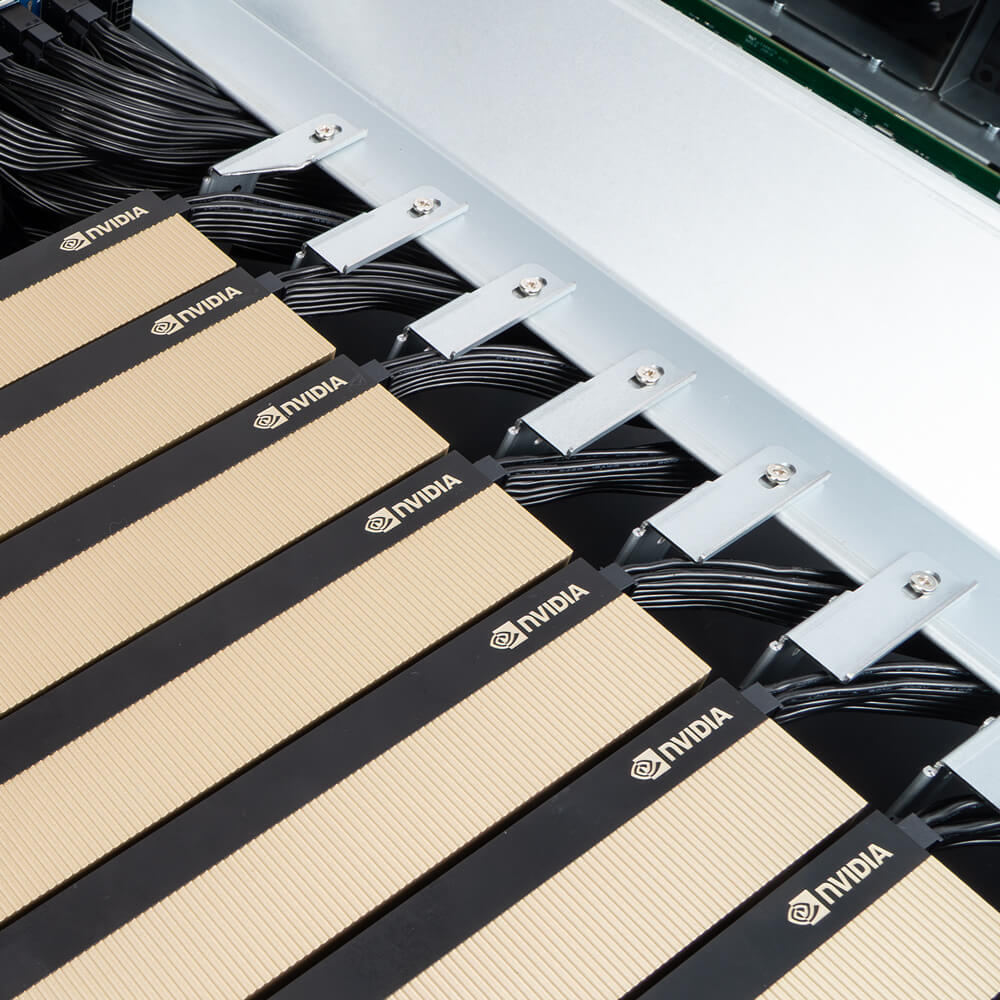

GPU bracket support
Hot swappable fan cage

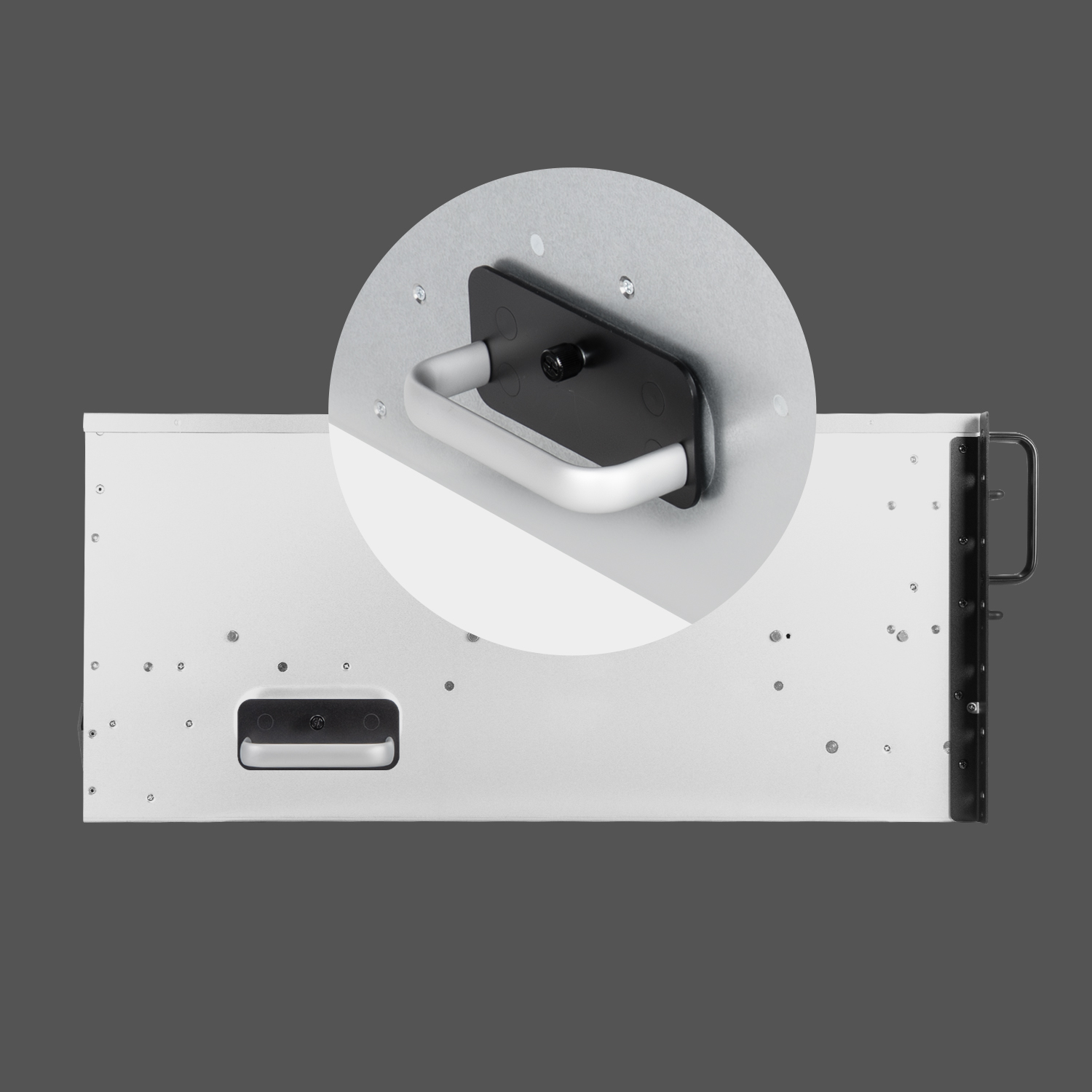

handles
Power Cable Information
Unit of Length: mm
- 4+4-Pin CPU x 2 (Pre-installed)
- 4+4-Pin CPU x 2 (Pre-installed)
- 12V-2x6 PCIe x 4
- 12V-2x6 PCIe x 4
- 4-Pin for Motherboard (Pre-installed)
- 6-Pin for GPU Converter Board x 2 (Pre-installed)
- 6-Pin for Fan Board x 3 (Pre-installed)
- Peripheral for Storage BP (Pre-installed)
- PMBus
- 12-Pin PDB to PDB Expansion Board Connector (Pre-installed)
| Specification | |
|---|---|
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| Form Factor | 6.5U rack • 4.5U upper chamber for GPU (maximum length up to 360mm ) • 2U lower chamber for system components |
| M/B Form Factor | M/B Proprietary (16.93" x 13.79") |
| Processor | Support 2x 5th Gen Intel Xeon® Scalable processors, up to 350W |
| Memory | Support up to 8TB using 32x DDR5 ECC DIMMs, up to 4800MHz |
| GPU | Supports up to 8x NVIDIA RTX™ A6000 or RTX™ 6000 Pro GPUs |
| Drive Bay | Support: •External NVMe E1.S 15mm hot-swap trays x 8 (Optional) •External Rear 2.5" hot-swap trays x 4 (Pre-installed) |
| Power Supply | Pre-installed: • Form factor: 3+1 80 PLUS Titanium CRPS • Total Watt: 9600W |
| Indicators | Power LED, LAN 1/LAN 2, system LED, HDD LED |
| Front Control Panel | Power on/off, system reset, USB 3.0 x 2 |
| Cooling Fans | • Pre-installed 80 x 56 mm PWM Front fans x 10, 17000 RPM for GPU cooling • Pre-installed 80 x 56 mm PWM Rear fans x 4, 17000 RPM for M/B cooling |
| Expansion Slot | Full-height PCIe slots x 16 - Supports up to 8 x GPUs via 1 x PCIe convert board with MCIO cables to MB |
| Material | • Material: SGCC • Thickness: 1.2mm |
| Rail Kit | 30" tool-less & ball-bearing slide rails included |
| Product Dimensions (DxWxH; Chassis Only) | 650 x 440.4 x 288.9mm (25.59" x 17.24" x 11.37") |
| Weight (Chassis Only) | TBC |
| Package Dimensions (DxWxH) | • Net weight: 35.33 kg • Gross weight: 39.38 kg |
| Cubic Feet | 7.94 |
| Container Information | Single packing with pallets: • 20’: 48 pcs • 40’: 108 pcs • 40'HQ: 144 pcs |
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications
* The adjacent image is for reference only. All hardware components and optional parts are not included.
* The adjacent image is for reference only. All hardware components and optional parts are not included.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|

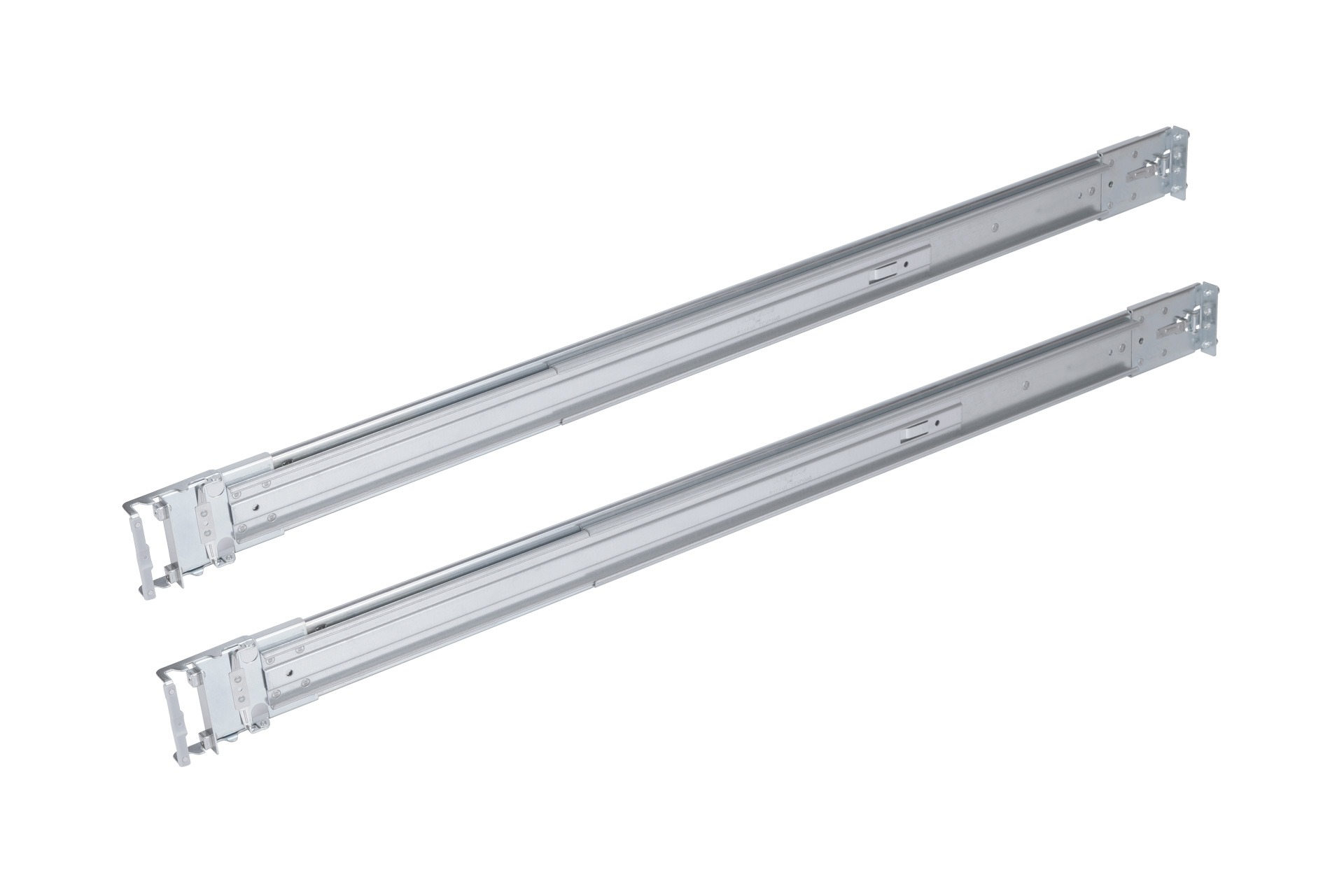

| Slide Rail | 3RAMIS133301 | 30" tool-less & ball-bearing slide rails | 1 set |
|

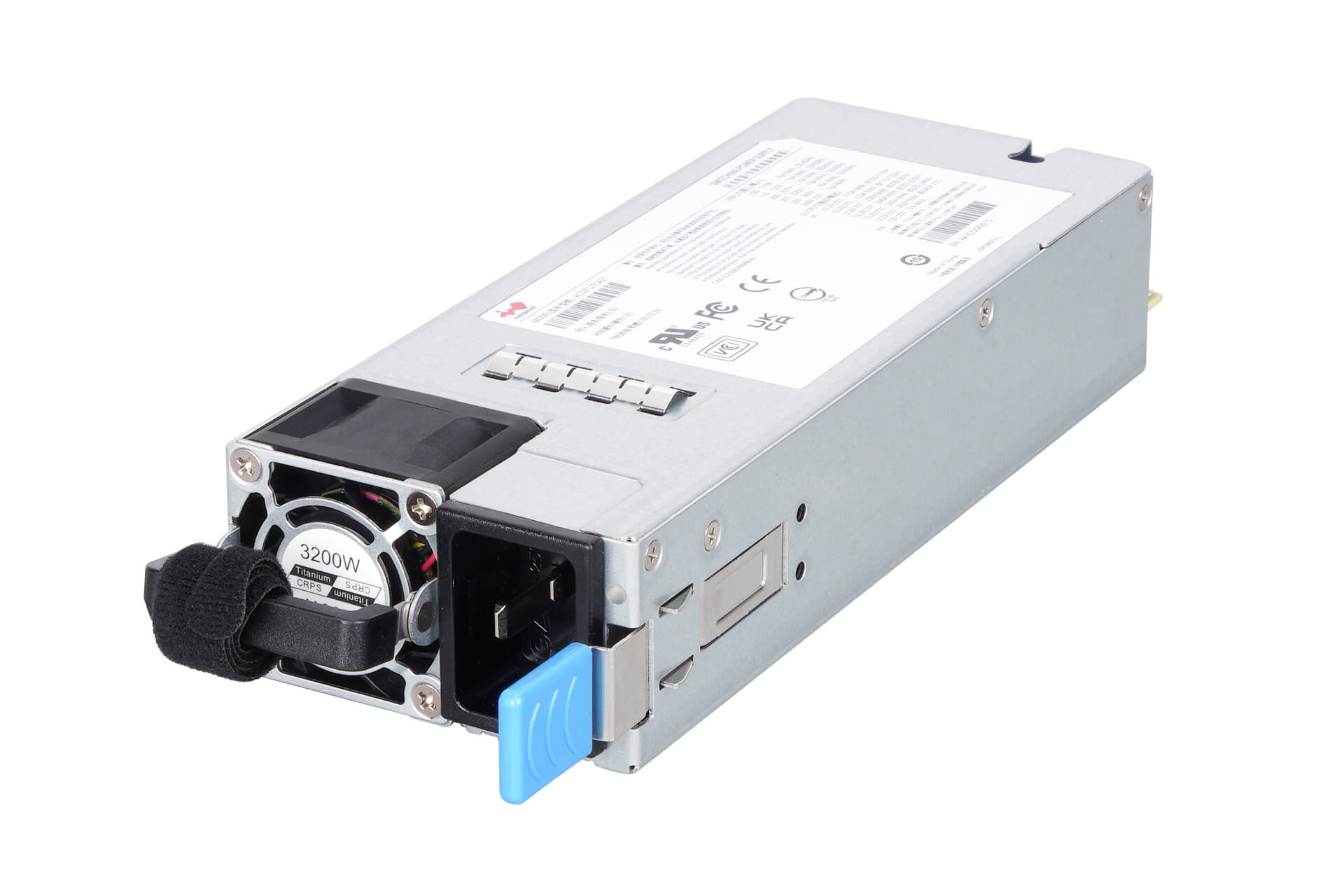

| Power Supply | 3RAMAP048700 | 80 PLUS Titanium 3200W CRPS (AC input 100~115V, total power 1340W max. / AC input 116~120V, total power 1600W max. / AC input 200~224V, total power 2800W max. / AC input 225-240V, total power 3200W max.) / CRPS PDB | Max. 4 |
|

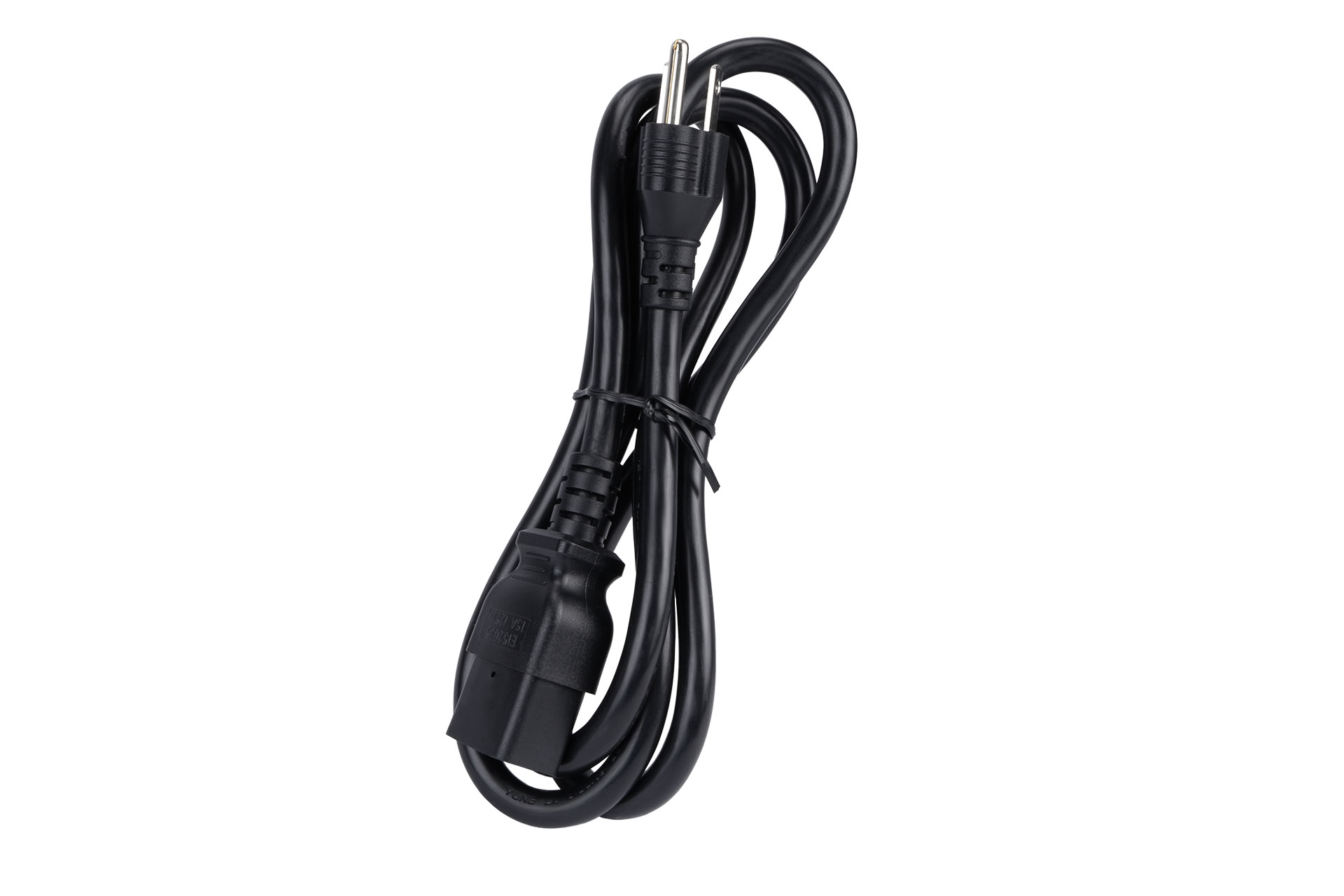

| Cable | 3RAMW8014100 | Power cord, American standard (IEC C19, 14 AWG, 1.83 m, 15A) | Max. 4 |
|
| Cable | 3RAMW8014500 | Power cord, European standard (IEC C19, 3G 1.5 mm², L1830 mm, 16A) | Max. 4 |
|

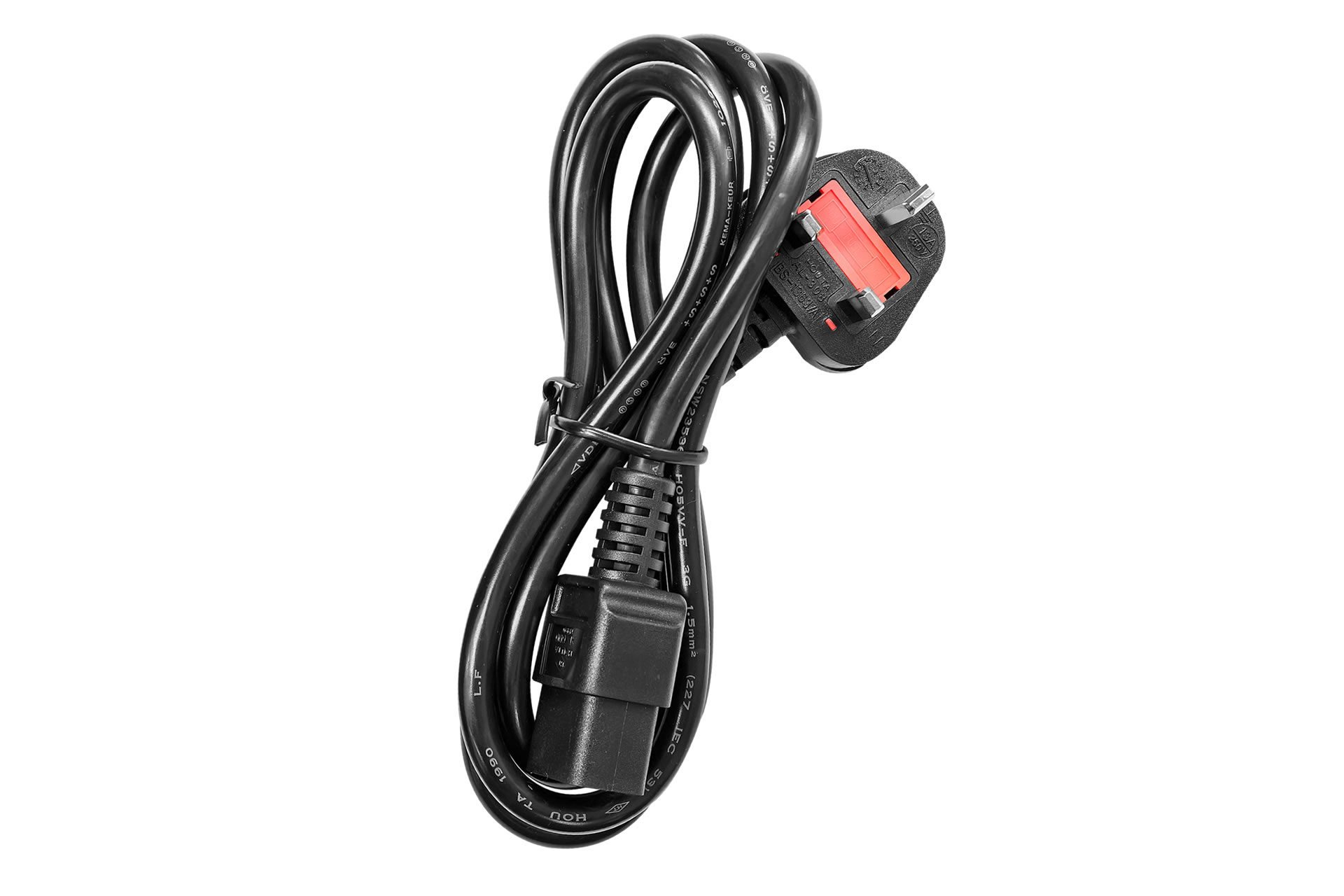

| Cable | 3RAMW8017000 | Power cord, British standard (IEC C19, 3G 1.5 mm², L1830 mm, 13A) | Max. 4 |
|

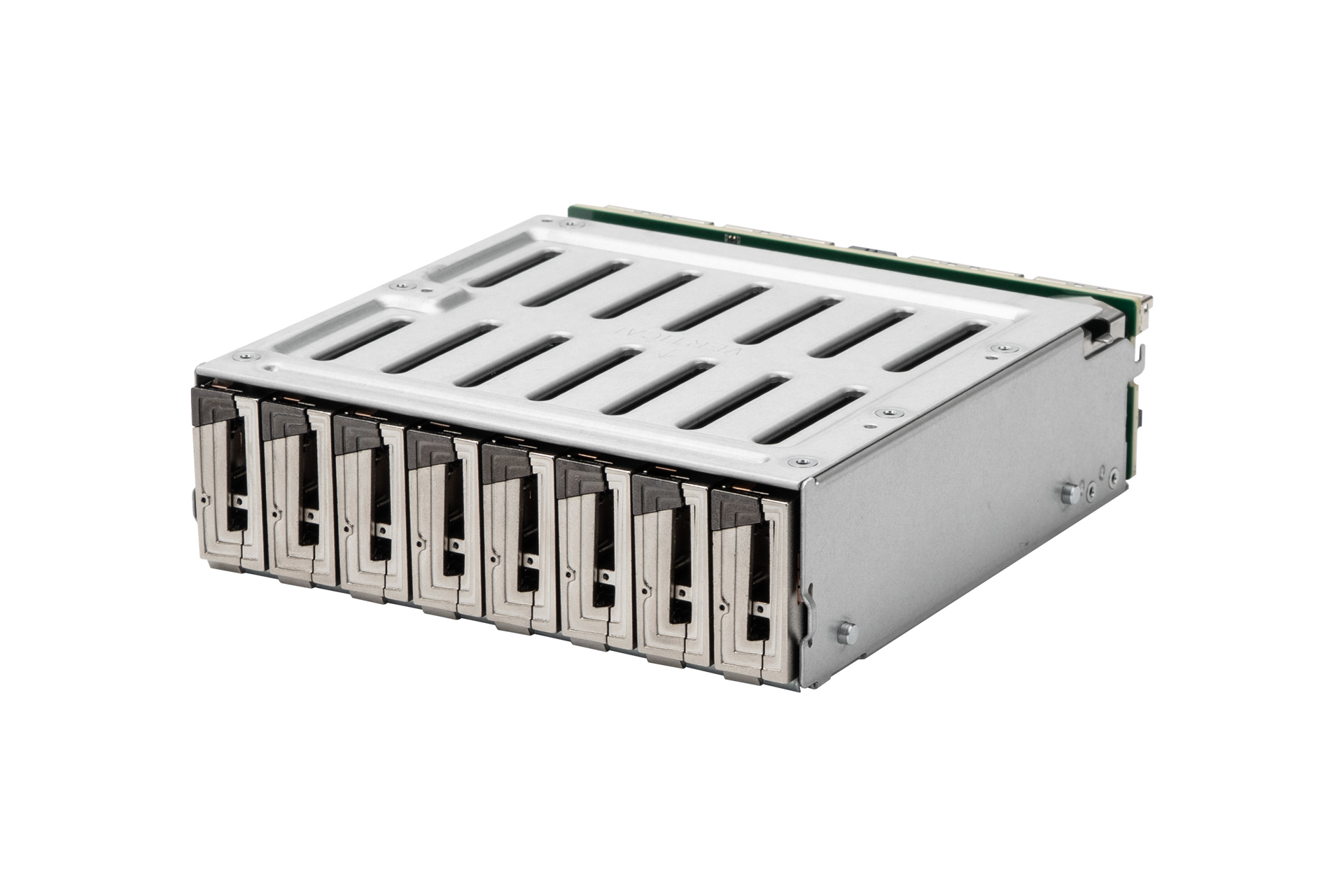

| Drive Tray | 2RAKIB115400 | 8-Bay E1.S Drive Module | Max. 2 Sets |
|
