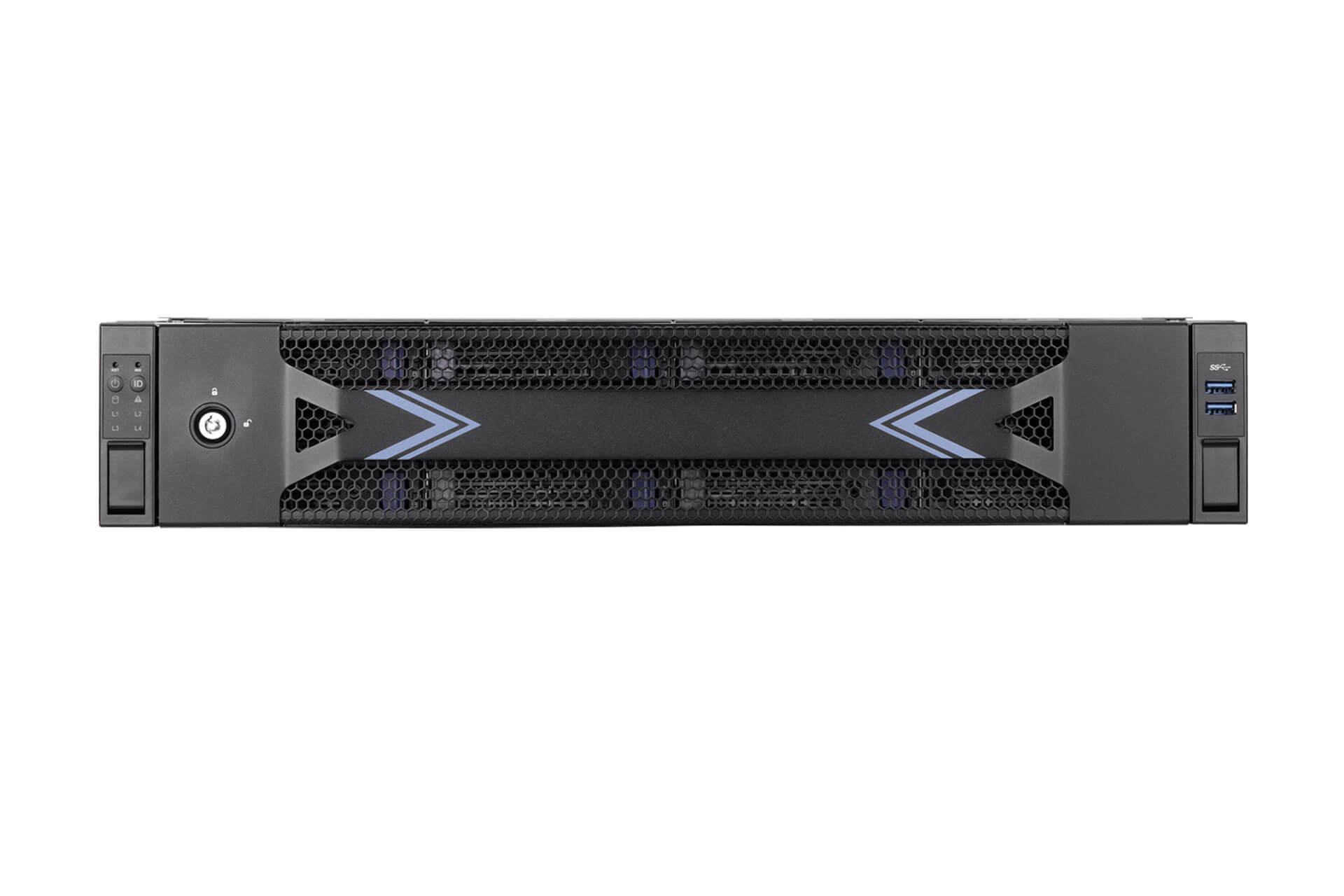

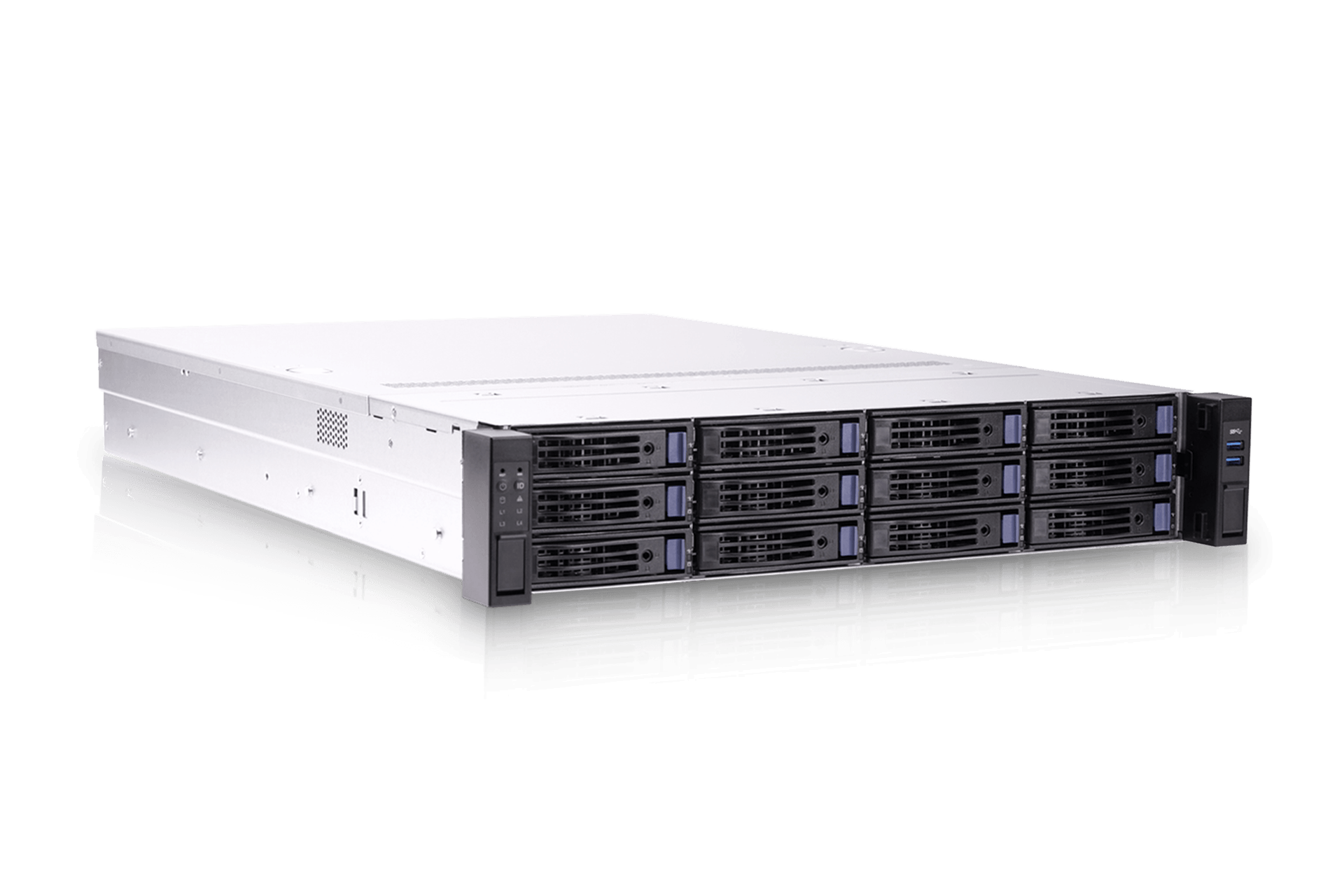

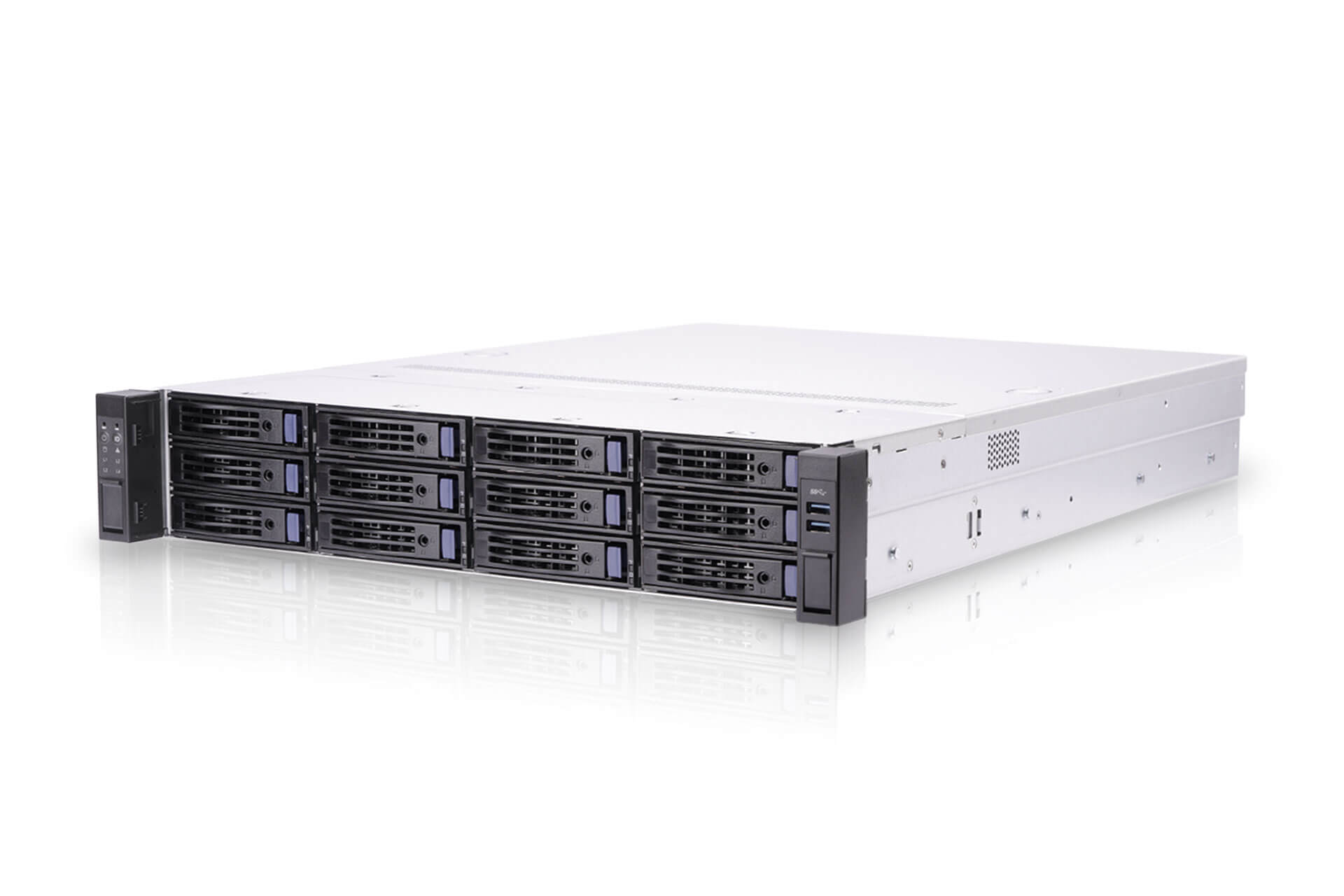

IW-RSA212-02M

2U SAS Storage Rackmount Server

Supports Intel® Xeon® Scalable and AMD EPYC™ processors
Mini-SAS HD backplane with PCIe 3.0 compatibility
Supports end-to-end 12Gbps SAS across host, expander, and drives
12 hot-swappable 2.5"/3.5" SAS/SATA drive bays
2 rear 2.5" SSD bays for system drives
Supports 80 PLUS Platinum CRPS power supplies
High-performance cooling with hot-swappable fans

Flexible Storage Expansion in a 2U Platform

Powered by 2U chassis, upgraded with 02M hot-swap tray design

Intel® Xeon Scalable family

AMD EPYC family

24 x 3.5“/2.5" bay

2 x 2.5" system bay

Full-height PCIe x 7

80 x 38mm fans x 4

CRPS

28" slider rails

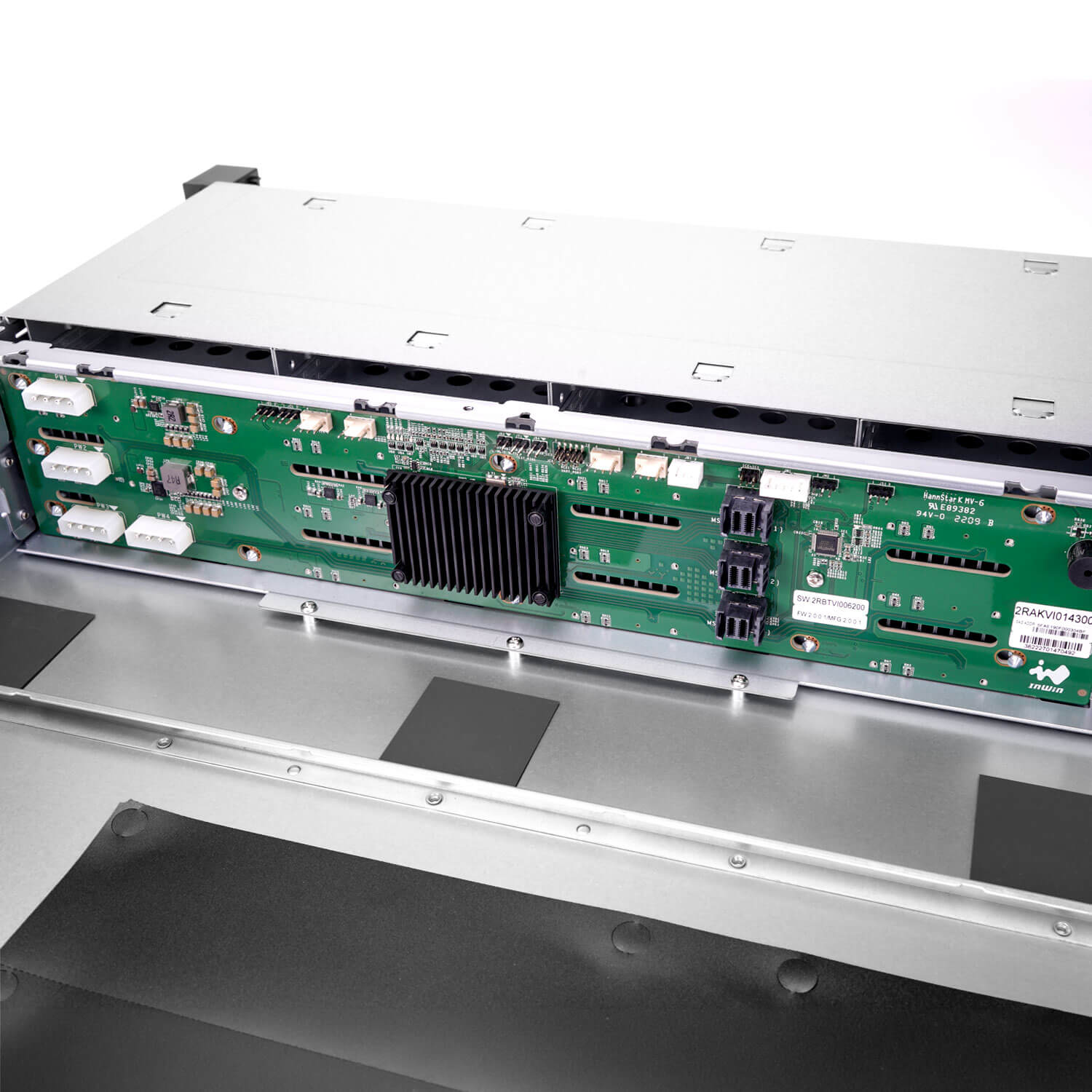

SAS3 Backplane with Integrated Expander

At the core of the system is a SAS3 backplane architecture equipped with an onboard expander, enabling direct and efficient communication between host and drives. With Mini-SAS HD connectivity and full 12Gbps bandwidth support, the platform delivers consistent data throughput required for modern storage workloads.

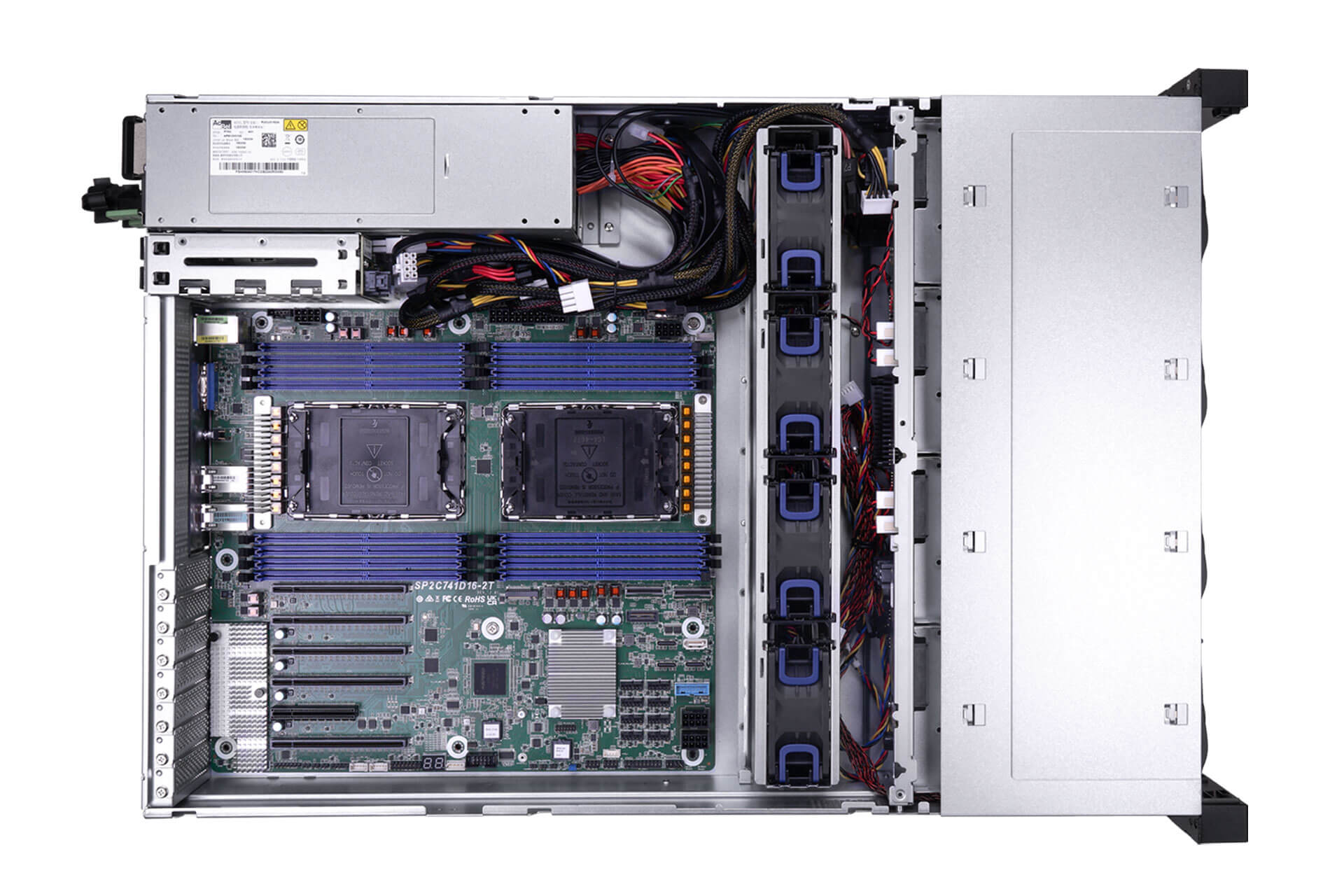

Platform Compatibility

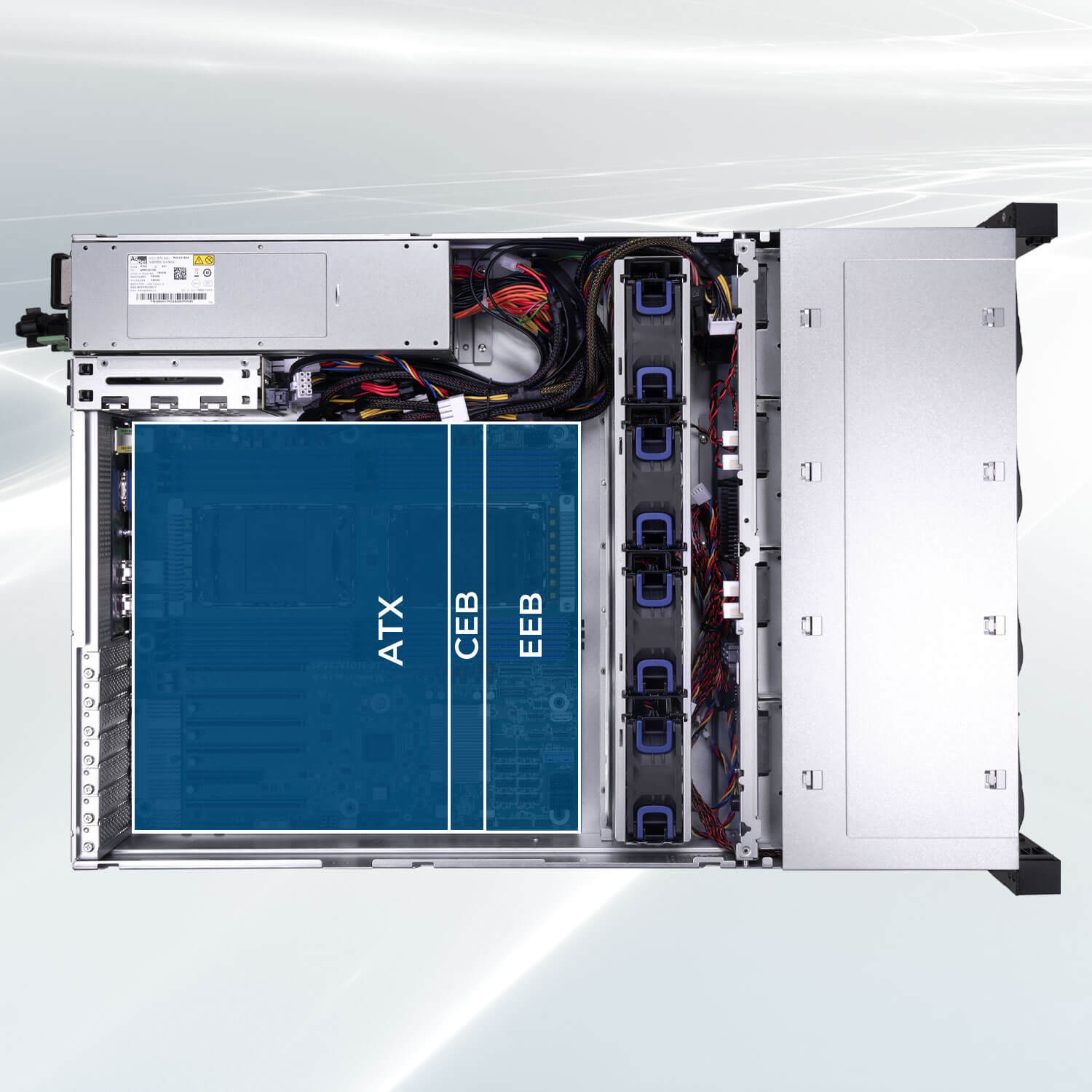

The chassis is compatible with both Intel and AMD server platforms, supporting motherboard sizes up to EEB. This flexibility allows system builders to configure the platform according to specific application requirements, while available PCIe expansion ensures room for additional performance upgrades.

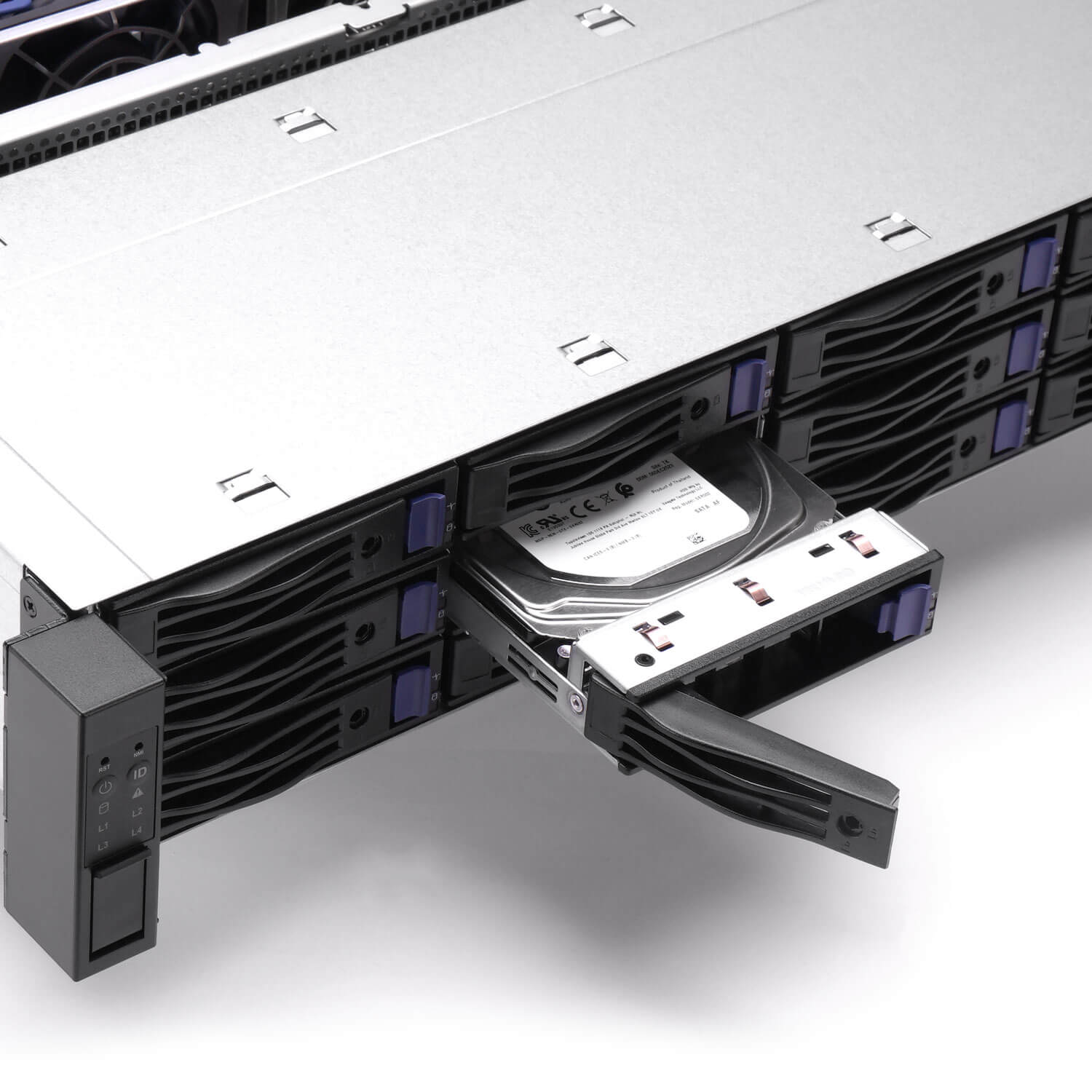

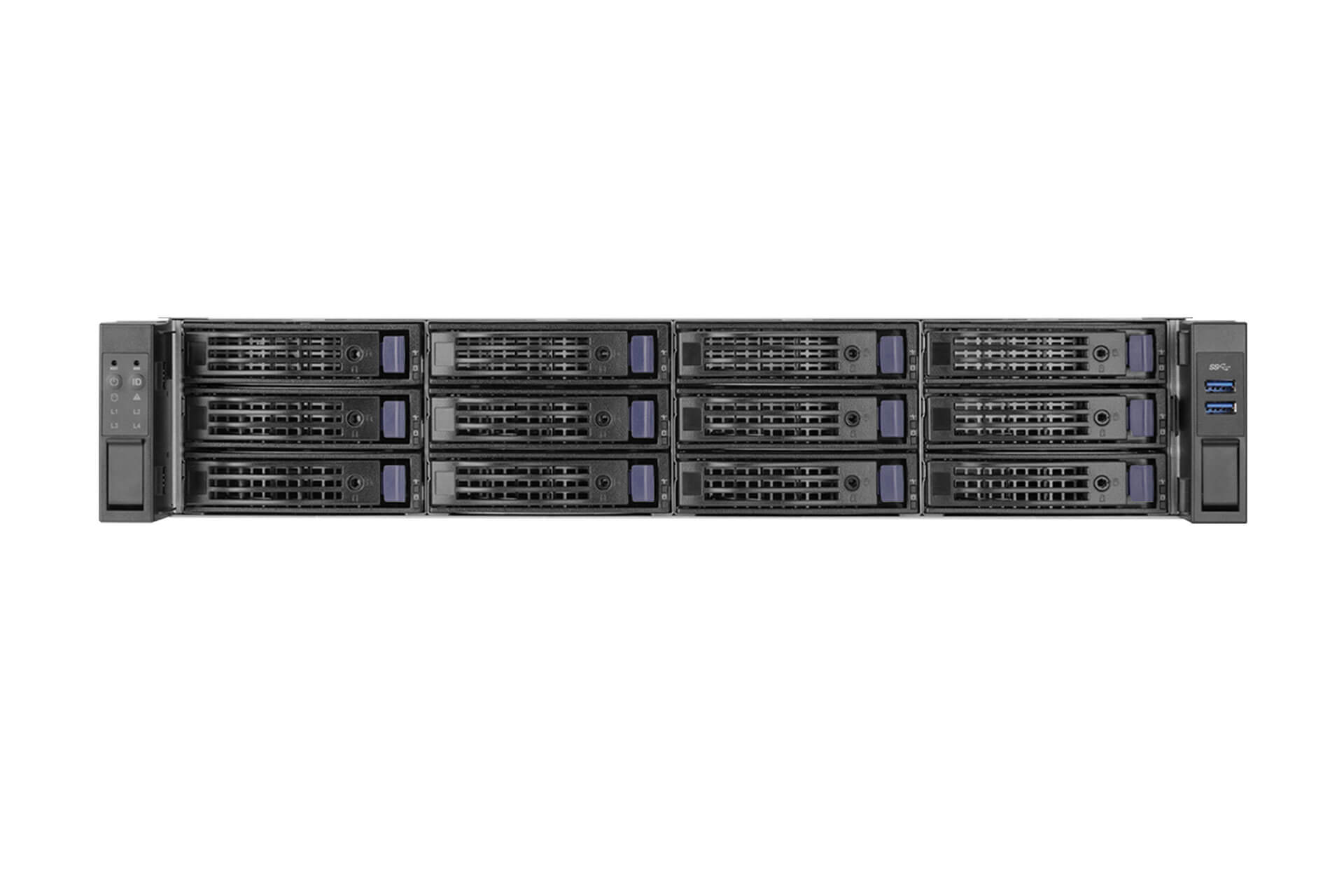

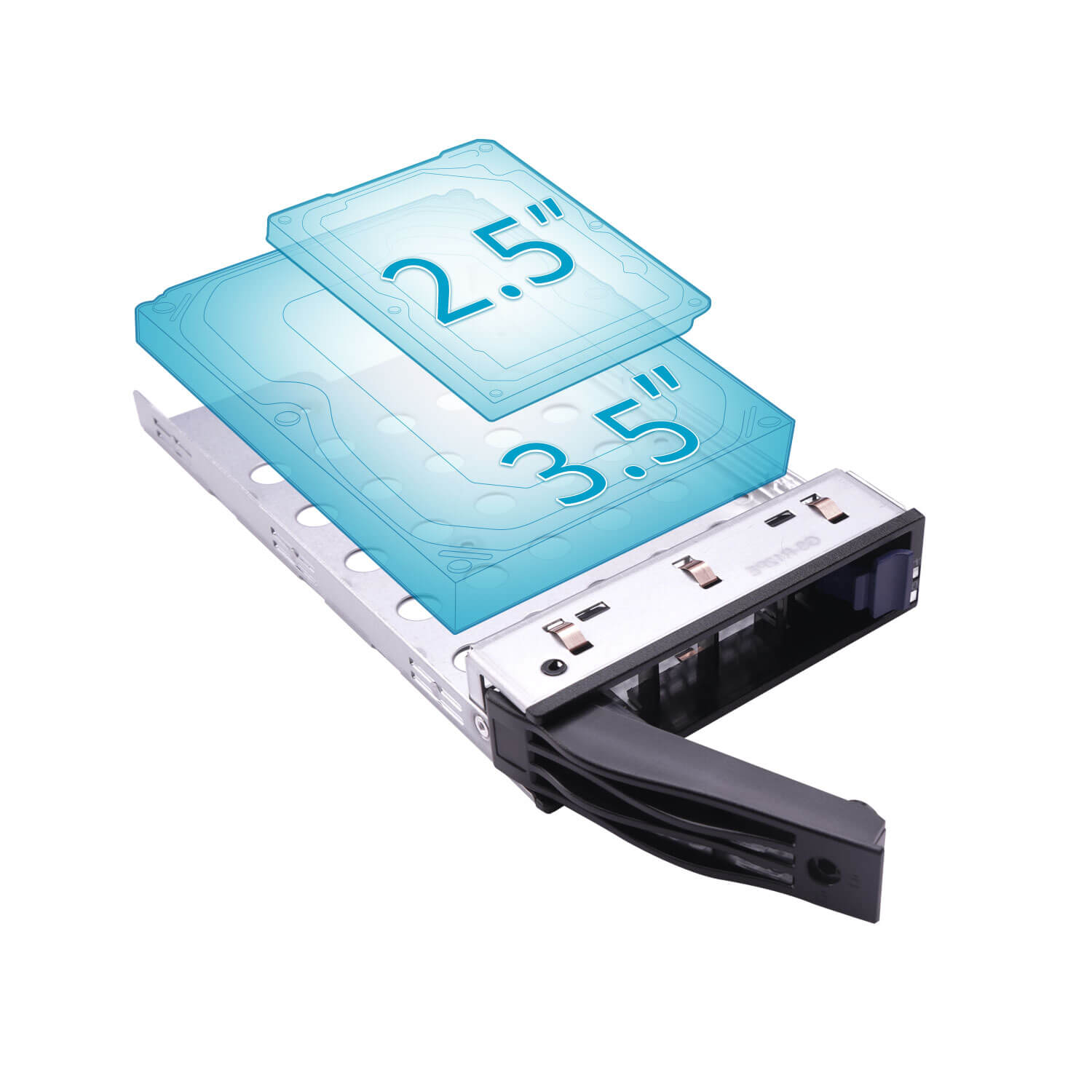

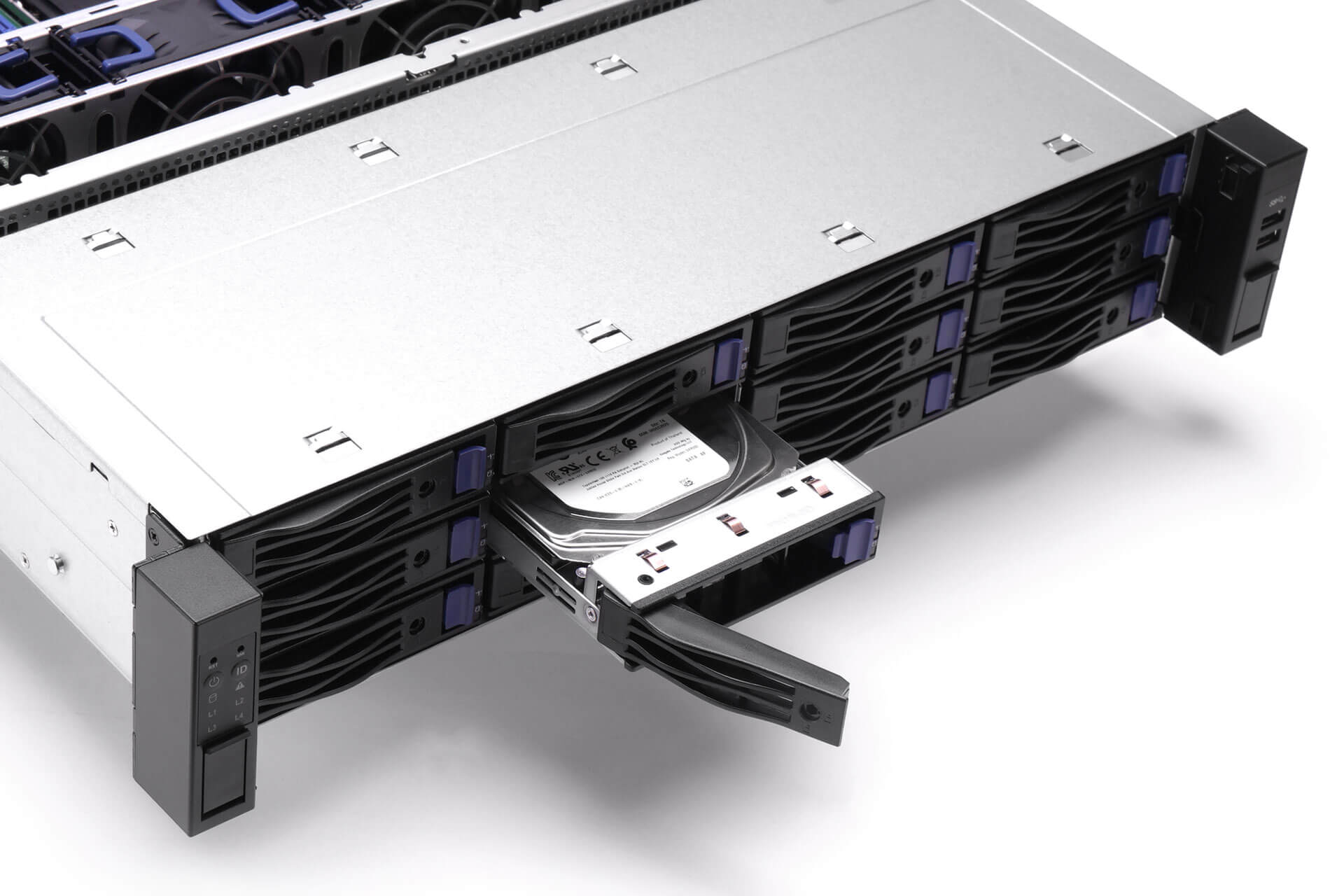

Modular Storage Design

Storage flexibility is enhanced through a 12-bay front-access design supporting both 2.5" and 3.5" drives. The introduction of the 02M tray system allows for a more modular setup, making drive installation and replacement faster and more intuitive while improving overall service efficiency.

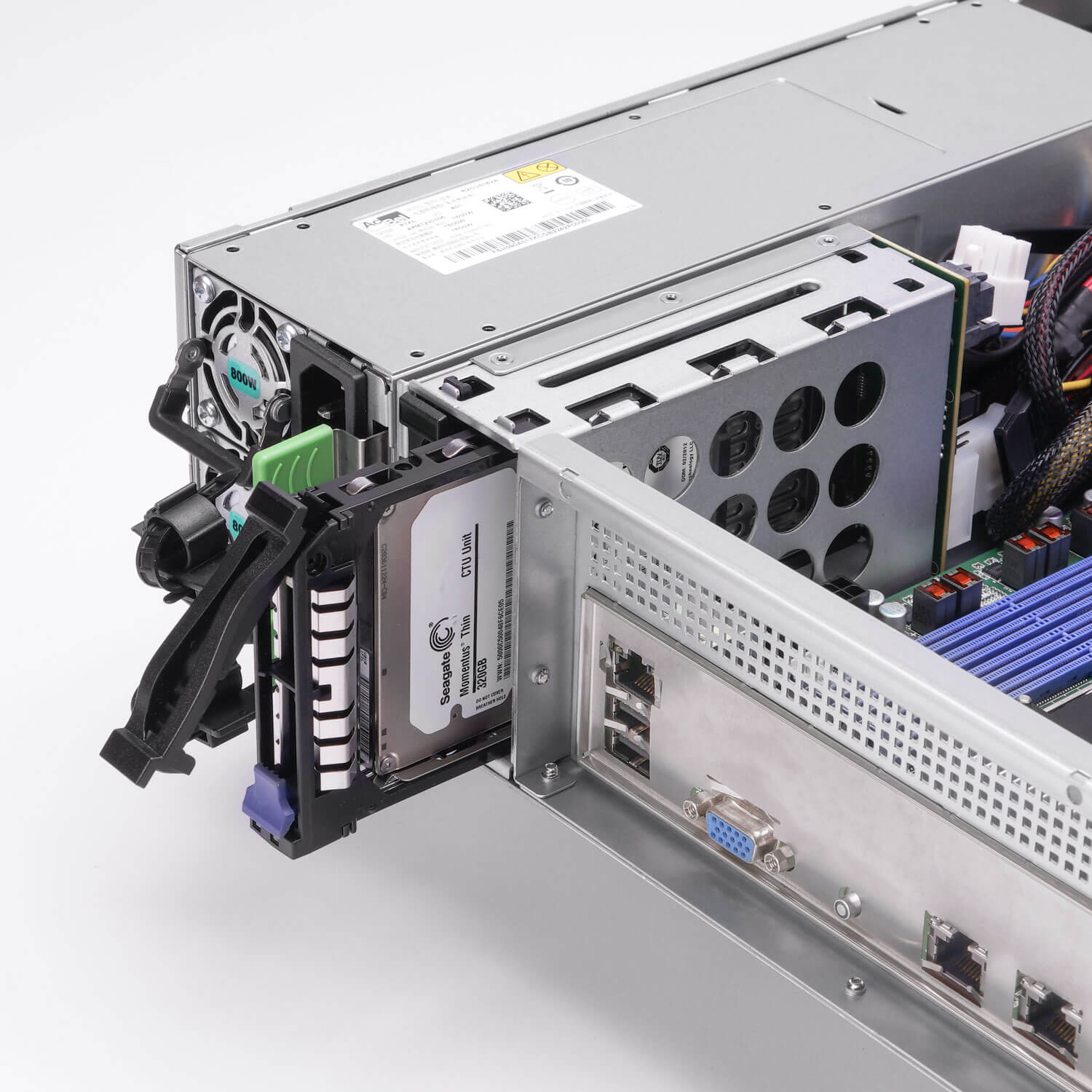

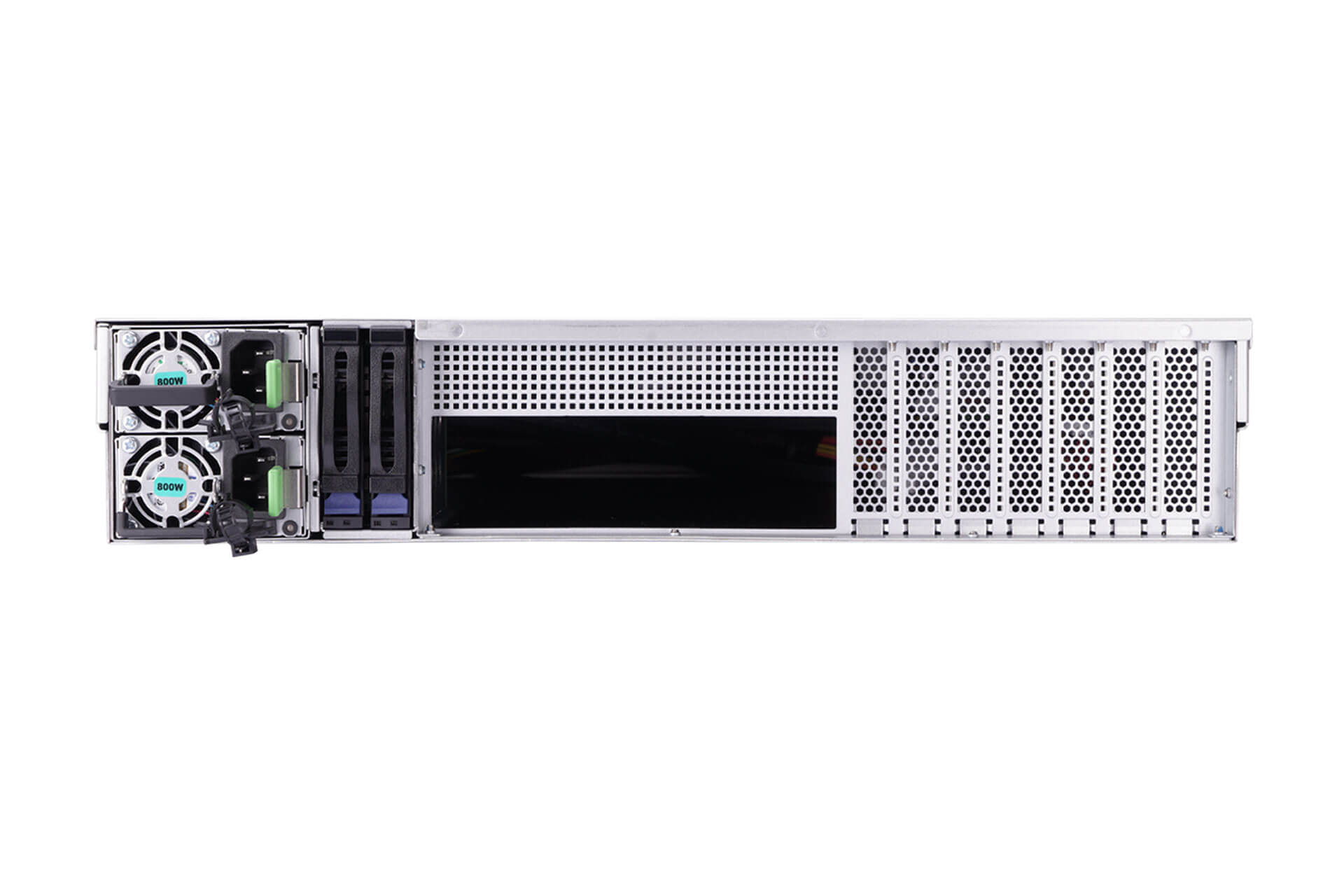

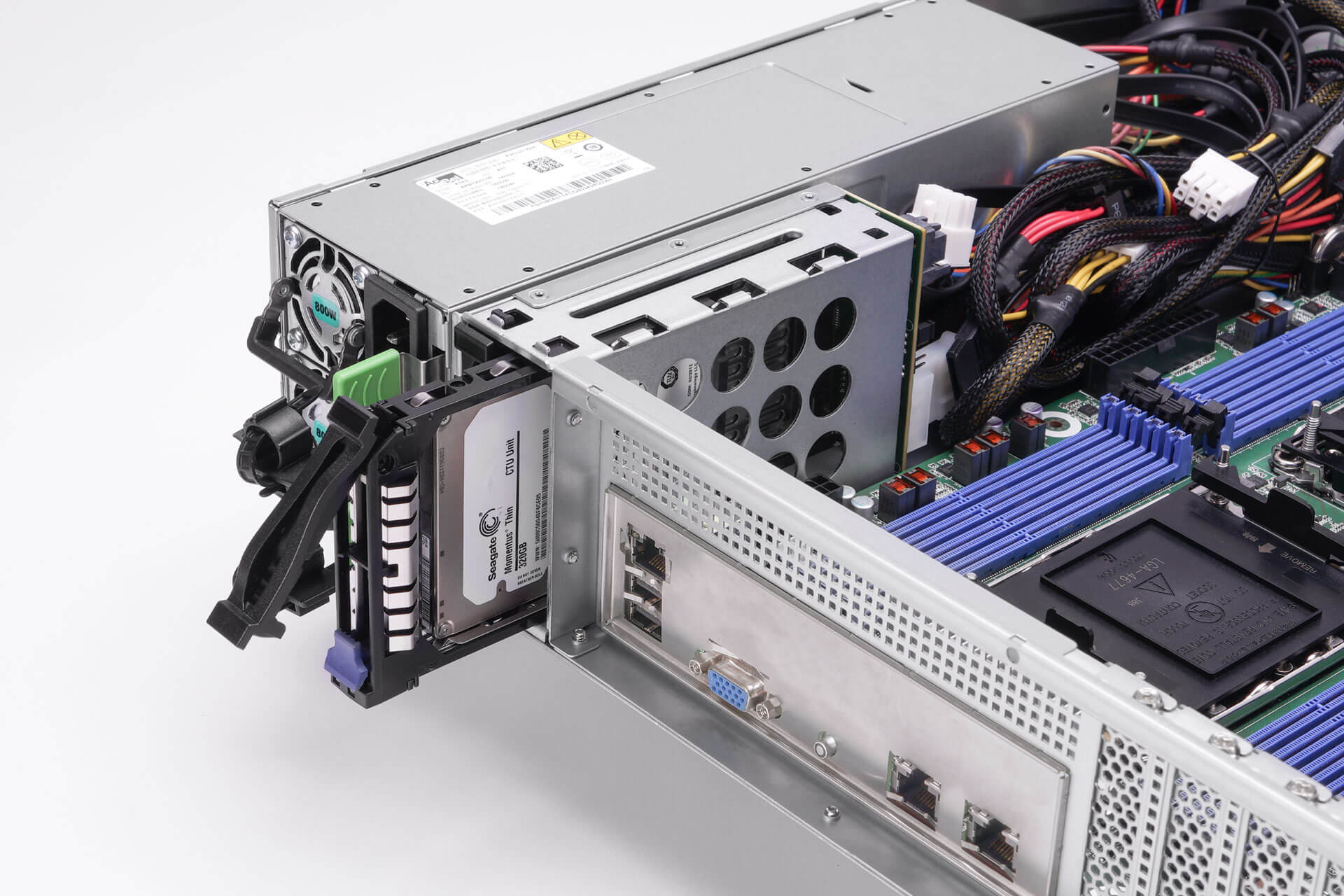

Dedicated Rear System Drive Bays

To support system-level storage without occupying front drive capacity, the RSA212-02M includes 2 rear-mounted 2.5" hot-swappable SSD bays. This dedicated design allows for OS or boot drive deployment while preserving front storage for data, improving overall system organization and efficiency.

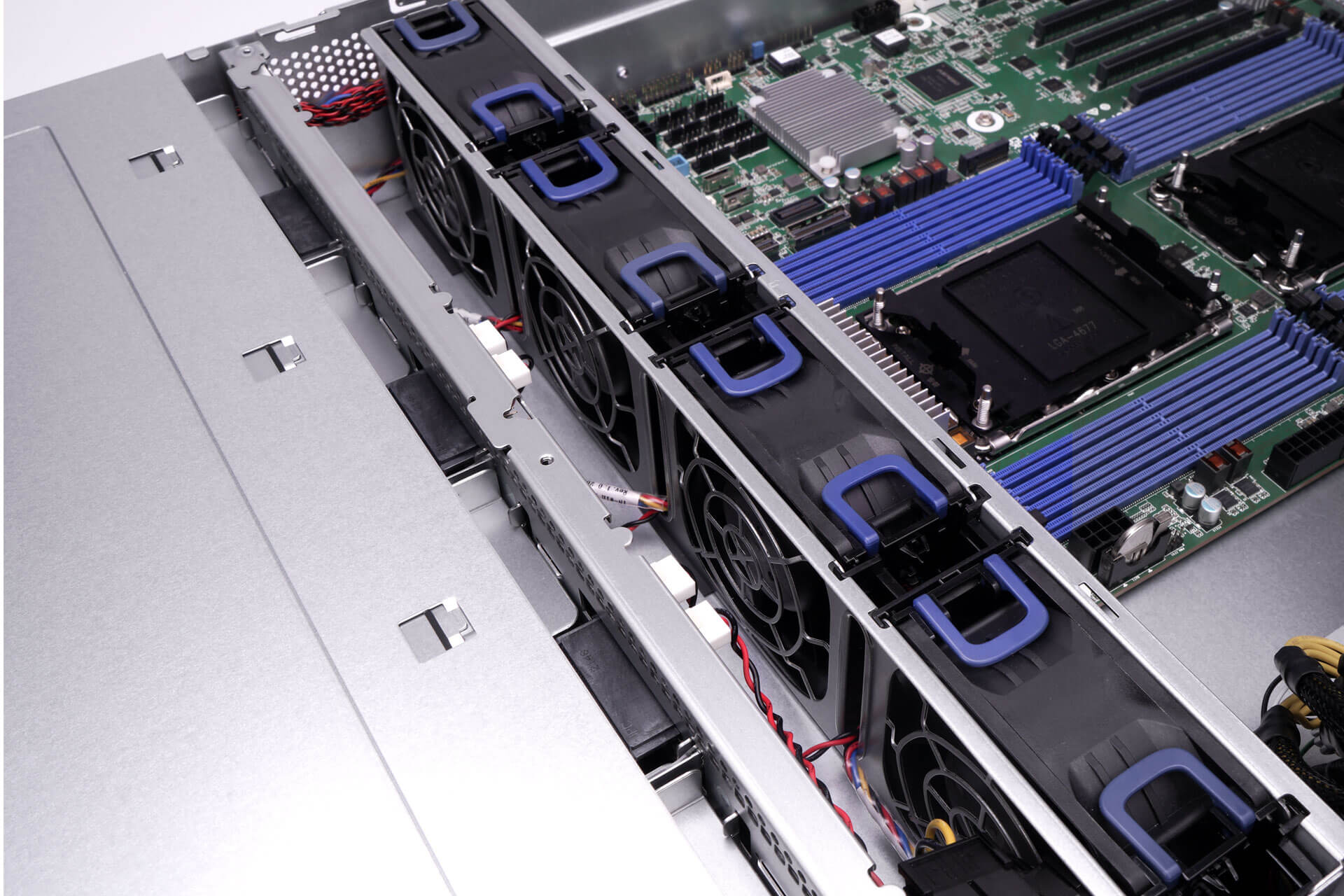

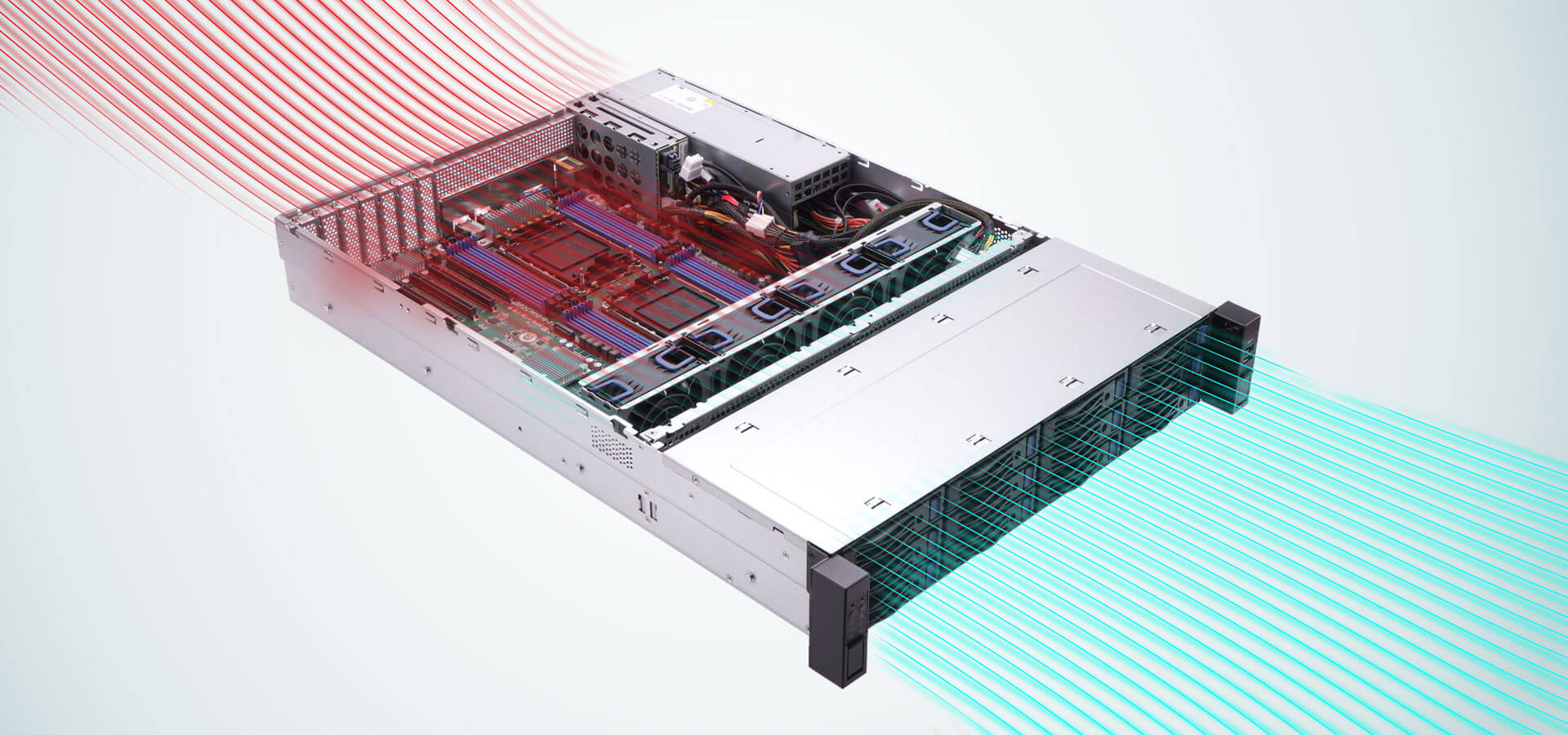

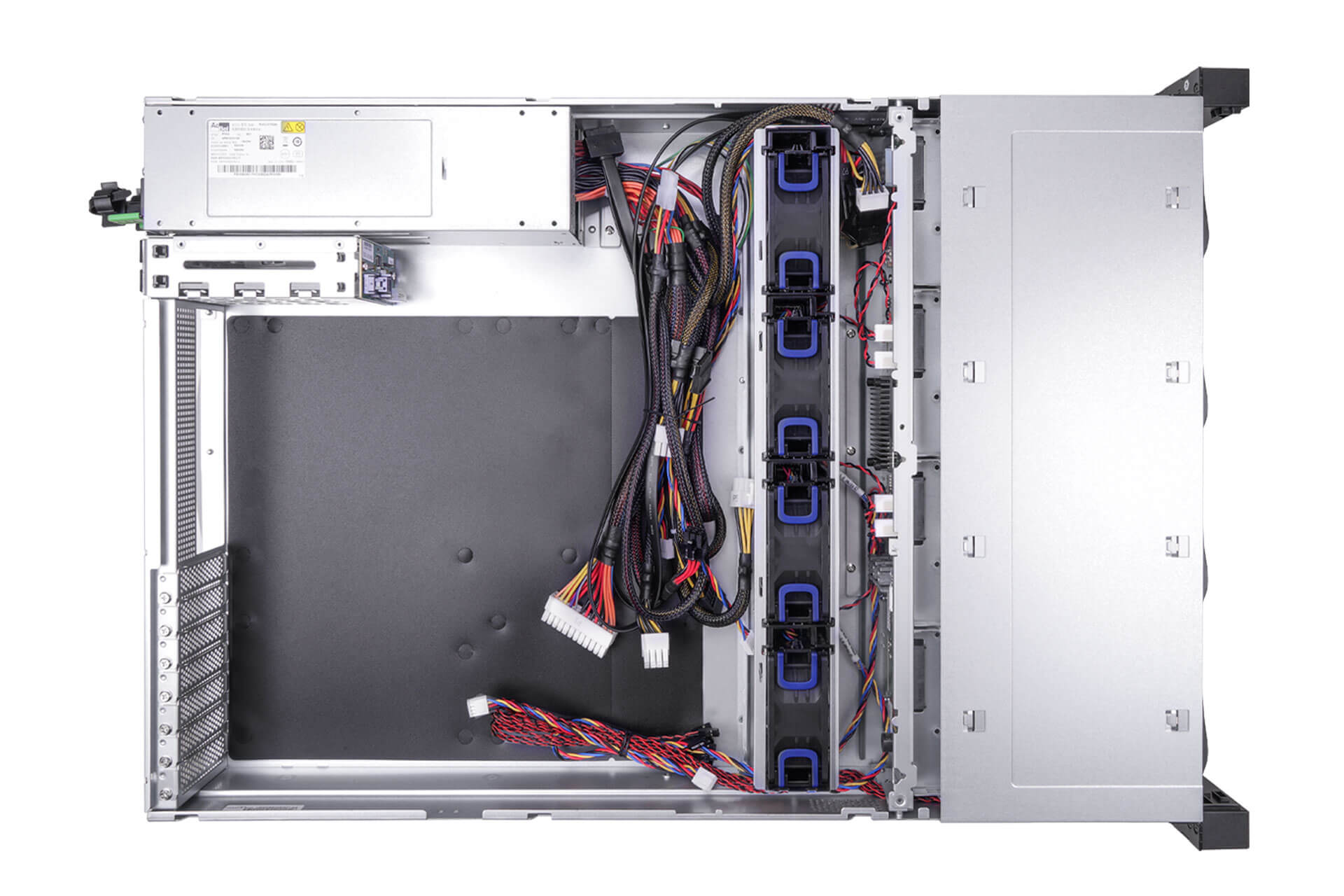

Efficient Cooling

A streamlined airflow path moves air directly from front to rear, reducing heat accumulation inside the chassis. High-speed hot-swappable fans maintain consistent thermal performance, allowing the system to operate reliably even when all drive bays are fully populated.

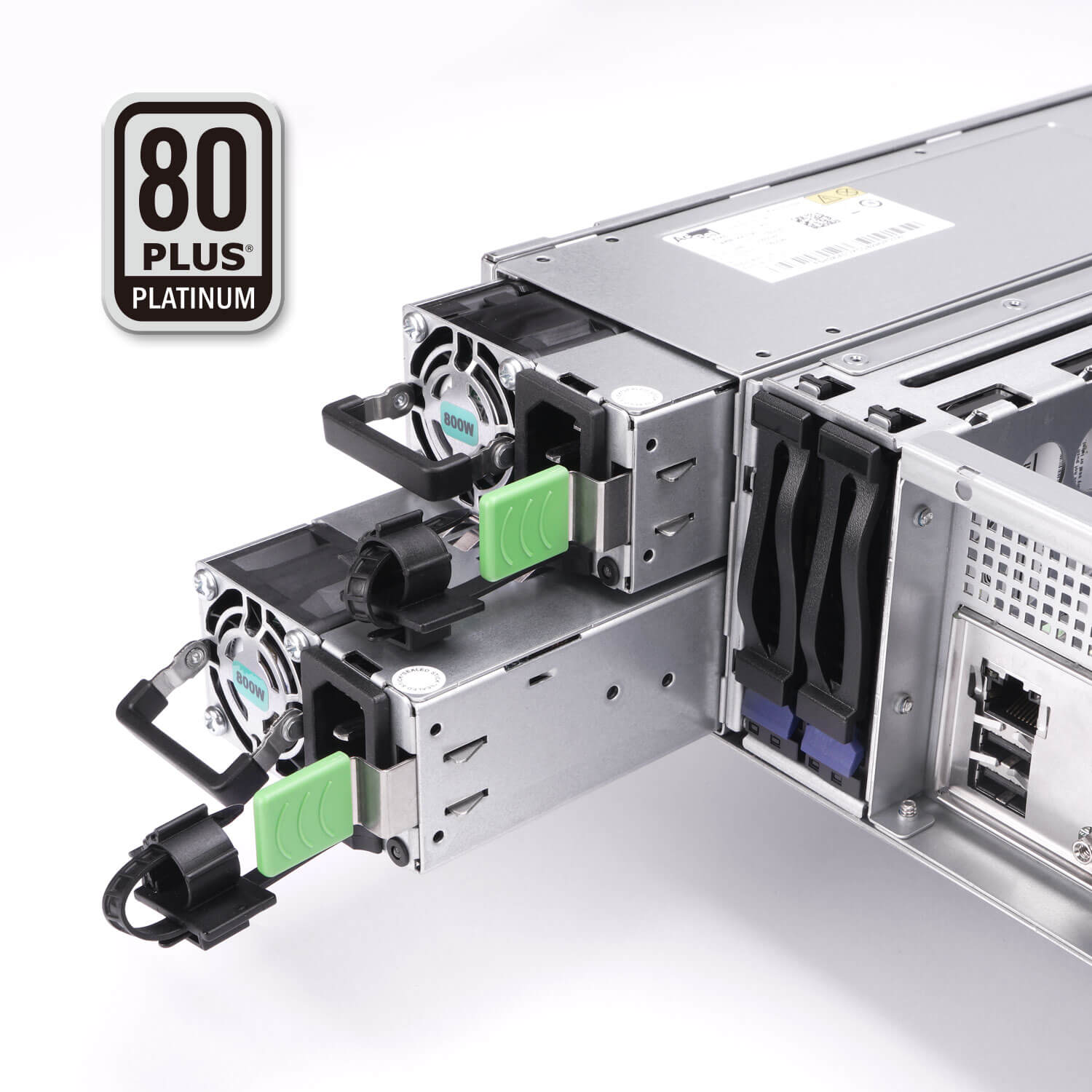

Reliable CRPS Support

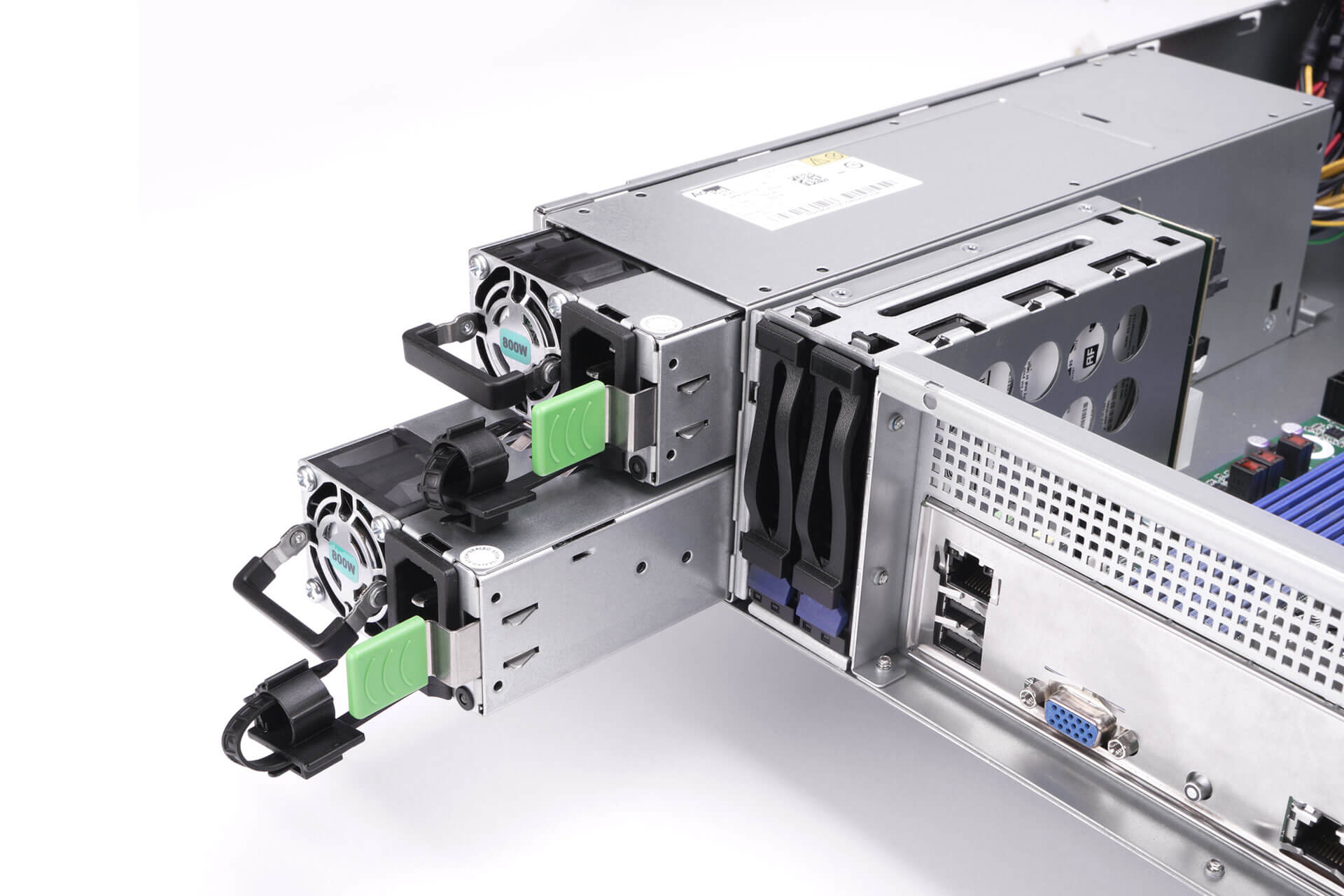

To support stable system operation, RSA212-02M is equipped for 80 PLUS Platinum CRPS power supplies in a redundant configuration. This setup ensures uninterrupted performance and allows power modules to be replaced without shutting down the system, reducing operational risk in critical deployments.

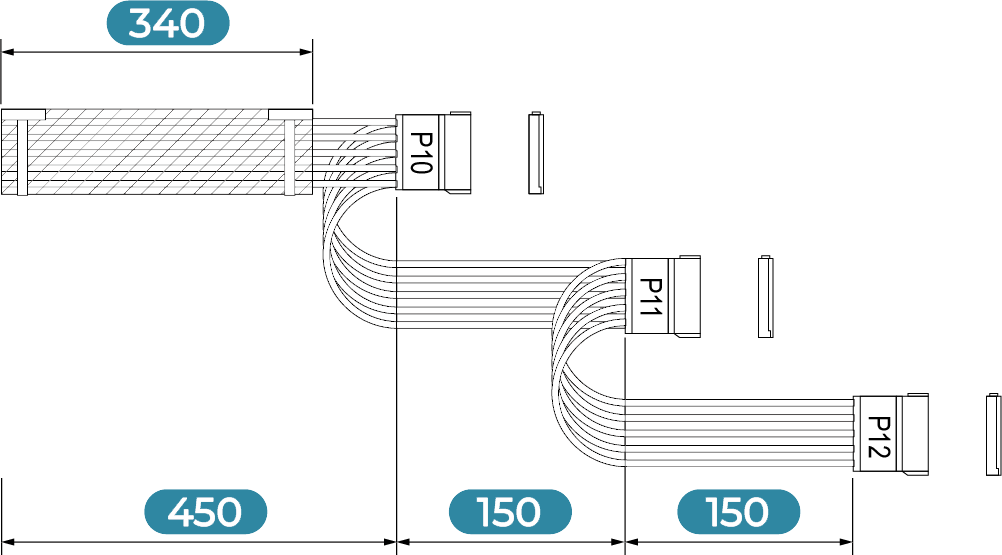

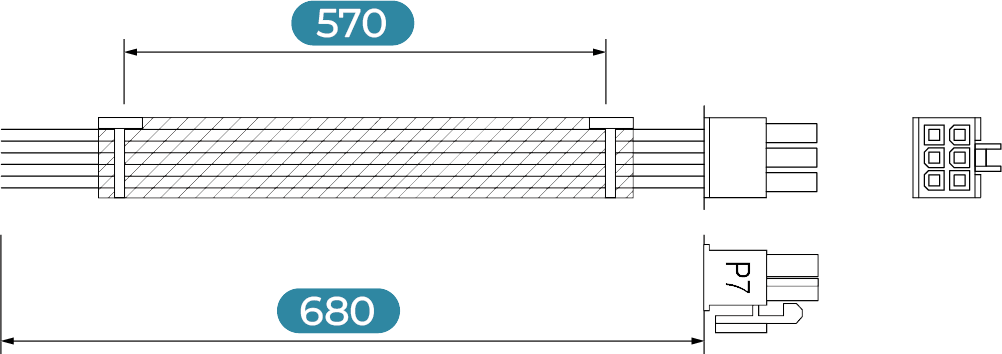

Power Cable Information

Unit of Length: mm

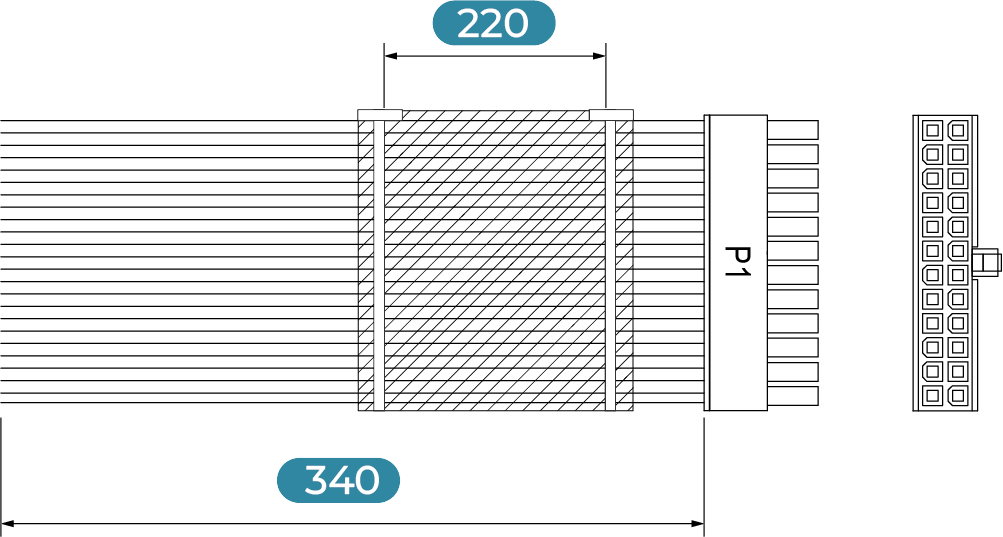

24-Pin Main Power

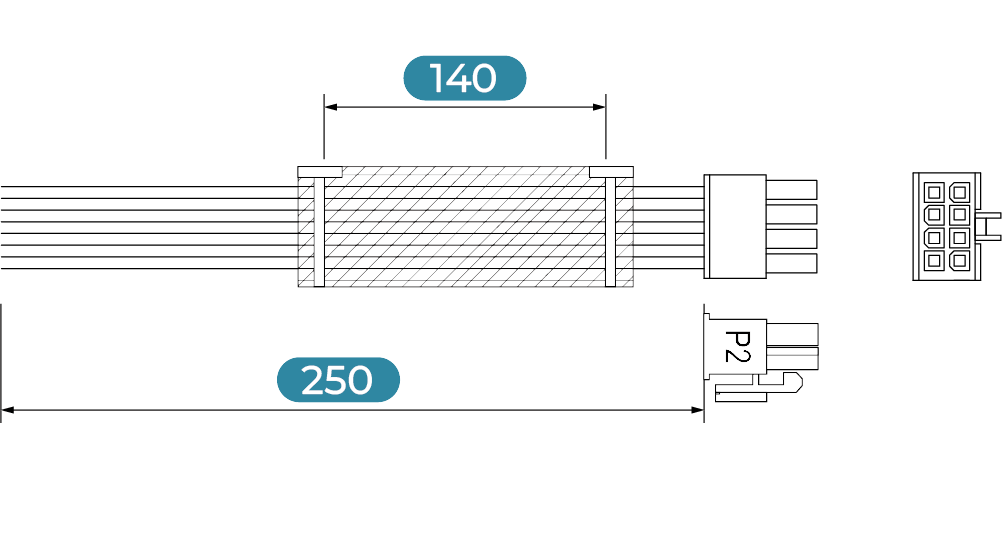

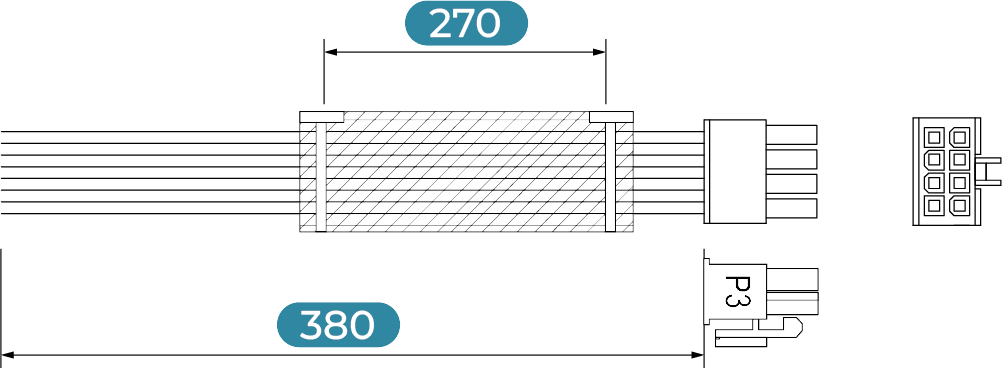

8-Pin CPU or BP

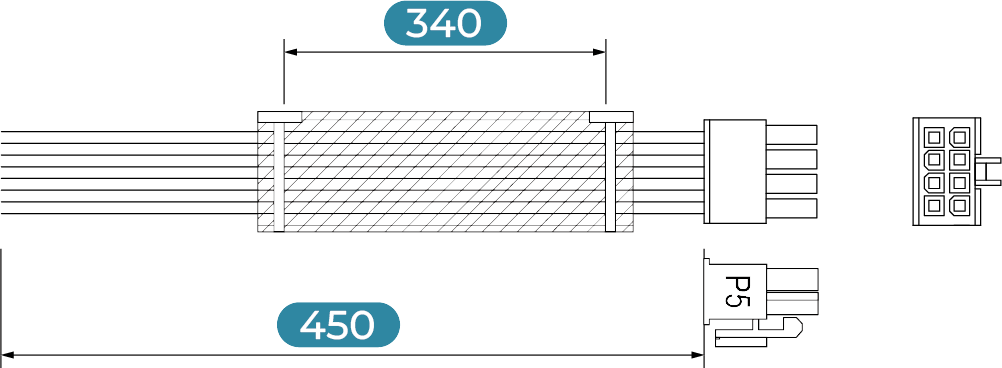

8-Pin CPU or BP x 2

8-Pin CPU or BP

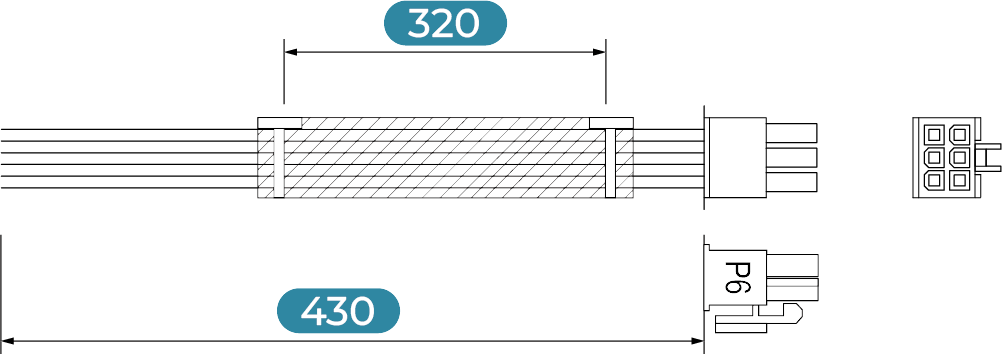

6-Pin BP

6-Pin BP

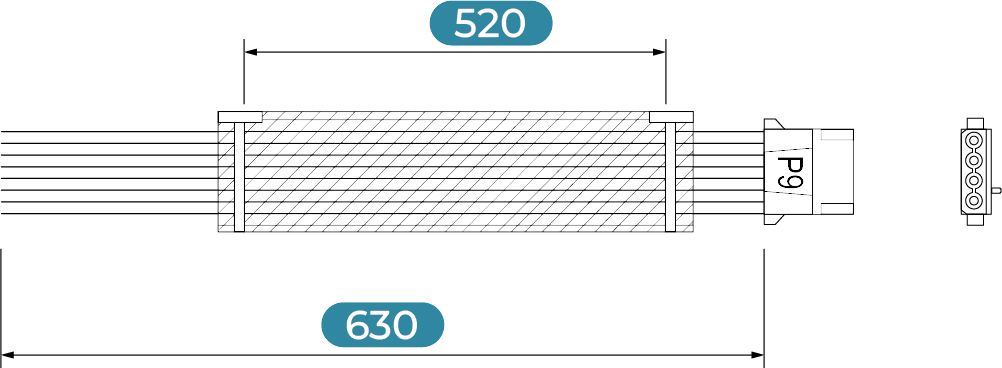

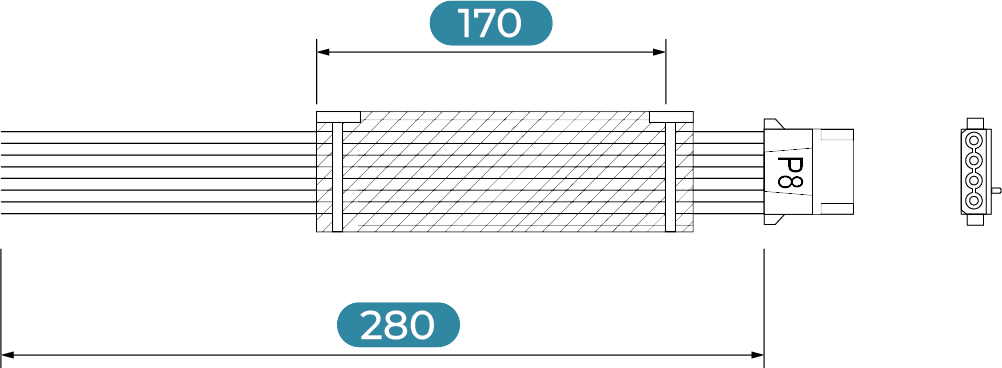

4-Pin Peripheral

4-Pin Peripheral

SATA

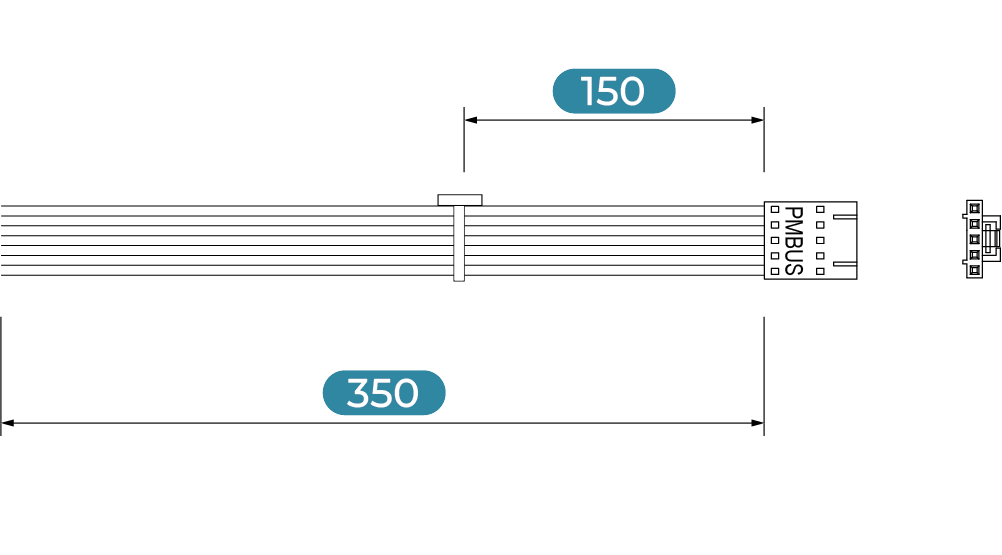

PMBus

Specification
Industry Standard	Compatible with EIA-RS310D standard 19" cabinets
M/B Form Factor	ATX(12" x 9.6"), CEB(12" x 10.5"), EEB(12" x 13")
Drive Bay	• External 2.5"/3.5" hot-swap trays x 12 • Rear 2.5" hot-swap trays x 2 (supports SAS 12Gbps)
Power Supply	Supports: • Form factor: 80 PLUS Platinum CRPS • Watt: 1600W
Indicators	Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED, HDD LED
Front Control Panel	Power on/off, system reset, NMI, ID SW, USB 3.0 x 2
Backplane	• Host: Mini-SAS HD (SFF-8643) x 3 • HDD: SAS/SATA x 12
12G Expander Module	Supports LSI 35 x 36R expander
Cooling Fans	80 x 38mm PWM hot-swap fans x 4, 10000RPM
Expansion Slot	Low-profile PCIe slots x 7
Material	Material: SGCC Thickness: 1.0mm
Rail Kit	Supports 28" tool-less & ball-bearing slide rails

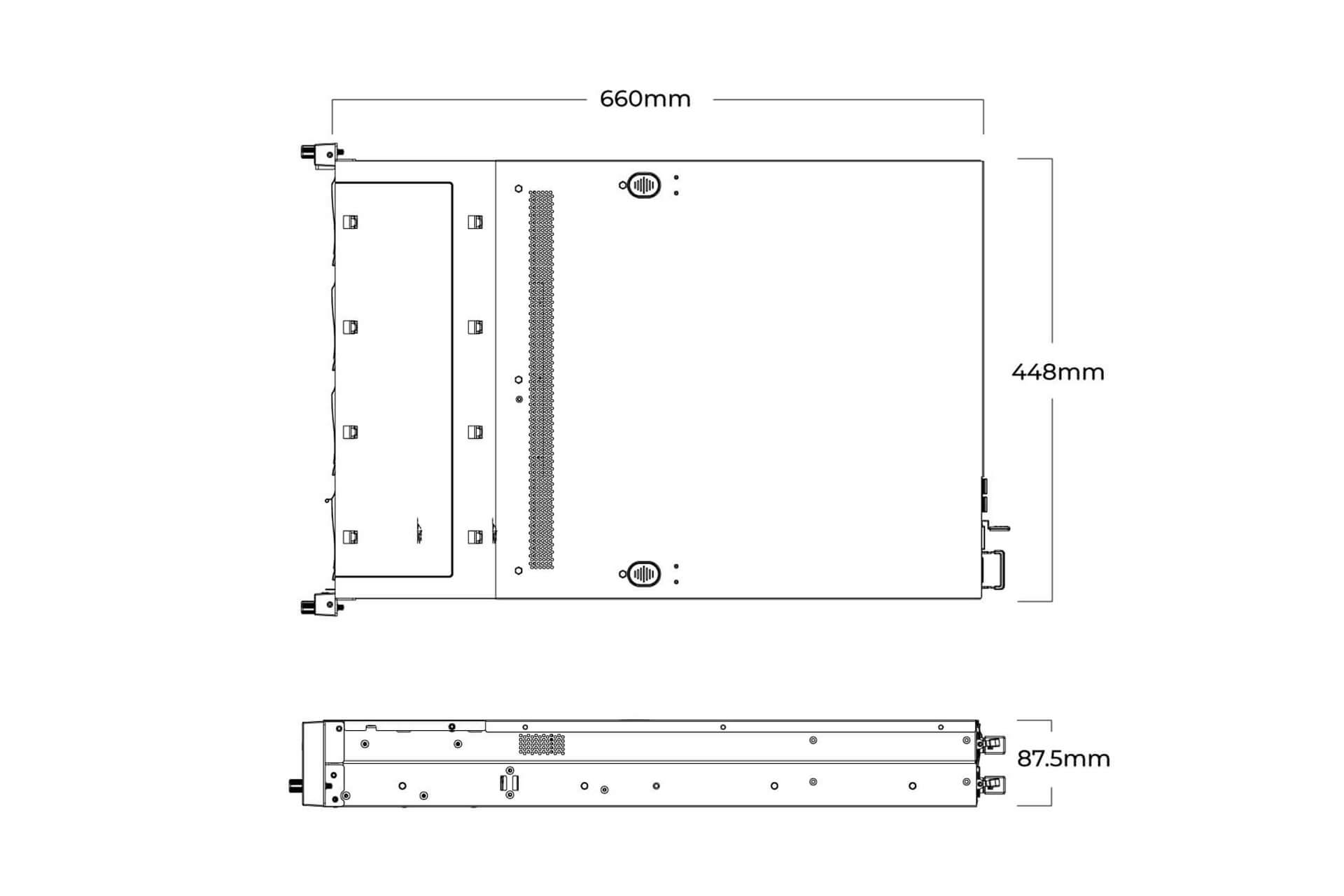

Product Dimensions (DxWxH; Chassis Only)	660 x 448 x 87.5 mm (26" x 17.6" x 3.4")

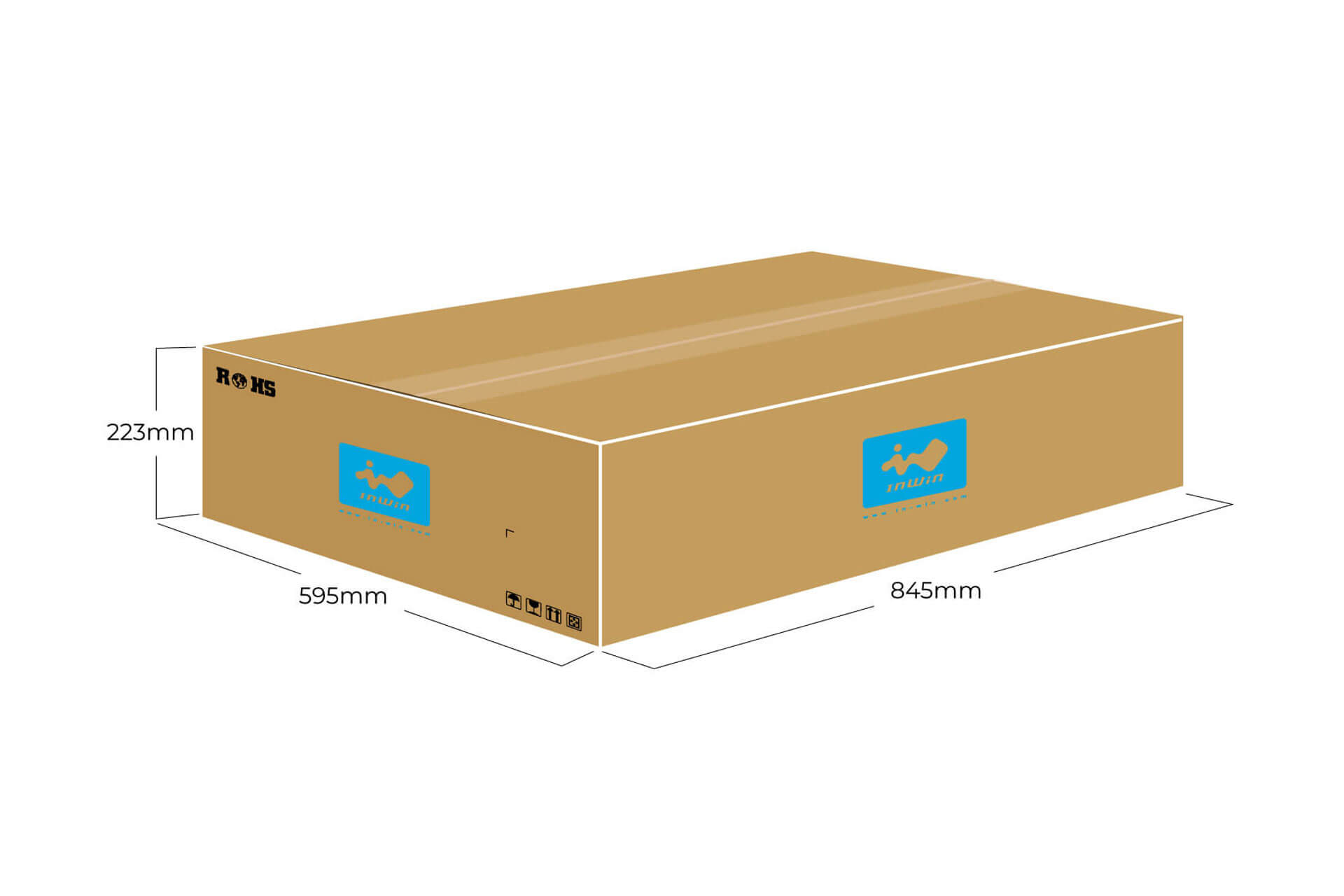

Product Dimensions (DxWxH)	845 x 595 x 223 mm (33.3" x 23.4" x 8.8")
Weight (Chassis Only)	• Net weight: 13.09 kg • Gross weight: 16.51 kg
Cubic Feet	3.96
Container Information	Single packing with pallets: • 20': 160 pcs • 40': 368 pcs • 40' HQ: 414 pcs

Backplane Specifications

Backplane	SAS3 backplane
Data Transfer Rate	12Gb/s
Dimension (W x H)	405 x 72.3mm
Backplane Type	Active with expander onboard
Host Interface	Mini-SAS HD (SFF-8643) x 3
HDD Interface	SAS/SATA x 12

Rear Disk Backplane Specifications

Backplane	SAS3 backplane
Data Transfer Rate	12Gb/s
Dimension (W x H)	80 x 37mm
Backplane Type	Passive
Host Interface	Mini-SAS HD (SFF-8643) x 1
HDD Interface	SAS/SATA x 2

* InWin NVMe backplane supports PCIe Gen4 data transfer speed, the actual speed will be determined by MB and HDD specifications.
* All components and optional parts are not included. In Win Development Inc. reserves the right to make final modifications.

Item	Download	Preview
IW-RSA212-02M eDM
IW-RSA212-02M Gallery		-

Item	Part Number	Description	Support

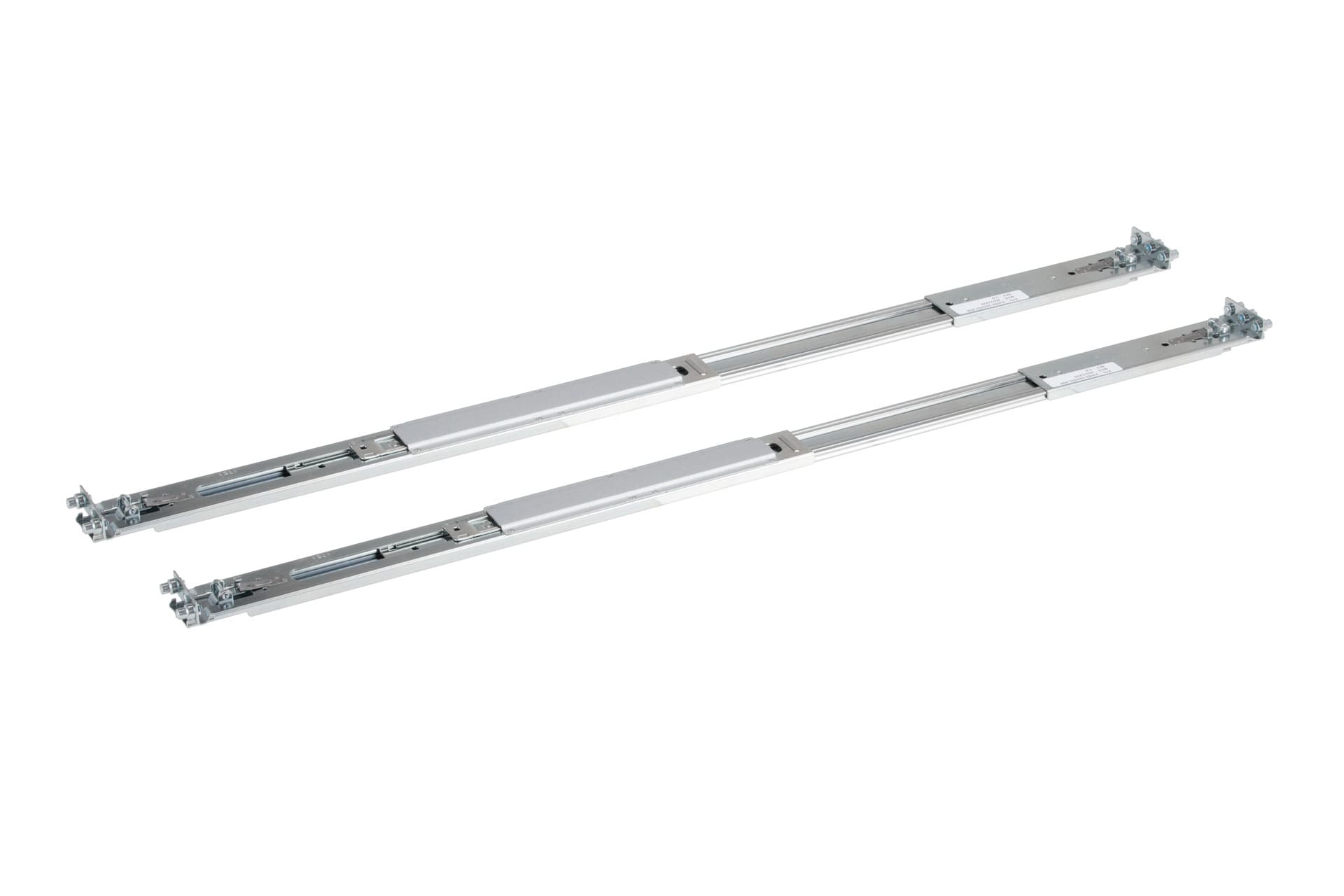

Slide Rail	3RAMIS148100	28" tool-less & ball-bearing slide rail	1 Set

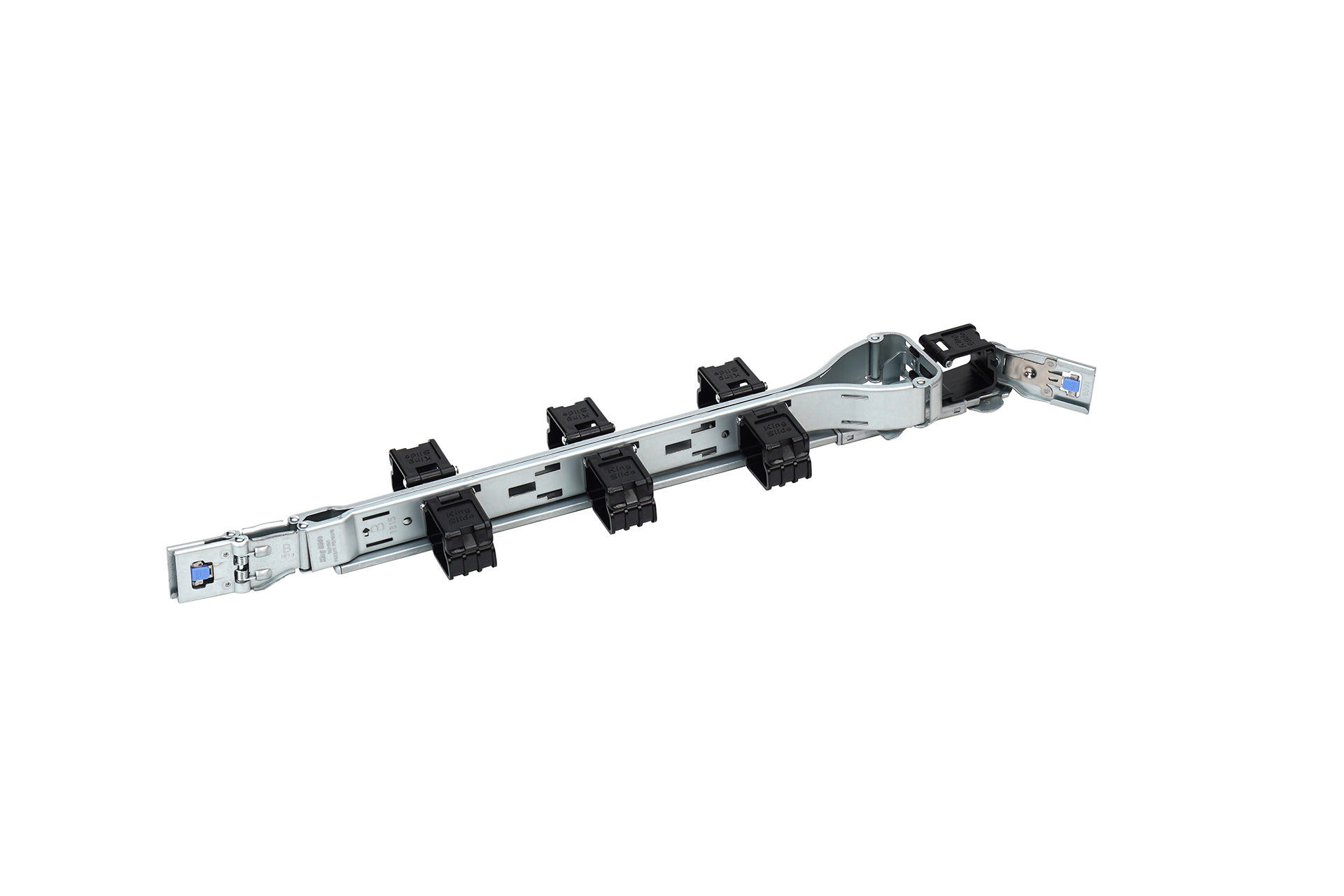

Slide Rail	3RAMIS152300 / 3RAMIS152400	28" tool-less & ball-bearing slide rail with CMA support	1 Set
Cable	3RAMW4031700	Mini-SAS HD 12Gbps (SFF-8643) to Mini-SAS HD (SFF-8643) Cable, 800 mm	Max.3
Power Supply	3RAMAP025102 / 3RAMAP042800	80 Plus Platinum 550W CRPS / CRPS PDB	Max.2

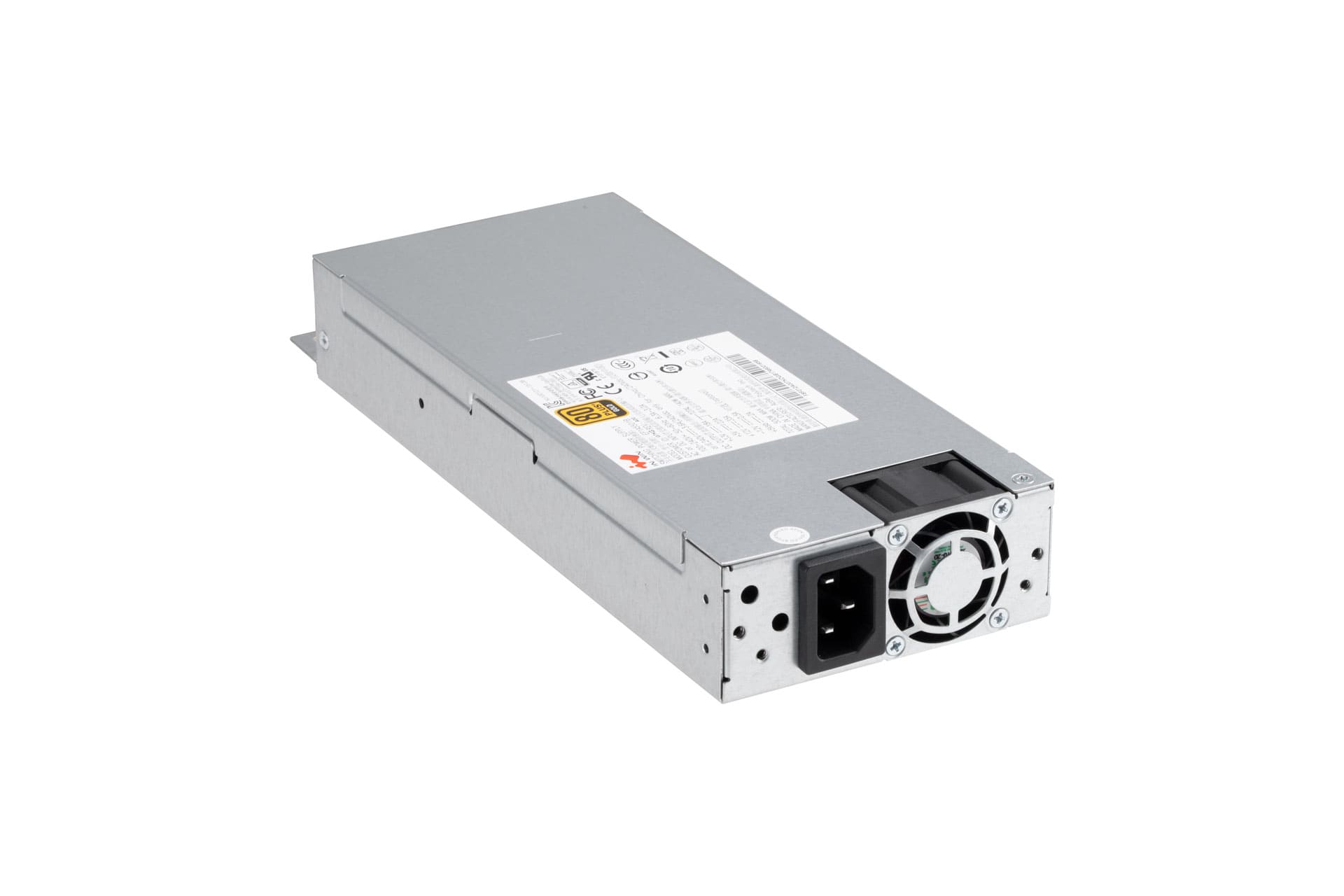

Power Supply	3RAMAP028600	80 Plus Platinum 800W CRPS / CRPS PDB	Max.2
Power Supply	3RAMAP030400	80 Plus Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.) / CRPS PDB	Max.2
Power Supply	3RAMAP042200	80 Plus Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.) / CRPS PDB	Max.2
Backplane	2RBTVI001900	12Gb/s Mini-SAS backplane	1

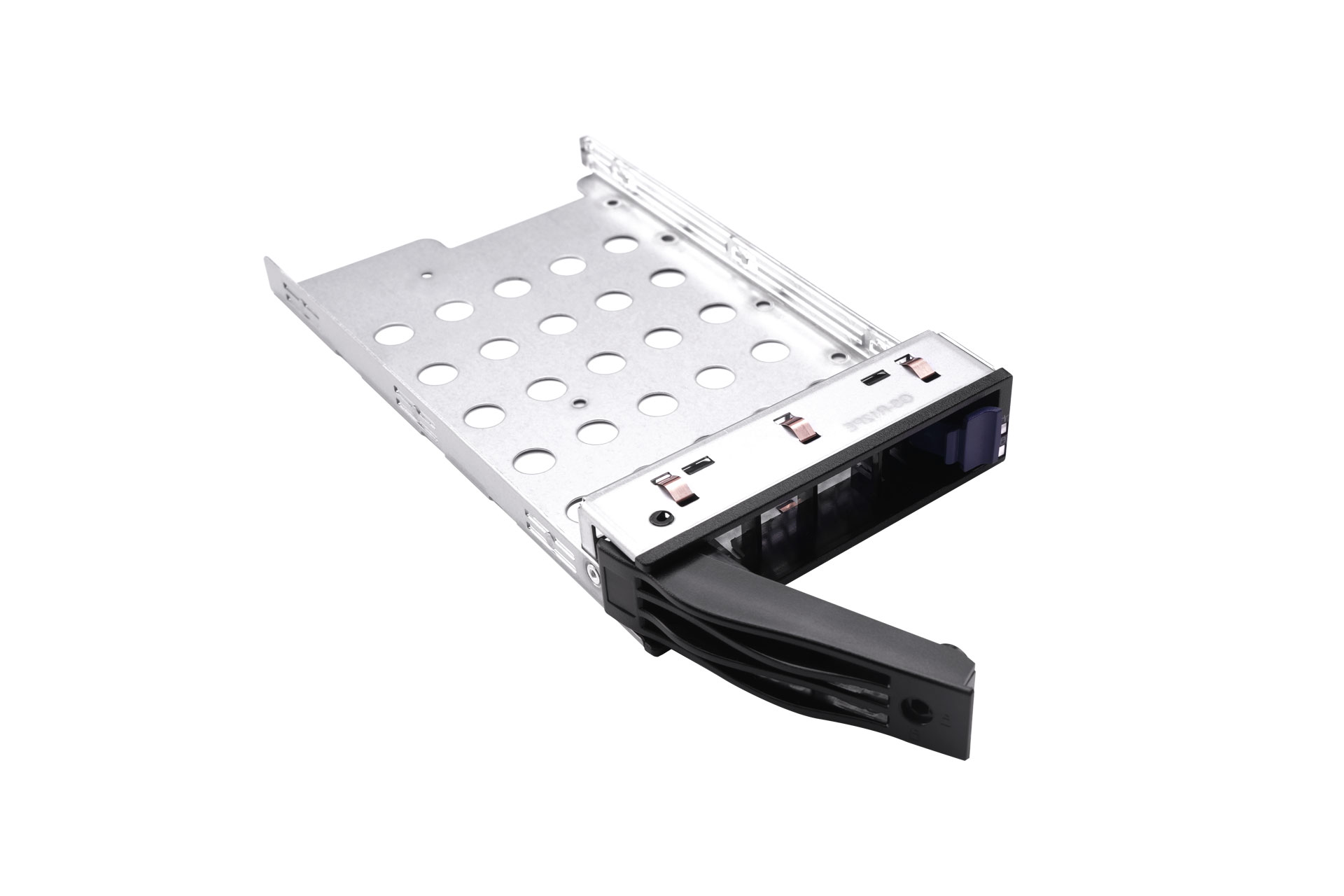

HDD Tray	2RAKPH008404	2.5"/3.5" hot-swap HDD tray (blue color)	Max.12
HDD Tray	2RAAPH036605	2.5" Screwless hot-swap SSD rear tray (blue color)	Max.2
Fan	3RAMFB017900	80 x 38mm PWM hot-swap fan, 10000RPM, 6pin	Max.4
Fan	2RAKFB014800	80 x 38mm PWM hot-swap fan & fan bracket, 10000RPM, 6pin	Max.4

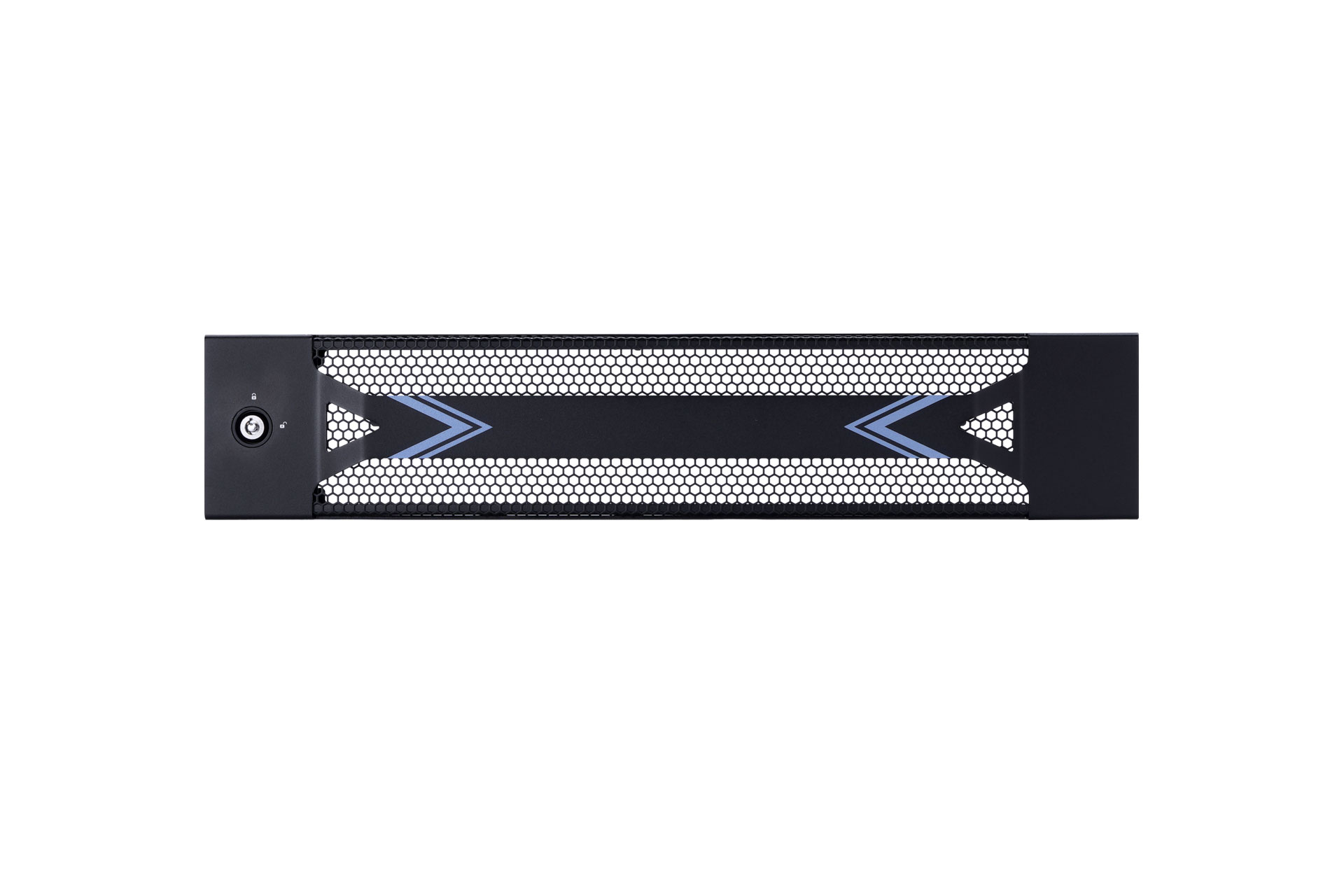

Others	2RAKIP032700	Mesh front panel	1
Others	3RAMRW011300	Intrusion switch / 800mm	1
