IW-R200-02N

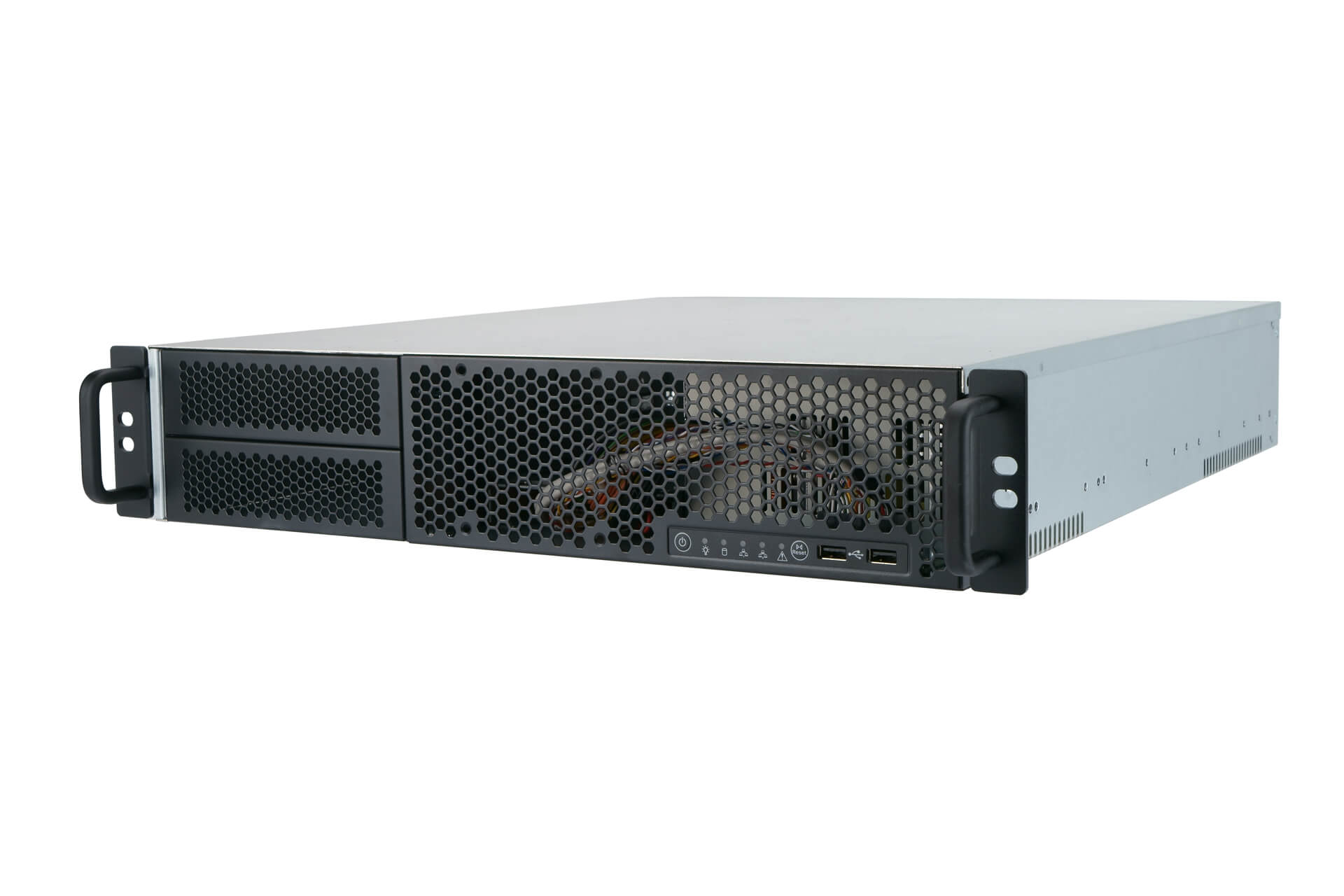

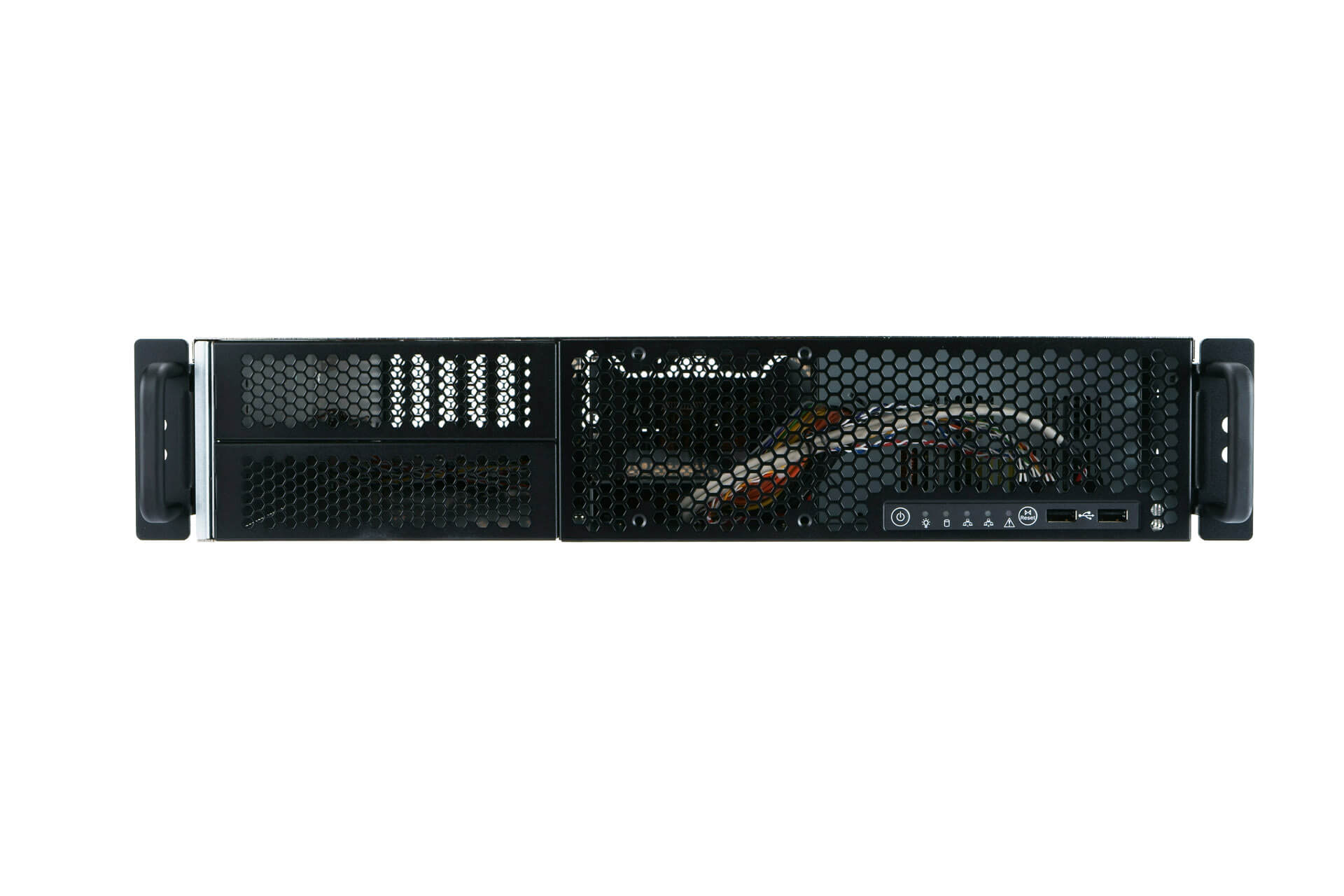

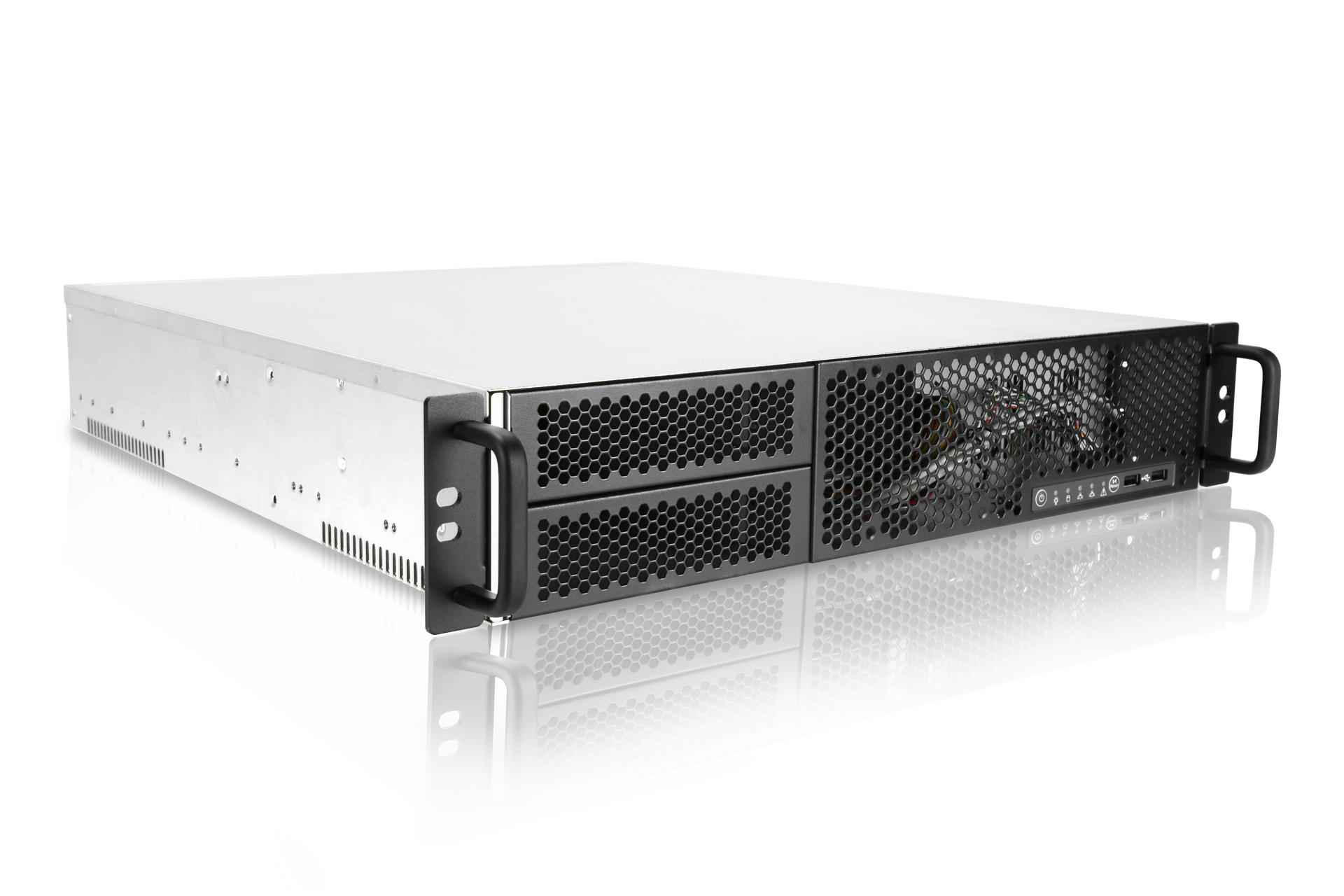

Open-Bay 2U Server Chassis
- Compliance for AMD EPYC family
- Compatible with single or redundant power supply
- Expandable storage option with InWin storage kit
- Supporting 7 low-profile cards or 3 full-height cards with riser
- Supporting ATX (12" x 9.6") motherboard

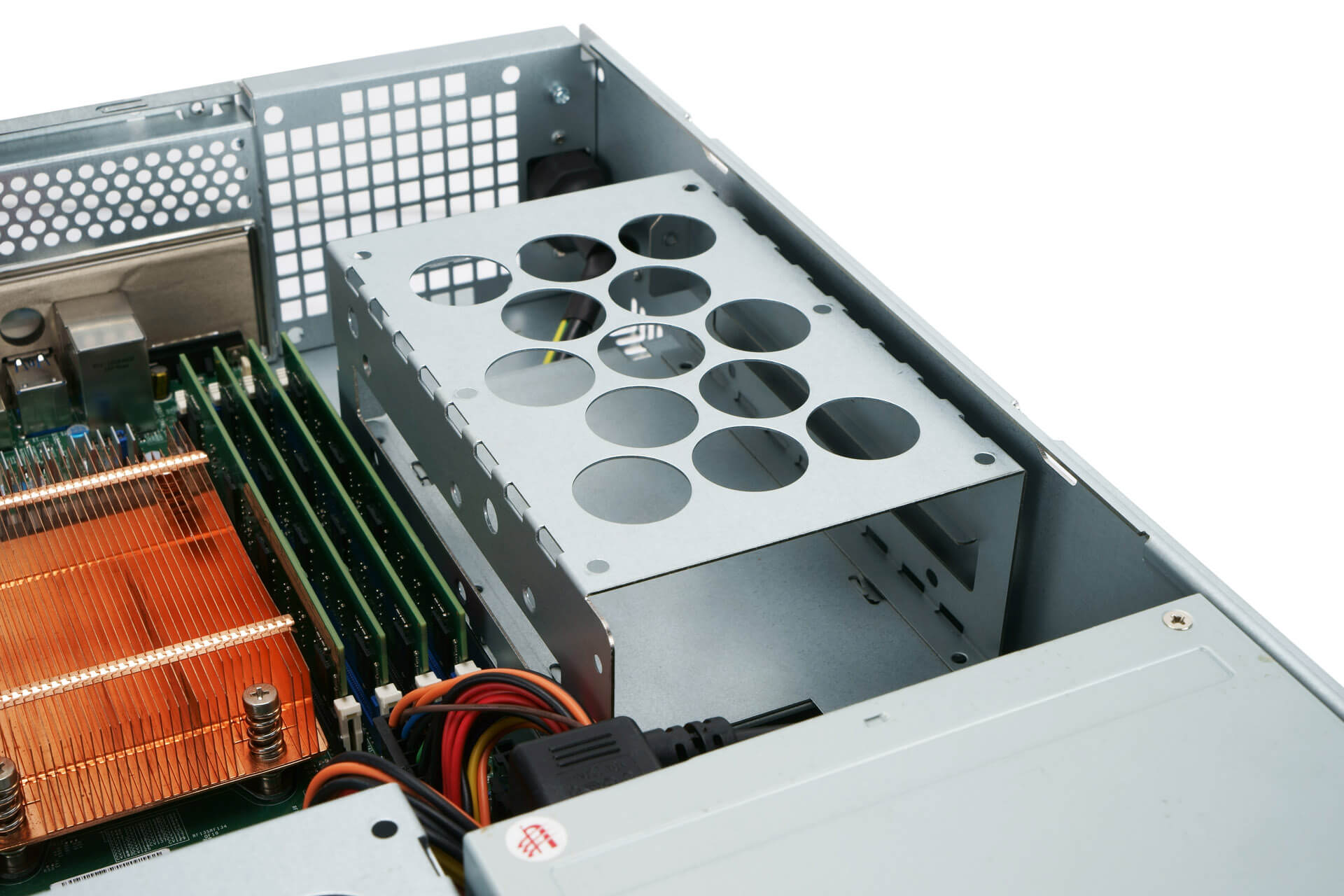

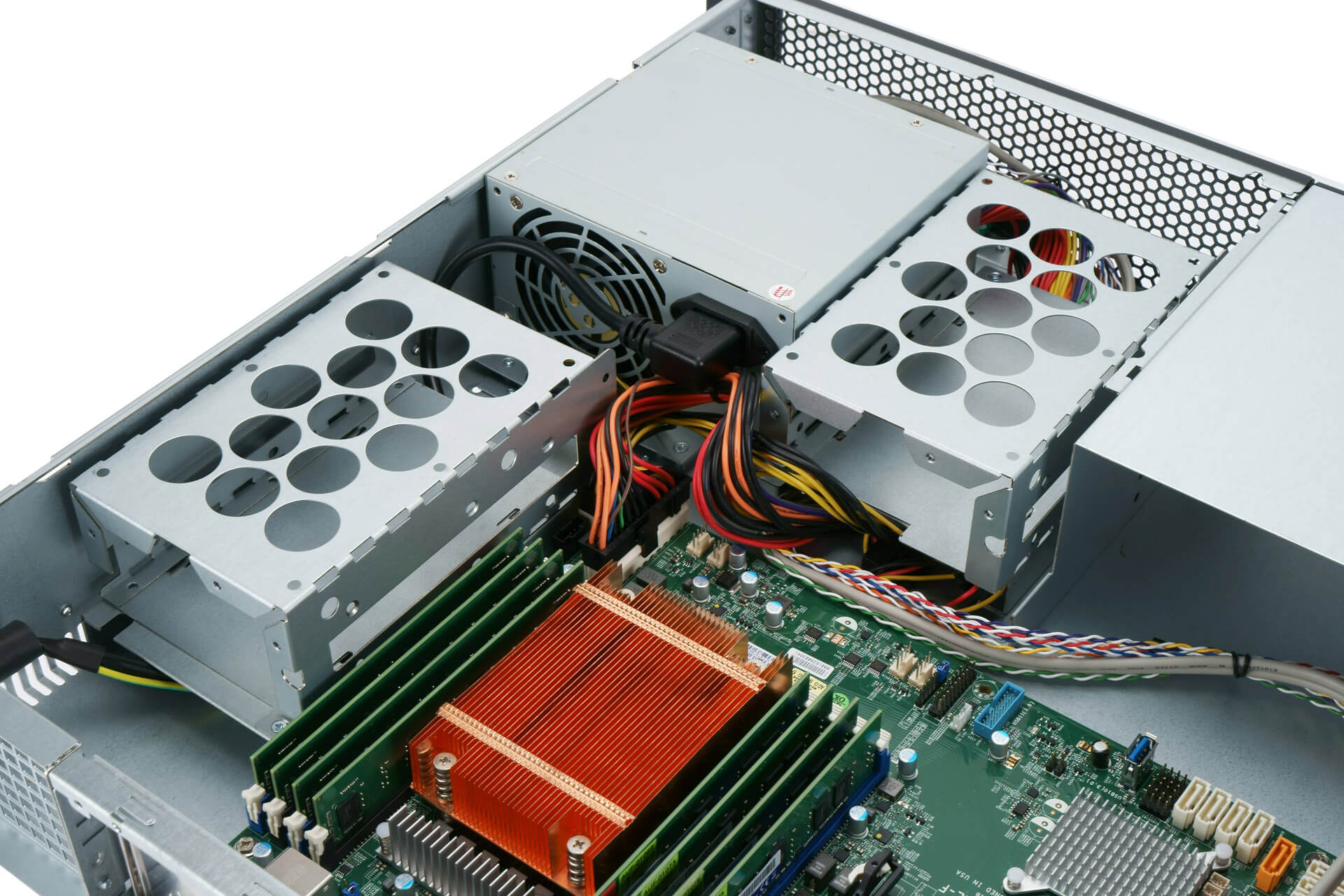

- Internal 3.5" HDD x 4
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |

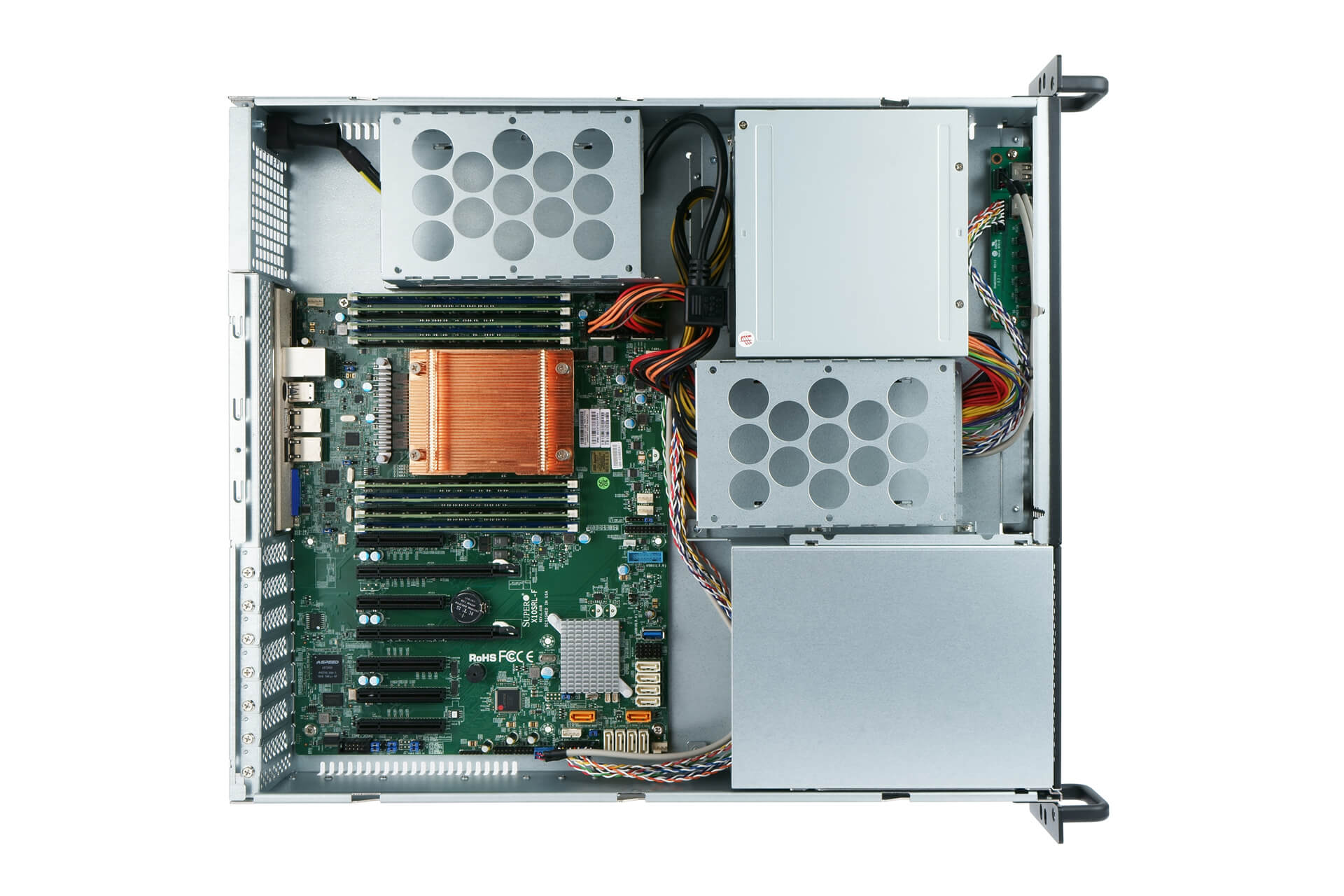

| M/B Form Factor | ATX (12" x 9.6") |

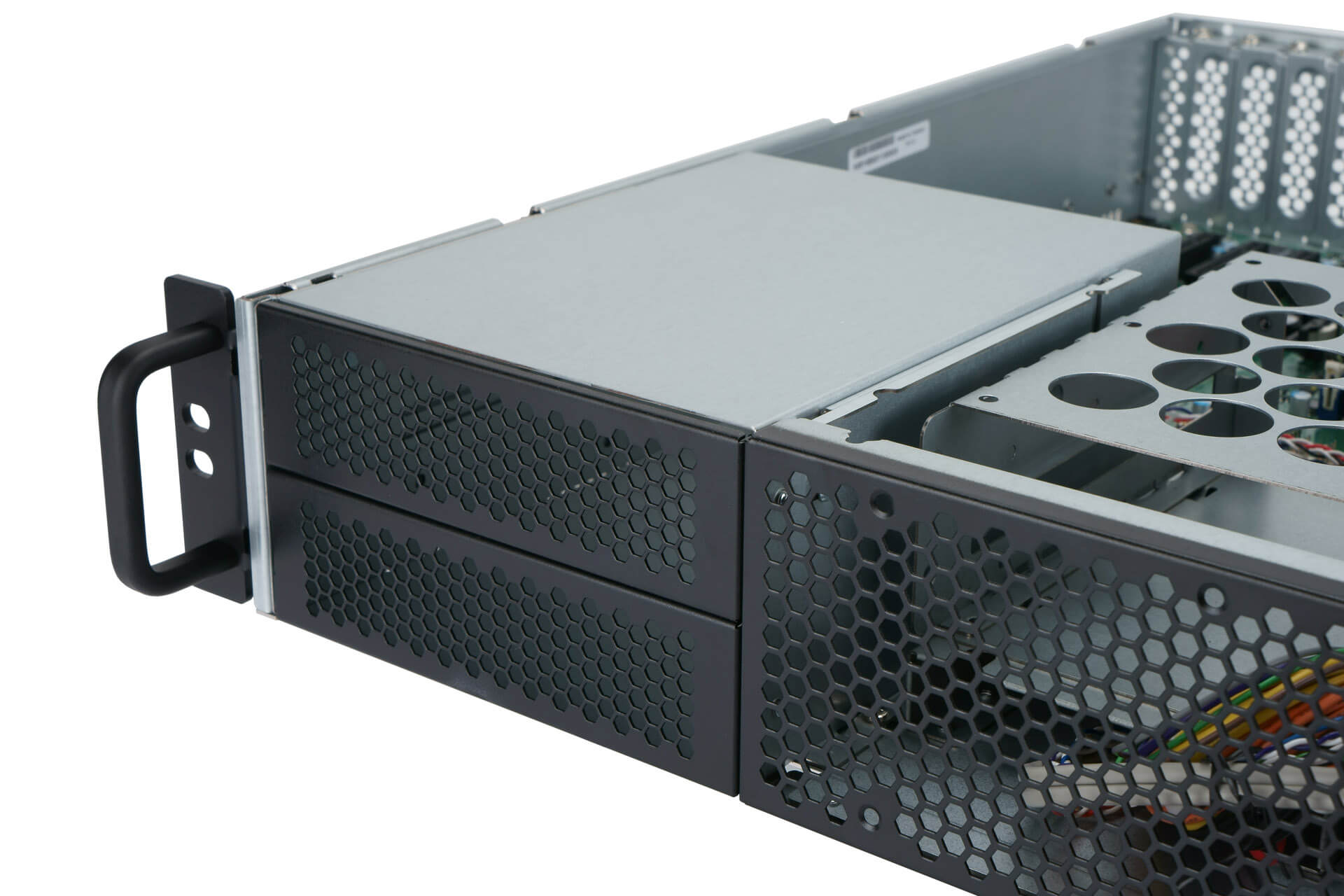

| Drive Bay | • External: 5.25" x 2 • Internal: 3.5" x 4 |
| Power Supply | Supports: • Form Factor: PS2 or 2U 1+1 Redundant • Watt: up to 500W |
| Indicators | Power Status, HDD, LAN Activity LEDs |
| Front Control Panel | Power Switch, System Reset, USB 2.0 x 2 |
| Chassis Security | Intrusion Switch (optional) |
| Cooling Fans | Supports 80 x 25mm PWM Fan x 2 |

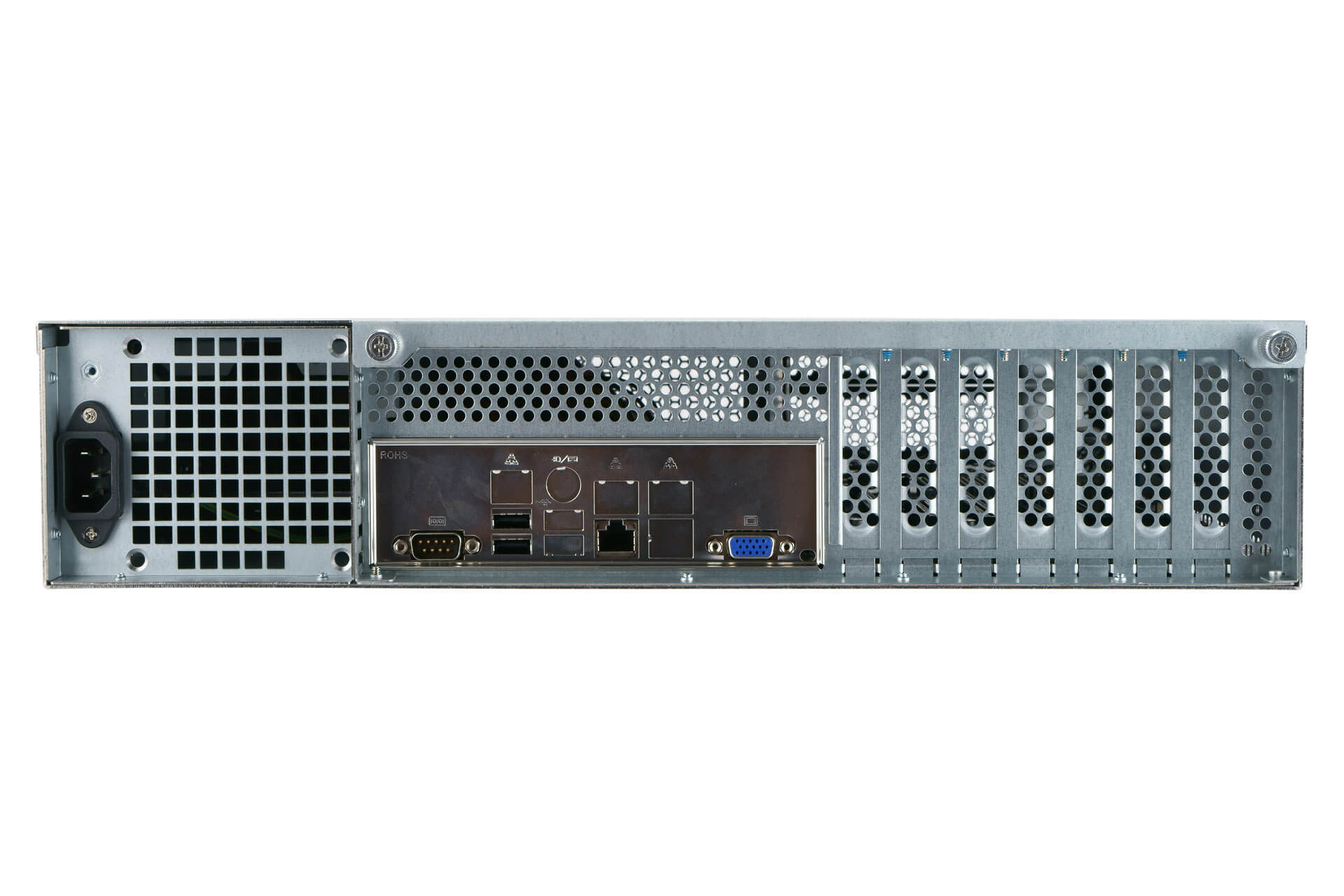

| Expansion Slot | Low Profile PCI Slot x 7 or Full Height PCI Slot x 3 (via Riser Card) |
| Material | • Material: SGCC • Thickness: 1.2mm |
| Rail Kit | Supports 28" King Slide Rail, Ball-bearing |
| Product Dimensions (DxWxH; Chassis Only) | 504 x 482.6 x 88.9mm (19.8" x 19" x 3.5") |
| Package Dimensions (DxWxH) | 682 x 563 x 204mm |
| Weight (Chassis Only) | • Net Weight: 7.97kg • Gross Weight: 10.94kg |
| Cubic Feet | 2.69 |
| Container Information | Single Packing with Pallets: • 20': 270pcs • 40': 540pcs • 40' HQ: 600pcs |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| FAN | 3RAMFB008600 | 80 x 25mm, PWM, 4500RPM | 2 |
|

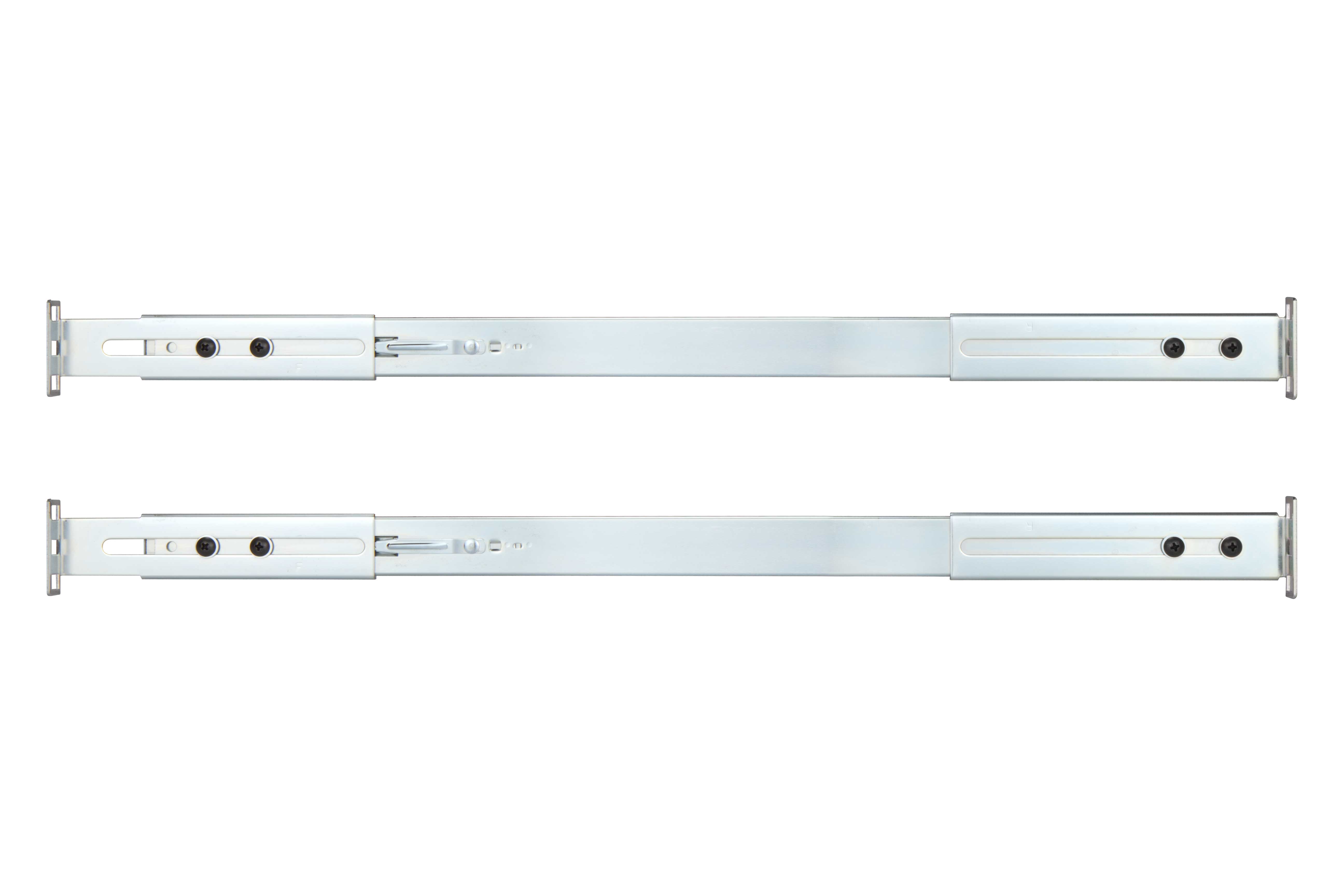

| SLIDE RAIL | 3RAMIS032201 | 20" Slide Rails, Friction | 1 |
|
| SLIDE RAIL | - | 28" Screwless Slide Rail, Ball-bearing | 1 | |

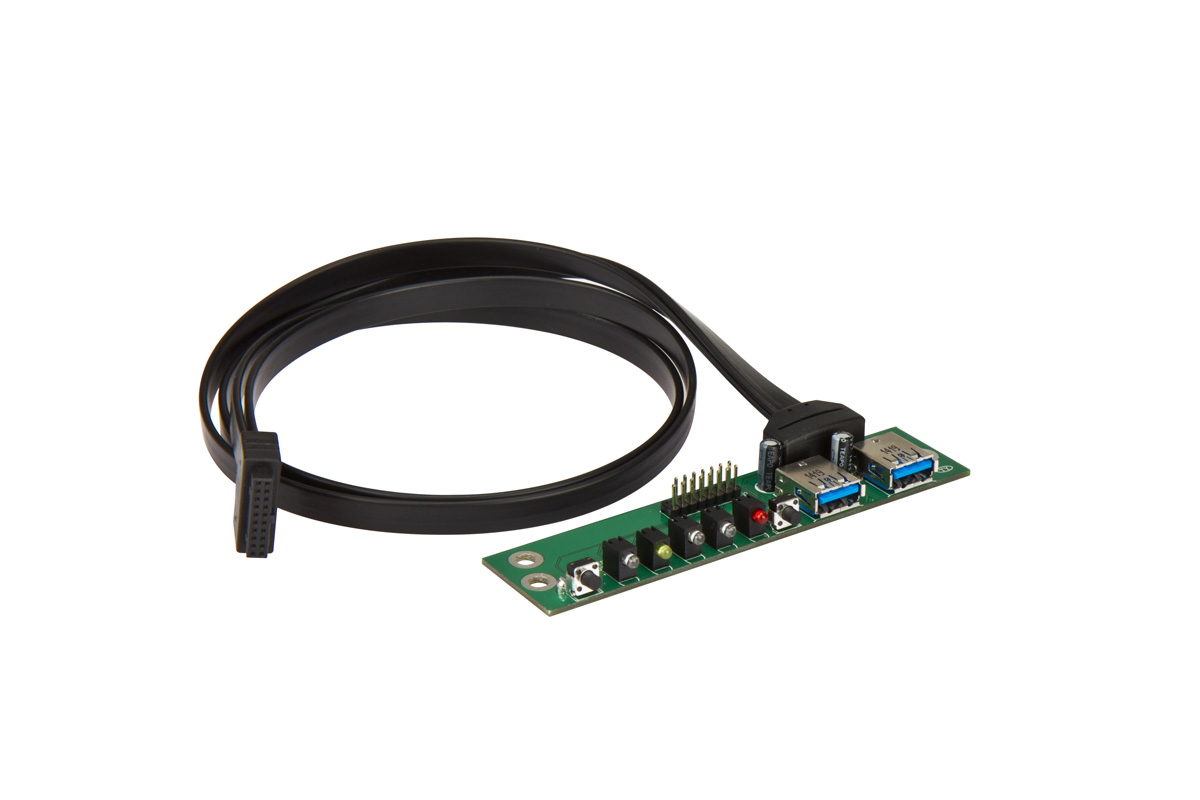

| Cable | 2RAKPD046400 | USB 3.0 module | 1 |
|
| OTHERS | 2RAKIH012700 | Full Height PCI Slot x 3 with Rear PCI Card Holder | 1 |
|
| OTHERS | 3RAMRW011300 | Intrusion Switch / 800mm | 1 |
|

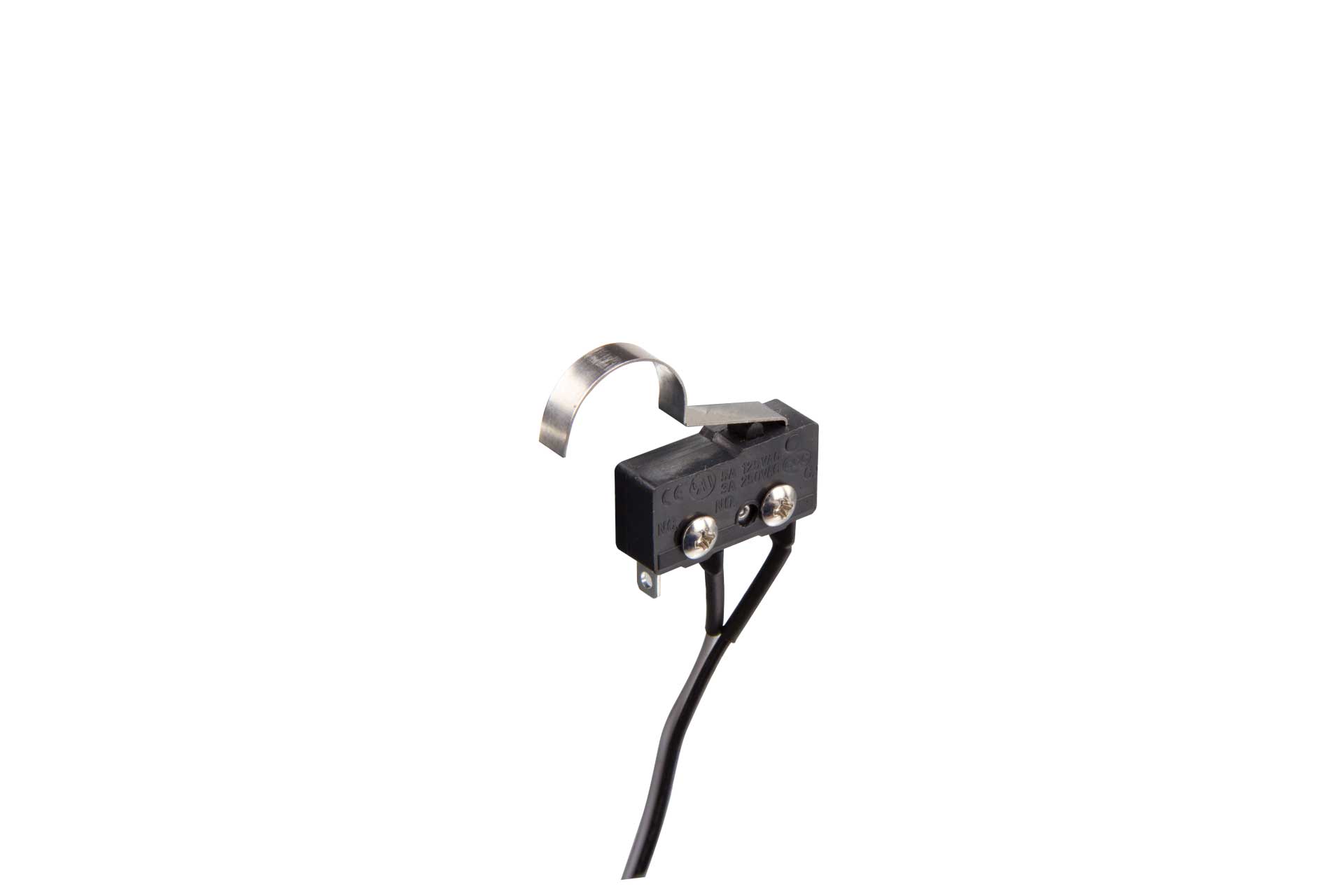

| OTHERS | 3RAMRW038000 | Intrusion Switch / 600mm | 1 |
|

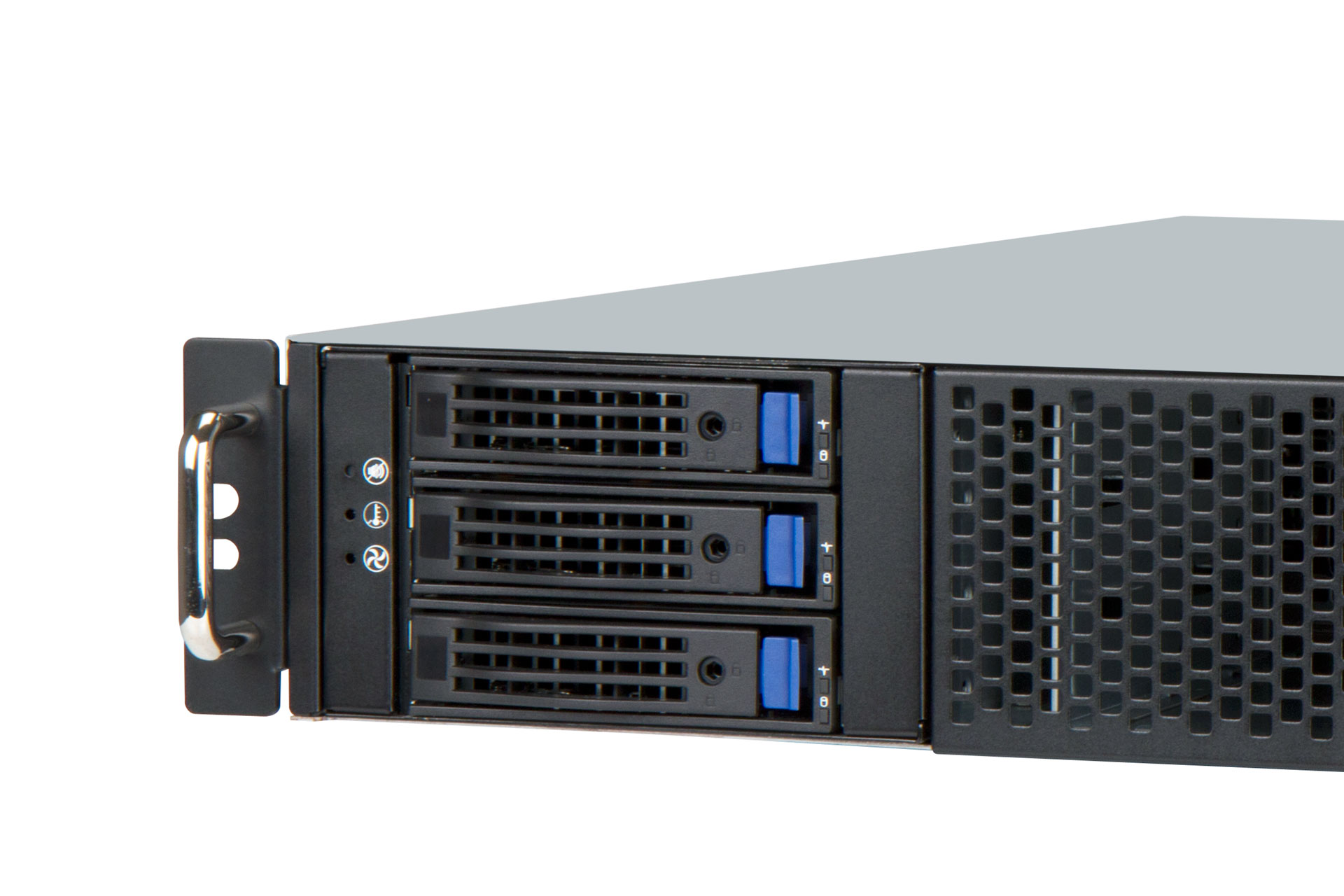

| Storage Kit | - | IW-SK23-02, 3.5" Hot-Swap HDD x 3, SATA III/ SAS 6Gb | 1 |
