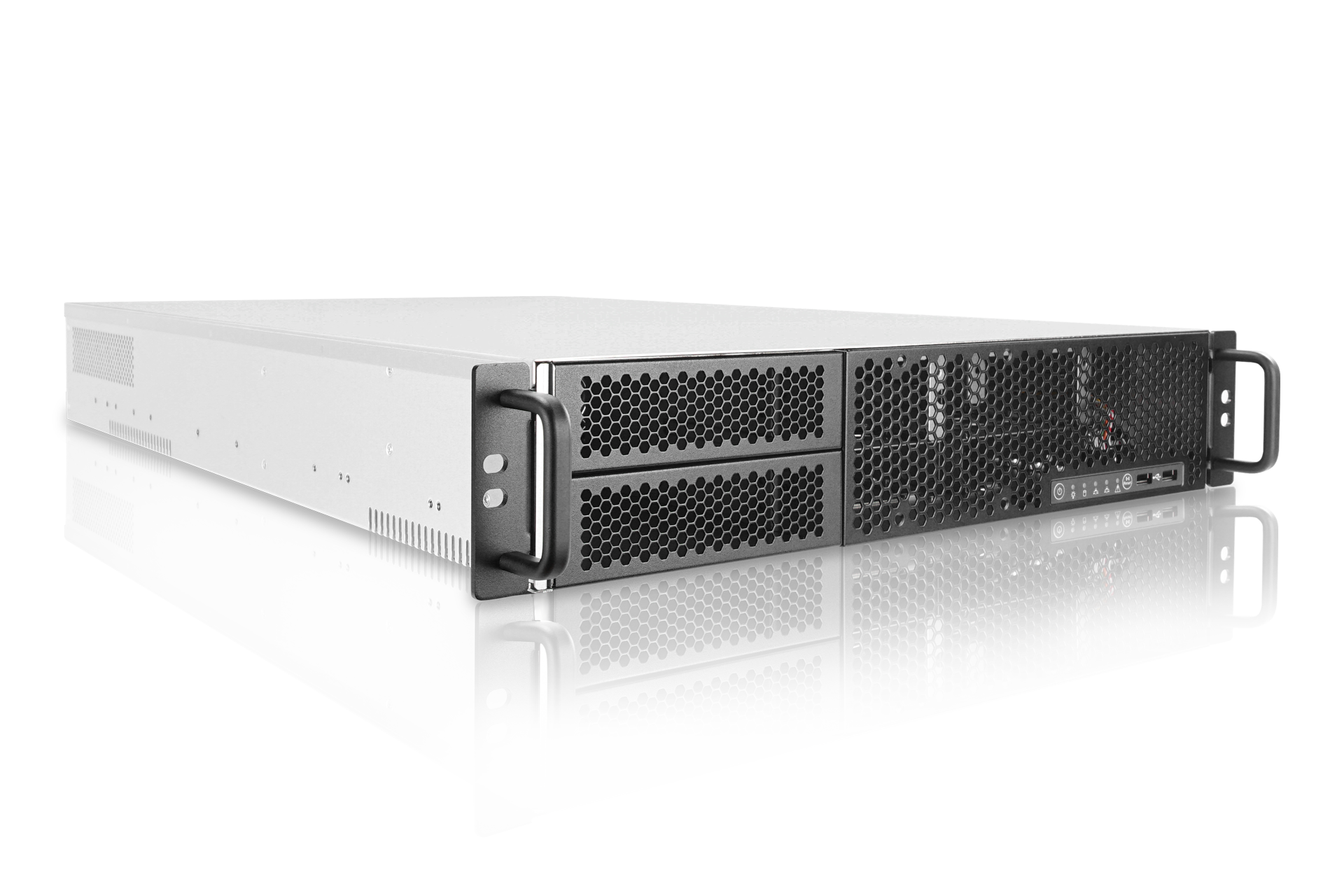

IW-R200N
Open-Bay 2U Server Chassis
- Compatible with single or redundant power supply
- Expandable storage option with InWin storage kit
- Supporting 7 low-profile cards or 3 full-height cards with riser

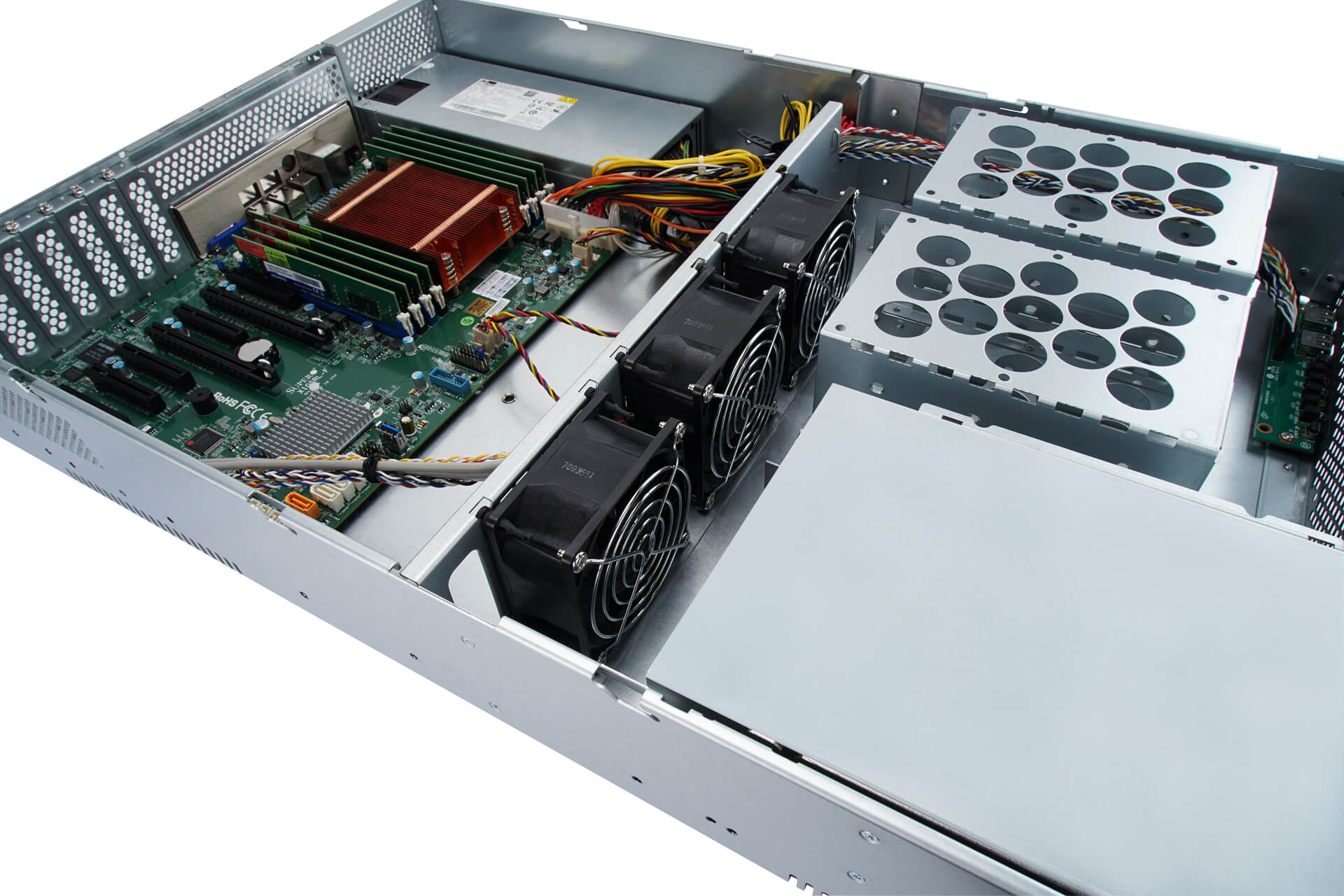

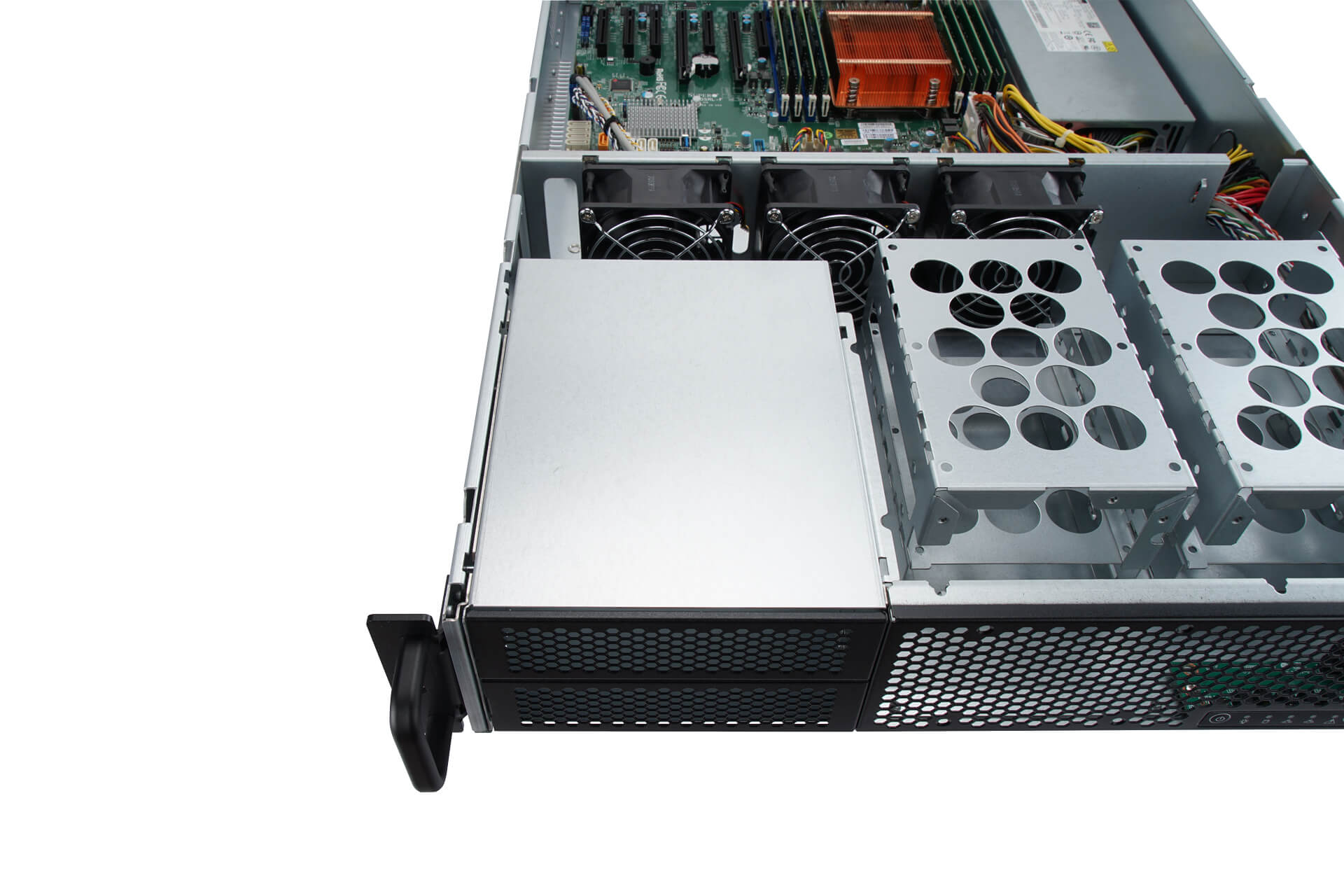

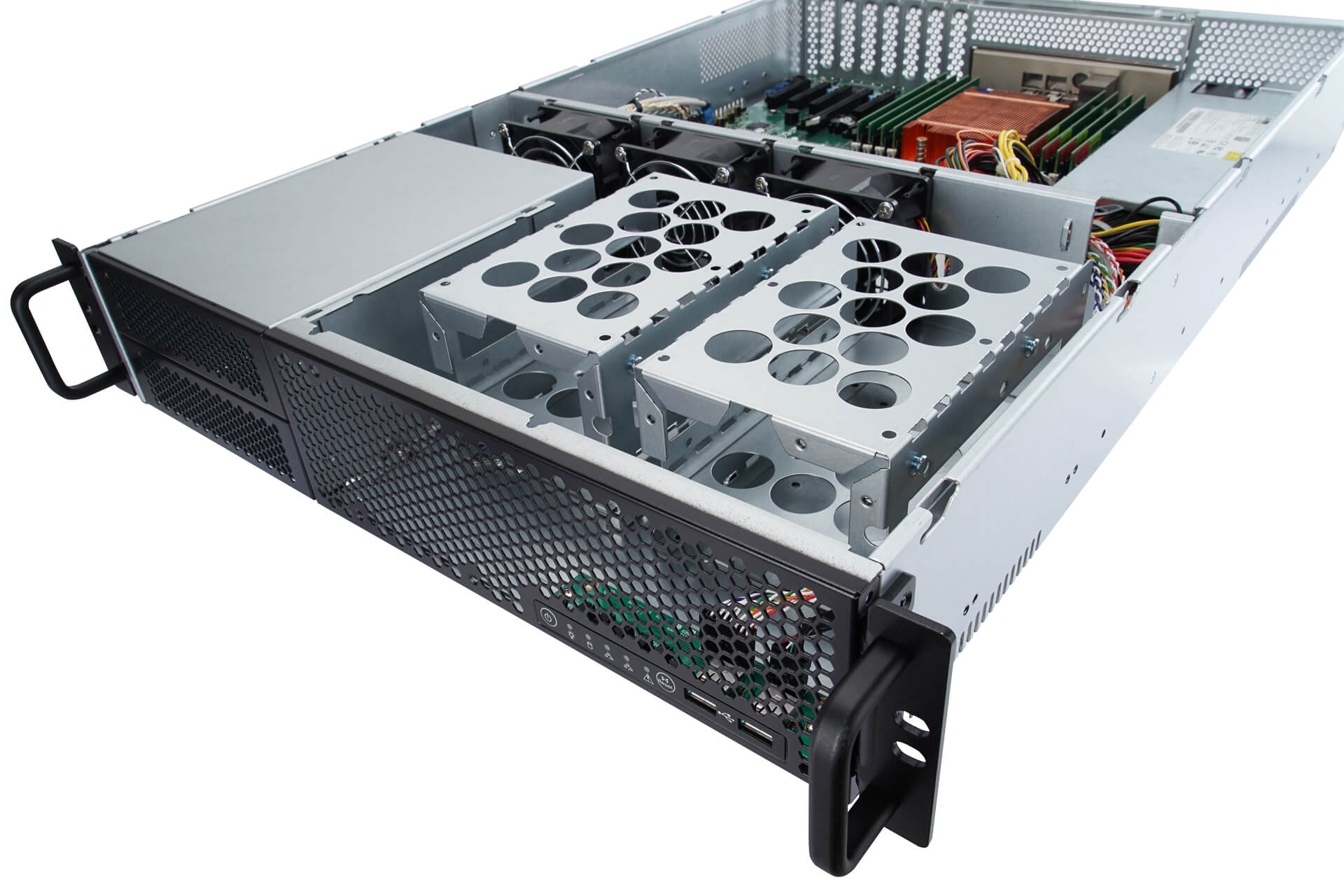

- Internal 3.5" HDD x 6
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5") |
| Drive Bay | • External: 5.25"x 2 • Internal: 3.5" x 6 |
| Power Supply | Supports: • Form Factor: Single or CRPS • Watt: Single 500W, CRPS 550W or 800W |
| Indicators | Power status, HDD, LAN activity LEDs |

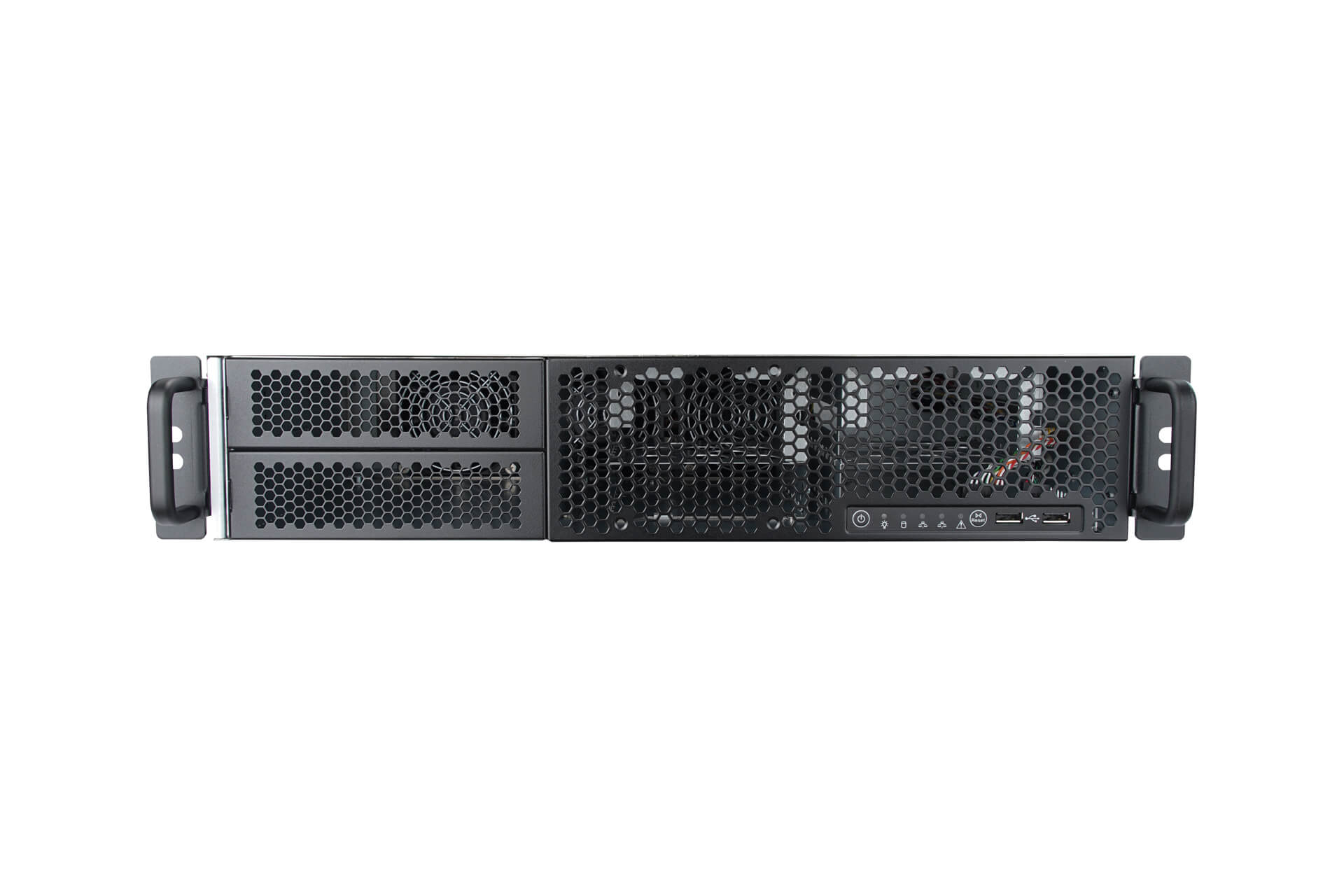

| Front Control Panel | Power switch, System reset, USB 2.0 x 2 |
| Chassis Security | Intrusion Switch (optional) |

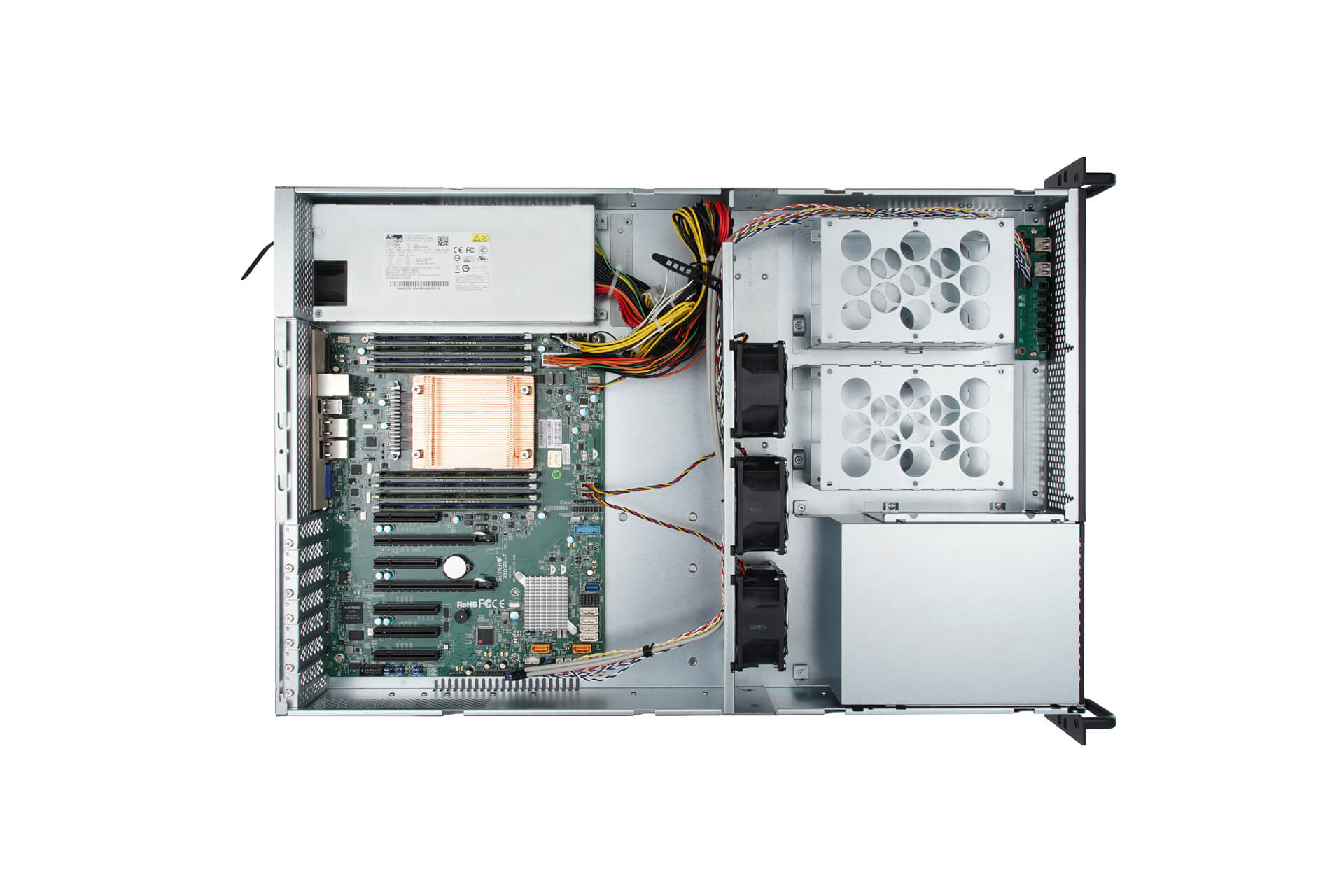

| Cooling Fans | Supports 80 x 25mm / 80 x 38mm PWM middle fan x 3 |

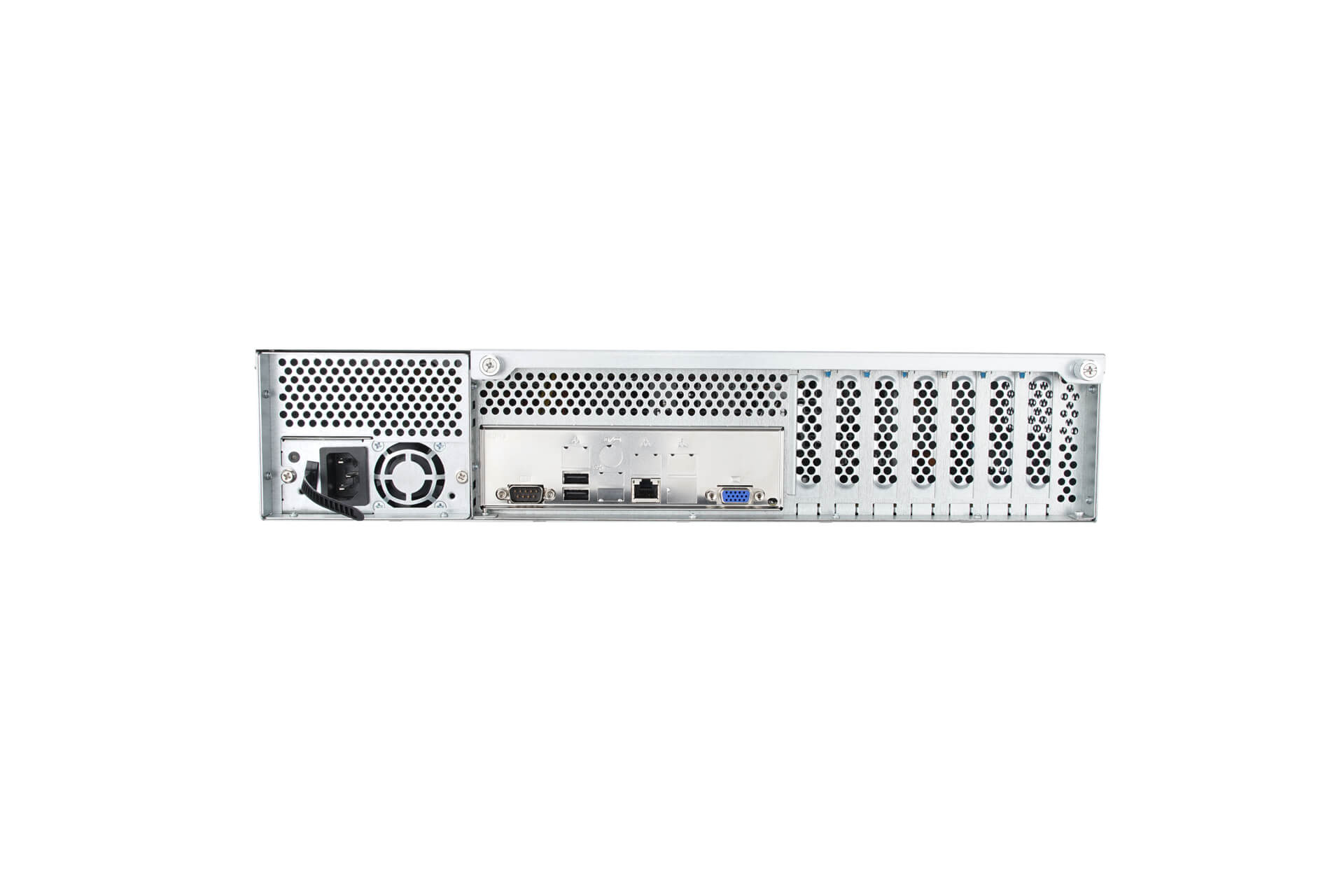

| Expansion Slot | Low profile PCI slot x 7 or full-height PCI slot x 3 (via riser card) |
| Material | • Material: SGCC • Thickness: 1.2mm |
| Rail Kit | Supports 28" screwless slide rail, ball-bearing |
| Product Dimensions (DxWxH; Chassis Only) | 606 x 482.6 x 88.9mm (24" x 19" x 3.5") |
| Package Dimensions (DxWxH) | 785 x 563 x 204mm |
| Weight (Chassis Only) | • Net weight: 7.6kg • Gross weight: 12kg |
| Cubic Feet | 3.12 |
| Container Information | Single packing with pallets: • 20' : 252pcs • 40' : 504pcs • 40' HQ: 560pcs |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.

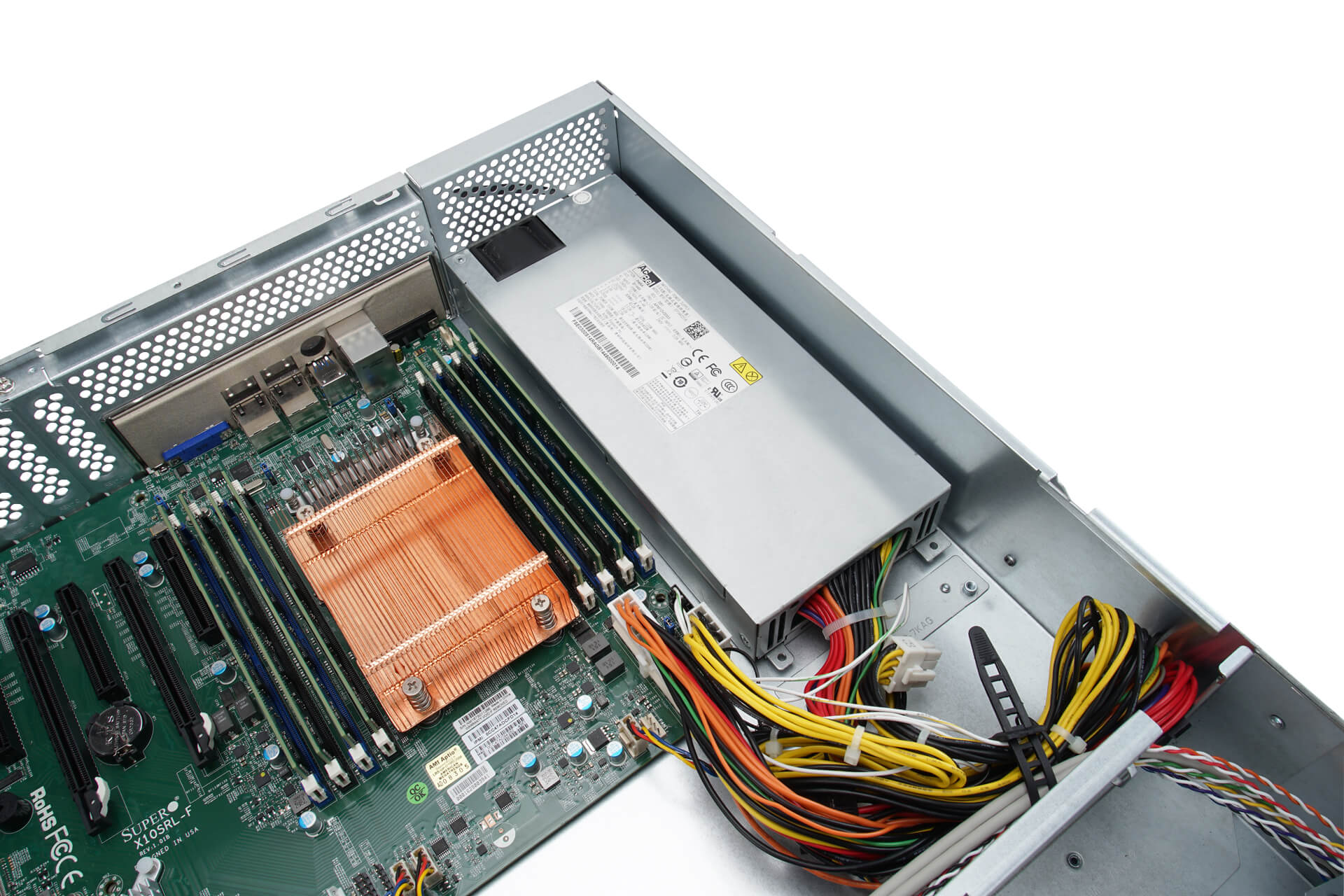

* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| STORAGE KIT | - | IW-SK23-02, 3.5" Hot-Swap HDD x 3, SATA III/ SAS 6Gb | 1 | |
| FAN | - | 80 x 25mm, PWM, 4500RPM | 3 | |
| FAN | - | 80 x 38mm, PWM, 5500RPM | 3 | |
| POWER SUPPLY | - | 2U Single 500W, Bronze | 1 | |
| POWER SUPPLY | - | 1U Single 500W, Gold | 1 | |
| POWER SUPPLY | - | CRPS 550W, Platinum | 1 | |
| POWER SUPPLY | - | CRPS 800W, Platinum | 1 | |
| SLIDE RAIL | - | 28" screwless slide rail, ball-bearing | 1 | |
| OTHERS | 2RAKPD046400 | Front I/O USB 3.0 | 1 |
|
| OTHERS | 3RAMRW011300 | Intrusion Switch / 800mm | 1 |
|

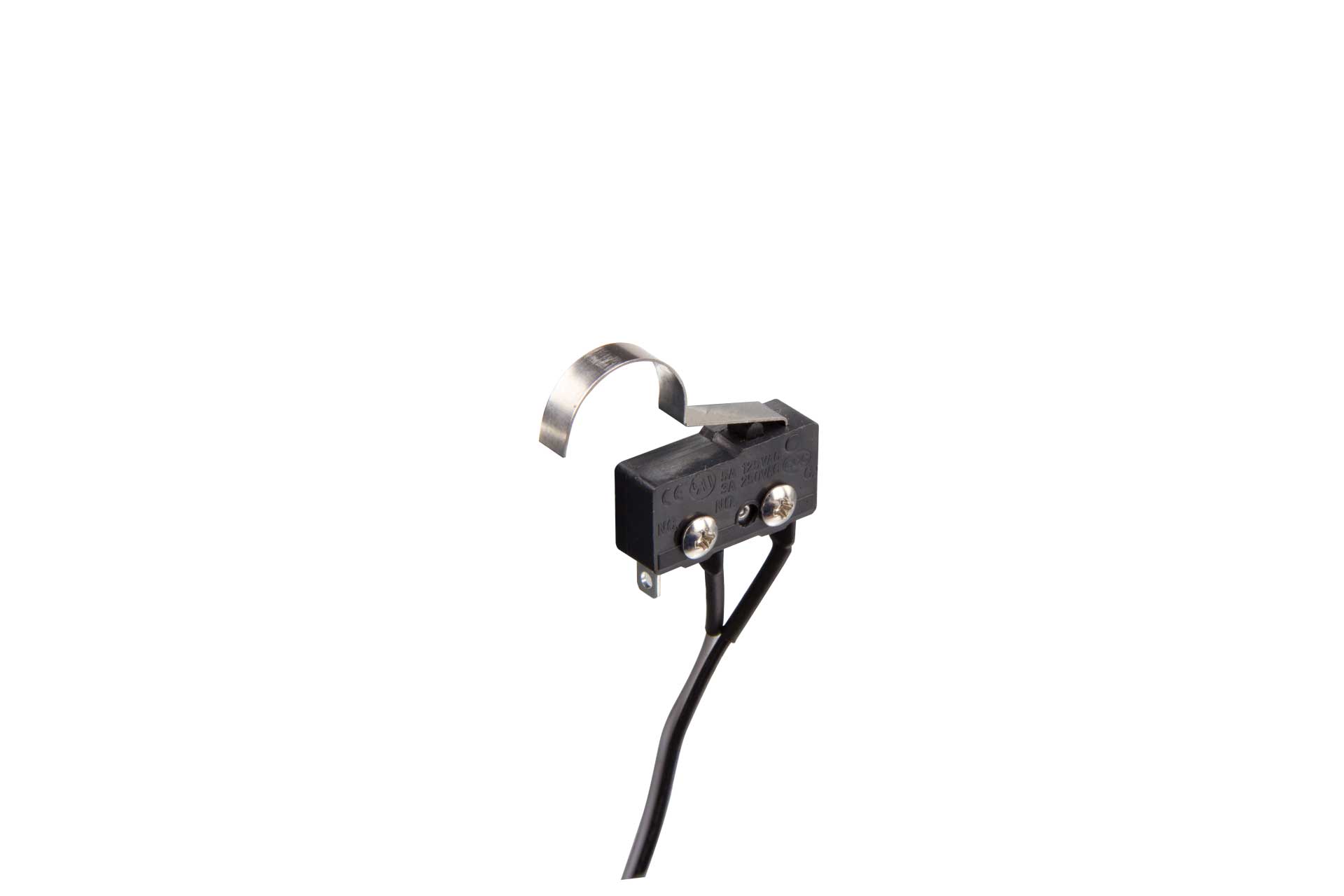

| OTHERS | 3RAMRW038000 | Intrusion Switch / 600mm | 1 |
|
| OTHERS | 2RAKIH012700 | Full Height PCI Slot x 3 with Rear PCI Card Holder | 1 |
|
