IW-R300N
Open-Bay 3U Server Chassis
．Compatible with single or redundant power supply
．Supporting two rear fan to optimize thermal exhaust efficiency
．Expandable storage option with InWin storage kit

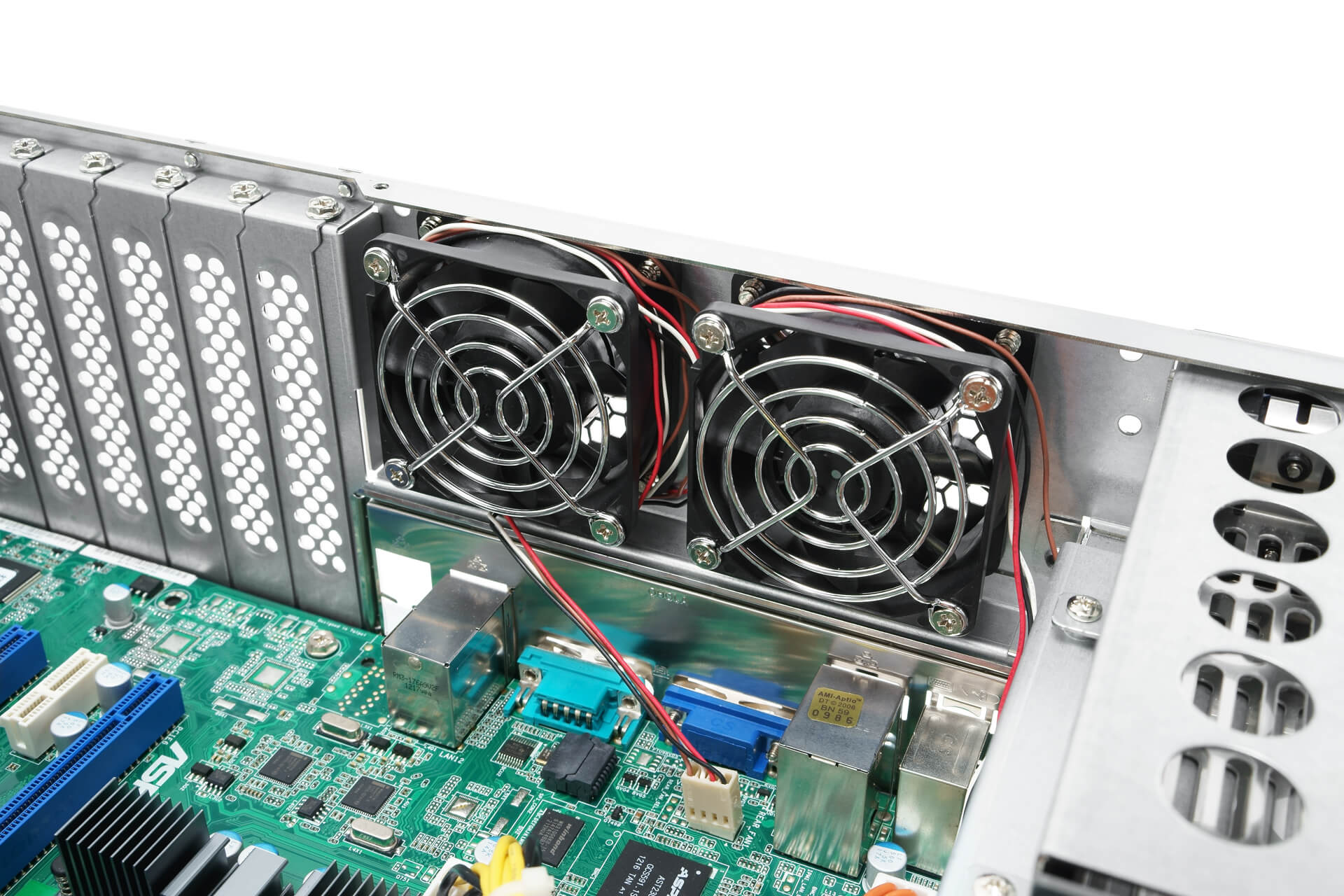

．Supports 60 x 25mm rear fan x 2 for optimized cooling (optional)
．Tool-less top cover for quick maintenance
．Vibration resistant design
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5") |

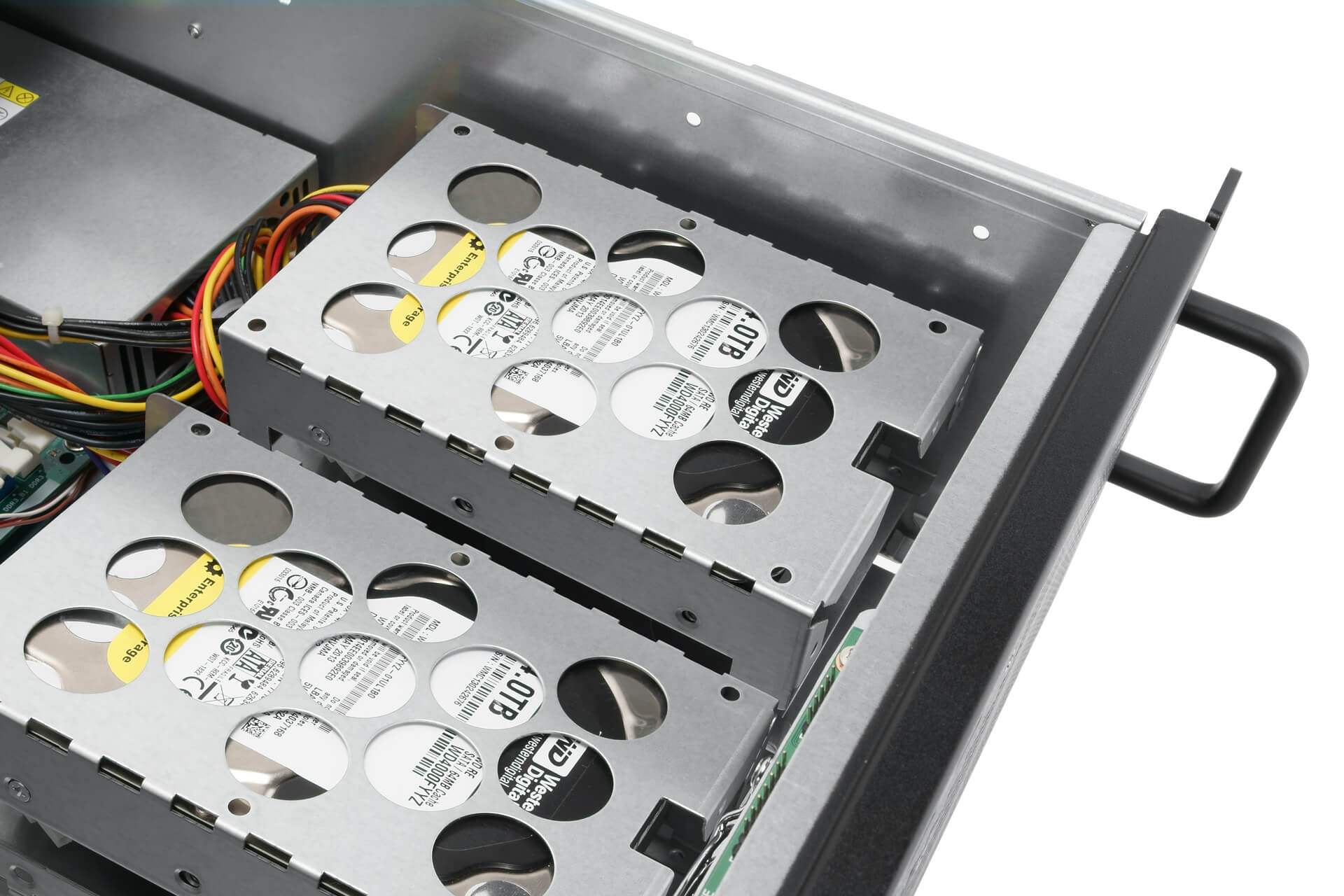

| Drive Bay | • External: 5.25" x 2, 3.5" x 1, 2.5" Hot-swap x 2 (Optional) • Internal: 3.5" x 6 |
| Power Supply | Supports: • Form Factor: 2U Single or 2U 1+1 Redundant • Watt: Single 500W, Redundant 550W |
| Indicators | Power Status, HDD, LAN Activity LEDs |
| Front Control Panel | Power Switch, System Reset, USB 2.0 x 2 |
| Chassis Security | Intrusion Switch |
| Cooling Fans | Supports: • 80 x 25mm PWM Front Fan x 1 • 60 x 25mm PWM Rear Fan x 2 (Optional) |
| Expansion Slot | Full Height PCI Slot x 7 |
| Material | • Material: SGCC • Thickness: 1.2mm |
| Rail Kit | Supports 28" Ball-bearing Rail |
| Product Dimensions (DxWxH; Chassis Only) | 508 x 482.6 x 133.4mm (20" x 19" x 5.25") |
| Package Dimensions (DxWxH) | 690 x 595 x 258mm |
| Weight (Chassis Only) | • Net Weight: 8.5kg • Gross Weight: 16.2kg |
| Cubic Feet | 3.8 |
| Container Information | Single Packing with Pallets: • 20': 168pcs • 40': 350pcs • 40' HQ: 400pcs |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|

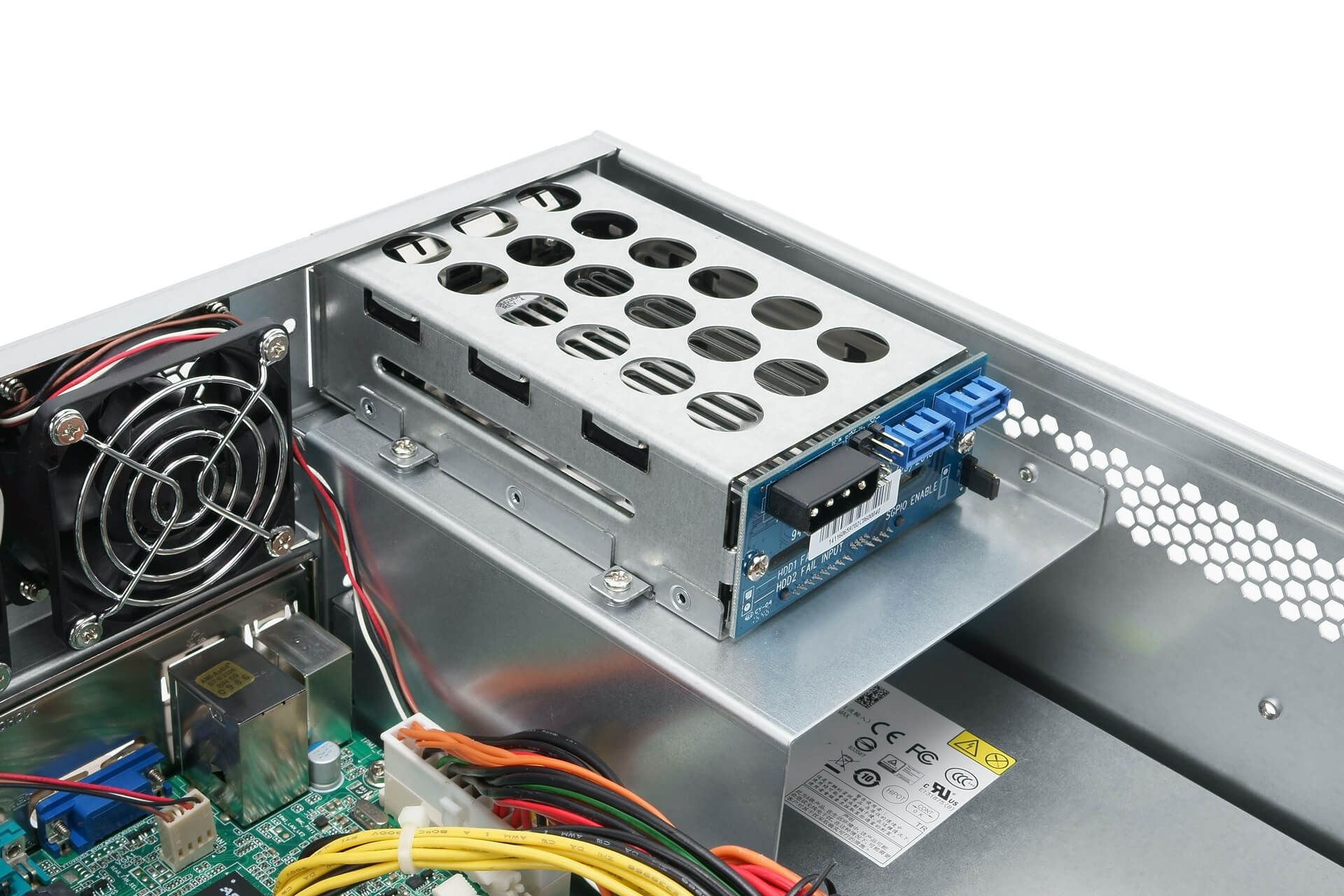

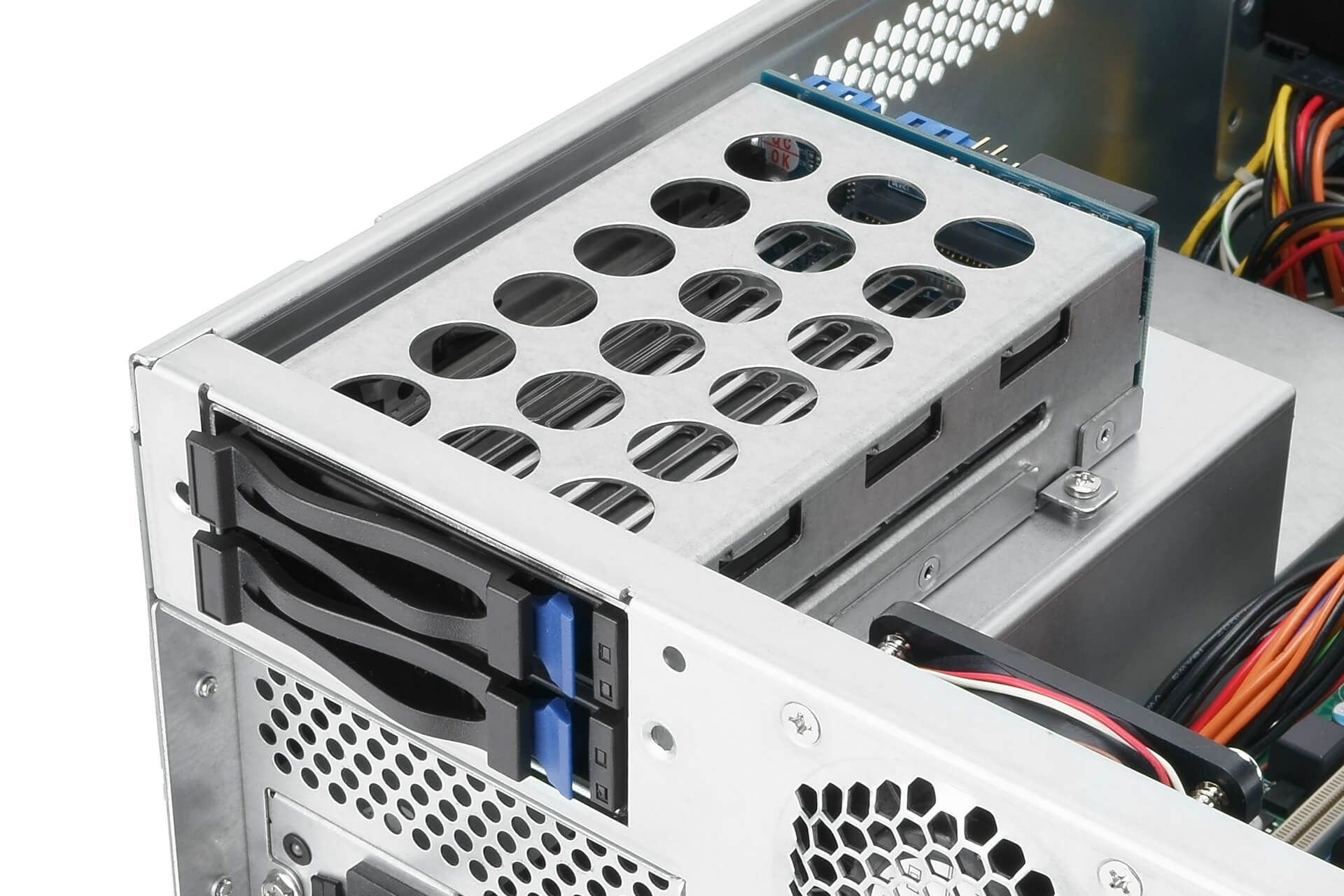

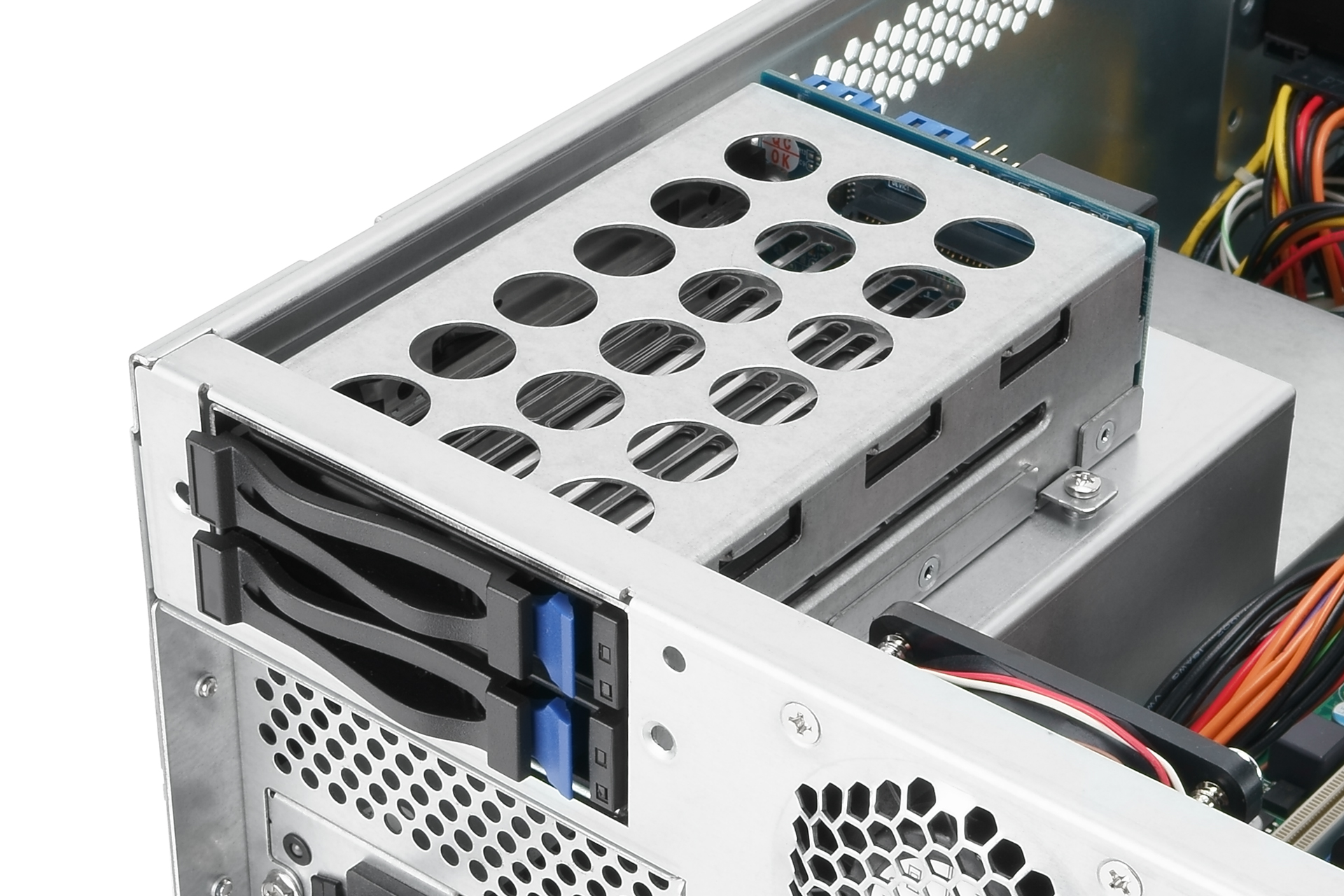

| HDD Tray | 2RALZT074600 | Rear 2.5" Hot Swap Module | 2 Bays |
|
| Others | 3RAMRW011300 | Intrusion Switch / 800mm | 1 |
|
| Others | 3RAMRW038000 | Intrusion Switch / 600mm | 1 |
|
| Others | - | Front I/O USB 3.0 | 1 | |
| Storage Kit | - | IW-SK23-02, 3.5" Hot-Swap HDD x 3, SATA III/ SAS 6Gb | 1 | |
| Fan | - | 60 x 25mm, PWM, 4500RPM | 1 | |
| Fan | - | 80 x 25mm, PWM, 4500RPM | 1 | |
| Fan | - | 80 x 25mm Fan Module | 1 | |
| Power Supply | - | 1U Single 500W, Gold | 1 | |
| Power Supply | - | 2U Single 500W, Bronze | 1 | |
| Power Supply | - | CRPS 500W, Plainum | 1 | |
| Power Supply | - | CRPS 800W, Platinum | 1 | |
| Slide Rail | - | 28" Screwless Slide Rail, Ball-Bearing | 1 |
