server system assembly
IW-R400-01N

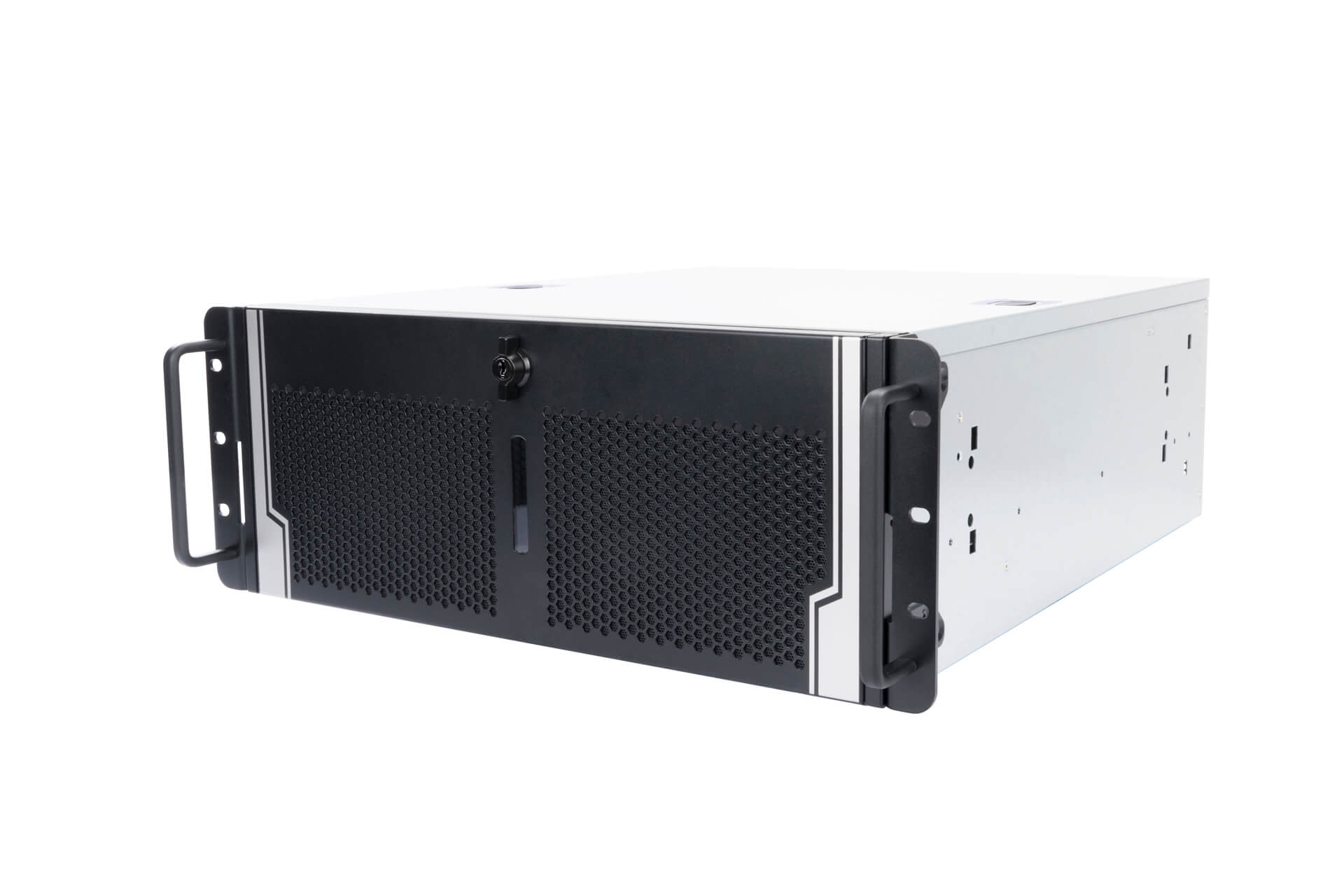

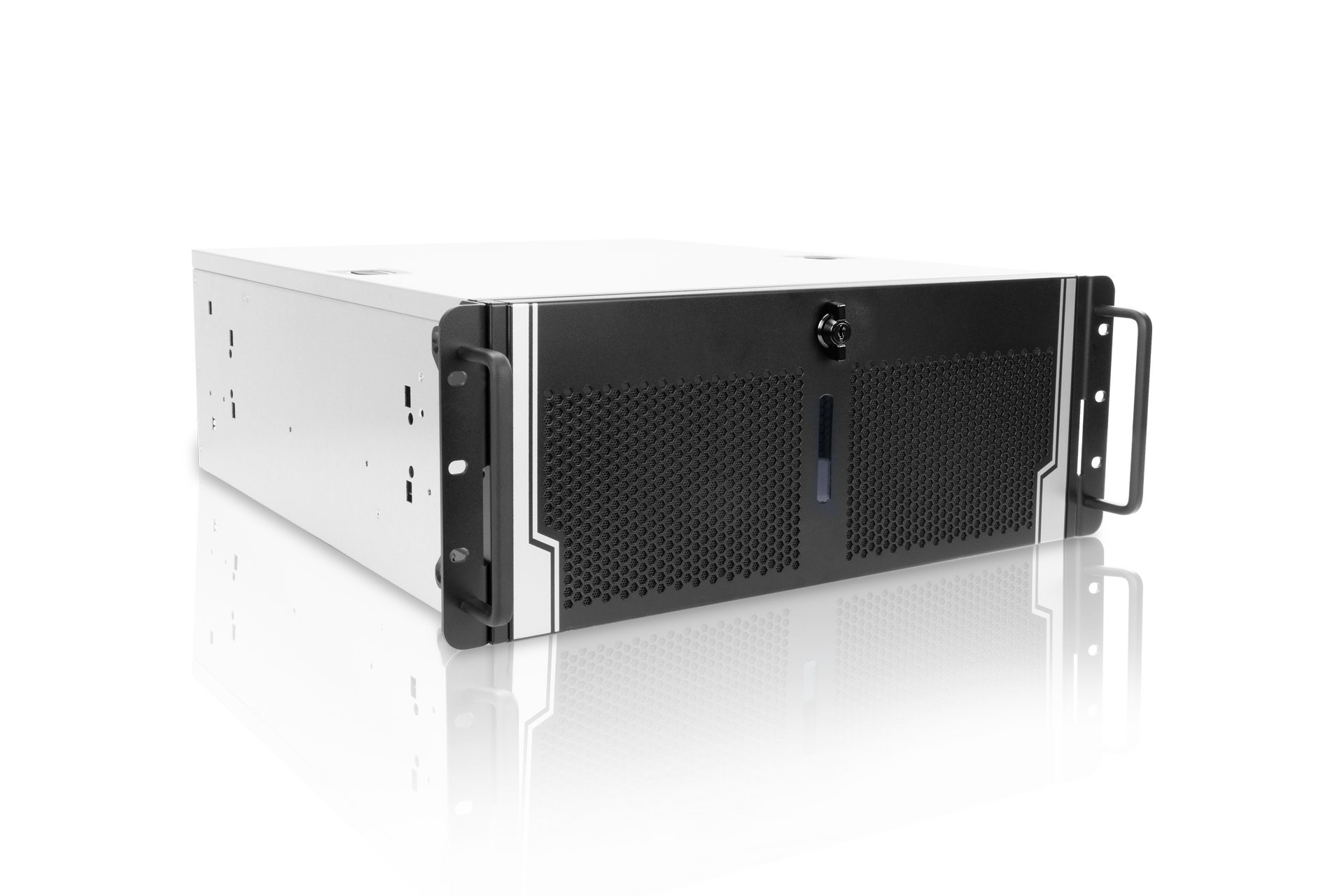

Open-Bay 4U Server Chassis
．Compatible with standard PS2 or redundant power supply

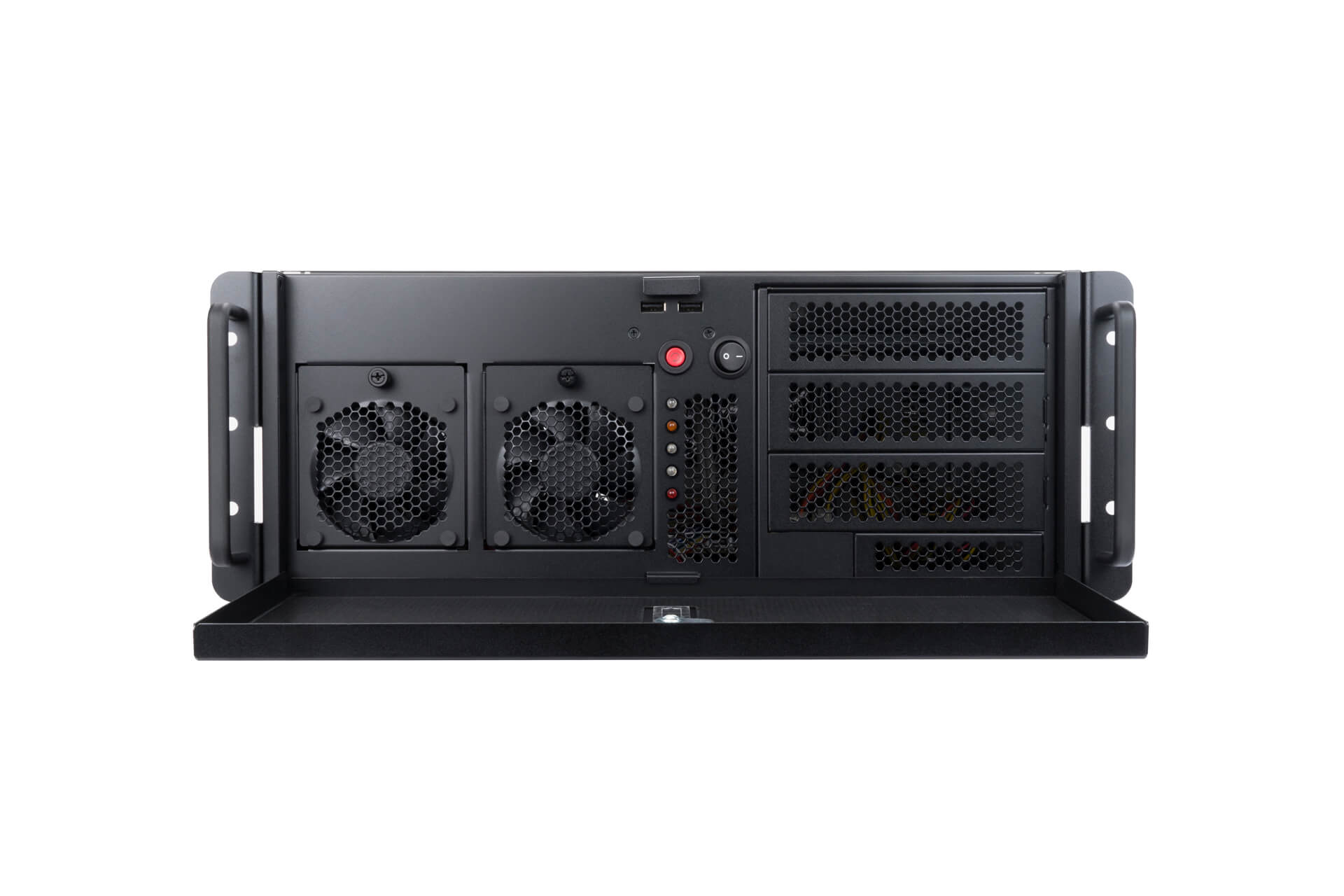

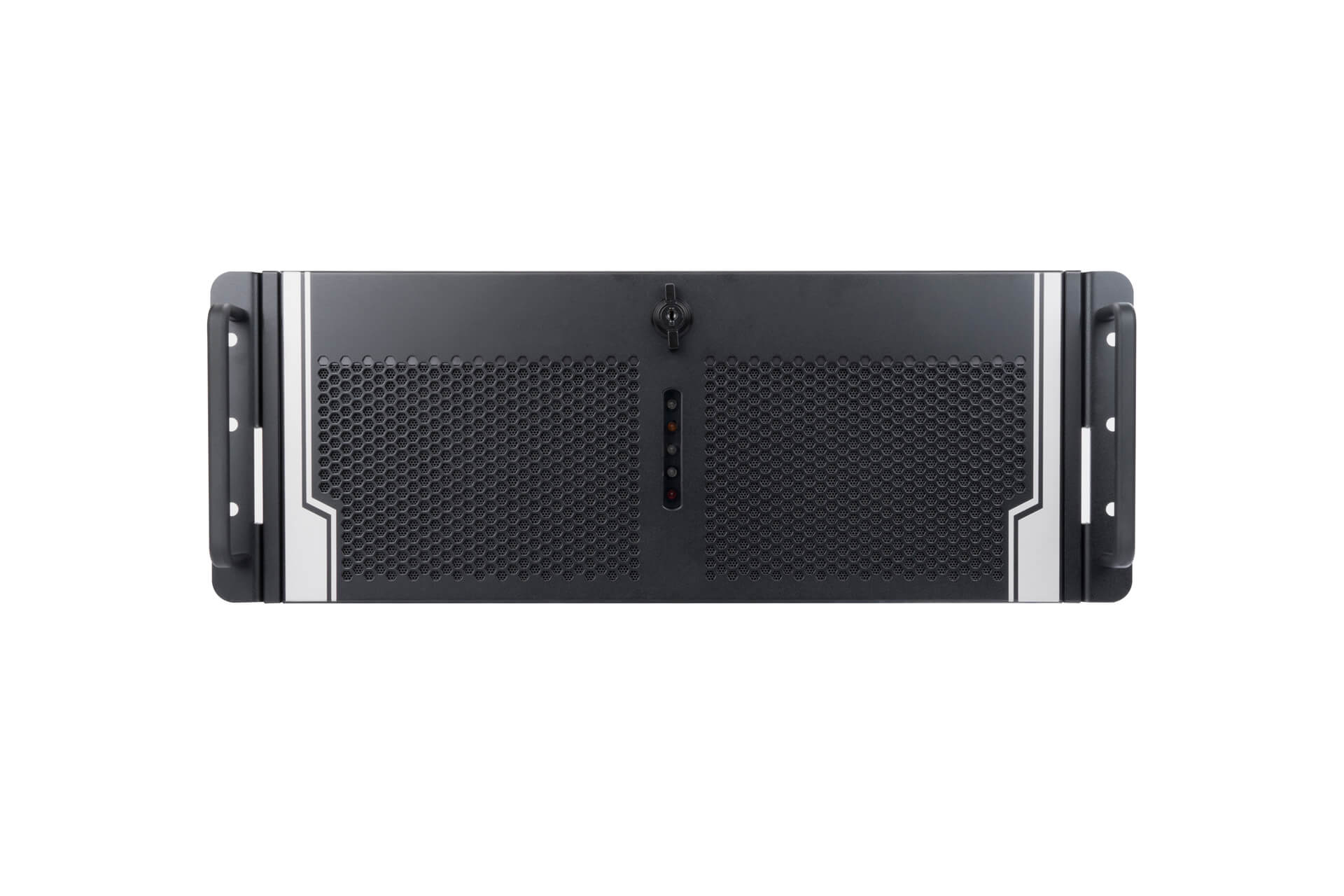

．Lockable front door for hardware security
．Screwless adjustable card retainer for low profile or full height PCI card
．Expandable storage option with InWin storage kit

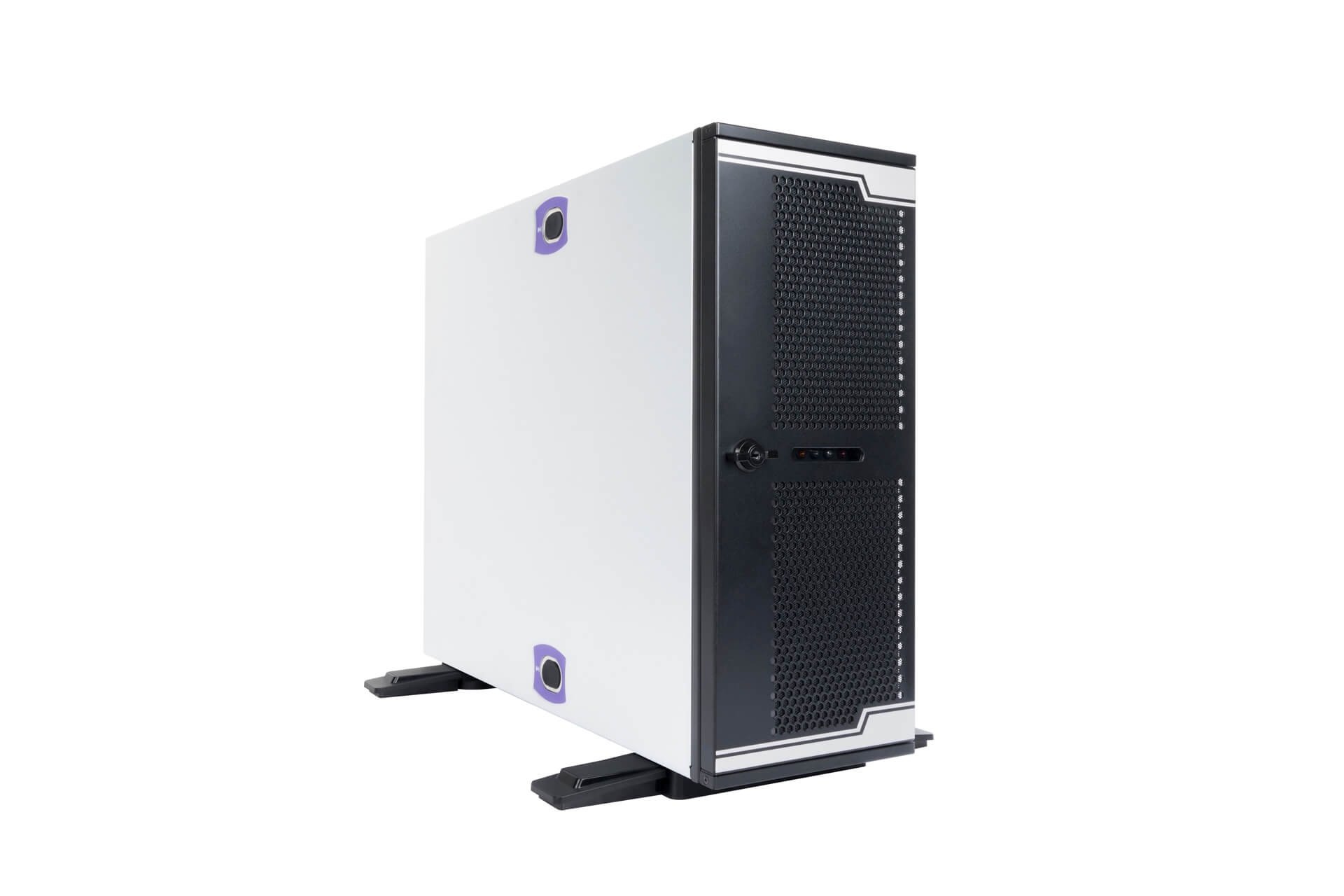

．Convertible to tower with chassis stands (optional)

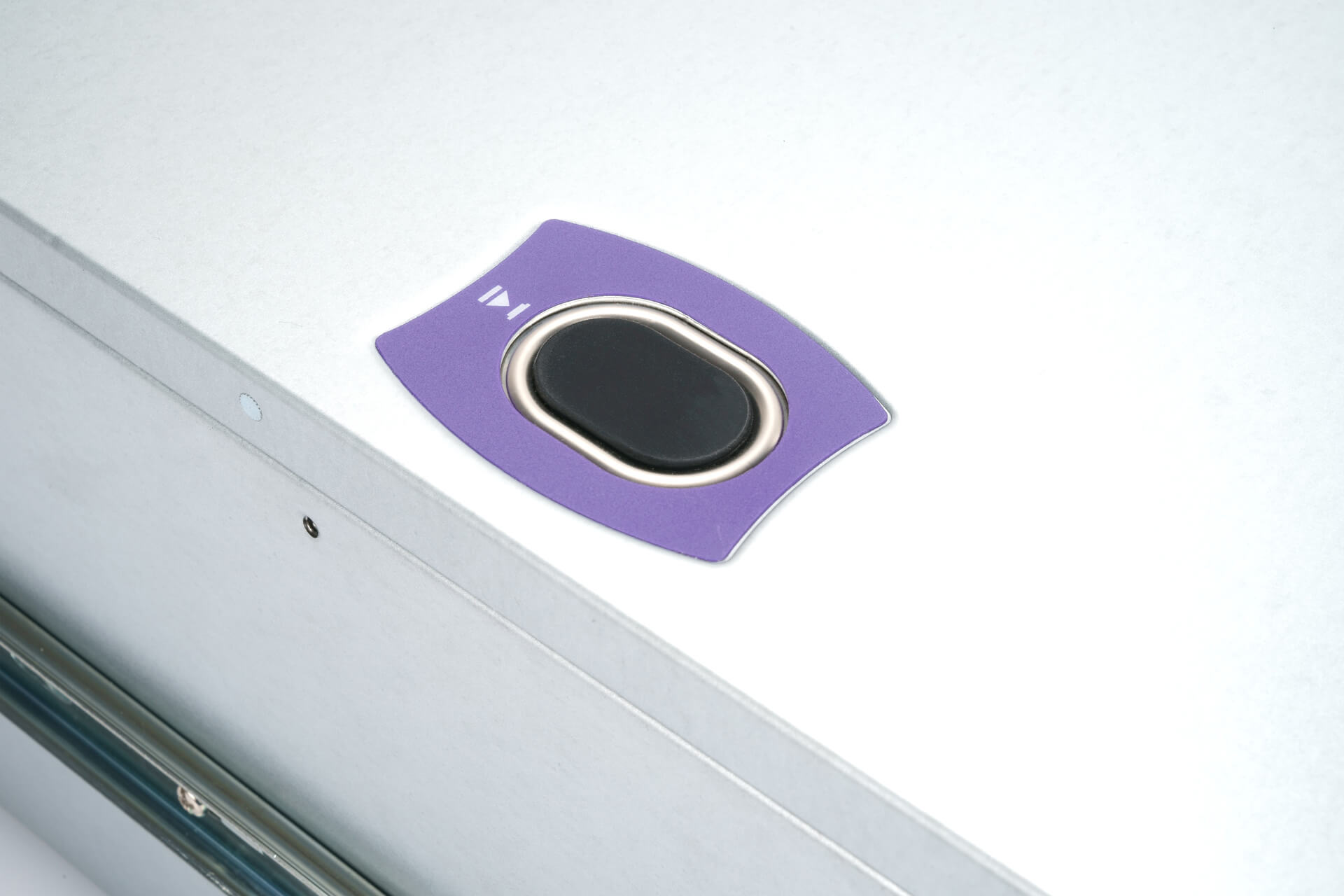

．Tool-free cover for easy installation and quick maintenance

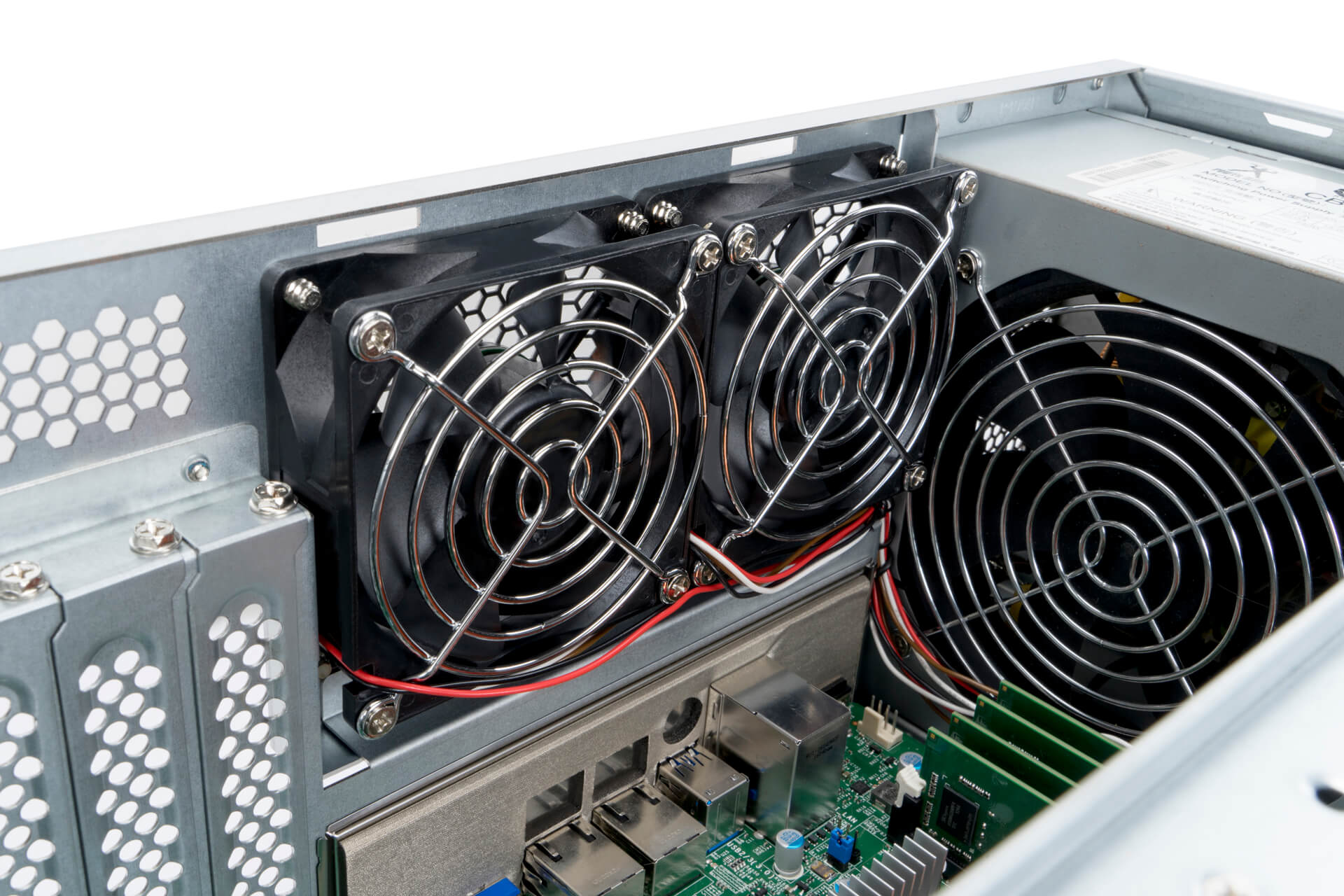

．Supports easy-swap rear fan x 2 for upgrade
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB(12" x 13") *The bottom 5.25 drive bay space should be reserved for the EEB motherboard installation |

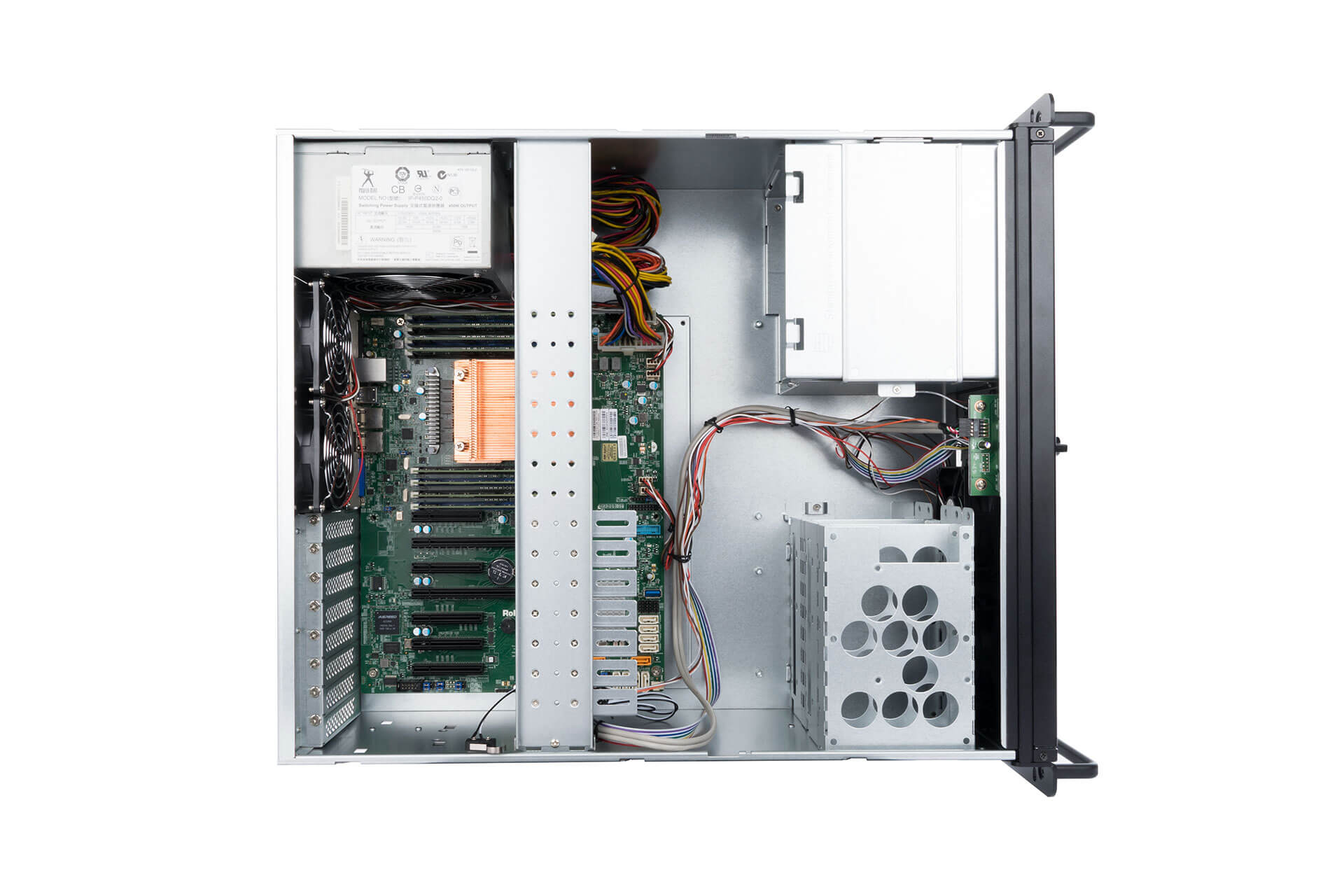

| Drive Bay | • External: 5.25" x 3, 3.5" x 1 • Internal: 3.5" x 4, 2.5" x 1 |
| Power Supply | Supports: • Form Factor: PS2 or 1+1 Mini-Redundant • Watt: PS2 up to 600W, Mini-Redundant up to 500W |
| Indicators | Power Status, HDD, LAN Activity LEDs |

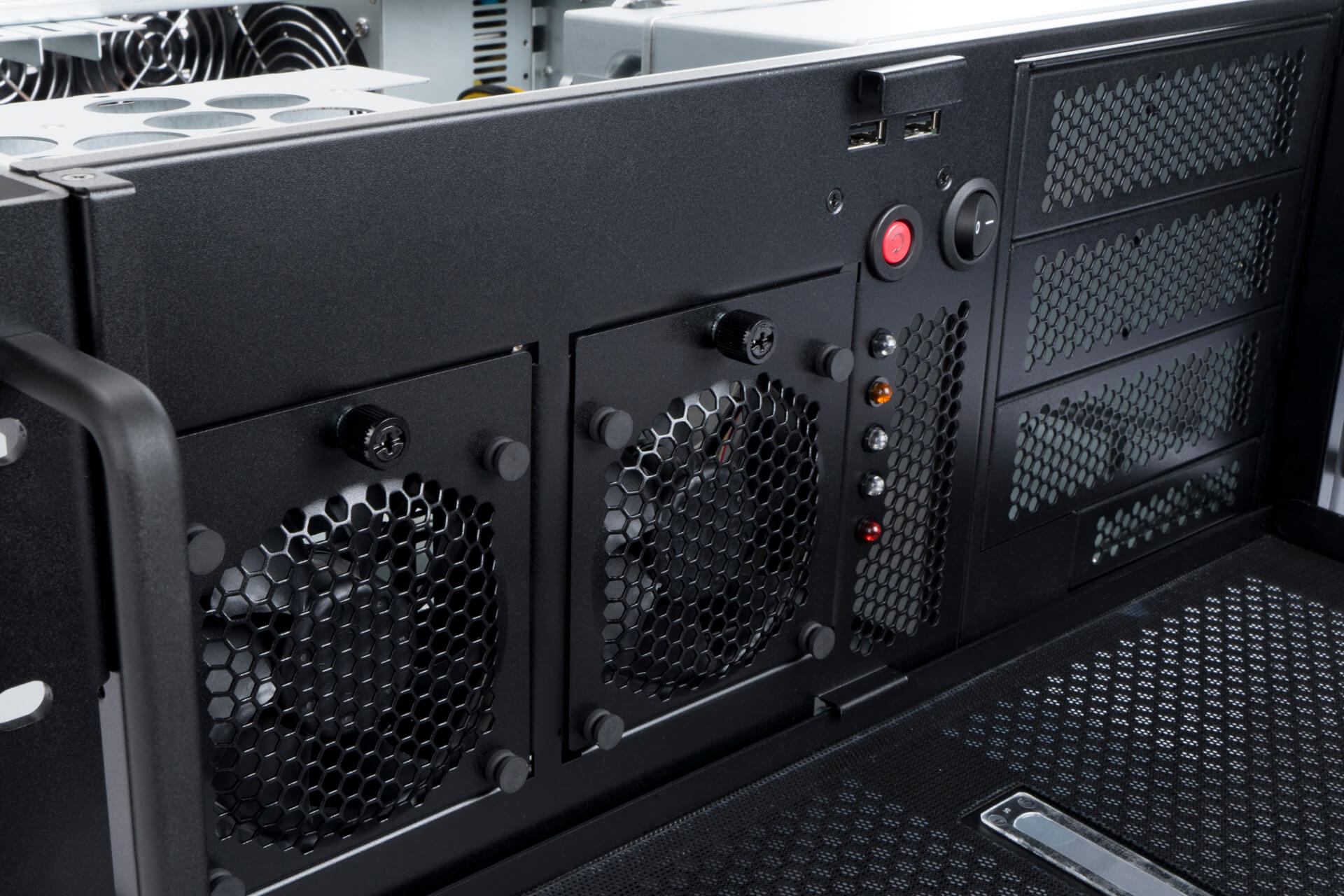

| Front Control Panel | Power Switch, System Reset, USB 2.0 x 2 |
| Chassis Security | Intrusion Switch (optional) |
| Cooling Fans | Supports: • 80 x 25 mm Front Fan x 2 • 80 x 25 mm PWM Rear Fan x 2 (optional) |

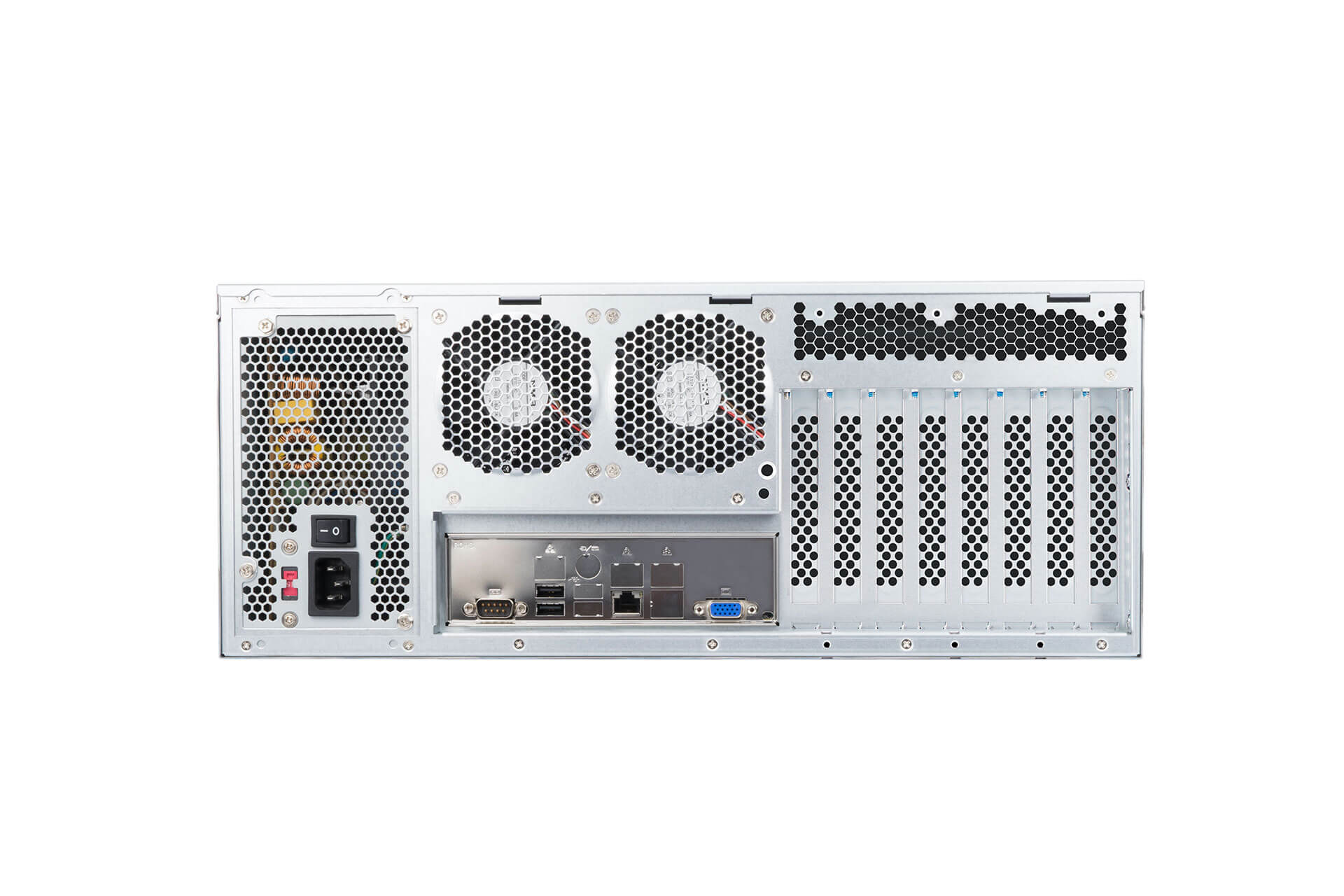

| Expansion Slot | Full Height PCI Slot x 8 |
| Material | • Material: SGCC • Thickness: 1.2mm |
| Rail Kit | Supports 28" Ball-bearing Rail |
| Product Dimensions (DxWxH; Chassis Only) | 525 x 482.6 x 178mm (20.7" x 19" x 7") |
| Package Dimensions (DxWxH) | 696 x 610 x 310mm |
| Weight (Chassis Only) | • Net Weight: 12.3kg • Gross Weight: 17.8kg |
| Cubic Feet | 4.67 |
| Container Information | Single Packing with Pallets: • 20': 144pcs • 40': 300pcs • 40' HQ: 350pcs |
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Storage Kit | - | IW-SK23-02, 3.5" hot-swap HDD x 3, SATA III/SAS 6Gb | 1 | |
| Storage Kit | - | IW-SK34-02, 3.5" hot-swap HDD x 4, SATA III/SAS 6Gb | 1 | |
| Storage Kit | - | IW-SK35-02, 3.5" hot-swap HDD x 5, SATA III/SAS 6Gb | 1 | |
| Fan | - | 80 x 25mm, PWM, 4500RPM | 1 | |
| Power Supply | - | Mini redundant 500W, 80 Plus Bronze | 1 | |
| Power Supply | - | IP-P600CQ3-2, PS2 600W | 1 | |
| Slide Rail | - | 28" screwless slide rail, ball-bearing | 1 | |
| Others | 3RAMRW011300 | Intrusion Switch / 800mm | 1 |
|

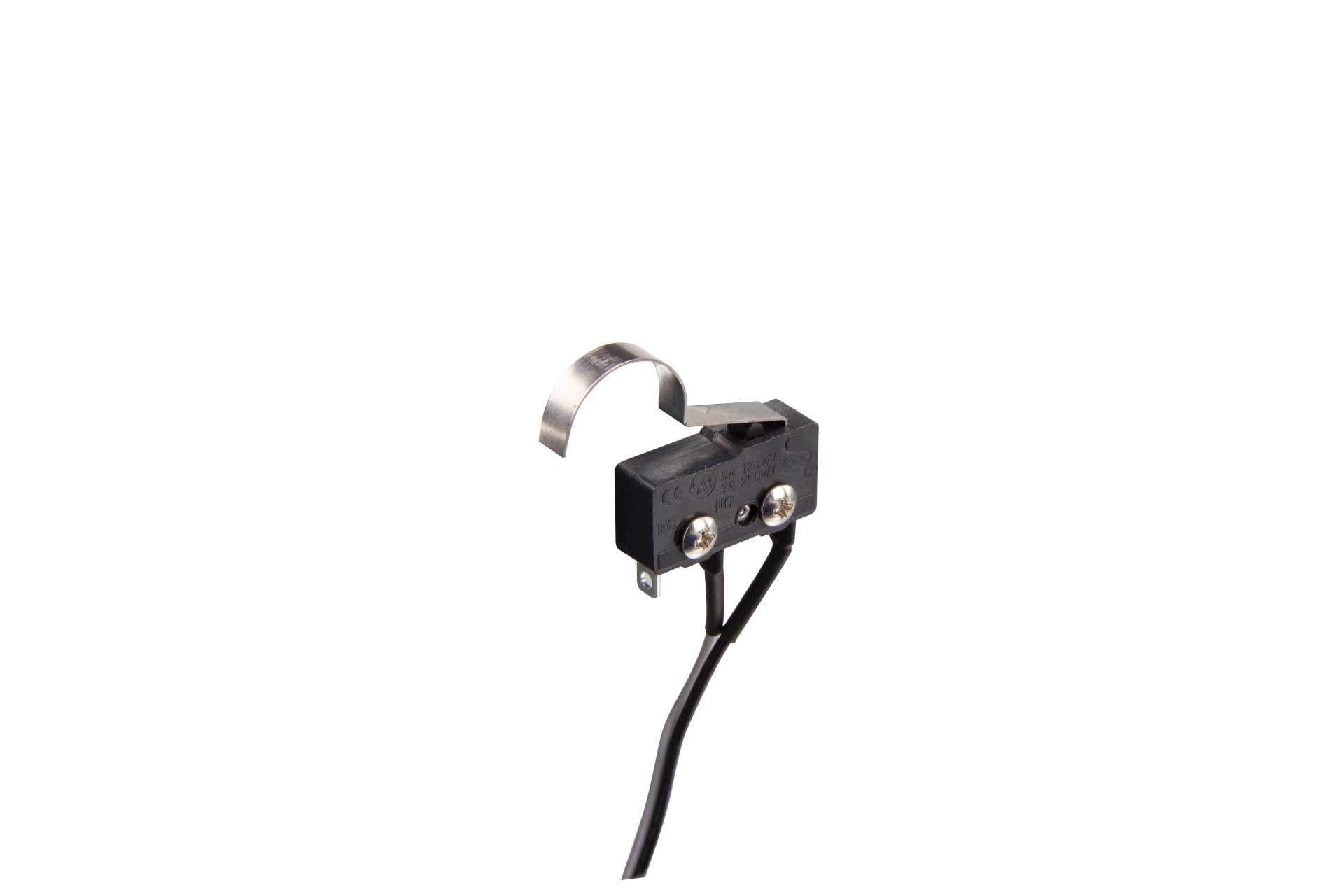

| Others | 3RAMRW038000 | Intrusion Switch / 800mm | 1 |
|

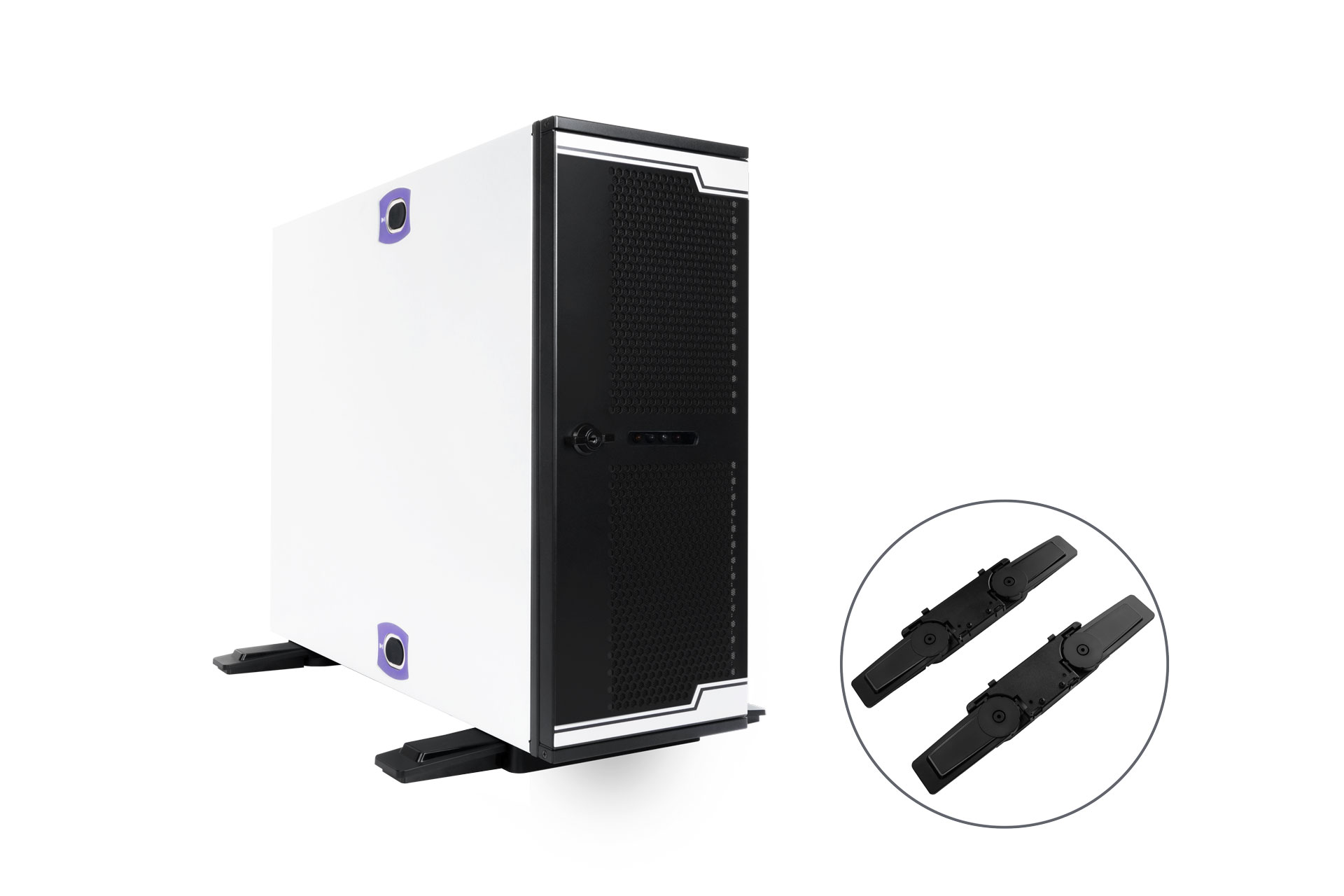

| Others | 2RALXX396100 | Foot stands | 1 set |
|
