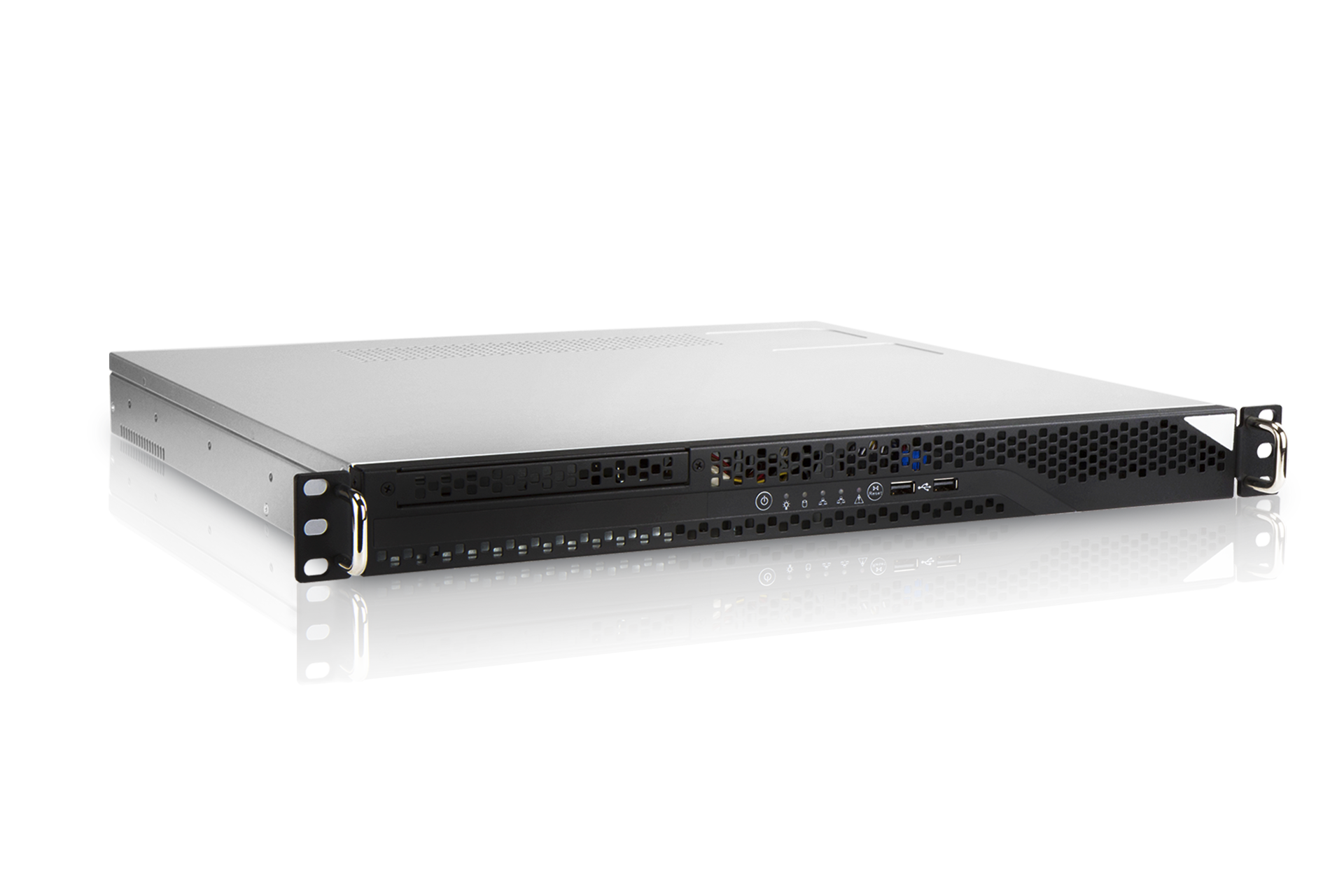

IW-RA100

1U Compact Rackmount Server Chassis

1U appliance chassis with 15" depth for space-sensitive applications

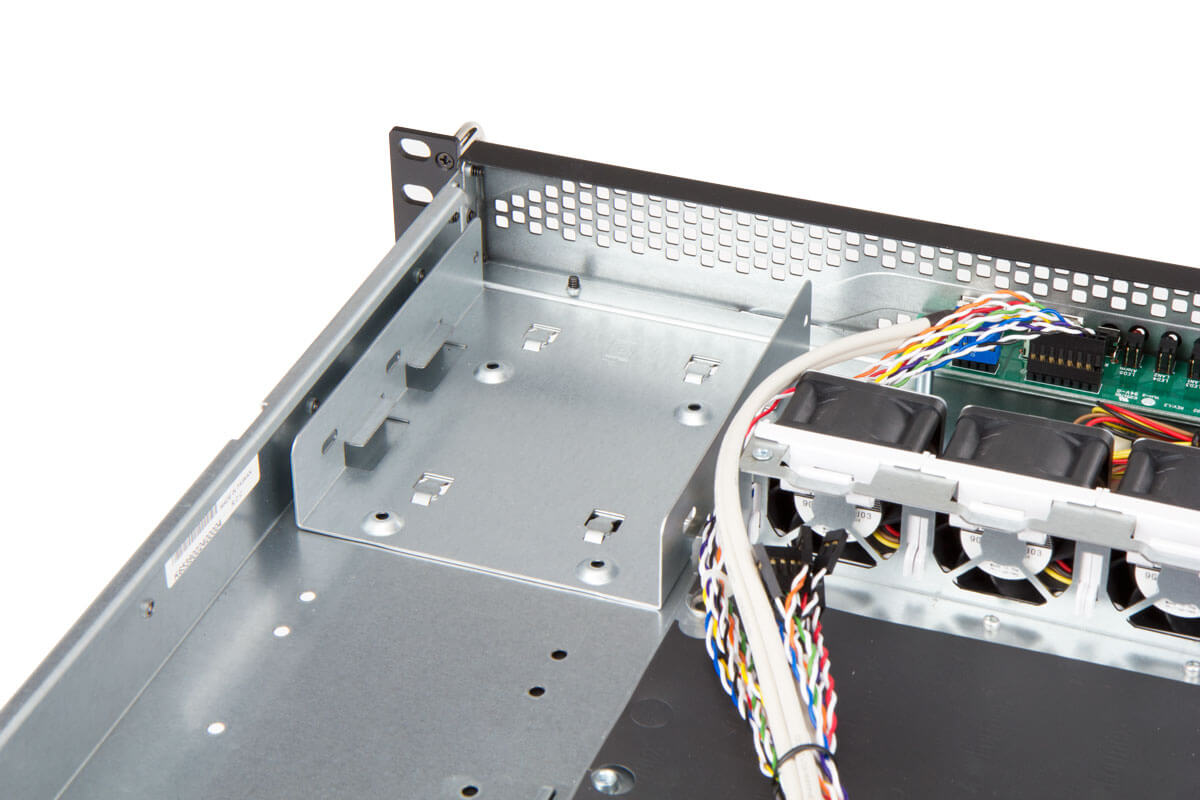

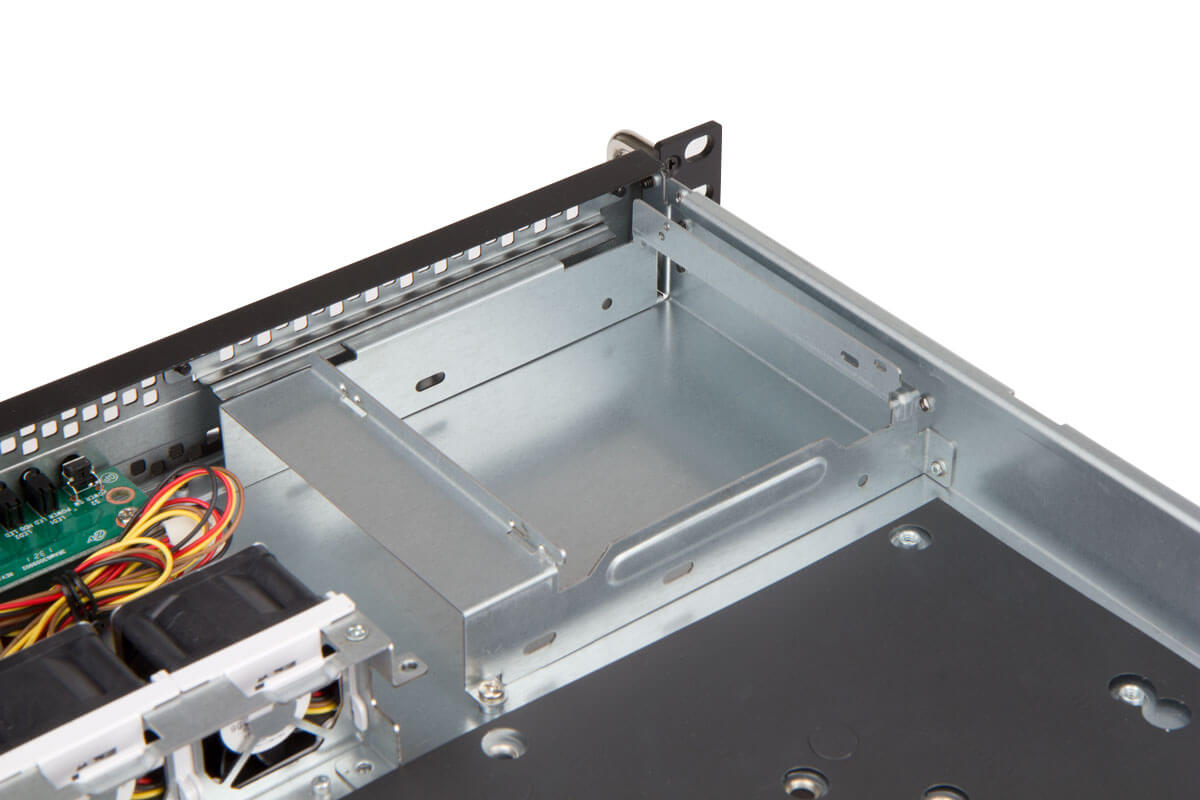

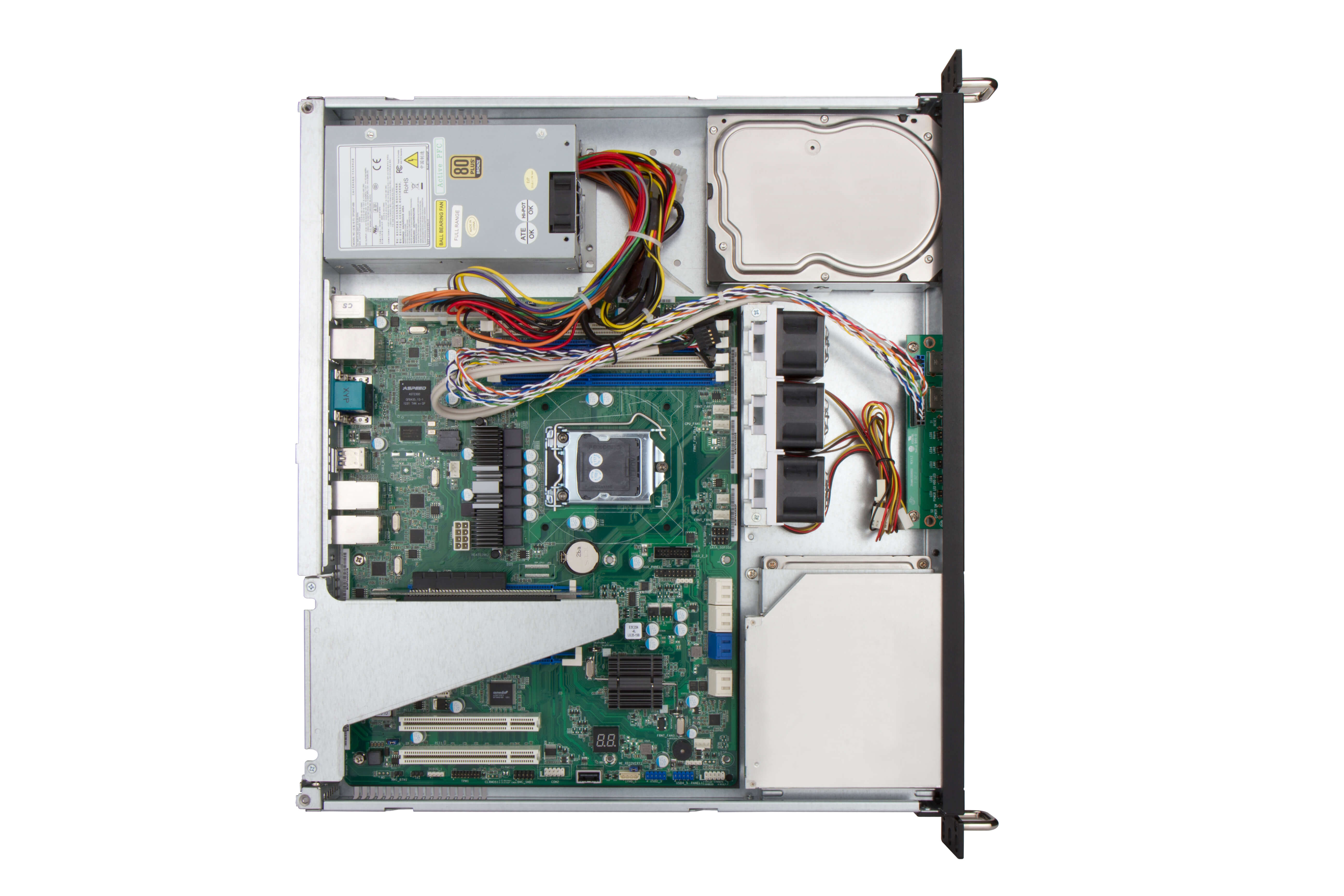

Utilizing space for HDD deployment to optimized HDD storage design

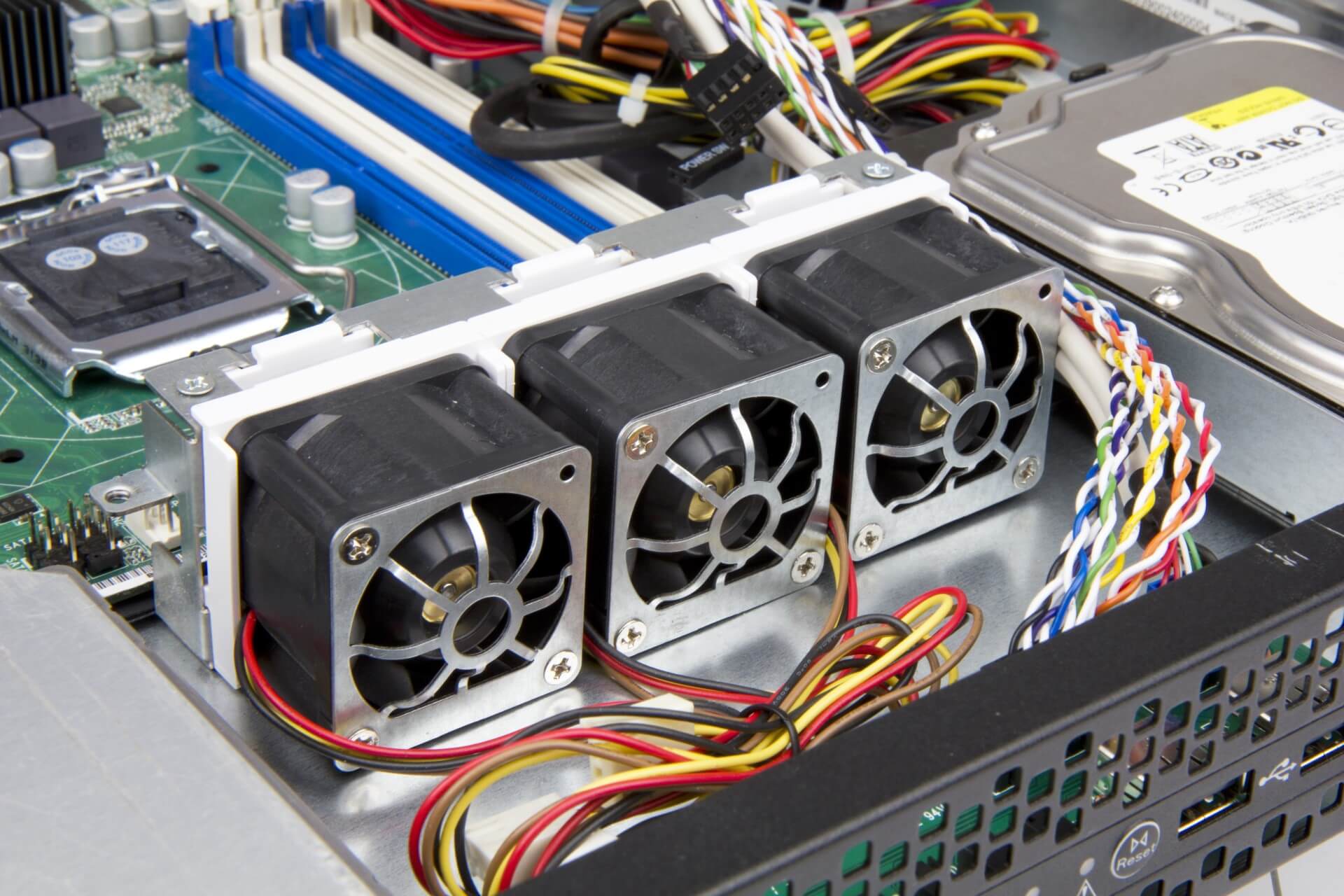

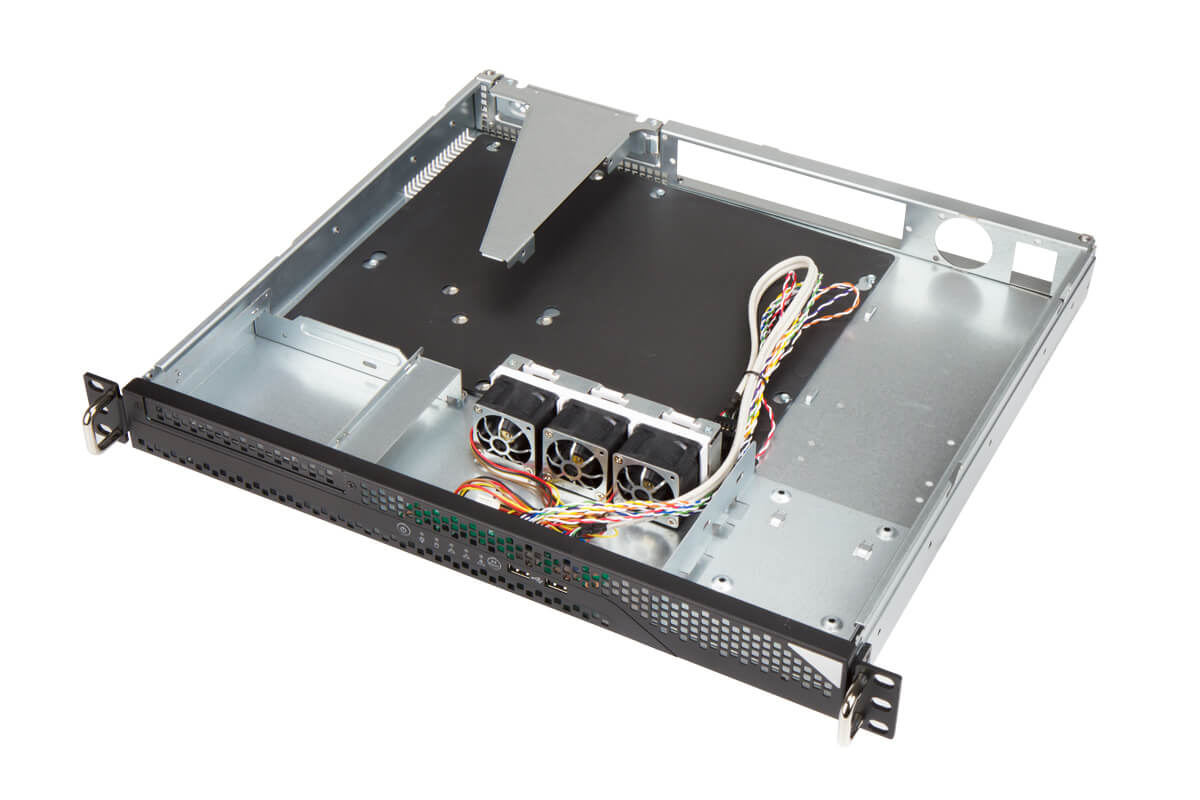

Outstanding thermal exhaust efficiency supports 40 x 28mm PWM fan x 3 (pre-installed x 2)

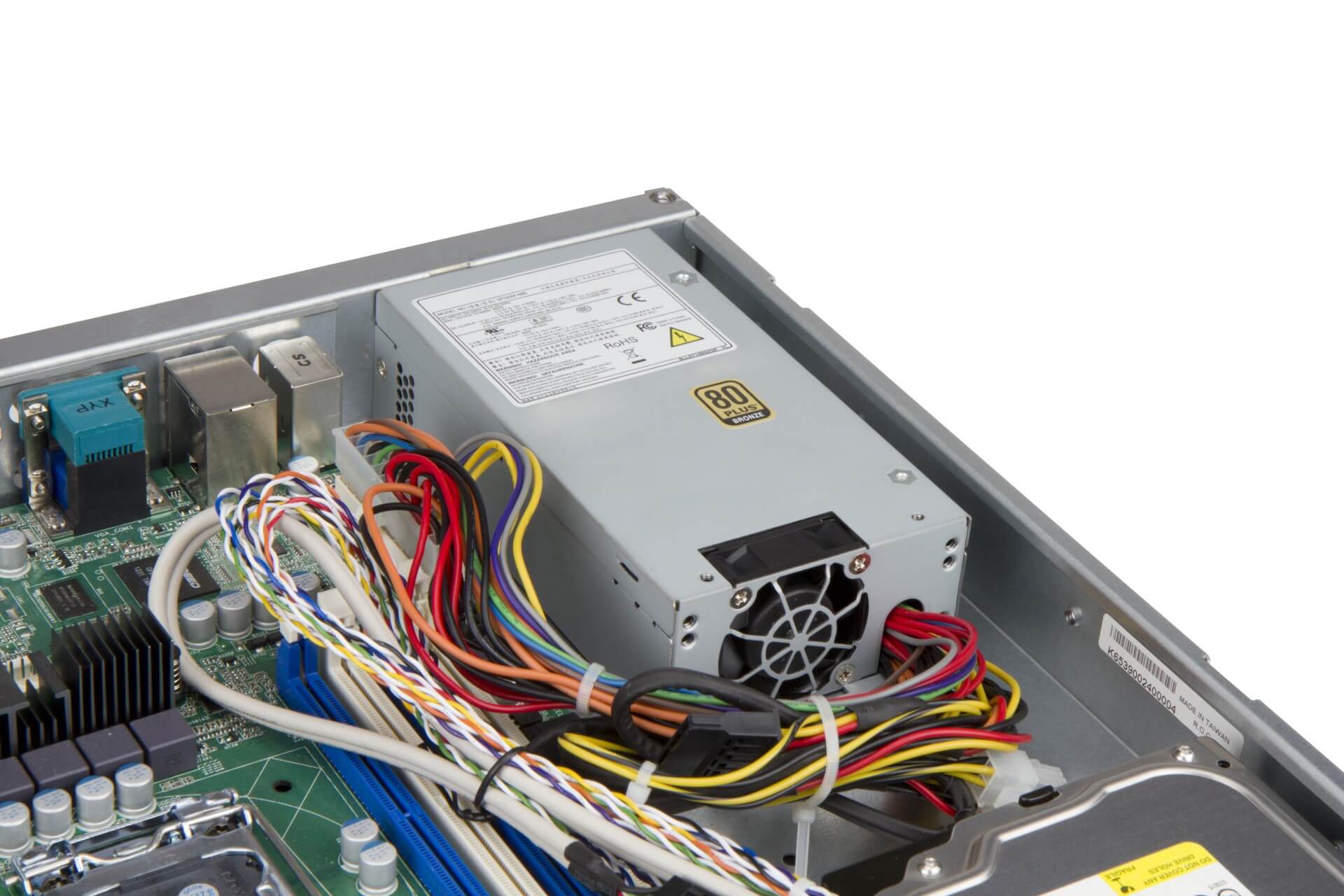

Supports 1U Flex form factor PSU (up to 315W)

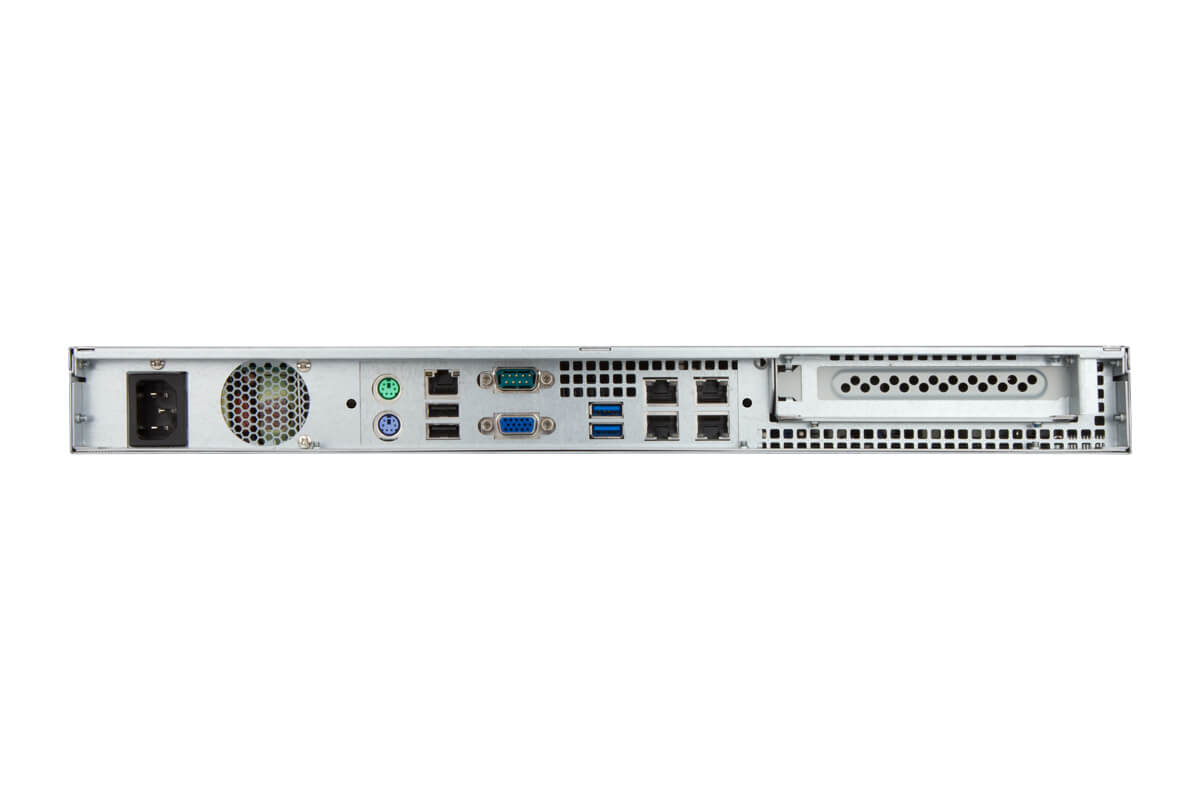

Optional PCI-E riser card and riser card bracket

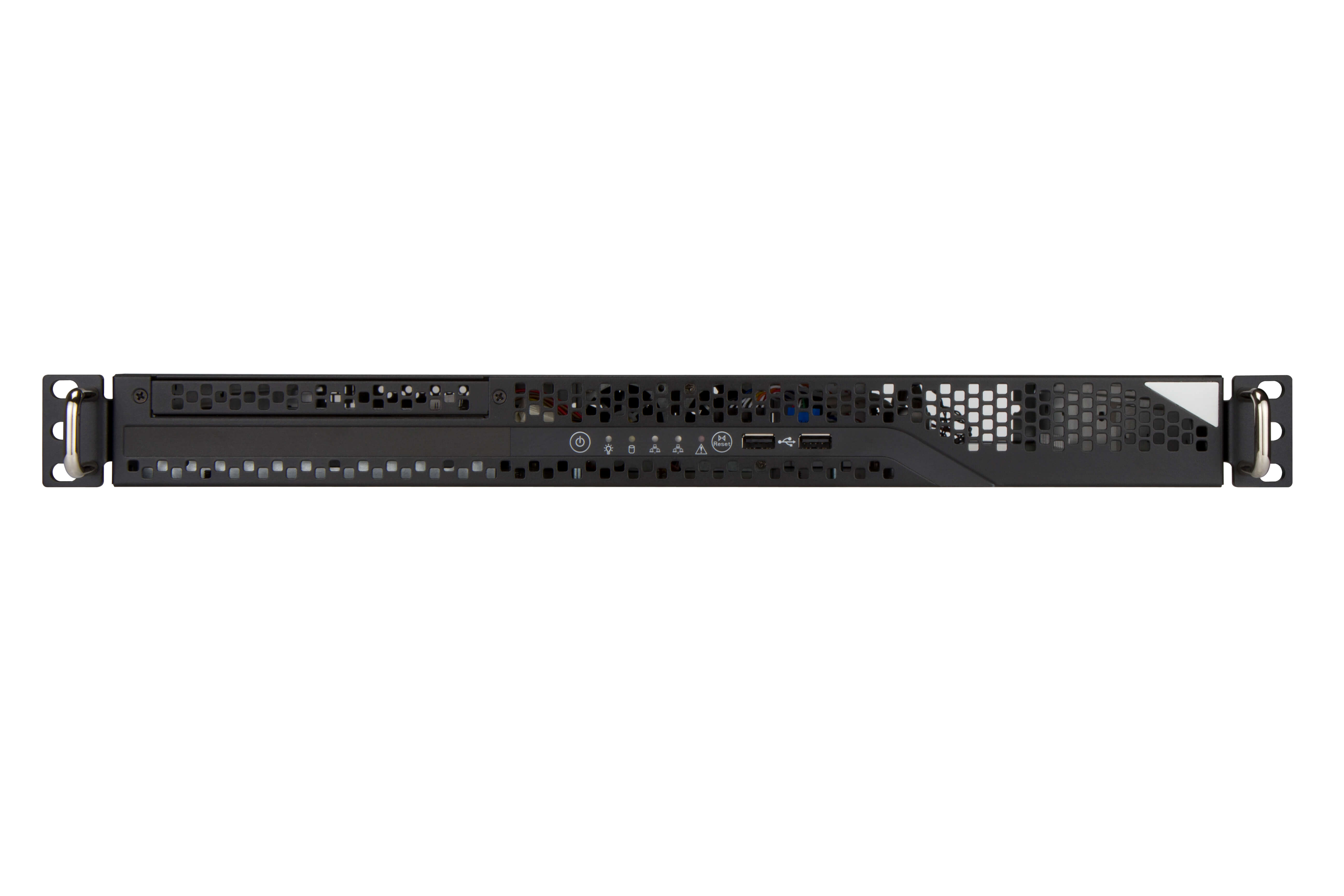

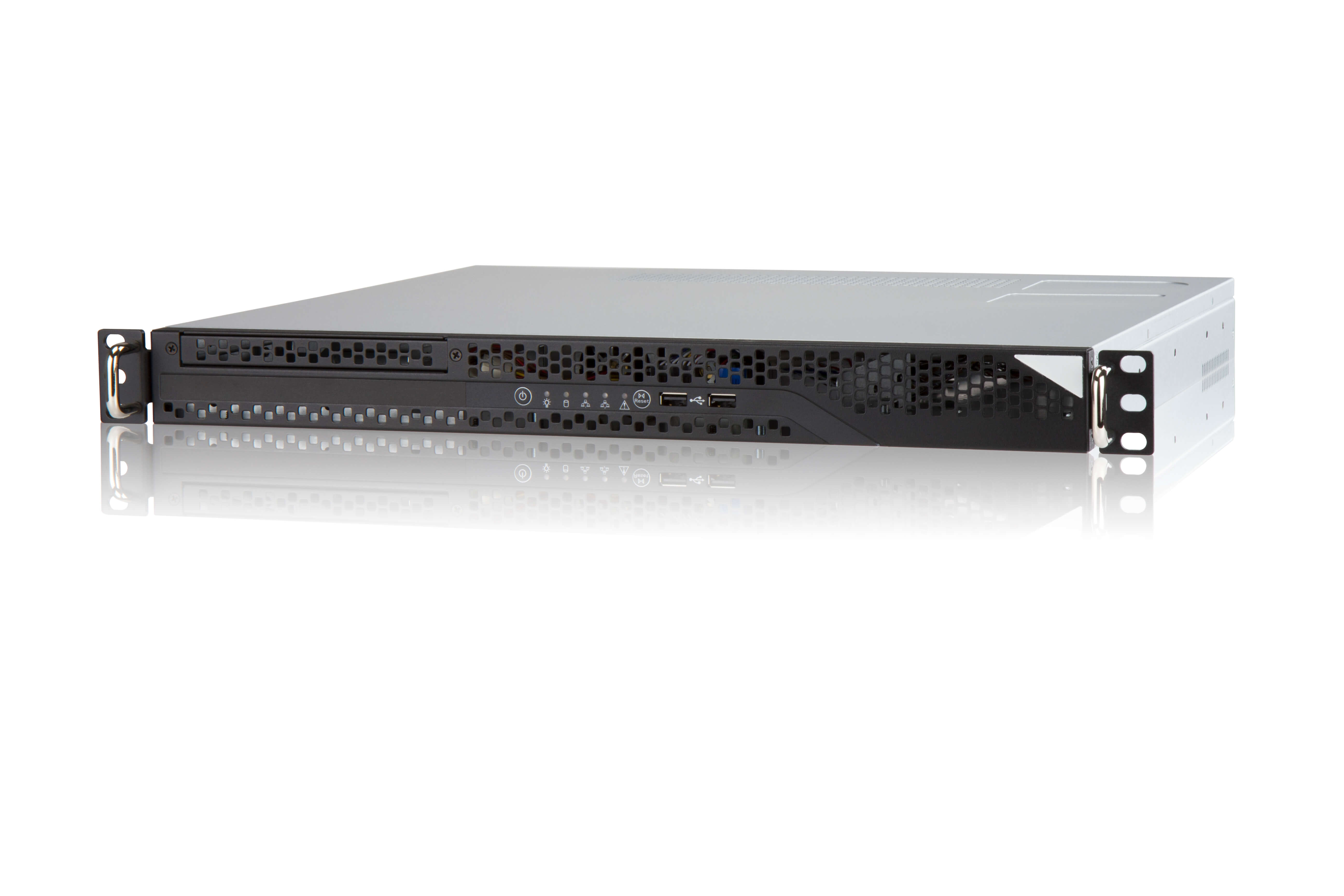

With two front access USB ports

Specification
Industry Standard	EIA-RS310D
M/B Form Factor	ATX (12" x 9.6")
Drive Bay	• External: slim ODD x 1 • Internal: 3.5" x 2 or 3.5" x 1 & 2.5" x 1
Power Supply	Supports: • Form factor: Flex • Watt: up to 315W
Indicators	Power Status, HDD, LAN Activity LEDs
Front Control Panel	Power Switch, System Reset, USB 2.0 x 2
Cooling Fans	Supports 40 x 28mm PWM fan x 3 (pre-installed x 2)
Expansion Slot	Full height PCI slot x 1 (via riser card and bracket)
Material	• Material: SGCC • Thickness: 1.0mm
Rail Kit	Supports 20" friction slide rail
Product Dimensions (DxWxH; Chassis Only)	394 x 482.6 x 44.4mm (15.5" x 19" x 1.75")
Package Dimensions (DxWxH)	605 x 518 x 155mm
Weight (Chassis Only)	• Net weight: 3.5kg • Gross weight: 8kg
Cubic Feet	1.79
Container Information	Single packing with pallets: • 20': 440pcs • 40': 968pcs • 40' HQ: 1056pcs

* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.

Item	Download	Preview
IW-RA100_Gallery		-
IW-RA100_eDM

Item	Part Number	Description	Support
Fan	2RAKFB002800	40 x 28mm, PWM, 14700RPM	3
Fan	3RAMFB010800	40 x 28mm, PWM, 14500RPM	3
Fan	3RAMFB002600	97 x 33mm, PWM, 5800RPM	1

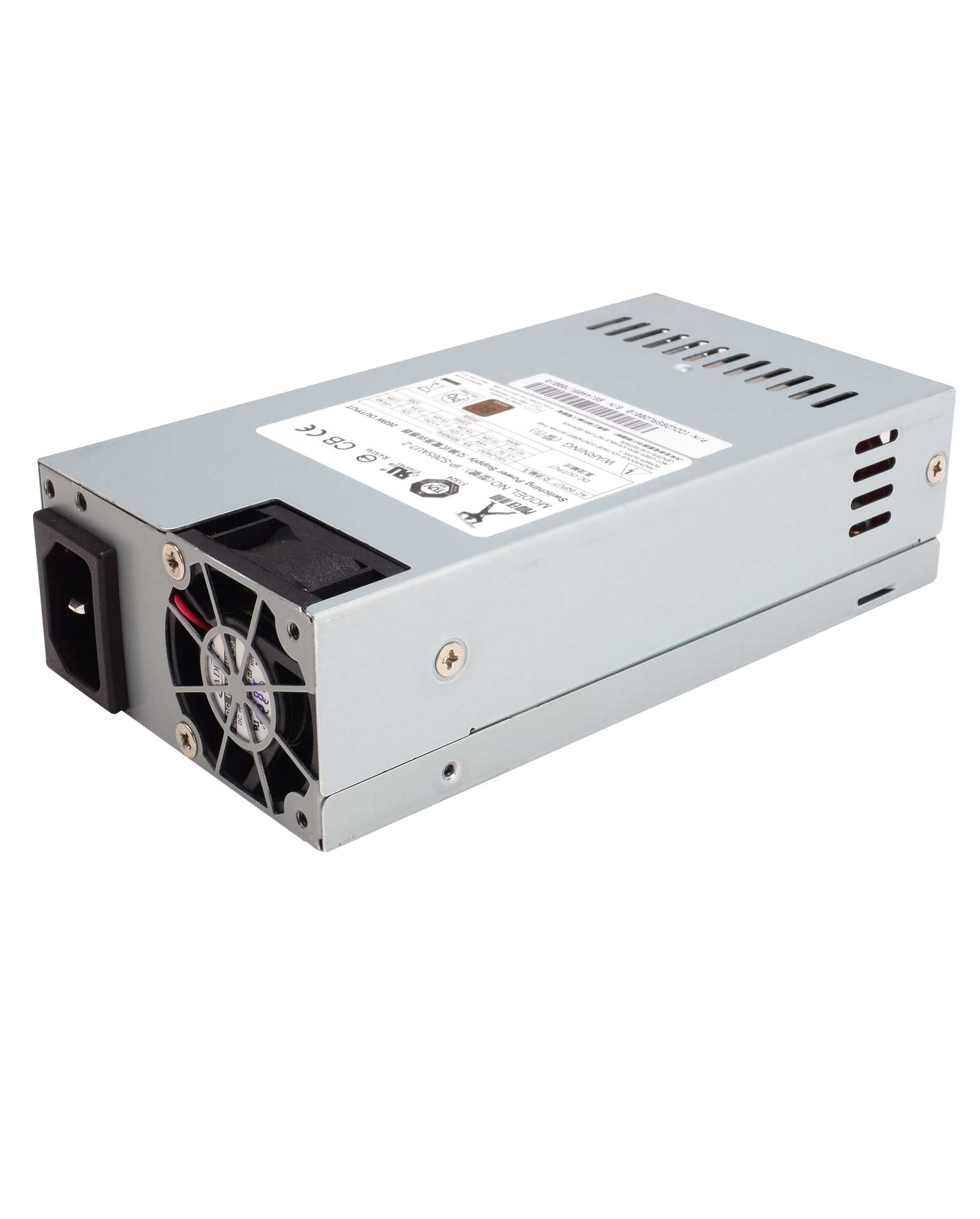

Power Supply	1DDW265AU20013	IP-S265AU7-2, 1U Flex 265W, 80 Plus Brozne	1
Power Supply	1DDU315AU20022	IP-P315AU7-2, 1U Flex 315W, 80 Plus Gold	1
Slide Rail	3RAMIS032201	20" friction slide rails	1

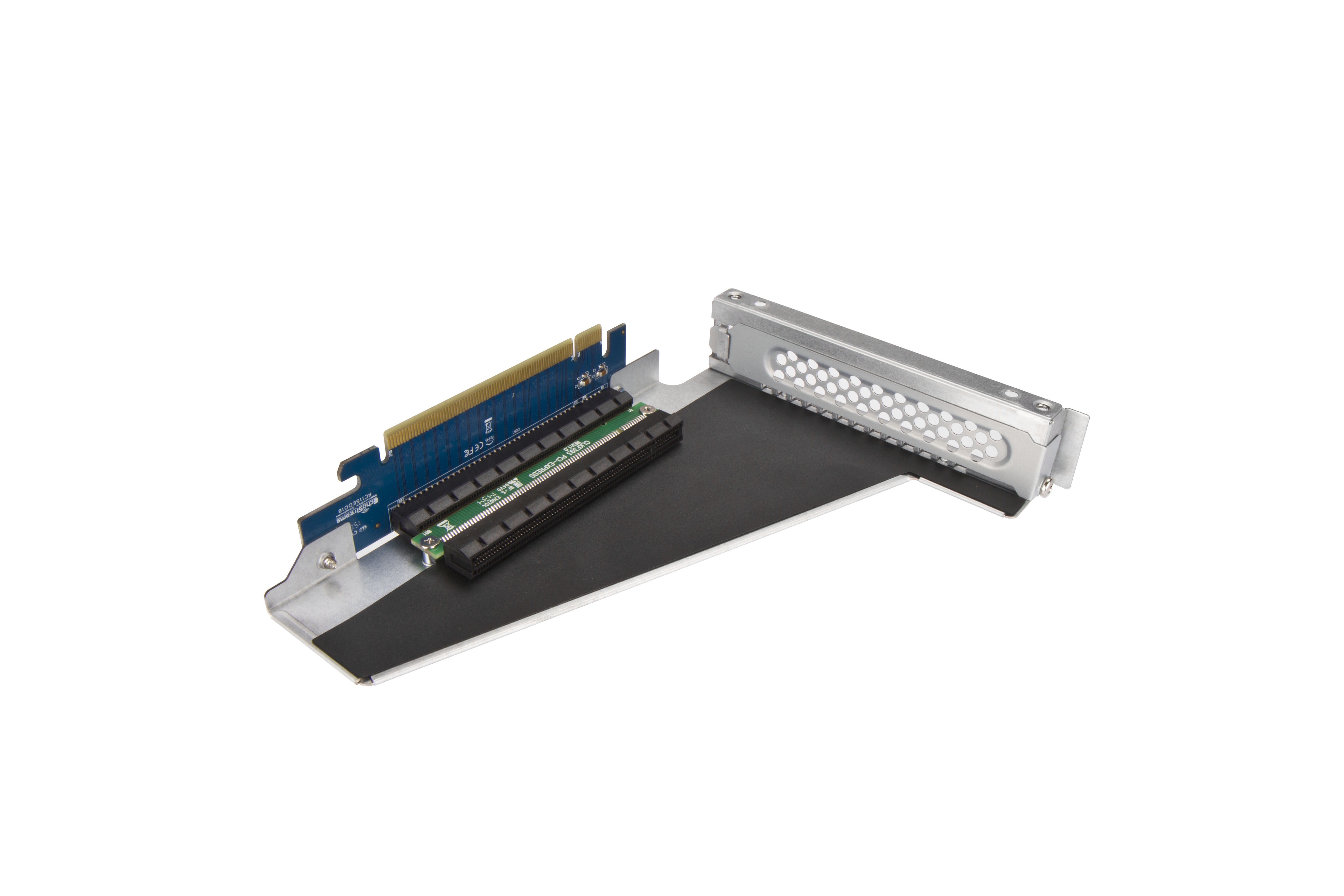

Riser Card	3RAMPD020200	RSC-1U PCI-E x 16	1

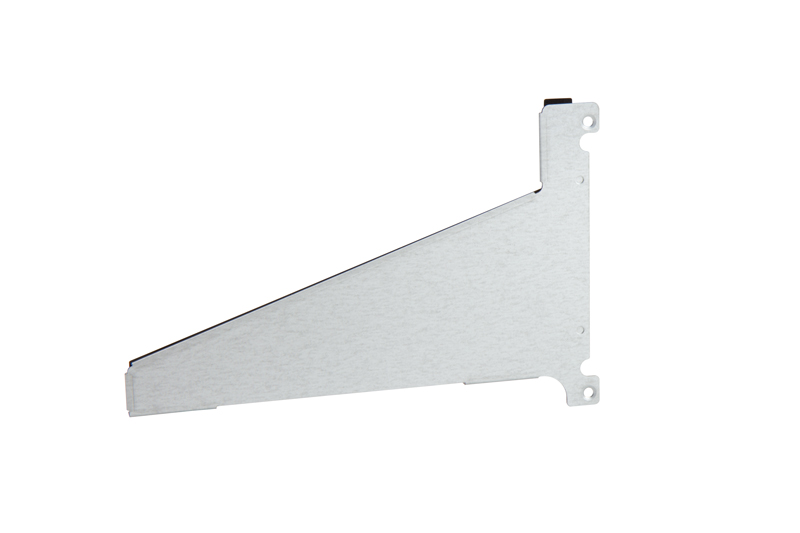

Riser Card	2RAVIC009900	Riser card bracket	1
Riser Card	2RAKPD049200	1U mini-ITX riser kits	1

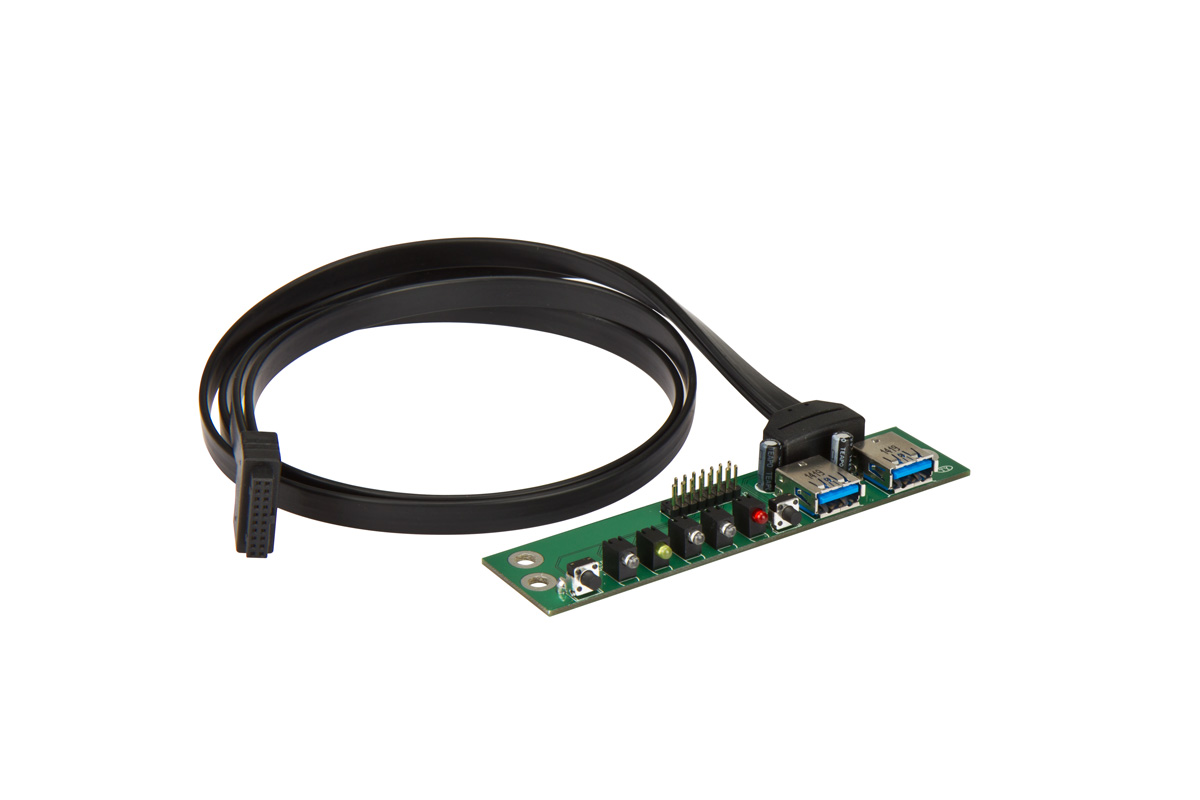

Cable	2RAKPD046400	USB 3.0 module	1

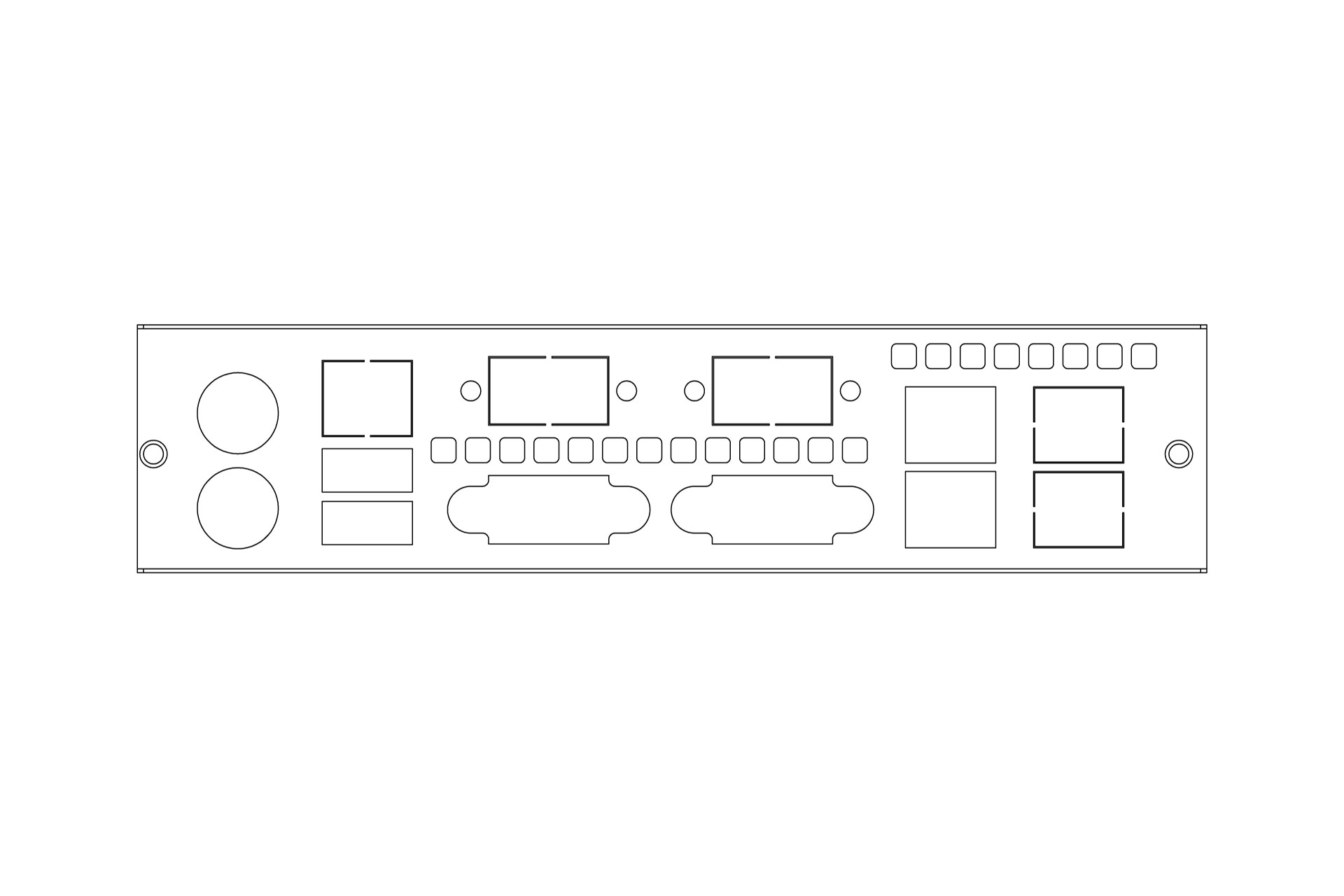

Back I/O Shield Plate	2RAVIQ002600	Rear I/O shield- Intel NC94FL	1
Back I/O Shield Plate	2RAVIQ002700	Rear I/O shield- Intel DH55TC	1
Back I/O Shield Plate	2RAVIQ002800	Rear I/O shield- Intel DH57JG	1
Back I/O Shield Plate	2RAVIQ003500	Rear I/O shield- ASUS M4N68TM	1
Back I/O Shield Plate	2RAVIQ003600	Rear I/O shield- SUPERMICRO X9SCI-LN4F	1
Back I/O Shield Plate	2RAVIQ003700	Rear I/O shield- Intel BCM RX965Q	1
Back I/O Shield Plate	2RAVIQ003800	Rear I/O shield- Intel D525MW	1
Back I/O Shield Plate	2RAVIQ003900	Rear I/O shield- Intel DQ67SW	1

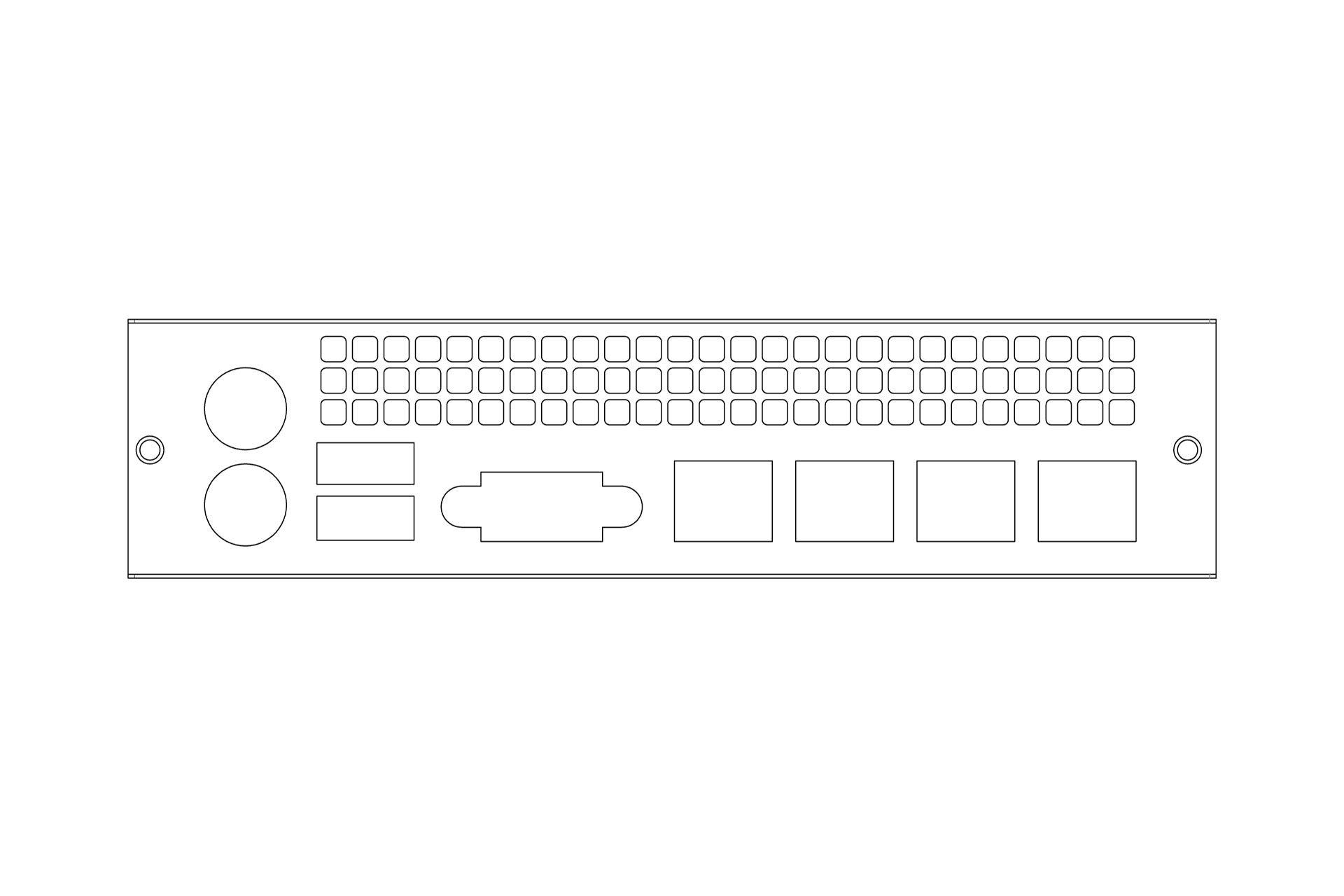

Back I/O Shield Plate	2RAVIQ004100	Rear I/O shield- ASUS P8B-C/4L	1
Back I/O Shield Plate	2RAVIQ004300	Rear I/O shield- Intel DG41CN	1
Back I/O Shield Plate	2RAVIQ004400	Rear I/O shield- Intel DH67BL	1
Back I/O Shield Plate	2RAVIQ004700	Rear I/O shield- Intel DH61WW	1
Back I/O Shield Plate	2RAVIQ004800	Rear I/O shield-ASUS P8B WS	1
Back I/O Shield Plate	2RAVIQ005700	Rear I/O shield- Intel DQ77KB	1
Back I/O Shield Plate	2RAVIQ006100	Rear I/O shield- ASRock E3C204	1
Back I/O Shield Plate	2RAVIQ006200	Rear I/O shield- Tyan S5510GM3NR	1
Back I/O Shield Plate	2RAVIQ007100	Rear I/O shield- SUPERMICRO X10SLM-LN4F/X11SCL-F	1
Back I/O Shield Plate	2RAVIQ007400	Rear I/O shield- ASRock E3C224D2I/E3C226D2I	1
Back I/O Shield Plate	2RAVIQ007501	Rear I/O shield- ASRock E3C224/E3C224-4L	1
Back I/O Shield Plate	2RAVIQ007600	Rear I/O shield- ASROCK E3C204	1

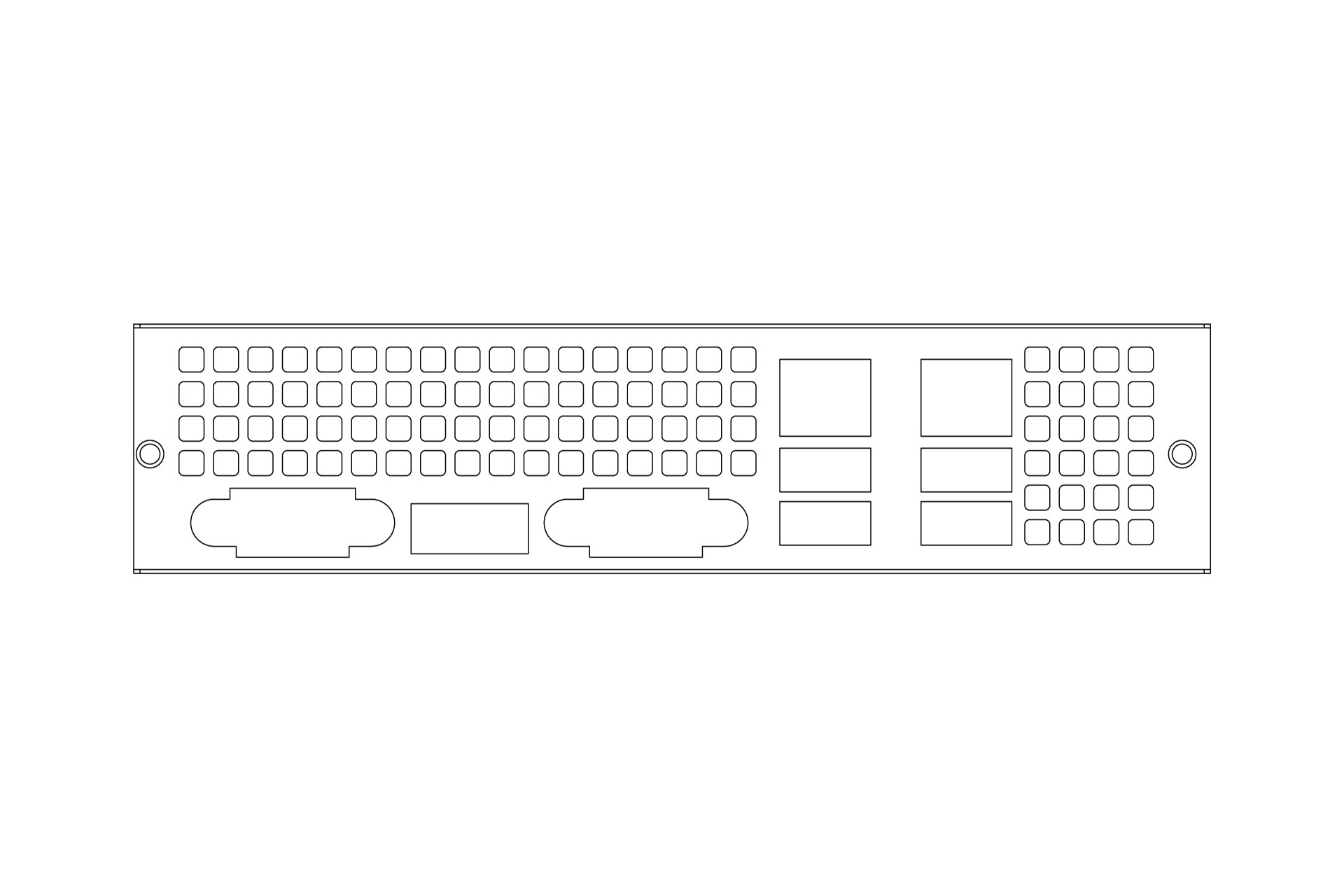

Back I/O Shield Plate	2RAVIQ007801	Rear I/O shield- Intel S1200V3RP	1
Back I/O Shield Plate	2RAVIQ008000	Rear I/O shield- Intel S1200BTSR	1
Back I/O Shield Plate	2RAVIQ008800	Rear I/O shield- Gigabyte J1900N-D3V	1
Back I/O Shield Plate	2RAVIQ009001	Rear I/O shield- ASUS P8B-X	1
Back I/O Shield Plate	2RAVIQ009500	Rear I/O shield- ASUS H97M-E	1
Back I/O Shield Plate	2RAVIQ010800	Rear I/O shield- ASUS P9D-C	1
Back I/O Shield Plate	2RAVIQ010900	Rear I/O shield- ASRock EPC612D8	1
Back I/O Shield Plate	2RAVIQ011300	Rear I/O shield- ASRock H87WS-DL	1
Back I/O Shield Plate	2RAVIQ013600	Rear I/O shield- Gigabyte GA-B85N	1
Back I/O Shield Plate	2RAVIQ014900	Rear I/O shield- ASRock E3C224D4M-16RE	1
Back I/O Shield Plate	2RAVIQ022800	Rear I/O shield- ASRock E3C204-V+	1
Back I/O Shield Plate	2RAVIQ027600	Rear I/O shield- Avalue EMX-Q170P	1
Back I/O Shield Plate	2RAVIQ029100	Rear I/O shield- Intel S1200V3RPS	1
Back I/O Shield Plate	2RAVIQ029200	Rear I/O shield- SUPERMICRO X10SLM-F	1
Back I/O Shield Plate	2RAVIQ029900	Rear I/O shield- Tyan S5532WGM2NR-LE	1
Back I/O Shield Plate	2RAVIQ031600	Rear I/O shield- Intel S1200BTS	1
Back I/O Shield Plate	2RAVIQ032100	Rear I/O shield- ASRock EPC602D8A	1
Back I/O Shield Plate	2RAVIQ035700	Rear I/O shield- ASRock C2750D4I	1

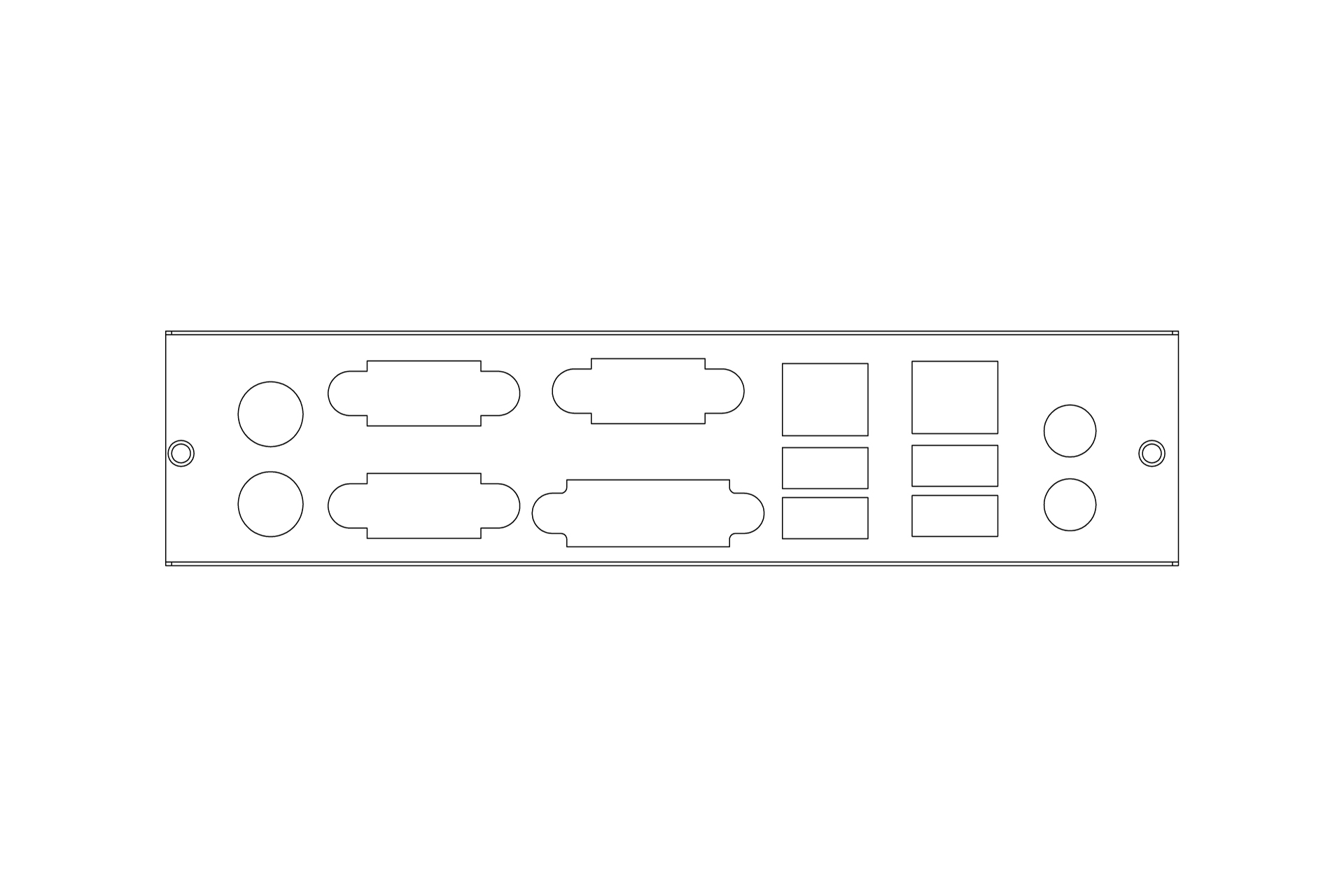

Back I/O Shield Plate	2RAVIQ037800	Rear I/O shield- Advantech AIMB-705	1
Back I/O Shield Plate	2RAVIQ040900	Rear I/O shield-Inventec B400G3-4L	1
Back I/O Shield Plate	2RAVIQ043200	Rear I/O shield- ASRock KWQ87	1
Back I/O Shield Plate	2RAVIQ043500	Rear I/O shield- SUPERMICRO X10SLL-SF/-S	1
Back I/O Shield Plate	2RAVIQ043600	Rear I/O shield- ASUS P11C-M/4L	1
Back I/O Shield Plate	-	Rear I/O shield. Material: SGCC (customize design based on customer's specific motherboard I/O design)	1
Others	-	Air duct. Material: mylar (customize design,based on customer's specific motherboard to design suitable air duct)	1
