IW-RA102

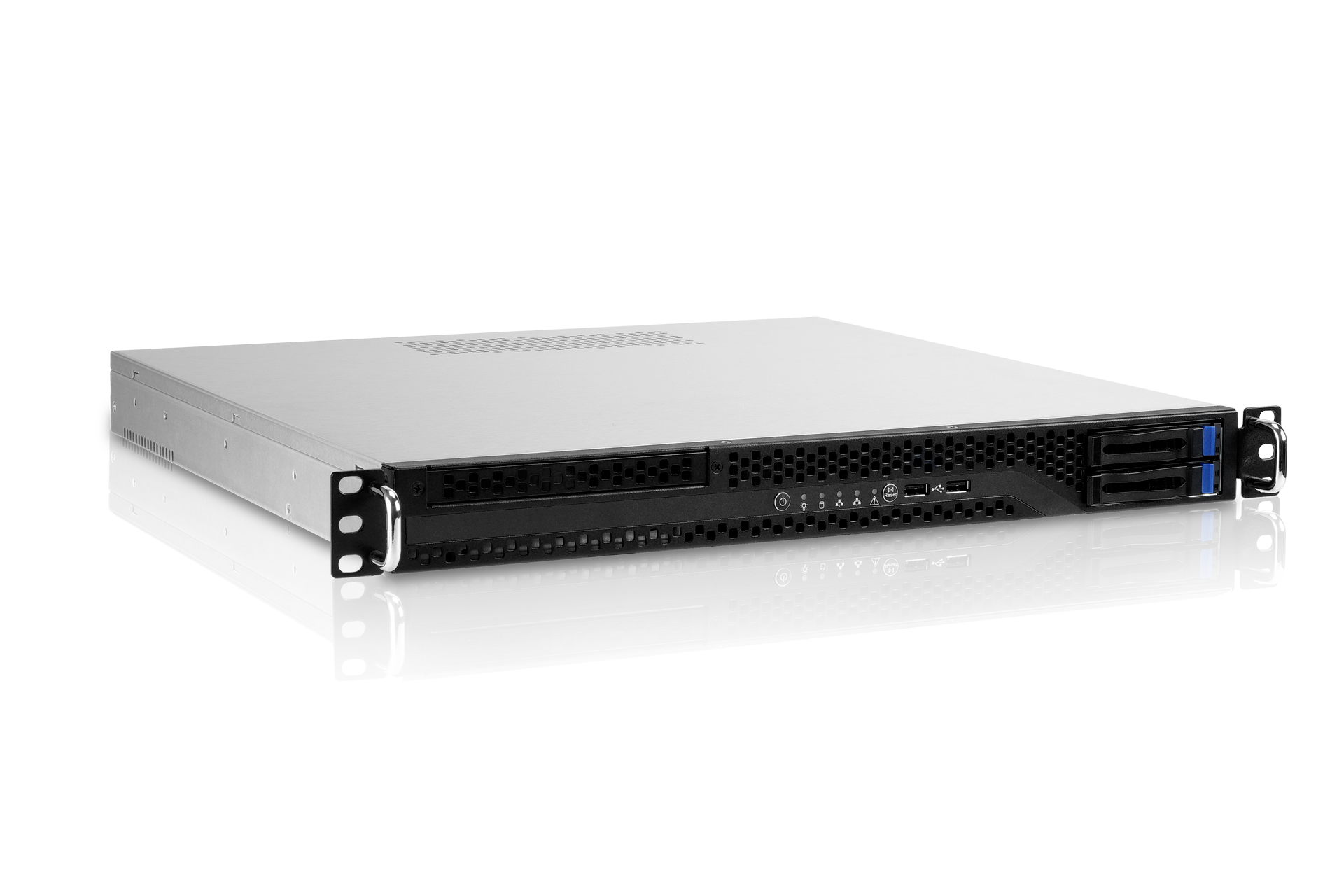

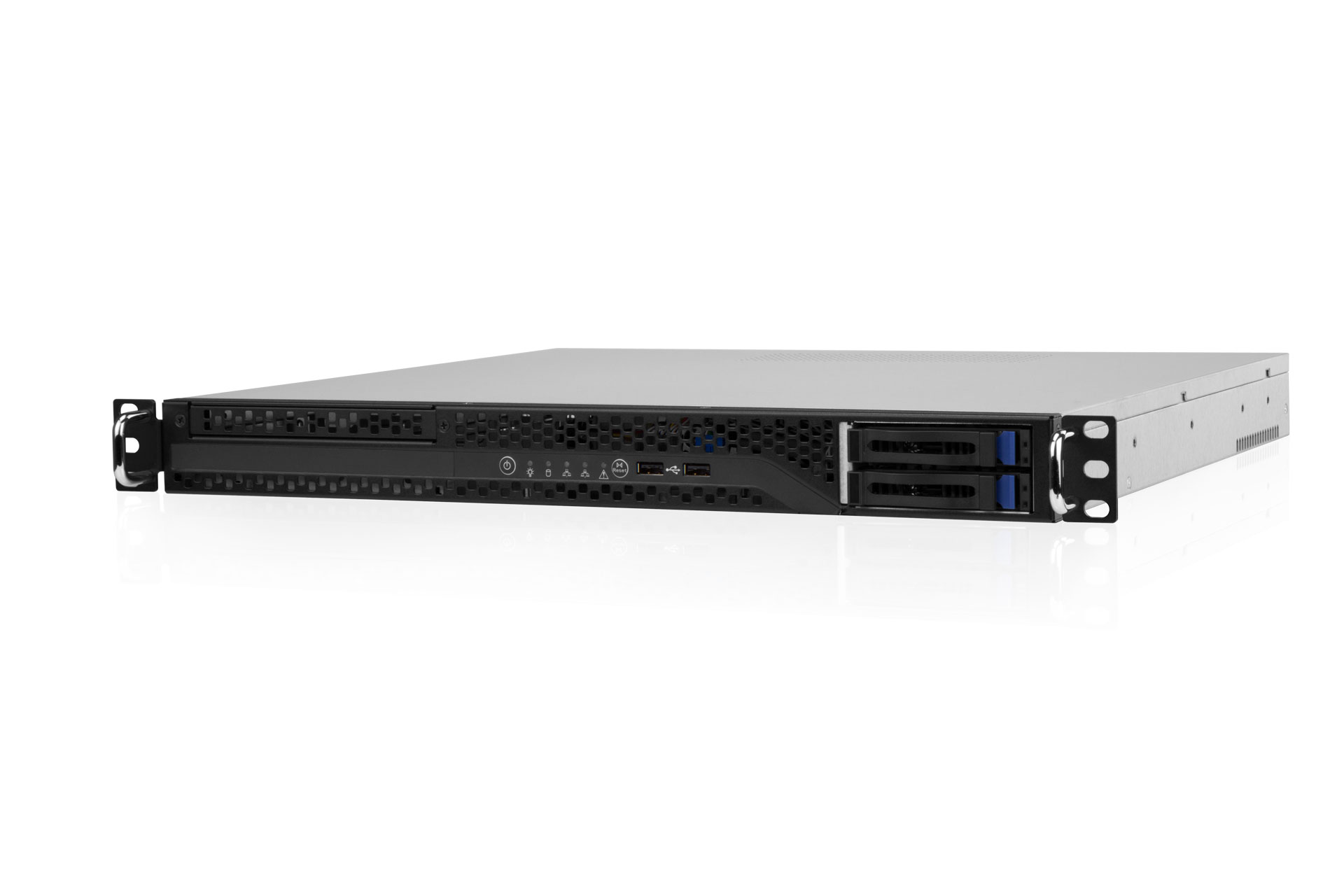

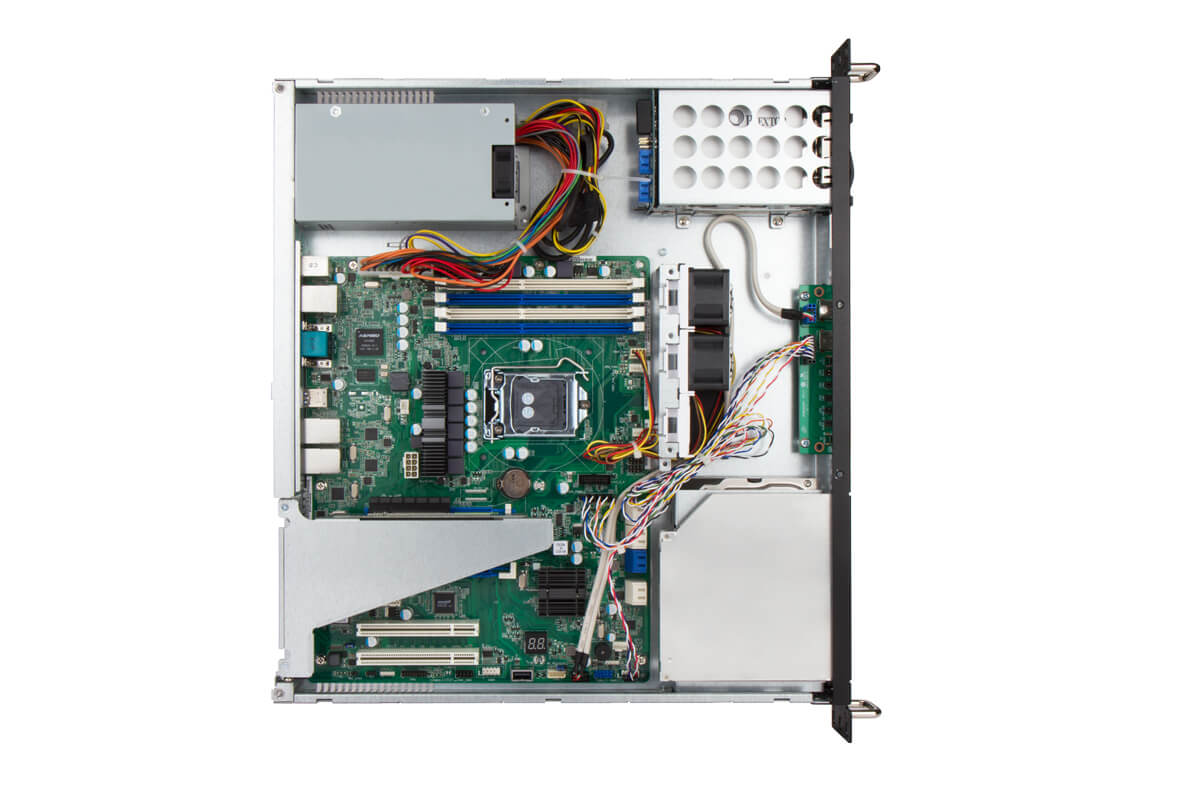

1U Compact Rackmount Server Chassis
- 1U appliance chassis with 15" depth for space-sensitive applications
- Utilizing space for HDD deployment to optimized HDD storage design
- Outstanding thermal exhaust efficiency

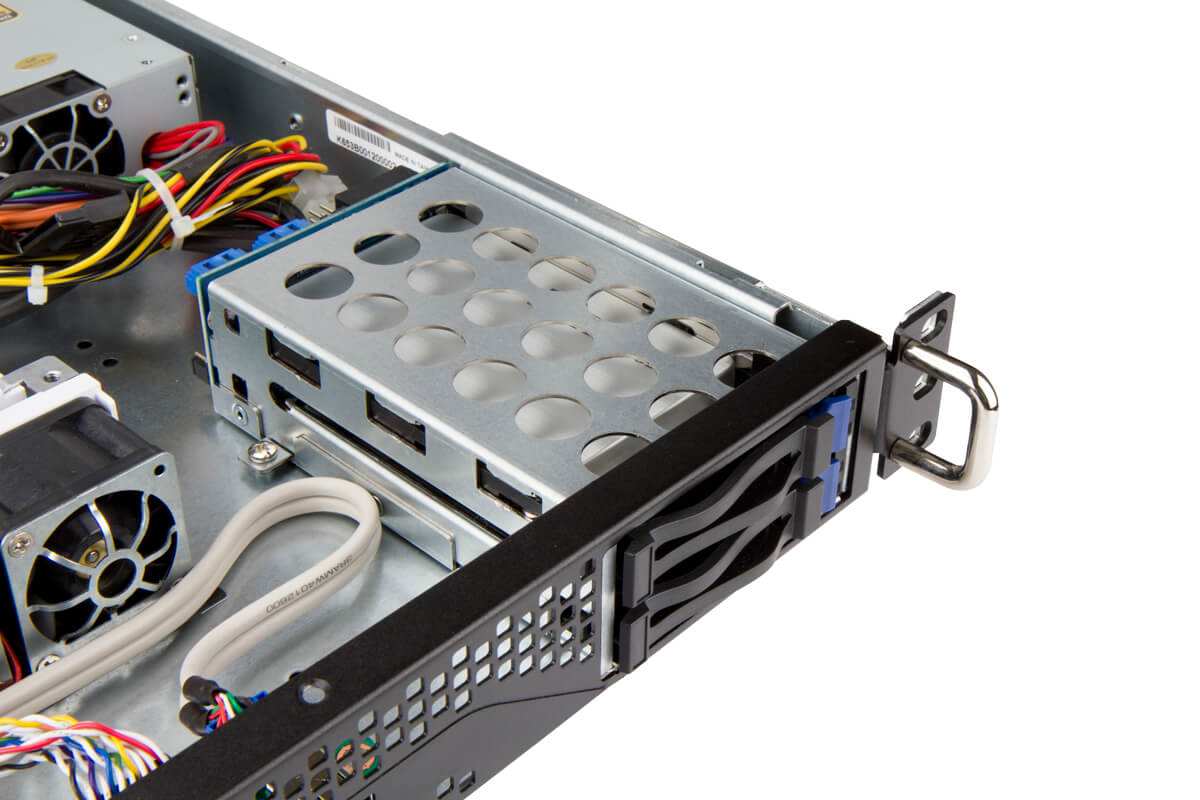

- Dual 2.5" hot-swap storage bay for quick HDD maintenance

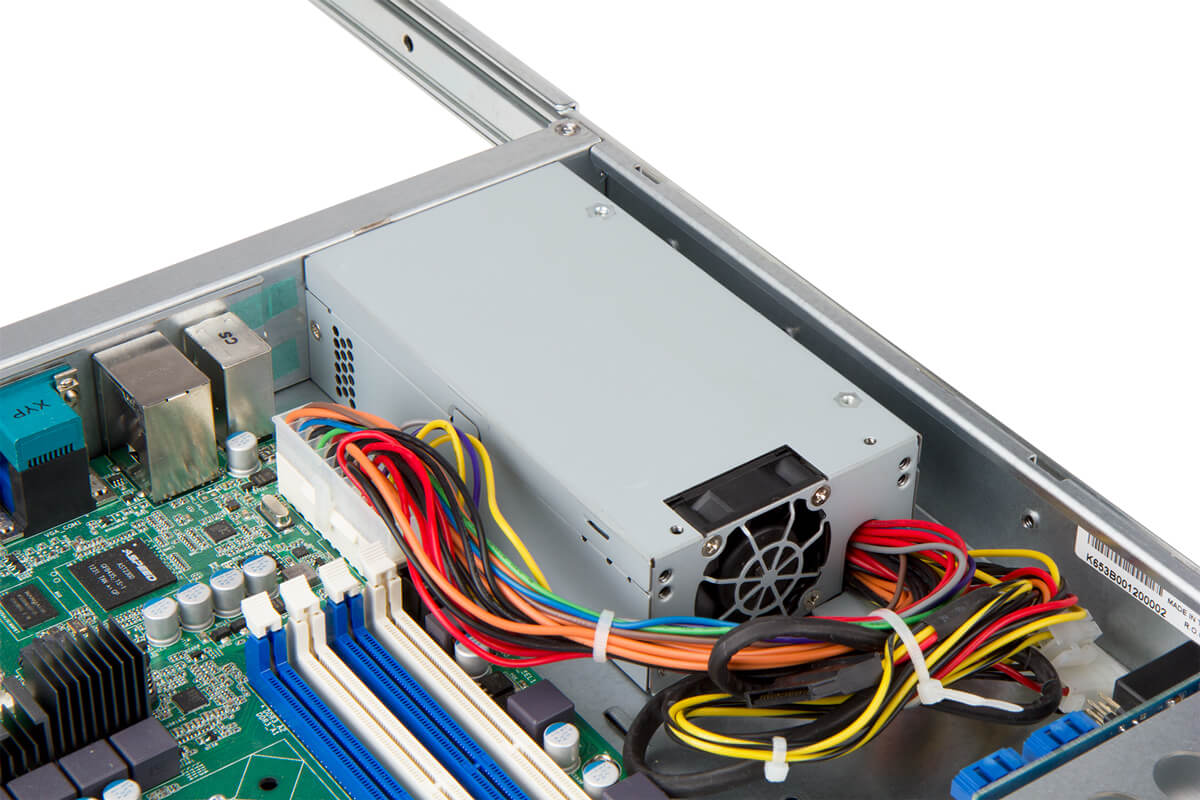

- Supports 1U Flex form factor PSU (up to 315W)
- Optional PCI-E riser card and riser card bracket

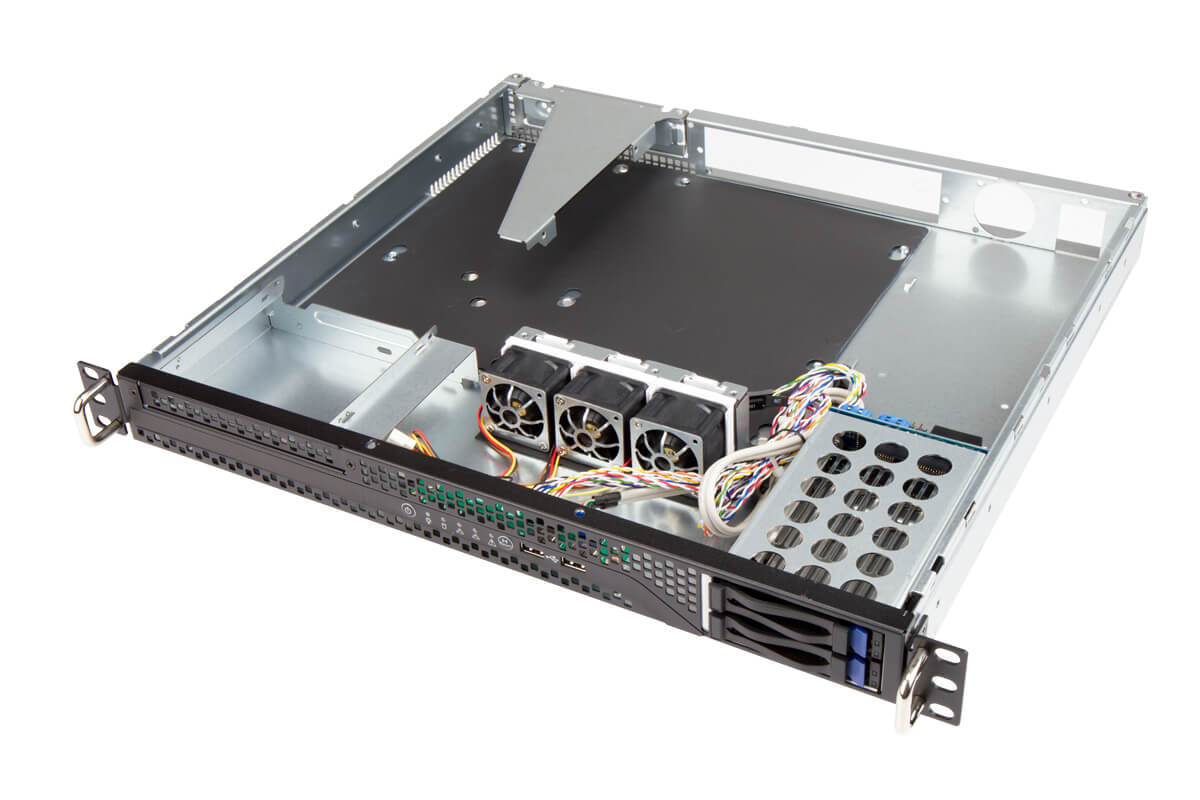

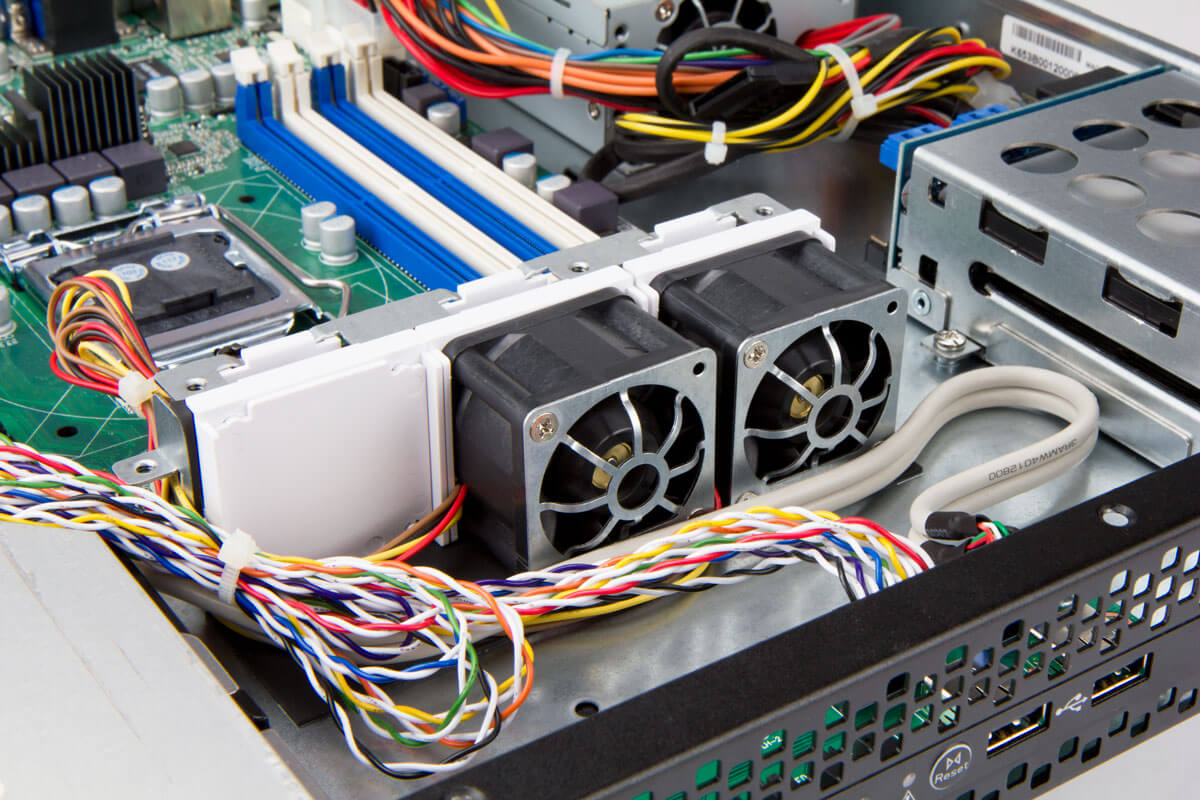

- Supports 40 x 28mm PWM fan x 3 (pre-installed x 2)
- External 2.5" hot-swap HDD bay x 2

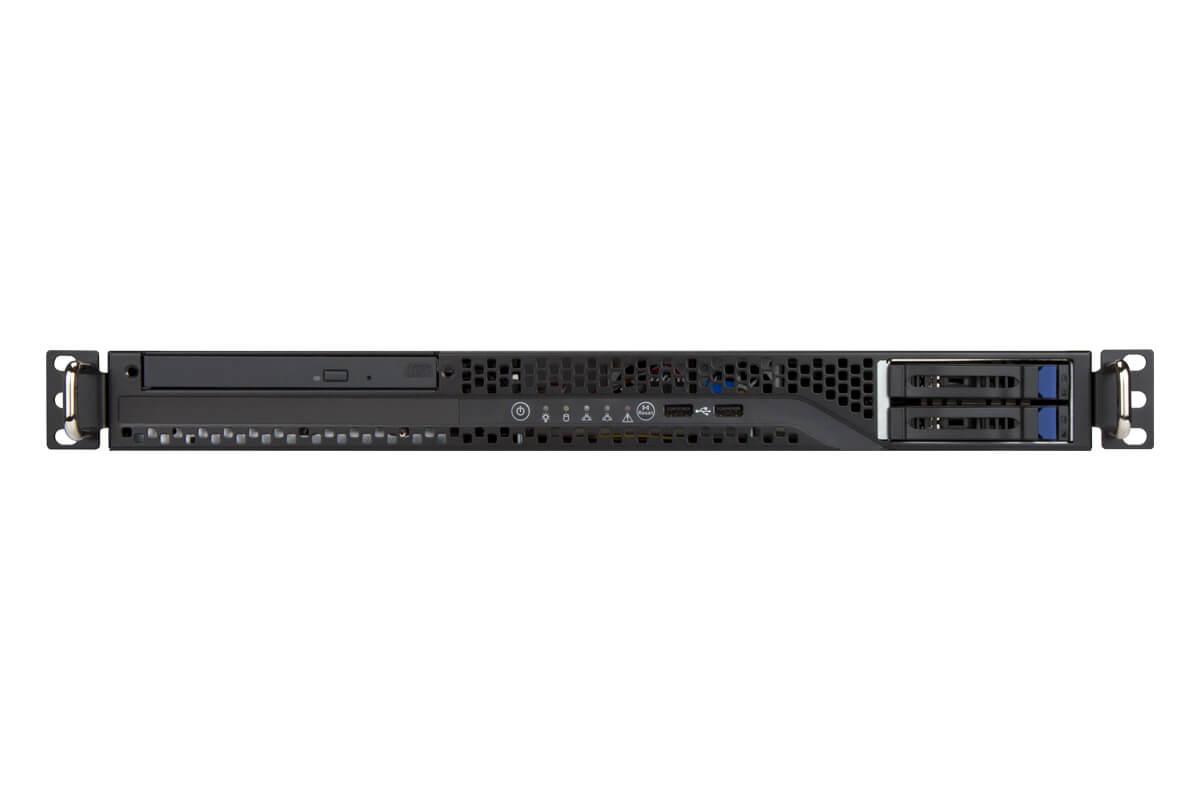

- With two front access USB ports
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX (12" x 9.6") |

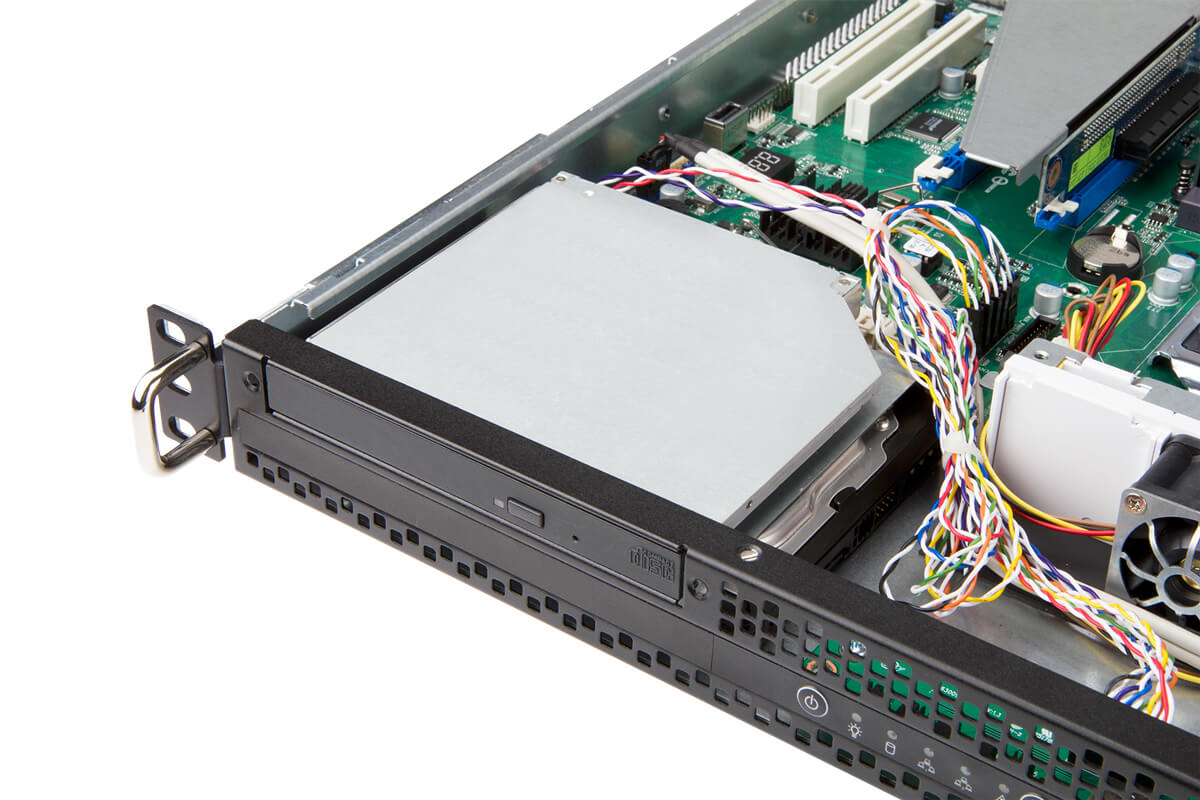

| Drive Bay | • External: hot-swap 2.5"x 2, slim ODD x 1 • Internal: 3.5" HDD x 1 |
| Power Supply | Supports: • Form factor: Flex • Watt: up to 315W |
| Indicators | Power status, HDD, LAN activity LEDs |
| Front Control Panel | Power switch, System reset, USB 2.0 x 2 |
| Cooling Fans | Supports 40 x 28mm PWM fan x 3 (pre-installed x 2) |
| Expansion Slot | Full height PCI slot x 1 (via riser card and bracket) |
| Material | • Material: SGCC • Thickness: 1.0mm |

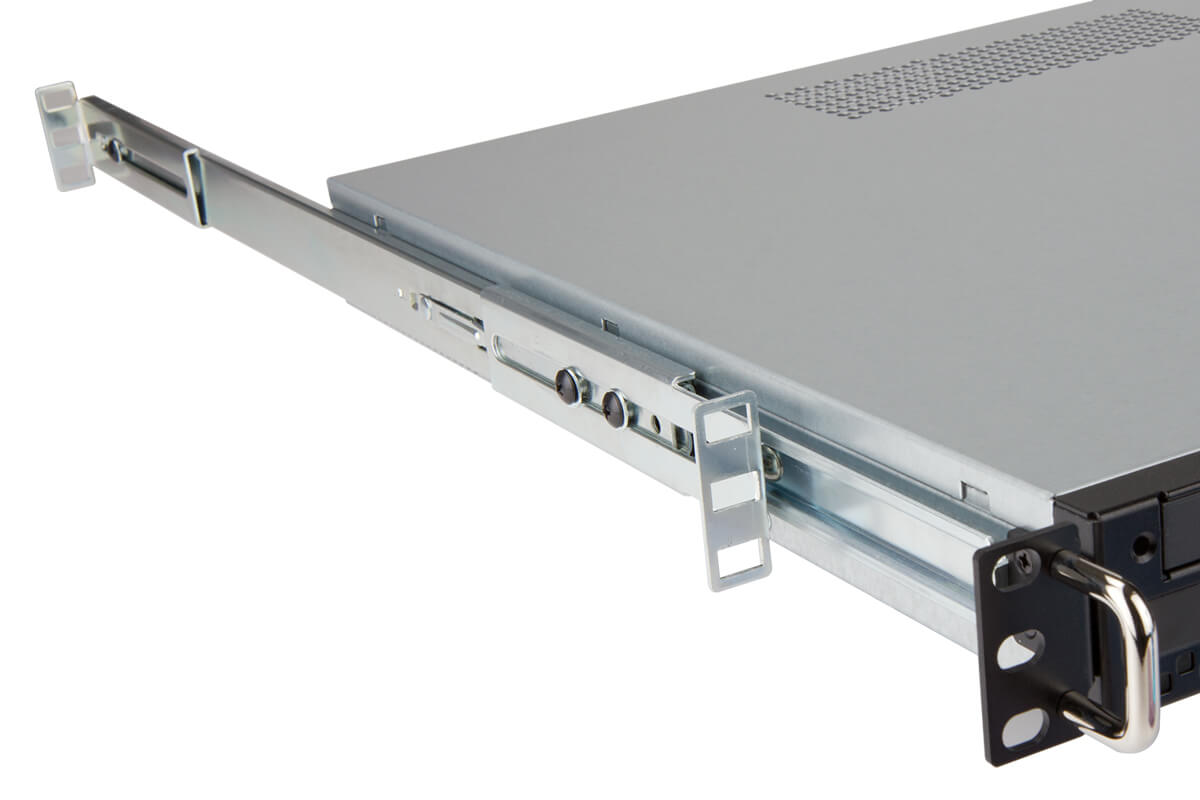

| Rail Kit | Supports 20" friction slide rail |
| Product Dimensions (DxWxH; Chassis Only) | 394 x 482.6 x 44.4mm (15.5" x 19" x 1.75") |
| Package Dimensions (DxWxH) | 605 x 518 x 155mm |
| Weight (Chassis Only) | • Net weight: 3.5kg • Gross weight: 8kg |
| Container Information | Single packing with pallets: • 20': 440pcs • 40': 968pcs • 40'HQ: 1056pcs |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Fan | 2RAKFB002800 | 40 x 28mm, PWM, 14700RPM | 3 |
|
| Fan | 3RAMFB010800 | 40 x 28mm, PWM, 14500RPM | 3 |
|
| Power Supply | 3RAMAP018803 | SPI300F4BB, 1U Flex, 300W | 1 |
|

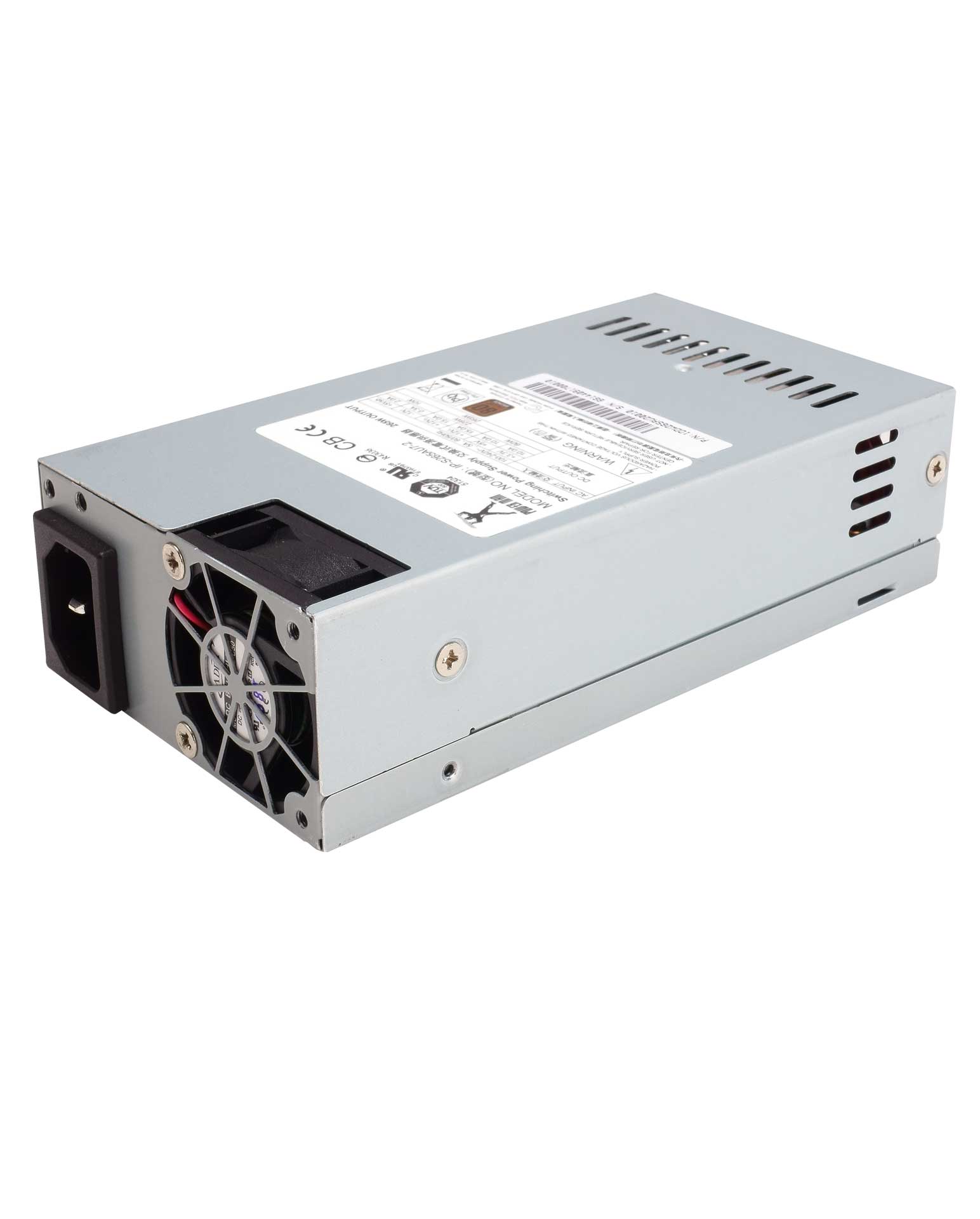

| Power Supply | 1DDW265AU20013 | IP-S265AU7-2,265W,1U Flex, 265W, 80 Plus Bronze | 1 |
|

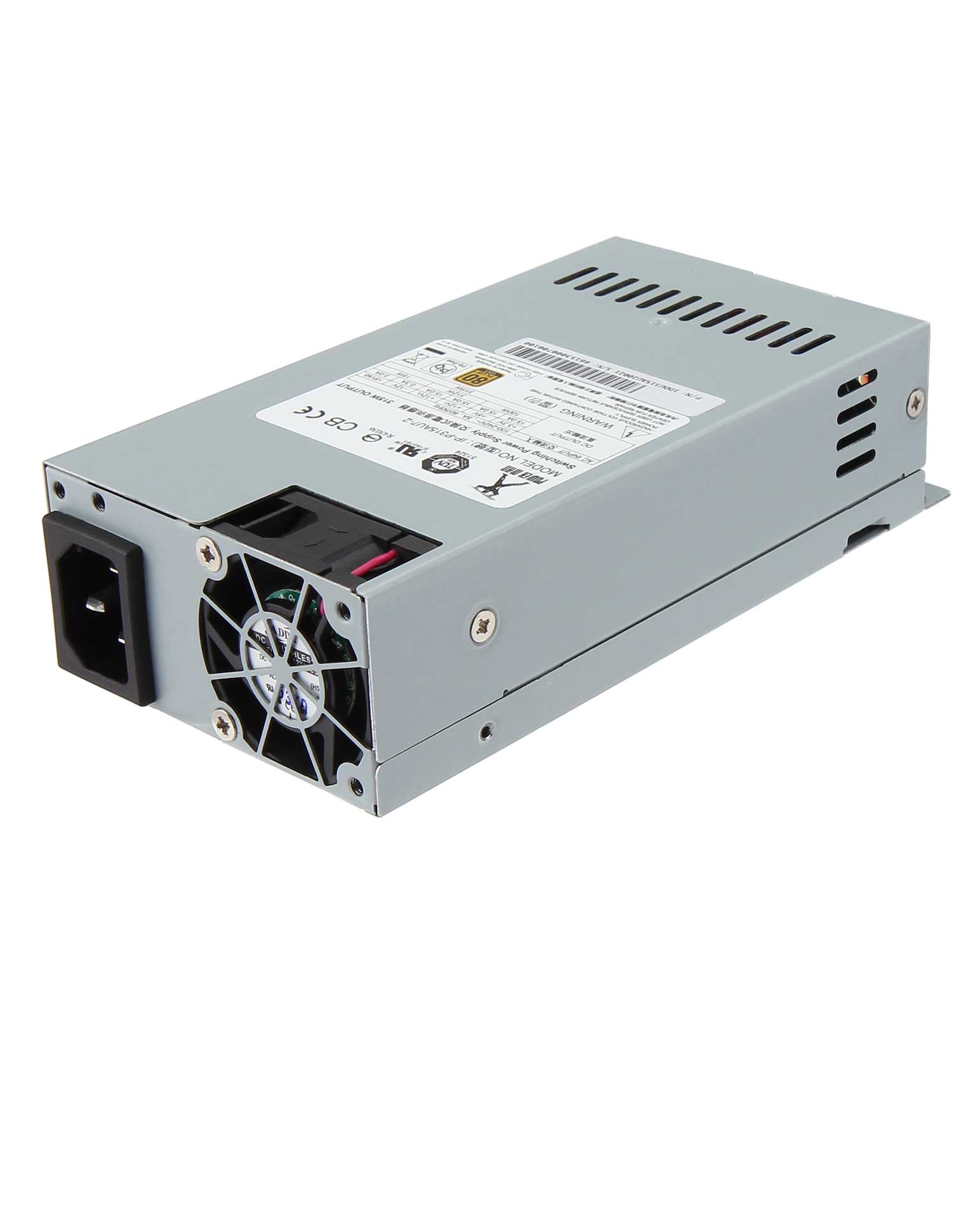

| Power Supply | 1DDU315AU20022 | IP-P315AU7-2 ; 1U Flex, 315W, 80 Plus Gold | 1 |
|
| Slide Rail | 3RAMIS032201 | 20" friction slide rails | 1 |
|
| Cable | 3RAMW4024400 | SATA 7-pin to SATA 7-pin, 500mm | 2 |
|
| Riser Card | 3RAMPD020200 | RSC-1U PCI-E x 16 | 1 |
|

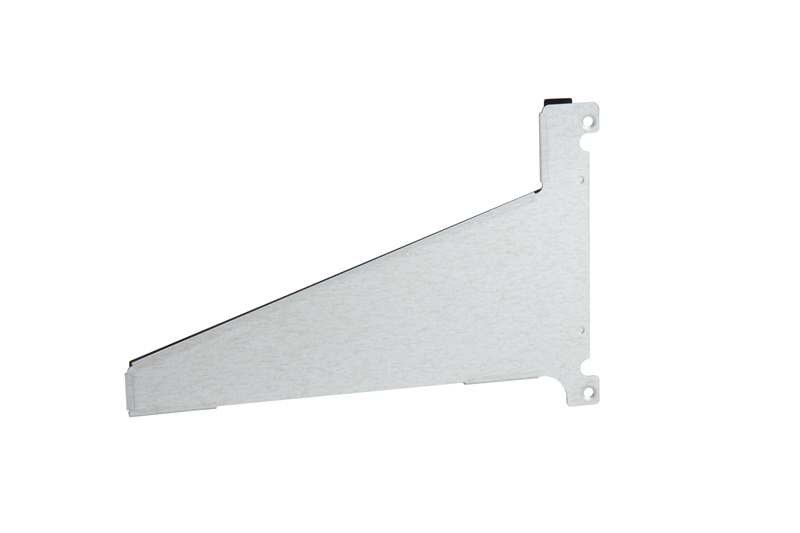

| Riser Card | 2RAVIC009900 | Riser card bracket | 1 |
|
| Riser Card | 2RAKPD049200 | 1U mini-ITX riser kits | 1 |
|
| Back I/O Shield Plate | 2RAVIQ017900 | Rear I/O shield- Tyan S5535 | 1 |
|
| Back I/O Shield Plate | 2RAVIQ043300 | Rear I/O shield- DFI SD330 | 1 |
|
| Back I/O Shield Plate | - | I/O shield. Material: SGCC (customize design based on customer's specific motherboard I/O design) | 1 | |

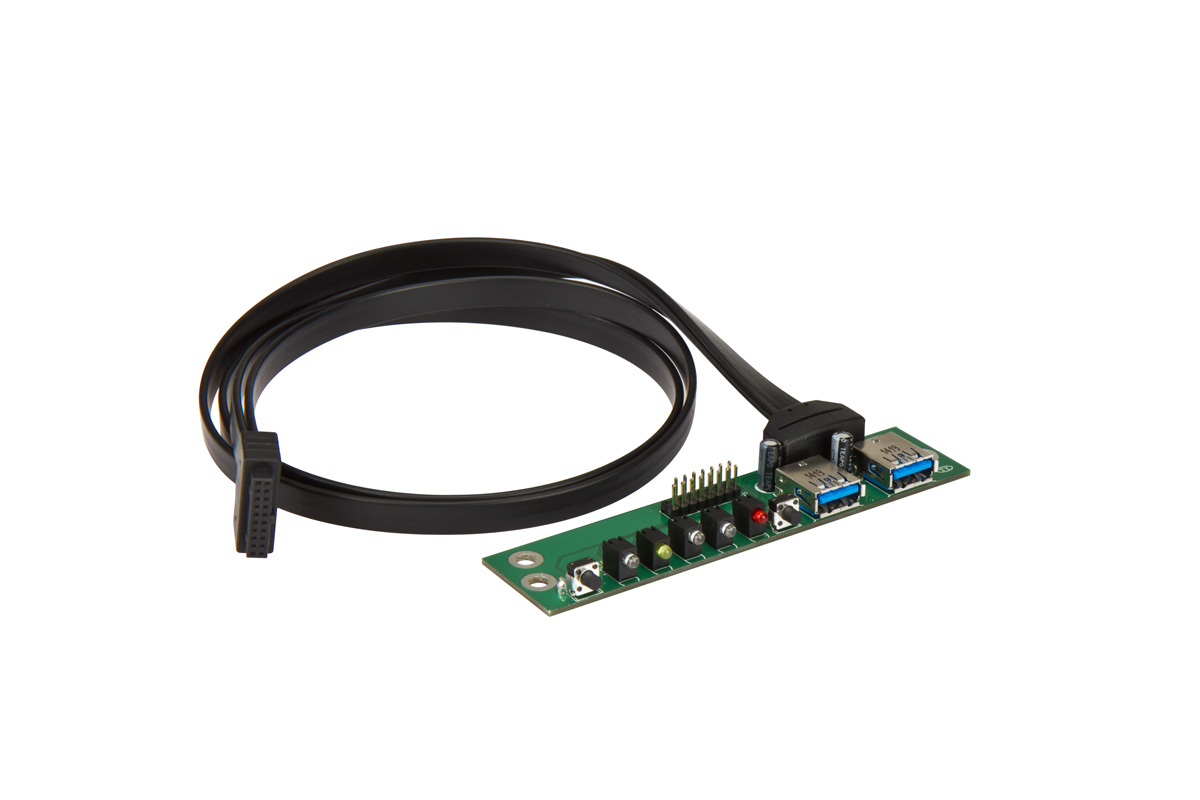

| Others | 2RAKPD046400 | USB 3.0 module | 1 |
|
| Others | - | Air duct. Material: mylar (customize design,based on customer's specific motherboard to design suitable air duct) | 1 |
|
