server system assembly
IW-RF100

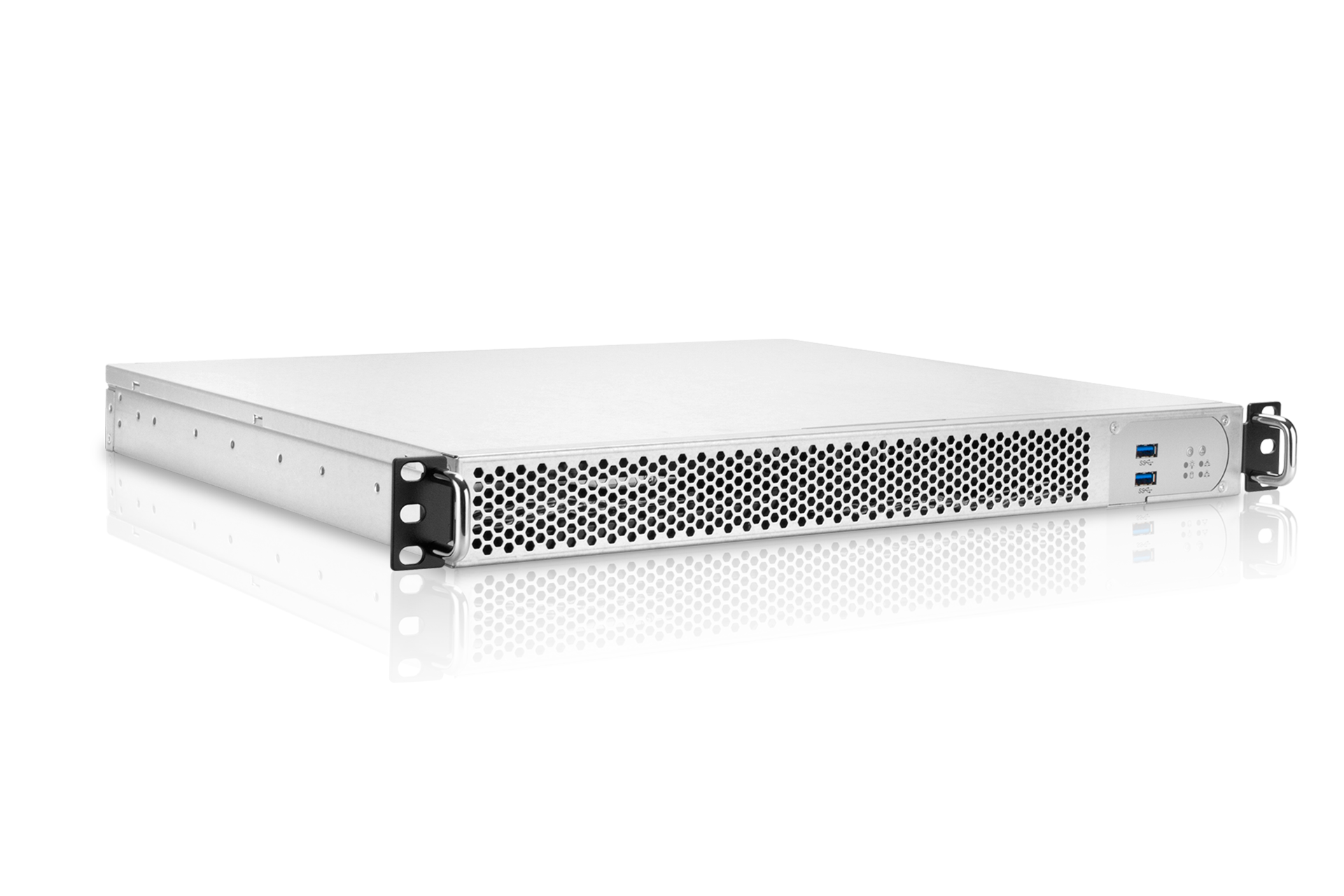

1U Rackmount Server Chassis
- Compact size with outstanding thermal exhaust efficiency
- Reversible design allowing either front access or rear access
- Tool-free design: 3.5" & 2.5" HDD cage
- Supporting three anti-vibration 400mm PWM fans
- Comatible with M/B size up to ATX (12" x 10")
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| M/B Form Factor | Mini ITX (6.7" x 6.7"), ATX(12" x 10") |
| Drive Bay | Internal 2.5" HDD x 2, 2.5" HDD x 1 + 3.5" HDD x 1 (optional 2.5" HDD x 2) |
| Power Supply | Supports: • Form Factor: Flex • Watt: up to 265W or 315W |
| Indicators | Power Status, HDD, LAN Activity LEDs |
| Front Control Panel | Power Switch, System Reset, USB 3.0 x 2 |
| Cooling Fans | Supports 40 x 28mm PWM fan x 3 (pre-installed x 2) |
| Expansion Slot | Full height PCI slot x 1 (via riser card) |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 20" friction slide rail |
| Product Dimensions (DxWxH; Chassis Only) | 365 x 482.6 x 44.4mm (14.3" x 19" x 1.75") |
| Package Dimensions (DxWxH) | 599 x 543 x 170mm |
| Weight (Chassis Only) | • Net weight: 3.45kg • Gross weight: 5.61kg |
| Cubic Feet | 1.95 |
| Container Information | Single packing with pallets: • 20': 220pcs • 40': 440pcs • 40' HQ: 520pcs |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|

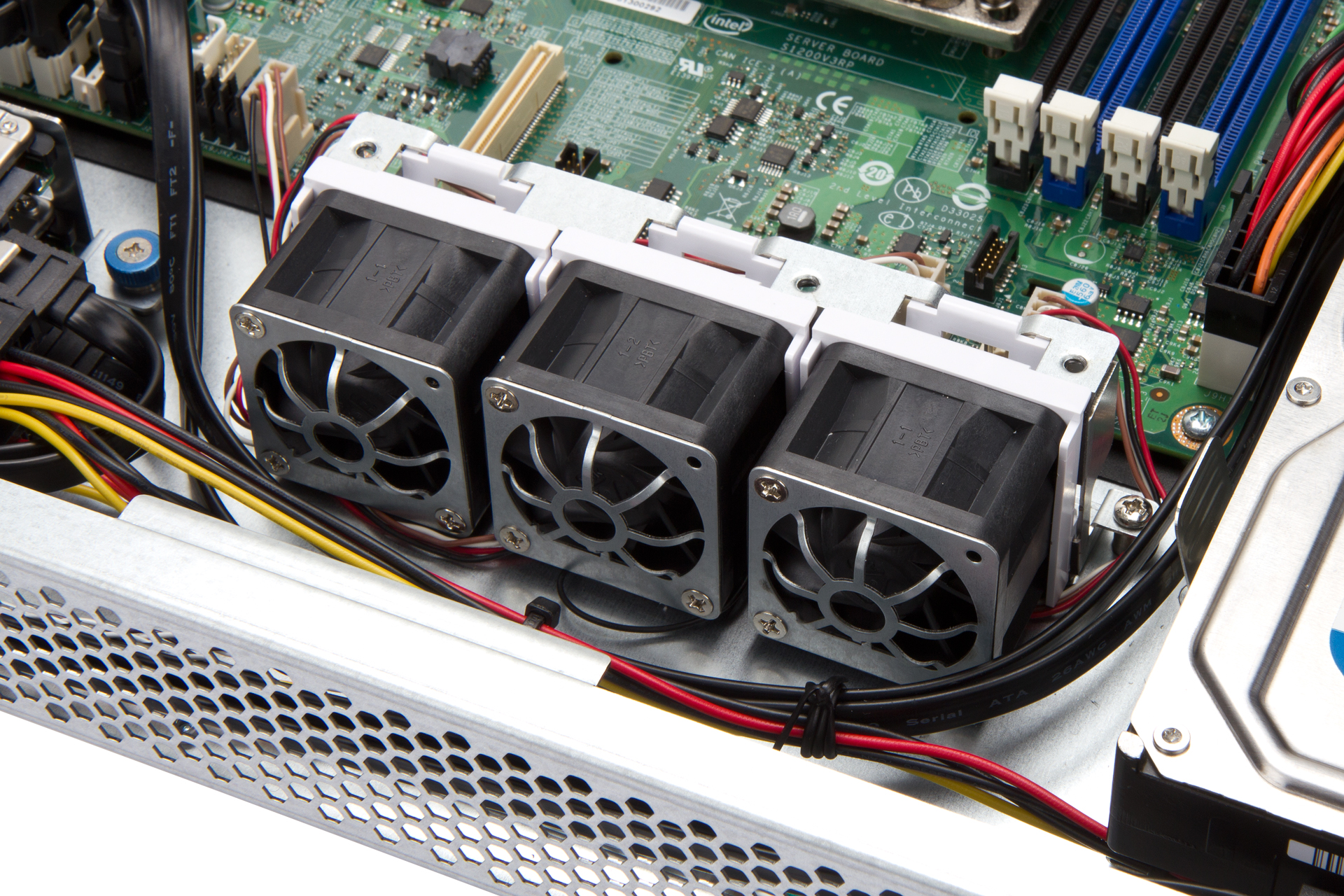

| Fan | 2RAKFB005400 | 40 x 28mm, PWM,14500RPM | 3 |
|

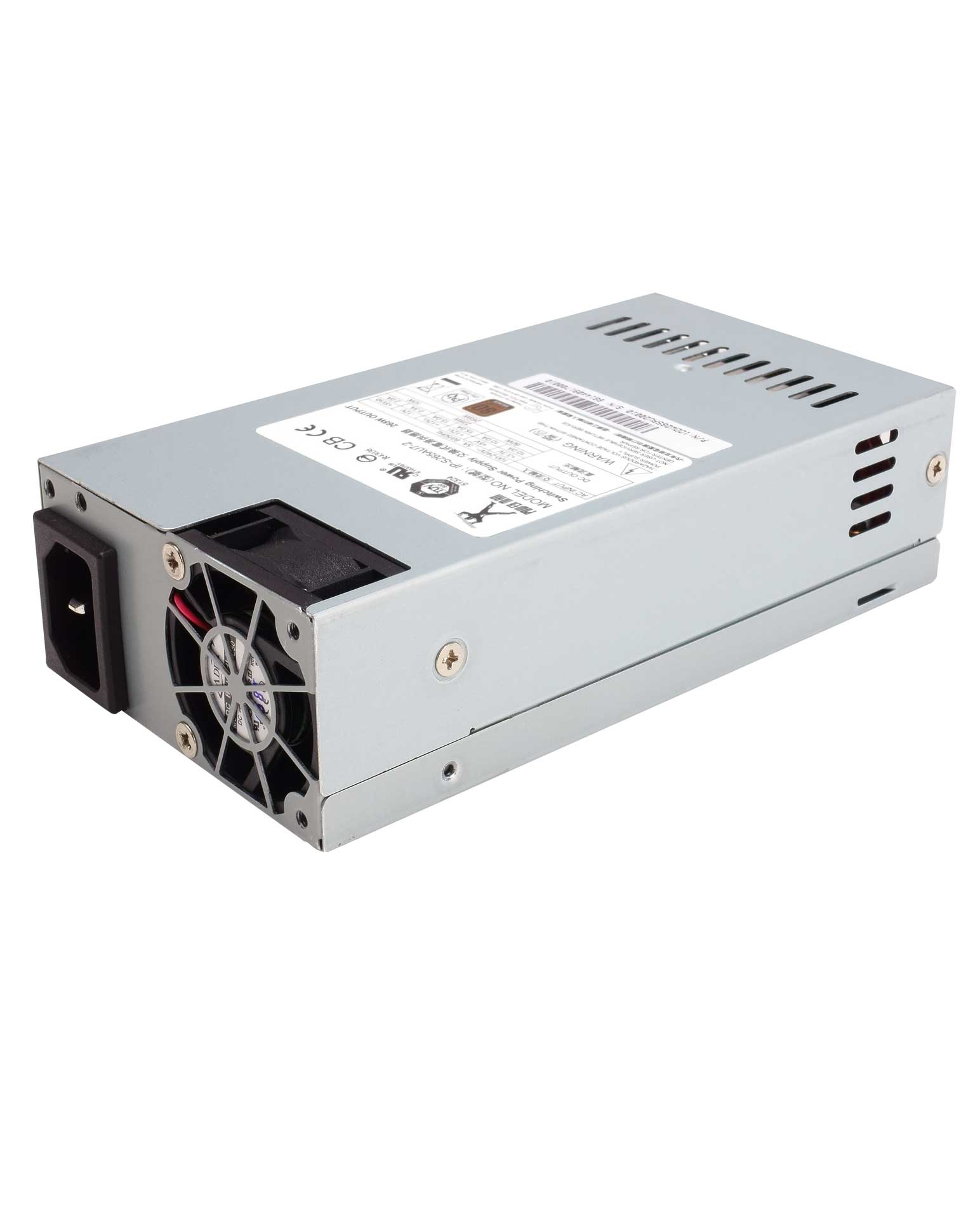

| Power Supply | 1DDW265AU20060 | IP-S265AU7-2, 1U FLEX, 265W, 80 Plus Bronze | 1 |
|

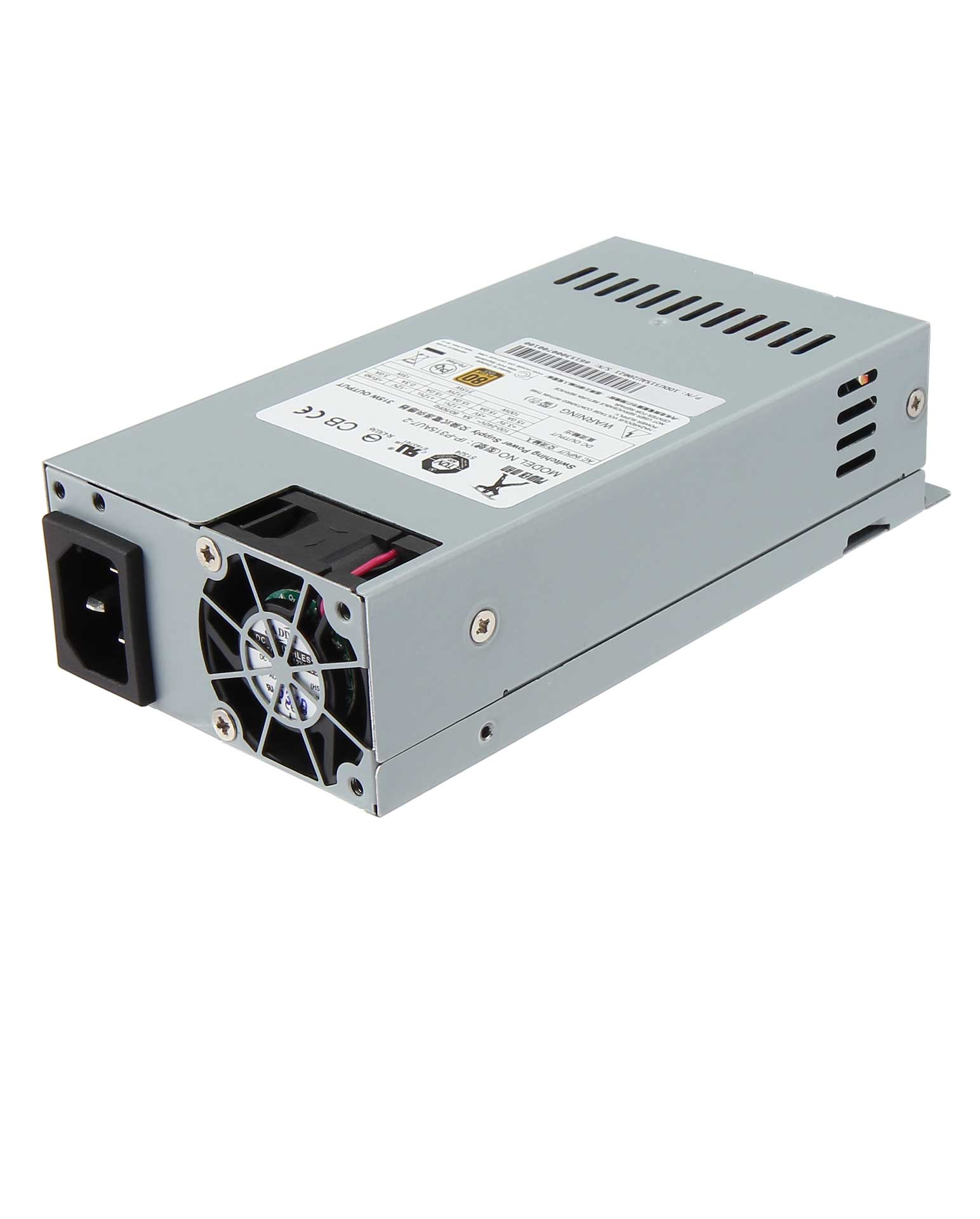

| Power Supply | 1DDU315AU20050 | IP-P315AU7-2, 1U FLEX, 315W, 80 Plus Gold | 1 |
|
| Slide Rail | 3RAMIS032201 | 20" friction slide rail | 1 |
|

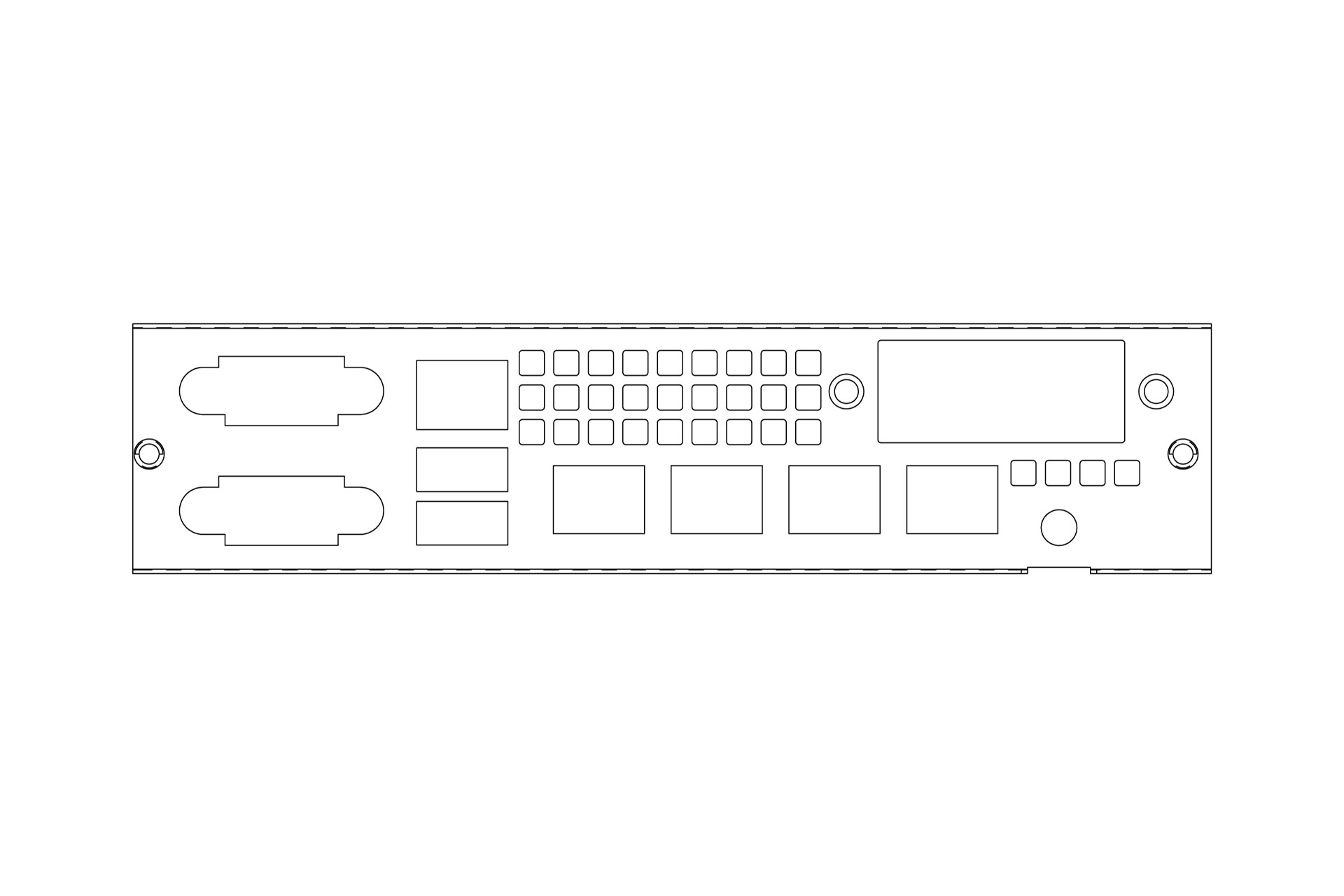

| Back I/O Shield Plate | 2RAVIQ027300 | Rear I/O shield- ASRock E3C236D4M-4L | 1 |
|

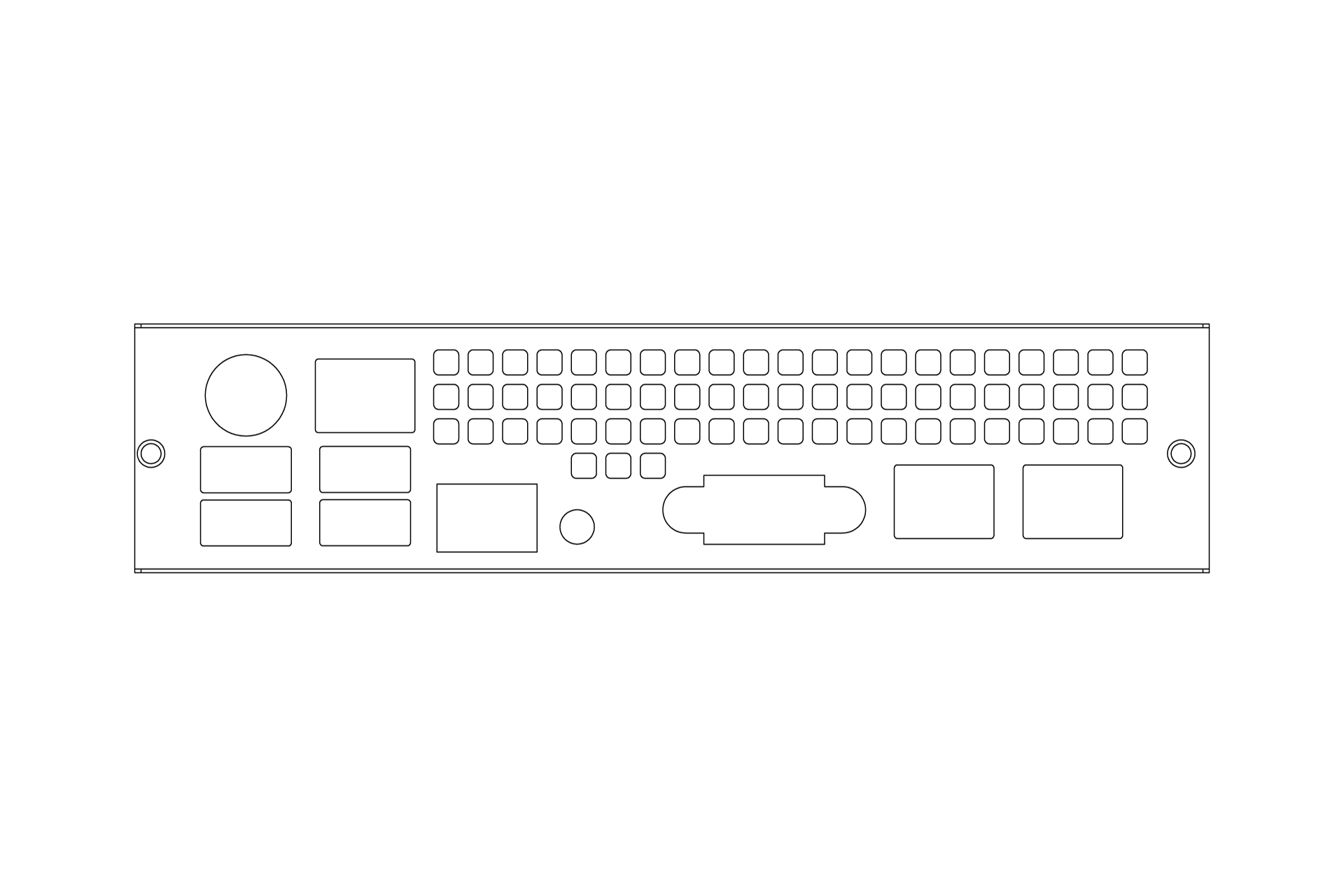

| Back I/O Shield Plate | 2RAVIQ044000 | Rear I/O shield- ASUS P10S-M-DC | 1 |
|

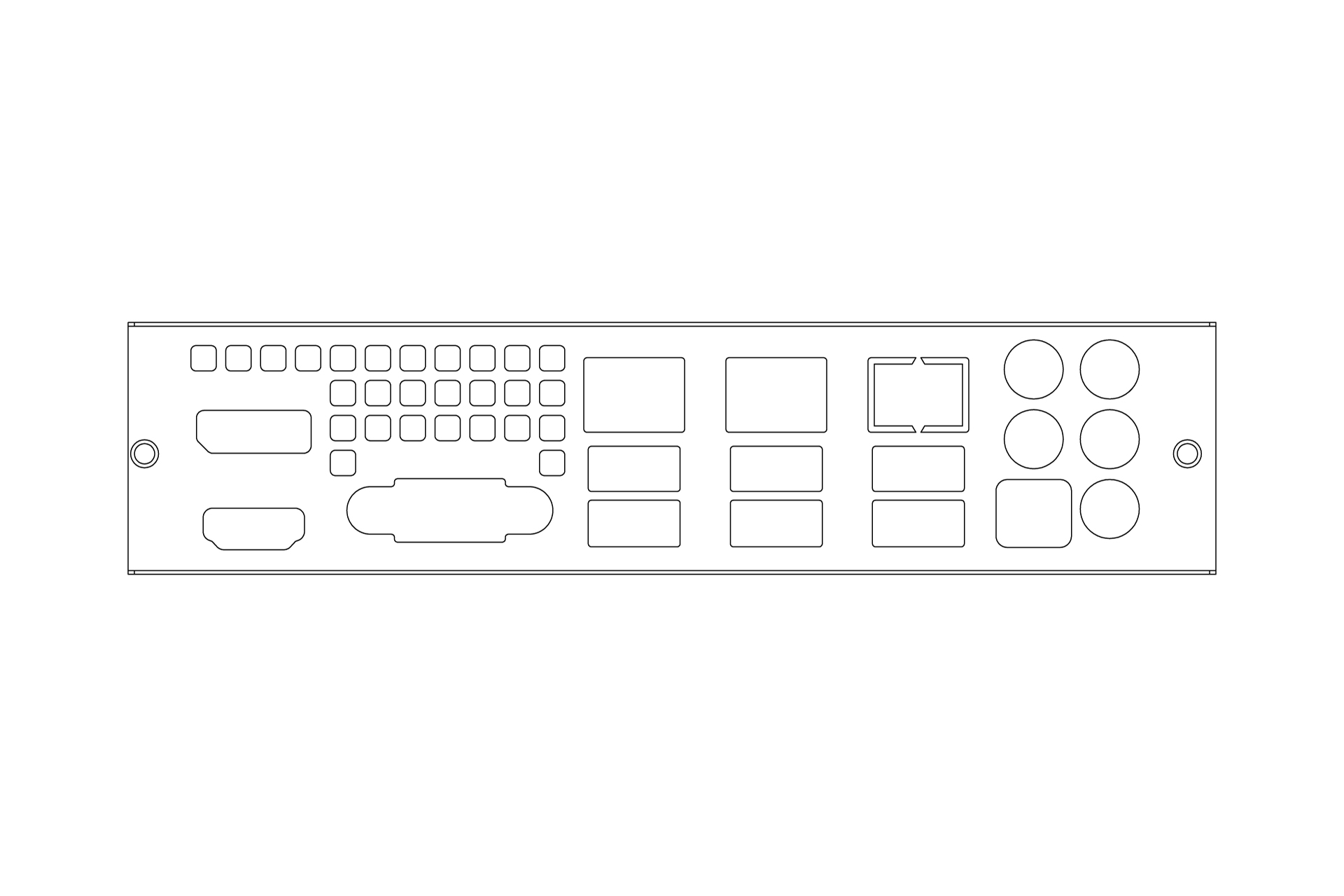

| Back I/O Shield Plate | 2RAVIQ044100 | Rear I/O shield- ASUS WS C246M PRO | 1 |
|
| Back I/O Shield Plate | - | Rear I/O shield. Material: SGCC (customize design based on customer's specific motherboard I/O design) | 1 | |
| Others | - | 3.5" to 2.5" HDD/SSD bracket | 1 |
