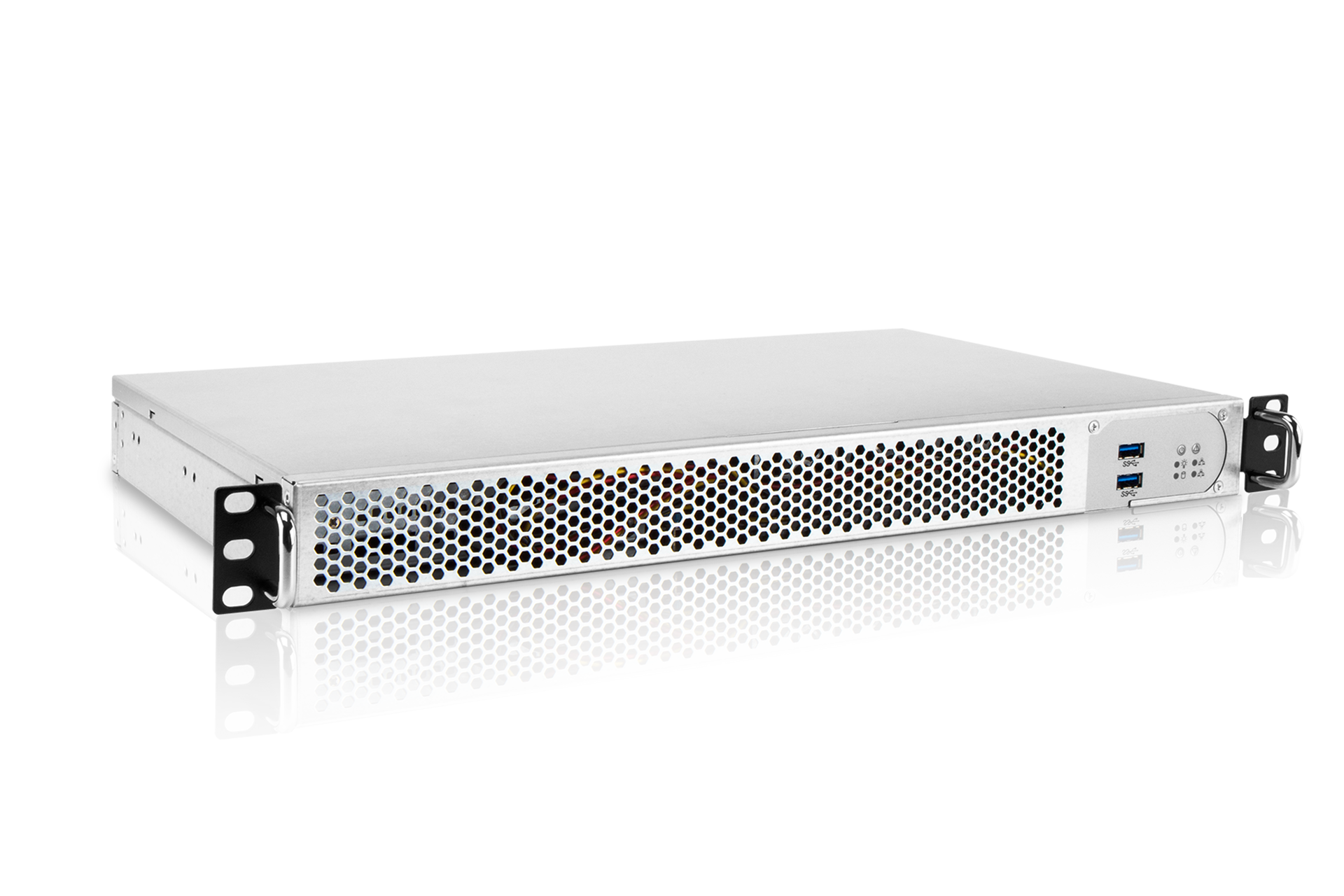

IW-RF100S
1U Rackmount Server Chassis
- Compact size for Mini-ITX motherboard
- Reversible design allowing either front access or rear access
- Compact size with outstanding design
- Tool-free design: 3.5" & 2.5" HDD cage
- Supports up to 40mm PWM x 3 with anti-vibration
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| M/B Form Factor | Mini ITX (6.7" x 6.7") |
| Drive Bay | Internal 2.5" HDD x 2; 3.5" HDD x 2 (optional 2.5" HDD x 4) |
| Power Supply | Supports: • Form Factor: Flex • Watt: Up to 265W or 315W |
| Indicators | Power status, HDD, LAN activity LEDs |
| Front Control Panel | Power switch, System reset, USB 3.0 x 2 |
| Cooling Fans | Supports 40 x 28mm PWM fan x 3 (pre-installed x 2) |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 20" friction slide rail |
| Product Dimensions (DxWxH; Chassis Only) | 250 x 482.6 x 44.4mm (9.8" x 19" x 1.75") |
| Package Dimensions (DxWxH) | 599 x 428 x 170mm |
| Weight (Chassis Only) | • Net weight: 2.86kg • Gross weight: 4.5kg |
| Cubic Feet | 1.54 |
| Container Information | Single packing with pallets: • 20': 220pcs • 40': 484pcs • 40' HQ: 528pcs |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|

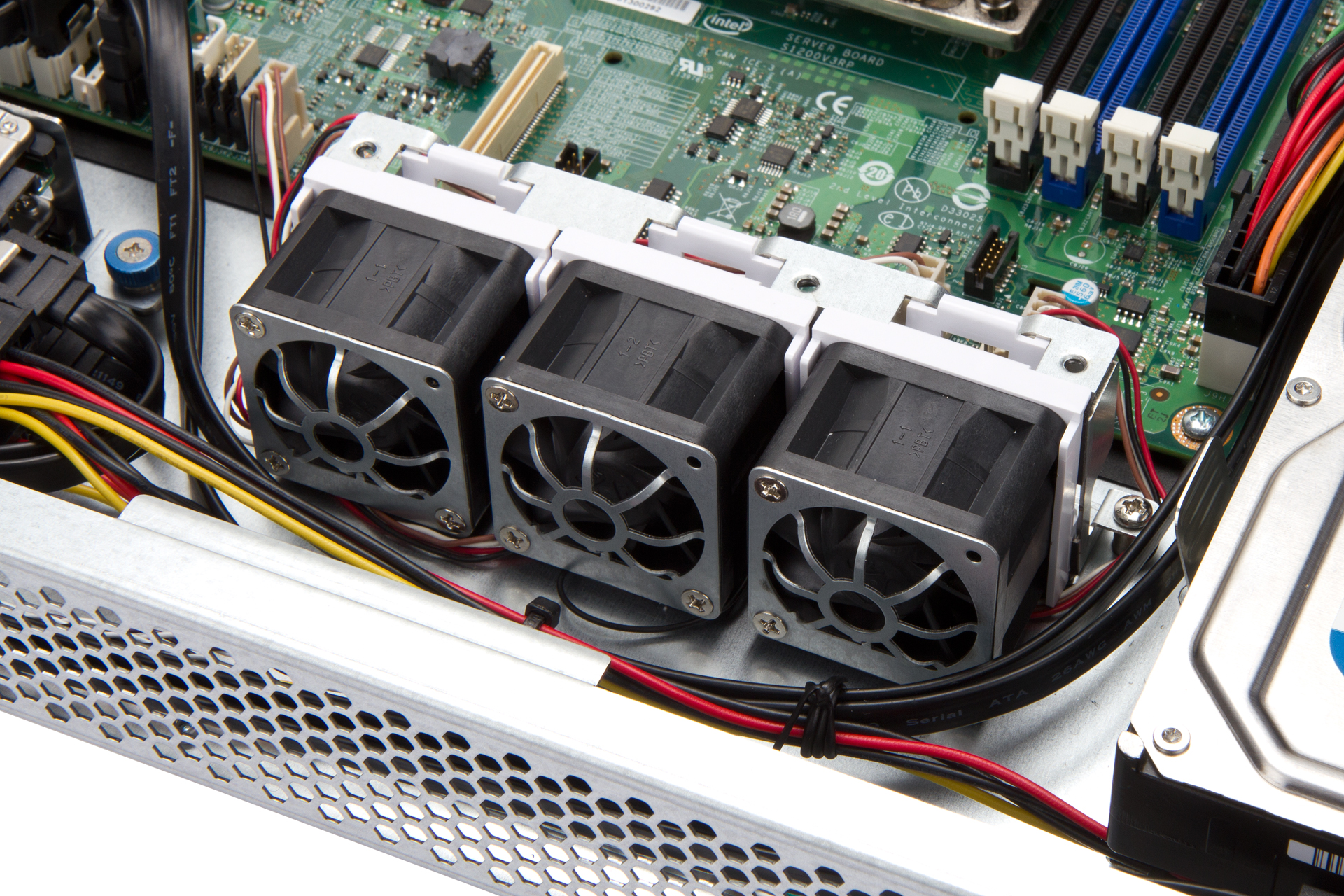

| Fan | 2RAKFB005400 | 4028mm, PWM,14500RPM | 3 |
|

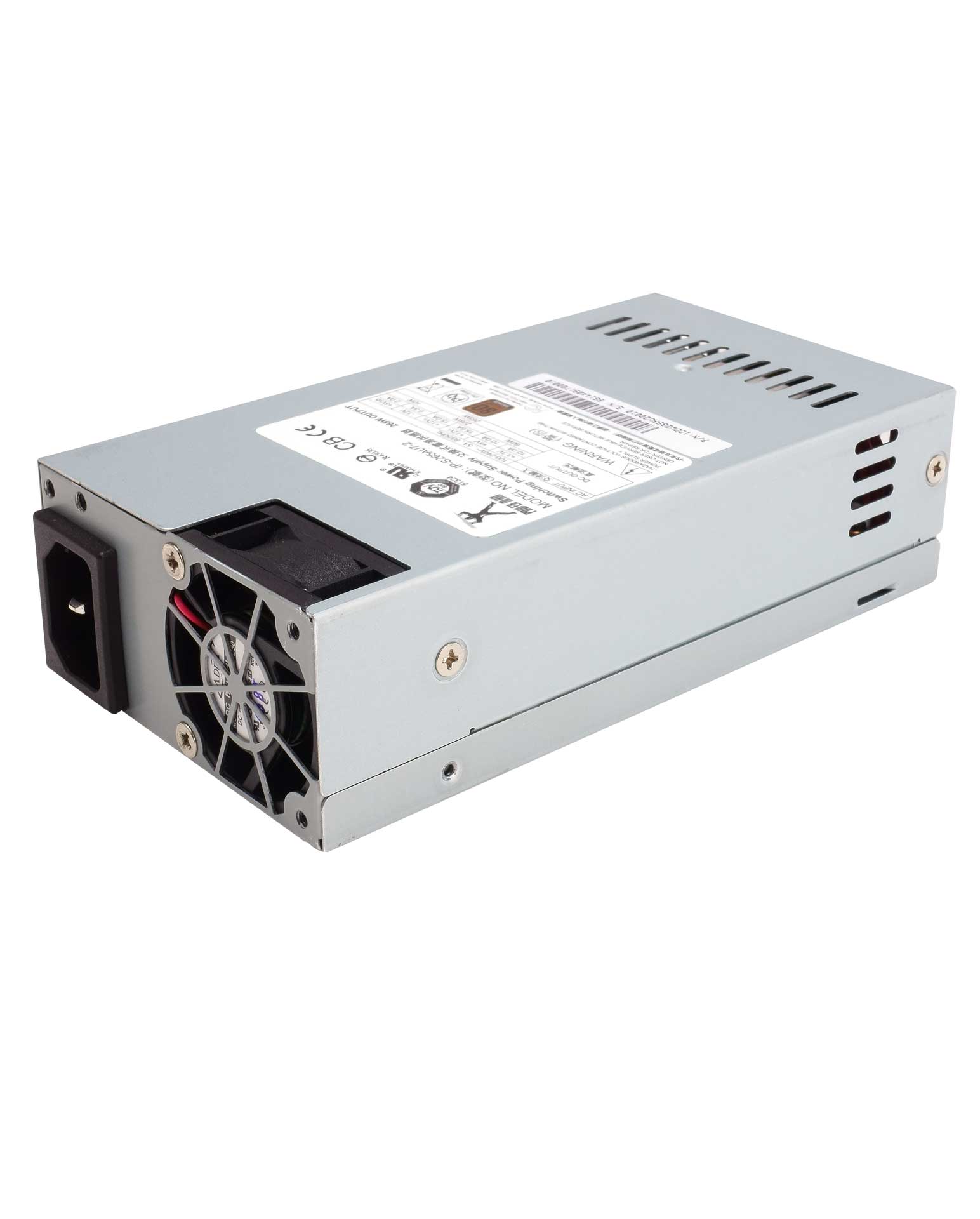

| Power Supply | 1DDW265AU20060 | IP-S265AU7-2,1U FLEX,265W | 1 |
|
| Slide Rail | 3RAMIS032201 | 20" Slide Rails, Friction | 1 |
|

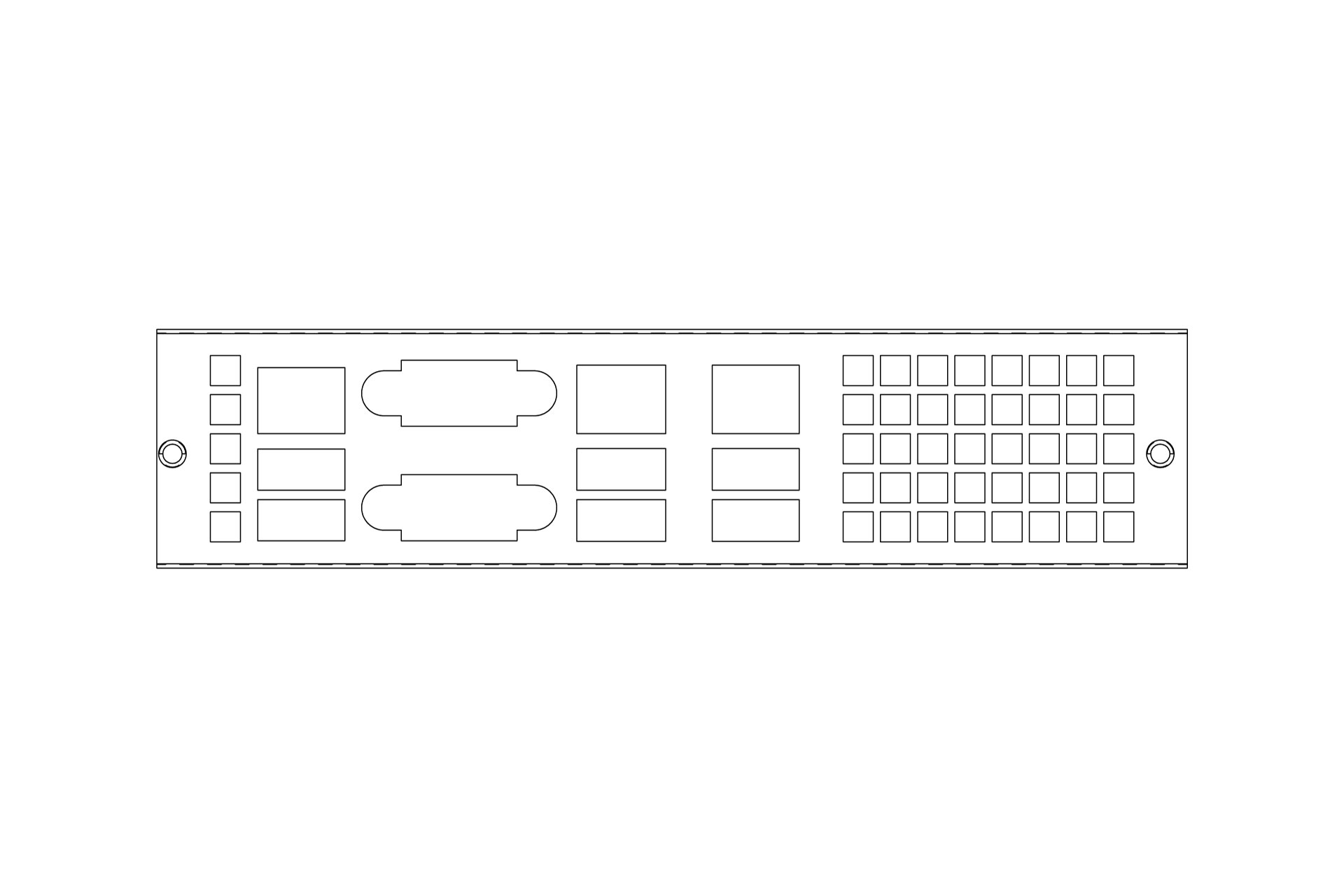

| Back I/O Shield Plate | 2RAVIQ027400 | Rear I/O shield- ASRock E3C232D2I | 1 |
|

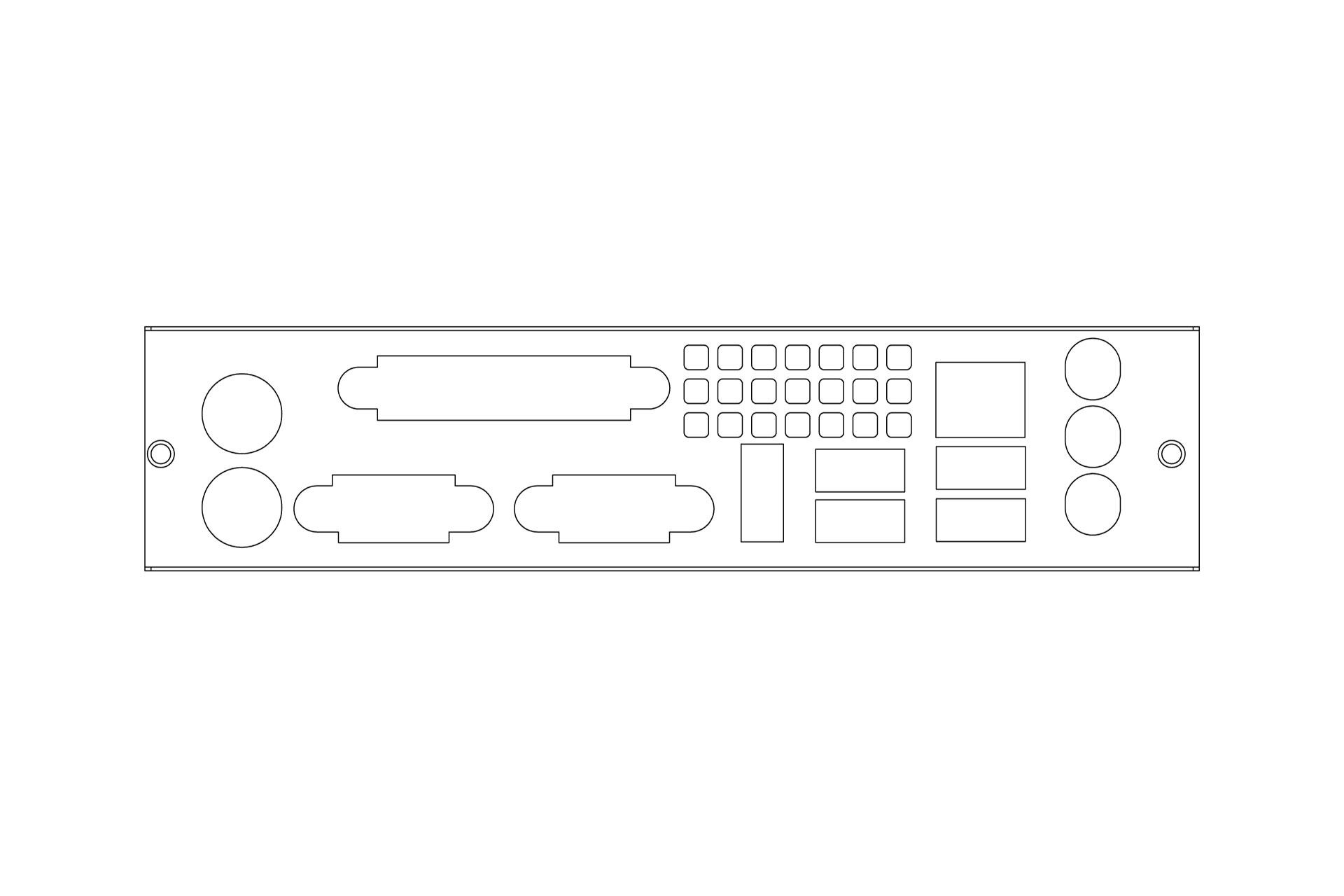

| Back I/O Shield Plate | 2RAVIQ030900 | Rear I/O shield- ASRock J3160B-ITX | 1 |
|

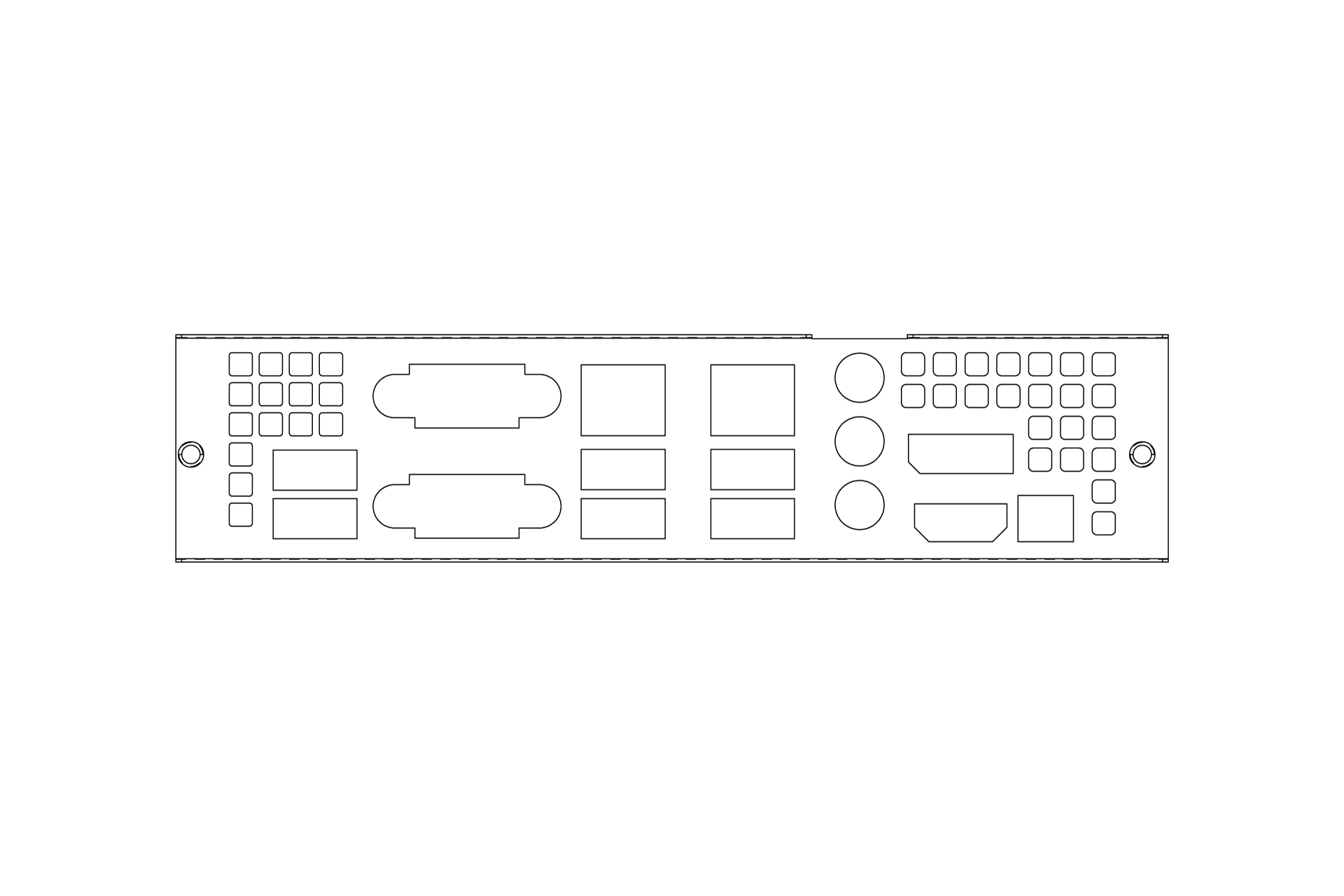

| Back I/O Shield Plate | 2RAVIQ038900 | Rear I/O shield- ASRock C236WSI | 1 |
|
| Back I/O Shield Plate | - | Rear I/O shield. Material: SGCC (customize design based on customer's specific motherboard I/O design) | 1 | |
| Others | - | 3.5" to 2.5" HDD/SSD Bracket | 1 |
