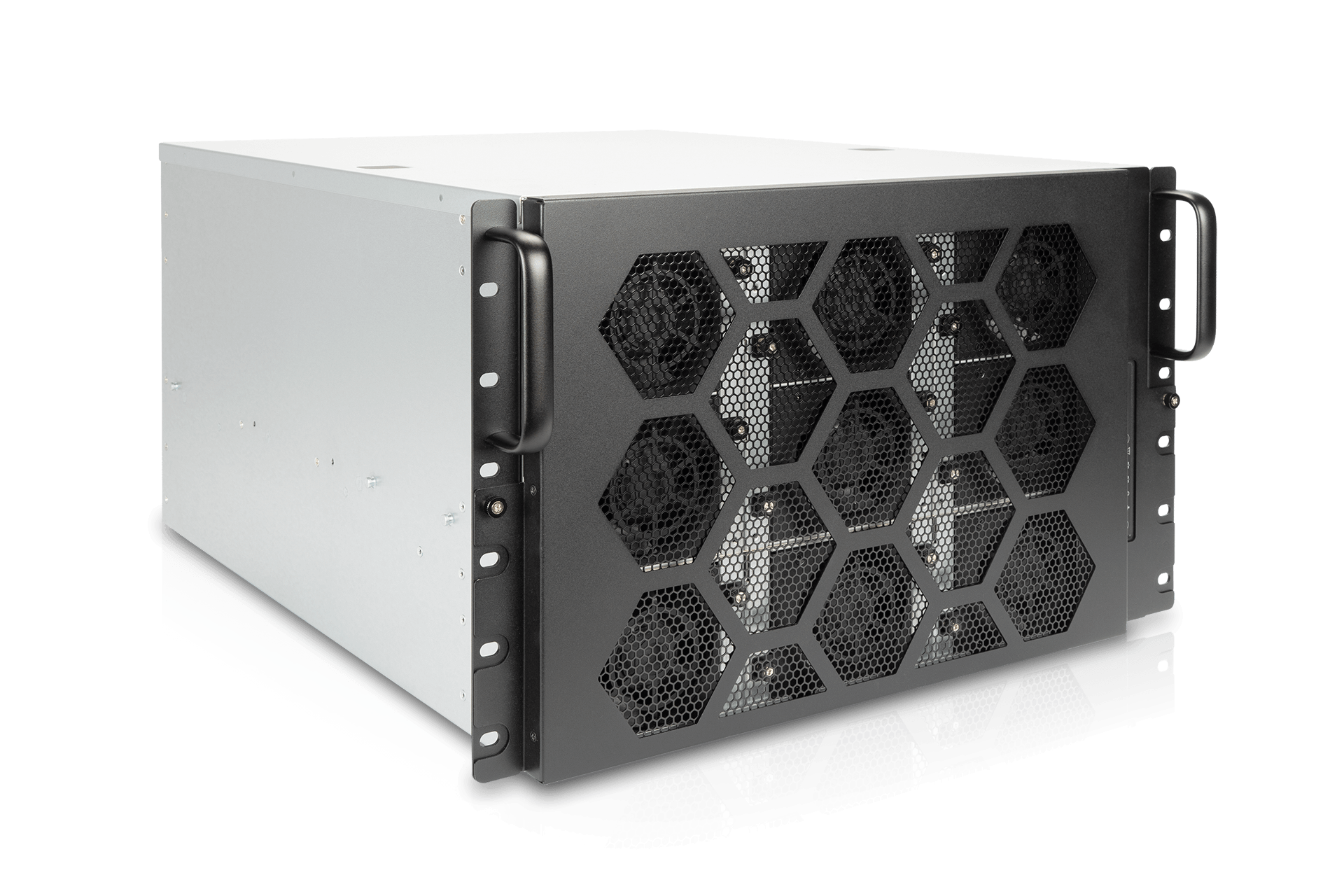

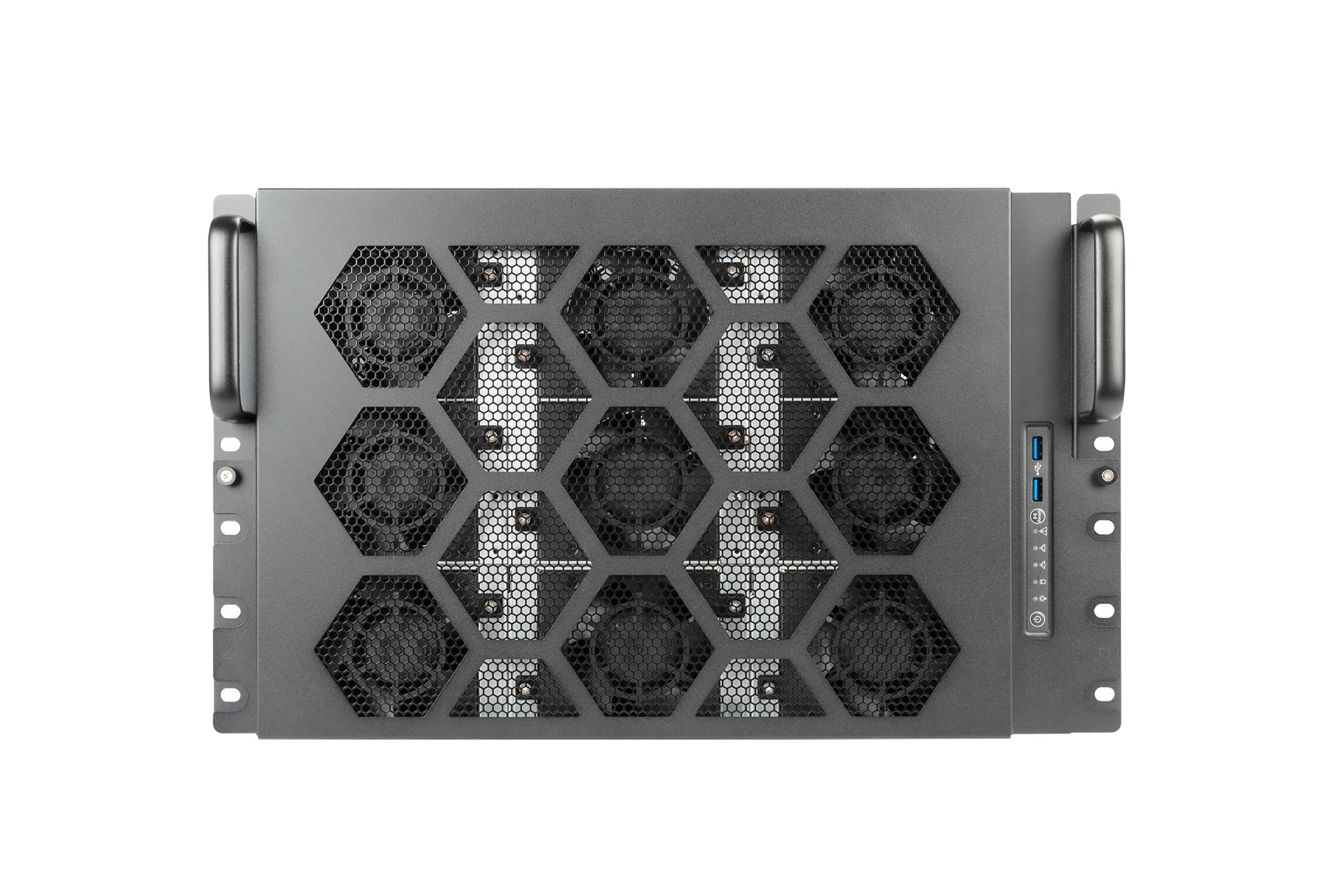

6.5U GPU Server
- GPU Server Specially Designed for AI, Deep Learning, and HPC
- 6.5U Dual Chamber Design: 4.5U Chamber for GPU and 2U Chamber for M/B
- Supports 18 FHFL PCIe Slots with 4 PCIe Riser Cables Included for Multi-GPU Installation
- Separate Dual Chambers for Optimized, Independent Heat Dissipation
- 9 Hot-Swap 80x38 mm 12000rpm PWM Fans for Excellent Cooling Performance
- 80 PLUS® Titanium CRPS 3200W PSU with 4 x 12V-2x6 pin Connectors Fulfill GPU Wattage Needs
6.5U GPU Rackmount Server
Conjure Innovation’s Inception with 6.5U GPU Server for AI Applications!
The IW-RG650A 6.5U GPU server is specially designed for AI and HPC applications, featuring a spacious, independent GPU chamber that supports multiple high-end GPUs installations to meet your AI needs.
Edge computing
AIO liquid cooler (2U-height)
80 x 36 mm fans x3
CRPS
FHFL PCIe slots support
Internal drives
19" deep chassis
23" slide rails

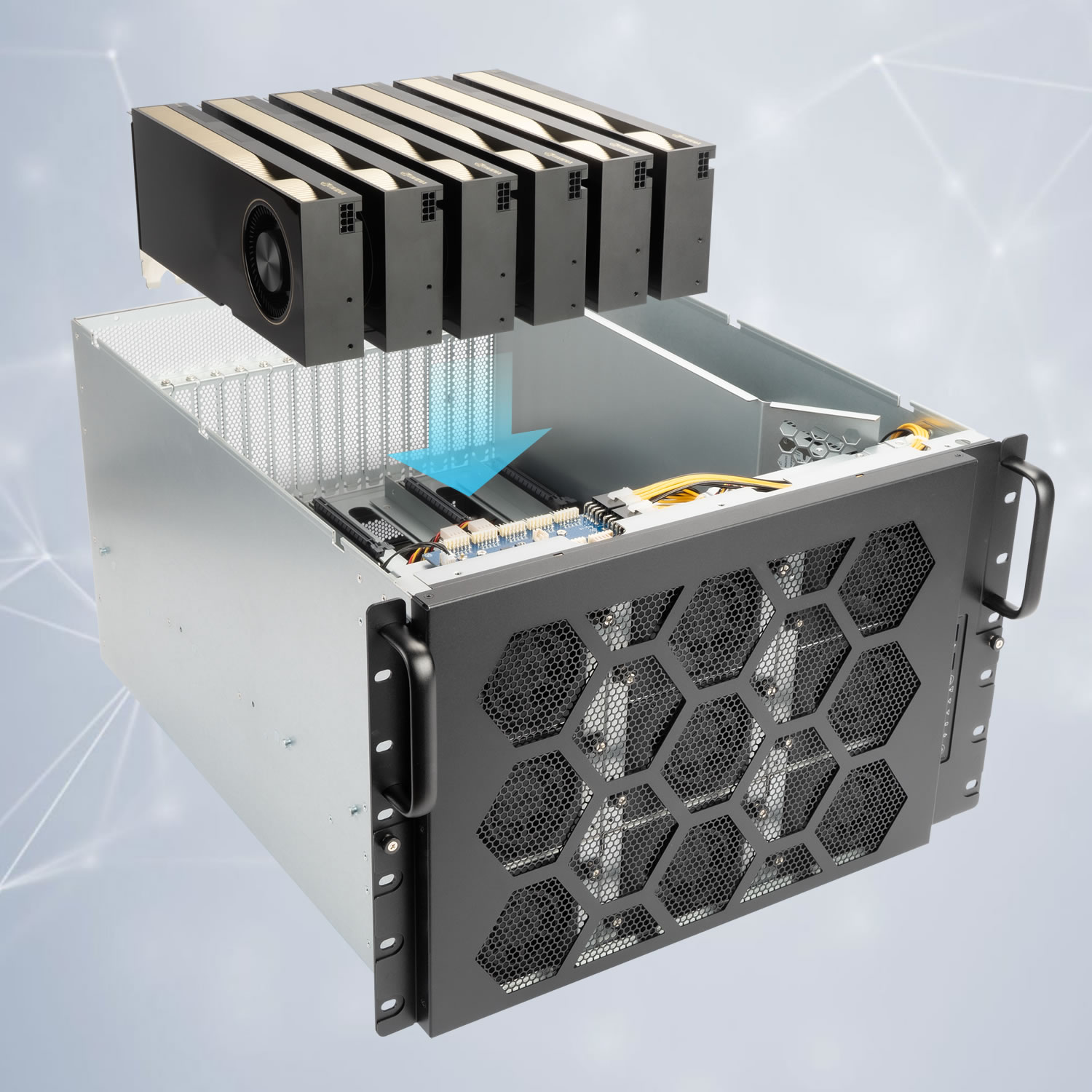

AI Ready!(模組03)
The IW-RG650A 6.5U GPU server is specially designed for AI and HPC applications, featuring a spacious, independent GPU chamber that supports multiple high-end GPUs installations to meet your AI needs.
左右排序可對調
手機板[圖上文下]
下列模組都可個別設定底色
左右排序可對調
手機板[圖上文下]
下列模組都可個別設定底色
6.5U Dual Chamber System Layout(模組04)

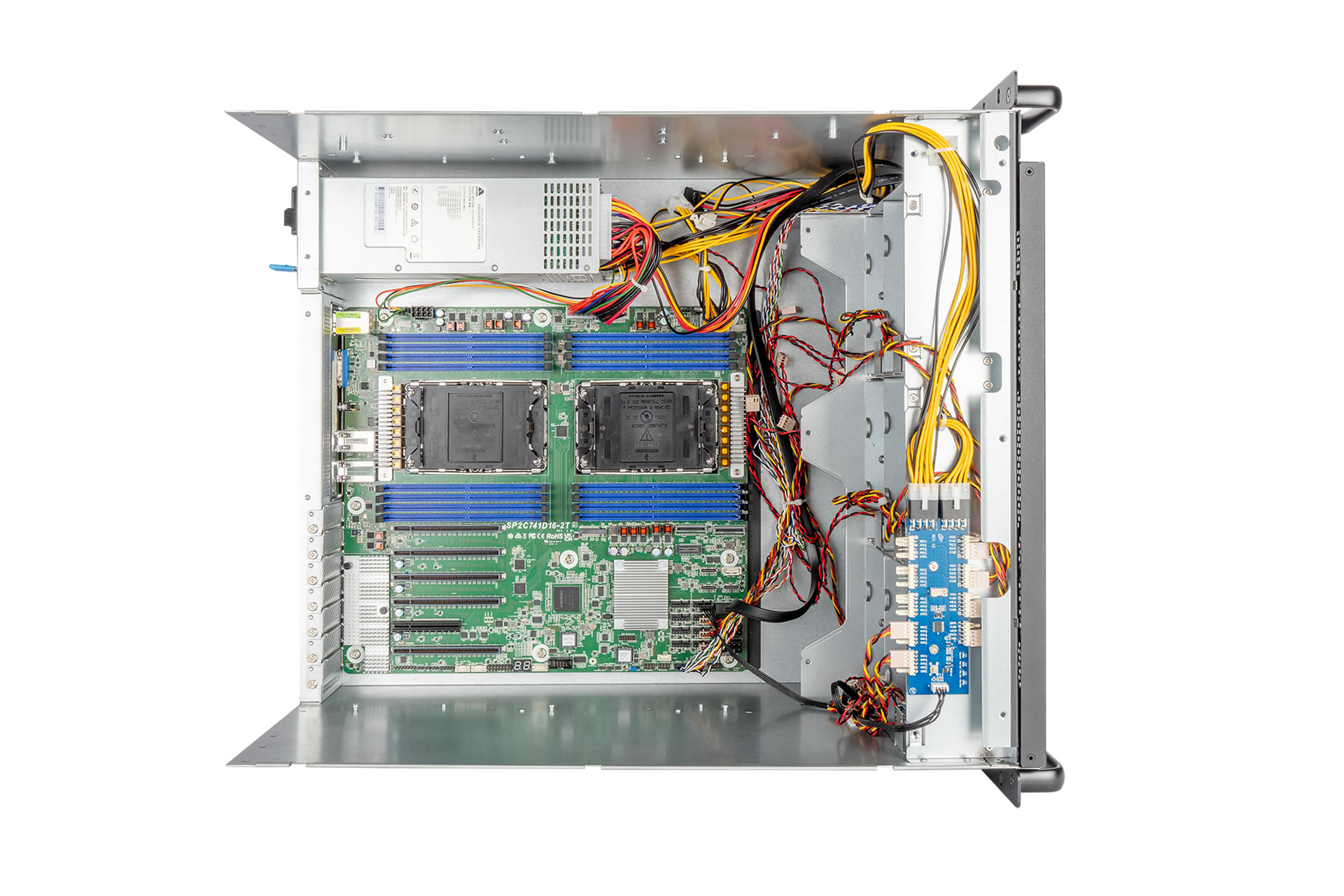

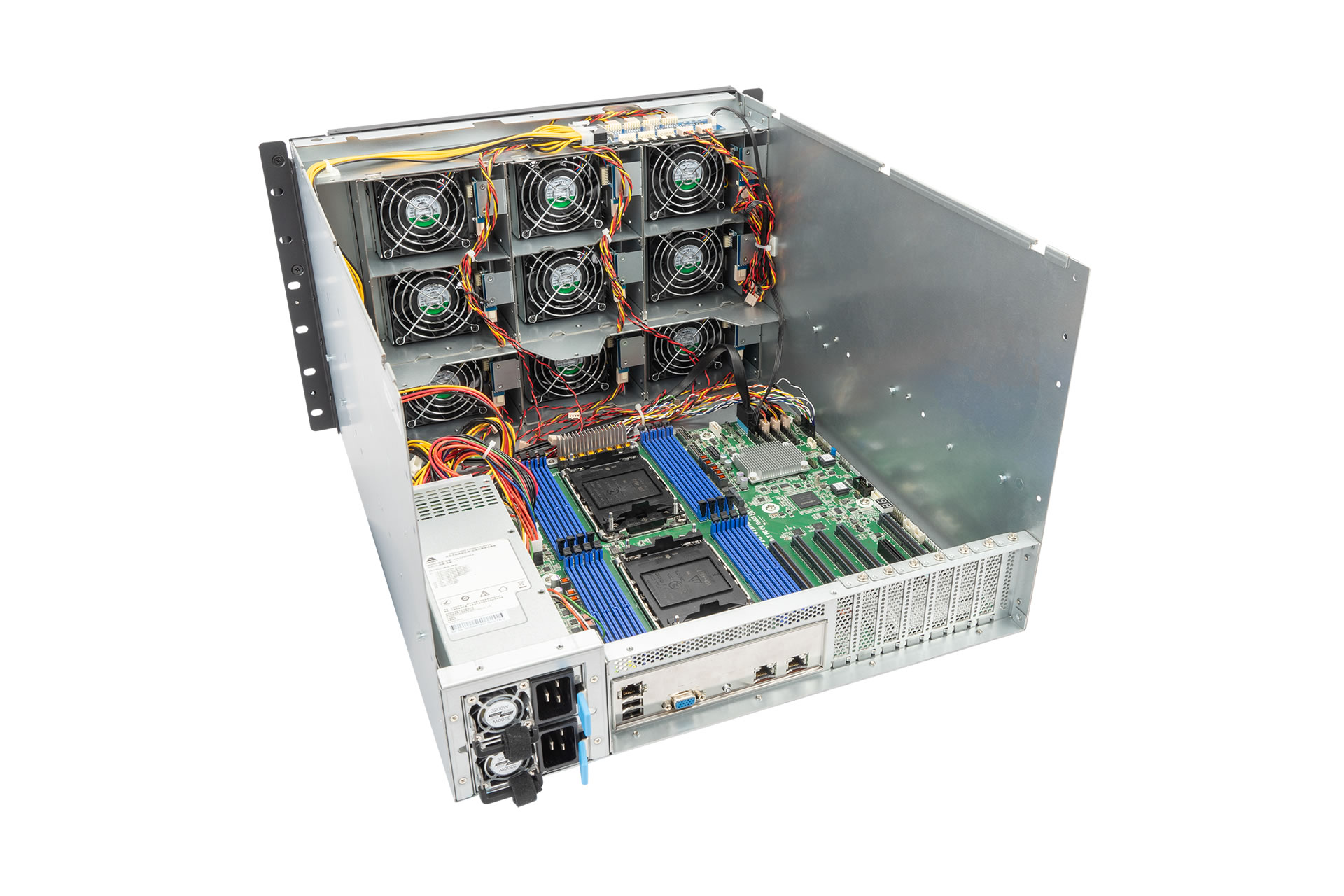

The IW-RG650A features a 6.5U dual-chamber design, with a 4.5U chamber for GPUs and a 2U chamber for system components, enhancing scalability, streamlining the assembly process, and facilitating future maintenance.
圖+文+按鈕
置中上至下排序
圖+文+按鈕
置中上至下排序

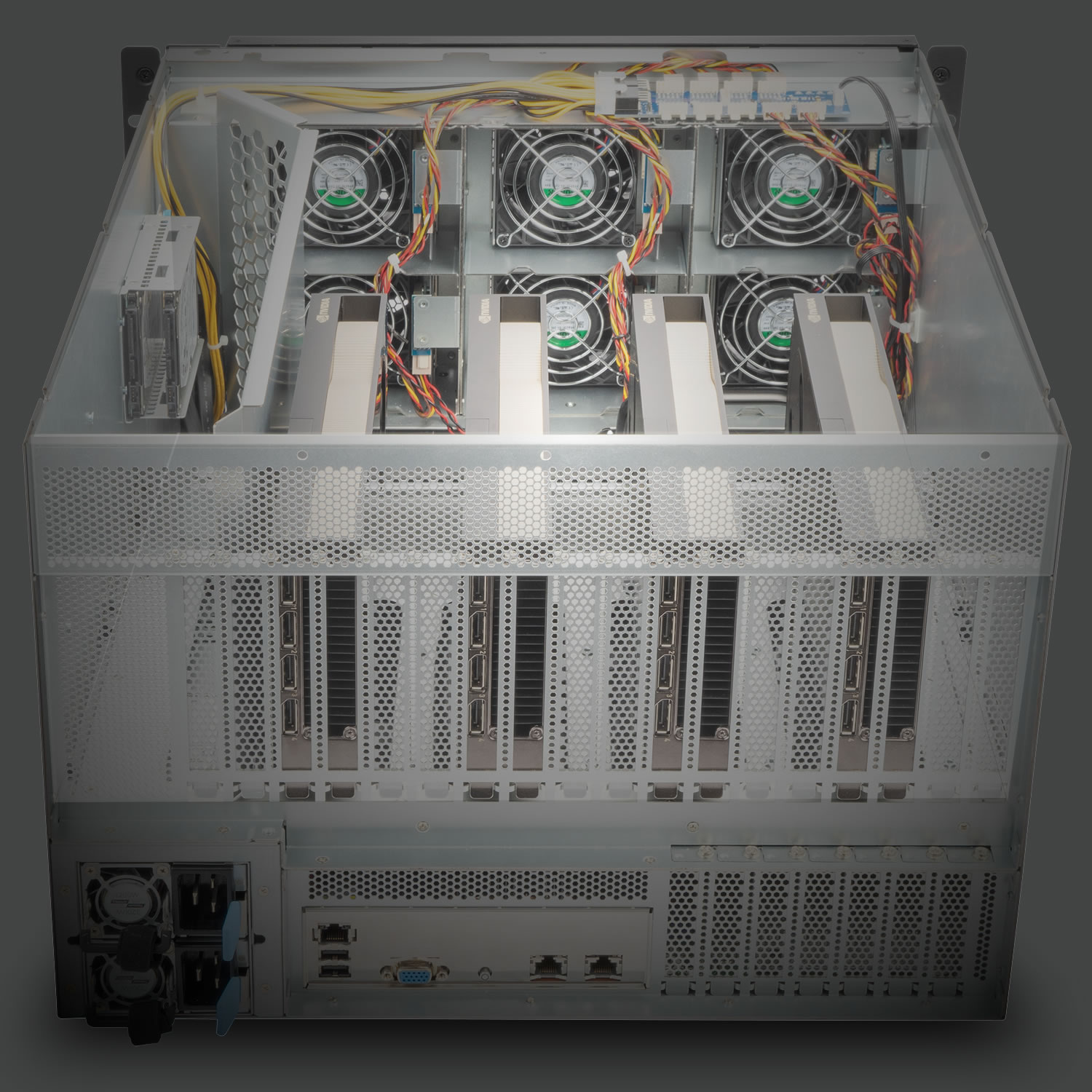

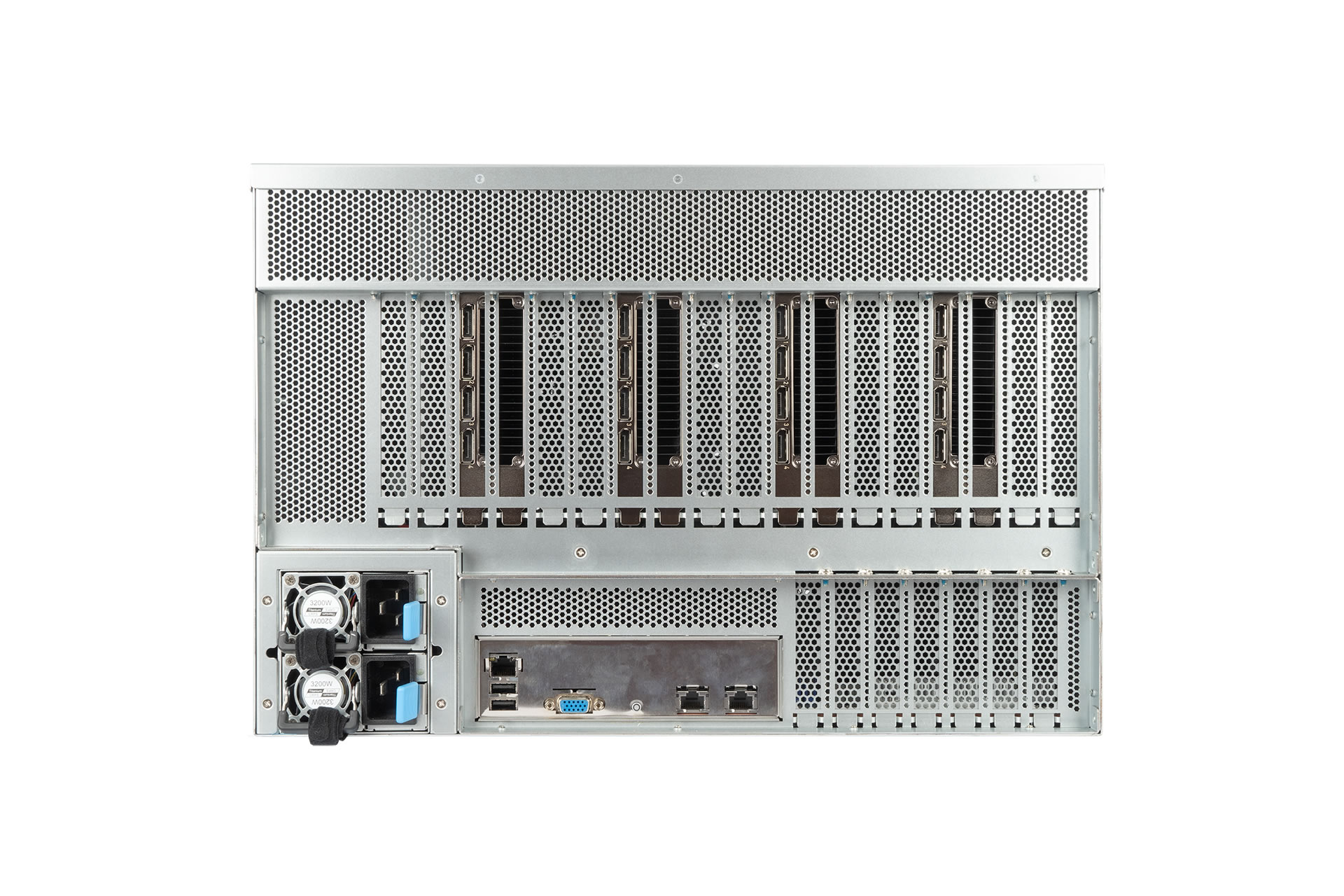

Full-height PCIe slots x 18
Low-profile PCIe slots x 7
Riser cables included
Fully Supported

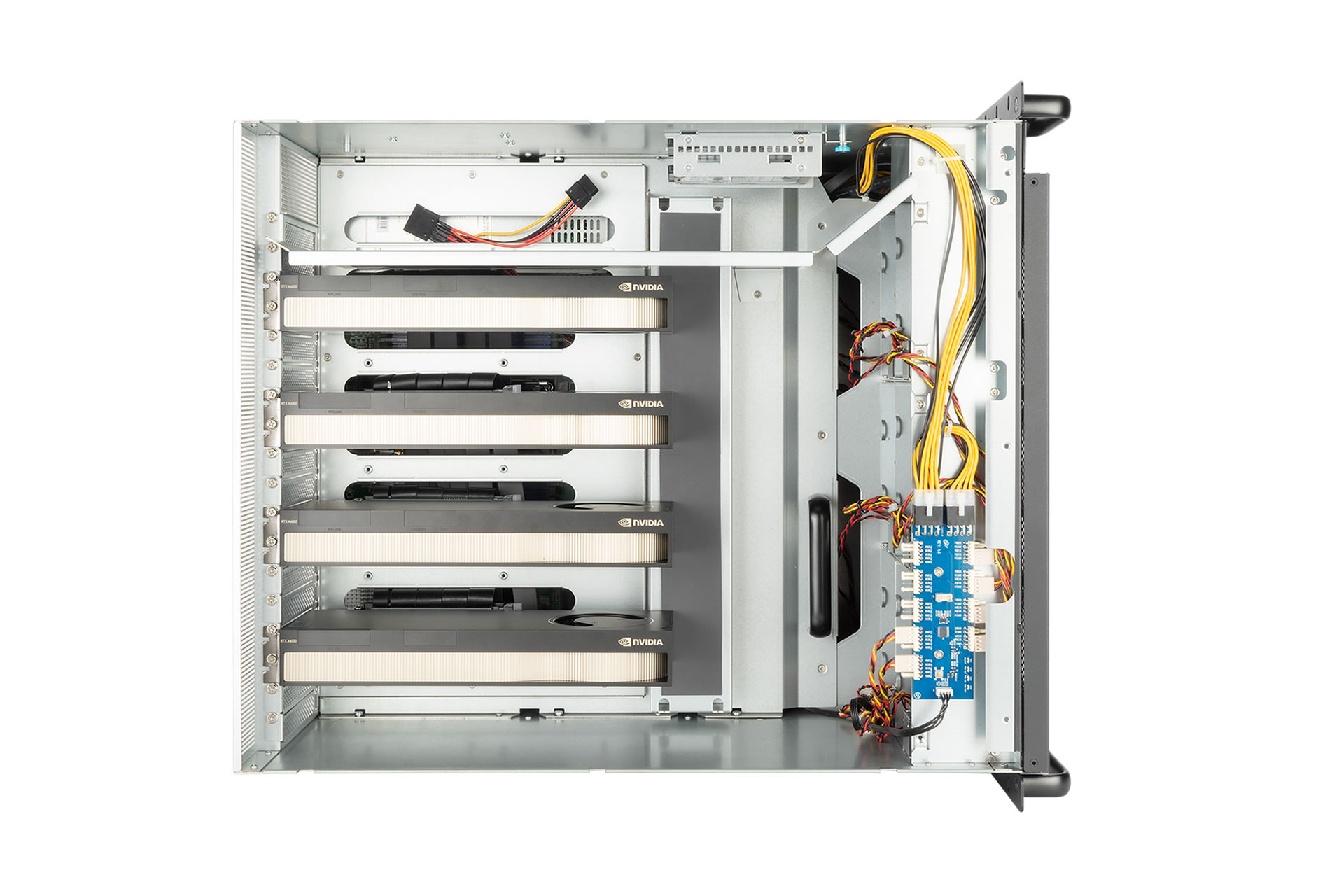

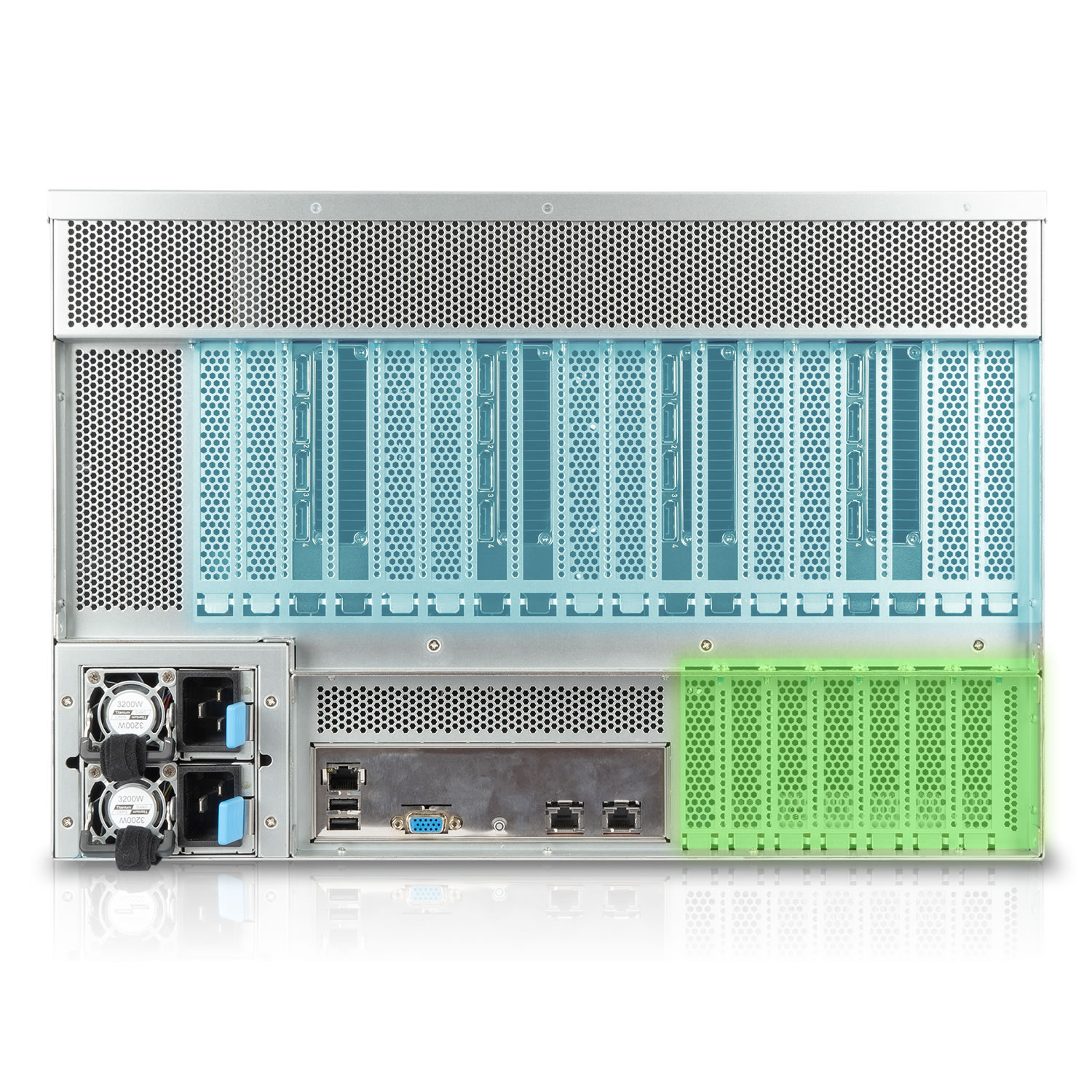

A total of 18 full-height full-length PCIe slots on the top chamber that can fit up to 6 PCIe riser cables (4 PCIe Gen4 riser cables included) for high-end GPUs installations. 7 half-height full-length PCIe slots on the bottom chamber for optional half-height expansion cards configurations or future upgrades.
Fully Supported
A total of 18 full-height full-length PCIe slots on the top chamber that can fit up to 6 PCIe riser cables (4 PCIe Gen4 riser cables included) for high-end GPUs installations. 7 half-height full-length PCIe slots on the bottom chamber for optional half-height expansion cards configurations or future upgrades.
More
Riser cables included
Full-height PCIe slots x 18
Low-profile PCIe slots x 7
Optimized, Independent Heat Dissipation
Thanks to the dual-chamber design, dedicated airflow tunnels are provided for GPUs and system components, allowing independent heat dissipation. This enhances cooling efficiency, prevents heat interference, and ensures stable system performance.

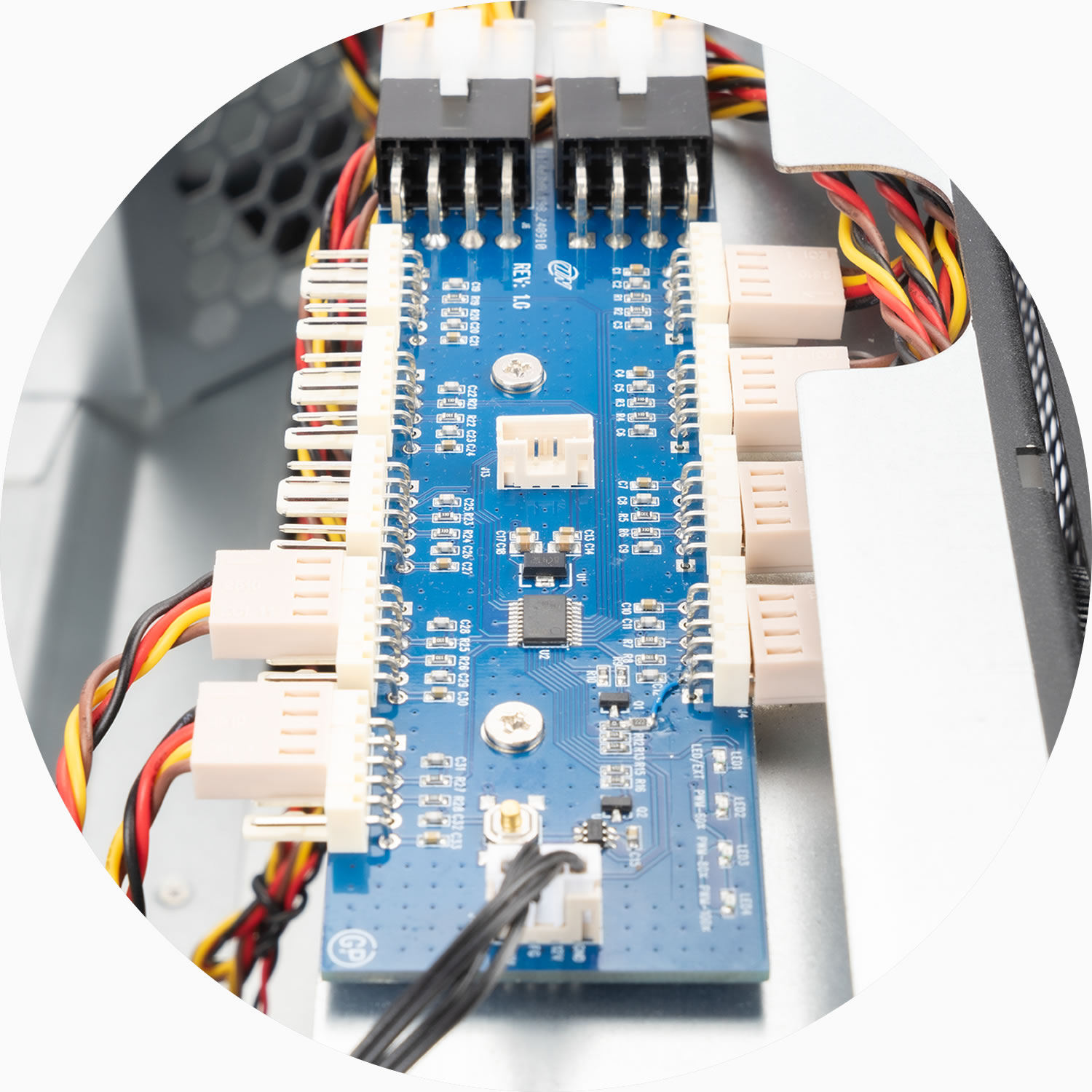

Fan hubFan hubKeep It Cool

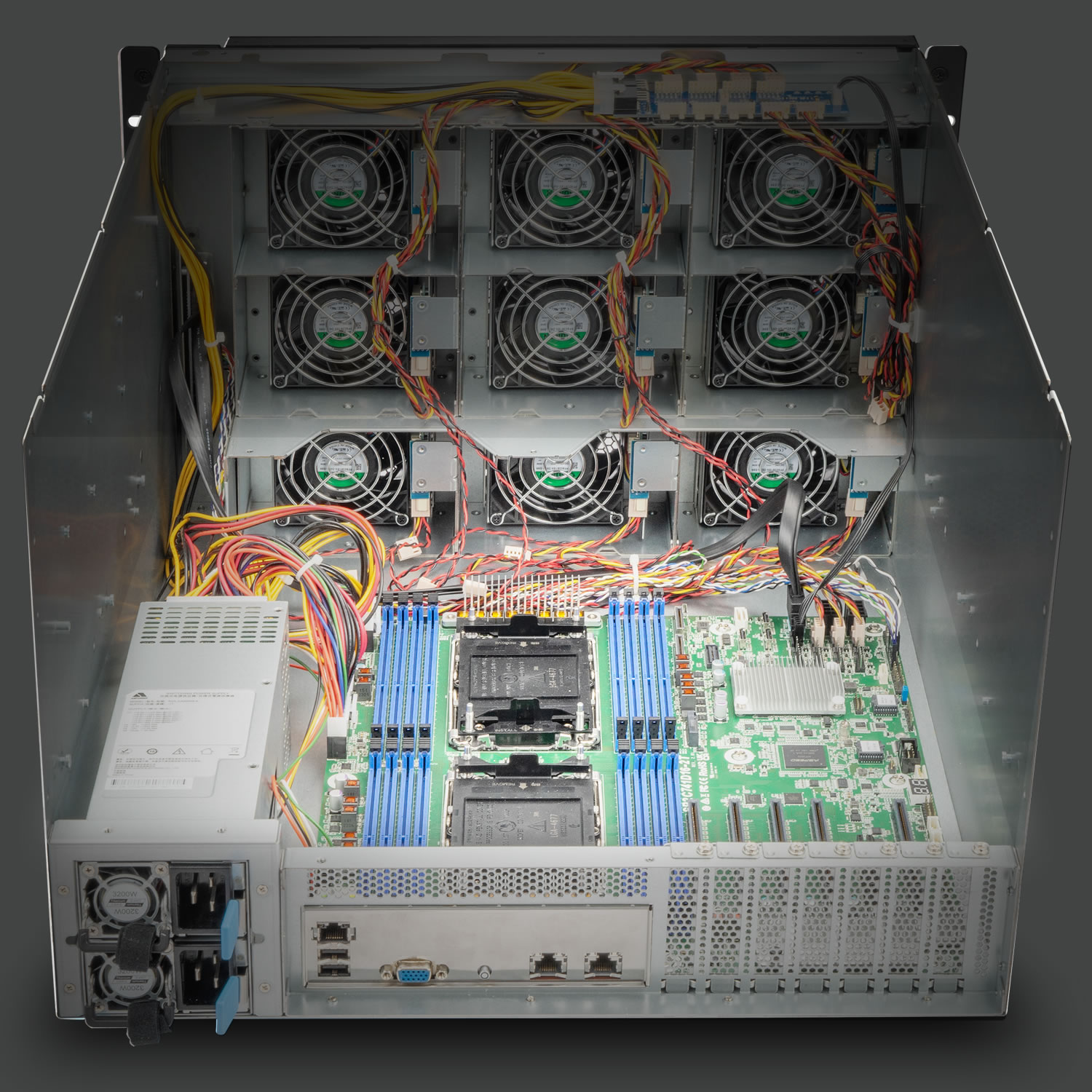

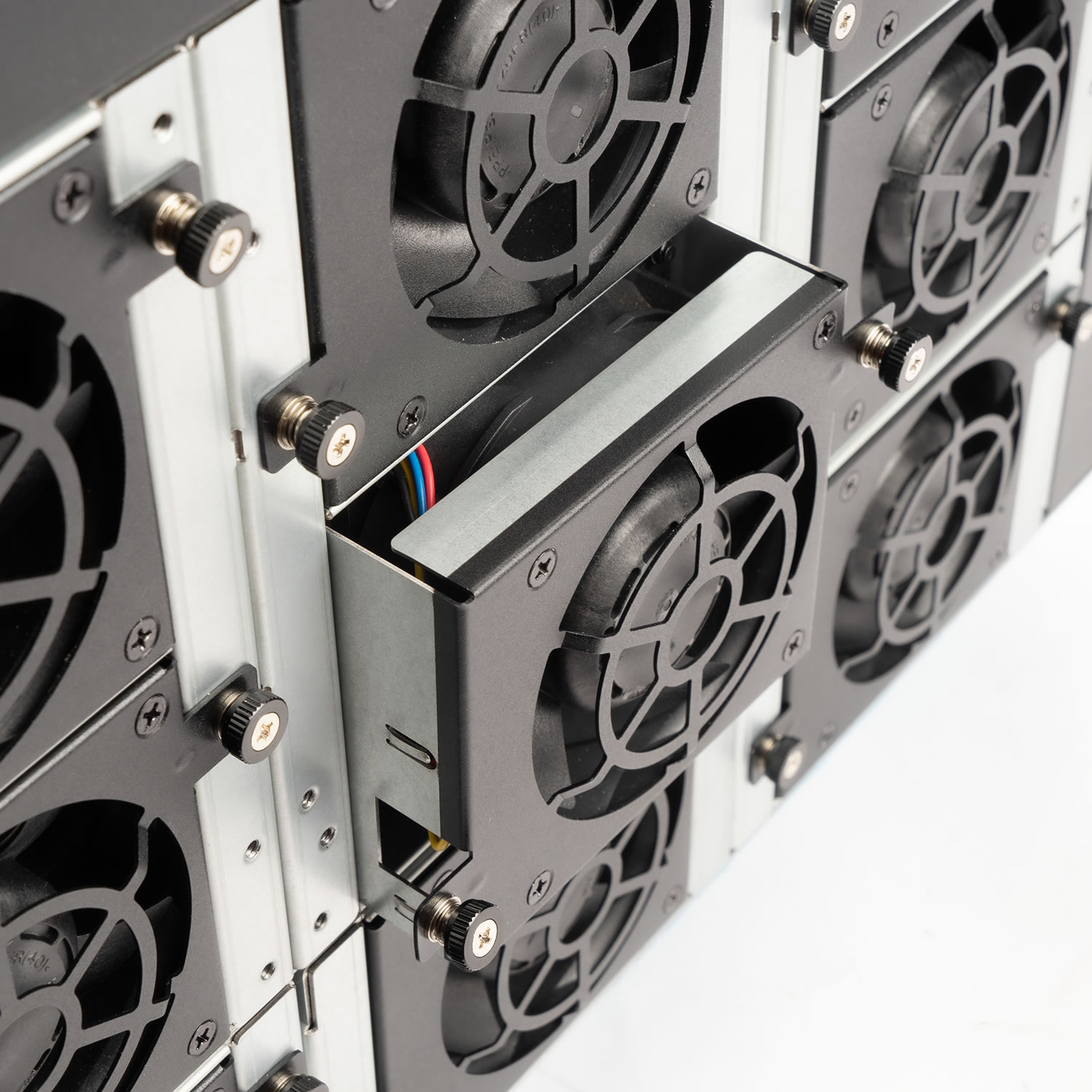

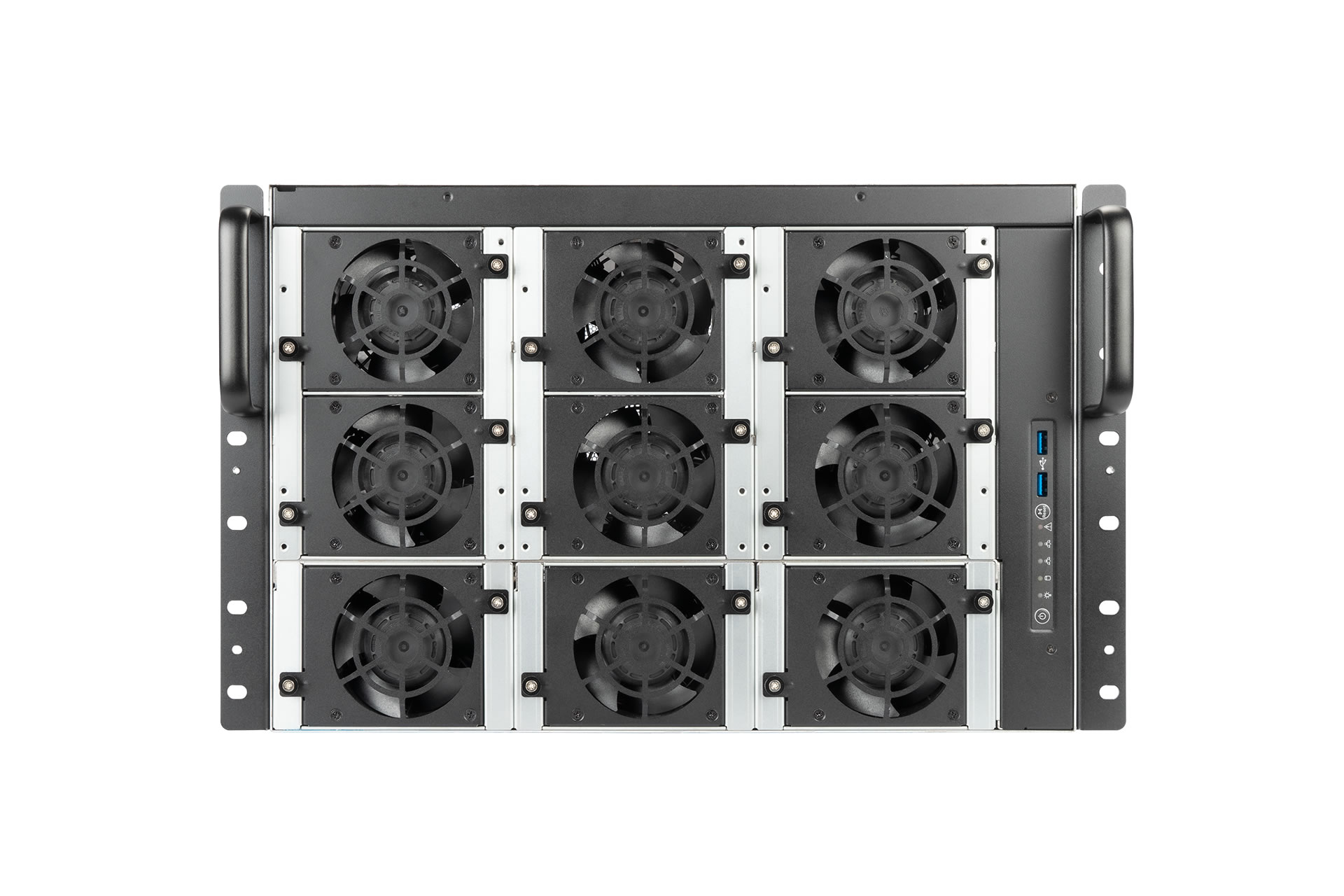

A total of 9 hot-swappable 80x38mm 12,000 RPM PWM fans are pre-installed for exceptional cooling – 6 for the GPUs and 3 for the system components. An included fan hub enhances cable management and prevents cable clutter.
Keep It Cool
A total of 9 hot-swappable 80x38mm 12,000 RPM PWM fans are pre-installed for exceptional cooling – 6 for the GPUs and 3 for the system components. An included fan hub enhances cable management and prevents cable clutter.

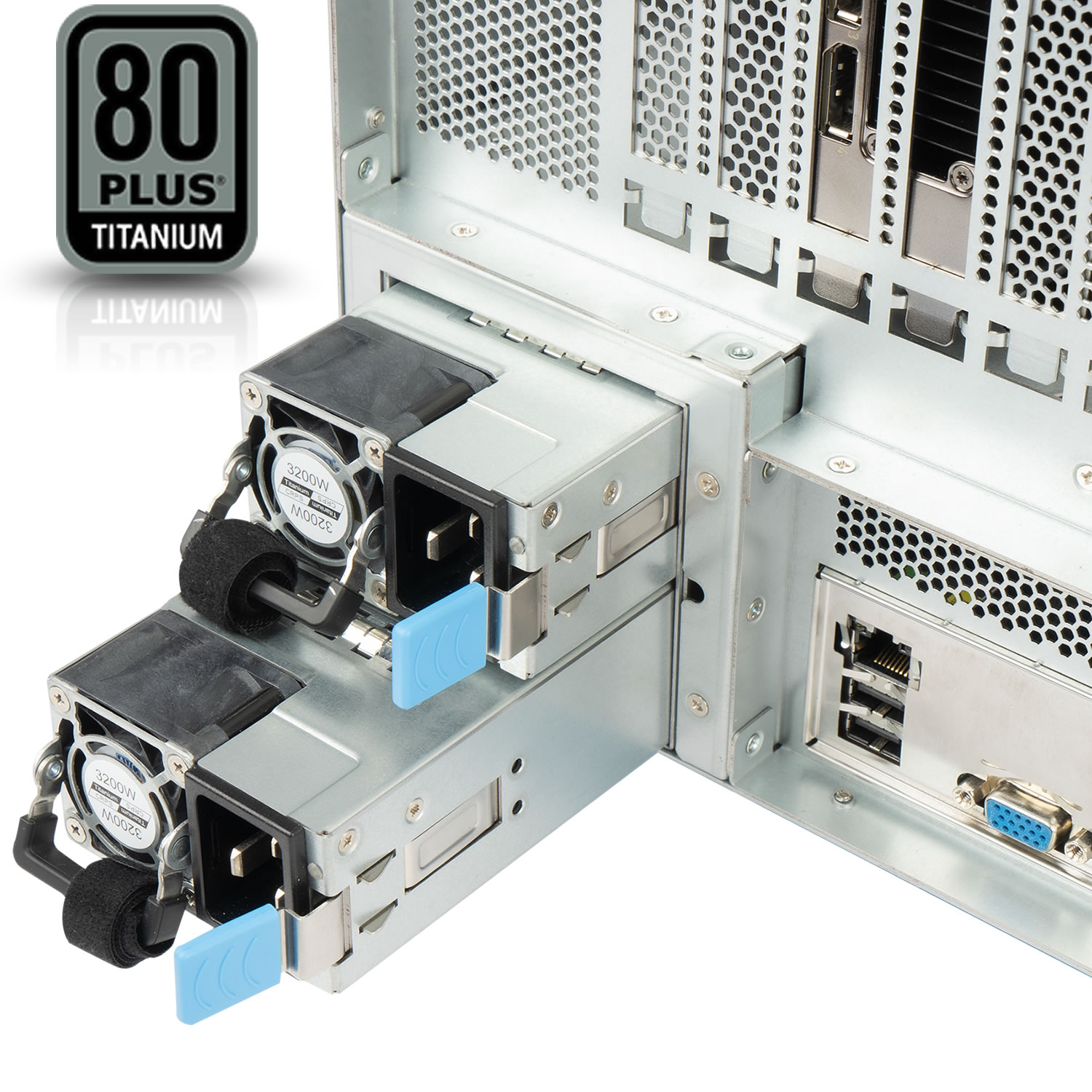

Power for the AI

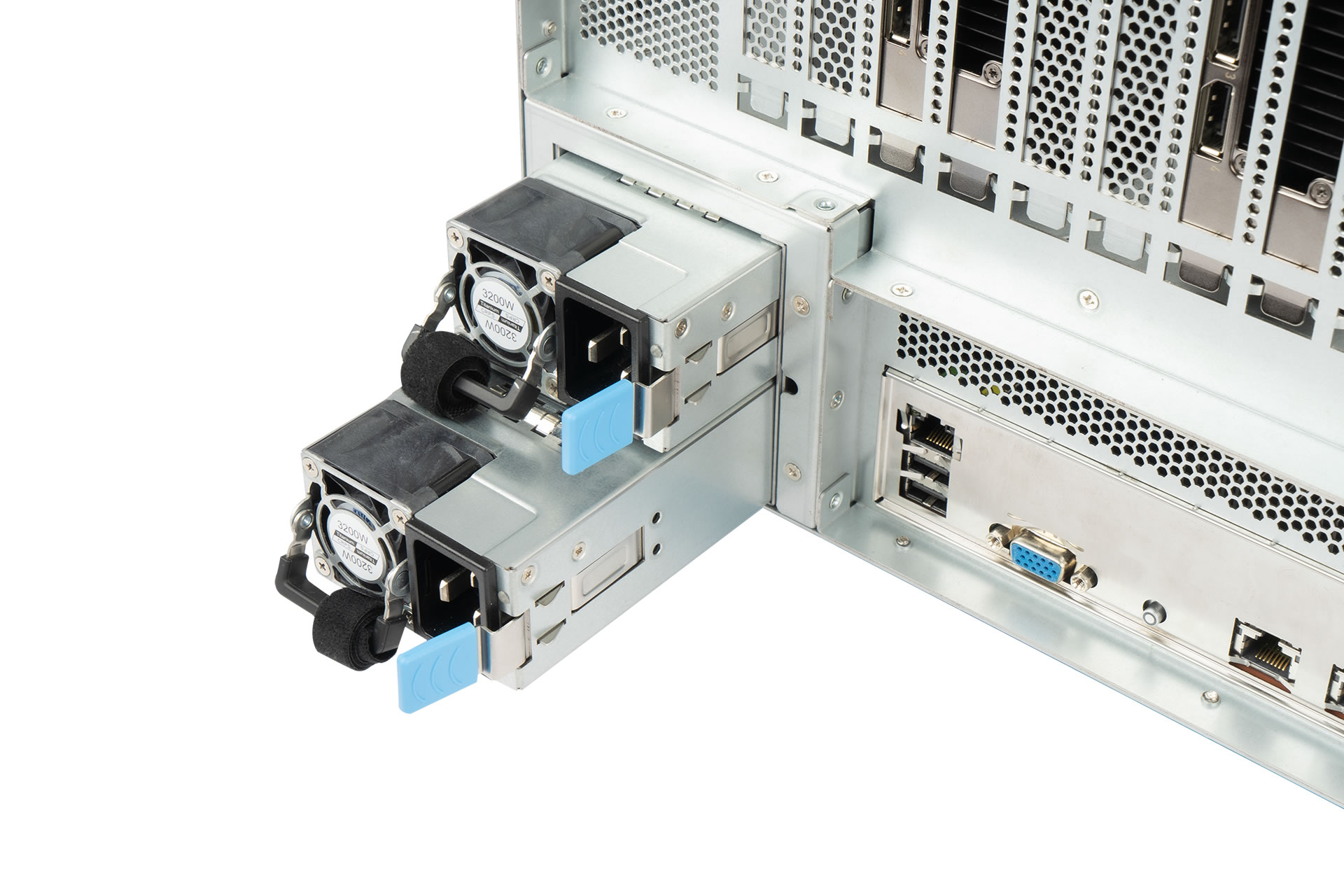

80 PLUS® Titanium CRPS 3200W PSU with 4 x 12V-2x6 pin connectors included to fulfill GPUs wattage needs and ensure efficient performance.
Power for the AI
80 PLUS® Titanium CRPS 3200W PSU with 4 x 12V-2x6 pin connectors included to fulfill GPUs wattage needs and ensure efficient performance.
Power for the AI
80 PLUS® Titanium CRPS 3200W PSU with 4 x 12V-2x6 pin connectors included to fulfill GPUs wattage needs and ensure efficient performance.
Power for the AI
80 PLUS® Titanium CRPS 3200W PSU with 4 x 12V-2x6 pin connectors included to fulfill GPUs wattage needs and ensure efficient performance.
Storages Support

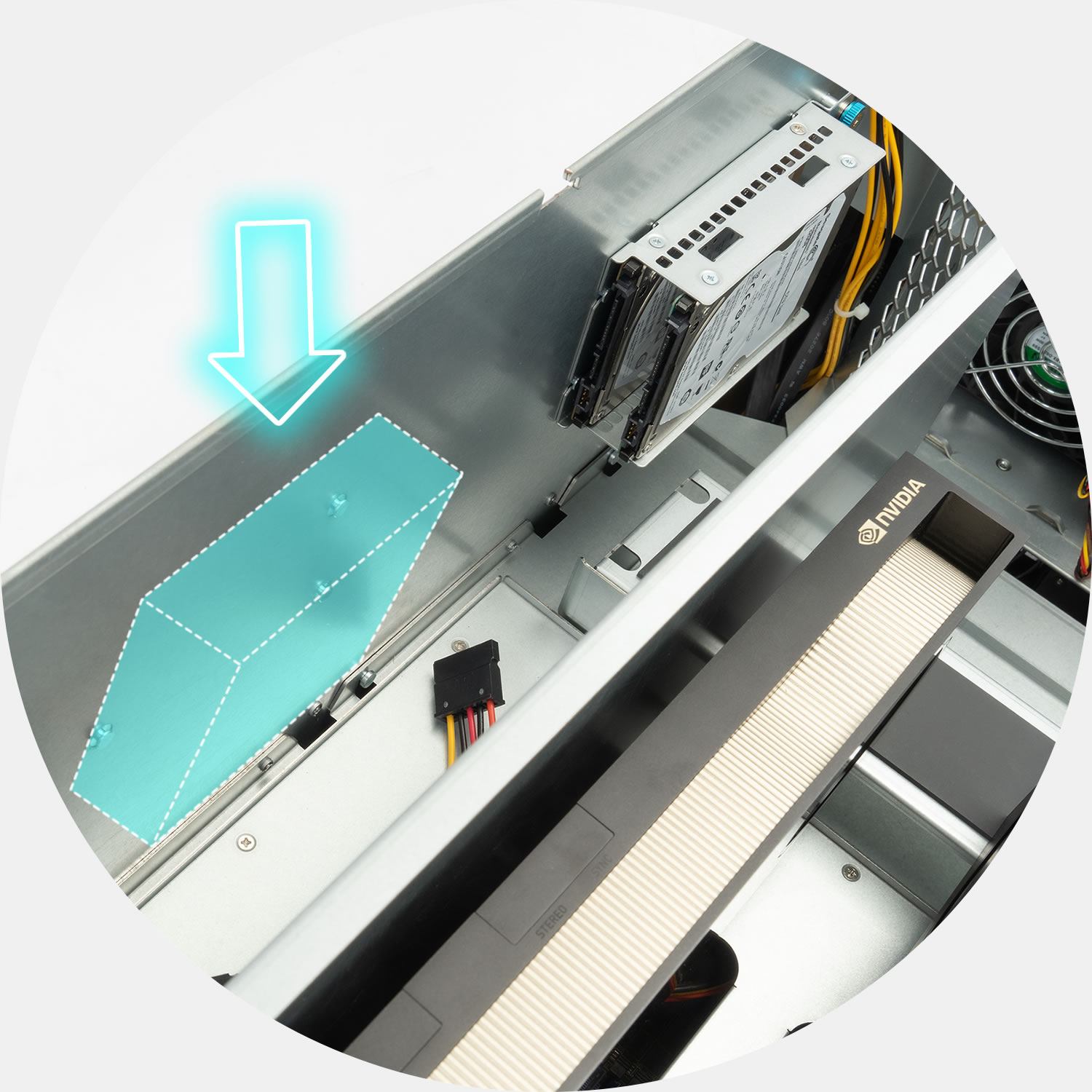

Total of 2 tool-less SSD brackets (1 included) can be installed for storage needs, each SSD tray can install up to 2 SSDs.
2.5" SSD bracket
(optional)
2.5" SSD bracket
Enterprise Solutions

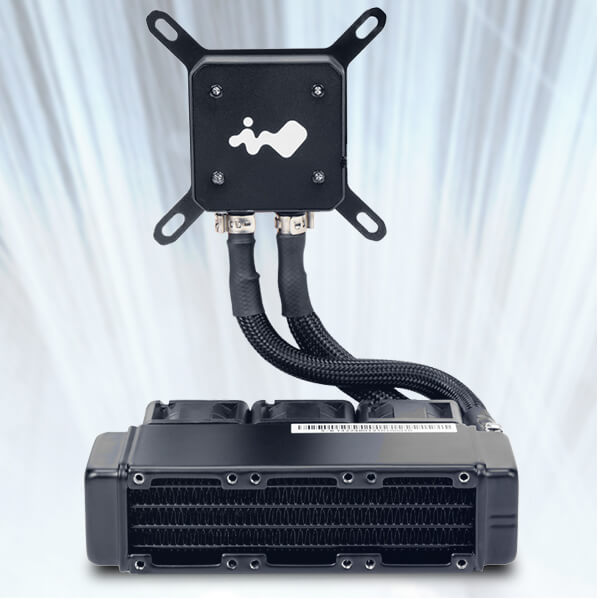

Edge computing thermal demands are critical! The IW-RL100 is designed to be compatible with LGA 1851 and AM5 sockets. It covers ATX motherboards optimally and cooled with precision. The IW-RL100 delivers enhanced operational stability and performance for your computing systems.
| CPU Socket Support |
|
|---|---|
| Radiator Dimensions (L x W x H) |
151 x 40 x 51 mm |
| Tube Length | 150 mm |
| Pump Speed | 4200 RPM +/- 10% |
| Pump Power | 3.9W (4.6W MAX) |
| Fans | 40 x 28 mm fans x 3pcs, 14500RPM, 4-Pin 12V connectors |
| Fan Airflow | 26.1 CFM |
| Fan Air Pressure | 1.32 mm / H2O |

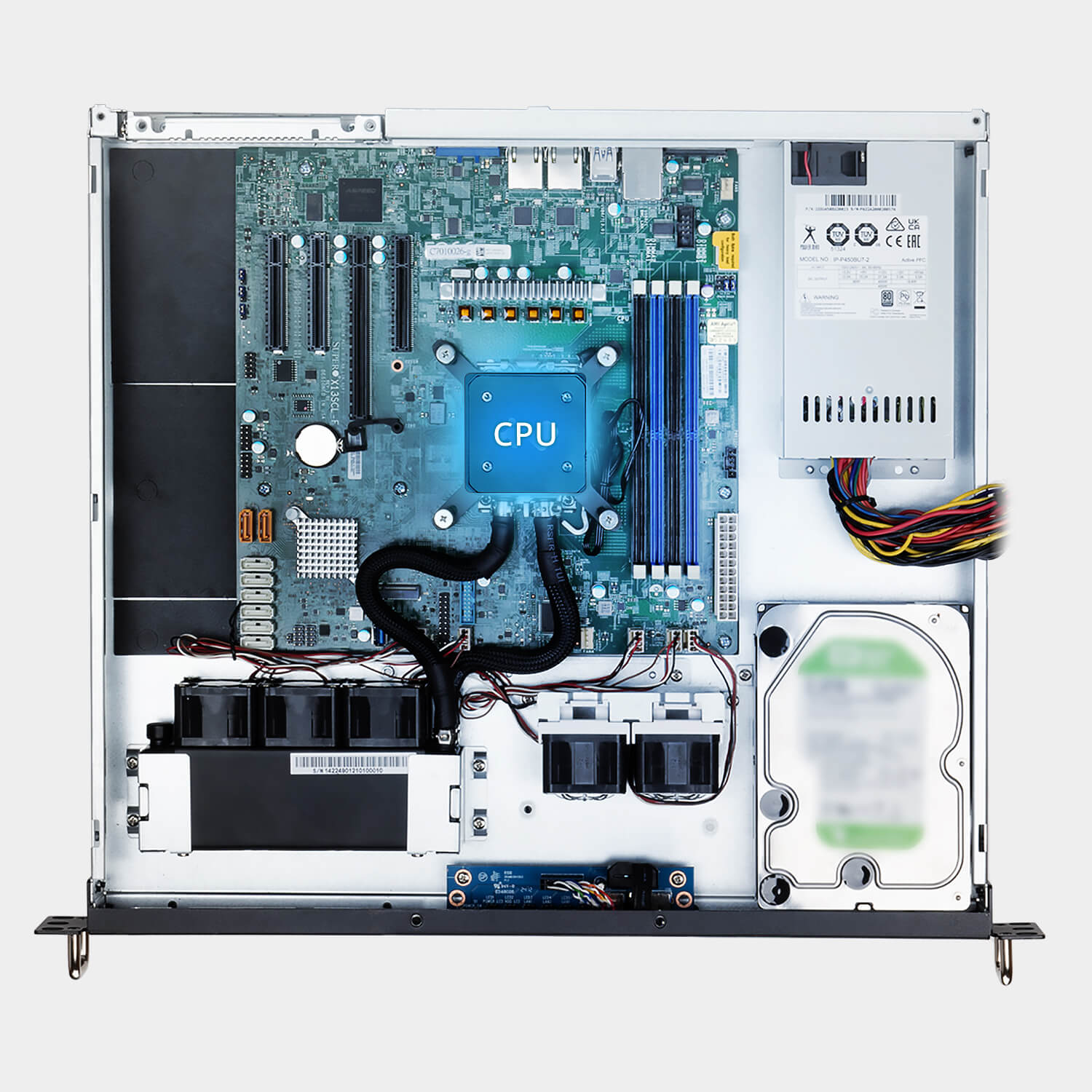

Water Cooling is a Key
As new AI generation servers provide powerful processing capabilities, CPU configurations face thermal dissipation challenges. InWin’s RL series liquid-cooled servers significantly reduce energy consumption, ensuring lower CPU chip temperatures.
The IW-RL100 water cooling kit meets the thermal needs of Intel® or AMD processors, enhancing system stability and enabling the handling of the most demanding workloads in edge computing.
The IW-RL100 water cooling kit meets the thermal needs of Intel® or AMD processors, enhancing system stability and enabling the handling of the most demanding workloads in edge computing.

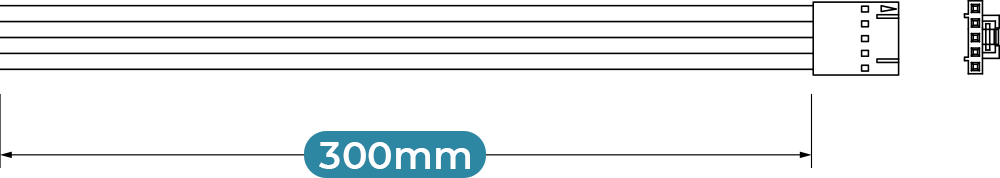

Power Cable Information
Unit of Length: mm
Single PSU Cable Information

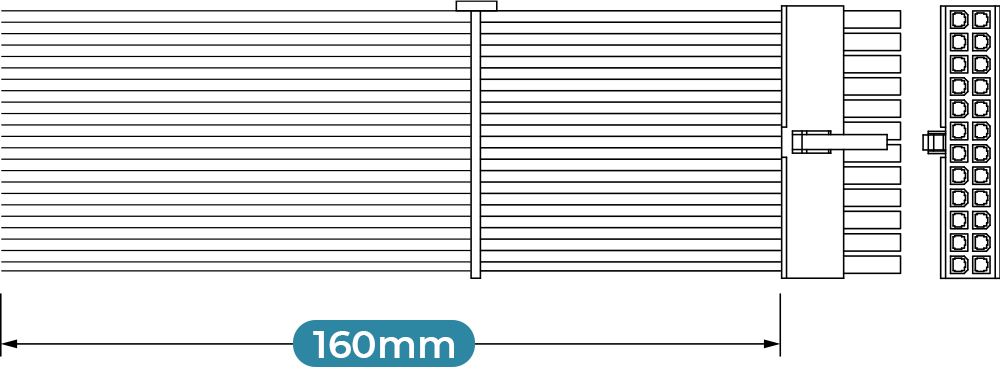

24-Pin Main motherboard
12V-2x6 pin GPU

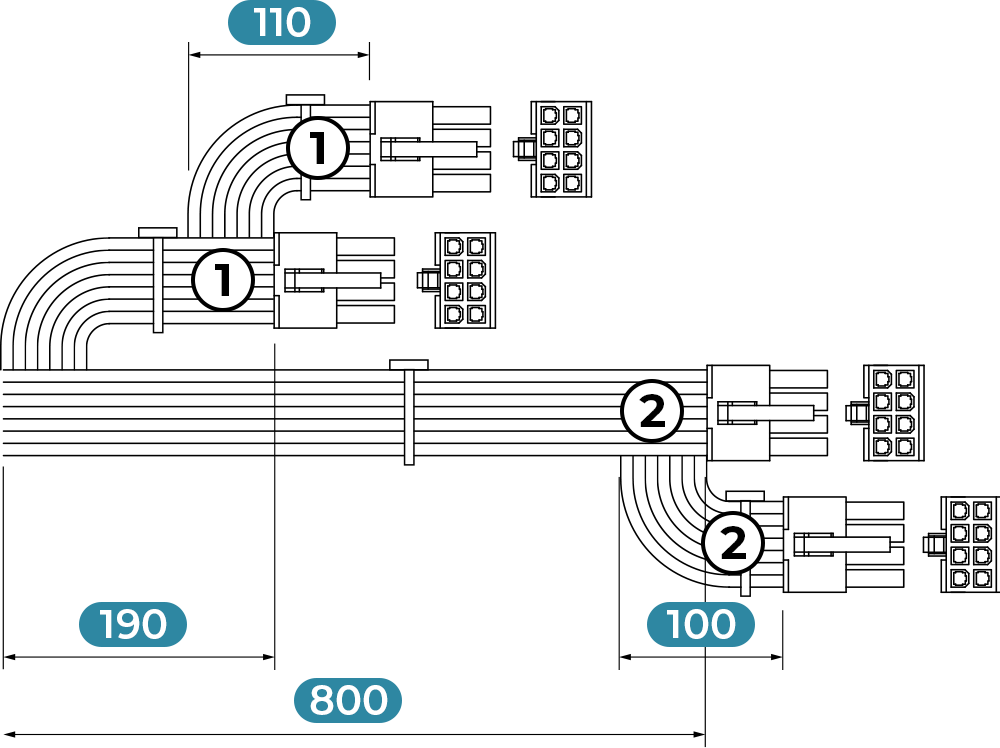

1. 8-Pin CPU
2. 8-Pin CPU
3. 8-Pin fan hub
4. 8-Pin fan hub

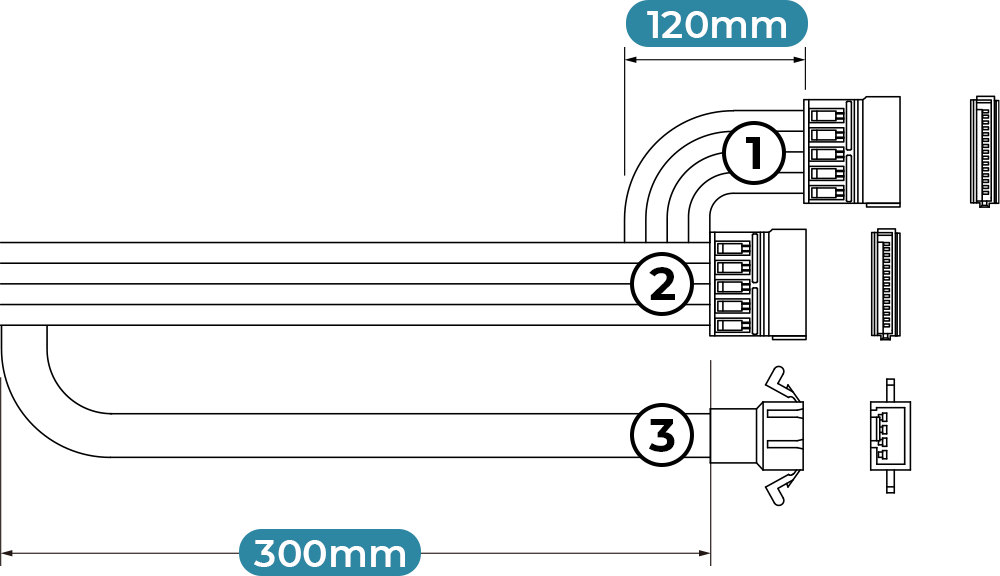

1. SATA
2. SATA
3. 8-Pin PWM
PMBus
| Specification | |
|---|---|
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay | Internal: 2 x 2.5" 2 x 2.5" (optional) |
| Power Supply | Pre-installed: • Form factor: 80 Plus Titanium CRPS • Watt: 3200W |
| Indicators | Power LED, LAN 1/LAN 2, system LED, HDD LED |
| Front Control Panel | Power on/off, system reset, USB 3.0 x 2 |
| Cooling Fans | 80 x 38 mm PWM front fans x 9, 12000 RPM (pre-installed) |
| Expansion Slot | • Full-height PCIe slots x 18 (2 x Gen 4 PCIe riser cables 220 mm & 2 x Gen 4 PCIe riser cables 350 mm) • Low-profile PCIe slots x 7 |
| Material | • Material: SGCC • Thickness: 1.2 |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails included |

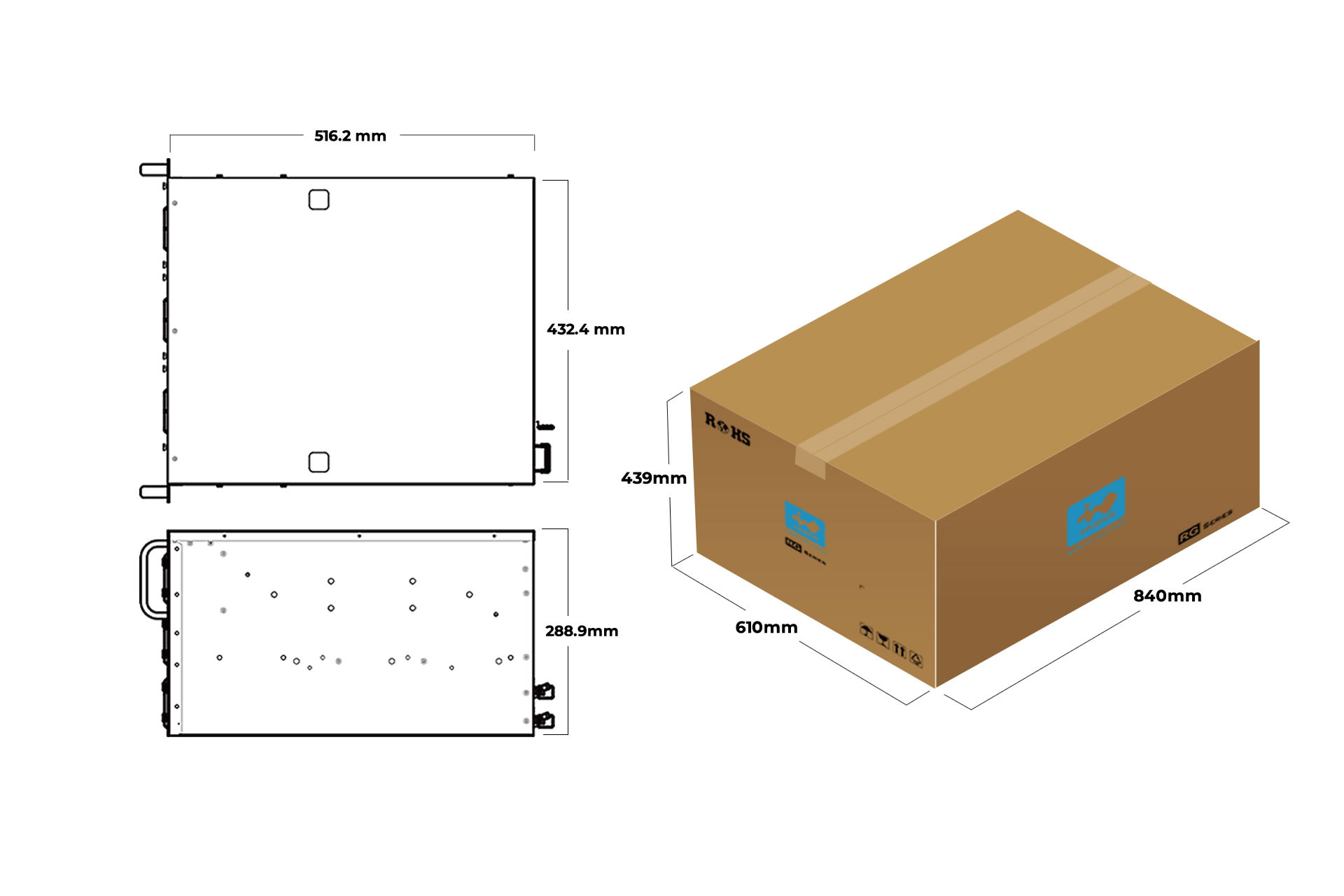

| Product Dimensions (DxWxH; Chassis Only) | 516.2 x 432.4 x 288.9mm (20.32” x 17.02” x 11.37”) |
| Package Dimensions (DxWxH) | 840 x 610 x 439mm (33.07" x 24.02" x 17.28") |
| Weight | • Net weight: 22.55 kg • Gross weight: 26.16 kg |
| Cubic Feet | 7.94 |
| Container Information | Single packing with pallets: • 20': 80 pcs • 40': 184 pcs • 40'HQ: 230 pcs |
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications
* The adjacent image is for reference only. All hardware components and optional parts are not included.
* The adjacent image is for reference only. All hardware components and optional parts are not included.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|

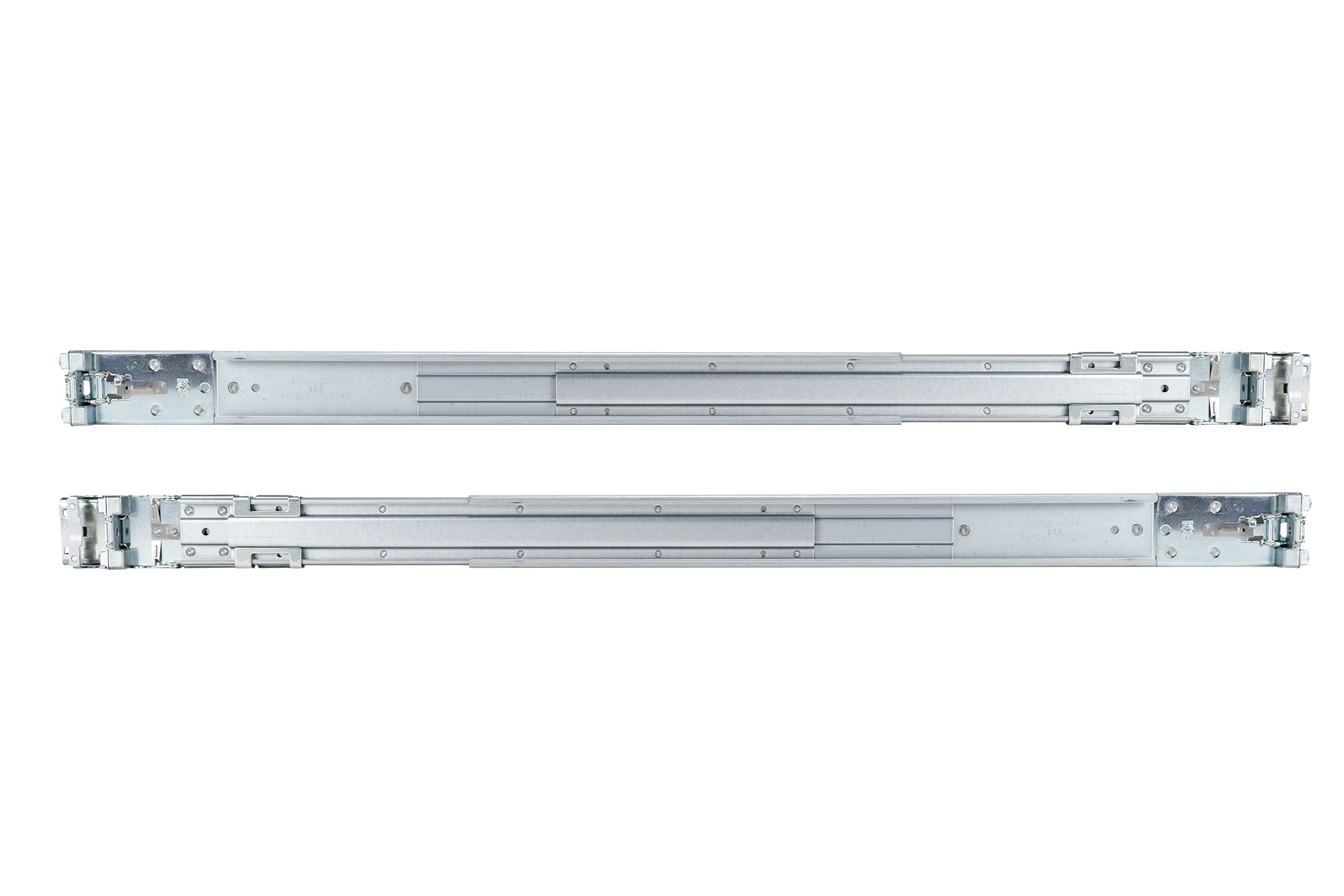

| Slide Rail | 3RAMIS152700 | 28" tool-less & ball-bearing slide rails | 1 set |
|
| Power Supply | 3RAMAP048400 | 80 Plus Titanium 3200W CRPS (AC input 100~115V, total power 1340W max. / AC input 116~120V, total power 1600W max. / AC input 200~224V, total power 2800W max. / AC input 225-240V, total power 3200W max.) / CRPS PDB | Max. 2 |
|
| Power Supply | * InWin offers additional PSU connectors and PDB customization services for multi-GPU installations exceeding 4 GPUs. | |||

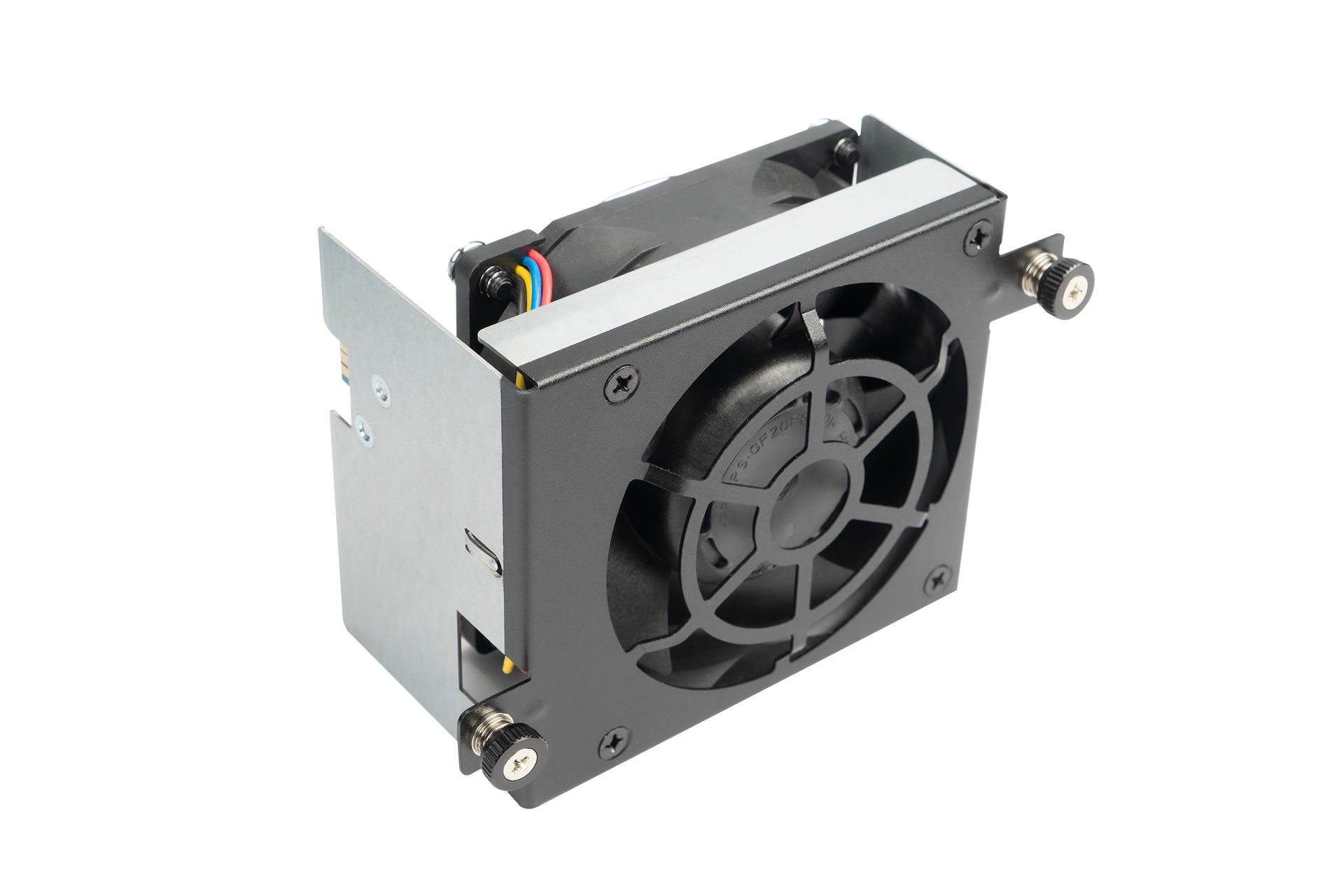

| Fan | 2RAKFB020100 | 80 x 38mm PWM fan ,12000 RPM, 4-pin | Max. 9 |
|

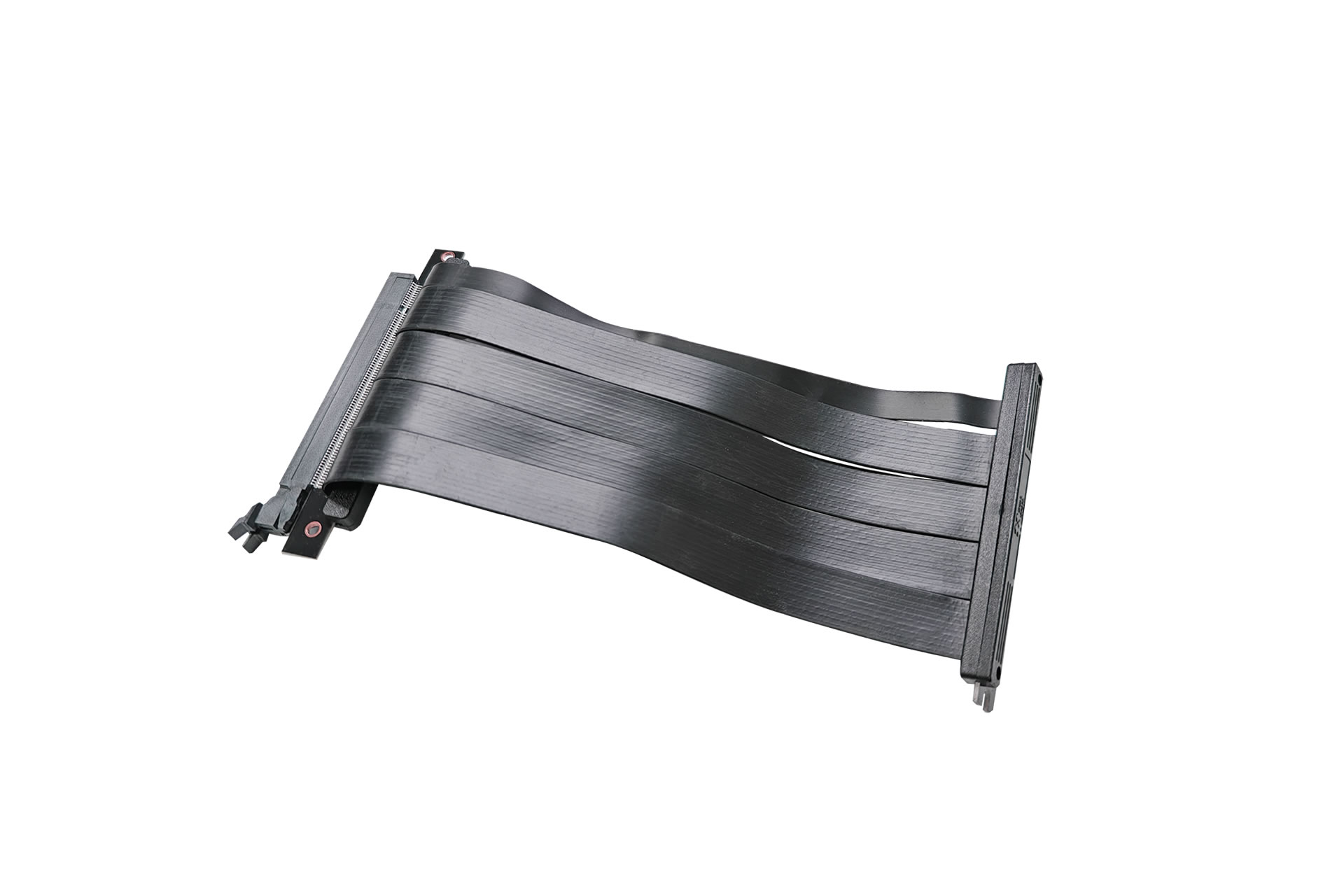

| Cable | 3RAMPD047500 | PCIe Gen4 riser cable, 220mm | 2 |
|

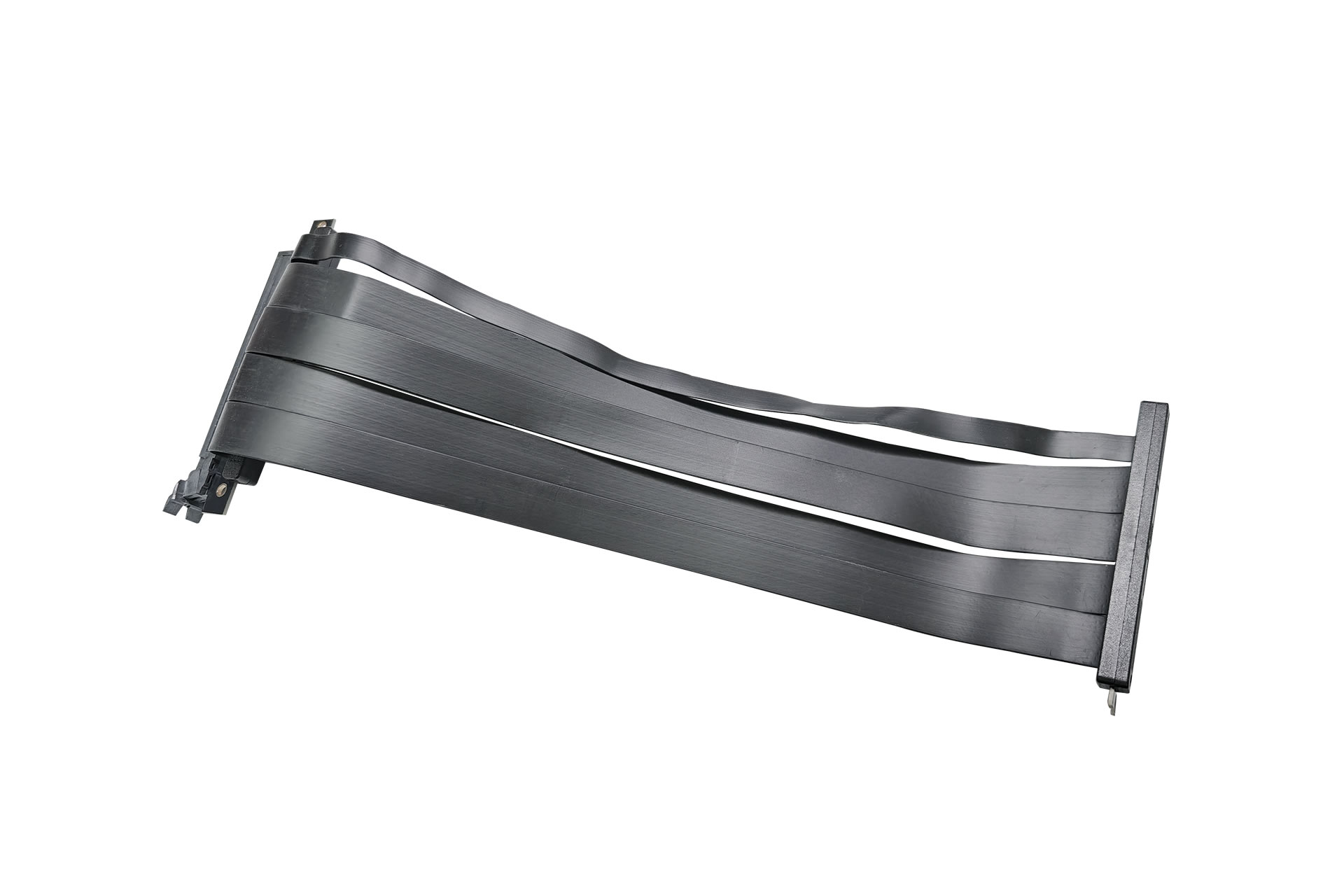

| Cable | 3RAMPD052800 | PCIe Gen4 riser cable, 350mm | 2 |
|

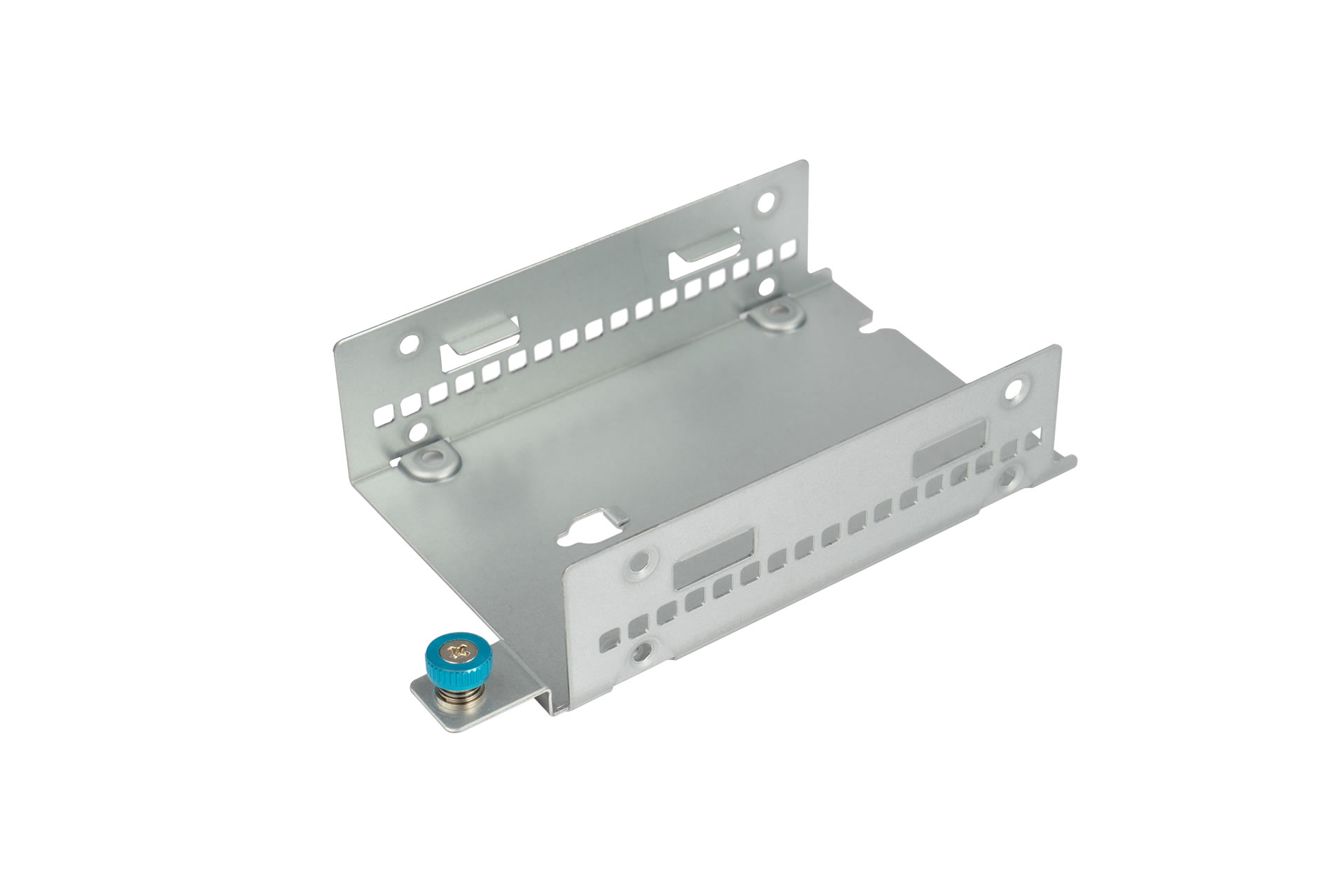

| SSD Tray | 2RARID047501 | 2.5" SSD bracket | Max. 2 |
|
