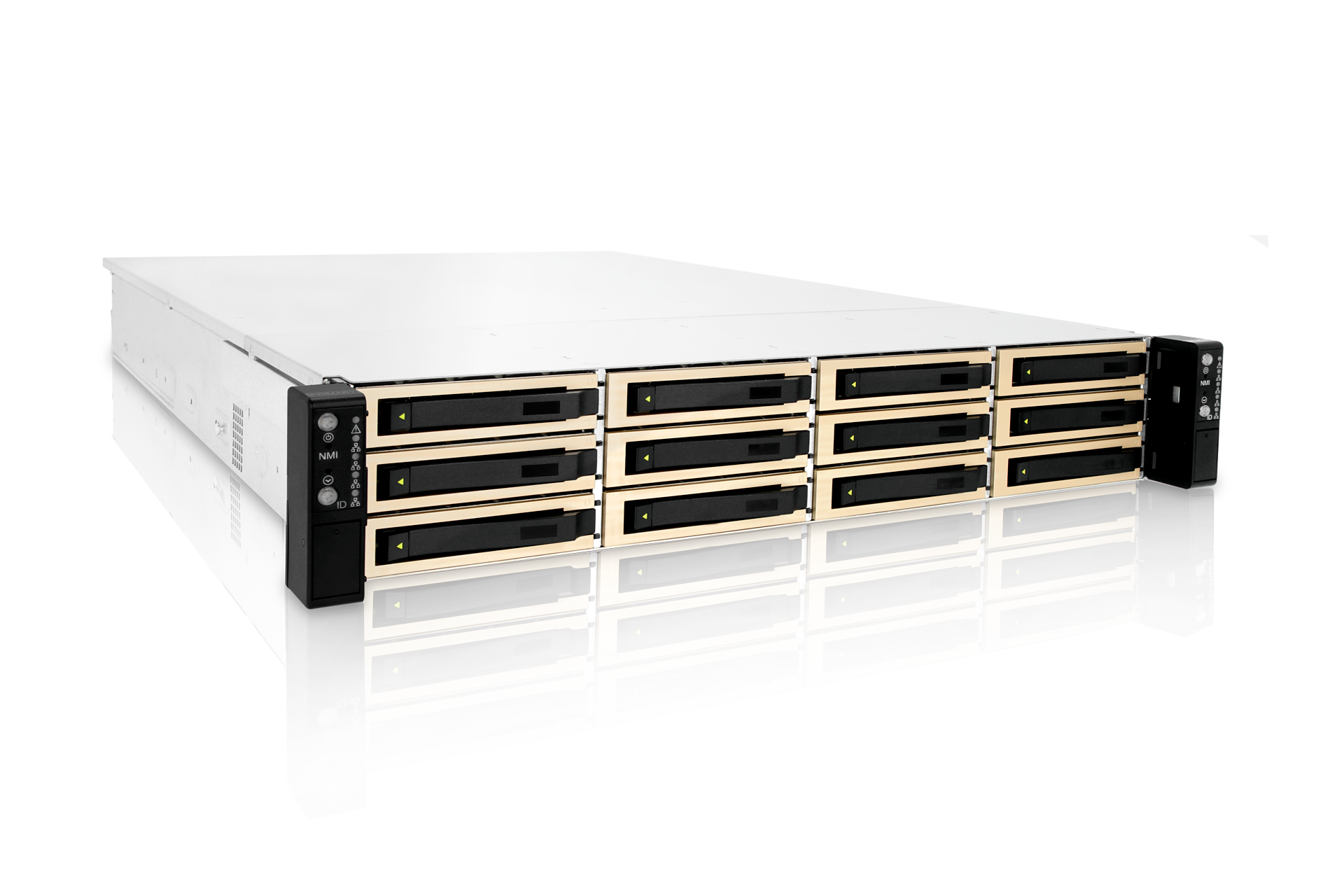

IW-RN212-04

2U Dual Node Rackmount Storage Server

．Optimized performance for each node
．Easy maintenance and high availability with two hot-swappable system nodes
．Supports SAS 12G via single expander for each node
．Tool-less design for 3.5-inch HDD carrier
．Compatible with standard form factor motherboard
．Supports tool-less slide rail
．Supports high-efficiency CRPS power supply

Specification
Industry Standard	EIA-RS310D
M/B Form Factor	ATX (12" x 9.6"), ATX (12" x 10"), EEB (12" x 13")
Drive Bay	• External: hot-swap 3.5" x 12 • Internal: 2.5" HDD (7mm thickness) x 2 for each node
Power Supply	Supports: • Form factor: 80 Plus Platinum CRPS redundant with PDB cable management • Watt: 1200W
Indicators	Per Node : Power LED, ID LED, System LED, LAN1/LAN2/LAN3/LAN4 LED
Front Control Panel	Per Node: Power On/Off, NMI, Reset, ID SW
Backplane	Mini-SAS HD, SFF-8643 (12Gb/s with expander)
SAS 12G Expander	Per Node: supports LSI 3 x 36R expander
Cooling Fans	Per Node: • 40 x 28mm PWM fan x 5, 14500RPM • Modular design with anti-vibration
Expansion Slot	Per Node: • Low-profile PCI slot x 1 • Full-height PCI slot x1
Material	• Material: SGCC • Thickness: 1.0mm
Rail Kit	Supports 20" or 28" tool-less & ball-bearing slide rail
Product Dimensions (DxWxH; Chassis Only)	697.05 x 449.5 x 87.2mm (27.44" x 17.70" x 3.43")
Package Dimensions (DxWxH)	917 x 610 x 243mm
Weight (Chassis Only)	• Net weight:18.32kg • Gross weight: 21.97kg
Cubic Feet	4.8
Container Information	Single packing with pallets: • 20': 140pcs • 40': 294pcs • 40' HQ: 378pcs

12Gb/s Backplane Specifications

Backplane	IW-RN212-04 HDD BP
Dimension (W x H)	428mm x 79.9mm
Backplane Type	Active with Expander Onboard
Host Interface	SFF-8643 x 3
HDD Interface	SAS/SATA 3.5 x 12

* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.

Item	Download	Preview
IW-RN212-04 eDM
IW-RN212-04 Gallery		-
IW-RN212-04 User Manual
IW-RN212-04 Compatibility

Item	Part Number	Description	Support	Picture
SLIDE RAIL	3RAMIS133100	20" tool-less & ball-bearing slide rail	1
SLIDE RAIL	3RAMIS133200	28" tool-less & ball-bearing slide rail	1
