server system assembly
IW-RS104-02M

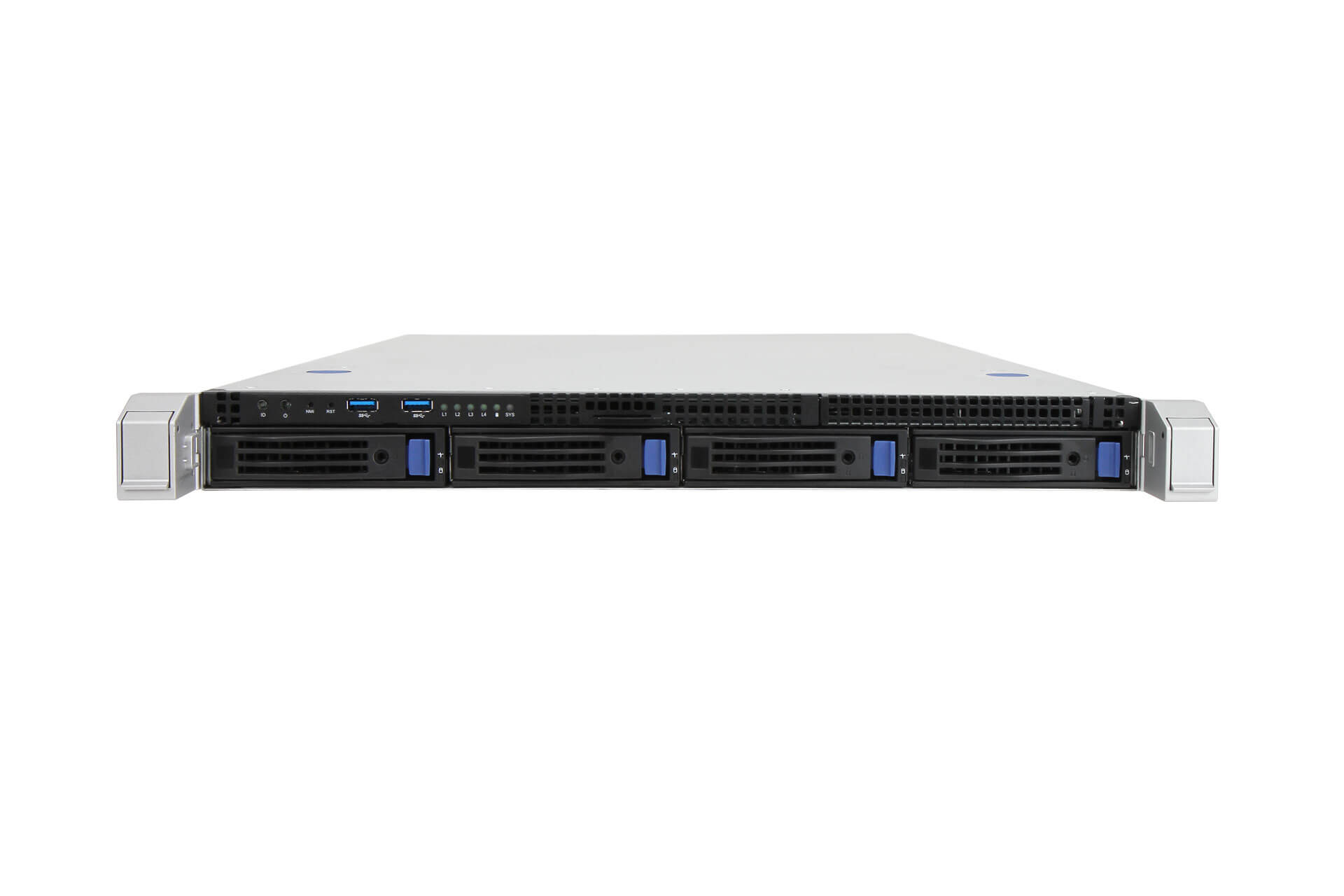

1U Rackmount Middle Depth Storage Server
．Compliance for Intel® Xeon Scalable family

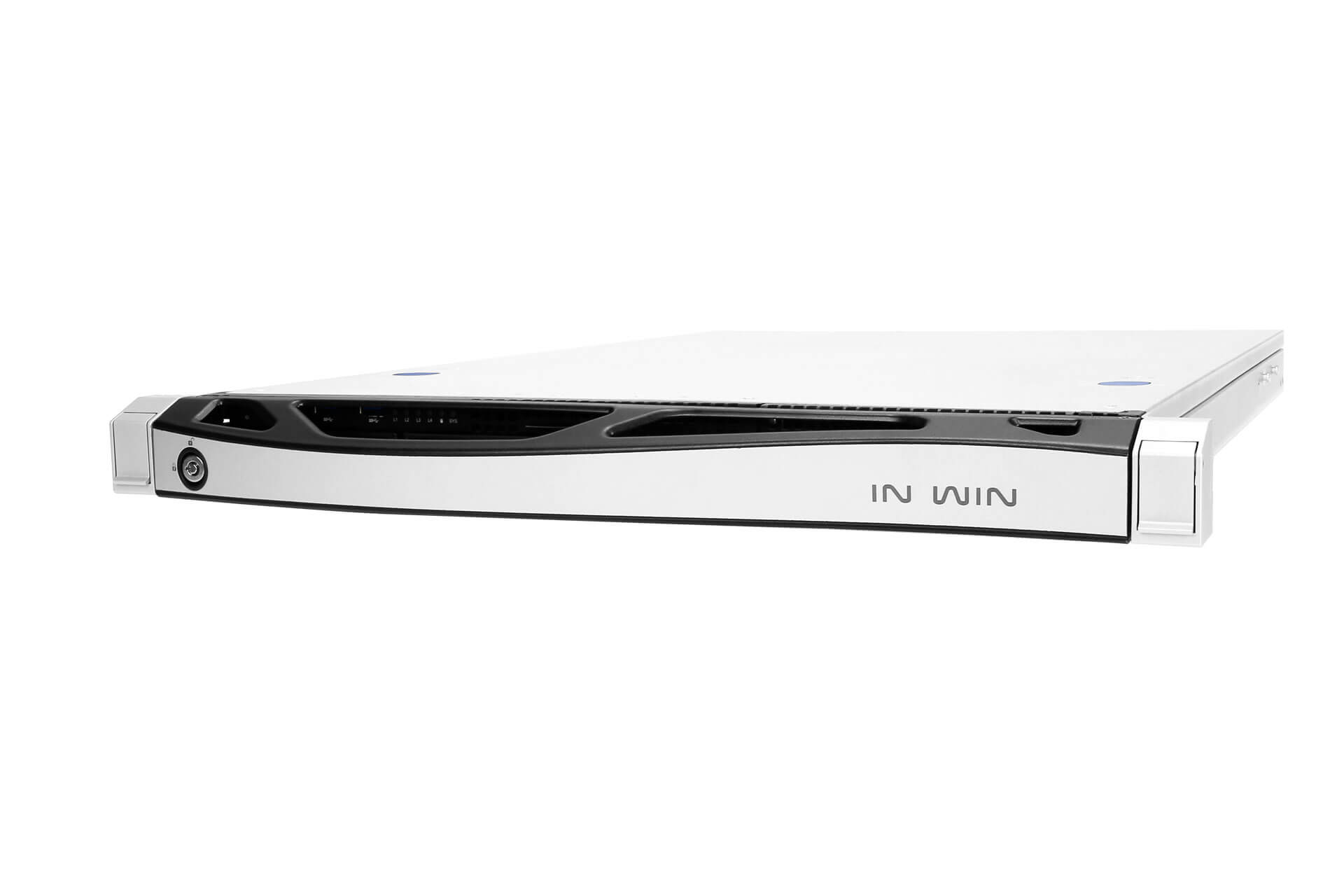

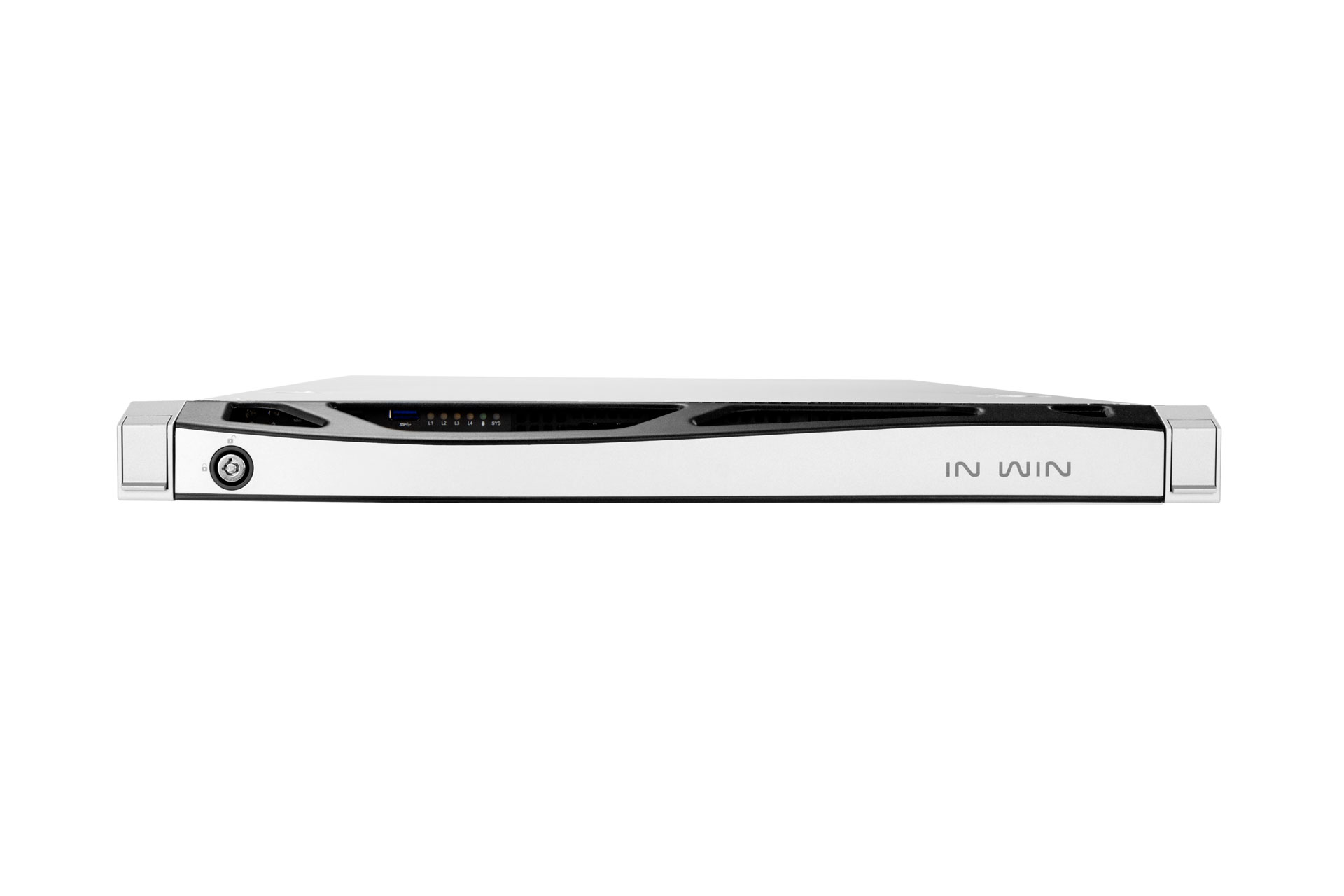

．Iron front panel with silver printing

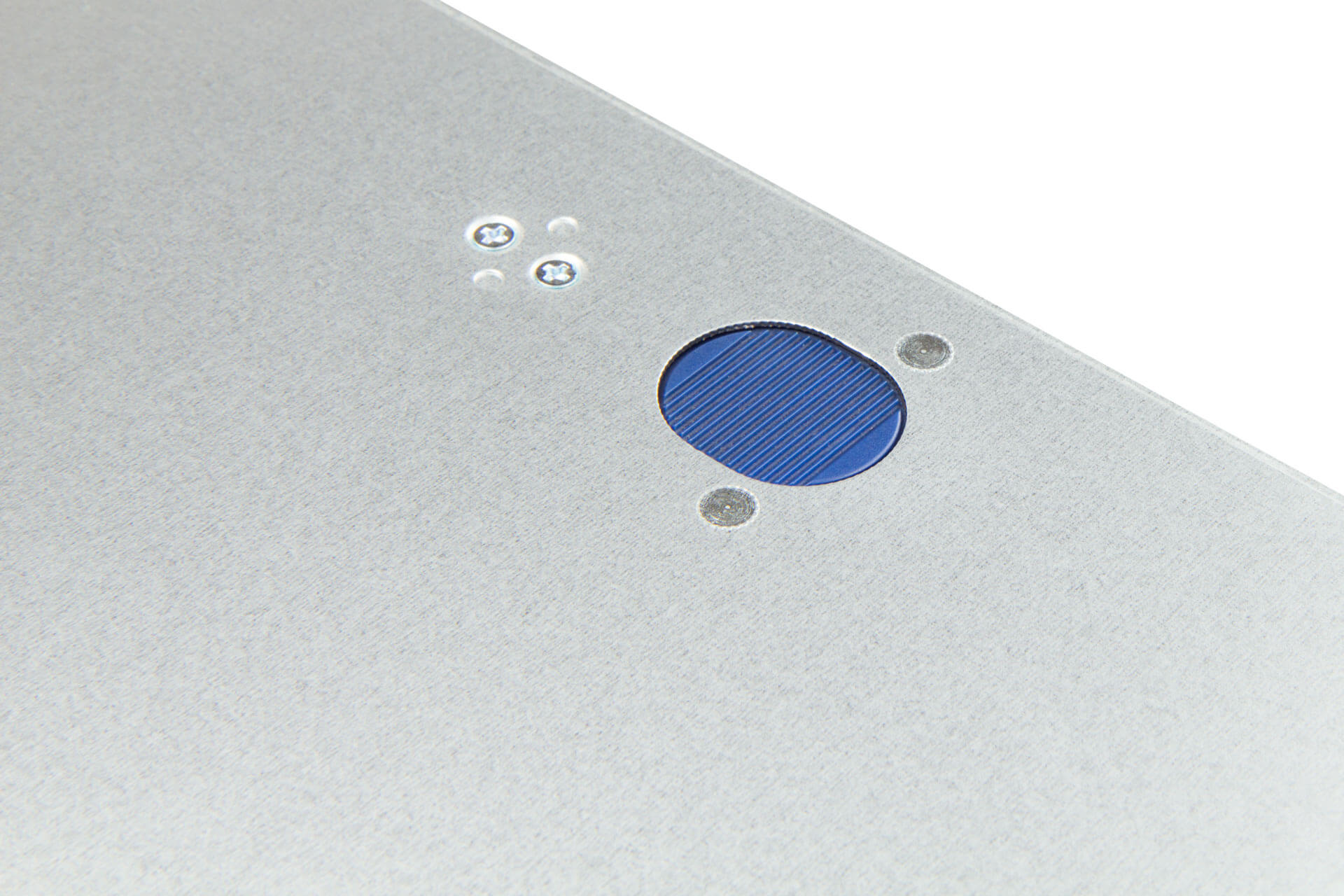

．Tool-free design: topcover, 2.5" HDD cage, slim ODD cage, fan module

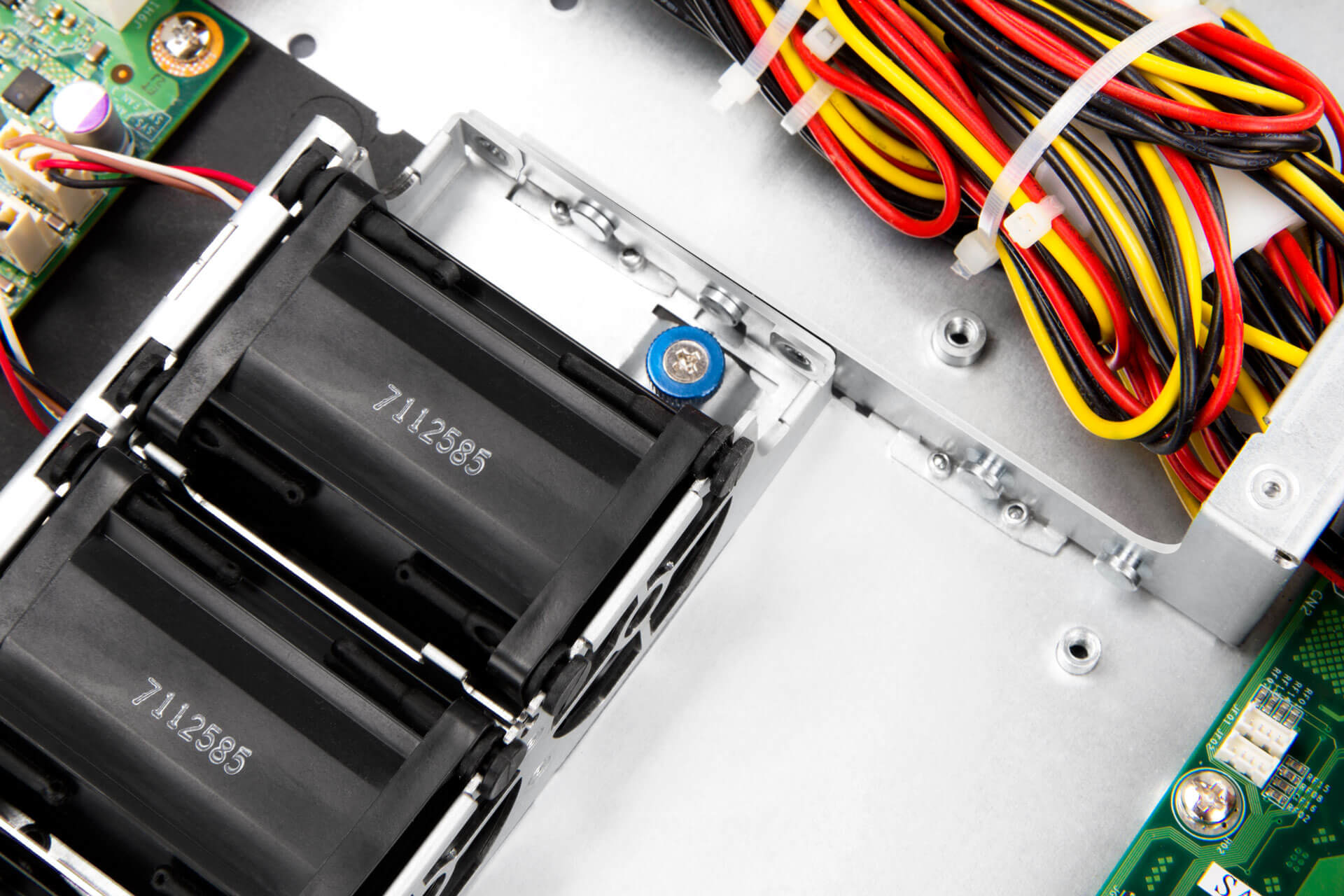

．Removable cooling fan module function
．Built in info-tag for systems easy management
．Single or 1U 1+1 redundant PSU
．Tool-free with I/O bracket
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX (12" x 9.6"), ATX (12" x 10"), EEB (12" x 13") |

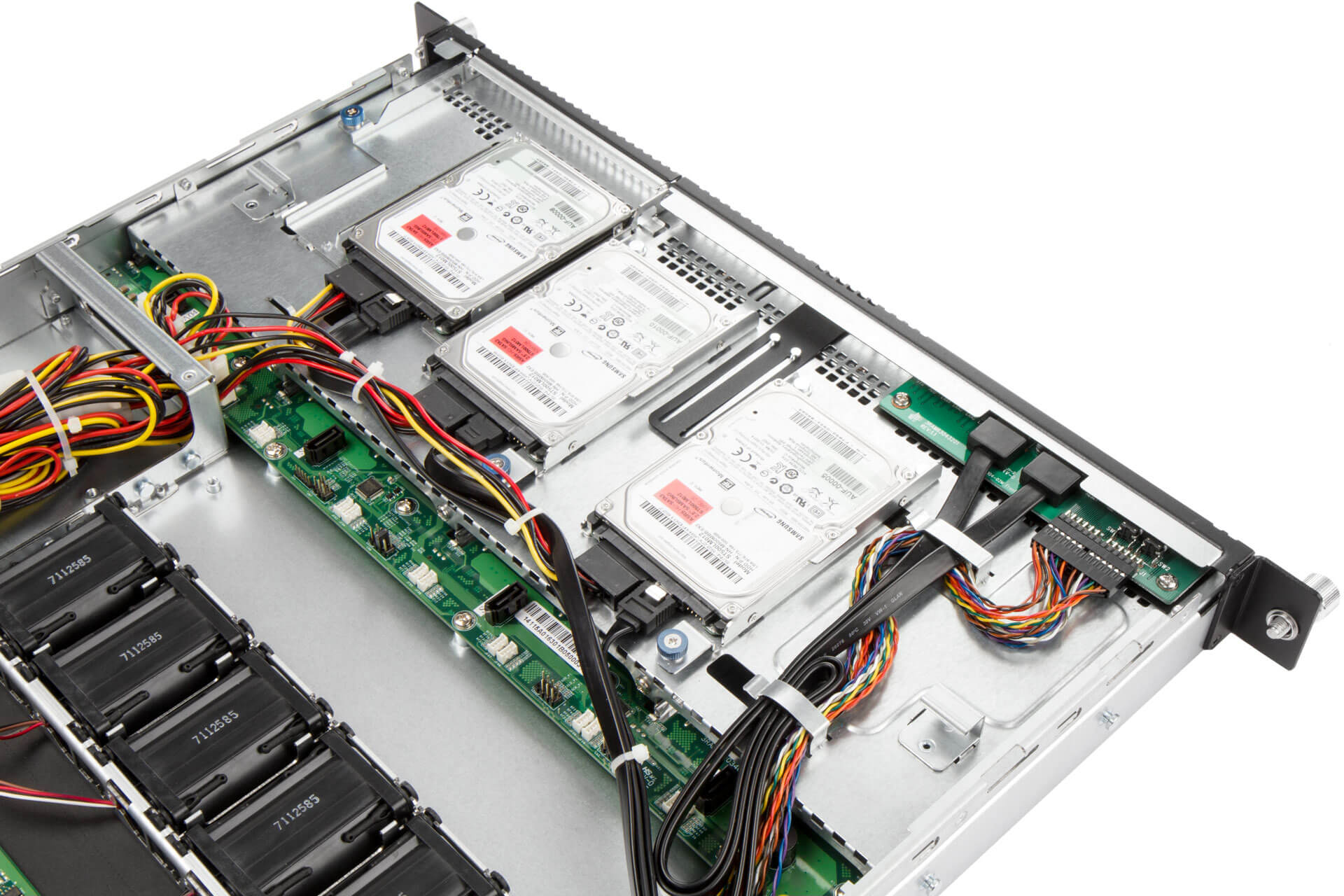

| Drive Bay | • External: slim ODD x 1 or 2.5" x 1 (optional), hot-swap 3.5" x 4 or 2.5" x 4 • Internal: 2.5" HDD x 2 |

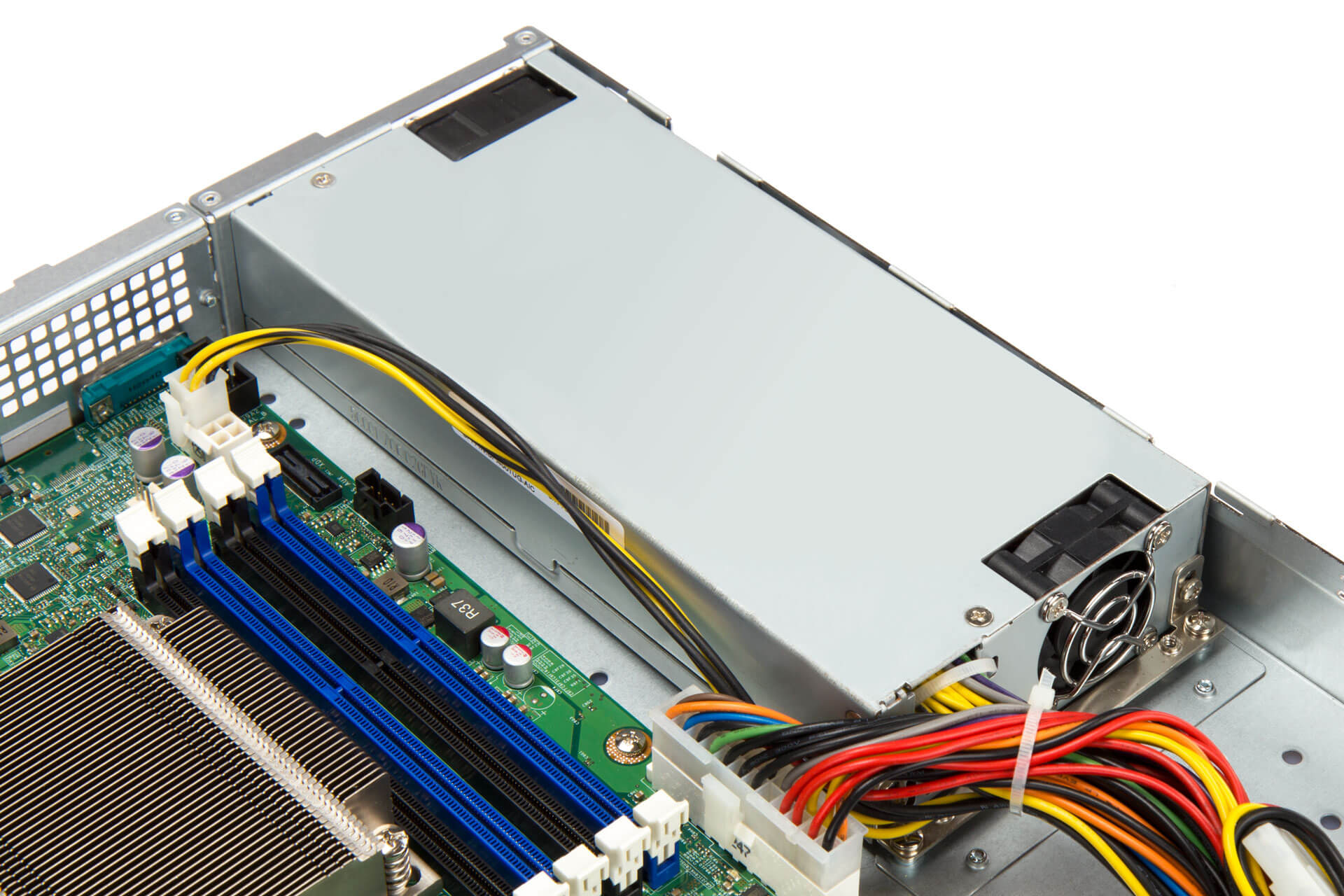

| Power Supply | Supports: • Form Factor: Single or 1U 1+1 Redundant • Watt: Single 500W, Redundant up to 750W |
| Indicators | Power Status, HDD, LANs, System Fail Activity LEDs |
| Front Control Panel | Power Switch, ID Switch, System Reset, NMI, USB 3.0 x 2 |
| Backplane | • SATA (6Gb/s Supported) • Mini-SAS HD, SFF-8643 (12G/s Supported) |

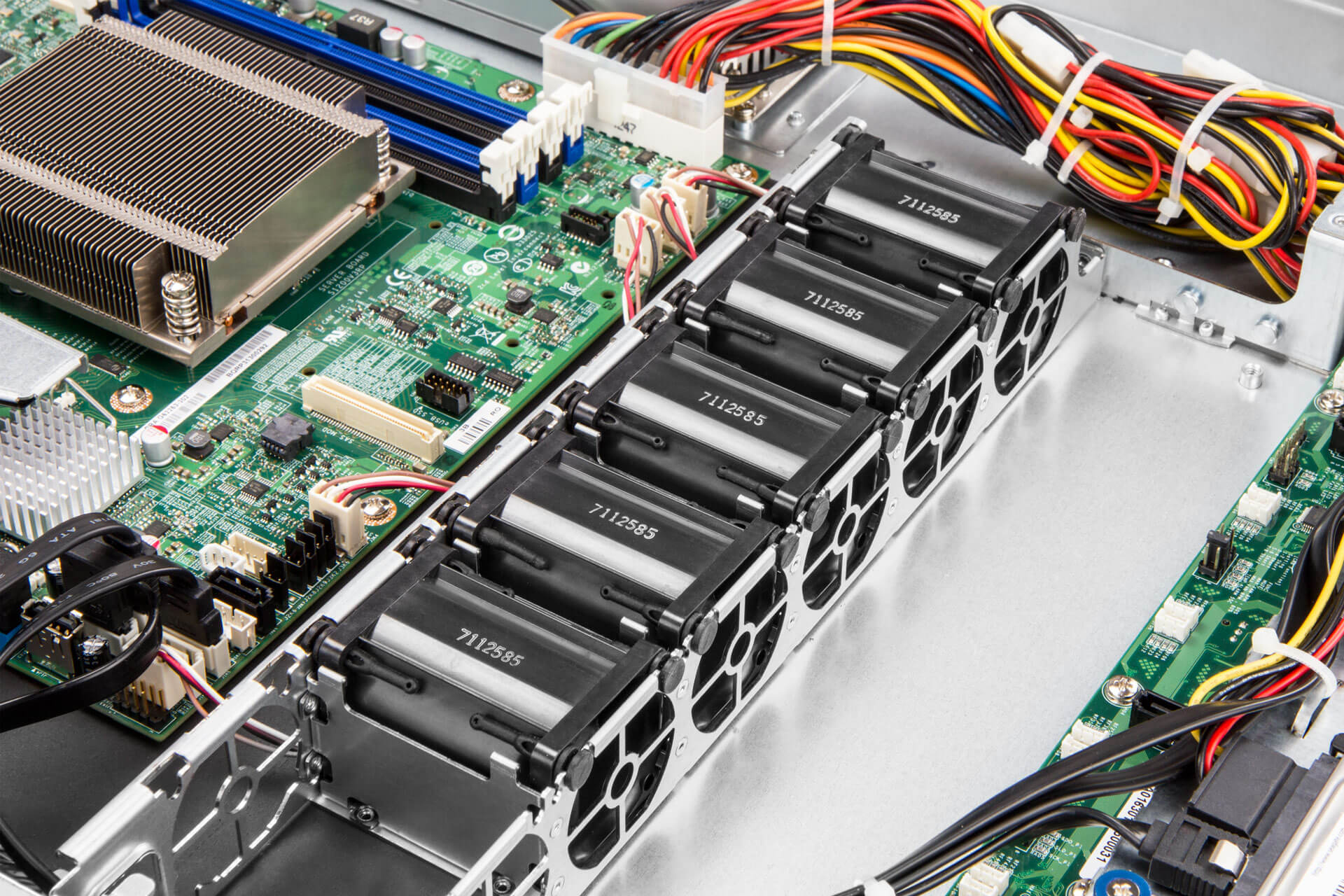

| Cooling Fans | Supports 40 x 56mm PWM easy-swap fan x 6 (pre-installed x 5) |

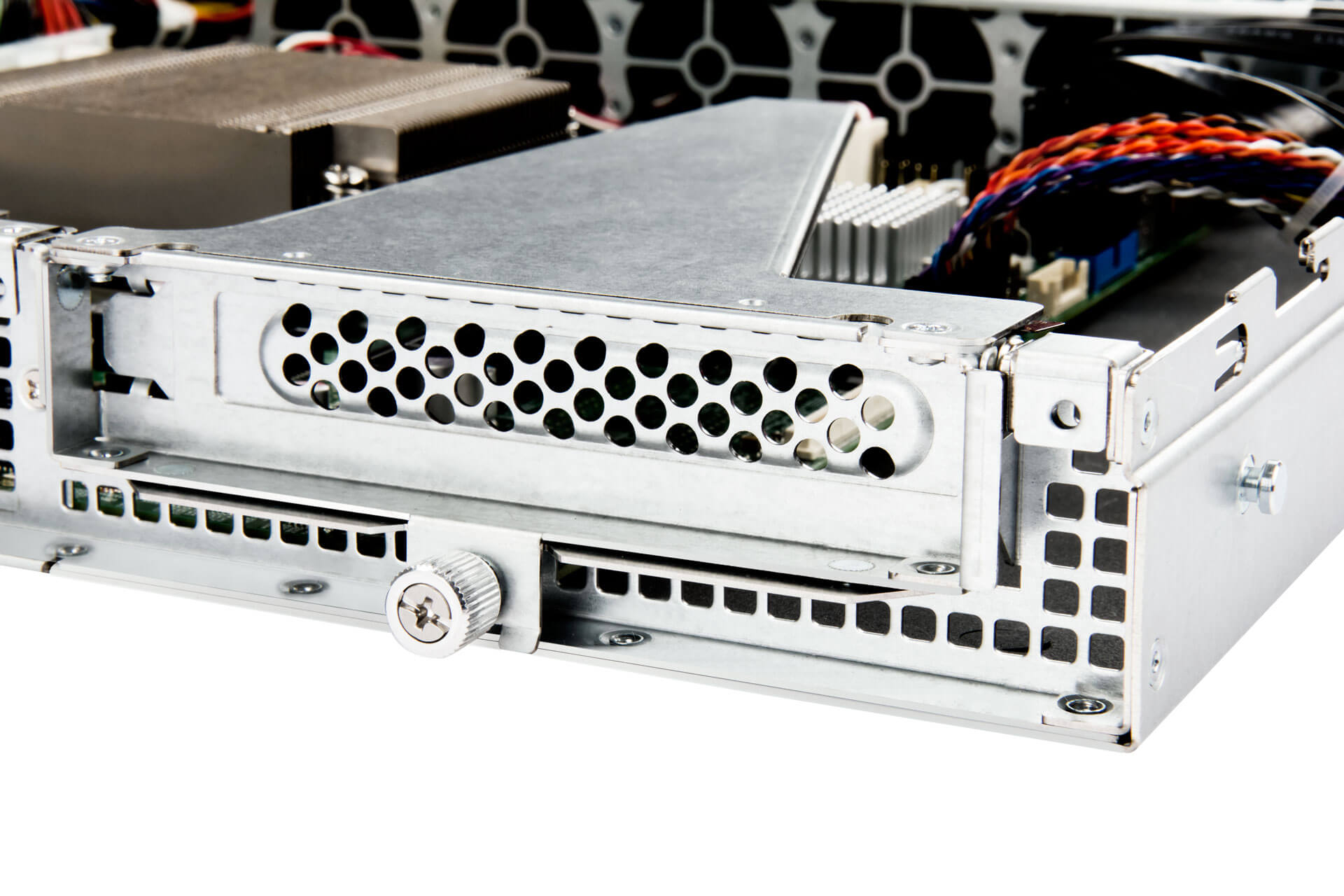

| Expansion Slot | Full Height PCI Slot x 1 (via riser card and bracket) |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | 28" tool-less ball-bearing rail |
| Product Dimensions (DxWxH; Chassis Only) | 625 x 482.6 x 44.4mm (24" x 19" x 1.75") |
| Package Dimensions (DxWxH) | 800 x 556 x 194mm |
| Weight (Chassis Only) | • Net Weight: 7.18kg • Gross Weight: 10.20kg |
| Cubic Feet | 2.57 |
| Container Information | Single Packing with pallets: • 20': 240pcs • 40': 528pcs • 40' HQ: 616pcs |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.

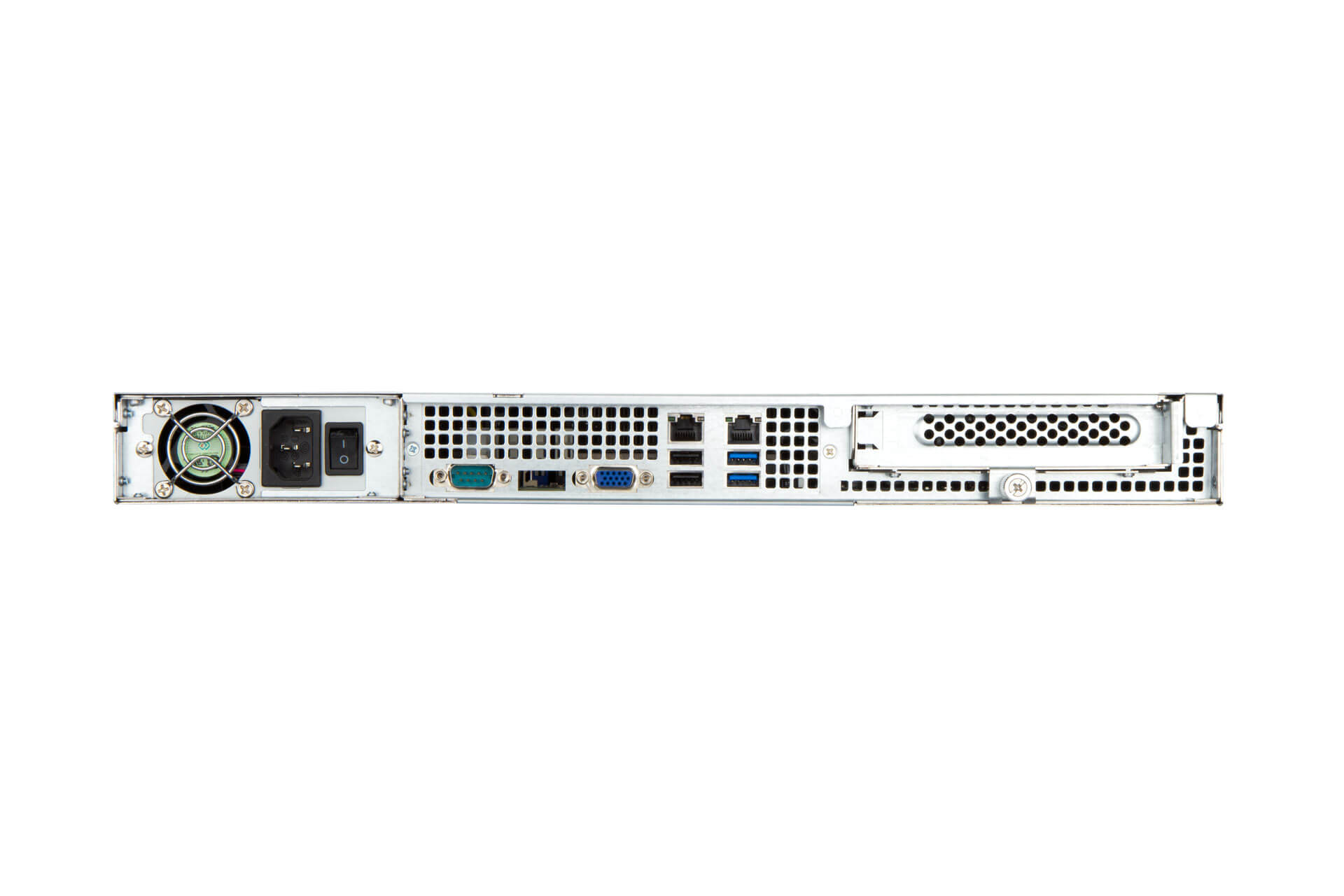

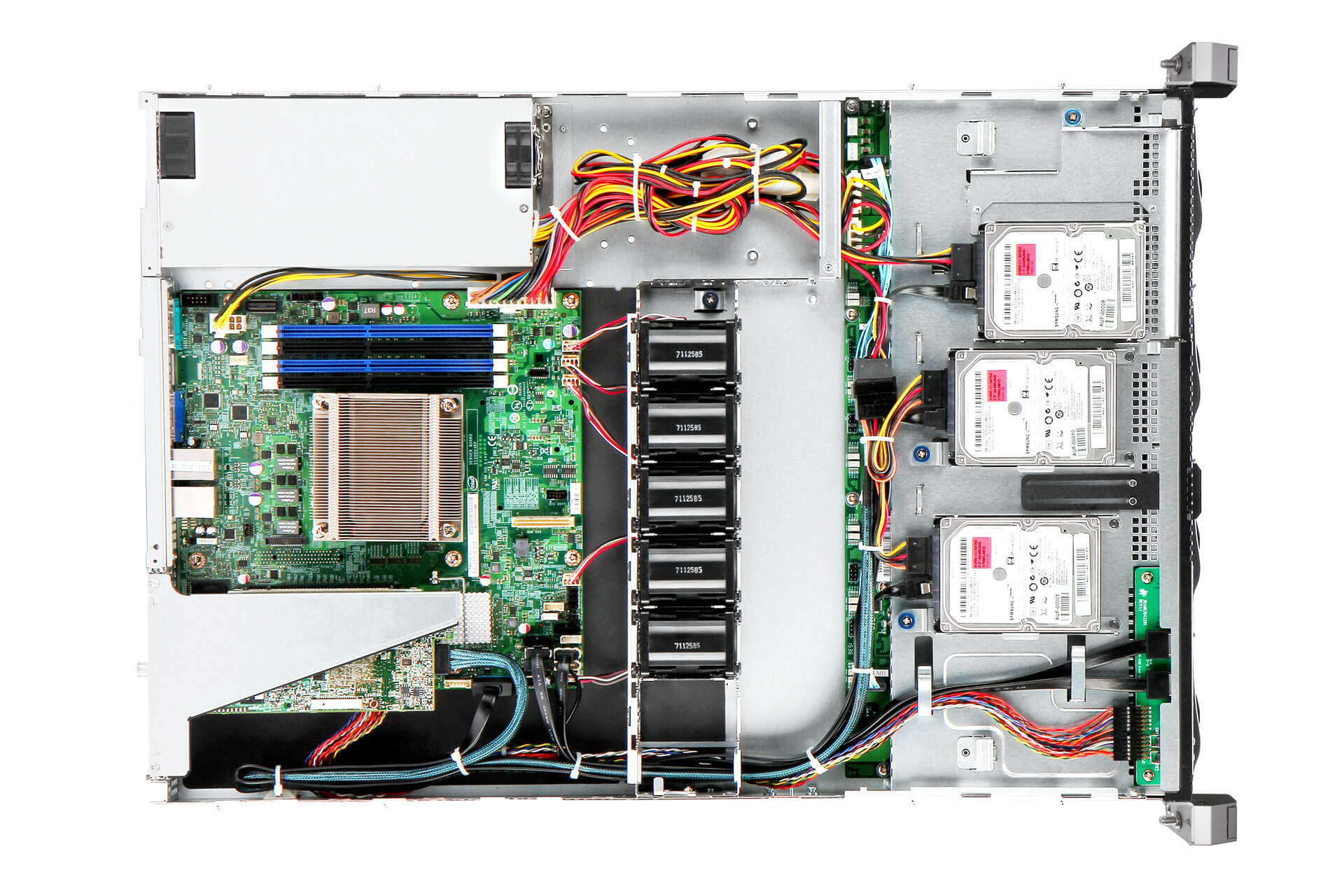

* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Download | Preview |
|---|---|---|
| IW-RS104-02M eDM | ||
| IW-RS104-02M Gallery | - | |
| IW-RS104-02M Compatibility | ||
| IW-RS104-02M User Manual | ||
| IW-RS104-02M Passive Backplane User Manual |
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Back I/O Shield Plate | 2RAVIQ006600 | Rear I/O shield- Intel S1400SP | 1 |
|
| Back I/O Shield Plate | 2RAVIQ006700 | Rear I/O shield- Intel S2600CP | 1 |
|
| Back I/O Shield Plate | 2RAVIQ006800 | Rear I/O shield- Intel S2400SC/S1400FP | 1 |
|
| Back I/O Shield Plate | 2RAVIQ006900 | Rear I/O shield- Intel S1200BTL | 1 |
|
| Back I/O Shield Plate | 2RAVIQ007200 | Rear I/O shield- Intel D2500HN | 1 |
|
| Back I/O Shield Plate | 2RAVIQ007301 | Rear I/O shield- ASRock EP2C602-2T/D16 | 1 |
|
| Back I/O Shield Plate | 2RAVIQ007301 | Rear I/O shield- ASRock EP2C602-2L+2OS6/D16 | 1 |
|
| Back I/O Shield Plate | 2RAVIQ007400 | Rear I/O shield- ASRock E3C224D2I/E3C226D2I | 1 |
|
| Back I/O Shield Plate | 2RAVIQ007501 | Rear I/O shield- ASRock E3C224/E3C224-4L | 1 |
|
| Back I/O Shield Plate | 2RAVIQ007600 | Rear I/O shield- ASROCK E3C204 | 1 |
|
| Back I/O Shield Plate | 2RAVIQ007801 | Rear I/O shield- Intel S1200V3RP | 1 |
|
| Back I/O Shield Plate | 2RAVIQ008100 | Rear I/O shield- ASRock EP2C602/EP2C602-4L/D16 | 1 |
|

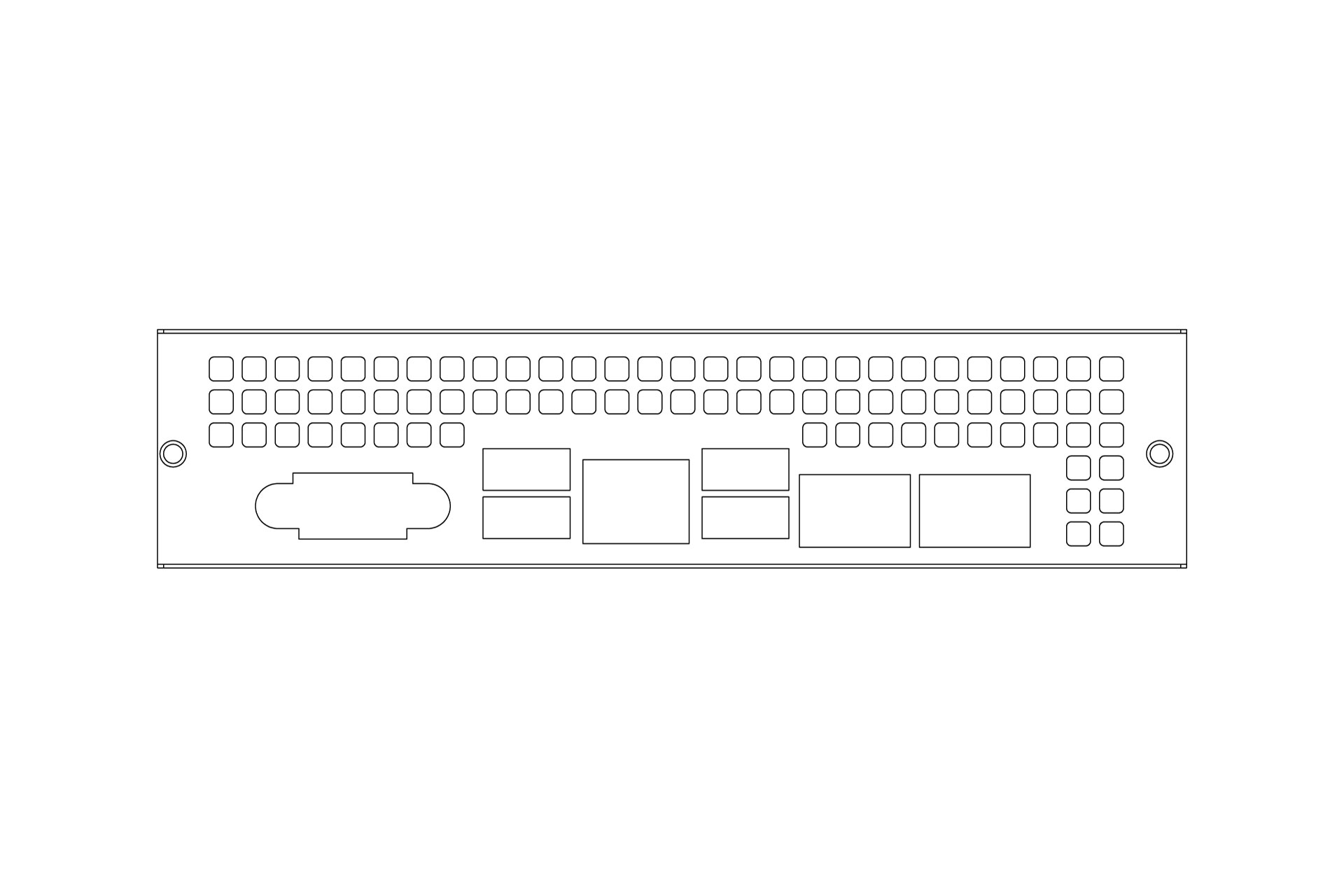

| Back I/O Shield Plate | 2RAVIQ023600 | Rear I/O shield- Intel S2600CW2R | 1 |
|
| Back I/O Shield Plate | 2RAVIQ025900 | Rear I/O shield- Intel S1200SP | 1 |
|
| Back I/O Shield Plate | 2RAVIQ031000 | Rear I/O shield- ASRock E3C236D4M-4L | 1 |
|
| Back I/O Shield Plate | 2RAVIQ031100 | Rear I/O shield- ASRock EP2C612D16SM-2T | 1 |
|
| Back I/O Shield Plate | 2RAVIQ031200 | Rear I/O shield- ASRock EP2C612D24-4L | 1 |
|
| Back I/O Shield Plate | 2RAVIQ034200 | Rear I/O shield- ASUS Z10PA-U8 | 1 |
|
| Back I/O Shield Plate | 2RAVIQ034300 | Rear I/O shield- ASUS Z10PA-D8 | 1 |
|
| Back I/O Shield Plate | 2RAVIQ034400 | Rear I/O shield- ASUS P10S-V-4L | 1 |
|
| Back I/O Shield Plate | 2RAVIQ034500 | Rear I/O shield- ASUS P10S-M-DC | 1 |
|
| Back I/O Shield Plate | 2RAVIQ034600 | Rear I/O shield- ASUS P10S-M | 1 |
|
| Back I/O Shield Plate | 2RAVIQ034701 | Rear I/O shield- ASUS P10S-C-4L | 1 |
|
| Back I/O Shield Plate | 2RAVIQ035100 | Rear I/O shield- ASUS Z10PR-D16 | 1 |
|
| Back I/O Shield Plate | 2RAVIQ036800 | Rear I/O shield- ASUS Z11PR-D16 | 1 |
|
| Back I/O Shield Plate | 2RAVIQ041800 | Rear I/O shield- ASUS P11C-C/4L | 1 |
|
| Back I/O Shield Plate | 2RAVIQ041900 | Rear I/O shield- ASUS- Z11PA-D8 | 1 |
|
| Back I/O Shield Plate | 2RAVIQ043000 | Rear I/O shield-RS10402M Dummy | 1 |
|
| Back I/O Shield Plate | 2RAVIQ043400 | Rear I/O shield- DFI KD631 | 1 |
|
| Back I/O Shield Plate | - | Rear I/O shield. Material: SGCC (customize design based on customer's specific motherboard I/O design) | 1 | |
| Power Supply | - | 1U Single 500W, Gold | 1 | |
| Power Supply | - | 1U 1+1 Redundant 650W, Platiunm | 1 | |
| Slide Rail | - | 28" screwless slide rail, ball-bearing | 1 | |
| Cable | - | SATA 7-pin to SATA 7-pin, 500mm | 1 | |
| Cable | - | SATA 7-pin to SATA 7-pin, 670mm | 1 | |
| Cable | - | SGPIO 2*4-pin / 2*4-pin L800 UL1007#26 1 | 1 | |
| Cable | - | Mini SATA cable for slim ODD | 1 | |
| Cable | - | Mini SATA HD cable, 180°/180°, 800mm | 1 | |
| Others | - | Iron front panel with silver coating | 1 |
|
