IW-RS104-02SN

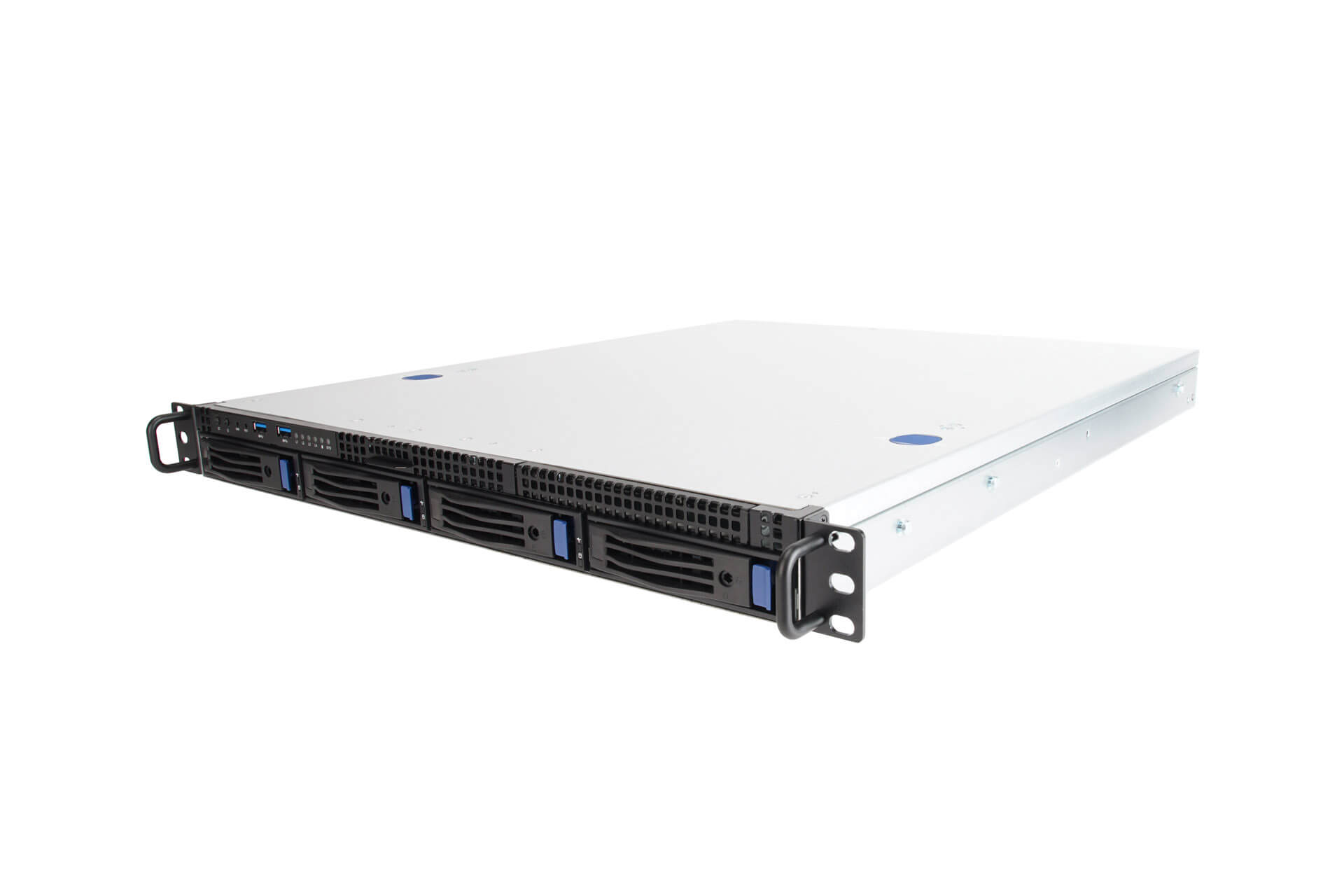

1U Rackmount Short Depth Storage Server
．Supports 6Gb/s SATA/SAS or 12Gb/s Mini-SAS HD backplane
．Built-in info-tag for systems easy management
．Easy-swap 4028mm PWM fans with anti-vibration mechanism
．External 3.5" x 4 or 2.5" x 4 hot-swap HDD tays with lock supported
．Internal 2.5" HDD x 2

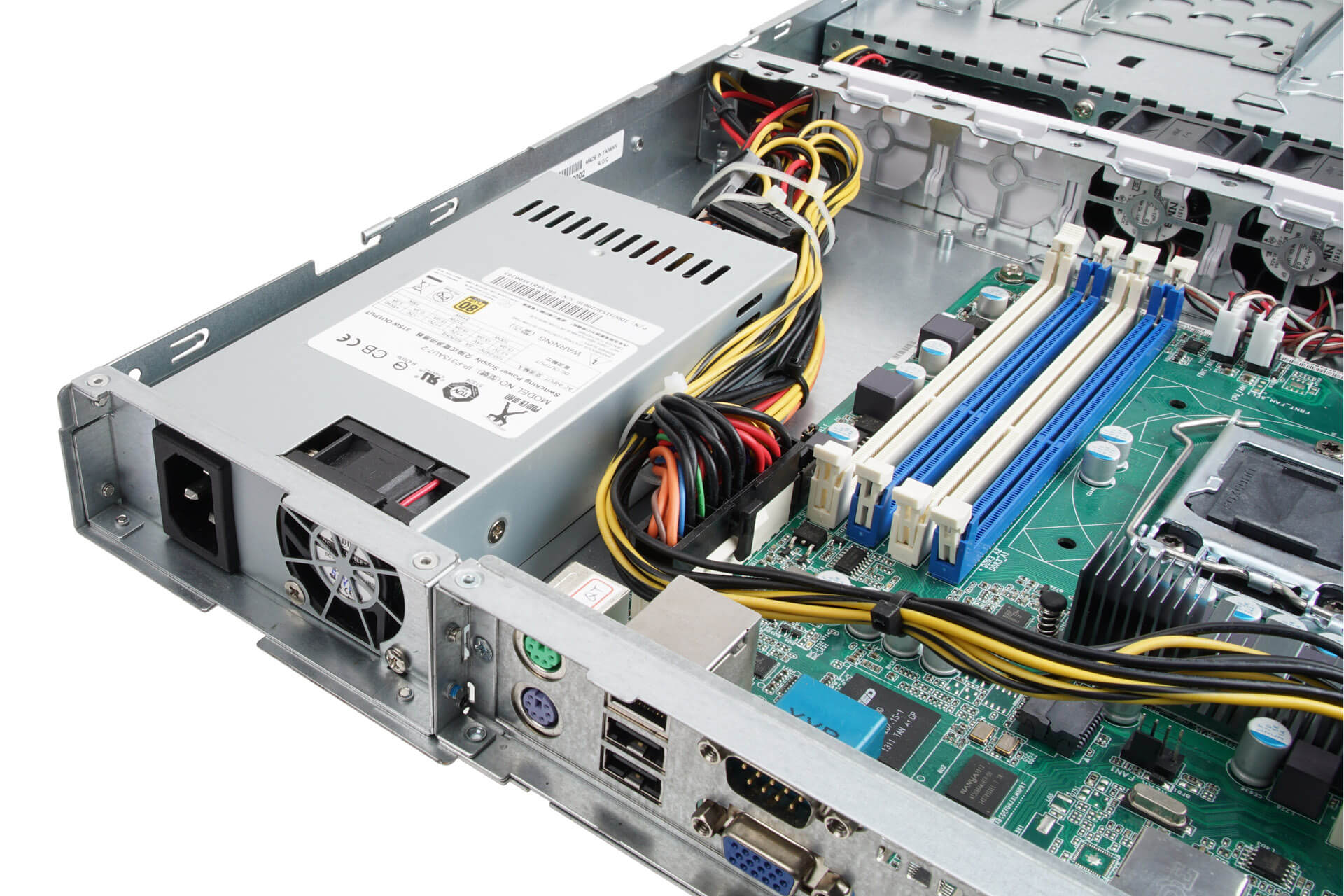

．Supports flex, single or 1+1 redundant power supply
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX (12" x 10") |
| Drive Bay | • External: Slim ODD x 1 or internal 2.5" HDD x 1 (optional), hot-swap 3.5" x 4 or 2.5" x 4 • Internal: 2.5" HDD x 2 |
| Power Supply | Supports: • Form factor: Flex, 1U single, 1U 1+1 redundant PSU • Watt: Flex up to 400W, single 500W, redundant up to 300W |
| Indicators | Power Status, HDD, LANs, System Fail Activity LEDs |
| Front Control Panel | Power Switch, ID Switch, System Reset, NMI, USB 3.0 x 2 |
| Backplane | • SATA x 4 (6Gb/s supported) • Mini-SAS HD, SFF-8643 (12Gb/s supported) |

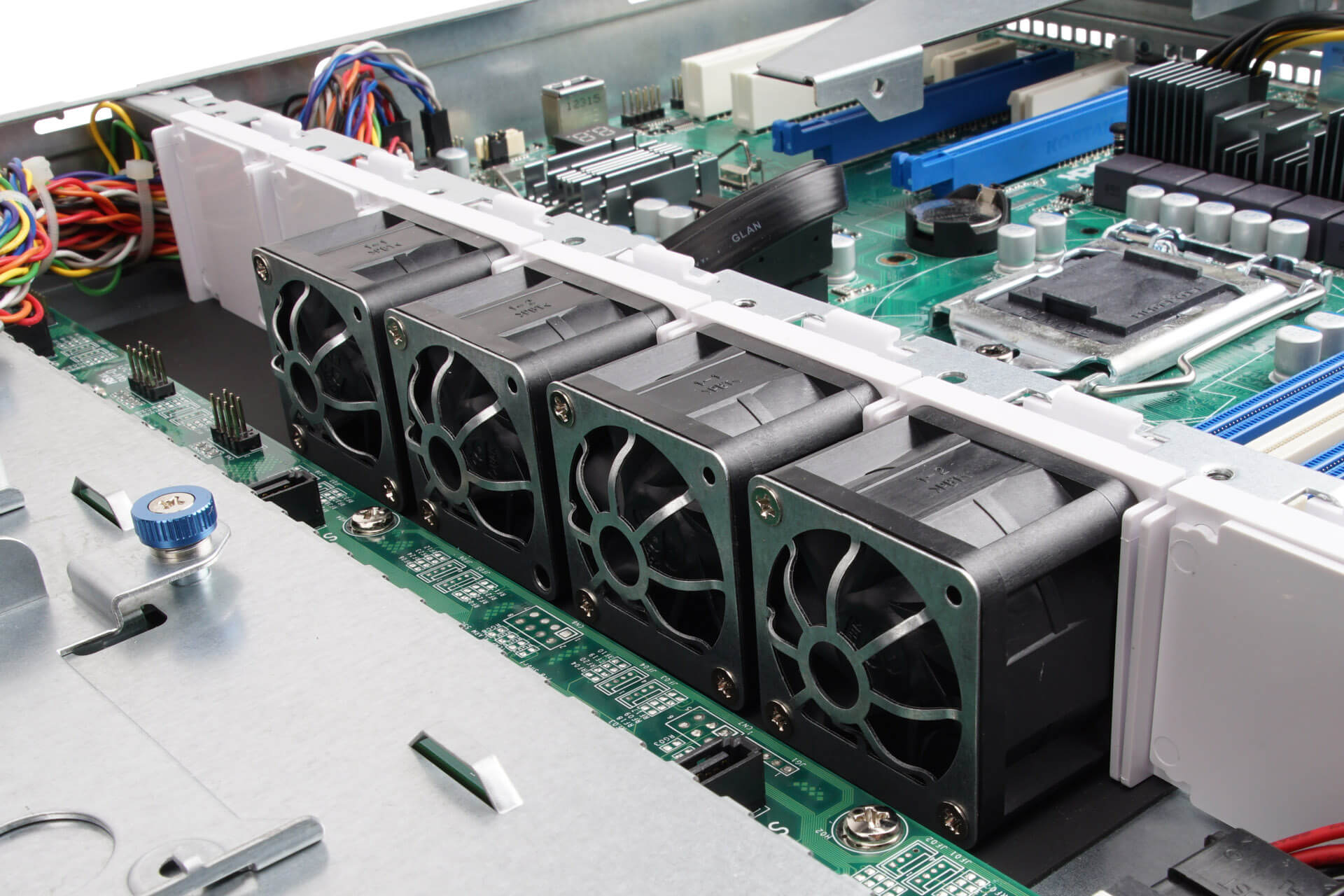

| Cooling Fans | Supports 40 x 28 mm PWM easy-swap fan x 6 (pre-installed x 4) |
| Expansion Slot | Full height PCI slot x 1 (via riser card and bracket) |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Support 28" screwless slide rail, ball-bearing |
| Product Dimensions (DxWxH; Chassis Only) | 533.4 x 482.6 x 44.4mm (21" x 19" x 1.75") |
| Package Dimensions (DxWxH) | 700 x 570 x 180mm |
| Weight (Chassis Only) | • Net weight: 5.63kg • Gross weight: 9.11kg |
| Cubic Feet | 2.54 |
| Container Information | Single Packing: • 20': 384pcs • 40': 800pcs • 40' HQ: 900pcs |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Back I/O Shield Plate | 2RAVIQ006600 | Rear I/O shield- Intel S1400SP | 1 |
|
| Back I/O Shield Plate | 2RAVIQ006700 | Rear I/O shield- Intel S2600CP | 1 |
|
| Back I/O Shield Plate | 2RAVIQ006800 | Rear I/O shield- Intel S2400SC/S1400FP | 1 |
|
| Back I/O Shield Plate | 2RAVIQ006900 | Rear I/O shield- Intel S1200BTL | 1 |
|
| Back I/O Shield Plate | 2RAVIQ007200 | Rear I/O shield- Intel D2500HN | 1 |
|
| Back I/O Shield Plate | 2RAVIQ007301 | Rear I/O shield- ASRock EP2C602-2T/D16 | 1 |
|
| Back I/O Shield Plate | 2RAVIQ007301 | Rear I/O shield- ASRock EP2C602-2L+2OS6/D16 | 1 |
|
| Back I/O Shield Plate | 2RAVIQ007400 | Rear I/O shield- ASRock E3C224D2I/E3C226D2I | 1 |
|
| Back I/O Shield Plate | 2RAVIQ007501 | Rear I/O shield- ASRock E3C224/E3C224-4L | 1 |
|
| Back I/O Shield Plate | 2RAVIQ007600 | Rear I/O shield- ASROCK E3C204 | 1 |
|
| Back I/O Shield Plate | 2RAVIQ007801 | Rear I/O shield- Intel S1200V3RP | 1 |
|
| Back I/O Shield Plate | 2RAVIQ008100 | Rear I/O shield- ASRock EP2C602/EP2C602-4L/D16 | 1 |
|
| Back I/O Shield Plate | 2RAVIQ021100 | Rear I/O shield- Intel 1200BTS | 1 |
|
| Back I/O Shield Plate | 2RAVIQ021200 | Rear I/O shield- Intel S1200V3RP | 1 |
|
| Back I/O Shield Plate | 2RAVIQ021700 | Rear I/O shield- Gigabyte MZJ19AI | 1 |
|
| Back I/O Shield Plate | 2RAVIQ023600 | Rear I/O shield- Intel S2600CW2R | 1 |
|
| Back I/O Shield Plate | 2RAVIQ025900 | Rear I/O shield- Intel S1200SP | 1 |
|
| Back I/O Shield Plate | 2RAVIQ027600 | Rear I/O shield- Avalue EMX-Q170P | 1 |
|

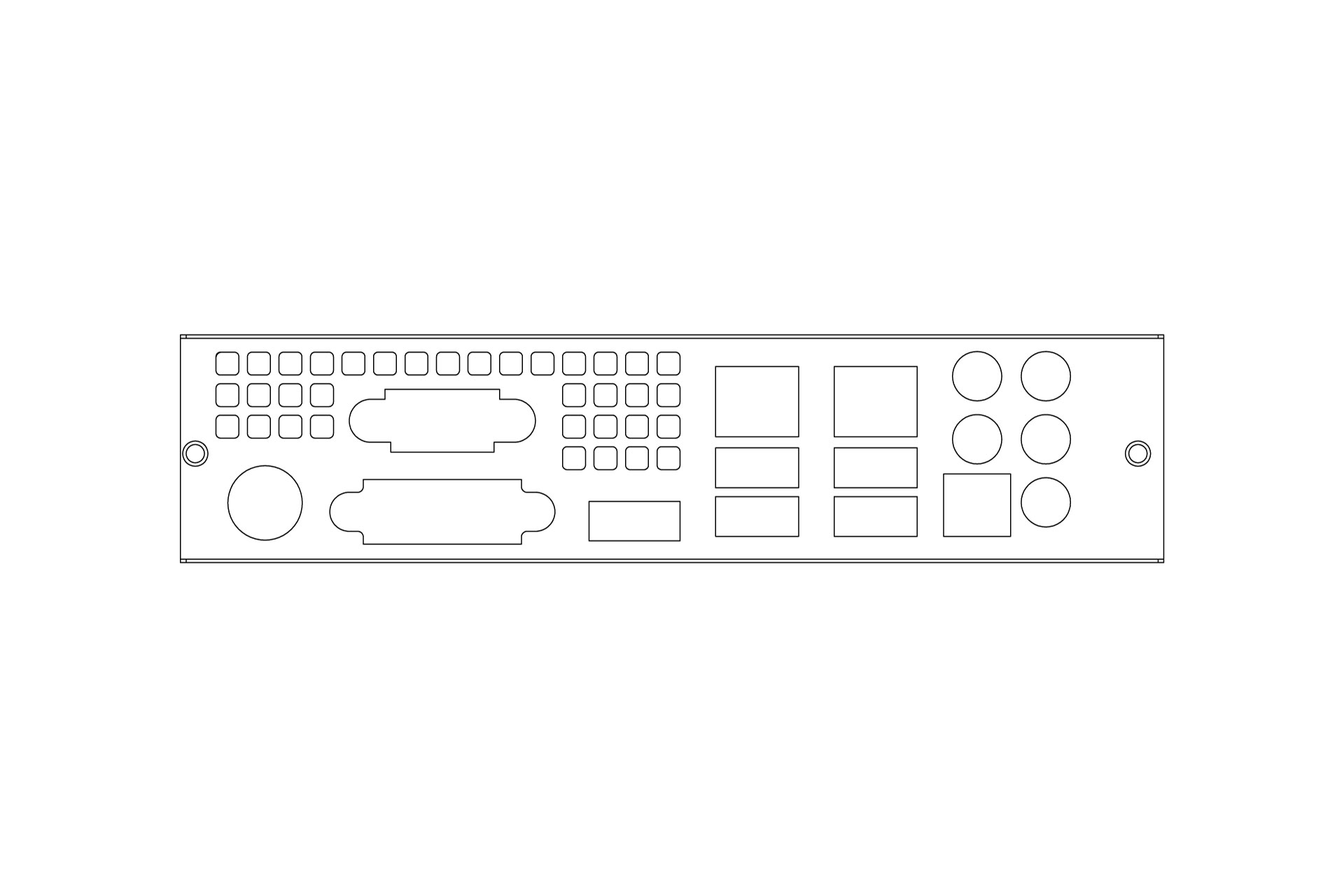

| Back I/O Shield Plate | 2RAVIQ029600 | Rear I/O shield- ASRock C236M WS | 1 |
|
| Back I/O Shield Plate | 2RAVIQ030000 | Rear I/O shield- ASRock E3C232D4U | 1 |
|
| Back I/O Shield Plate | 2RAVIQ036400 | Rear I/O shield- Gigabyte MX31-CE0 | 1 |
|
| Back I/O Shield Plate | 2RAVIQ042400 | Rear I/O shield- ASRock E3C232D4U | 1 |
|
| Back I/O Shield Plate | - | Rear I/O shield. Material: SGCC (customize design based on customer's specific motherboard I/O design) | 1 | |
| Fan | - | 40 x 28mm, PWM, 14500 RPM | 1 | |
| Power Supply | - | IP-P315AU7-2, 1U Flex ATX 315W, Gold | 1 | |
| Power Supply | - | 1U Flex ATX 400W, Gold | 1 | |
| Power Supply | - | 1U Single 500W, Gold | 1 | |
| Power Supply | - | 1+1 Redundant 300W | 1 | |
| Slide Rail | - | 28" screwless slide rail, ball-bearing | 1 | |
| Riser Card | - | RSC-1U PCI-E x 16 | 1 | |
| Riser Card | - | 1U mini ITX riser kits | 1 | |
| Cable | - | SATA 7-pin to SATA 7-pin, 500mm | 1 | |
| Cable | - | SATA 7-pin to SATA 7-pin, 670mm | 1 | |
| Cable | - | SGPIO 2*4-pin / 2*4-pin L800 UL1007#26 1 | 1 | |
| Cable | - | Mini SATA cable for slim ODD | 1 | |
| Cable | - | Mini SATA HD cable, 180°/180°, 800mm | 1 | |
| Others | - | Iron front panel with silver coating | 1 |
