Chassis Cooling
The IW-RS108-07 utilizes six of InWin's 40 x 56mm PWM easy-swap fans providing superior airflow and effectively dissipates the heat from the enclosure with anti-vibration and low-noise features.

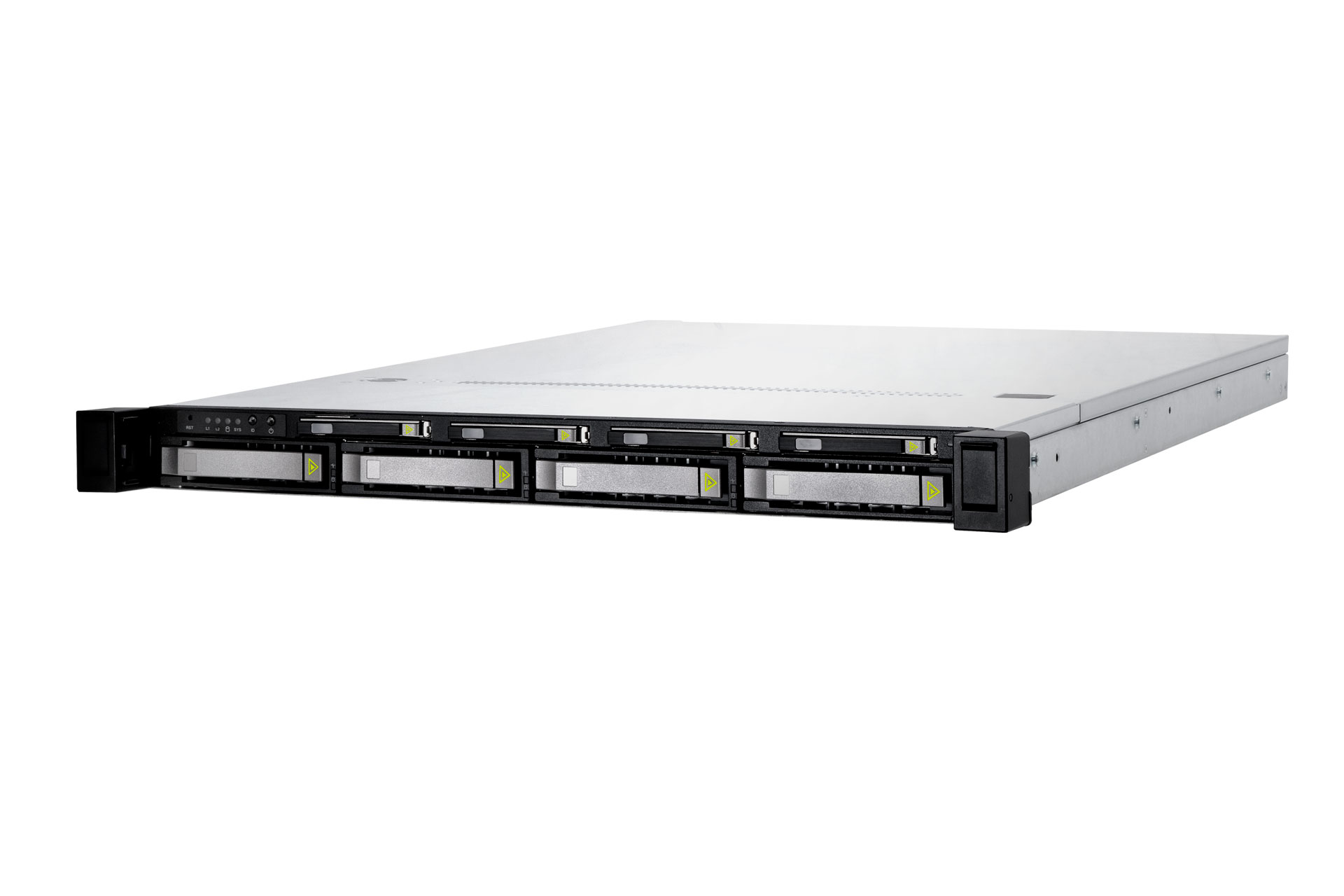

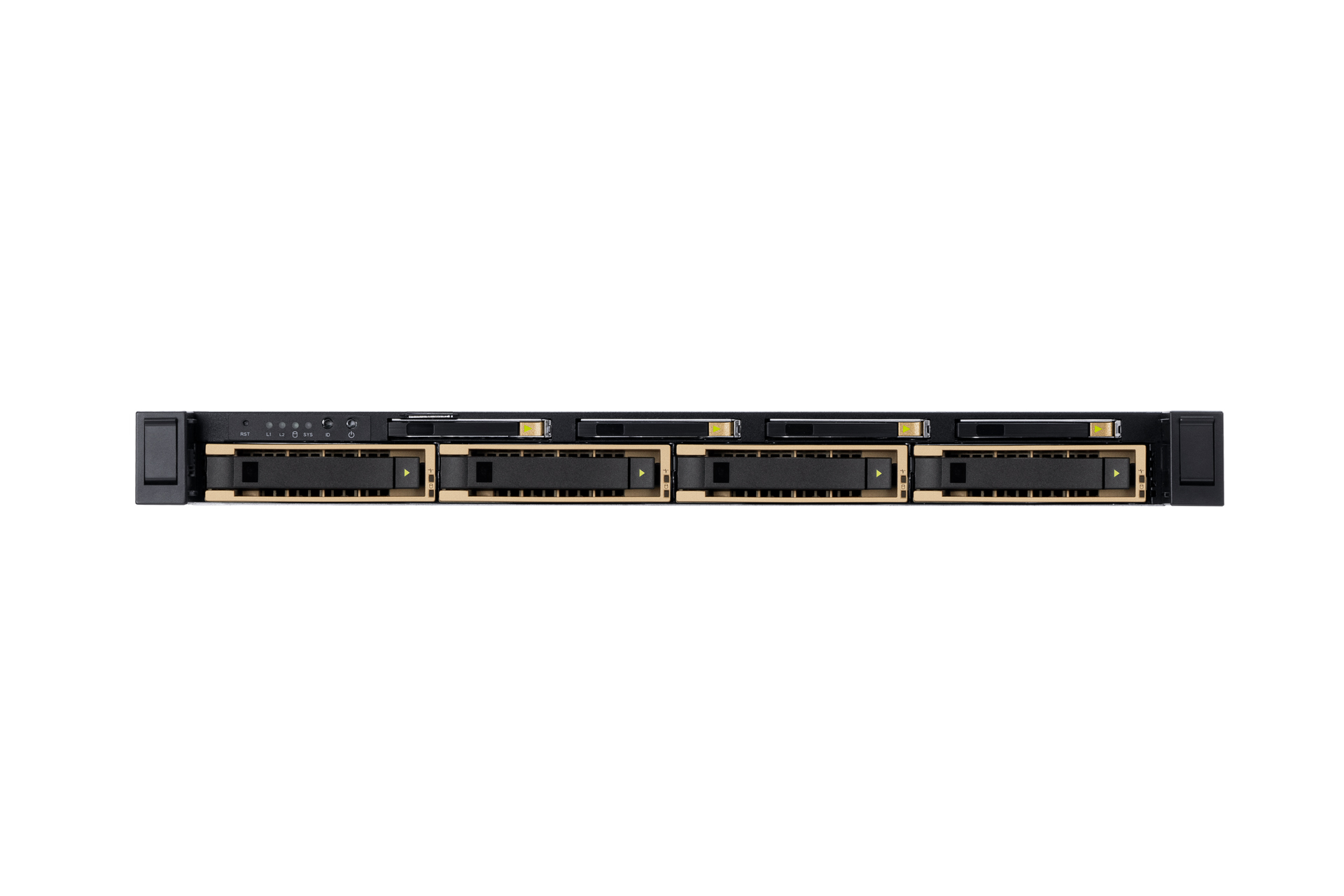

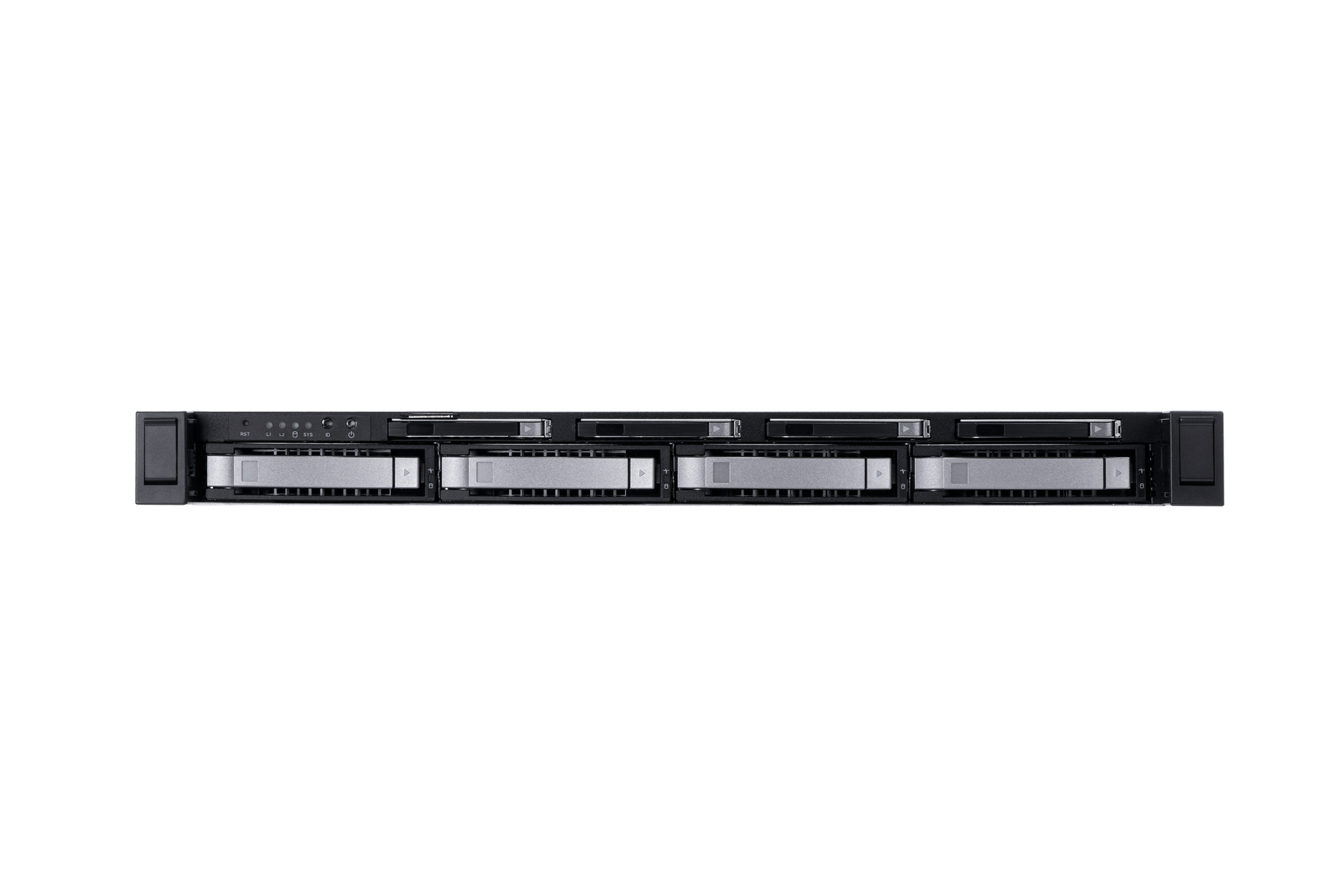

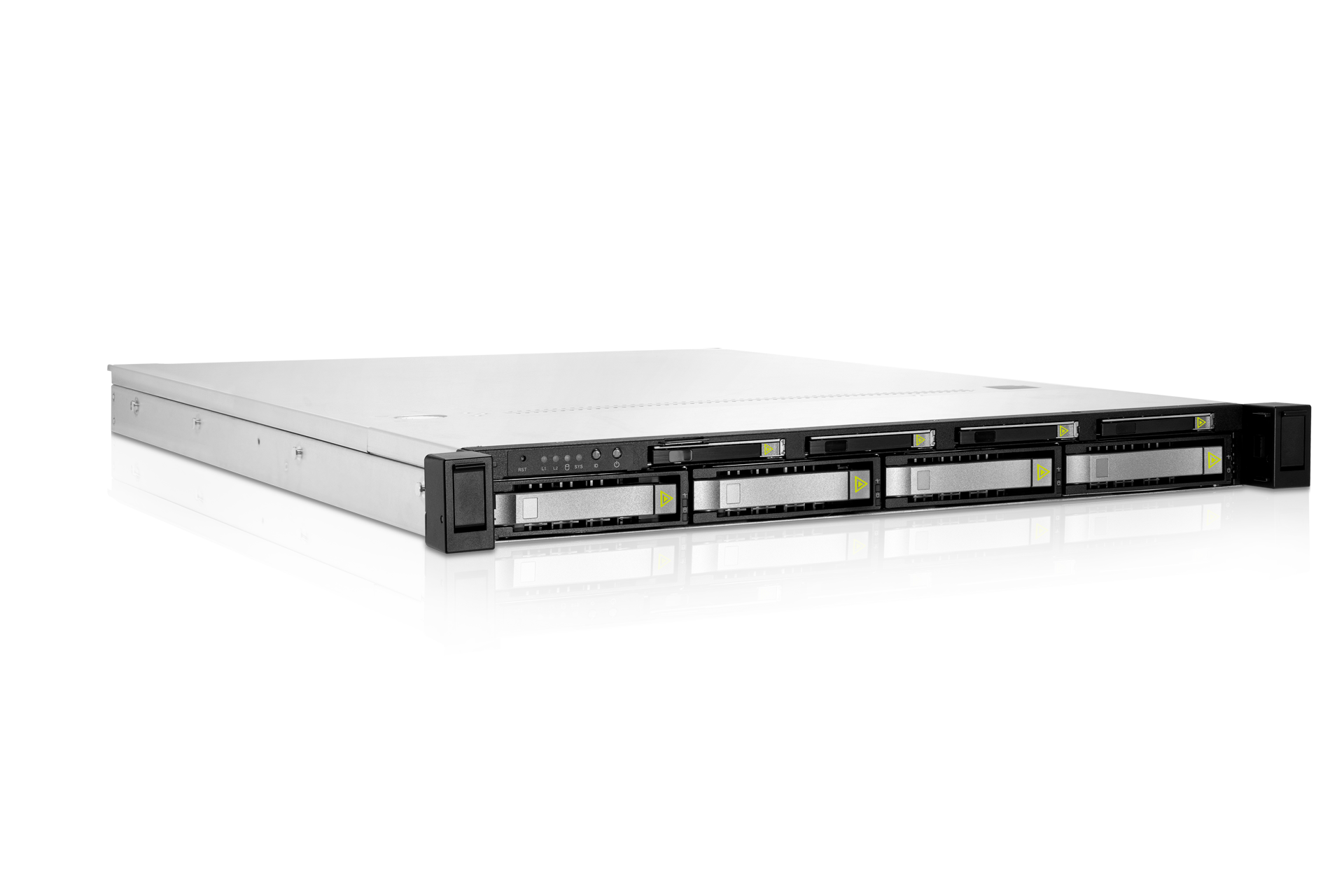

server system assembly

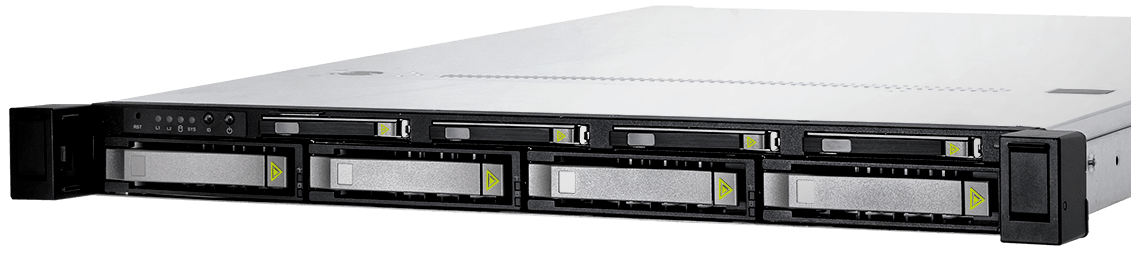

IW-RS108-07
1U NVMe Hybrid Storage Server
- Intel® Xeon Scalable & AMD EPYC family compliant
- Backplanes with Mini-SAS HD and OCuLink connectors
- Maximum supports U.2 NVMe SSDs x 8; 3.5"/2.5" (15mm) trays x 4, and 2.5" (7mm) trays x 4
- Flexible storage configuration of 3.5" HDDs and 2.5" SSDs (15mm, 7mm)
- Intensive airflow generated by easy-swap cooling fans x 6
- Full-height PCIe slot x 1 (via riser card)
- 80 Plus Gold Single PSU or 80 Plus Platinum 1U Redundant PSU(optional)
- Customized I/O shield backplate for specific motherboards with SGCC material
- 3.5"/2.5" (15mm) trays x 8 pair with optional 2.5" (15mm) trays x 4 or 2.5"(7mm) trays x 8
Hybrid Storage Server
for the Lowest TCO
The IW-RS108-07 is fully compliant with both Intel® Xeon Scalable & the AMD EPYC processors. Deliberately designed for three types of drive bays; supporting 3.5"/2.5" (15mm) HDDs and 2.5" (7mm) SSDs. The ability to utilize an assortment of storage devices provides customers the highest flexibility to meet storage preference and Total Cost of Ownership (TCO) requirements.
Compliant
Single PSU 500W
Redundant PSU 750W
x 8 bays
3.5"/2.5" 15mm HDD
2.5" 7mm HDD
28" slide rails
26" deep chassis
40 x 56mm fans x 6
Capacity

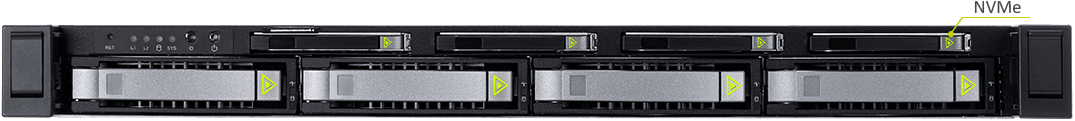

Maximum supports U.2 NVMe SSDs x 8
Choose from two optional tray colors: Standard black or new gray
Featuring hot-swap and tool-free designs
Choose from two optional tray colors: Standard black or new gray
Featuring hot-swap and tool-free designs

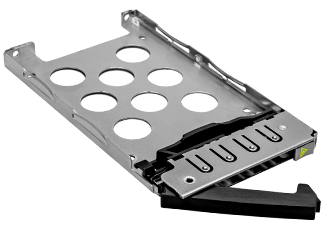

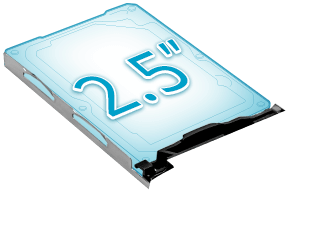

4 x 2.5" (7mm) SAS/SATA/NVMe drives

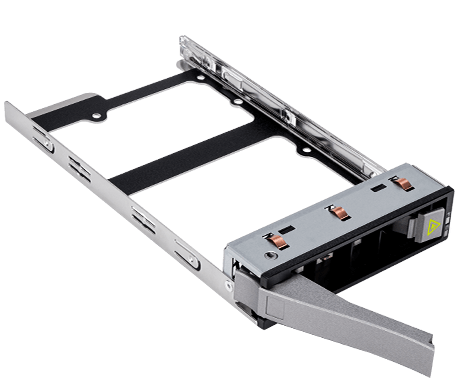

4 x 3.5"/2.5" (15mm) SAS/SATA/NVMe drives
Flexibility
Emphasizing flexible storage configurations to meet the most demanding data storage needs.
Connectivity

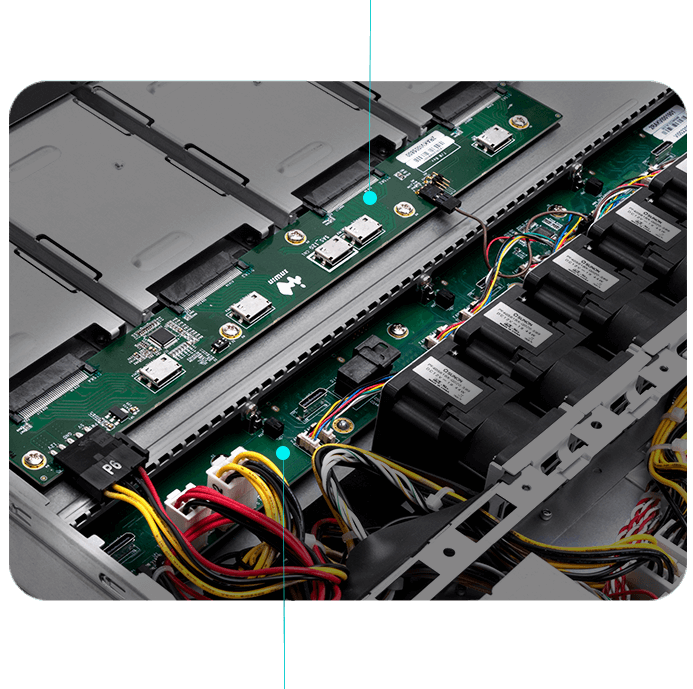

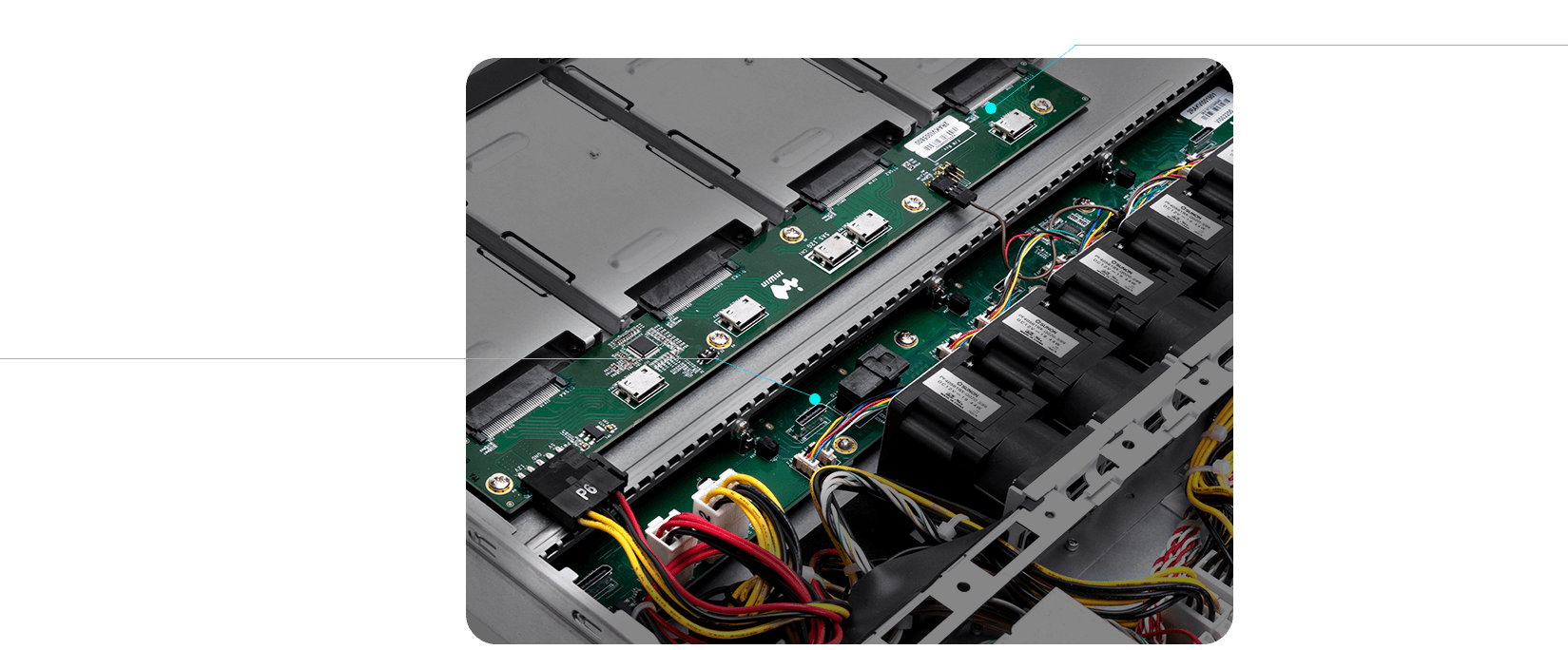

Mini-SAS HD & OCuLink Backplane
Mini-SAS HD & OCuLink Backplane
InWin's exclusive backplanes offer high-performance connectivity and are designed to support SAS/SATA, and NVMe with OCuLink host interfaces.
Compatibility

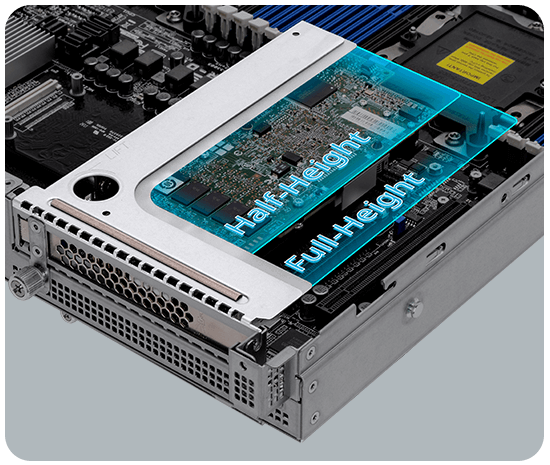

The IW-RS108-07 supports full-height PCIe slot x1. Customers can pair InWin's PCIe riser card which can be horizontally installed in the rear of the chassis.
Superior Airflow
Easy-Swap Fans
Meets The Thermal Environment Requirements
Efficiency
The IW-RS108-07 supports two different power supply options. Both options offer highly efficient power delivery with 80 PLUS ® certification.
500W Single PSU,
80 PLUS® Gold
750W Redundant PSU,
80 PLUS® Platinum
PSU Cable Information
Single PSU Cable Information
24 pin Main Motherboard
8 pin CPU
8 pin CPU
8 pin BP
6 pin BP
5 pin BP
PMBus
Redundant PSU Cable Information
24 pin Main Motherboard
8 pin CPU
8 pin CPU
8 pin BP
6 pin BP
5 pin BP
PMBus
Customization
Customized I/O shield backplate for 1U chassis with SGCC material is available to fulfill customers' specific I/O configuration requirements.
Easy Maintenance
The tool-less design can help customers to maintain the server more easily and efficiently. The latest design of gray color trays features an all-new mounting mechanism for the HDDs to quickly mounted and removed.
Ball-bearing slide rails
Top cover open button
Quick-install HDD tray
PCIe riser card bracket
Dimensions
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay | Top layer: External 2.5" hot-swap trays (7mm) x 4 Bottom layer: External 3.5"/2.5" hot-swap trays x 4 |
| Power Supply | Supports: • 750W 1U 1+1 redundant PSU, 80 Plus Platinum • 500W 1U single PSU, 80 Plus Gold |
| Indicators | Power LED, LAN1/LAN2 LED, System LED, HDD LED, ID LED |
| Front Control Panel | Power on/off, Reset, NMI, ID SW |
| Backplane- Top Layer | • Host: Oculink (SFF-8611) x 5, one is for SAS/SATA data transfer rates • HDD: 7mm NVMe/SAS/SATA x 4 |
| Backplane- Bottom Layer | • Host: Mini-SAS HD (SFF-8643) x 1, Oculink (SFF-8611) x4 • HDD: 15mm NVMe/SAS/SATA x 4 |
| Cooling Fans | 40 x 56mm PWM easy-swap fans x 6, 21500RPM |
| Expansion Slot | Full-height PCIe slot x 1 (via riser card) |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 676.1 x 437.9 x 43.4 mm (26.6" x 17.2" x 1.7") |
| Package Dimensions (DxWxH) | 880 x 610 x 180mm |
| Weight (Chassis Only) | • Net weight: 9.62kg • Gross weight: 12.79kg |
| Cubic Feet | 3.41 |
| Container Information | Single packing with pallets: • 20': 200 pcs • 40': 440 pcs • 40'HQ: 528 pcs |
12Gb/s Backplane Specifications

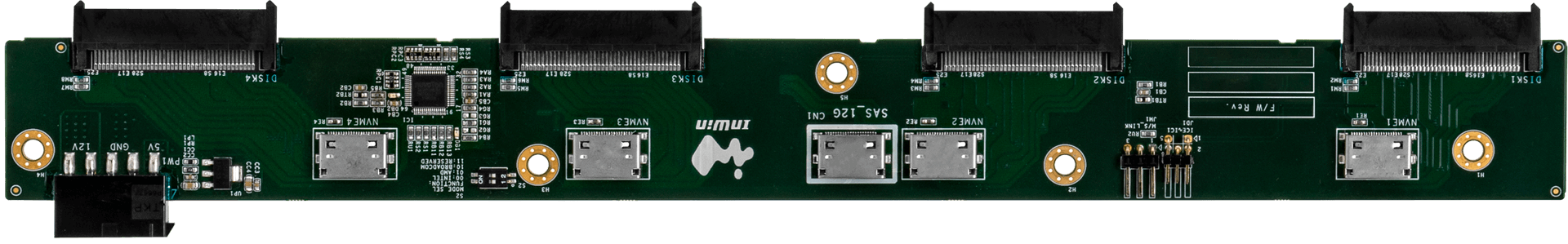

| Backplane – Top Layer | Oculink Backplane |
| Dimension (W x H) | 313.9mm x 33.5mm |
| Backplane Type | Passive |
| Host Interface | Oculink (SFF-8611) x 5, one is for SAS/SATA data transfer rates |
| HDD Interface | 7mm NVMe/SAS/SATA x 4 |
| Backplane – Bottom Layer | Mini-SAS HD & Oculink Backplane |
| Dimension (W x H) | 417.7mm x 33.5mm |
| Backplane Type | Passive |
| Host Interface | Mini-SAS HD (SFF-8643) x 1, Oculink (SFF-8611) x 4 |
| HDD Interface | 15mm NVMe/SAS/SATA x 4 |
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Download | Preview |
|---|---|---|
| IW-RS108-07 eDM | ||
| IW-RS108-07 Bottom Layer Backplane User Manual | ||
| IW-RS108-07 Top Layer Backplane User Manual |
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS148100 | 28" tool-less & ball-bearing slide rail | 1 | |
| Slide Rail | 3RAMIS152300/ 3RAMIS152400 | 28" tool-less & ball-bearing slide rail w | 1 set | |
| Cable | 3RAMW4031700 | Mini SAS 12G SFF-8643 to SFF-8643 cable, 800mm | 1 | |
| Cable | SFF-8611 to SFF-8643 | |||
| Power Supply | 500W 1U single PSU, 80 Plus Gold | 1 | ||
| Power Supply | 3RAMAP043000 | 750W 1U redundant PDB power cage | 1 | |
| Power Supply | 3RAMAP042200 | 750W 1U redundant module, 80 Plus Platinum | Max.2 | |
| Power Supply | 3RAMAP028000 | 750W 1U redundant module, 80 Plus Platinum | Max.2 | |
| Back I/O Shield Plate | 2RAKIQ020900 | Rear I/O shield- ASRock EP2C624D16NM | 1 | |
| Back I/O Shield Plate | 2RAKIQ039500 | Rear I/O shield- ASRock EP2C624D16NM w/Mezzing | 1 | |
| Back I/O Shield Plate | 2RAVIQ051200 | Rear I/O shield- ASRock EP2C612D16C-4L | 1 | |
| Back I/O Shield Plate | 2RAVIQ051300 | Rear I/O shield- ASRock EP2C622D16-2T | 1 | |
| Back I/O Shield Plate | 2RAKIQ020800 | Rear I/O shield- ASUS Z11PR-D16 | 1 | |
| Back I/O Shield Plate | 2RAKIQ021100 | Rear I/O shield- Gigabyte MD61-SC2 | 1 | |
| Back I/O Shield Plate | 2RAKIQ021000 | Rear I/O shield- Intel H28527 S2600CW2R | 1 | |
| Back I/O Shield Plate | 2RAKIQ021200 | Rear I/O shield- Tyan S7100AG2NR | 1 | |
| Back I/O Shield Plate | - | InWin can customize the I/O Shield back plate for specific motherboards, with SGCC material, to provide the highest flexibility for your computing needs. | 1 | |
| HDD Tray | 2RAKPH057701 | 2.5"/3.5" hot-swap HDD tray (gray color) | Max. 4 | |
| HDD Tray | 2RAKPH038001 | 2.5" /3.5" hot-swap HDD tray (black color) | Max. 4 | |
| HDD Tray | 2RAKPH063700 | 2.5"/3.5" hot-swap HDD tray (gray color with NVMe symbol) | Max. 4 | |
| HDD Tray | 2RAKPH038101 | 2.5"/3.5" hot-swap HDD tray (black color with NVMe symbol) | Max. 4 | |
| HDD Tray | 2RAKPH063400 | 2.5" (7mm) hot-swap tray (gray color) | Max. 4 | |
| HDD Tray | 2RAKPH037800 | 2.5" (7mm) hot-swap tray (black color) | Max. 4 | |
| HDD Tray | 2RAKPH063900 | 2.5" (7mm) hot-swap tray (gray color with NVMe symbol) | Max. 4 | |
| HDD Tray | 2RAKPH037900 | 2.5" (7mm) hot-swap tray (black color with NVMe symbol) | Max. 4 | |
| Fan | 3RAMFB016400 | 40 x 56mm PWM easy-swap, 21500RPM, 4pin x 2 | Max.6 | |
| Fan | 2RAKFB011800 | 40 x 56 mm PWM easy-swap fan & fan bracket, 4pin x 2 | Max.6 | |
| Others | 2RAKIP012002 | Mesh front panel | 1 |
