IW-RS108-09S
1U Short Depth PCIe Gen5 Hybrid Rackmount Chassis
- Intel® Xeon Scalable & AMD EPYC processor compatibility
- Compact 1U short-depth design for space-constrained deployments
- Equipped with MCIO 4i connectivity for high-speed PCIe Gen5 data transfer
- 8 × 2.5" hot-swap drive bays with NVMe / SAS4 / SATA support for flexible hybrid storage configurations
- Six easy-swap 40 x 56mm, 21500RPM fans for optimized cooling
- Features one full-height PCIe slot via PCIe Gen5 riser card
- Compatible with ATX and CEB motherboards for diverse system integration
- Customized I/O shield backplate for specific motherboards with SGCC material
1U Short-Depth PCIe Gen5 NVMe & SAS4 Hybrid Rackmount Chassis
Uncompromising Performance in a Compact 1U Platform
Engineered for enterprise storage, edge computing, and networking infrastructure, the IW-RS108-09S delivers high-performance computing and storage capabilities in a compact short-depth 1U footprint for space-constrained deployments. Leveraging PCIe Gen5 connectivity, hybrid storage support, and extensive expansion, it provides the performance and adaptability required for evolving IT demands.
40 x 56mm fans x 6
Full-Height PCIe slot support
Engineered for Enterprise Performance
Built around hybrid storage support for PCIe Gen5 NVMe, SAS4, and SATA, the platform enables versatile storage configurations and broad hardware compatibility for demanding workloads.
High-Speed Storage Connectivity

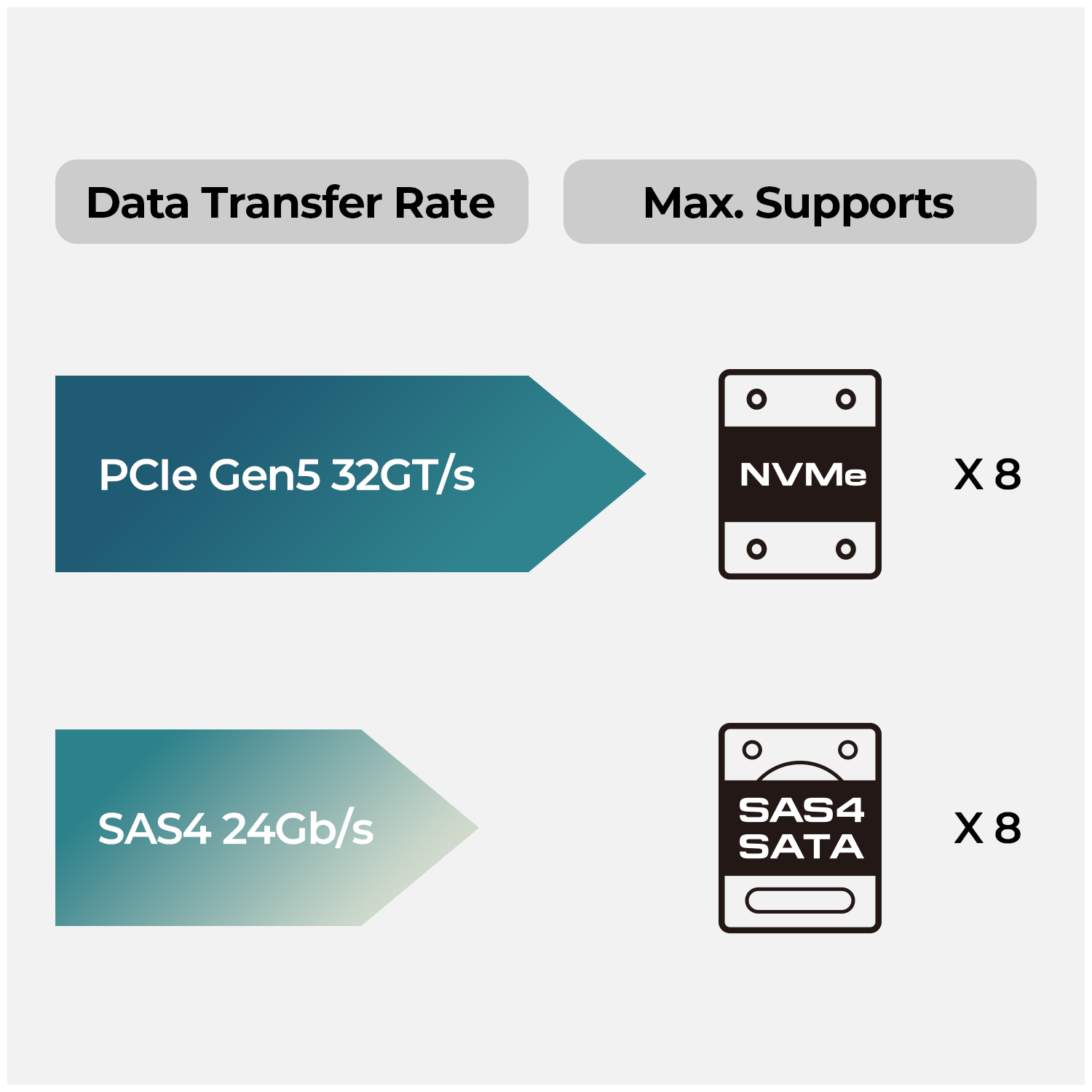

Harnessing PCIe Gen5 at 32 GT/s and SAS4 at 24 Gbps, the backplane provides the bandwidth needed for demanding storage workloads.
Easy Hot-Swap Access
Eight hot-swappable 2.5" drive bays simplify drive replacement and maintenance while minimizing system downtime.

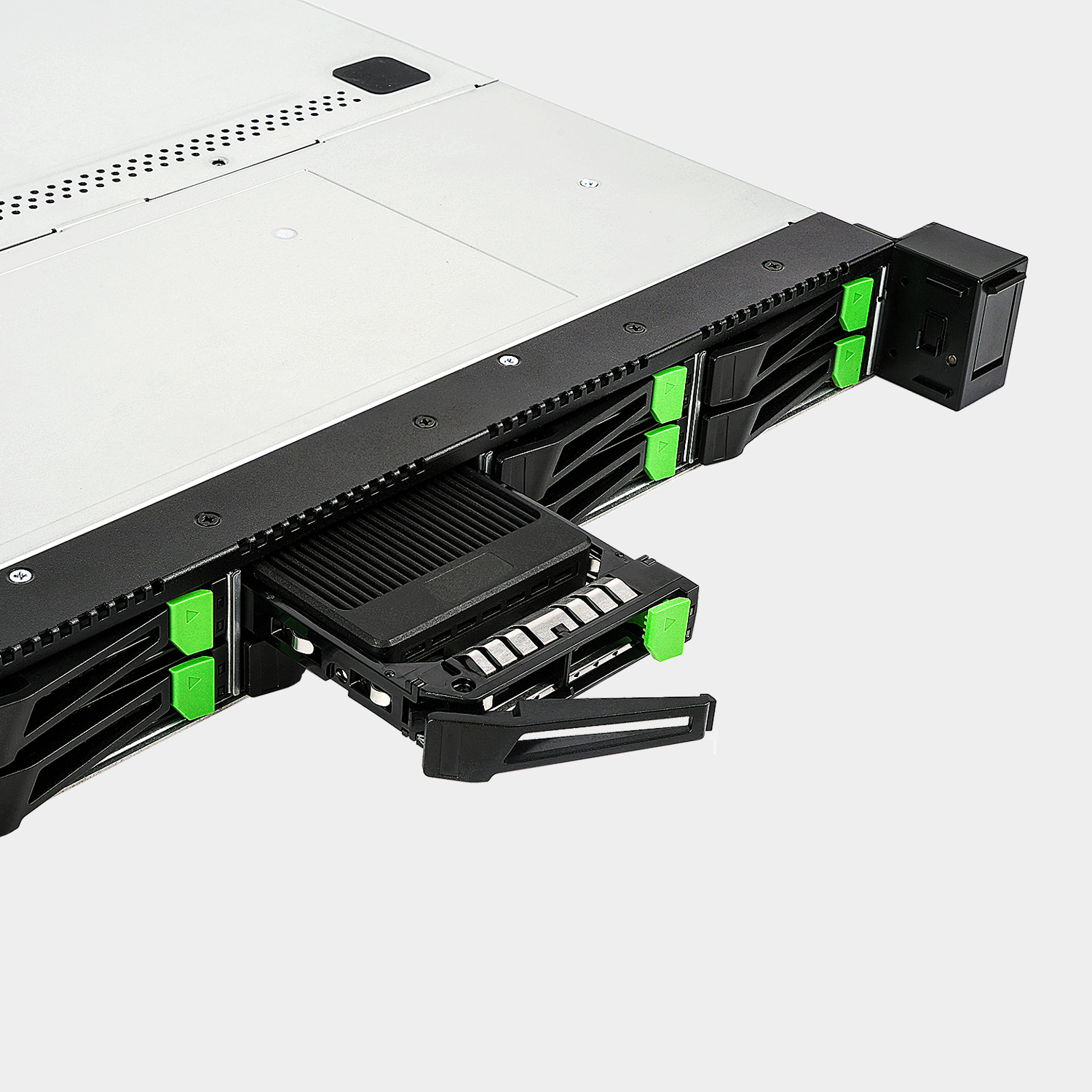

2.5" Tool-less
Hot-Swap Tray
Internal Drive Support

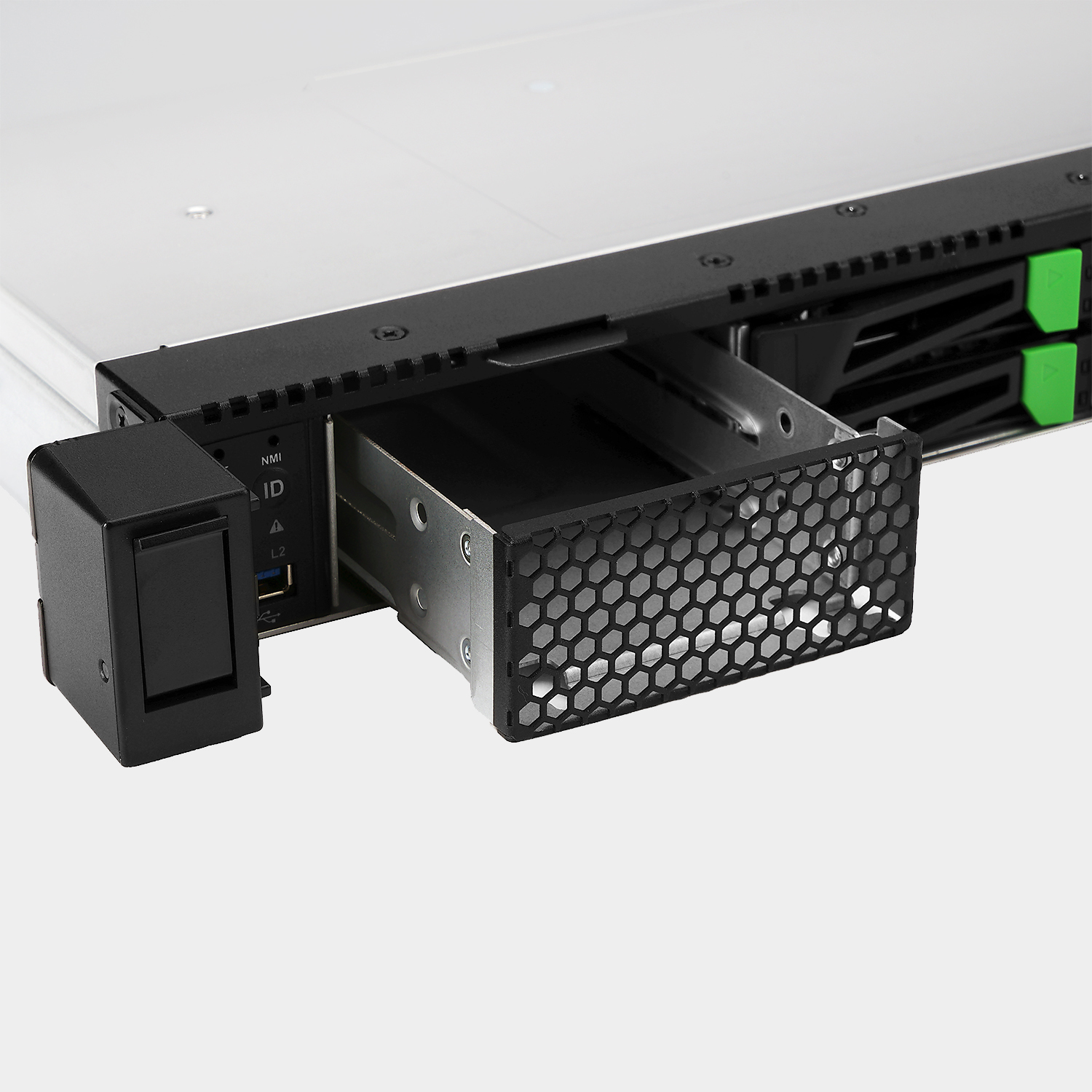

Two internal 2.5" drive bays provide dedicated storage for OS, applications, or additional data.

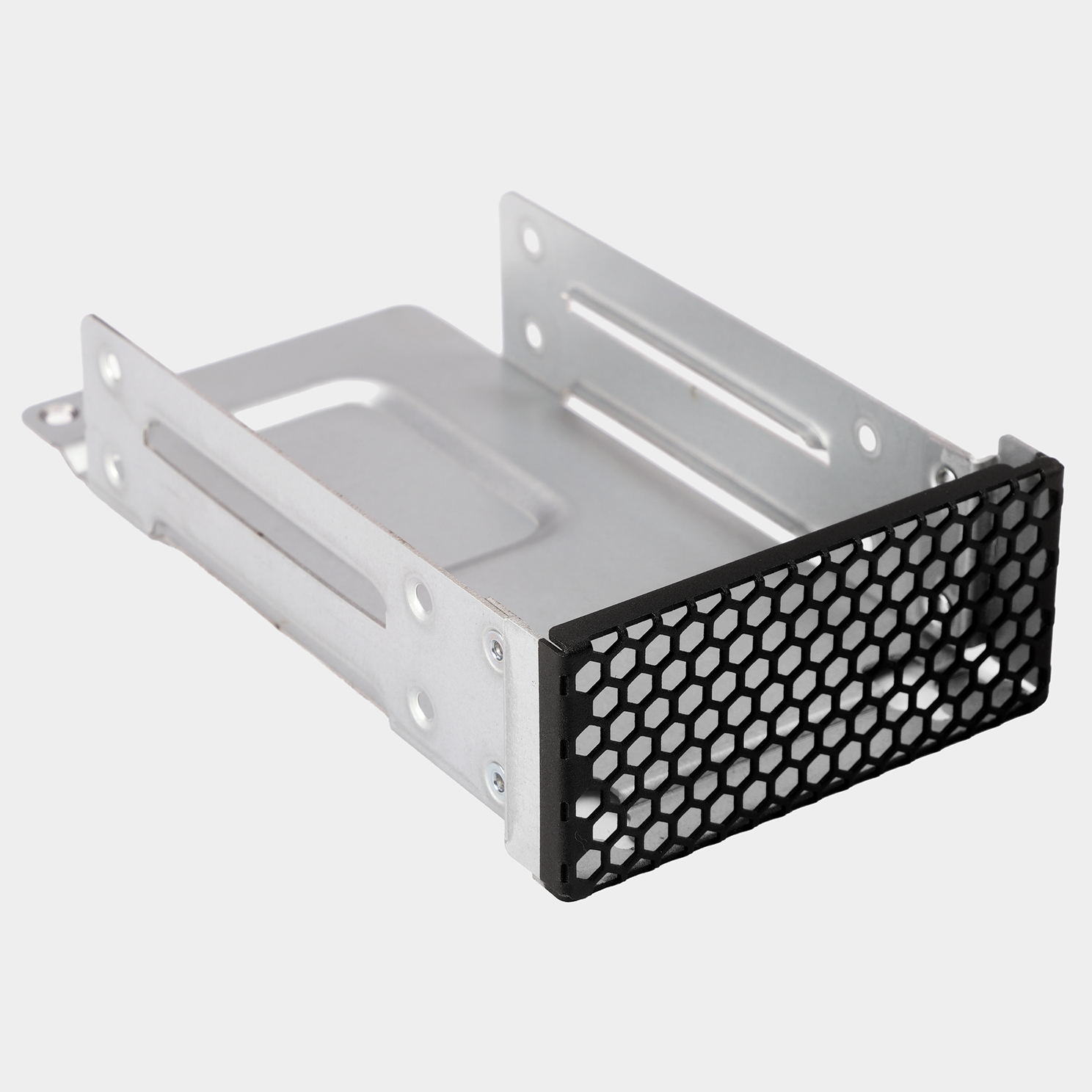

2.5" Internal Drive Bracket (2-in-1)
PCIe Gen5 Ready

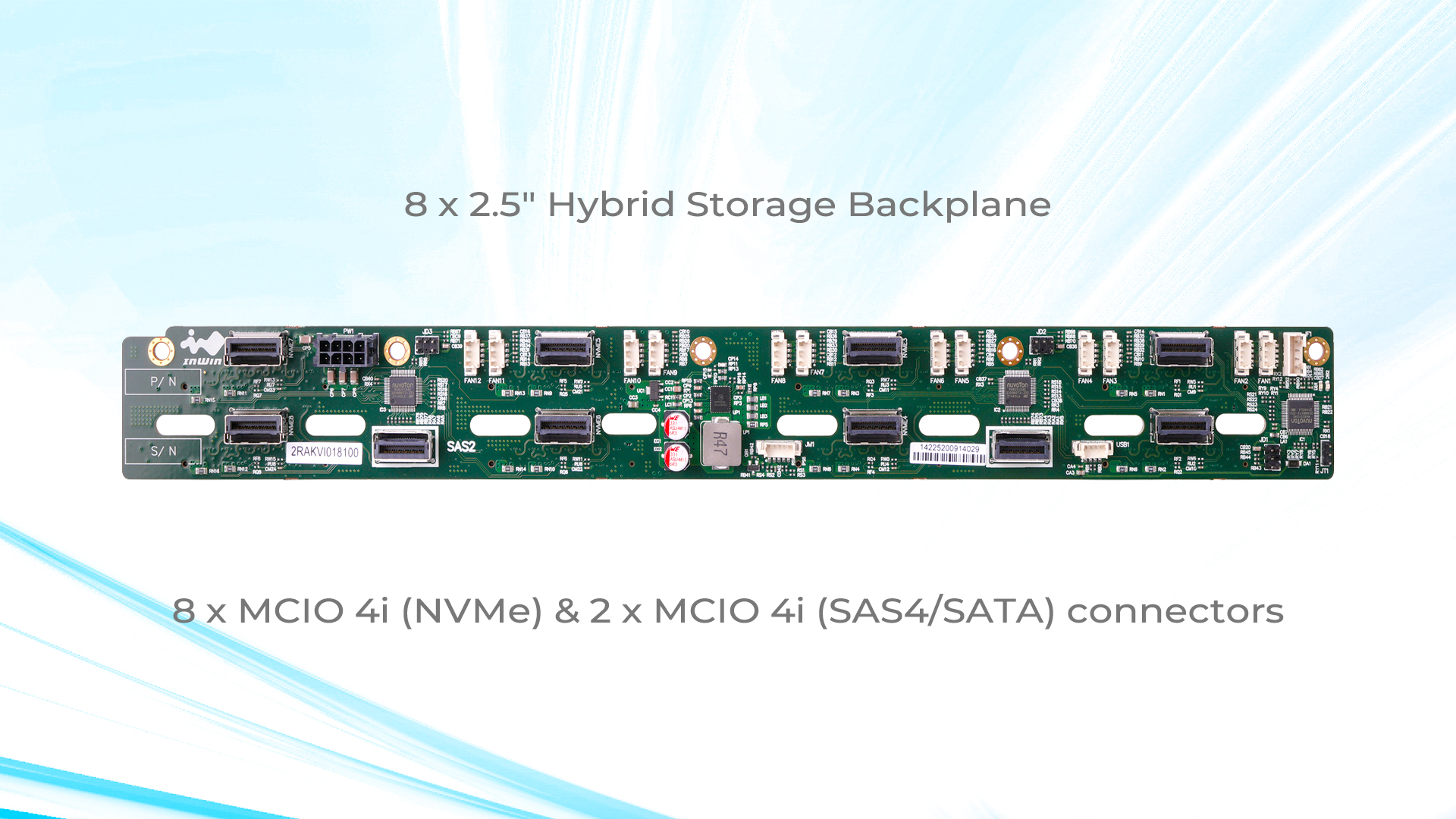

The proprietary backplane supports PCIe Gen5 NVMe, SAS4, and SATA drives via MCIO 4i connectors, providing high-speed connectivity and a flexible foundation for modern enterprise storage.

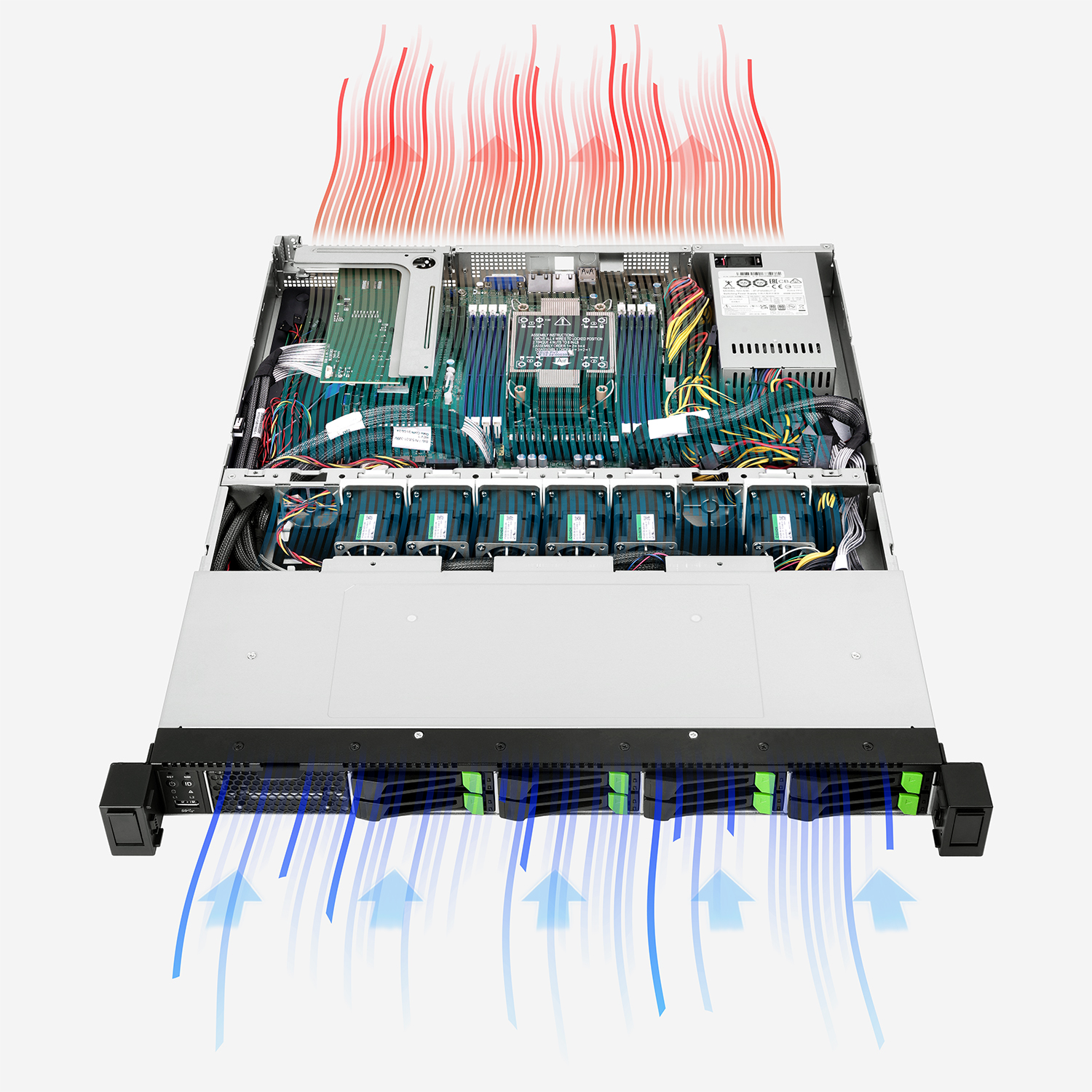

Efficient Cooling Design
Six hot-swappable PWM fans deliver consistent, targeted airflow, maintaining stable temperatures under demanding workloads.

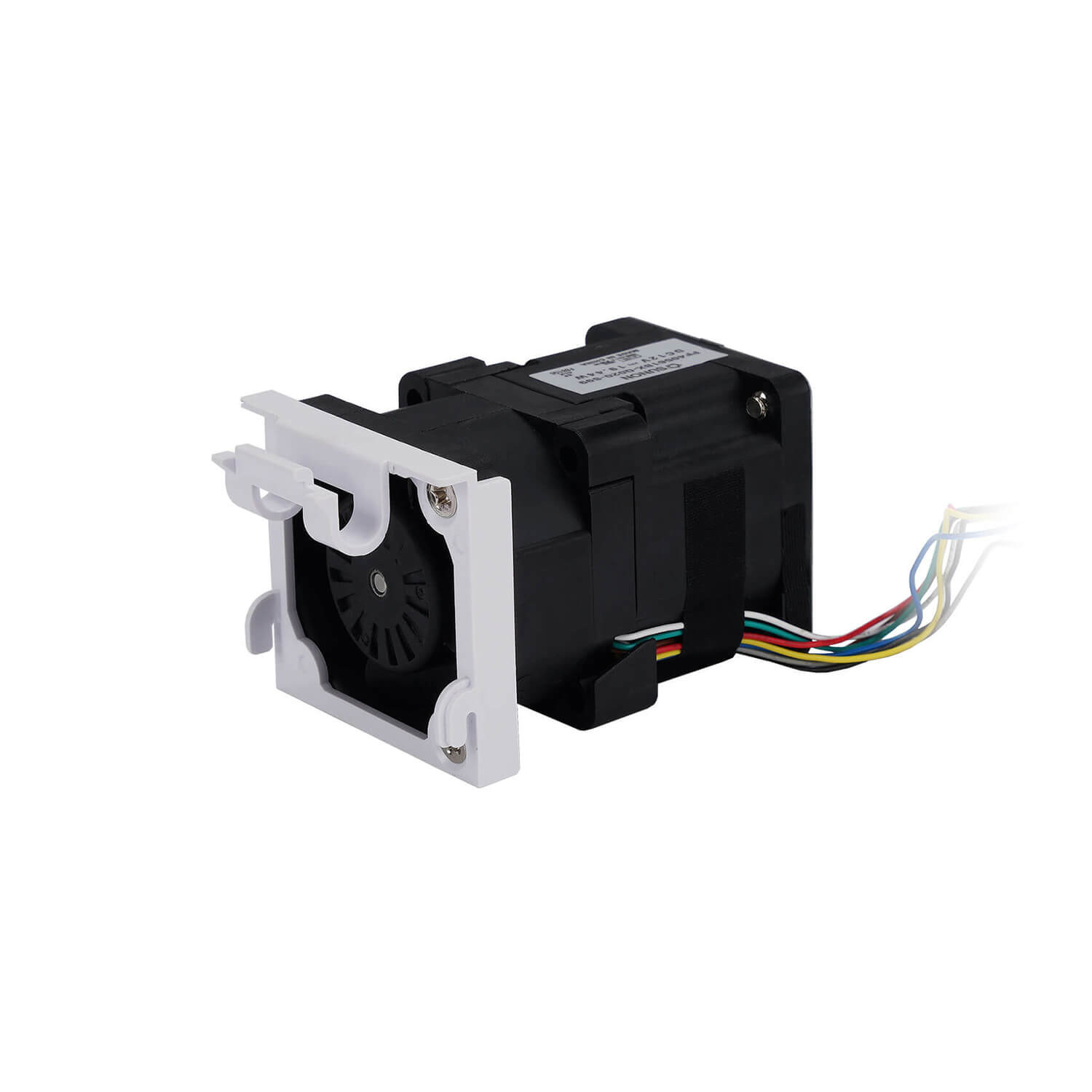

40 x 56 mm, 21500 RPM Easy-Swap Fan
Built to Expand & Adapt
Combining broad hardware compatibility, ample expansion capability, and dependable power delivery, the IW-RS108-09S is ready to tackle a wide range of enterprise deployments.
Motherboard Compatibility
ATX (12" × 9.6") and CEB (12" × 10.5") motherboard compatibility for greater hardware flexibility and simplified system integration.
Full-Height PCIe Expansion

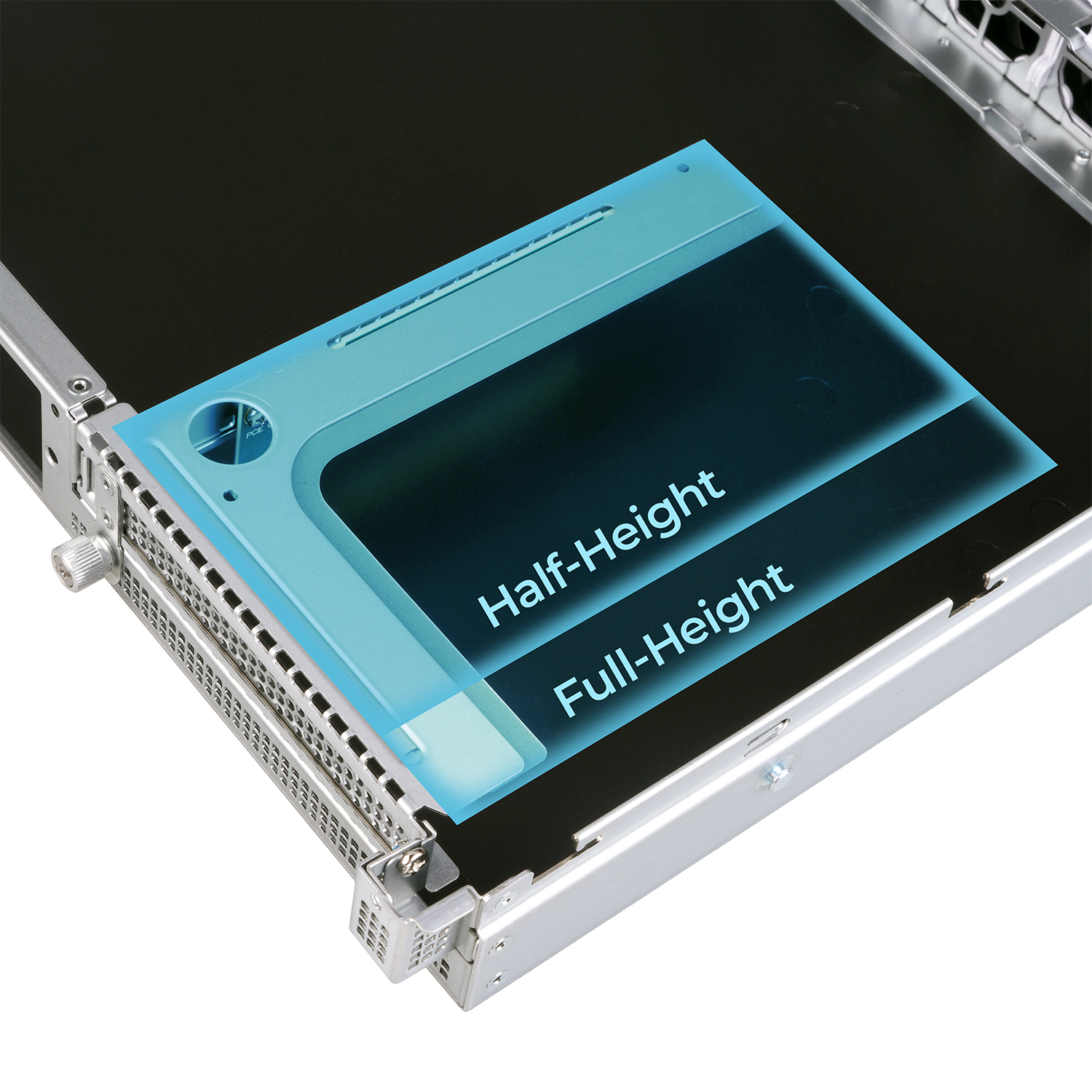

One full-height PCIe slot via a PCIe Gen5 riser card for networking, RAID, storage, and other expansion cards.
Power That Performs
80 PLUS Platinum Flex power supply for high efficiency and reduced power loss.
Power Cable Information
Unit of Length: mm
24-Pin Main Power
8-Pin CPU x 2

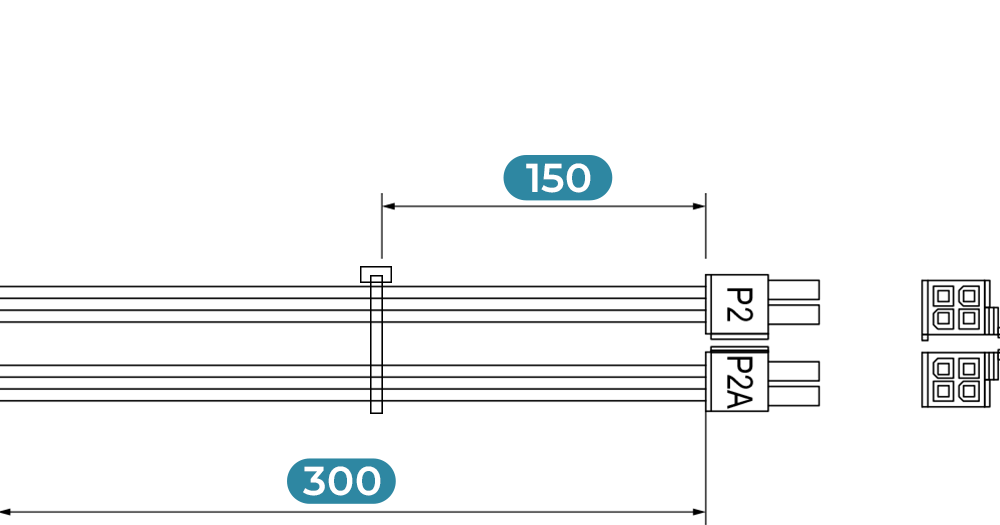

8 Pin Backplane
SATA
| Specification | |
|---|---|
| Industry Standard | Compatible with EIA-RS310Dstandard 19" cabinets |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5") |
| Drive Bay | • External 2.5" hot-swap trays x 8 (supports U.2 NVMe/SAS/SATA drives) • Internal 2.5" HDD x 2 |
| Power Supply | Supports: •80 Plus Platinum Flex 500W |
| Indicators | Power LED, LAN1/LAN2 LED, system LED, HDD LED, ID LED |
| Backplane | • Host: -MCIO 4i x 8 for NVMe transfer rate -MCIO 4i x 2 for SAS/SATA transfer rate • SSD: NVMe/SAS/SATA x 8 |
| Cooling Fans | 40 x 56mm PWM easy-swap fans x 6, 21500 RPM |
| Expansion Slot | Full-height PCIe slot x 1 (via riser card) |
| Material | •Material: SECC •Thickness: 1.0 |
| Product Dimensions (DxWxH) | 549.6 x 438 x 43.4mm (21.6"x17.2"x1.7") |
| Package Dimensions (DxWxH) | 800 x 590 x 185mm |
| Weight | • Net weight: 9.6kg • Gross weight:13.3 kg |
| Cubic Feet | 3.08 |
| Container Information | Single packing with pallets: • 20': 180 pcs • 40': 414 pcs • 40'HQ: 506 pcs |

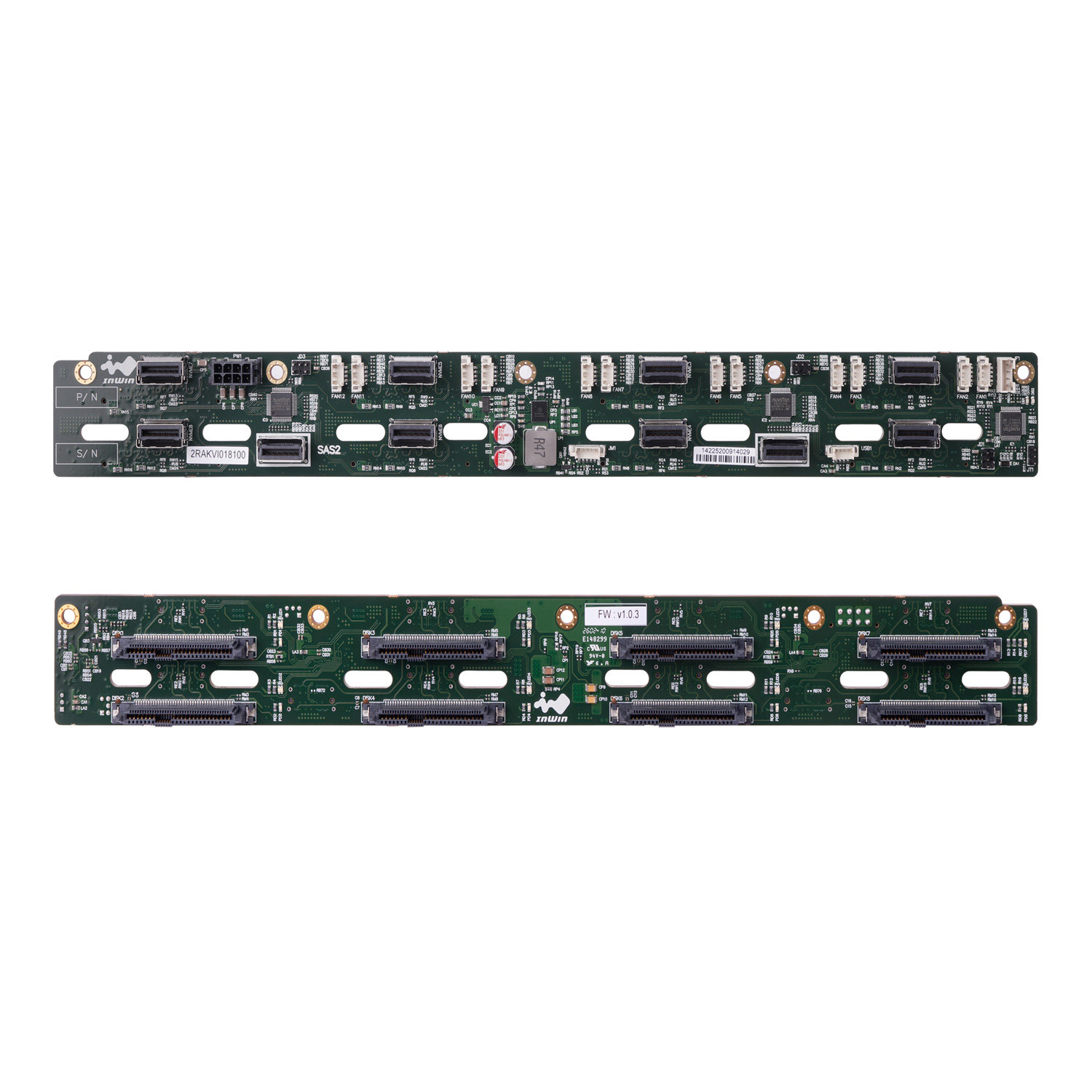

Backplane Specification
| Backplane | SAS4 & PCIe Gen5 hybrid Backplane |
| Data Transfer Rate | SAS4 24Gb/s PCIe Gen5 32GT/s |
| Dimensions (W x H) | 321x36.7 mm |
| Backplane Type | Passive |
| Host Interface | • Host: -MCIO 4i x 8 for NVMe transfer rate -MCIO 4i x 2 for SAS/SATA transfer rate |
| SSD Interface | NVMe SSD x 8 or SAS/SATA x 8 |
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|

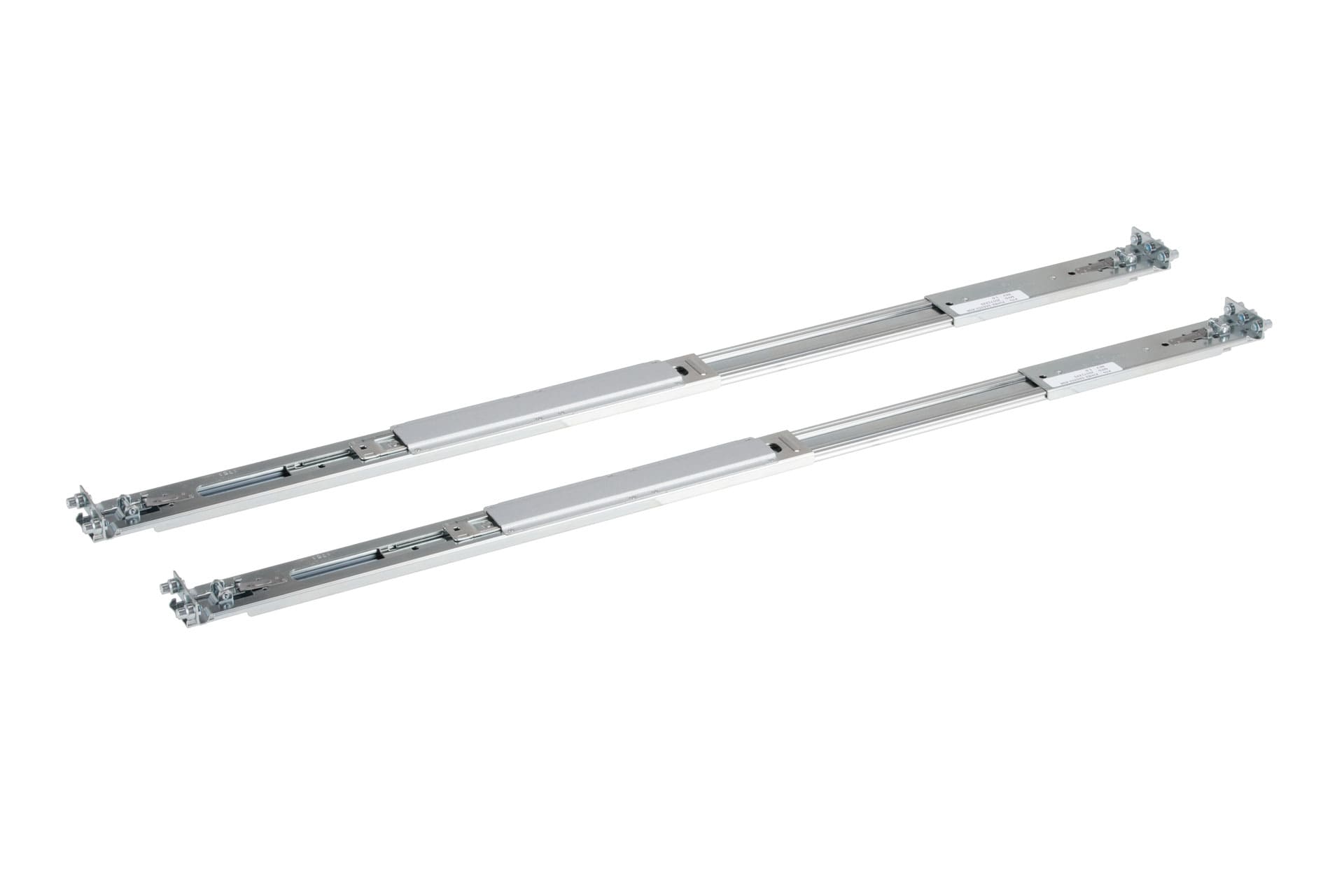

| Slide Rail | 3RAMIS148100 | 28" tool-less & ball-bearing slide rail | 1 set |
|

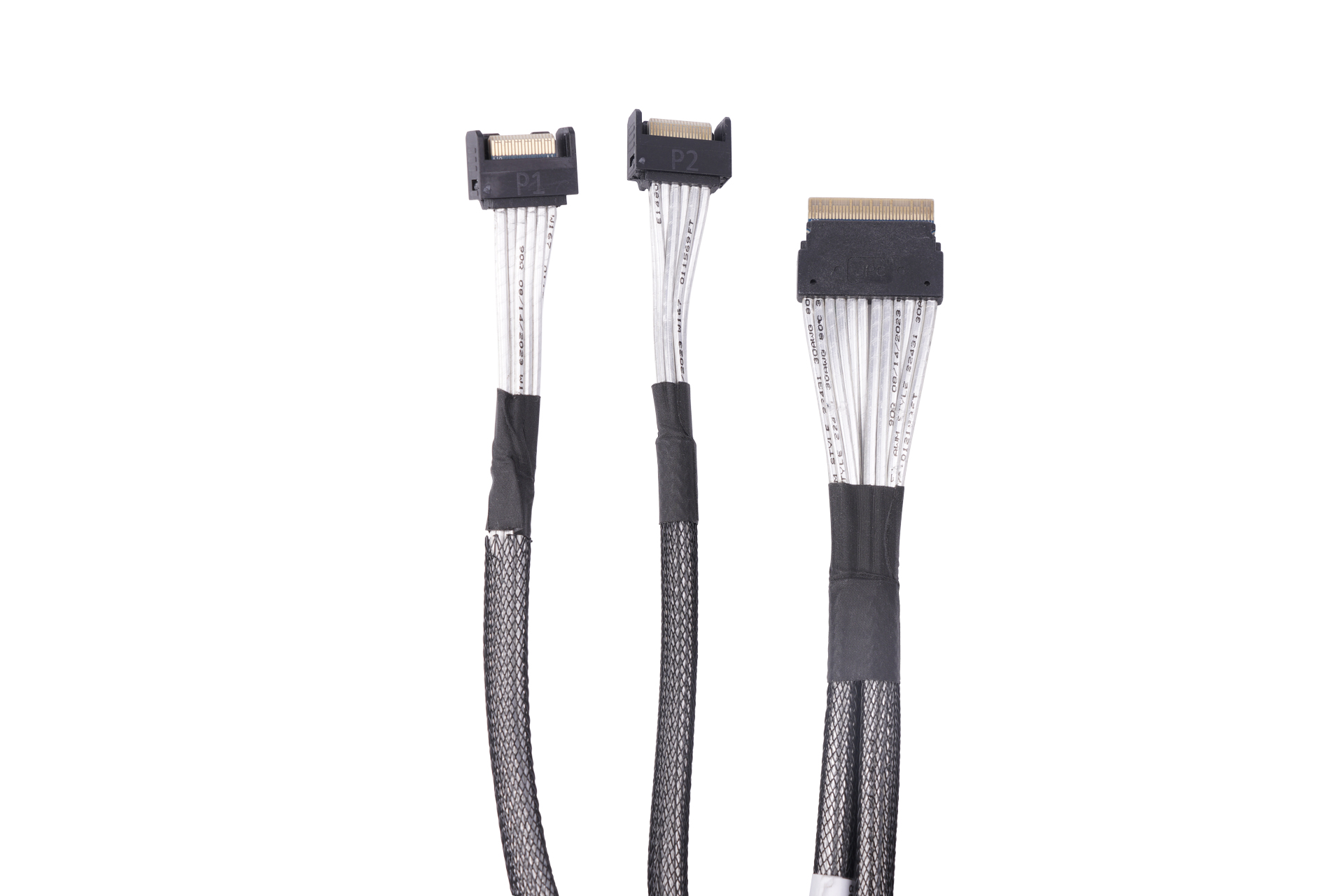

| Cable | 3RAMW4094700 | SilmSAS_8i to MCIO_4ix2 600mm | 1 |
|

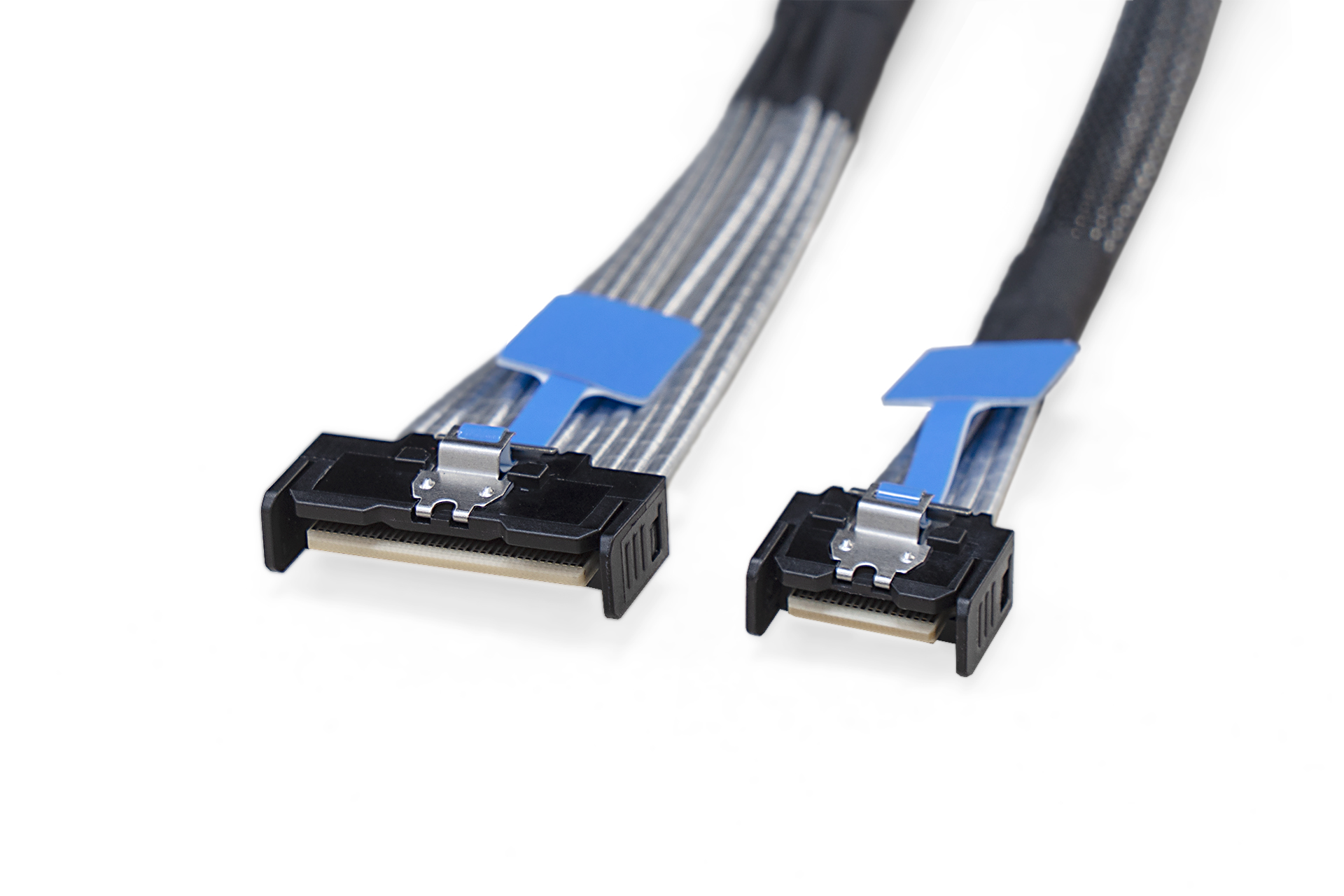

| Cable | 3RAMW6005400 | MCIO (SFF-TA-1016) 8i to 2 x MCIO (SFF-TA-1016) 4i Cable, 500 mm | Max.4 |
|
| Cable | 3RAMW6005200 | MCIO (SFF-TA-1016) 8i to 2 x MCIO (SFF-TA-1016) 4i Cable, 600 mm | Max. 4 |
|

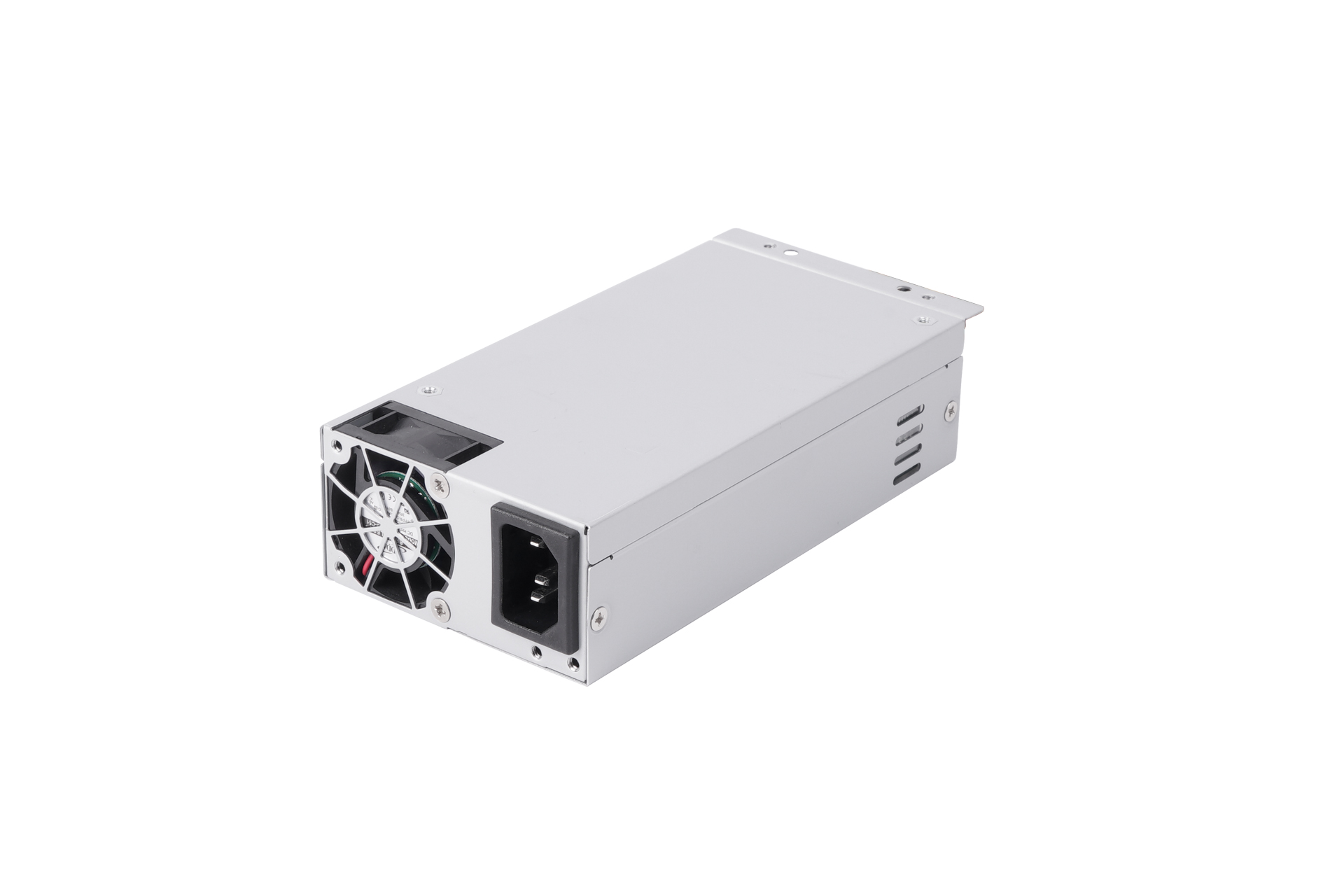

| Power Supply | 1DDU500BU20011 | 1U Flex PSU, 500W, 80 Plus Platinum | 1 |
|
| Backplane | 2RAKVI018100 | SAS4 & PCIe Gen5 hybrid backplane | 1 |
|

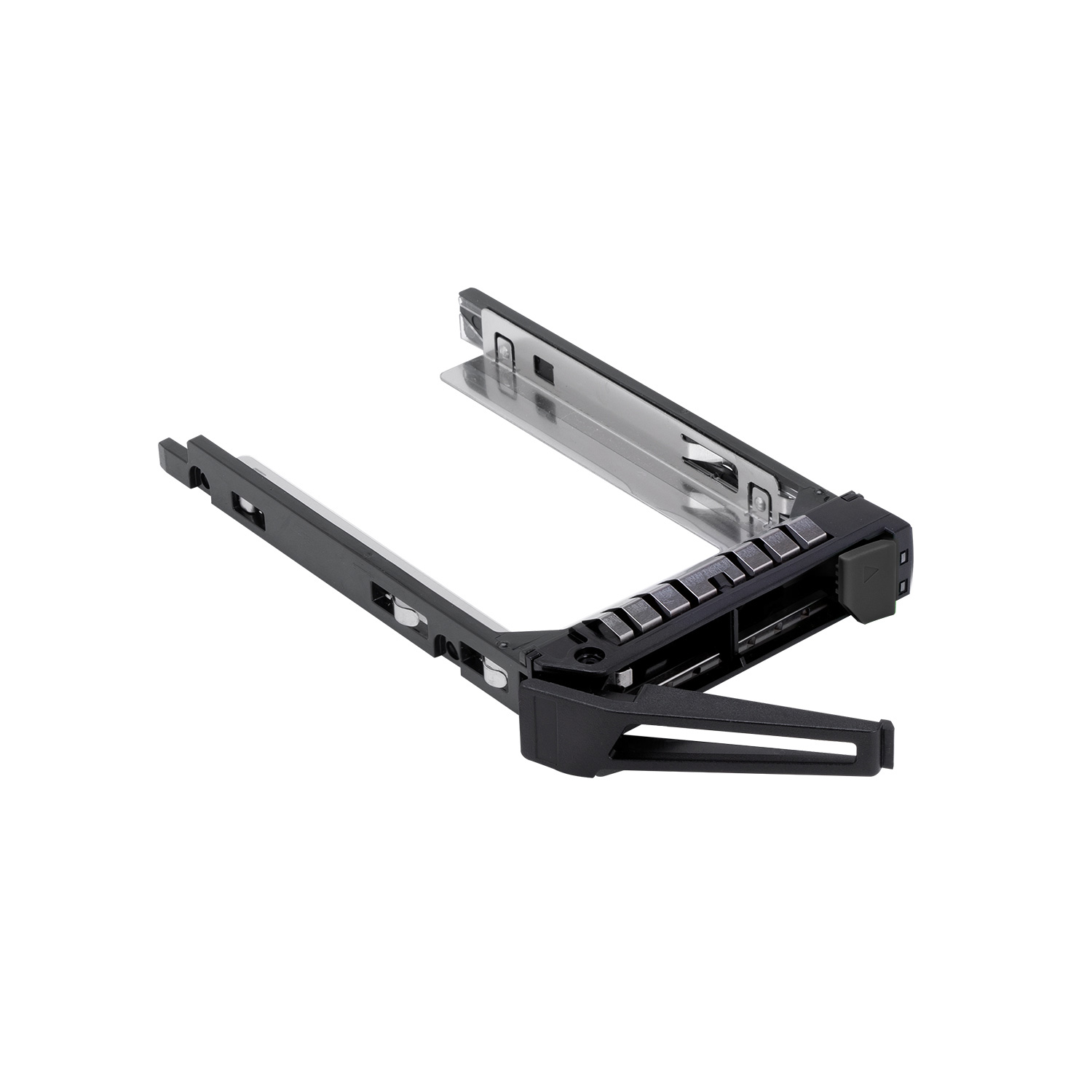

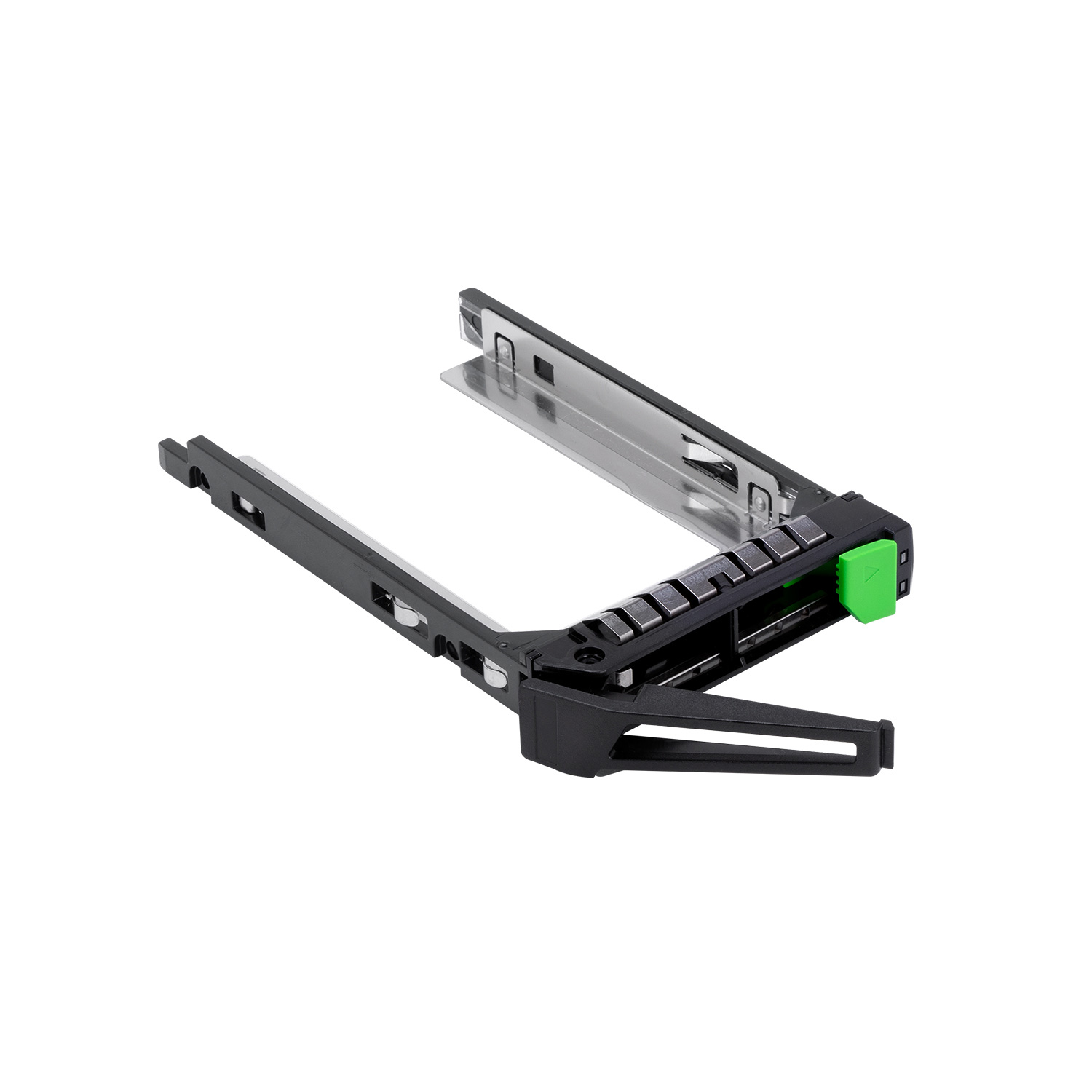

| HDD Tray | 2RAKPH074800 | 2.5" hot-swap HDD tray | Max. 8 |
|
| HDD Tray | 2RAKPH075400 | 2.5" hot-swap HDD tray | Max. 8 |
|

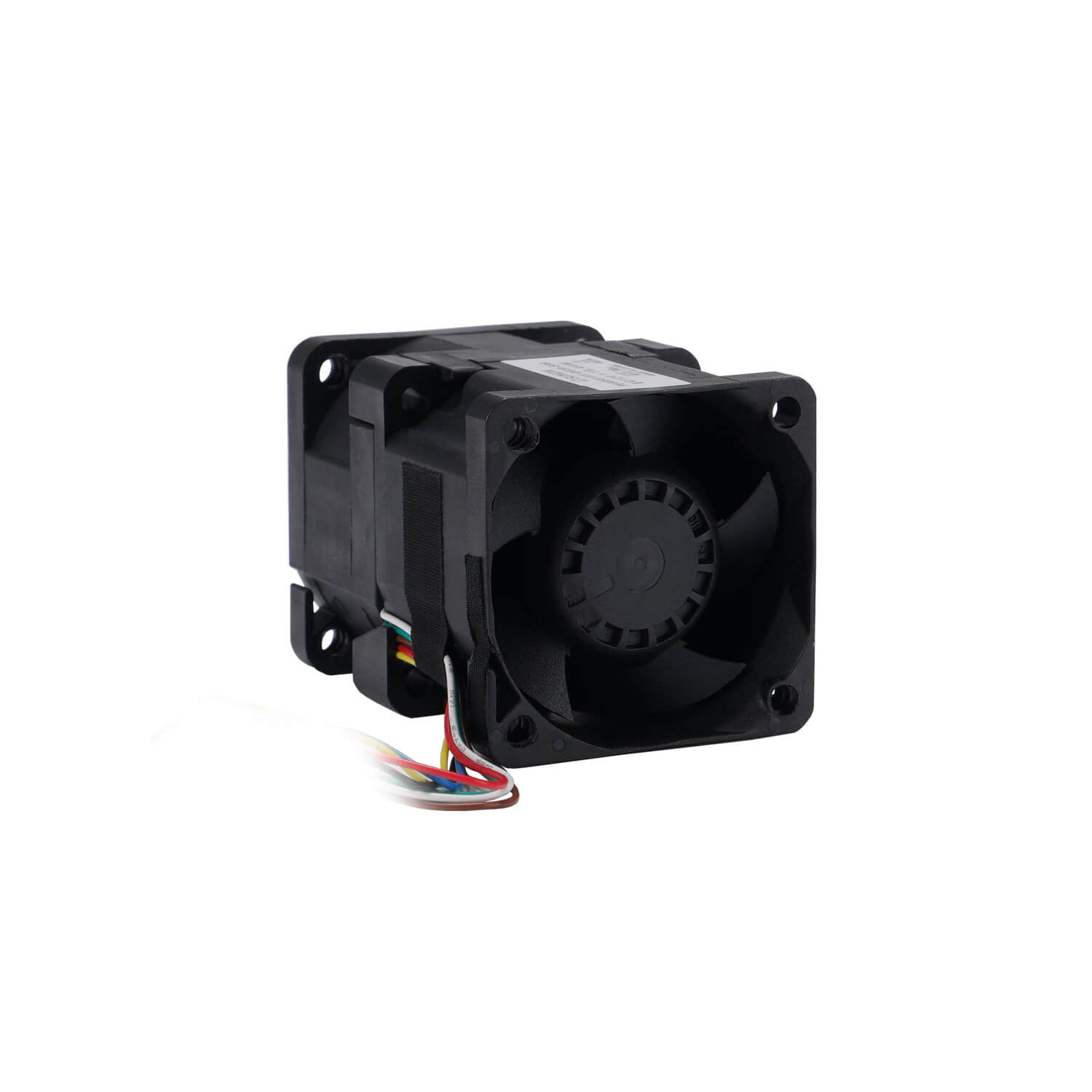

| Fan | 3RAMFB016400 | 40 x 56mm PWM easy-swap, 21500 RPM, 4pin x 2 | Max. 6 |
|
| Fan | 2RAKFB011800 | 40 x 56mm PWM easy-swap fan & fan bracket, 4pin x 2 | Max. 6 |
|

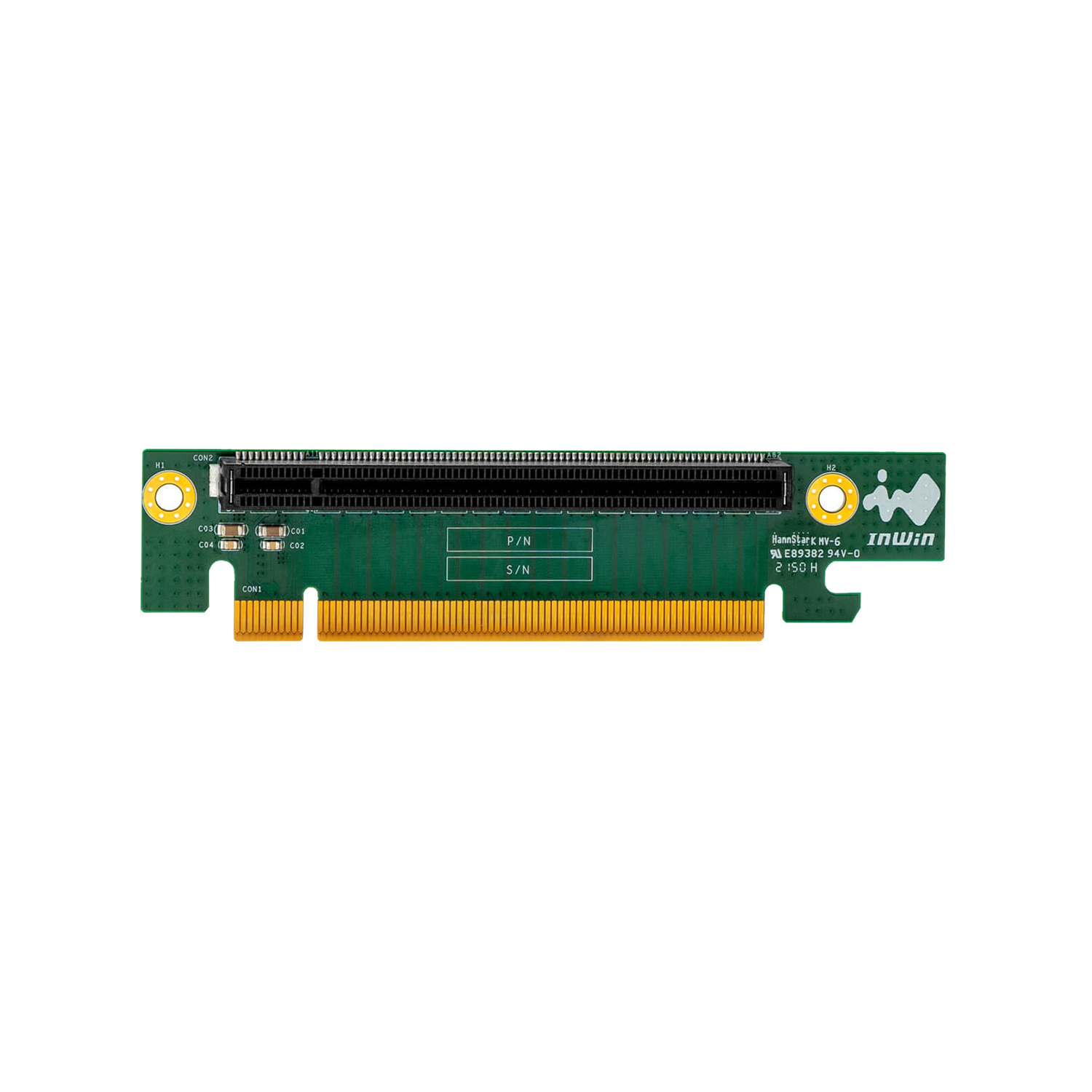

| Riser Card | 2RAKPD079901 | PCIe Gen4 x16 lanes rised card, left-facing 90 degree design | 1 |
|
| Riser Card | 2RAKPD087800 | PCIe Gen5 x16 lanes rised card, left-facing 90 degree design | 1 |
|
| Back I/O Shield Plate | InWin can customize the I/O shield backplate for specific motherboards with SGCC material to fulfill customers' specific I/O configuration requirements. | 1 | ||

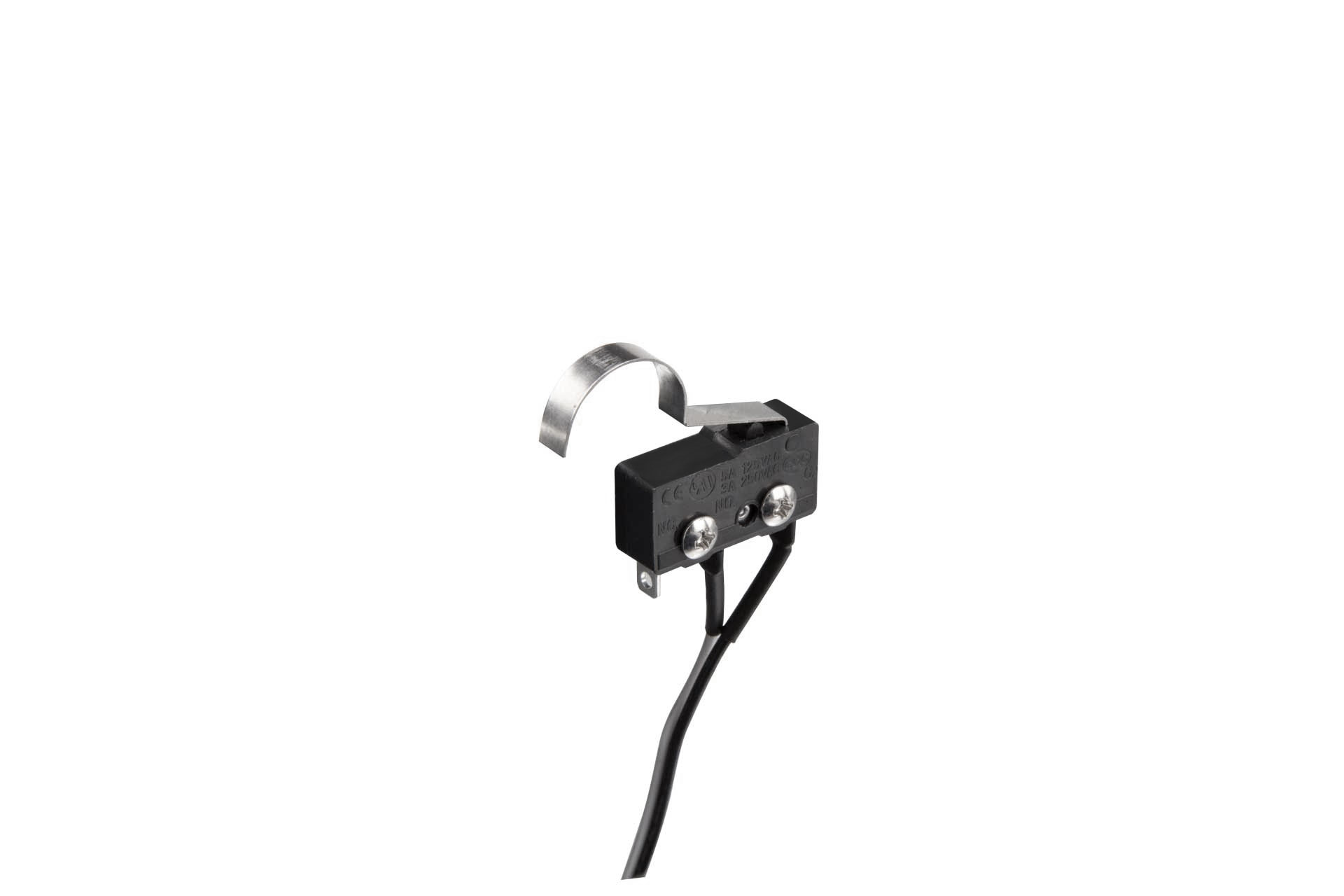

| Others | 3RAMRW050200 | Intrusion switch / 150mm | 1 |
|

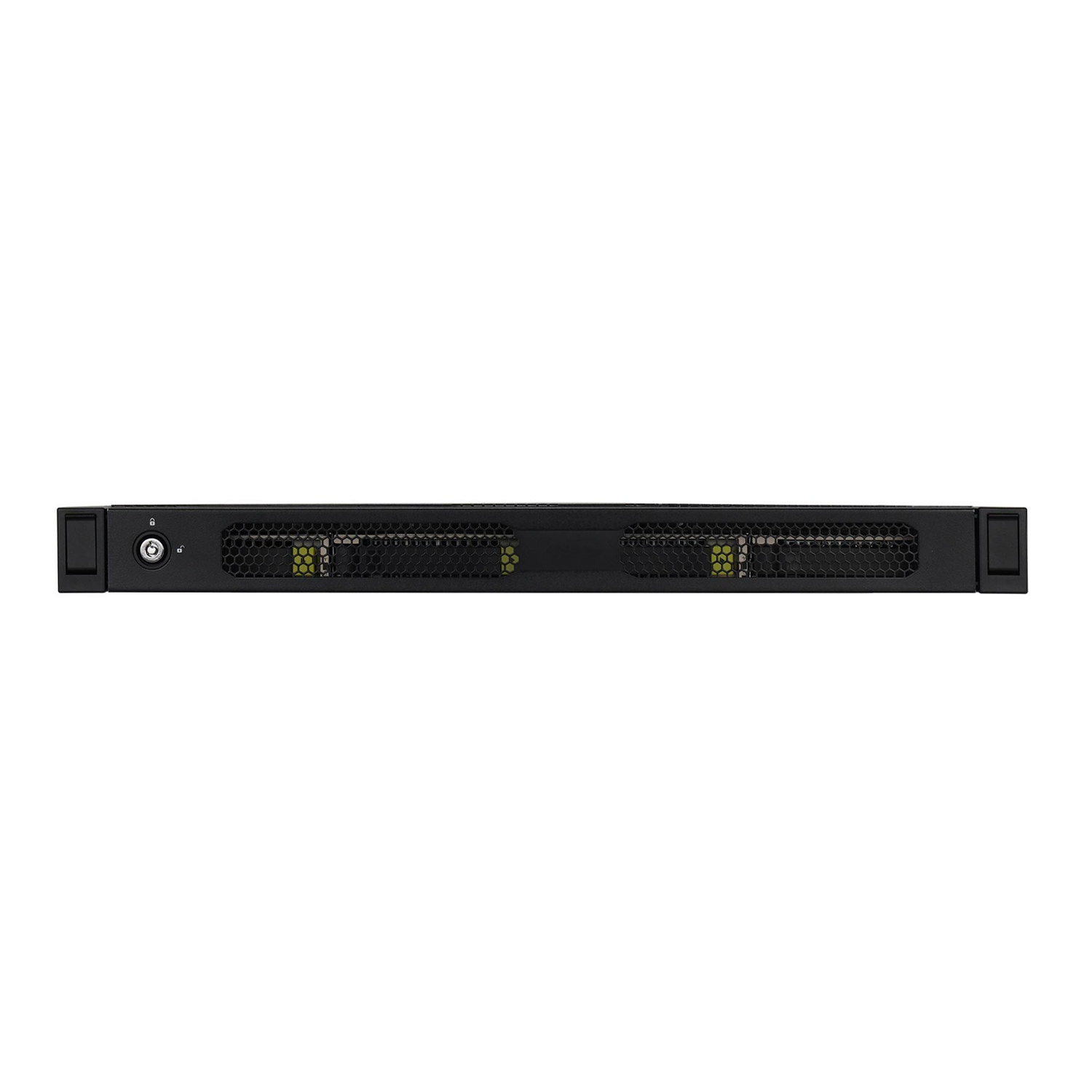

| Others | 2RAKIP012002 | Mesh front panel | 1 |
|
