IW-RS110-02M

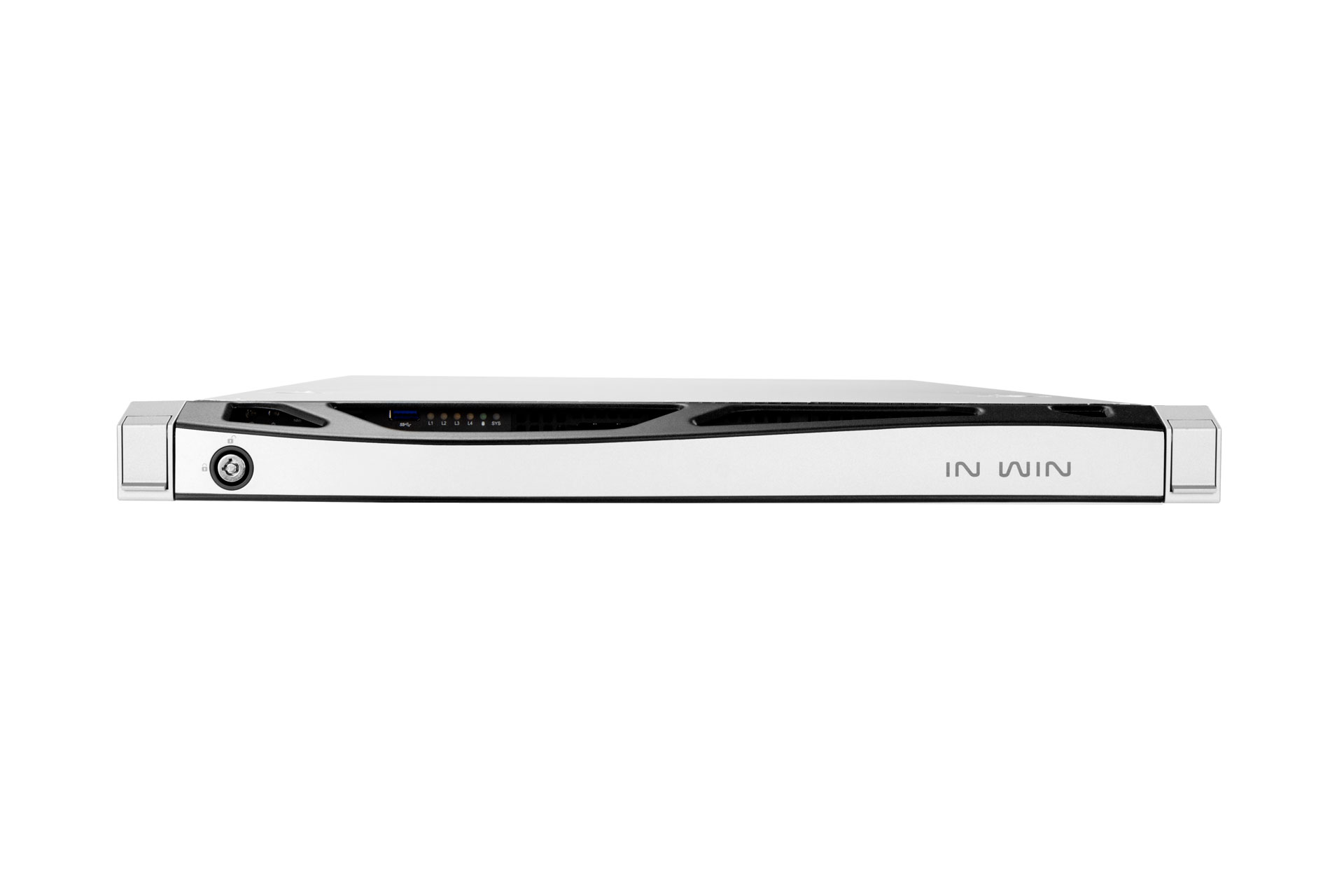

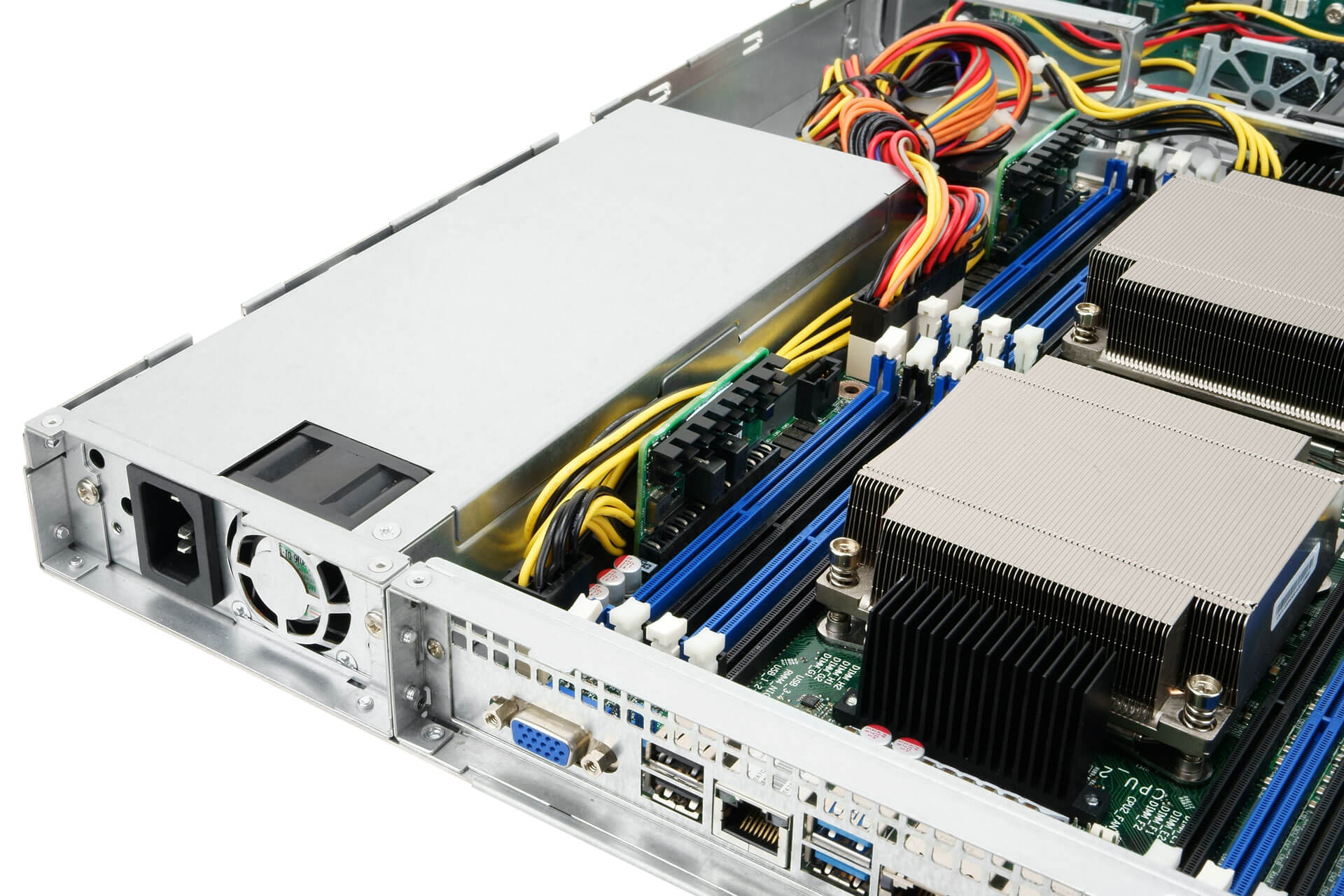

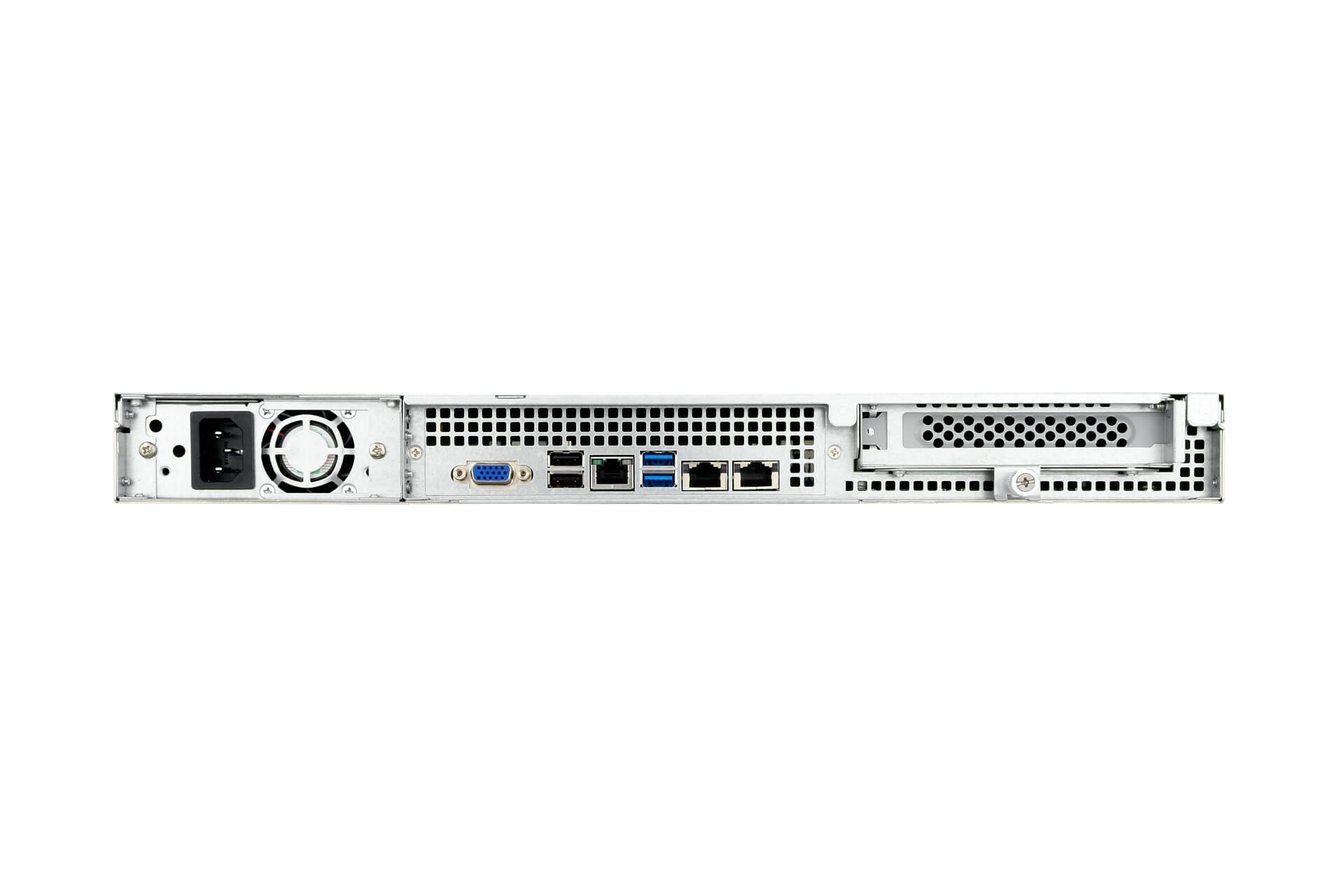

1U Rackmount Middle Depth Storage Server
．External 2.5" x 10 hot-swap HDD trays supported
．Supports 12Gb/s Mini-SAS HD backplane
．Easy-swap 40 mm PWM fans with Anti-Vibration mechanism
．Single or 1+1 redundant power supply
．Tool-free with I/O bracket
．Iron front panel with silver coating
| Specification | |
|---|---|
| Host Bus Type | |
| Power Consumption | |
| Warranty | |
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX (12" x 9.6"), ATX (12" x 10"), EEB (12" x 13") |
| Drive Bay | External Hot-Swap 2.5" x 10 |
| Power Supply | Supports: • Form Factor: Single or 1U 1+1 Redundant • Watt: Single 500W, Redundant up to 750W |
| Indicators | Power Status, HDD, LANs |
| Front Control Panel | Power Switch, System Reset, USB 3.0 x 1 |
| Backplane | • Mini-SAS x 2, SATA x 2 (6Gb/s Supported) • Mini SAS HD x 3, SFF-8643 (12G/s Supported) |
| Cooling Fans | Supports 40 x 28mm / 40 x 56mm PWM easy-swap fan x 6 (pre-installed x 5) |
| Expansion Slot | Full Height PCI Slot x 1 (via riser card and bracket) |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Support 28" screwless slide rail, Ball-bearing |
| Product Dimensions (DxWxH; Chassis Only) | 625 x 482.6 x 44.4mm (24" x 19" x 1.75") |
| Package Dimensions (DxWxH) | 823 x 590 x 150mm |
| Weight (Chassis Only) | • Net Weight: 5.9kg • Gross Weight: 9.4kg |
| Cubic Feet | 2.57 |
| Container Information | Single Packing with pallets: • 20': 240pcs • 40': 528pcs • 40' HQ: 616pcs |
