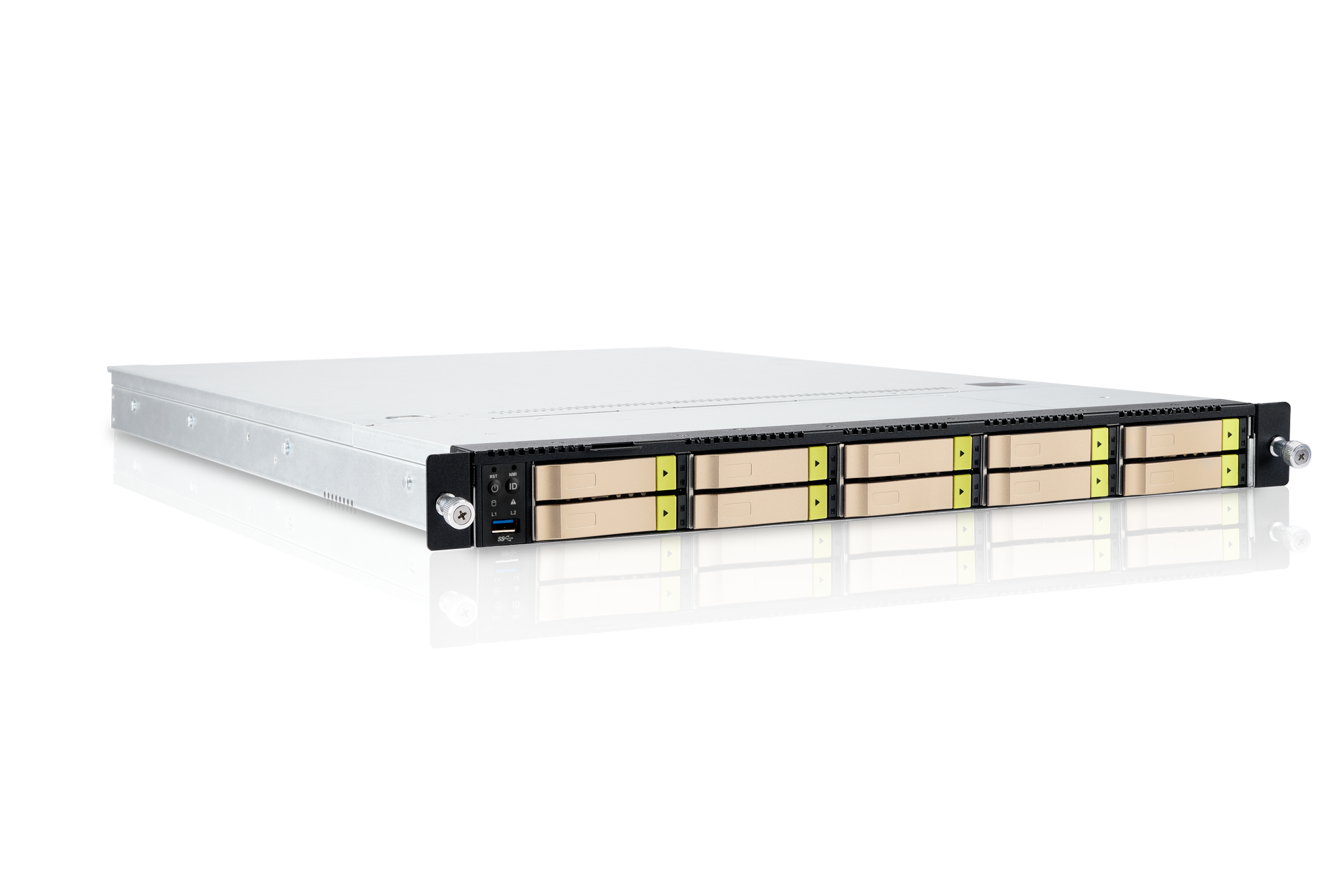

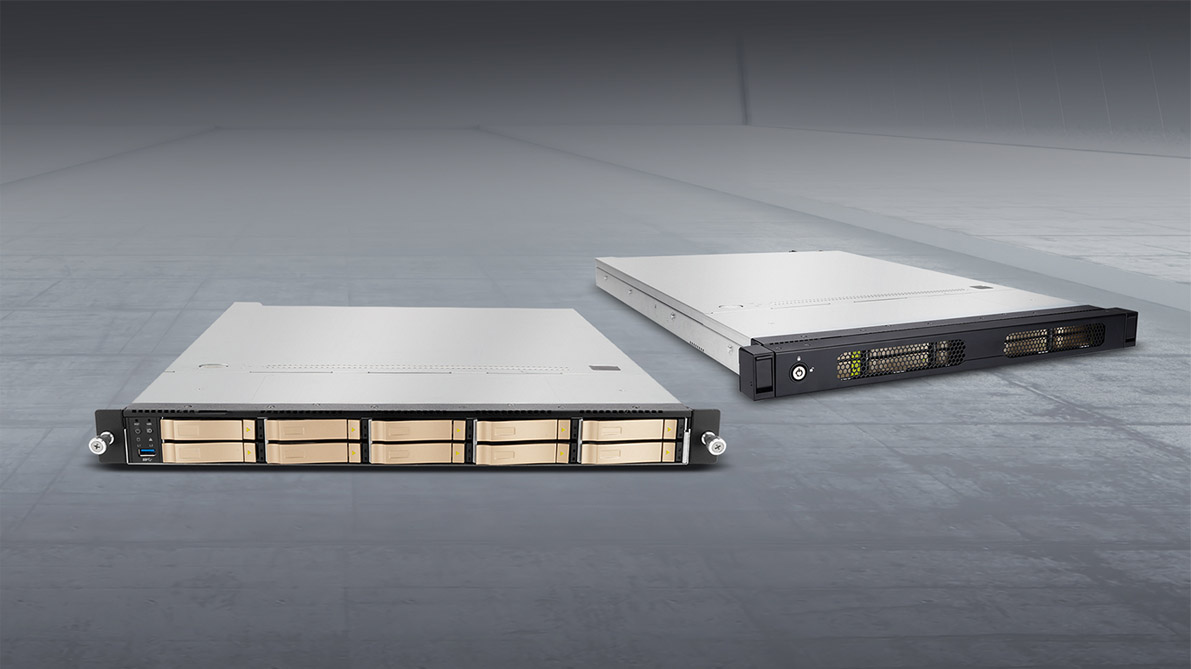

High-Performance Hybrid Storage Server
The IW-RS110-07, an NVMe hybird storage server, is fully compliant with Intel® Xeon Scalable family.
Its storage configurations provide customers more flexibility in reaching various occupational tasks.
server system assembly

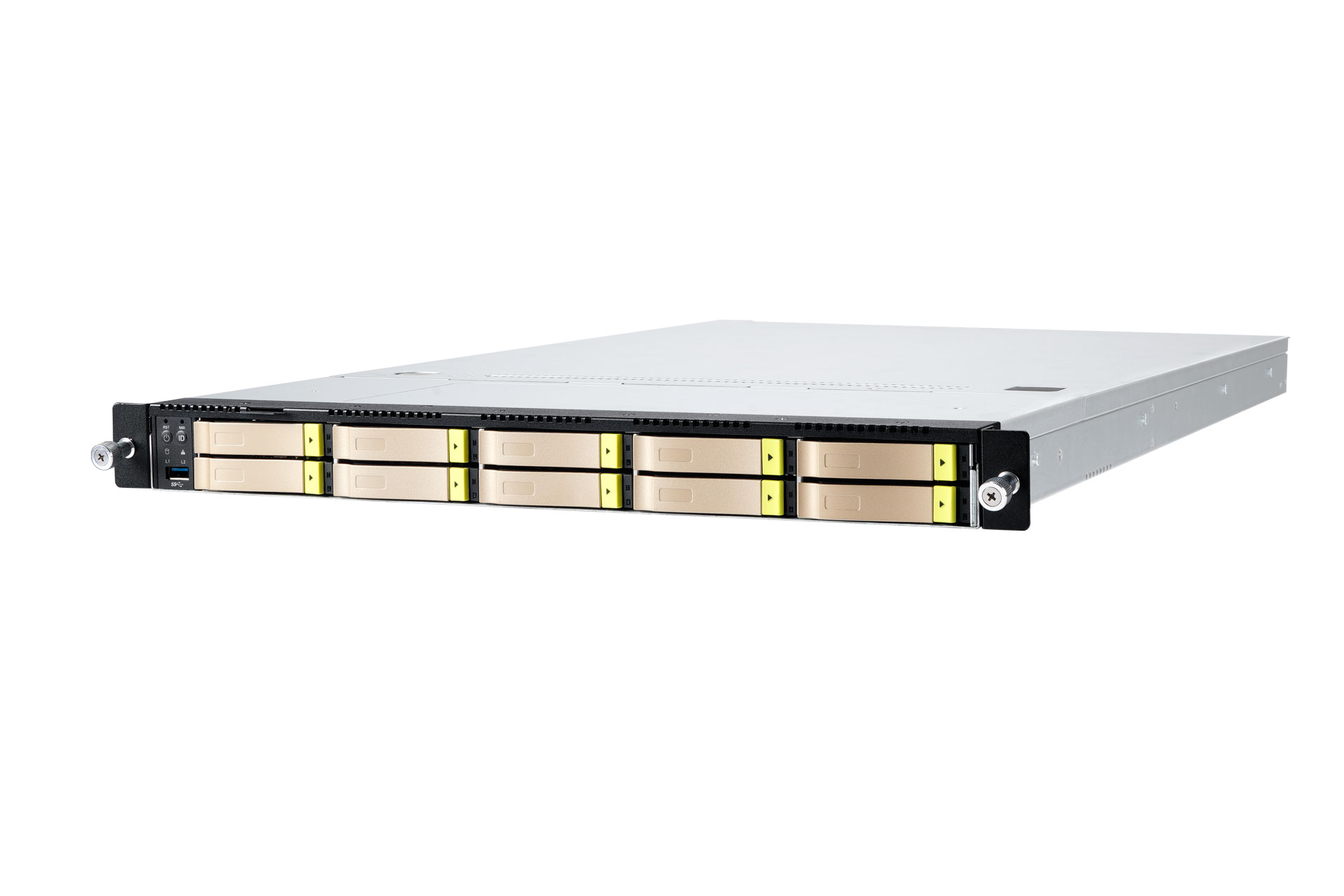

IW-RS110-07
Intel Xeon Scalable 1U Storage Server
- Compliance for Intel® Xeon Scalable family
- 1U with 10 x hot-swappable 2.5" U.2 NVMe/SAS/SATA SSD bays
- Backplanes with SAS/SATA, Oculink or Slimline connectors
- Supports full-height PCIe slot x 1 (via riser card)
- Low acoustic noise and reduced vibrations for greater reliability
- Supports single or 1U 1+1 Redundant PSU
- Customizes the I/O Shield back plate for specific motherboards with SGCC material
Intel® Xeon Scalable family
2.5" SSD
x 10 bays
40 x 56mm fans x 6
Redundant PSU
750W
Single PSU
650W
26" deep chassis
28" slide rails
Multi-Application Solutions
The IW-RS110-07 provides a high-density solution for graphical design workstation, data center,
and supercomputer applications. Best applied in cloud, virtualization, and enterprise environments.
Optimal Scalability and Compatibility
NVMe (Slimline or Oculink) & SAS/SATA Backplane
There is much greater flexibility for customers in choosing their own 1U backplane
because InWin offers such specifications as NVMe (Slimline/Oculink) and SAS/SATA.
Storage Options
The IW-RS110-07 has 10-bay 2.5" SAS/SATA that can be fully compliant with a maximum of 10-bay U.2 NVMe.
The storage configurations, according to customers' preferences, can be used in various combinations.

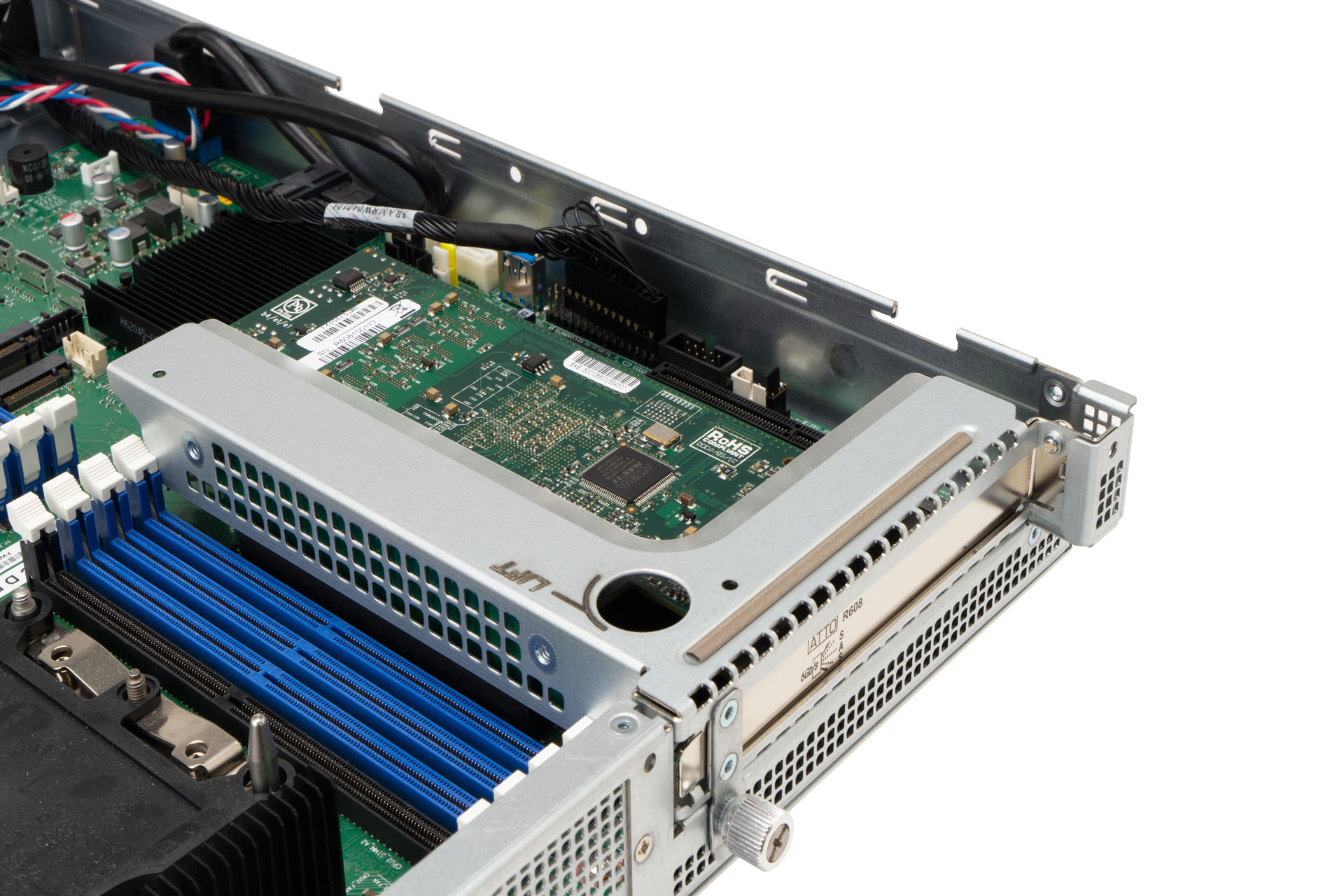

Full-Height PCIe Slot
Completely showing the chassis' compatibility, the IW-RS110-07 supports full-height PCIe slot x 1.
Customers are able to choose InWin's PCIe riser card that can be horizontally installed in the rear of the chassis.

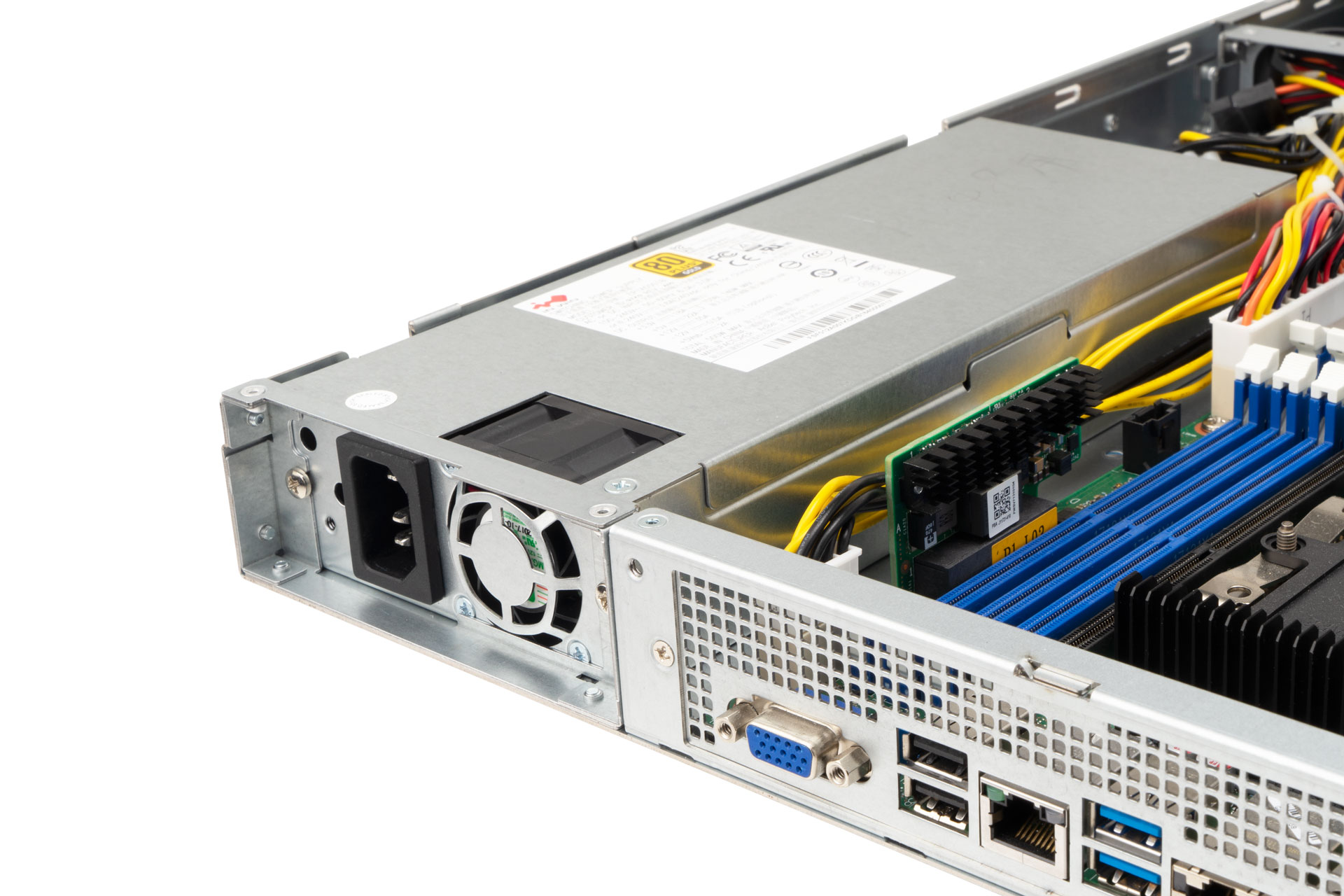

Single PSU
Redundant PSU
Power Supply Units
InWin's 07 Series 1U rackmounts offer an option of single or redundant power supply units.
The single PSU is compatible with an 80 Plus Gold performance. Our redundant PSUs are equivalent to an 80 Plus Platinum performance,
and avoid the system shutdown when one of the PSUs fails.
Power Supply Cable Information
Single PSU Cable Information
24-Pin
Main Power Connector
8-Pin CPU
8-Pin CPU
8-Pin
Backplane Power
6-Pin
Backplane Power
4-Pin Peripheral
Power Connector
SATA Power
PMBus
Redundant PSU Cable Information
24-Pin
Main Power Connector
8-Pin CPU
8-Pin CPU
8-Pin
Backplane Power
6-Pin
Backplane Power
SATA Power
PMBus

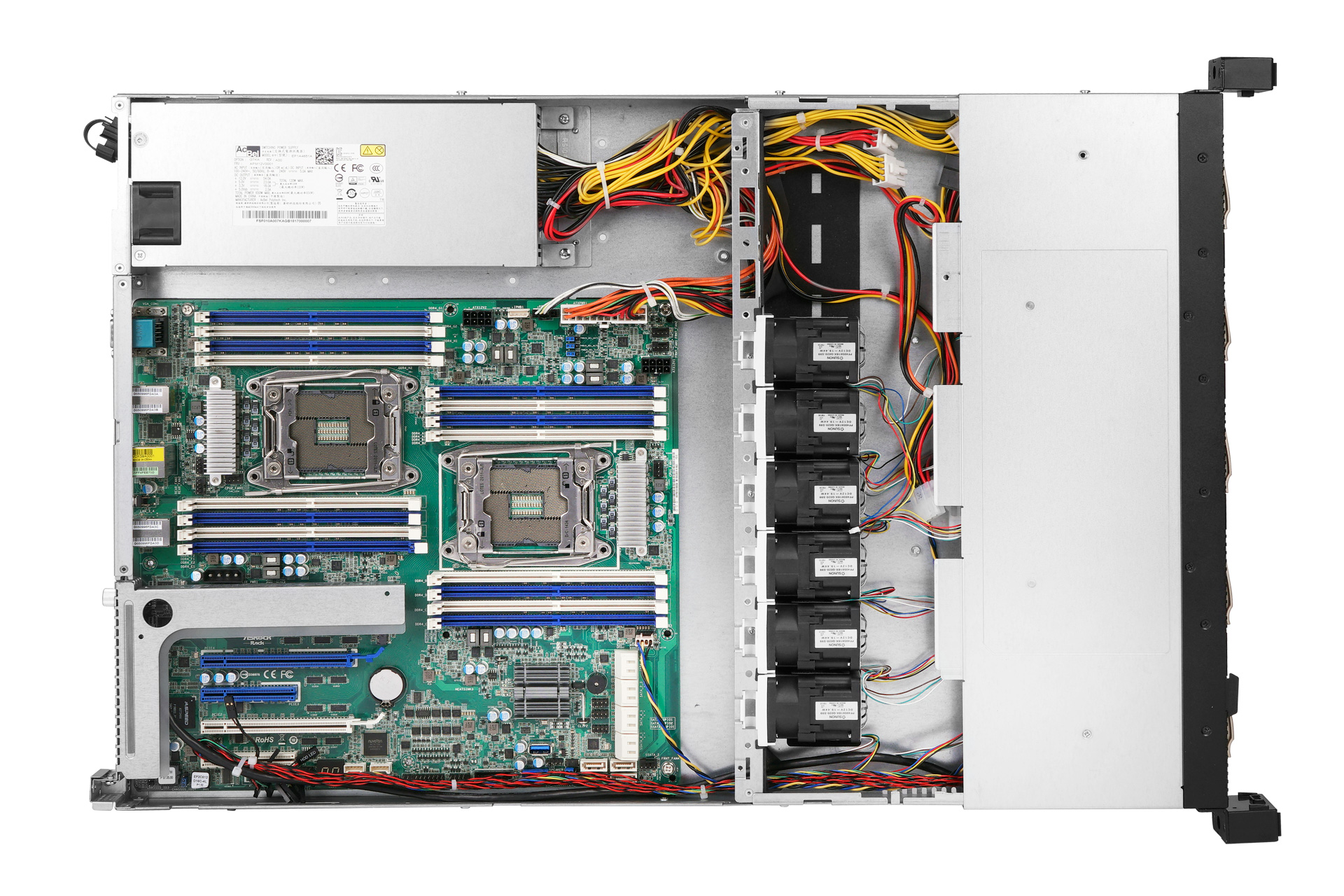

Superior Heat Dissipation
InWin’s cooling design incorporates anti-vibration with low-noise technology to provide
the most optimum heat dissipation for practically every application.
I/O Shield Back Plate
InWin is capable of customizing the I/O Shield back plate for specific motherboards, with SGCC material, to provide the highest flexibility for your computing needs.
Tool-less Features
InWin screwless items enable customers to effortlessly assemble their rackmount.

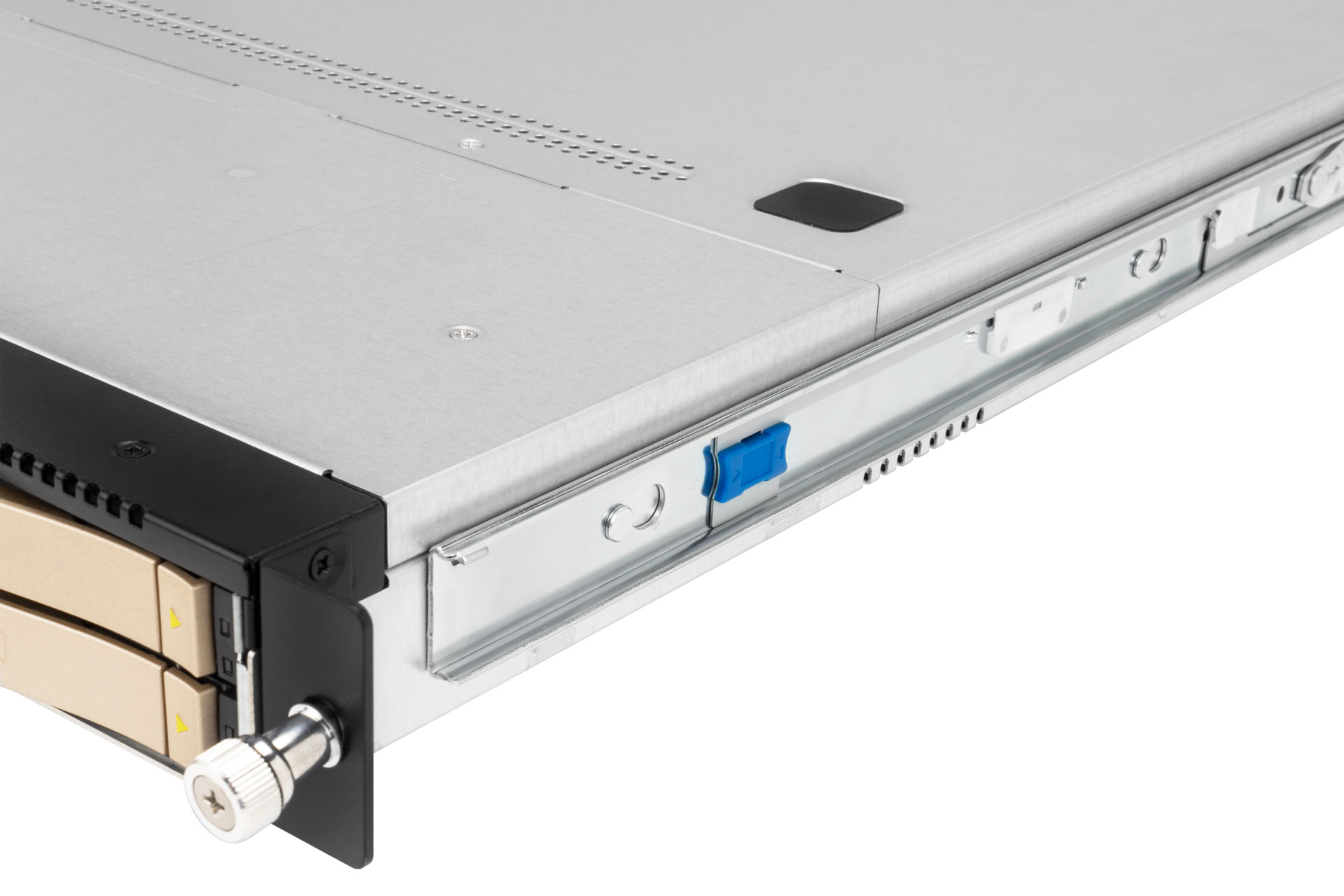

Ball-bearing slide rails
Top cover open button

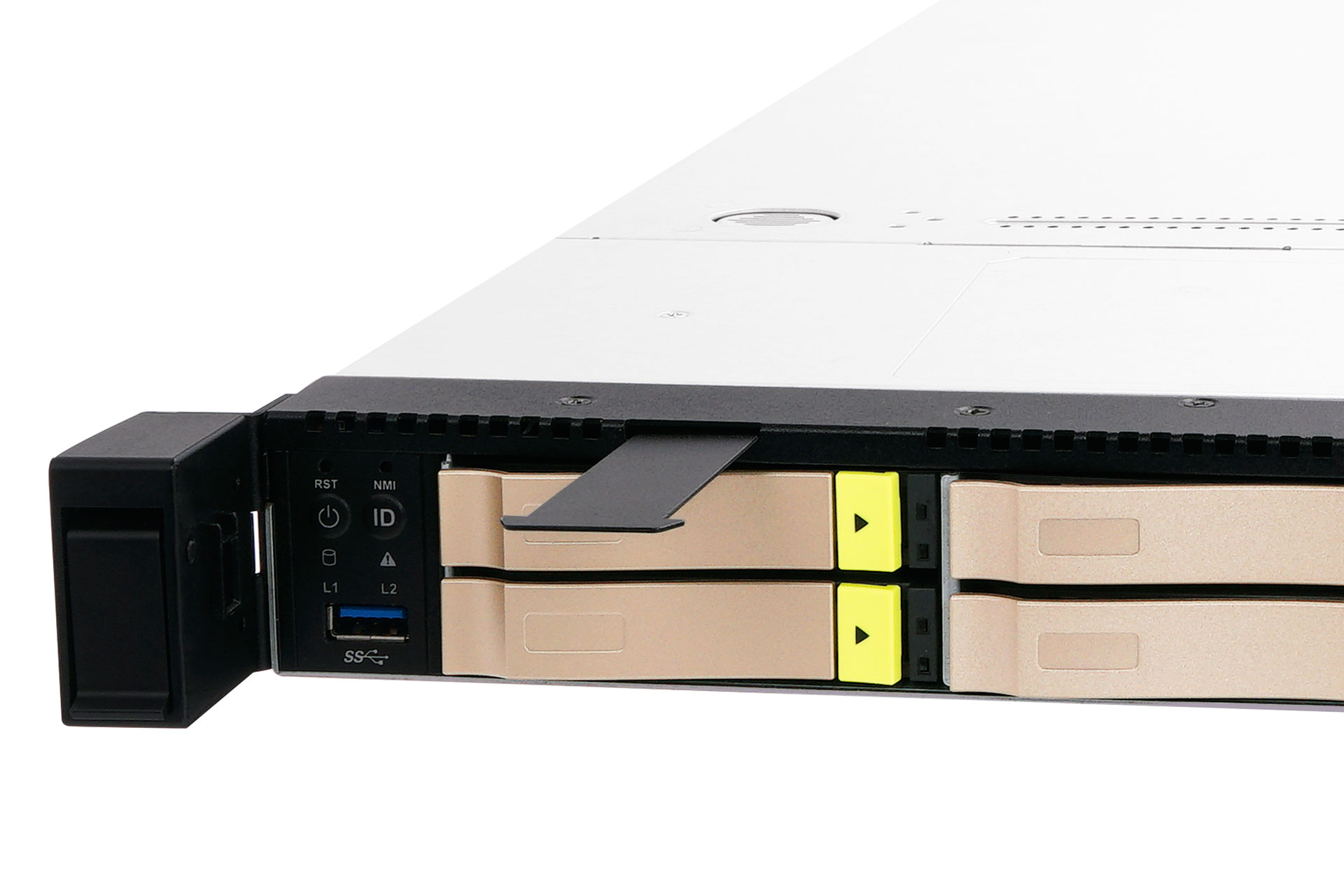

2.5" hot-swap tray
PCle riser card bracket
Dimensions
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay | Supports external 2.5" screwless hot-swap SSD trays x 10 |
| Power Supply | Supports: • 750W 1U 1+1 redundant PSU, 80 Plus Platinum • 650W 1U single PSU, 80 Plus Gold |
| Indicators | Power LED, LAN1/LAN2 LED, System LED, HDD LED, ID LED |
| Front Control Panel | Power on/off, Reset, NMI, ID SW, USB 3.0 x 1 |
| Backplane-1 | • Host: Slimline (internal SFF-8654 x 10 for PCIe protocol) + 8643 x 3 for SAS protocol • SSD: 8639 x 10 (for NVMe/SAS/SATA device) |
| Backplane-2 | • Host: Oculink (internal SFF-8611 x 10 for PCIe protocol) + 8643 x 3 for SAS protocol • SSD: 8639 x 10 (for NVMe/SAS/SATA device) |
| Cooling Fans | 40 x 56mm PWM easy-swap fans x 6, 21500RPM modular design with anti-vibration |
| Expansion Slot | Full-height PCIe slot x 1 (via riser card) |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 676.5 x 438 x 43.4mm (26.6" x 17.2" x 1.7") |
| Package Dimensions (DxWxH) | 820 x 590 x 175mm |
| Weight (Chassis Only) | • Net weight: 7.32kg • Gross weight: 10.12kg |
| Cubic Feet | 2.99 |
| Container Information | Single packing with pallets: • 20': 200pcs • 40': 460pcs • 40 HQ: 552pcs |

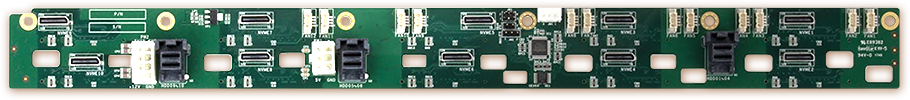

12Gb/s Backplane Specifications
| Backplane-1 | Slimline Backplane |
| Dimensions (W x H) | 400mm x 37.3mm |
| Backplane Type | Passive |
| Host Interface | Slimline (internal SFF-8654 x 10, for PCIe protocol) + 8643 x 3 for SAS protocol |
| HDD Interface | 8639 x 10 (for NVMe/SAS/SATA device) |
| Backplane-2 | Oculink Backplane |
| Dimensions (W x H) | 400mm x 37.3mm |
| Backplane Type | Passive |
| Host Interface | Oculink (internal SFF-8611 x 10 for PCIe protocol) + 8643 x 3 for SAS protocol |
| HDD Interface | 8639 x 10 (for NVMe/SAS/SATA device) |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Download | Preview |
|---|---|---|
| IW-RS110-07 eDM | ||
| IW-RS110-07 Gallery | - | |
| IW-RS110-07 Compatibility | ||
| IW-RS110-07 User Manual | ||
| IW-RS110-07 Passive SAS/SATA Backplane User Manual |
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|

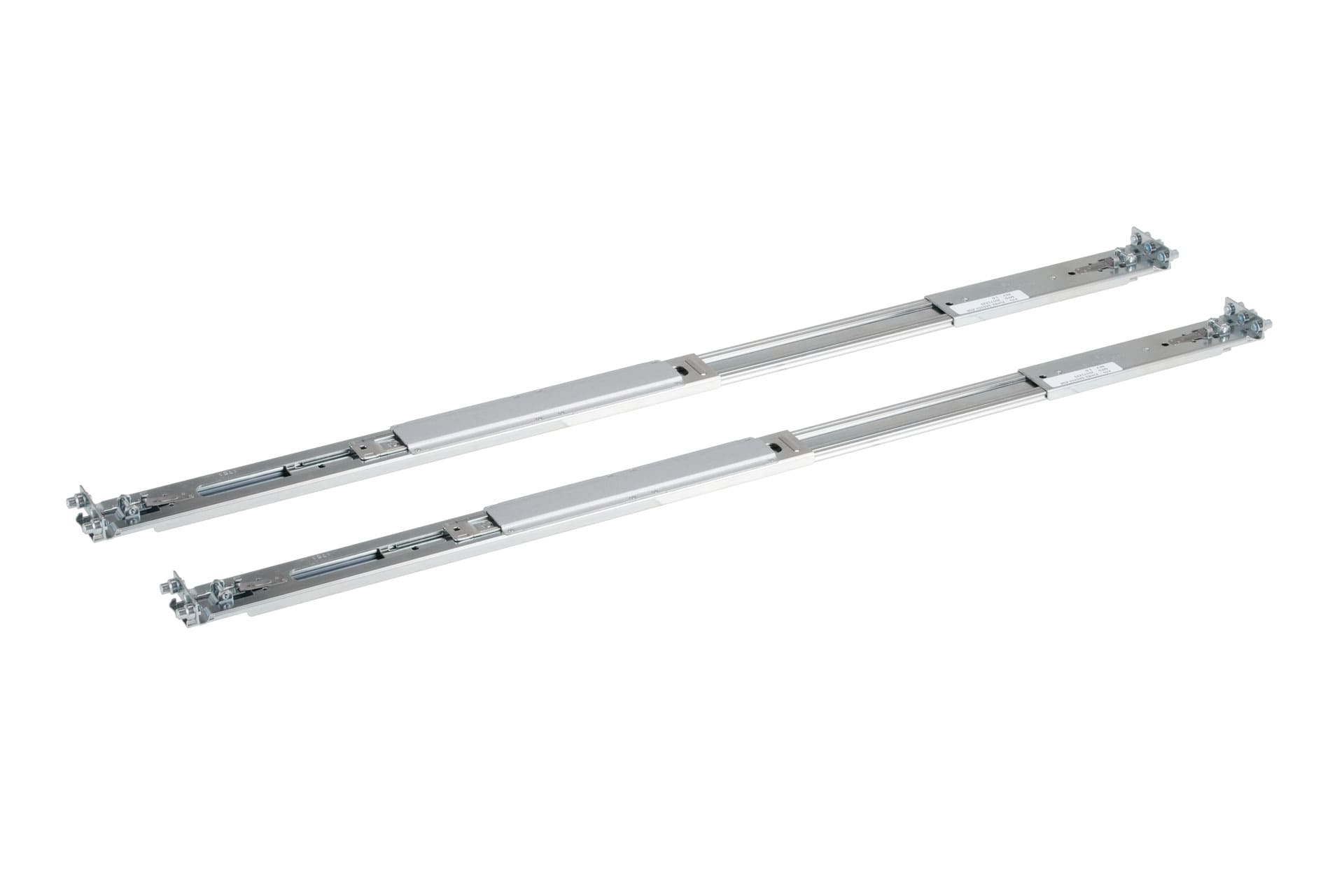

| Slide Rail | 3RAMIS148100 | 28" tool-less & ball-bearing slide rail | 1 |
|

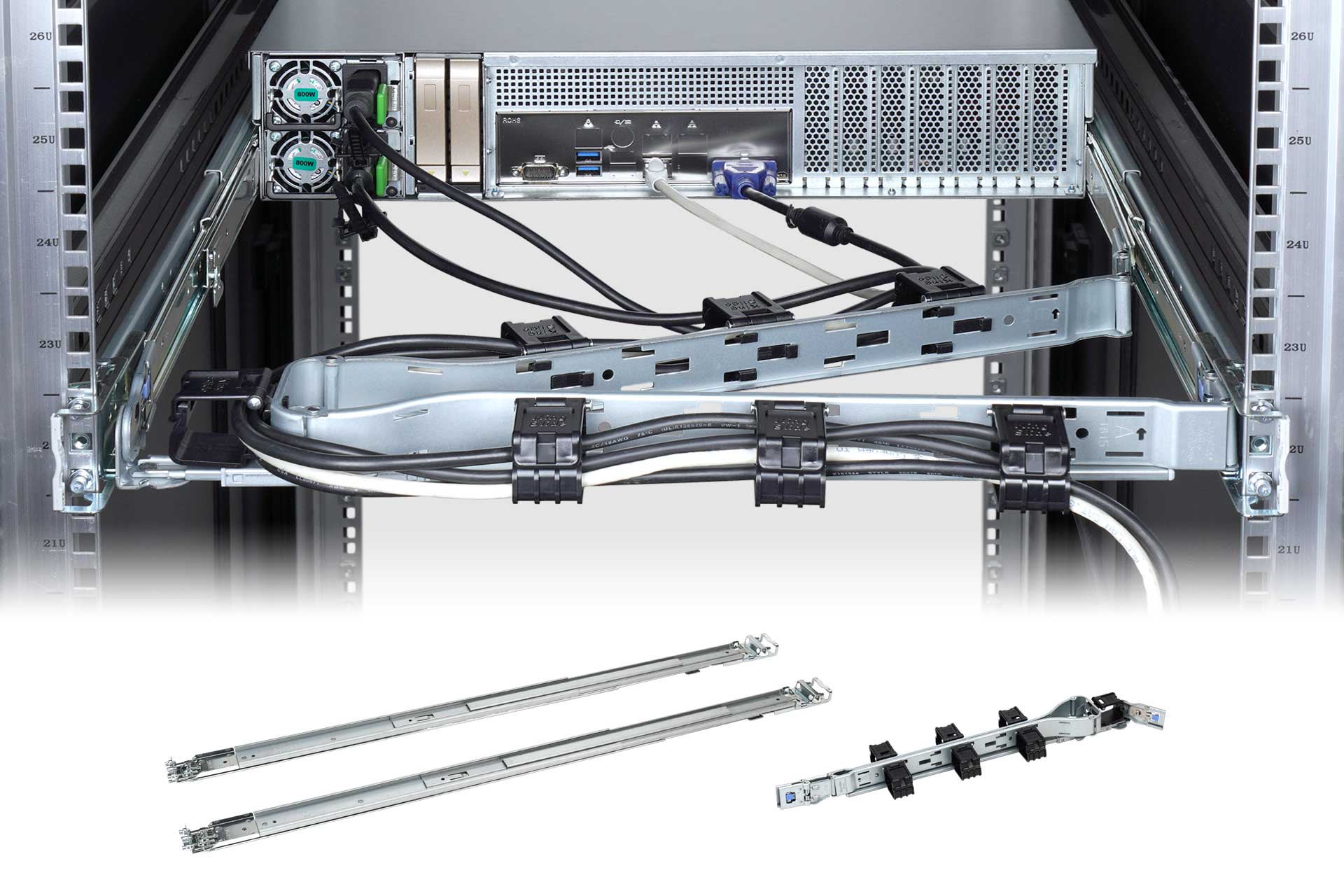

| Slide Rail | 3RAMIS152300 / 3RAMIS152400 | 28" tool-less & ball-bearing slide rail with CMA support | 1 set |
|

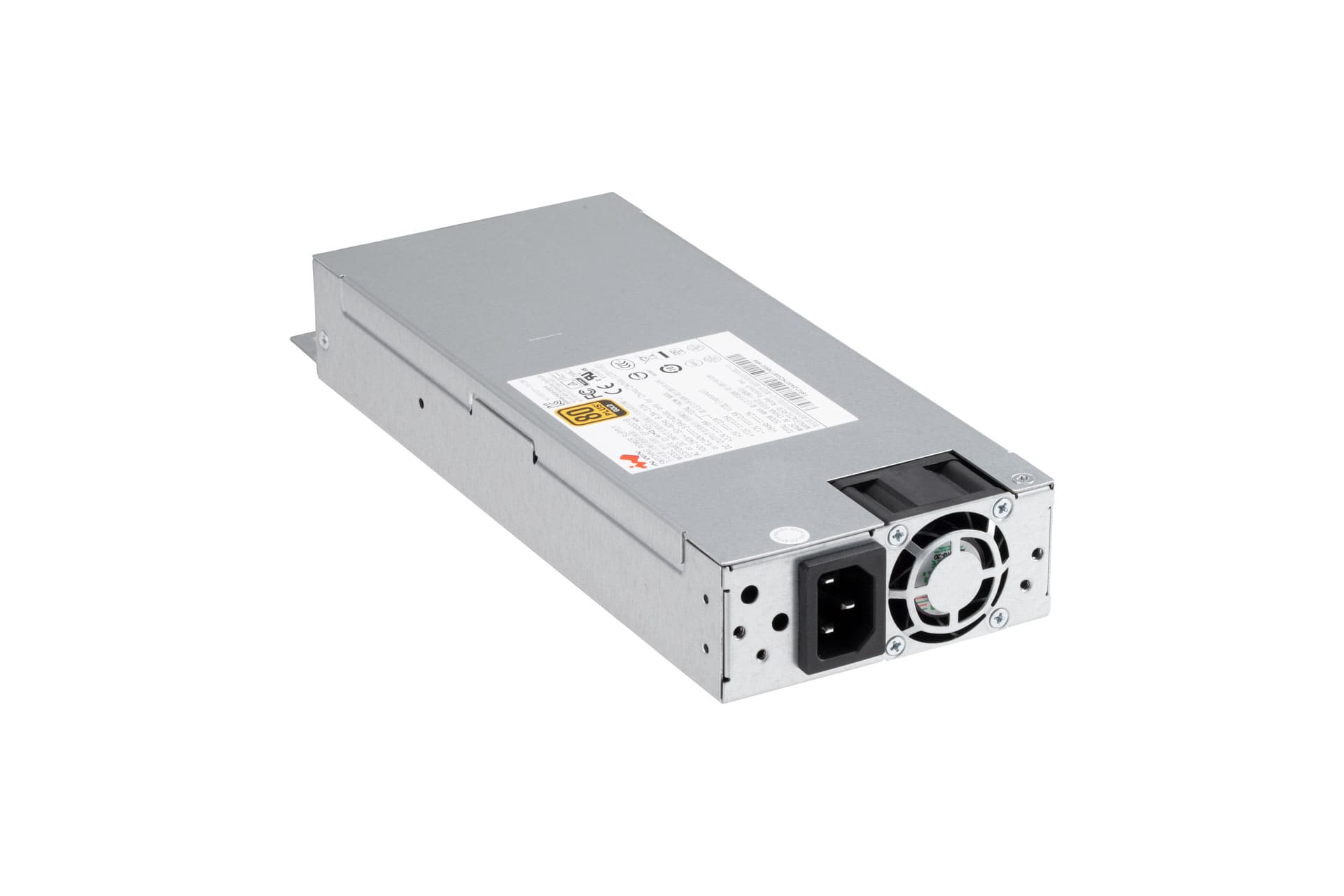

| Power Supply | 3RAMAP028600 | 650W 1U single PSU, 80 Plus Gold | 1 |
|

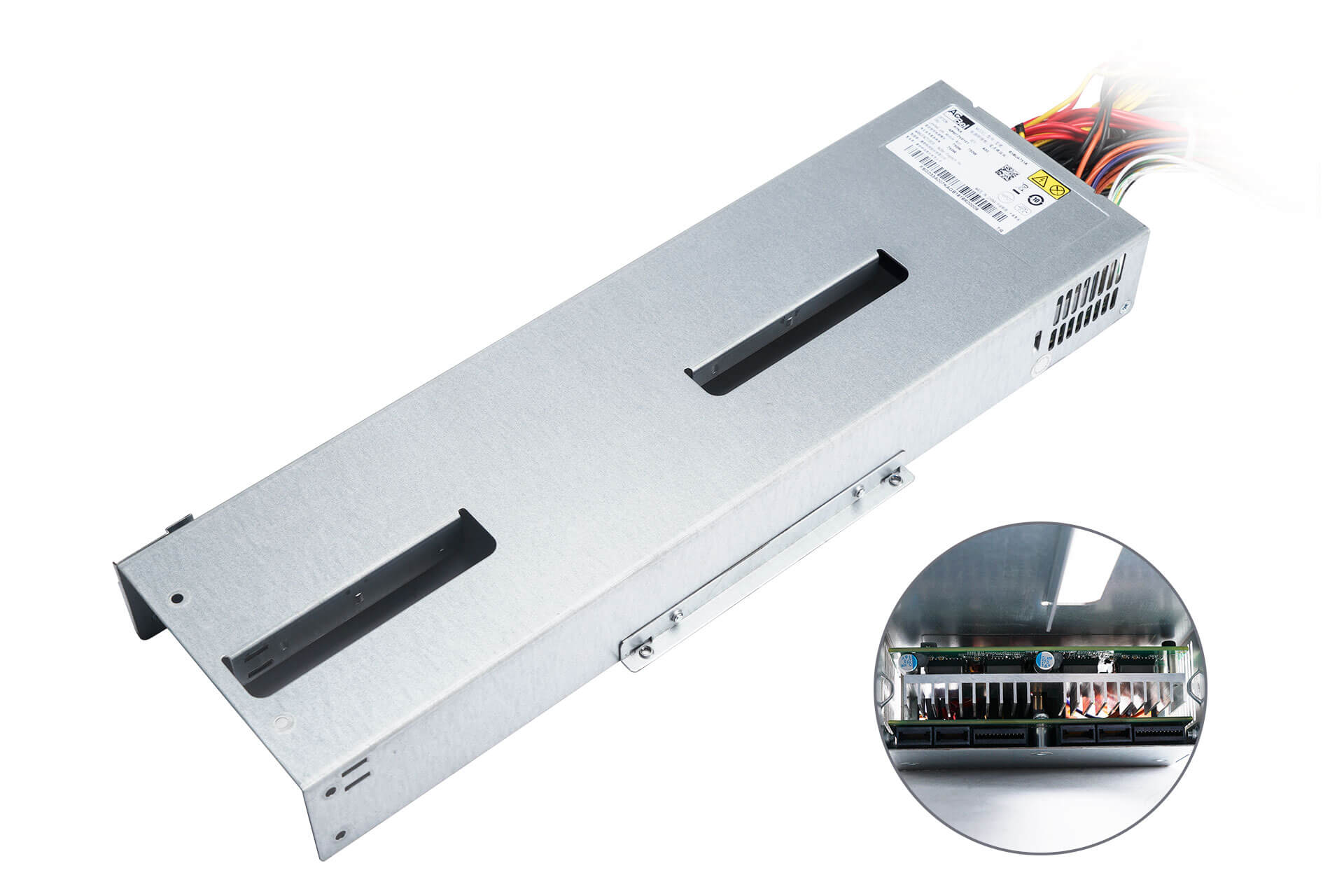

| Power Supply | 3RAMAP030400 | 750W 1U redundant PDB power cage | 1 |
|

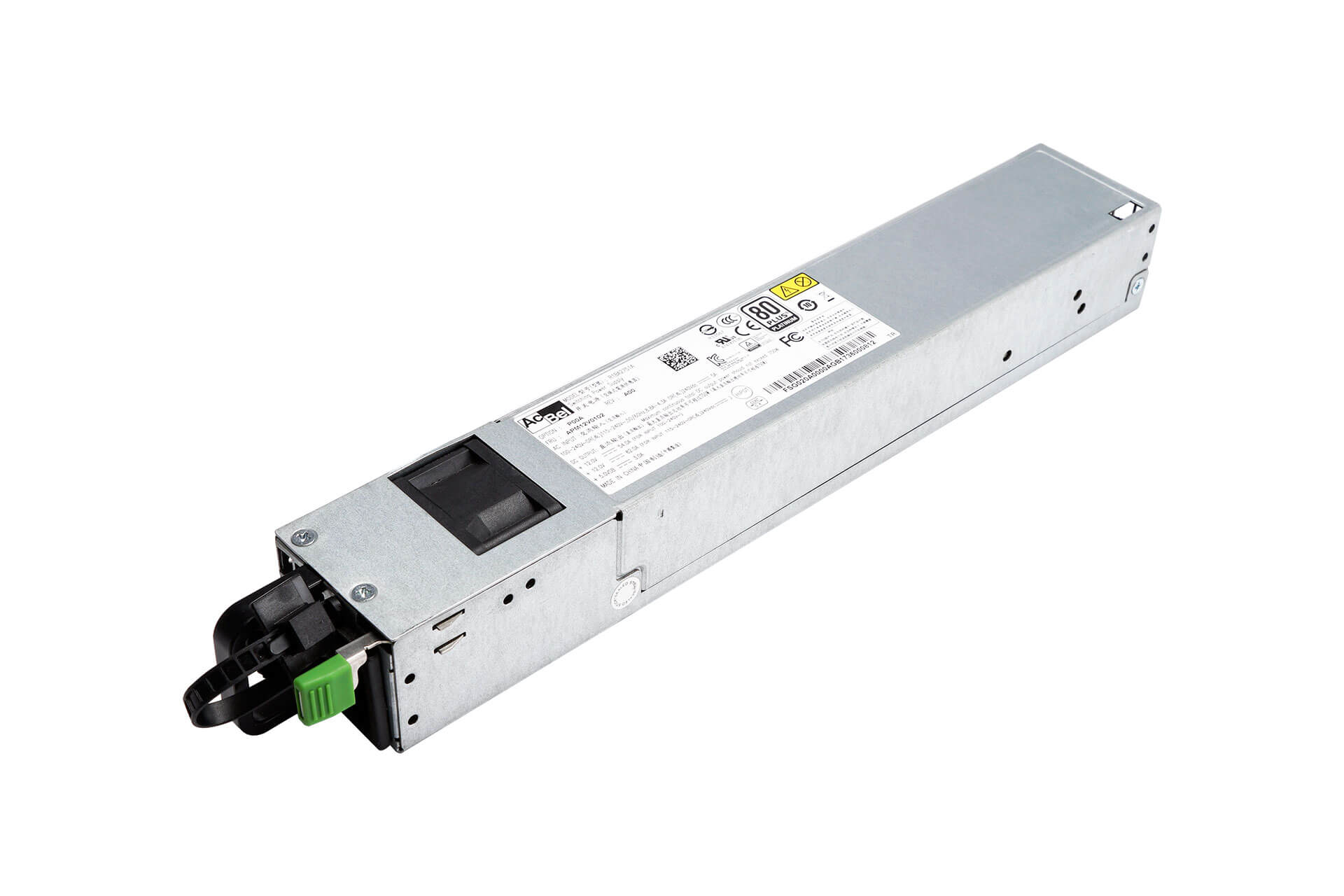

| Power Supply | 3RAMAP028000 | 750W 1U redundant module, 80 Plus Platinum | Max.2 |
|
| Backplane | 2RBTVI002100 | Slimline backplane | 1 |
|

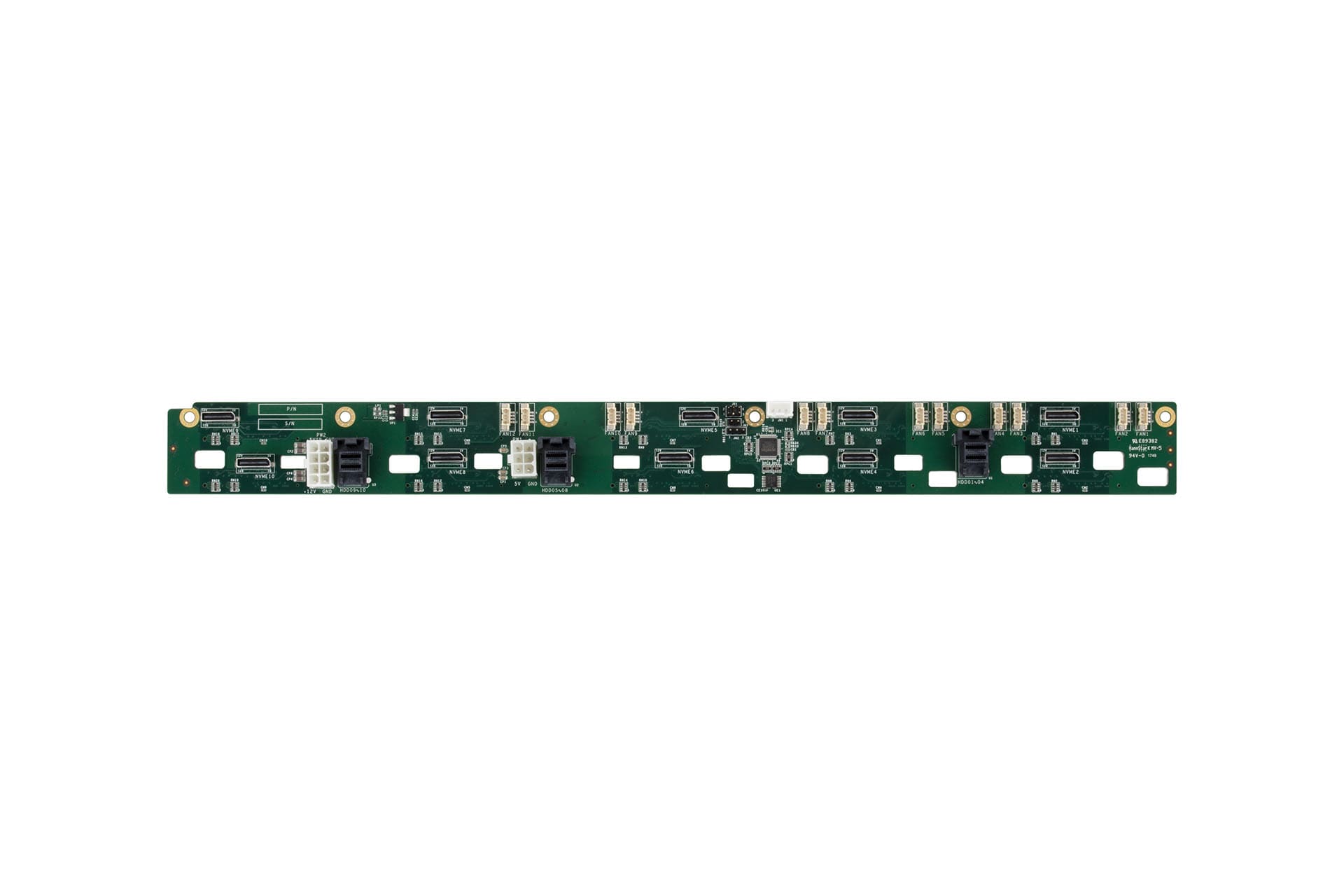

| Backplane | 2RBTVI002000 | Oculink backplane | 1 |
|

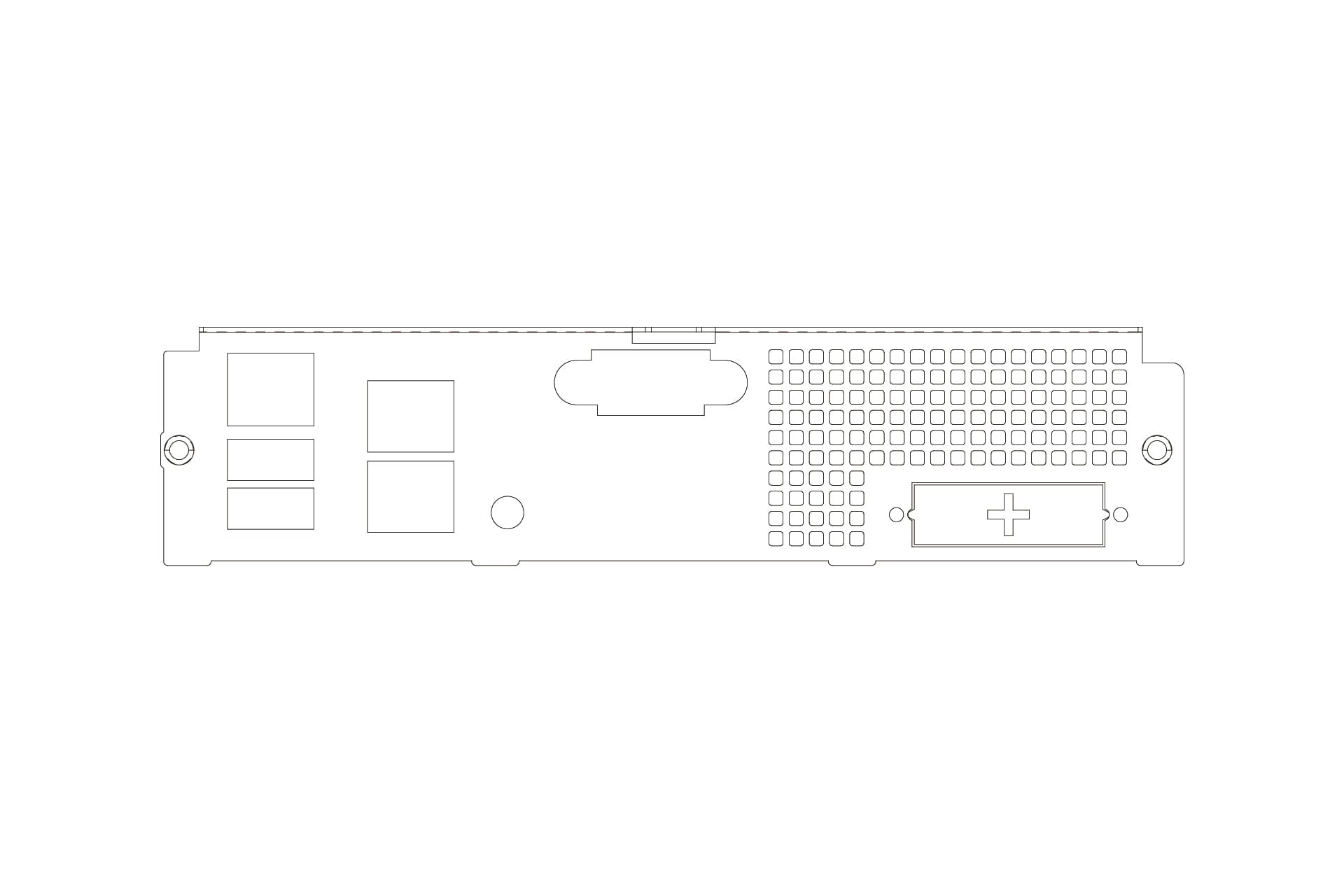

| Back I/O Shield Plate | 2RAKIQ020800 | Rear I/O shield- ASUS Z11PR-D16 | 1 |
|
| Back I/O Shield Plate | 2RAKIQ020900 | Rear I/O shield- ASRock EP2C624D16NM | 1 |
|
| Back I/O Shield Plate | 2RAKIQ021000 | Rear I/O shield- Intel H28527 S2600CW2R | 1 |
|

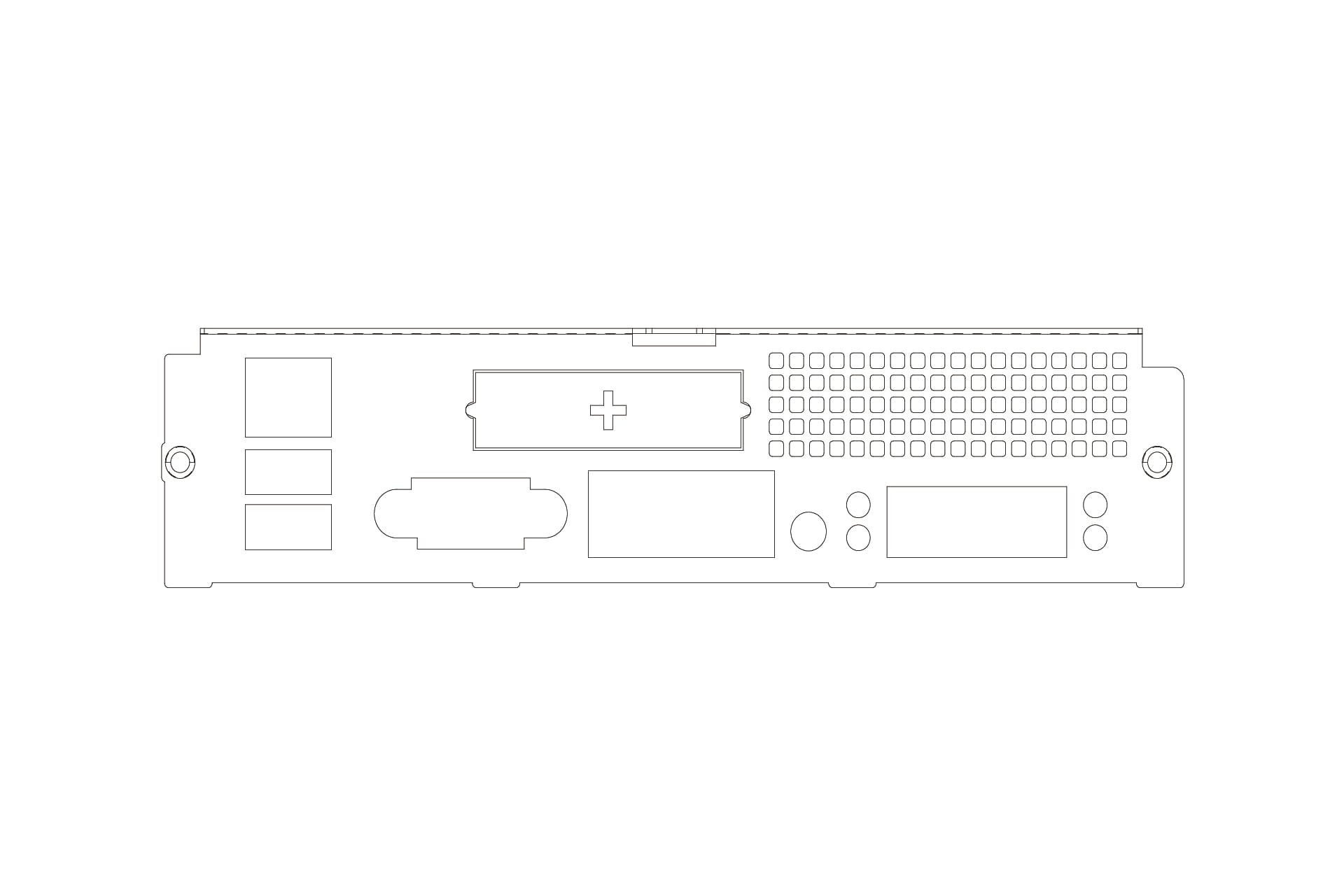

| Back I/O Shield Plate | 2RAKIQ021100 | Rear I/O shield- Gigabyte MD61-SC2 | 1 |
|

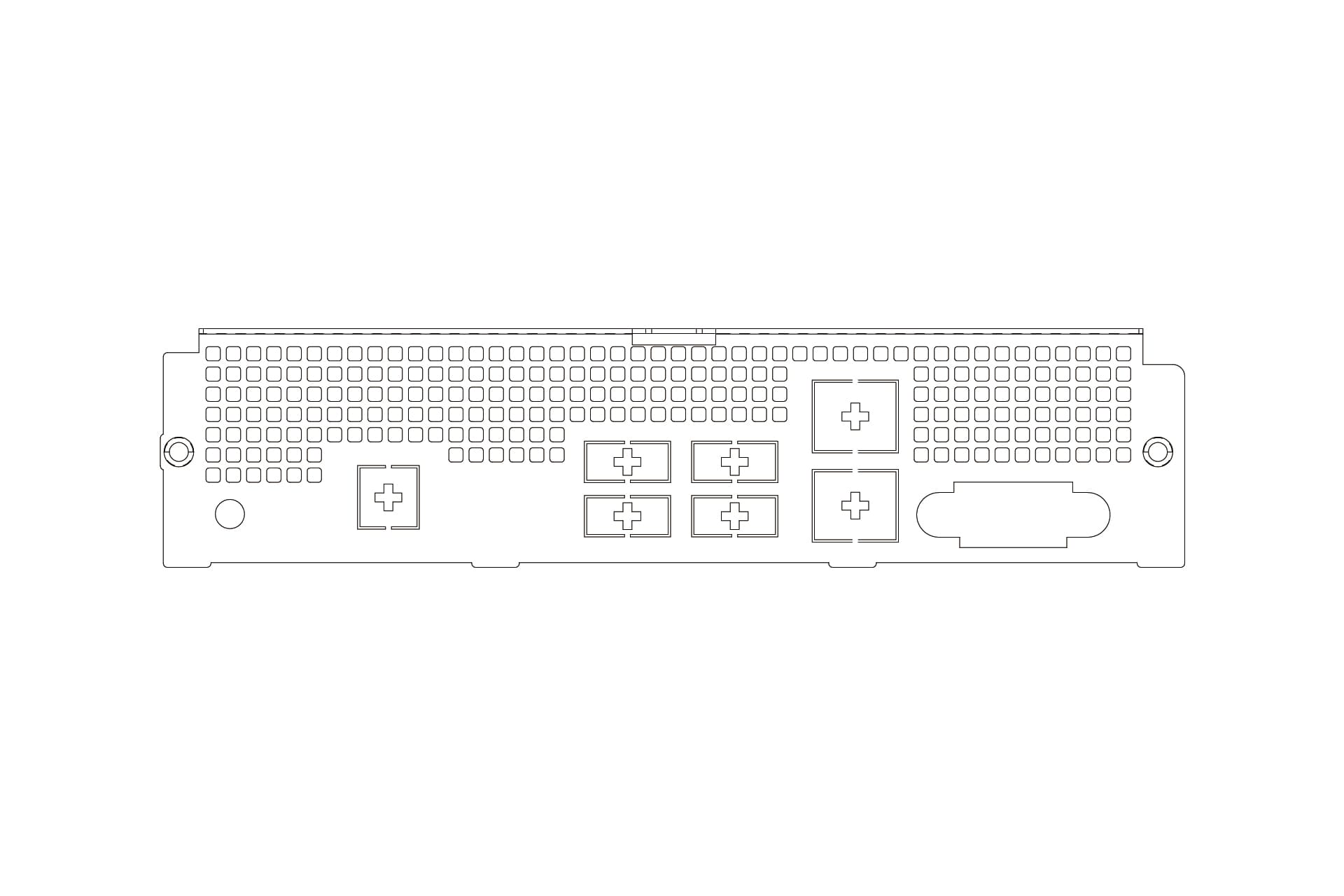

| Back I/O Shield Plate | 2RAKIQ021200 | Rear I/O shield- Tyan S7100AG2NR | 1 |
|
| Back I/O Shield Plate | - | Rear I/O shield. Material: SGCC (customize design based on customer's specific motherboard I/O design) | 1 | |

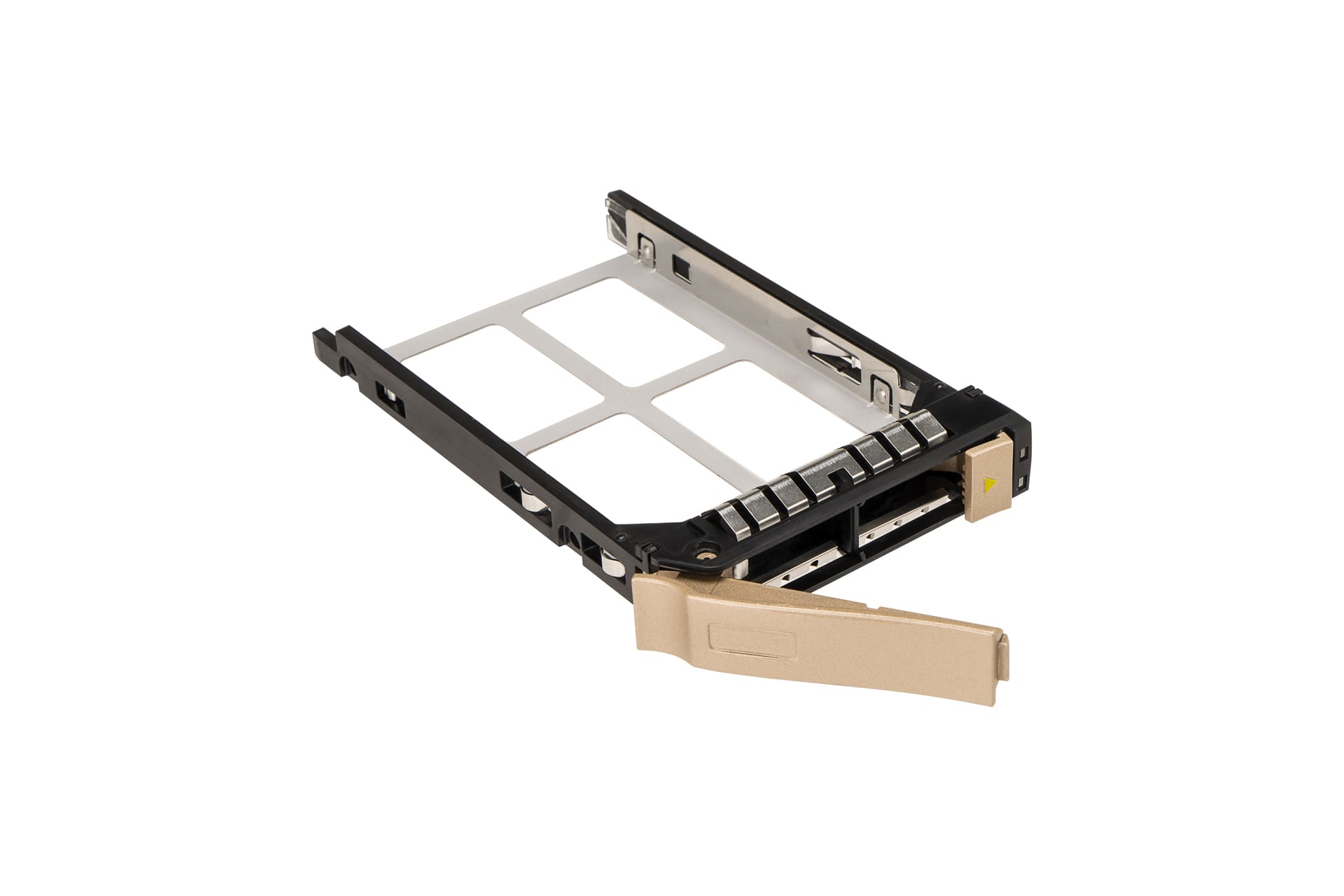

| SSD Tray | 2RAKPH038200 | 2.5" Screwless hot-swap SSD tray | Max.10 |
|

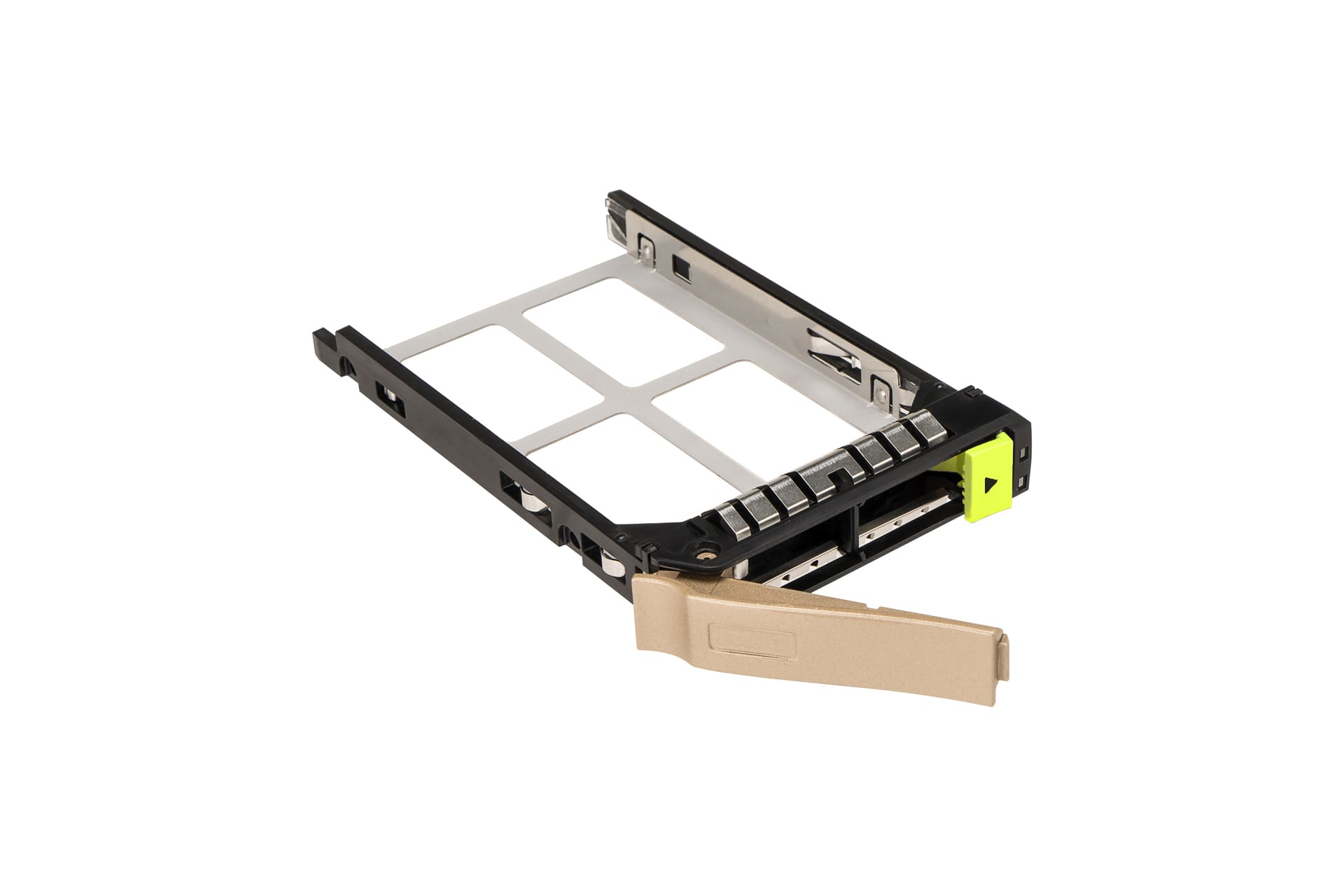

| SSD Tray | 2RAKPH038300 | 2.5" Screwless hot-swap SSD tray (NVMe) | Max.10 |
|

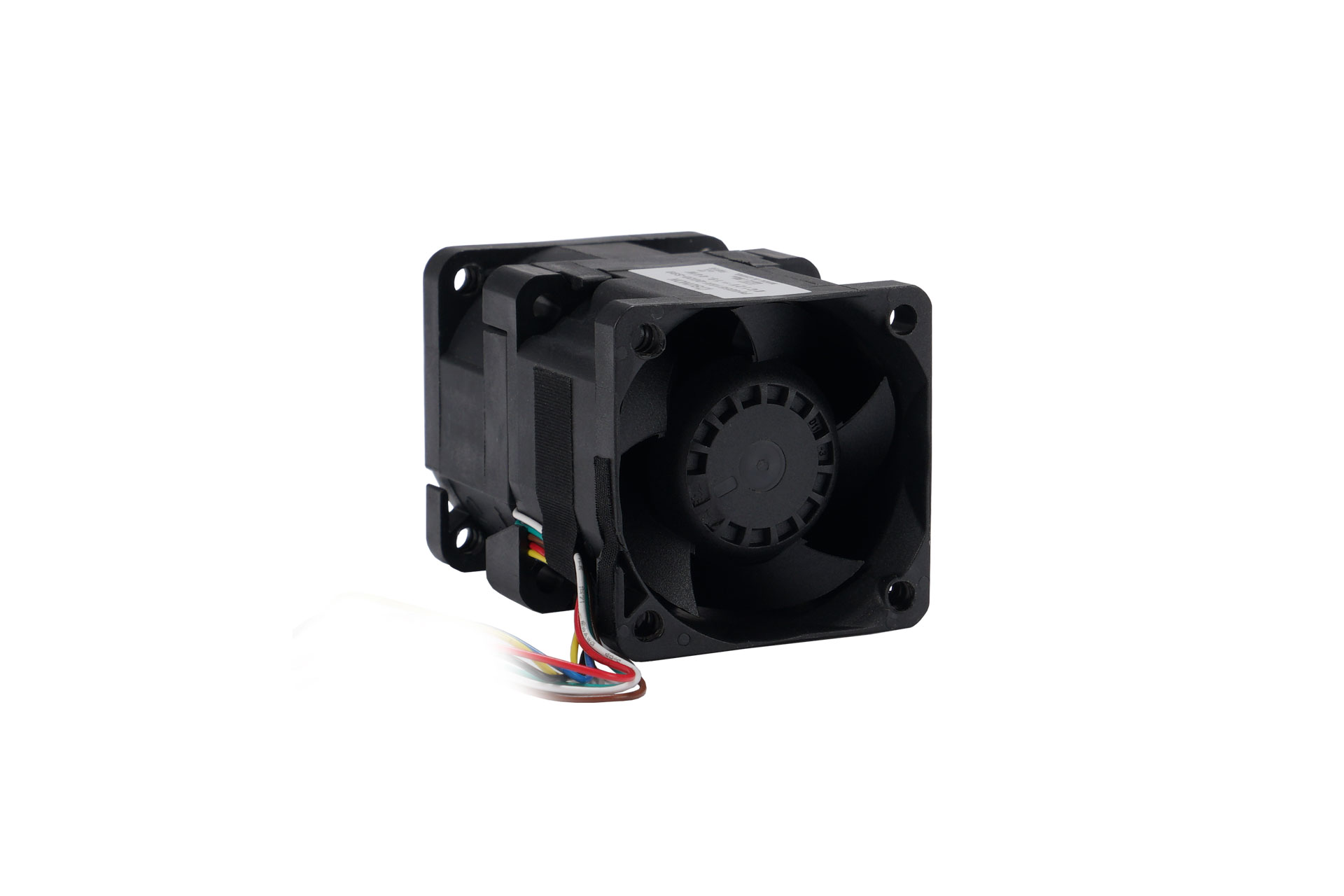

| Fan | 3RAMFB016400 | 40 x 56mm PWM easy-swap fan, 21500RPM | Max.6 |
|
| Fan | 2RAKFB011800 | 40 x 56mm PWM easy-swap fan & fan bracket | Max.6 |
|
| Riser Card | 3RAMPD038000 | PCIe Gen3 x 16 riser card, left-facing 90 degree design | 1 |
|
