server system assembly
IW-RS118-03
1U NVMe Hybrid Rackmount Storage Server
．Compliance for AMD EPYC family
．Supports SAS 12G / SATA 6G via expander
．Tool-less storage with hot-swap 2.5" SSD bay x 18 in a compact 1U form factor
．Up to NVMe x 4 for faster hybrid storage performance
．Low acoustic noise and reduced vibrations for greater reliability
．Board to board expander design for easy maintenance
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay | • External : Hot-swap 2.5" SSD/HDD (7mm) x 18 (Up to NVMe x 4) • Internal : 2.5" SSD (7mm) x 2 for OS |
| Power Supply | Supports: • 750W 1U 1 + 1 redundant PSU, 80 Plus Platinum • 650W 1U single PSU, 80 Plus Gold |
| Indicators | Power LED, LAN1/LAN2 LED, System LED, HDD LED, ID LED |
| Front Control Panel | Power On/Off, Reset, NMI, ID SW, USB 3.0 x 1 |
| Backplane-1 | Mini-SAS HD 12Gb/s with expander plus SlimLine x 4 |
| Backplane-2 | Mini-SAS HD 12Gb/s with expander plus OCuLink x 4 |
| SAS 12G Expander | Mini-SAS HD connector (SFF-8643) x 3 (Host x 2, Cascade x 1) |
| Cooling Fans | 40 x 56mm PWM Fan x 6 |
| Expansion Slot | Full Height PCI Slot x 1 (Via Riser Card and Bracket) |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 28" Tool-less & Ball-bearing Slide Rail |
| Product Dimensions (DxWxH; Chassis Only) | 700 x 482.6 x 43.5mm (27.6" x 19" x 1.71") |
| Package Dimensions (DxWxH) | 845 x 590 x 185mm |
| Weight (Chassis Only) | • Net Weight: 10.98kg • Gross Weight: 14.25kg |
| Cubic Feet | 3.26 |
| Container Information | Single Packing with Pallets: • 20’: 200pcs • 40’: 460pcs • 40’HQ: 506pcs |
12Gb/s Backplane Specifications
| Backplane-1 | Slimline Backplane |
| Dimension (W x H) | 406mm x 39mm |
| Backplane Type | Active with Expander Board |
| Host Interface | 3x SFF-8643 4x SFF-8654 slimline |
| HDD Interface | 18x SAS/SATA or 14x SAS/SATA and 4x NVMe SSD |
| Backplane-2 | Oculink Backplane |
| Dimension (W x H) | 406mm x 39mm |
| Backplane Type | Active with Expander Board |
| Host Interface | 3x SFF-8643 4x SFF-8611 Oculink |
| HDD Interface | 18x SAS/SATA or 14x SAS/SATA and 4x NVMe SSD |
| Item | Download | Preview |
|---|---|---|
| IW-RS118-03 eDM | ||
| IW-RS118-03 Gallery | - | |
| IW-RS118-03 Compatibility | ||
| IW-RS118-03 SAS3 Backplane User Manual |
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|

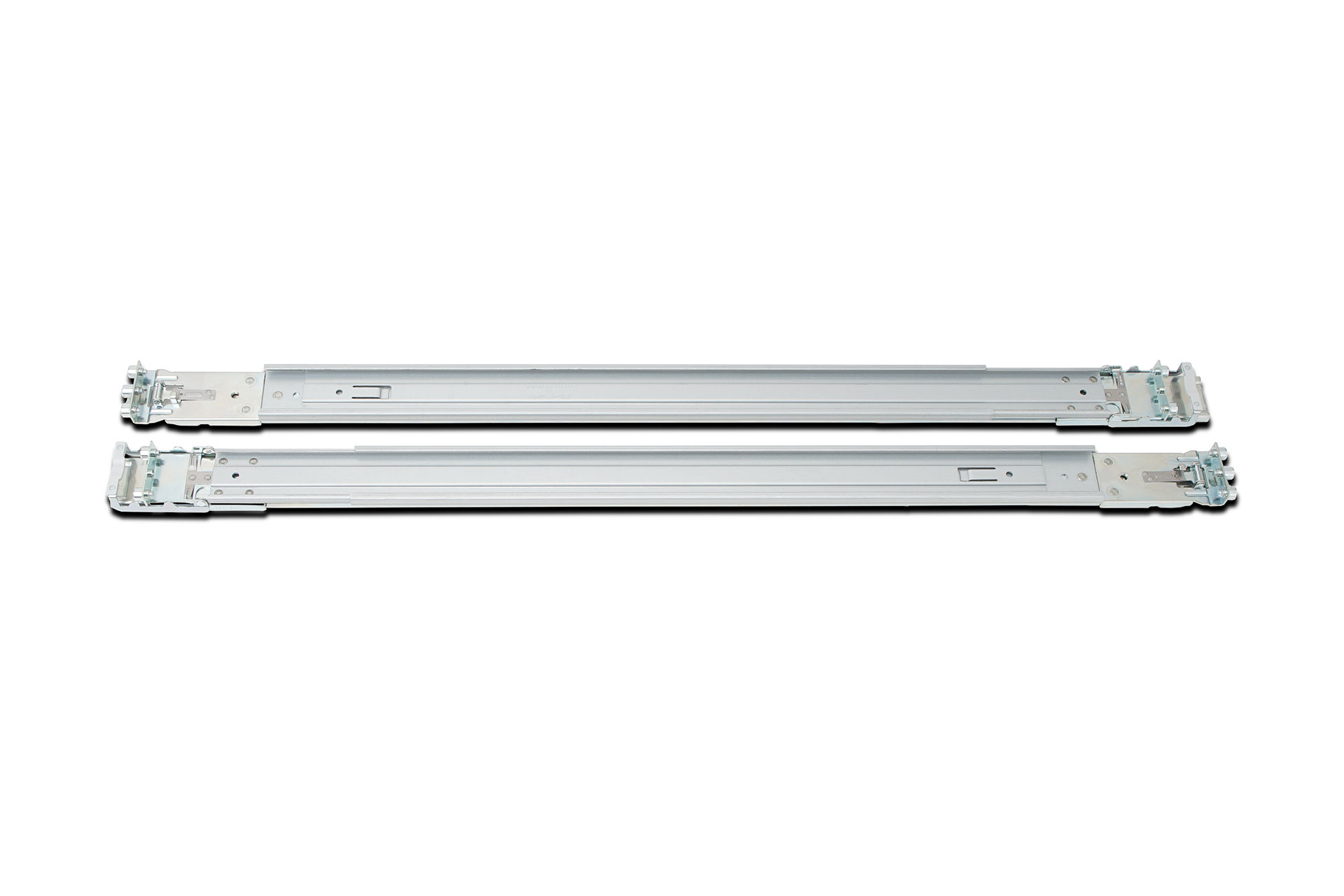

| Slide Rail | 3RAMIS133200 | 28" tool-less & ball-bearing slide rail | 1 |
|
| HDD Tray | 2RAKPH037900 | Optional tray for 2.5" 7mm SSD | 1 |
|
| Back I/O Shield Plate | 2RAKIQ023400 | Rear I/O shield- ASUS Z11PR-D16 | 1 |
|

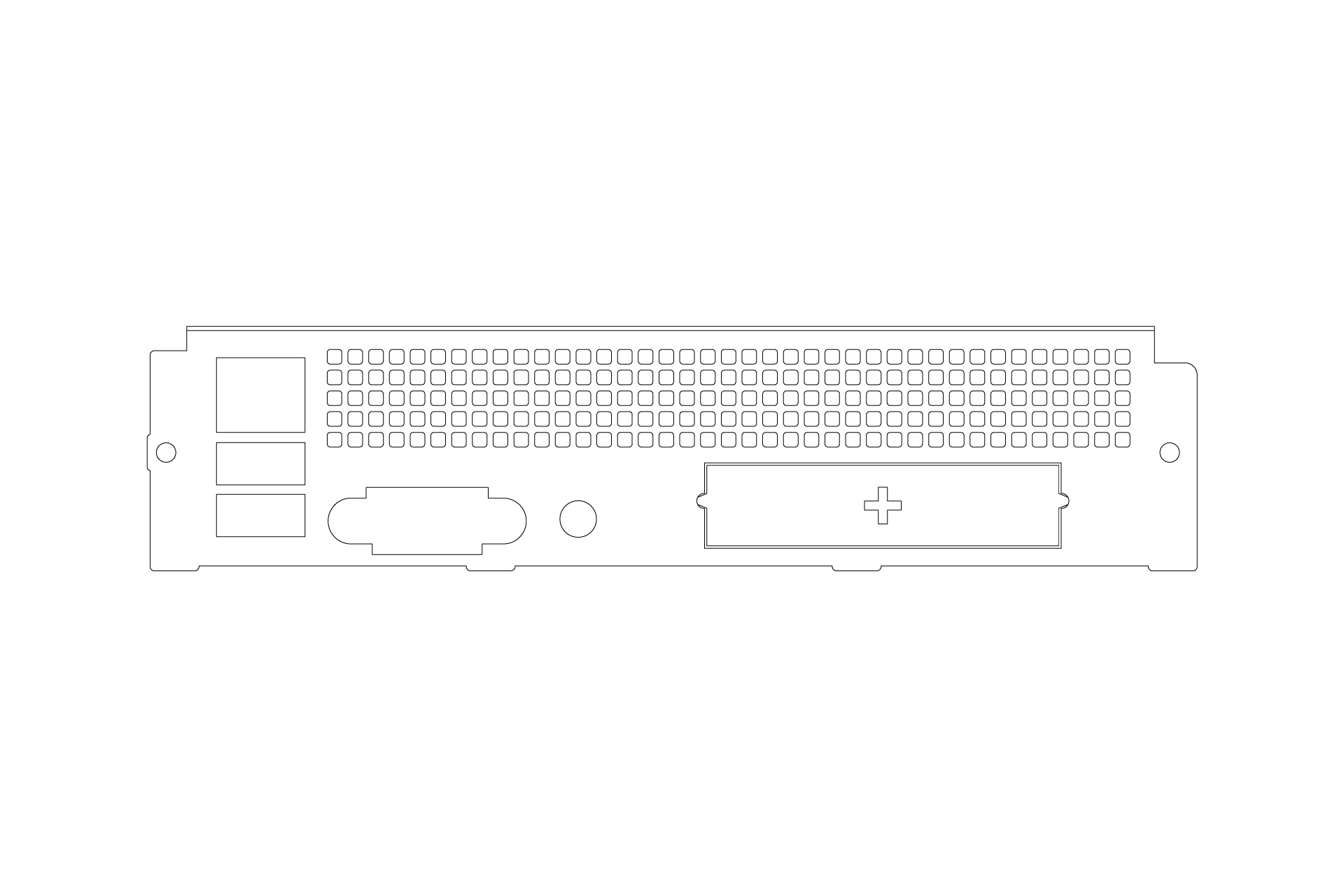

| Back I/O Shield Plate | 2RAKIQ023000 | Rear I/O shield- ASRock EP2C624D16NM | 1 |
|
| Back I/O Shield Plate | 2RAKIQ023100 | Rear I/O shield- Intel H28527 S2600CW2R | 1 |
|
| Back I/O Shield Plate | 2RAKIQ023200 | Rear I/O shield- Gigabyte MD61-SC2 | 1 |
|

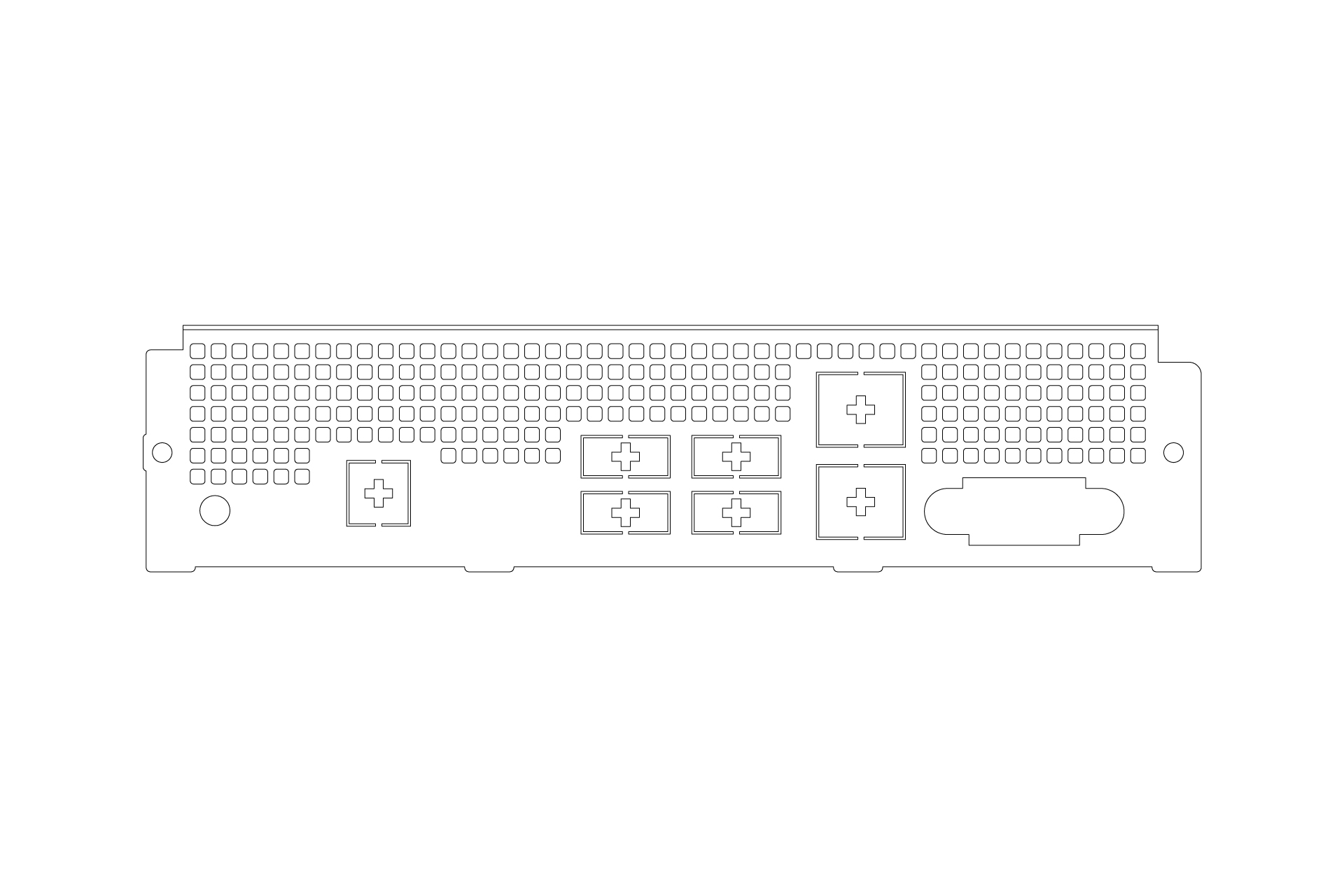

| Back I/O Shield Plate | 2RAKIQ023300 | Rear I/O shield- TYAN S7100AG2NR | 1 |
|
| Back I/O Shield Plate | - | Rear I/O shield. Material: SGCC (customize design based on customer's specific motherboard I/O design) | 1 | |

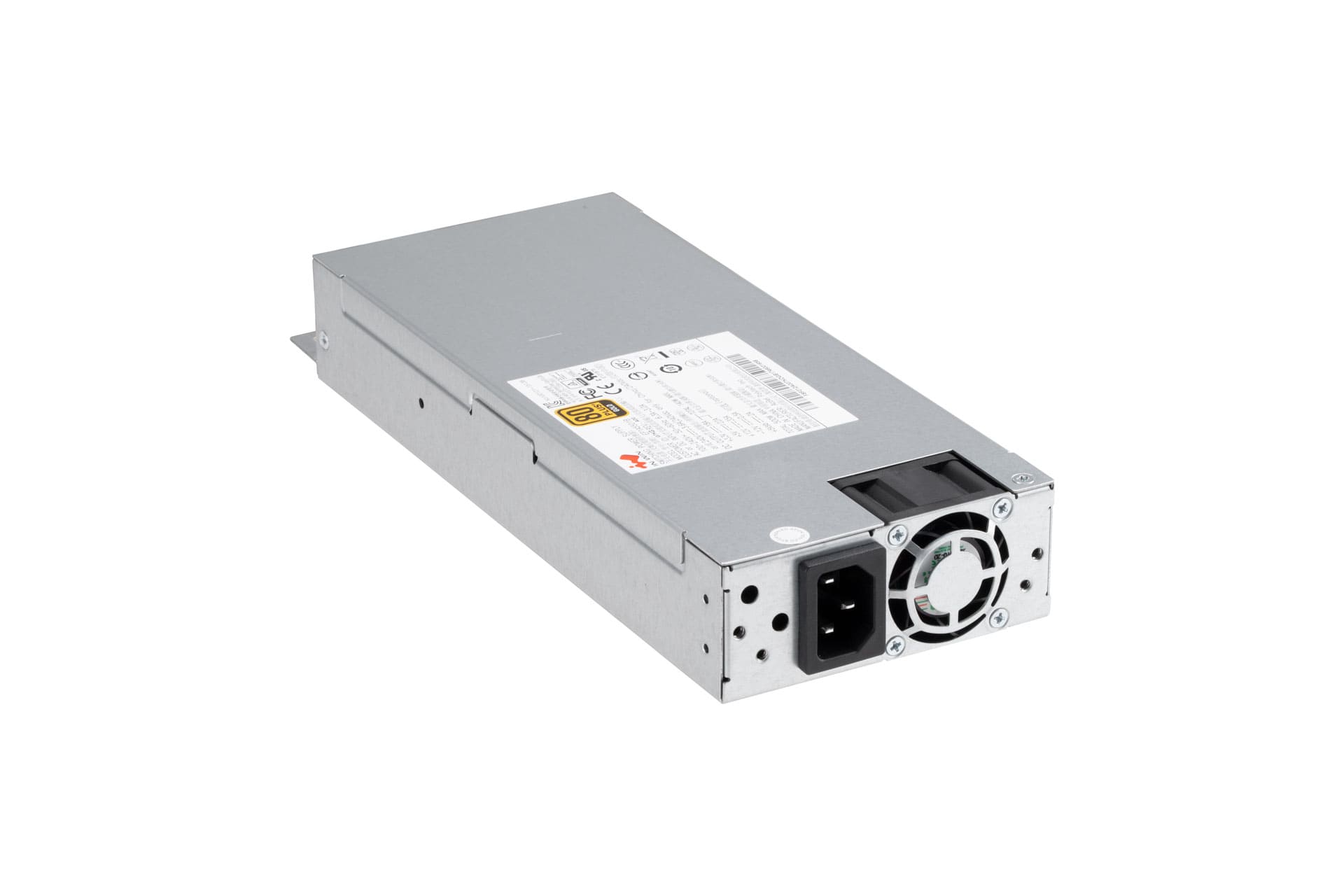

| Power Supply | 3RAMAP028600 | 650W 1U single PSU, 80 Plus Gold | 1 |
|

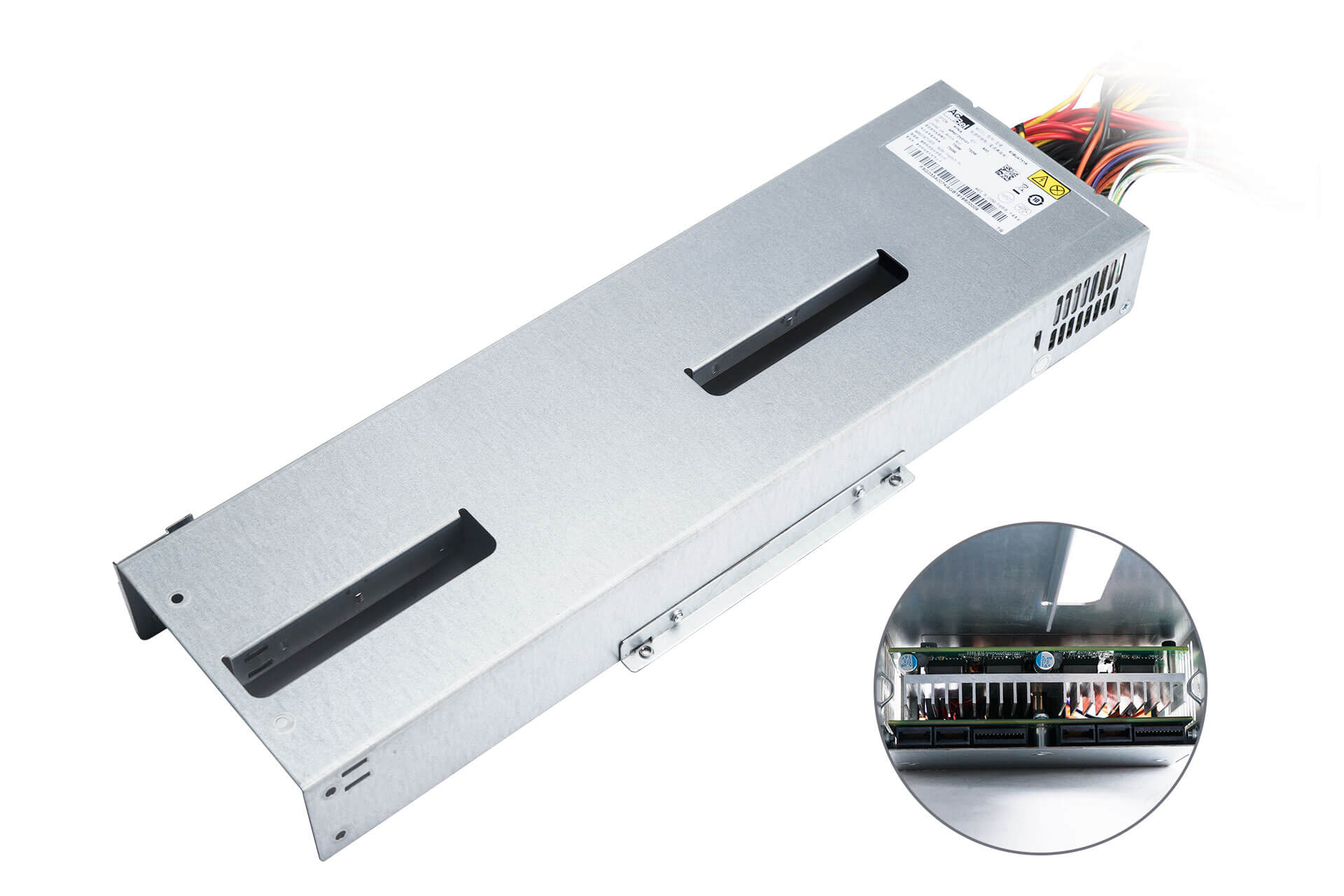

| Power Supply | 3RAMAP035300 | 750W 1U redundant PDB power cage | 1 |
|

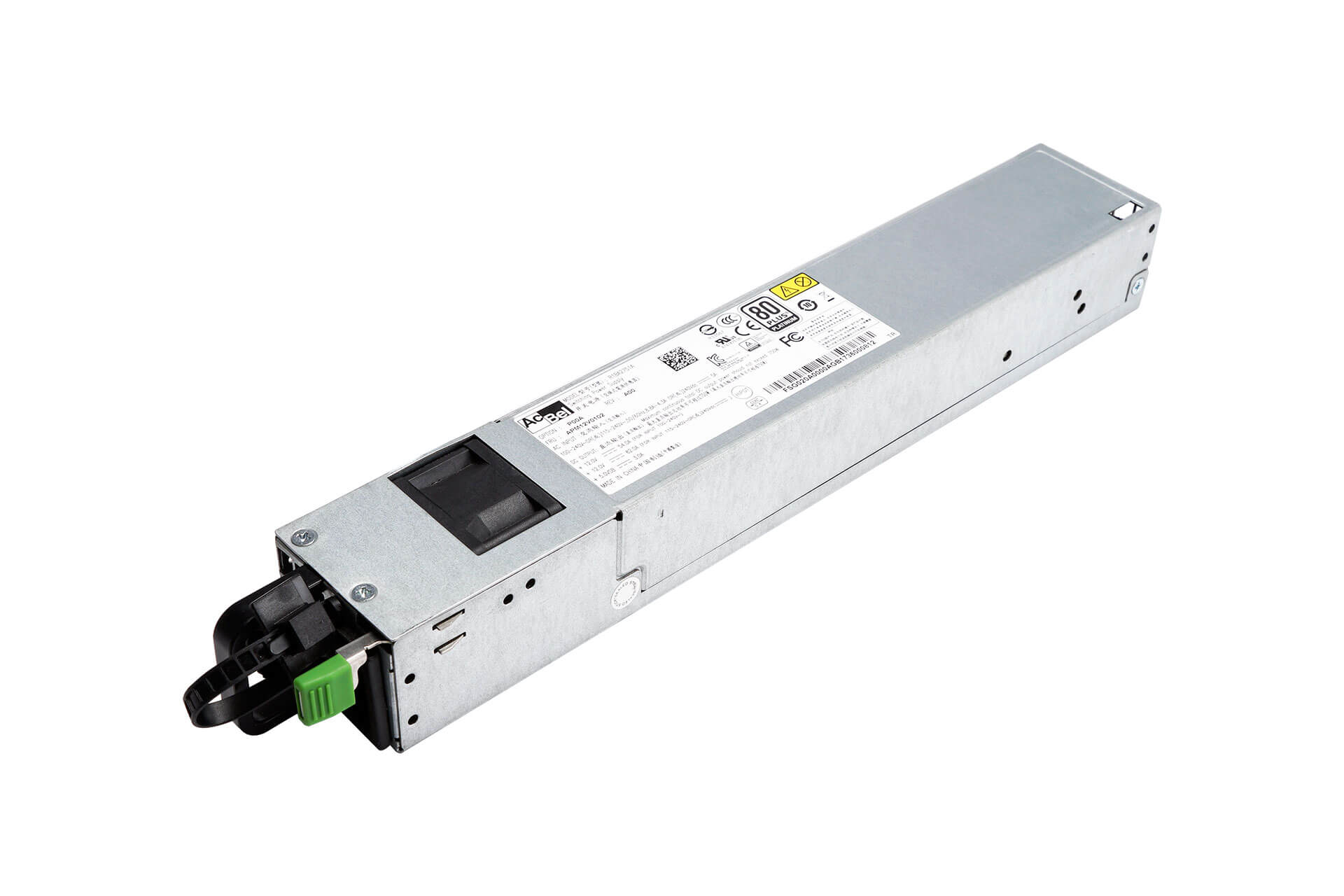

| Power Supply | 3RAMAP028000 | 750W 1U redundant module, 80 Plus Platinum |
|
