server system assembly
IW-RS208-02SN
2U Rackmount Short Depth Storage Server
．SAS (SGPIO) and SATA 6Gb supported
．External 3.5" or 2.5" x 8 hot-swap HDD trays with lock supported
．Easy-swap 80mm PWM fans with anti-vibration mechanism
．Single or redundant 80 plus gold level high-efficiency power supply
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5") |
| Drive Bay | • External: hot-swap 3.5" x 8 or 2.5" x 8, slim ODD x 1 • Internal: 2.5" HDD x 2, 3.5" HDD x 1 (optional) |
| Power Supply | Supports: • Form factor: single or 1+1 redundant • Watt: single 500W, redundant 550W |
| Indicators | Power Status, HDD, LANs, System Fail Activity LEDs |
| Front Control Panel | Power Switch, ID Switch, System Reset, NMI, USB 3.0 x 2 |
| Chassis Security | Intrusion Switch (optional) |
| Backplane | • SATA (6Gb/s supported) • Mini-SAS (6Gb/s supported) • Mini SAS HD, SFF-8643 (12G/bs supported) |
| Cooling Fans | Supports 80 x 25 mm / 80 x 38 mm PWM easy-swap fan x 3 |
| Expansion Slot | Low profile PCI slot x 7 |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 28" screwless slide rail, ball-bearing |
| Product Dimensions (DxWxH; Chassis Only) | 571.5 x 482.6 x 87mm (22.5" x 19" x 3.5") |
| Package Dimensions (DxWxH) | 742 x 577 x 212mm |
| Weight (Chassis Only) | • Net Weight:10.7kg • Gross Weight: 16.5kg |
| Cubic Feet | 3.2 |
| Container Information | Single Packing with Pallets: • 20': 176pcs • 40': 384pcs • 40' HQ: 432pcs |

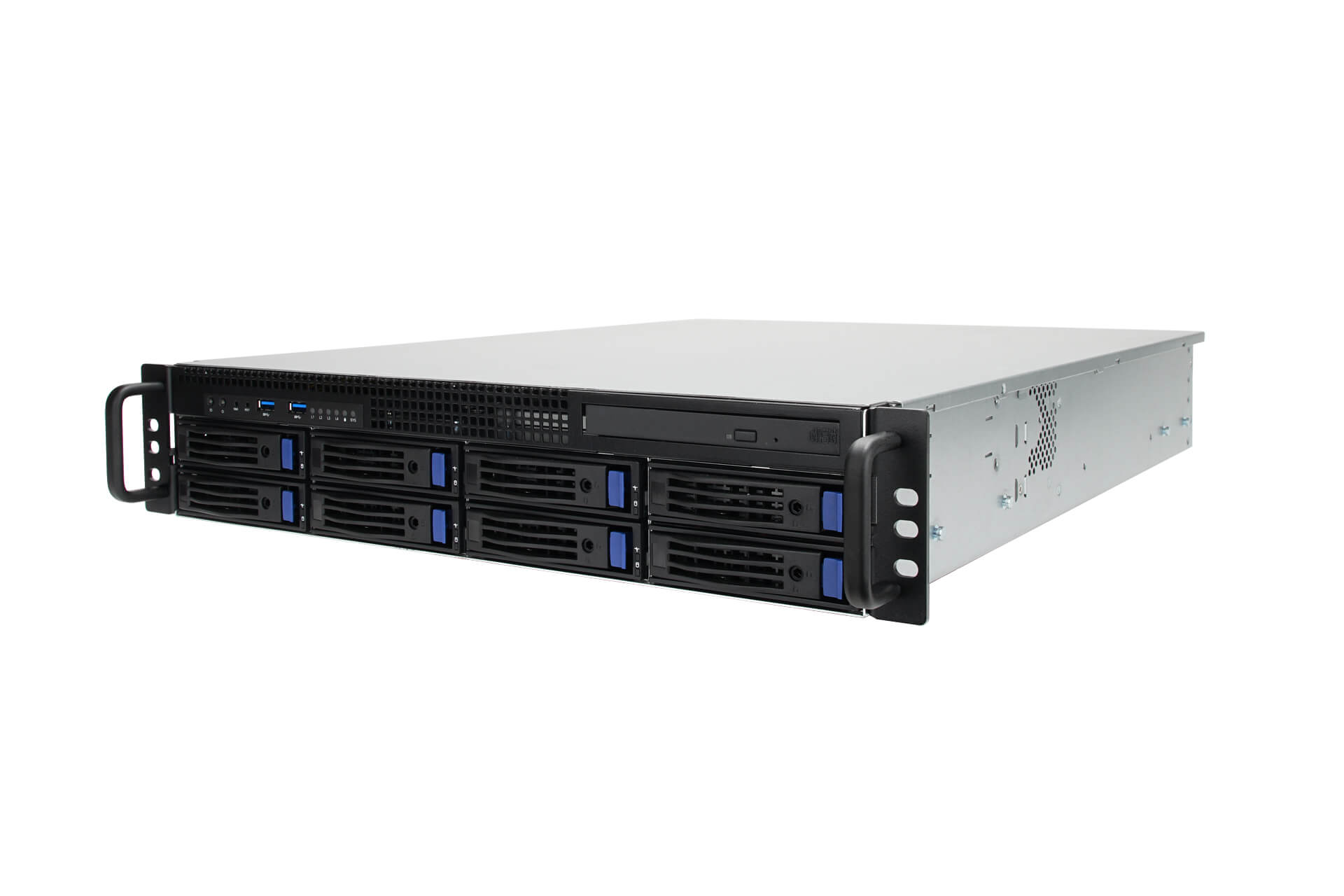

* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.

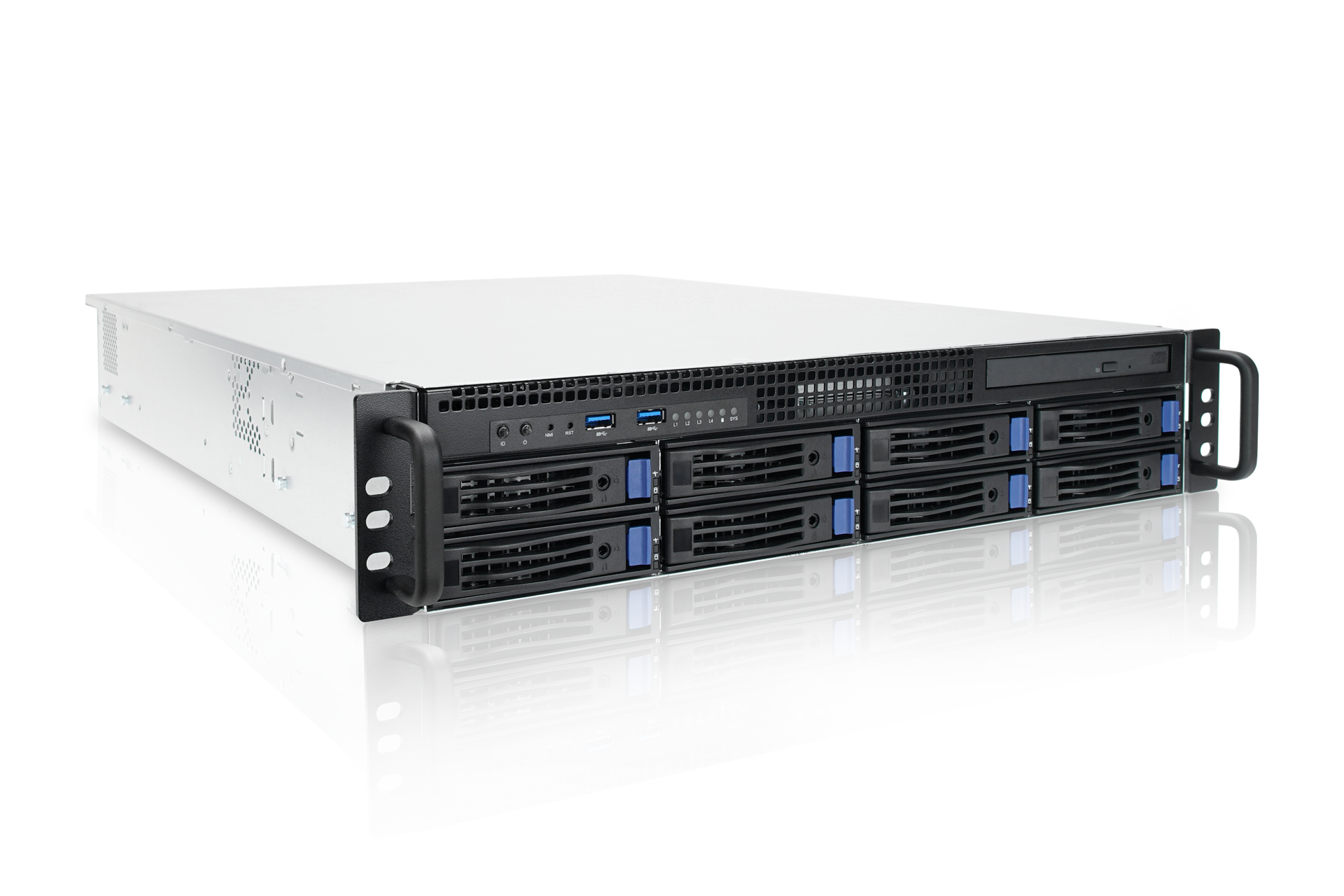

* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| OTHERS | 3RAMRW011300 | Intrusion Switch / 800mm | 1 |
|
| OTHERS | 3RAMRW038000 | Intrusion Switch / 600mm | 1 |
|
| OTHERS | - | Iron front panel with silver coating | 1 | |
| Fan | - | 80 x 25mm, PWM, 4500RPM | 1 | |
| Fan | - | 80 x 38mm, PWM, 5500RPM | 1 | |
| Power Supply | - | 1U Single 500W, 80 Plus Gold | 1 | |
| Power Supply | - | 2U 1+1 Redundant 500W, 80 Plus Silver | 1 | |
| Power Supply | - | CRPS 550W | 1 | |
| Cable | - | SATA 7-pin to SATA 7-pin, 500mm | 1 | |
| Cable | - | Mini-SAS cable 36p/36p, L600, 90°/180° | 1 | |
| Cable | - | Mini-SAS cable 36p/36p, L600, 180°/180° | 1 | |
| Cable | - | Mini-SAS cable SATA*4/36p, L1000 | 1 | |
| Cable | - | Mini-SAS HD cable, 180°/180°, 800mm | 1 | |
| Slide Rail | - | 28" screwless slide rail, ball-bearing | 1 |
