IW-RS208-04

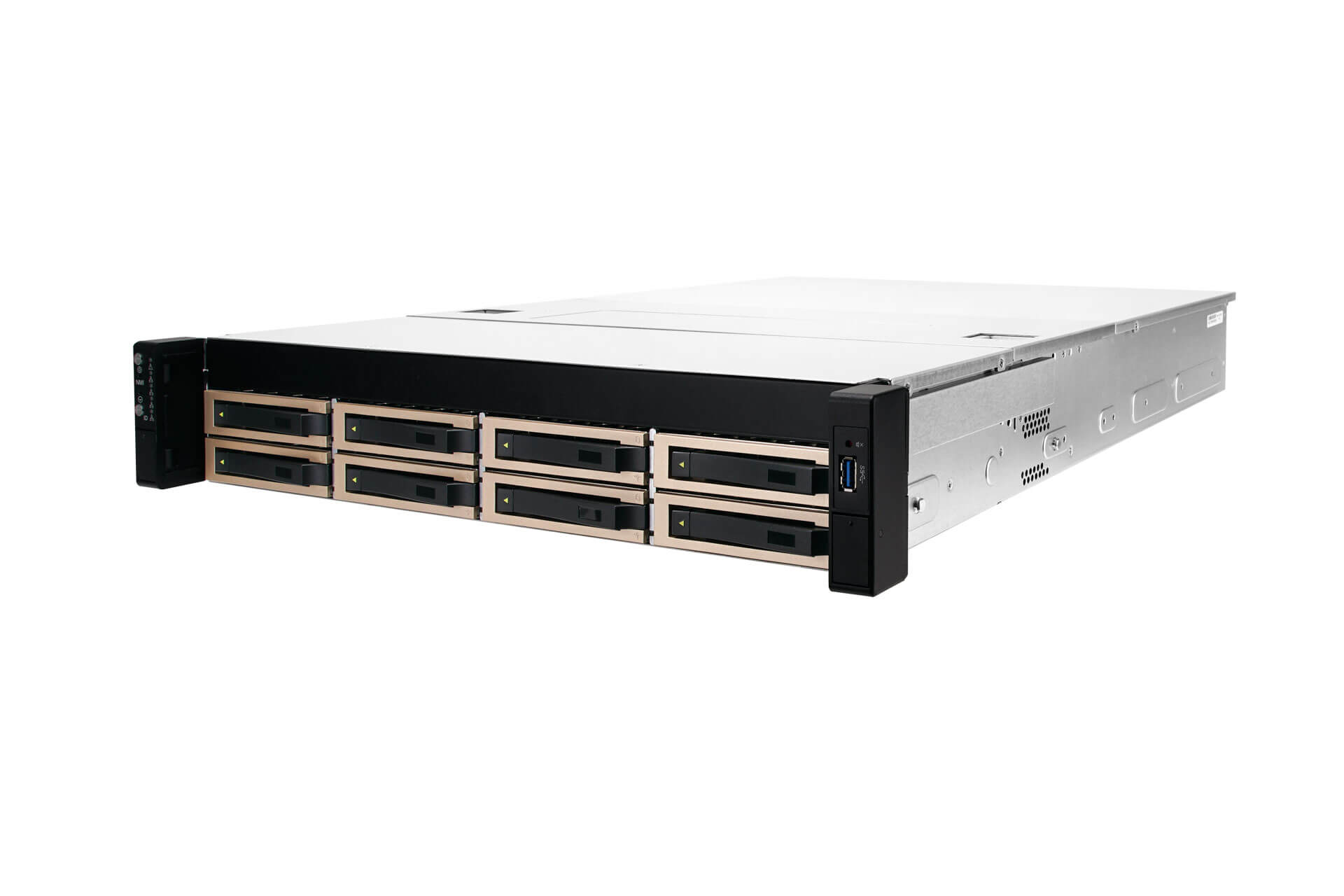

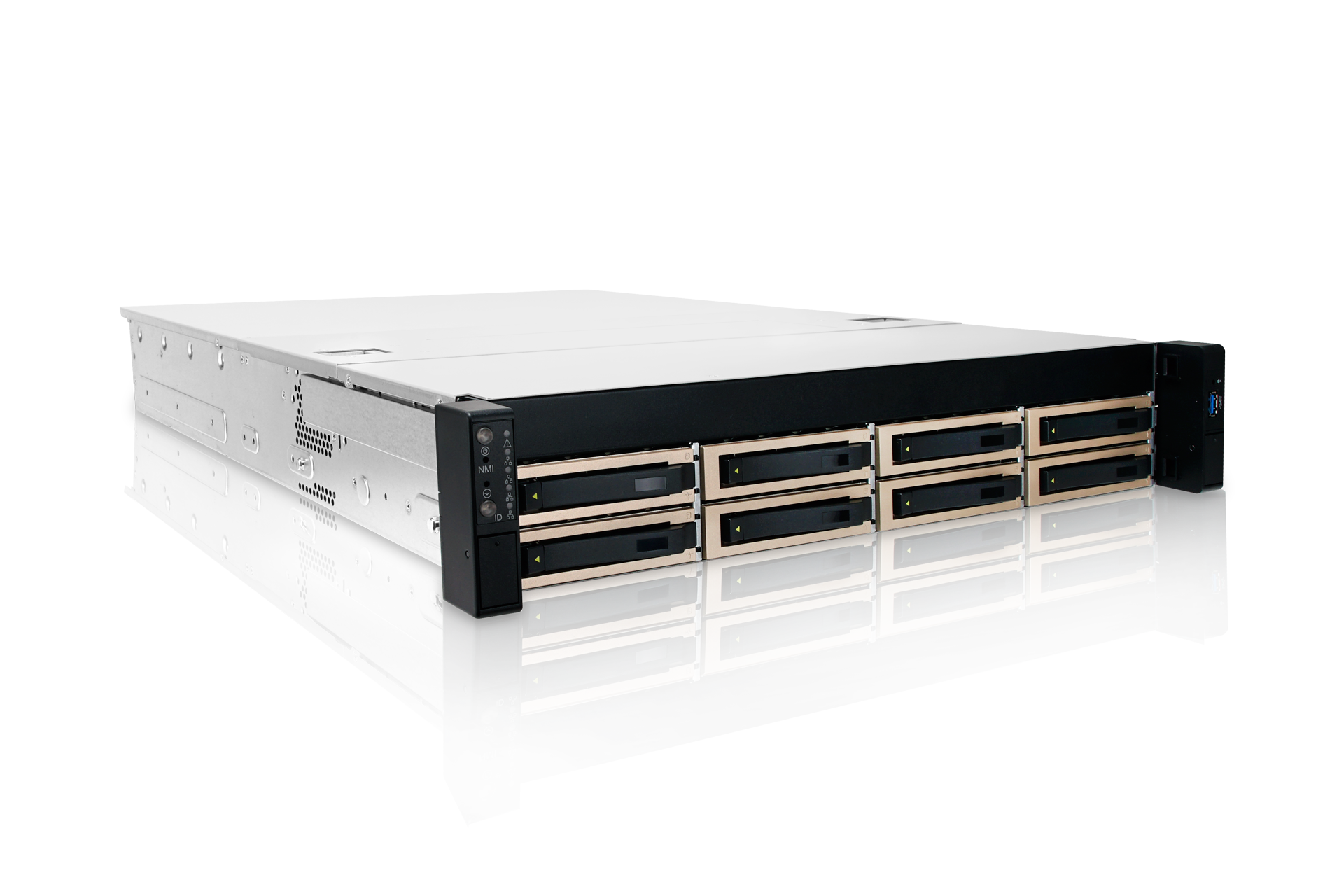

2U Rackmount Storage Server
．Designed for performance and scalability
．Smart enclosure management
．Supports SAS 12G / SATA 6G via expander
．Supports high efficiency CRPS power supplies
．Specialized flexible cooling design
．Supports tool-less sliding rail

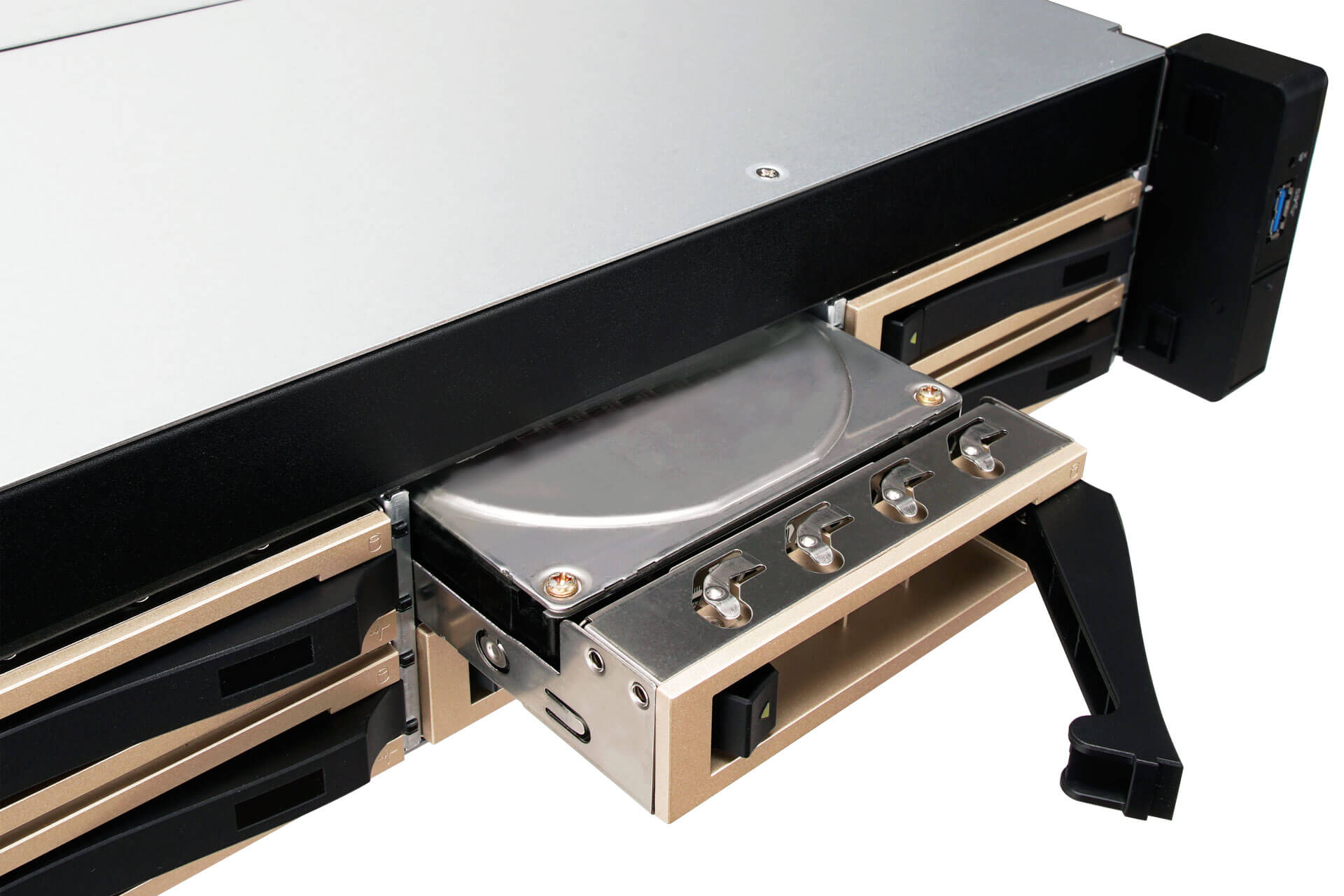

．Tool-less design for 3.5-inch HDD carrier
．Supports SES-2 (SCSI enclosure service)

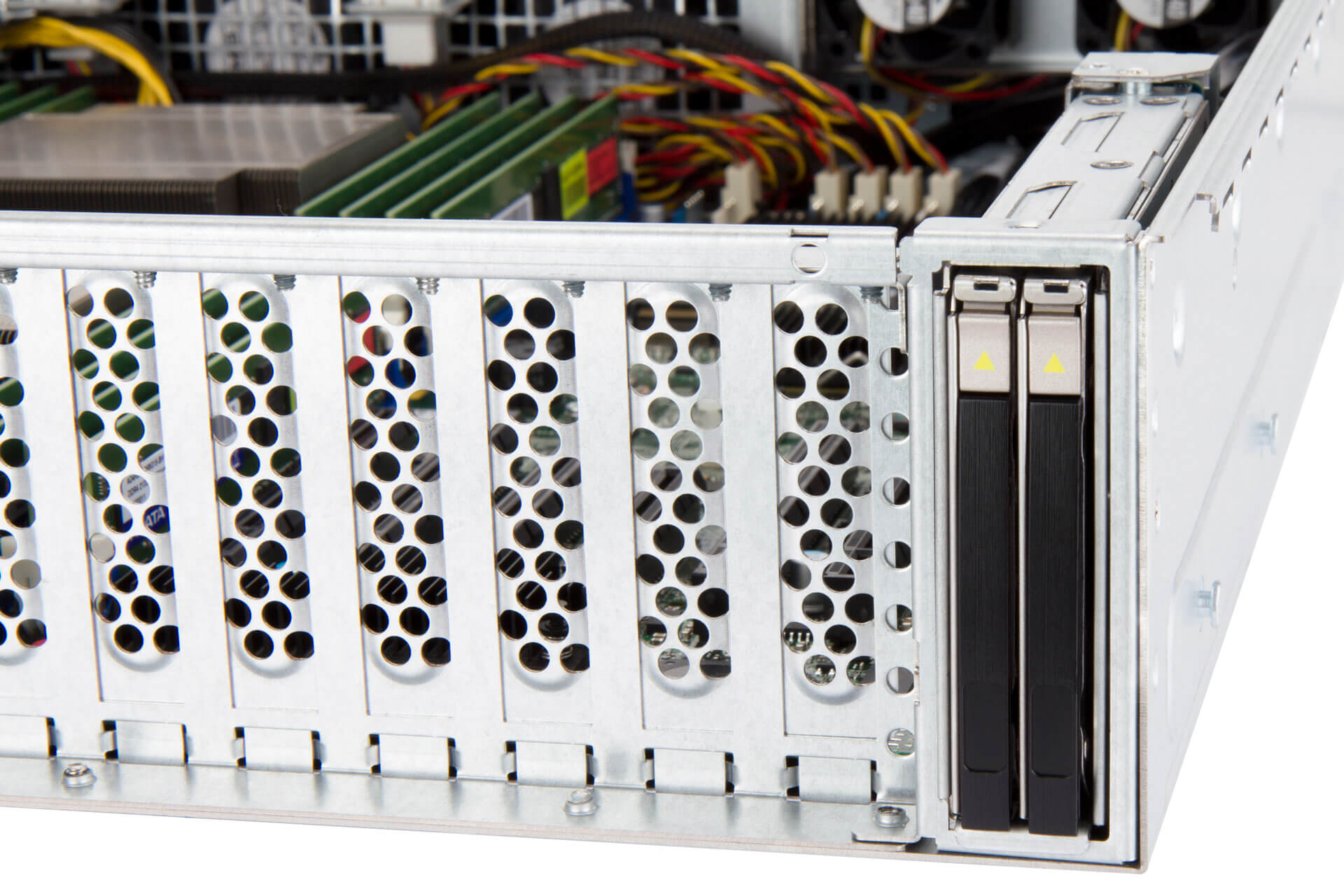

．Rear 2.5" hot-swap for OS (SSD 7mm) x 2 (optional)
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX (12" x 9.6"), ATX (12" x 10"), EEB (12" x 13") |

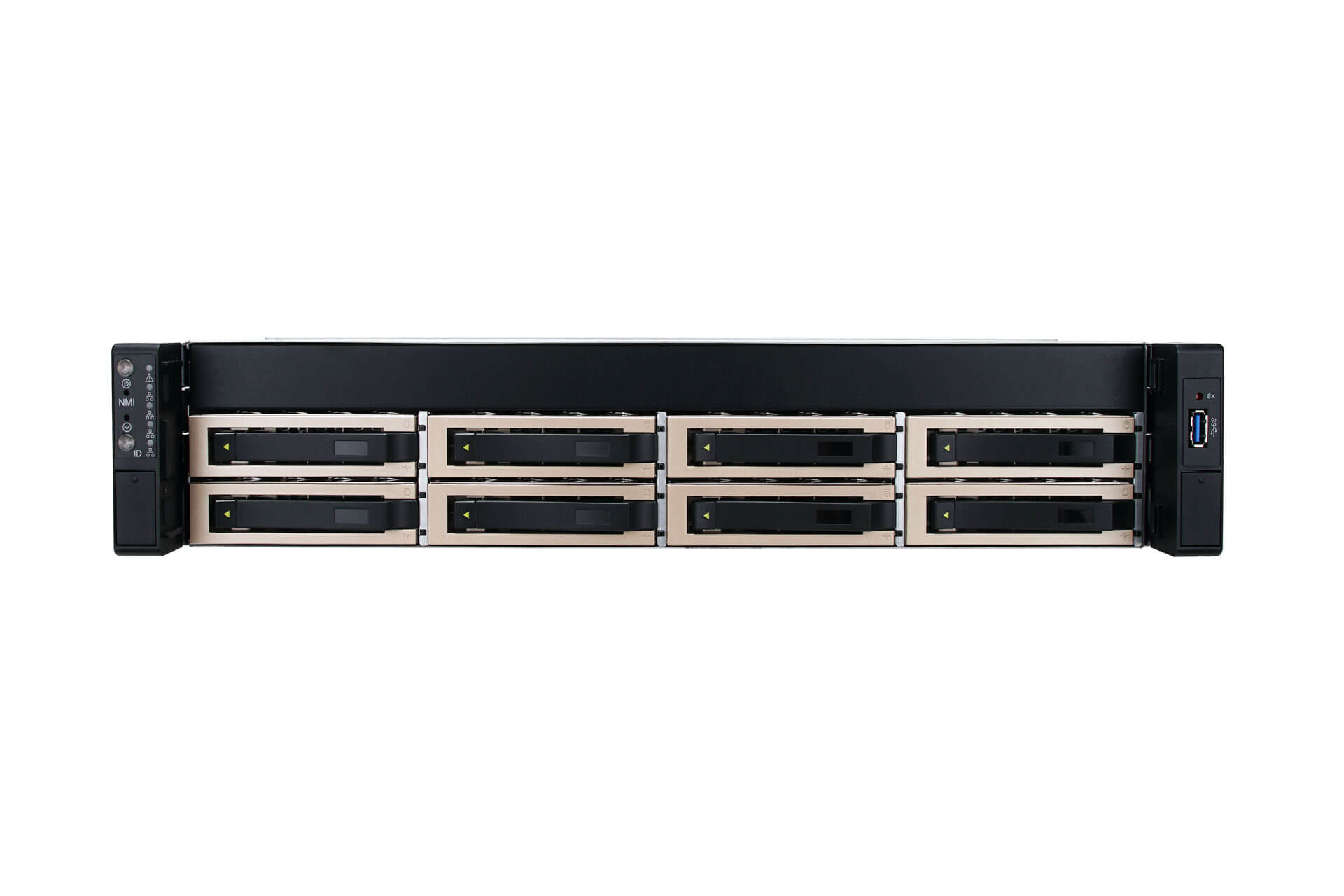

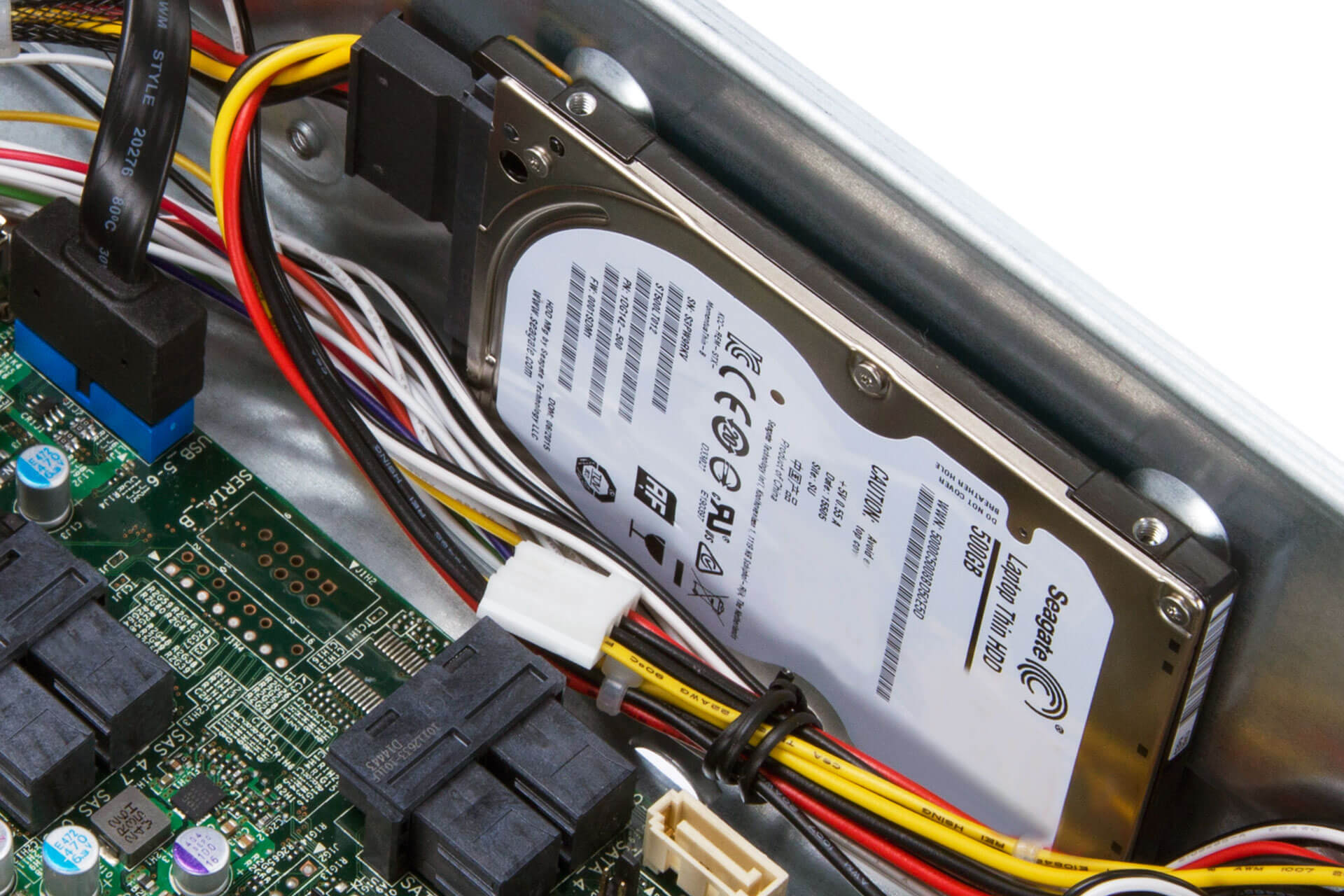

| Drive Bay | • External: hot-swap 3.5" x 8 • Internal: 2.5" x 2 or rear hot-swap 2.5"(7mm SSD) x 2 for OS (optional) |
| Power Supply | Supports: • Form factor: 80 Plus Platinum CRPS Redundant • Watt: 800W |
| Indicators | Power LED, LAN1/LAN2/LAN3/LAN4 LED, System LED, ID LED |
| Front Control Panel | Power On/Off, Reset, NMI, ID SW, USB 3.0 x 1, Mute Button |
| Backplane | Mini-SAS HD, SFF-8643 (12Gb/s without Expander) |

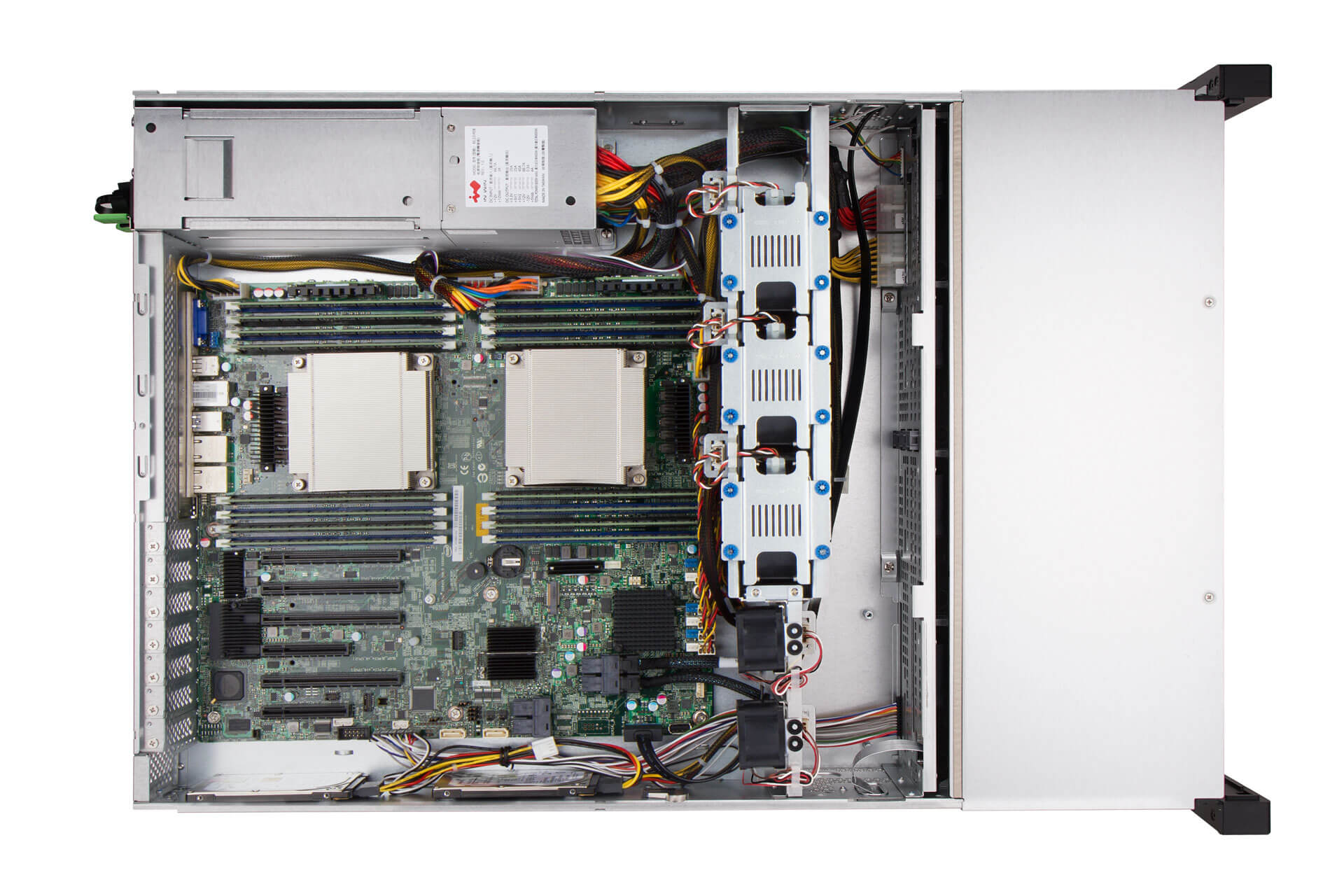

| Cooling Fans | • 8038mm PWM fan x 3, 4028mm fan x 2 • Modular design with anti-vibration |

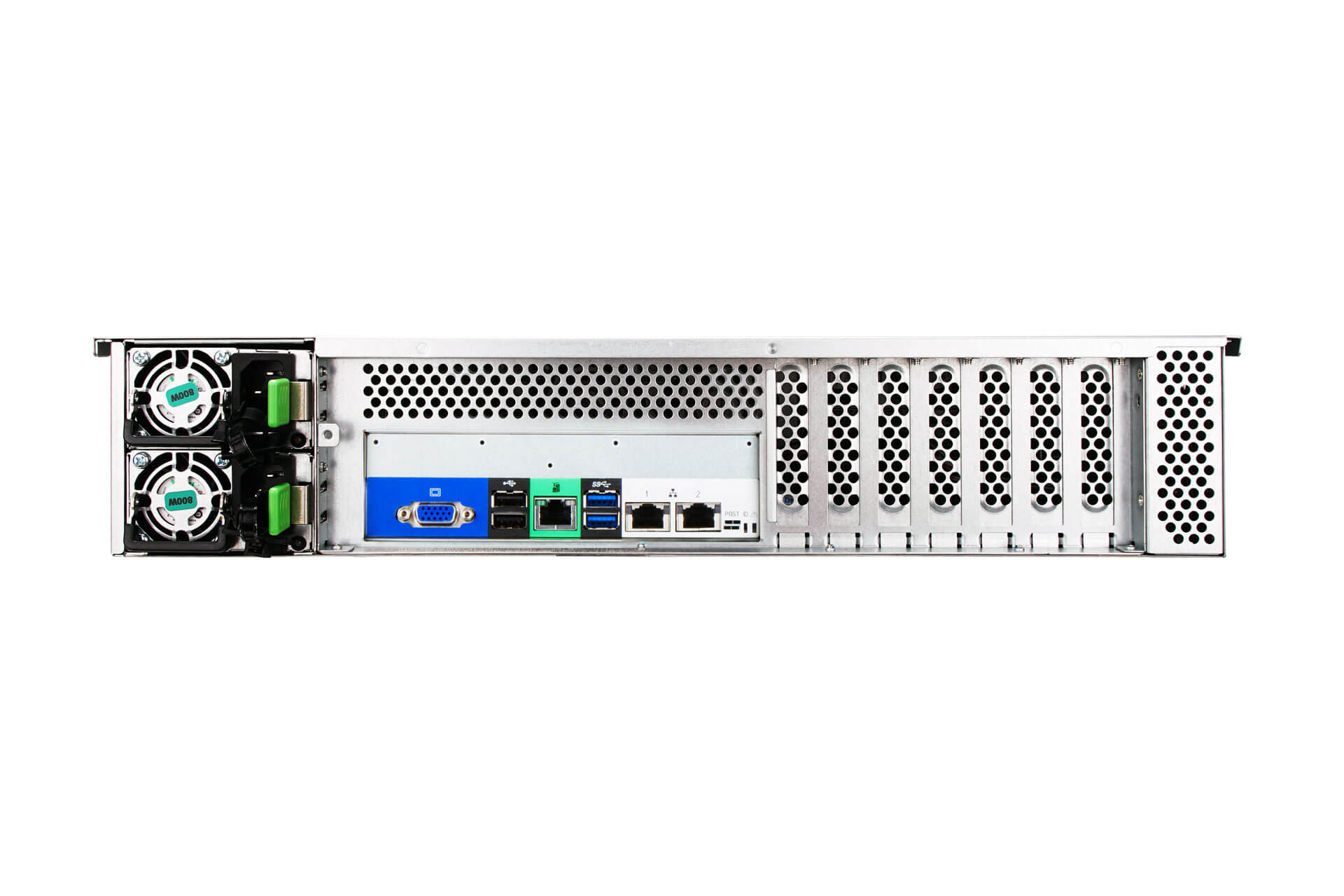

| Expansion Slot | Low profile PCI slot x 7 |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 20" or 28" tool-less & ball-bearing slide rail |
| Product Dimensions (DxWxH; Chassis Only) | 660.4 x 482.6 x 87mm (26" x 19" x 3.5") |
| Package Dimensions (DxWxH) | 900 x 610 x 242mm |
| Weight (Chassis Only) | • Net weight:13.29kg • Gross weight: 16.72kg |
| Cubic Feet | 4.7 |
| Container Information | Single packing with pallets: • 20' :120pcs • 40' : 294pcs • 40' HQ: 378pcs |
12Gb/s Backplane Specifications
| Backplane | IW-RS208-04 HDD NON EXP BP |
| Dimension (W x H) | 428mm x 79.9mm |
| Backplane Type | Passive |
| Host Interface | SFF-8643 x 2 |
| HDD Interface | SAS/SATA 3.5 x 8 |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Download | Preview |
|---|---|---|
| IW-RS208-04 Compatibility | ||
| IW-RS208-04 User Manual | ||
| IW-RS208-04 Gallery | - | |
| IW-RS208-04 eDM |
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| SLIDE RAIL | 3RAMIS133100 | 20" tool-less & ball-bearing slide rail | 1 |
|
| SLIDE RAIL | 3RAMIS133200 | 28" tool-less & ball-bearing slide rail | 1 |
|

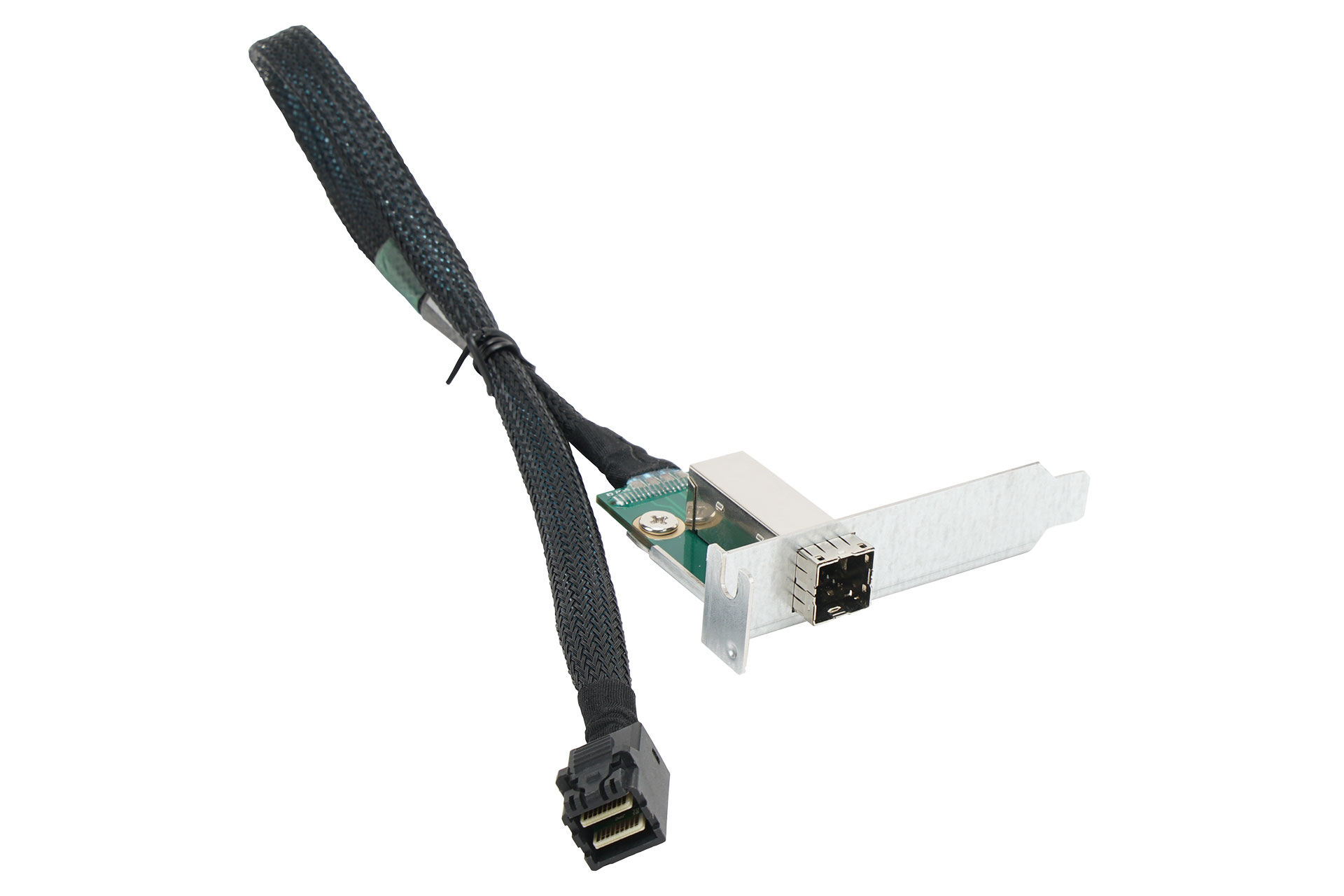

| CABLE | 2RAKIS209900 | Mini SAS 12G SFF-8643 to SFF-8644 low-profile module | 1 |
|

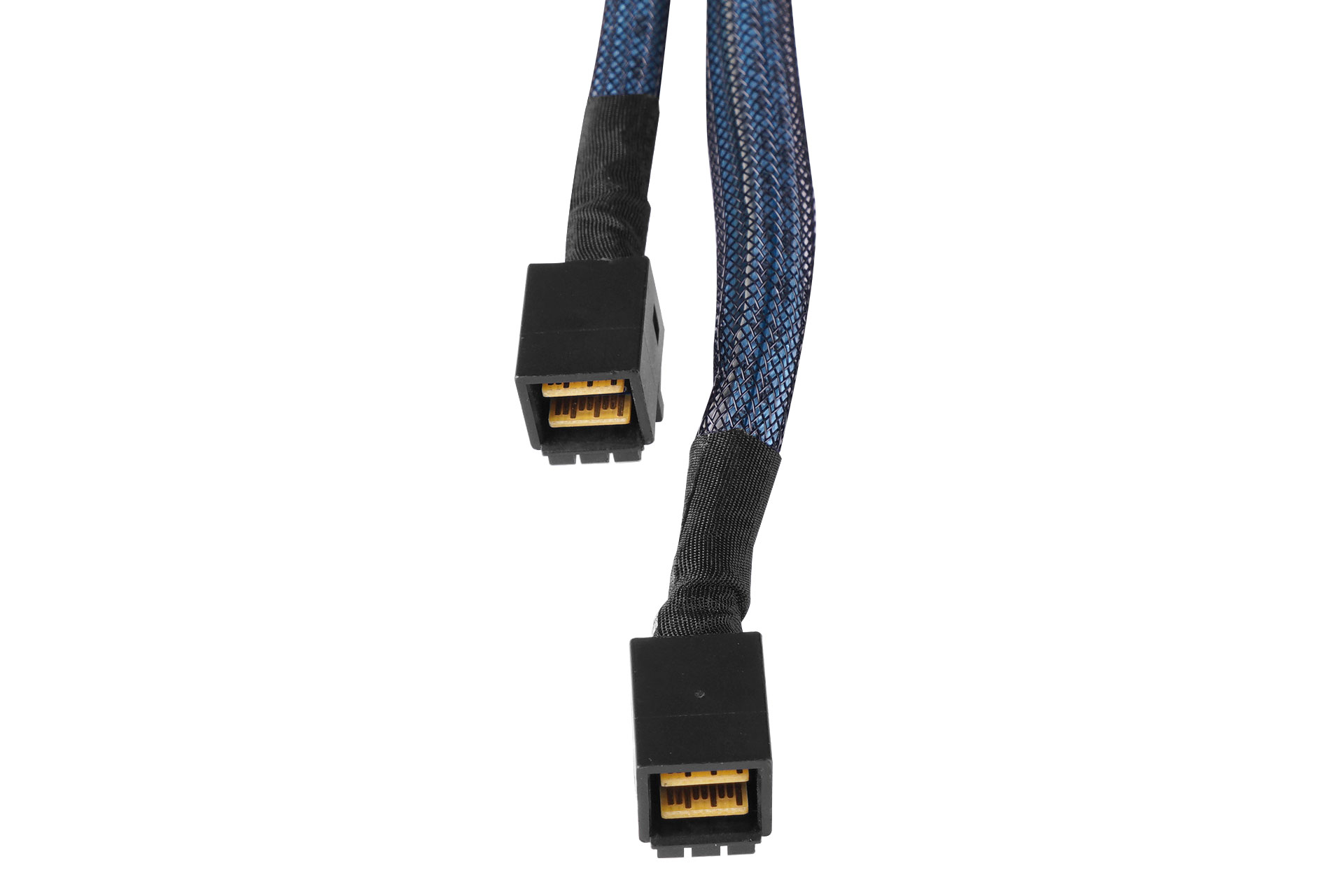

| CABLE | 3RAMW4031700 | Mini SAS 12G cable SFF-8643 to SFF-8643, length 800mm | 1 |
|

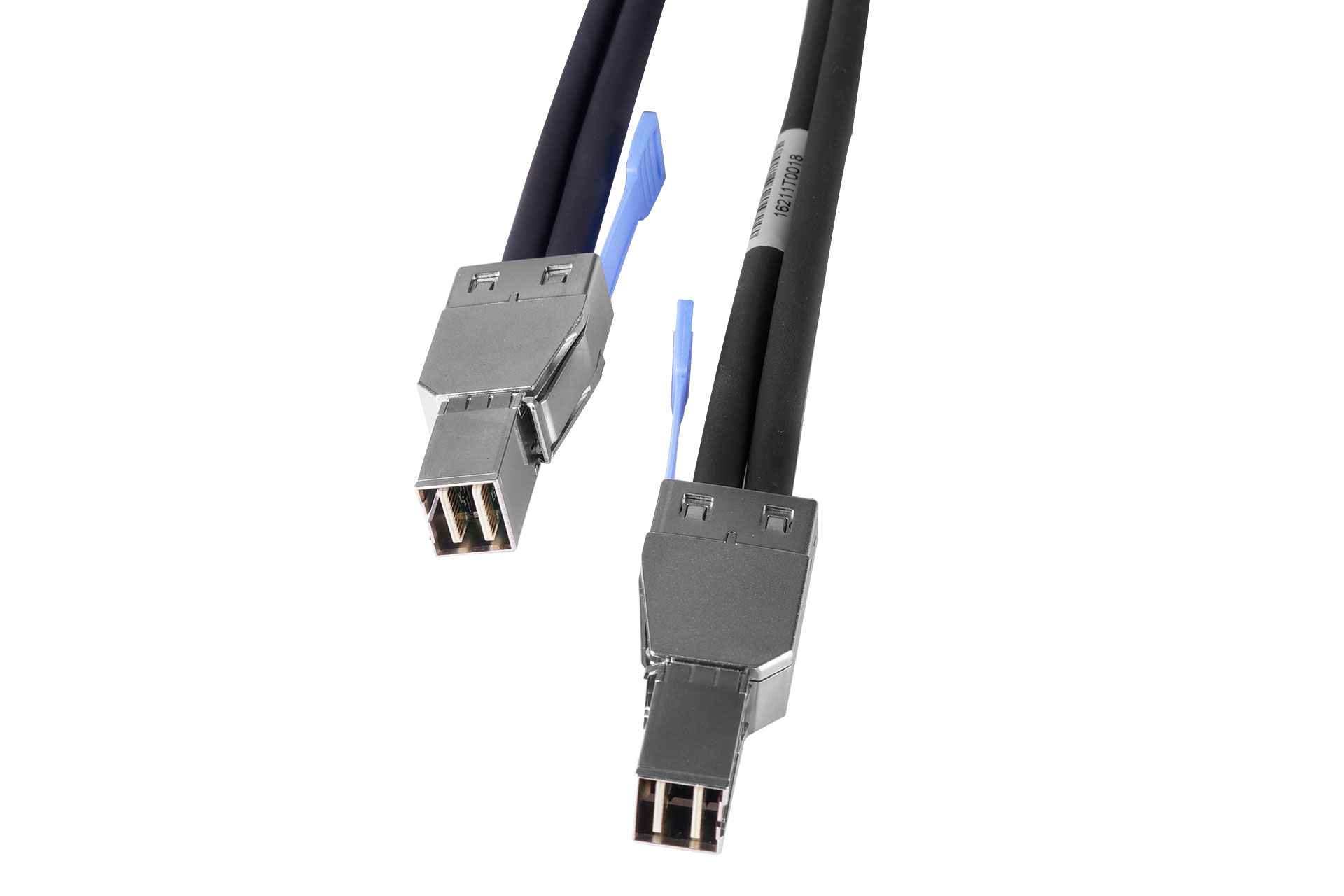

| CABLE | 3RAMW4031600 | Mini SAS 12G cable SFF-8644 to SFF-8644, length 1000mm | 1 |
|

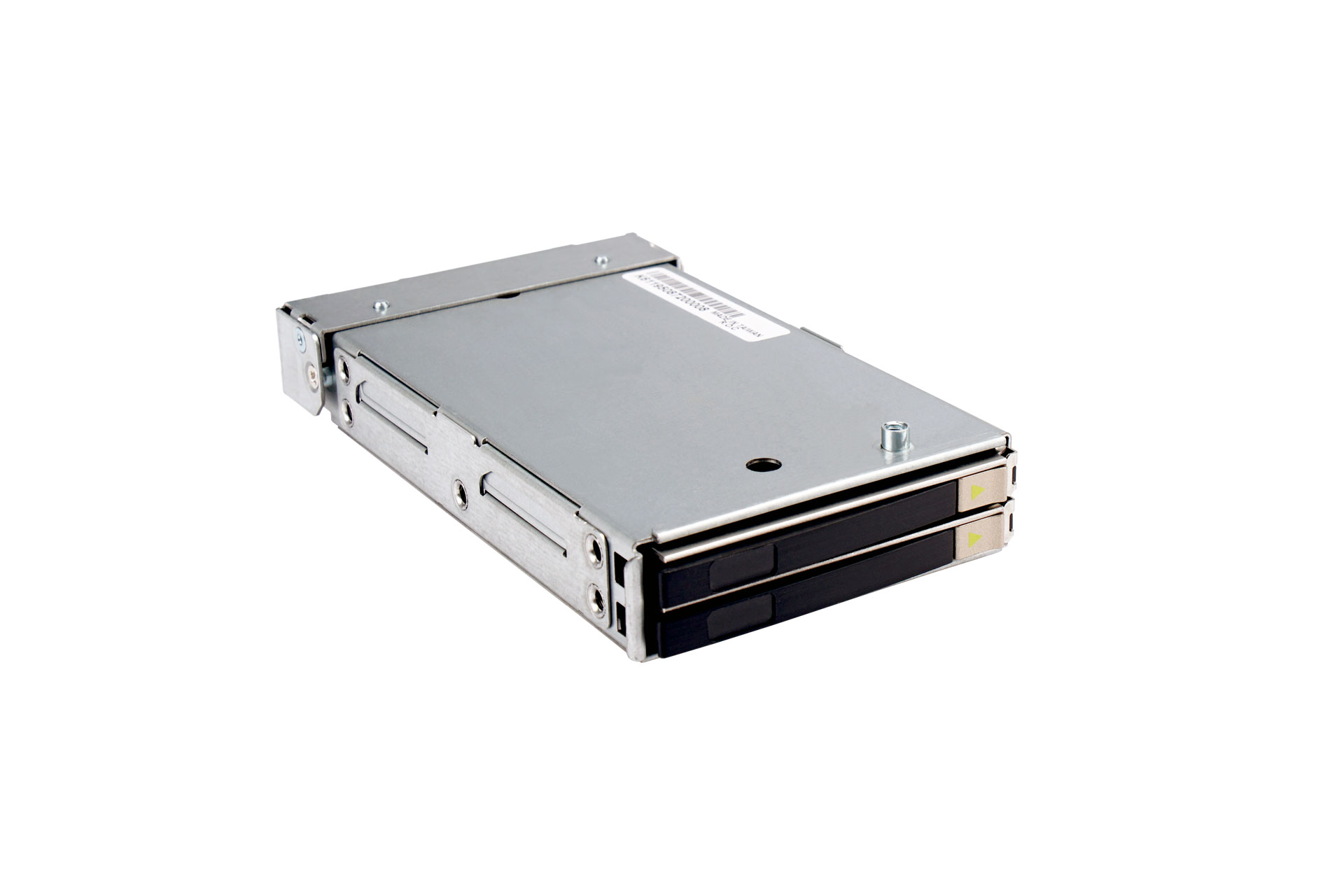

| HDD TRAY | 2RAKID052501 | Rear 2.5" SSD (7mm) module | 2 in one pack |
|

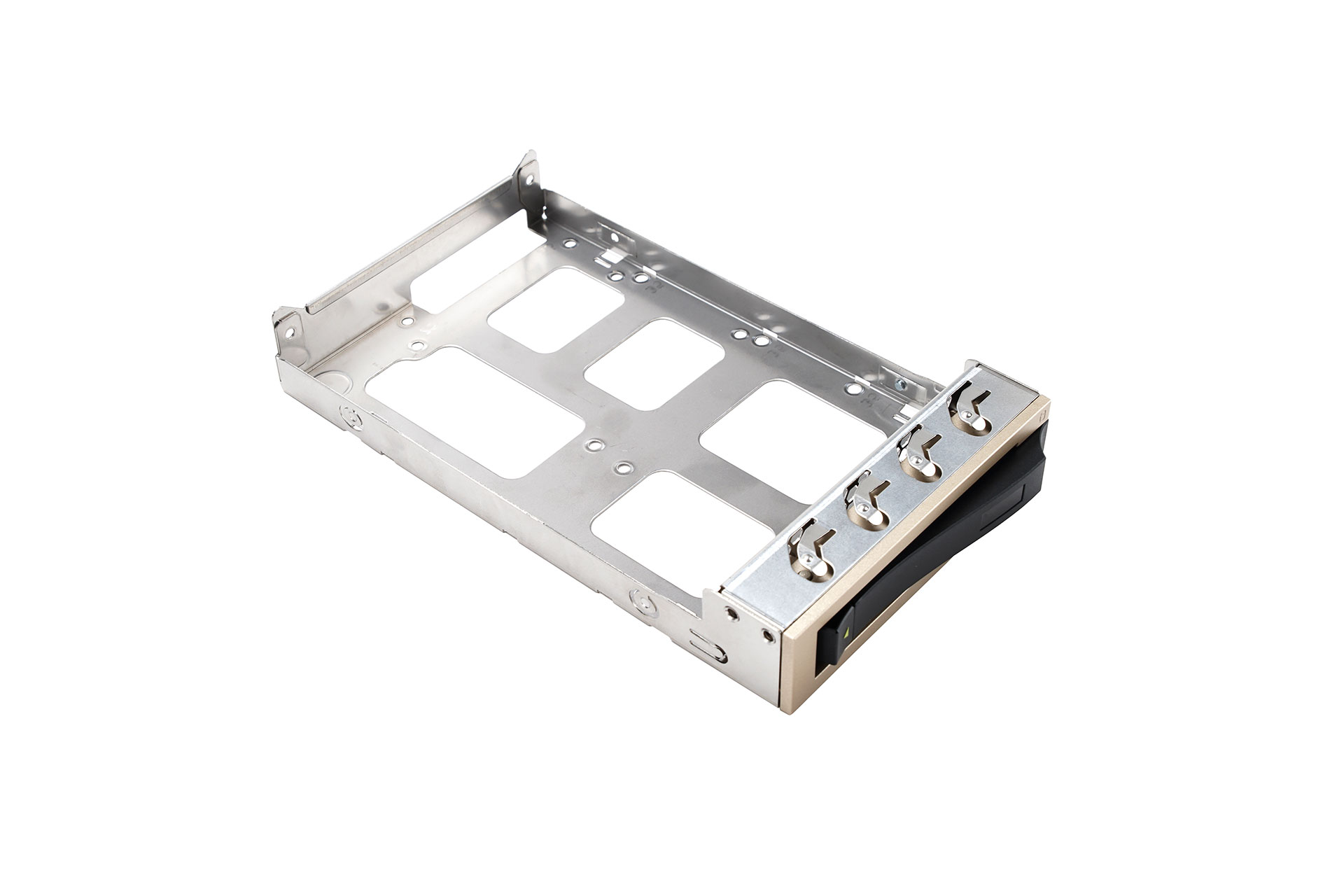

| HDD TRAY | 2RAKPH031100 | Optional tray for 3.5" & 2.5" HDDs by using screws to fix | 1 |
|
