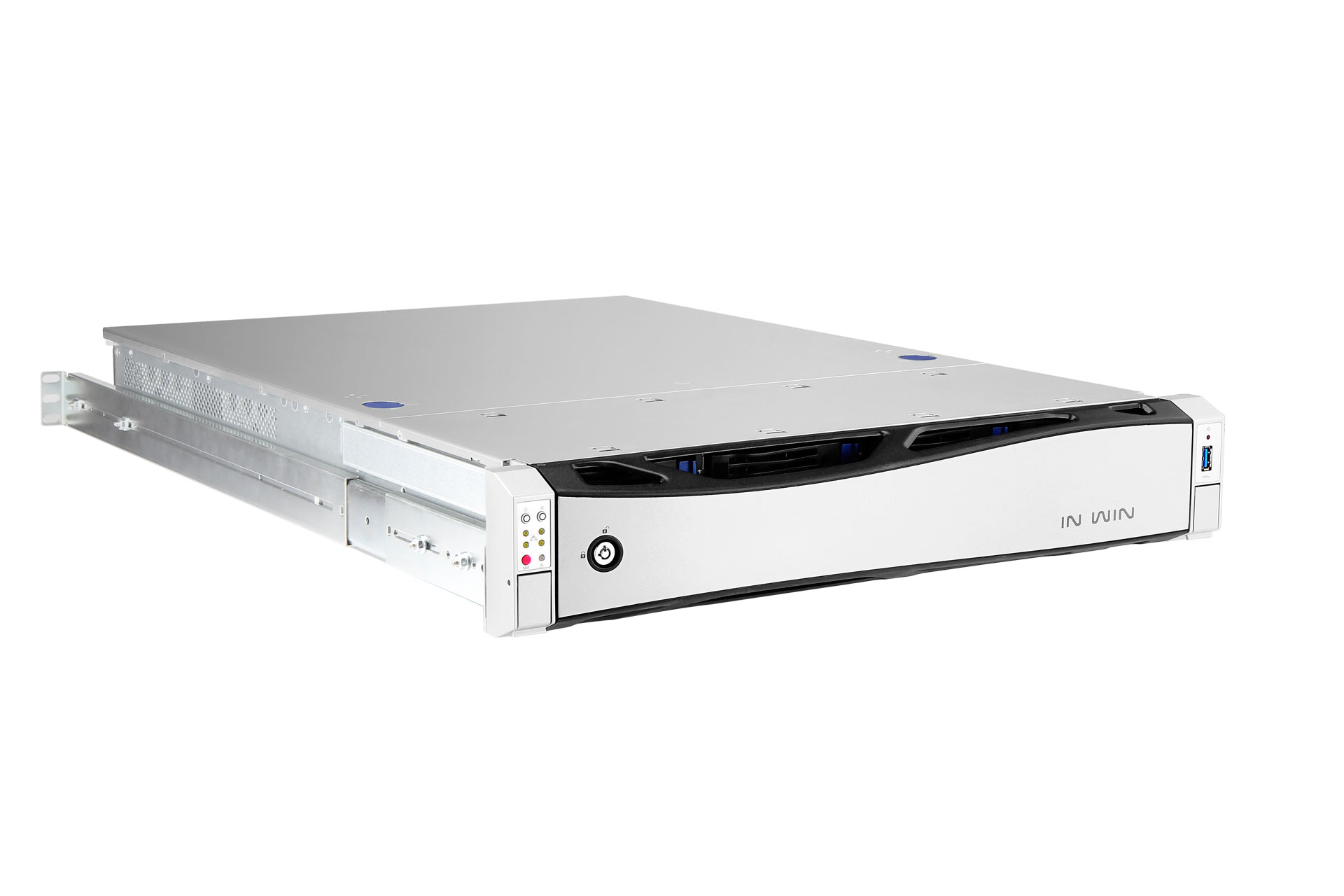

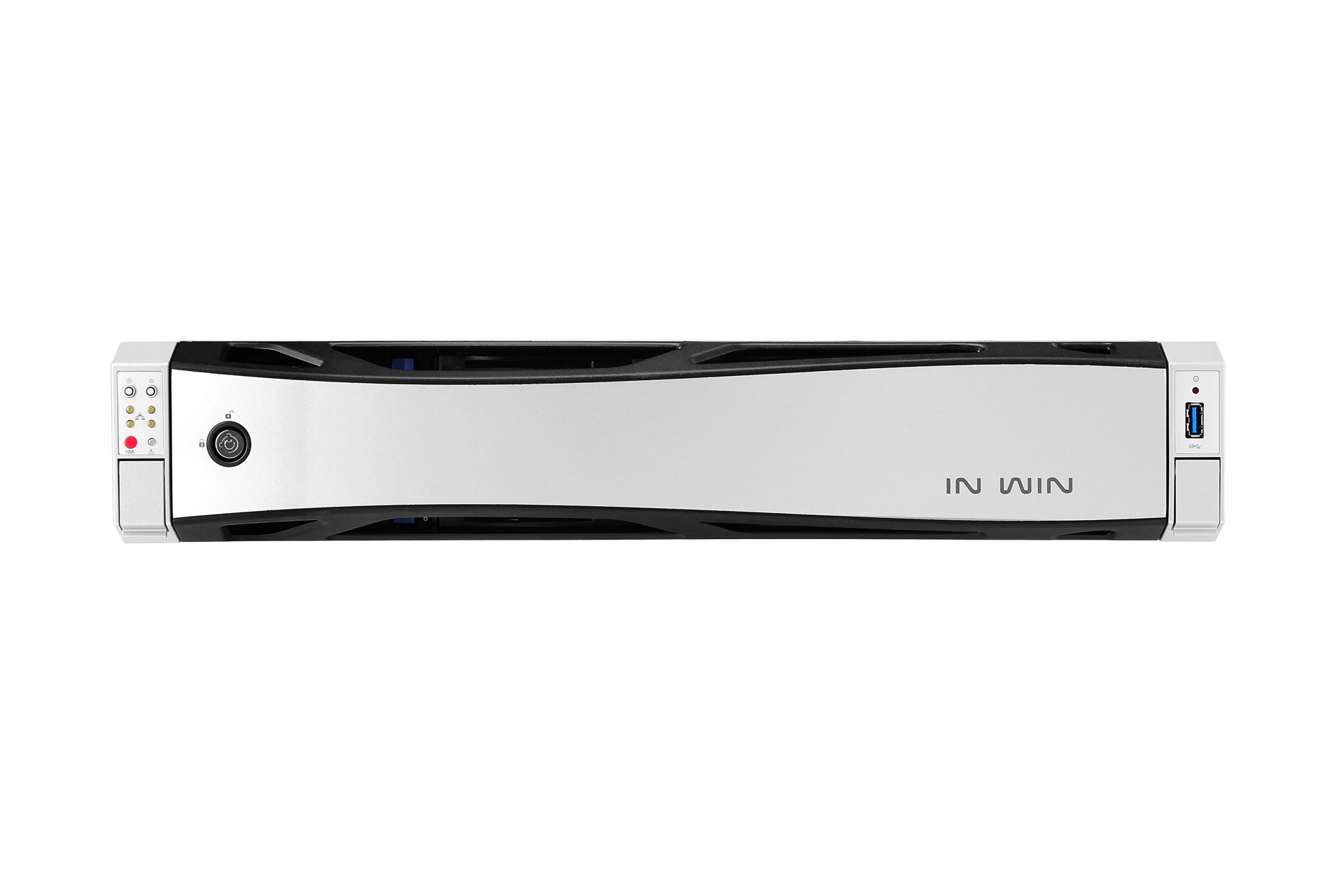

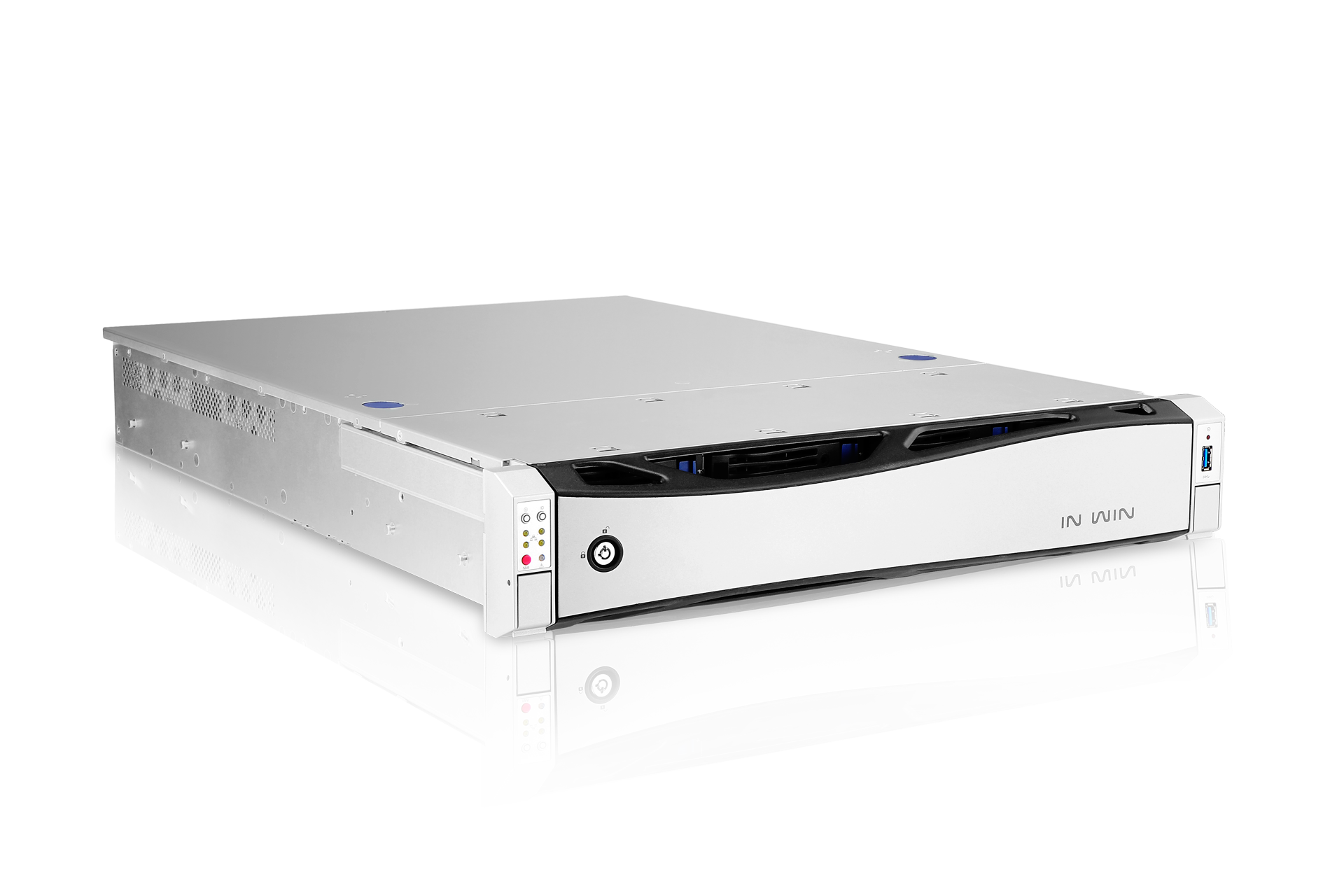

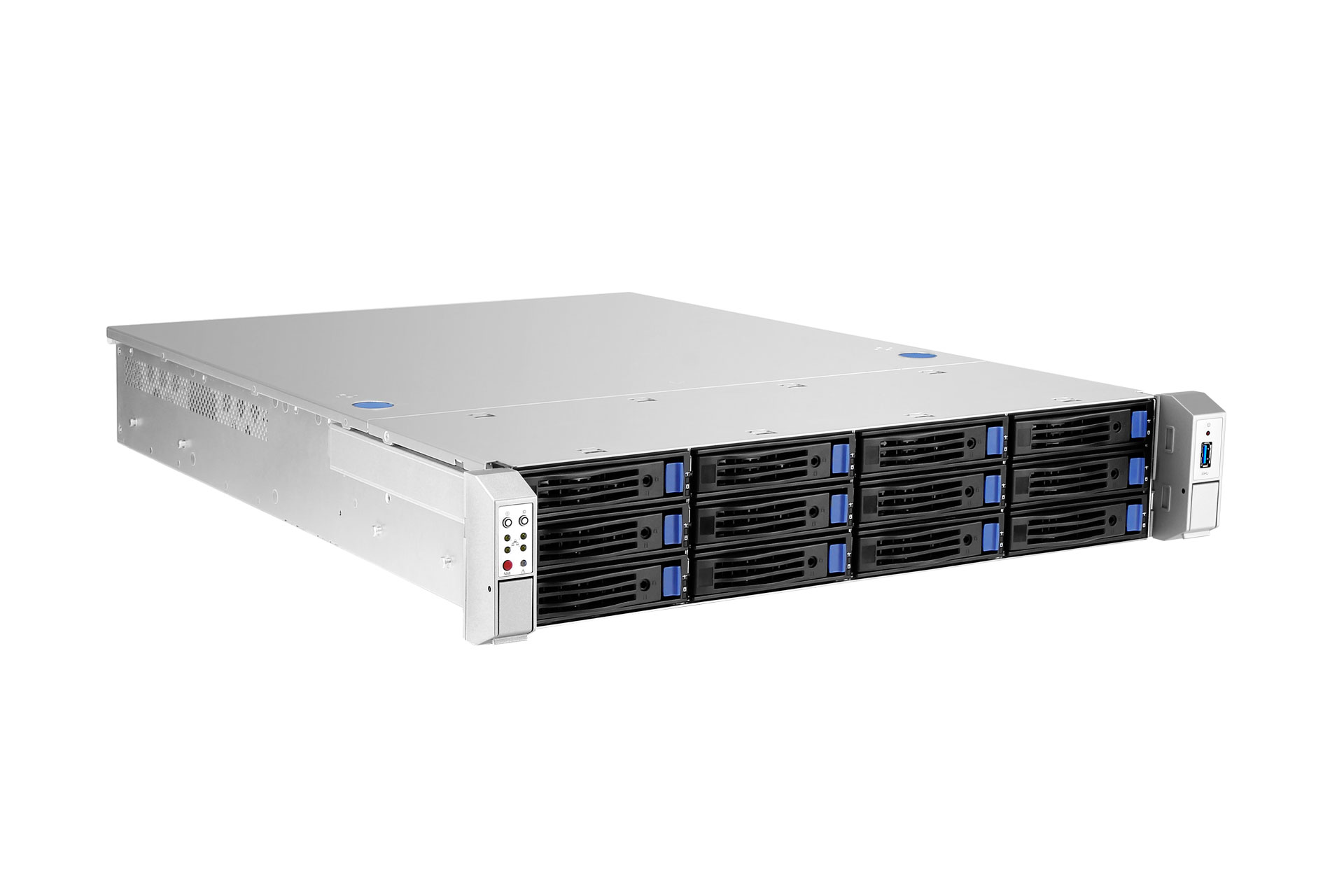

IW-RS212-02M
2U Rackmount Middle Depth Storage Server
．Supports EEB M/B within 24" chassis
．Iron front panel with silver printing

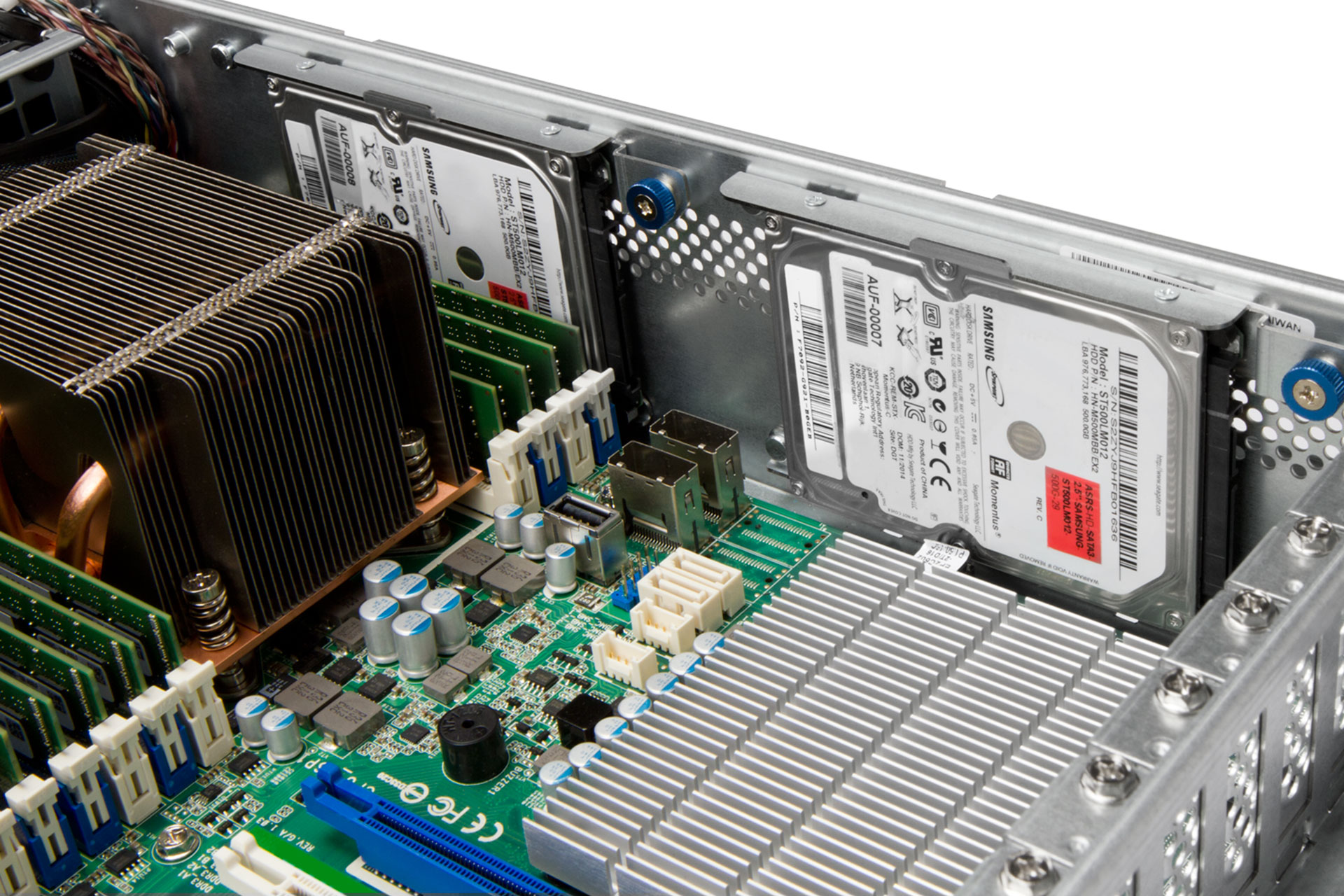

．Tool-free design: top cover, 2.5" HDD cage, fan module
．Hot-swappable fan modules
．Supports 12Gb/s Mini-SAS backplane
．Single or 2U 1+1 Redundant PSU
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX (12" x 9.6"), ATX (12" x 10"), EEB (12" x 13") |
| Drive Bay | • External: Hot-Swap 3.5" x 12 or 2.5" x 12 • Internal: 2.5" HDD x 2 |
| Power Supply | Supports: • Form Factor: Single or 2U 1+1 Redundant • Watt: Single 500W, Redundant up to 875W |
| Indicators | Power Status, HDD, LANs, System Fail Activity LEDs |
| Front Control Panel | Power Switch, ID Switch, System Reset, NMI, USB 3.0 x 1 |
| Backplane | • Mini-SAS (6Gb/s Supported) • Mini-SAS HD, SFF-8643 (12Gb/s Supported) • Mini-SAS HD, SFF-8643 (12Gb/s Supported with Expander) |
| Cooling Fans | Supports 80 x 38mm PWM hot-swap fan x 4 (pre-installed x 3), 4500RPM |
| Expansion Slot | Low Profile PCI Slot x 7 or Full Height PCI Slot x 3 (via Riser Card) |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 28" Ball-bearing Slide Rail |
| Product Dimensions (DxWxH; Chassis Only) | 625 x 482.6 x 87mm (24" x 19" x 3.5") |
| Package Dimensions (DxWxH) | 796 x 577 x 217mm |
| Weight (Chassis Only) | • Net Weight:12.9kg • Gross Weight: 15.4kg |
| Cubic Feet | 3.52 |
| Container Information | Single Packing with Pallets: • 20': 176pcs • 40': 384pcs • 40' HQ: 480pcs |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|

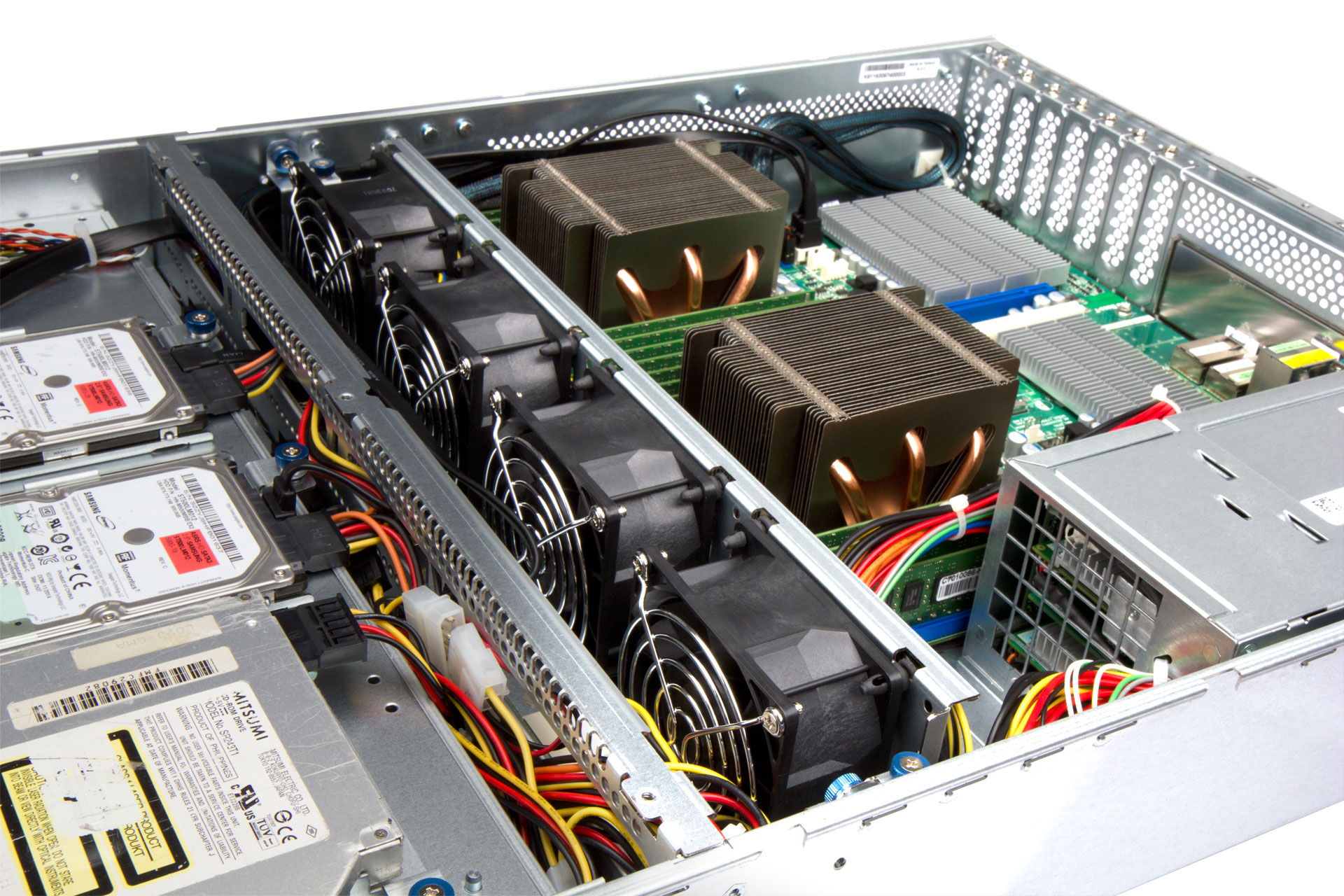

| FAN | 2RAKFB007201 | 80 x 38mm PWM Easy-swap Fan, 5500RPM (please note that InWin hot-swap fan wall can not compatible with easy-swap fans) | Up to 4pcs |
|

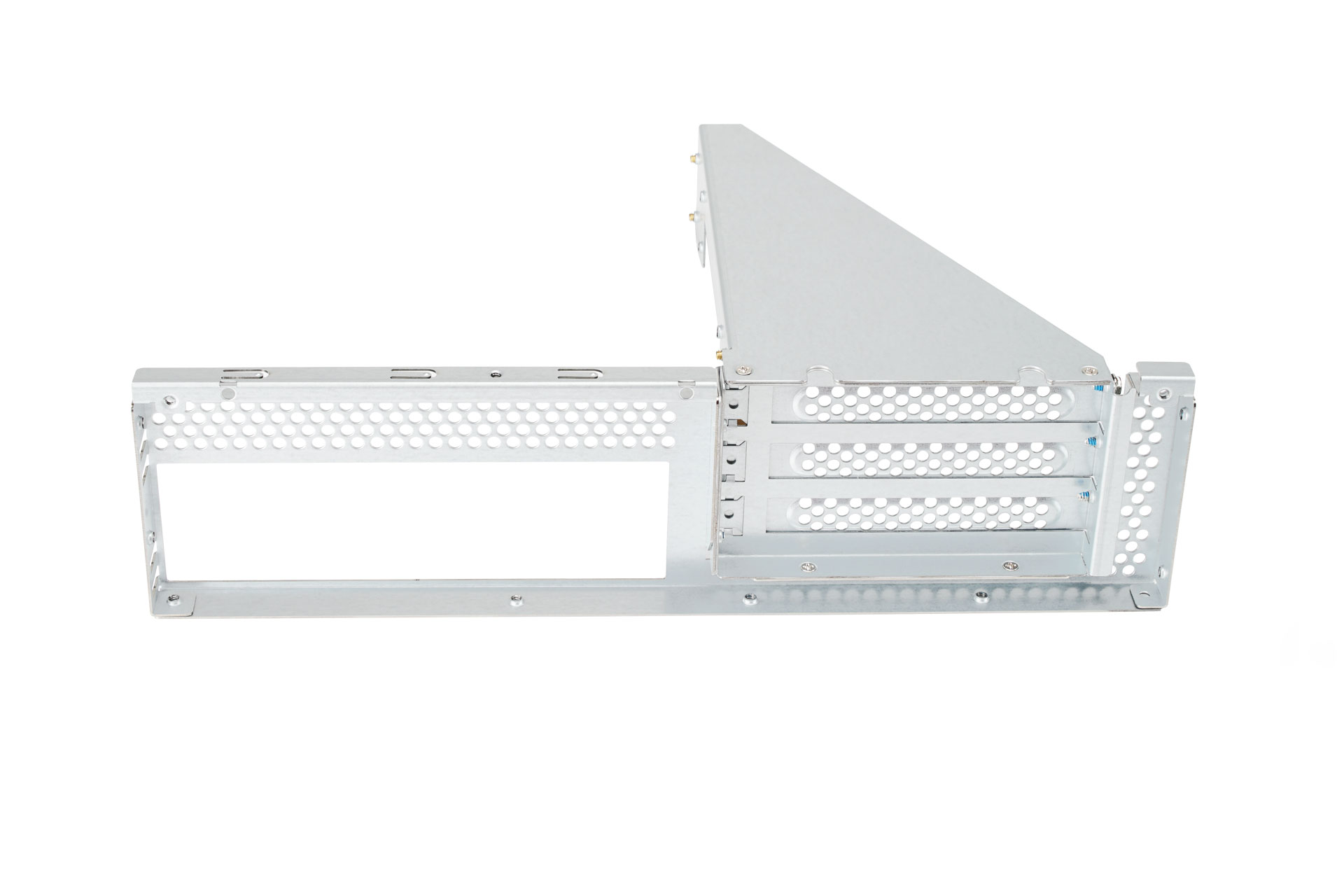

| OTHERS | 2RAKIH012700 | Full Height PCI Slot x 3 with Rear PCI Card Holder | 1 |
|

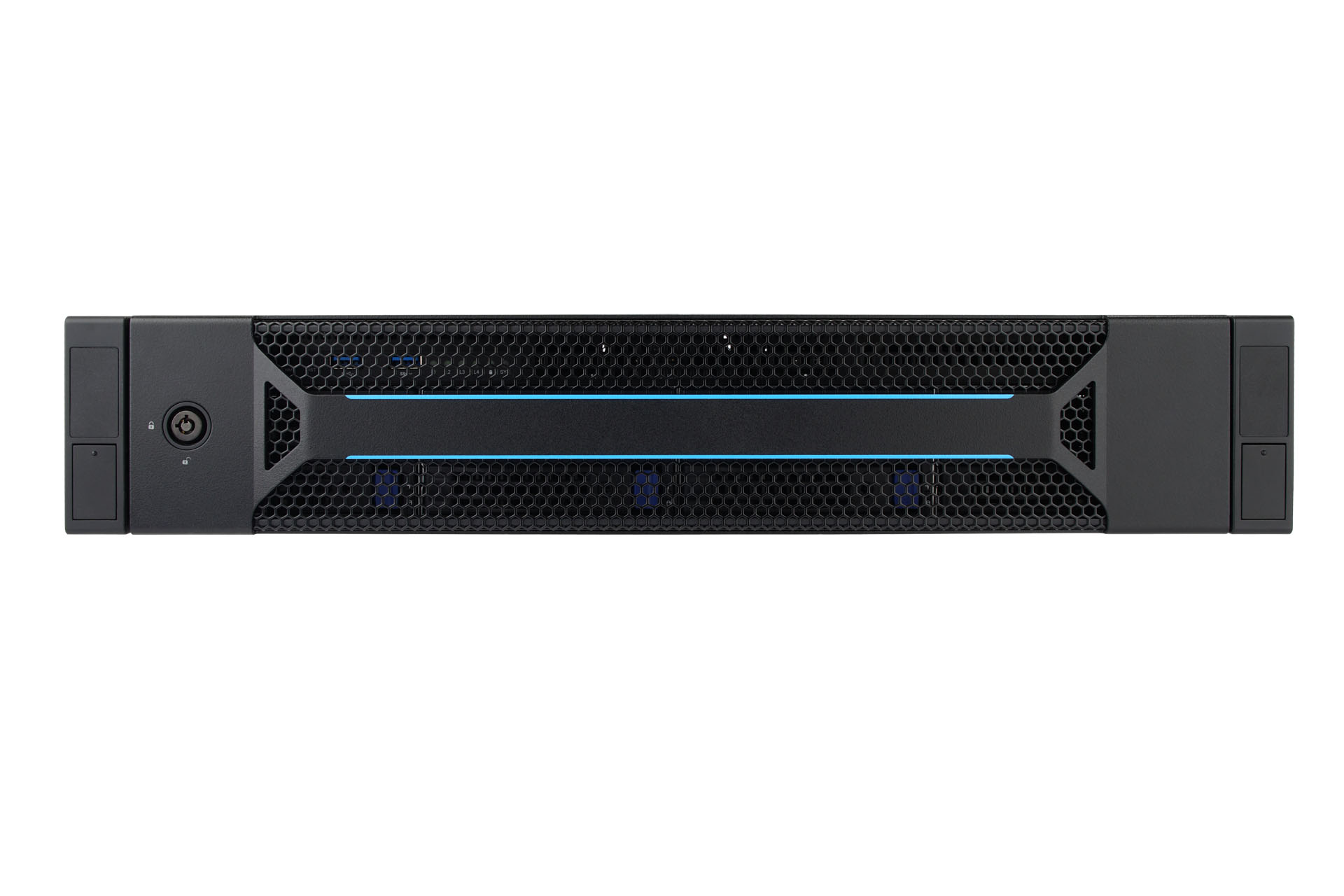

| Front Panel | 2RAKIP008401 | Mesh Front Panel | 1 |
|
| Front Panel | - | Iron front panel with silver coating | 1 |
|
| Power Supply | - | 1U Single 500W, 80 Plus Gold | 1 | |
| Power Supply | - | 2U 1+1 Redundant 650W, 80 Plus Gold | 1 | |
| Power Supply | - | CRPS 550W, 80 Plus Platinum | 1 | |
| Power Supply | - | CRPS 800W, 80 Plus Platinum | 1 | |
| Slide Rail | - | 28" screwless slide rail, ball-bearing | 1 | |
| Cable | - | Mini-SAS cable 36P/36P, L800 | 1 | |
| Cable | - | Mini-SAS cable 36P/36P, L600, 90°/90° | 1 | |
| Cable | - | Mini-SAS cable 36P/36P, L600, 90°/180° | 1 | |
| Cable | - | Mini-SAS cable 36P/36P, L600, 180°/180° | 1 | |
| Cable | - | Mini-SAS cable SATA*4/36P, L1000 | 1 | |
| Cable | - | SGPIO cable 2*4P/2*4P L800 UL1007#26 | 1 | |
| Cable | - | Mini-SAS HD cable, 180°/180°, 800mm | 1 |
