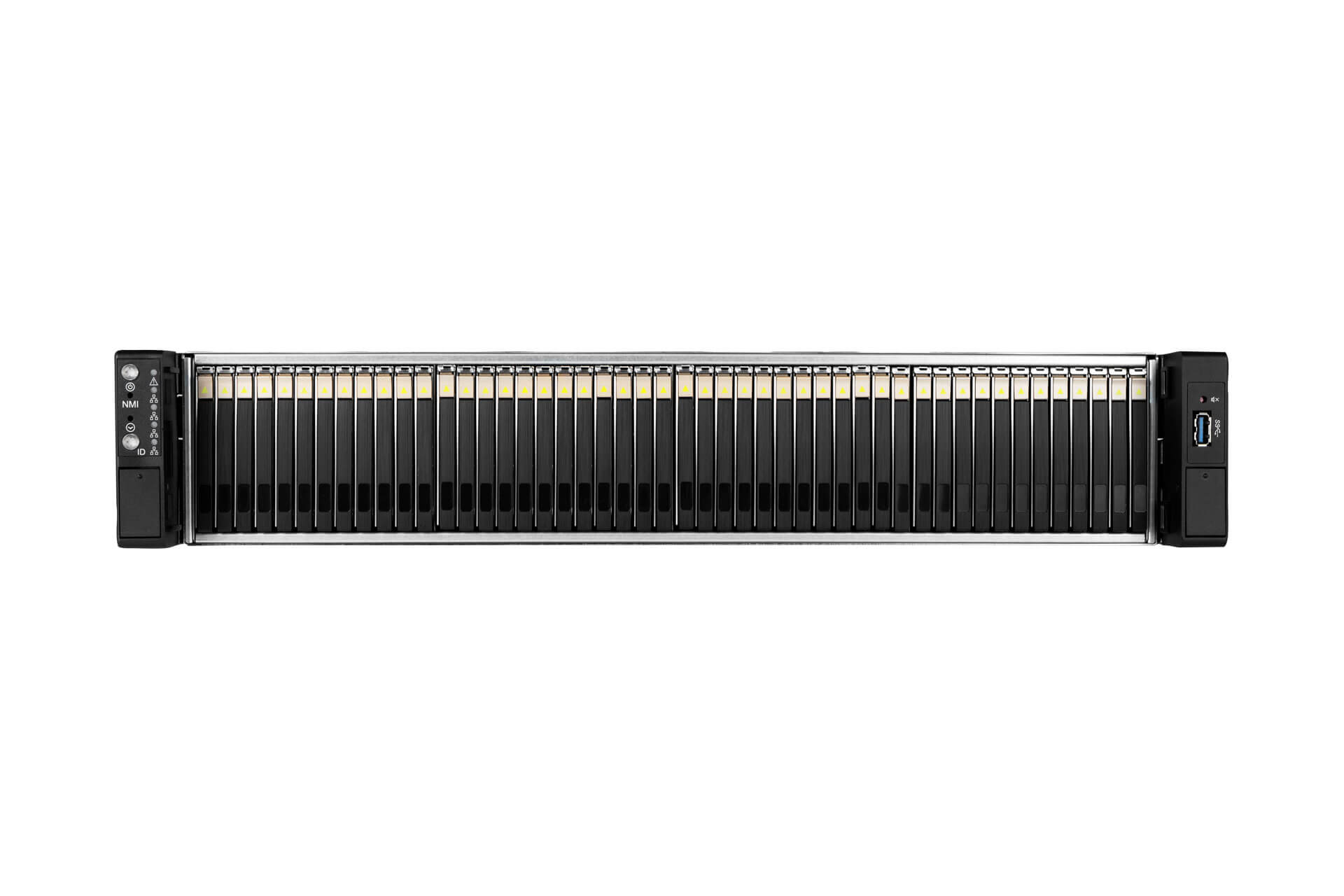

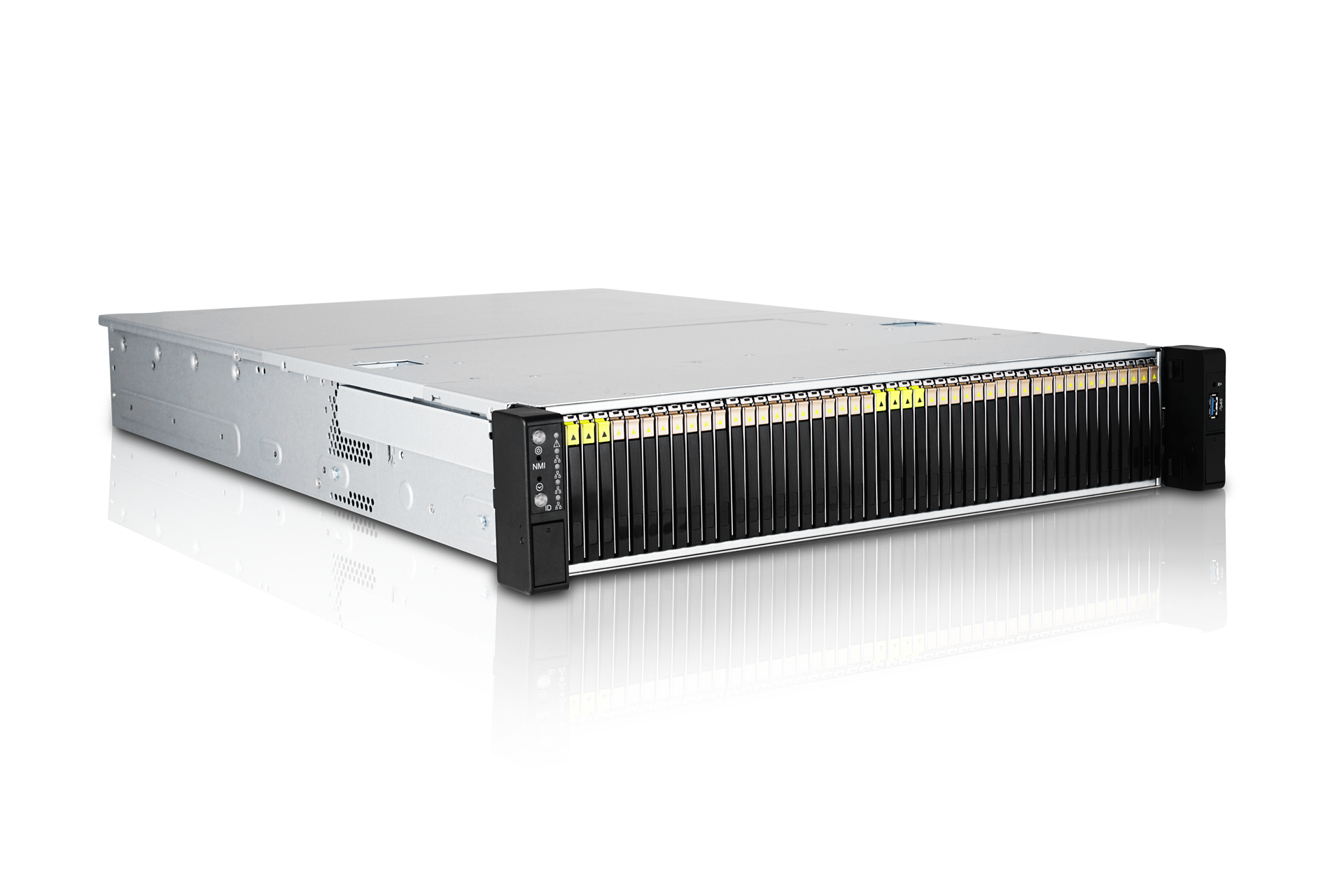

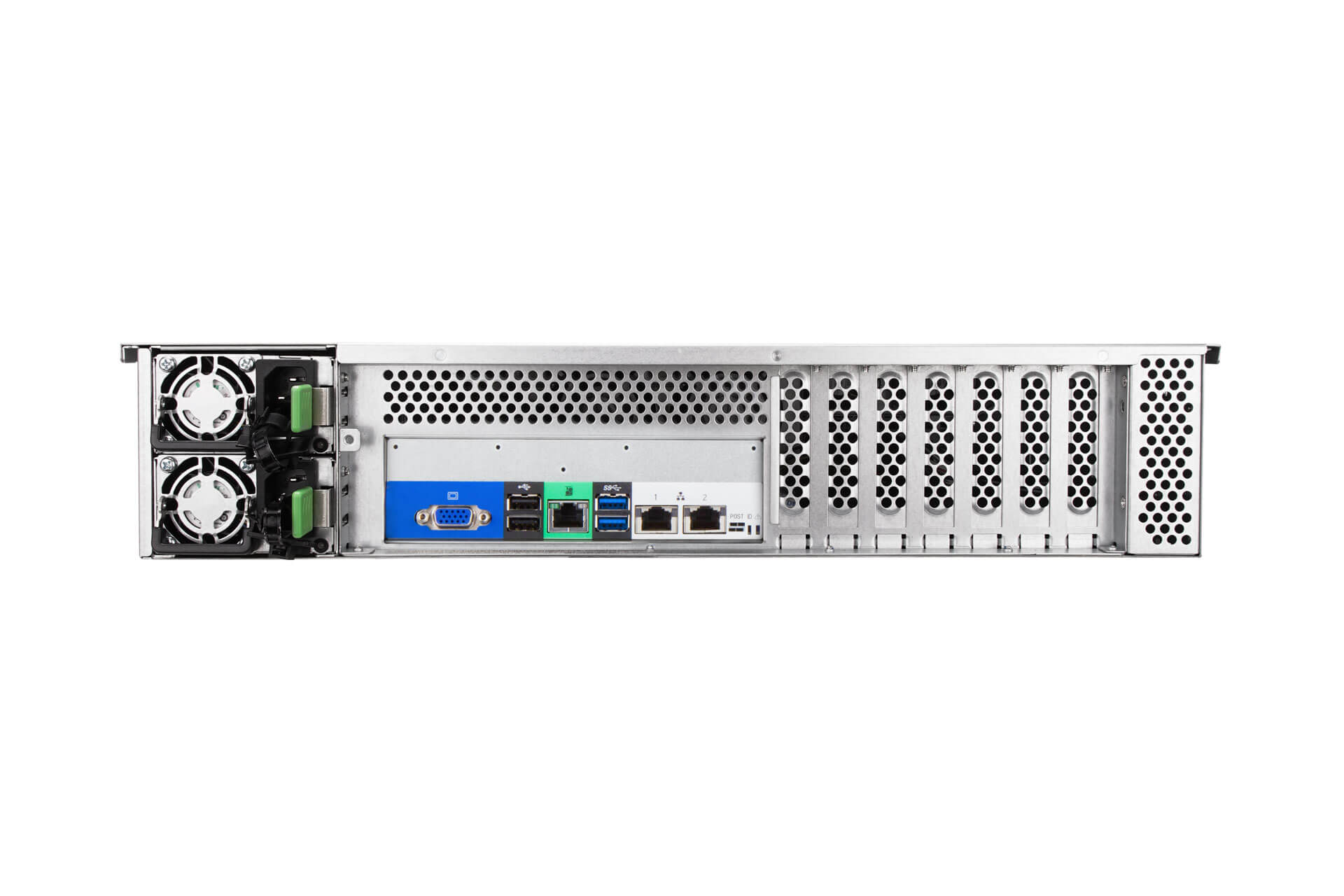

IW-RS248-03
2U NVMe Hybrid Rackmount Storage Server
．Compliance for AMD EPYC family
．48 x 2.5" 7mm Hot-Swap SSD/HDDs(U.2 NVMe x 8)
．Tool-less Design for 2.5" HDD Carrier
．High efficiency 1200W Platinum CRPS power supply
．High-speed cooling fans for excellent thermal performance
．Supports tool-less ball-bearing slide rails
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX (12" x 9.6"), ATX (12" x10"), EEB (12" x 13") |
| Drive Bay | • External hot-swap 2.5" SSD/HDD(7mm) x 48 (U.2 NVMe x 8) • Rear hot-swap 2.5" SSD/HDD(7mm) x 2 |
| Power Supply | Supports: • Form Factor : Platinum CRPS Redundant with PDB Cable Management • Watt: 1200W |
| Indicators | Power LED; LAN1/LAN2/LAN3/LAN4 LED ; System LED ; ID LED |
| Front Control Panel | Power on/off; Reset; NMI; ID SW,USB3.0 x 1; Mute Button |
| Backplane-1 | 2 pcs of Mini-SAS HD 12Gb/s with Expander Plus SlimLine x 8 |
| Backplane-2 | 2 pcs of Mini-SAS HD 12Gb/s with Expander Plus OcuLink x 8 |
| SAS 12G Expander | 2 pcs of Mini-SAS HD Connector (SFF-8643) x 3 (Host x2, Cascade x1) |
| Cooling Fans | 80 x 38mm PWM Fan x 4 |
| Expansion Slot | Low-Profile PCI Slot x 7 |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 28" Tool-less & Ball-bearing Slide Rail |
| Product Dimensions (DxWxH; Chassis Only) | 660.4 x 483 x 87mm (26" x 19" x 3.5") |
| Package Dimensions (DxWxH) | 900 x 610 x 242mm |
| Weight (Chassis Only) | • Net Weight: 16.77kg • Gross Weight: 20.56kg |
| Cubic Feet | 4.69 |
| Container Information | Single Packing with Pallets: • 20': 120pcs • 40': 294pcs • 40' HQ: 378pcs |
12Gb/s Backplane Specifications
| Backplane-1 | Slimline Backplane |
| Dimension (W x H) | 210.9mm x 79.3mm |
| Backplane Type | Active with Expander Onboard |
| Host Interface | 2 pcs of Mini-SAS HD 12Gb/s with expander plus SlimLine x 8 |
| HDD Interface | 2.5” SSD/HDD(7mm) x 48 (U.2 NVMe x 8) |
| Backplane-2 | Oculink Backplane |
| Dimension (W x H) | 210.9mm x 79.3mm |
| Backplane Type | Active with Expander Onboard |
| Host Interface | 2 pcs of Mini-SAS HD 12Gb/s with expander plus OcuLink x 8 |
| HDD Interface | 2.5” SSD/HDD(7mm) x 48 (U.2 NVMe x 8) |
| Item | Download | Preview |
|---|---|---|
| IW-RS248-03 eDM | ||
| IW-RS248-03 Gallery | - | |
| IW-RS248-03 Compatibility | ||
| IW-RS248-03 SAS3 Backplane User Manual |
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|

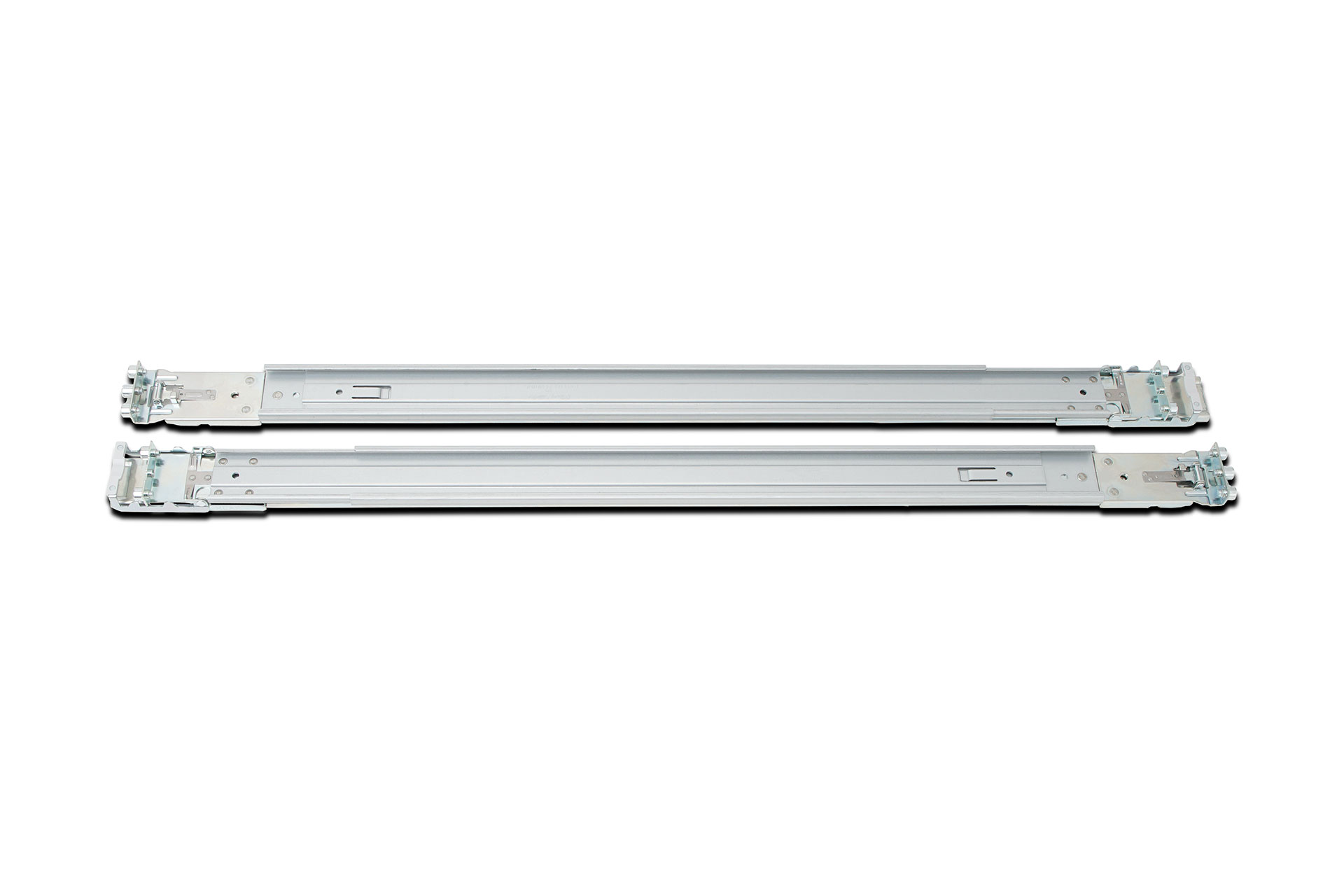

| SLIDE RAIL | 3RAMIS133200 | 28" Tool-less & Ball-bearing Slide Rail | 1 |
|

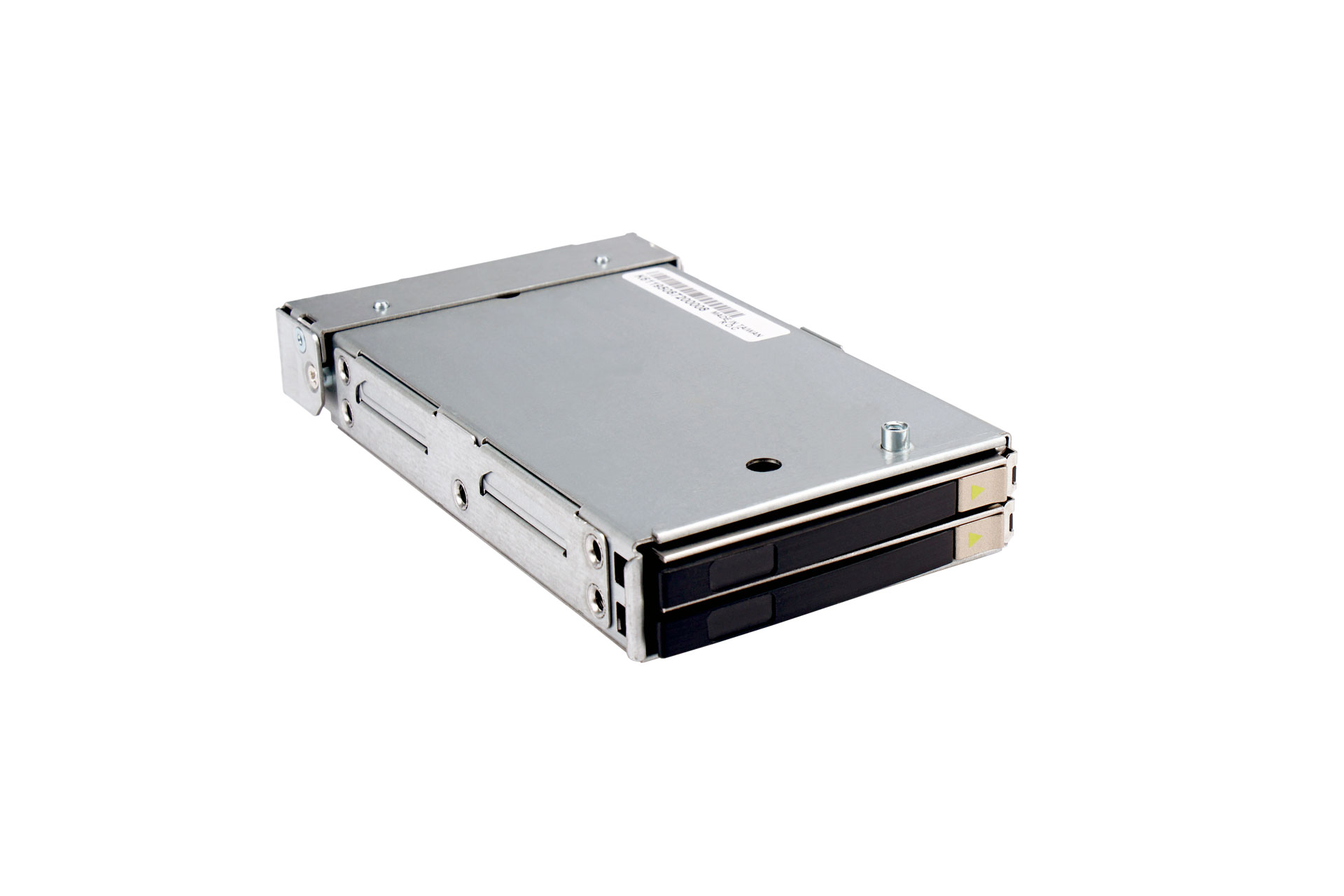

| HDD TRAY | 2RAKID052501 | Rear 2.5" SSD (7mm) module | 2 in one pack |
|

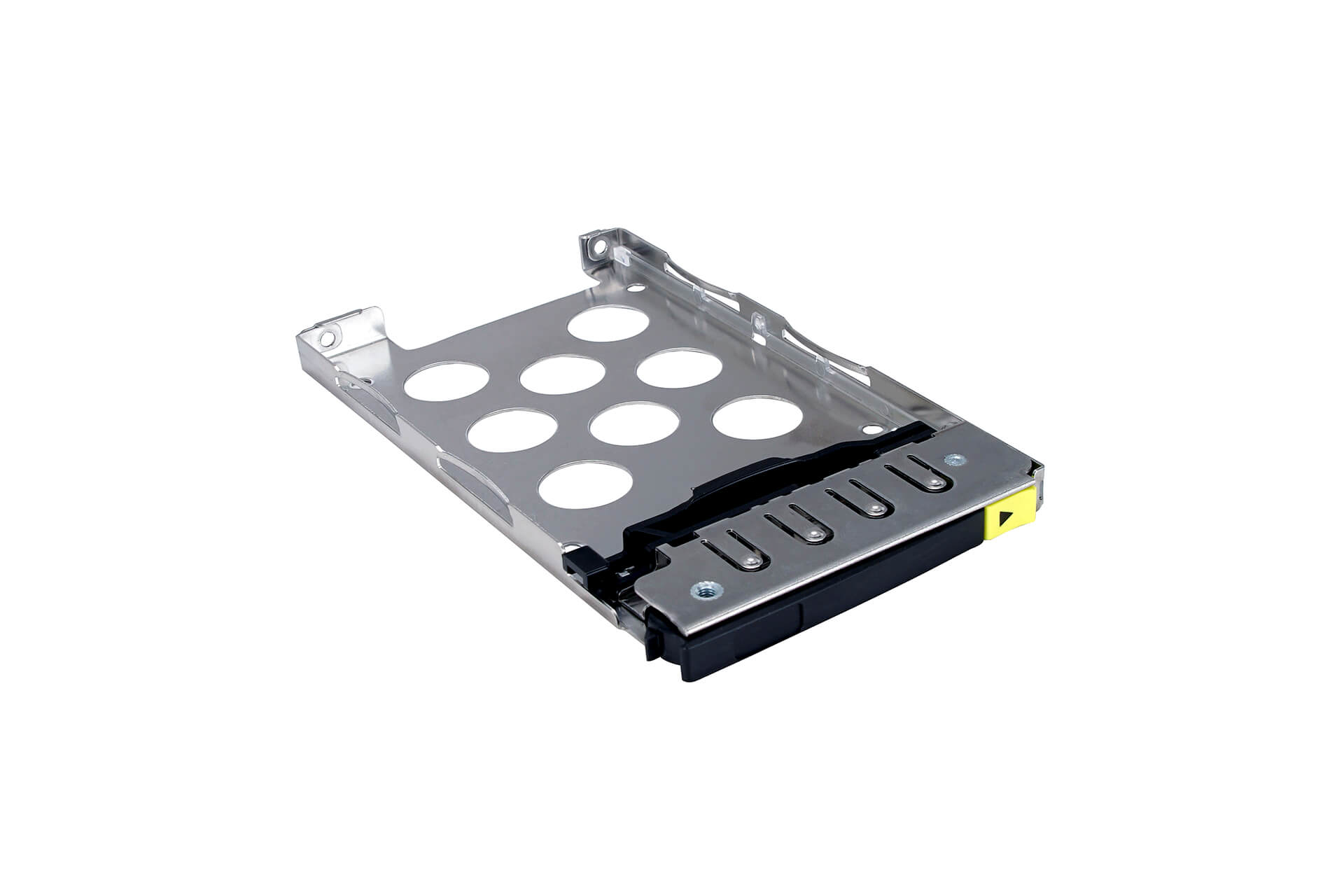

| HDD TRAY | 2RAKPH037900 | Optional Tray for 2.5" SSD (7mm) | 1 |
|
