．3U with 8 x hot-swappable 3.5” NVMe/SAS/SATA HDD bays, 8 x hot-swappable 3.5” SAS/SATA HDD bays, 2 x rear external 2.5” HDD
．Supports Intel® scalable platform (purley) with full-height PCI slot x 7
．Low acoustic noise and reduced vibrations for greater reliability
．Perfect thermal solution for Intel® scalable platform

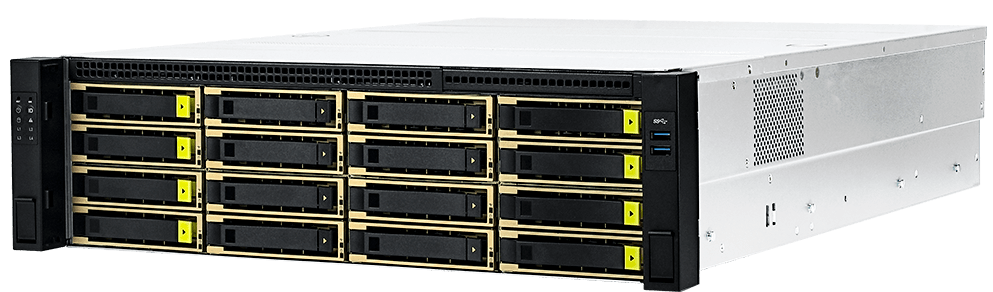

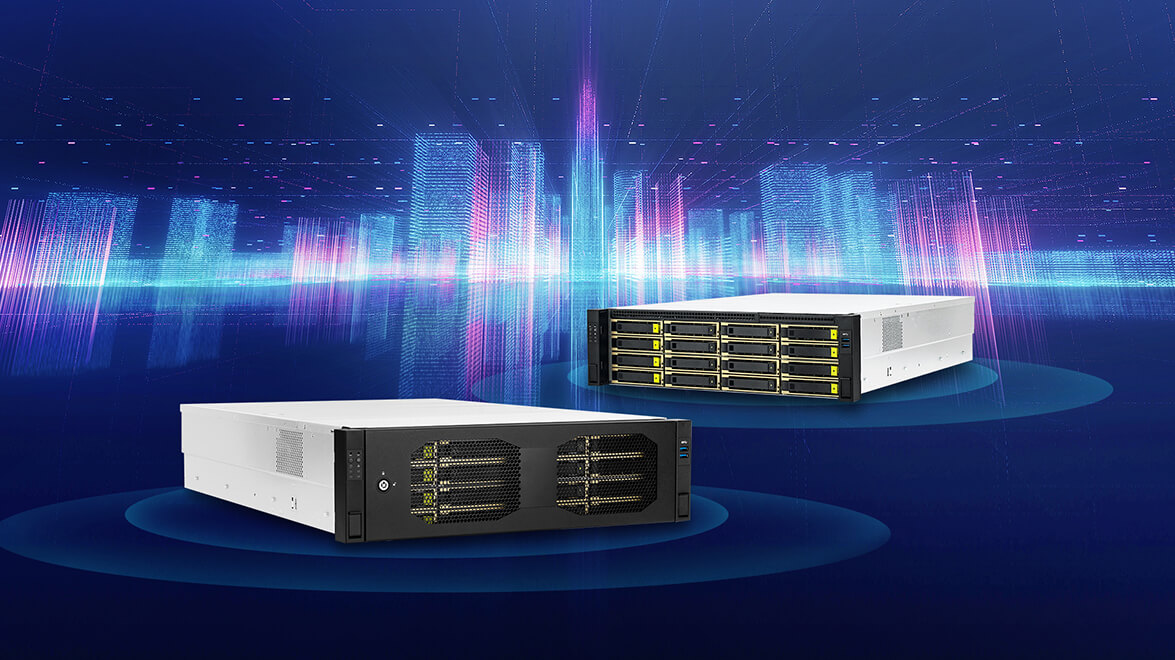

The IW-RS316-07 NVMe Hybrid Storage Server is compliant with Intel® Xeon Scalable processors & AMD EPYC family.
It features additional flexibility and capacity expansion to meet your requirements for advanced computing.

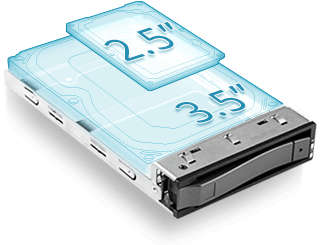

Tool-free design allow users mount/remove 3.5" HDDs without screws (2.5" SSDs with screws).

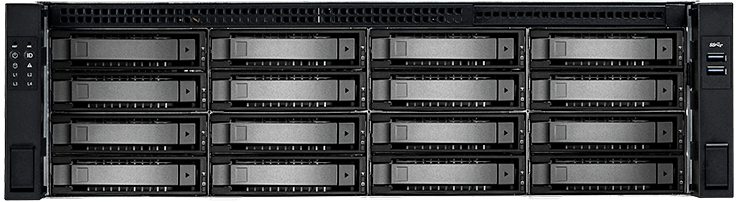

Hot-swap tray, swap drives in seconds. (Gray trays are designed to distinguish between U.2 NVMe SSDs and normal disks.)

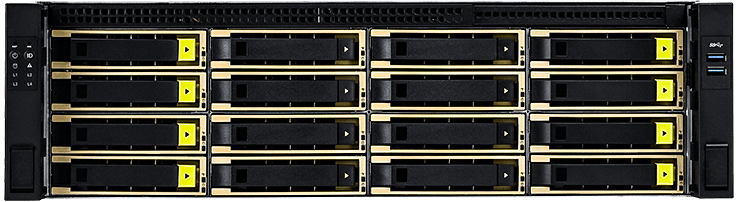

The IW-RS316-07 can be configured as either up to 16 x SAS/SATA or 8 x SAS/SATA and 8 x U.2 NVMe drives at front of the server.
The 2.5"(15mm) U.2 form factor design works seamlessly with our latest generation backplanes.
Rear: 2 X 2.5" SAS/SATA hot-swap SSD bays

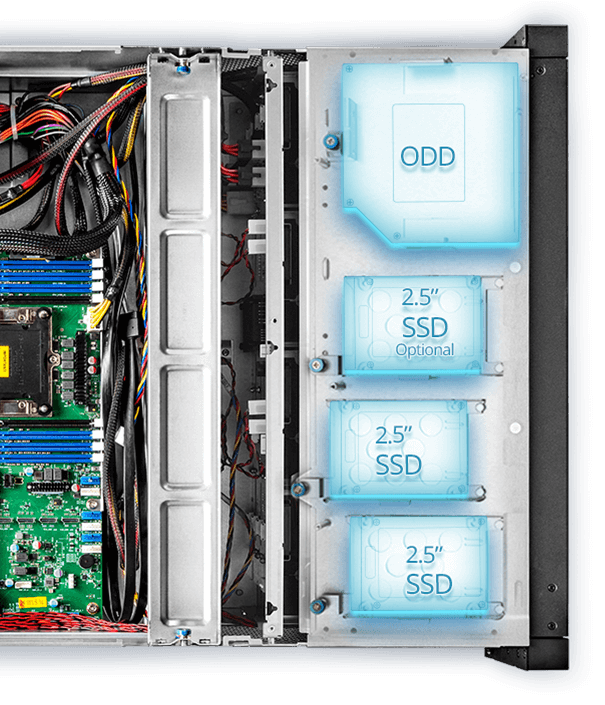

Internal: 3 X 2.5” SAS/SATA SSDs (one is optional) and slim ODD X 1. Independent bracket for each disk and fix it through screws.

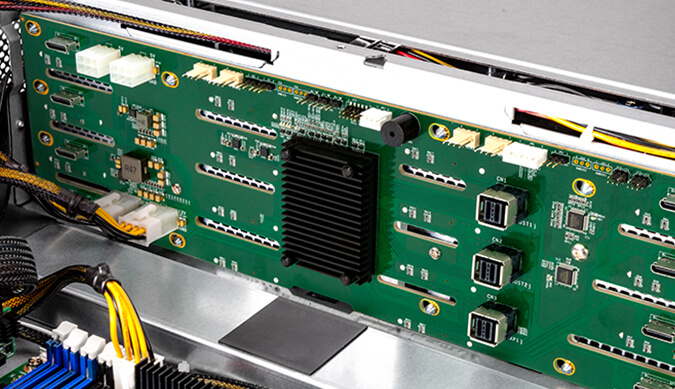

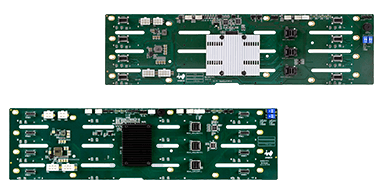

InWin’s exclusive backplane comes with great connectivity and is designed to support SAS/SATA and NVMe for Slimline or Oculink host interface. The onboard 12G SAS expander mainly manages the communication of SAS/SATA HDD interface, it integrates end-to-end connectivity and reduces cable clutter.

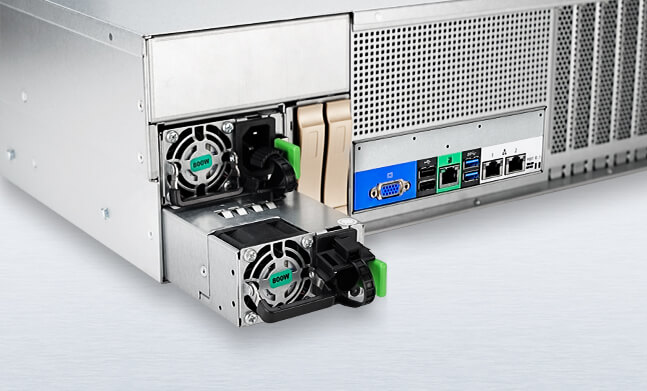

InWin’s 07 series offers optional 80 PLUS® Platinum Certified CRPS with 800W/1200W/1600W. Our efficient and reliable redundant power supplies are designed to safeguard your system from risk of power failure and increases the server’s stability.

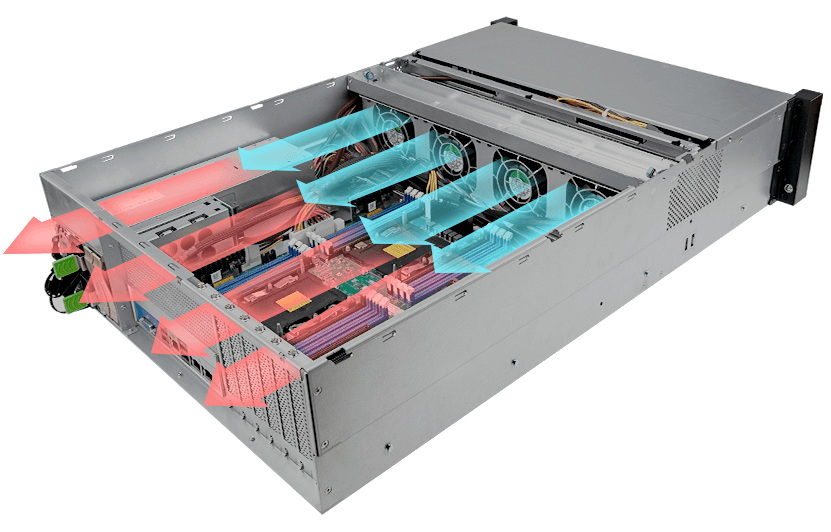

The IW-RS316-07 comes with four of InWin’s 80 x 38mm PWM hot-swap fans, which provides enhanced thermal cooling solution, anti-vibration, and low noise volume to maximize system performance.
Multi-color HDD tray options cater to the different hard drive functions and distinguishes them from each other.
SAS/SATA/NVMe
Multi-color HDD tray options cater to the different hard drive functions and distinguishes them from each other.
SAS/SATA/NVMe
Multi-color HDD tray options cater to the different hard drive functions and distinguishes them from each other.
SAS/SATA/NVMe
Ball-bearing slide rails
Hot-swap trays
Hot-swappable cooling fan
Top cover screwless
open button

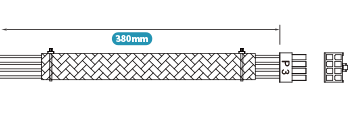

| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay | • Supports 2.5"/3.5" hot-swap HDD tray x 16 • Supports 2 x 2.5" hot-swap SSD (15mm) at the rear of the chassis • Supports 3 x 2.5" internal SSD + 1 x internal ODD |
| Power Supply | Supports: • Form factor: 80 Plus Platinum CRPS with PDB cable management • Watt: 800W/1200W/1600W |
| Indicators | Power LED, LAN1/LAN2/LAN3/LAN4 LED, System LED, HDD LED, ID LED |
| Front Control Panel | Power on/off, Reset, NMI, ID SW, USB3.0 x 2 |
| Backplane-1 | • Host: Slim Line (internal SFF-8654 x 8 for PCIe protocol) + SFF-8643 x 3 for SAS protocol • HDD: SFF-8639 x 8 (for NVMe / SAS / SATA device) SFF-8482 x 8 (for SAS / SATA device) |
| Backplane-2 | • Host: OcuLink (internal SFF-8611 x 8 for PCIe protocol) + SFF-8643 x 3 for SAS protocol • HDD: SFF-8639 x 8 (for NVMe / SAS / SATA device) SFF-8482 x 8 (for SAS / SATA device) |
| Cooling Fans | • 80 x 38mm PWM hot-swap fans x 4, 12000RPM |
| Expansion Slot | Full-height PCIe slots x 7 |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Option: supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 660 x 482.6 x 131mm (26" x 19" x 5.25") Case width: 438mm |
| Backplane-1 | Slimline backplane |
| Dimension (W x H) | 404.5mm x 105.6mm |
| Backplane Type | Active |
| Host Interface | Slim Line (internal SFF-8654 x 8, for PCIe protocol) + SFF-8643 x 3 for SAS protocol |
| HDD Interface | SFF-8639 x 8 (for NVMe / SAS / SATA device) SFF-8482 x 8 (for SAS / SATA device) |
| Backplane-2 | Oculink backplane |
| Dimension (W x H) | 404.5mm x 105.6mm |
| Backplane Type | Active |
| Host Interface | OcuLink (internal SFF-8611 x 8 for PCIe protocol) + SFF-8643 x 3 for SAS protocol |
| HDD Interface | SFF-8639 x 8 (for NVMe / SAS / SATA device) SFF-8482 x 8 (for SAS / SATA device) |
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|

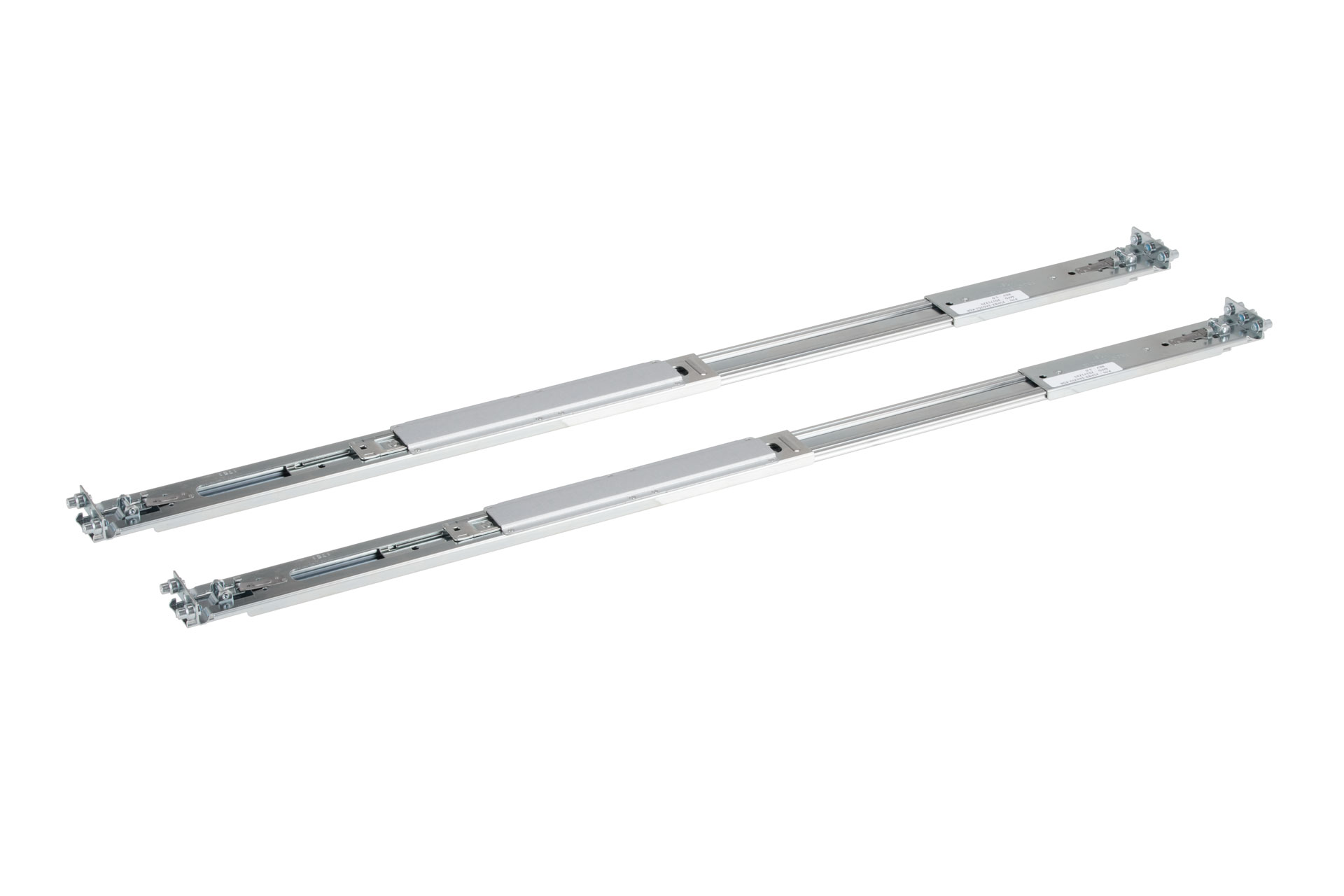

| Slide Rail | 3RAMIS148100 | 28" king slide rail, tool-less | 1 |
|

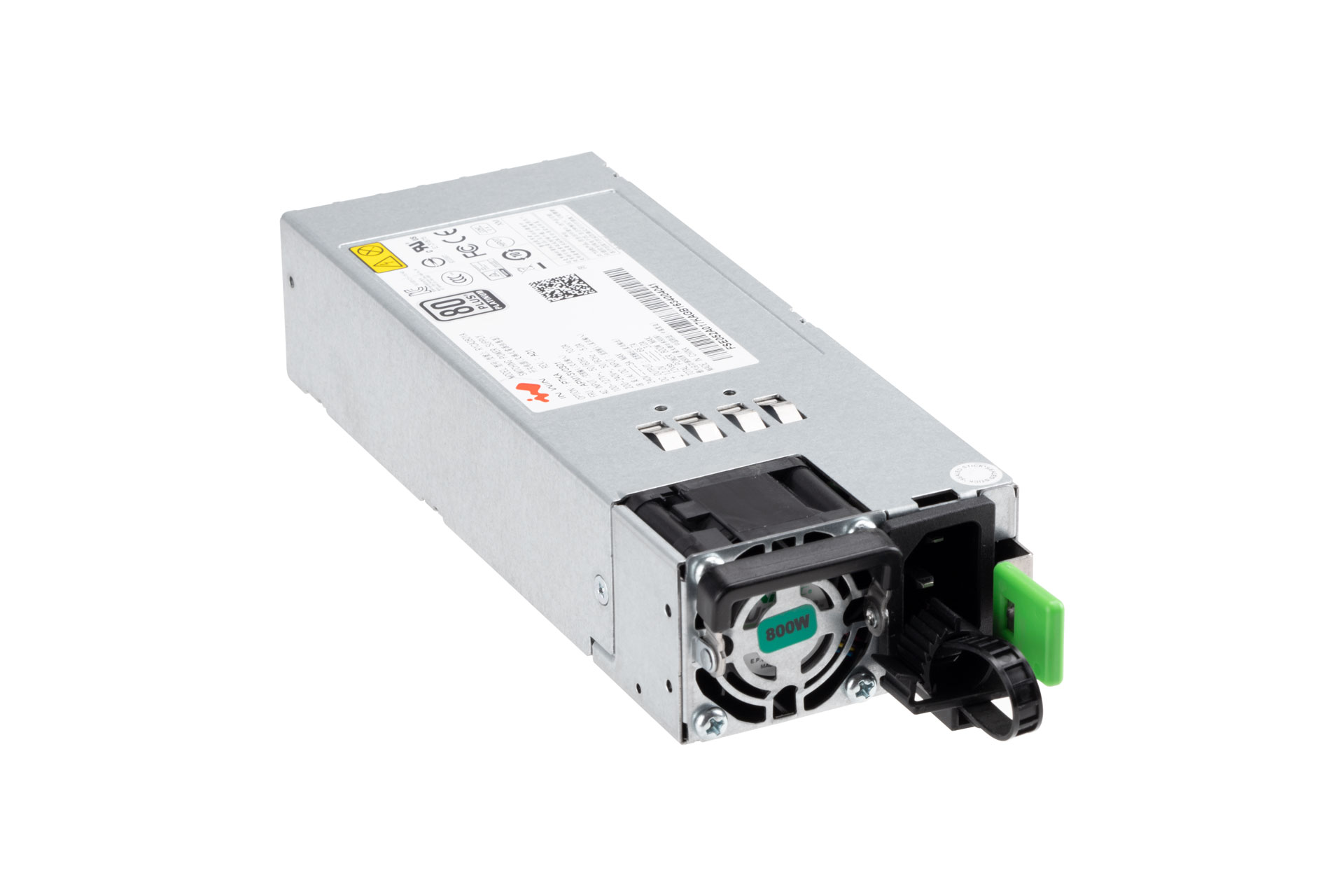

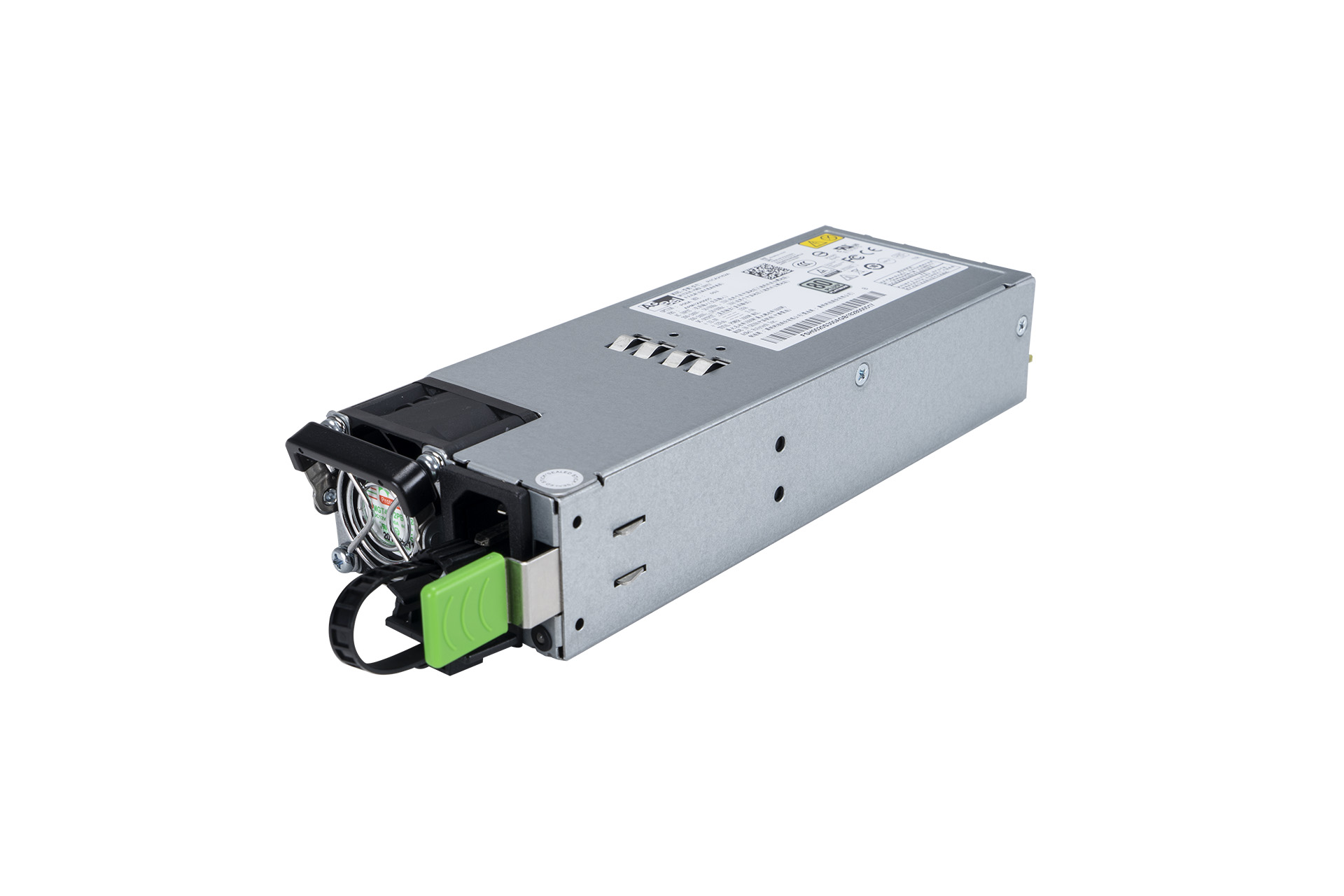

| Power Supply | 3RAMAP025201 | 800W CRPS | 2 |
|

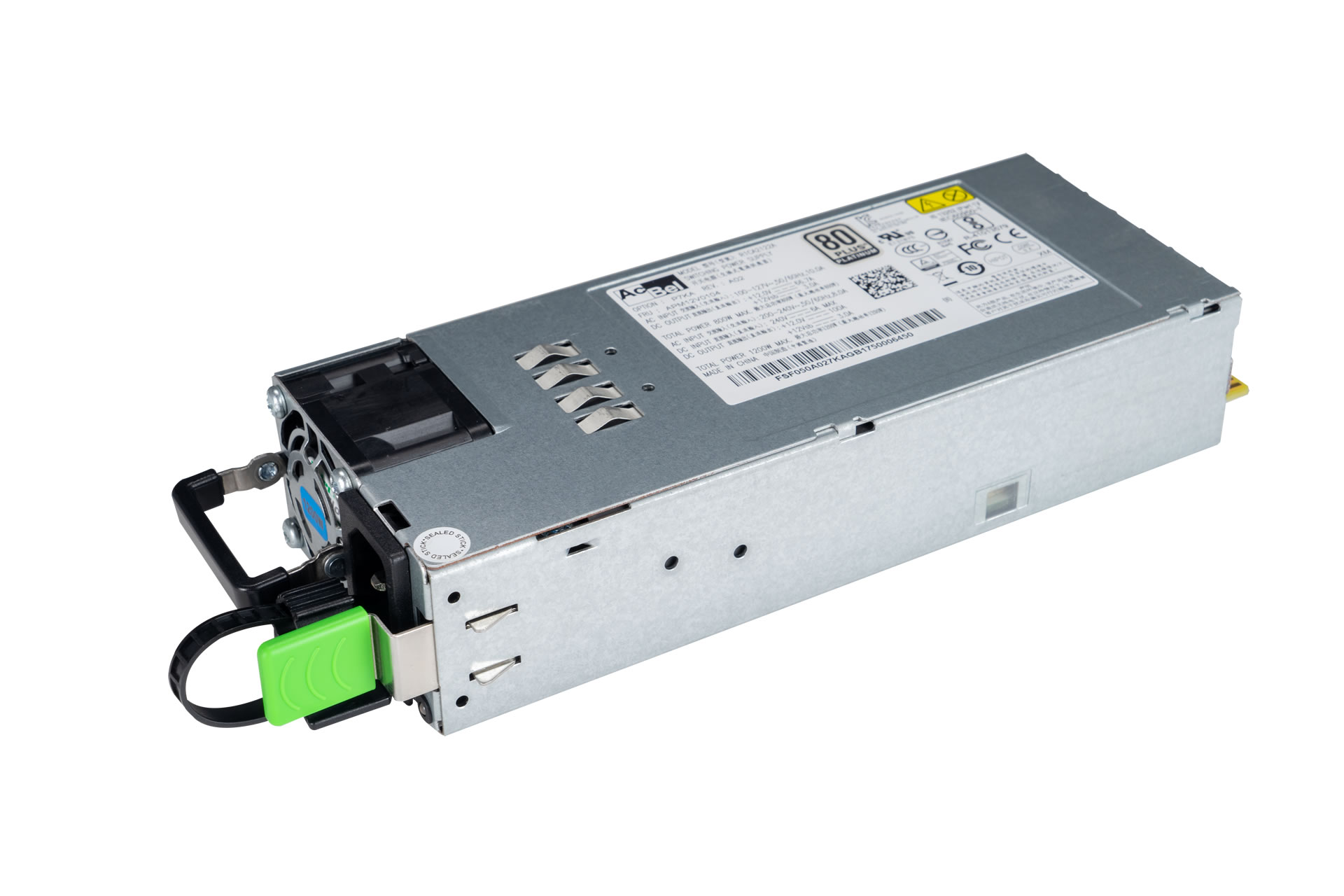

| Power Supply | 3RAMAP026501 | 1200W CRPS | 2 |
|
| Power Supply | 3RAMAP027800 | 1600W CRPS | 2 |
|
| Backplane | 2RAKVI004100 | Slimline backplane | 1 | |
| Backplane | 2RAKVI004000 | Oculink backplane | 1 |
