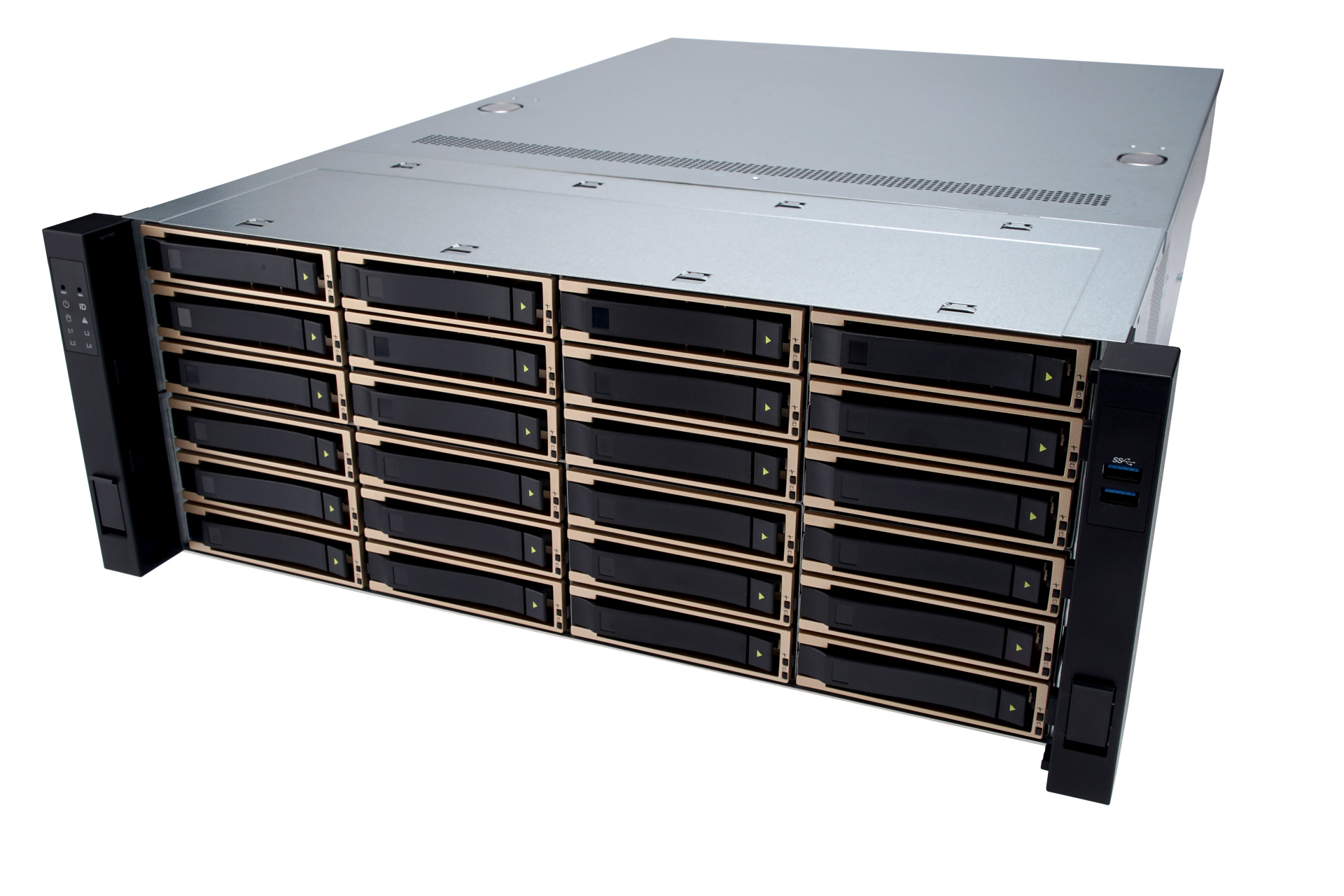

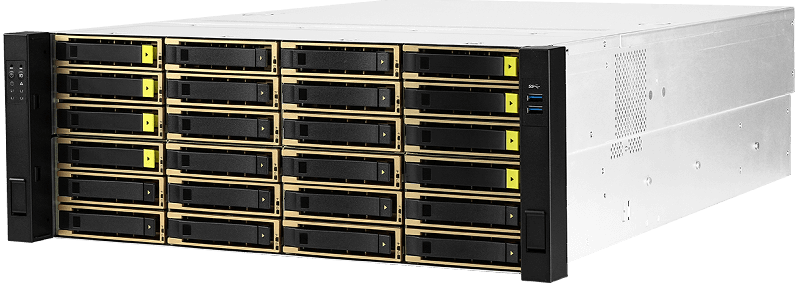

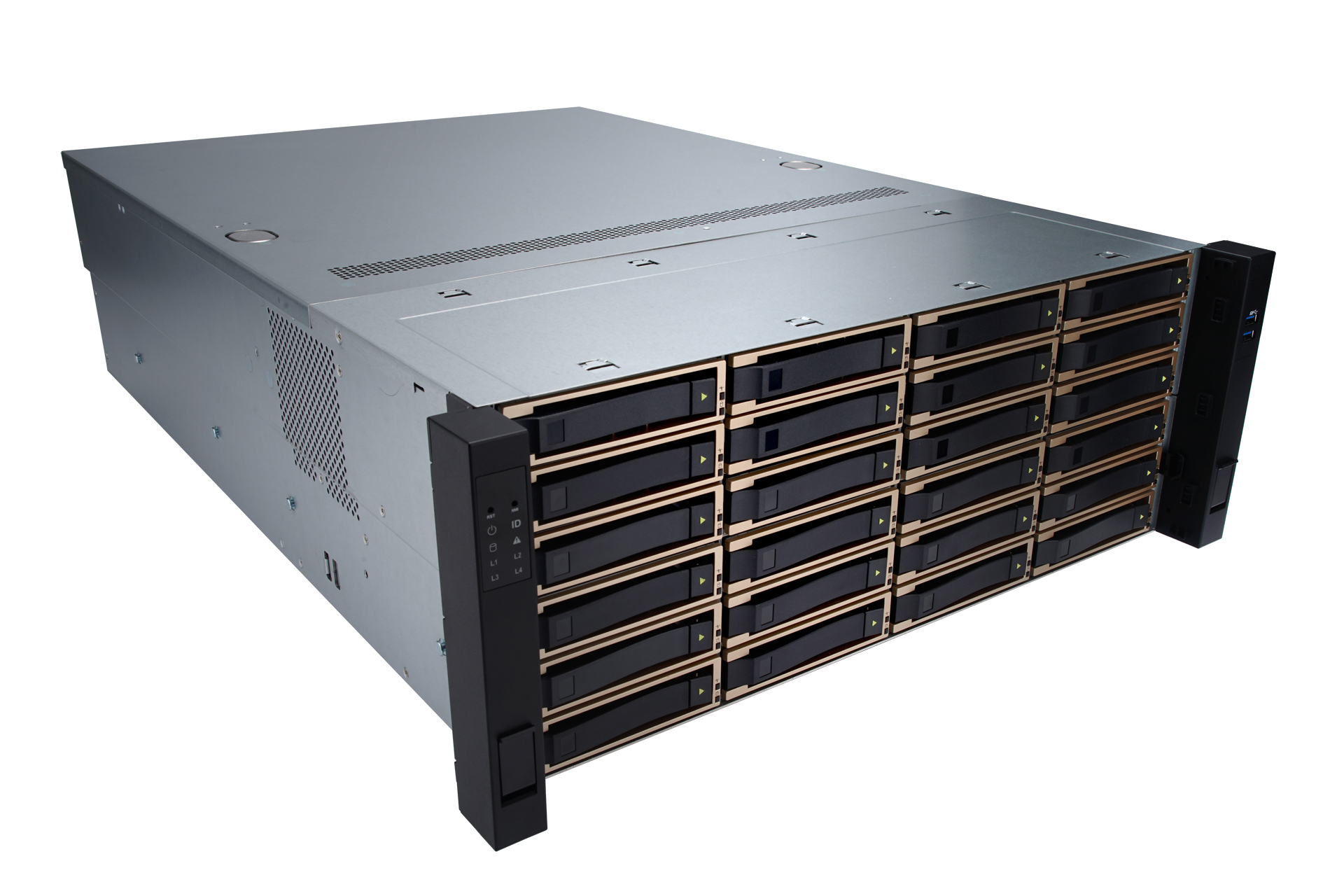

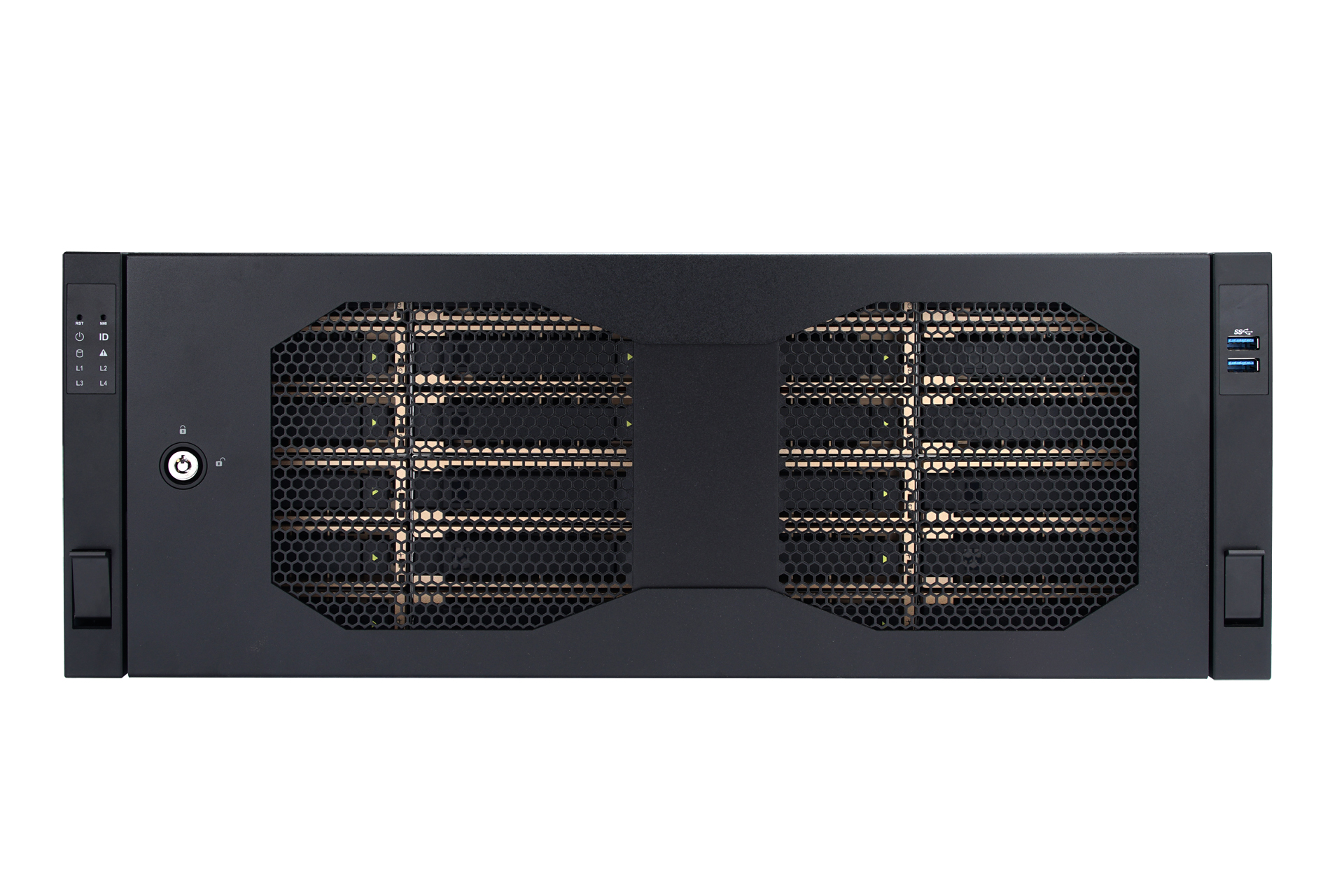

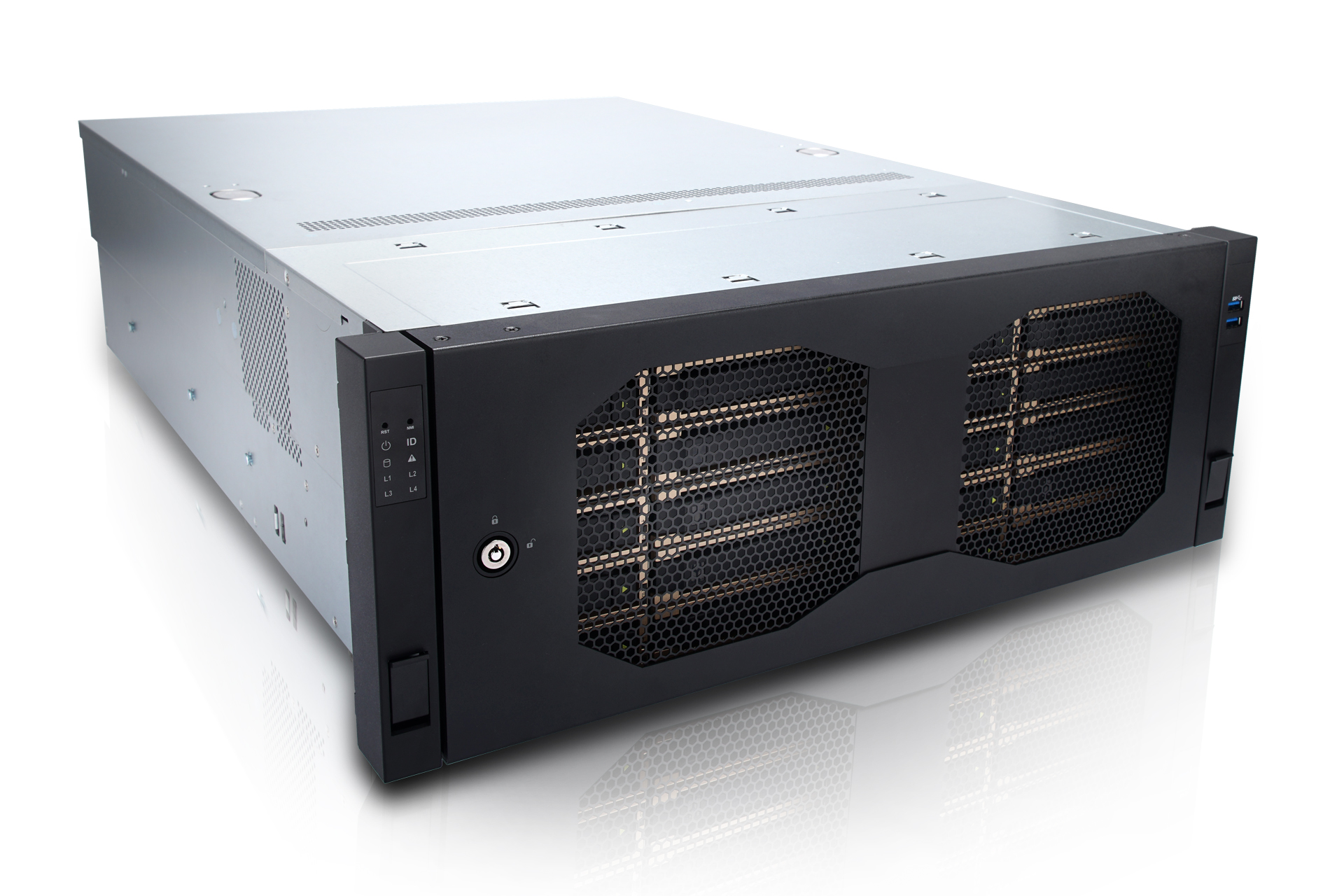

．4U with 8 x hot-swappable 3.5" NVMe/SAS/SATA HDD bays, 16 x hot-swappable 3.5" SAS/SATA HDD, 2 x rear external 2.5" HDD
．Supports Intel® scalable platform (purley) with full-height PCI slot x 7
．Low acoustic noise and reduced vibrations for greater reliability
．Perfect thermal solution for Intel® scalable platform

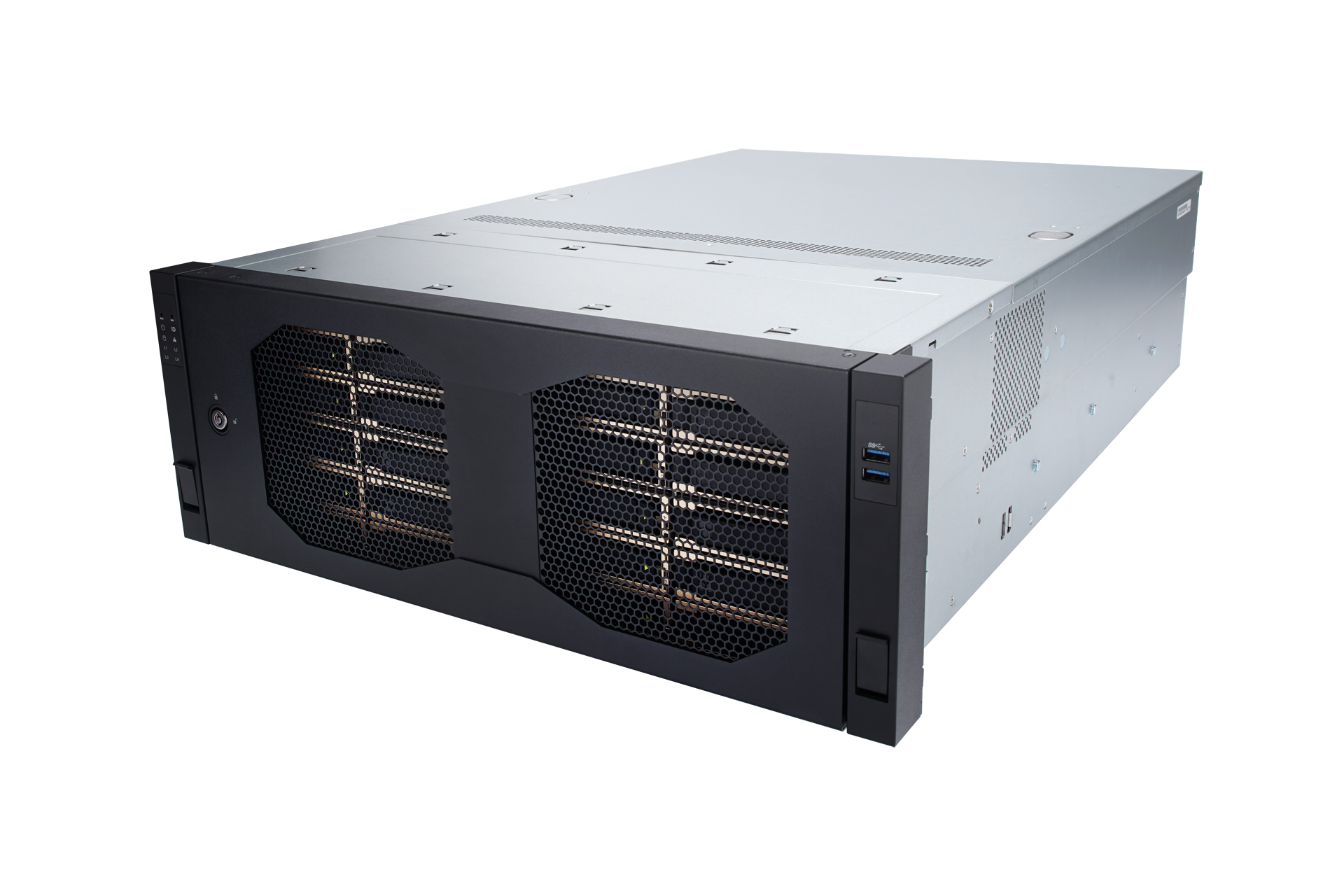

Scalable, high-performance NVMe hybrid storage architectures, the IW-RS424-07 delivers extreme performance and ultra-low latency to the top-tier of enterprise storage.
The IW-RS424-07 accelerates data center workloads with NVMe hybrid architectures, support a range of data center requirements, it can be implemented in cloud and hyperscale computing, online transaction processing, virtualization and more! Delivering a suitable solution for every type of data center.
The IW-RS424-07 can be configured as either SAS/SATA x 24 or SAS/SATA x 16 and U.2 NVMe SSD x 8.
The screwless drive trays expand to fit and secure 3.5" drives (or mount 2.5" SSD with screws).

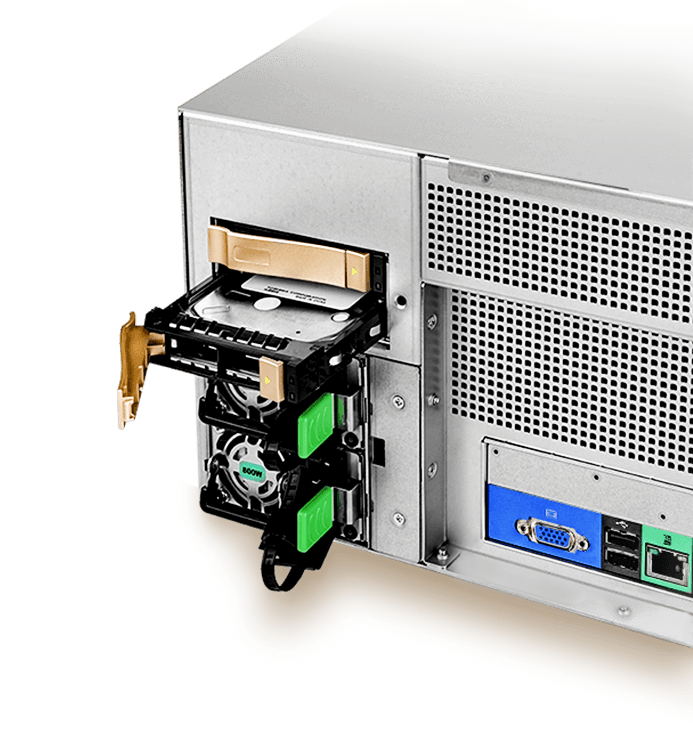

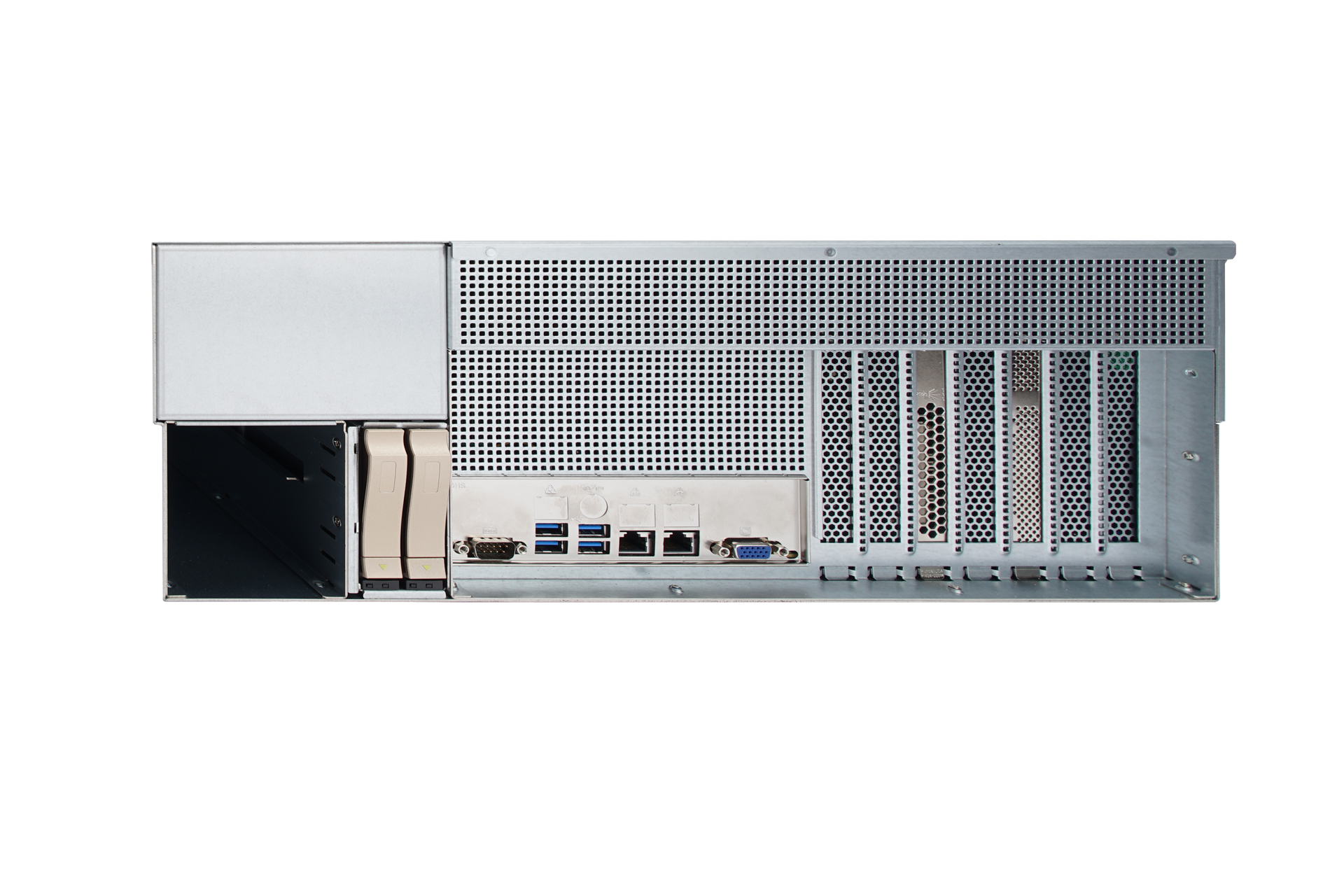

2 x 2.5" SAS/SATA SSDs for system disks at the rear of the chassis (supports SAS 12G)

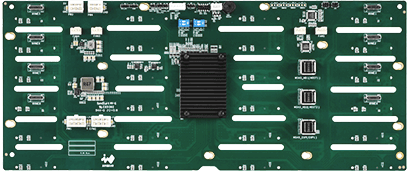

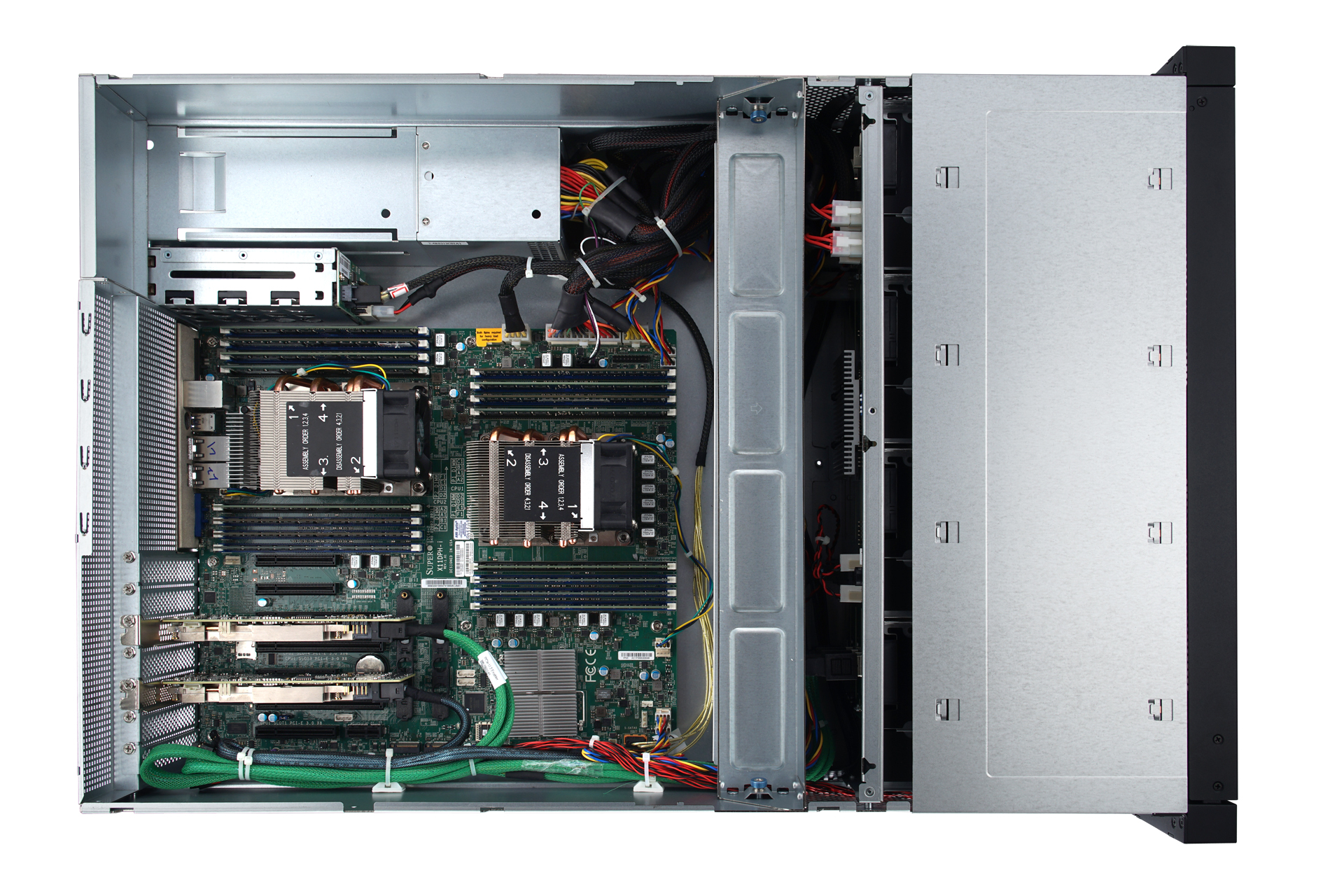

InWin exclusive backplane comes with great connectivity and is designed to support SAS/SATA and NVMe for Slimline or Oculink host interface.
Equipped with 12G SAS storage array and the built-in expander onboard, the IW-RS424-07 can integrate end-to-end connectivity to increase the unprecedented efficiency of data management.
The GPU-optimized design allows for multiple dual-slot GPUs and meets the demands of AI and high-performance computing.
The IW-RS424-07 comes with 80 x 38mm PWM hot-swap fans x 4, featuring anti-vibration and produces low noise volume, but presents a strong current to have optimal heat dissipation.

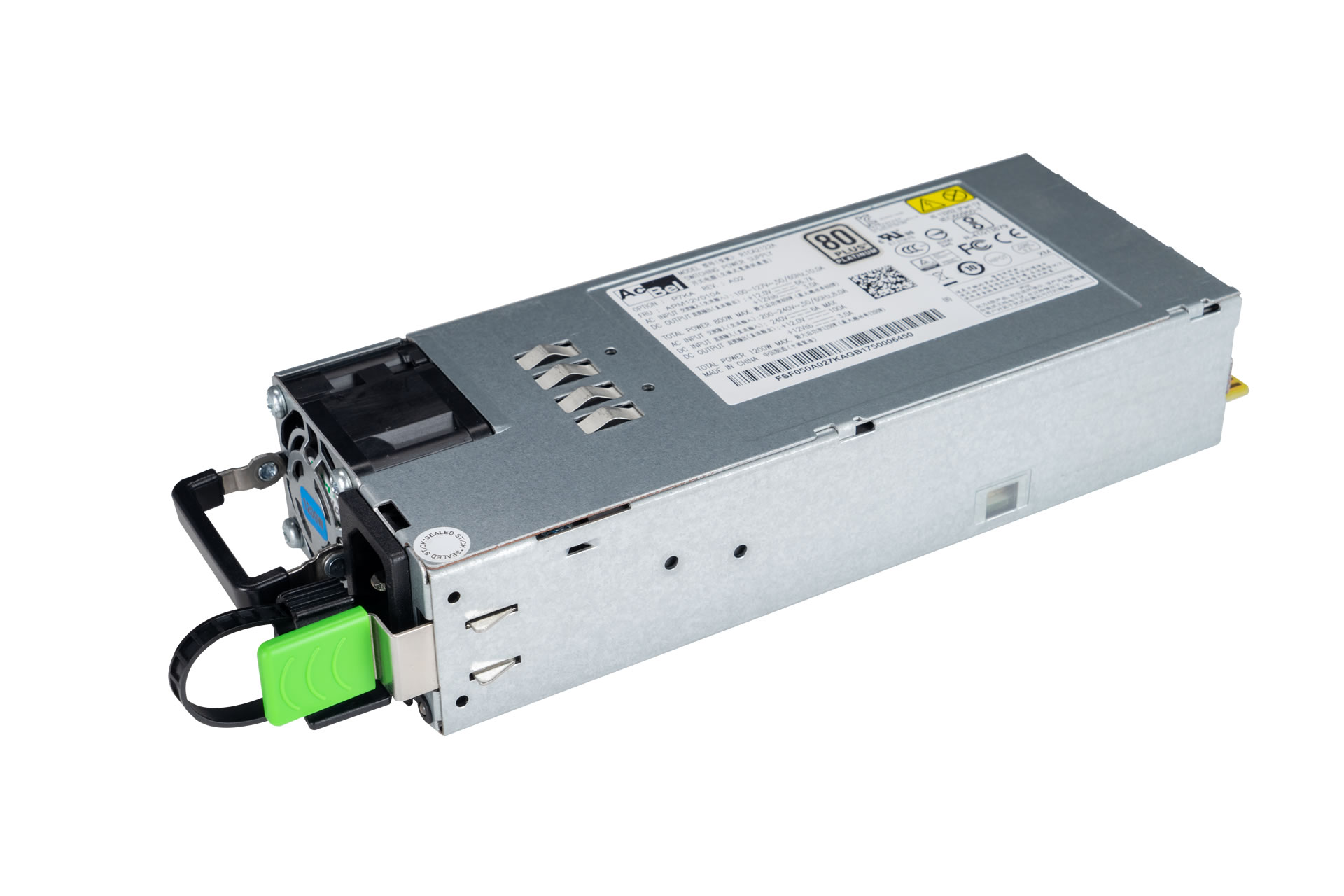

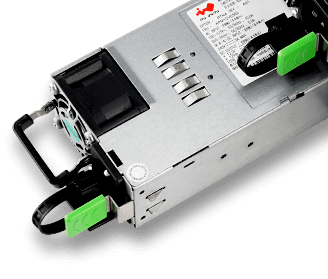

Options include 80 PLUS® Platinum Certified CRPS with 800W/1200W/1600W variants, which stabilizes the operation of the system, and greatly enhances the system’s availability.
Tool-less items such as ball-bearing slide rails, top cover button, hot-swap trays, and fan modules offered by InWin assist users with a simplified building process.
Ball-bearing slide rails
Top cover open button
3.5" to 2.5" HDD tray
Hot-swap fan modules
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay | • External: supports screwless 3.5" hot-swap HDD tray x 24 • Rear external 2.5" HDD x 2 |
| Power Supply | Supports 800W / 1200W / 1600W platinum CRPS with PDB cable management |
| Indicators | Power LED, LAN1/LAN2/LAN3/LAN4 LED, System LED, HDD LED, ID LED |
| Front Control Panel | Power on/off, Reset, NMI, ID SW, USB3.0 x 2 |
| Backplane-1 | • Host: Slim Line (internal SFF-8654 x 8 for PCIe protocol) + SFF-8643 x 3 for SAS protocol • HDD: SFF-8639 x 8 (for NVMe / SAS / SATA device) SFF-8482 x 16 (for SAS / SATA device) |
| Backplane-2 | • Host: OcuLink (internal SFF-8611 x 8 for PCIe protocol) + SFF-8643 x 3 for SAS protocol • HDD: SFF-8639 x 8 (for NVMe / SAS / SATA device) SFF-8482 x 16 (for SAS / SATA device) |
| Cooling Fans | 8038mm PWM fan x 3, 8038mm fan x 1 for PCI-E Modular design with anti-vibration |
| Expansion Slot | Full-height PCI Slot x 7 |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 30" tool-less & ball-bearing slide rail |
| Product Dimensions (DxWxH; Chassis Only) | 660 x 482.6 x 176mm (26" x 19" x 5.25") Case width: 438mm |

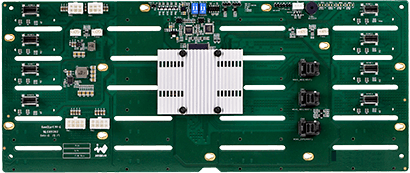

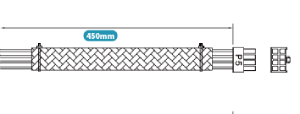

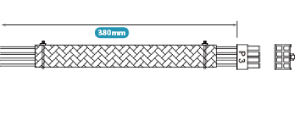

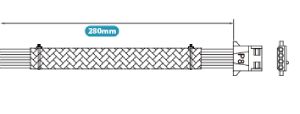

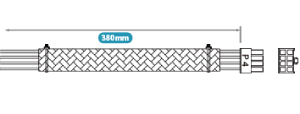

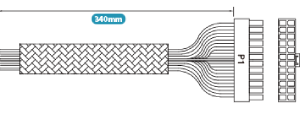

| Backplane-1 | Slimline backplane |
| Dimension (W x H) | 382.5mm x 161.8mm |
| Backplane Type | Active |
| Host Interface | Slim Line (internal SFF-8654 x 8, for PCIe protocol) + SFF-8643 x 3 for SAS protocol |
| HDD Interface | SFF-8639 x 8 (for NVMe / SAS / SATA device) SFF-8482 x 16 (for SAS / SATA device) |
| Backplane-2 | Oculink backplane |
| Dimension (W x H) | 382.5mm x 161.8mm |
| Backplane Type | Active |
| Host Interface | OcuLink (internal SFF-8611 x 8 for PCIe protocol) + SFF-8643 x 3 for SAS protocol |
| HDD Interface | SFF-8639 x 8 (for NVMe / SAS / SATA device) SFF-8482 x 16 (for SAS / SATA device) |
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS133300 | 30" tool-less & ball-bearing slide rail | 1 |
|

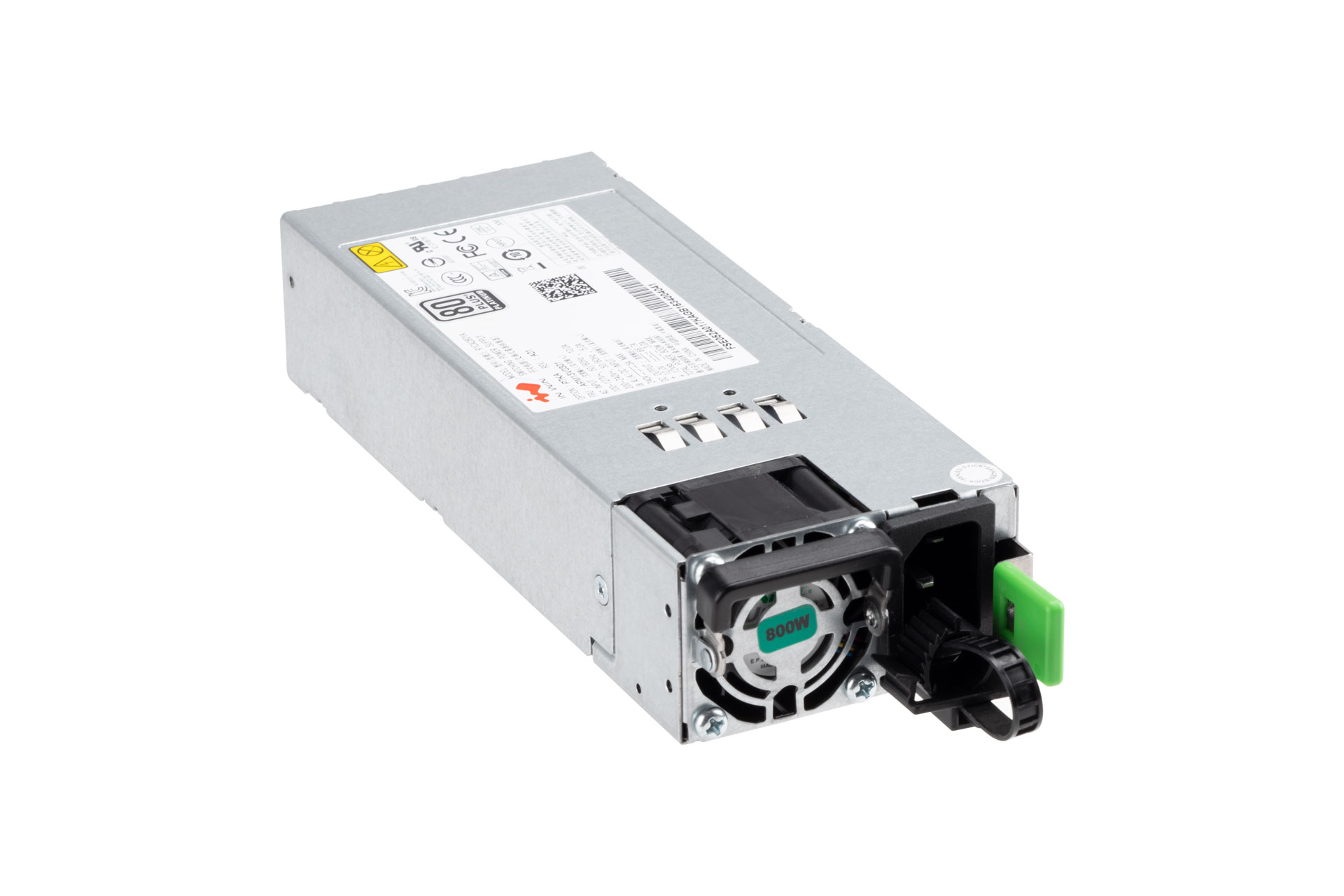

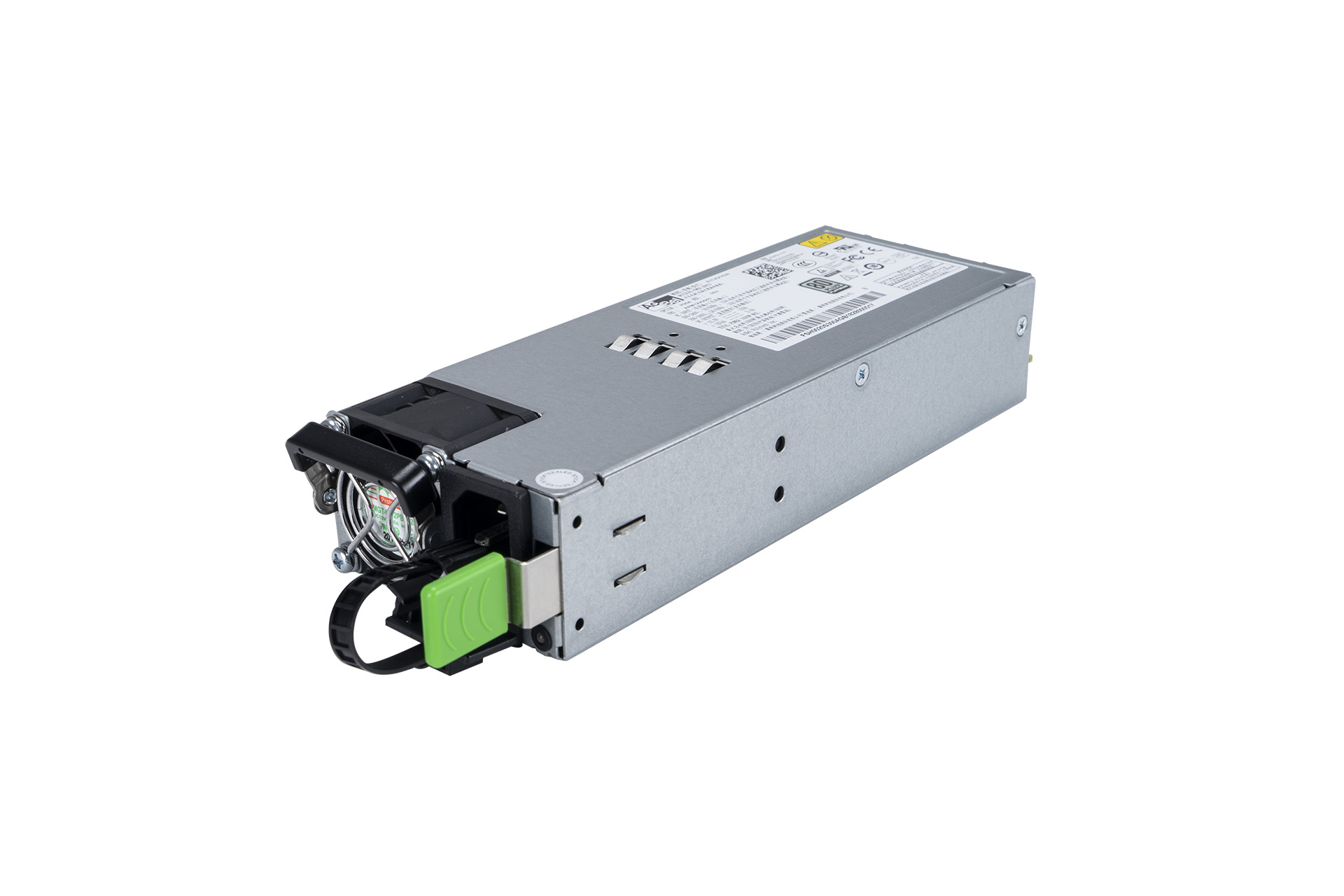

| Power Supply | 3RAMAP025201 | 800W CRPS | 2 |
|
| Power Supply | 3RAMAP026501 | 1200W CRPS | 2 |
|
| Power Supply | 3RAMAP027800 | 1600W CRPS | 2 |
|
| Backplane | 2RAKVI004300 | Slimline backplane | 1 | |
| Backplane | 2RAKVI004200 | Oculink backplane | 1 |
