．Intel® Xeon Scalable & AMD EPYC family compliant
．Backplanes with Mini-SAS HD, Oculink or Slimline connectors
．End-to-end 12G SAS host, expander and disk support
．2.5"/3.5" HDD trays x 36 (optional NVMe trays x 12, distinguishes U.2 NVMe SSDs)
．2 x 2.5" SAS/SATA SSDs for system disks at the rear of the chassis
．Highly efficient 1200W/1600W, 80 Plus Platinum CRPS (optional)
．High-speed cooling fans for excellent thermal performance

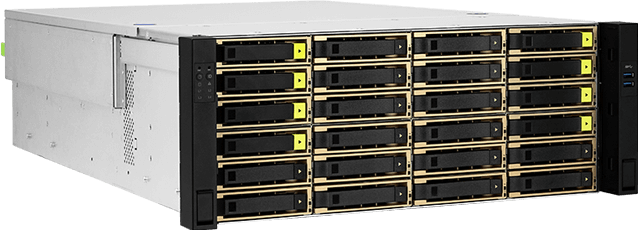

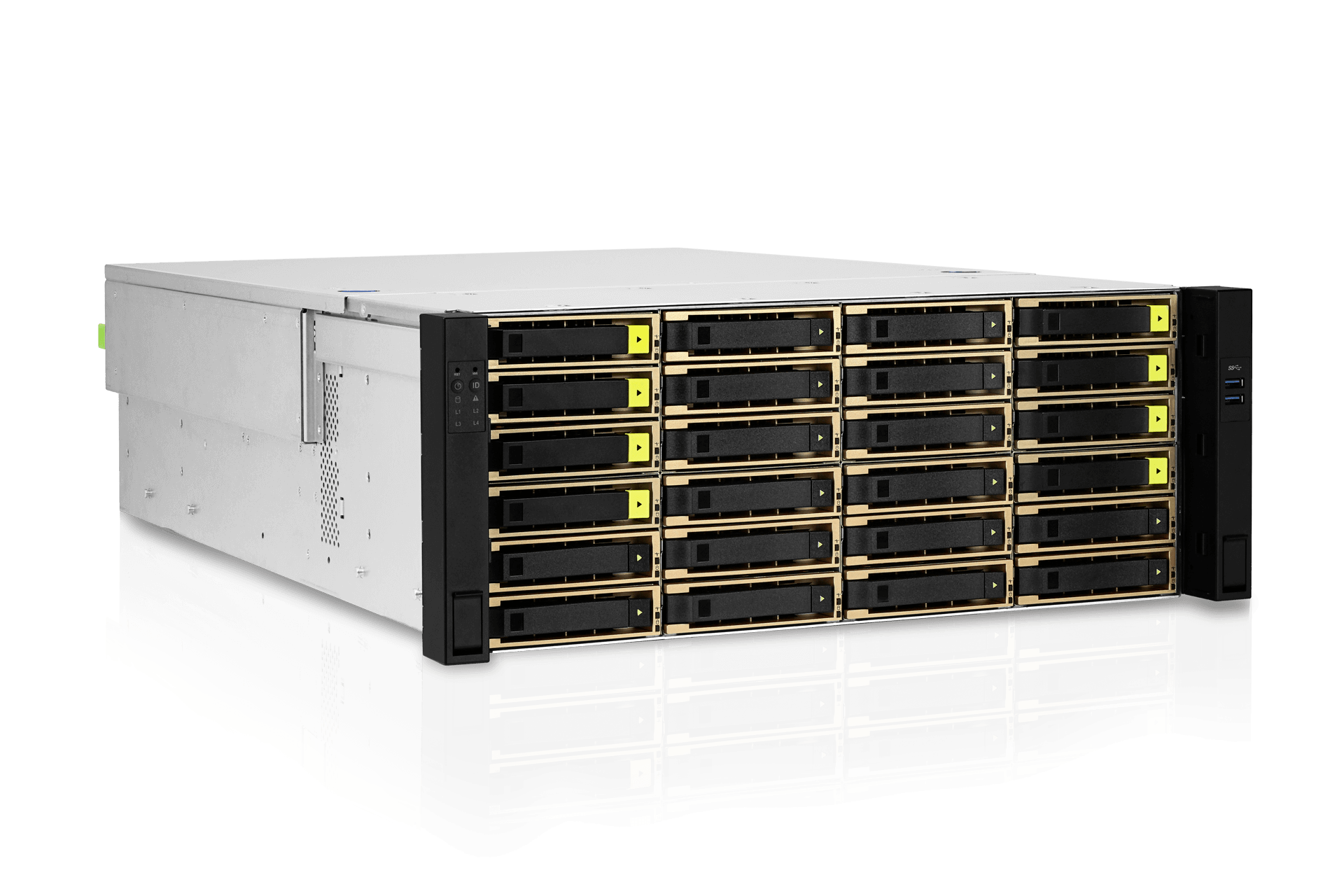

The IW-RS436-07 is a hybrid storage server performance gains from cost-effective SAS/SATA hard drive disks and high-speed/performance NVMe storages. It is designed for large amounts of data, real-time analytics, high-speed data streaming, and mainstream enterprise environments. The "mixed-use" workload drives make it ideal for running a wide range of customer applications.

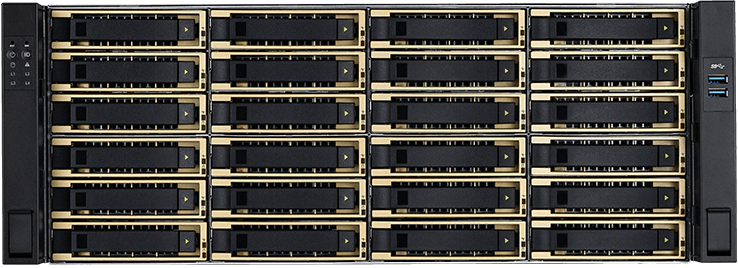

The RS436-07 supports 2.5"/3.5" hot-swap HDD trays x 36 (optional U.2 NVMe trays x 12) and delivers the most usable effective storage capacity and meets the capacity expansion requirements of data-intensive workloads and quick read/write operations.
The 2.5"(15mm) U.2 form factor design works seamlessly with our latest generation backplanes. Hot-swap and tool-free design allow users to mount/remove 3.5" HDDs quickly and easily without any screws.
Users can also mount 2.5" SSDs with screws if needed.
Multi-color HDD tray options cater to the different hard drive functions and distinguishes them from each other.
SAS/SATA/NVMe
Multi-color HDD tray options cater to the different hard drive functions and distinguishes them from each other.
SAS/SATA/NVMe
Multi-color HDD tray options cater to the different hard drive functions and distinguishes them from each other.
SAS/SATA/NVMe
InWin’s exclusive backplane comes with great connectivity and is designed to support SAS/SATA and NVMe for Slimline or Oculink host interface. The onboard expander mainly manages the communication of SAS/SATA HDD interface, it integrates end-to-end connectivity and reduces cable clutter.
The IW-RS436-07 comes with 80 x 38mm PWM hot-swap fans x 8, featuring anti-vibration and produces low noise volume, but presents a strong current to have optimal heat dissipation.
Options include 80 PLUS® Platinum Certified CRPS with 1200W/1600W variants, which stabilizes the operation of the system, and greatly enhances the system’s availability.
Tool-less items such as ball-bearing slide rails, top cover button, hot-swap trays, and fan modules offered by InWin assist users with a simplified building process.
Ball-bearing slide rails
Top cover open button

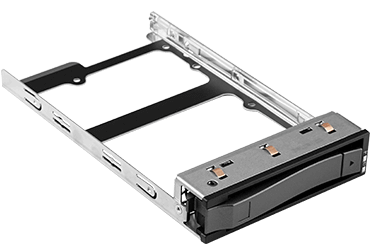

3.5" to 2.5" HDD tray
Hot-swap fan modules
| Specification | |
|---|---|
| SAS 12G Expander | Supports Broadcom SAS 35 x 36R expander |
| Backplane-1 | Front: • Host: Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 8 • HDD: SAS/SATA x 24 or SAS/SATA x 16 and NVMe SSD x 8 Rear: • Host: Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 4 • HDD: SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4 |
| Backplane-2 | Front: • Host: Mini-SAS HD (SFF-8643) x 3, Oculink (SFF-8611) x 8 • HDD: SAS/SATA x 24 or SAS/SATA x 16 and NVMe SSD x 8 Rear: • Host: Mini-SAS HD (SFF-8643) x 3, Oculink (SFF-8611) x 4 • HDD: SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4 |
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay | • External 2.5"/3.5" hot-swap trays x 36 (optional U.2 NVMe SSD tray x 12) • Rear 2.5" screwless hot-swap SSD trays x 2 (supports SAS 12G) |
| Power Supply | Supports: • Form factor: 80 Plus Platinum CRPS • Watt: 1200W/1600W |
| Indicators | Power LED, LAN1/LAN2/LAN3/LAN4 LED, System LED, ID LED, HDD LED |
| Front Control Panel | Power on/off, Reset, NMI, ID SW, USB3.0 x 2 |
