server system assembly
IW-RSA424-02M
4U SAS Storage Rackmount Server
- Supports Intel® Xeon® Scalable and AMD EPYC™ processors
- Mini-SAS HD backplane with PCIe 3.0 compatibility
- Supports end-to-end 12Gbps SAS across host, expander, and drives
- 24 hot-swappable 2.5"/3.5" SAS/SATA drive bays
- 2 rear 2.5" SSD bays for system drives
- Supports 80 PLUS Platinum CRPS power supplies
- High-performance cooling with hot-swappable fans

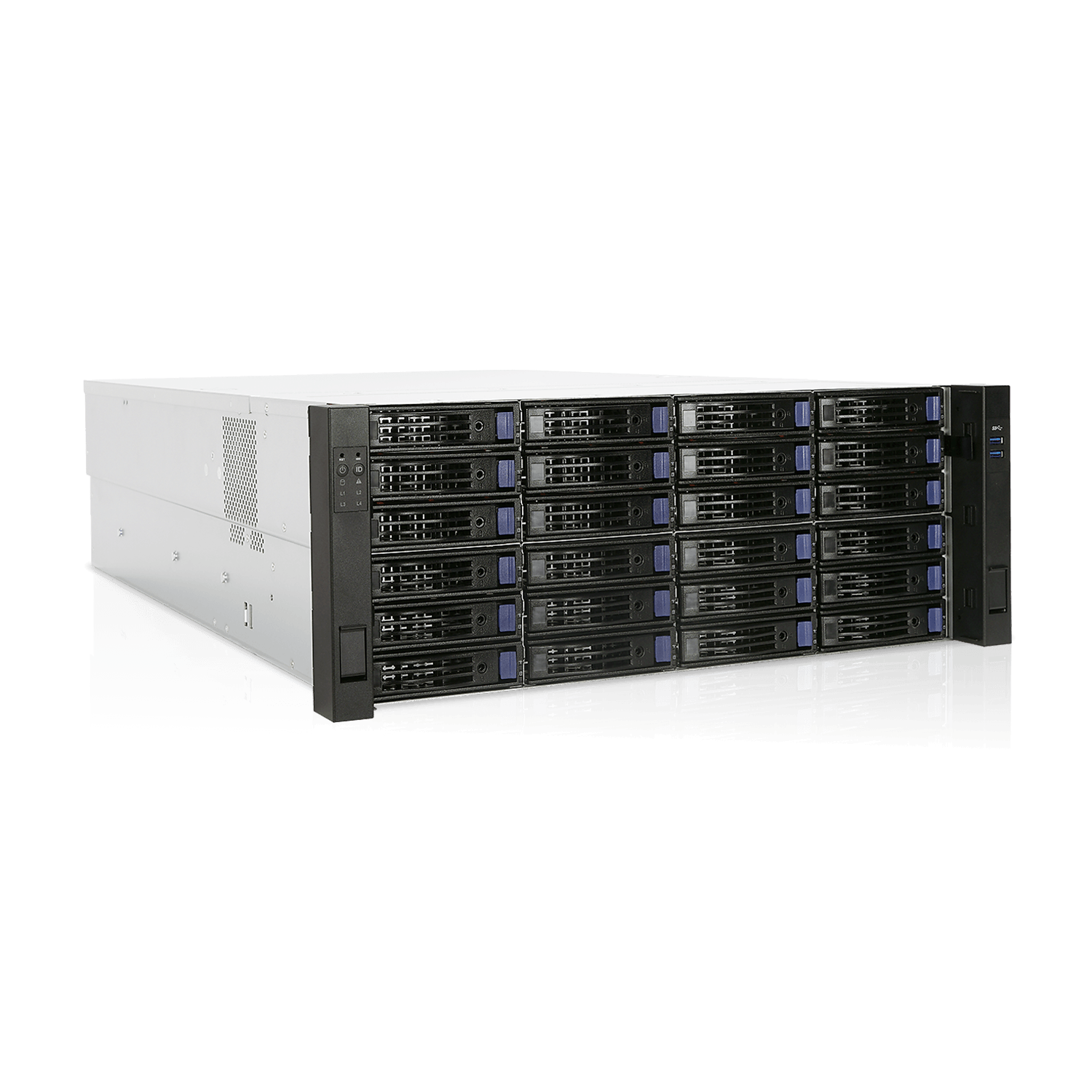

High-Density 4U Storage Server
24 Bays with Proven SAS3 Performance
Intel® Xeon Scalable family
AMD EPYC family
24 x 3.5“/2.5" bay
2 x 2.5" system bay
Full-height PCIe x 7
80 x 38mm fans x 4
CRPS
30" slider rails

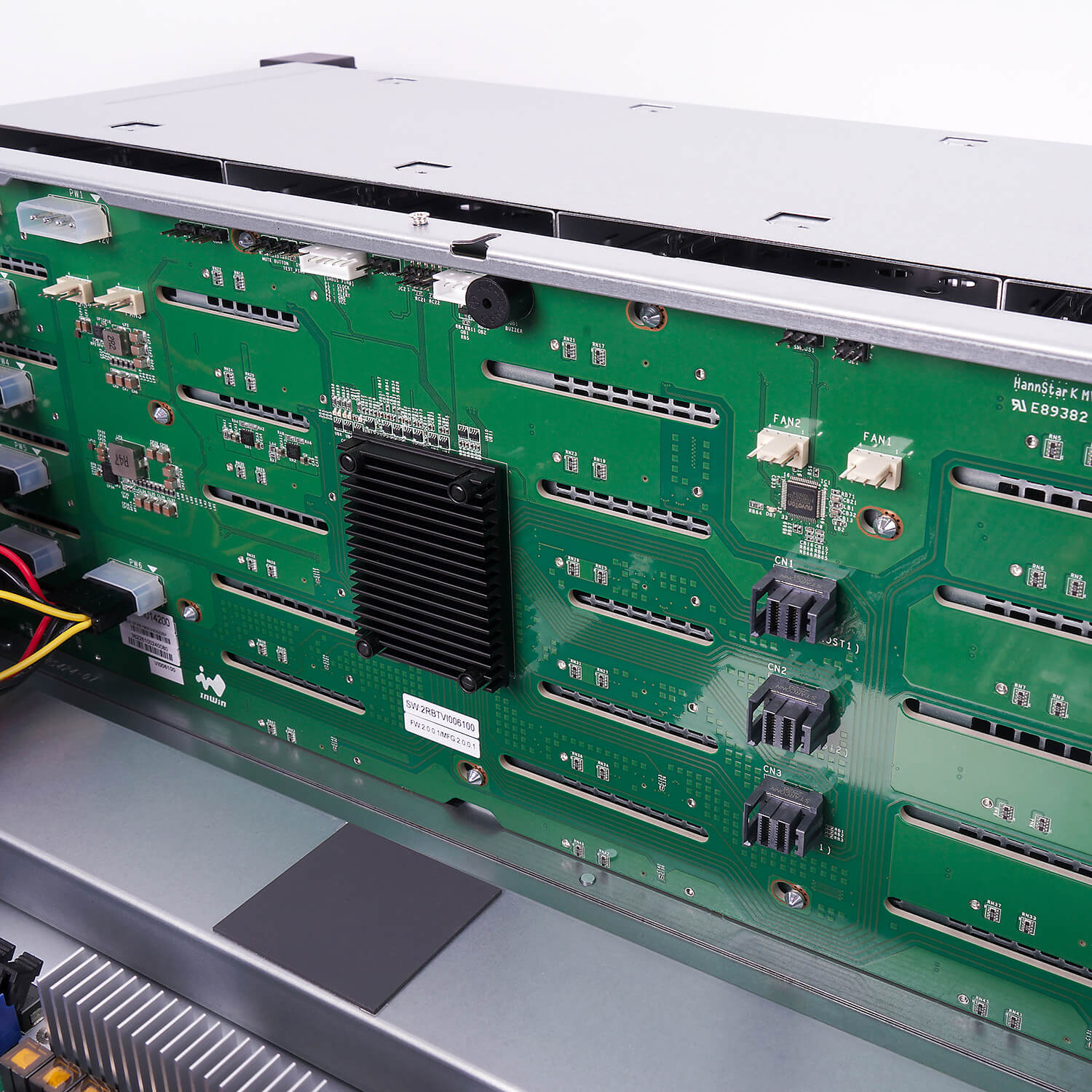

12Gbps SAS3 Expander Architecture
Built on a SAS3 infrastructure, the RSA424-02M features an onboard expander
backplane with Mini-SAS HD connectivity. Supporting end-to-end 12Gbps throughput across host,
expander, and drives, it ensures reliable and scalable high-speed data transmission.

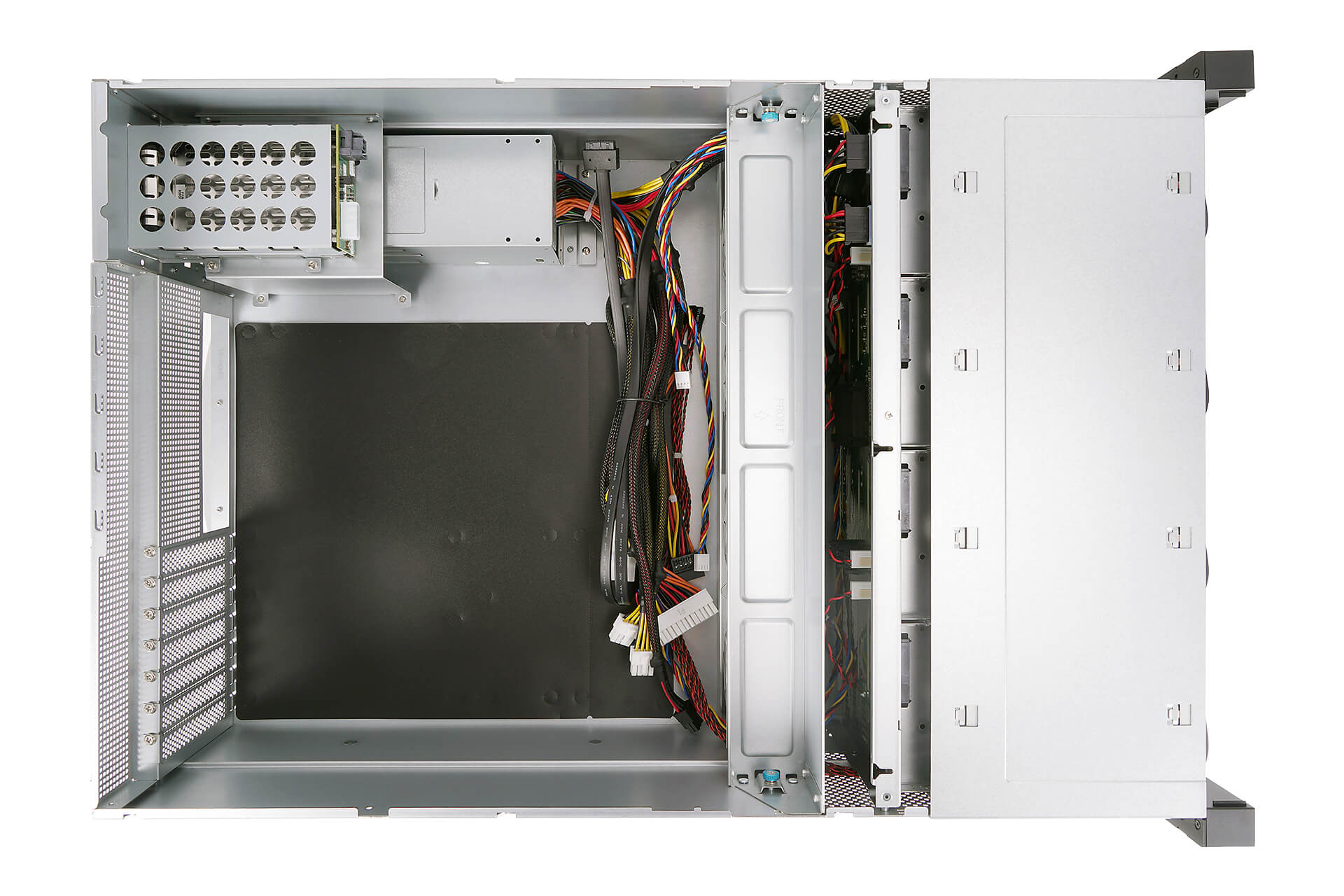

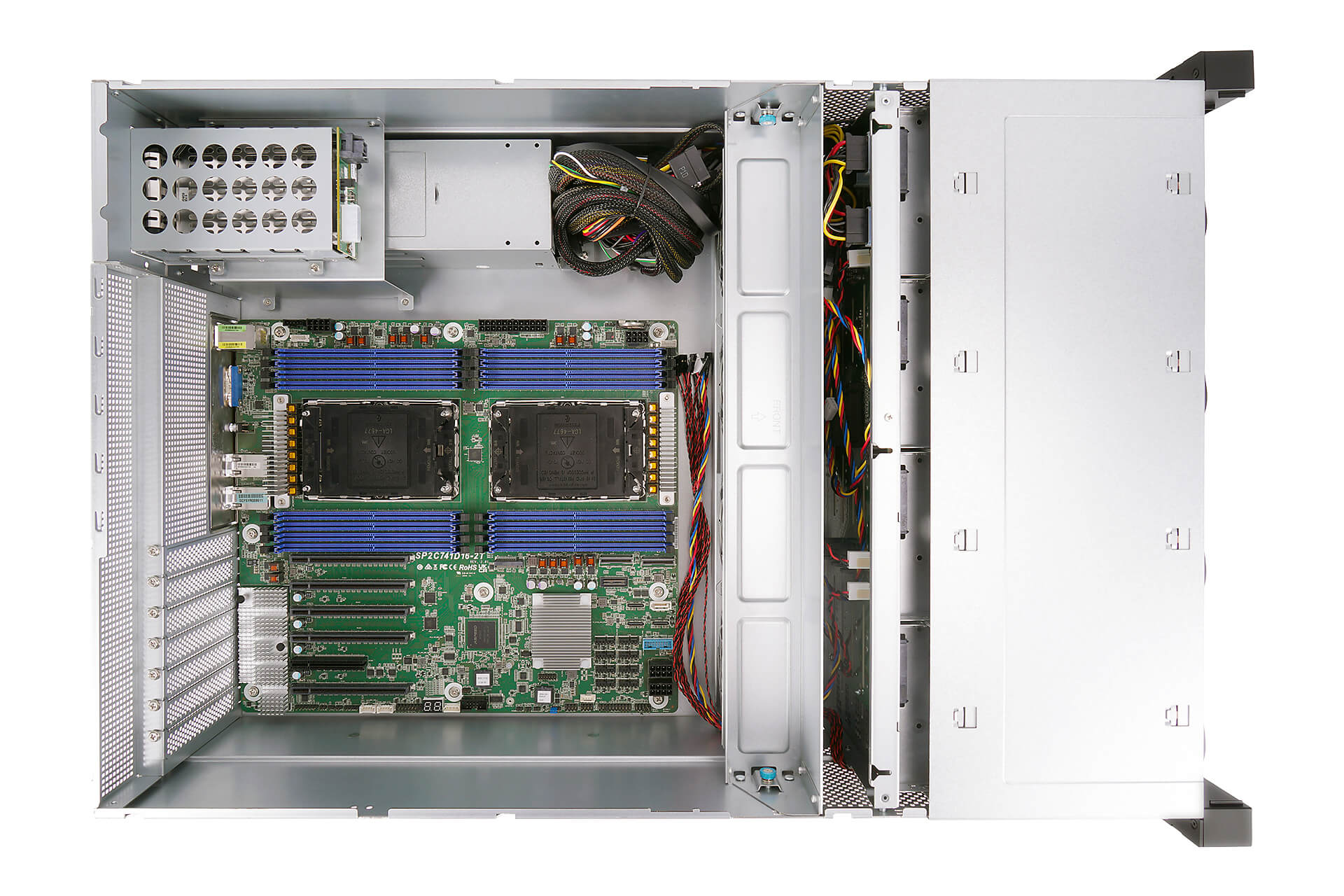

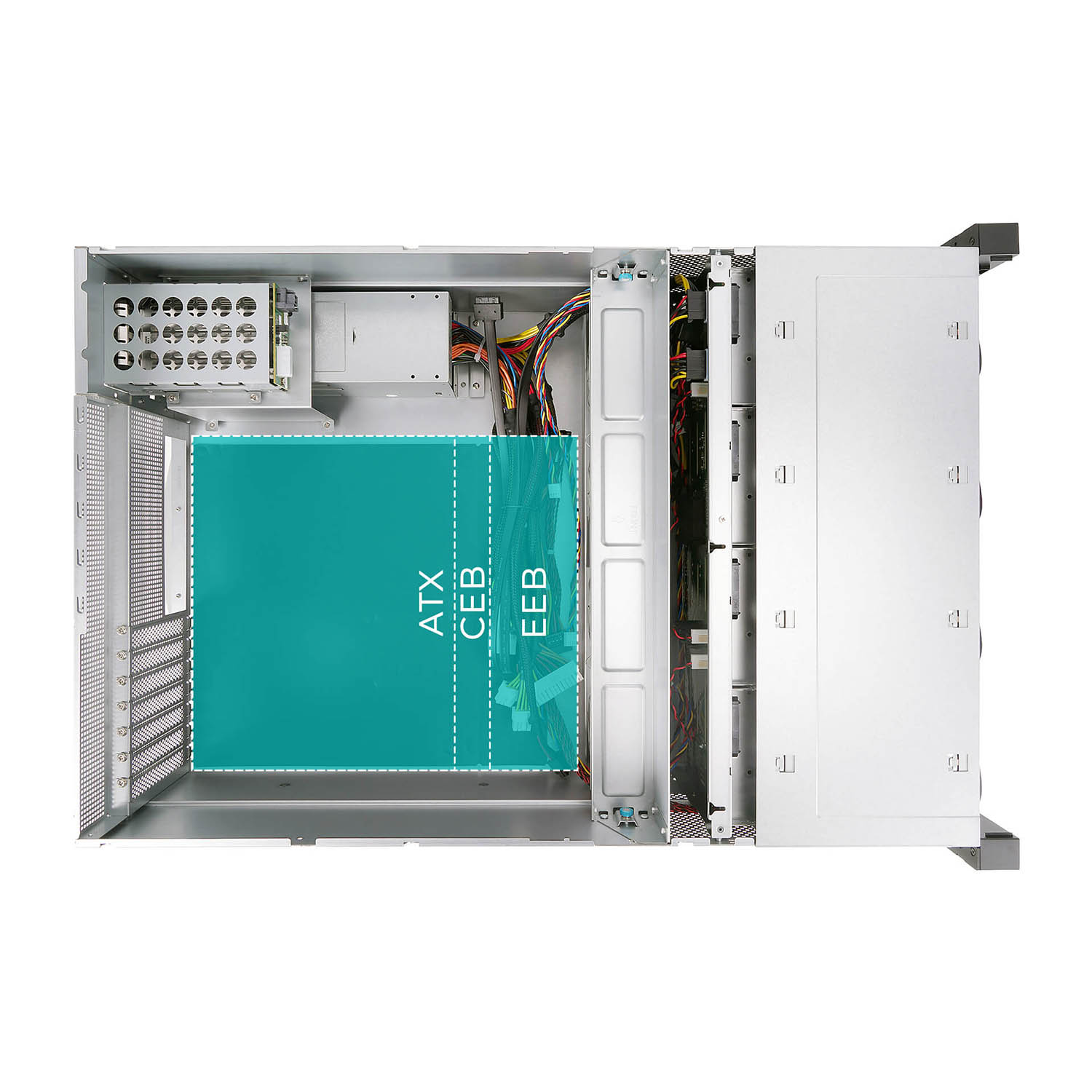

Flexible Platform Compatibility
Designed to support a wide range of server configurations, the chassis
accommodates Intel and AMD platforms with support for motherboard form factors up to EEB. With 7
full-height PCIe slots, it provides the flexibility needed for diverse enterprise workloads and
expansion requirements.

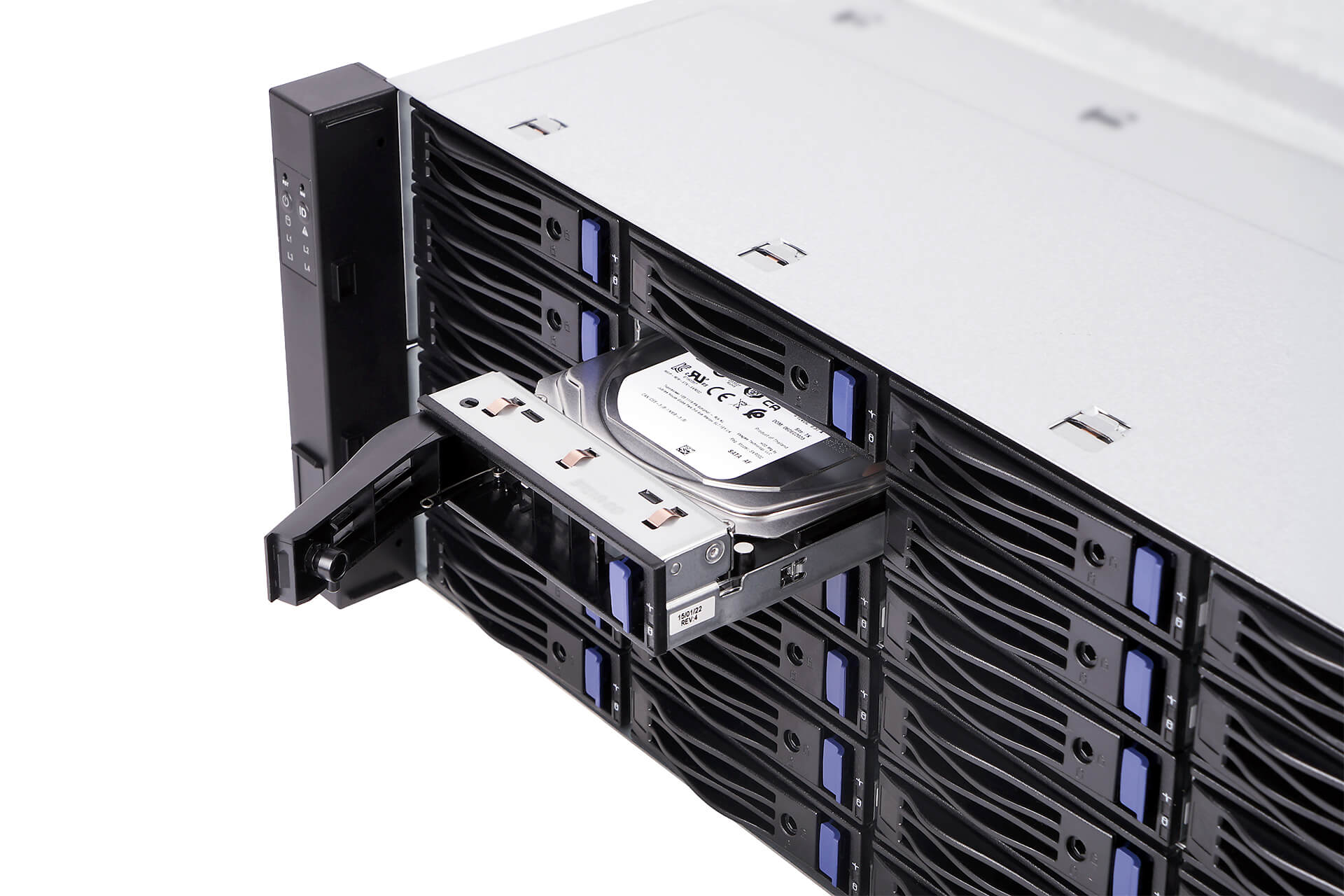

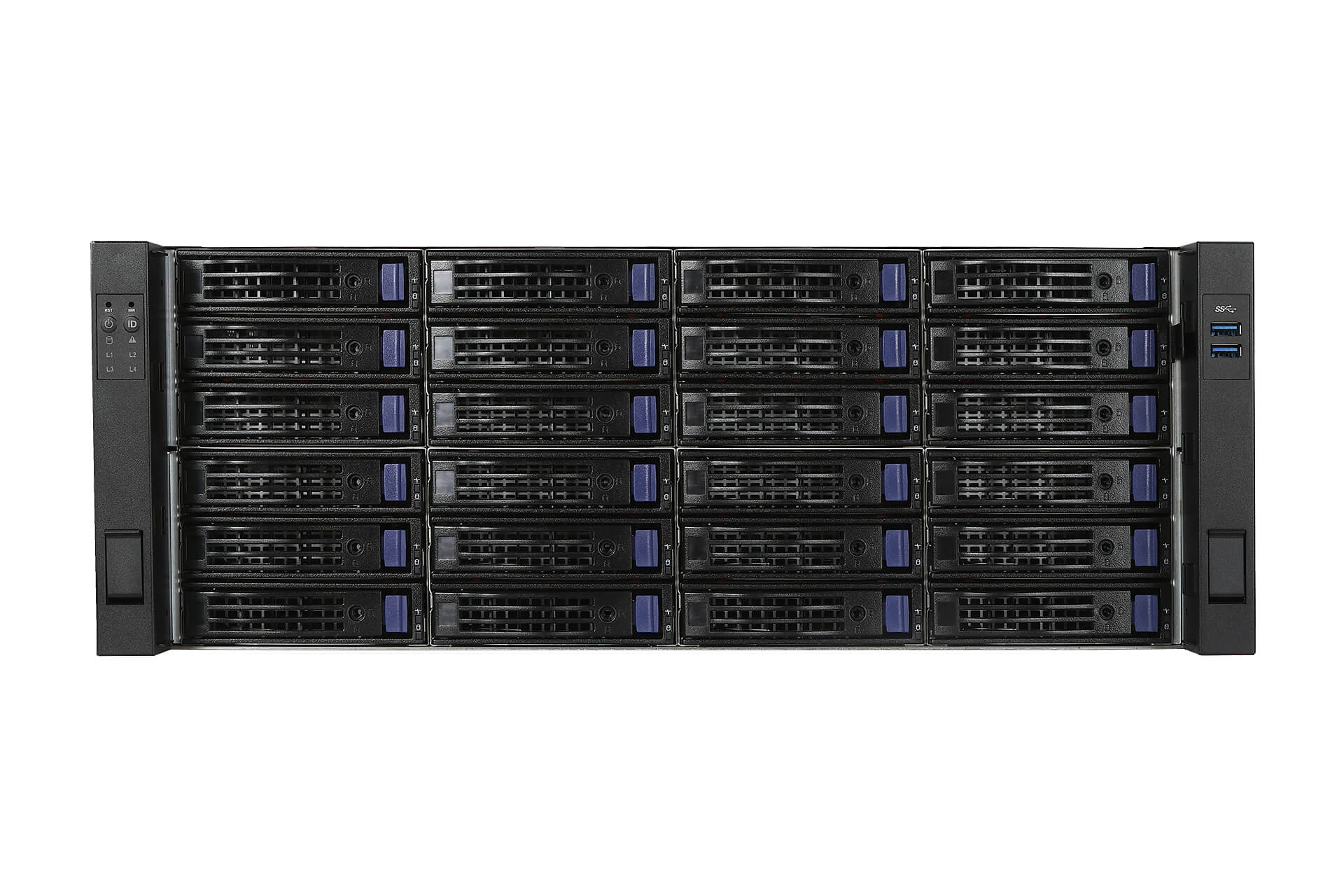

High-Density Storage
The front panel integrates 24 hot-swappable drive bays supporting both 2.5" and
3.5" SAS/SATA drives. With a 12Gbps SAS3 backplane and enterprise-grade tray design, the system
delivers high-density, reliable storage for demanding applications.

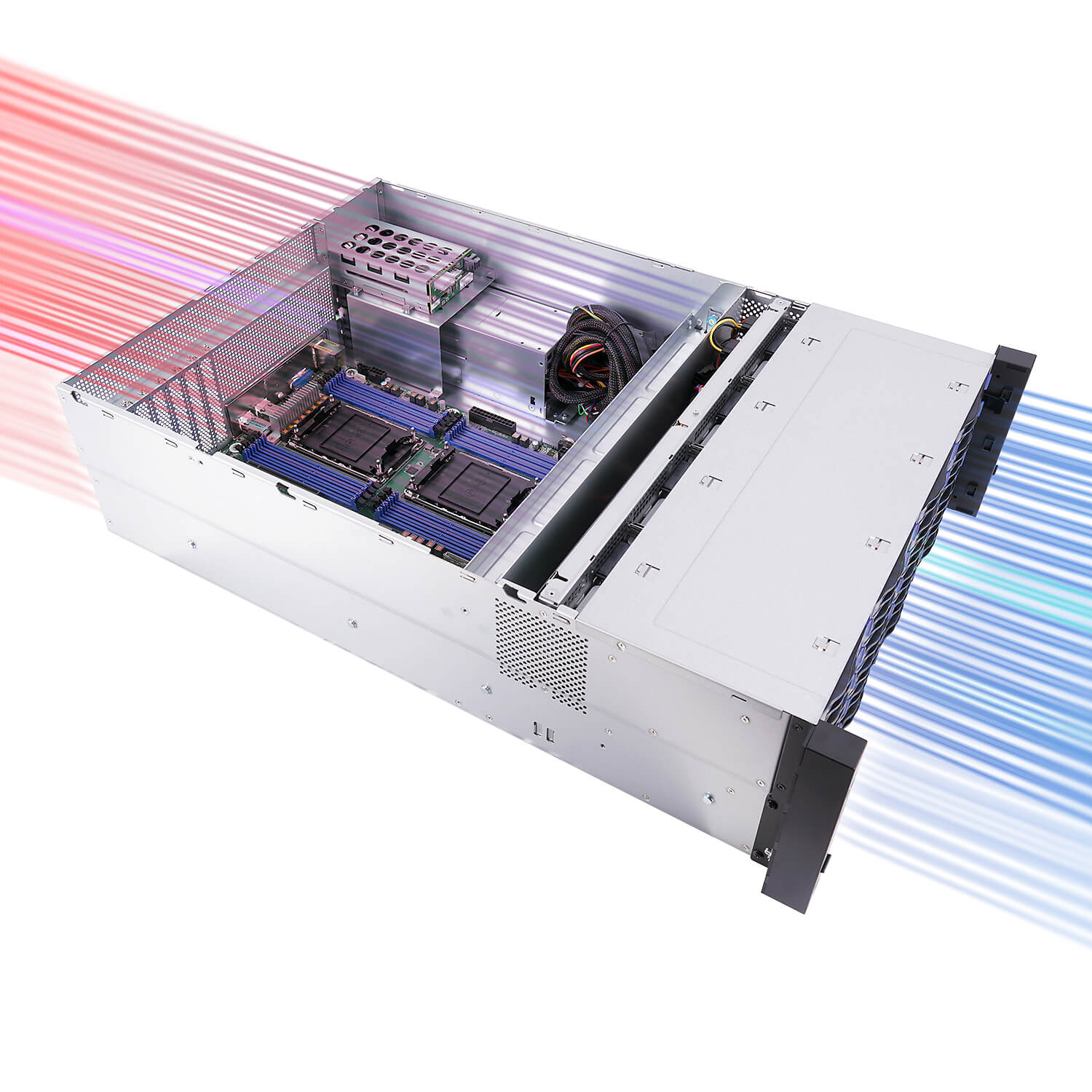

Optimized Thermal Design
Engineered for consistent operation under demanding workloads, the system features
4 high-performance 80mm PWM hot-swappable fans with speeds up to 10,000 RPM. Combined with a
front-to-rear airflow design, it ensures efficient heat dissipation across all critical components.

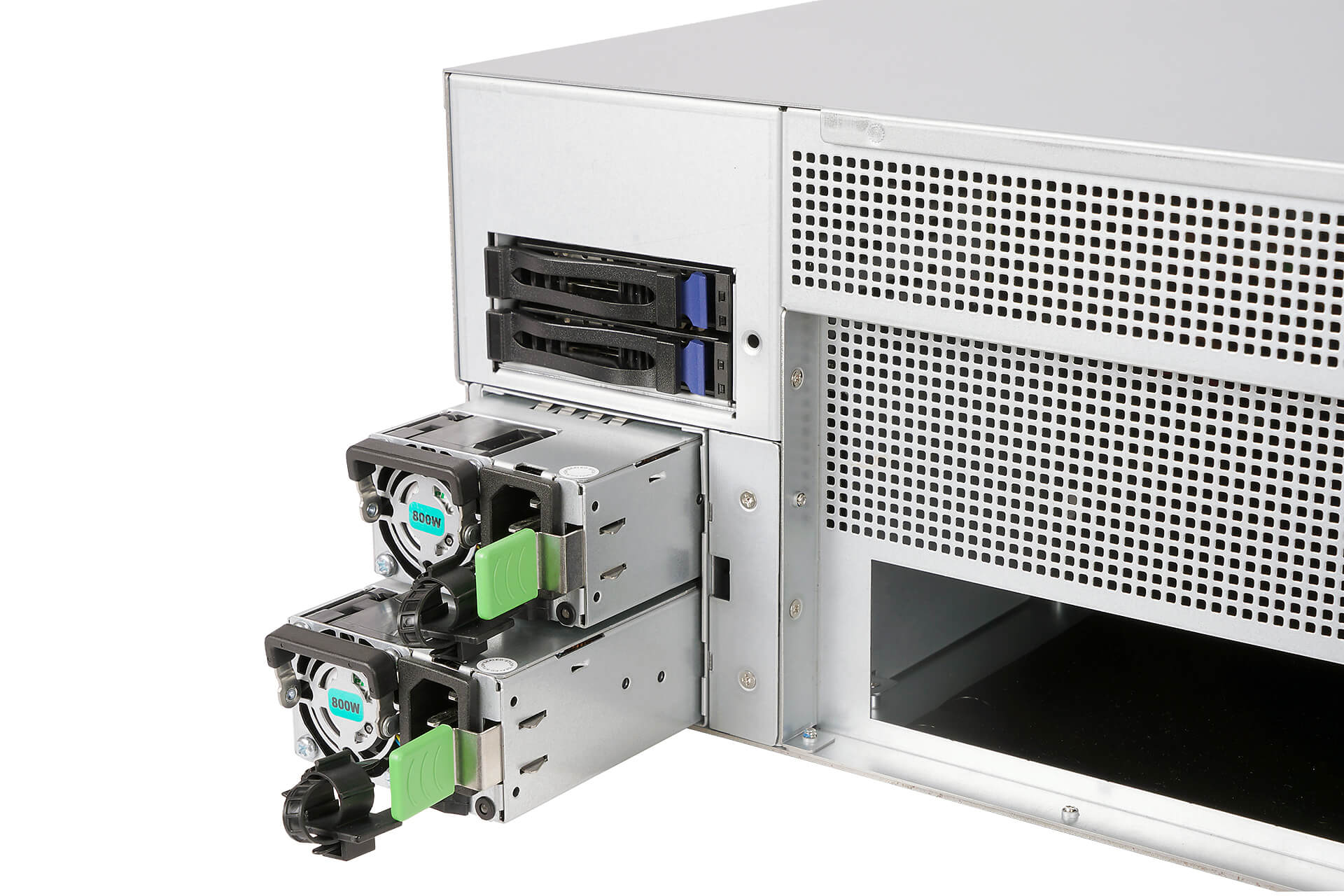

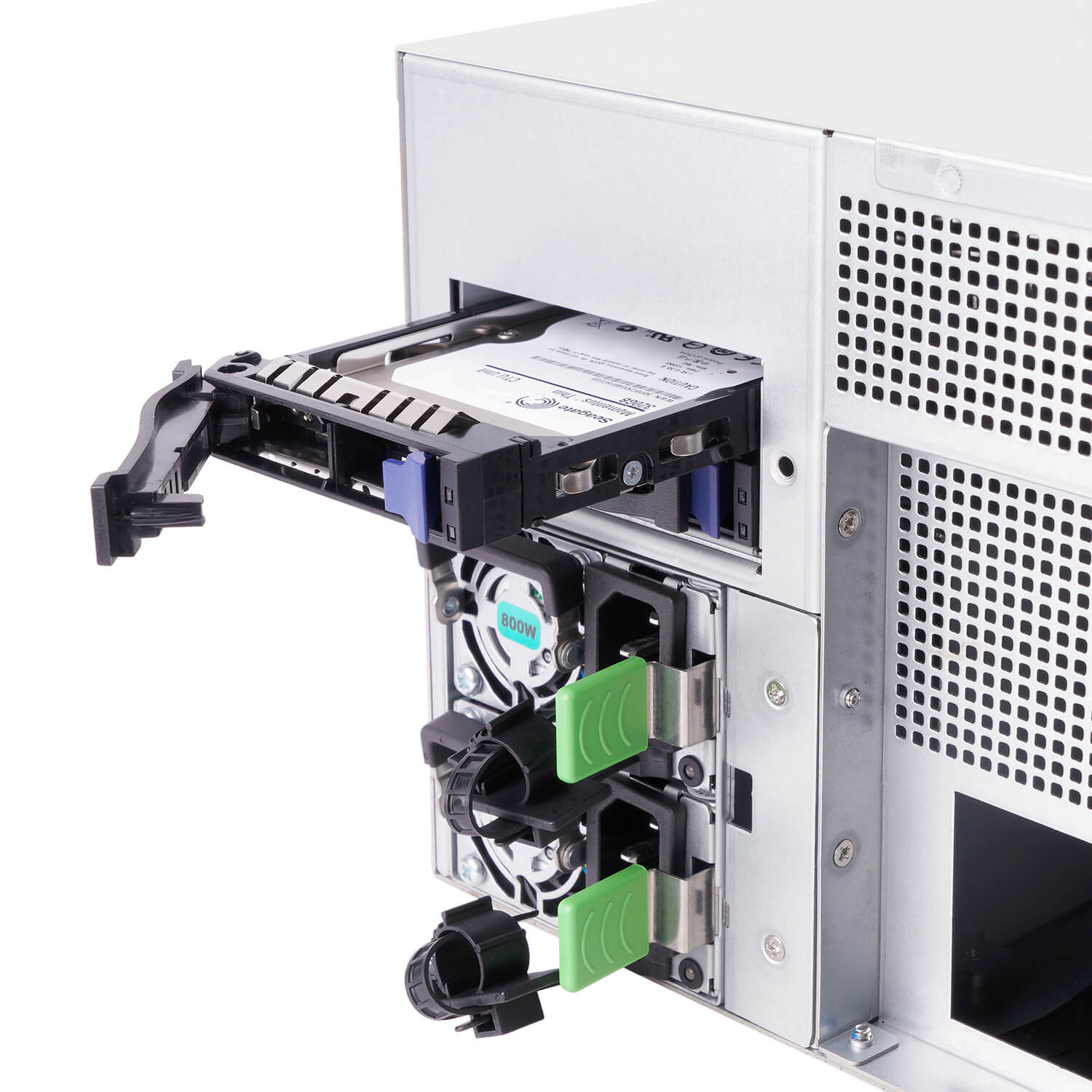

Dedicated System Drive Support
In addition to the front drive bays, the chassis includes 2 rear-mounted 2.5"
hot-swappable SSD bays, supporting 12Gbps SAS for OS or boot drive deployment without occupying
front storage capacity.

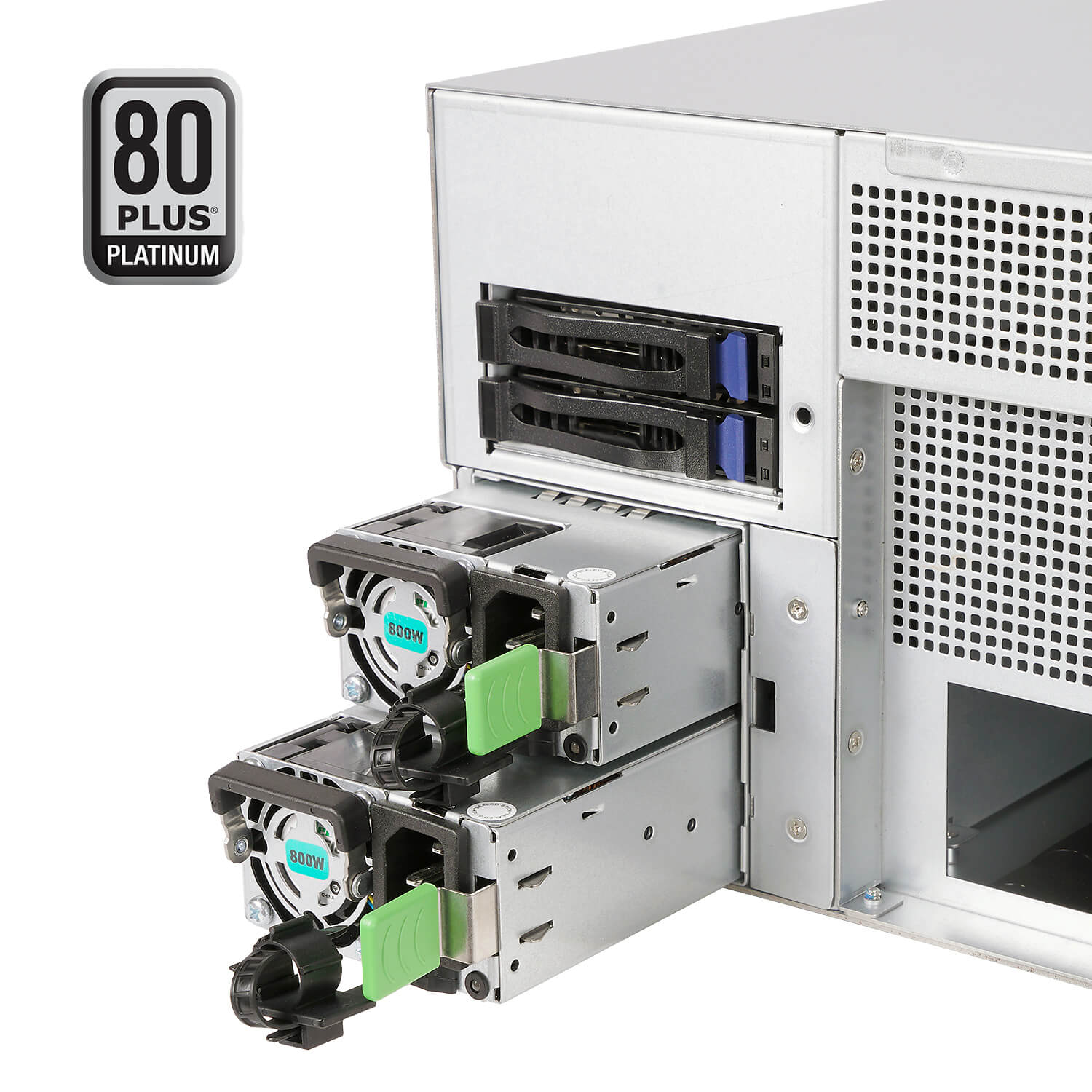

Redundant CRPS Power
The RSA424-02M supports 80 PLUS Platinum CRPS power supplies with multiple wattage
options from 550W to 1600W. Its redundant and hot-swappable design ensures stable and continuous
operation in mission-critical environments.

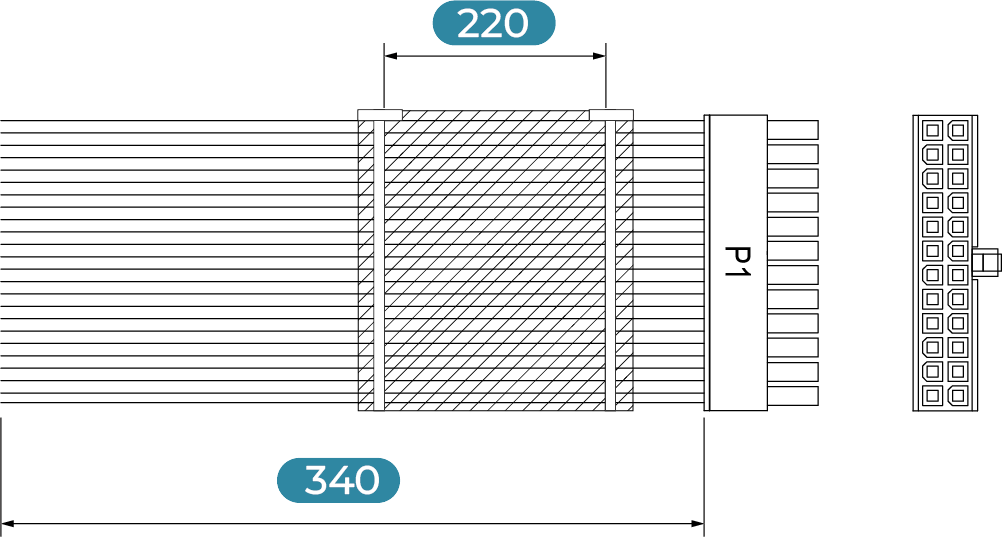

Power Cable Information
Unit of Length: mm
- 24-Pin Main Power
- 8-Pin CPU or BP
- 8-Pin CPU or BP x 2
- 8-Pin CPU or BP
- 6-Pin BP
- 6-Pin BP
- 4-Pin Peripheral
- 4-Pin Peripheral
- SATA

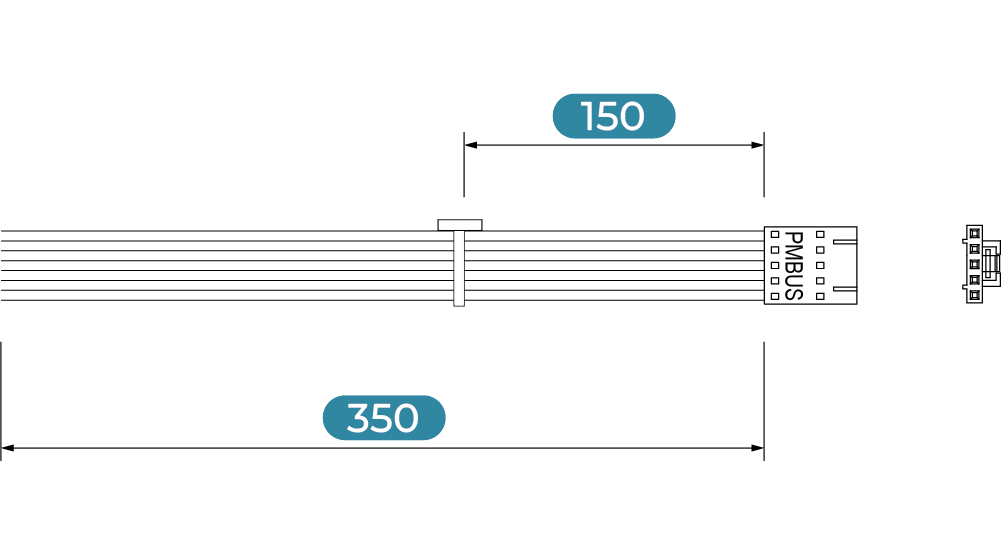

- PMBus
| Specification | |
|---|---|
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| M/B Form Factor | ATX(12" x 9.6"), CEB(12" x 10.5"), EEB(12" x 13") |
| Power Supply | Supports: • Form factor: 80 PLUS Platinum CRPS • Watt: 1600W |
| Indicators | Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED, HDD LED |
| Front Control Panel | Power on/off, system reset, NMI, ID SW, USB 3.0 x 2 |
| Backplane | • Host: Mini-SAS HD (SFF-8643) x 3 • HDD: SAS/SATA x 24 |
| 12G Expander Module | Broadcom SAS 35 x 36R expander |
| Cooling Fans | 80 x 38mm PWM hot-swap fans x 4, 10000RPM |
| Expansion Slot | Full-height PCIe slots x 7 |
| Material | Material: SGCC Thickness: 1.2mm |
| Rail Kit | Supports 30" tool-less & ball-bearing slide rail |
| Product Dimensions (DxWxH; Chassis Only) | 660 x 448 x 172.8mm (26" x 17.6" x 6.8") |
| Product Dimensions (DxWxH) | 920 x 610 x 338mm (36.2" x 24.0" x 13.3") |
| Weight (Chassis Only) | • Net weight: 18.97kg • Gross weight: 23.15kg |
| Cubic Feet | 6.7 |
| Container Information | Single packing with pallets: • 20': 100 pcs • 40': 210 pcs • 40' HQ: 252 pcs |

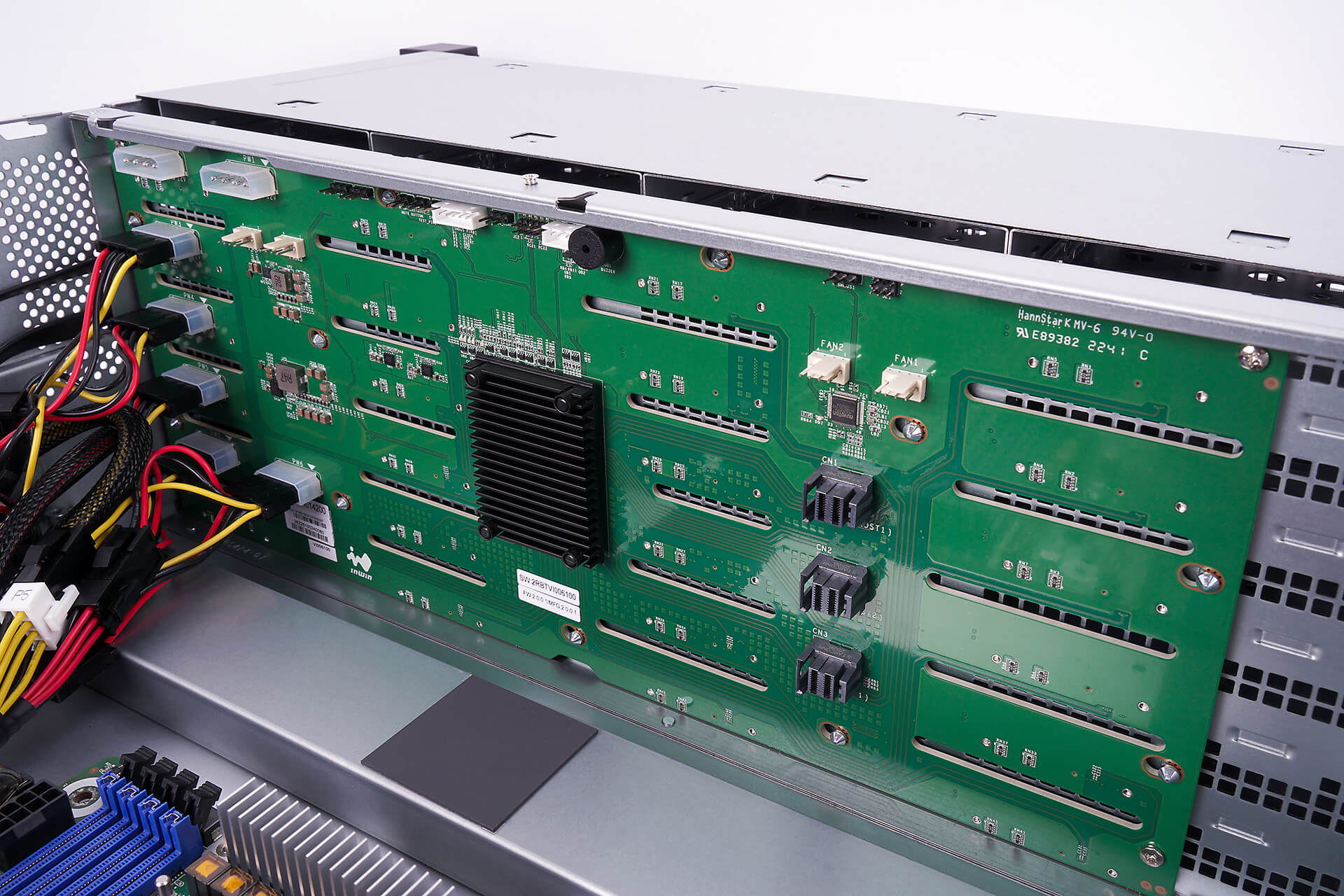

Backplane Specifications
| Backplane | SAS3 backplane |
| Data Transfer Rate | 12Gb/s |
| Dimension (W x H) | 386 x 162mm |
| Backplane Type | Active with expander onboard |
| Host Interface | Mini-SAS HD (SFF-8643) x 3 |
| HDD Interface | SAS/SATA x 24 |
Rear Disk Backplane Specifications
| Backplane | SAS3 backplane |
| Data Transfer Rate | 12Gb/s |
| Dimension (W x H) | 80mm x 37mm |
| Backplane Type | Passive |
| Host Interface | Mini-SAS HD (SFF-8643) x 1 |
| HDD Interface | SAS/SATA x 2 |
* InWin NVMe backplane supports PCIe Gen5, the actual data transfer speed will be determined by MB and SSD specifications.
* All components and optional parts are not included. InWin reserves the right to make final modifications.
* All components and optional parts are not included. InWin reserves the right to make final modifications.
| Item | Download | Preview |
|---|
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS133301 | 30" tool-less & ball-bearing slide rail | 1 Set | |
| Power Supply | 3RAMAP025102 / 3RAMAP042800 | 80 PLUS Platinum 550W CRPS / CRPS PDB | Max.2 | |
| Power Supply | 3RAMAP025202 / 3RAMAP042800 | 80 PLUS Platinum 800W CRPS / CRPS PDB | Max.2 | |
| Power Supply | 3RAMAP045100 / 3RAMAP045000 | 80 PLUS Platinum 800W CRPS / CRPS PDB | Max.2 | |
| Power Supply | 3RAMAP026501 / 3RAMAP042800 | 80 PLUS Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.) / CRPS PDB | Max.2 | |
| Power Supply | 3RAMAP044300 / 3RAMAP042800 | 80 PLUS Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.) / CRPS PDB | Max.2 | |
| Cable | 3RAMW4031700 | Mini-SAS HD 12Gbps (SFF-8643) to Mini-SAS HD (SFF-8643) Cable, 800 mm | Max.3 | |
| Backplane | 12Gb/s Mini-SAS backplane | 1 | ||
| HDD Tray | 2RAKPH008404 | 2.5"/3.5" hot-swap HDD tray (blue color) | Max.24 | |
| HDD Tray | 2RAAPH036605 | 2.5" Screwless hot-swap SSD rear tray (blue color) | Max.2 | |
| Fan | 3RAMFB017900 | 80 x 38mm PWM hot-swap fan, 10000RPM, 6pin | Max.4 | |
| Fan | 2RAKFB014800 | 80 x 38mm PWM hot-swap fan & fan bracket, 10000RPM, 6pin | Max.4 | |
| Others | 2RAKIP032800 | Mesh front panel | 1 | |
| Others | 3RAMRW011300 | Intrusion switch / 800mm | 1 |
