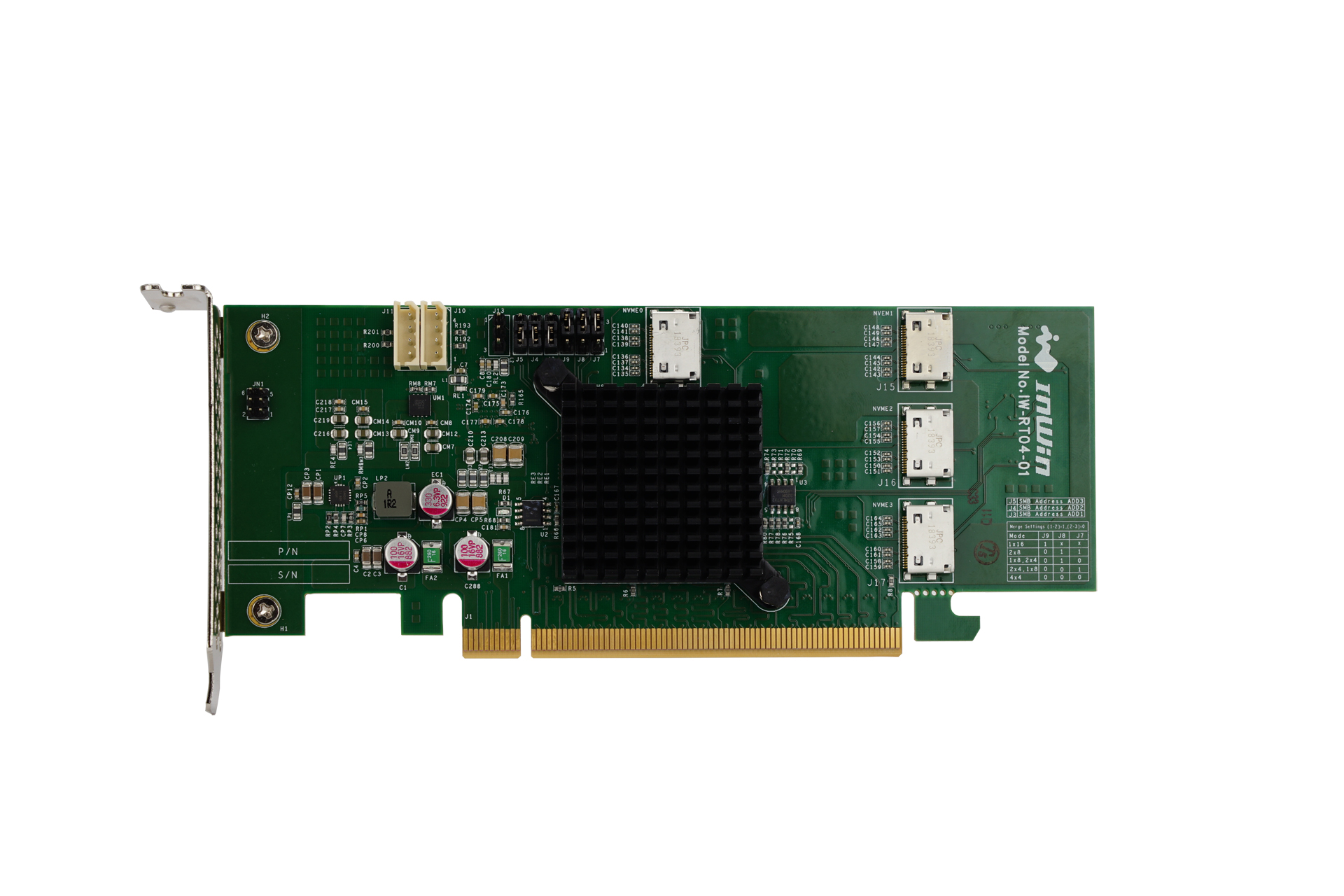

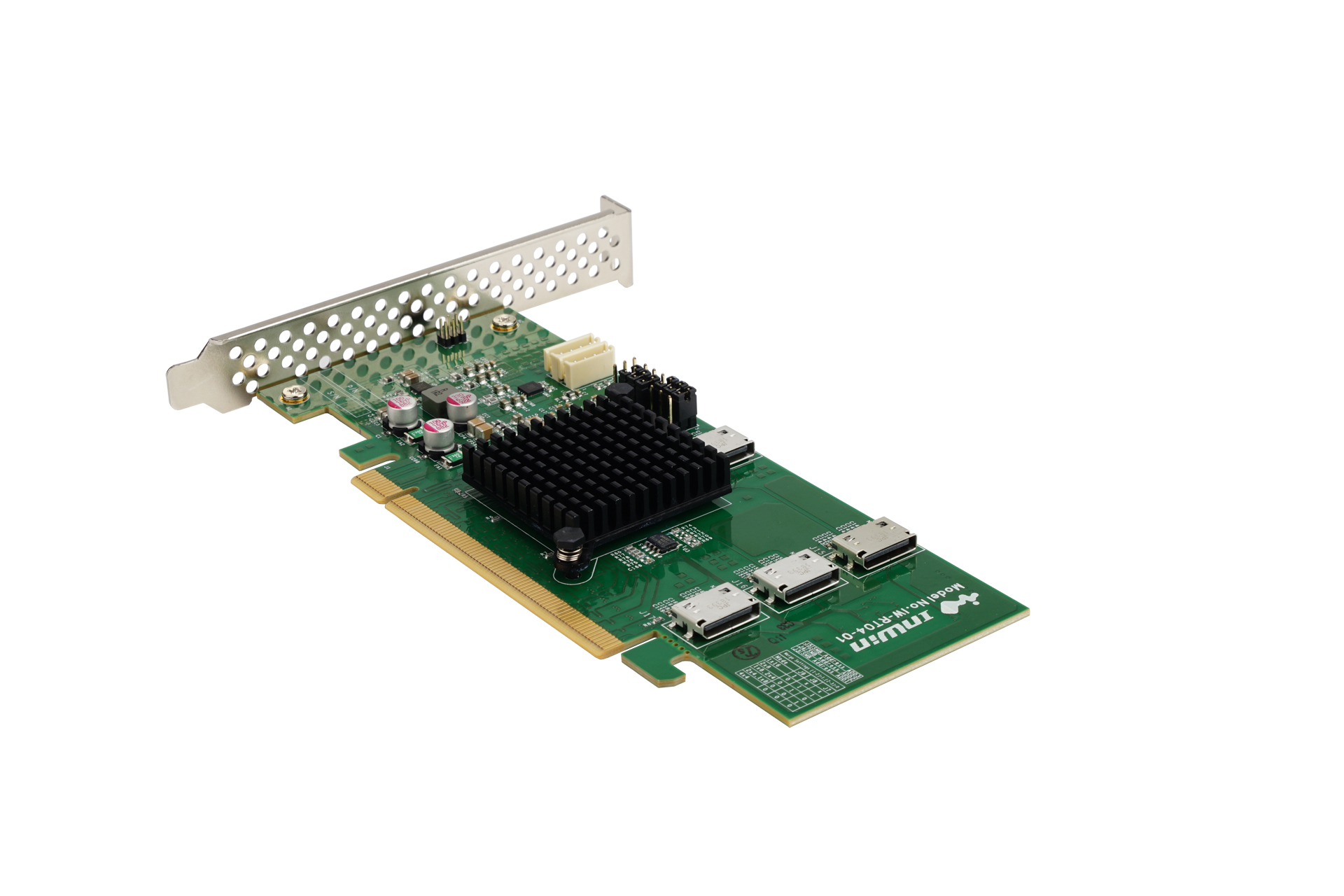

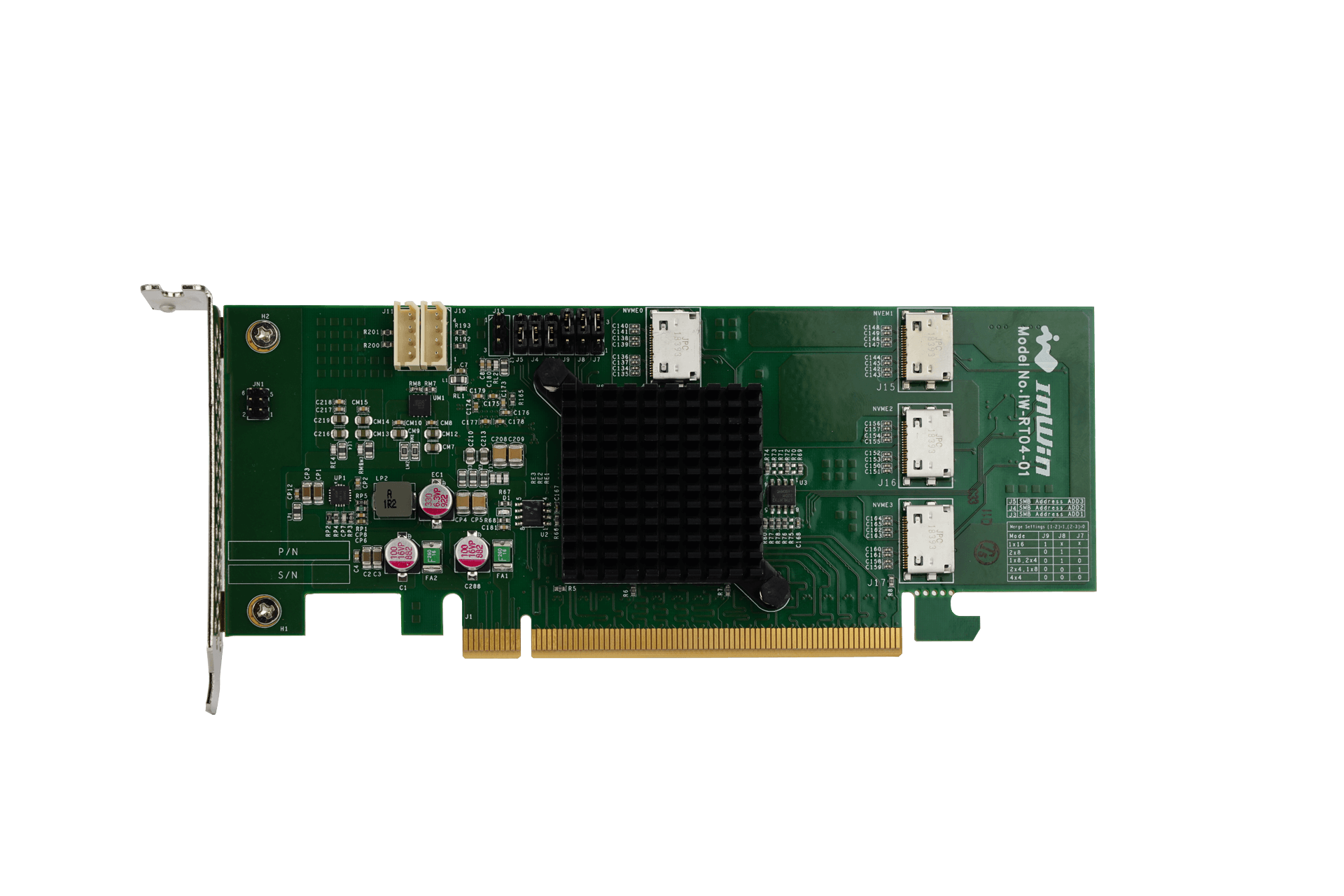

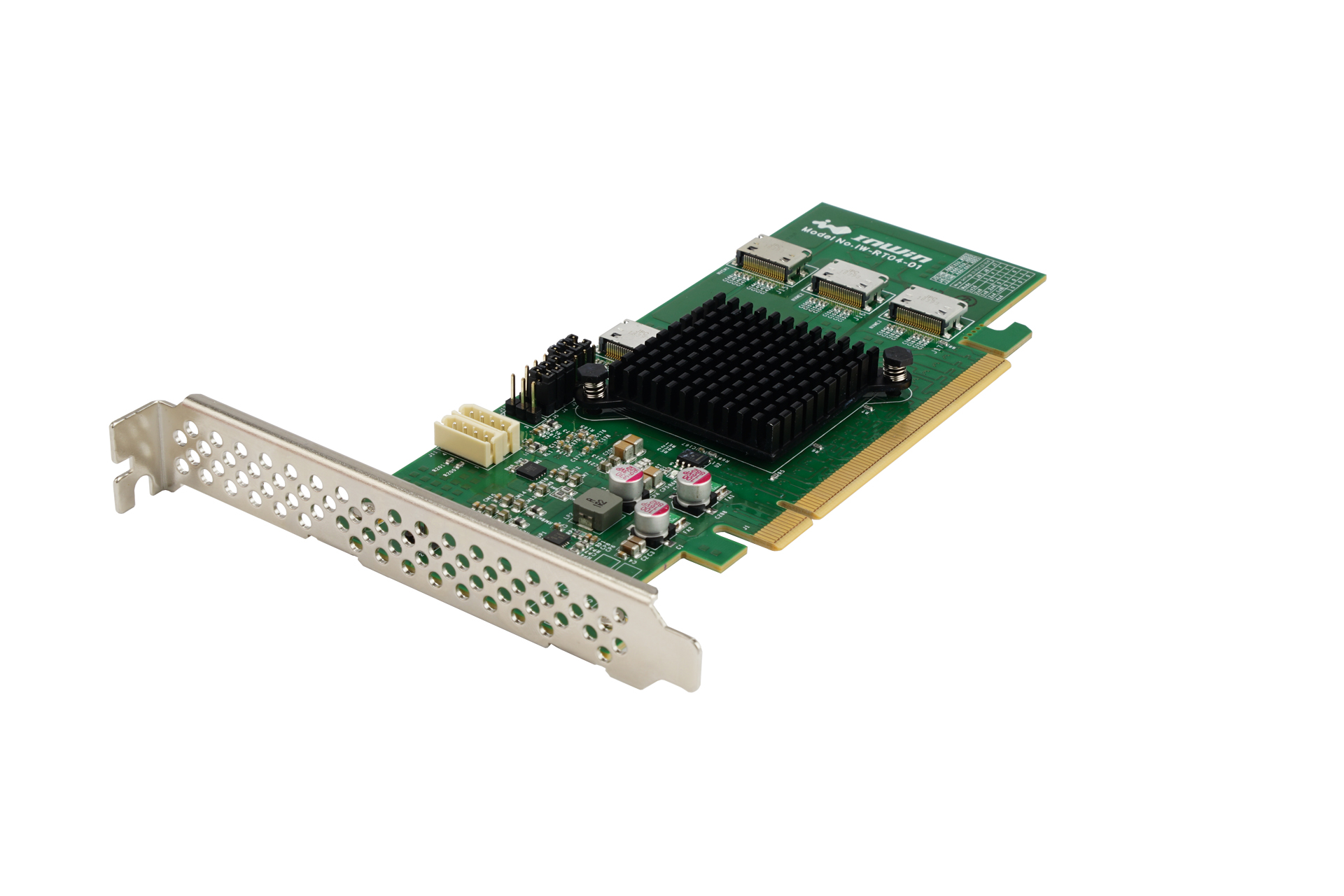

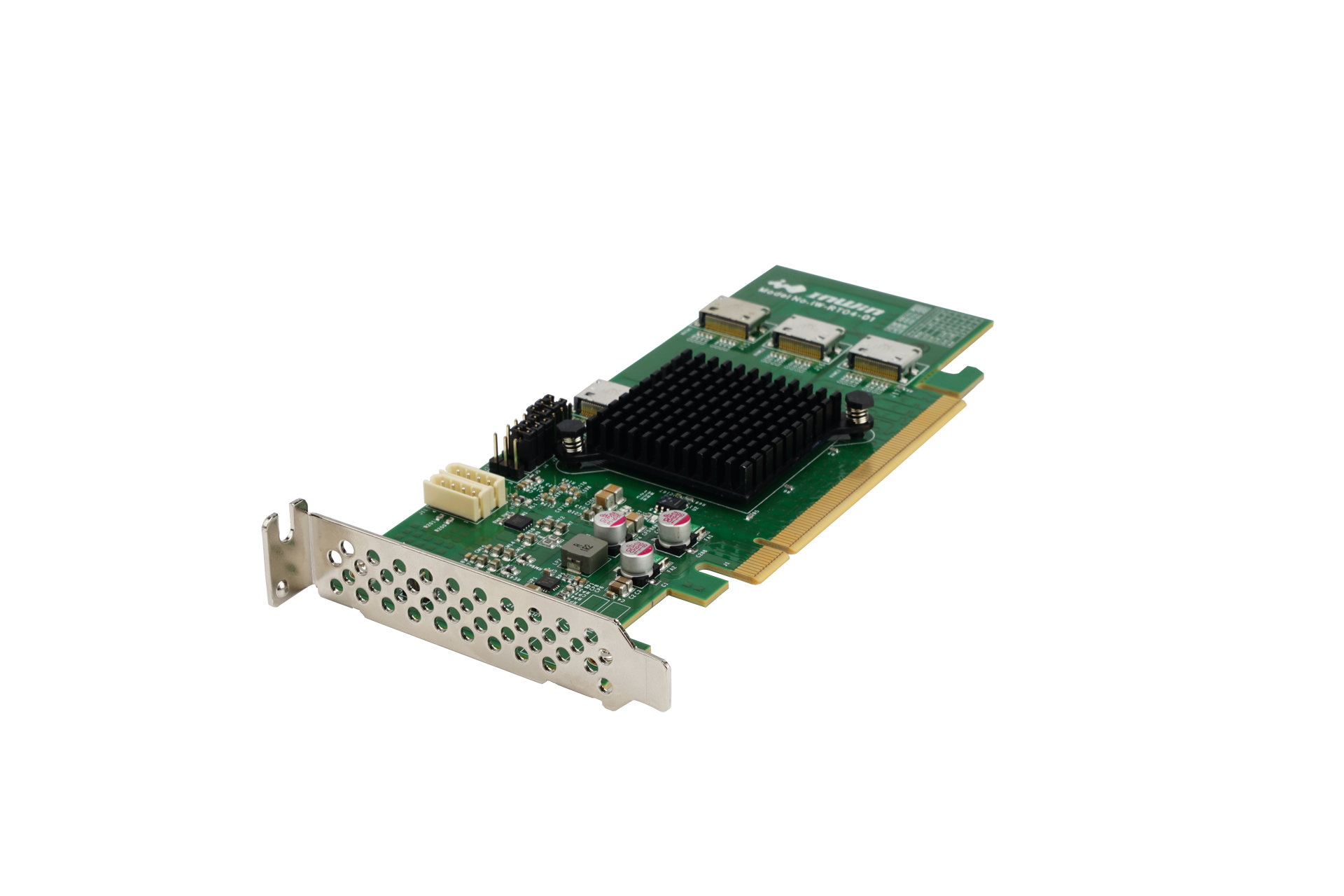

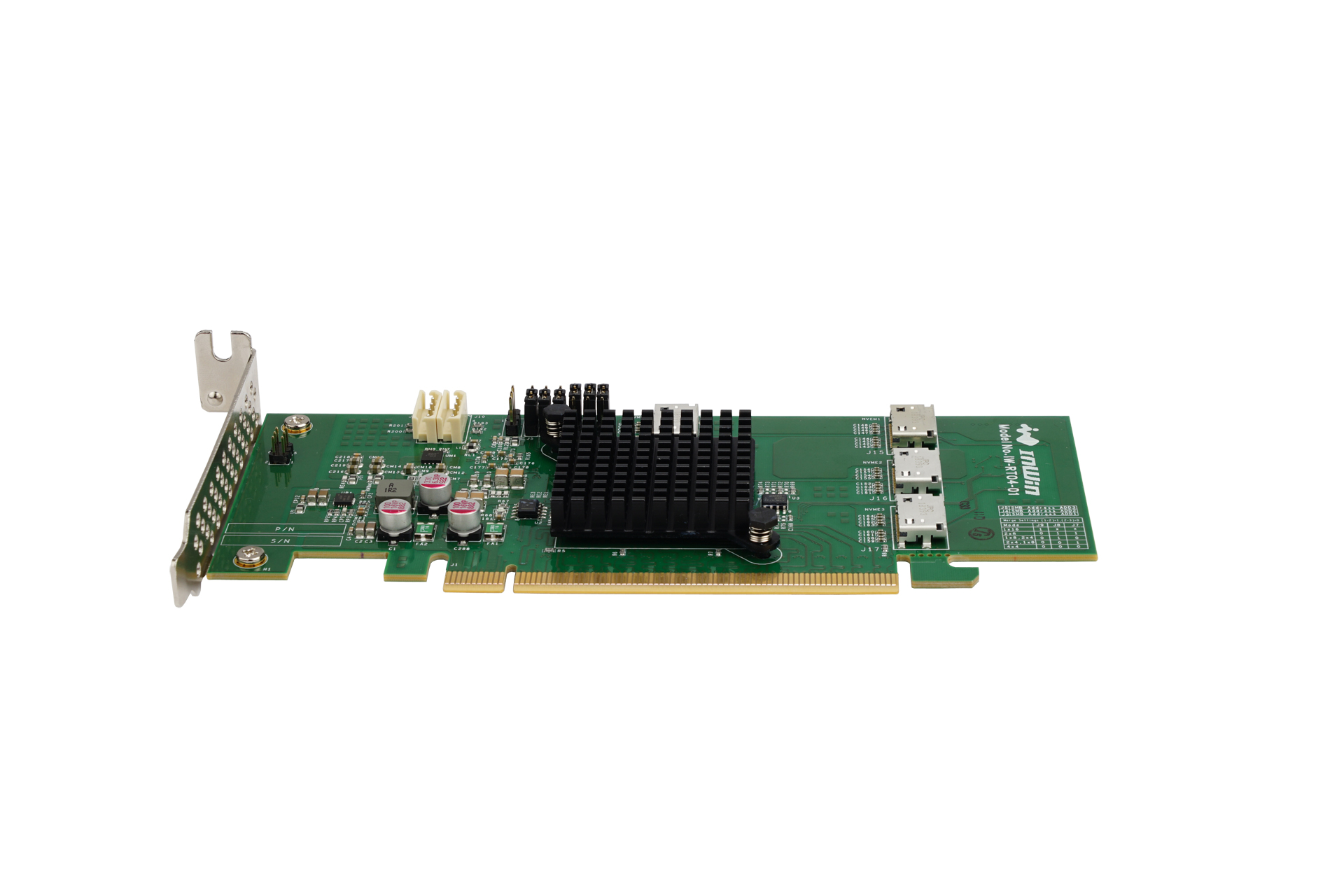

IW-RT04-01
PCI-E 3.0 Retimer HBA Card
．Quad Port PCI-E x16 Gen-3 Retimer
．Low-Profile Design for Flexible Fitting Chassis
．Full-Height & Half-Height Bracket Support
．Supports Four Physical NVMe Devices
．Four Lanes Per OCuLink Port; Supports Up to 3.2GB/s Per Port
．Converts x16 into 4 x 4 with OCuLink
．VPP over I2C Ready
．Operating Temperature from 10°C - 55°C
| Specification | |
|---|---|
| Model | IW-RT04-01 |
| Host Bus Type | PCI-E X16 |
| Form Factor | PCB Low-Profile Design |
| Power Consumption | 9 Watts |
| Optional Cables | • OCuLink SFF-8611 4i (x4) to OCuLink SFF-8611 4i (x4) Cables • OCuLink SFF-8611 4i (x4) to Slimline SAS SFF-8654 4i(x4) Cables |
| Product Dimensions (LxH) | 6.6" x 2.71" |
| Package Dimensions (DxWxH) | 203 x 200 x 83mm |
| Weight | • Net weight: 0.44kg • Gross weight: 0.52kg |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|

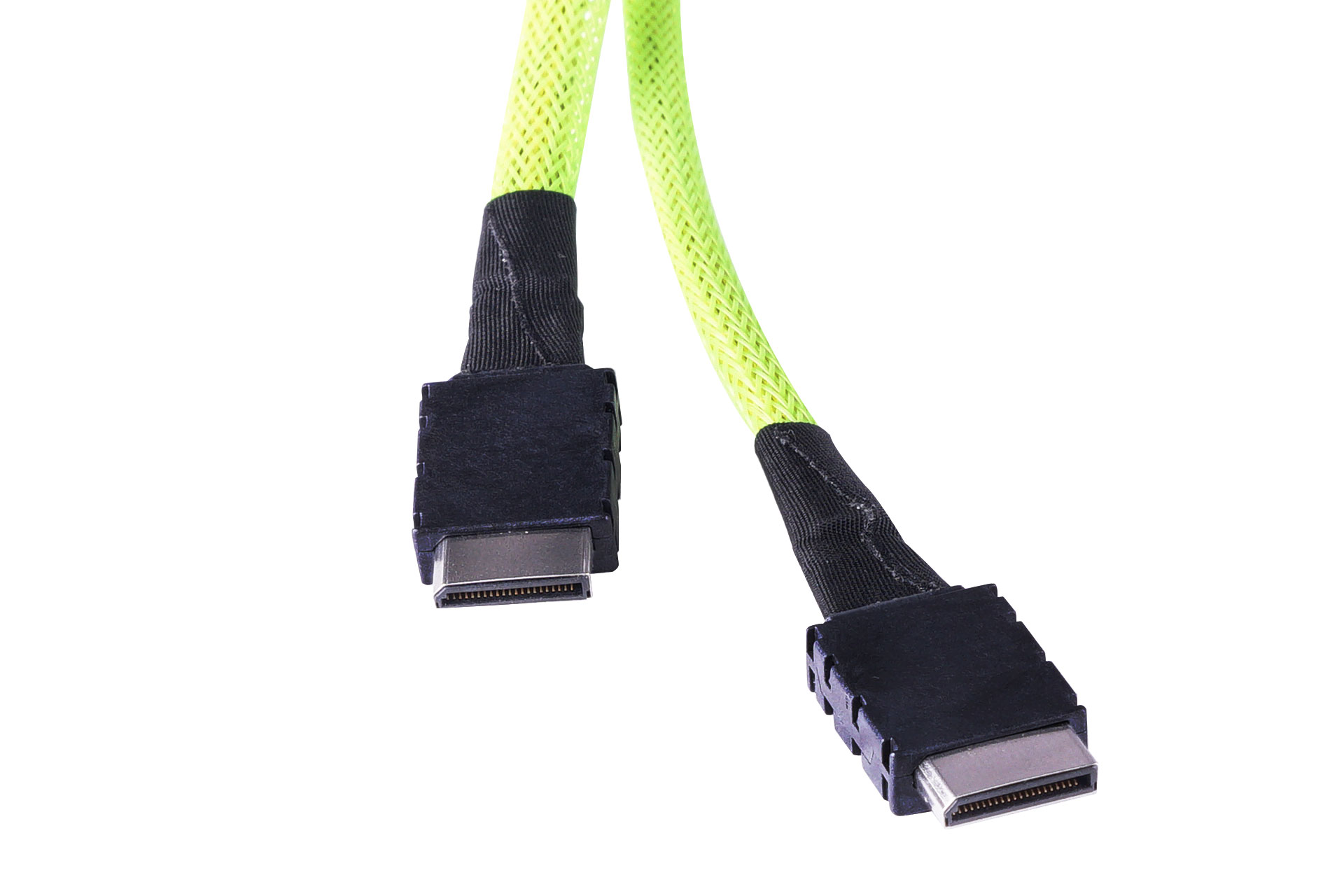

| Cable | 3RAMW4077200 | OCuLink SFF-8611 4i (x4) to OCuLink SFF-8611 4i (x4) Cables, Length: 1000mm | 4 |
|

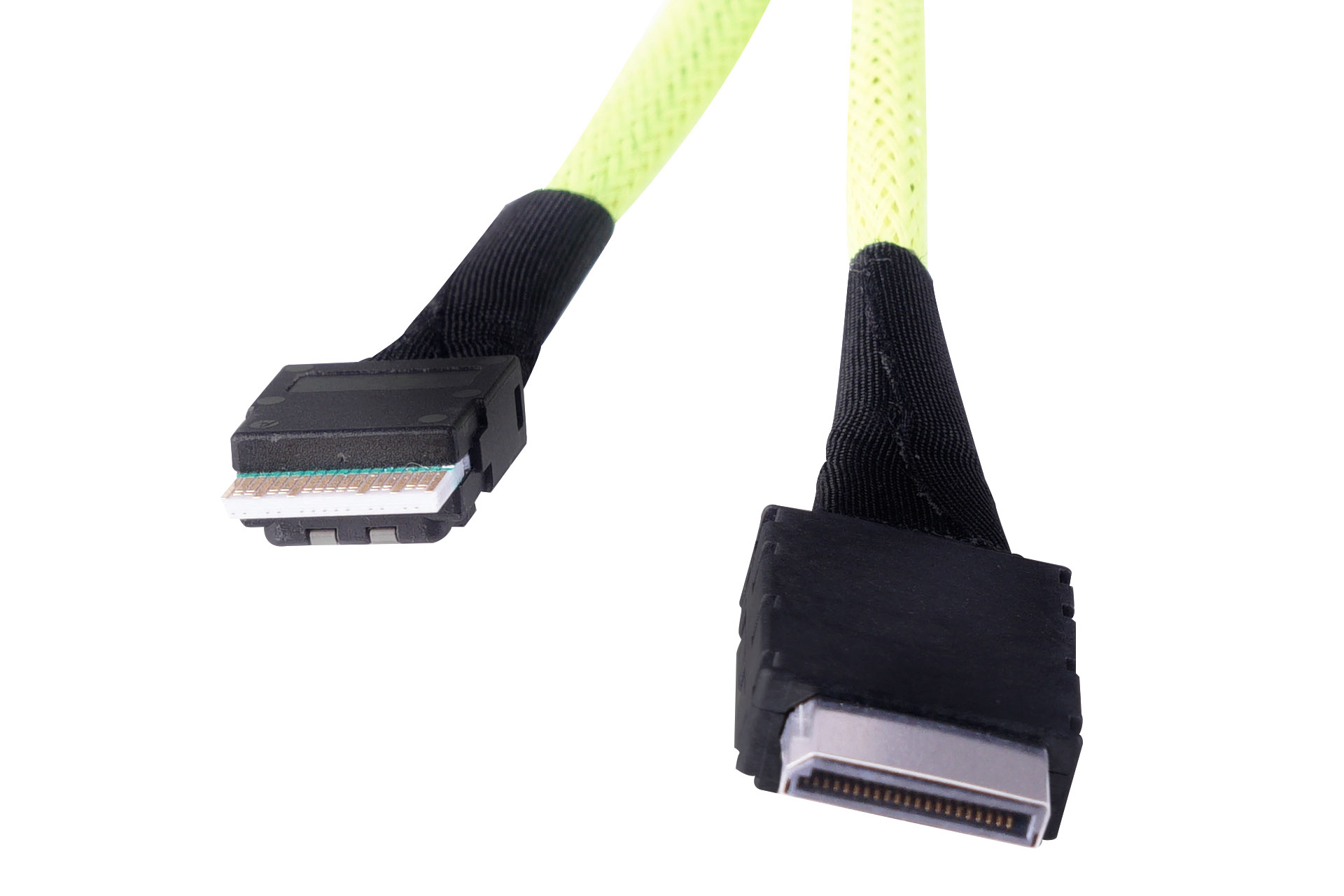

| Cable | 3RAMW4077300 | OCuLink SFF-8611 4i (x4) to Slimline SAS SFF-8654 4i(x4) Cables, Length:1000mm | 4 |
|
