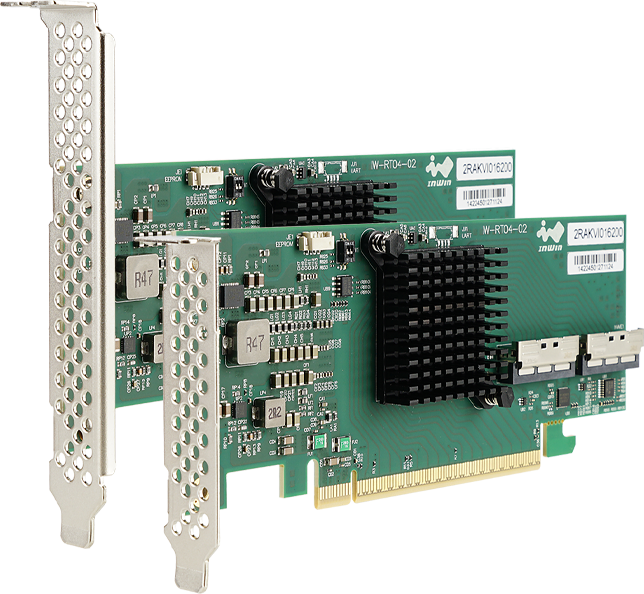

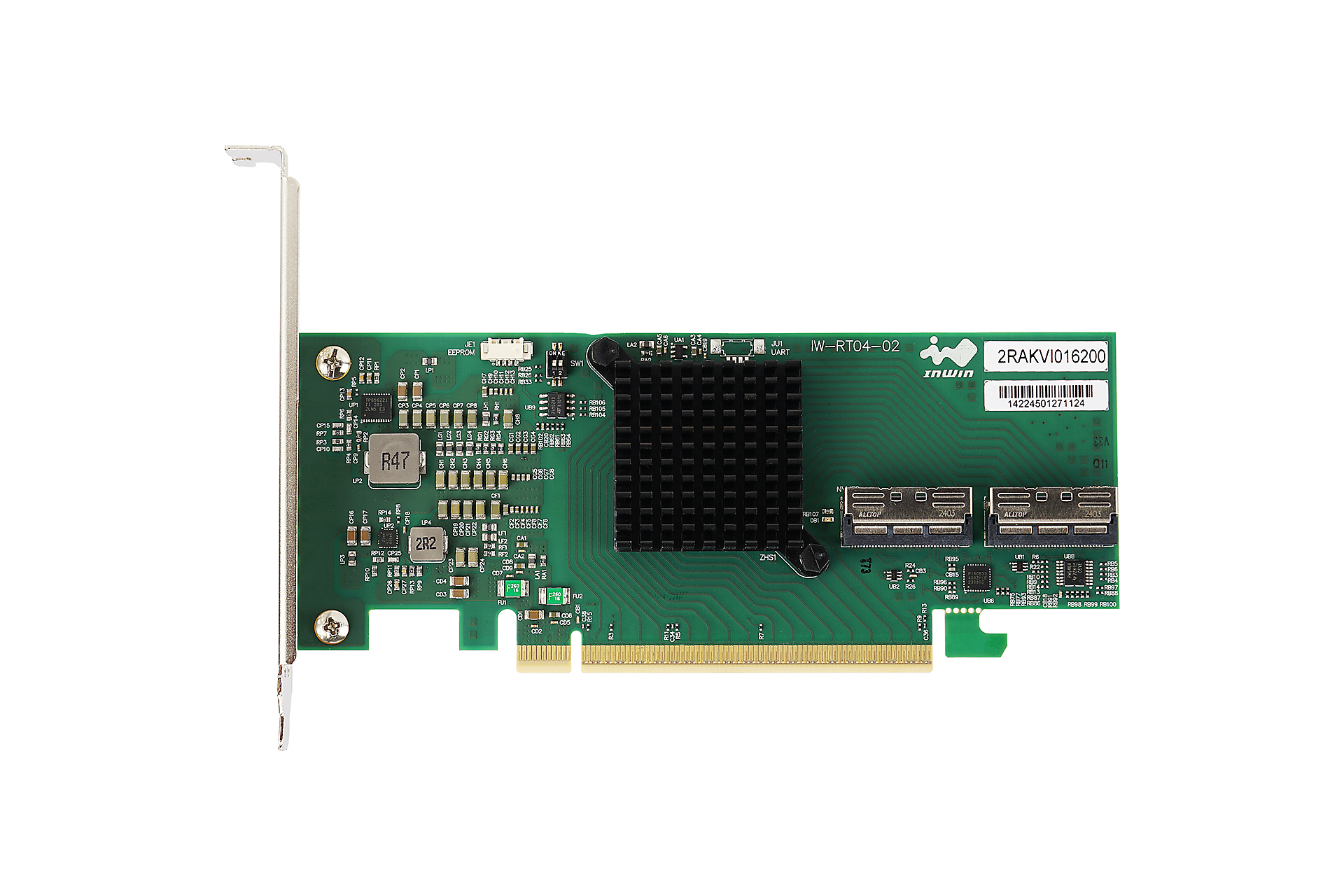

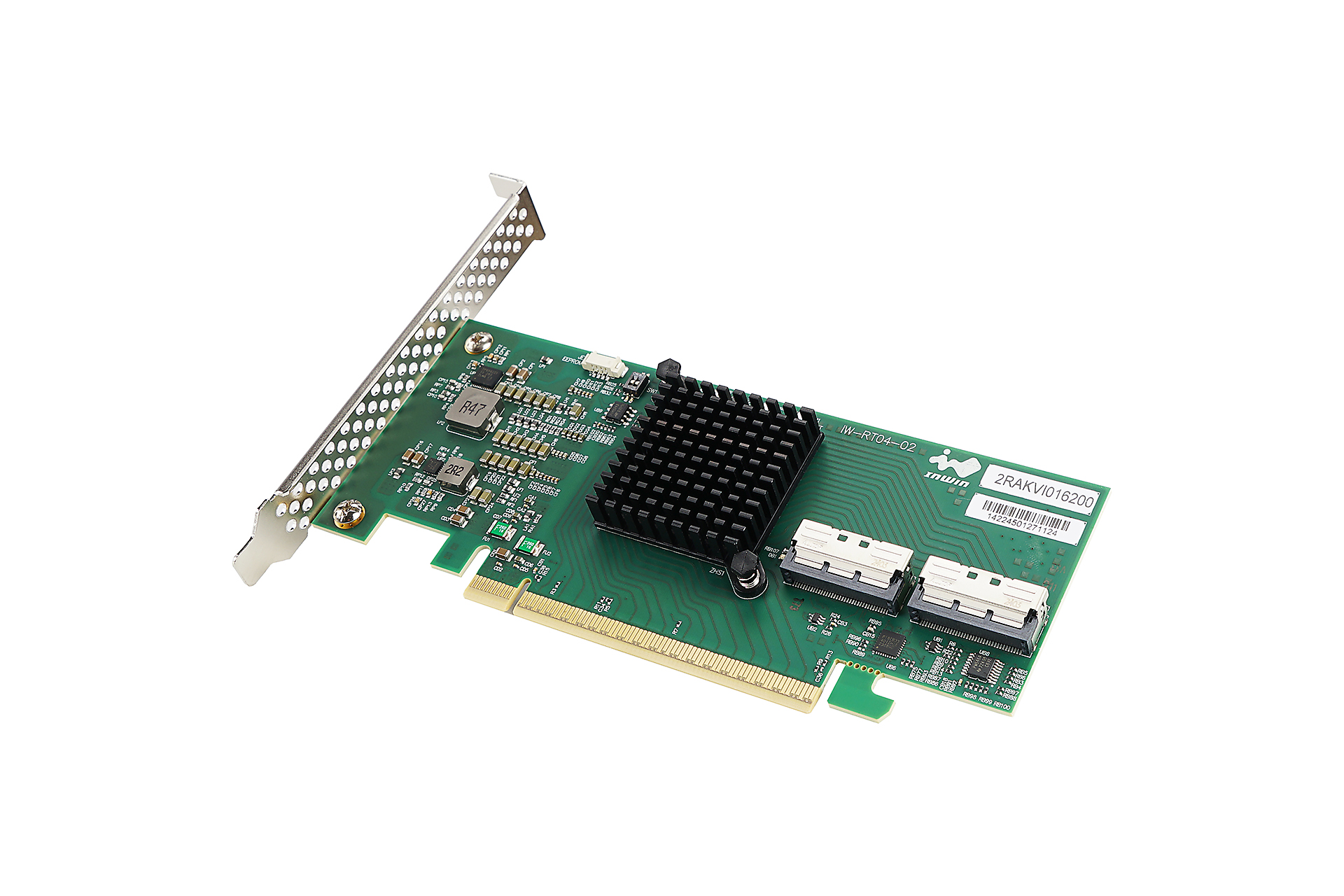

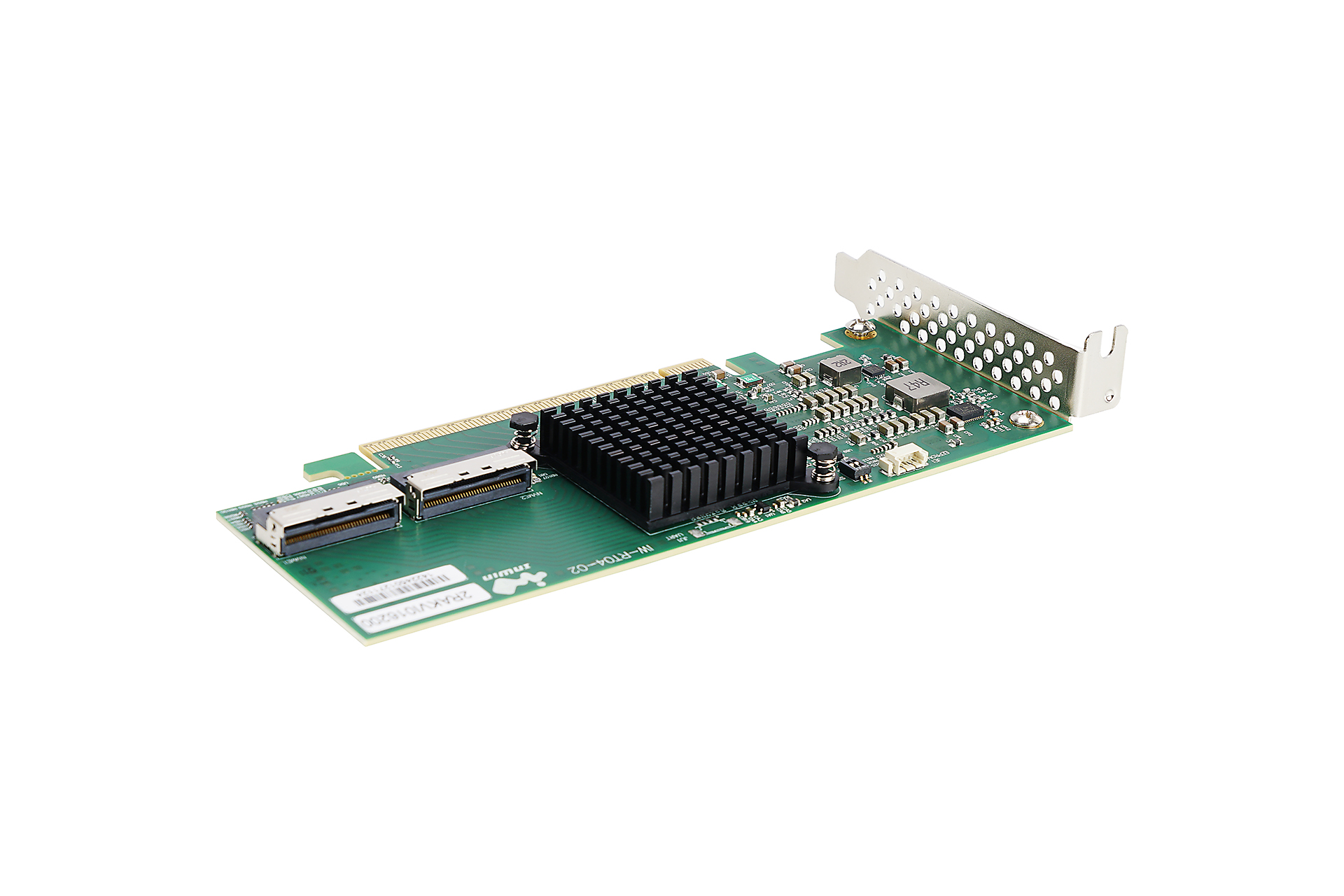

IW-RT04-02
PCIe Gen5 Retimer Card
．High performance PCIe Gen5 (32GT/s) x16 lanes retimer card
．MCIO 8i connectors x 2 support Gen5 U.2 NVMe SSDs x 4
．Stabilizes the output of a clean signal when over long cables
．Low-profile design for flexible fitting chassis
．Full-height & half-height bracket support
．Powered by Phison PS7201 PCIe Gen5 Retimer IC
High Performance PCIe Gen5 Architecture
The IW-RT04-02 is a retimer card designed by InWin. Provideing x16 lanes of PCIe Gen5 (32GT/s) bandwidth, and the transmission performance is 2x faster than Gen4.
Expansion Capacity
Two MCIO 8i connectors support up to four NVMe U.2 SSDs (two MCIO 8i to MCIO 2 x 4i cables optional). It's suitable for data-intensive applications such as databases and high-performance computing.
x 4 bays
Boost Signal Integrity
The IW-RT04-02 high-performance architecture integrates the Phison PS7201 PCIe Gen5 Retimer IC, which can resolve signal distortion, meet the challenging signal integrity requirements for long PCIe Gen5 channels, and unlock the true potential of high-speed connectivity.
CrystalDiskMark
Health Status
Good
100%
Temperature
24°C
SWQ1M
Q8T1
14845.58
SWQ128K
Q32T1
14808.34
RND4K
Q32T16
6321.76
RND4K
Q1T1
66.12
Lab-proven PCIe Gen5 NVMe speed support and thermal efficiency.
Embracing Flexibility

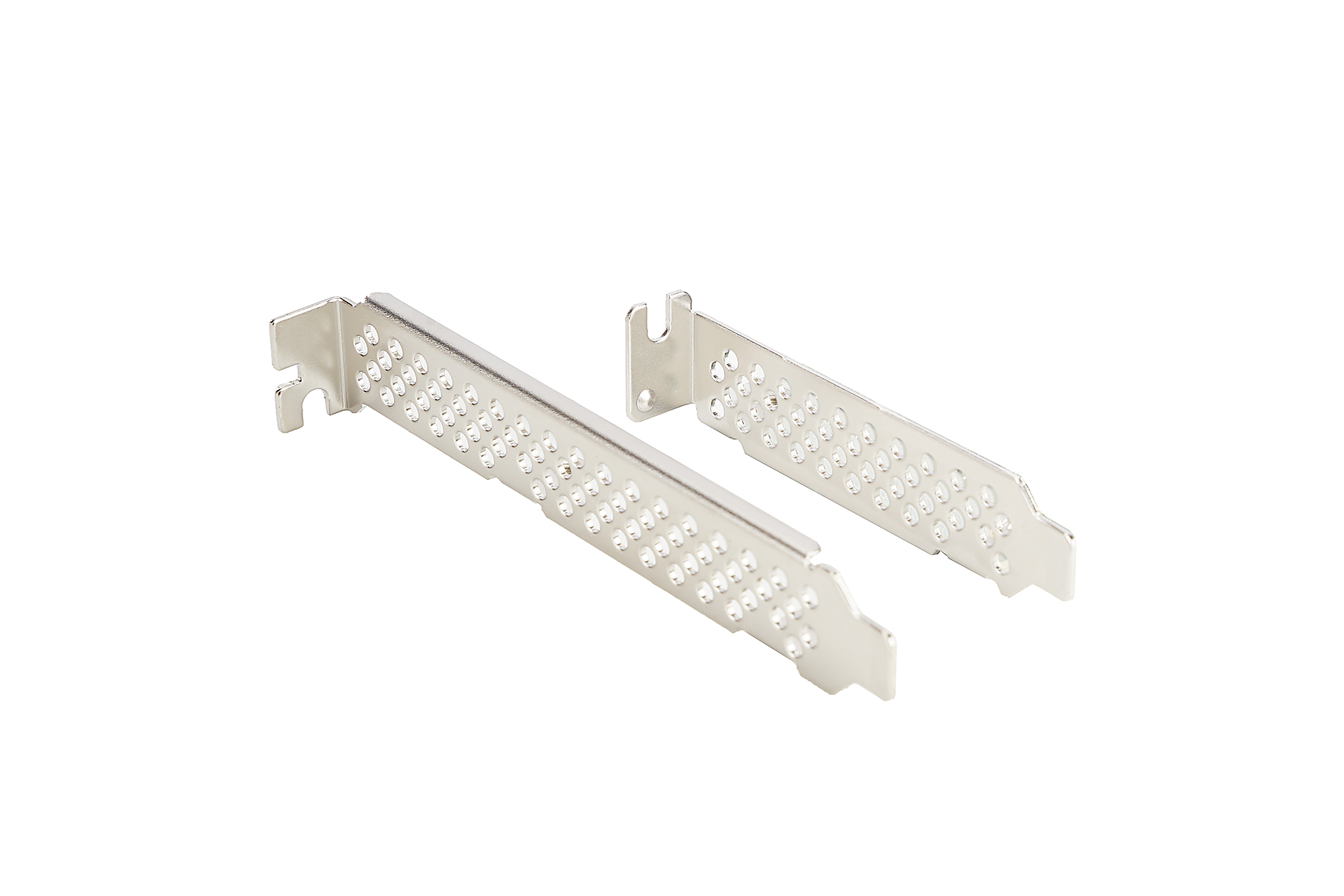

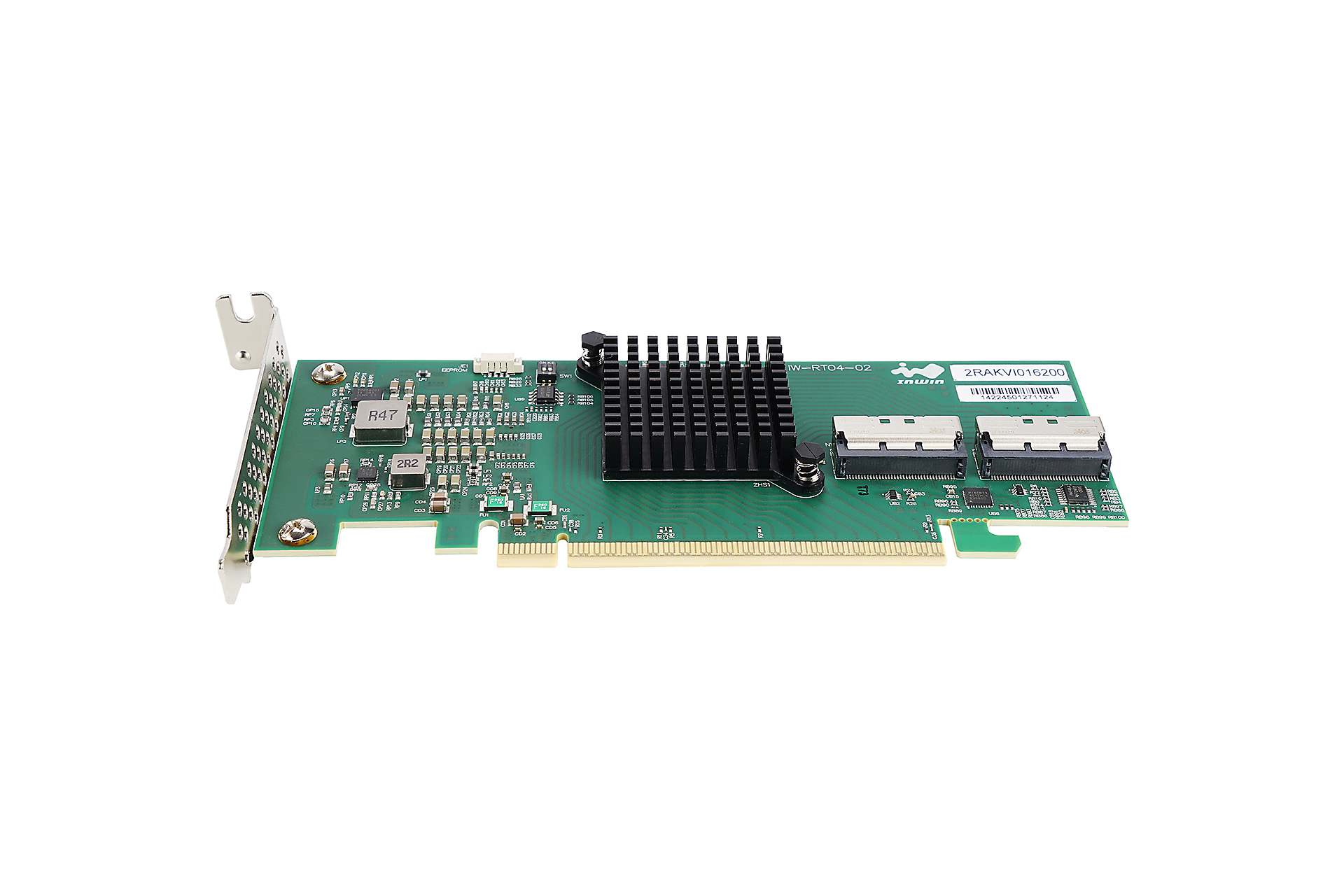

A low-profile design allows space for 2U servers, and the box arrives with full-height & half-height brackets to support the wide range of 1U-4U servers.

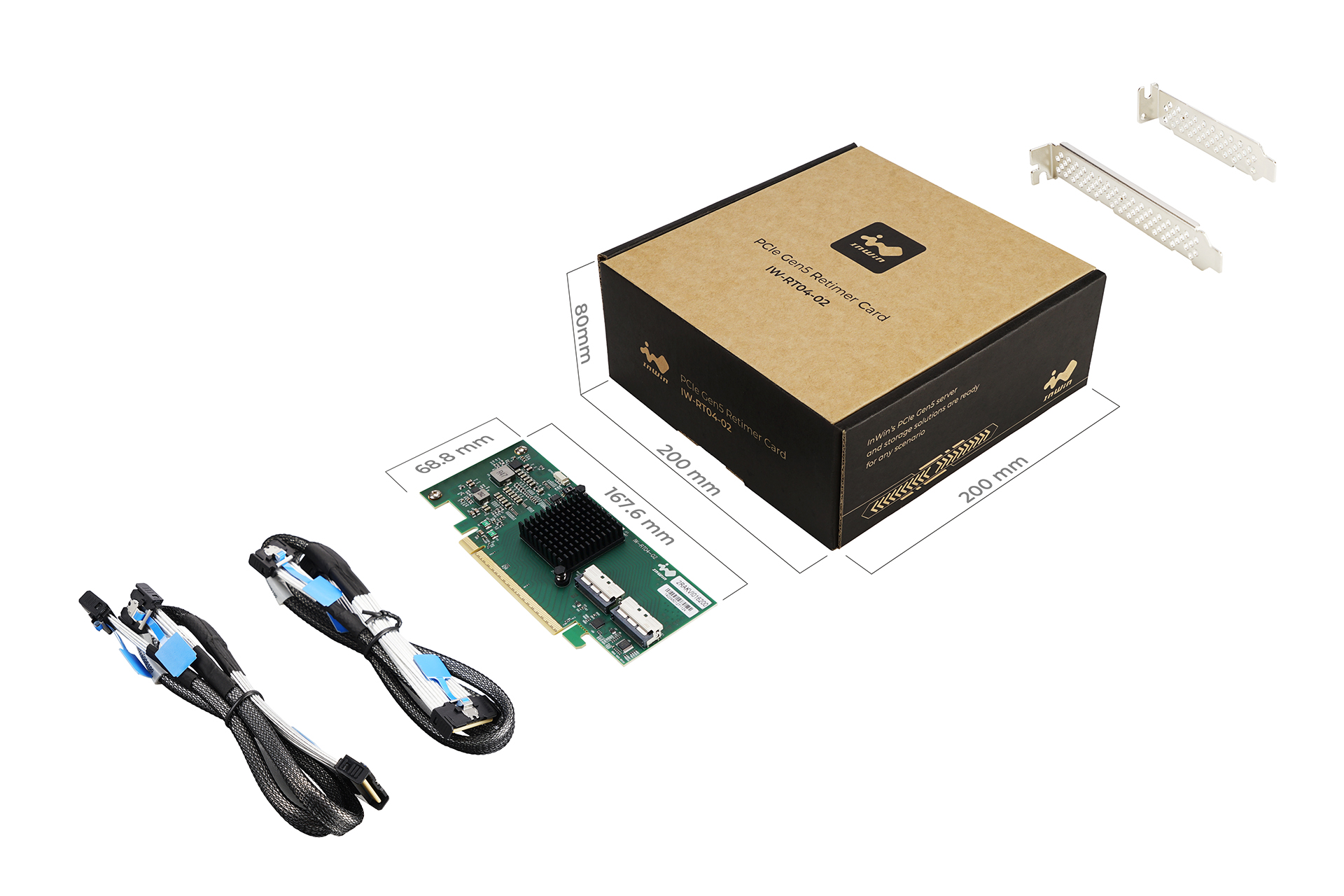

Package Contents

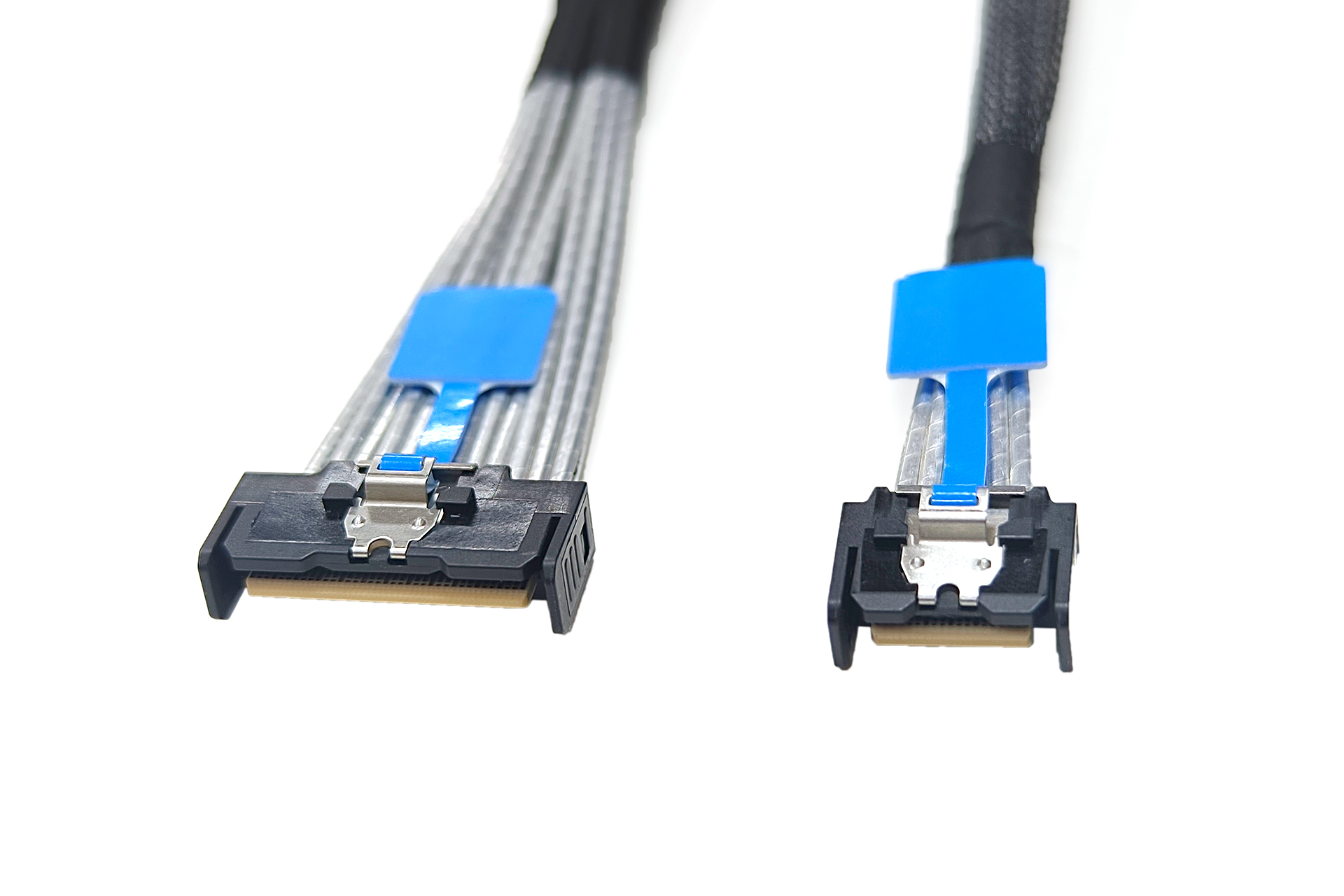

Optional MCIO 8i to MCIO 2 x 4i 500/600 mm cables x 2.InWin can customize cable lengths to meet customers' specific motherboard requirements.
| Specification | |
|---|---|
| Model | IW-RT04-02 |
| Host Bus Type | PCIe Gen5 (32GT/s) x16 lanes |
| Form Factor | PCB low-profile design |
| Bracket Height | Full-height & half-height bracket |
| Interface | MCIO 8i connectors x 2 |
| Compatible Device Type | Supports physical NVMe devices x 4 |
| Optional Cables | Optional: • MCIO 8i to MCIO 2 x 4i 500 mm cables • MCIO 8i to MCIO 2 x 4i 600 mm cables |
| Power Consumption | 25 Watts |
| Operating Temperature | 10°C - 55°C |
| Product Dimensions (LxH) | 167.6 x 68.8 mm (6.6" x 2.71") |
| Package Dimensions (DxWxH) | 200 x 200 x 80mm |
| Weight | • Net weight: 0.32kg • Gross weight: 0.58kg |
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Cable | 3RAMW6005400 | MCIO 8i to MCIO 2 x 4i 500 mm cables | 2 |
|

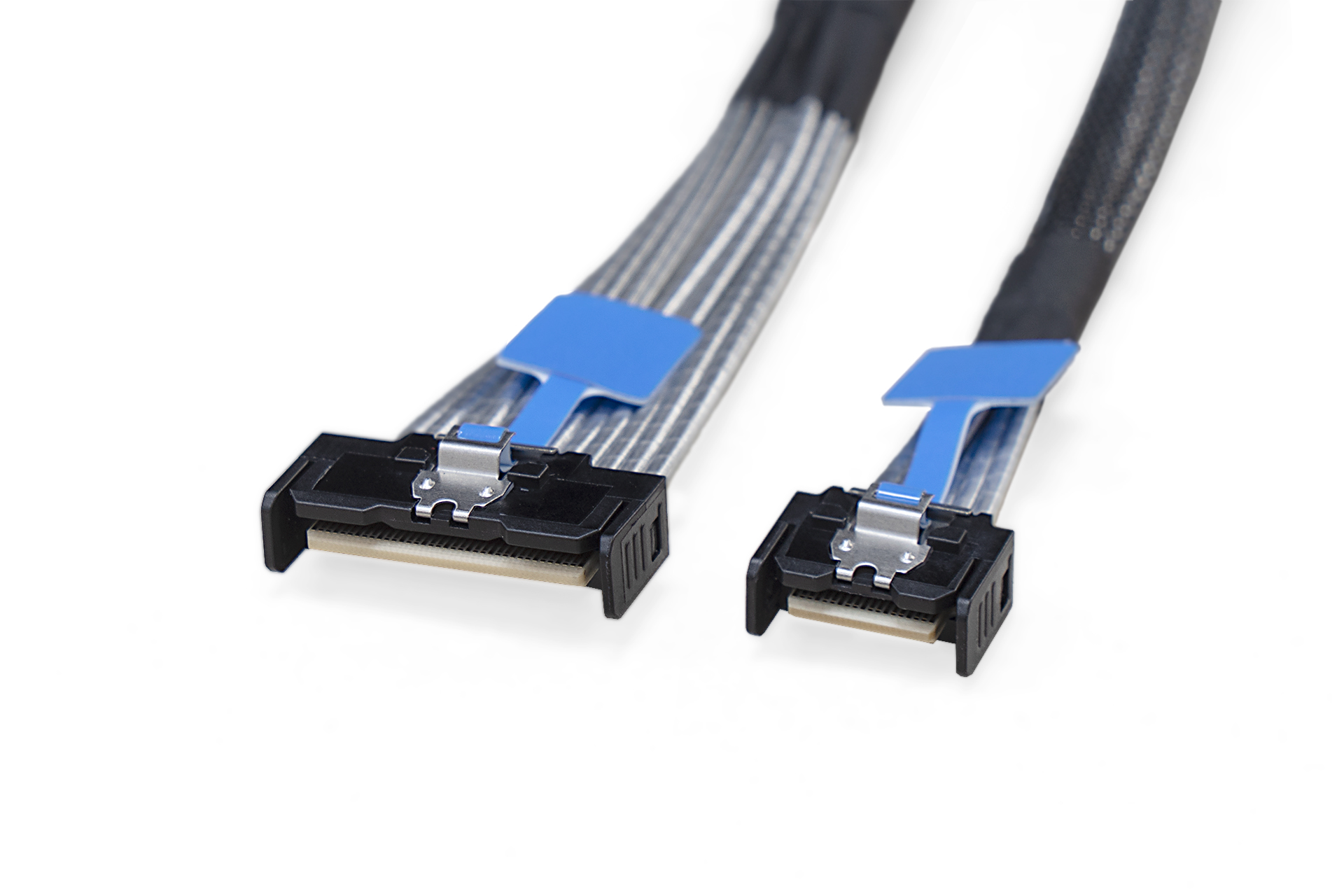

| Cable | 3RAMW6005200 | MCIO 8i to MCIO 2 x 4i 600 mm cables | 2 |
|
