server system assembly
IW-MS07
Micro-ATX Workstation
- Powered by PCIe Gen5 NVMe and SAS4, this hybrid workstation delivers enterprise-grade expandability
- Hot-swappable drive bays support NVMe / SAS / SATA interface
- Preinstalled IW-SK-09 series storage kits for easy drive installation and simplified maintenance
- Scalable data storage solutions designed for NAS, AIoT, and data backup applications
- Equipped with high-efficiency 80 PLUS Platinum redundant power supplies
- 80 PLUS Platinum PSU support for CRPS and ATX
- Four PCIe slots accommodate high-end GPUs,optimized for AI workstations
- Up to five cooling fans to ensure superior heat dissipation and optimal system performance

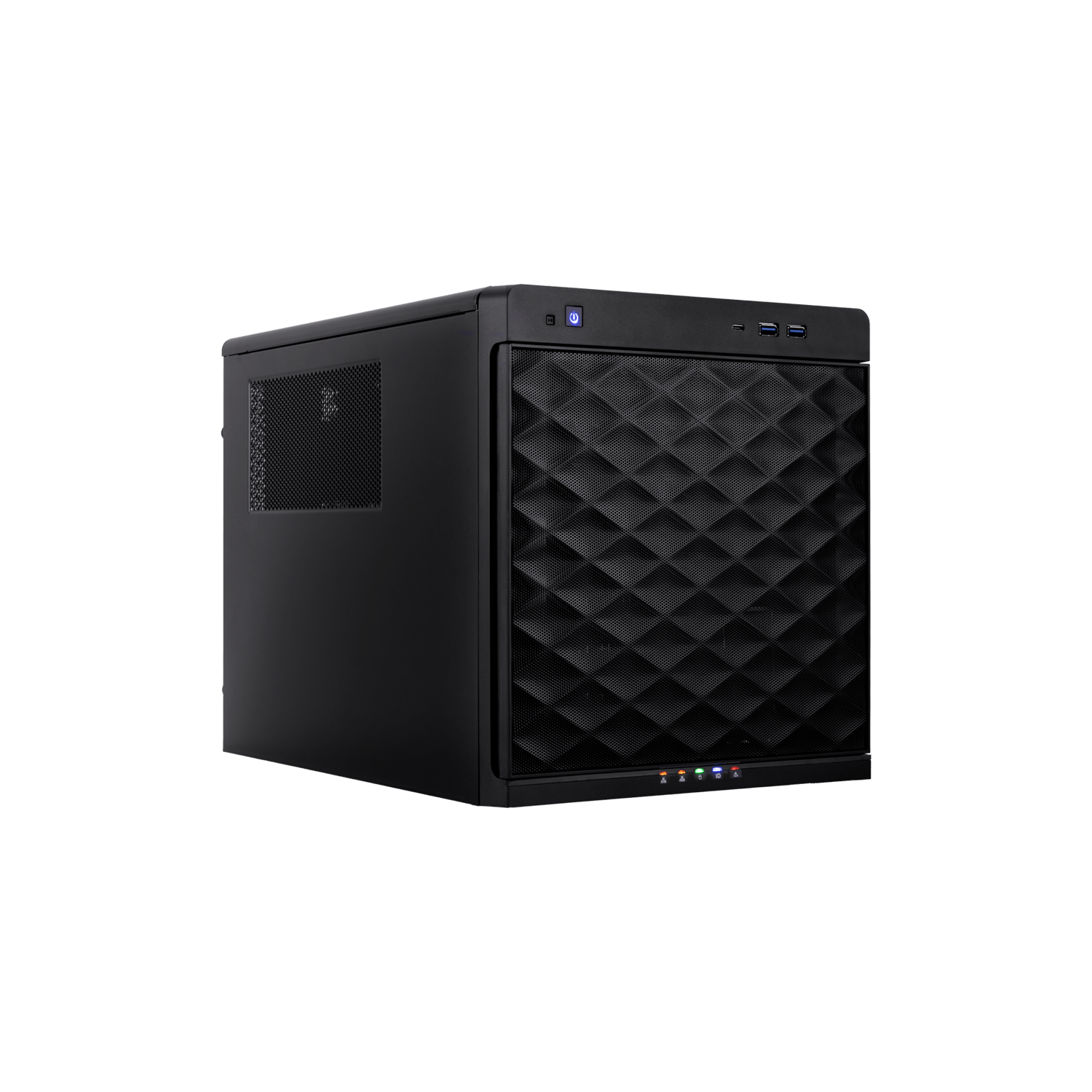

Compact, Flexible, and Gen5-Powered Workstation Excellence
IW-MS07 is a Micro-ATX hybrid chassis designed for AI and edge computing.
It features a modular storage kit with a PCIe Gen5 NVMe/SAS4 backplane for maximum throughput.
Full-height GPU support, a 5-fan cooling system, and compatibility with both CRPS and ATX power supplies to give you enterprise-grade resilience without the enterprise-grade footprint.
It features a modular storage kit with a PCIe Gen5 NVMe/SAS4 backplane for maximum throughput.
Full-height GPU support, a 5-fan cooling system, and compatibility with both CRPS and ATX power supplies to give you enterprise-grade resilience without the enterprise-grade footprint.
Max. 3.5" x 5 + 2.5" x 6 or 2.5" x 11
Full height GPU
1200W CRPS & 1300W ATX
Edge computing
Hybrid Storage, Unlimited Possibilities
Server needs change, and fast! The MS07’s hybrid storage design adapts to the needs of AI, enterprise storage, NAS, and data backup applications.
Storage Configuration Options
The modular chassis supports the full IW-SK storage kit series, allowing you to scale capacity without replacing the entire platform. The latest IW-SK-09 backplane integrates native support for U.2 NVMe (PCIe Gen5), SAS4, and SATA, which is ideal for intermingling drive options.

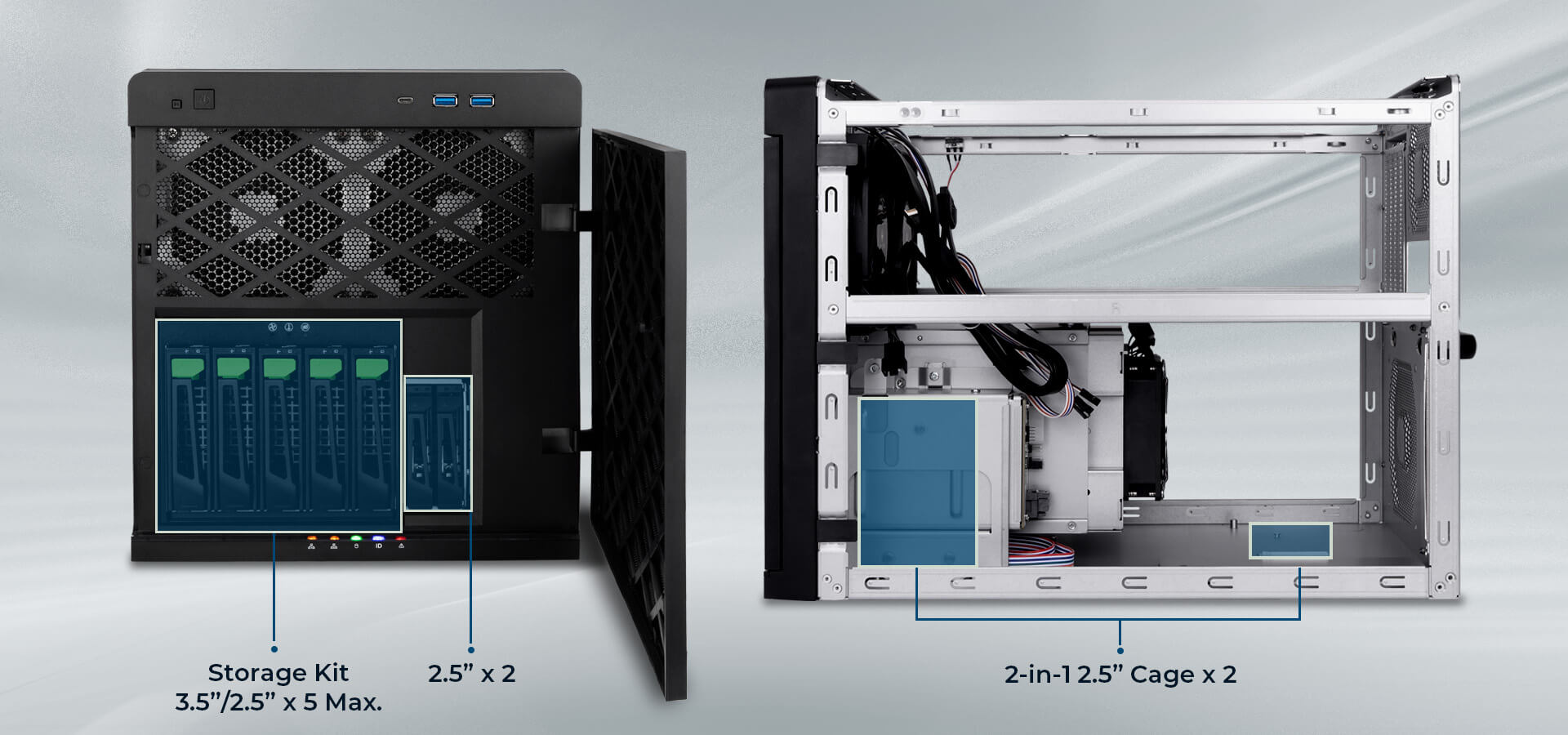

Modular Storage Kit with 3.5"/2.5" Bays
High-capacity front-access modules designed for bulk data and enterprise-grade RAID arrays.
More
2.5" Hot-Swap Tray x 2
Dedicated front-loading slots for OS drives or high-speed/priority caching. Performs redundancy with zero-downtime maintenance.

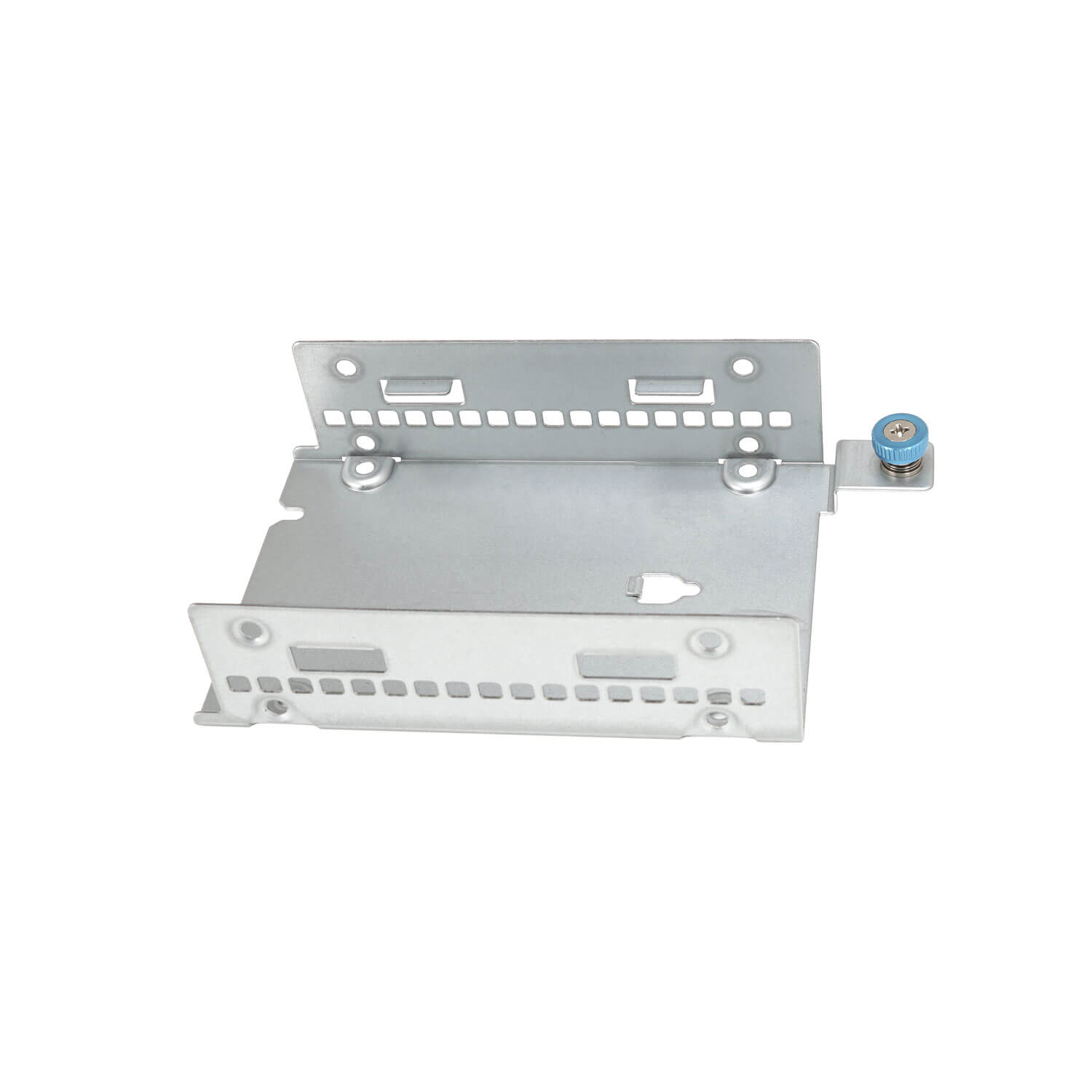

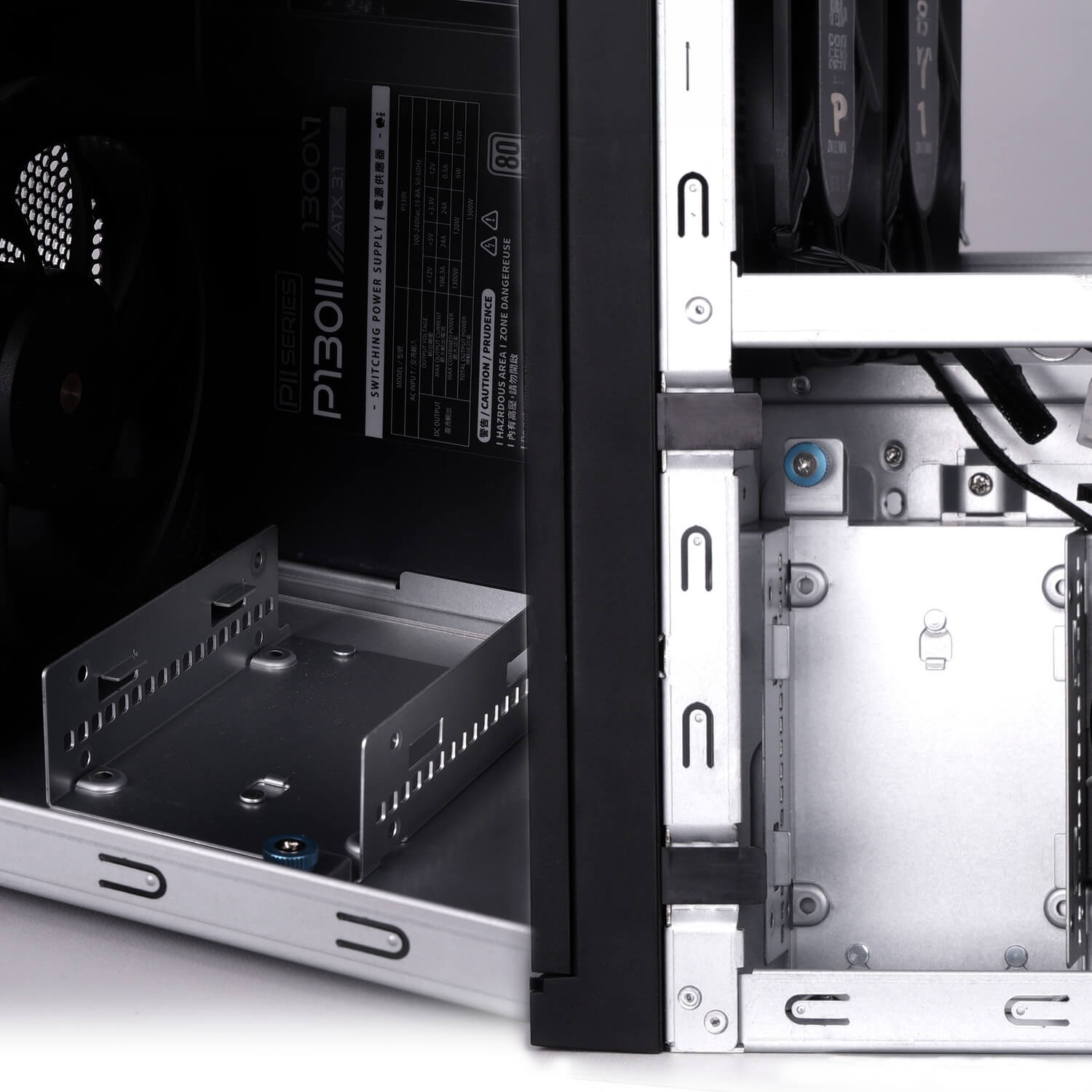

2-in-1 2.5" Cage x 2 (Optional)
Supports four additional internal drives, providing flexible expansion for secondary backups and fixed data storage.
GPU & High-Performance Computing Ready

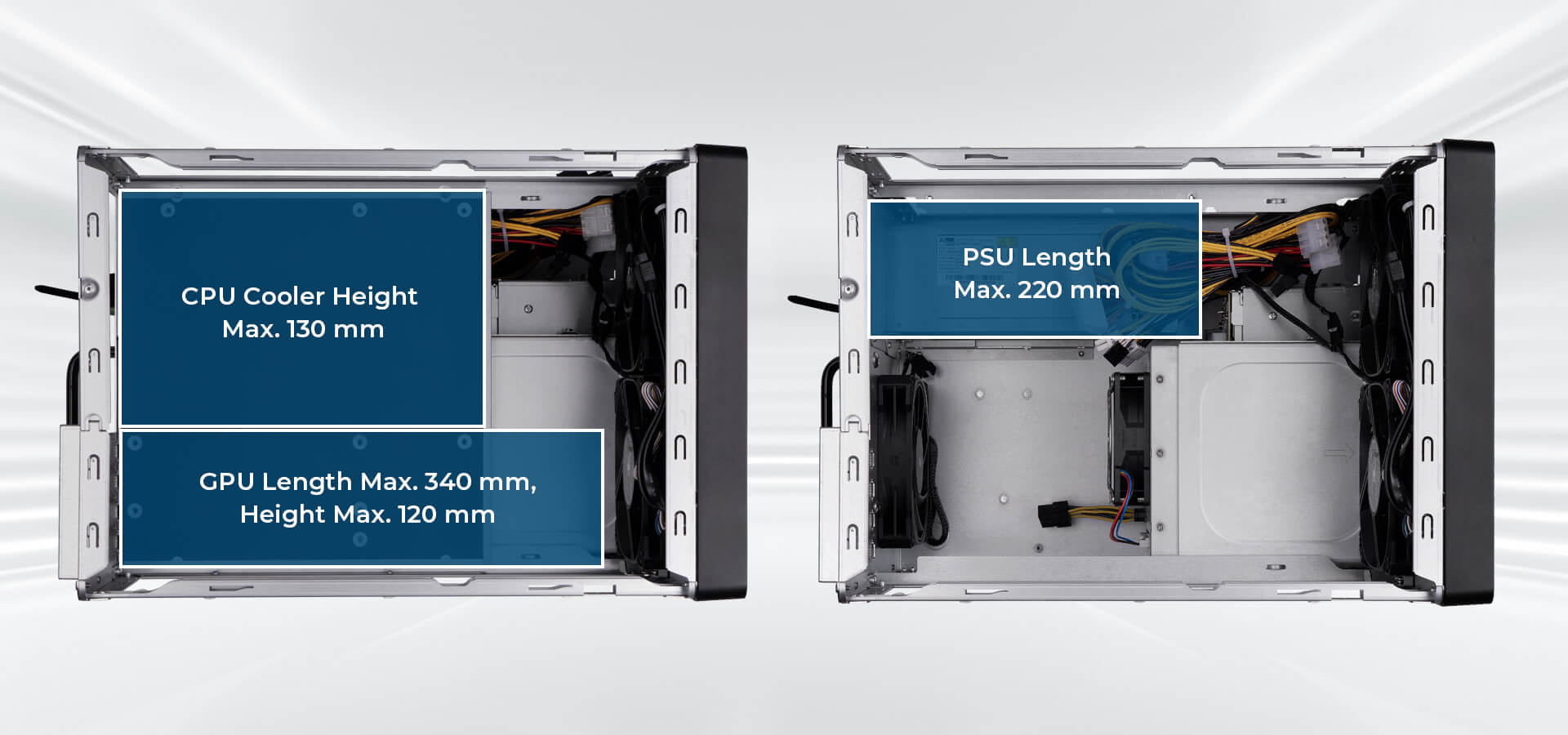

Designed for AI, computing, and professional workloads, the system features a flexible internal layout that supports full-height graphics cards up to 330 mm in length and 120 mm in height, CPU coolers up to 130 mm high, and power supplies up to 220 mm long.
Optimized Cooling for Enhanced System Stability
Servers don’t run 9-to-5. The dual-chamber layout isolates heat sources between upper and lower zones, improving airflow efficiency and accelerating heat dissipation.
Top View
The Upper Chamber
Supports 2 × 120 × 25 mm fans, with an option for 2 × 80 × 25 mm fans, enabling rapid heat exhaust from the GPU area.
Side View
The Lower Chamber

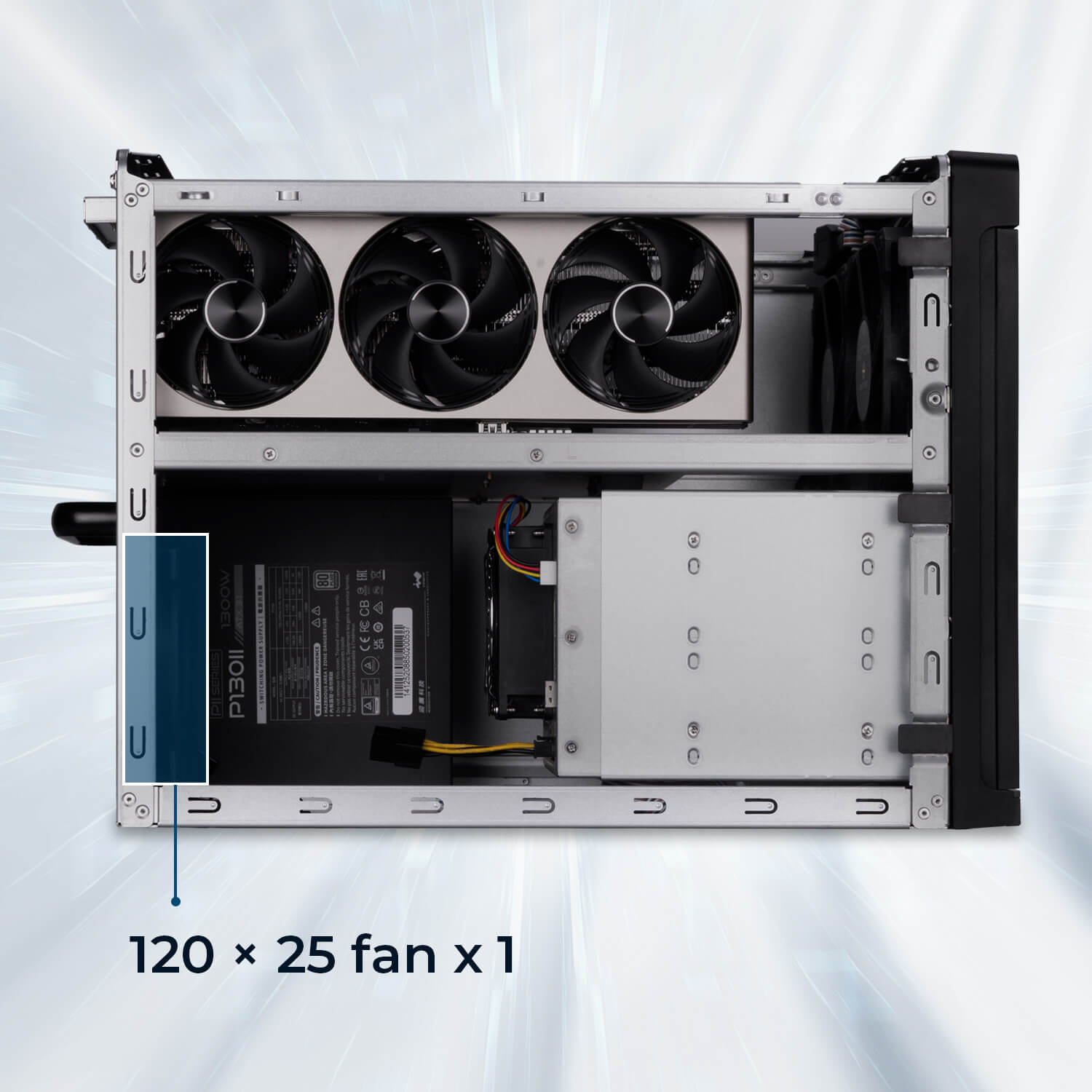

Includes 1 × 120 × 25 mm fan to enhance system cooling and ensure stable operation under heavy workloads.
Flexible Power Infrastructure & Versatile Compatibility

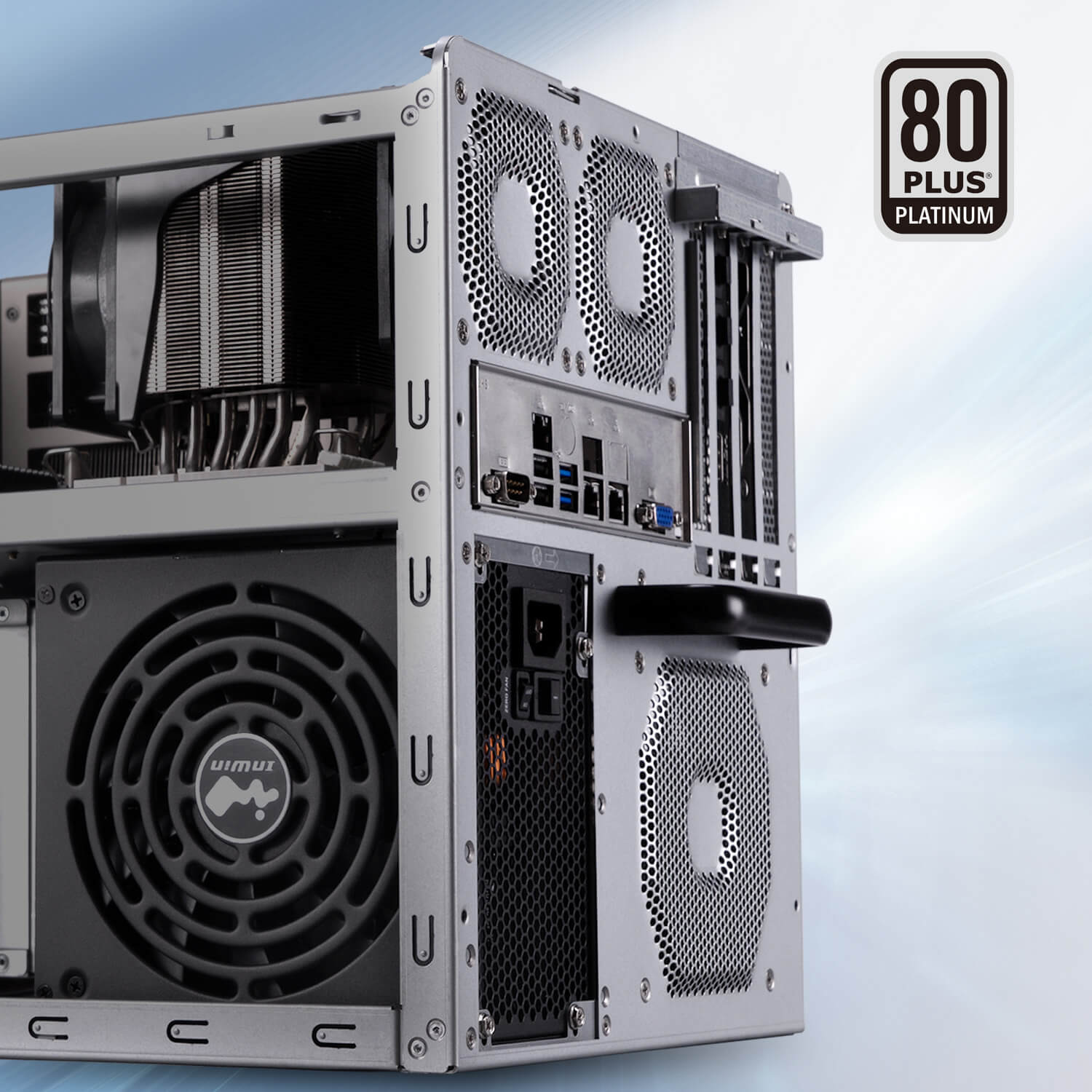

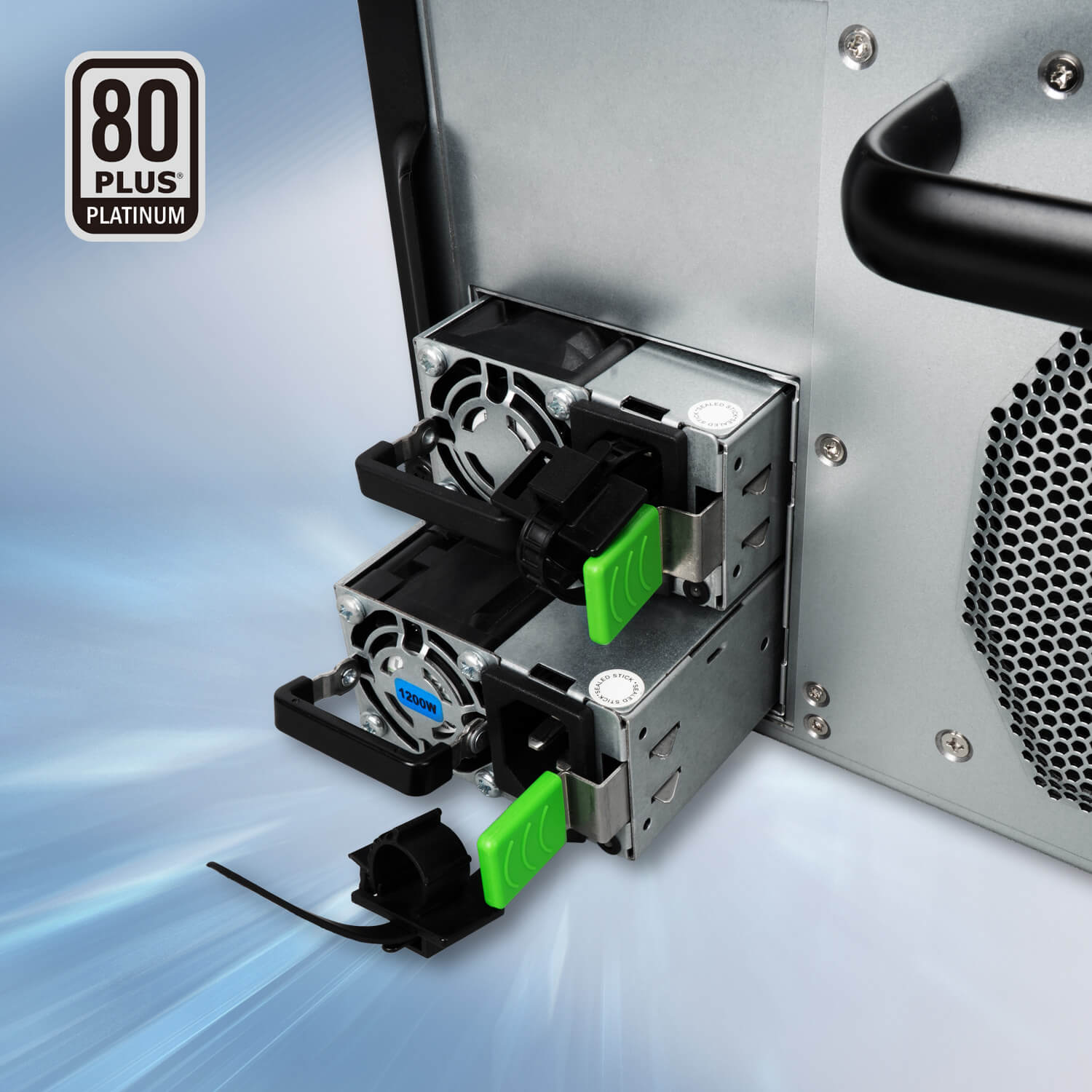

The MS07 doesn't lock you into one power standard. Its multi-standard architecture accepts both CRPS (for redundancy) and ATX (for flexibility), scaling from efficient edge nodes to high-wattage AI workstations.
80 PLUS Platinum efficiency keeps power bills reasonable during those 24/7 runtime schedules.
80 PLUS Platinum efficiency keeps power bills reasonable during those 24/7 runtime schedules.
1200W
CRPS Redundant Power Supply
1300W
ATX High-Wattage Power Supply
Power Cable Information

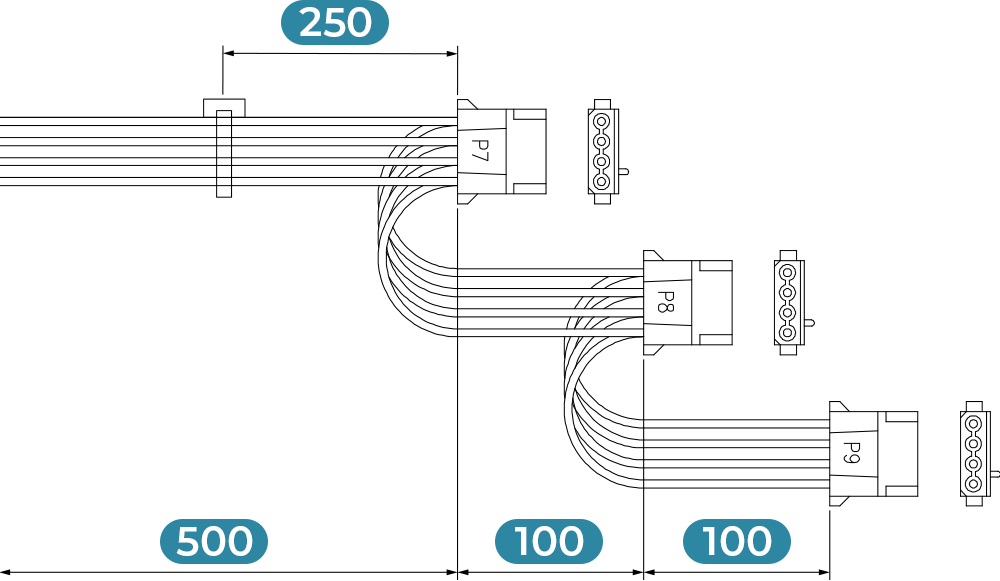

Unit of Length: mm

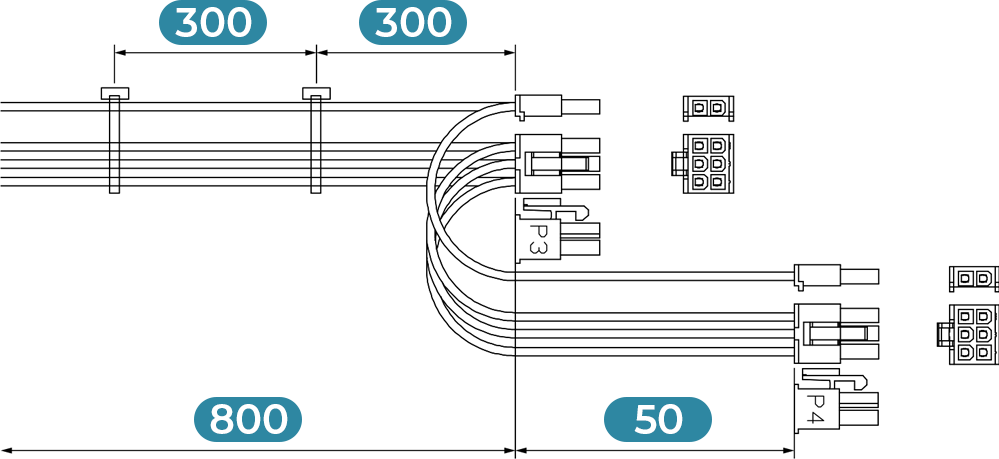

1200W CRPS Redundant Power Supply
24-Pin Main Power
Peripheral
8-Pin CPU
SATA
6+2-Pin PCIe x 2
PMBus
6+2-Pin PCIe x 2
1300W ATX High-Wattage Power Supply
24-Pin (20+4) Main Power
8-Pin (4+4) CPU x 2
6+2-Pin PCIe x 3
12V-2x6 PCIe x 2
SATA (90-degree) x 3
1. 4-Pin Peripheral
2. Floppy
2. Floppy
Eco-Friendly Packaging (Optional)
As an additional option, a 100% recyclable corrugated paper solution is available. This design utilizes an interlocking structure to provide superior shock absorption, reducing environmental impact while ensuring reliable protection for hardware during transit.
| Specification | |
|---|---|
| M/B Form Factor | Micro-ATX (M/B Cooler Max. 130 mm), Mini-ITX |
| Drive Bay | • Preinstalled IW-SK34-09 storage kit (external 2.5"/3.5" x 4, supports U.2 NVMe/SAS/SATA drives) • Optional IW-SK35-09 storage kit (external 2.5"/3.5" x 5, supports U.2 NVMe/SAS/SATA drives) • External 2.5" hot-swap trays x 2 (SAS/SATA) • Internal 2.5" x 4 |
| Power Supply | Supports: CRPS: 1200W (1+1) Redundant, 80 PLUS Platinum ATX: 1300W, 80 PLUS Platinum Flex: 450W 1U, 80 PLUS Platinum |
| Indicators | Power status, LAN1, LAN2, HDD, ID, system fail activity LEDs |
| Front Control Panel | Power switch, system reset, USB 3.0 x 2, Type-C x1 |
| Chassis Security | • Supports padlock loop and Kensington lock slot • Intrusion switch (optional) |
| Cooling Fans | • Front:120 x 25 mm PWM fans x 2 (pre-installed) • Buttom: 120 x 25 mm PWM fans x 1 • Rear: 80 x 25 mm PWM fans x 2 |
| Expansion Slot | Full Height PCIe Slot x 4 |
| Material | • Material: SECC • Thickness: 1.0 |
| Product Dimensions (DxWxH; Chassis Only) | 406.6 x 275 x 305 mm |
| Package Dimensions (DxWxH) | 570 x 456 x 435 mm |
| Weight (Chassis Only) | Net weight: 10.98kg Gross Weight: 12.83kg |
| Cubic Feet | 3.99 |
| Container Information | Single Packing with pallets: 20’: 176 pcs 40’: 352 pcs 40’HQ : 440 pcs |
IW-SK34-09 Backplane Specifications
| Backplane | SAS4 & PCIe Gen5 hybrid backplane |
| Dimension (W x H) | 111.5mm x 111.5mm |
| Backplane Type | Passive |
| Host Interface | MCIO 4i x 4, SlimSAS 4i (SFF-8654) x 1 for SAS/SATA transfer rates |
| HDD Interface | NVMe/SAS/SATA HDDs x 4 |
IW-SK35-09 Backplane Specifications
| Backplane | SAS4 & PCIe Gen5 hybrid backplane |
| Dimension (W x H) | 137mm x 107mm |
| Backplane Type | Passive |
| Host Interface | MCIO 4i x 5, SlimSAS 4i (SFF-8654) x 1 for SAS/SATA transfer rates, SATA x 1 |
| HDD Interface | NVMe x 5 or SAS x 4 or SATA x 5 |
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|

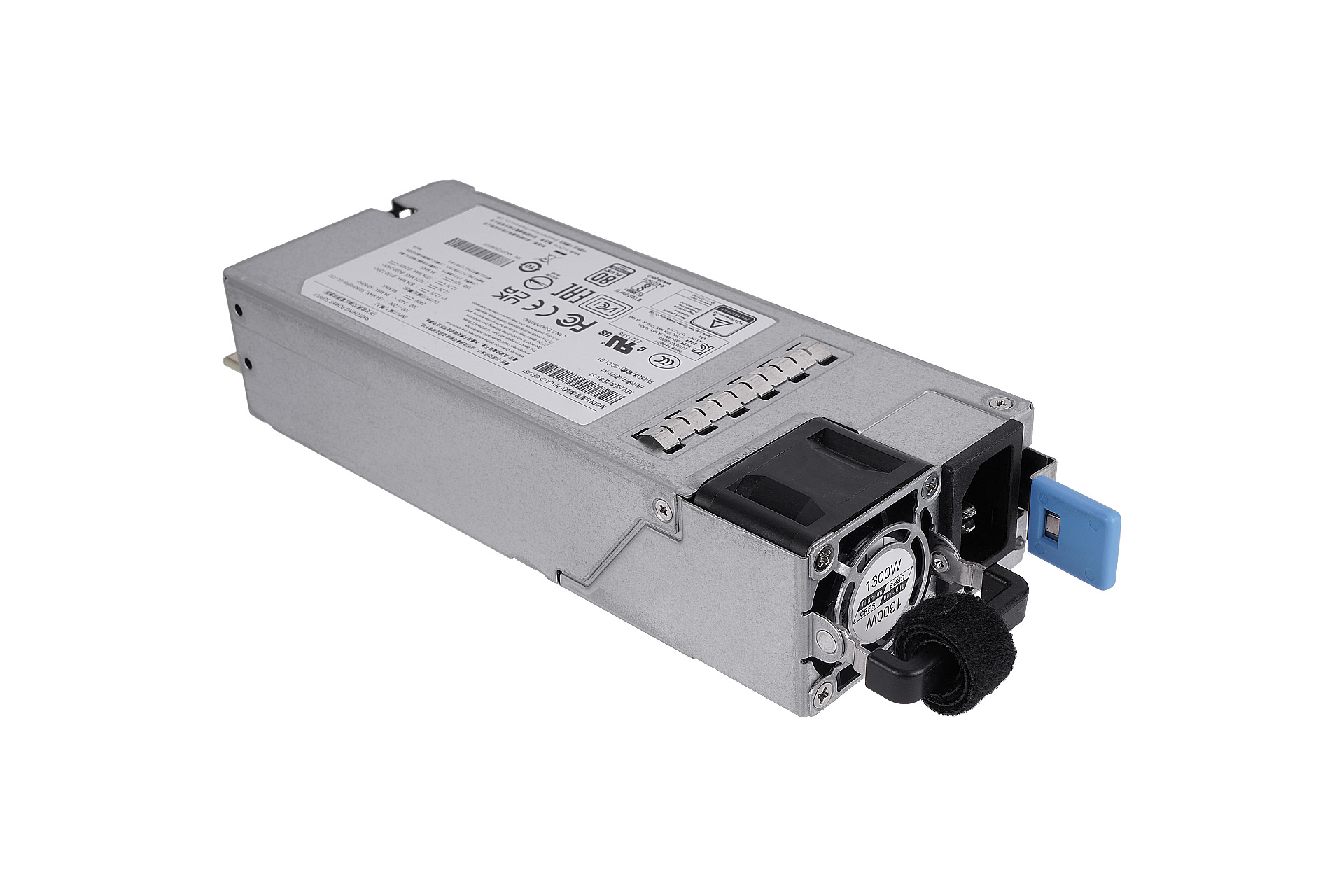

| Power Supply | 3RAMAP049300 | 80 PLUS Titanium CRPS 1300W (AC input 90–132V, total power 1000W max. / AC input 180–264V, total power 1300W max.) | 2 |
|

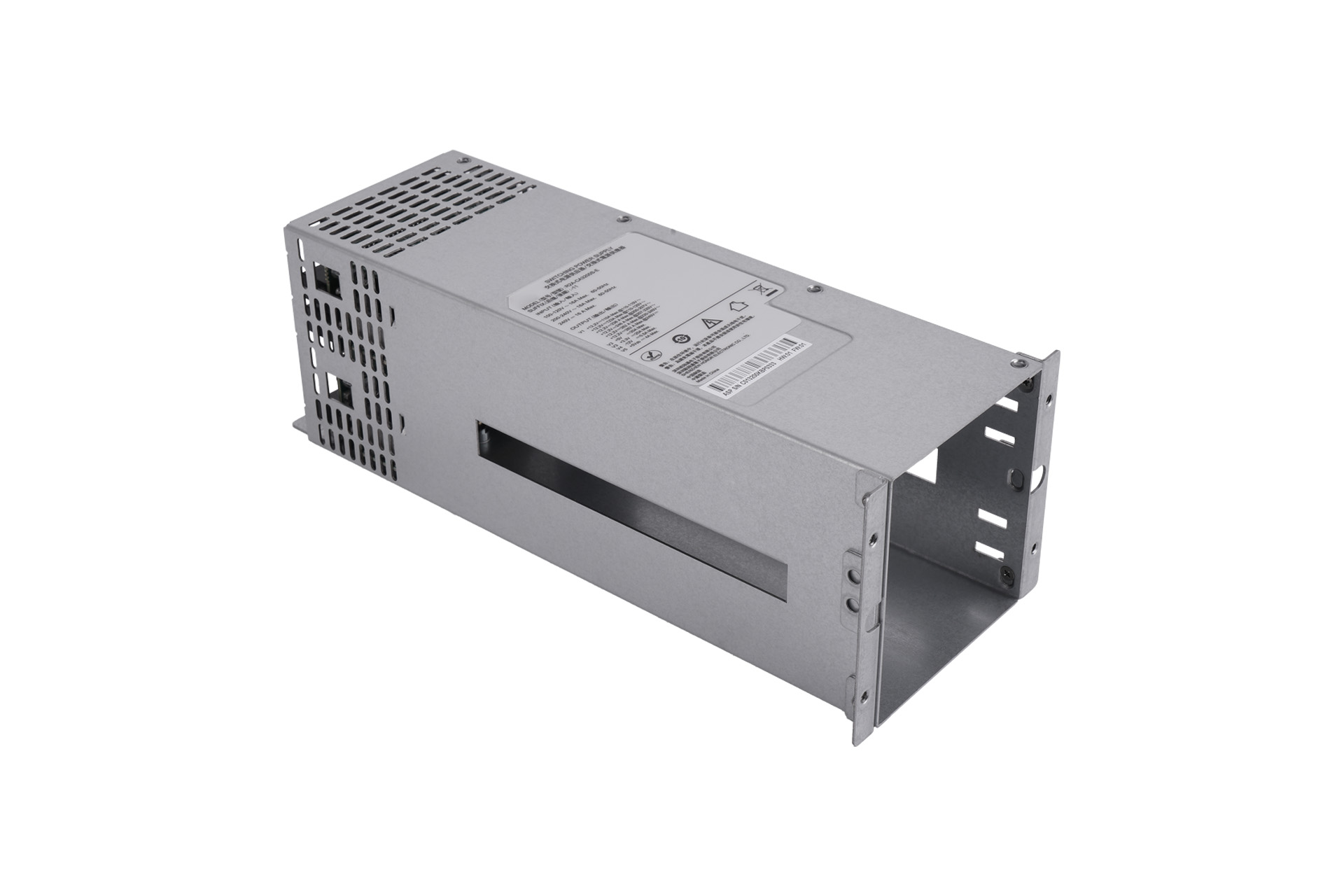

| Power Supply | 3RAMAP050200 | PDB power cage for CRPS Max. 1300W | 1 |
|

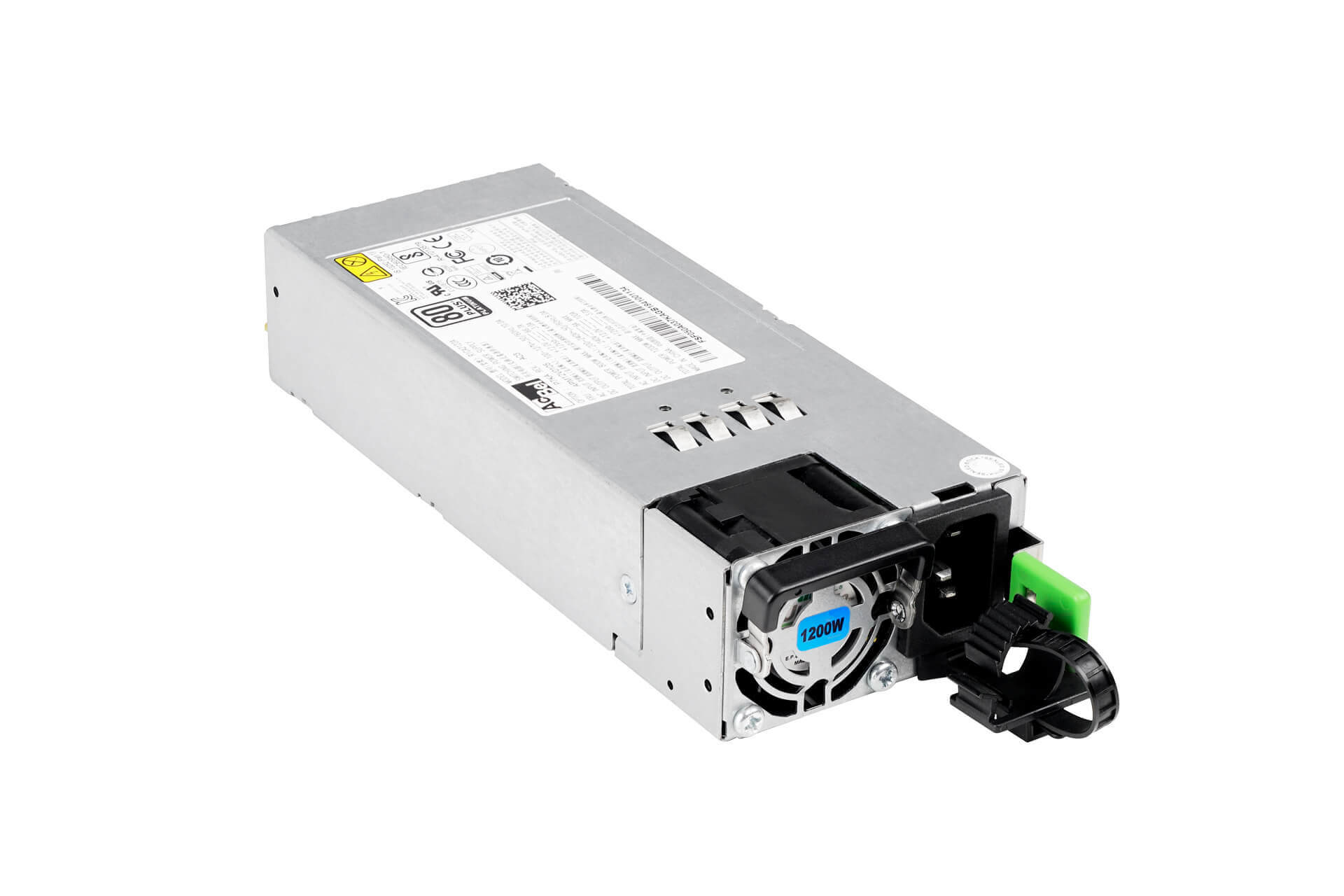

| Power Supply | 3RAMAP026501 | 80 PLUS Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.) | 2 |
|

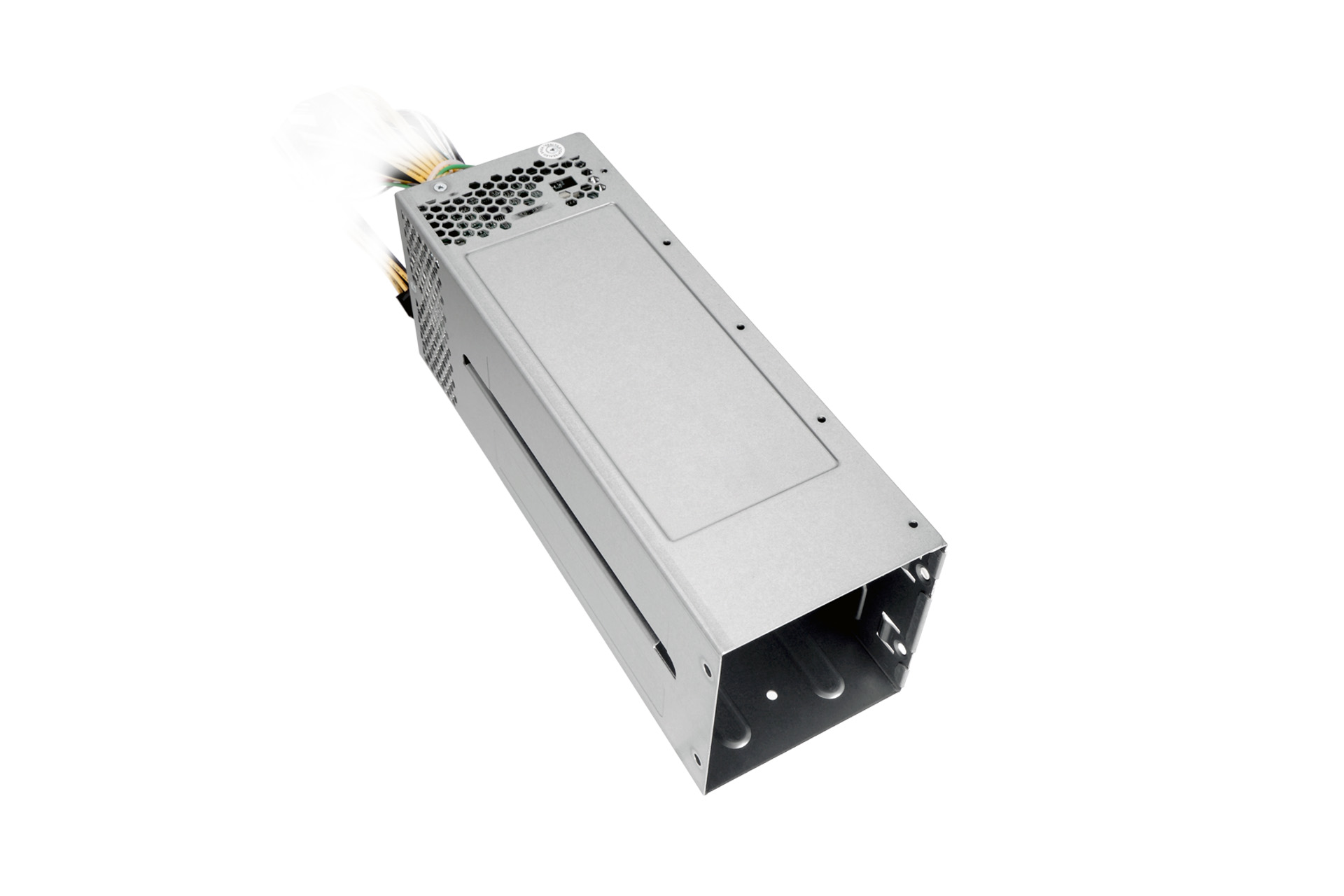

| Power Supply | 3RAMAP042300 | PDB power cage for CRPS Max. 1200W, Short Type | 1 |
|

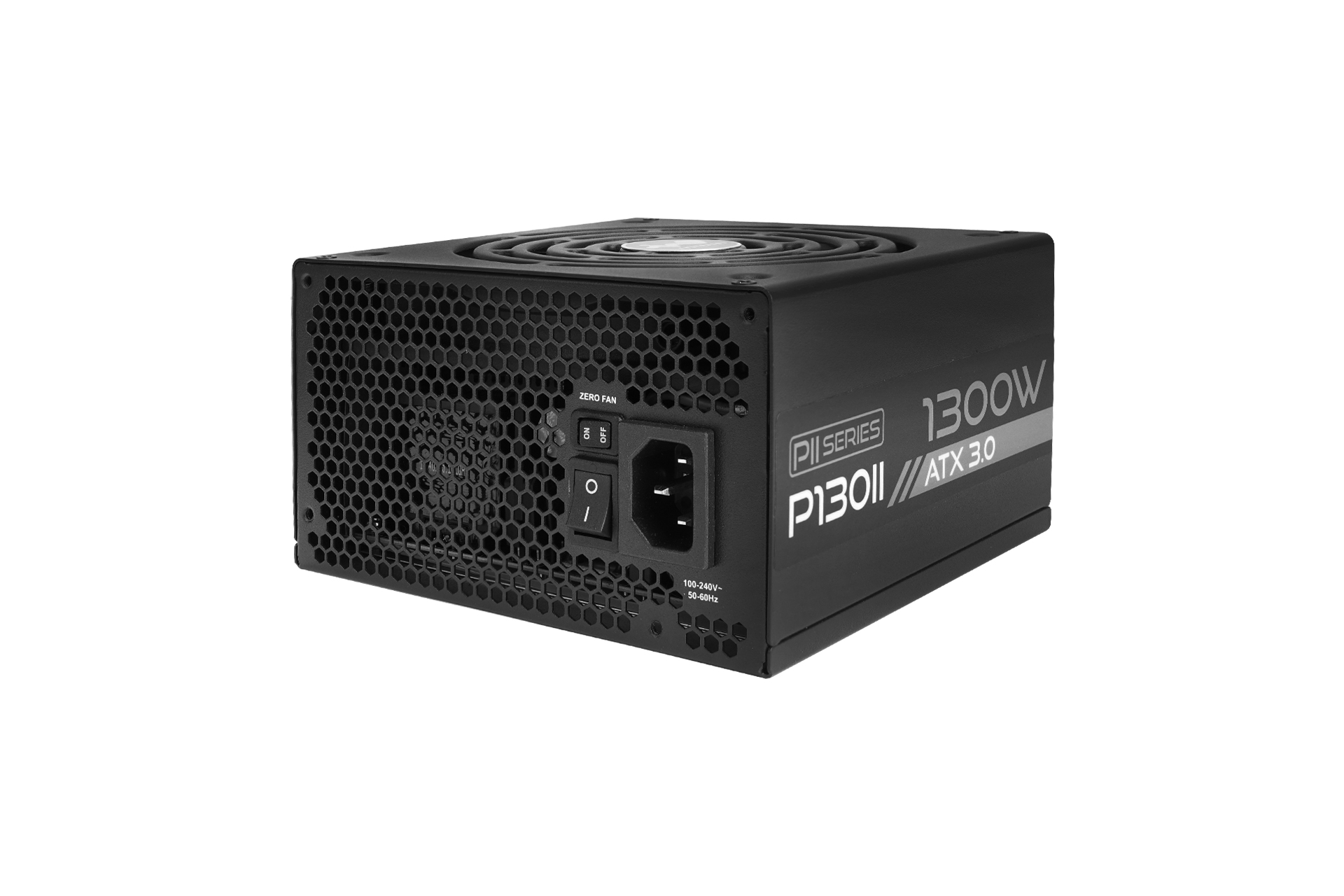

| Power Supply | 3RAMAP046200 | IW-P130II Standard ATX power supply (80 PLUS Platinum 1300W) | 1 |
|

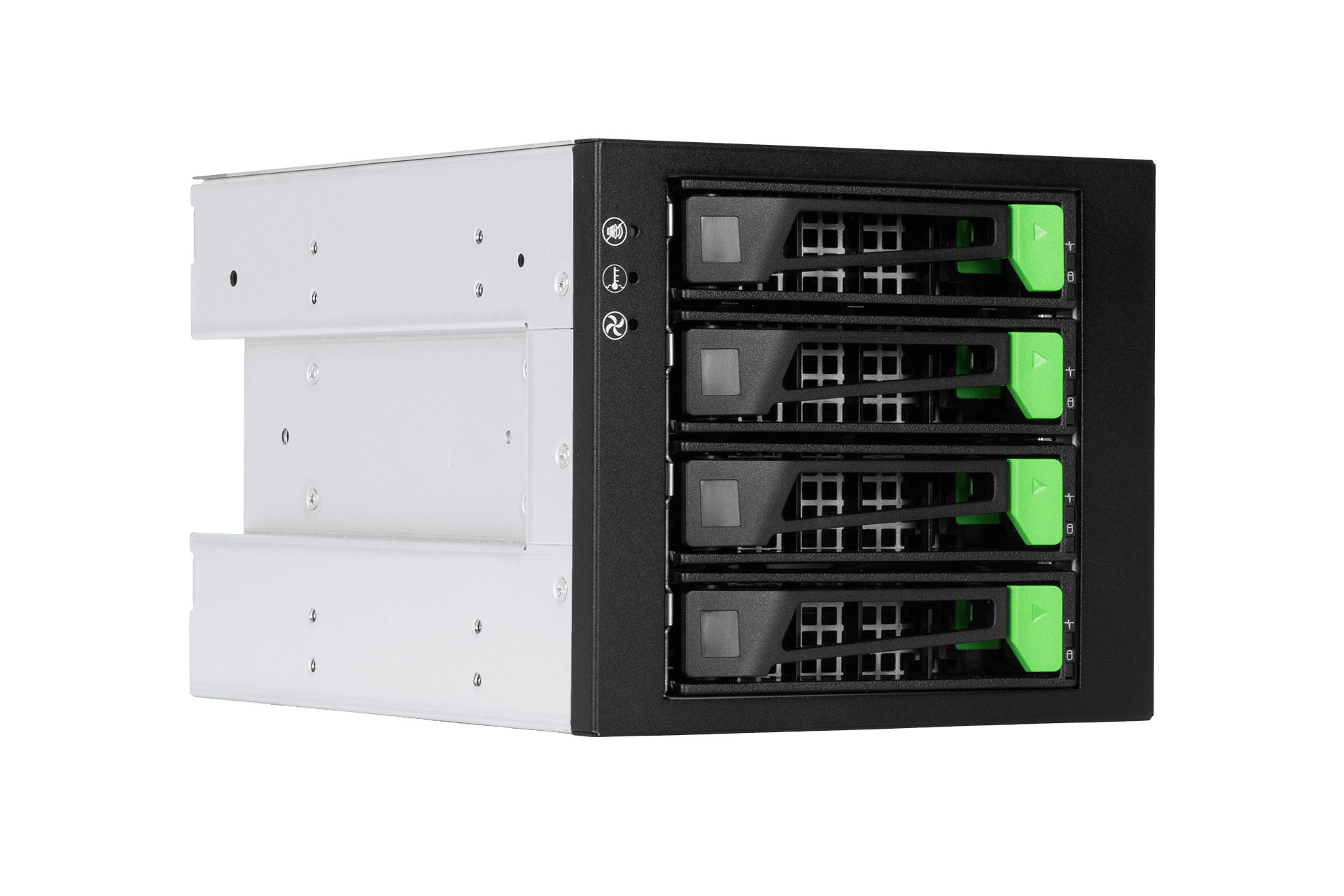

| Storage Kit | 2RAKID167800 | IW-SK34-09, external 2.5"/3.5" x 4, supports U.2 NVMe/SAS/SATA drives (*included) | 1 |
|

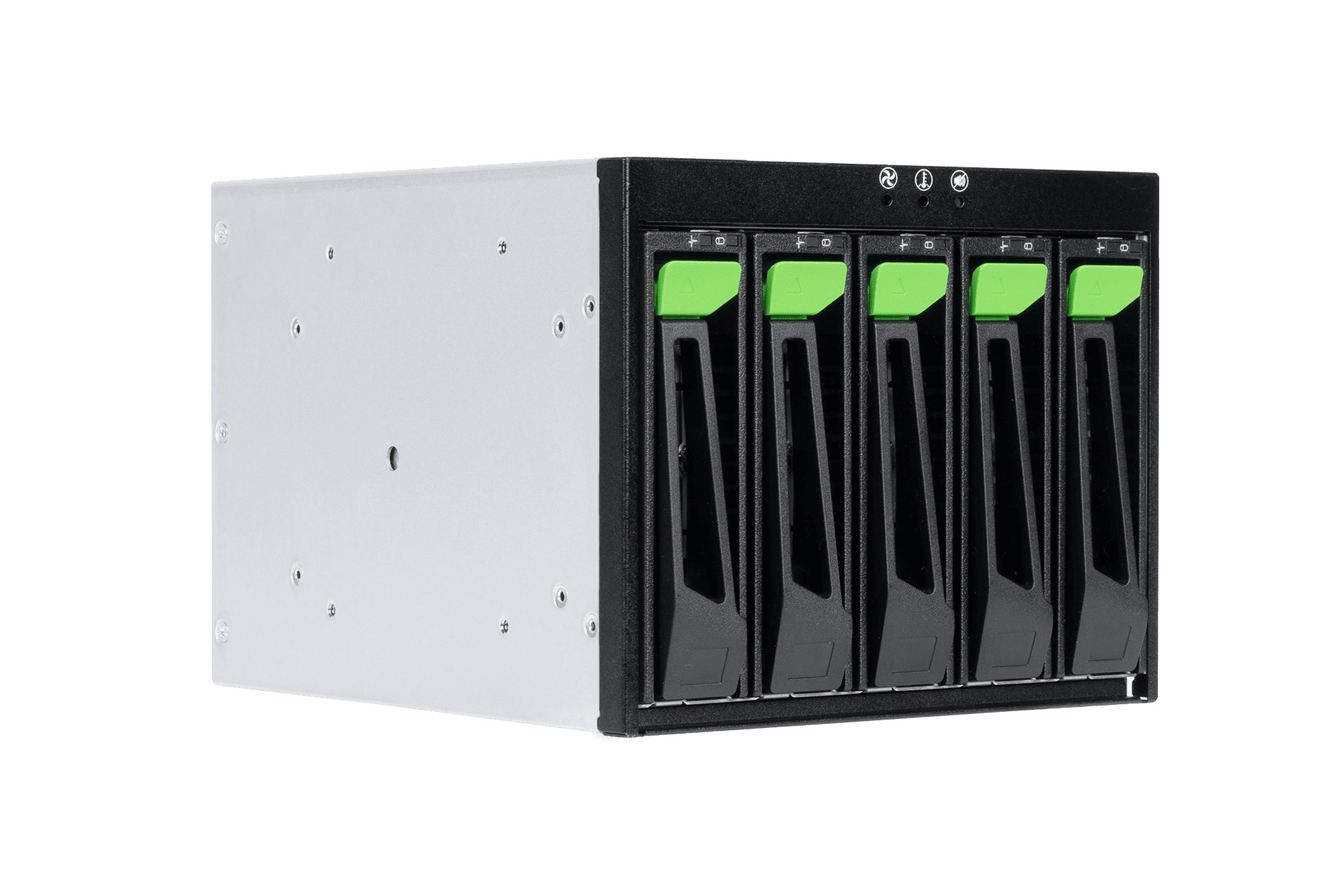

| Storage Kit | 2RAKID167900 | IW-SK35-09, external 2.5"/3.5" x 5, supports U.2 NVMe/SAS/SATA drives | 1 |
|

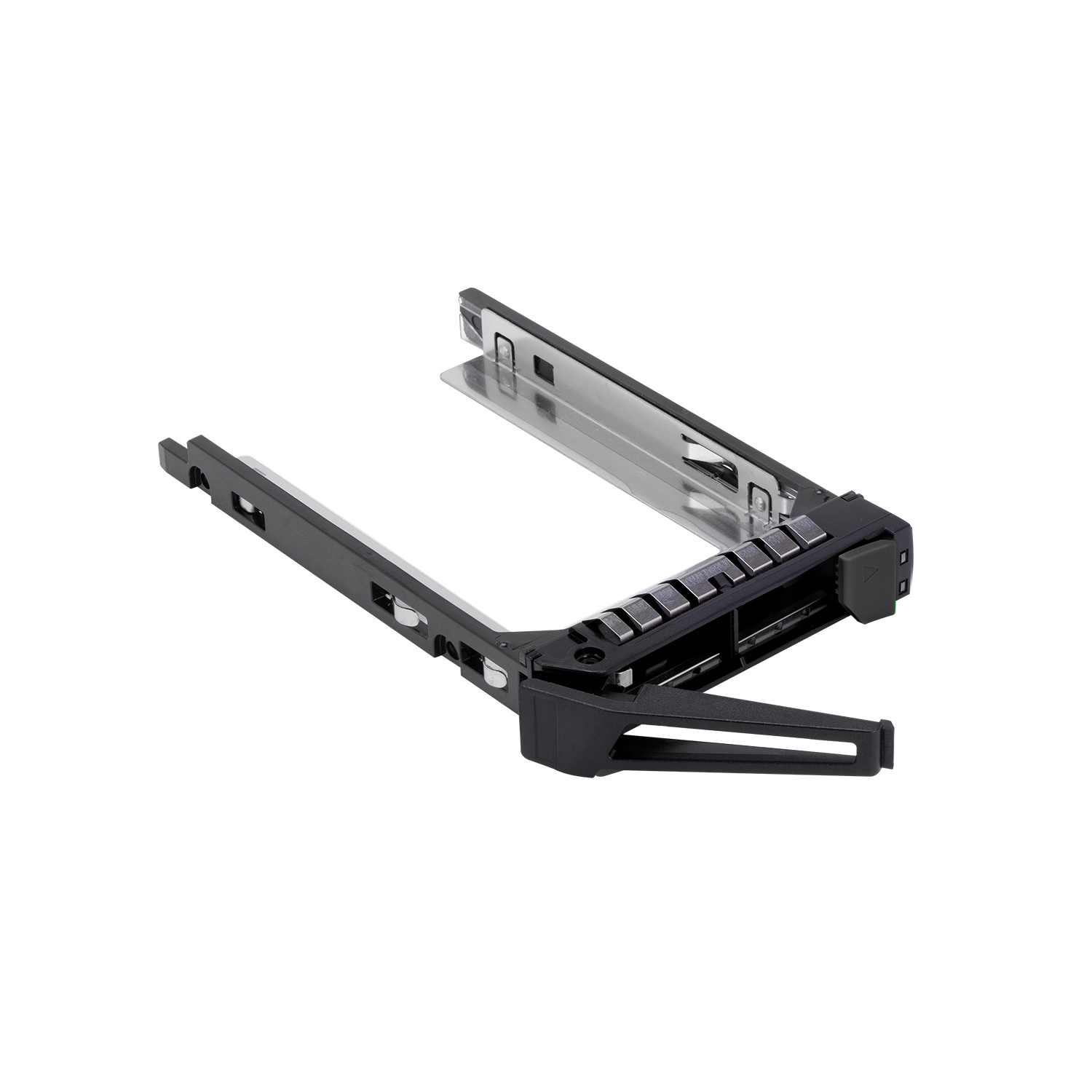

| HDD Tray | 2RAKPH075400 | 2.5" hot-swap HDD tray | Max.2 |
|

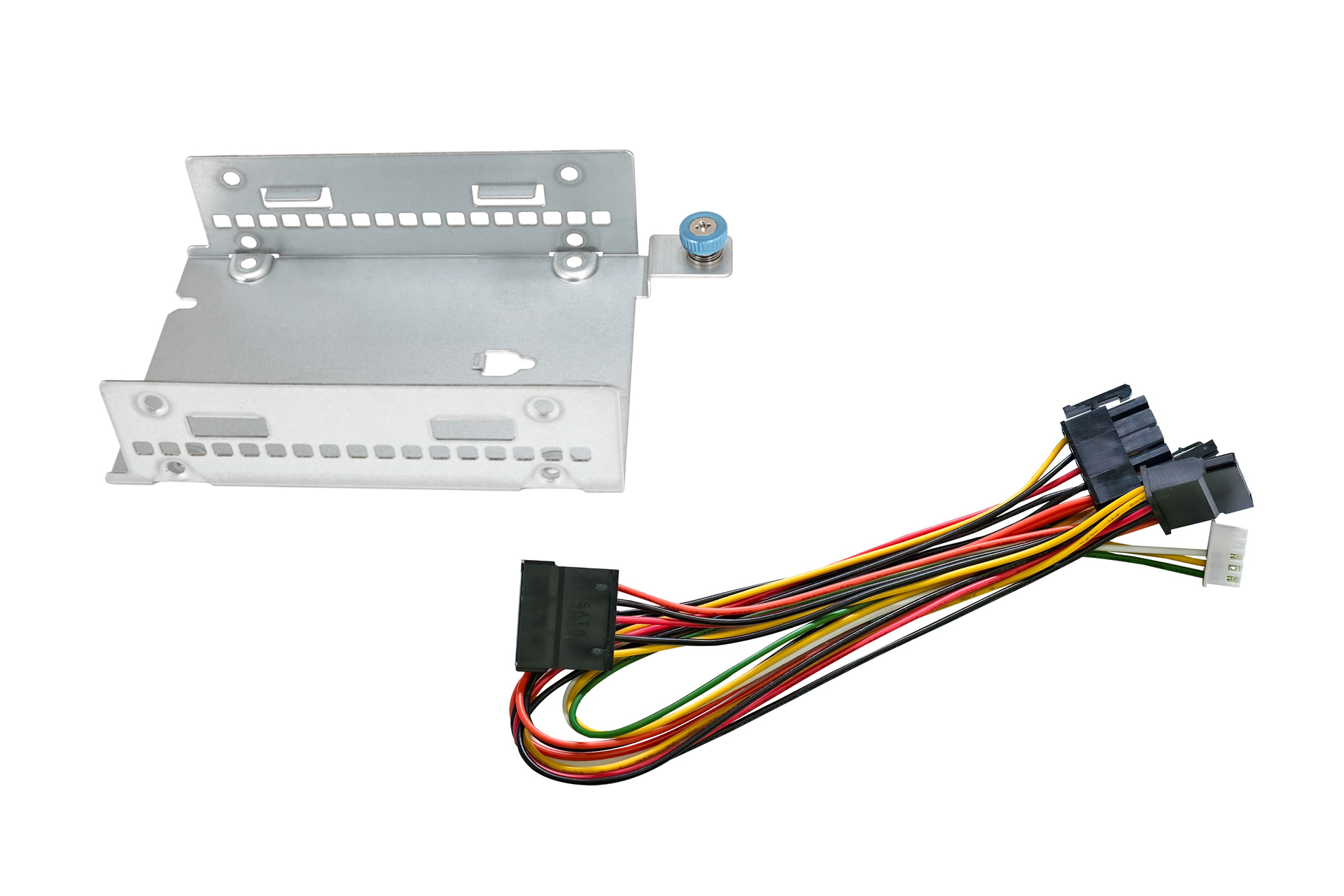

| HDD Cage Kit | 2RARID047501 / 3RAMW7121800 | 2-in-1 2.5" HDD Bracket / SATA-to-SATA + PMBus Split Cables | Max.2 sets |
|
| Fan | 3RAMFS025600 | IW-DN Max, 120 x 25mm PWM fan, 2700RPM, 4pin (* included front x 2) | Max.3 |
|

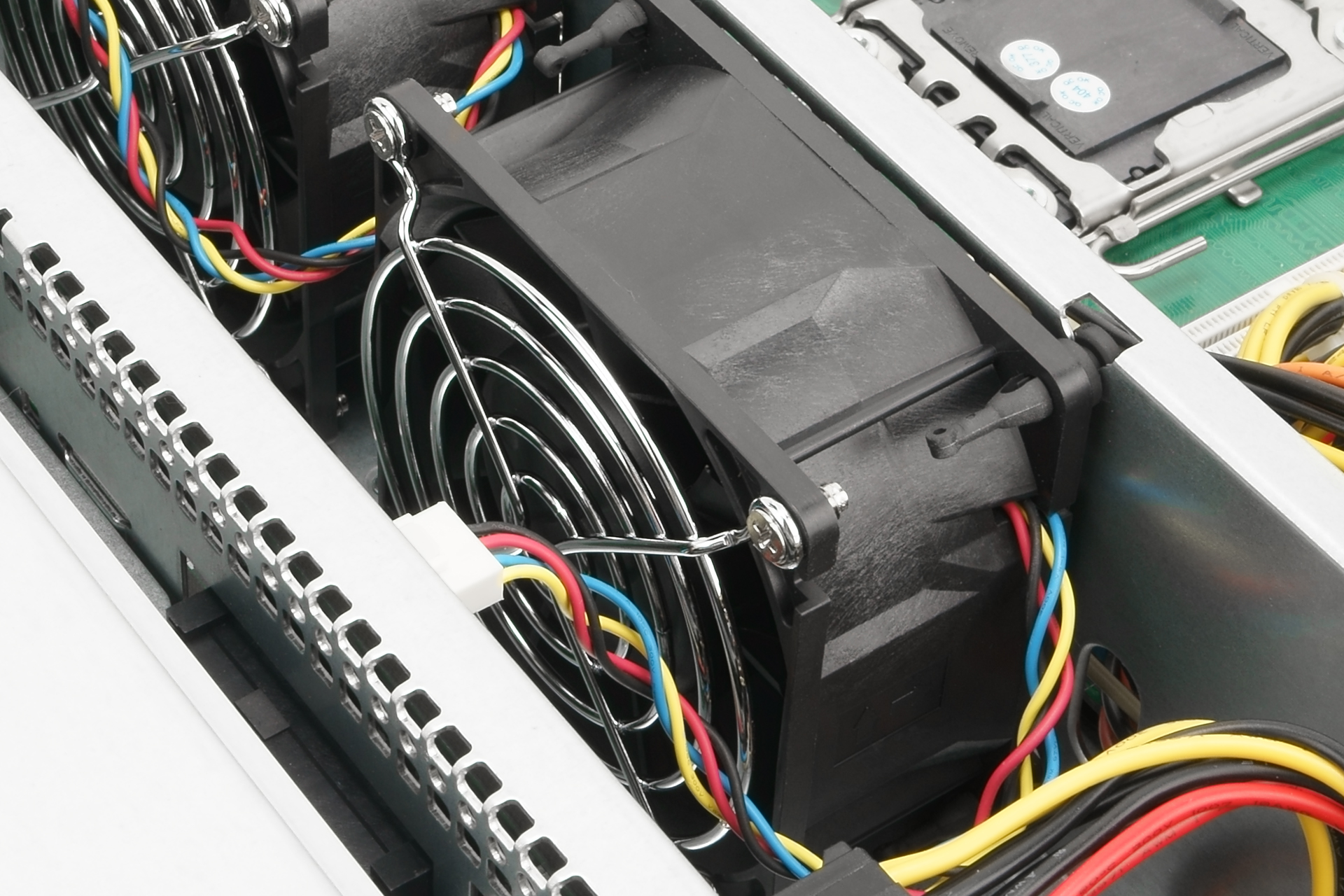

| Fan | 3RAMFB006302 | 80 x 25, L350,4500RPM, 4pin, NMB | Max.2 |
|
| Dummy Bay Cover | 2RATPC1757003 | 2.5" HDD plastic dummy bay cover | 1 |
|
| Dummy Bay Cover | 2RAVIC1108A1 | 2.5" HDD metal dummy bay cover | 1 |
|

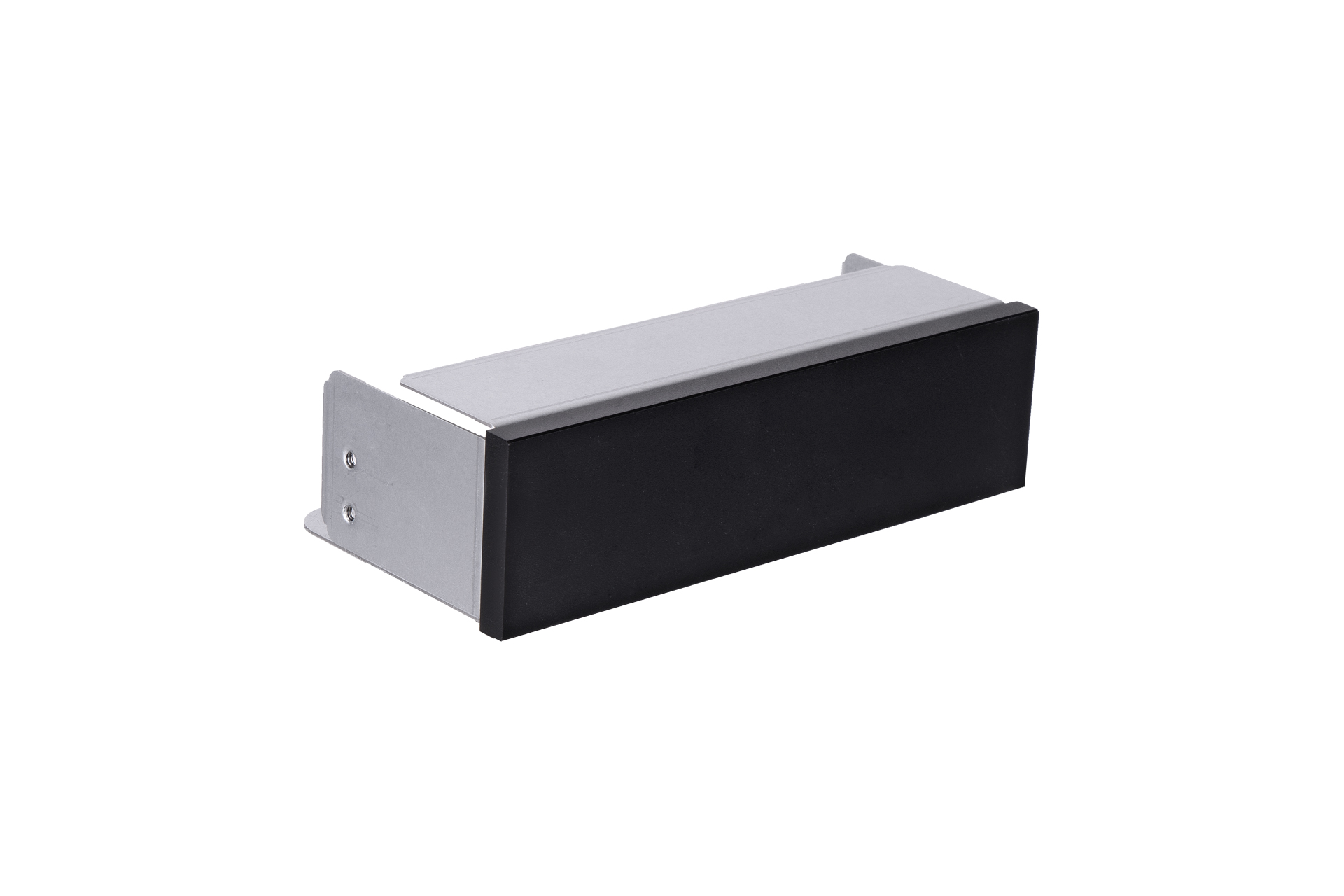

| Dummy Bay Cover | 2RATPC175800/ 2RAVIC1110A2 | 5.25" drive bay plastic dummy cover | Max.3 |
|

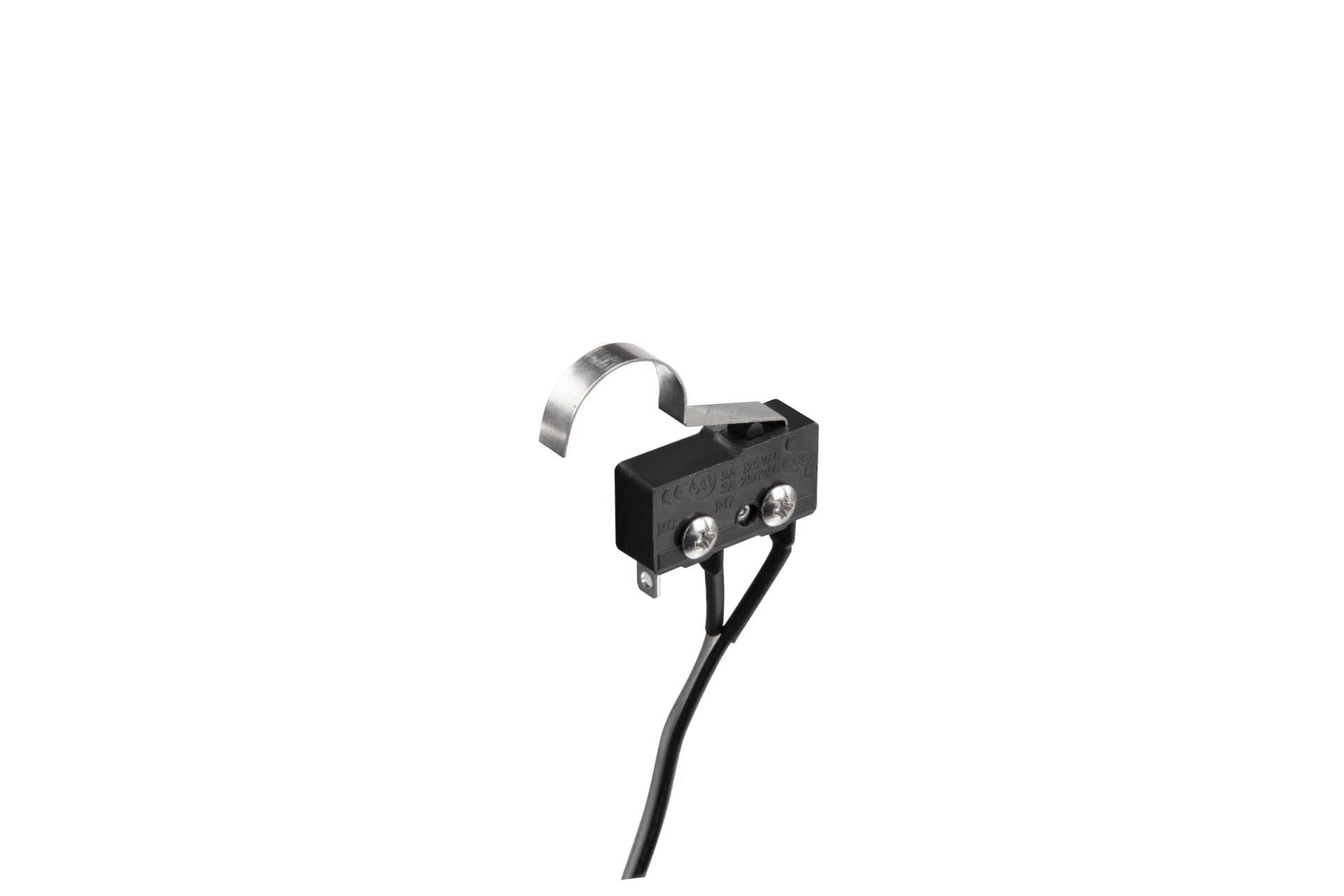

| Intrusion Switch | 3RAMRW011300 | Intrusion switch / 800mm | 1 |
|
| Intrusion Switch | 3RAMRW053600 | Intrusion switch / 220mm | 1 |
|
