server system assembly
IW-MS08-A

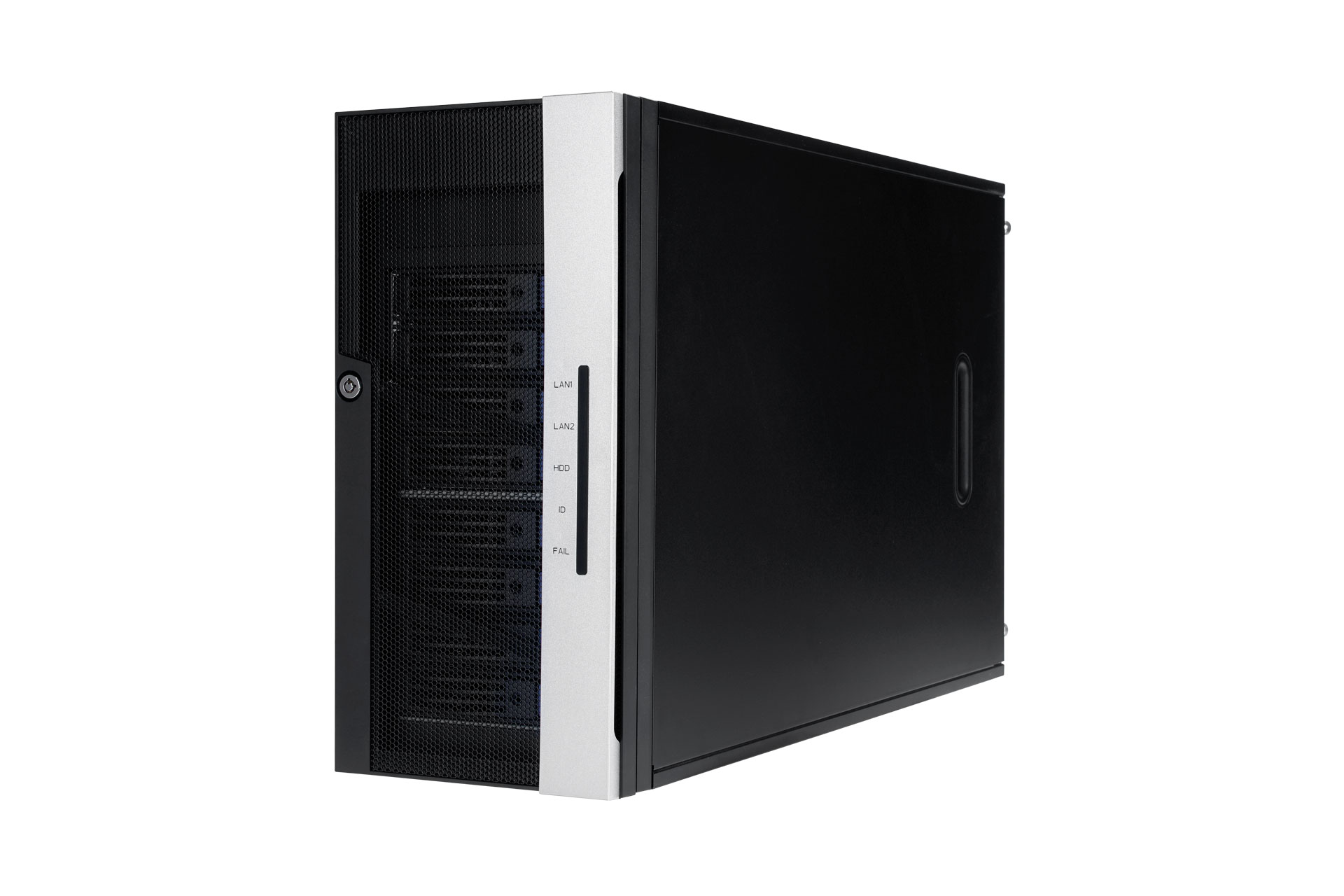

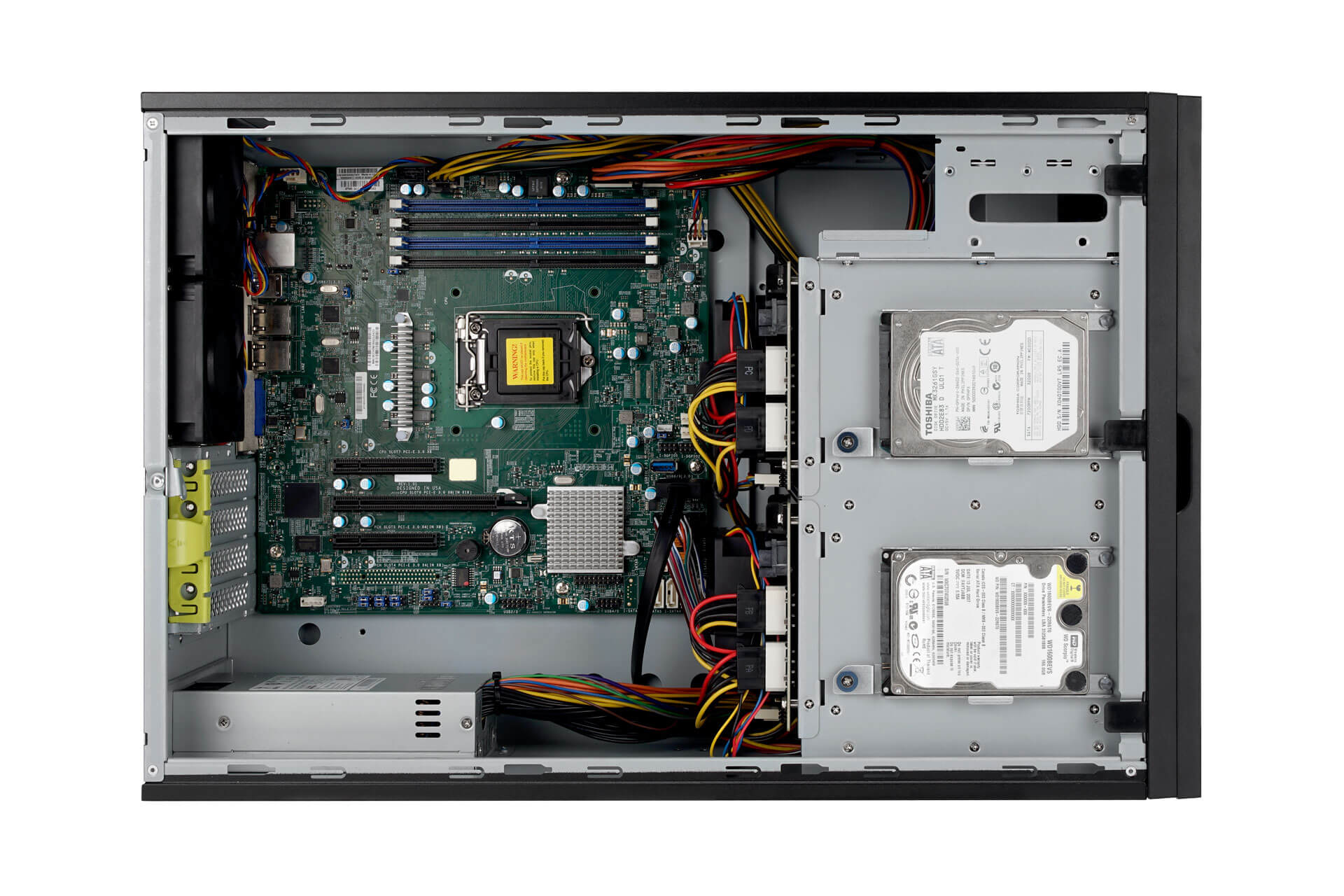

8-Bay Mini Server Tower
．Compatible with the micro-ATX and mini-ITX motherboard

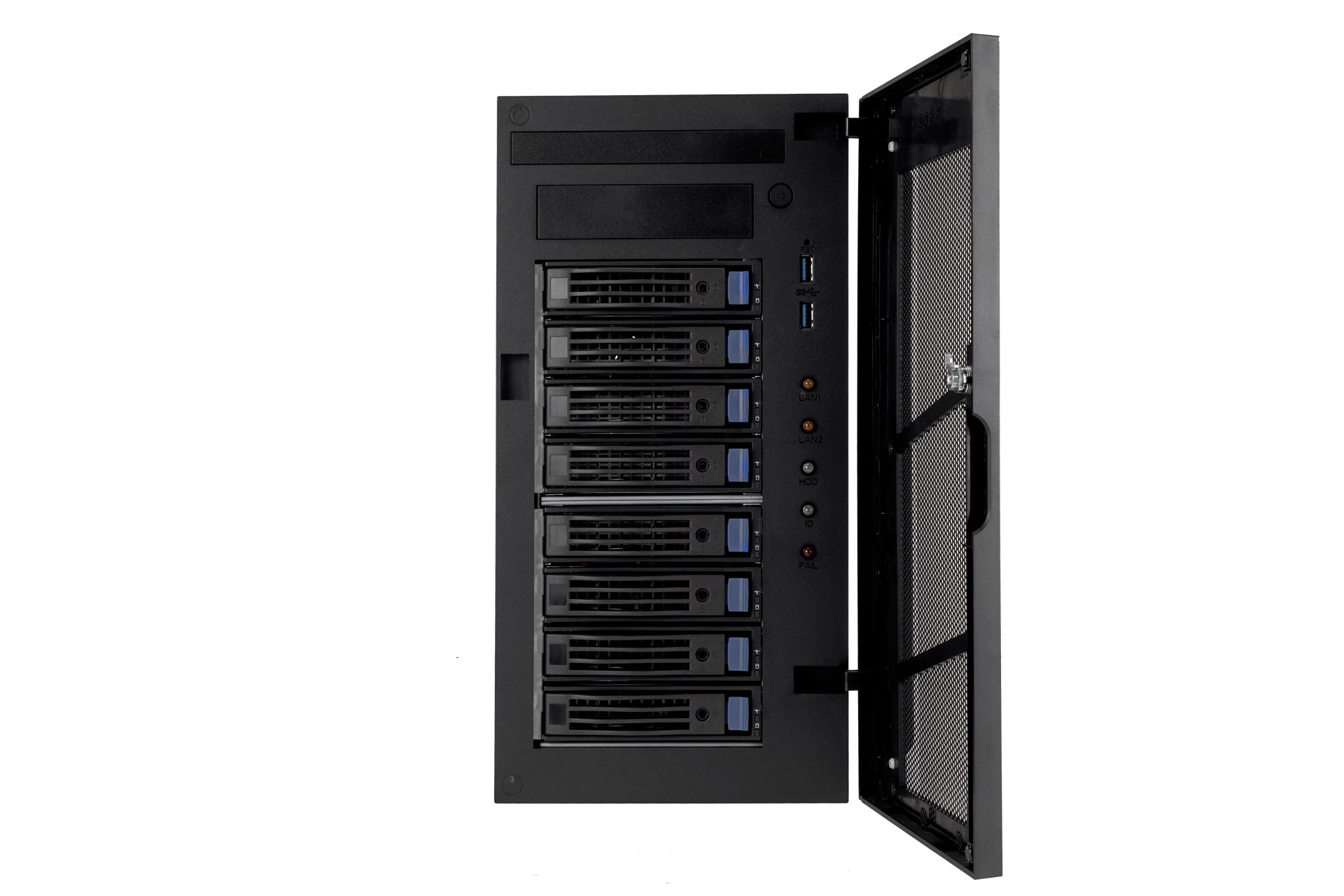

．Supports maximum 10 x 2.5" hot-swap SSD drives (including 2 x 2.5" internal HDD)
．File server and NAS devices usage
．Supports 4 x full-height PCIe slots
．High-efficiency 80 Plus Gold level redundant power supplies
．Supports maximum 4 x 80mm fans for excellent thermal performance
．Supports magnetic lock in the front bezel for hardware security
| Specification | |
|---|---|
| M/B Form Factor | Micro-ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7") |

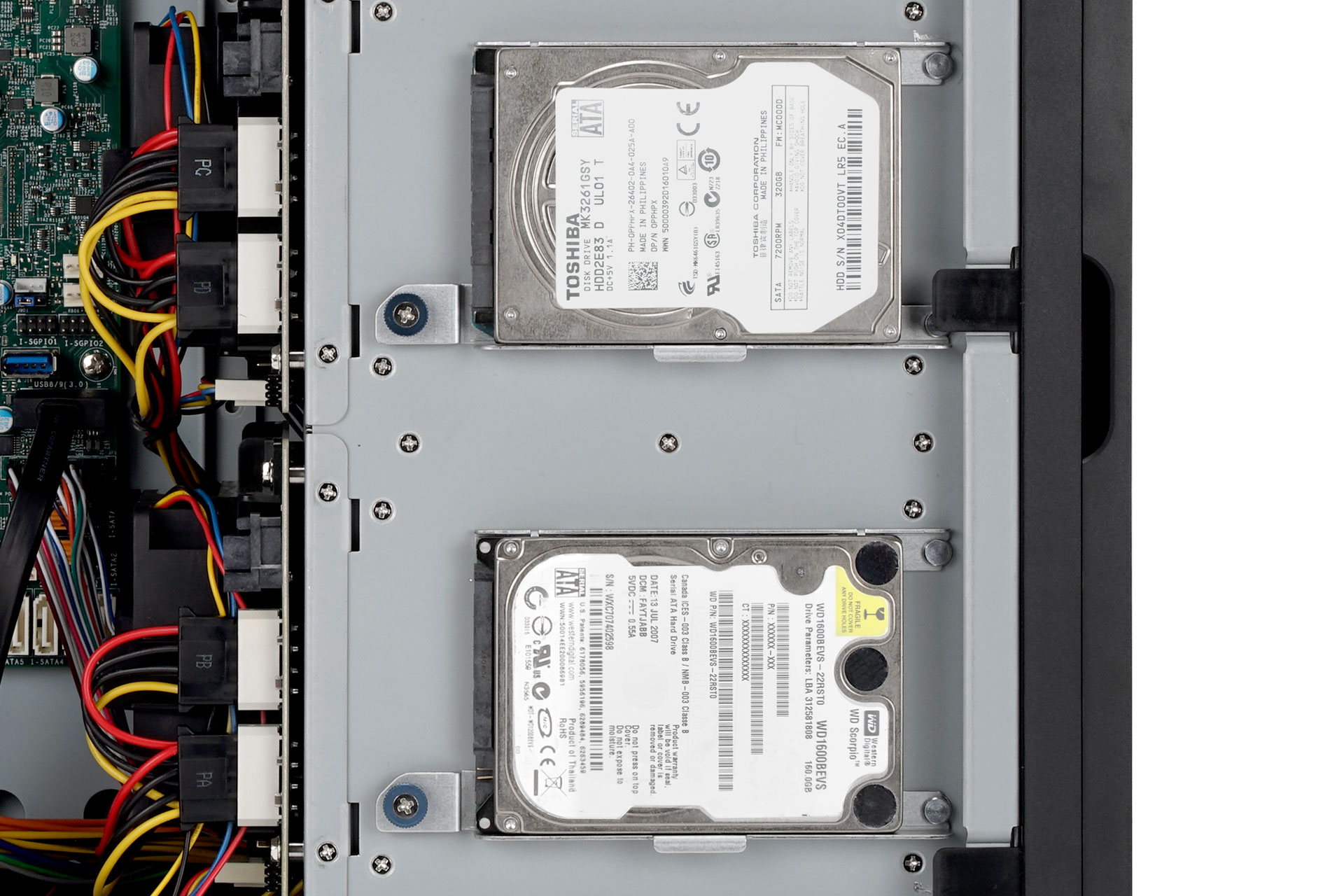

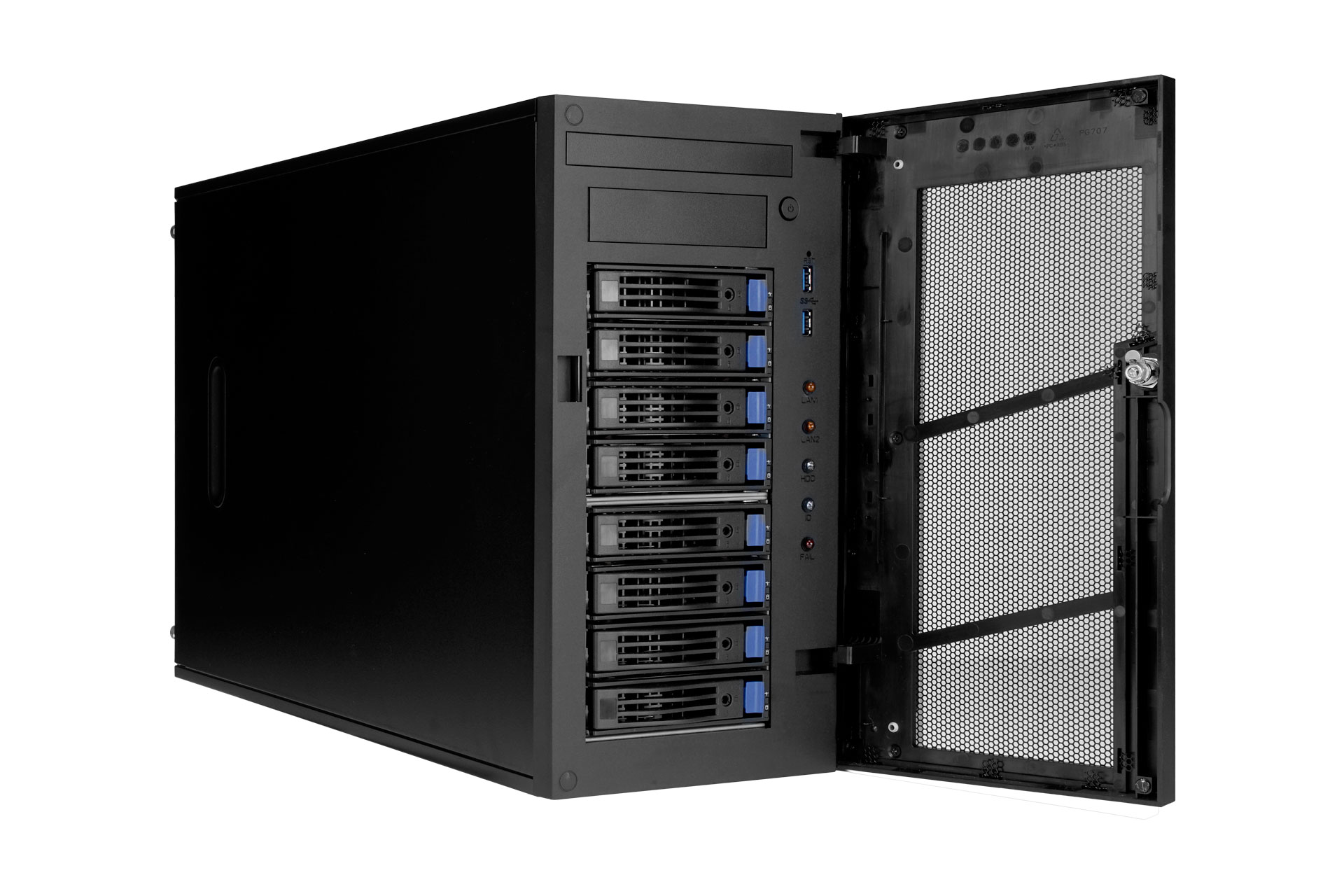

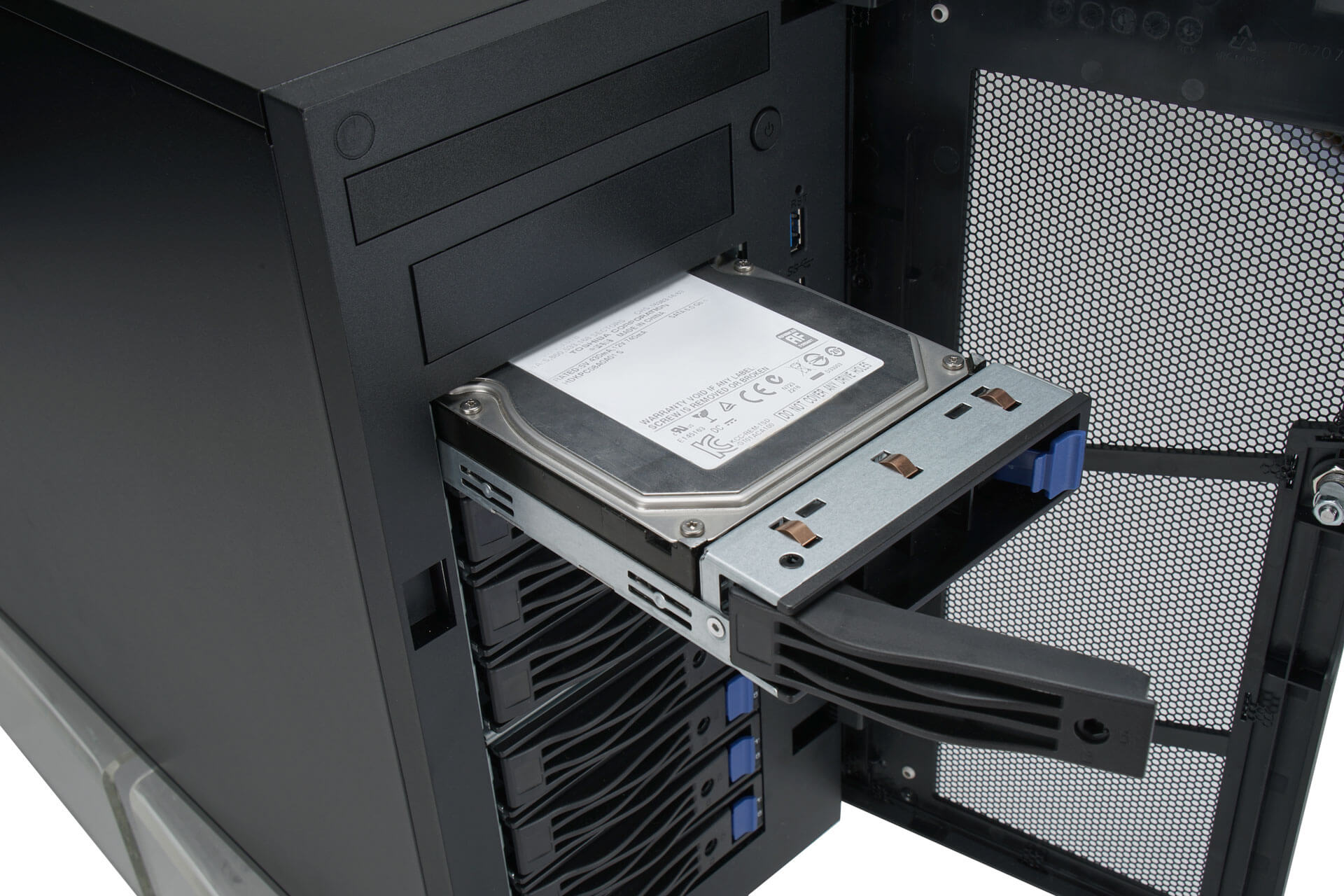

| Drive Bay | Supports: • External: Slim ODD x 1, 2.5"/3.5" hot-swap drive bays x 8, 3.5" floppy drive x 1 • Internal: 2 x 2.5" drive bays or 3.5" HDD (require to remove 2.5" HDD x 2) |
| Power Supply | Supports: • 1U redundant PSU, 80 Plus Gold 300W • 1U single PSU, 80 Plus Gold 500W • 1U Flex PSU, 80 Plus Gold 315W |
| Indicators | Power LED, LAN1/LAN2/LED, System LED, ID LED, HDD LED |
| Front Control Panel | Power On/Off, Reset, USB3.0 x 2 |
| Backplane | Mini-SAS HD, SFF-8643 (12Gb/s x 2 without expander) |

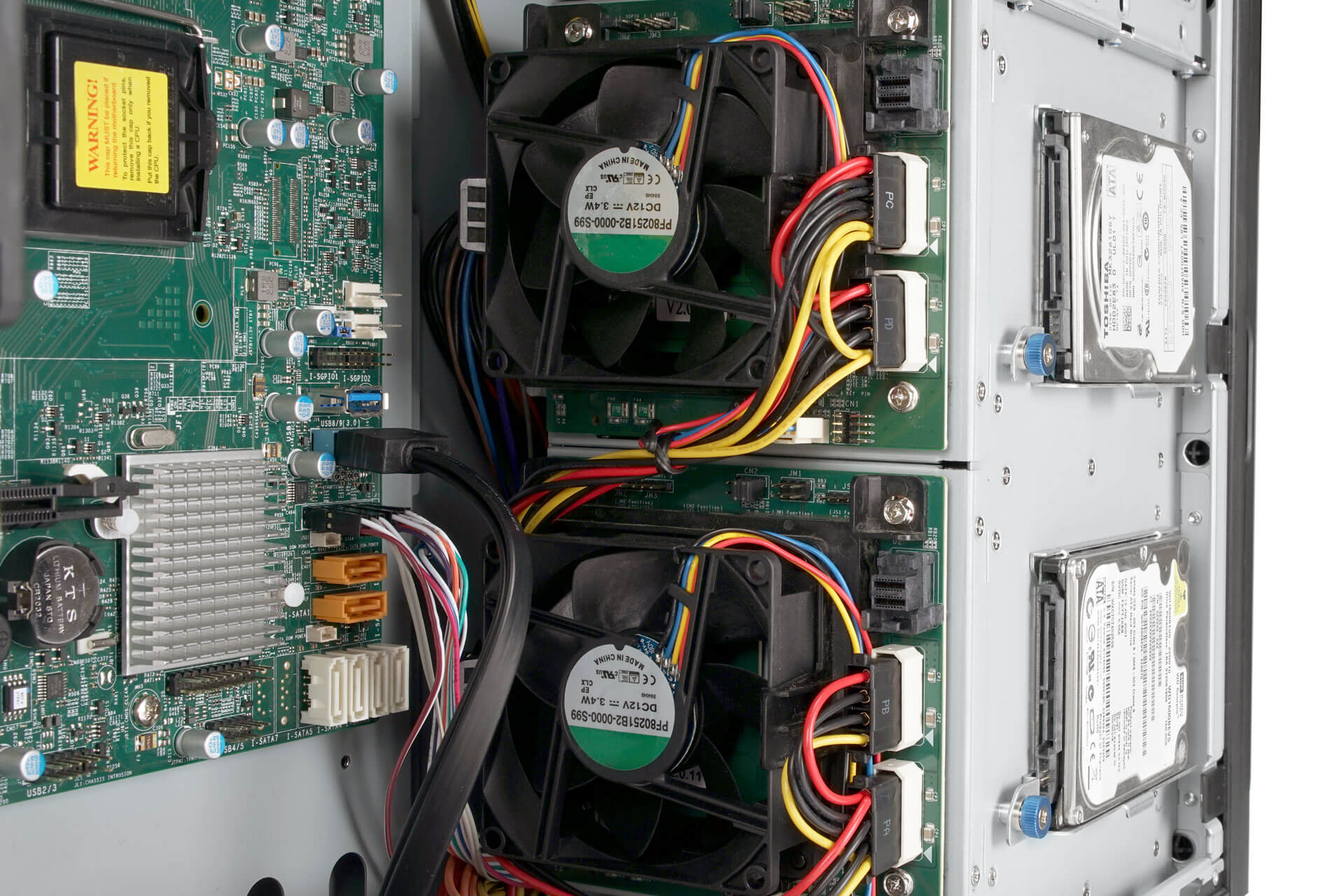

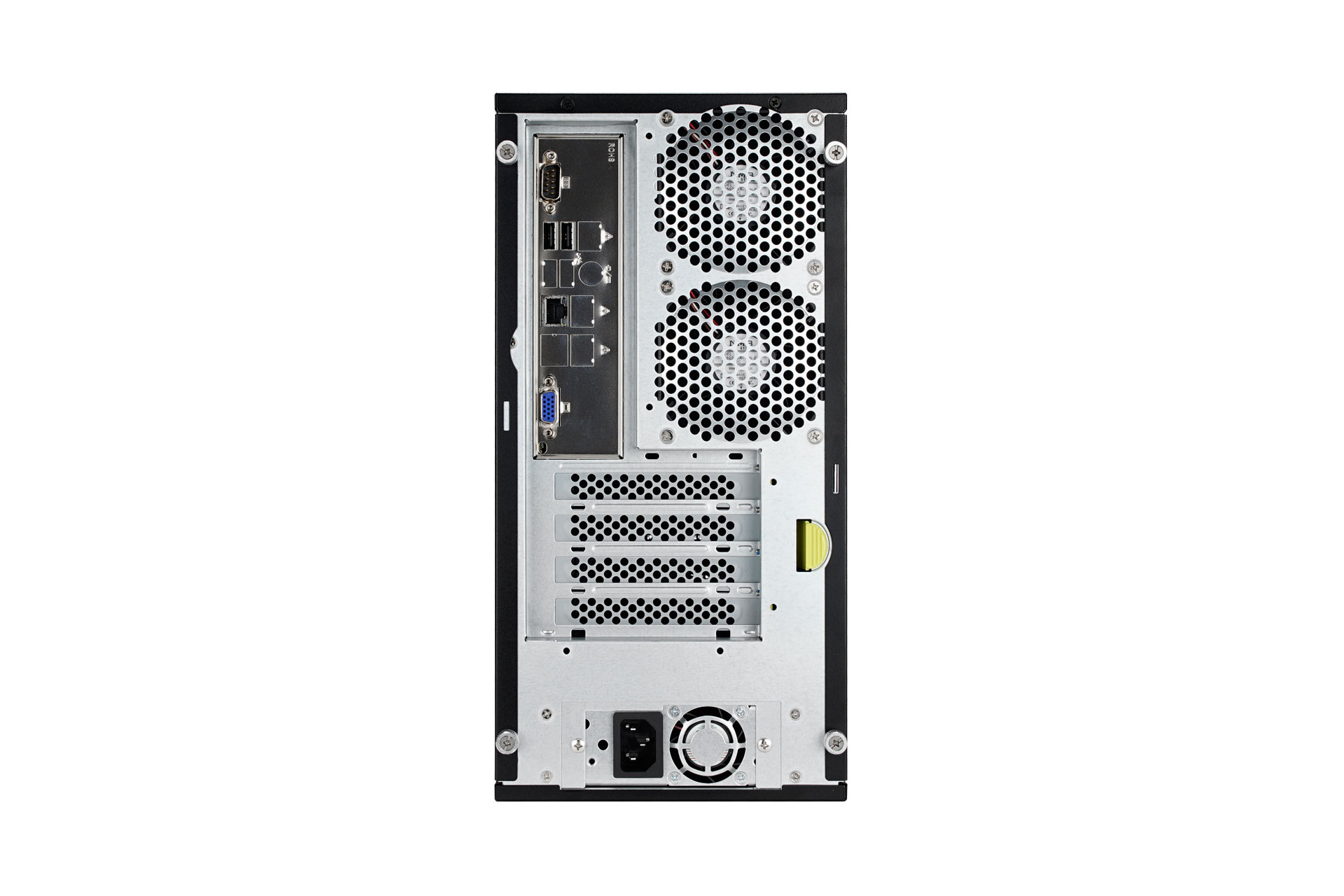

| Cooling Fans | Supports: • Middle: 80 x 25mm PWM fan x 2, 4500RPM • Rear: 80 x 25mm PWM fan x 2, 3800RPM |

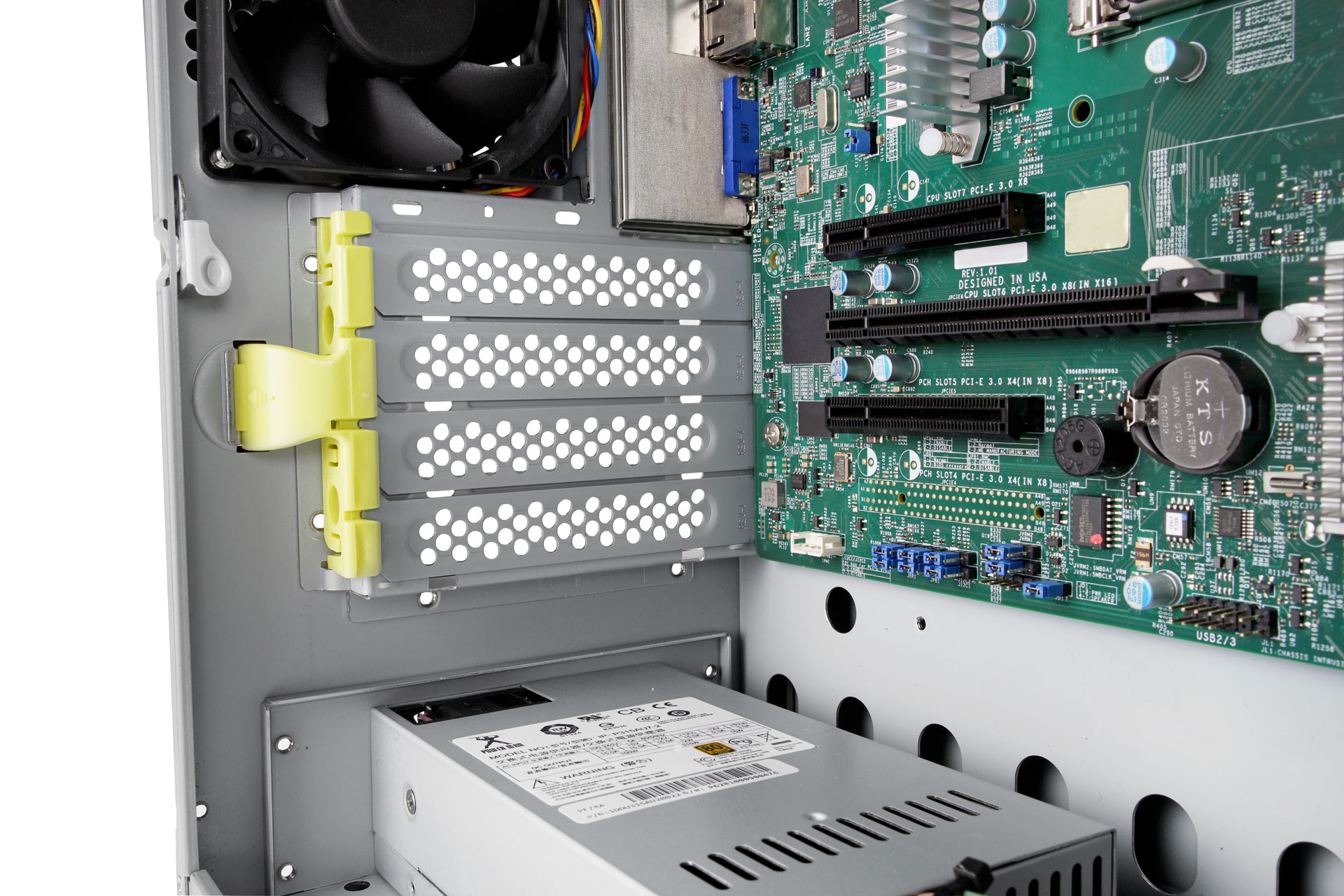

| Expansion Slot | Full-height PCIe slots x 4 |
| Material | • Material: SECC • Thickness: 1.0mm |
| Product Dimensions (DxWxH) | 480.3 x 169.95 x 339.95 (18.91” x 6.69” x 13.38”) |
| Package Dimensions (DxWxH) | 630 x 450 x 310mm |
| Weight | • Net weight: 10.08kg • Gross weight: 12.25kg |
| Cubic Feet | 3.1 |
| Container Information | Single packing with pallets: • 20': 240pcs • 40': 504pcs • 40' HQ: 588pcs |
12Gb/s Backplane Specifications
| Backplane | 3.5" HDD 4-bay backplane with SAS/SATA 4 port module |
| Dimension (W x H) | 111.5mm x 111.5mm |
| Backplane Type | Passive |
| Host Interface | SFF-8643 x 2 |
| HDD Interface | SAS/SATA 3.5" x 8 |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|

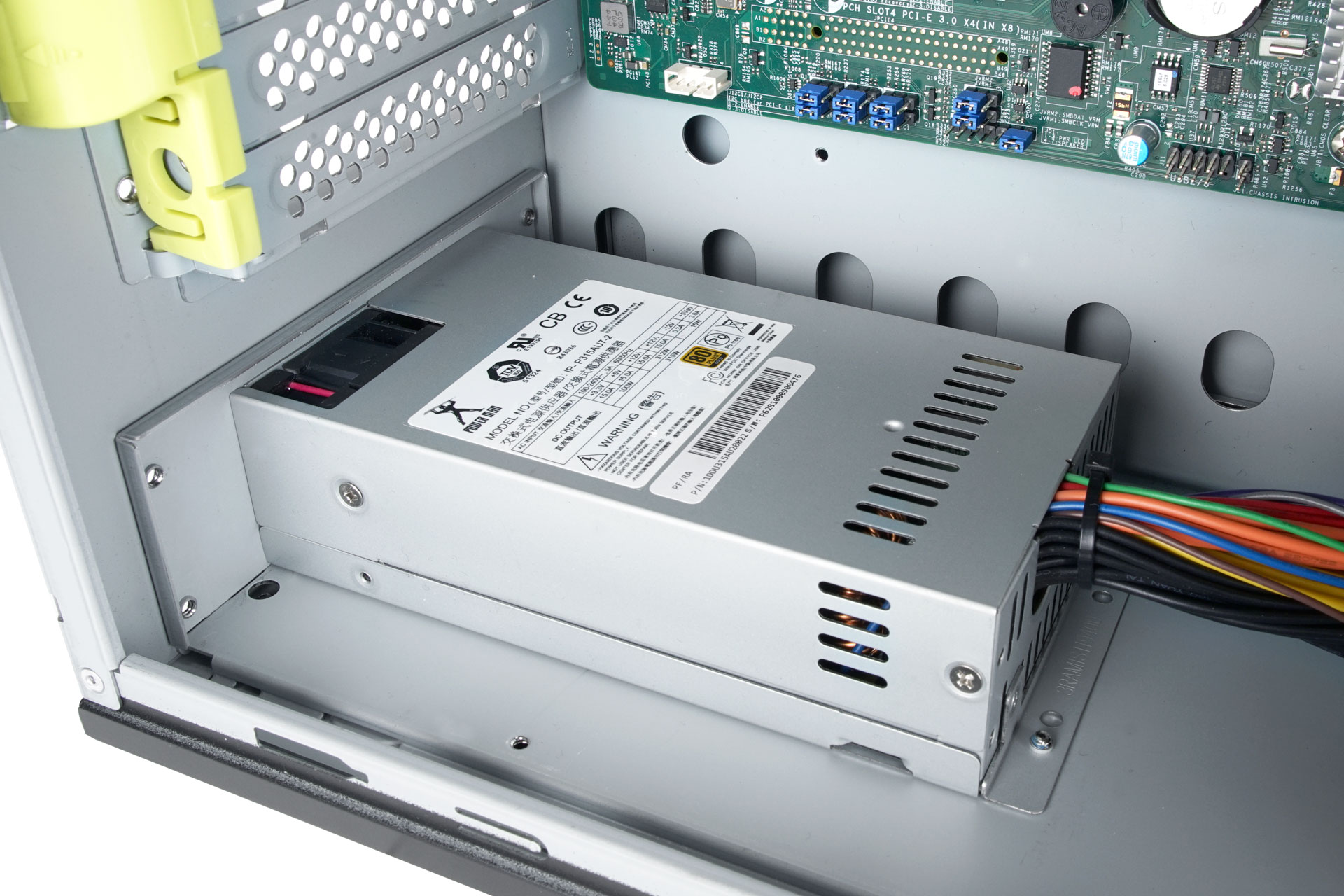

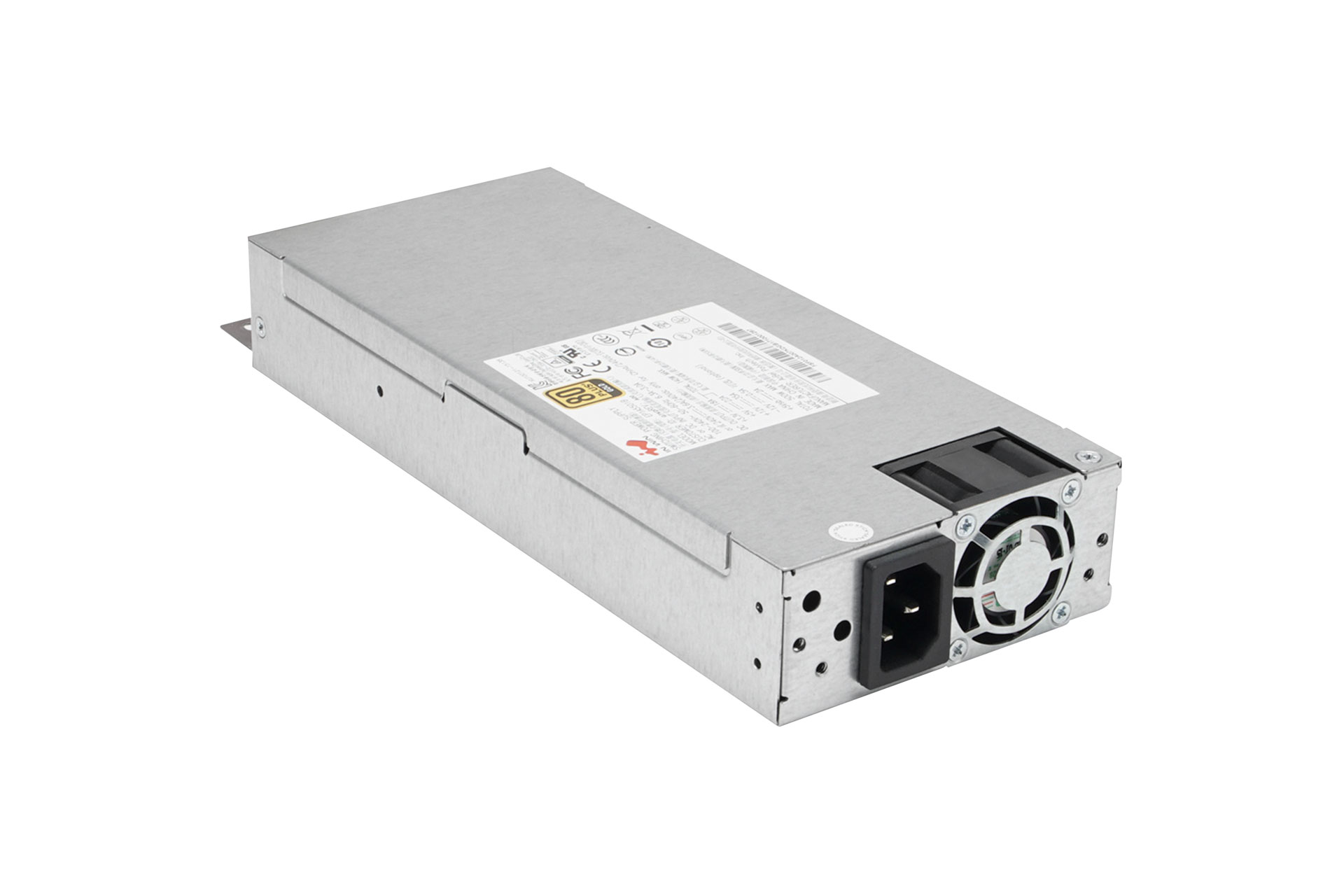

| POWER SUPPLY | 3RAMAP028900 | EP1A5501B 1U Single PSU, 80 Plus Gold 500W | 1 |
|

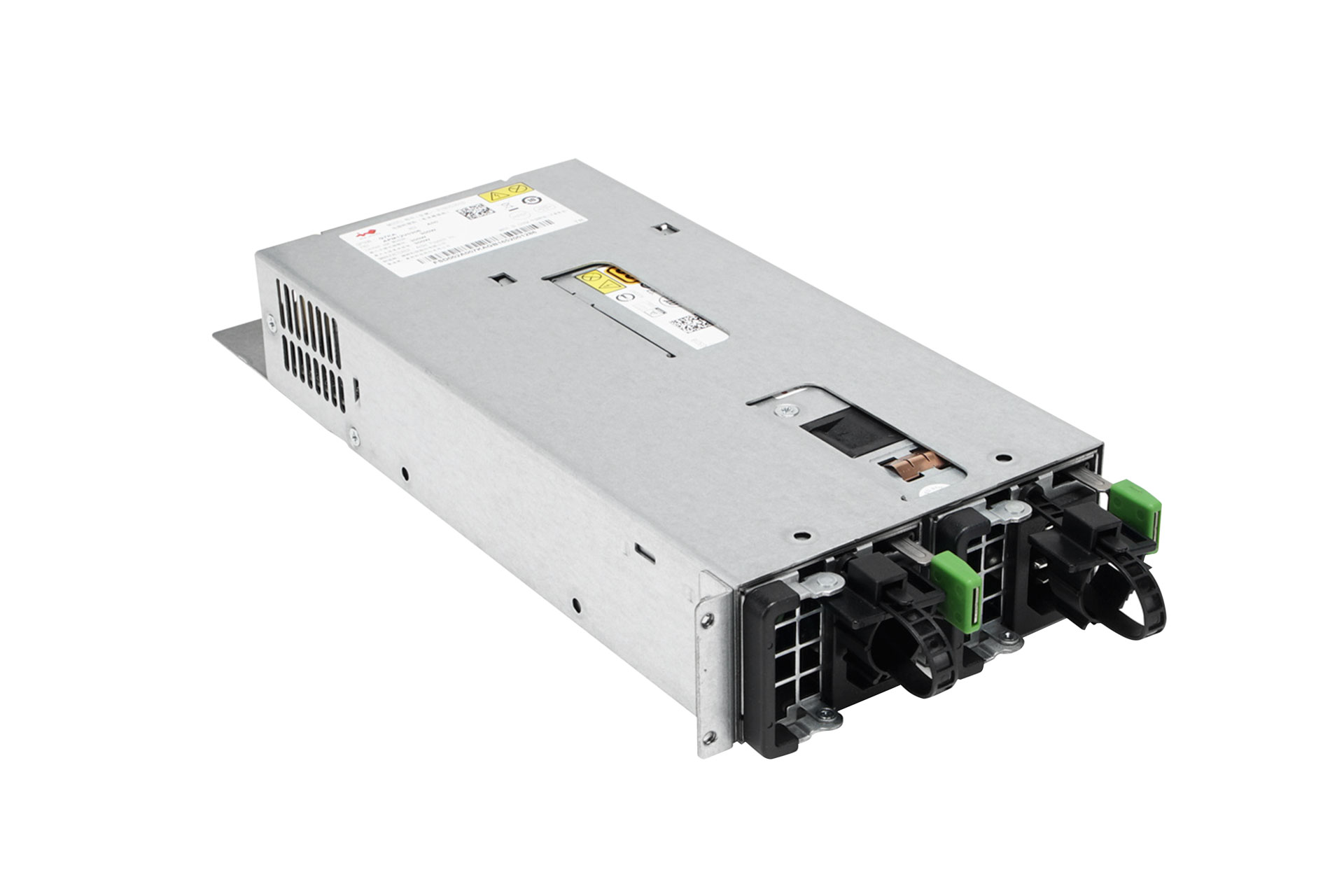

| POWER SUPPLY | 2RAKAP002700 | R1BU5301B-G 1U redundant module, 80 Plus Gold 300W ASSY | 1 |
|

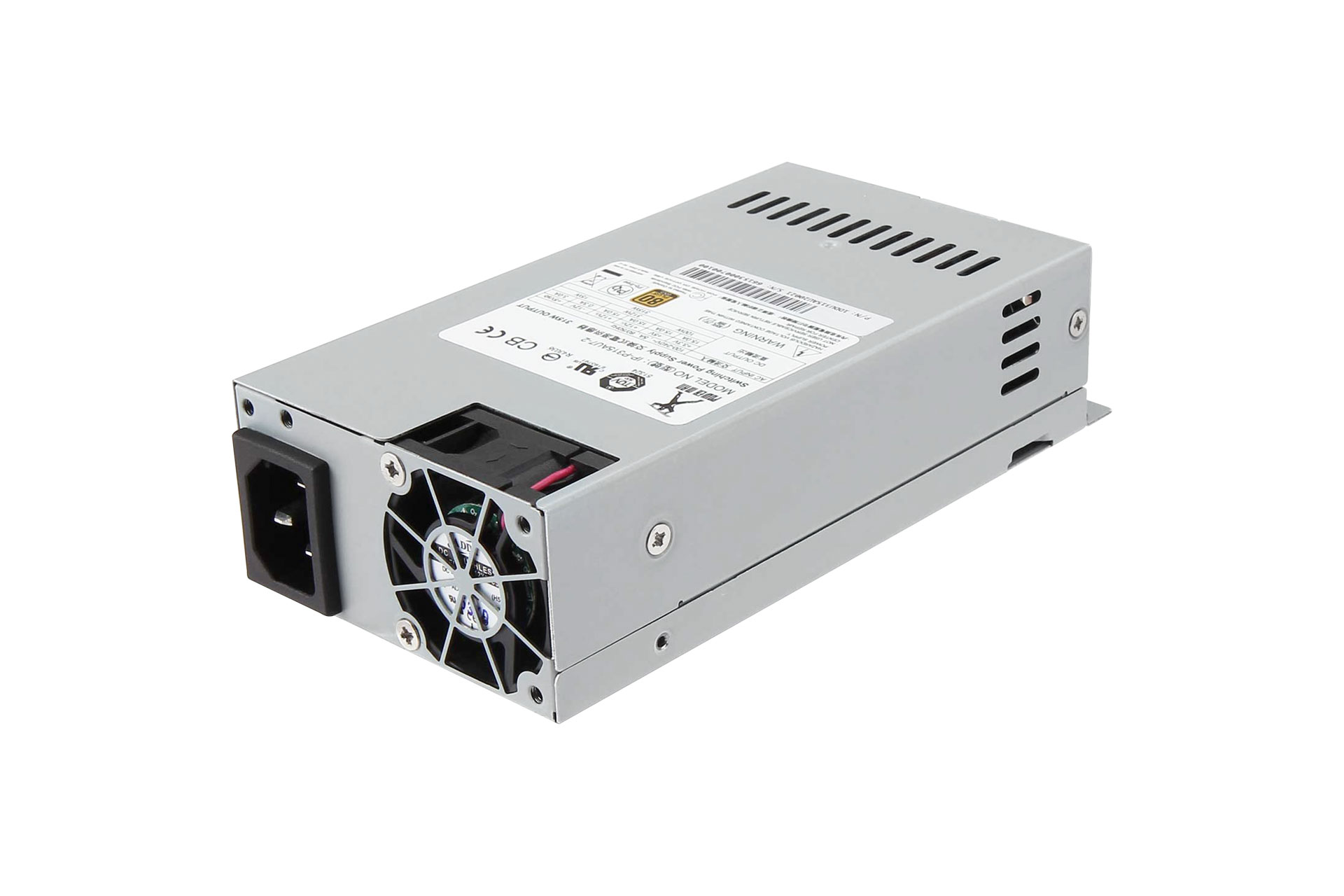

| POWER SUPPLY | 1DDU315AU20071 | IP-P315AU7-2 1U Flex PSU, 80 Plus Gold 315W | 1 |
|
