IW-MS08I
8 Bays Storage Mini-ITX Server
．Mini tower with 8 x hot-swappable 3.5” SAS/SATA HDD bays & internal 2.5” HDD x 2
．Platform suited for servers with short depth requirements
．Either as edge compute servers or as dedicated hosting nodes
．Home NAS/SMB storage server
| Specification | |
|---|---|
| M/B Form Factor | Mini-ITX (6.7" x 6.7") |
| Drive Bay | • External: Supports 3.5" hot-swap HDD tray x 8 • Internal 2.5" HDD (7mm) x 2 |
| Power Supply | Supports: 1U 315W Flex ATX PSU |
| Indicators | Power LED, LAN1/LAN2 LED, Fail LED, HDD LED, ID LED |
| Front Control Panel | Power on/off, Reset, USB3.0 x 2 |
| Backplane | • Host: SFF-8643 x 1 for SAS protocol • HDD: SFF-8482 x 4 (for SAS / SATA device) |
| Cooling Fans | • 80 x 25mm PWM fan x 1, 8025mm fan x 2 for backplane • Modular design with anti-vibration |
| Expansion Slot | Full-height PCI slot x 1 |
| Material | • Material: SECC • Thickness: 1.0mm |
| Product Dimensions (DxWxH) | 430 x 170 x 280mm (16.9" x 6.7" x 11") |
12Gb/s Backplane Specifications
| Backplane-1 | Slimline backplane |
| Dimension (W x H) | 111.5mm x 111.5mm |
| Backplane Type | Passive |
| Host Interface | SFF-8643 x 1 for SAS protocol |
| HDD Interface | SFF-8482 x 4 (for SAS / SATA device) |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.

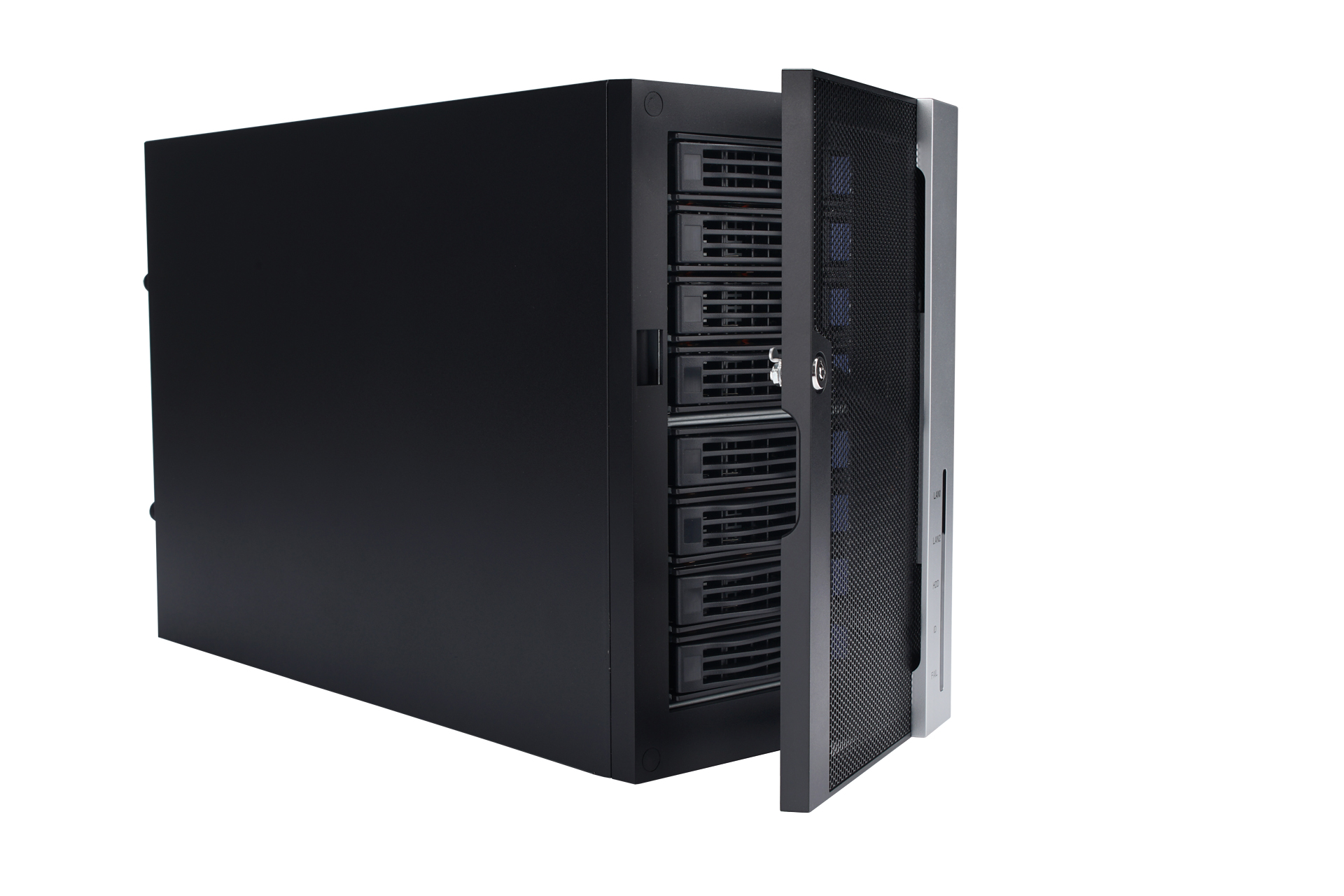

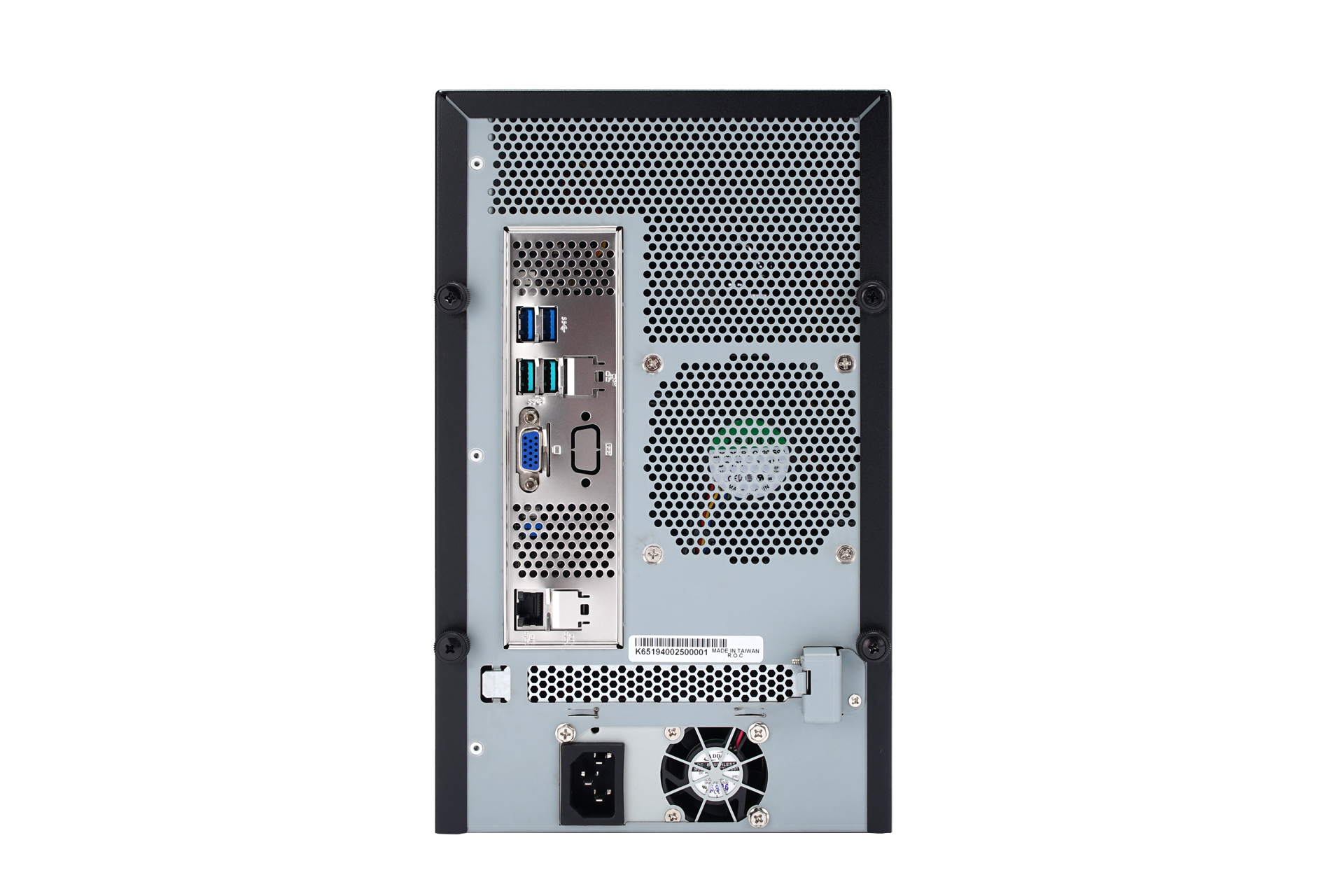

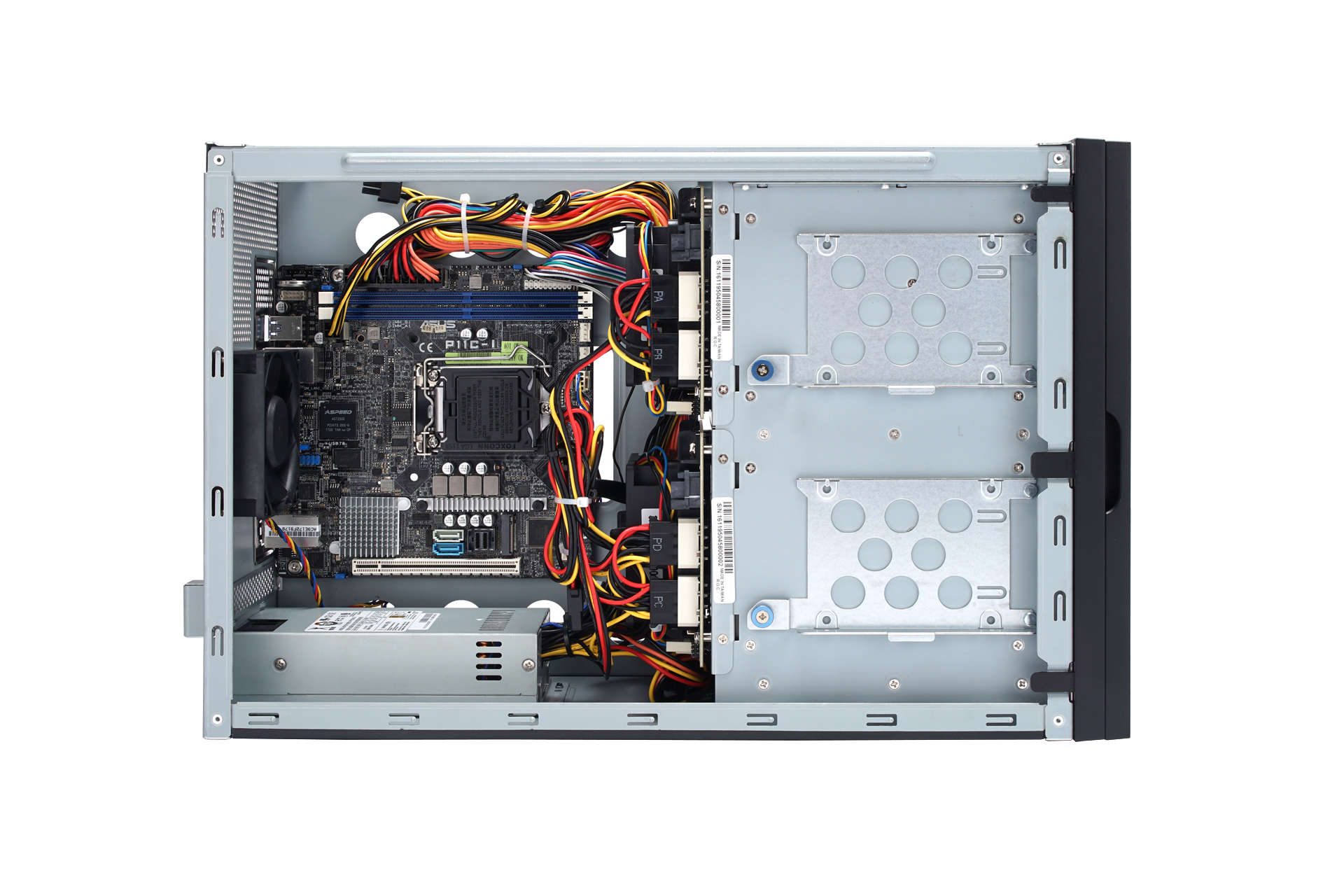

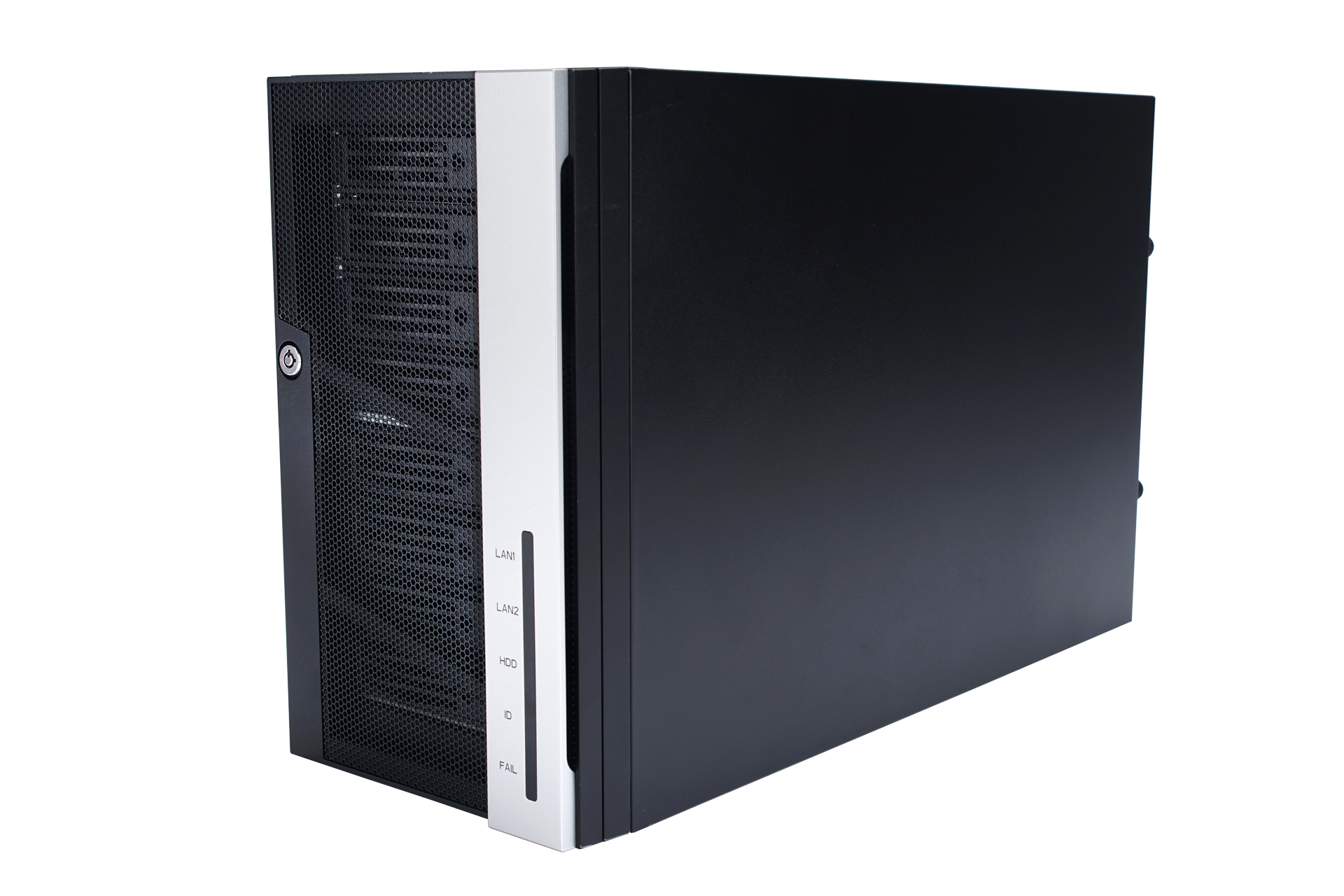

* The above image is for reference only. All hardware components and optional parts are not included.
