IW-SK23-02

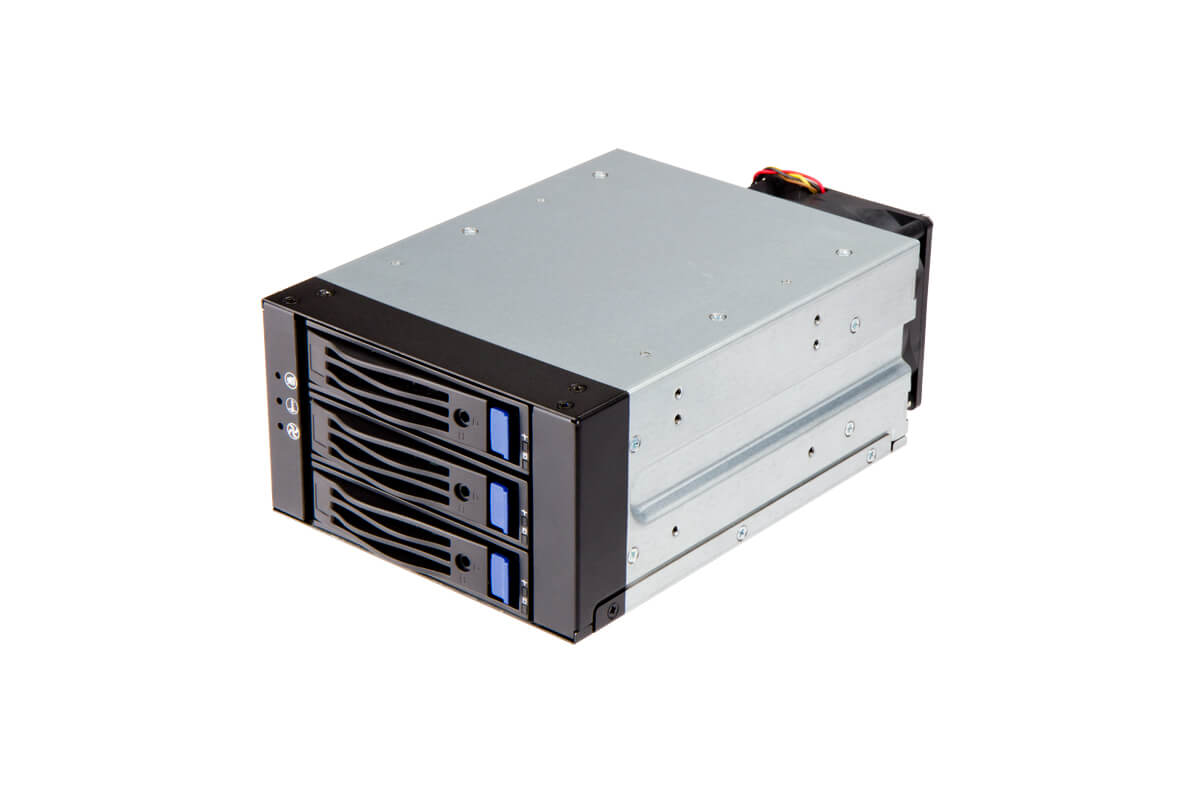

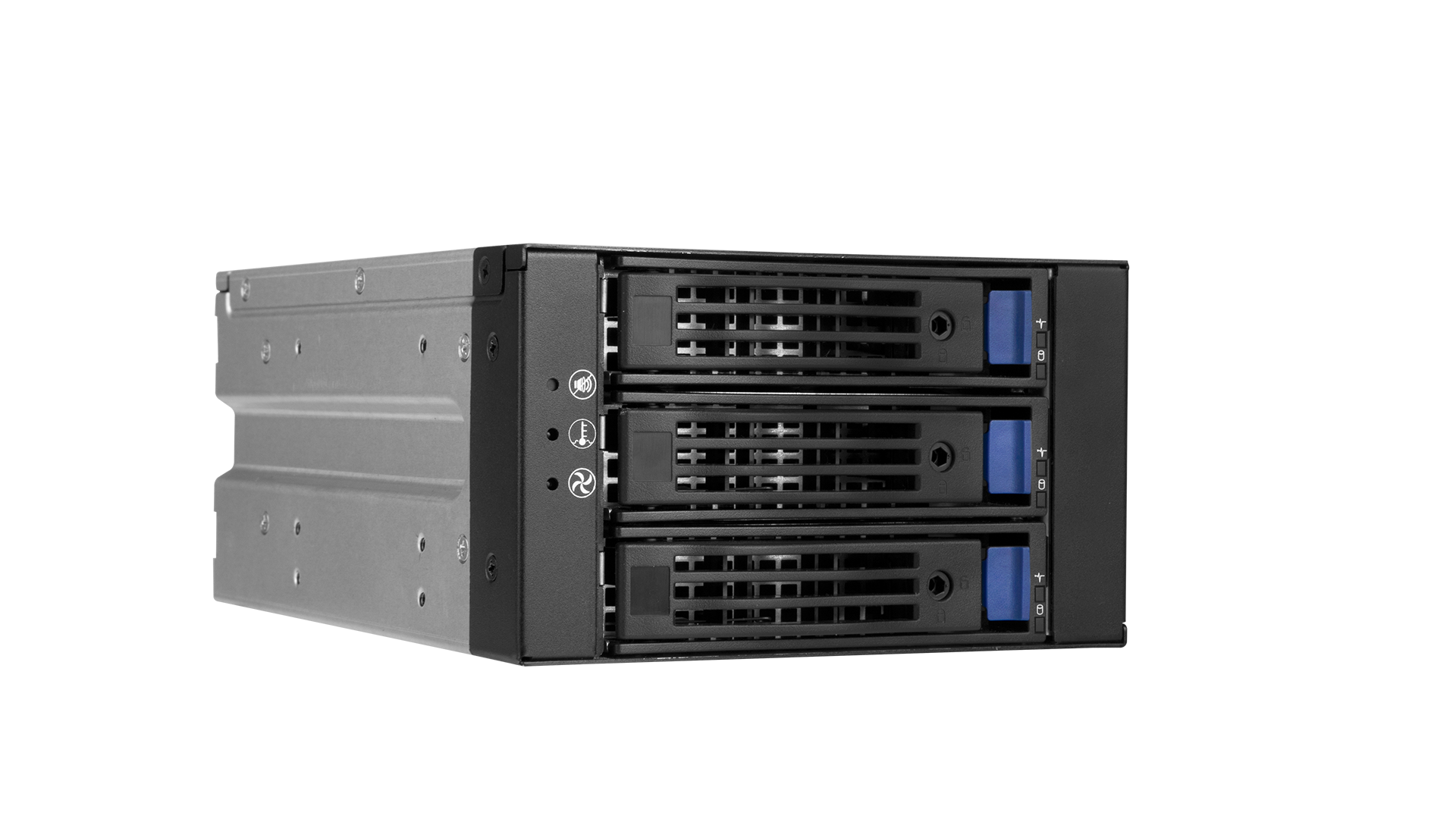

2-in-3 SAS/SATA III Storage Kit

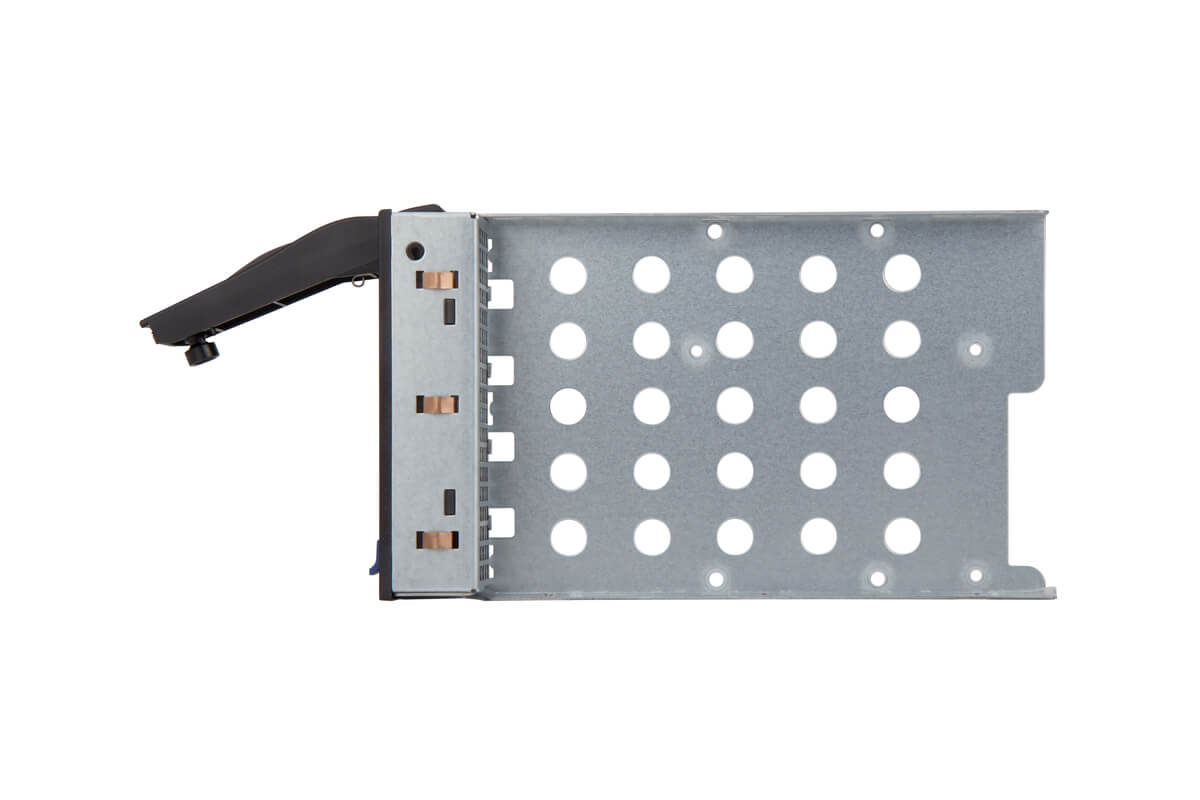

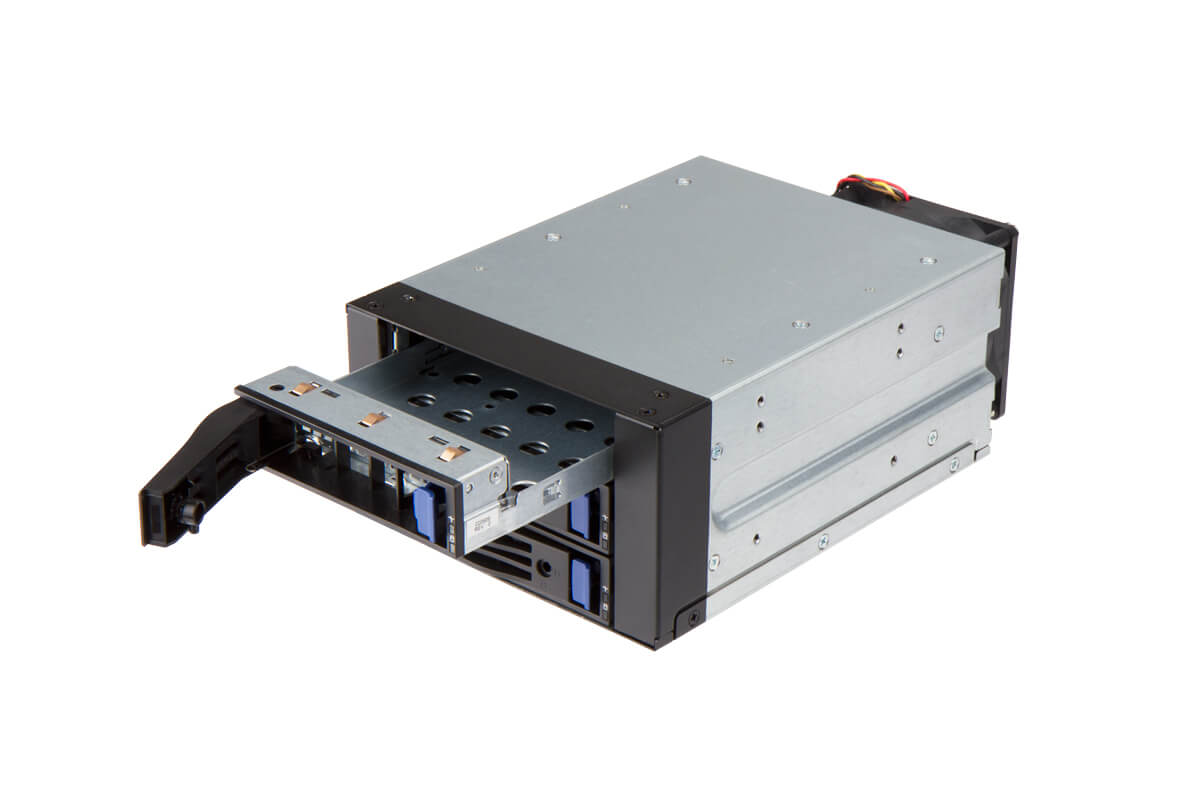

．2.5"/3.5" Hot-Swap HDD x 3 Convert to 5.25" Drive Bay x 2
．ardware Monitoring
．Support SAS / SATA III HDD
．Designed as standard mounting hole for converting 5.25" drive bay

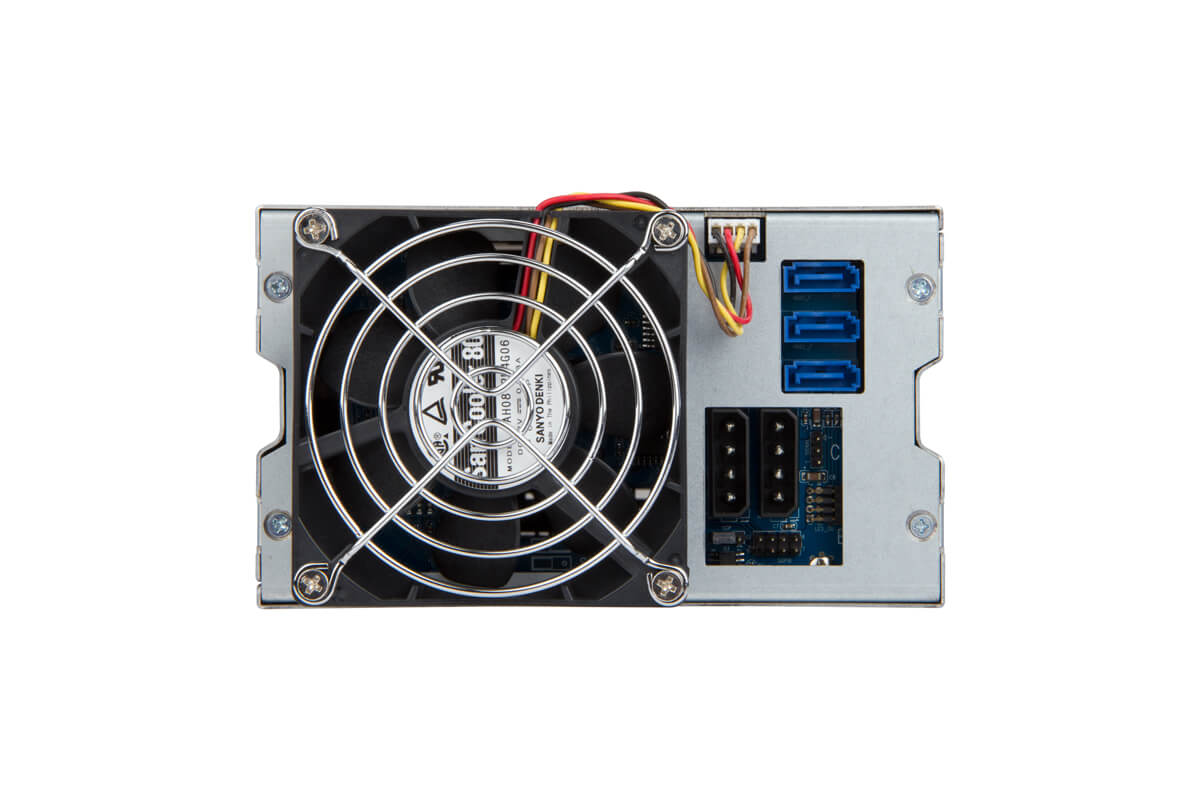

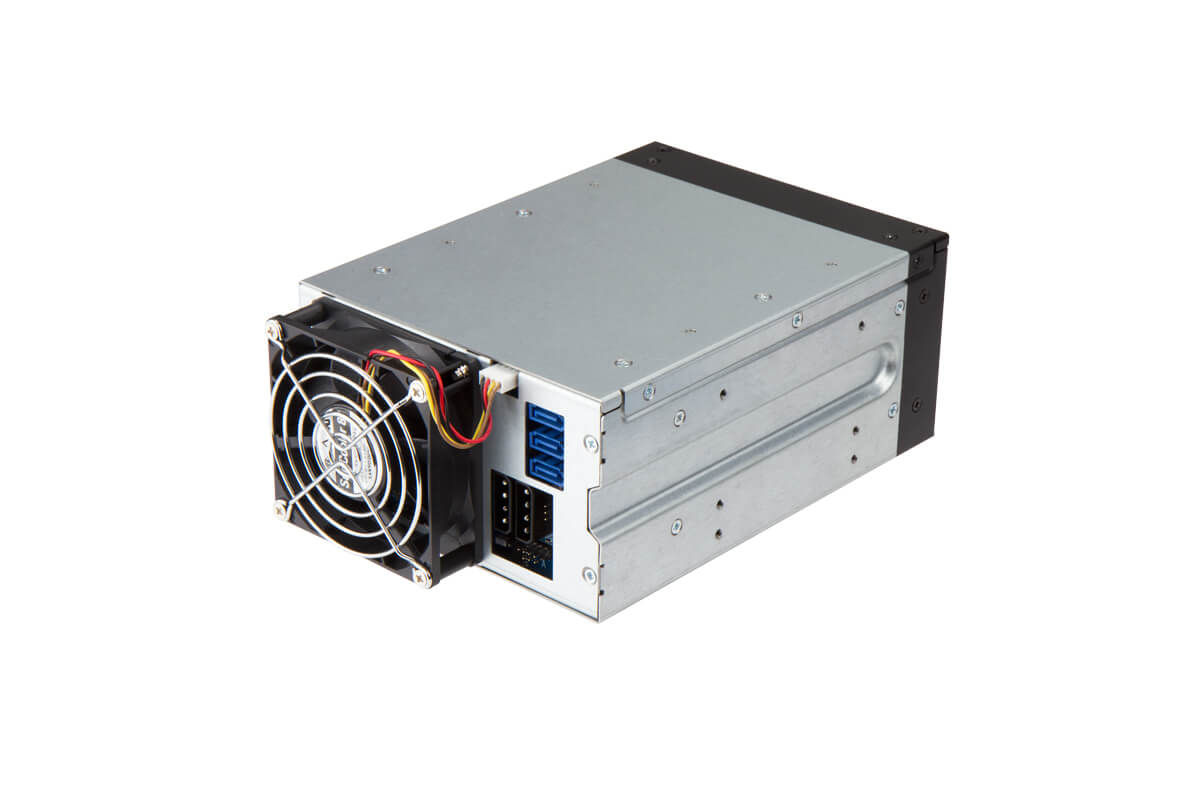

．Detachable 80mm PWM Rear Cooling Fan
| Specification | |
|---|---|

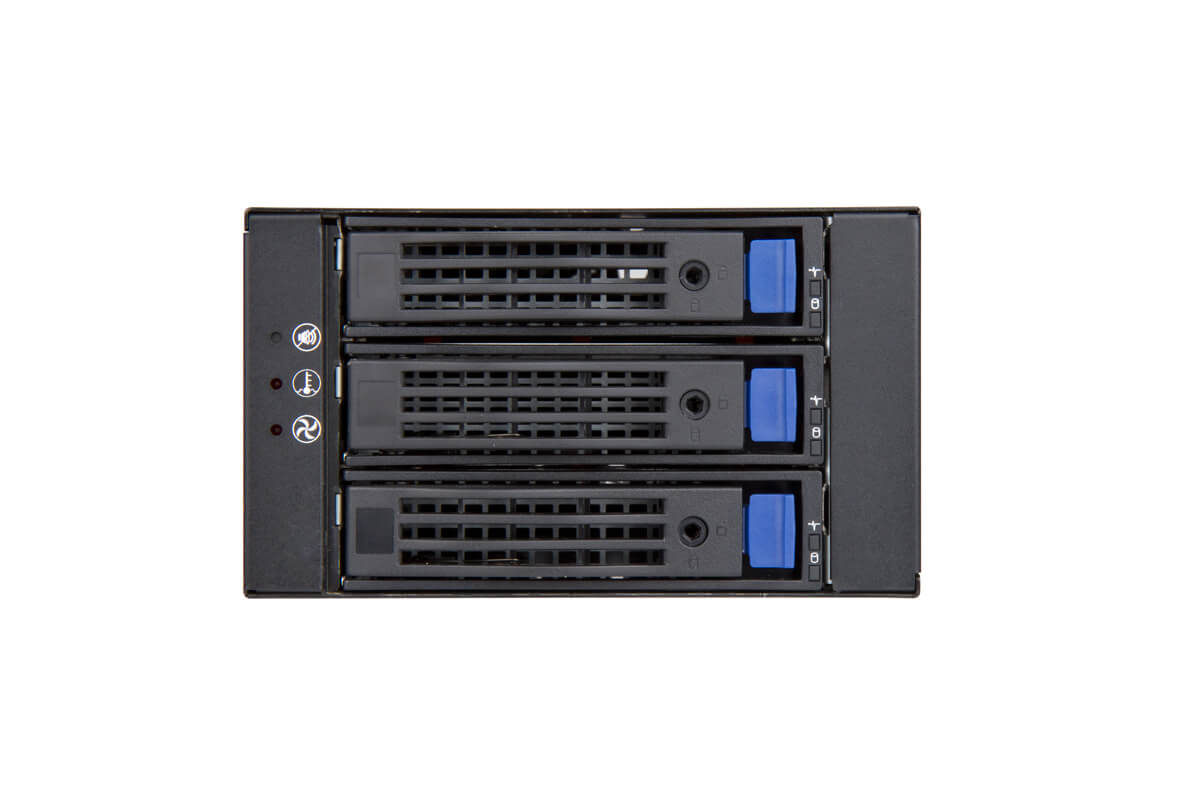

| Indicators | Fan Failure, Temperature Failure |
| Front Control Panel | Alarm Mute |
| Backplane | Input:SATA III / SAS HDD , Output:SATA port x 3 ,SGPIO port |
| Data Transfer Rate | 6Gb/s |
| Cooling Fans | 80mm PWM Rear Fan x 1 |
| Temperature | 0°C (32°F) ~ 50°C (122°F) |
| Humidity | 5% ~ 95% non-condensing |
| Product Dimensions (DxWxH; Chassis Only) | 197 x 146 x 84.8mm (7.8" x 5.7" x 3.3") |
| Package Dimensions (DxWxH) | 158 x 315 x 226mm |
| Weight | • Net Weight: 1.7kg • Gross Weight: 2.1kg |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.

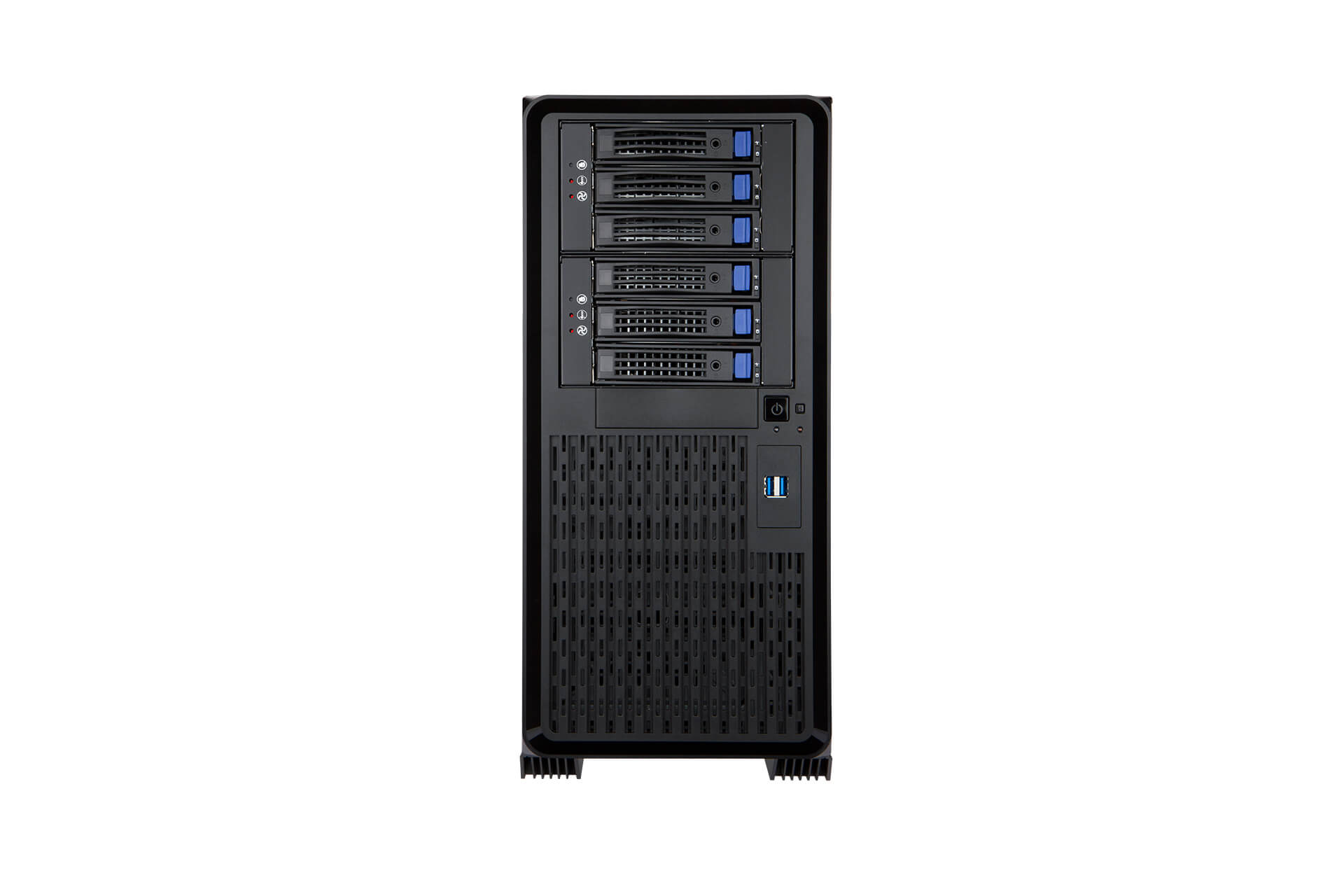

* The above image is for reference only. All hardware components and optional parts are not included.
