IW-SK34-09

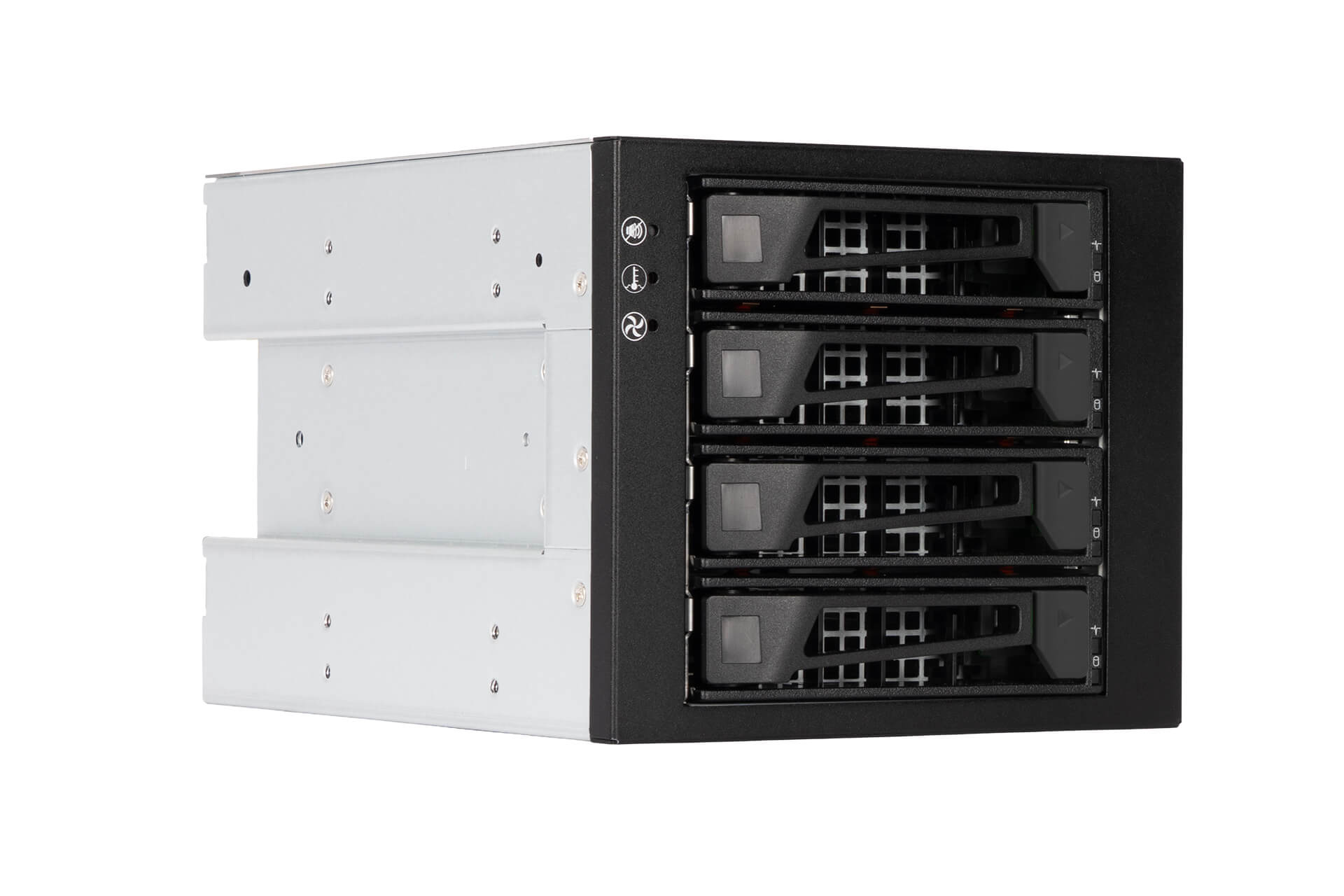

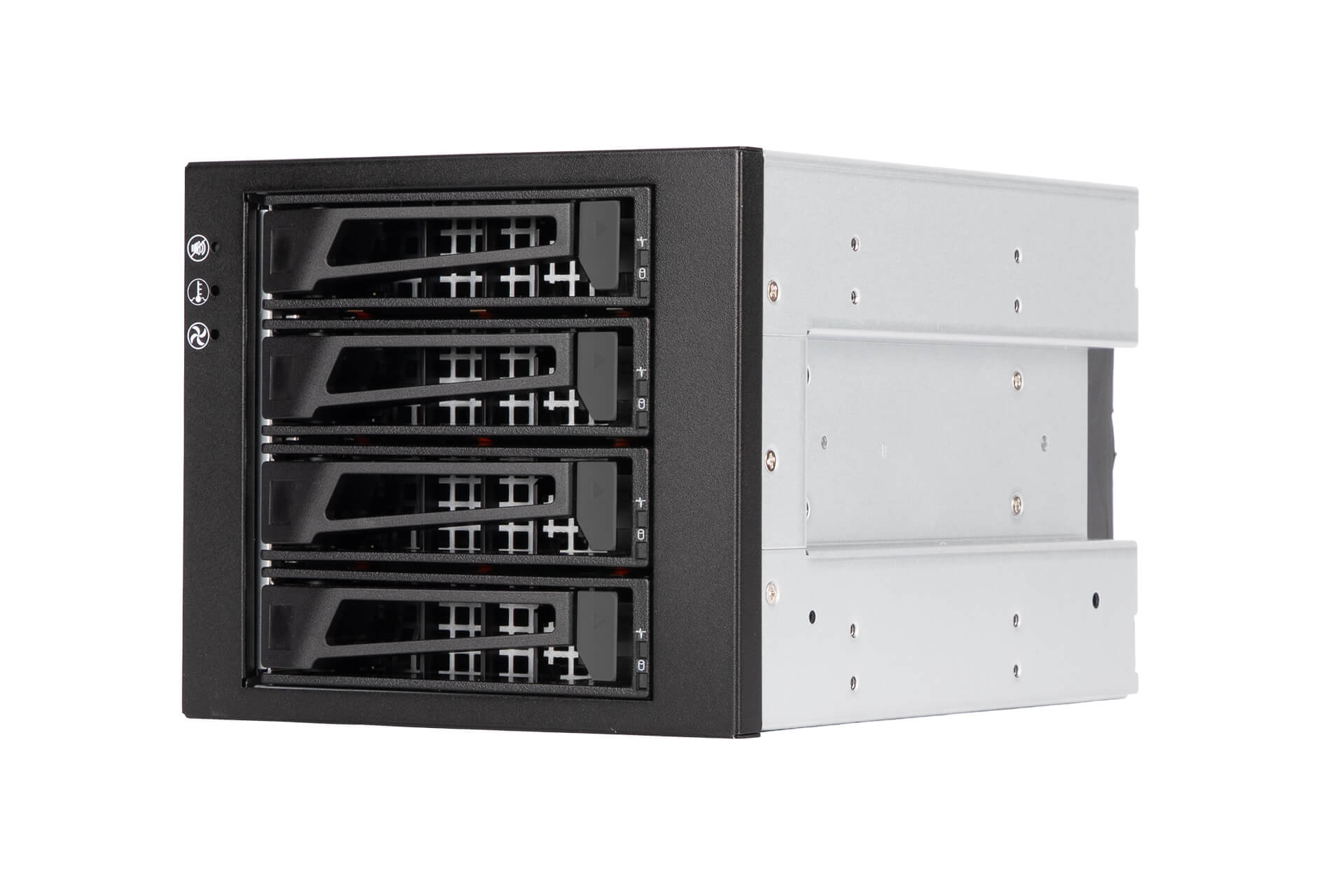

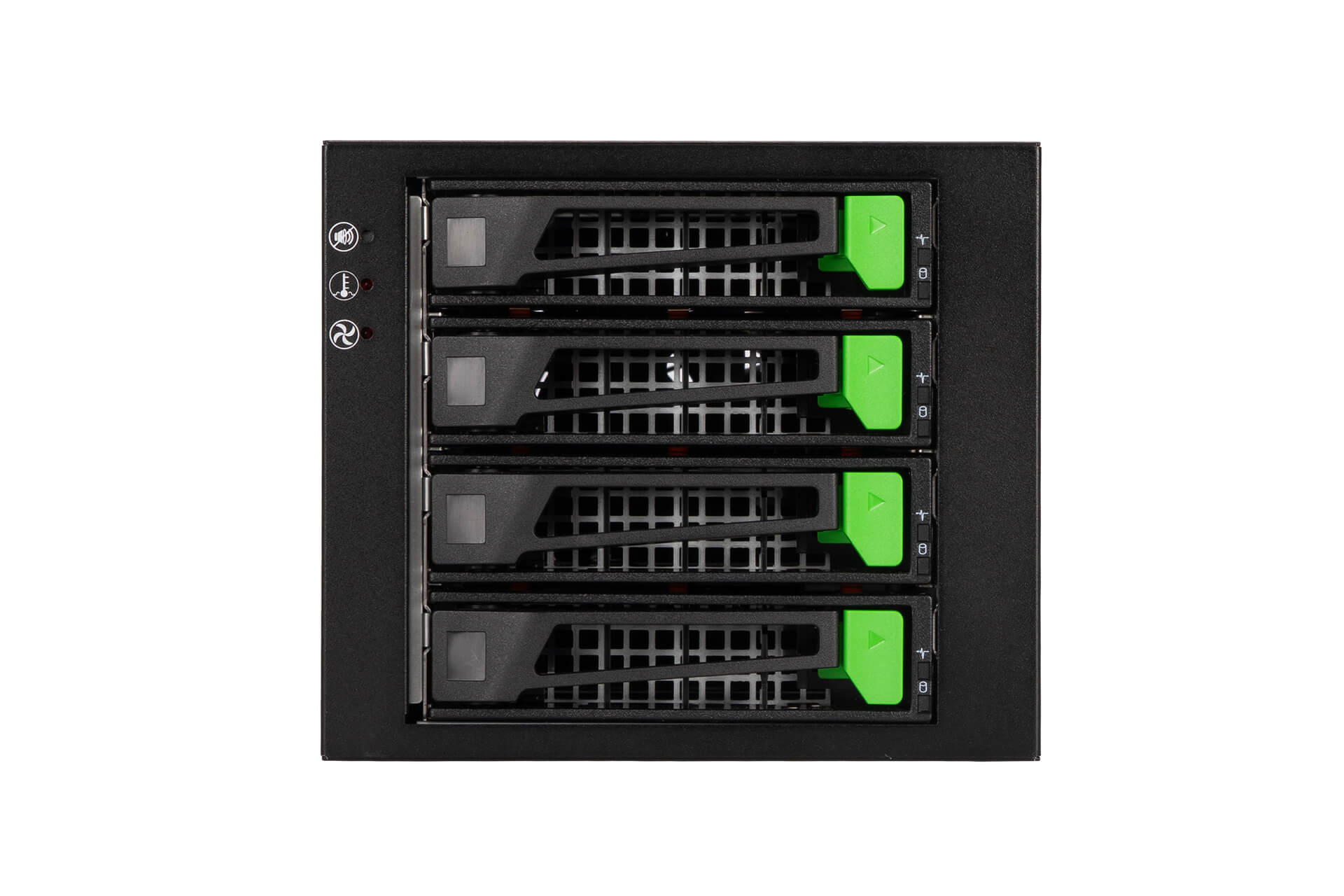

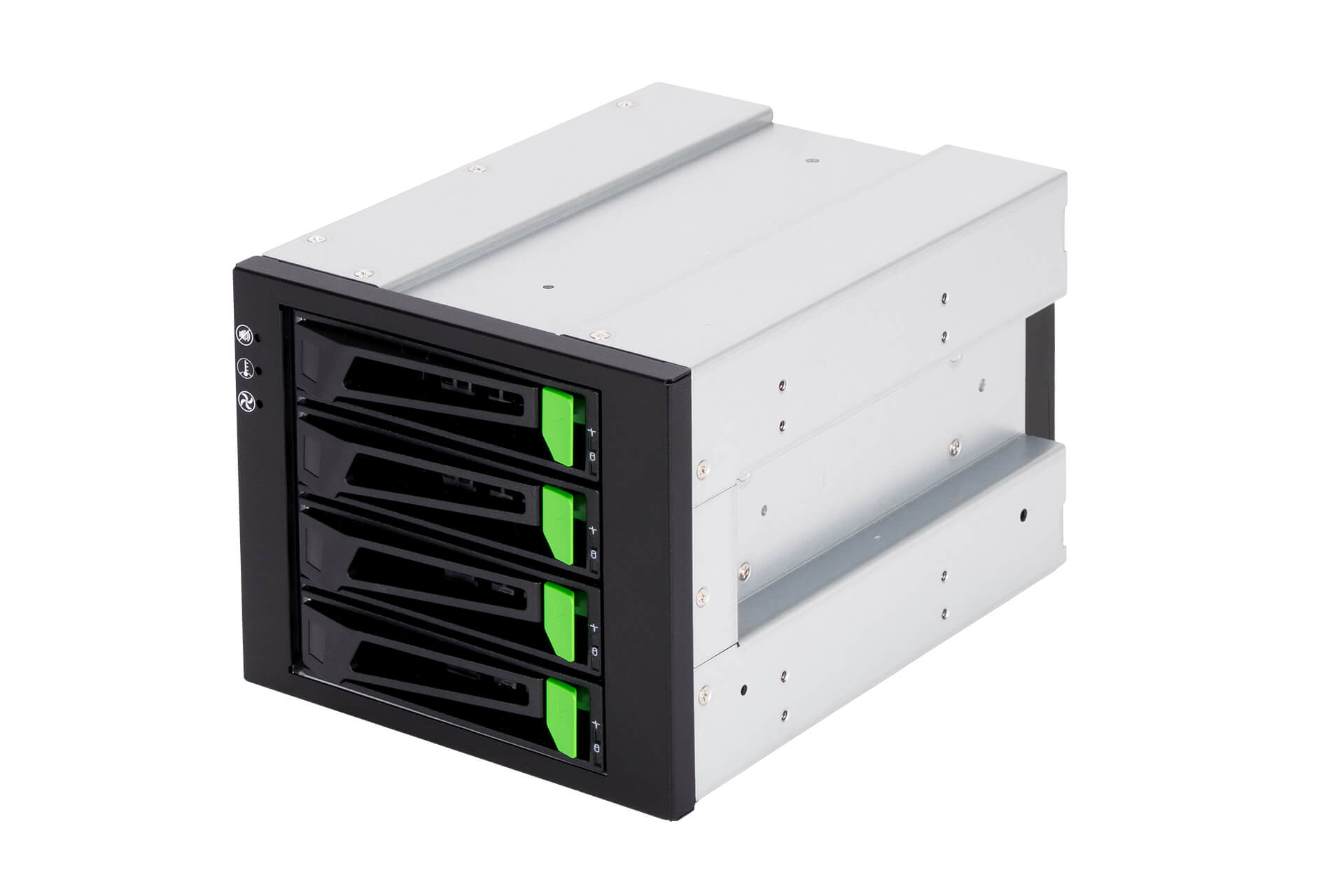

3-in-4 PCIe Gen5 NVMe/SAS4 Storage Kit

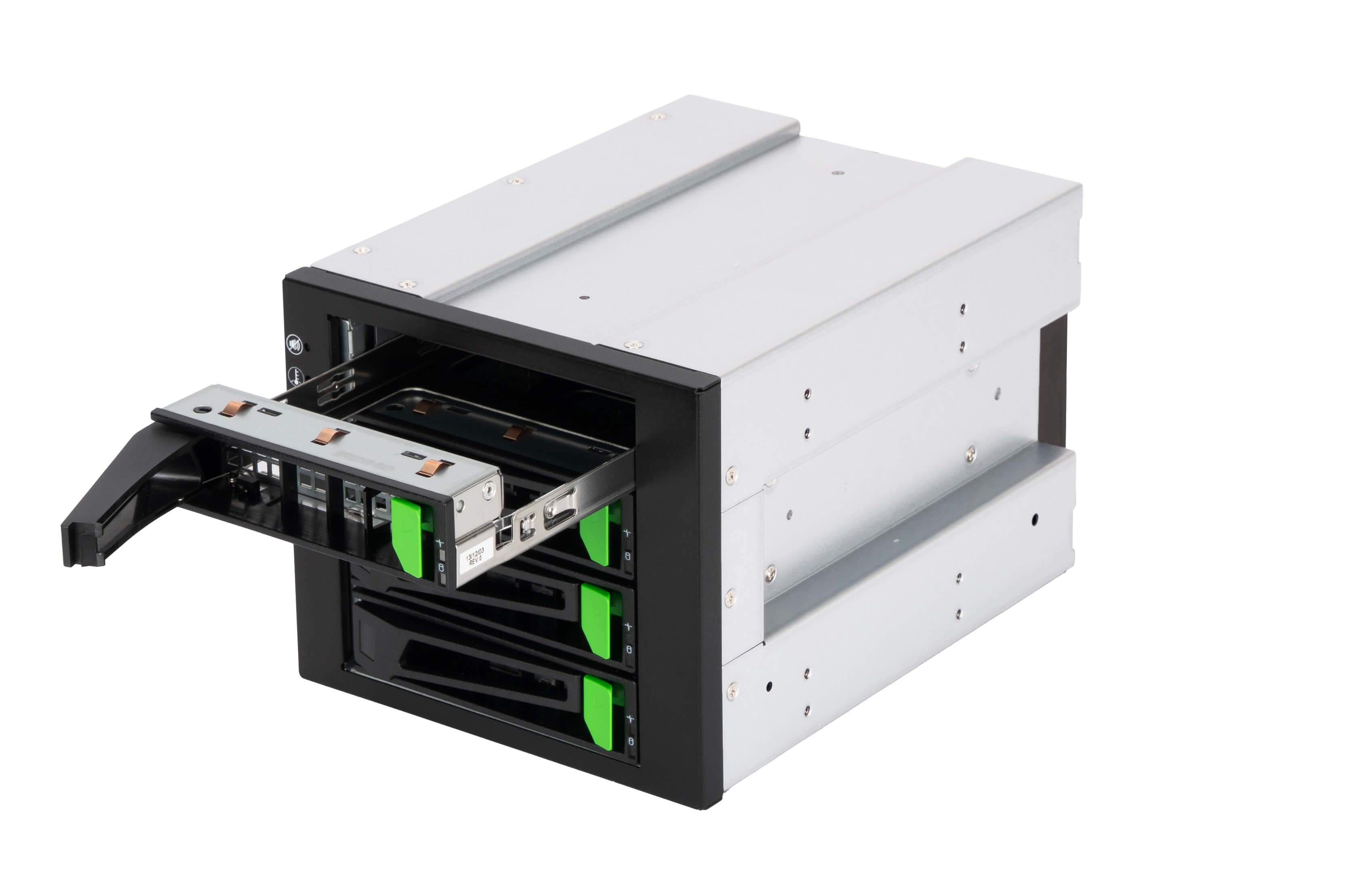

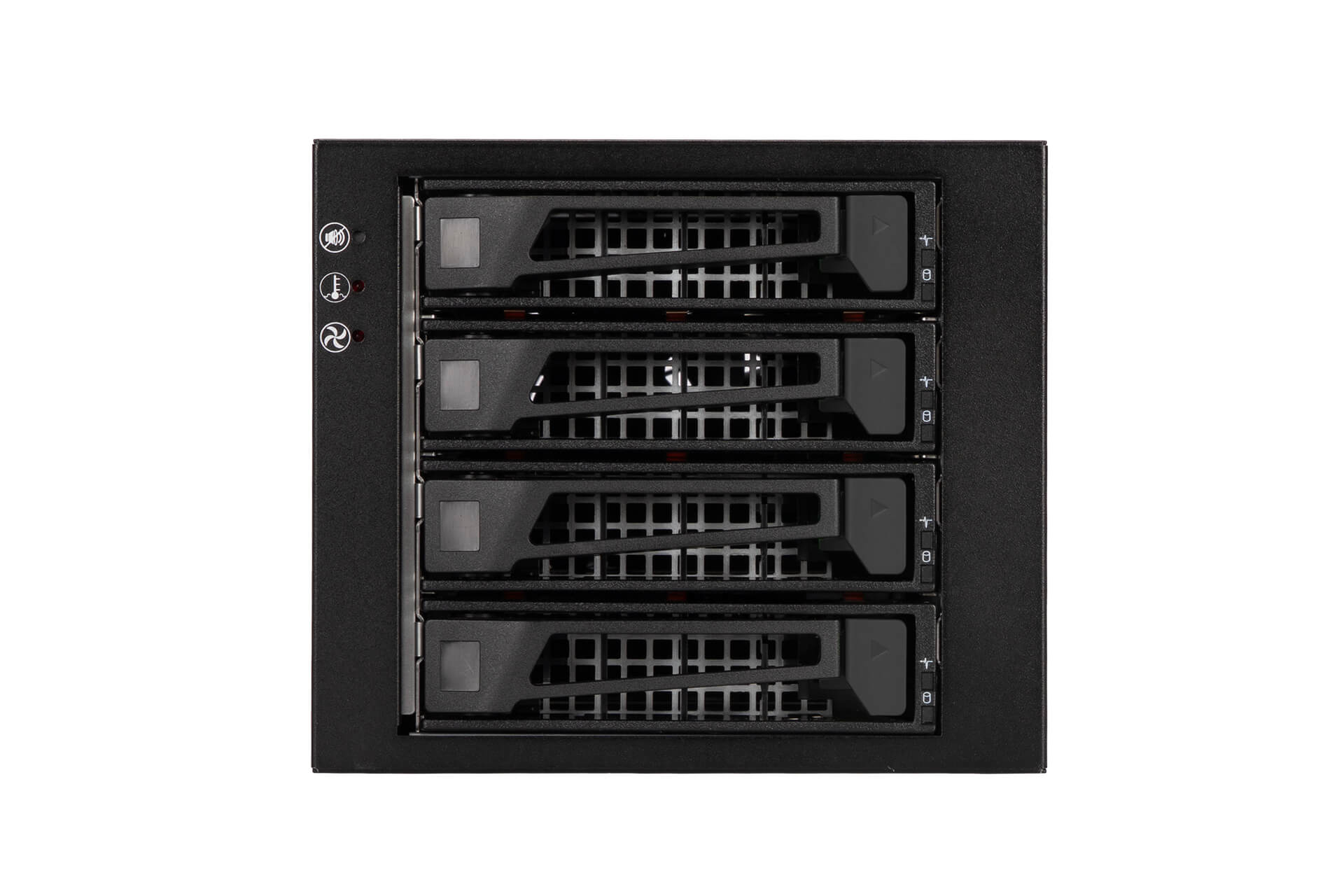

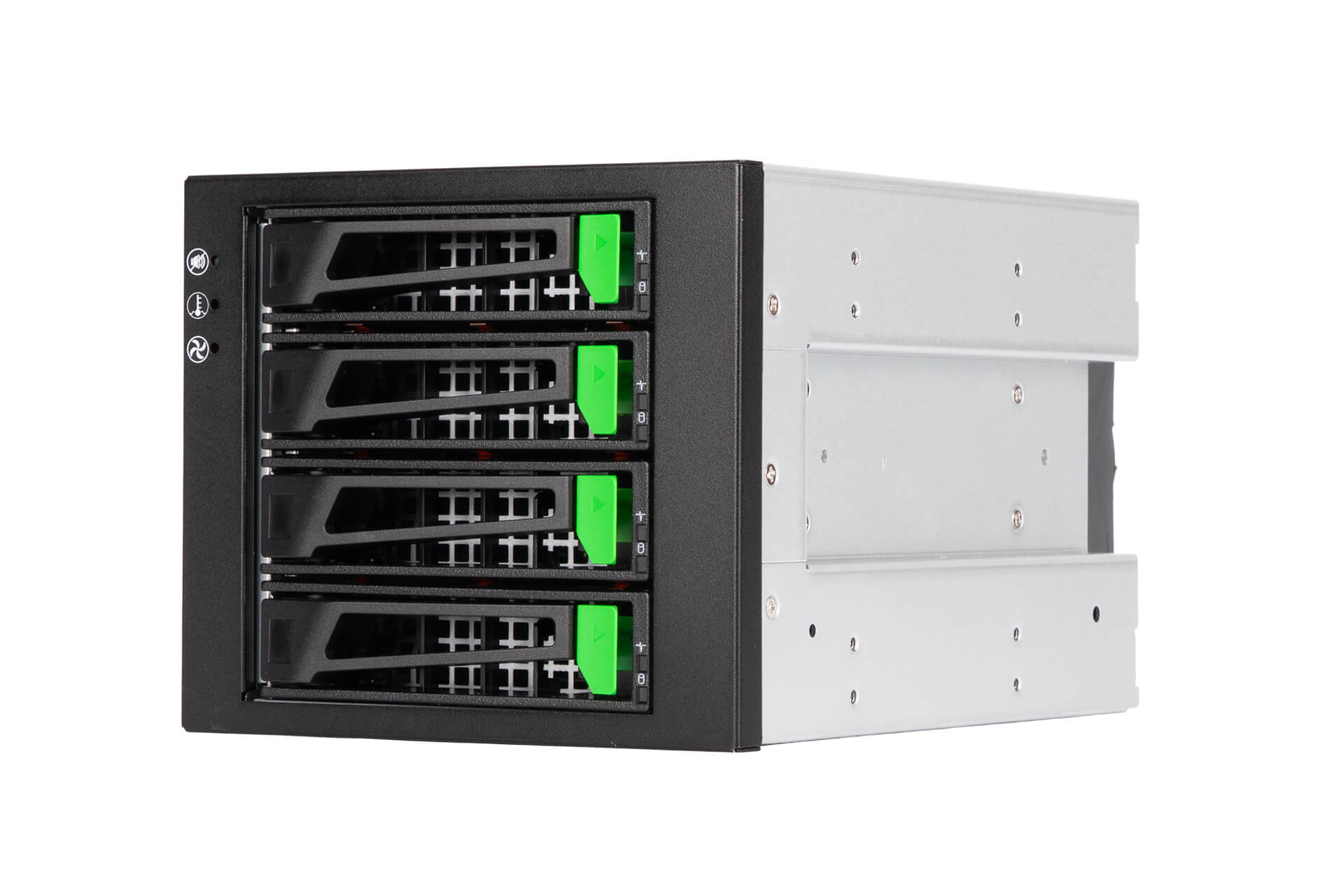

- Designed for standard 5.25" bays, accommodates four 2.5"/3.5" hot-swap trays in three drive bays
- Supports U.2 NVMe, SAS, and SATA HDDs
- Hybrid backplane for PCIe Gen5 and SAS4, featuring MCIO 4i and SlimSAS 4i interface

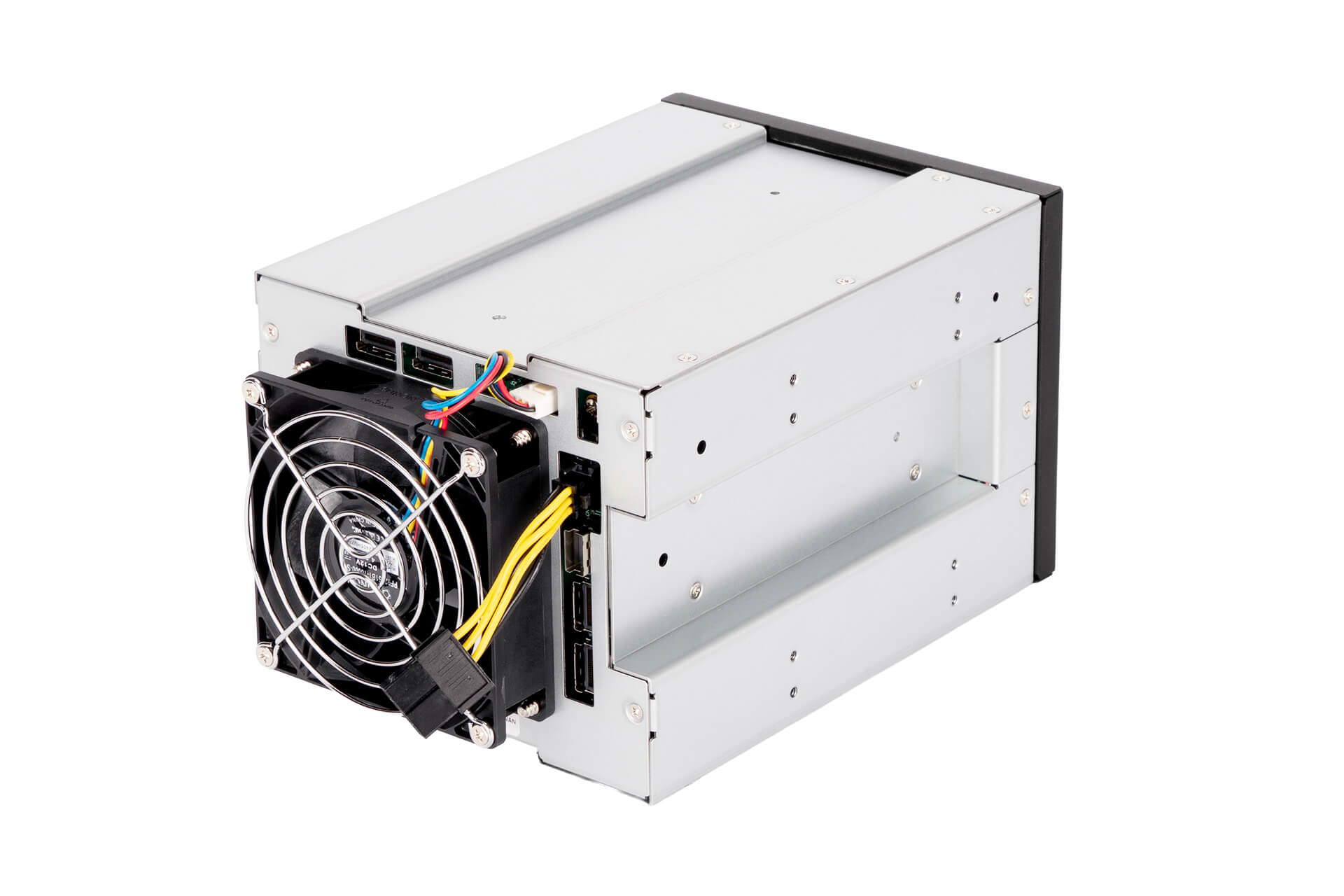

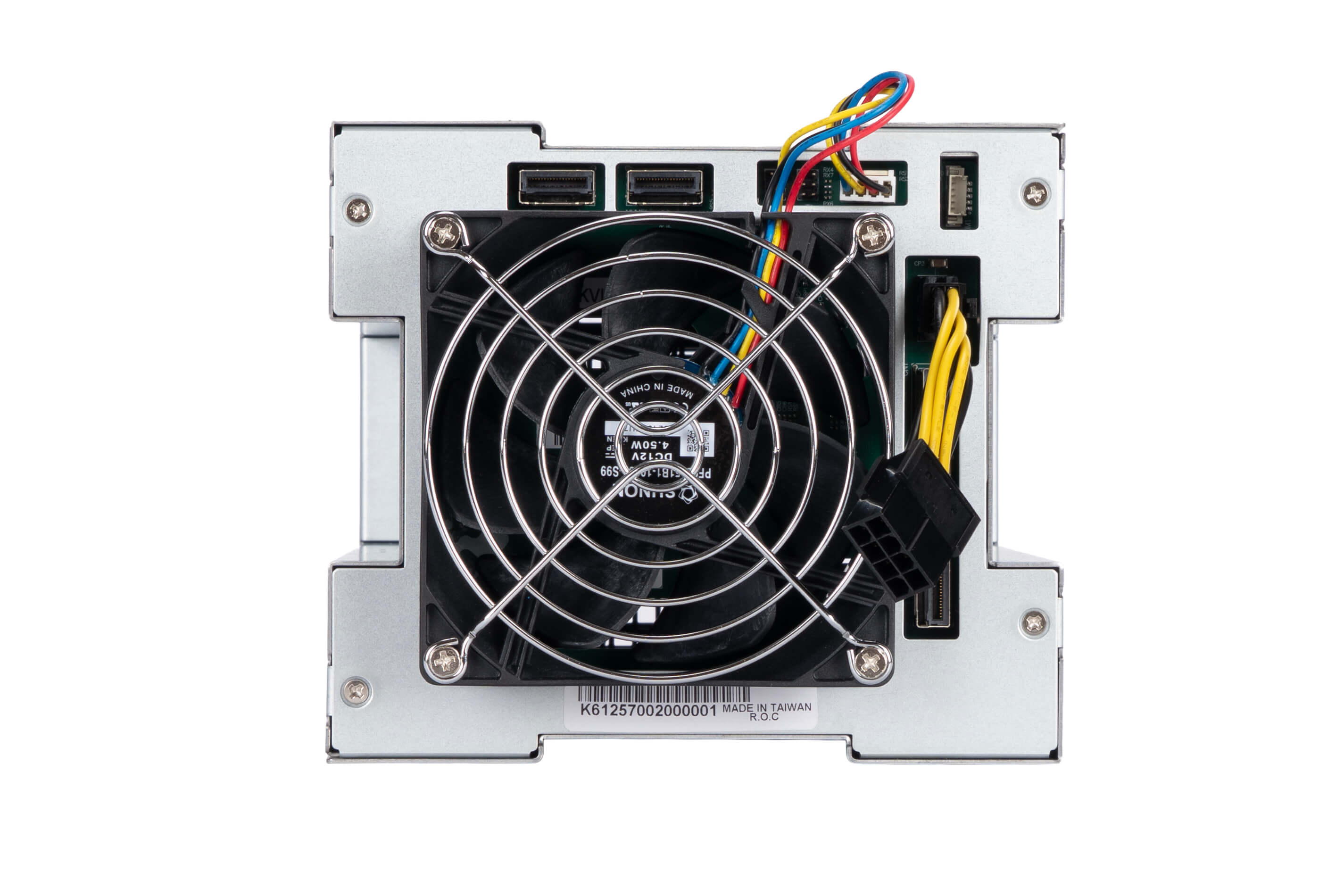

- Detachable 92mm PWM rear cooling fan for easy replacement and maintenance
- The front indicators alert for fan failure or unusual temperature spikes
| Specification | |
|---|---|
| Drive Bay | External 2.5"/3.5" hot-swap trays x 4 (supports U.2 NVNe/SAS/SATA drives) |
| Indicators | Fan failure, temperature spikes |
| Front Control Panel | Alarm mute |
| Backplane | • Host: MCIO 4i x 4, SlimSAS 4i (SFF-8654) x 1 for SAS/SATA transfer rates • HDD: NVMe/SAS/SATA HDD x 4 |
| Data Transfer Rate | SAS4 24Gb/s PCIe Gen5 32GT/s |
| Cooling Fans | 92 x 25mm PWM easy-swap fan x1, 4500RPM |
| Temperature | 0°C (32°F) ~ 50°C (122°F) |
| Humidity | 5% ~ 95% non-condensing |

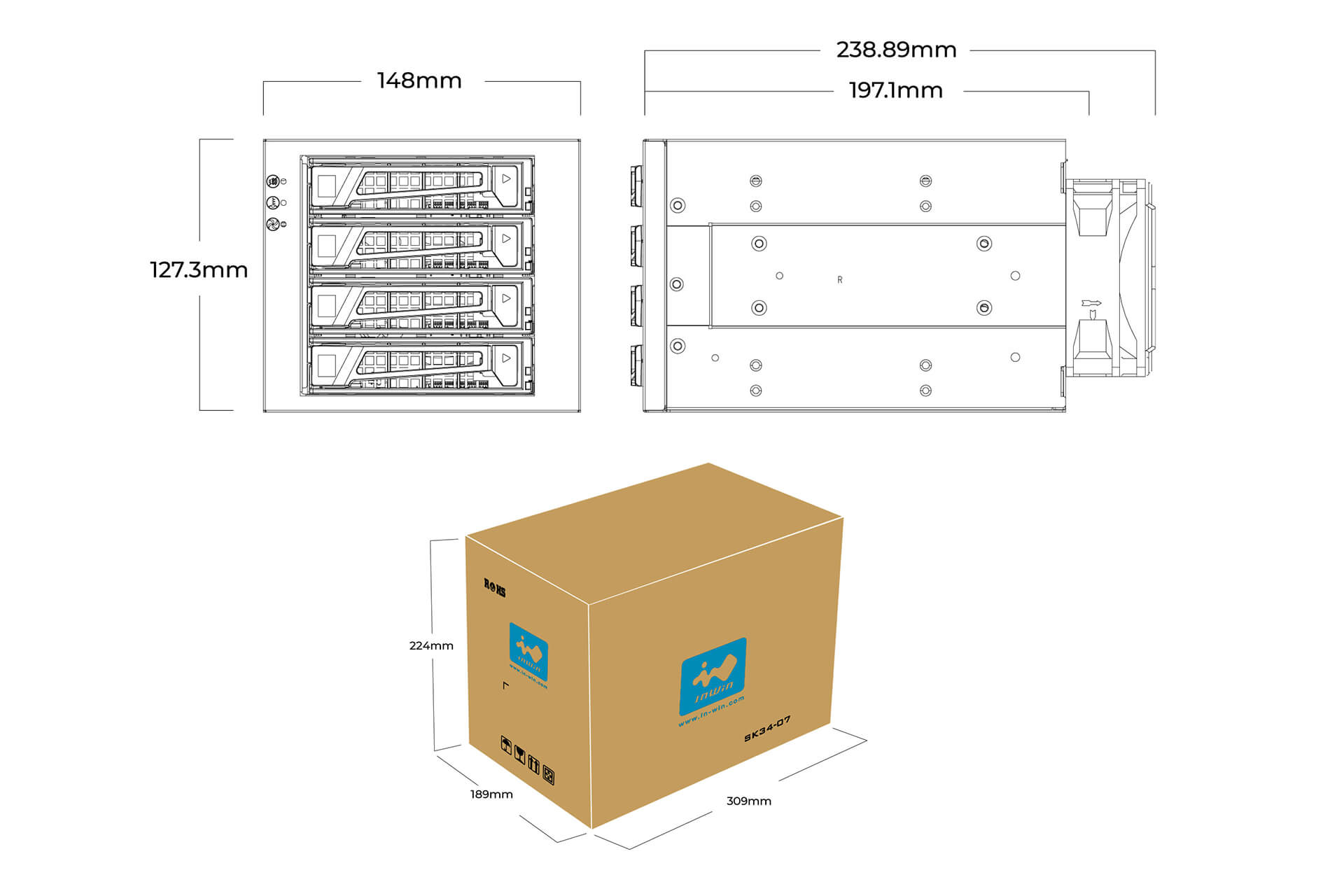

| Product Dimensions (DxWxH) | 238.89 x 148 x 127.3mm (9.4 x 5.8 x 5") |
| Package Dimensions (DxWxH) | 189 x 309 x 224mm |
| Weight | • Net weight:2.93 kg • Gross weight: 3.33kg |
Backplane Specification
| Backplane | SAS4 & PCIe Gen5 hybrid backplane |
| Dimension (W x H) | 111.5mm x 111.5mm |
| Backplane Type | Passive |
| Host Interface | MCIO 4i x 4, SlimSAS 4i (SFF-8654) x 1 for SAS/SATA transfer rates |
| HDD Interface | NVMe/SAS/SATA HDD x 4 |
* InWin NVMe backplane supports PCIe Gen5 data transfer speed, the actual speed will be determined by MB and HDD specifications.
* All components and optional parts are not included. In Win Development Inc. reserves the right to make final modifications.
* All components and optional parts are not included. In Win Development Inc. reserves the right to make final modifications.
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| HDD Tray | 2RAKPH074600 | 2.5"/3.5" hot-swap HDD tray (black color with NVMe symbol) | Max.4 |
|
| HDD Tray | 2RAKPH075300 | 2.5"/3.5" hot-swap HDD tray (black color) | Max.4 |
|

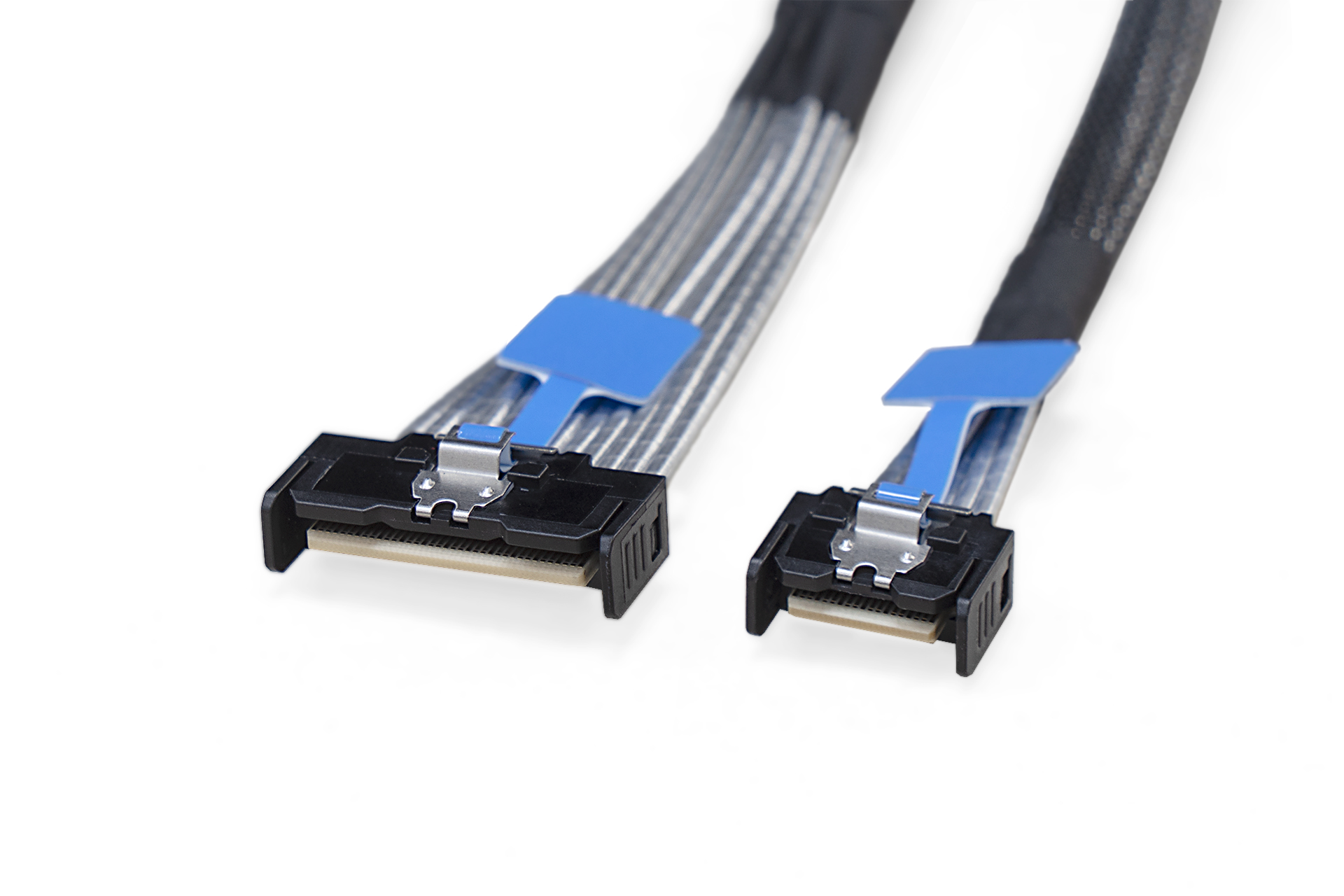

| Cable | 3RAMW6005400 | MCIO 8i to MCIO 2 x 4i 500 mm cables | Max. 2 |
|

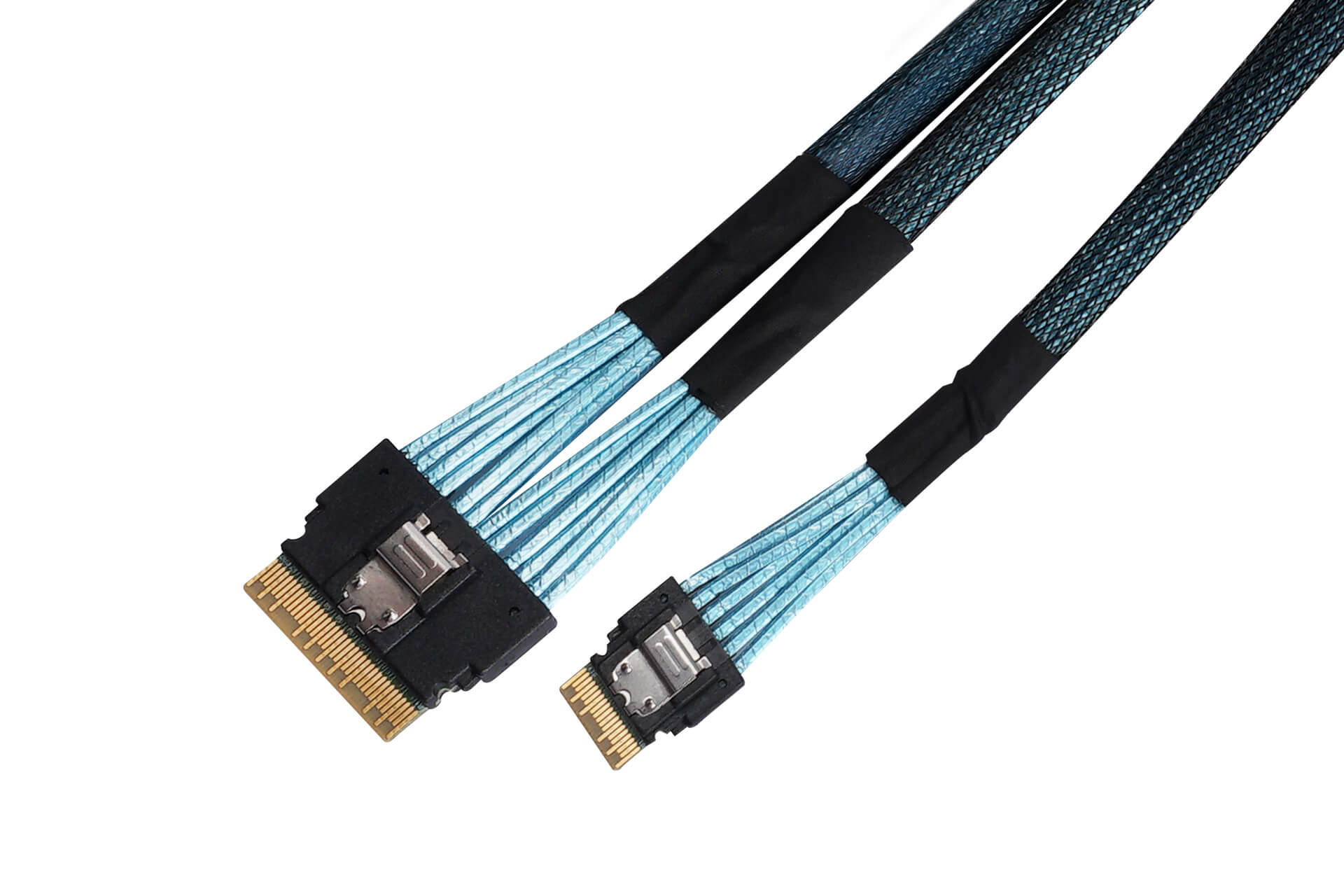

| Cable | 3RAMW4092200 | Slimline 8i to Slimline 2 x 4i 600 mm cable | Max.1 |
|
| Air Duct | 3RAM95279701 | Air Duct for 2.5" Hot-swap HDD Trays *Product included | Max.4 |
