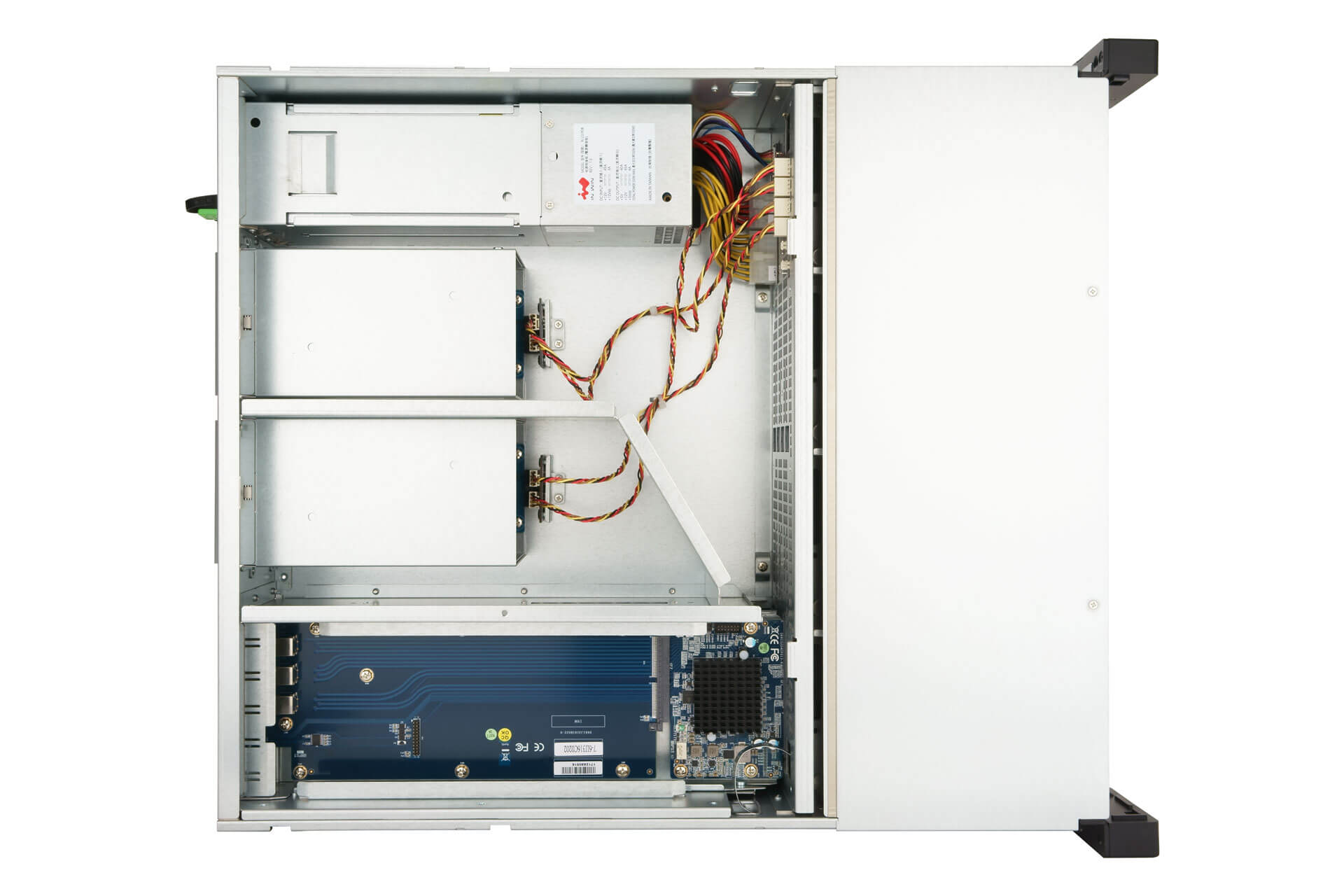

IW-RJ316-04
3U JBOD

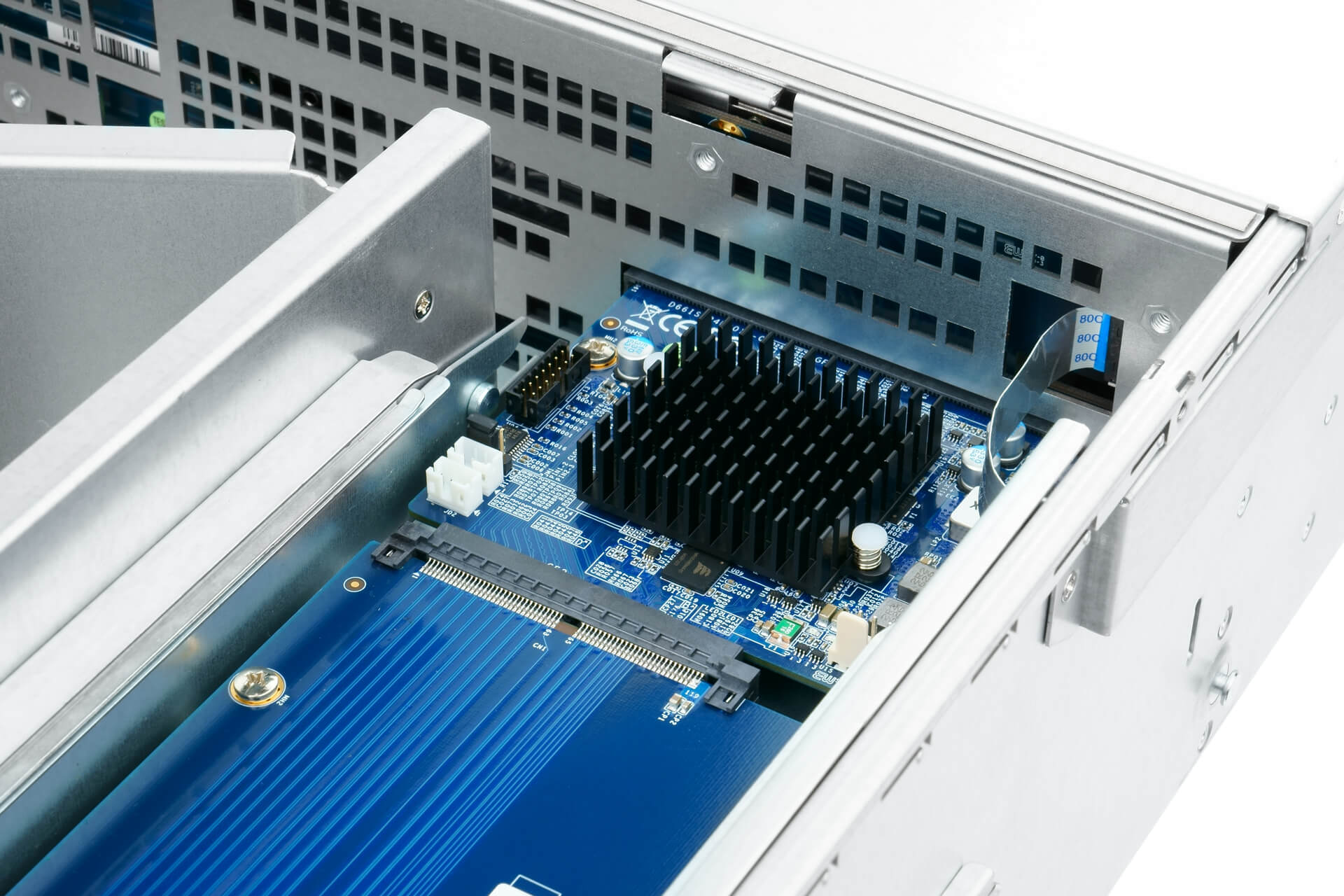

．Supports SAS 12G / SATA 6G via dual / single expander
．GUI supports via ethernet board
．Tool-less design for 3.5-inch HDD carrier
．Designed for high scalability and availability in storage applications
．Supports SES-2 (SCSI enclosure service)
．Low maintenance and serviceable with FRU designed for expander / fan / power supplies
．Fixed rail included (optional tool-less sliding rail)
．Supports high-efficiency CRPS power supplies
| Specification | |
|---|---|
| Industry Standard | EIA-RS310D |
| Storage | External hot-swap 3.5" x 16 (SAS 12Gb/s) |
| Maximum Capacity | Up to 128 TB (Cascades to 3 enclosures with 48 HDDs, including 1 host server) |
| Power Supply | Supports: • Form Factor: 80 Plus Platinum CRPS redundant • Watt: 550W |
| 12G Expander Module | 1 or 2 |
| Cooling Fans | 80 x 38mm PWM x 4 |
| Host/Expansion Port | 3 x Mini SAS HD (SFF-8644) for each 12G expander module |
| Management | Smart fan, thermal monitor, HDD monitor, voltage monitor, alarm warning |
| SES | Supports SES-2 (SCSI enclosure service) |
| Maintenance | Supports management by ethernet and RS-232 |
| HDD Power Management | HDD sequential power on |
| Temperature | 0ºC to 35ºC |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | • Fixed rail included • 20" tool-less & ball-bearing slide rail (optional) |
| Product Dimensions (DxWxH; Chassis Only) | 520.7 x 482.6 x 131mm (20.5" x 19" x 5.25") |
| Package Dimensions (DxWxH) | 760 x 610 x 286mm |
| Weight | • Net weight: 18.4kg • Gross weight: 21.9kg |
| Cubic Feet | 4.68 |
| Container Information | Single packing with pallets: • 20': 132pcs • 40': 276pcs • 40' HQ: 322pcs |
* The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make any final modifications.
* The above image is for reference only. All hardware components and optional parts are not included.
* The above image is for reference only. All hardware components and optional parts are not included.
| Item | Download | Preview |
|---|---|---|
| IW-RJ316-04 Compatibility | ||
| IW-RJ316-04 User Manual | ||
| IW-RJ316-04 Gallery | - | |
| IW-RJ316-04 eDM |
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|

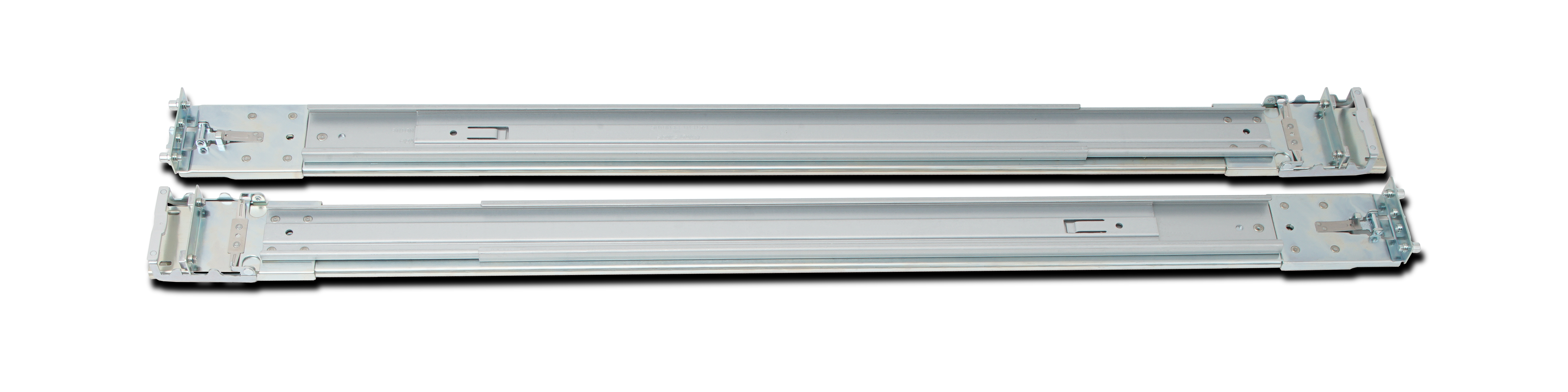

| Slide Rail | 3RAMIS133100 | 20" tool-less & ball-bearing slide rail | 1 |
|

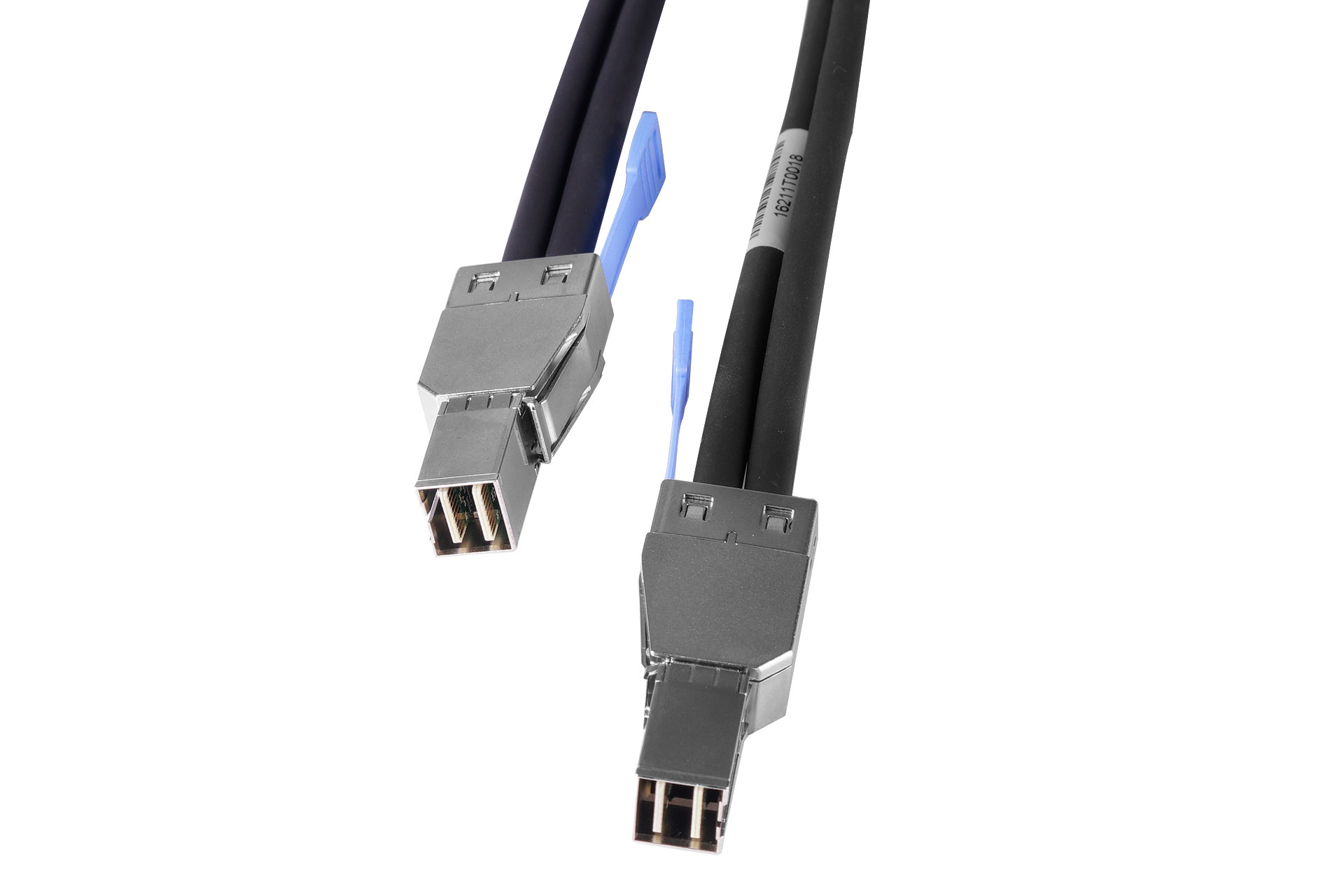

| Cable | 3RAMW4031600 | Mini SAS 12G cable SFF-8644 to SFF-8644, length 1000mm | 1 |
|
| HDD Tray | 2RAKPH031100 | Optional tray for 3.5" & 2.5" HDDs by using screws to fix | 1 |
|
| Others | 2RAKID057600 | SAS expander module | Max.2 |
